- 1. Challenging perceptions, helpingchange your world Jacqueline Walpole – Company Product Manager COMING UP BIM4FM – CAFM and BIM
- 2. Jacqueline Walpole SCOPE About CAFMor IWMS… What does it do? Where does BIM fit in? Some benefits of BIM for FM and how to achieve these
- 3.
- 4. CAFM/IWMS Help Desk Asset Management Statutory H&S Mechanical & Electrical Cleaning Visitor Services SecurityCatering Spares & Stock Control Contract Management Utilities Real Estate Services Leases& Rent Purchasing & Invoicing Document Management Space Management Facilities Bookings Recharging Move Management AV Equipment Hot Desks Rooms, Parking Crèche PPMs PFI Contracts Performance & Availability Deductions, Ratcheting & Capping
- 5. SMART BUILDINGS FSI GLOBAL:Challenging perceptions, helping change your world 55 REAL TIME FACILITIES BOOKING, OCCUPANCY & SPACE MANAGEMENT HR & COMMUNICATIONS EXCHANGE SERVER REAL TIME FINANCE SYSTEM INTEGRATIONS INTELLIGENT LIGHTING SENSING SYSTEMS BMS CONTROL SYSTEMS INTEGRATION Workflow Pro REAL TIME INTEGRATION SMART METERING ENERGY & WATER EFFICIENCIES LIFECYCLE ANALYSIS SECURITY & ACCESS CONTROL SYSTEMS WITH VISITOR MANAGEMENT RESOURCE PLANNING & SCHEDULING TRIGGERED BY DATA FEEDS WEATHER & TRAFFIC BIM SENSORS & IOT WITH ARTIFICIAL INTELLIGENCE

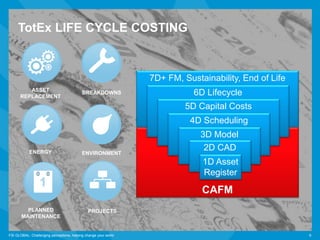

- 6. DATA TRANSFER &TRANSFORMATION FSI GLOBAL: Challenging perceptions, helping change your world 6 Concept Workflow processes creation transformation mapping Sites Buildings Floors Locations Systems Assets PPM Schedules Asset Structure & Categorisation Preferred Language Mapping Maintenance Regimes Mapping tables and data structure rules TotEx LIFE CYCLE COSTING BREAKDOWNSASSET REPLACEMENT ENERGY PLANNED MAINTENANCE 1 PROJECTS ENVIRONMENT 7D+ FM, Sustainability, End of Life CAFM 6D Lifecycle 5D Capital Costs 4D Scheduling 3D Model 2D CAD 1D Asset Register
- 7. “OBVIOUS” BENEFITS OFBIM FSI GLOBAL: Challenging perceptions, helping change your world 7 USEFUL INFORMATION AVAILABLE IN ADVANCE ACCESSIBLE FORMAT WHAT YOU WANT WHEN YOU WANT IT HOW YOU WANT IT BUT FMs NEED TO DEFINE
- 8. Q: What EIRs dowe need for FM?
- 9. FSI GLOBAL: Challengingperceptions, helping change your world 99 BIM for CAFM IMPLEMENTATION BIM PROTOCOL & STRATEGY BS/PAS1192Parts1to4(or5)
- 10. FSI GLOBAL: Challengingperceptions, helping change your world 1010 DATA EXCHANGE OPTIONS BIM Authoring Software COBie xml CHANGE CONTROL Publish updates Publish AIM Select data feedback Webservice APIs View merged data FM AIM
- 11. FSI GLOBAL: Challengingperceptions, helping change your world 1111 COBie DATA IMPORTING Facility TypesFloorsZones Spaces Systems Components Locations within Buildings Assets Site/Building Spares Jobs Resources Operational(?) ConnectionsAttributes Documents ContactsImpact Issues Coordinates
- 12. HOW CAN YOUACHIEVE THIS? WRITE YOUR RULES > MAPPING TABLES + WORKFLOW Asset Classification/ Categorisation Rules Asset System/Grouping Hierarchy Rules Maintenance & Inspection Regimes Maintenance Regime – Instructions or Inspections Frequency/Type/Group Floors Building/Floor/Area/ Location/Individual e.g. Asset Group/Type/ Detail mapped to Uniclass (1.4 or 2) or Omniclass e.g. Map BIM Floor entities to Floors in CAFM/Space FMs need to add Contract details KPIs & SLAs PFI Core Values Security Views Asset Management Strategy

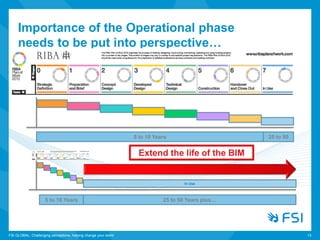

- 13. Importance of theOperational phase needs to be put into perspective… FSI GLOBAL: Challenging perceptions, helping change your world 13 5 to 10 Years 25 to 50 5 to 10 Years 25 to 50 Years plus… In Use Extend the life of the BIM
- 14. IMPROVING EXPERIENCE BENEFITS OFKEEPING YOUR BIM LIVE FSI GLOBAL: Challenging perceptions, helping change your world 14 ACCESSIBLE INFORMATION YOUR BUILDING REFERENCE DATA FOR OCCUPIERS & VISITORS VISUALISING THE WORKPLACE SINGLE VERSION OF THE TRUTH IN THE HANDS OF THE RIGHT PEOPLE SAVING TIME & MONEY IMPROVING ACCURACY
