1. Christian Amor Kvalheim (MongoDB Staff Engineer)
From SQL to
MongoDB
How to get from A to B in a
reasonably ordered fashion

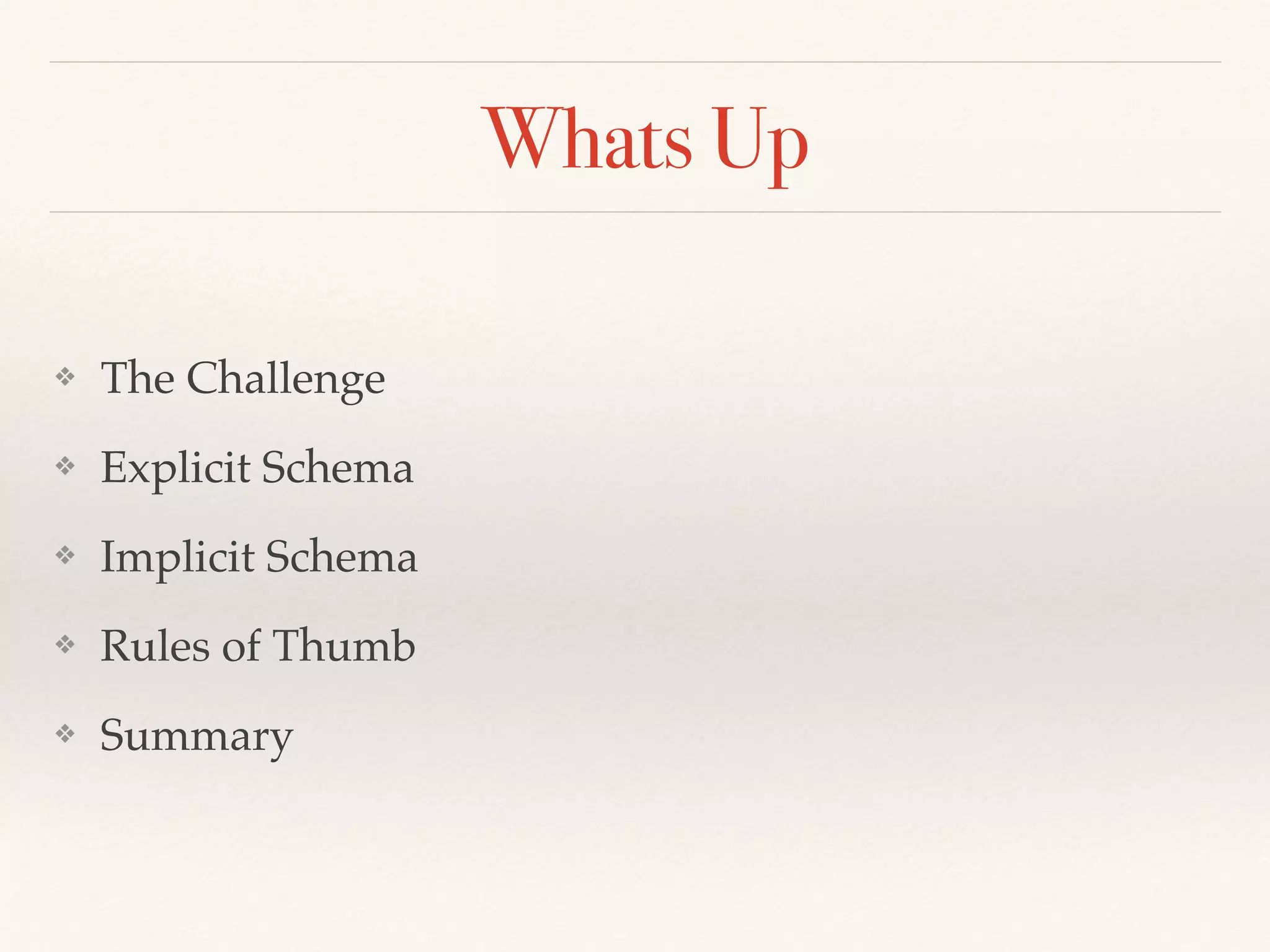

2. Whats Up
❖ The Challenge
❖ Explicit Schema
❖ Implicit Schema
❖ Rules of Thumb
❖ Summary

3. The Challenge
Take an existing SQL Schema
and pick an Appropriate
MongoDB Schema

4. Our Example SQL Schema

5. Explicit Schema
❖ Table structure definition
❖ Primary Key definition
❖ Foreign Key relationships
❖ 1:n
❖ 1:1
❖ n:m

6. Implicit Schema
❖ The SQL Schema as expressed by the following
operations and their associated metadata
❖ Insert operation
❖ Update operations
❖ Select Operations
❖ Join relationships

7. With Explicit Schema Only

8. Relationships
1
n
1
n
n
1
1
n
1
n
1
n
1
n
1 n

9. No duplication of Data
1
n
1
n
n
1
1
n
1
n
1
n
1
n
1 n

10. Collections
❖ Customers
❖ Payments [array]
❖ Orders
❖ Orderdetails
❖ Employees
❖ Products
❖ Productlines
❖ Offices

11. What if we allow duplication ?
1
n
1
n
n
1
1
n
1
n
1
n
1
n
1 n

12. Collections
❖ Customers
❖ Payments [array]
❖ Orders
❖ Orderdetails [array]
❖ Products [document]
❖ Productlines [document]
❖ Offices
❖ Products
❖ Productlines

13. Important Notes
❖ Foreign Key Relationship in most cases are not
representative of application level queries
❖ Cannot discover the degree of mutability looking at the
SQL in isolation
❖ Cannot know how the average sizes of n in the 1:n
relationships

14. Implicit Schema

15. Implicit Schema
❖ The Implicit Schema represents the SQL operations
executed against the relational schema (Application
Schema)
❖ Can vary hugely from the foreign key relationships
❖ Expresses read/vs write ratios for tables
❖ Can be used to deduct entity mutability
❖ Can be used to estimate n in the 1:n relationships

16. Example - SELECT
❖ SELECT * FROM orders, orderdetails, products WHERE
…. [1000]
❖ SELECT * FROM offices, employees WHERE … [100]
❖ SELECT * FROM productlines, products WHERE … [2000]
❖ SELECT * FROM products WHERE … [4000]
❖ SELECT * FROM employees, customers WHERE … [200]
❖ SELECT * FROM customers, orders WHERE … [200]

17. What We Can Learn
❖ The frequency of the SQL operations
❖ The Application Schema relationships studying the join
relationships.
❖ If the logs include the number of rows returned we can
make estimates for the size of n in the 1:n relationships
❖ We can also calculate the rate of growth of the n over
time

18. 1
~5 (+1 every 100 min)
1 ~12
1
1
1
~10001
~15
1
~10
1
~20
1
~6

19. Example - INSERT/UPDATE
❖ INSERT (…) VALUES (…) INTO orders
❖ INSERT (…) VALUES (…) INTO order details
❖ UPDATE … orders WHERE orderNumber = 1

20. Data Islands

21. ❖ Single Item Mutability Rate (SIMR)
❖ How much an entity mutates in a given time period
❖ A low mutation rate
❖ Entity reaches a stable state and is a good candidate for rolling up
into a single document
❖ Duplication of data is ok as the document is a snapshot in time
❖ A high mutation rate
❖ Entity does not reach a stable state and keeps mutating and might
not be a good candidate for rollup
Single Item Mutability Rate

22. ❖ Order life span example
❖ An order gets created at T=0
❖ 10 order details are created at T+1
❖ Order is filled and order record updated T+10
❖ Order is shipped and order record updated T+15
❖ Past T+15 there are no more mutations
Order Life Span Example

23. Order Life Span Example
T
T = 0
Order
Created
T = 1
Added
10
Order Details
T = 10
Order
Fulfilled
T = 15
Order
Shipped

24. 1
~5
1 ~12
1
1
1
~10001
~15
1
~10
1
~20
1
~6

25. ❖ Customer[1:n] -> Payment relationship
❖ A payment created at T=5, T=50
❖ Customer[1:n] -> Orders
❖ An order created at T=0, T=15, T=20, T=45
❖ Unbound Relationships
Customer Life Span Example

26. Customer Life Span Example
T
T = 0
Order
Created
T = 1 T = 5
Payment
Created
T = 15
Order
Created
Order
Created
T = 20
Order
Created

27. 1
1 ~12
1
1
1
~10001
~15
1
~10
1
~20
1
~6
~5 (+1 every 5 days)

28. ❖ The recursive relationship for Employees makes it
unsuitable for rolling up
❖ The same recursive relationship also affects the offices-
>employees relationship
❖ The ProductLines -> Products relationship are big and
possibly unbound
And The Rest ?

29. Rules of Thumb

30. 1. SQL Schema + Foreign Key Relationships
❖ Only have the Explicit Relationships and Table
definitions
2. SQL Operations Logs (mysql general log)
❖ Contains only SQL operations (no result set size)
3. Full SQL Operations Logs (mysql slow log)
❖ Contains SQL operations (result set size, latencies)
Levels Of Information

31. 1. Use Selects with Joins to draw the new relationship
2. Establish the average n join relationship
3. Establish the mutation rate of over time
❖ Does the relationship go static ?
❖ Are the relationships unbound ? (growing n)
Analysis Steps

32. 1. Roll up relationships
1. If entity relationship reaches a static state
2. If the rate of growth of n is slow enough for the relationship to be
static (analyst discretion)
2. Don’t rollup relationships
1. If the rate of mutability is high
2. If the average size of n is huge
3. If the mutation rate of the entity is large
4. If an entity has a recursive relationship
Algorithms

33. Applying It

34. 1
1 ~12
1
1
1
~10001
~15
1
~10
1
~20
1
~6
~5 (+1 every 5 days)
Collapsing, Duplicating
Products and Productlines

35. 1
1 ~12
1
1
1
~10001
~15
1
~10
1
~20
1
~6
~5 (+1 every 5 days)
Collapsing, Duplicating
Products and Productlines
Collapsing
Payments into
Customers as never
queried separately

36. Collections
❖ Customers
❖ Payments [array]
❖ Orders
❖ Orderdetails [array]
❖ Products [document]
❖ Productlines [document]
❖ Offices
❖ Products
❖ Productlines

37. What’s Cooking

38. 1. We are working on building tooling to help
1. Analyze your relational schema
2. Propose schema recommendations
3. Load and transform your data
2. Push the whole subject of schema transformation
forward doing something never done before
Tooling

39. 1. Are Operation Latencies important for recommending
a Schema ?
2. Can one quantify a schema recommendation (is
recommendation A better than B and if, then why ?)
3. Can Machine Learning produce better
recommendations ?
4. … etc etc
Tons of Open Questions

40. Are you ready to build a new team, to build a brand new product, and to create
a whole new category of products for the most popular NoSQL database?
MongoDB, the leader in NoSQL databases is building a new team in Dublin.
This team will develop products that help our customer adopt our technology
by analyzing their legacy relational systems. We need someone who is going to
participate in the research, partner with our staff engineers who are
prototyping solutions, write production ready code, and build a team.
This person will report to the Director of Integrations at MongoDB.
Come Work With Us
