1. From SAP to app using Rhomobile
Mark Teichmann, Info AG
© INFO AG | 13 May 2012 | page 1

2. Mobile Application Development Platforms
What is a MADP?
=> Suite of products and services that enable development of
mobile applications
Typical Features
• Cross-platform support
• Middleware for Data Sync, Security, App Provisioning
• Graphical Editor / Code generation
© INFO AG | 13 May 2012 | page 2

3. Mobile Application Development Platforms
Overview of well known Vendors
• Antenna Software
• Appcelerator
• IBM Worklight
• Kony Solutions
Rhomobile
• Rhomobile
• Sybase Unwired Platform
• Syclo (will be merged into Sybase Unwired Platform)
• Verivo
• …
© INFO AG | 13 May 2012 | page 3

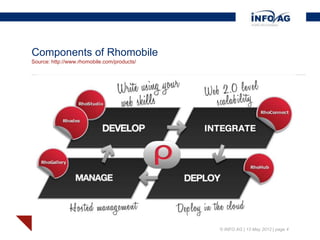

4. Components of Rhomobile
Source: http://www.rhomobile.com/products/
© INFO AG | 13 May 2012 | page 4

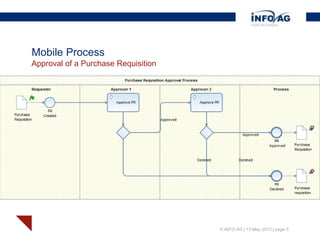

5. Mobile Process
Approval of a Purchase Requisition
© INFO AG | 13 May 2012 | page 5

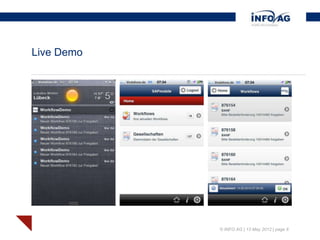

6. Live Demo
© INFO AG | 13 May 2012 | page 6

7. Livedemo continued…
© INFO AG | 13 May 2012 | page 7

8. Livedemo continued…
© INFO AG | 13 May 2012 | page 8

9. Components of Rhomobile
• Design mobile apps using Ruby and Eclipse
• Synchronize data with backend systems
• Build apps for all platforms in the cloud
© INFO AG | 13 May 2012 | page 9

10. Rhodes
• Open Source Framework for building mobile applications
• Ruby MVC
• Rhom Database Object Mapper
• UI is HTML5/CSS/JS
• Rendered in native browser app
• Available for Android, iOS, Blackberry, Windows Phone
© INFO AG | 13 May 2012 | page 10

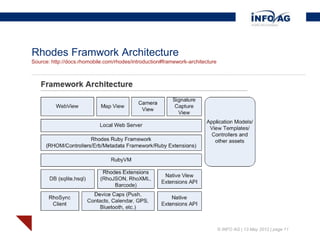

11. Rhodes Framwork Architecture
Source: http://docs.rhomobile.com/rhodes/introduction#framework-architecture
© INFO AG | 13 May 2012 | page 11

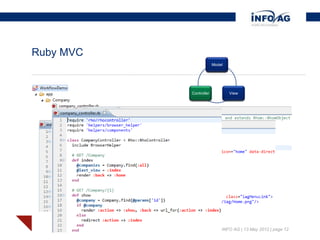

12. Ruby MVC
Model
Controller View
© INFO AG | 13 May 2012 | page 12

13. Rhom
Mini Database Object Mapper
• Easy data handling
• No database schema
• No data migrations needed
• Data model extendable by code
© INFO AG | 13 May 2012 | page 13

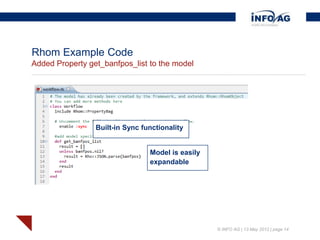

14. Rhom Example Code
Added Property get_banfpos_list to the model
Built-in Sync functionality
Model is easily
expandable
© INFO AG | 13 May 2012 | page 14

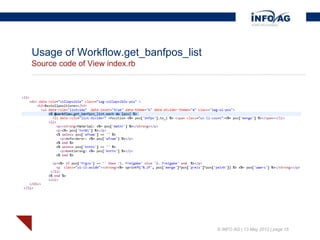

15. Usage of Workflow.get_banfpos_list
Source code of View index.rb
© INFO AG | 13 May 2012 | page 15

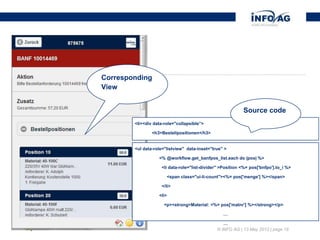

16. Corresponding
View
Source code
<li><div data-role="collapsible”>
<h3>Bestellpositionen</h3>
<ul data-role="listview" data-inset="true" >
<% @workflow.get_banfpos_list.each do |pos| %>
<li data-role="list-divider" >Position <%= pos['bnfpo'].to_i %>
<span class="ui-li-count"><%= pos['menge'] %></span>
</li>
<li>
<p><strong>Material: <%= pos['matnr'] %></strong></p>
…
…
© INFO AG | 13 May 2012 | page 16

17. RhoConnect
Source: rhomobile.com
© INFO AG | 13 May 2012 | page 17

18. RhoConnect
Data Synchronization with Source Adapters
© INFO AG | 13 May 2012 | page 18

19. Source Adapter for Workflow object
© INFO AG | 13 May 2012 | page 19

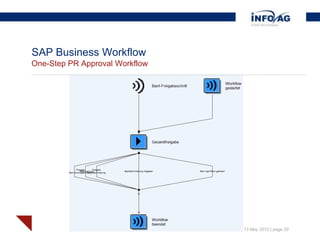

20. SAP Business Workflow
One-Step PR Approval Workflow
© INFO AG | 13 May 2012 | page 20

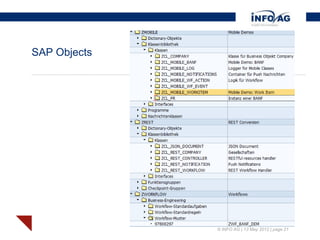

21. SAP Objects
© INFO AG | 13 May 2012 | page 21

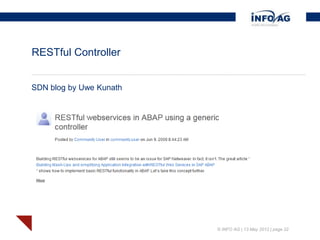

22. RESTful Controller
SDN blog by Uwe Kunath
© INFO AG | 13 May 2012 | page 22

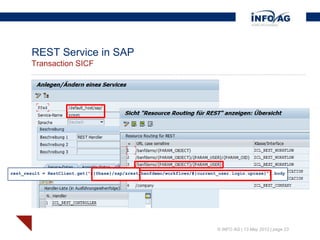

23. REST Service in SAP
Transaction SICF
rest_result = RestClient.get("#{@base}/sap/zrest/banfdemo/workflows/#{current_user.login.upcase}").body
© INFO AG | 13 May 2012 | page 23

24. Workflow document in Browser
© INFO AG | 13 May 2012 | page 24

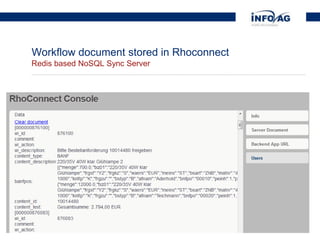

25. Workflow document stored in Rhoconnect
Redis based NoSQL Sync Server
© INFO AG | 13 May 2012 | page 25

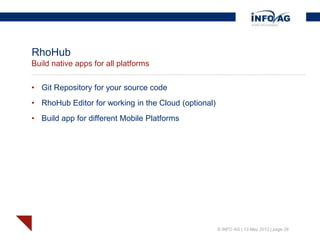

26. RhoHub
Build native apps for all platforms
• Git Repository for your source code
• RhoHub Editor for working in the Cloud (optional)
• Build app for different Mobile Platforms
© INFO AG | 13 May 2012 | page 26

27. © INFO AG | 13 May 2012 | page 27

28. Example iOS Build
© INFO AG | 13 May 2012 | page 28

29. RhoHub Editor
© INFO AG | 13 May 2012 | page 29

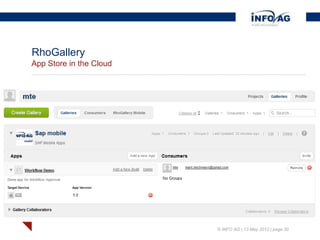

30. RhoGallery
App Store in the Cloud
© INFO AG | 13 May 2012 | page 30

31. Lessons learned
• Learning Ruby is straight forward
• Implementing SAP backend needs manual work
• Documentation of Rhomobile could be better and more up to date
• Good support via Google Group and @adamblum (CEO)
• jQuery Mobile slows apps down -> jqMobi is possible but much
manual work needed
© INFO AG | 13 May 2012 | page 31
