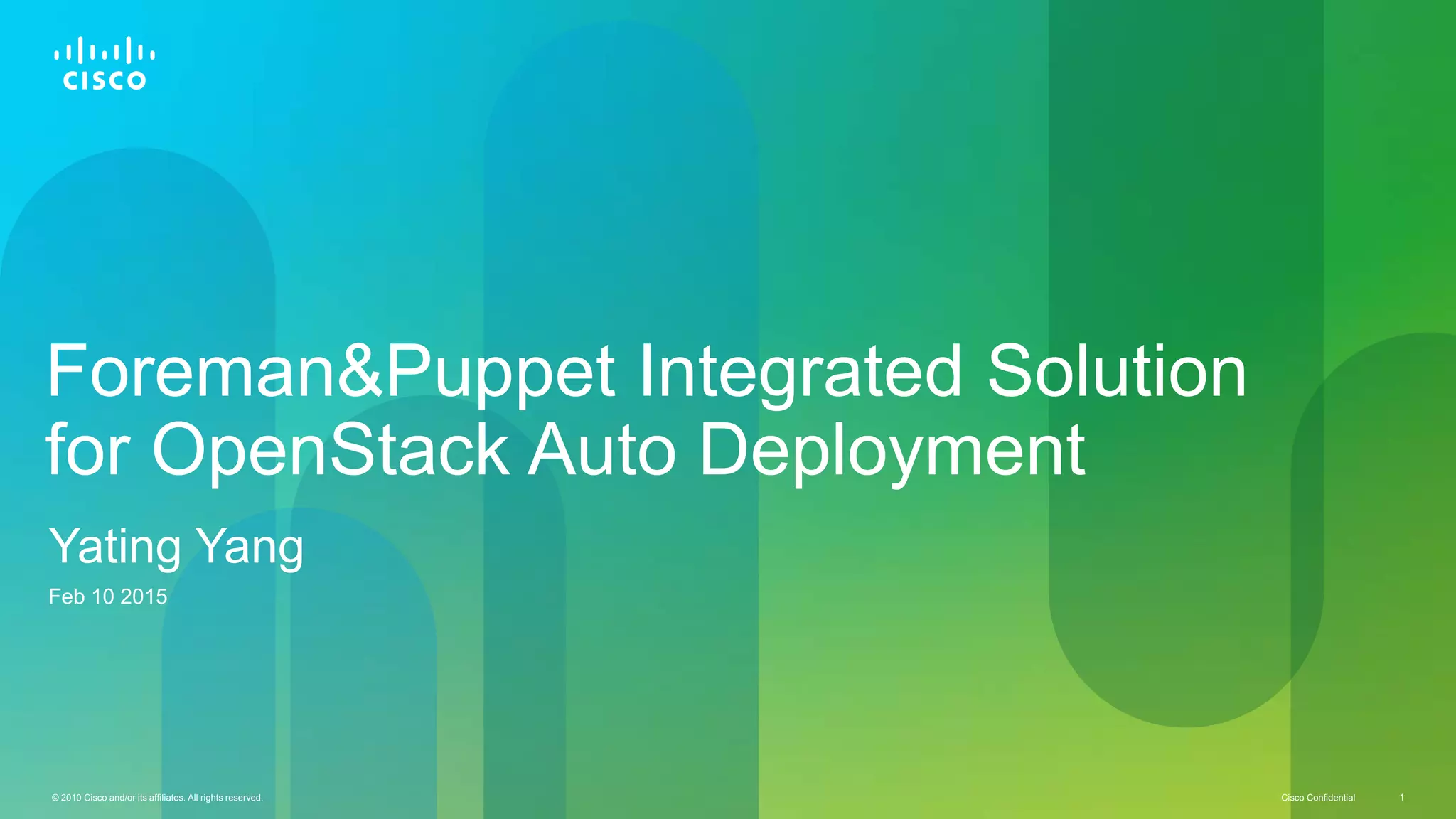

Foreman&Puppet Integrated Solution
for OpenStack Auto Deployment
Yating Yang
Feb 10 2015

2. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2

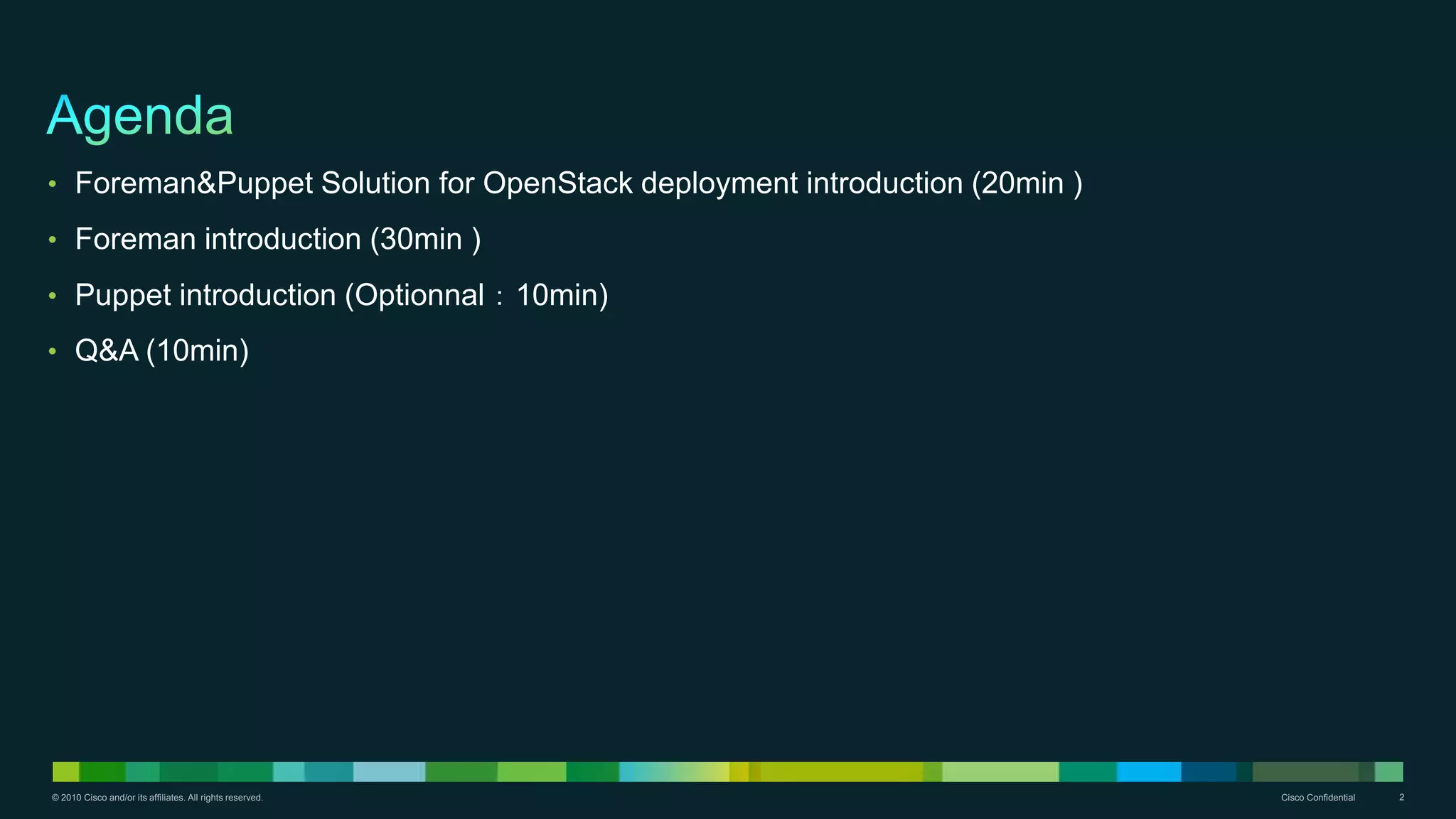

• Foreman&Puppet Solution for OpenStack deployment introduction (20min )
• Foreman introduction (30min )
• Puppet introduction (Optionnal：10min)
• Q&A (10min)

3. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

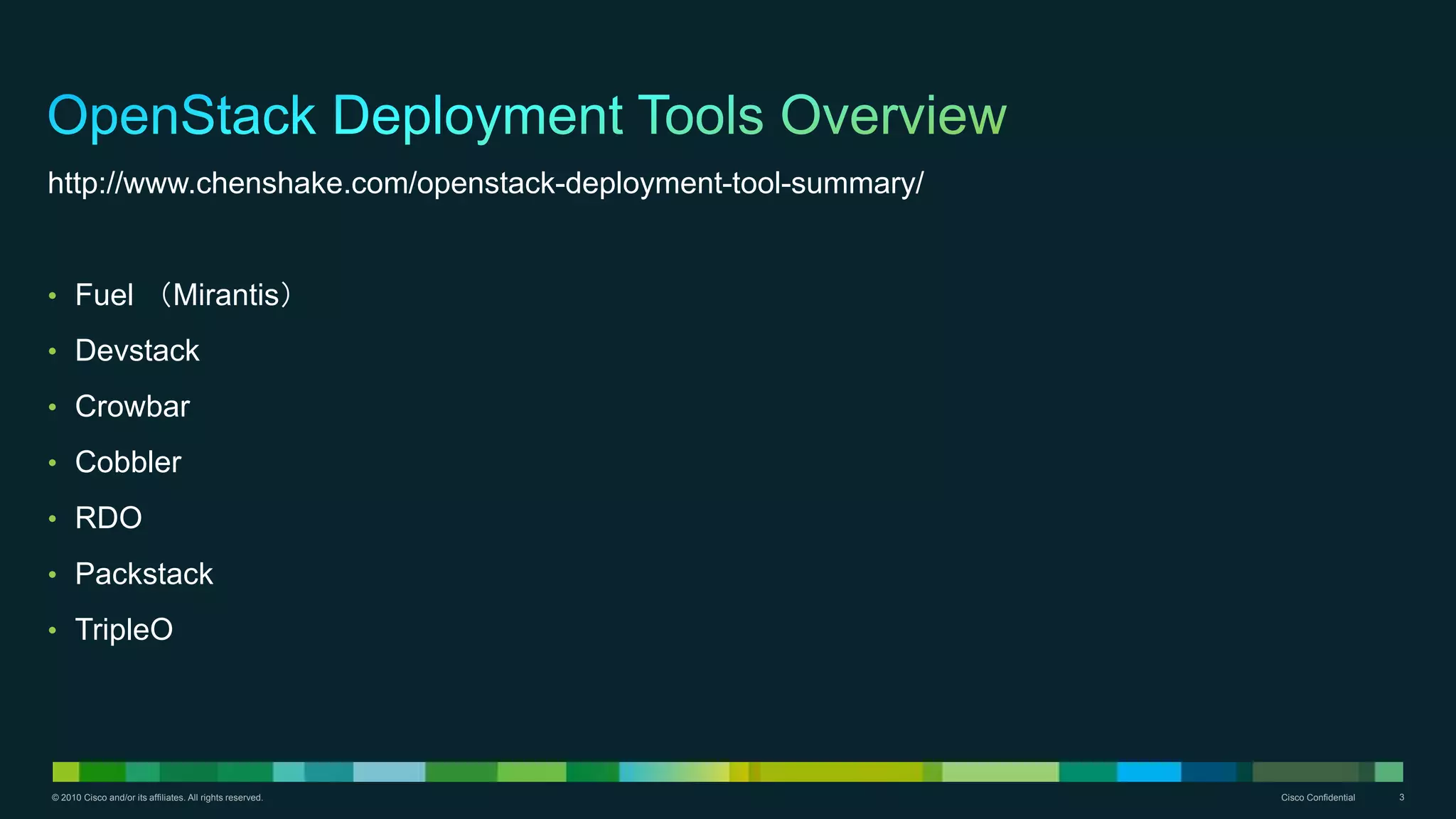

http://www.chenshake.com/openstack-deployment-tool-summary/
• Fuel （Mirantis）
• Devstack
• Crowbar
• Cobbler
• RDO
• Packstack
• TripleO

4. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

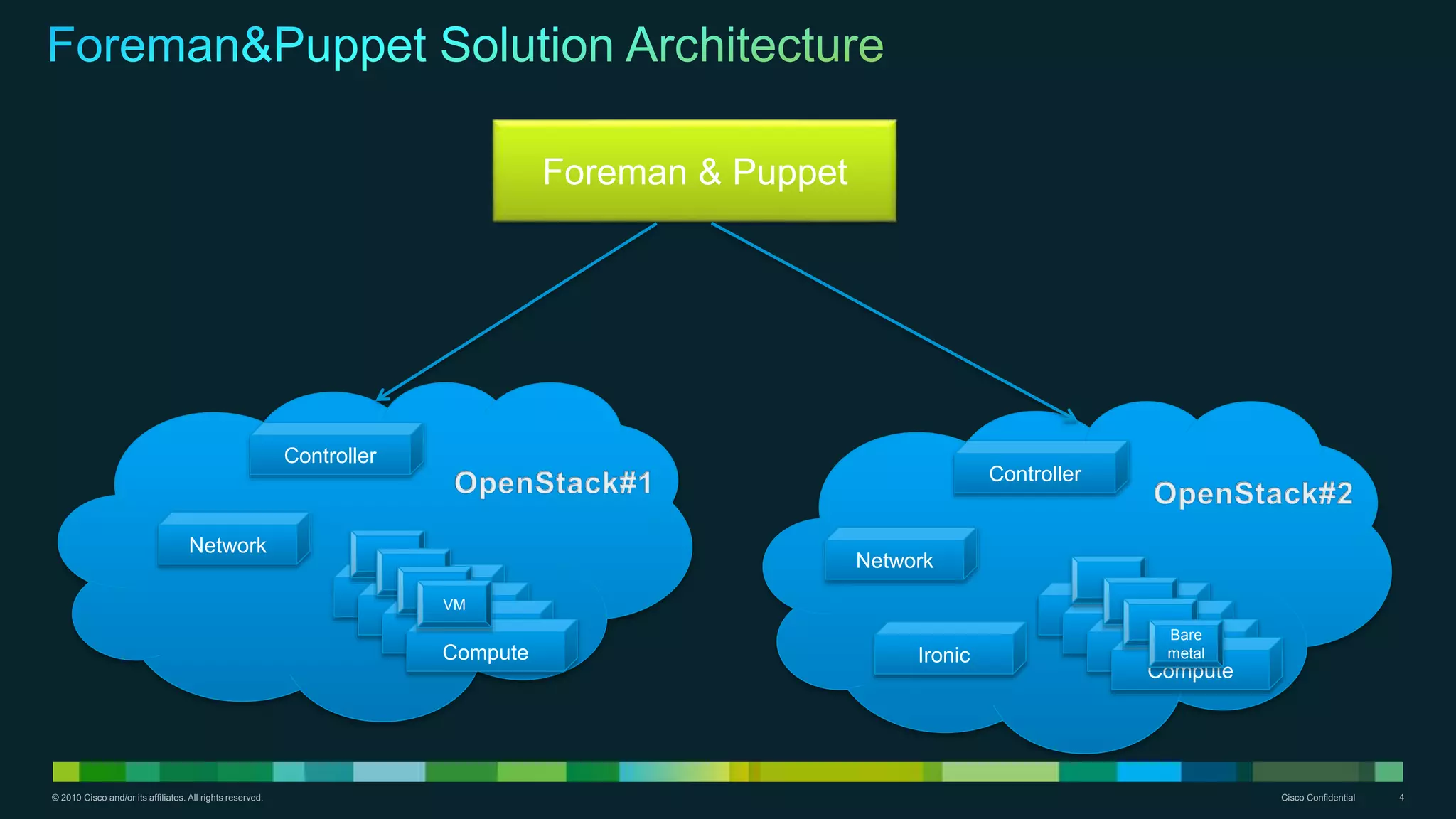

Foreman & Puppet
Network
Controller
Compute
Compute
Compute
Compute
Network
Controller
Compute
Compute
Compute
Compute
Ironic
VM
VM
VM
VM
Bare
metal

5. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

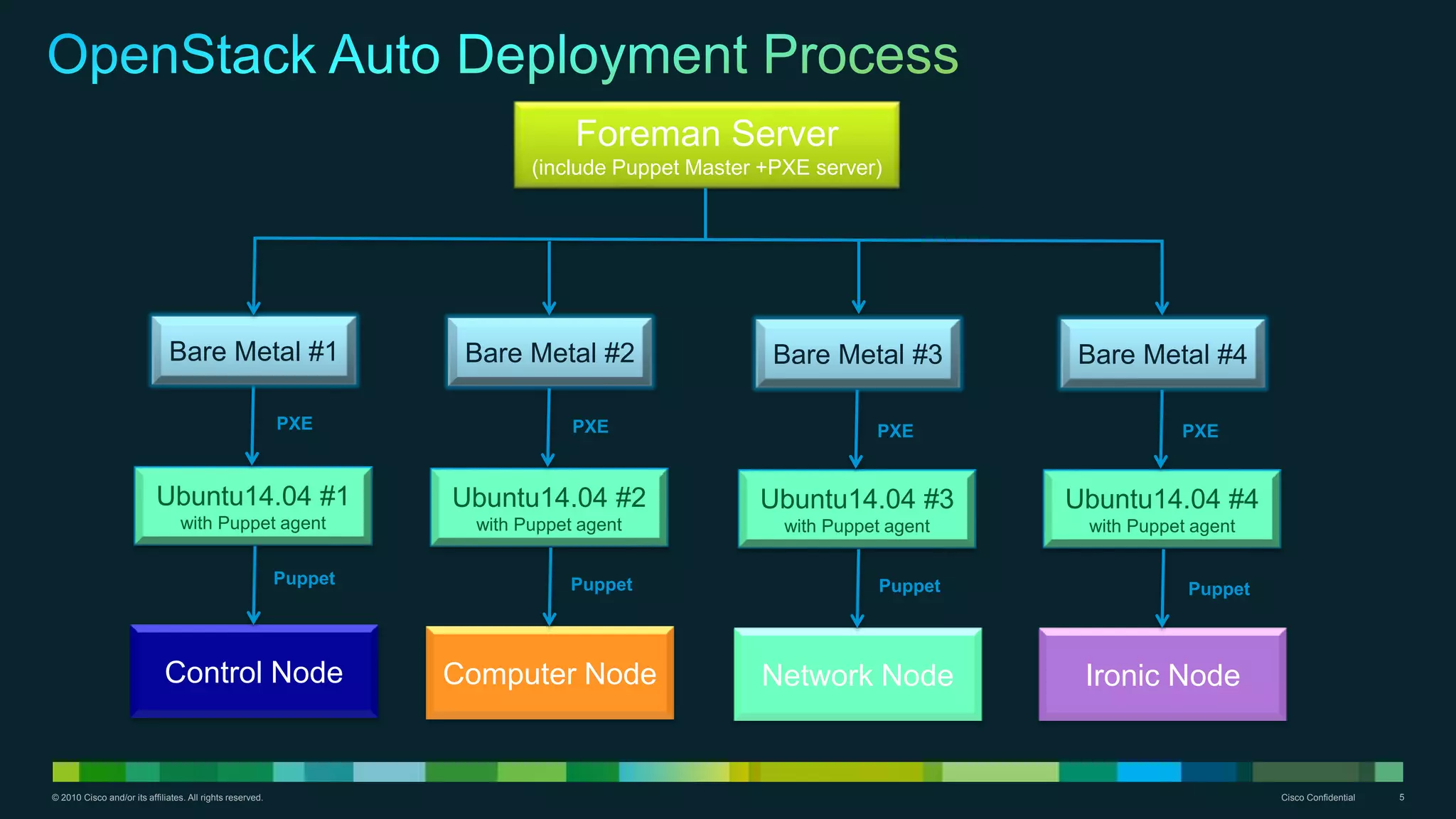

Foreman Server
(include Puppet Master +PXE server)
Bare Metal #1
Ubuntu14.04 #1
with Puppet agent
Control Node
Bare Metal #2
Ubuntu14.04 #2
with Puppet agent
Computer Node
Bare Metal #3
Ubuntu14.04 #3
with Puppet agent
Network Node
Bare Metal #4
Ubuntu14.04 #4
with Puppet agent
Ironic Node

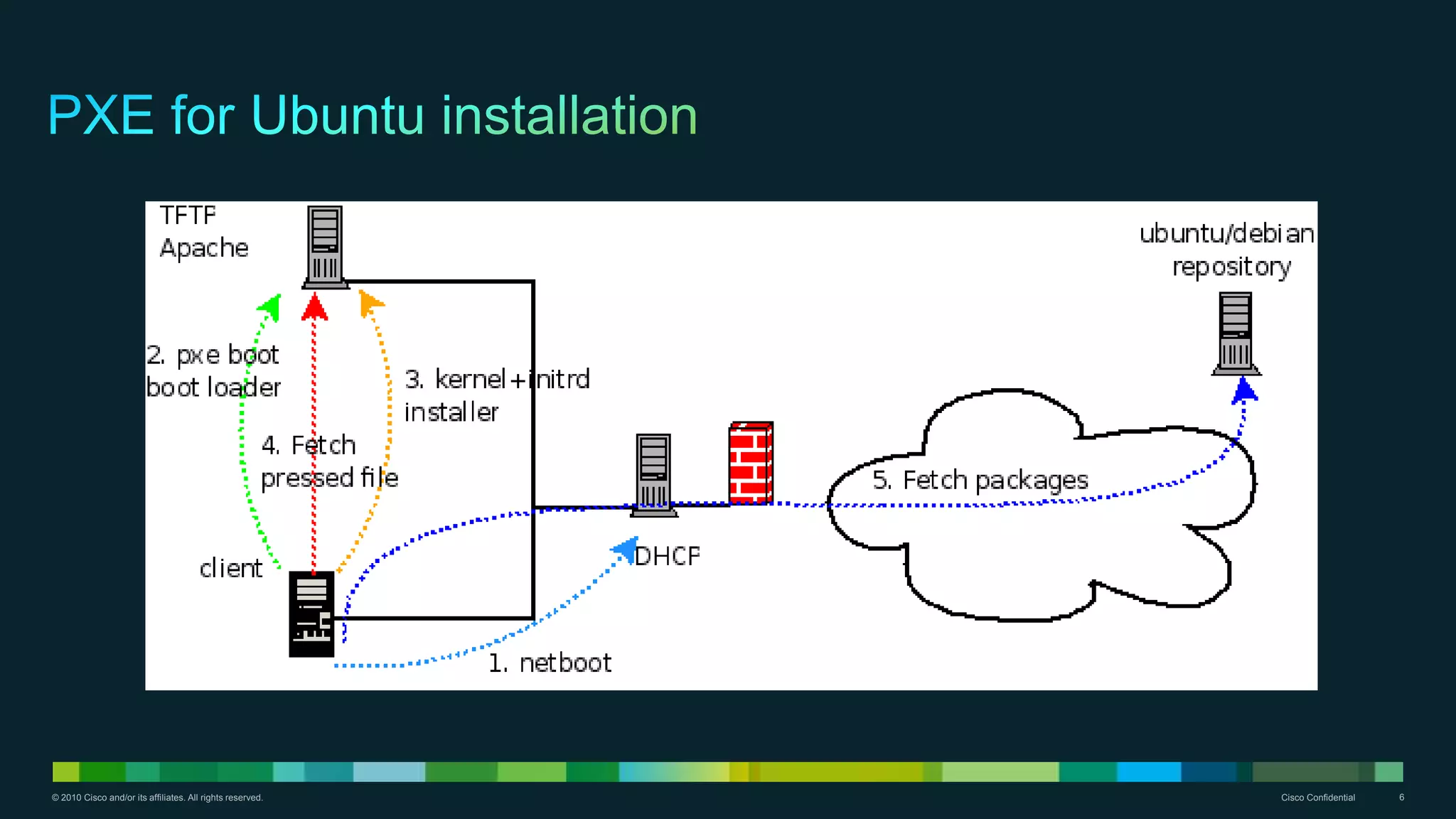

PXE
Puppet
PXE PXE PXE
PuppetPuppetPuppet

6. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

7. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

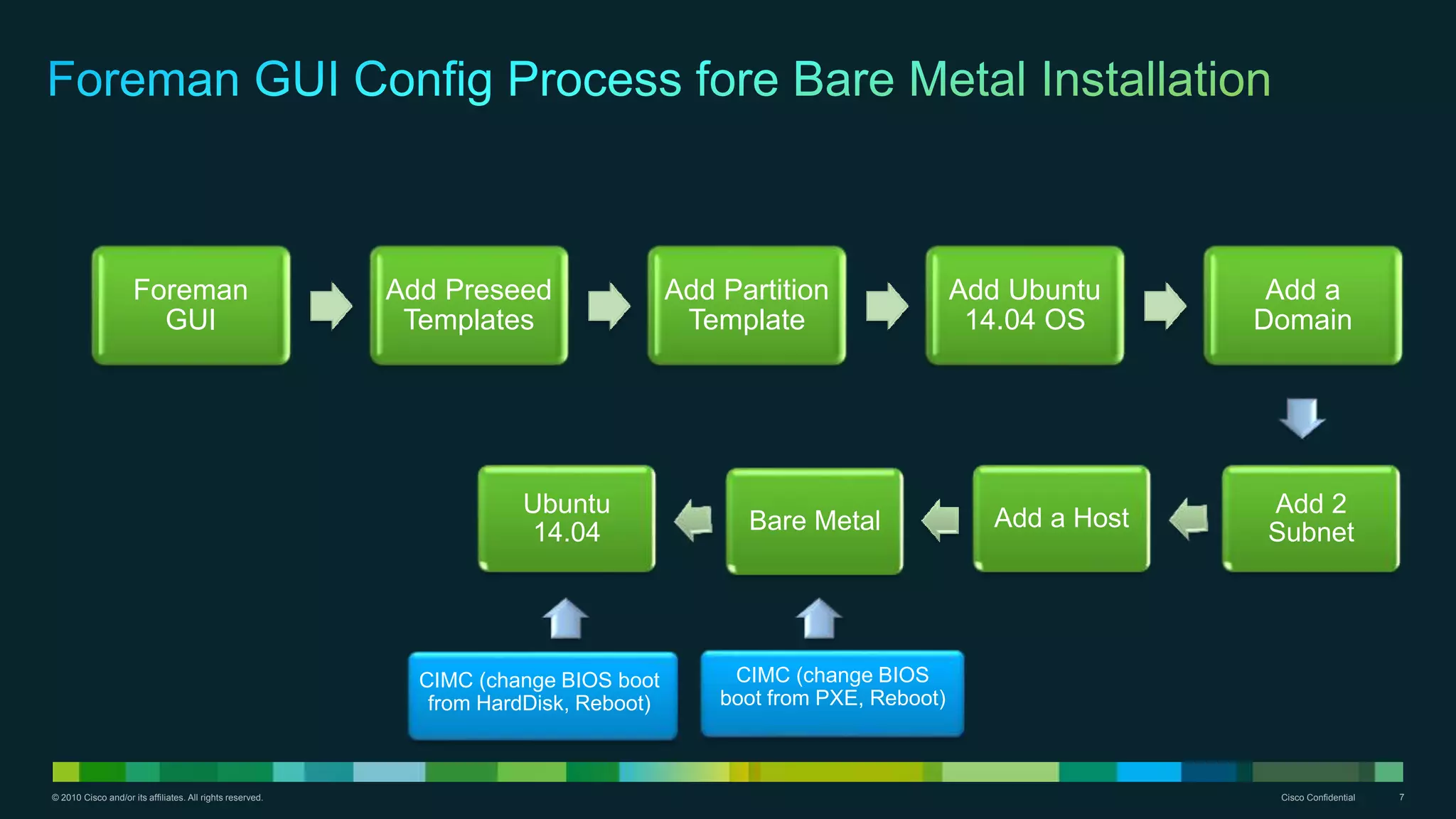

Foreman
GUI

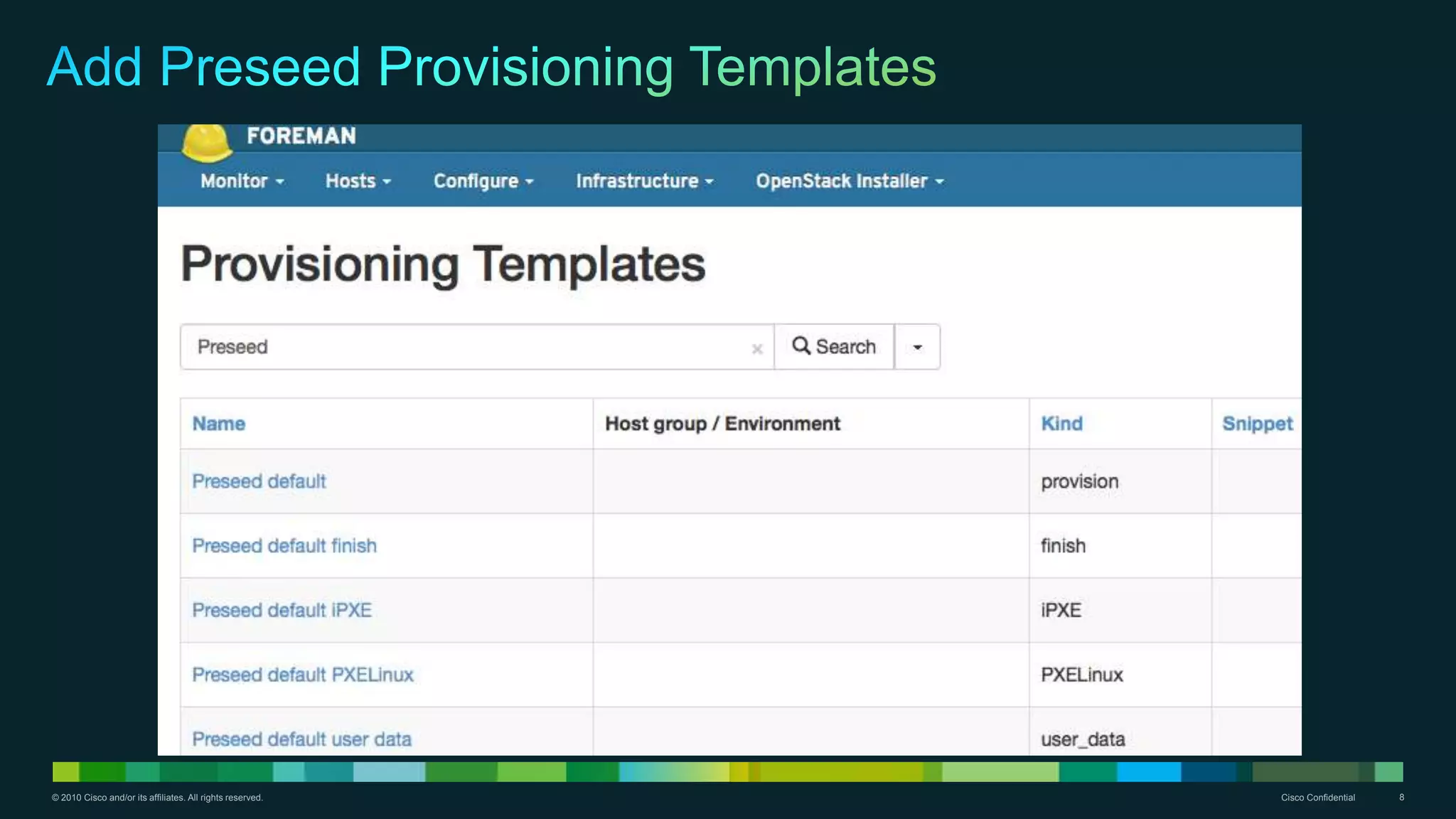

Add Preseed
Templates

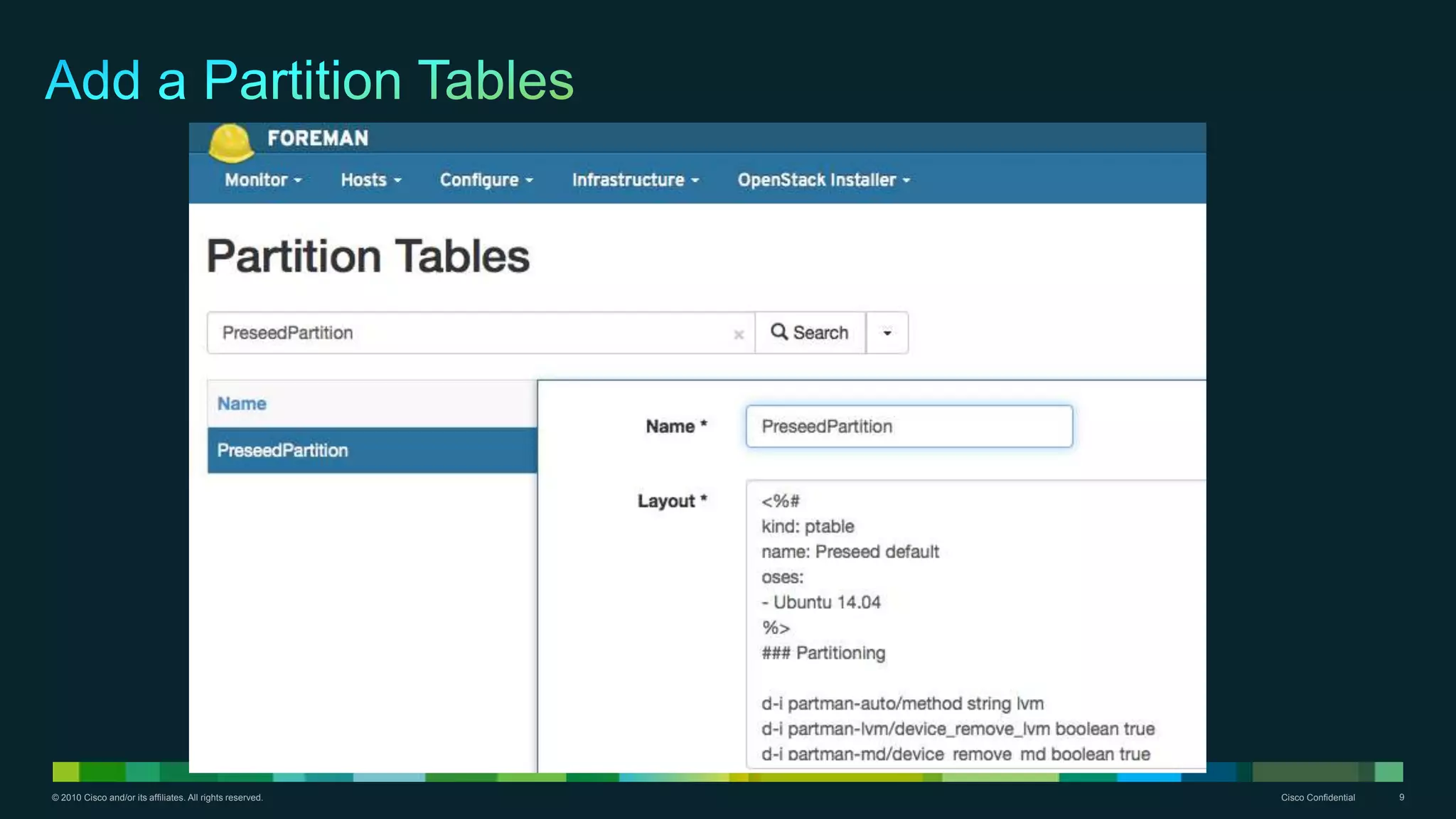

Add Partition
Template

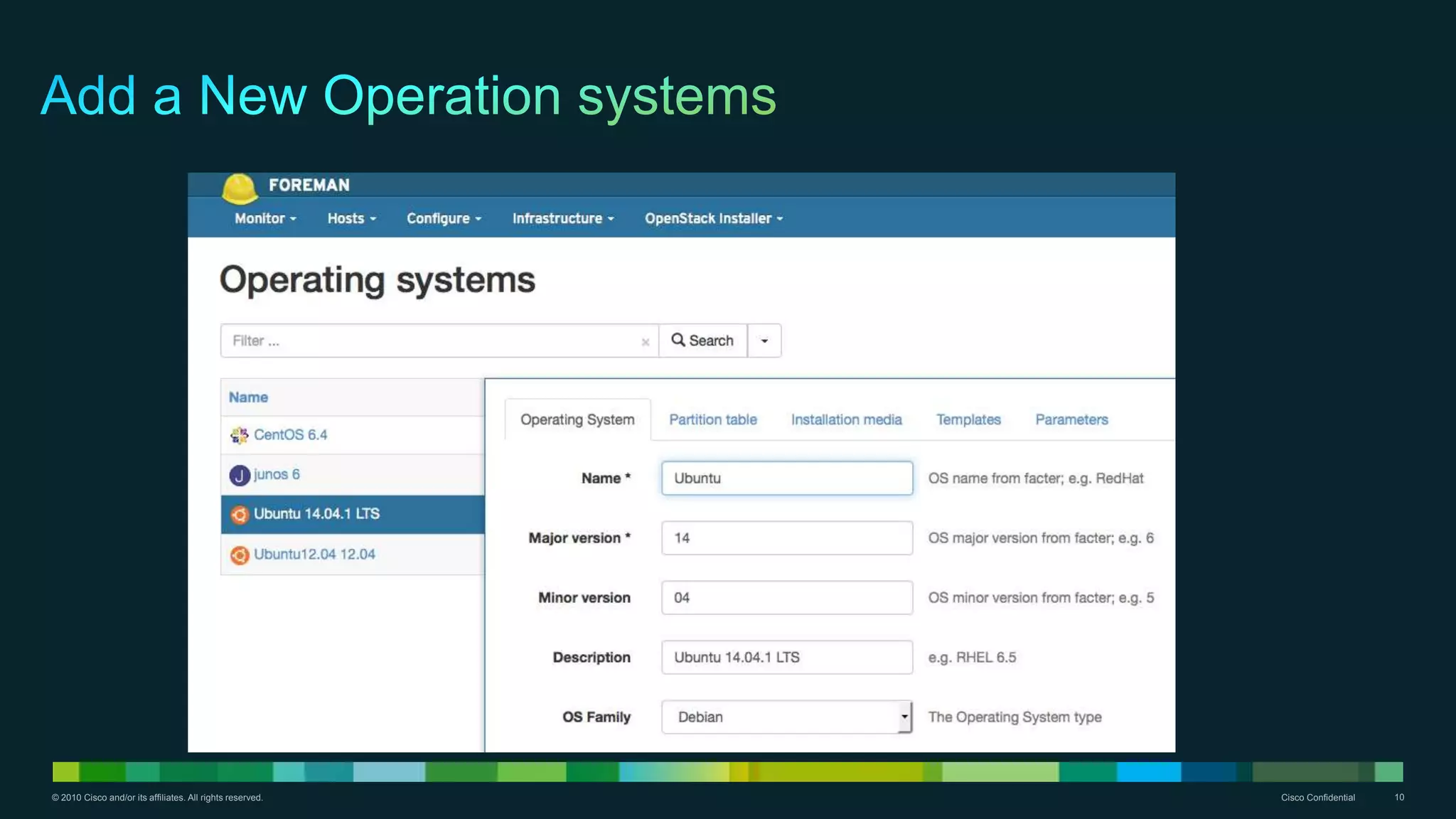

Add Ubuntu
14.04 OS

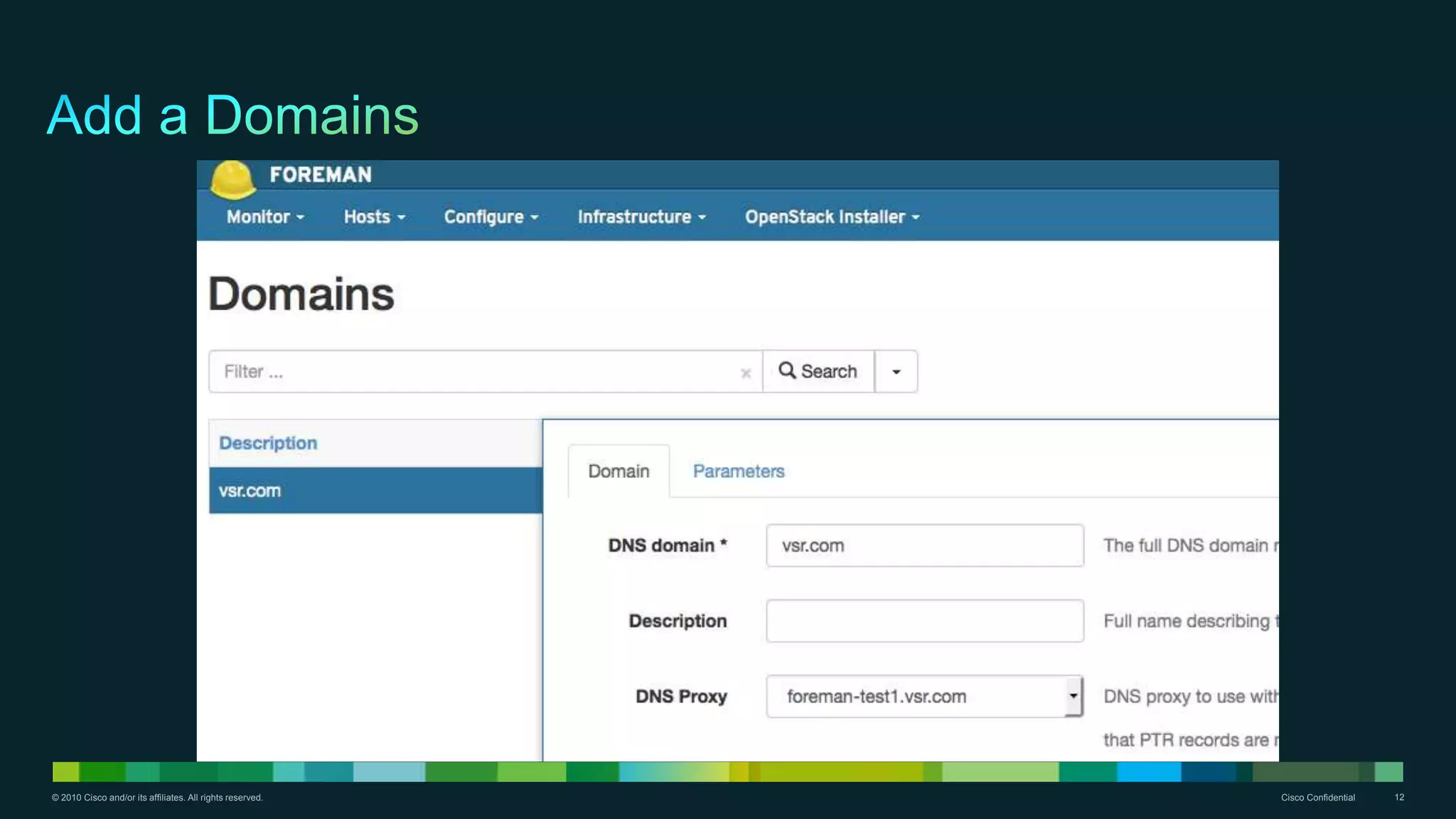

Add a
Domain
Ubuntu

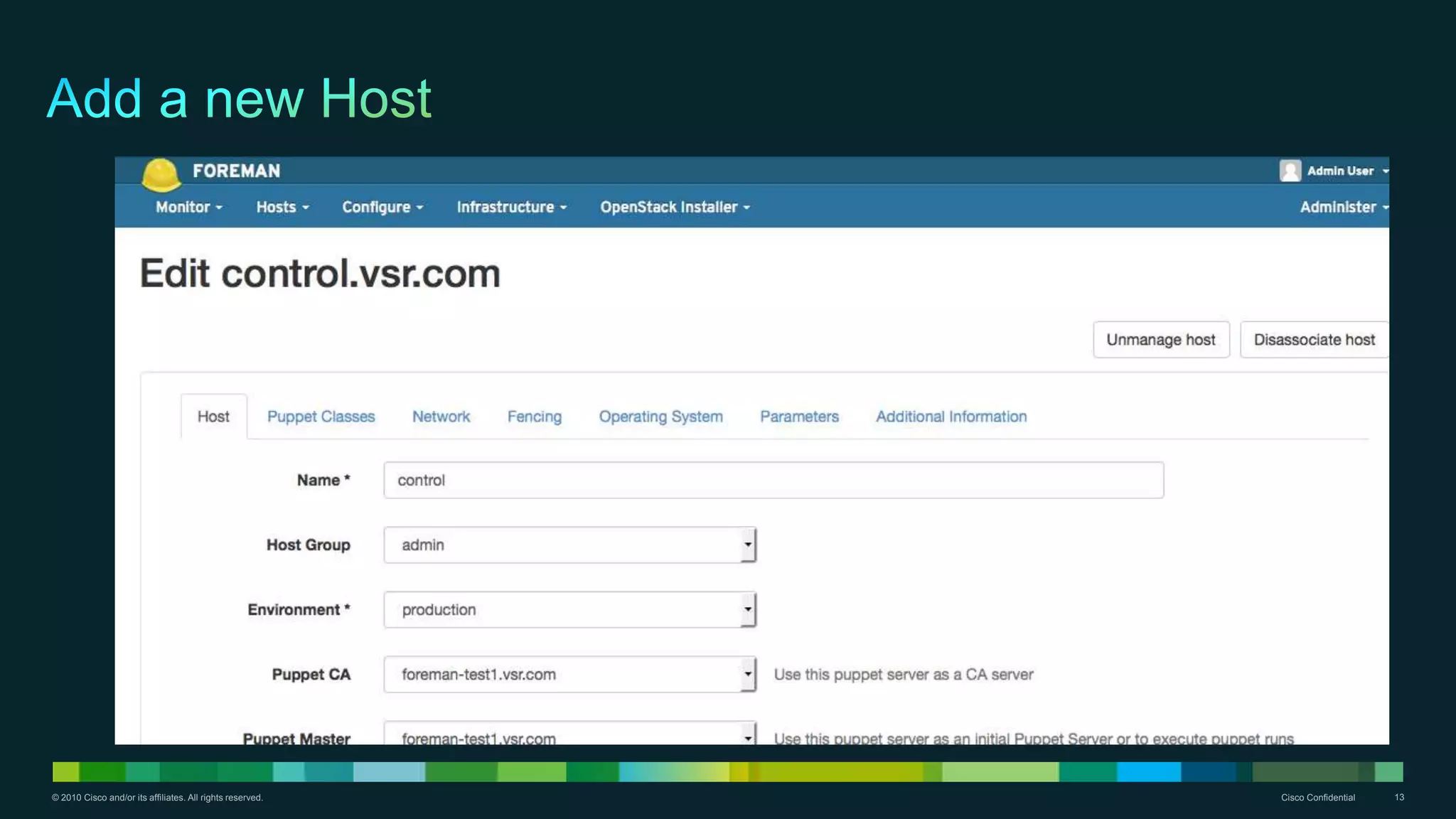

14.04 Bare Metal Add a Host
Add 2
Subnet
CIMC (change BIOS
boot from PXE, Reboot)
CIMC (change BIOS boot
from HardDisk, Reboot)

8. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

9. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9

10. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

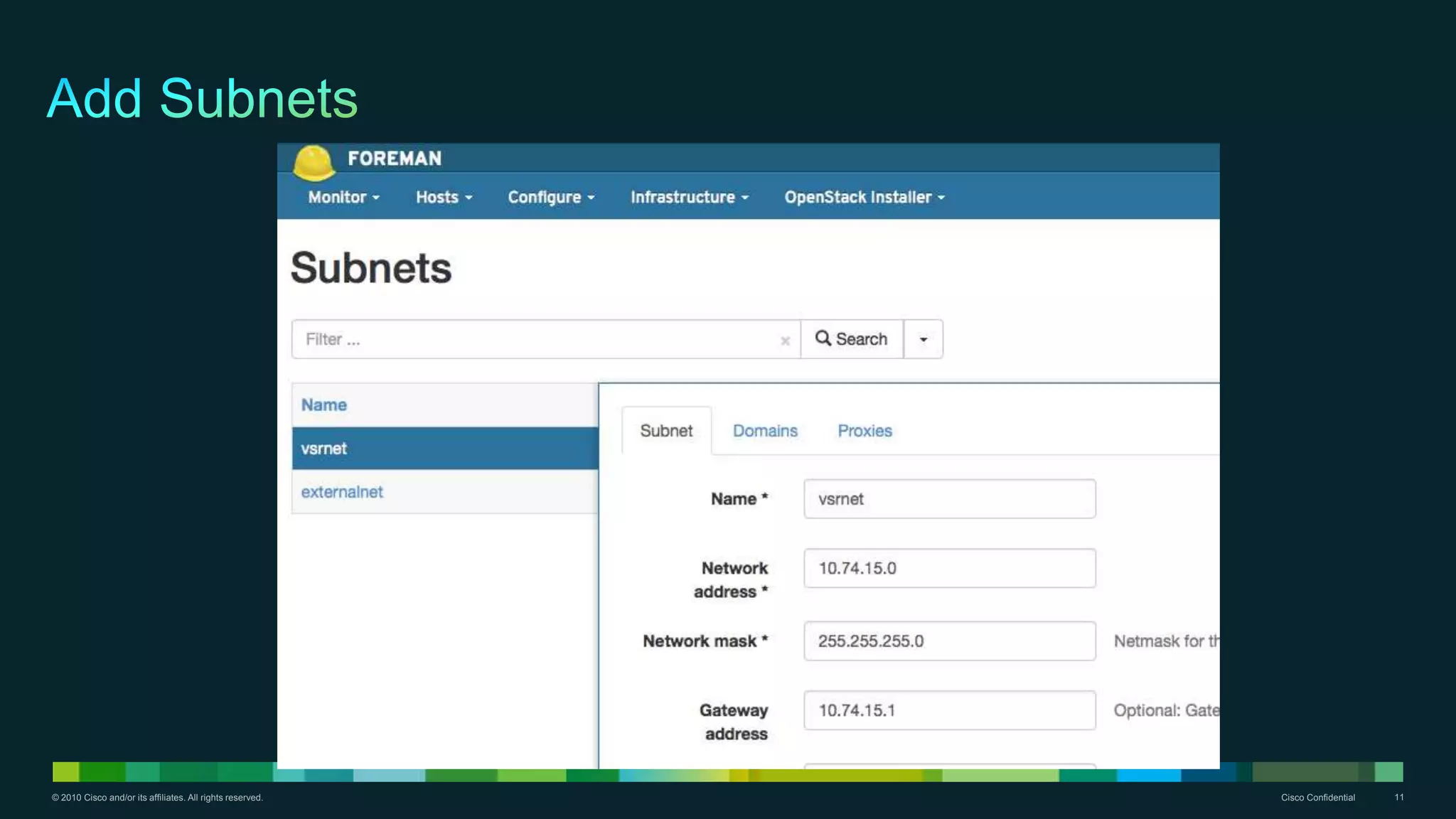

11. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

12. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12

13. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13

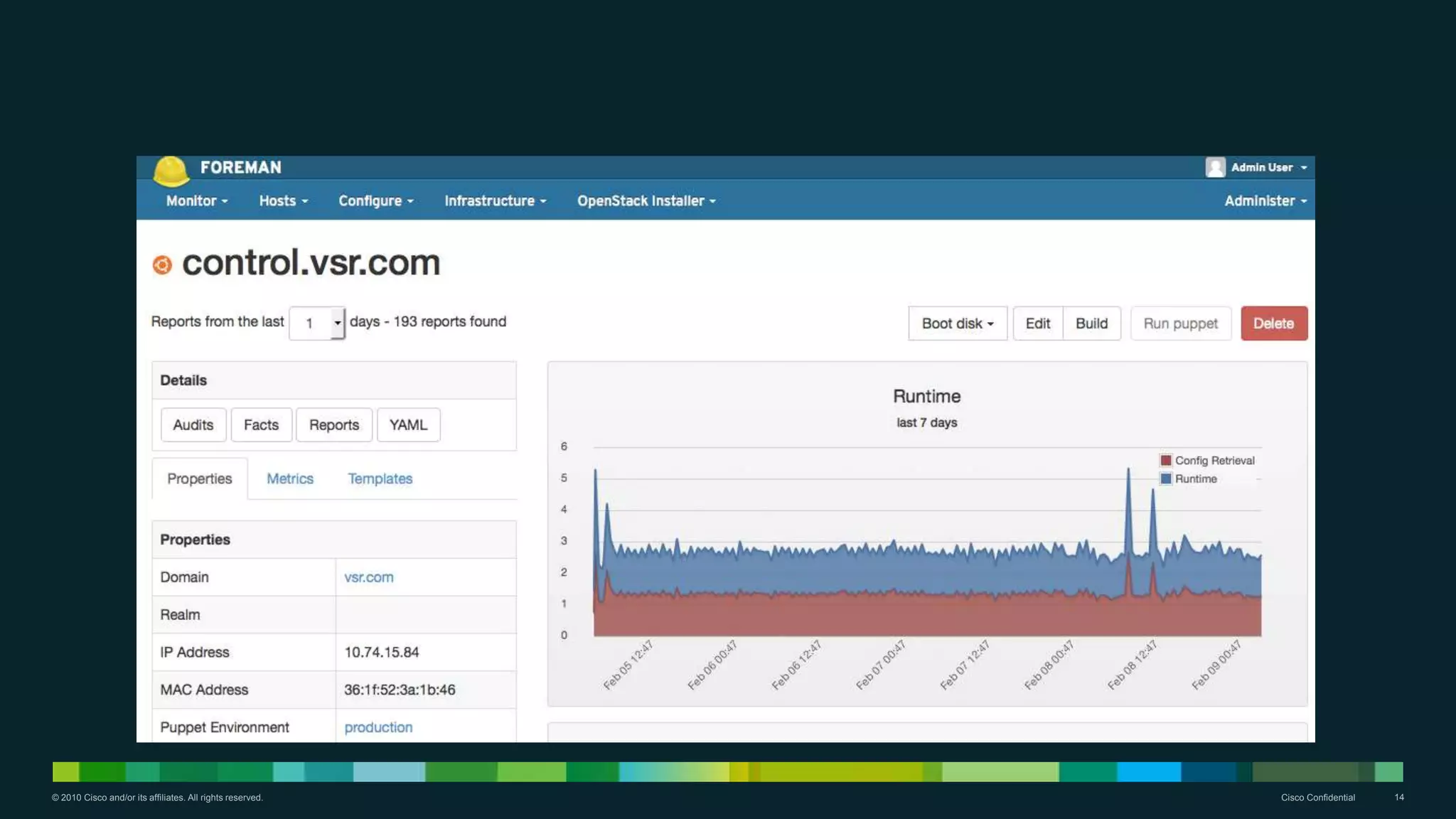

14. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

15. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15

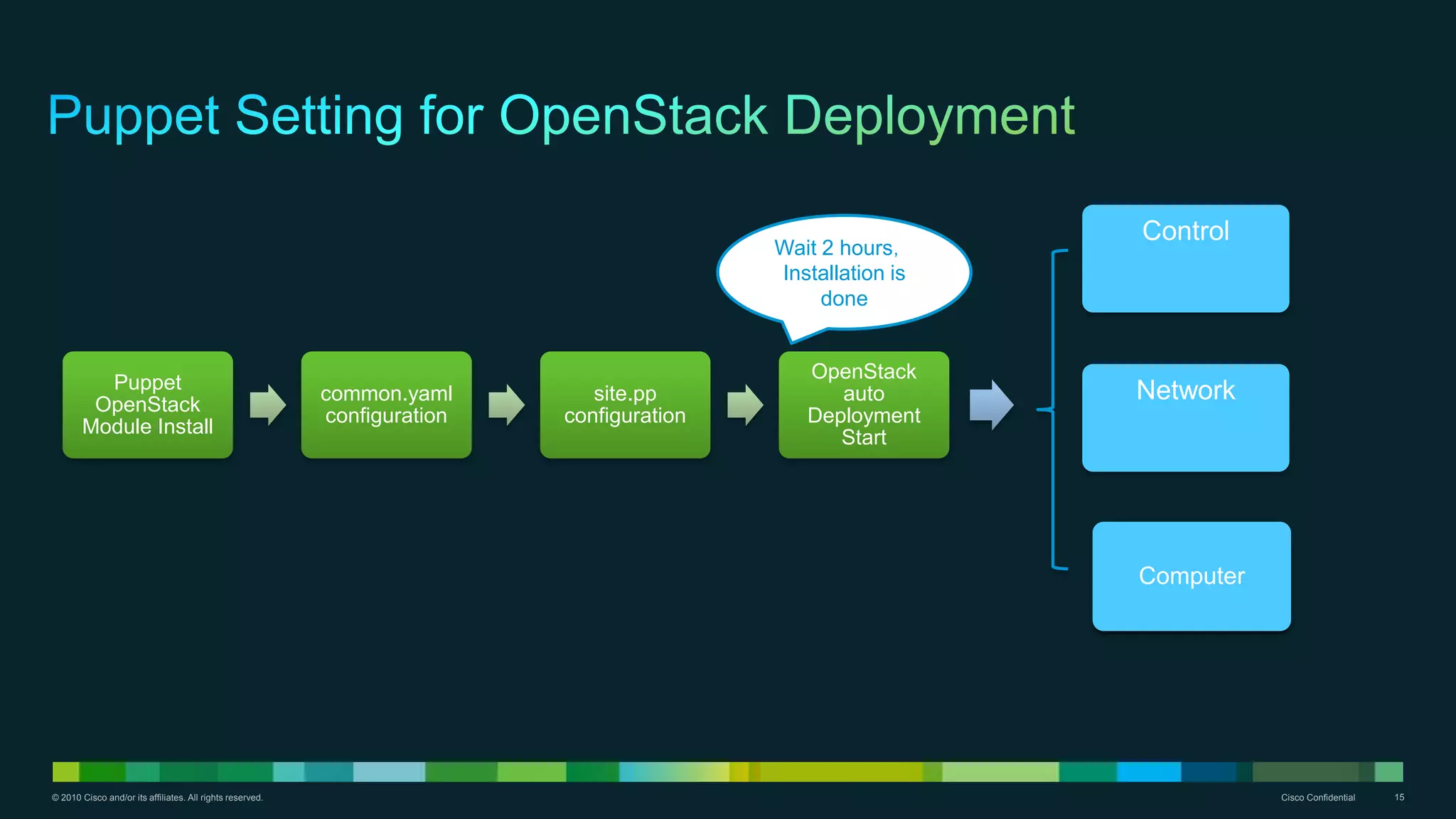

Puppet
OpenStack
Module Install
common.yaml
configuration
site.pp
configuration
OpenStack
auto
Deployment
Start
Puppet
OpenStack
Module Insta
Computer
Network
Control
Wait 2 hours，
Installation is
done

16. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

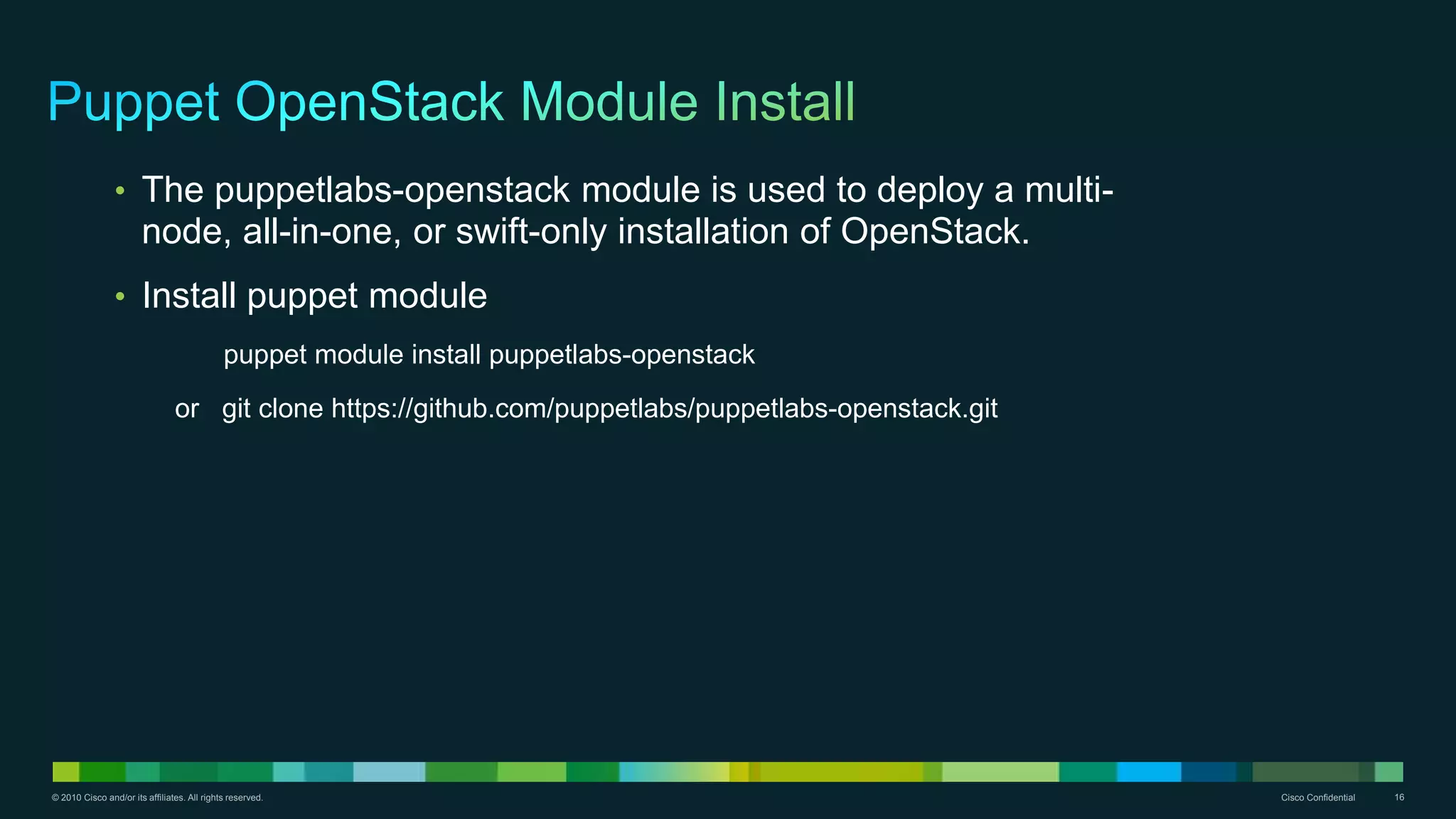

• The puppetlabs-openstack module is used to deploy a multi-
node, all-in-one, or swift-only installation of OpenStack.
• Install puppet module
puppet module install puppetlabs-openstack
or git clone https://github.com/puppetlabs/puppetlabs-openstack.git

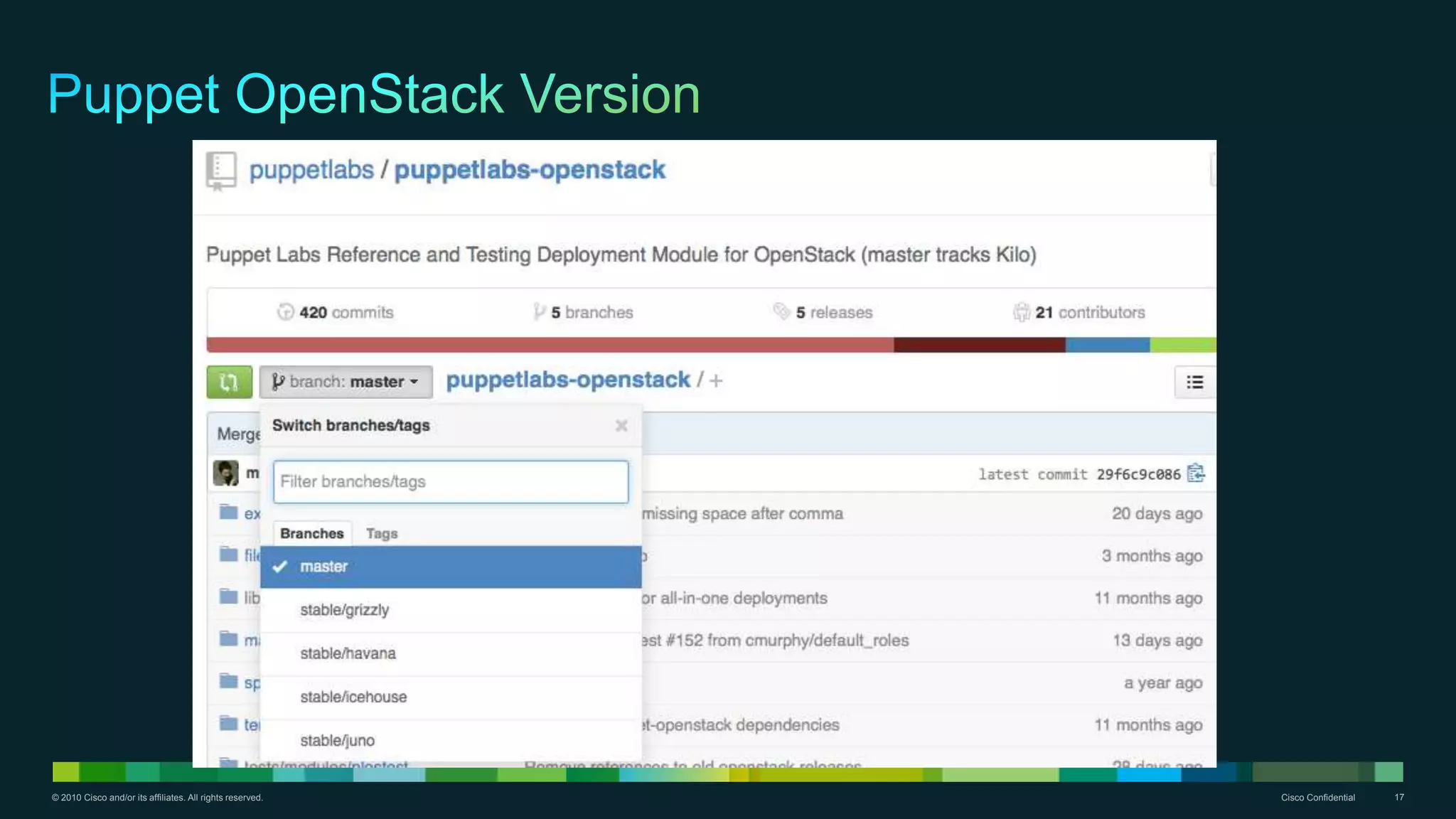

17. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

18. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18

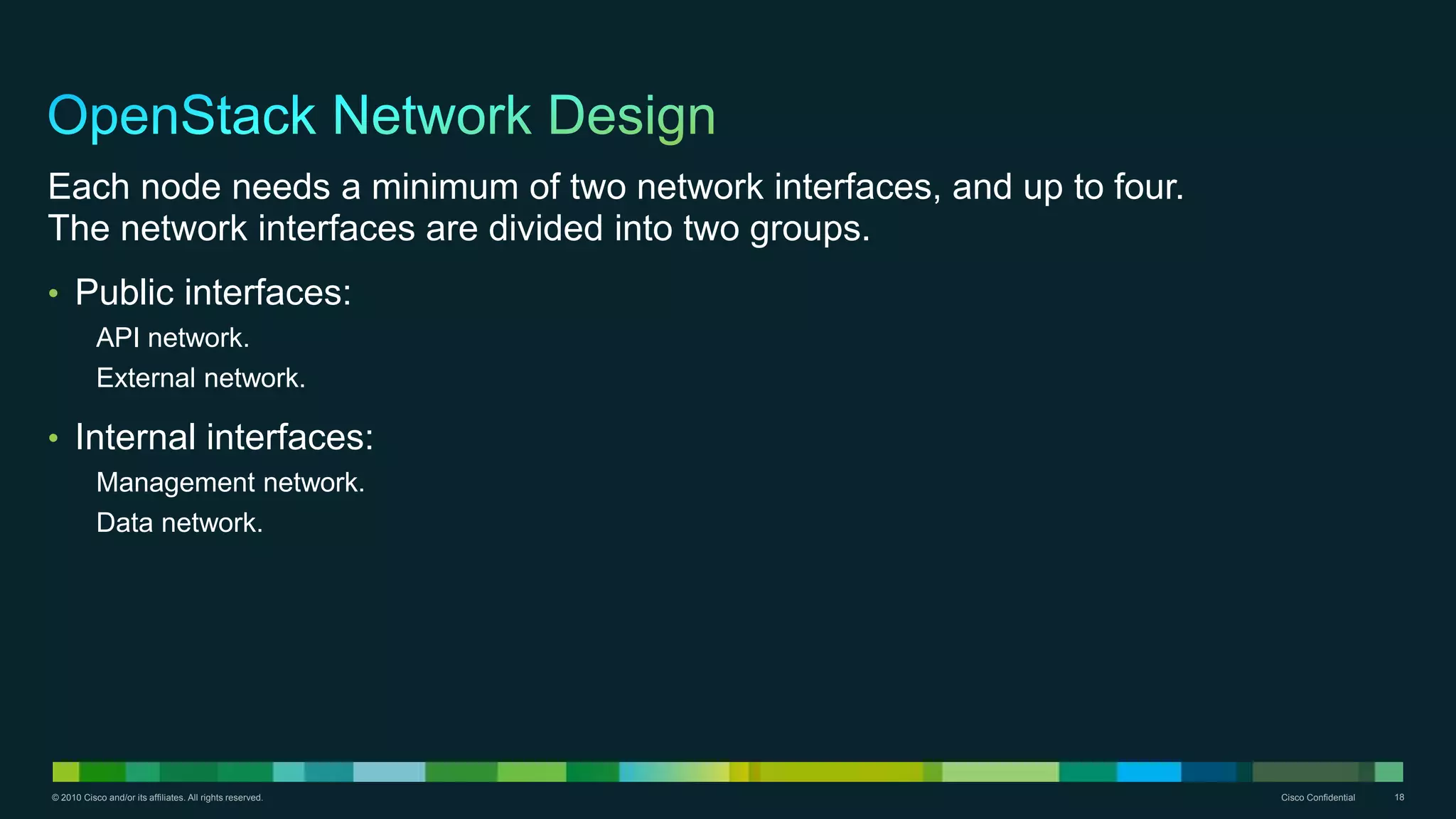

Each node needs a minimum of two network interfaces, and up to four.
The network interfaces are divided into two groups.
• Public interfaces:
API network.
External network.
• Internal interfaces:
Management network.
Data network.

19. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19

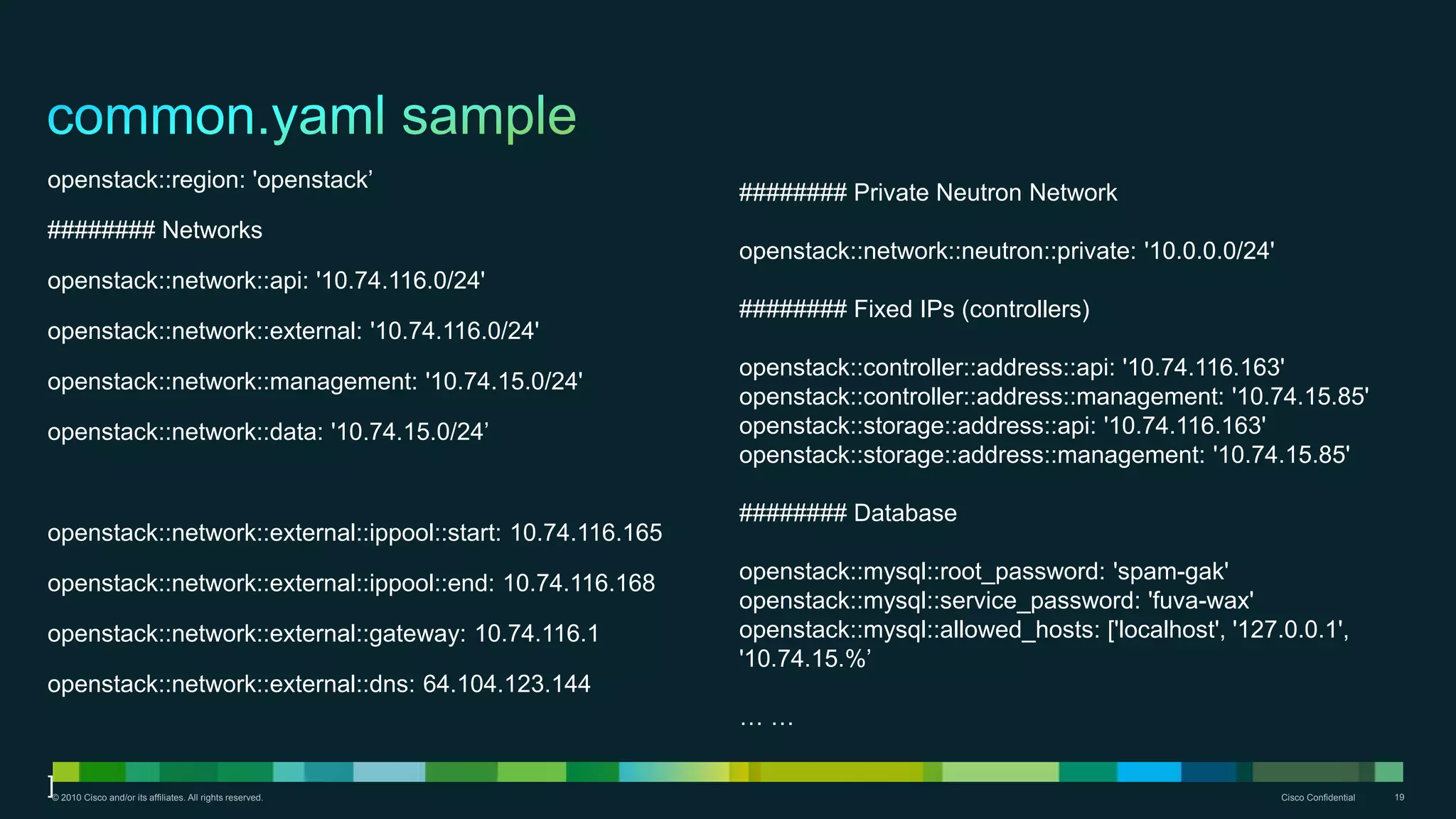

openstack::region: 'openstack’
######## Networks
openstack::network::api: '10.74.116.0/24'
openstack::network::external: '10.74.116.0/24'
openstack::network::management: '10.74.15.0/24'
openstack::network::data: '10.74.15.0/24’
openstack::network::external::ippool::start: 10.74.116.165
openstack::network::external::ippool::end: 10.74.116.168
openstack::network::external::gateway: 10.74.116.1
openstack::network::external::dns: 64.104.123.144
]
######## Private Neutron Network
openstack::network::neutron::private: '10.0.0.0/24'
######## Fixed IPs (controllers)
openstack::controller::address::api: '10.74.116.163'
openstack::controller::address::management: '10.74.15.85'
openstack::storage::address::api: '10.74.116.163'
openstack::storage::address::management: '10.74.15.85'
######## Database
openstack::mysql::root_password: 'spam-gak'
openstack::mysql::service_password: 'fuva-wax'
openstack::mysql::allowed_hosts: ['localhost', '127.0.0.1',
'10.74.15.%’
… …

20. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

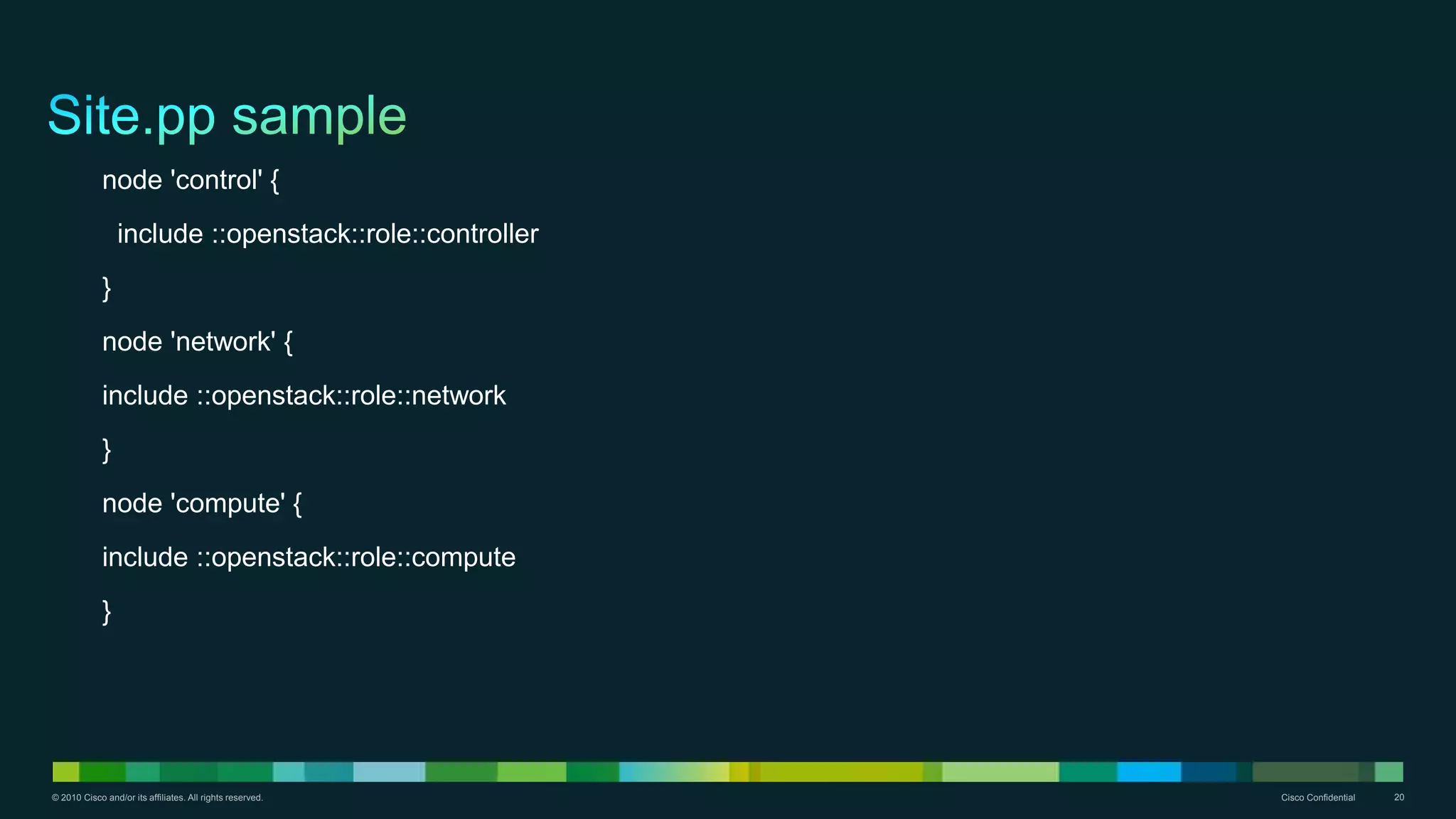

node 'control' {
include ::openstack::role::controller
}
node 'network' {
include ::openstack::role::network
}
node 'compute' {
include ::openstack::role::compute
}

21. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21

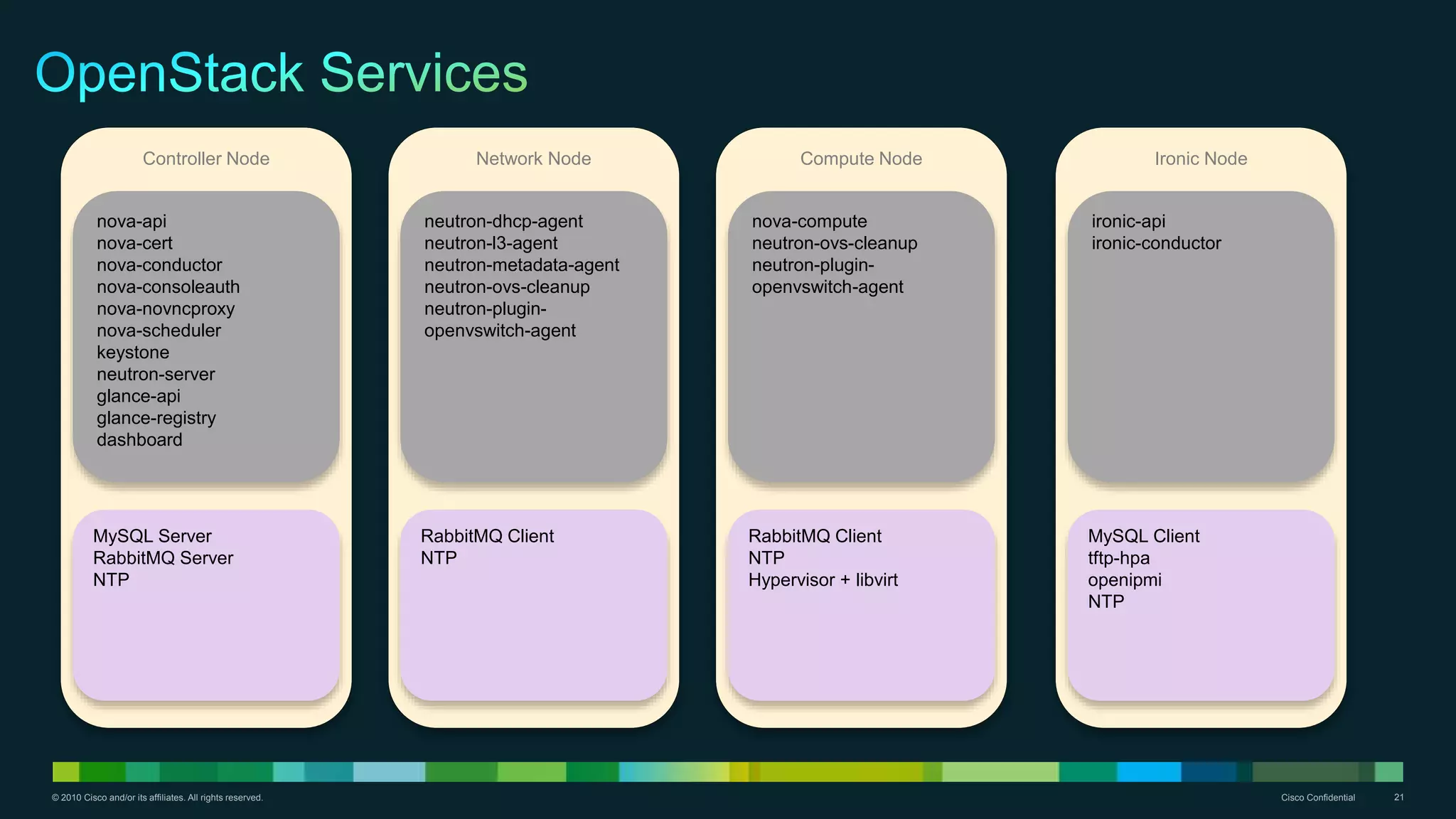

Controller Node
nova-api
nova-cert
nova-conductor
nova-consoleauth
nova-novncproxy
nova-scheduler
keystone
neutron-server
glance-api
glance-registry
dashboard
MySQL Server
RabbitMQ Server
NTP
Network Node Compute Node Ironic Node
neutron-dhcp-agent
neutron-l3-agent
neutron-metadata-agent
neutron-ovs-cleanup
neutron-plugin-
openvswitch-agent
RabbitMQ Client
NTP
nova-compute
neutron-ovs-cleanup
neutron-plugin-
openvswitch-agent
RabbitMQ Client
NTP
Hypervisor + libvirt
MySQL Client
tftp-hpa
openipmi
NTP
ironic-api
ironic-conductor

22. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22Cisco Confidential© 2010 Cisco and/or its affiliates. All rights reserved. 22
Foreman TOI
Yating Yang
Feb 10 2015

23. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23

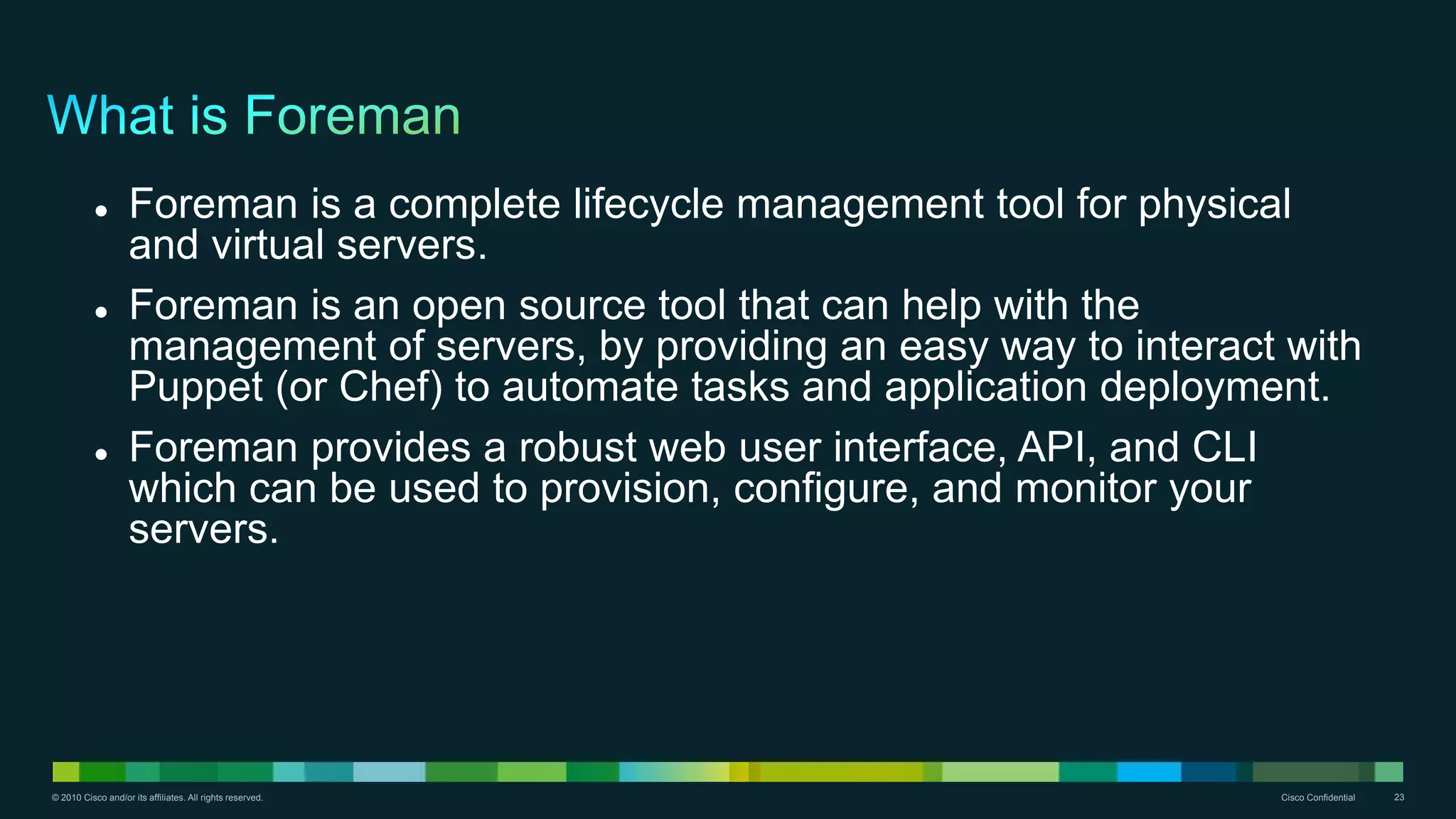

 Foreman is a complete lifecycle management tool for physical
and virtual servers.
 Foreman is an open source tool that can help with the
management of servers, by providing an easy way to interact with
Puppet (or Chef) to automate tasks and application deployment.
 Foreman provides a robust web user interface, API, and CLI
which can be used to provision, configure, and monitor your
servers.

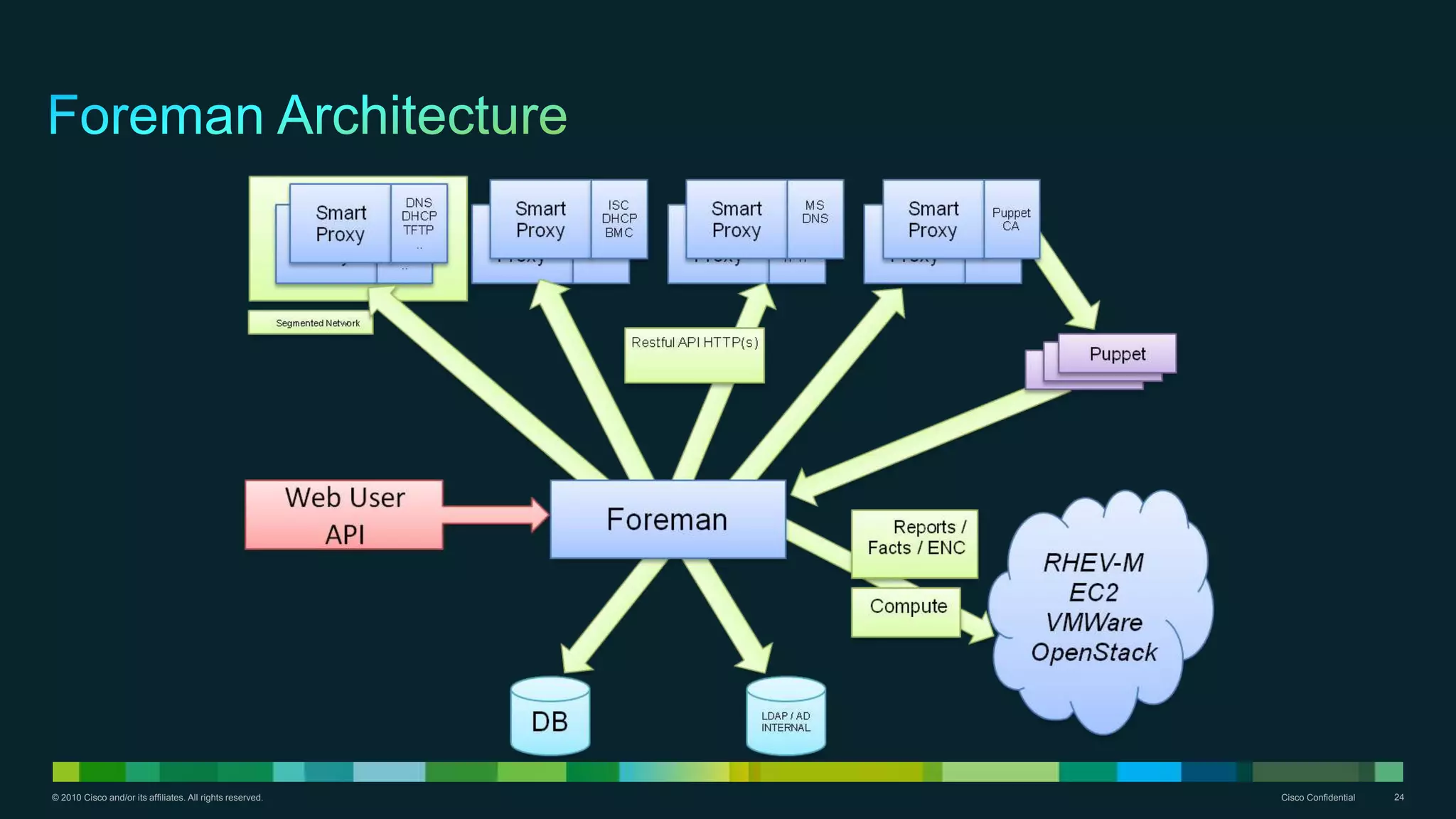

24. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24

25. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25

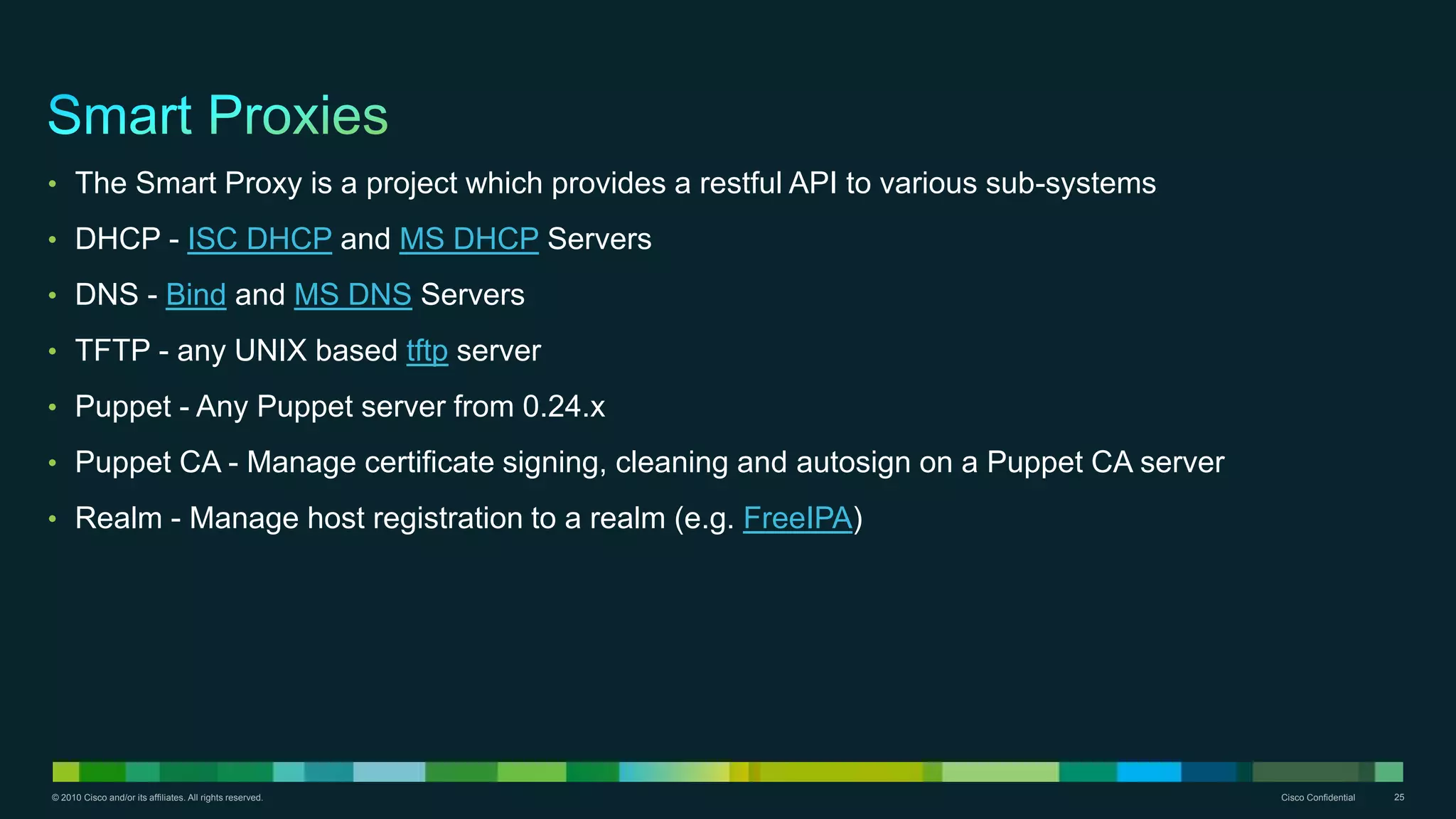

• The Smart Proxy is a project which provides a restful API to various sub-systems
• DHCP - ISC DHCP and MS DHCP Servers
• DNS - Bind and MS DNS Servers
• TFTP - any UNIX based tftp server
• Puppet - Any Puppet server from 0.24.x
• Puppet CA - Manage certificate signing, cleaning and autosign on a Puppet CA server
• Realm - Manage host registration to a realm (e.g. FreeIPA)

26. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26

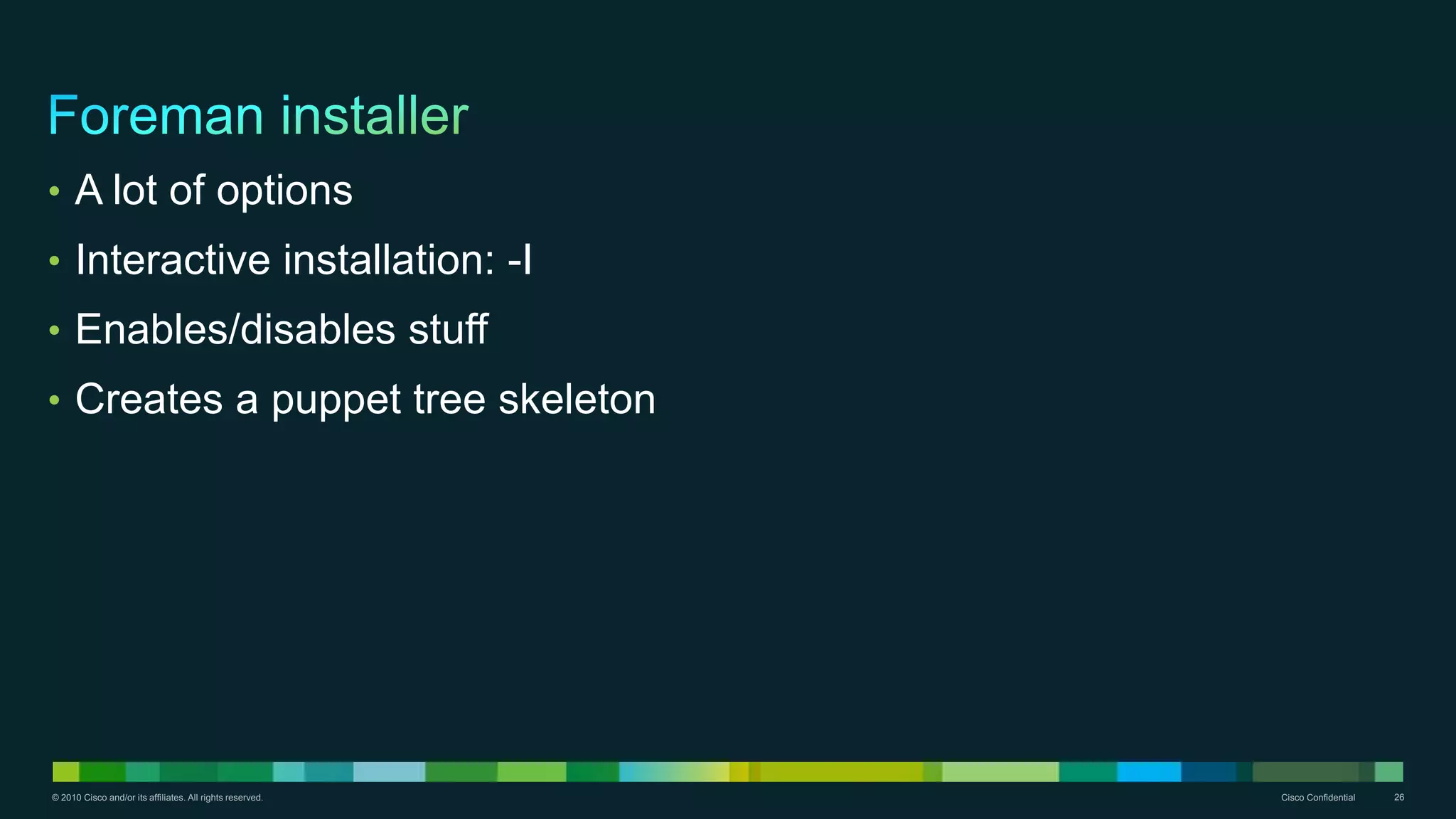

• A lot of options
• Interactive installation: -I
• Enables/disables stuff
• Creates a puppet tree skeleton

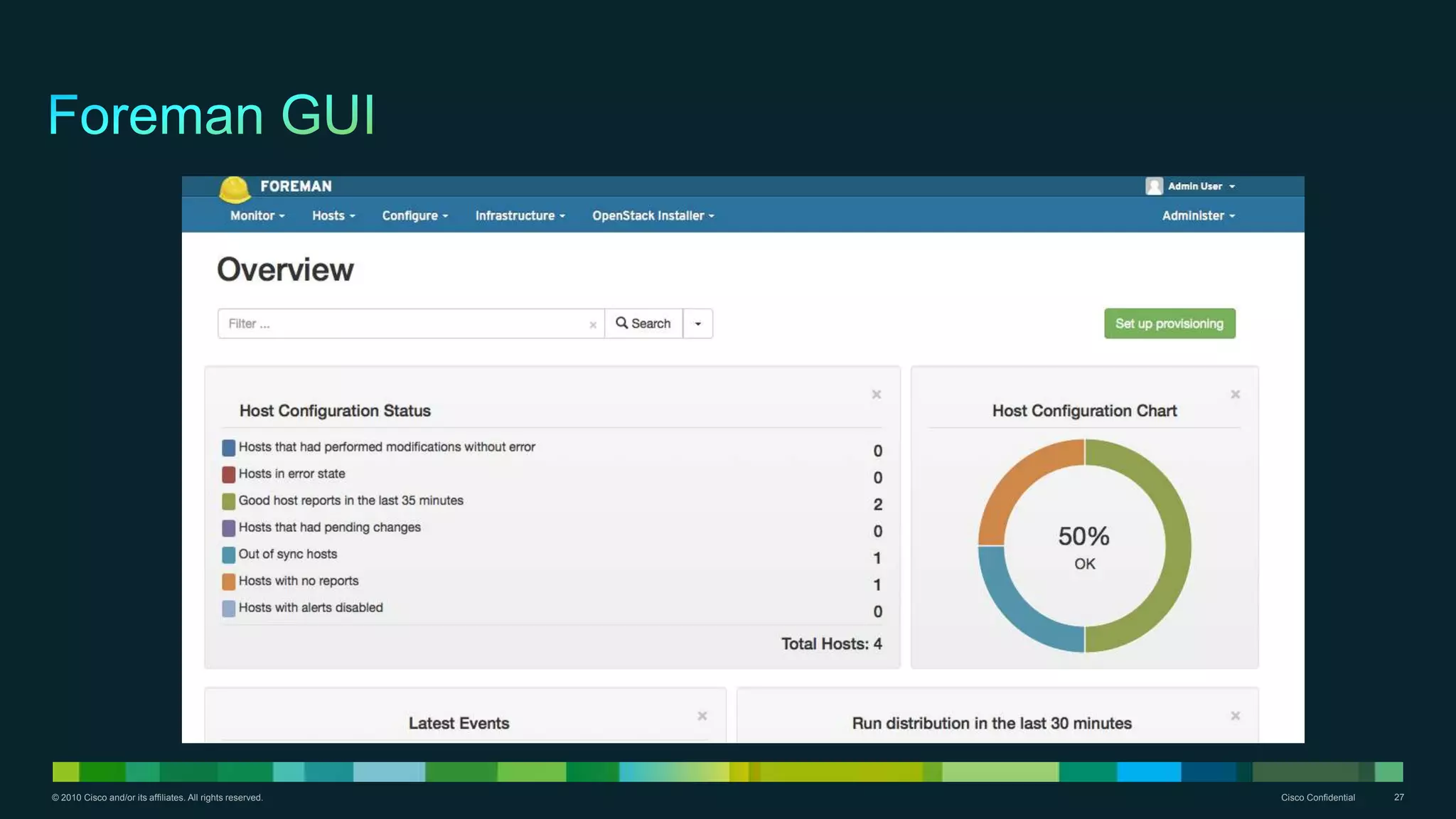

27. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27

28. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28

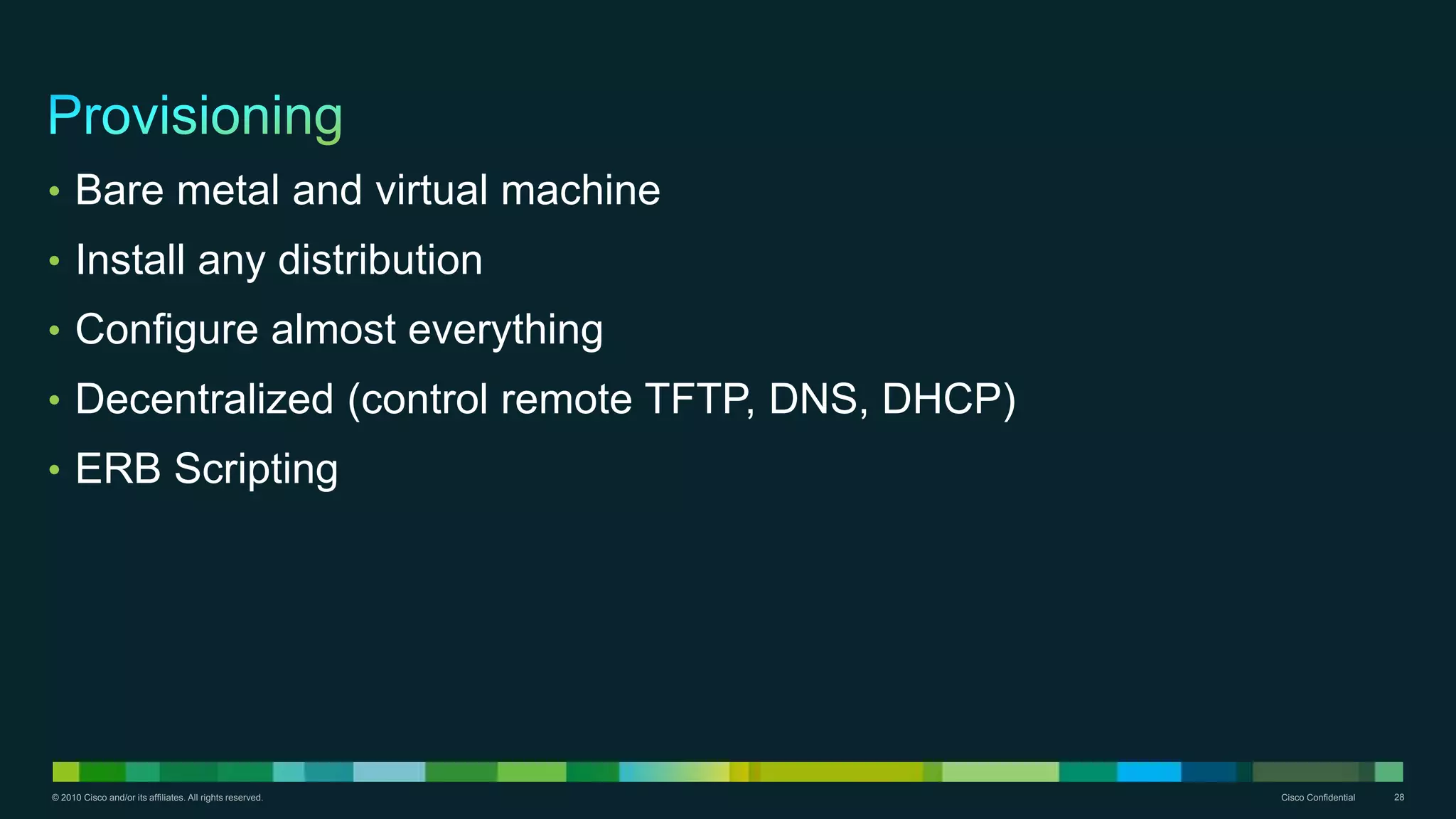

• Bare metal and virtual machine
• Install any distribution
• Configure almost everything
• Decentralized (control remote TFTP, DNS, DHCP)
• ERB Scripting

29. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

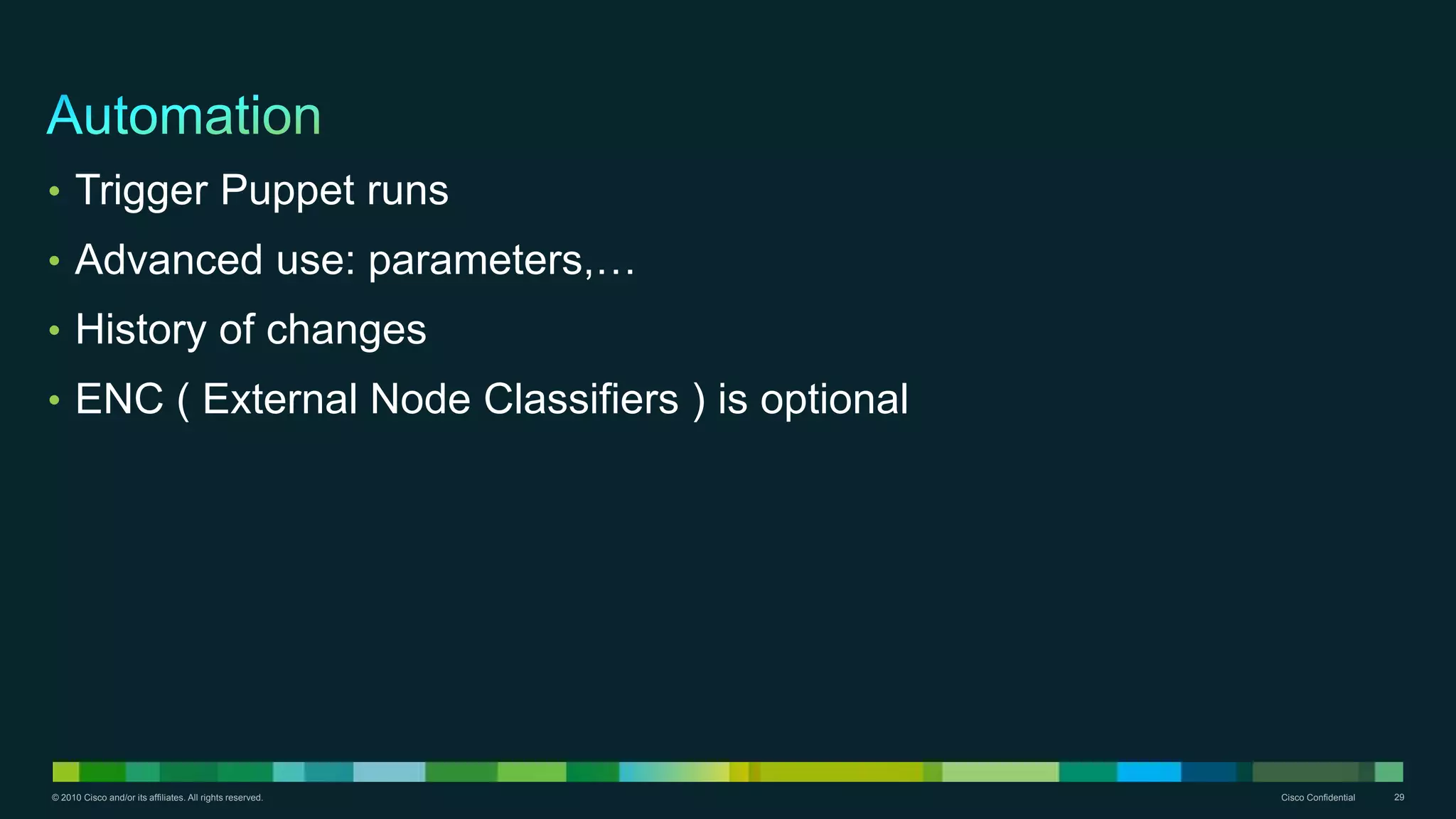

• Trigger Puppet runs
• Advanced use: parameters,…
• History of changes
• ENC ( External Node Classifiers ) is optional

30. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30
• Visualize changes
• See the full logs
• View the facts

31. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31

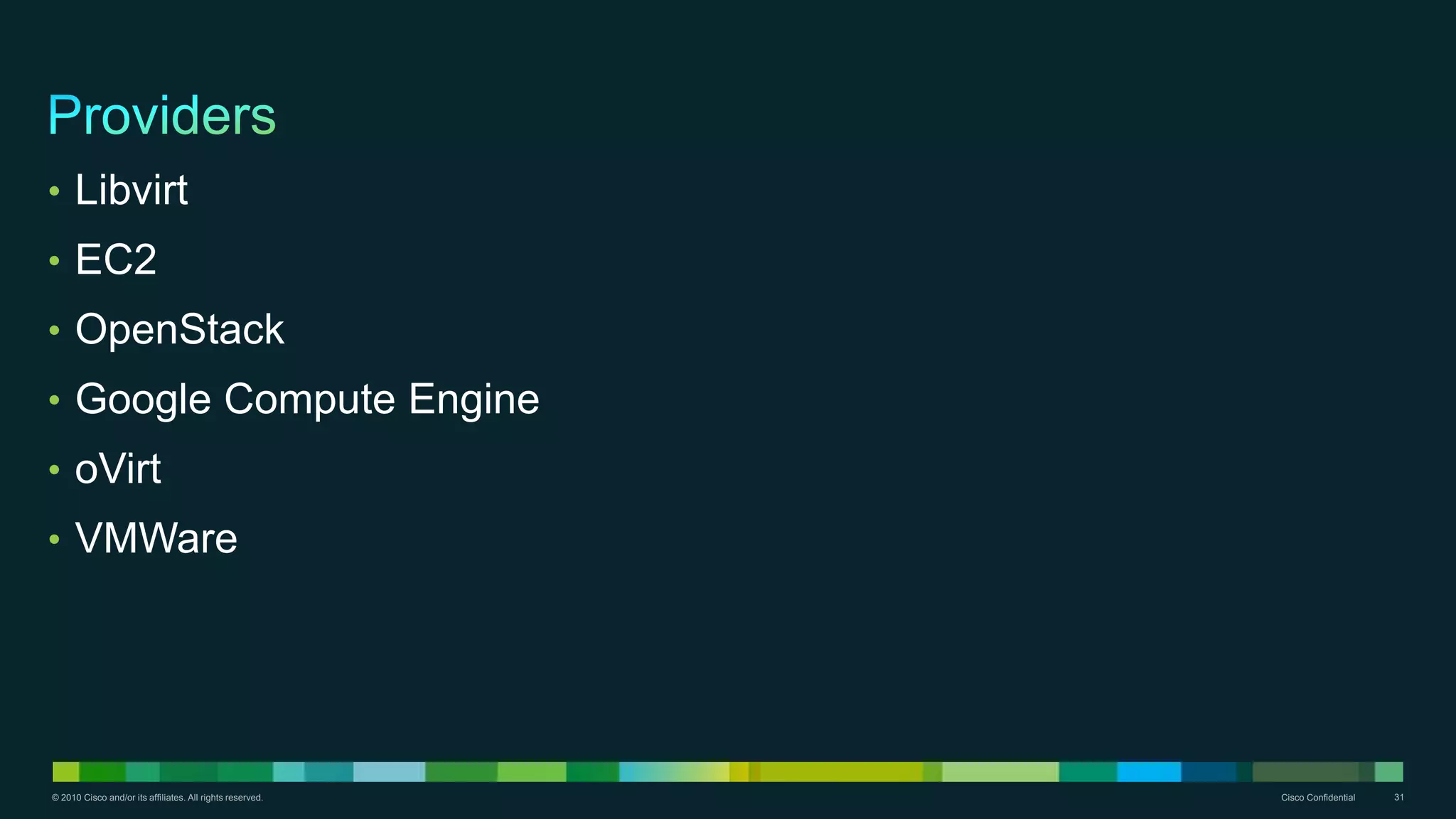

• Libvirt
• EC2
• OpenStack
• Google Compute Engine
• oVirt
• VMWare

32. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

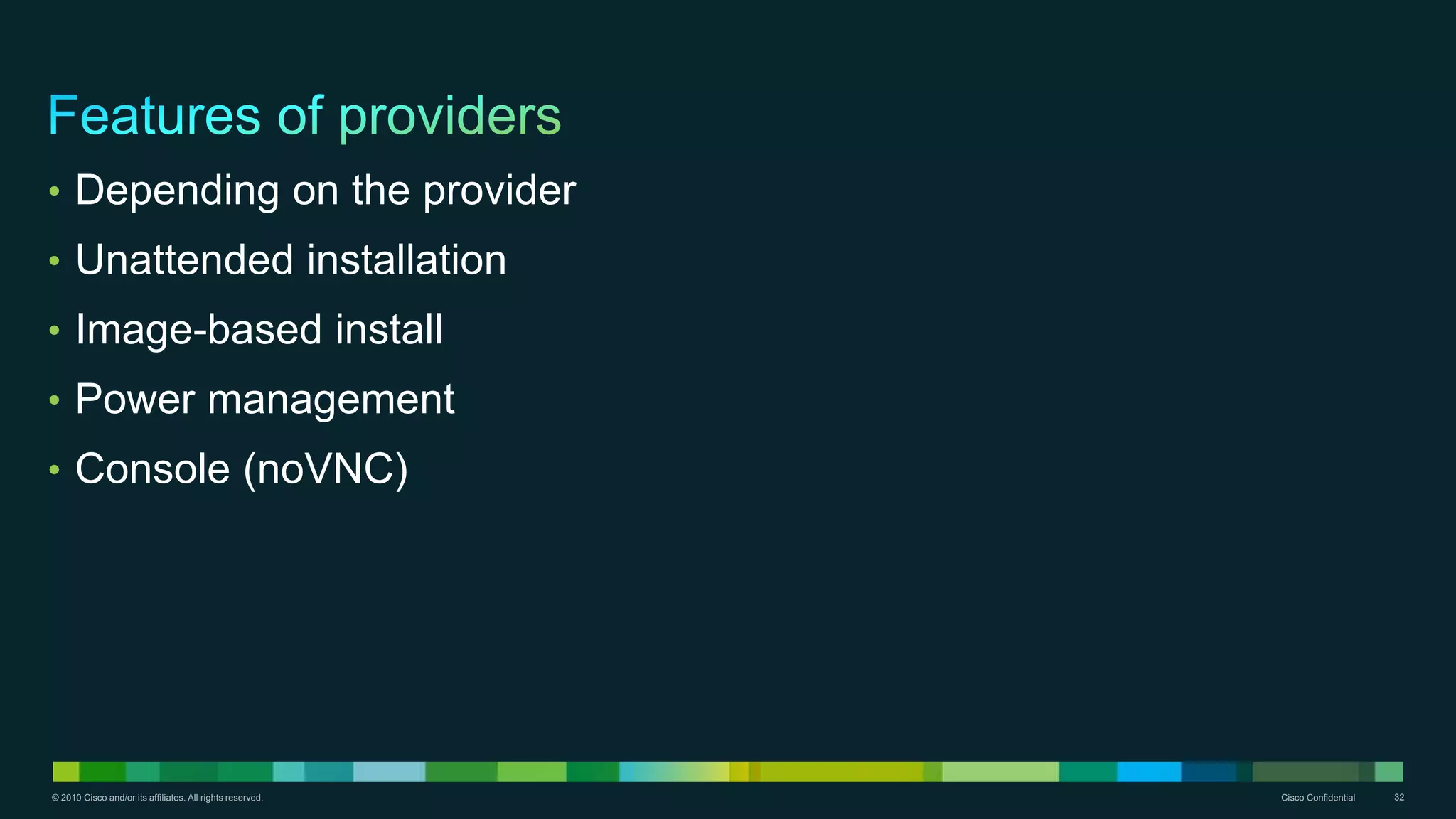

• Depending on the provider
• Unattended installation
• Image-based install
• Power management
• Console (noVNC)

33. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33
• CentOS/RHEL
• Fedora
• Ubuntu/Debian
• Suse
• Solaris

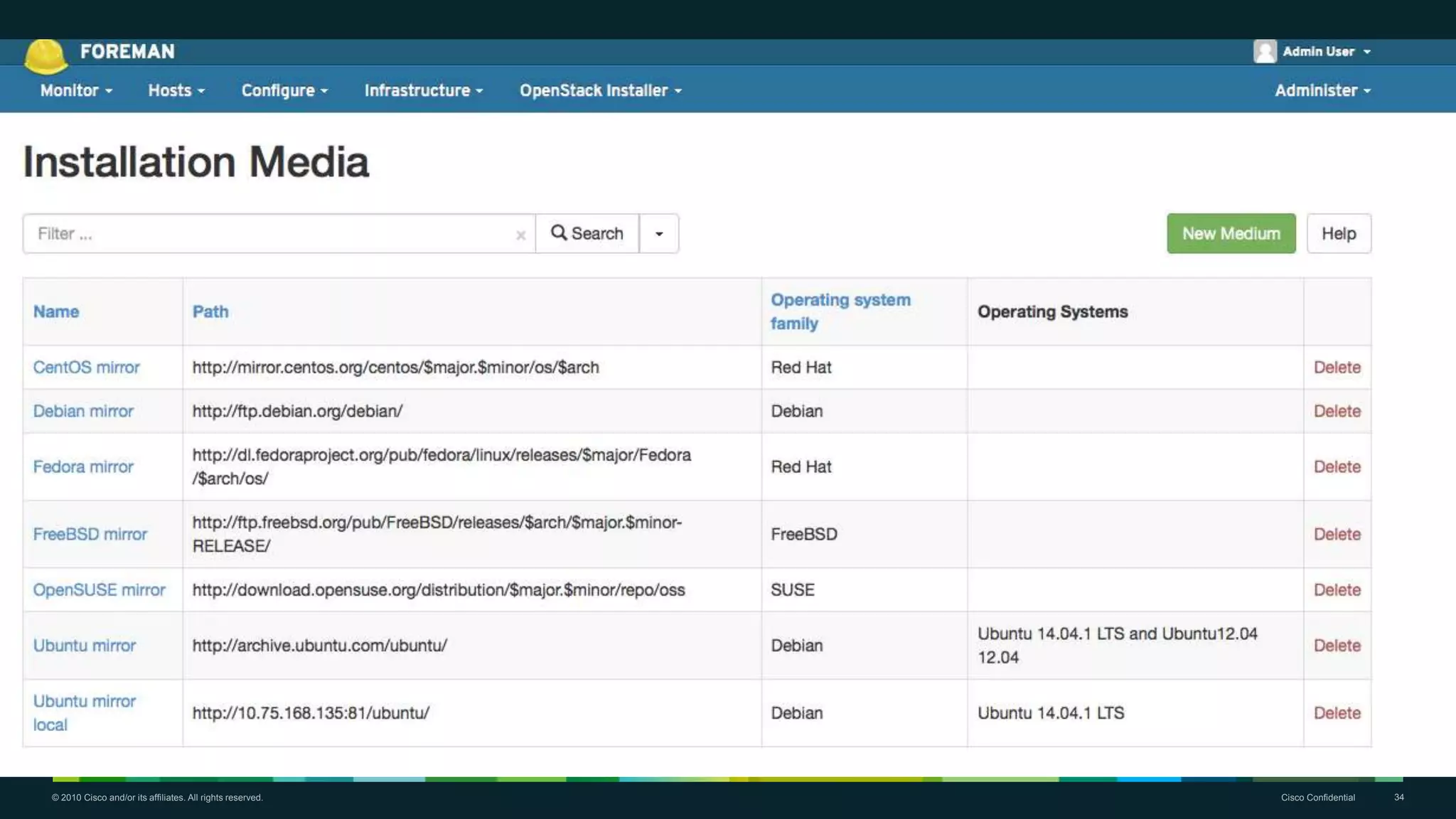

34. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 34

35. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 35

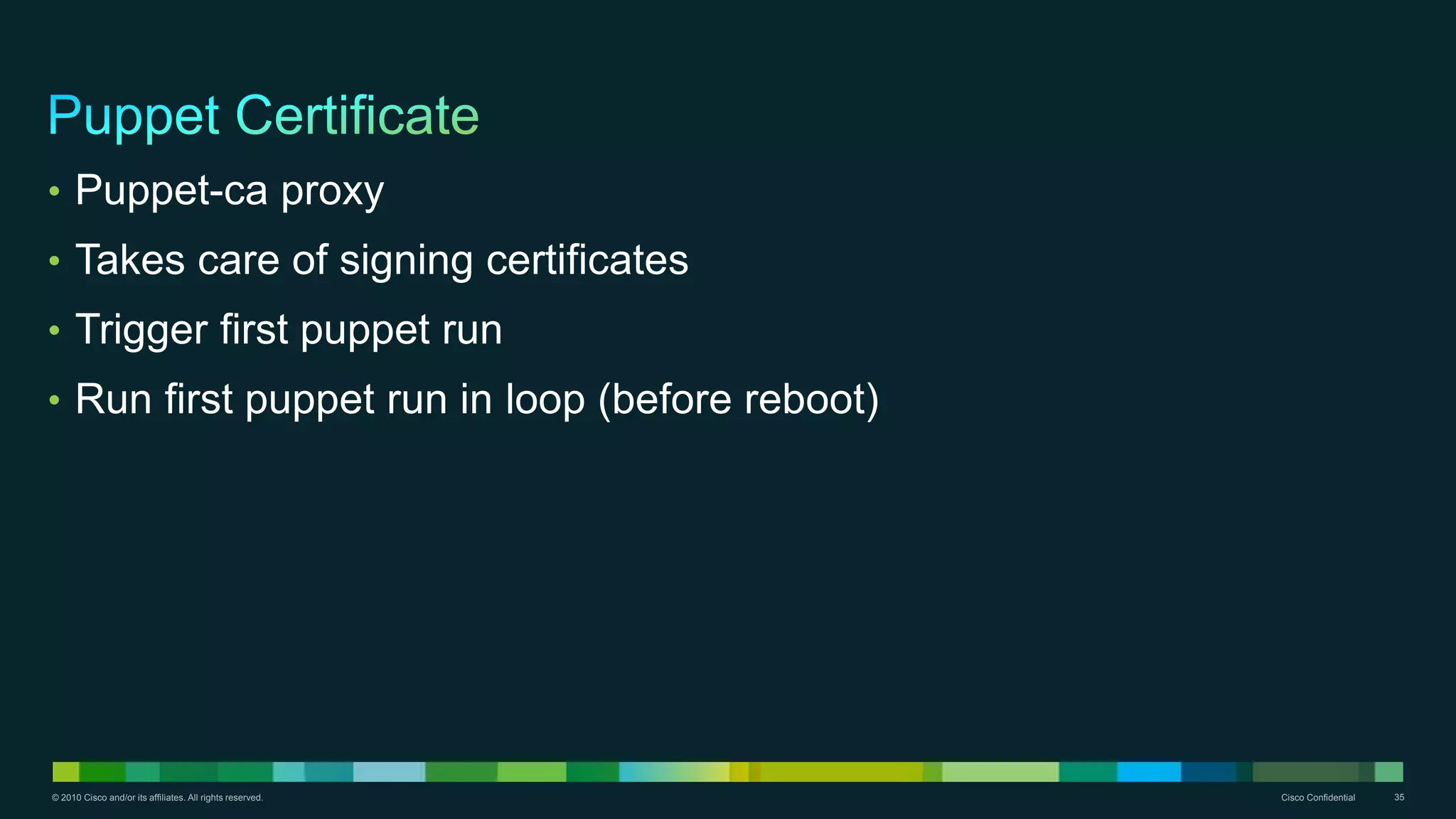

• Puppet-ca proxy
• Takes care of signing certificates
• Trigger first puppet run
• Run first puppet run in loop (before reboot)

36. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 36

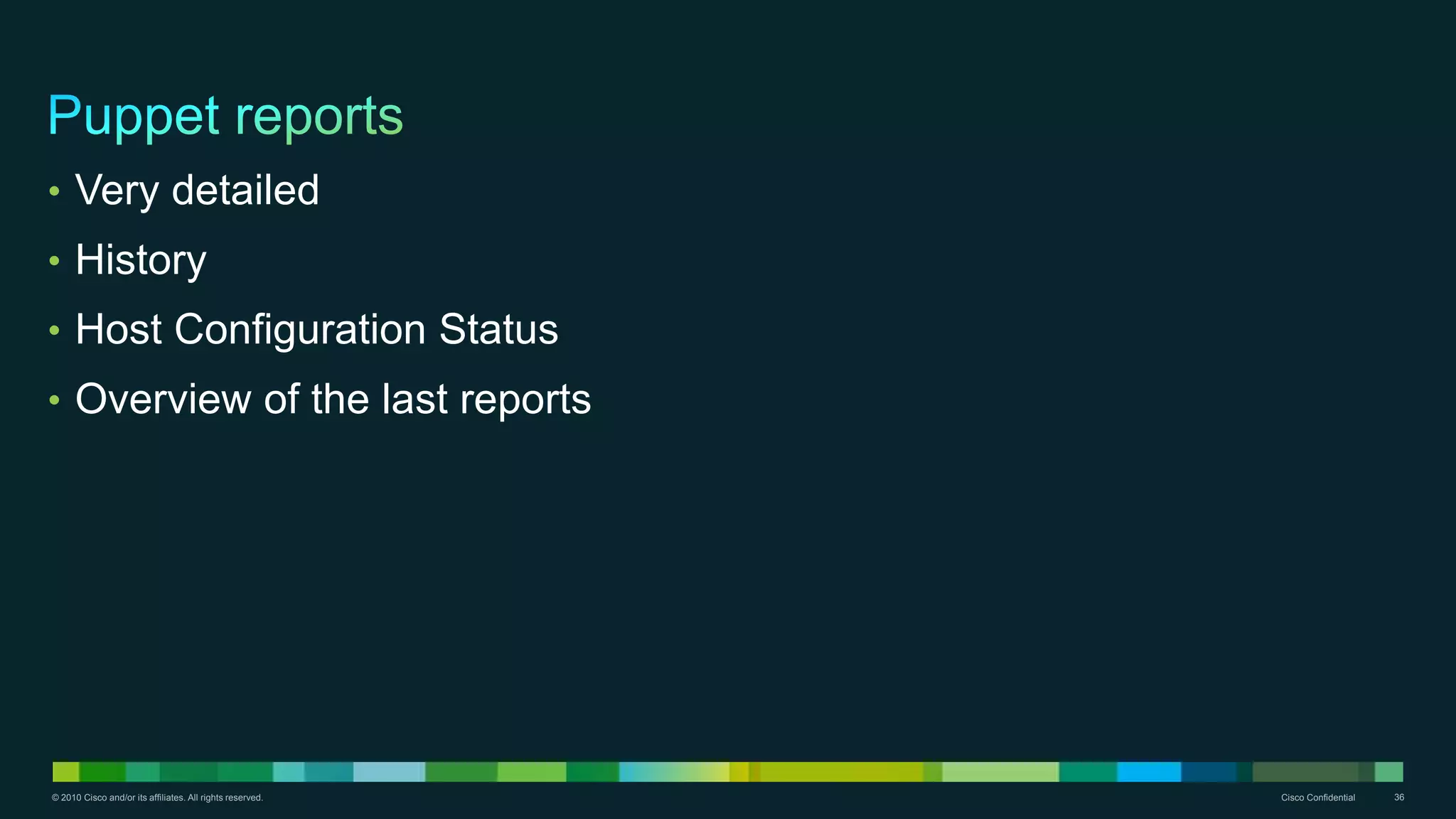

• Very detailed
• History
• Host Configuration Status
• Overview of the last reports

37. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 37

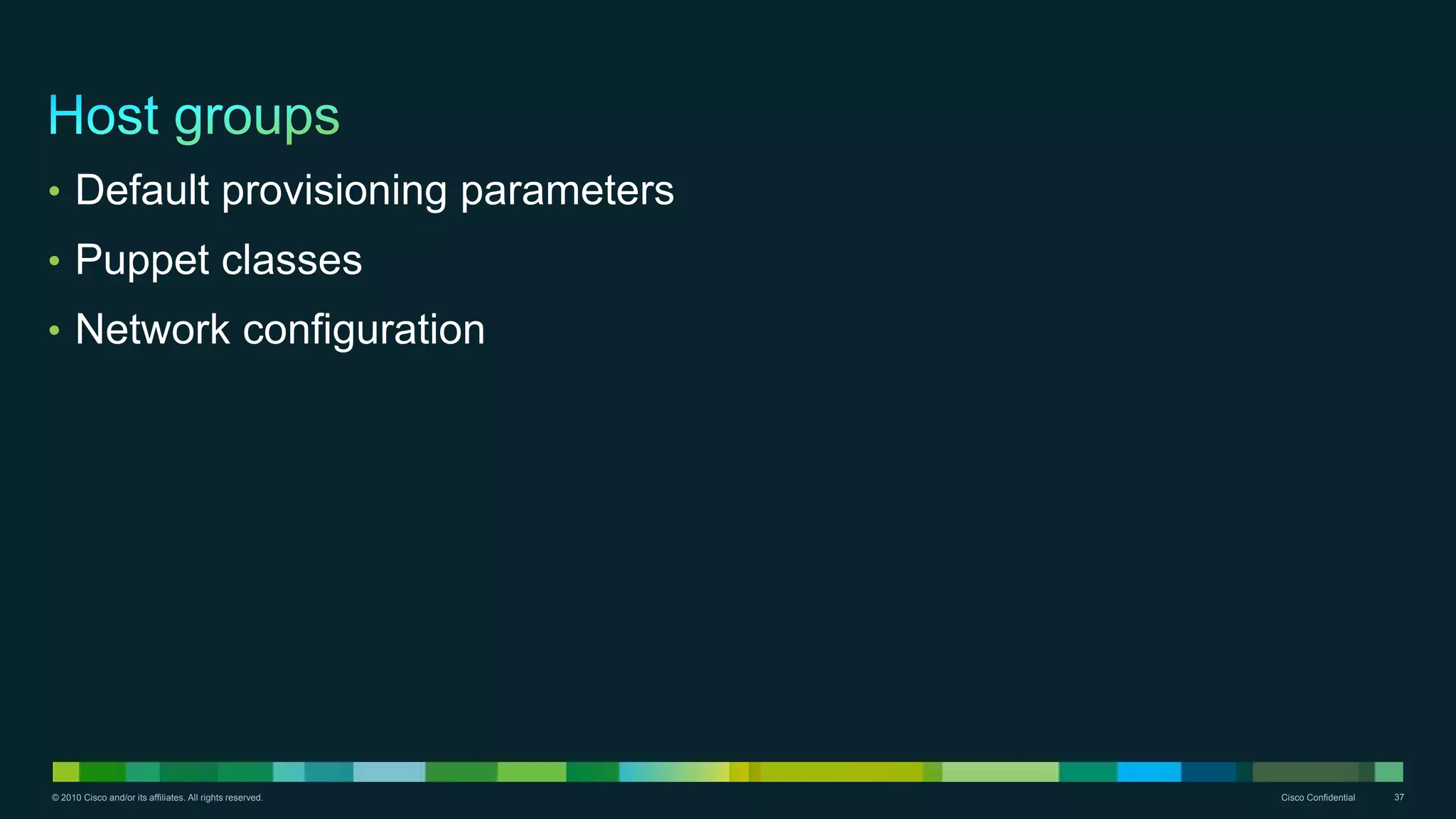

• Default provisioning parameters
• Puppet classes
• Network configuration

38. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38

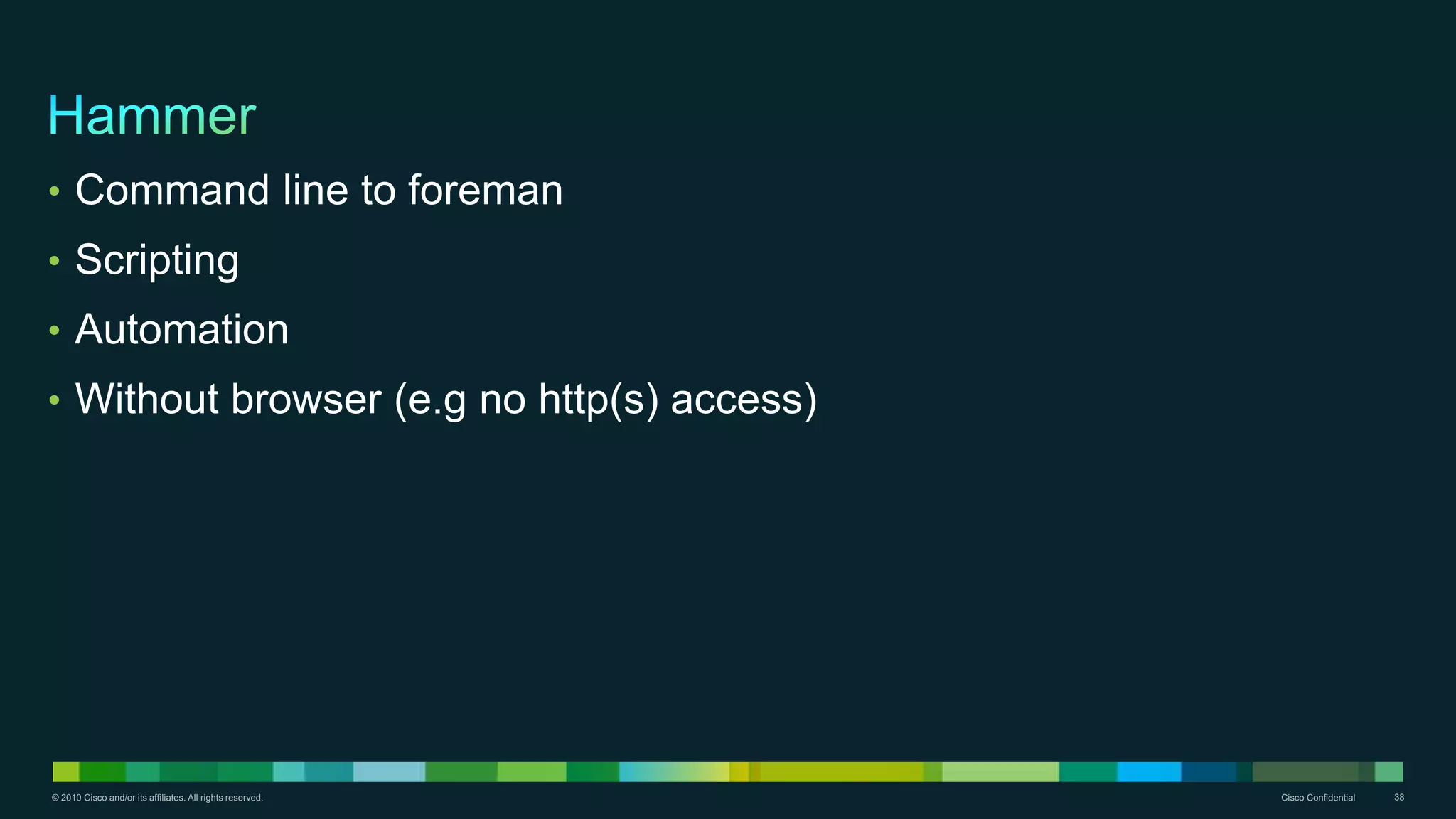

• Command line to foreman
• Scripting
• Automation
• Without browser (e.g no http(s) access)

39. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 39

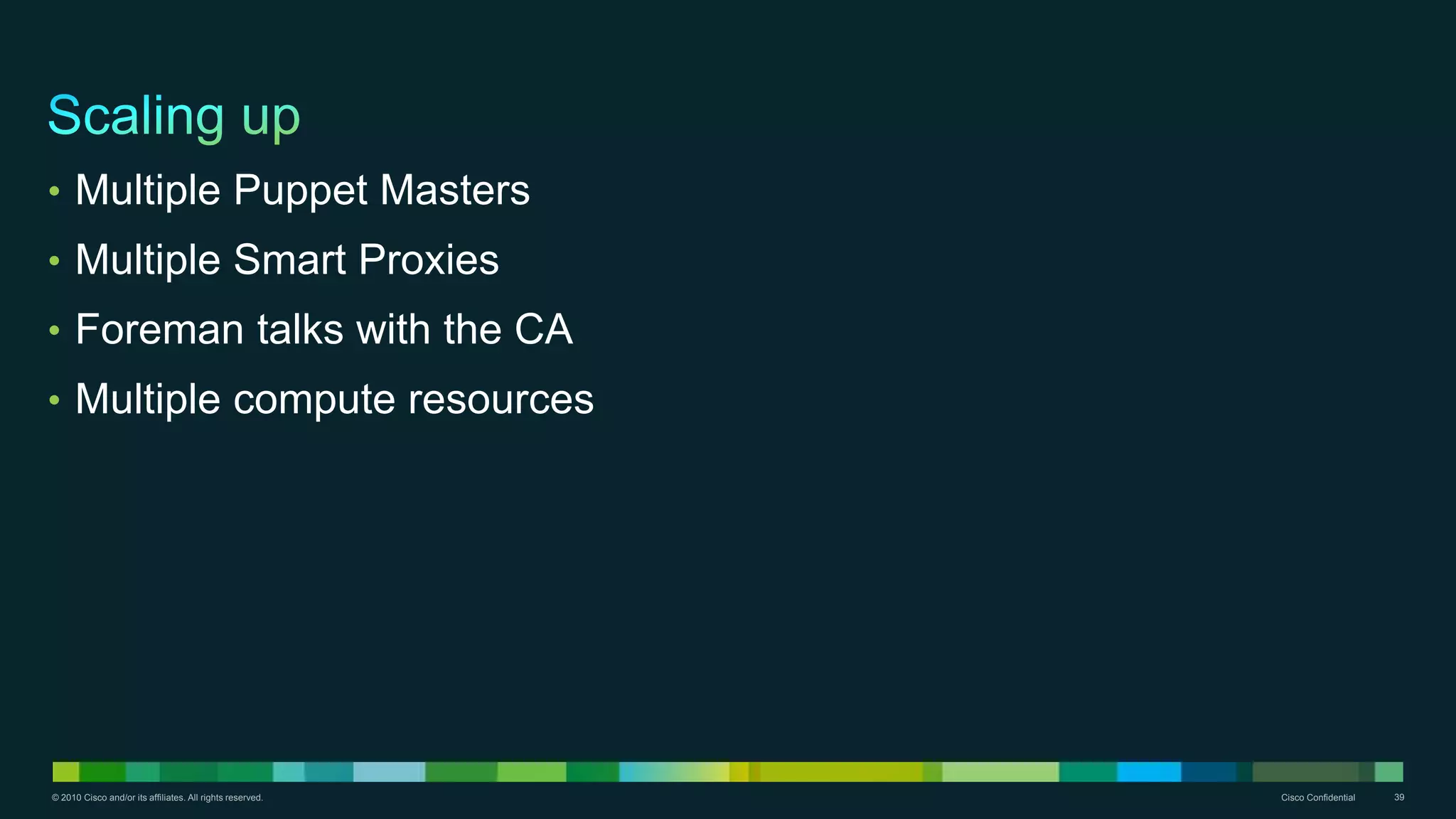

• Multiple Puppet Masters
• Multiple Smart Proxies
• Foreman talks with the CA
• Multiple compute resources

40. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 40

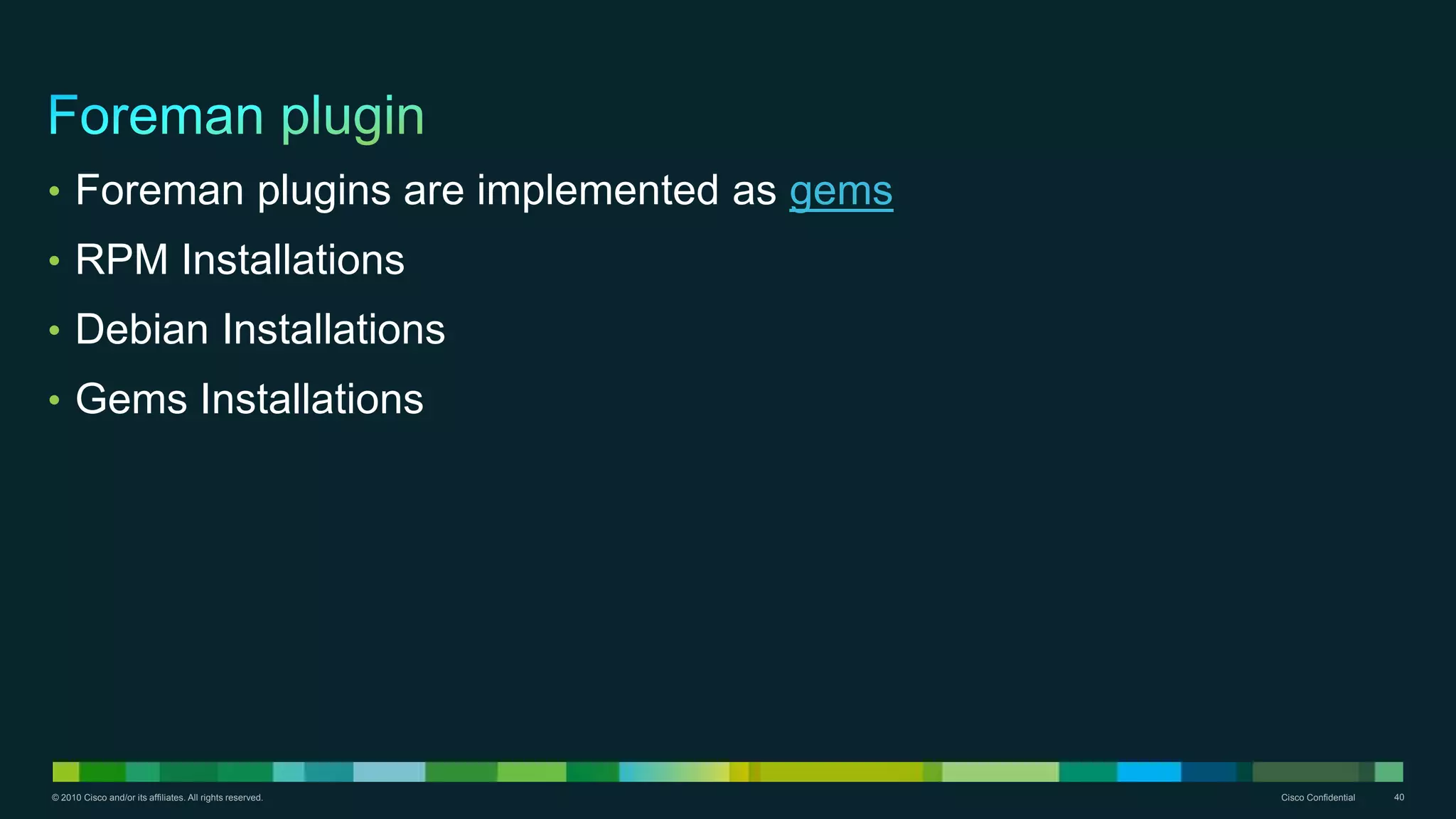

• Foreman plugins are implemented as gems
• RPM Installations
• Debian Installations
• Gems Installations

41. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 41

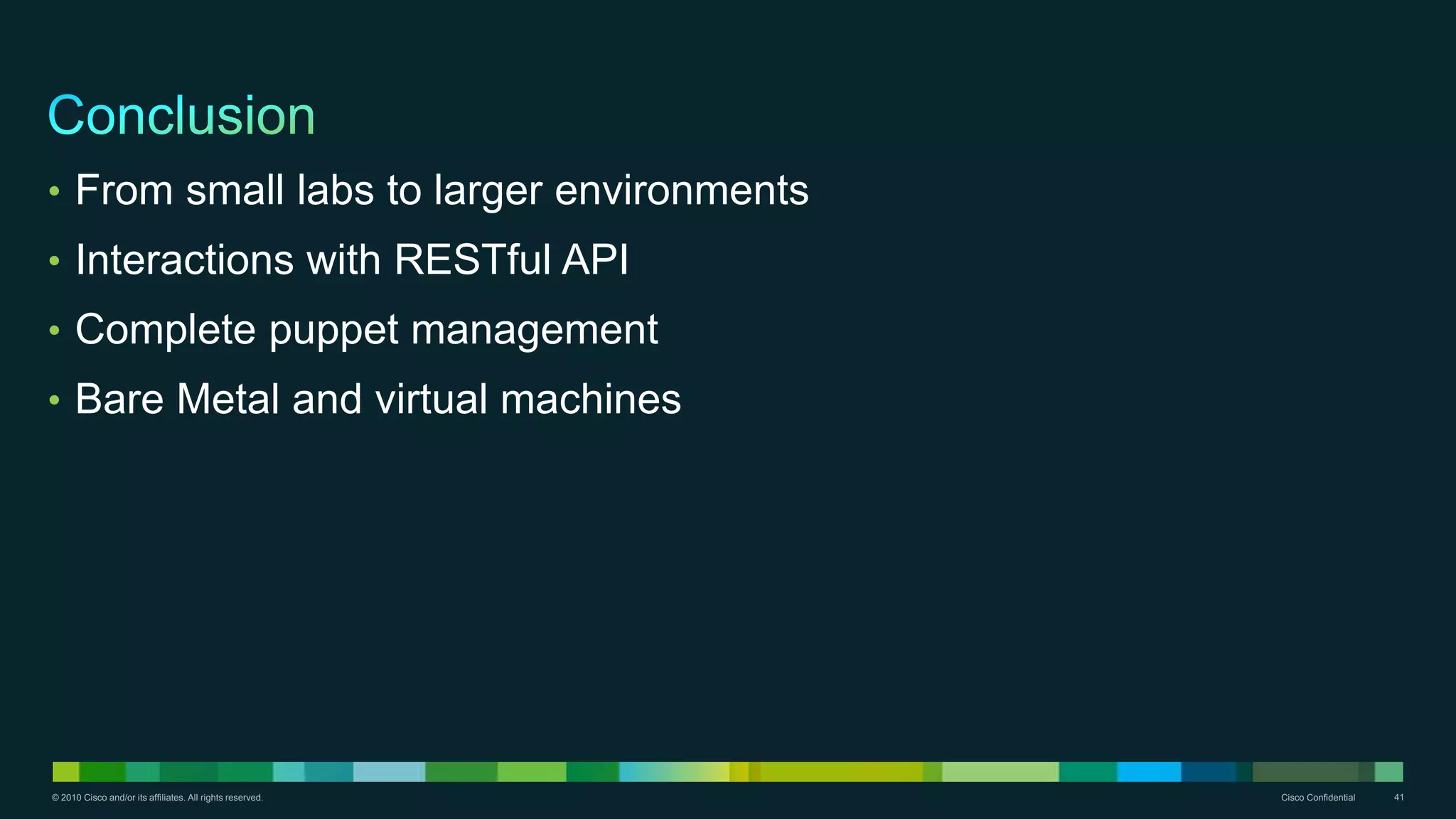

• From small labs to larger environments
• Interactions with RESTful API
• Complete puppet management
• Bare Metal and virtual machines

42. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 42Cisco Confidential© 2010 Cisco and/or its affiliates. All rights reserved. 42
Puppet TOI
Yating Yang
Feb 10 2015

43. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43

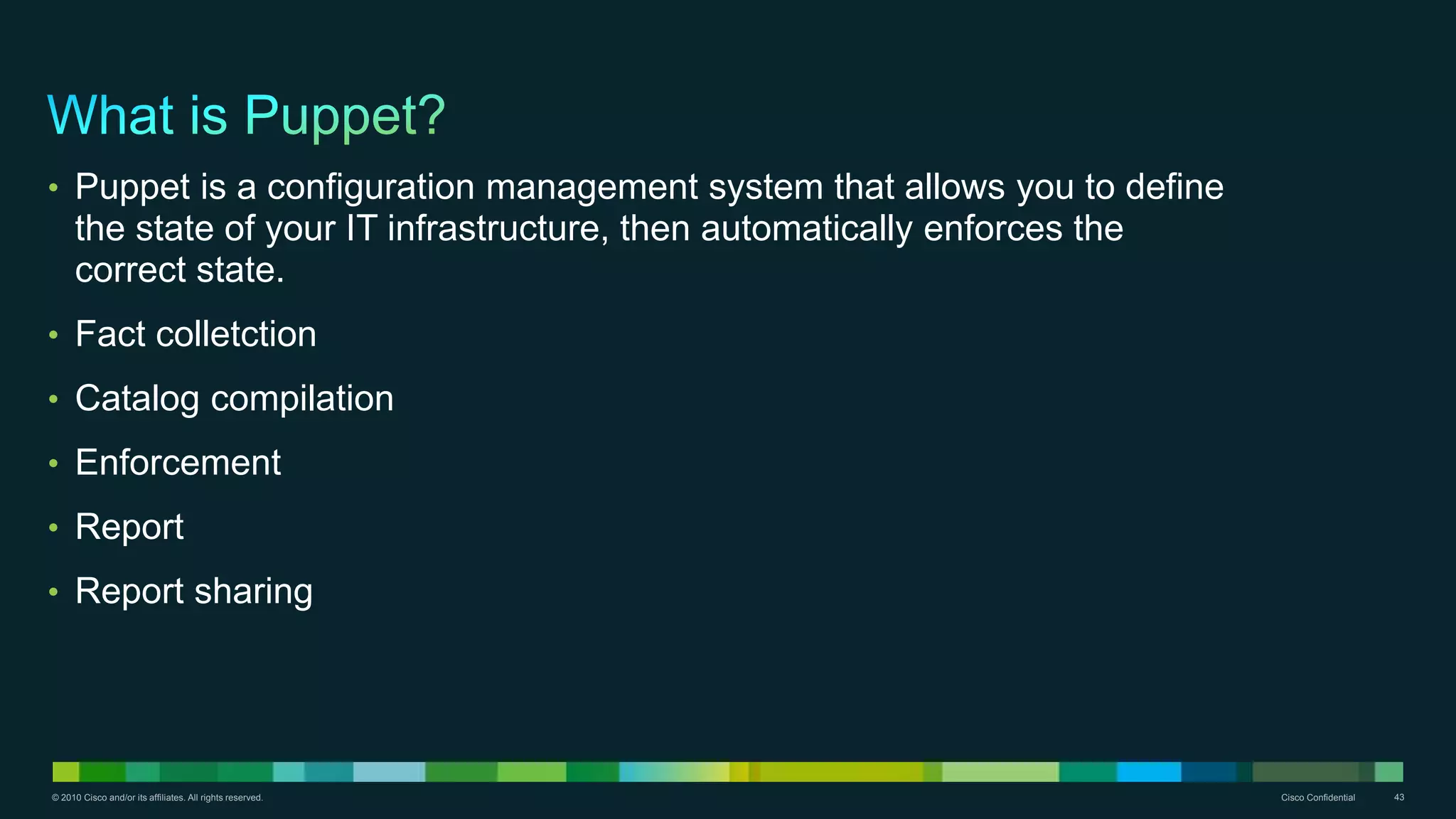

• Puppet is a configuration management system that allows you to define
the state of your IT infrastructure, then automatically enforces the
correct state.
• Fact colletction
• Catalog compilation
• Enforcement
• Report
• Report sharing

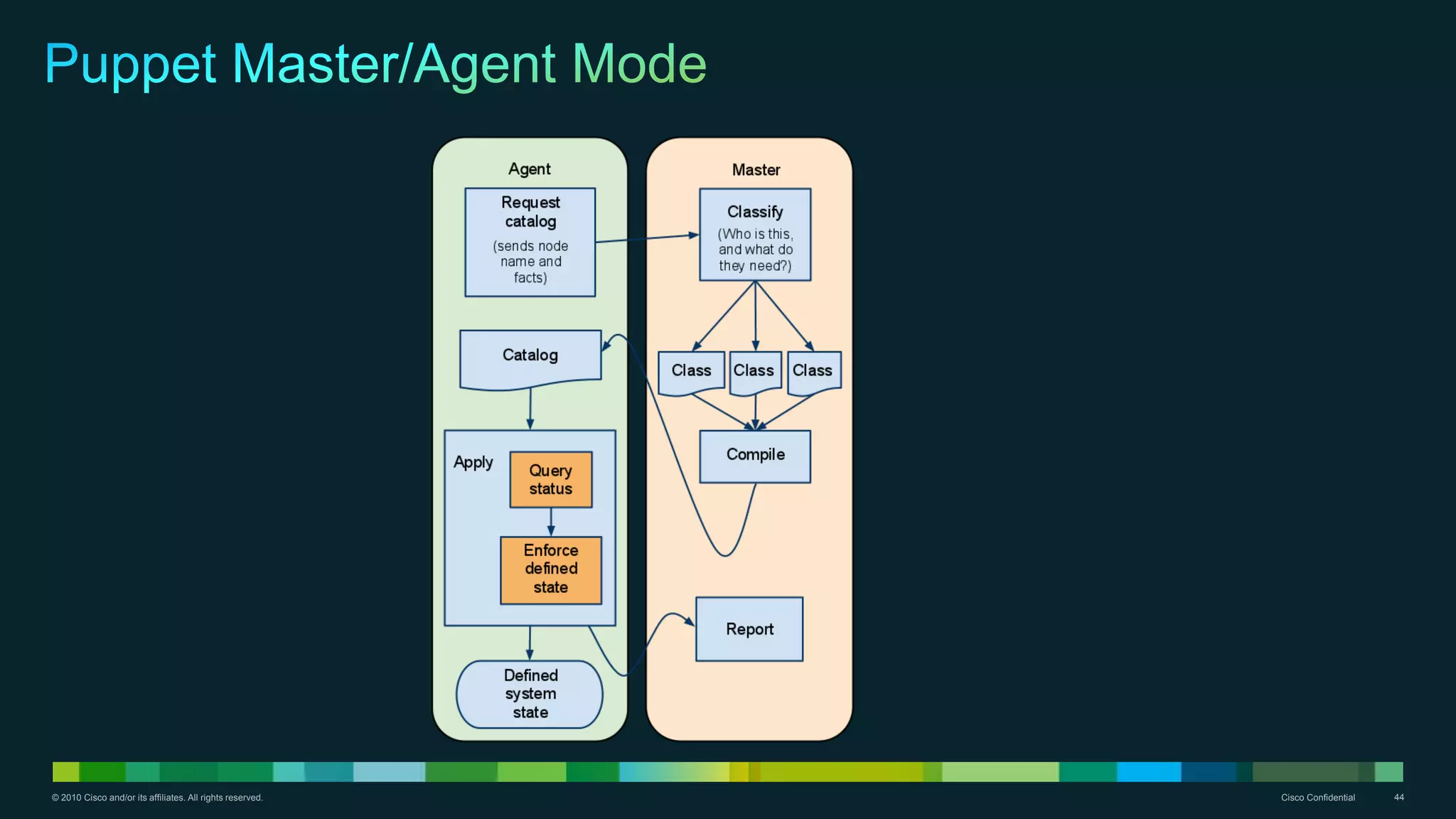

44. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44

45. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 45

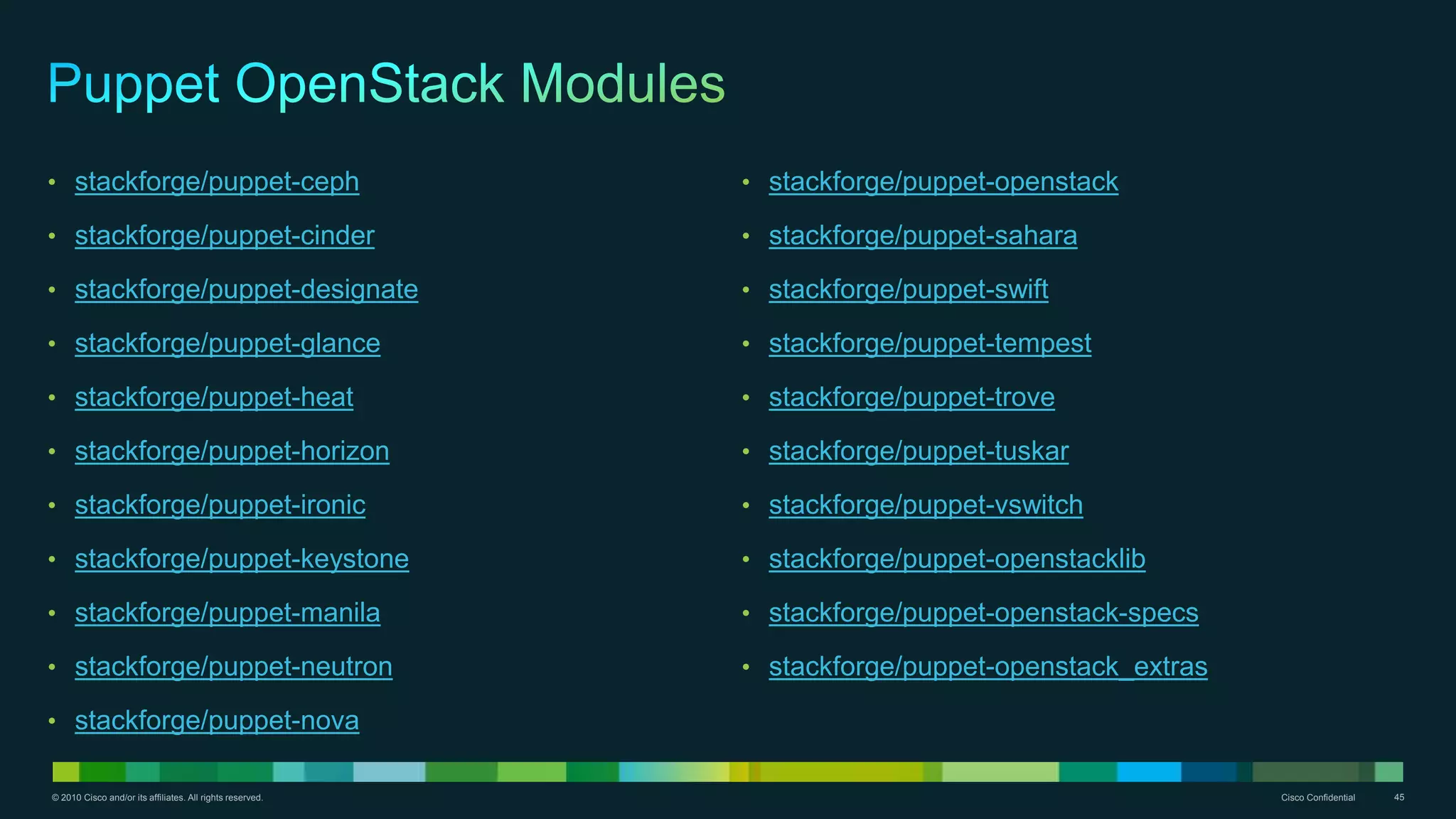

• stackforge/puppet-ceph
