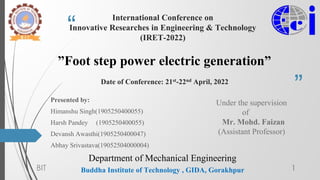

1. “
”
International Conference on
Innovative Researches in Engineering & Technology
(IRET-2022)
”Foot step power electric generation”
Date of Conference: 21st-22nd April, 2022
Buddha Institute of Technology , GIDA, Gorakhpur
Presented by:
Himanshu Singh(1905250400055)
Harsh Pandey (1905250400055)
Devansh Awasthi(1905250400047)
Abhay Srivastava(19052504000004)
BIT 1
Under the supervision
of
Mr. Mohd. Faizan
(Assistant Professor)
Department of Mechanical Engineering

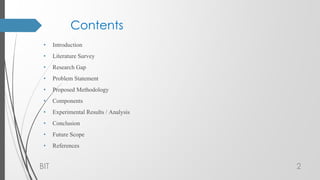

2. Contents
• Introduction
• Literature Survey
• Research Gap
• Problem Statement
• Proposed Methodology
• Components
• Experimental Results / Analysis
• Conclusion
• Future Scope
• References
BIT 2

3. Introduction

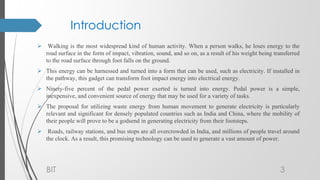

 Walking is the most widespread kind of human activity. When a person walks, he loses energy to the
road surface in the form of impact, vibration, sound, and so on, as a result of his weight being transferred
to the road surface through foot falls on the ground.
 This energy can be harnessed and turned into a form that can be used, such as electricity. If installed in
the pathway, this gadget can transform foot impact energy into electrical energy.
 Ninety-five percent of the pedal power exerted is turned into energy. Pedal power is a simple,
inexpensive, and convenient source of energy that may be used for a variety of tasks.
 The proposal for utilizing waste energy from human movement to generate electricity is particularly
relevant and significant for densely populated countries such as India and China, where the mobility of
their people will prove to be a godsend in generating electricity from their footsteps.
 Roads, railway stations, and bus stops are all overcrowded in India, and millions of people travel around
the clock. As a result, this promising technology can be used to generate a vast amount of power.
BIT 3

4. Literature Survey

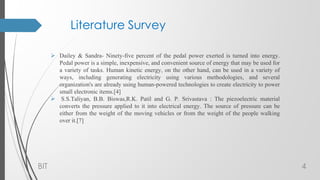

 Dailey & Sandra- Ninety-five percent of the pedal power exerted is turned into energy.
Pedal power is a simple, inexpensive, and convenient source of energy that may be used for
a variety of tasks. Human kinetic energy, on the other hand, can be used in a variety of
ways, including generating electricity using various methodologies, and several
organization's are already using human-powered technologies to create electricity to power
small electronic items.[4]
 S.S.Taliyan, B.B. Biswas,R.K. Patil and G. P. Srivastava : The piezoelectric material
converts the pressure applied to it into electrical energy. The source of pressure can be
either from the weight of the moving vehicles or from the weight of the people walking
over it.[7]
BIT 4

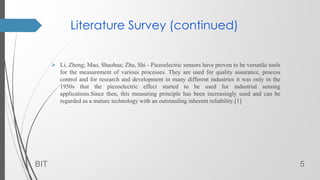

5. Literature Survey (continued)
 Li, Zheng; Mao, Shaohua; Zhu, Shi - Piezoelectric sensors have proven to be versatile tools
for the measurement of various processes. They are used for quality assurance, process
control and for research and development in many different industries it was only in the
1950s that the piezoelectric effect started to be used for industrial sensing
applications.Since then, this measuring principle has been increasingly used and can be
regarded as a mature technology with an outstanding inherent reliability.[1]
BIT 5

6. Research Gap

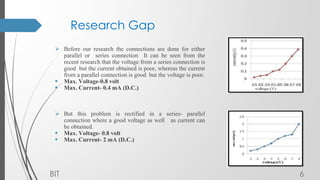

 Before our research the connections are done for either
parallel or series connection It can be seen from the
recent research that the voltage from a series connection is
good but the current obtained is poor, whereas the current
from a parallel connection is good but the voltage is poor.
 Max. Voltage-0.8 volt
 Max. Current- 0.4 mA (D.C.)
 But this problem is rectified in a series- parallel
connection where a good voltage as well as current can
be obtained.
 Max. Voltage- 0.8 volt
 Max. Current- 2 mA (D.C.)
BIT 6

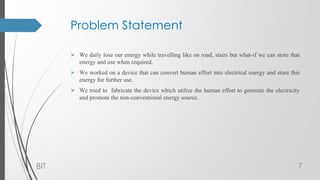

7. Problem Statement
 We daily lose our energy while travelling like on road, stairs but what-if we can store that
energy and use when required.
 We worked on a device that can convert human effort into electrical energy and store this
energy for further use.
 We tried to fabricate the device which utilize the human effort to generate the electricity
and promote the non-conventional energy source.
BIT 7

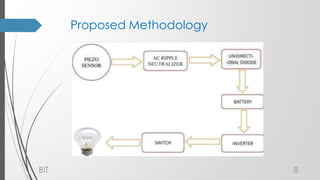

8. Proposed Methodology
BIT 8

9. Main Components
BIT 9
Piezoelectric
sensor-32
Open Coil Springs
(L=10cm, D=3cm)
Multimeter 12V Rechargeable Battery
Arrangement of piezo material
(PZT,4*8)
Wood Strip (40*22 cm2)

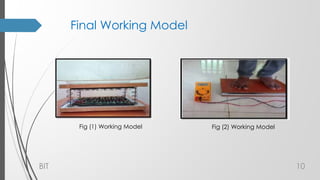

10. Final Working Model
BIT 10
Fig (1) Working Model Fig (2) Working Model

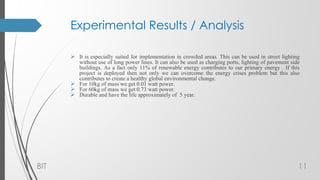

11. Experimental Results / Analysis
 It is especially suited for implementation in crowded areas. This can be used in street lighting
without use of long power lines. It can also be used as charging ports, lighting of pavement side
buildings. As a fact only 11% of renewable energy contributes to our primary energy . If this
project is deployed then not only we can overcome the energy crises problem but this also
contributes to create a healthy global environmental change.
 For 10kg of mass we get 0.01 watt power.
 For 60kg of mass we get 0.73 watt power.
 Durable and have the life approximately of 5 year.
BIT 11

12. Conclusion
 In the method both mechanical and electrical part places major role. Thus the method is quite
easy to implement and maintain. Thus to make the whole system for urban area application more
design parameters should consider. Now-a days numbers of energy sources are present, non-
renewable and renewable, but we still cannot exceed our energy needs . Among these, the human
population is one of the resources. Energy can be generated by walking down the stairs. The
energy generated will be stored and then we can use it for domestic purpose. This system can be
installed in installed in homes, schools, universities, where people move around the clock.
BIT 12

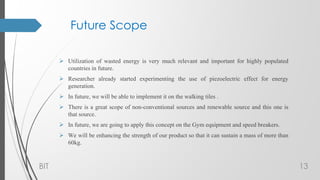

13. Future Scope
 Utilization of wasted energy is very much relevant and important for highly populated
countries in future.
 Researcher already started experimenting the use of piezoelectric effect for energy
generation.
 In future, we will be able to implement it on the walking tiles .
 There is a great scope of non-conventional sources and renewable source and this one is
that source.
 In future, we are going to apply this concept on the Gym equipment and speed breakers.
 We will be enhancing the strength of our product so that it can sustain a mass of more than
60kg.
BIT 13

14. References
[1] Li, Zheng; Mao, Shaohua ; Zhu, Shi, “Thevenin source resistance of the touch transferred and step voltages of a
grounding system”, IEEE proceedings vol. 146, March 1999.
[2] Yuki Bunda, Kajiro Watanabe, Kazuyuki Kobayashi, “Measurement of static electricity generated by human walking”,
SICE Annual conference 2010.
[3] A. Mohammadpour A. Gandhi L. Parsa, “Winding factor calculation for analysis of back EMF wave for in air core
permanent magnet linear synchronous motors”
[4] Dailey, Sandra J. , Carpenter, William F., “The evolution of built-in test for an electrical power generating system
(EPGS)”, IEEE Aerospace and Electronics conference, vol. 1, no. 7, pp. 230-232,July 1989.
[5] “Vibration Based Energy Harvesting Using Piezoelectric Material”, M.N. Fakhzan, Asan G.A.Muthalif, Department of
Mechatronics Engineering, International Islamic University Malaysia, IIUM, Kuala Lumpur, Malaysia.
[6] “Piezoelectric Crystals: Future Source Of Electricity”, International Journal of Scientific Engineering and Technology,
Volume 2 Issue 4, April 2013.
[7] “Electricity from Footsteps”, S.S.Taliyan, B.B.Biswas, R.K. Patil and G. P. Srivastava, Reactor Control Division,
Electronics & Instrumentation Group And T.K. Basu IPR, Gandhinagar.
BIT 14

15. BIT 15

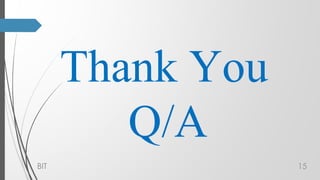

Thank You
Q/A
