1. Sharing Stories
with
FOOD FABLES
Unravelling the stories behind the cuisines

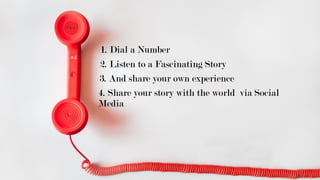

2. 1. Dial a Number
2. Listen to a Fascinating Story
3. And share your own experience
4. Share your story with the world via Social
Media

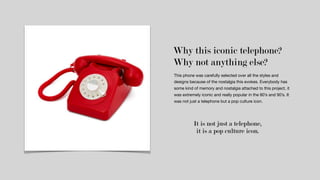

3. Why this iconic telephone?
This phone was carefully selected over all the styles and
designs because of the nostalgia this evokes. Everybody has
some kind of memory and nostalgia attached to this project, it
was extremely iconic and really popular in the 80’s and 90’s. It
was not just a telephone but a pop culture icon.
Why not anything else?
It is not just a telephone,
it is a pop culture icon.

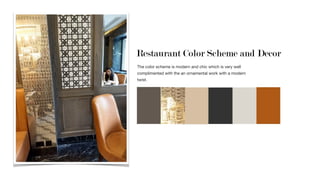

4. Restaurant Color Scheme and Decor
The color scheme is modern and chic which is very well
complimented with the an ornamental work with a modern
twist.

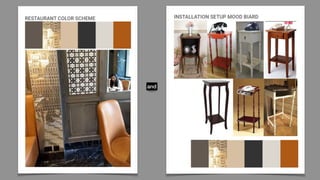

5. and

6. References for the
Raw Material
The Raw Material will
finished and polished
according to the
restaurant color scheme

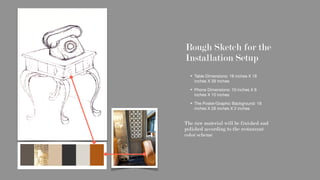

7. Rough Sketch for the
Installation Setup
Table Dimensions: 18 inches X 18
inches X 39 inches
Phone Dimensions: 10 inches X 8
inches X 10 inches
The Poster/Graphic Background: 18
inches X 28 inches X 2 inches
The raw material will be finished and
polished according to the restaurant
color scheme

8. Existing Working Prototype
Earlier installed in NID Paladi as a test

9. The Backend Technology Bit
Technically, the project can be classified as an application of
IoT (Internet of things). With this in mind, it contains all the
modules of a typical Internet of Things project; sensors,
actuators, a processing board, and a cloud.
The hardware part of the complete setup includes a dialer
phone, a processing board, recording devices with audio and
video capturing capabilities, and other input devices that can
vary from one particular use case to another. Some of them
might include human detection sensors and ultrasonic sensors.
This is totally dependent on the specific requirements of the
clients.

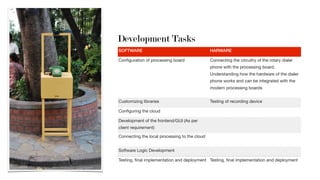

10. SOFTWARE HARWARE
Configuration of processing board Connecting the circuitry of the rotary dialer
phone with the processing board.
Understanding how the hardware of the dialer
phone works and can be integrated with the
modern processing boards
Customizing libraries Testing of recording device
Configuring the cloud
Development of the frontend/GUI (As per
client requirement)
Connecting the local processing to the cloud
Software Logic Development
Testing, final implementation and deployment Testing, final implementation and deployment
Development Tasks

11. Thank You
Presentation by Devyani Jain
