1) QUELLMAX is a swellable bentonite waterstop tape that reliably seals construction joints exposed to water through strong swelling (>300%) and a unique two-phase sealing process of immediate swelling followed by crystallization. 2) QUELLMAX can be installed easily and seals cracks and cavities through a self-injecting effect. It is dimensionally stable and reusable even after decades. 3) There are three types of QUELLMAX waterstop tapes: standard QUELLMAX BLACKSTOP, QUELLMAX Plus with rain protection, and QUELLMAX Plus 2-Phases with rain protection and a patented two-phase sealing behavior.

1. With General Building Code Test Certificate
Drinking Water Appoval
according to DVGW– Working Paper W 347
Animal Manure Resistance
according to MPA-Report 5064/474/07
Tested for the use in areas subject
to variation in the height of water table

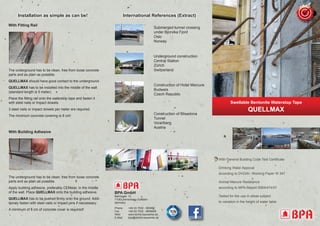

Installation as simple as can be!
Submerged tunnel crossing
under Bjorvika Fjord
Oslo
Norway
Underground construction
Central Station
Zürich
Switzerland
International References (Extract)
Construction of Hotel Mercure
Budweis
Czech Republic
Construction of Blisadona
Tunnel
Vorarlberg
Austria
With Fitting Rail
The underground has to be clean, free from loose concrete
parts and as plain as possible.
QUELLMAX should have good contact to the underground.
QUELLMAX has to be installed into the middle of the wall
(standard length is 5 meter).
Place the fitting rail onto the waterstop tape and fasten it
with steel nails or impact dowels.
3 steel nails or impact dowels per meter are required.
The minimum concrete covering is 8 cm!
With Building Adhesive
The underground has to be clean, free from loose concrete
parts and as plain as possible.
Apply building adhesive, preferably CEMstar, in the middle
of the wall. Place QUELLMAX onto the building adhesive.
QUELLMAX has to be pushed firmly onto the ground. Addi-
tionaly fasten with steel nails or impact pins if neccessary.
A minimum of 8 cm of concrete cover is required!
BPA GmbH
Behringstr. 12
71083 Herrenberg-Gültstein
Germany
Phone: +49 (0) 7032 - 893990
Fax: +49 (0) 7032 - 8939929
Web: www.dichte-bauwerke.de
E-Mail: bpa@dichte-bauwerke.de
Swellable Bentonite Waterstop Tape
QUELLMAX

2. Advantages of QUELLMAX
Initial situation:
QUELLMAX Blackstop/
Plus/Plus 2-Phases
installed into the construction
joint.
QUELLMAX Blackstop/
Plus/Plus 2-Phases swells
reliably and instantly even
seals construction joints
which are exposed
constantly or temporarily to
water.
QUELLMAX Plus 2-
Phases, with unique and
patented active two-phases
sealing behavior, additionaly
supports the sintering process
by the forming of limestone
in the construction joint!
Sealing Process
 Strong swelling behavior (>300 %)
 No upturn beams required
 Self-injecting effect through penetration into any
cracks and cavities
 Swelling- and shrinking process are endlessly
reversible (sodium-bentonite reacts even decades
after installation)
 Dimensionally stable, non-sticky - even at high
temperatures during summer time
Additional advantage of QUELLMAX Plus and
QUELLMAX Plus 2-Phases:
Allows a 3 day window between its installation and
the placing of concrete as both swellable bentonite
waterstop tapes are protected against any premature
swelling and therefore can be installed in all weather
conditions.
Additional advantage of QUELLMAX Plus 2-Phases:
1. Phase
Immediate sealing respectively stopping of water by
swelling of bentonite
2. Phase
Long term sealing of the construction joint through
sintering respectively active crystallization!
Our swellable bentonite waterstop tapes are a reliable
alternative to conventional waterstop tapes and steel plate
waterstops.
Swellable bentonite waterstop tapes are used for water-
proofing of vertical and horizontal structural joints. They
feature a strong, fast and reliable swelling performance.
QUELLMAX swellable bentonite waterstops consist of
bentonite embedded in a matrix of high molecular butyl
rubber as well as special fillers and crystalline admixtures.
The patented QUELLMAX technology has a unique two-
phase sealing behavior of immediate swelling followed by
crystallization.
QUELLMAX can be applied for the sealing of construction
joints subjected to up to 7 bar water pressure.
To best serve the various needs of our customers we
have developed three different types of swellable
bentonite waterstop tapes:
Properties of QUELLMAX
QUELLMAX without rain protection
(standard)=
QUELLMAX BLACKSTOP
QUELLMAX with patented rain
protection=
QUELLMAX Plus
QUELLMAX with patented rain
protection and patented two-phases
sealing behavior =
QUELLMAX Plus 2-Phases
2 Phases
