FlexPod is a converged infrastructure solution that combines Cisco UCS servers and fabric interconnects with NetApp storage systems. It supports the provisioning of block (iSCSI) and file (NFS) storage volumes for use with an OpenStack cloud deployment using NetApp drivers. The document provides steps for creating volume types, provisioning NFS and iSCSI volumes from a NetApp storage system, and attaching the volumes to OpenStack instances to be used as block devices or mounted filesystems.

1. FlexPod driven by OpenStack
akos.kuczi@nextiraone.eu

2. What is FlexPod?
(blue)

3. What is FlexPod?
FlexPod

4. Upbringing FlexPod
Be Flexible!
Be Multitenant!
Be high available!
Use multi protocol!
Use the force FlexPod!
There is no spoon Flexpod!
OpenStack is your best friend!

5. The friendship

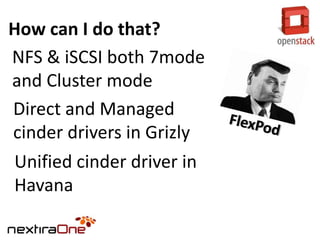

6. How can I do that?
NFS & iSCSI both 7mode
and Cluster mode
Direct and Managed
cinder drivers in Grizly
Unified cinder driver in
Havana

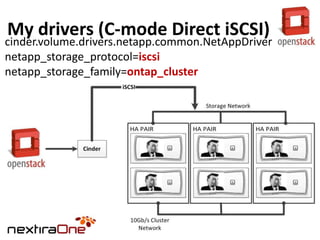

7. My drivers (C-mode Direct iSCSI)
cinder.volume.drivers.netapp.common.NetAppDriver
netapp_storage_protocol=iscsi
netapp_storage_family=ontap_cluster

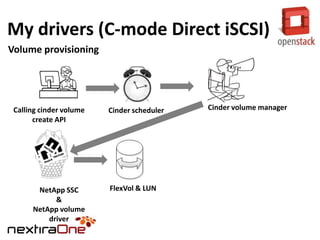

8. My drivers (C-mode Direct iSCSI)
Volume provisioning
Calling cinder volume
create API
NetApp SSC
&
NetApp volume
driver
Cinder scheduler
FlexVol & LUN
Cinder volume manager

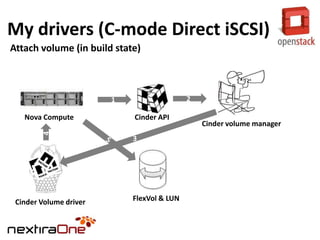

9. My drivers (C-mode Direct iSCSI)
Attach volume (in build state)
2
1
4
Nova Compute
Cinder Volume driver
Cinder API
3
FlexVol & LUN
Cinder volume manager

10. My drivers (C-mode Direct NFS)
Volume provisioning
2
1
Calling cinder volume
create API
5
NetApp SSC
&
NetApp volume
driver
Cinder scheduler
Cinder volume manager
4
FlexVol & volume mount
6
6
Thin provisioned file
7

11. My drivers (C-mode Direct NFS)
Attach volume (in build state)
2
1
4
Nova Compute
Cinder Volume driver
Cinder API
3
NFS mount
Cinder volume manager

12. The real life

13. The real life 1/9

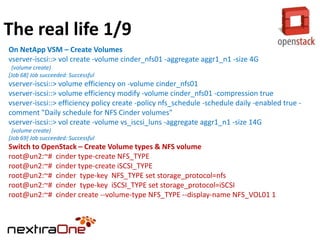

On NetApp VSM – Create Volumes
vserver-iscsi::> vol create -volume cinder_nfs01 -aggregate aggr1_n1 -size 4G
(volume create)
[Job 68] Job succeeded: Successful
vserver-iscsi::> volume efficiency on -volume cinder_nfs01
vserver-iscsi::> volume efficiency modify -volume cinder_nfs01 -compression true
vserver-iscsi::> efficiency policy create -policy nfs_schedule -schedule daily -enabled true comment "Daily schedule for NFS Cinder volumes"
vserver-iscsi::> vol create -volume vs_iscsi_luns -aggregate aggr1_n1 -size 14G
(volume create)
[Job 69] Job succeeded: Successful
Switch to OpenStack – Create Volume types & NFS volume
root@un2:~# cinder type-create NFS_TYPE
root@un2:~# cinder type-create iSCSI_TYPE
root@un2:~# cinder type-key NFS_TYPE set storage_protocol=nfs
root@un2:~# cinder type-key iSCSI_TYPE set storage_protocol=iSCSI
root@un2:~# cinder create --volume-type NFS_TYPE --display-name NFS_VOL01 1

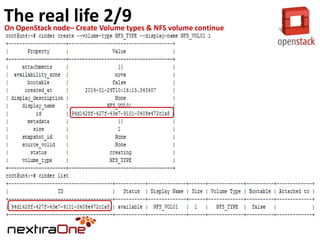

14. The real lifeVolume types & NFS volume continue
2/9
On OpenStack node– Create

15. The real life 3/9
On OpenStack node – Check NFS mount on Cinder Vol. Node & File base Volume
root@un4:~# mount |grep -i nfs
192.168.130.244:/jproot/cinder_nfs01 on
/var/cinder/mnt/9ee86d8d8bea25386f3fb64bf071bcf7 type nfs (rw,addr=192.168.130.244)
root@un4:~# ls -la /var/cinder/mnt/9ee86d8d8bea25386f3fb64bf071bcf7
total 12
drwxr-xr-x 2 root daemon
4096 Jan 29 11:16 .
drwxr-xr-x 4 cinder cinder
4096 Jan 29 01:33 ..
drwxrwxrwx 9 root root
4096 Jan 29 11:05 .snapshot
-rw-rw-rw- 1 root root 1073741824 Jan 29 11:16 volume-94d1428f-427f-43e7-91010408e472c1a8

16. The real life 4/9
On OpenStack node – Create iSCSI VOL

17. The real life 5/9

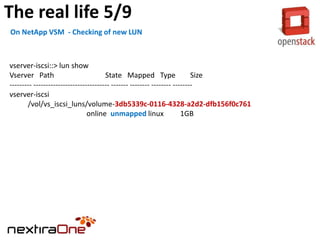

On NetApp VSM - Checking of new LUN
vserver-iscsi::> lun show
Vserver Path
State Mapped Type
Size
--------- ------------------------------- ------- -------- -------- -------vserver-iscsi
/vol/vs_iscsi_luns/volume-3db5339c-0116-4328-a2d2-dfb156f0c761
online unmapped linux
1GB

18. The real life 6/9
On NOVA compute node – Attach NFS
volume

19. The real life 7/9
On NOVA Compute node – Checking of attached vdisk backend
root@un2:/# virsh domblklist 2
Target Source
-----------------------------------------------vda
/var/lib/nova/instances/c5b51cf8-869d-4a60-a859-c429fd1aa64b/disk
vdb
/var/lib/nova/mnt/9ee86d8d8bea25386f3fb64bf071bcf7/volume-94d1428f-427f43e7-9101-0408e472c1a8

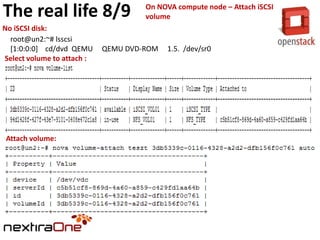

20. The real life 8/9
No iSCSI disk:
root@un2:~# lsscsi
[1:0:0:0] cd/dvd QEMU
Select volume to attach :
Attach volume:
On NOVA compute node – Attach iSCSI
volume
QEMU DVD-ROM
1.5. /dev/sr0

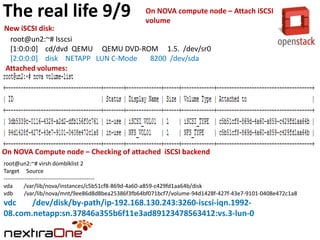

21. The real life 9/9
On NOVA compute node – Attach iSCSI
volume
New iSCSI disk:
root@un2:~# lsscsi
[1:0:0:0] cd/dvd QEMU QEMU DVD-ROM 1.5. /dev/sr0
[2:0:0:0] disk NETAPP LUN C-Mode
8200 /dev/sda
Attached volumes:
On NOVA Compute node – Checking of attached iSCSI backend
root@un2:~# virsh domblklist 2
Target Source
-----------------------------------------------vda
/var/lib/nova/instances/c5b51cf8-869d-4a60-a859-c429fd1aa64b/disk
vdb
/var/lib/nova/mnt/9ee86d8d8bea25386f3fb64bf071bcf7/volume-94d1428f-427f-43e7-9101-0408e472c1a8
vdc
/dev/disk/by-path/ip-192.168.130.243:3260-iscsi-iqn.199208.com.netapp:sn.37846a355b6f11e3ad89123478563412:vs.3-lun-0
