X-2E Modernize

A description of X-2E Modernize, the heart of the X-Analysis CA 2E
Modernization Module. X-2E Modernize works directly from the Synon
model to automatically convert your application to Java or RPG Free.
X-2E Modernize
Automated Conversion of CA 2E (SYNON) Applications to Java or RPG Free
using Fresche Legacy’s X-2E Modernize
What’s Inside
X-2E Modernize

Fresche Legacy: X-2E Modernize Share this information: IT Can Make You Smile
X-2E Modernize

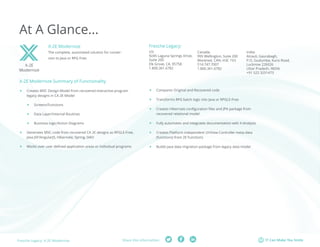

Some Highlights:
ff Creates MVC Design Model from recovered
interactive program legacy designs in CA
2E Model
ff Screens/Functions
ff Data Layer/Internal Routines
ff Business logic/Action Diagrams
ff Generates MVC code from recovered CA
2E designs as RPGLE-Free, Java JSF/Angular
JS, Hibernate, Spring, DAO
ff Works over user-defined application areas
or individual programs
ff Compares Original and Recovered code
ff Transforms RPG batch logic into Java or
RPGLE-Free
ff Creates Hibernate configuration files and
JPA package from recovered relational
model
ff Fully automates and integrates
documentation with X-Analysis
ff Creates platform-independent UI/View-
Controller meta-data (functions) from 2E
Functions
ff Builds Java data migration package from
legacy data model
Since its introduction, CA 2E (Synon) has become the most suc-cessful
4GL tool on the IBM i platform. The CA 2E development
environment combines a rich and precise model of designs
and specifications with powerful code generation capabilities.
Even with this powerful set of features, many companies now
face real pressure to modernize their business applications
beyond the scope and capability of what CA 2E can offer. The
challenge is to move forward without discarding decades
of investment in design, evolution and fine tuning stored in
the CA 2E model. Fresche’s X-2E Modernize is the solution
for modernizing any CA 2E application. X-2E Modernize
automatically re-factors and generates an MVC Web
application using OO methods in Java or RPG Free (Flex &
Silverlight UI soon to be added). Fresche’s X-2E Modernize takes
advantage of CA 2E application architecture to automatically
convert applications. Since CA 2E forces users to organize
code into screen designs, action diagrams, business logic and
database components, X-2E Modernize uses this internal
2E model to extract design information in a structure that
maps cleanly into a modern MVC/OO/RESTful architecture.
X-2E
Modernize
X-2E Modernize:
The complete, automated
solution for conversion to
CA 2E (Synon) applications can easily be converted to Java or RPG Free using X-2E Modernize Java or RPG Free
Entities &
Relationships Functions CA 2E Internal
Routines
Action
Diagrams
Analysis
Data Model
Diagrams
Data Flows
DDL/XML/UML
Screen Designs
& Data Mapping
Screen Actions
Business Rules
Graphical
Documentation &
Impact Analysis
Business Rules
Analysis &
Graphical
Structure Charts
DDL Database
Web UI as:
Angular JS
JSF
ASPx
5250/OA
Re-Usable
Modules as Free
Format RPG &
SQLLE
Event Driven,
Business Logic
Modules as Free
Format RPG
Modernize
Modernize

X-2E Modernize
Whatever the approach to modernization, design recovery is the first
step. With this understanding, developers can quickly identify the
business rules and reusable designs embedded in core business
Design Recovery: The basis for modernization
Documentation
X-Analysis
Word/Open Office/Excel
UML
XML
DDL
Java
RPG Free
Current Potential
LANSA
Oracle ADF
Silverlight
Extracted
Functions/UI
Recovered Design
Refactored
Action Diagrams
or Business Logic
Data Model
modernize or re-develop a system. Reusing existing designs programmat-ically
can provide a dramatic productivity gain in rebuilding an application.
Why start from the CA 2E (Synon)
Model?
It is only possible to convert CA 2E (Synon)
applications by working from the CA 2E
model into the target architecture and
code. Conversion processes that attempt
to translate the 2E-generated RPG code
will result in volumes of unnecessary,
unrecognizable and unmaintainable code.
In automated reengineering projects, the
2E information (and not the RPG) is parsed
by X-2E Modernize to recover knowledge
chunks and reassemble them into a new
system. Several reasons why you should not
attempt to directly convert the 2E-generated
RPG code:
ff You will be converting approximately
10 times more code
ff The new code will not follow a modern
architecture design
ff No one will recognize the new code and
it will be extremely difficult to maintain
ff You are likely to have difficulty with
scaling and performance
ff Generating from the RPG is not a viable
long term investment
processes. They can also
restructure code, remove
dead code and create re-usable
components that
can be enabled as services
within a service-oriented
architecture (SOA) or any
modern application archi-tecture.
Design Recovery is very
valuable for documen-tation
and application
support purposes, but
the real benefits come
when the recovered
design can be used to

X-2E Modernize

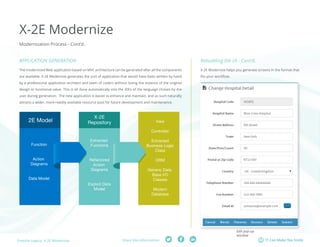

The X-2E modernization process includes two stages: Component
Generation and Application Generation.
COMPONENT GENERATION
The Component Generation stage includes: 1. Database Modernization;
2. Business Logic Rebuild; 3. UI/Print Functions. Components are sum-marized
at right, and described below.
Modernization Process
1. Database Modernization
The data model for a legacy application as deduced by X-2E can be used to modernize
the database and database access as well as provide valuable information for analysis
and documentation. Once you have a modernized database, you gain a number of
advantages:
ff Openness/Standards compliance: Using industry-standard SQL means that many
different tools and applications on multiple platforms can easily access and use your
modernized database.
ff Portability: Because the database is defined in purely SQL terms rather than in
a proprietary file format, it becomes portable — i.e., it is now viable to consider
moving the database to another platform.
ff Improved performance: IBM’s data retrieval efforts have been concentrated on SQL
access rather than file-based access for many years.
ff Ability to use modern Object Relational Mapping (ORM) software such as Hibernate
for rapid application development in Java and other modern languages.
ff Reduced dependency on System i-specific skills such as DDS, which may lead to cost
savings and reduced risk.
ff Data Integrity: Journaling is available for SQL access just as it has always
been for file-based access. Constraints and referential integrity can be
implemented directly at the database level where they are unavoidable
rather than at the program level. Database triggers allow code to be run
before or after records are added, updated or deleted, providing an easy way
of enforcing compliance, audits, validations and applying business rules.
ff Database modernization also uses the advanced design extraction directly
from the CA 2E model, making use of long field names, constraint logic and
all relevant database abstractions, either kept on IBM i or migrated onto
other DBMS systems.
Database
Modernization
DDS to DDL Conversion
Data Quality Analysis
ORM Framework Gen-(Hibernate)
OO VO layer with Web service wrapper
Re-factor into event-driven model OO mapping
Business rules database
Business Logic Model generated as Java, RPG Free
Web Service Layer
Screen formats/layouts/fields/files/attributes
Screen actions flow
ORM mapped to UI
Conditional field/UI/flow logic
Business
Logic Rebuild
UI/Print
Functions

X-2E Modernize
Modernization Process - Cont’d.
2. Business Logic Rebuild
After recovering the Data Model, the next step is to extract the logic
that gives the application its particular characteristics. The generic
term for such logic is Business Rules. The challenge is to extract or
“harvest” these rules from the legacy code.
Once harvested, these rules need to be narrated and indexed, thus
providing critical information for any analyst, architect or developer
charged with rebuilding a legacy application. The task of harvesting
business rules manually is a highly skilled, labor-intensive, and costly
exercise for any organization.
X-2E Modernize accomplishes this task by automatically scanning
the RPG and COBOL programs and the 2E model programmatically.
It then separates out rule code from the body of the application and
identifies, indexes, narrates, and stores business rule logic code into
a structured, usable repository. In the final part of the process, it
supplies appropriate textual narratives to describe these harvested
rules.
Once the rules are derived, they can be viewed in summary form, as
shown above at right.
The business rule repository can then be used programmatically to
generate new code (migrated logic - see at right). At the same time,
the built-in documentation, which cross references where-used ob-jects
and annotates capabilities, may be used by new developers as
the necessary input for re-specification exercises, whether for new
applications or for modifications to the current system.
View the business rule
summary at a glance
Generate new code
from the business
rule repository, or
use the built-in docu-mentation
(including
full cross-referencing
and annotated capa-bilities)
to create new
specs.

X-2E Modernize

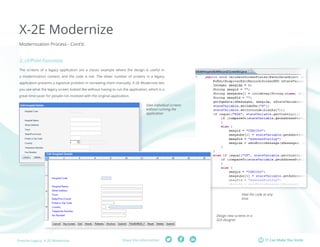

3. UI/Print Functions
The screens of a legacy application are a classic example where the design is useful in
a modernization context, and the code is not. The sheer number of screens in a legacy
application presents a logistical problem in recreating them manually. X-2E Modernize lets
you see what the legacy screen looked like without having to run the application, which is a
great time saver for people not involved with the original application.
View individual screens
without running the
application
Design new screens in a
GUI designer
View the code at any
time

Rebuilding the UI
X-2E Modernize extracts User Interface design information as
described above and stores it as metadata in the X-2E repository.
This is used as reference documentation for rebuilding UIs
manually or for programmatically regenerating new View and
Controller artifacts in the new technology. X-Analysis currently
generates a JSF / Facelets UI version or a newer AngularJS UI with
RESTful Web Services. The design metadata can also be used to
generate new interfaces.
X-2E Modernize
3. UI/Print Functions - Cont’d.
Screen designs of legacy applications are not just about look and feel; there are
attributes and embedded logic that are relevant no matter what technology is used
to implement them in a modernized system. Among these attributes are:
ff Formats/Layouts - Some screens may benefit from amalgamation or redesign,
but table edits and non-transaction type screens will largely remain the same,
even if not identical in layout.
ff Actions - Whether from sub-file options, command keys, or default enter actions,
these often represent an important part of the usefulness of an application
design. The mechanisms used to offer or invoke these calls may change, but
where they go logically and what parameters they pass will largely remain
consistent.
ff Fields/Files/Attributes - What fields are on what screens, and where the data comes
from is a requirement in any system development. Attributes of a field can also
help determine what type of controls might be used in a modern UI. For example,
a Boolean type might be implemented with a check box, a date with a date prompt.
Again, these are simple enough to edit in modern IDEs, but the volume associated
with any large legacy application modernization can make this work prohibitive.
ff Data Model Mapping - Validations and prompting mechanisms that ensure
referential integrity in legacy applications can also be vital to extract. This is both
to implement referential integrity and to provide design information for building
modern prompt or selection controls such as drop-downs or lists.
Summary
screen laid out
in grid pattern
Why AngularJS?
The oldest and most mature of all JS MVC frameworks,
AngularJS is managed by Google and is best suited for
thick client business Web applications. It is built around
best design principles and supports scalability, main-tainability
and modularization.

X-2E Modernize
APPLICATION GENERATION
The modernized Web application based on MVC architecture can be generated after all the components
are available. X-2E Modernize generates the sort of application that would have been written by hand
by a professional application architect and team of coders without losing the essence of the original
design or functional value. This is all done automatically into the IDEs of the language chosen by the
user during generation. The new application is easier to enhance and maintain, and as such naturally
attracts a wider, more-readily available resource pool for future development and maintenance.
2E Model
Function
Action
Diagrams
Data Model
Extracted
Functions
Refactored
Action
Diagrams
Explicit Data
Model
View
Controller
Extracted
Business Logic
Class
ORM
Generic Data
Base I/O
Classes
Modern
Database
X-2E
Repository
Rebuilding the UI - Cont’d.
X-2E Modernize helps you generate screens in the format that
fits your workflow.
Edit pop-up
window

X-2E Modernize

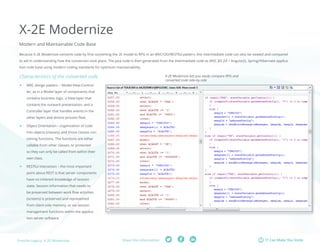

Modern and Maintainable Code Base
Because X-2E Modernize converts code by first converting the 2E model to RPG in an MVC/OO/RESTful pattern, this intermediate code can also be viewed and compared
to aid in understanding how the conversion took place. The Java code is then generated from the intermediate code as MVC JEE JSF / AngularJS, Spring/Hibernate applica-tion
code base using modern coding standards for optimum maintainability.
Characteristics of the converted code
ff MVC design pattern – Model-View-Control-ler,
as in a Model layer of components that
contains business logic, a View layer that
contains the outward presentation, and a
Controller layer that handles events in the
other layers and directs process flow.
ff Object Orientation – organization of code
into objects (classes), and those classes con-taining
functions. The functions are either
callable from other classes, or protected
so they can only be called from within their
own class.
ff RESTful interaction – the most important
point about REST is that server components
have no inherent knowledge of session
state. Session information that needs to
be preserved between work flow activities
(screens) is preserved and represented
from client-side memory, or via session
management functions within the applica-tion
server software.
X-2E Modernize lets you easily compare RPG and
converted code side-by-side

At A Glance...
X-2E Modernize Summary of Functionality
ff Creates MVC Design Model from recovered interactive program
legacy designs in CA 2E Model
ff Screens/Functions
ff Data Layer/Internal Routines
ff Business logic/Action Diagrams
ff Generates MVC code from recovered CA 2E designs as RPGLE-Free,
Java JSF/AngularJS, Hibernate, Spring, DAO
ff Works over user defined application areas or individual programs
X-2E
Modernize
X-2E Modernize
The complete, automated solution for conver-sion
to Java or RPG Free.
Fresche Legacy:
ff Compares Original and Recovered code
ff Transforms RPG batch logic into Java or RPGLE-Free
ff Creates Hibernate configuration files and JPA package from
recovered relational model
ff Fully automates and integrates documentation with X-Analysis
ff Creates Platform independent UI/View-Controller meta-data
(functions) from 2E Functions
ff Builds Java data migration package from legacy data model
US:
9245 Laguna Springs Drive,
Suite 200
Elk Grove, CA, 95758
1.800.361.6782
Canada:
995 Wellington, Suite 200
Montreal, CAN, H3C 1V3
514.747.7007
1.800.361.6782
India:
Atrauli, Gaurabagh,
P.O. Gudumba, Kursi Road,
Lucknow 226026
Uttar Pradesh, INDIA
+91 522 3251473

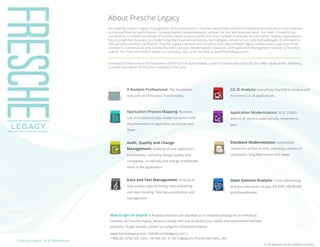

About Fresche Legacy
As a leading expert in legacy management and modernization, Fresche Legacy helps enterprise organizations transform their business
to improve financial performance, increase market competitiveness, remove risk and add business value. Our team of experts has
successfully completed hundreds of transformation projects within the most complex enterprise environments, helping organizations
future-proof their business by modernizing their business processes, technologies, infrastructure, and methodologies. Committed to
100 percent customer satisfaction, Fresche Legacy’s services and solutions span the complete legacy modernization spectrum from
concept to maintenance, and include Discovery Services, Modernization Solutions, and Application Management Services & Transfor-mation.
For more information about our company, visit us on the Web at www.freschelegacy.com
X-Analysis Professional is the foundation of the full X-Analysis toolset, a suite of productivity tools for your IBM i applications. Following
is a brief description of the other modules in the suite:
How to get on board: X-Analysis products are available as a complete package or as individual
modules. At Fresche Legacy, we work closely with you to assess your needs and recommend the best
solutions. To get started, contact us using the information below:
www.freschelegacy.com |info@freschelegacy.com |
1.800.361.6782 (US, Can) | 00 800 361 67 82 0 (Belgium, France Germany, UK)
FL-DS-XAnalysis-CA_2E_Mod-EN-11122014
Application Process Mapping: Business
rule and relational data model extraction and
documentation of application processes and
flows.
Audit, Quality and Change
Management: Auditing of core application
functionality - including design, quality and
complexity - to identify and change problematic
areas in the application.
Data and Test Management: Analysis of
data quality; data archiving, data subsetting
and data masking. Test data automation and
management.
X-Analysis Professional: The foundation
tool, with all of the basic functionality.
Application Modernization: RPG, COBOL
and CA 2E (Synon) automatically converted to
Java.
Database Modernization: Automated
conversion of DDS to DDL, including creation of
constraints, long field names and views.
Open Systems Analysis: Cross-referencing
and documentation of Java, C#, PHP, VB/VB.NET
and PowerBuilder.
CA 2E Analysis: Everything required to analyze and
document CA 2E applications.

X-2E Modernize

More Related Content

What's hot

Similar to X-2E Modernize

More from Fresche Solutions

X-2E Modernize
