1. FIWARE IoT Proposal & Community
Carlos Ralli Ucendo, Telefonica
IoT Chapter Architect, FIWARE
@carlosralli

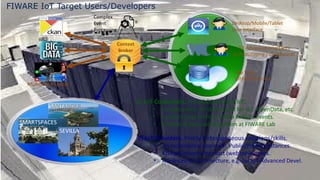

2. FIWARE IoT Target Users/Developers
Context
Broker
Desktop/Mobile/Tablet
User Interface
3D Advanced Interfaces
UI Prototyping / Dashboards
App Logic
@FIWARE-Cloud
OAuth2.0
SANTANDER
SMARTSPACES
SEVILLA
1) IoT Consumers. Normally not just IoT.
• A single point, API & Protocol for IoT, OpenData, etc.
• Context: Data Entities + Data Entities events.
• A Public & Secured Ecosystem at FIWARE Lab
2) IoT Providers. Pretty Heterogeneous solutions/skills.
• An incremental approach. Public/Private instances.
• KISS philosophy for most (web)developers.
• Advanced IoT architecture, e.g. for IoT Advanced Devel.
MultiMedia Events
Complex
Event
Processing

3. IoT Consumers (IoT): Northbound Single Point (API/Protocol)
Entities
Developers need to know/discover the Ecosystem conventions. Examples:
Developers may:
•Query an Entity (whole set or specific attributes) or Subscribe to changes of atttibutes of Entities.
•Discover all Entities (entity_IDs) or all Entities with a specific “type”.
•Discover all Attributes of an specific Entity (entity_ID).
Full List of FIWARE Lab (Global Context Broker) conventions (section 3.5):
https://forge.fi-ware.org/plugins/mediawiki/wiki/fiware/index.php/Publish/Subscribe_Broker_-_Orion_Context_Broker_-_User_and_Programmers_Guide
3
My
FIWARE-App
Context
Broker
OAuth2.0
OMA NGSI10 - QueryContext
OMA NGSI10 - SubscribeContext
(type, entity_ID, attributes)

4. IoT Providers: Connect any “Thing”/System to FIWARE Lab
NGSI9/10
SML, UL2.0, MQTT, ETSIM2M, CoAP/OMA-LW
2.3 Advanced Scenarios
4
Context
Broker
OAuth2.0
2.1 OMA NGSI Agent
2.2 IoT BE (IDAS/SBC)
Your IoT IoT
Backend
Gateway GEs Backend GEs
NGSI
Propietary
Zigbee
Zwave
CoAP/MTRunner
ETSIM2M
CoAP/LWM2M

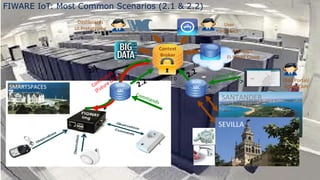

5. FIWARE IoT: Most Common Scenarios (2.1 & 2.2)
Context
Broker
5
User
Interface
App Logic
FI-WARE Cloud
Dashboards
UI Prototyping
OAuth2.0
SANTANDER
SEVILLA
IDAS Portal/
ADMIN API
IDAS
SMARTSPACES SBC
Commands
Commands
(Future Delivery)
Commands
2.1
2.2
2.2
IDAS
SBC

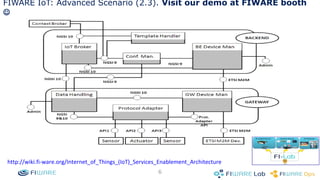

6. FIWARE IoT: Advanced Scenario (2.3). Visit our demo at FIWARE booth

http://wiki.fi-ware.org/Internet_of_Things_(IoT)_Services_Enablement_Architecture
6

7. Success Stories: Kick off @ CPE’13
7
1st Prize………….SmartAds
Complete context-sensitive Ads solution developed
in just 4 days & nights.
Massive, > 6K developers
Mainly young entrepreneurs
Neelie Kroes FIWARE Lab Launch
Hackathon + Challenges Announcements
Talent
Day&Night
Involving developers, debugging, improving training sessions

8. Success Stories: Smartcities & SMEs involvement
Smartcity resources exploitation, involve local market & public policies makers
1st Prize………….MagicBox…………………………………………….….…..…TVs displaying Smartcities & Smartspaces.
2nd Prize………….FI-BOT……………………………………………………..….…Robotics exploiting opendata & sensors.
3rd Prize.…………OpenAlerts……..…..............................................Interfaces for citizens (mobile If-Then App).
4th Prize………….Traffic Heatmap…..............................................Traffic routing based on city real-time Info.
8
Winning Teams
33 succeeded building a product-like working App (of 77 registered developers)
Several participants own a Start-up & keep on using FIWARE

9. Success Stories: Emerging Trends fast adoption
9
iBeacons in FI-WARE by Context Team.
•3rd prize within SmartBusiness FIWARE challenge.
(Jan 2014 @ CPBR7 Sao Paulo)

10. Our OpenData/IoT Resources Ecosystem is growing fast
10
SANTANDER
SEVILLA
MALAGA
TRENTO

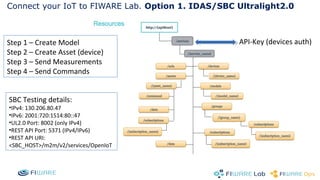

11. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 1 – Create Model API-Key (devices auth)
Step 2 – Create Asset (device)
Step 3 – Send Measurements
Step 4 – Send Commands
SBC Testing details:
•IPv4: 130.206.80.47
•IPv6: 2001:720:1514:80::47
•UL2.0 Port: 8002 (only IPv4)
•REST API Port: 5371 (IPv4/IPv6)
•REST API URI:
<SBC_HOST>/m2m/v2/services/OpenIoT

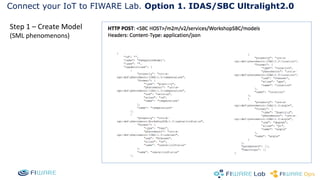

12. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 1 – Create Model
(SML phenomenons)

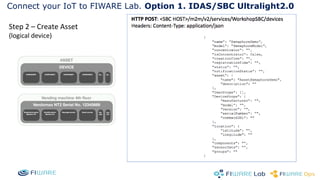

13. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 2 – Create Asset
(logical device)

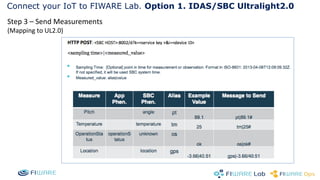

14. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 3 – Send Measurements
(Mapping to UL2.0)

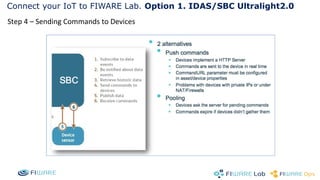

15. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 4 – Sending Commands to Devices

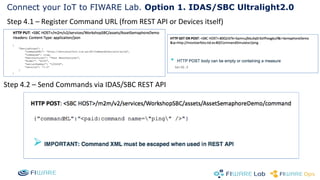

16. Connect your IoT to FIWARE Lab. Option 1. IDAS/SBC Ultralight2.0
Step 4.1 – Register Command URL (from REST API or Devices itself)
Step 4.2 – Send Commands via IDAS/SBC REST API

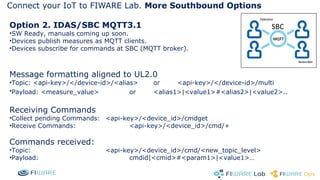

17. Connect your IoT to FIWARE Lab. More Southbound Options
Option 2. IDAS/SBC MQTT3.1
•SW Ready, manuals coming up soon.
•Devices publish measures as MQTT clients.
•Devices subscribe for commands at SBC (MQTT broker).
Message formatting aligned to UL2.0
•Topic: <api-key>/</device-id>/<alias> or <api-key>/</device-id>/multi
•Payload: <measure_value> or <alias1>|<value1>#<alias2>|<value2>..
Receiving Commands
•Collect pending Commands: <api-key>/<device_id>/cmdget
•Receive Commands: <api-key>/<device_id>/cmd/+
Commands received:
•Topic: <api-key>/<device_id>/cmd/<new_topic_level>
•Payload: cmdid|<cmid>#<param1>|<value1>…
SBC

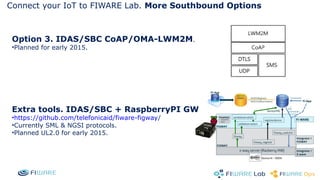

18. Connect your IoT to FIWARE Lab. More Southbound Options
Option 3. IDAS/SBC CoAP/OMA-LWM2M.
•Planned for early 2015.
Extra tools. IDAS/SBC + RaspberryPI GW
•https://github.com/telefonicaid/fiware-figway/
•Currently SML & NGSI protocols.
•Planned UL2.0 for early 2015.
