1. Q3 UPDATE
Firefox on Win8 - UX Design
FIREFOX UX SEP 2012

2. A BROWSER THAT FEELS
#1 #2 #3
NATIVE FIREFOXY FLUID

3. #1

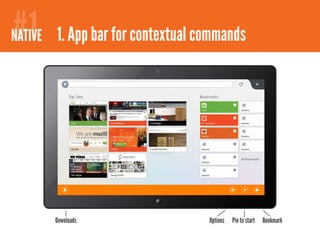

NATIVE 1. App bar for contextual commands
Downloads Options Pin to start Bookmark

4. #1
NATIVE 2. Tabs as live thumbnails
Tab previews on top made content easy to read and to navigate through. Touch-optimized target size.
Live thumbnails make tab switching more efficient and enjoyable.

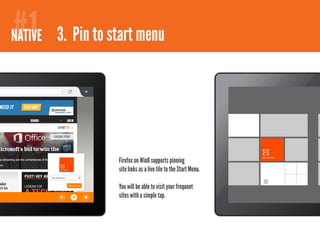

5. #1
NATIVE 3. Pin to start menu
Firefox on Win8 supports pinning
site links as a live tile to the Start Menu.
You will be able to visit your frequent
sites with a simple tap.

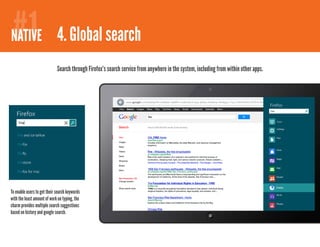

6. #1
NATIVE 4. Global search
Search through Firefox’s search service from anywhere in the system, including from within other apps.
To enable users to get their search keywords
with the least amount of work on typing, the
charm provides multiple search suggestions
based on history and google search.

7. #2

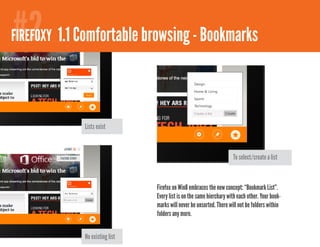

FIREFOXY 1.1 Comfortable browsing - Bookmarks
Lists exist
To select/create a list
Firefox on Win8 embraces the new concept: “Bookmark List”.
Every list is on the same hierchary with each other. Your book-
marks will never be unsorted. There will not be folders within
folders any more.
No existing list

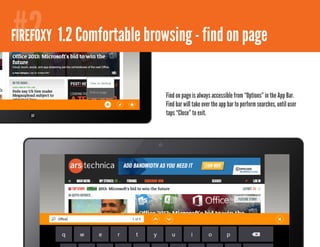

8. #2
FIREFOXY 2.1 Comfortable browsing - bookmarks
1.2 find on page
Find on page is always accessible from “Options” in the App Bar.
Find bar will take over the app bar to perform searches, until user
taps “Close” to exit.

9. #2

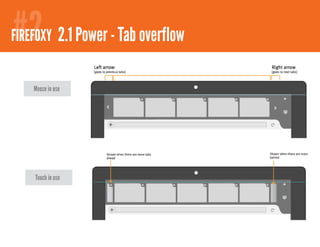

FIREFOXY 2.1 Comfortableoverflow - bookmarks
Power - Tab browsing
Mouse in use
Touch in use

10. #2
FIREFOXY 2.1 Comfortable browsing - bookmarks

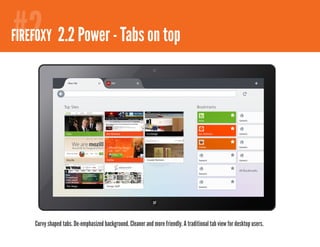

2.2 Power - Tabs on top
Curvy shaped tabs. De-emphasized background. Cleaner and more friendly. A traditional tab view for desktop users.

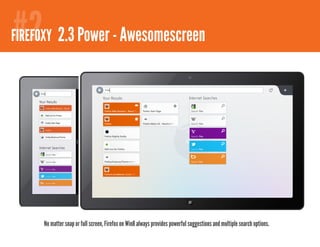

11. #2
FIREFOXY 2.1 Comfortable browsing - bookmarks
2.3 Power - Awesomescreen
No matter snap or full screen, Firefox on Win8 always provides powerful suggestions and multiple search options.

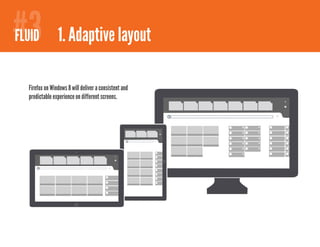

12. #3
#2
FIREFOXY 2.1 Comfortable browsing - bookmarks
FLUID 1. Adaptive layout
Firefox on Windows 8 will deliver a consistent and
predictable experience on different screens.

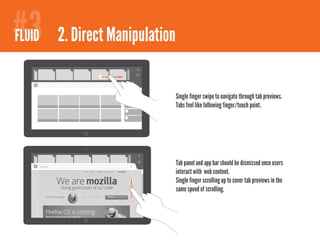

13. #3
#2
FIREFOXY 2.1Direct Manipulation - bookmarks
FLUID 2. Comfortable browsing
Single finger swipe to navigate through tab previews.
Tabs feel like following finger/touch point.
mozilla.org
Tab panel and app bar should be dismissed once users
interact with web content.
Single finger scrolling up to cover tab previews in the
same speed of scrolling.

14. #3
#2

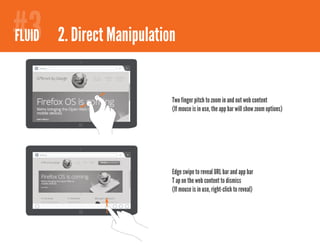

FIREFOXY 2.1Direct Manipulation - bookmarks
FLUID 2. Comfortable browsing
mozilla.org
Two finger pitch to zoom in and out web content
(If mouse is in use, the app bar will show zoom options)
mozilla.org
Edge swipe to reveal URL bar and app bar
T ap on the web content to dismiss
(If mouse is in use, right-click to reveal)

15. #3
#2

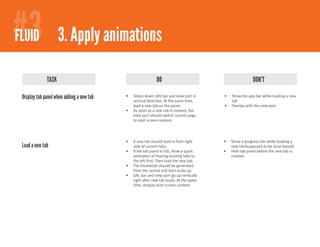

FIREFOXY 2.1Apply animations
FLUID 3. Comfortable browsing - bookmarks
TASK DO DON’T
Display tab panel when adding a new tab • Slides down URL bar and view port in • Show the app bar while loading a new
vertical direction. At the same time, tab
load a new tab on the panel. • Overlay with the view port
• As soon as a new tab is created, the
view port should switch current page
to start screen content.
• A new tab should load in from right • Show a progress bar while loading a
Load a new tab side of current tabs. new tab(supposed to be local-based)
• If the tab panel is full, show a quick • Hide tab panel before the new tab is
animation of moving existing tabs to created
the left first. Then load the new tab.
• The thumbnail should be generated
from the central and then scale up.
• URL bar and view port go up vertically
right after new tab loads. At the same
time, display start screen content.

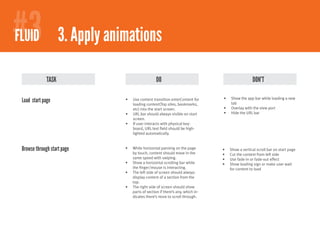

16. #3
#2
FIREFOXY 2.1Apply animations
FLUID 3. Comfortable browsing - bookmarks
TASK DO DON’T
• Show the app bar while loading a new
Load start page • Use content transition enterContent for
tab
loading content(Top sites, bookmarks,
etc) into the start screen. • Overlay with the view port
• URL bar should always visible on start • Hide the URL bar
screen.
• If user interacts with physical key-
board, URL text field should be high-
lighted automatically.
Browse through start page • While horizontal panning on the page • Show a vertical scroll bar on start page
by touch, content should move in the • Cut the content from left side
same speed with swiping. • Use fade-in or fade-out effect
• Show a horizontal scrolling bar while • Show loading sign or make user wait
the finger/mouse is interacting. for content to load
• The left side of screen should always
display content of a section from the
top.
• The right side of screen should show
parts of section if there’s any, which in-
dicates there’s more to scroll through.

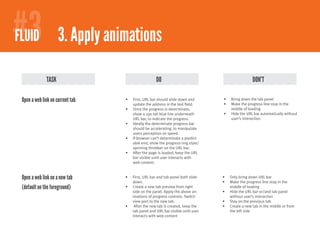

17. #3
#2
FIREFOXY 2.1Apply animations
FLUID 3. Comfortable browsing - bookmarks
TASK DO DON’T
Open a web link on current tab • First, URL bar should slide down and • Bring down the tab panel
update the address in the text field. • Make the progress line stop in the
• Once the progress is determinate, middle of loading
show a 2px tall blue line underneath • Hide the URL bar automatically without
URL bar, to indicate the progress. user’s interaction
• Ideally the determinate progress bar
should be accelerating, to manipulate
users perception on speed.
• If browser can’t determinate a predict-
able end, show the progress ring style/
spinning throbber on the URL bar.
• After the page is loaded, keep the URL
bar visible until user interacts with
web content.
Open a web link on a new tab • First, URL bar and tab panel both slide • Only bring down URL bar
down. • Make the progress line stop in the
(default on the foreground) • Create a new tab preview from right middle of loading
side on the panel. Apply the above an- • Hide the URL bar or/and tab panel
imations of progress controls. Switch without user’s interaction
view port to the new tab. • Stay on the previous tab
• After the new tab is created, keep the • Create a new tab in the middle or from
tab panel and URL bar visible until user the left side
interacts with web content
