The document details specifications for various types of printed circuit boards (PCBs) including microwave, medical device, industrial control, and communication equipment PCBs. It provides information on part numbers, layer counts, material types, minimum space and hole sizes, and surface finishes for each PCB type. Additionally, it mentions the organization's milestones.
More Related Content
Similar to Find the best PCB Fabrication
More from High Quality PCB Co., Limited
Find the best PCB Fabrication
- 1.

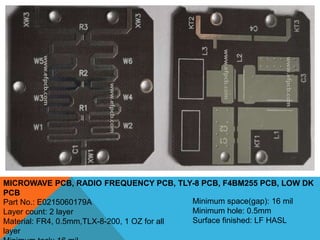

- 2. MICROWAVE PCB, RADIOFREQUENCY PCB, TLY-8 PCB, F4BM255 PCB, LOW DK PCB Part No.: E0215060179A Layer count: 2 layer Material: FR4, 0.5mm,TLX-8-200, 1 OZ for all layer Minimum space(gap): 16 mil Minimum hole: 0.5mm Surface finished: LF HASL

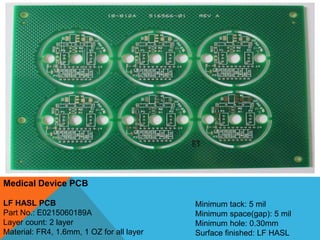

- 3. Medical Device PCB LFHASL PCB Part No.: E0215060189A Layer count: 2 layer Material: FR4, 1.6mm, 1 OZ for all layer Minimum tack: 5 mil Minimum space(gap): 5 mil Minimum hole: 0.30mm Surface finished: LF HASL

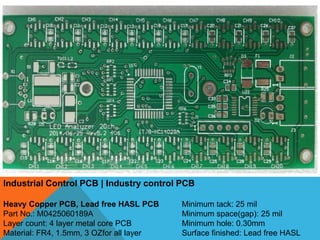

- 4. Industrial Control PCB| Industry control PCB Heavy Copper PCB, Lead free HASL PCB Part No.: M0425060189A Layer count: 4 layer metal core PCB Material: FR4, 1.5mm, 3 OZfor all layer Minimum tack: 25 mil Minimum space(gap): 25 mil Minimum hole: 0.30mm Surface finished: Lead free HASL

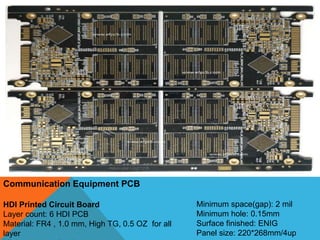

- 5. Communication Equipment PCB HDIPrinted Circuit Board Layer count: 6 HDI PCB Material: FR4 , 1.0 mm, High TG, 0.5 OZ for all layer Minimum space(gap): 2 mil Minimum hole: 0.15mm Surface finished: ENIG Panel size: 220*268mm/4up
