1. WELCOME
TO
EFPCB.COM

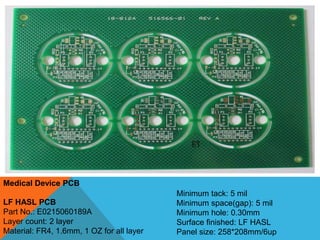

2. Medical Device PCB
LF HASL PCB
Part No.: E0215060189A
Layer count: 2 layer
Material: FR4, 1.6mm, 1 OZ for all layer
Minimum tack: 5 mil
Minimum space(gap): 5 mil
Minimum hole: 0.30mm
Surface finished: LF HASL
Panel size: 258*208mm/6up

3. Transportation PCB
PCBA Motherboard for Automotive Multimedia
Part No.: E0615060179C
Layer count: 6 layer
Material: FR4, 1.6mm, 1 OZ for all layer
Minimum trace: 5 mil
Minimum space(gap): 5 mil
Minimum hole: 0.20mm
Surface finished: LF HASL

4. Industrial Control PCB | Industry control PCB
Impedance Control PCB
Part No.: E0415060179A
Layer count: 4 layer
Material: FR4, 1.6mm, high TG, 1 OZ for all layer
Minimum tack: 6 mil
Minimum space(gap): 6 mil
Minimum hole: 0.25mm
Surface finished: ENIG
Panel size: 28*58mm/1up

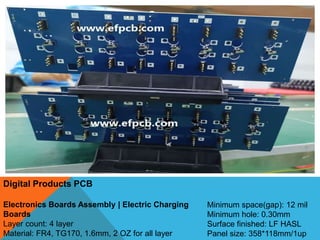

5. Digital Products PCB
Electronics Boards Assembly | Electric Charging
Boards
Layer count: 4 layer
Material: FR4, TG170, 1.6mm, 2 OZ for all layer
Minimum space(gap): 12 mil
Minimum hole: 0.30mm
Surface finished: LF HASL
Panel size: 358*118mm/1up

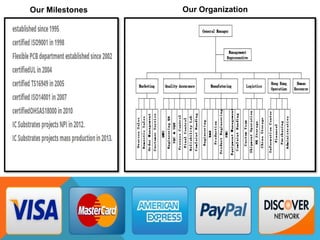

6. Our Organization
Our Milestones
