Filpro Electronics, an ISO 9001:2008 certified manufacturer, specializes in liquid level management products, including level transmitters, indicators, and controllers for various sectors. Their products, such as capacitance and ultrasonic level transmitters, magnetic level indicators, and fuel level sensors, are designed for reliable and accurate liquid level measurement across diverse applications. The company focuses on client-centric solutions and aims to expand its global market presence while providing innovative and quality products.

1. Capacitance
Level Transmitter
Float Operated
Level Transmitter
Submersible Liquid
Level Transmitter
Ultrasonic
Level Transmitter
Liquid
Level Indicator
Magnetic
Level Indicator
Horizontal
Float Switch
Cable Float
SwitchMiniature
Level Switch
Adjustable
Level Switch
Liquid Level
Controller (Smart On)
Liquid Level
Controller (APC-1) Sump & O.H
controller
Liquid Level
Controller (DLIC-R1)
Fuel Level
Sensor
About us
Filpro
Electronics
Filpro Electronics, an ISO 9001:2008 Certified Manufacturer, Supplier and Exporter brings forth Level
Transmitters, Level Indicators, Level Switches, Liquid Level Controller and Fuel Level Sensor. The
Company was started by young and motivated technocrats with a vision to become a leading and reliable
name for Liquid Level Sensor. The Company is greatly preferred not only for its reliable product but also
for its client-centric approaches. With its qualities products, the company is serving various sectors
Including machine Tool Industry, Building Management System , Parma, Food and Beverage,
Petrochemical , Process Industry, etc.,
We also provide hassle free solutions, right from concept to commissioning of projects related to Liquid
level management. We have successfully risen to the challenges imposed by changing market Scenario.
The company has adequate expertise to manufacture the best quality Liquid Level sensor. We are looking
ahead with our integrity, proficiency and experience to satisfy more clients in global market.

2. O u r Pr o d u c t s

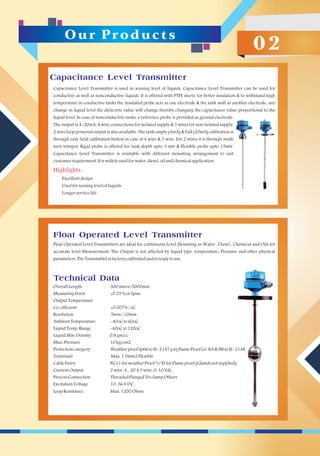

0 2
Capacitance Level Transmitter is used in sensing level of liquids. Capacitance Level Transmitter can be used for
conductive as well as nonconductive liquids. It is offered with PTFE sleeve for better insulation & to withstand high
temperature in conductive tanks the insulated probe acts as one electrode & the tank wall as another electrode, any
change in liquid level the dielectric value will change thereby changing the capacitance value proportional to the
liquid level. In case of nonconductive tanks, a reference probe is provided as ground electrode.
The output is 4-20mA, 4 wire connections for isolated supply & 3 wires for non isolated supply.
2 wire loop powered output is also available. The tank empty (4mA) & Full (20mA) calibration is
through easy field calibration button in case of 4 wire & 3 wire. For 2 wires it is through multi
turn trimpot. Rigid probe is offered for tank depth upto 3 mtr & Flexible probe upto 15mtr.
Capacitance Level Transmitter is available with different mounting arrangement to suit
customerrequirement.Itiswidelyusedforwater,diesel,oilandchemicalapplication.
Highlights:
Excellentdesign
Usedforsensinglevelofliquids
Longerservicelife
Float Operated Level Transmitters are ideal for continuous Level Mounting in Water , Diesel , Chemical and Oils for
accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical
parameters.TheTransmitterisfactorycalibratedandisreadytouse.
Capacitance Level Transmitter
Float Operated Level Transmitter
OverallLength 300mmto5000mm
MeasuringError ±0.25%orSpan
OutputTemperature
Co-efficient ±0.007%/oC
Resolution 5mm/10mm
AmbientTemperature -40oCto60oC
LiquidTemp.Range -40oCto120oC
LiquidMin.Density 0.8gm/cc
Max.Pressure 10kg/cm2
Protectioncategory WeatherproofIp66toIS:2147(or)FlameProofGr.IIA&IIBtoIS:2148
Terminals Max.1.5mm2Flexible
CableEntry PG11forweatherProof¾"EtforFlameproof(Glandsnotsupplied)
CurrentOutput 2wire,4...20A3wire,0-10Vdc
ProcessConnection ThreadedFlangedTriclampOthers
ExcitationVoltage 10-36VDC
LoopResistance Max.1200Ohms
Technical Data

3. O u r Pr o d u c t s
0 3
Ultrasonic Level Transmitter is a non-contact ultrasonic continuous level measurement product based on our
patented technology. Ultrasonic Level Transmitter offers affordable solution for a variety of applications for Water,
wastewater, petrochemical, chemical, food and beverage. We offer Ultrasonic Level Transmitter at pocket friendly
price.
Highlights:
Ourentrylevelcosteffectiveproduct
Fastsetup,configurationandcommissioning
Maximumrangeof10mts(33fts)
4-20mAoutputandoptionalLCDdisplay
Falseechotracing
Directinstallationontanks,vesselsandreactors
Independenthandheldprogrammingunitforfastconfigurationofmultipleunits
Perfectfordieseloiltankmeasurements
Extendedrangeof0.25to15meter(0.8ftto49ft)
IntegralLCDdisplay,keypadandintegral4-20mAoutput
Automaticcompensationfordifferentenvironment
Approvedforinstallationsinhazardousareas(Ex)
Simpletoinstallandconfigure
Directinstallationontanks,vesselsandreactors
Liquid Level Indicator is designed to indicate the liquid level inside the tank with a visual indicator above the tank.
Liquid Level Indicator is very useful in visually monitoring the liquid level from a distance. Reed Proximity sensor is
fittedtoLiquid LevelIndicatorforremotefeedbackofhigh, lowormultiplelevelsoftank.TheReedProximitySensors
areeasilyadjustableatsite&haveLatchingtechnology.
Highlights:
Designedtoindicateliquidlevelinsidethetank
Precisiondesign
Longerservicelife
StandardConstruction:
Standard liquid level indicator is provided with transparent acrylic tube mounted on a MS flange, supported by four
SStierods.Reedproximitysensorsaremountedontwotierodsusingmountingbrackets.
Float is made up of soild polyurethane foam of very low density. The float is connected to a
piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is
assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of
liquidlevelindication&actuationofReedproximitysensor
Application:Coolant,oil,diesel&hydraulicoilapplications.
Specifications:
Indicatorlength:100mmto900mm
Max.Temperature:80oC
Max.Pressure:Atmospheric
Mountingflange:100Sq.Ms
Float:80mm,Solidpolyurethanefoam
Indicationgtube:30,Acrylic
Ultrasonic Level Transmitter
Liquid Level Indicator

4. O u r Pr o d u c t s
0 4
FILPRO make Magnetic Level Indicator provides clear, high clarity indication of liquid level. Typically, Magnetic Level Indicator consists
of three major components: Float Chamber, Float and Indicator System. Magnetic Level Indicator is principally designed as an alternative
to glass level gauges. We offer Magnetic Level Indicator having top-bottom, top and side mounted construction with two types of
indicatorsystemi.e.CapsuleandBi-colourRollers.Magneticlevelindicatorsaretailormadetovarioustypesofconstructionandsizes.
WorkingOfMagneticLevelIndicator
Magnetic Level Indicator operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is
typically constructed with non-magnetic pipe having process connections that matches to the vessel connections. Float size and weight is
determined by the process fluid, pressure, temperature and the specific gravity of the
processfluid.Floatcontainsmagnetstoprovide360omagneticfluxfield.
Features
Roller Design : Indicator system consists of bi-colour rollers equipped with magnets
mounted on a rail inside the housing. As the level starts rising or falling, magnetic
float also travels with liquid level in non-magnetic chamber. The magnetic
interaction between magnets in float and bi-colour rollers causes each roller to
rotate 180°. For applications where High and Low Level electrical signals are
required,weofferadjustablelimitswitches.
Capsule Design : Indicator system consists of bi-colour capsule, which moves in
glass tube inside the housing. As the level Starts, rising or falling magnetic float also
travels with liquid level in non magnetic chamber. The magnetic interaction
between magnets in float and capsule causes capsule to travel along with magnetic
float. For applications where High and Low Level electrical signals are required, we
offeradjustablelimitswitchassemblies.
Performance
Reliable for aggressive, combustible, toxic, high pressure and high temperature (up
to150°C)liquidstoragetanks.
Side mounted magnetic level indicator most reliable and safe for hazardous
application like LPG, Oleume, Chlorosulphuric Acid, HNO2, and Solvents like
benzene,Toluenealcohols.
UsefulforAcid,Alkali,Solvent,Oils,VegetableOil.
Magnetic Level Indicator
Webring forthefficientMagneticLevelSwitchforourvaluedclients.TheMagneticLevelSwitchconsists
of non-abrasive float carrying permanent magnet and non-ferrous stem carrying one. Two or multiple
reed switches. The float glides along the stem and when the float nears the vicinity of reed switch the
magnetic field of permanent magnet forces the contact to close, thereby completing the external
electricalcircuit.WeofferMagneticLevelSwitchatreasonableprice.
Applications:
Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level
Switchfindsapplicationinvariousliquidswhereaccurateandrepeatedliquidlevelcontroliscalledfor.
Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack,
centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose
machines.
Magnetic Level Switch

5. O u r Pr o d u c t s

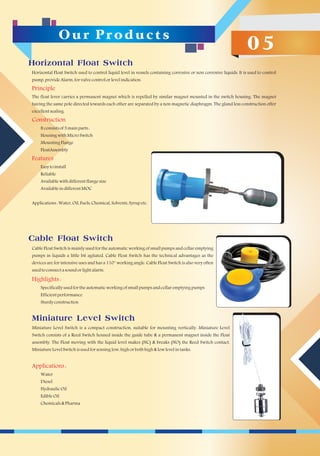

0 5
Horizontal Float Switch used to control liquid level in vessels containing corrosive or non corrosive liquids. It is used to control
pump,provideAlarm,forvalvecontrolorlevelindication.
Principle
The float lever carries a permanent magnet which is repelled by similar magnet mounted in the switch housing. The magnet
having the same pole directed towards each other are separated by a non magnetic diaphragm. The gland less construction offer
excellentsealing.
Construction
Itconsistsof3mainparts:
HousingwithMicroSwitch
MountingFlange
FloatAssembly
Features
Easytoinstall
Reliable
Availablewithdifferentflangesize
AvailableindifferentMOC
Applications:Water,Oil,Fuels,Chemical,Solvents,Syrupetc.
Cable Float Switch is mainly used for the automatic working of small pumps and cellar emptying
pumps in liquids a little bit agitated. Cable Float Switch has the technical advantages as the
devices are for intensive uses and has a 110° working angle. Cable Float Switch is also very often
usedtoconnectasoundorlightalarm.
Highlights:
Specificallyusedfortheautomaticworkingofsmallpumpsandcellaremptyingpumps
Efficientperformance
Sturdyconstruction
Horizontal Float Switch
Cable Float Switch
Miniature Level Switch is a compact construction, suitable for mounting vertically. Miniature Level
Switch consists of a Reed Switch housed inside the guide tube & a permanent magnet inside the Float
assembly. The Float moving with the liquid level makes (NC) & breaks (NO) the Reed Switch contact.
MiniatureLevelSwitchisusedforsensinglow,highorbothhigh&lowlevelintanks.
Applications:
Water
Diesel
HydraulicOil
EdibleOil
Chemicals&Pharma
Miniature Level Switch

6. O u r Pr o d u c t s
0 6
We offer Adjustable type Level Switch for use in Sumps, Over Head Tanks and Storage Tanks. The Adjustable Level Switches are
easy to install. Likewise, the levels are easily adjustable at site. We can provide Adjustable Level Switches in different technical
specifications.
Construction
Adjustable Level Switch consists of separate Level Switch assembly for each level like Low, High,
Middle or Multi-level. These individual level switch assy, are suspended through SS Rope & are
freely adjustable along the SS rope. The level switch assy, are provided with adjustable disc,
which can slide through the SS rope & are secured to SS rope with stopper or cable tie at required
levels. The cables are terminated inside a weatherproof enclosure. The adjustable Level Switch is
providedwithmountingflangeofstandardsize.
Specifications
ElectricalRating WettedpartsMOC
Max.Voltage:24VAC/DC Float:SS316
Max.current:0.5A Rope:SS316
Mechanical Deadweight:SS316
Max.temperature:80oC AdjustableDisc:PP
Max.pressure:Atmospheric Cable:PVC
Adjustable Level Switch
We offer Liquid Level Controller (Smart On) to automatically start & stop the pump with tank
level input from Magnetic Float Switch or Cable Float Switch. Liquid Level Controller (Smart On)
provides LED Indication for Power ON, Relay ON (Motor ON), Tank High & Tank Low. The
controller has provision to select pump mode as Pump UP or Pump Down. In Pump UP mode, the
pump starts at Low Level & Stops at High Level. Pump UP mode is used to fill the tank. In Pump
DOWN mode, the pump starts at High Level & Stops at Low Level. Pump DOWN mode is used to
emptythetank.
TechnicalSpecifications:
InputSupply:230VAC
SensorInput:FromMagneticFloatSwitchorCableFloatSwitch
Output:1NOcontactratedfro230VAC,5A
Mounting:Backpanel35mmdinrailmounting
Mode:PumpUP(Filling)orPUMPDown(Emptying)
Liquid Level Controller (Smart On)
We offer our valued client Sump & O.H controller. Sump & O.H
controller is a micro-controller based liquid level controller for sump
and overhead tank. Pump relay gets "On" when the liquid level falls
below the "Low" level in the over-head tank and liquid level at or above
the "Safe" Level in the sump. Pump relay gets "Off" when the liquid level
rises at or above "High" level in the over-head tank or liquid level falls
below "Low" level in the sump. We offer Sump & O.H controller at
reasonablecost.
Sump & O.H controller

7. O u r Pr o d u c t s
0 7
Liquid Level Controller (APC-1) is used to automatically start & stop the pump for filling the tank or emptying the tank with alarm indication With
liquid level inputs from the Magnetic Float Switch fitted in the sump and over head tank, (APC-1) controller can be used for PUMP UP or PUMP
DOWN operation. Alarm relay is provided to indicate abnormality in the process like liquid level raised beyond high level setting or drops below low
levelsettingintheOverheadorsumptanks.
TechnicalSpecification:
SupplyVoltage:95-280VAC,50Hz.
PowerConsumption:3VA.
Inputs:
HighHighLevel : MagneticFloatSwitchInput(CloseonRisingLevel).
HighLevel : MagneticFloatSwitchInput(CloseonRisingLevel).
LowLevel : MagneticFloatSwitchInput(CloseonFallingLevel).
LowLowLevel : MagneticFloatSwitchInput(CloseonFallingLevel).
PU/PDModeSelection: Pump_UP/Pump-DownModeisselectedbySlideSwtichProvidedonrearend.
Outputs:
PumpRelayNoContact:Potentailfree1NoRated10Amps@250VAC.
Pump-UP-Mode:CloseswhentheliquidlevelfallsbelowlowLowlevelreachesatorabovehighlevel
Pump-Down-Mode:CloseswhentheliquidlevelreachesatoraboveHighlevelandOpenswhentheliquidlevelfallsbelowLowlevel
AlarmRelayNOContact:Potentailfree1NoRated10Amps@250VAC.ClosingWhentheLiquidlevelgoesaboveHighHighlevelorLiquidlevelfalls
belowLowLowLevelandOpenswhentheliquidlevelNormalconditionorbyAlamACKbuttonprovidedonfrontpanel
Liquid Level Controller (APC-1)
Our valued clients can avail from us sophisticated Liquid Level Controller
(DLIC-R1). Our Liquid Level Controller (DLIC-R1) is based on high-end
technology which ensures efficient performance and accuracy. We offer
LiquidLevelController(DLIC-R1)atreasonableprice.
Function:
Pump Mode : When the liquid level goes at or below the set 'Pump low level',
the pump relay gets energized after completion of pump 'On' delay. When
the liquid level goes at or above the set 'Pump high level', the pump relay gets
de-energized. The alarm relay gets energized after completion of Alarm
'ON' delay when the liquid level goes at or above set 'Alarm High level' or
goes at or below set 'Alarm low level' and gets latched until "ACK" switch
(provided on the front panel) is pressed or remote Alarm ACK switch
pressed.
Drain mode : When the liquid level goes at or above the set 'Pump high level',
the pump relay gets energized after completion of pump 'On' delay. When
the liquid level goes at or above the set 'Pump low level', the pump relay gets
de-energized. The Alarm relay gets energized after completion of Alarm
'On'delaywhentheliquidlevelgoesatoraboveset'Alarmhighlevel'orgoes
below set 'Alarm low level' and gets latched until "ACK" switch (provided on
thefrontpanel)ispressedorremoteAlarmACKswitchpressed.
Highlights:
DigitalLiquidlevelindicator/controller
WideOperatingvoltagerange90–280vAC
1inchsevensegmentdisplay
Provisionforresistivefloatsensorinput
Provisionfor4-20mAinput
Pump/Drainfunctionprogrammable
Programmablelowandhighlevelssettingforpumprelay
Programmablelowandhighlevelssettingforalarmrelay
0–10Vdcoutputforre-transmission
Filpro Fuel Level Sensor is a low cost capacitance-type level sensor. It
is designed for monitoring levels in fuel tanks of vehicles, bulk
storage tanks fitted on vehicles, diesel storage tanks etc. The design of
the Fuel Level Sensor is simple and lightweight. It measures the level
accurately and thus is reliable. The sensor output is connected to
vehicle monitoring and tracking system or level indicators. The
sensor consists of measuring probe, which is encircled with a
reference probe. The output is linear and is not affected by
turbulenceinsidethetank.
Specifications
WettedParts:AnodizedAluminium
Flange:AluminiumorMS
Enclosure:AluminiumorPlastic
Probelength:150mmto2000mm
Input:12to24VDC
Output:4-20mA,0-5V,0-10V,RS4850/P
Connection:3corecablelmt.
Liquid Level Controller (DLIC-R1) Fuel Level Sensor

8. Filpro Electronics
130, 10th Cross Petechannappa Indl Estate,
Kamakshi Palya, Magadi Road, Bangalore - 560079
Phone : +91-80-23286463 / 23489186 / 08045134359
Fax : +91-80-23239186
http://www.exportersindia.com/filproelectronics/
