Fast and Accurate Metadata Authoring Using Ontology-Based Recommendations (AMIA 2017 Conference)
The document discusses the development of a metadata recommendation system within a platform called CEDAR, aimed at improving metadata authoring for scientific datasets. It highlights the importance of high-quality metadata for the findability and interpretability of experimental data, which is critical for scientific reproducibility. The system provides real-time, context-sensitive suggestions to assist scientists in generating accurate metadata.
Fast and Accurate Metadata Authoring Using Ontology-Based Recommendations (AMIA 2017 Conference)
- 1. S100 Martínez-Romero, M., O’Connor,M. J., Shankar, R., Panahiazar, M., Willrett, D., Egyedi, A. L., Gevaert, O., Graybeal, J., Musen, M. A. Stanford University Fast and Accurate Metadata Authoring Using Ontology-Based Recommendations

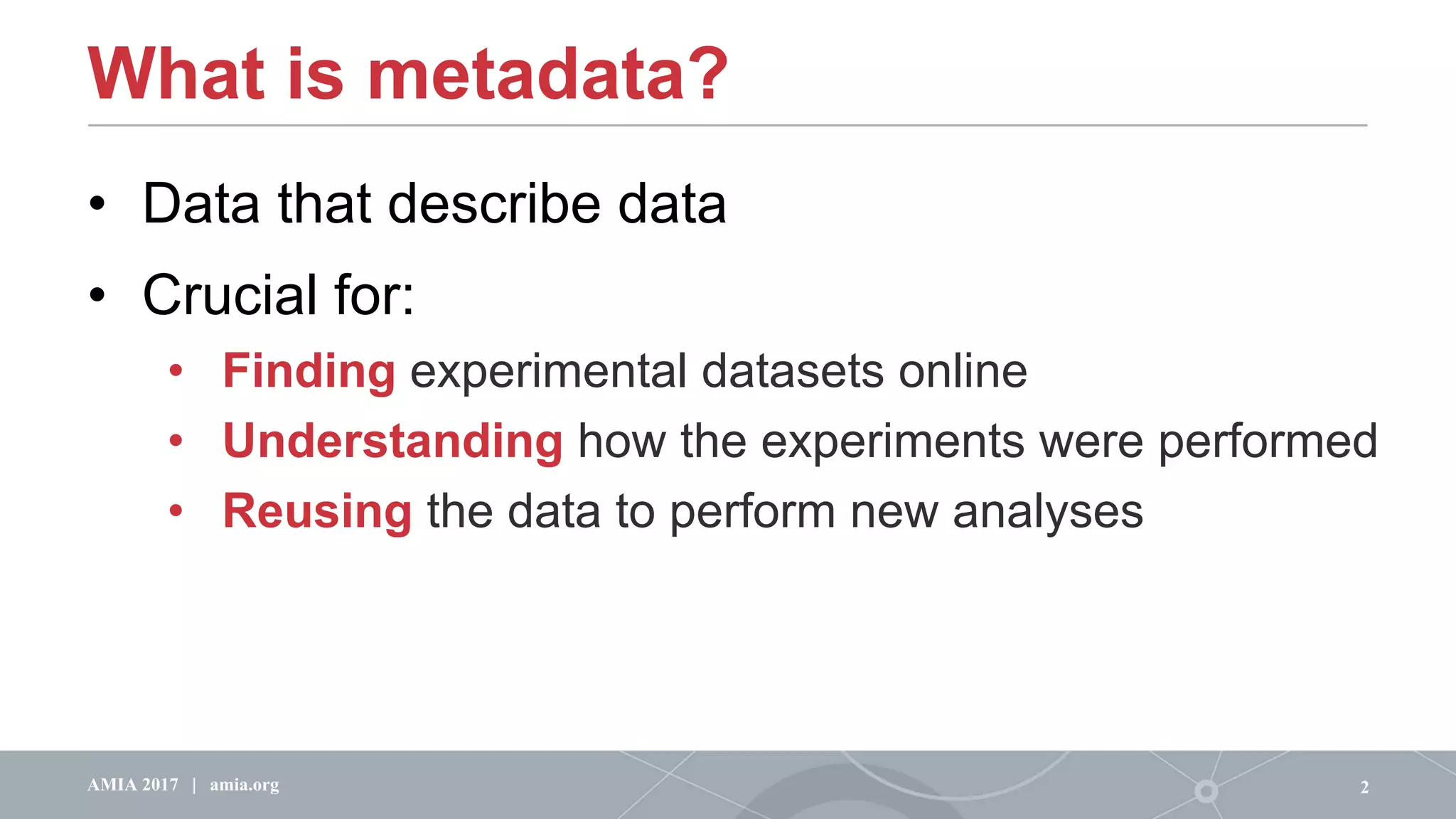

- 2. What is metadata? 2AMIA2017 | amia.org • Data that describe data • Crucial for: • Finding experimental datasets online • Understanding how the experiments were performed • Reusing the data to perform new analyses

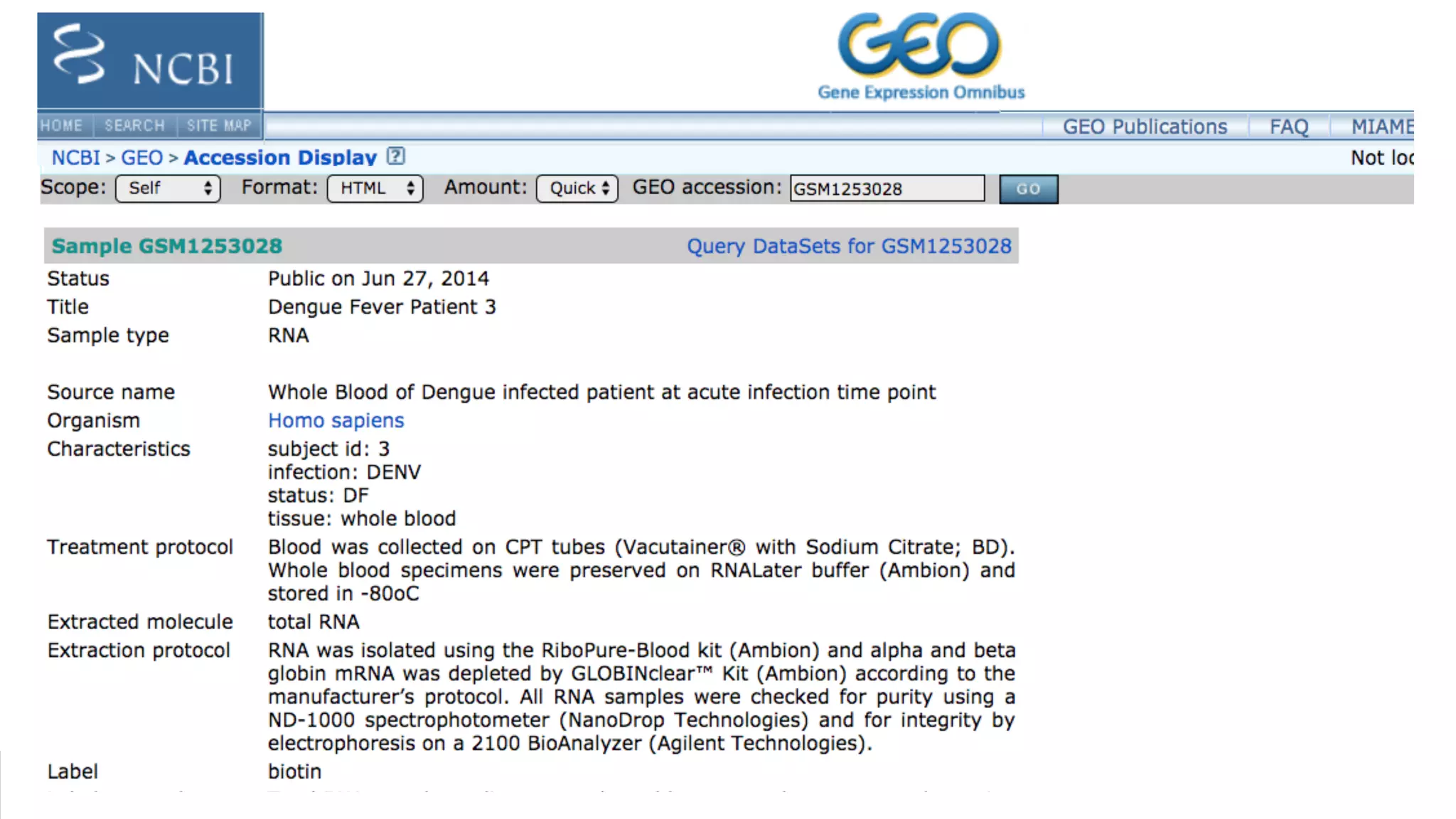

- 3. 3AMIA 2017 |amia.org

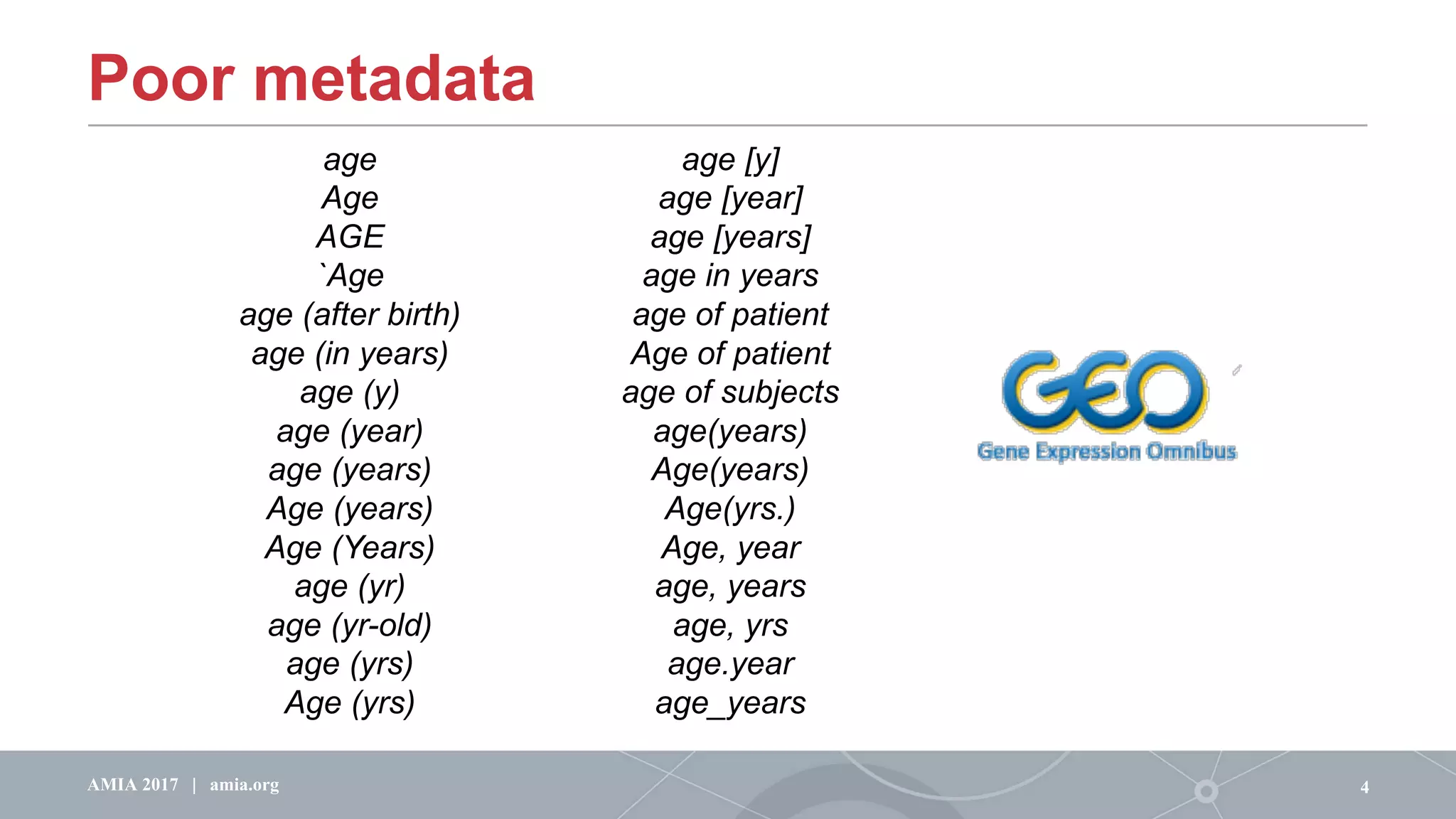

- 4. 4AMIA 2017 |amia.org age Age AGE `Age age (after birth) age (in years) age (y) age (year) age (years) Age (years) Age (Years) age (yr) age (yr-old) age (yrs) Age (yrs) age [y] age [year] age [years] age in years age of patient Age of patient age of subjects age(years) Age(years) Age(yrs.) Age, year age, years age, yrs age.year age_years Poor metadata

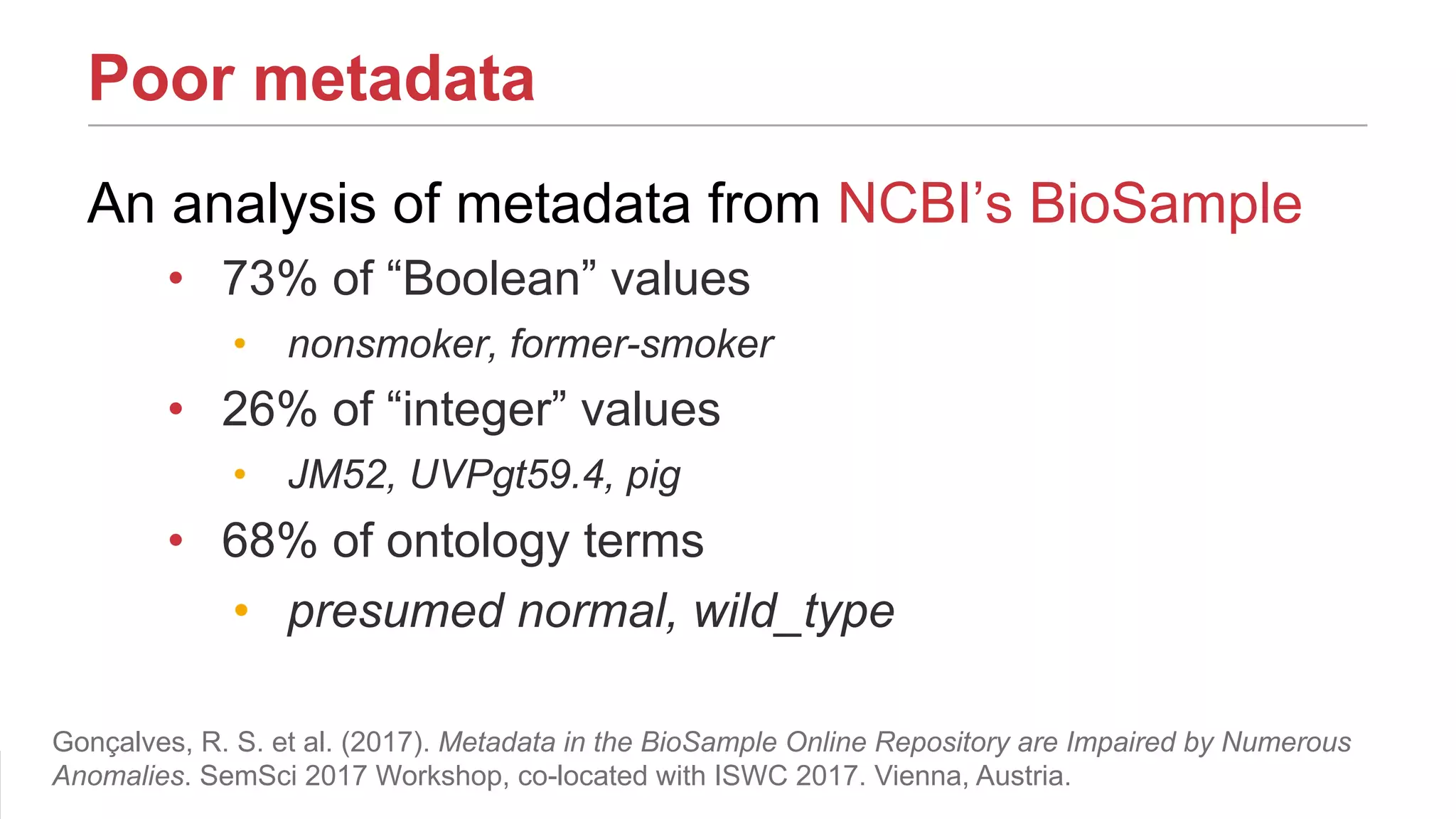

- 5. 5AMIA 2017 |amia.org An analysis of metadata from NCBI’s BioSample • 73% of “Boolean” values • nonsmoker, former-smoker • 26% of “integer” values • JM52, UVPgt59.4, pig • 68% of ontology terms • presumed normal, wild_type Gonçalves, R. S. et al. (2017). Metadata in the BioSample Online Repository are Impaired by Numerous Anomalies. SemSci 2017 Workshop, co-located with ISWC 2017. Vienna, Austria. Poor metadata

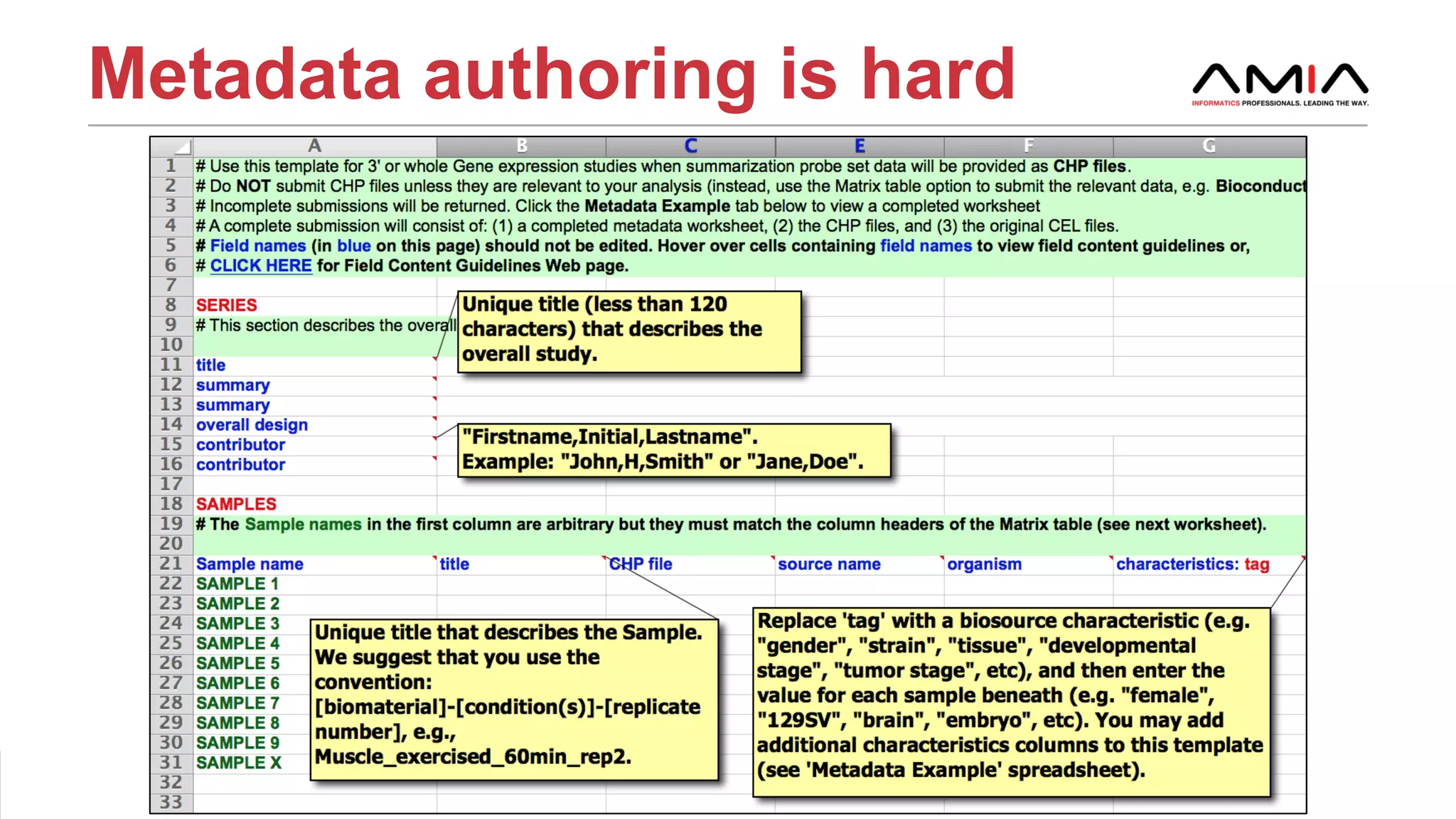

- 6. [Your presentation onthis and next slides] 6AMIA 2017 | amia.org Metadata authoring is hard

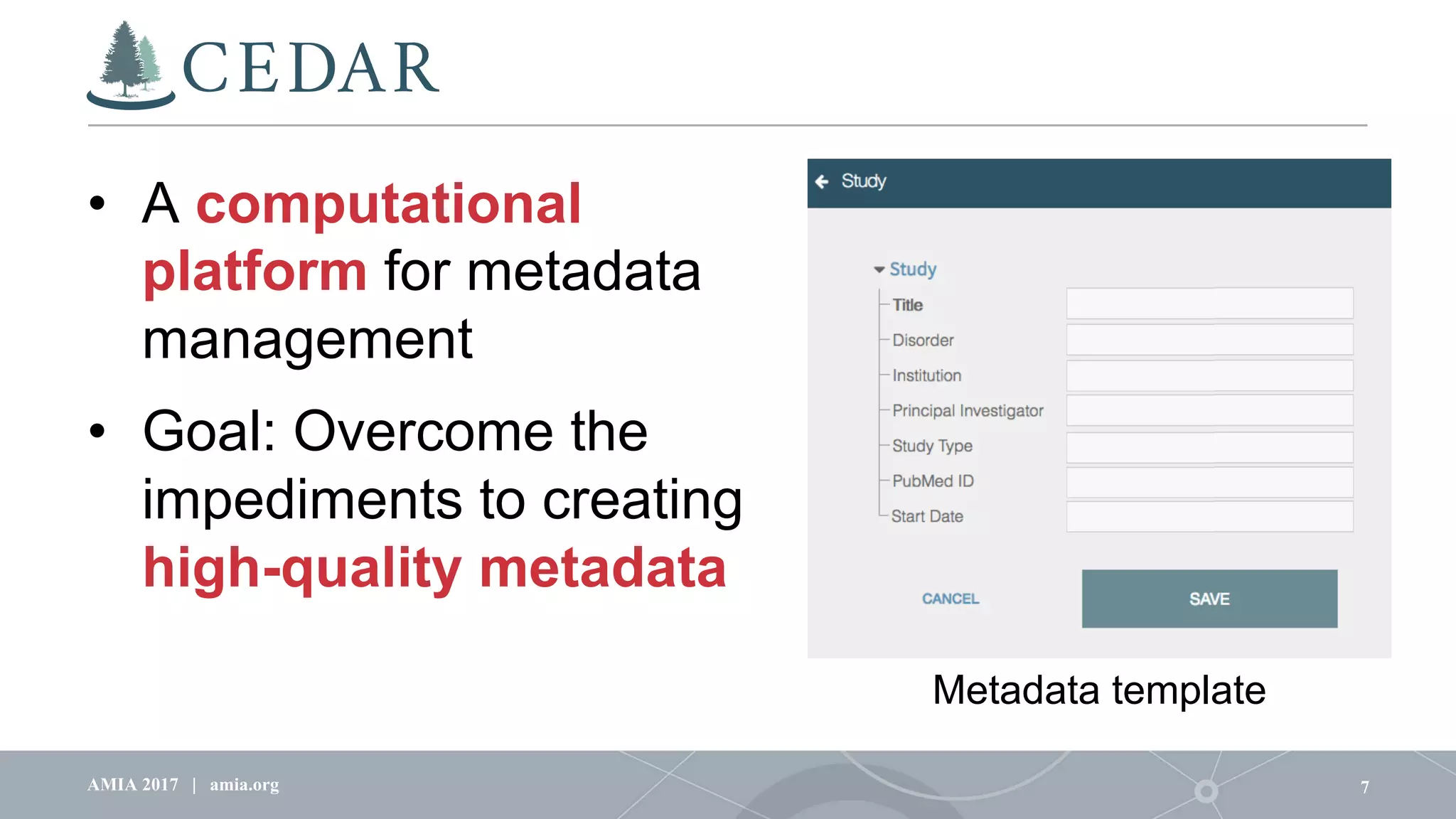

- 7. • A computational platformfor metadata management • Goal: Overcome the impediments to creating high-quality metadata 7AMIA 2017 | amia.org Metadata template Metadata template

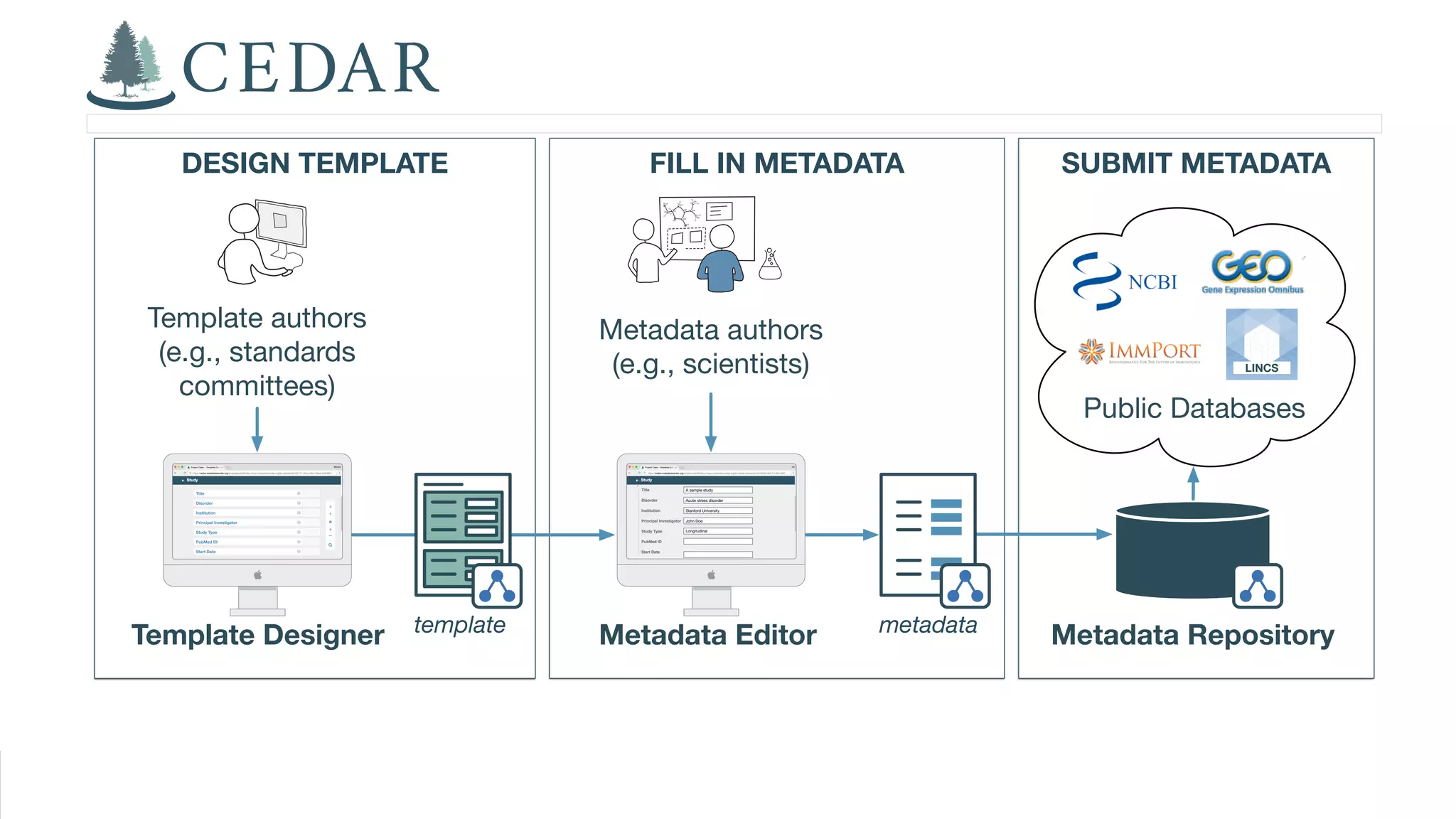

- 8. 8AMIA 2017 |amia.org SUBMIT METADATAFILL IN METADATADESIGN TEMPLATE Template Designer Metadata Editor Template authors (e.g., standards committees) Metadata authors (e.g., scientists) Metadata Repositorytemplate metadata LINCS Public Databases https://cedar.metadatacenter.org/templates/edit/https://repo.metadatacenter.org/templates/ab105771-564e-42a1-9be4-5a63891… https://cedar.metadatacenter.org/instances/edit/https://repo.metadatacenter.org/template-instances/d4f1059e-8e27-4166-902f-… A sample study Acute stress disorder Stanford University John Doe Longitudinal

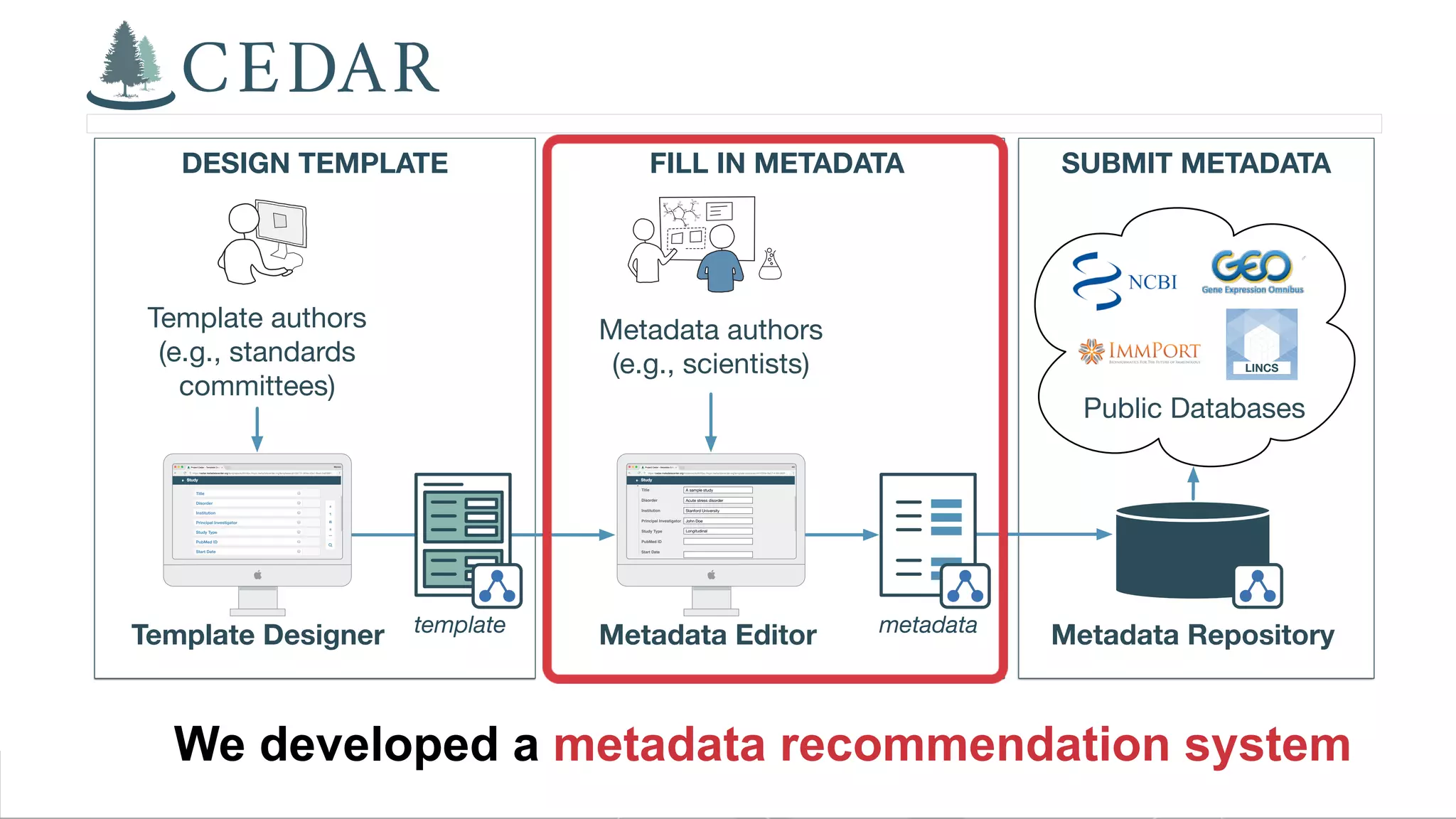

- 9. 9AMIA 2017 |amia.org We developed a metadata recommendation system SUBMIT METADATAFILL IN METADATADESIGN TEMPLATE Template Designer Metadata Editor Template authors (e.g., standards committees) Metadata authors (e.g., scientists) Metadata Repositorytemplate metadata LINCS Public Databases https://cedar.metadatacenter.org/templates/edit/https://repo.metadatacenter.org/templates/ab105771-564e-42a1-9be4-5a63891… https://cedar.metadatacenter.org/instances/edit/https://repo.metadatacenter.org/template-instances/d4f1059e-8e27-4166-902f-… A sample study Acute stress disorder Stanford University John Doe Longitudinal

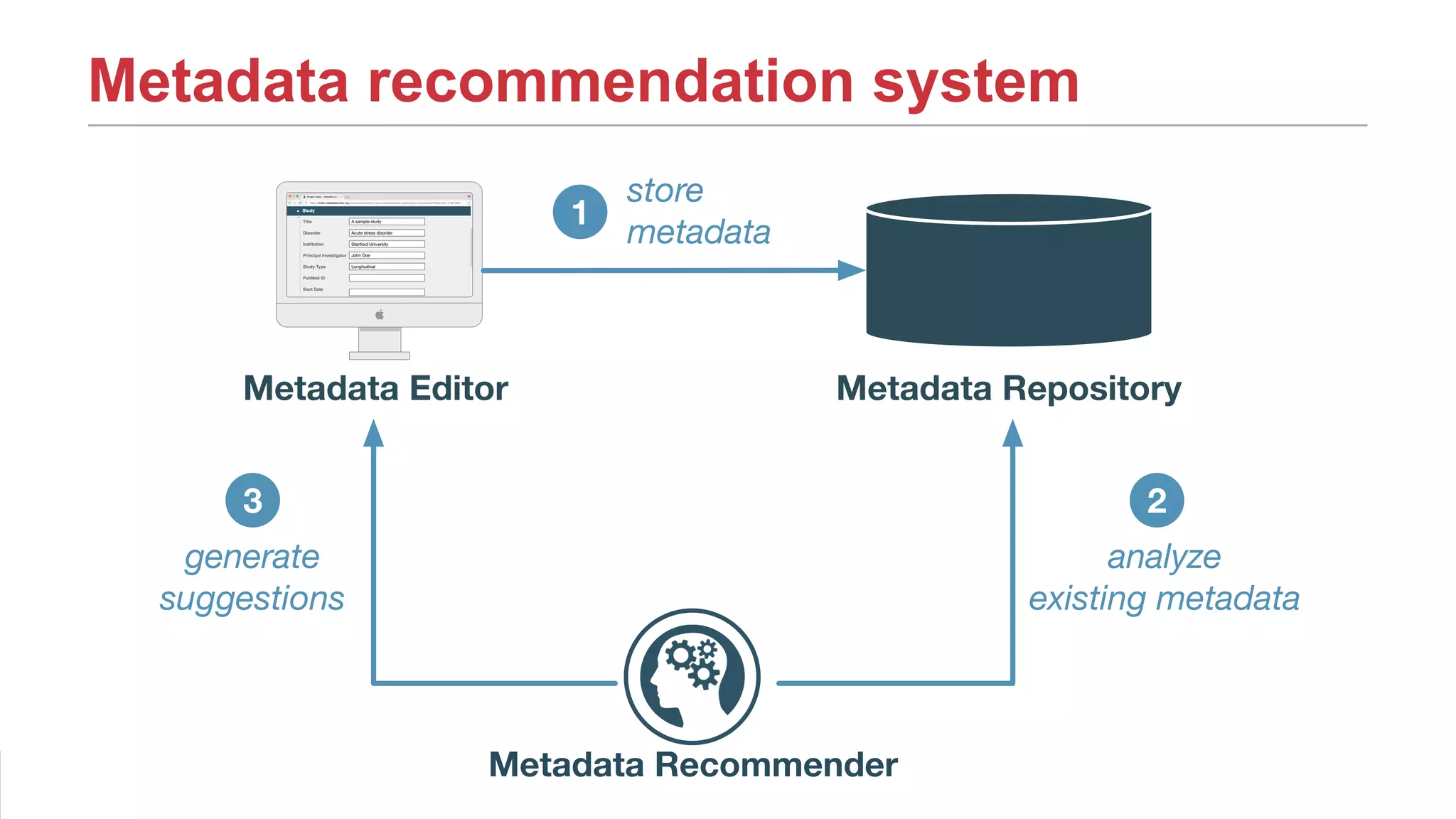

- 10. Metadata recommendation system 10AMIA2017 | amia.org Metadata Editor Metadata Repository https://cedar.metadatacenter.org/instances/edit/https://repo.metadatacenter.org/template-instances/d4f1059e-8e27-4166-902f-… A sample study Acute stress disorder Stanford University John Doe Longitudinal analyze existing metadata generate suggestions 1 23 store metadata Metadata Recommender

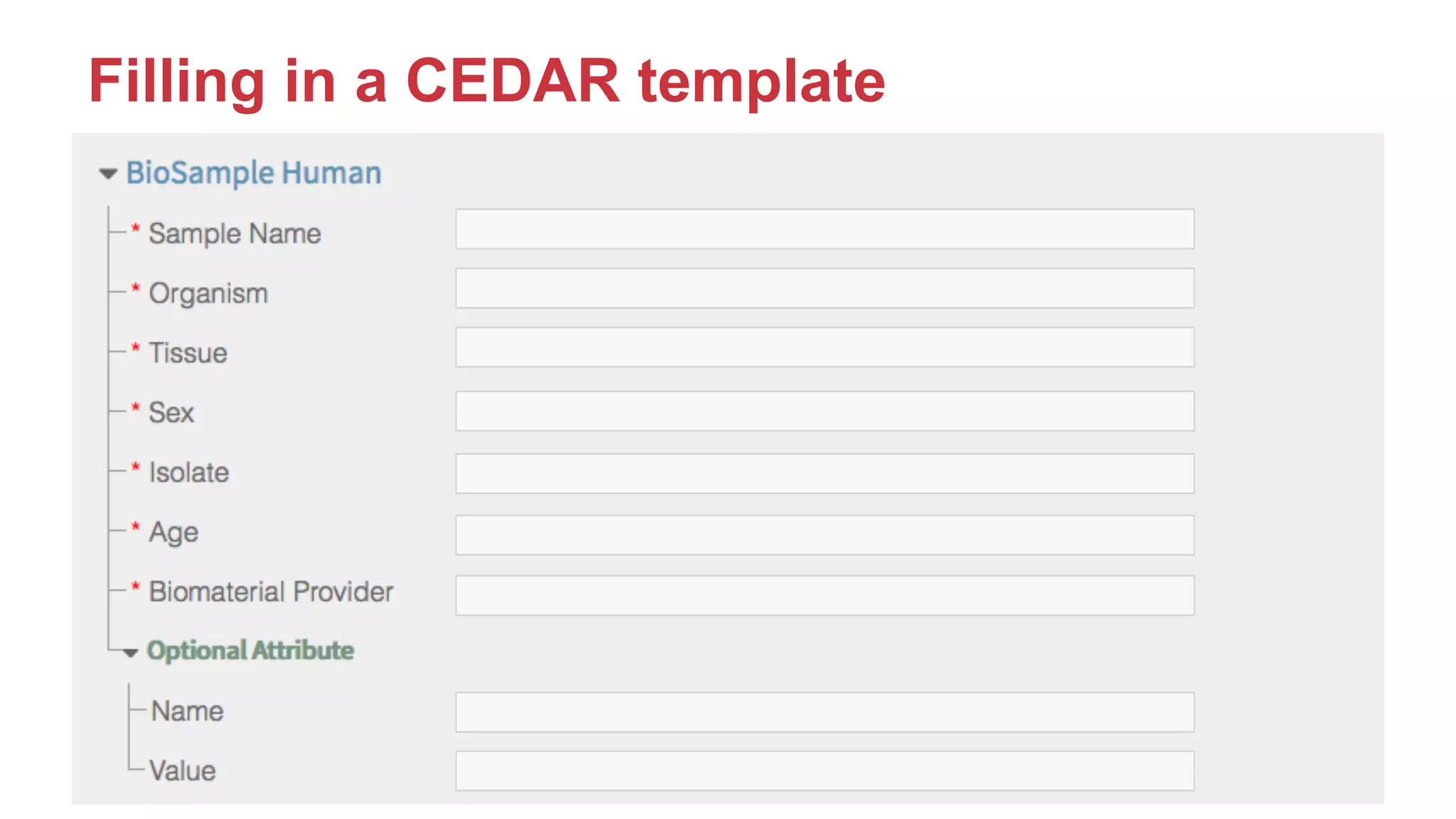

- 11. 11AMIA 2017 |amia.org Filling in a CEDAR template

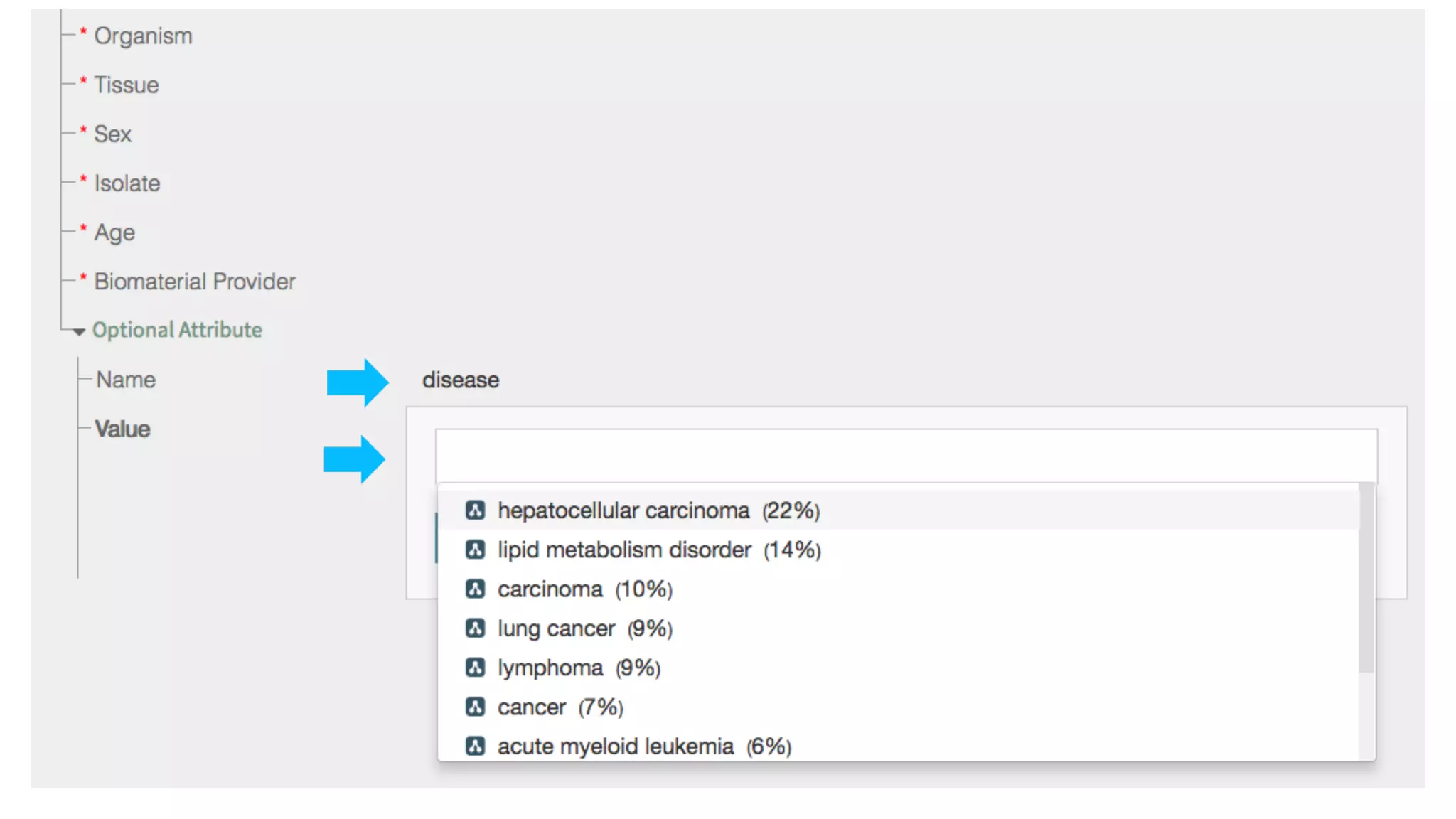

- 12. 12AMIA 2017 |amia.org

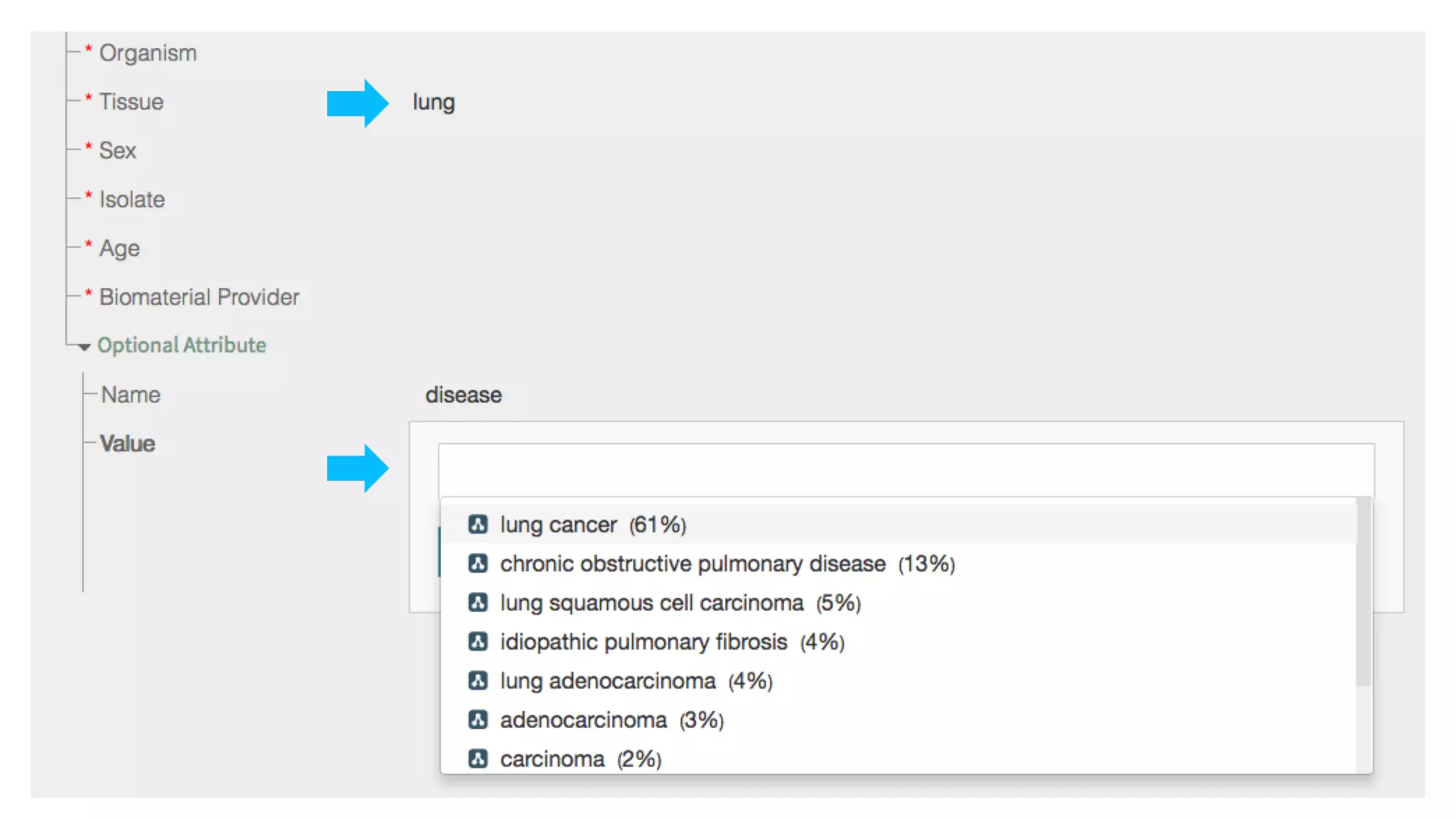

- 13. 13AMIA 2017 |amia.org

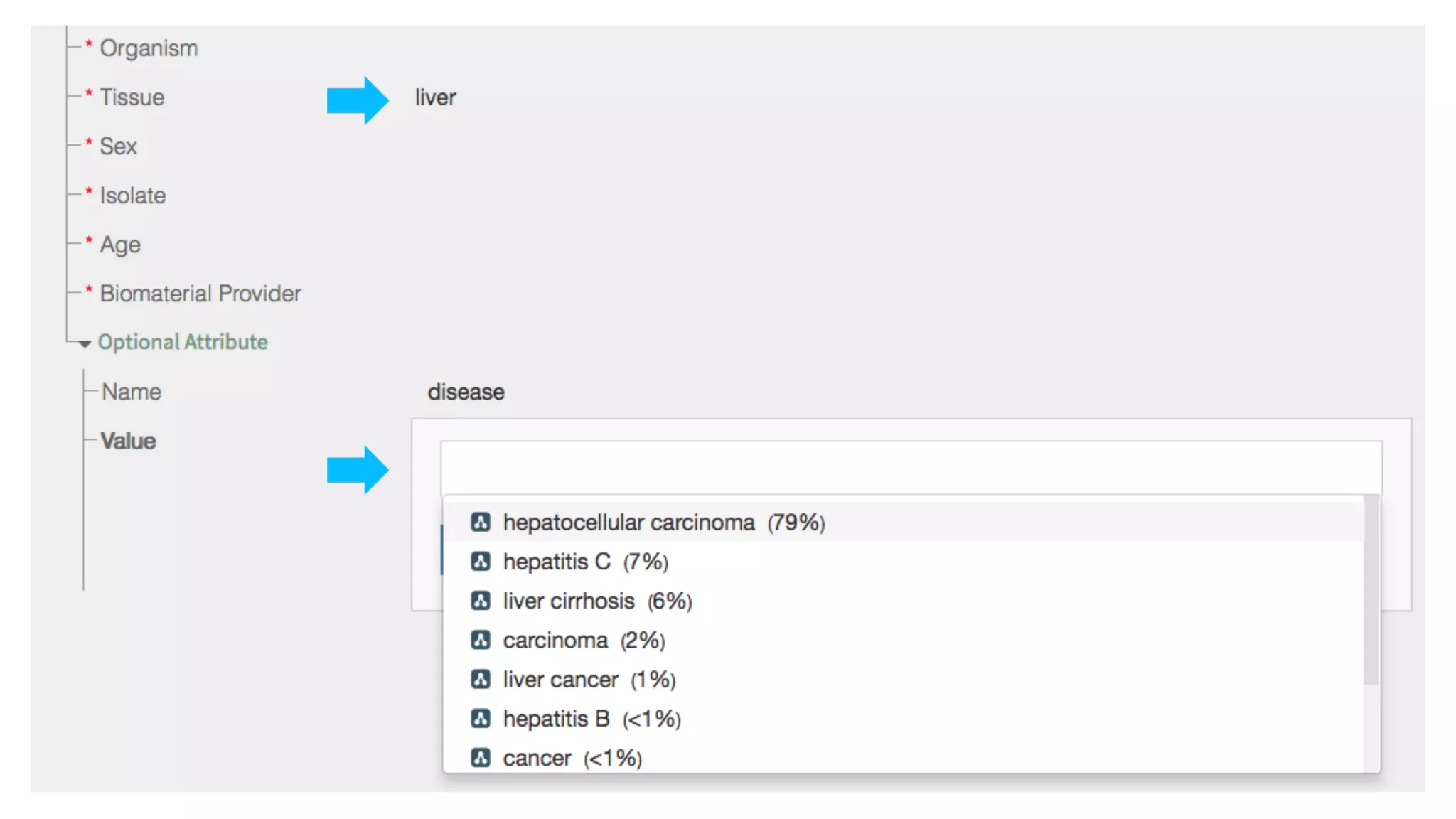

- 14. 14AMIA 2017 |amia.org

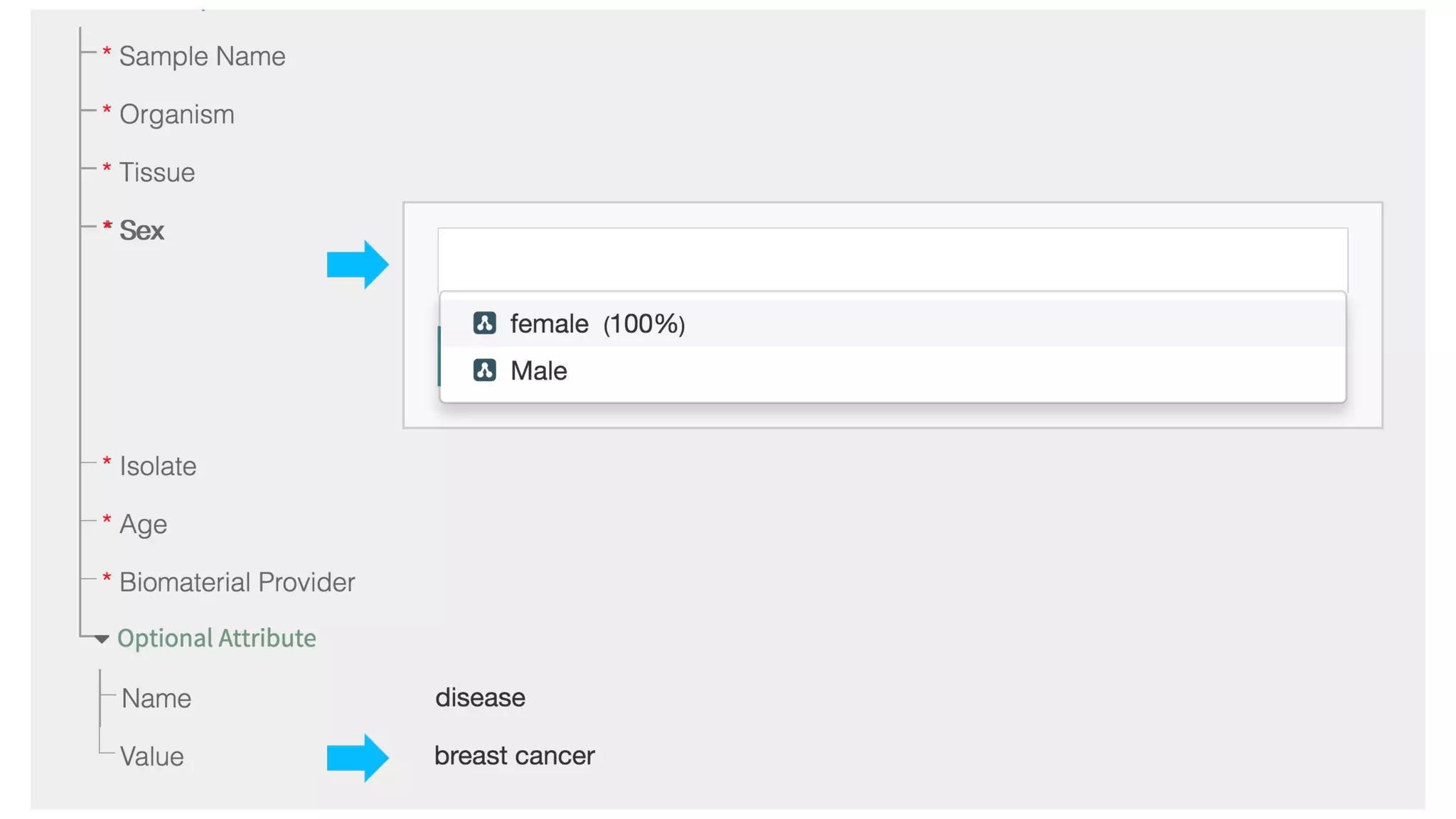

- 15. 15AMIA 2017 |amia.org

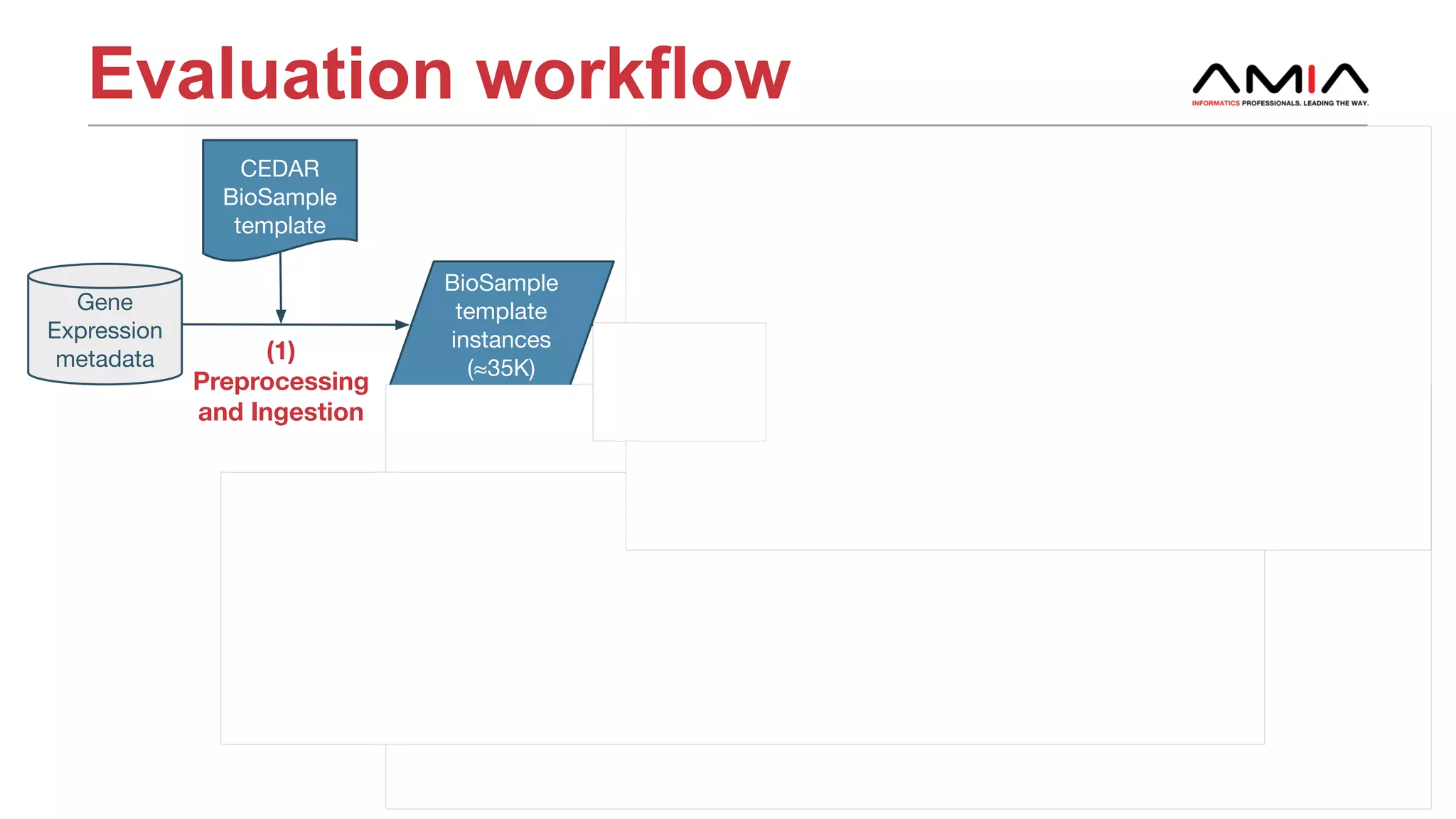

- 16. Evaluation workflow 16AMIA 2017| amia.org BioSample template instances (≈35K) Annotated BioSample template instances (≈35K) CEDAR BioSample template Training dataset Test dataset Training dataset Evaluation results CEDAR Metadata Repository (1) Preprocessing and Ingestion (2) Semantic annotation (3) Training (4) Testing & Analysis Test dataset Gene Expression metadata Metadata Recommender 20% 80% 80% 20%

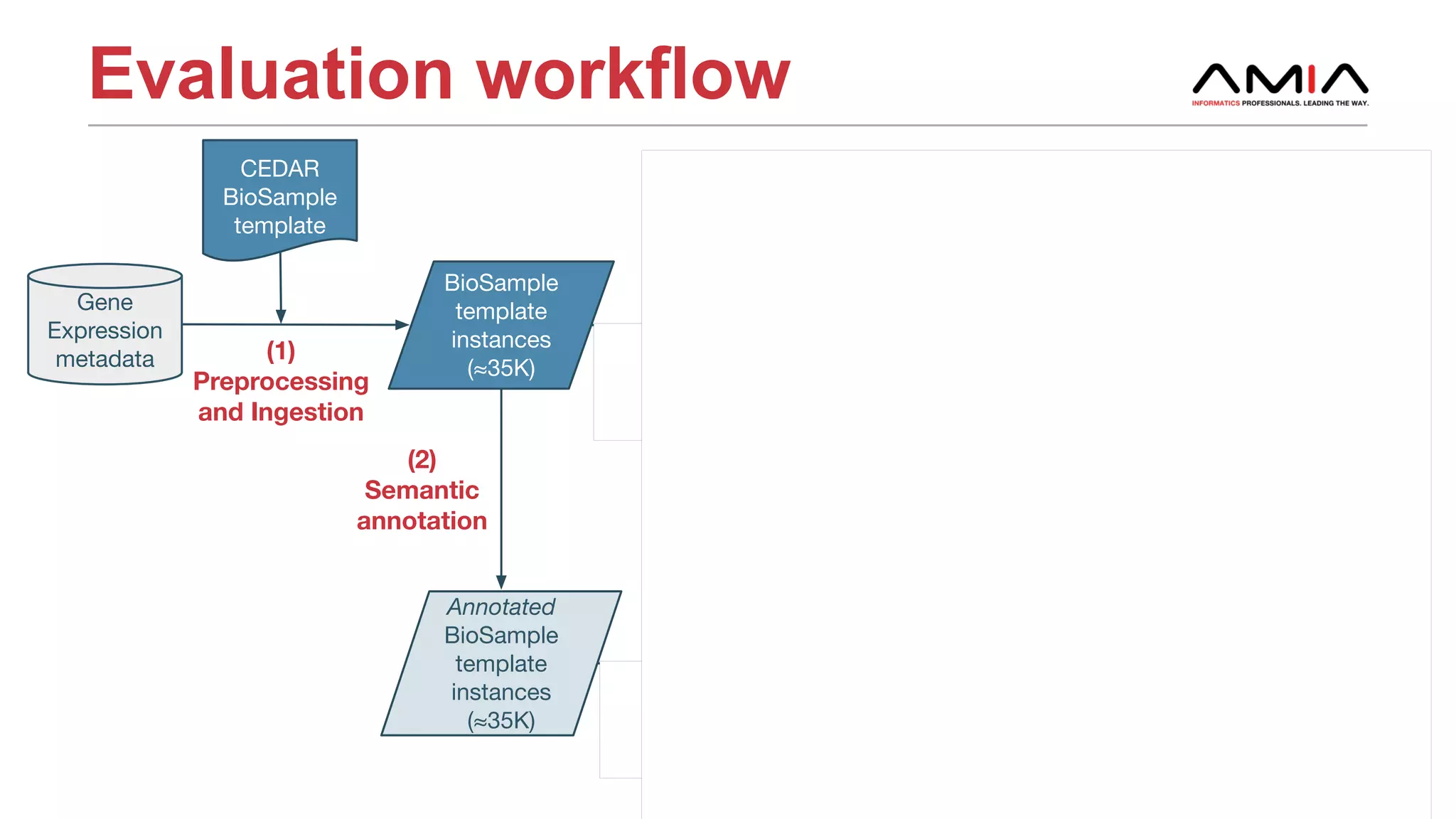

- 17. Evaluation workflow 17AMIA 2017| amia.org BioSample template instances (≈35K) Annotated BioSample template instances (≈35K) CEDAR BioSample template Training dataset Test dataset Training dataset Evaluation results CEDAR Metadata Repository (1) Preprocessing and Ingestion (2) Semantic annotation (3) Training (4) Testing & Analysis Test dataset Gene Expression metadata Metadata Recommender 20% 80% 80% 20%

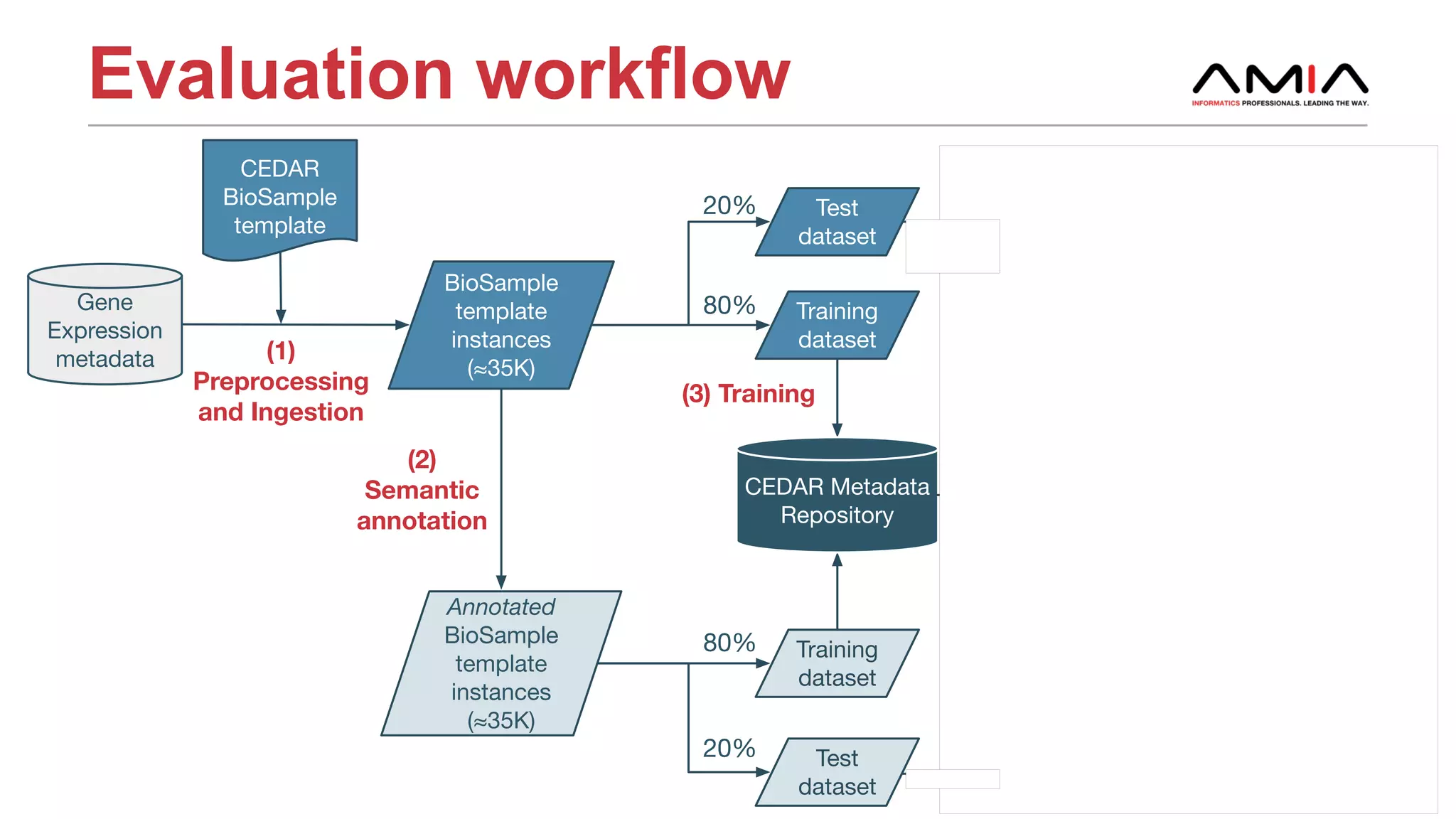

- 18. Evaluation workflow 18AMIA 2017| amia.org BioSample template instances (≈35K) Annotated BioSample template instances (≈35K) CEDAR BioSample template Training dataset Test dataset Training dataset Evaluation results CEDAR Metadata Repository (1) Preprocessing and Ingestion (2) Semantic annotation (3) Training (4) Testing & Analysis Test dataset Gene Expression metadata Metadata Recommender 20% 80% 80% 20%

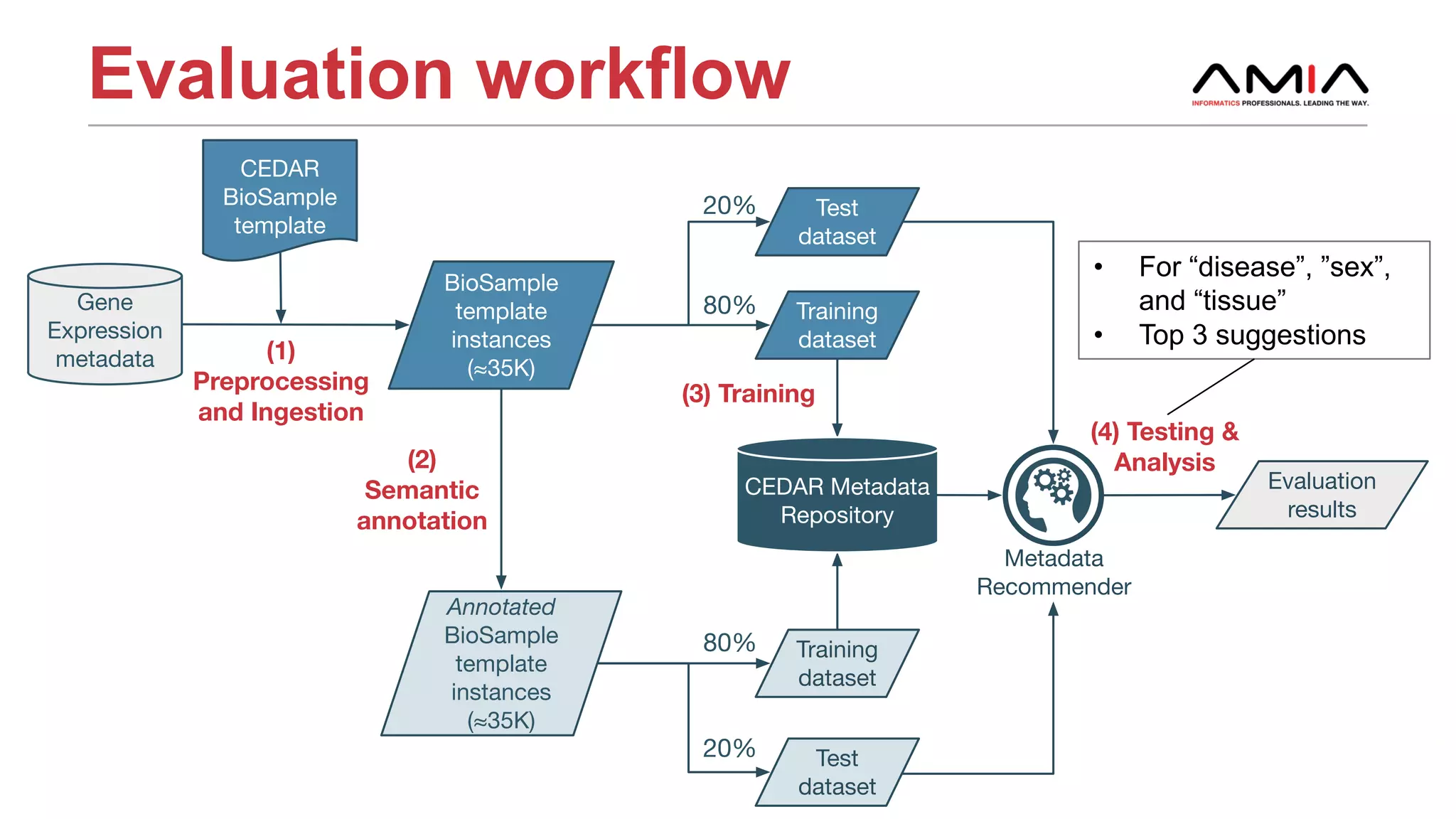

- 19. Evaluation workflow 19AMIA 2017| amia.org BioSample template instances (≈35K) Annotated BioSample template instances (≈35K) CEDAR BioSample template Training dataset Test dataset Training dataset Evaluation results CEDAR Metadata Repository (1) Preprocessing and Ingestion (2) Semantic annotation (3) Training (4) Testing & Analysis Test dataset Gene Expression metadata Metadata Recommender 20% 80% 80% 20% • For “disease”, ”sex”, and “tissue” • Top 3 suggestions

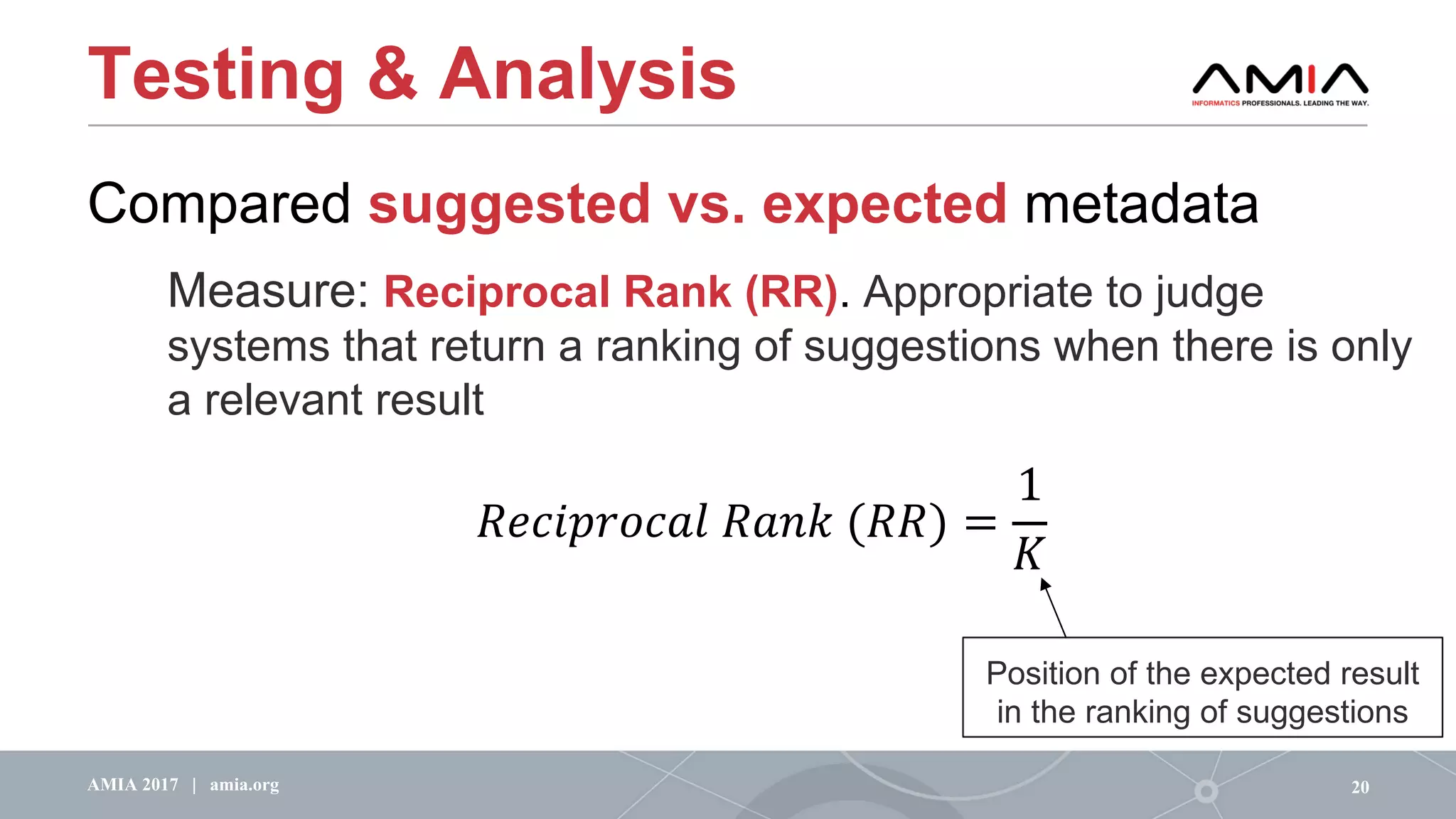

- 20. Testing & Analysis Comparedsuggested vs. expected metadata Measure: Reciprocal Rank (RR). Appropriate to judge systems that return a ranking of suggestions when there is only a relevant result 20AMIA 2017 | amia.org !"#$%&'#() !(+, (!!) = 1 1 Position of the expected result in the ranking of suggestions

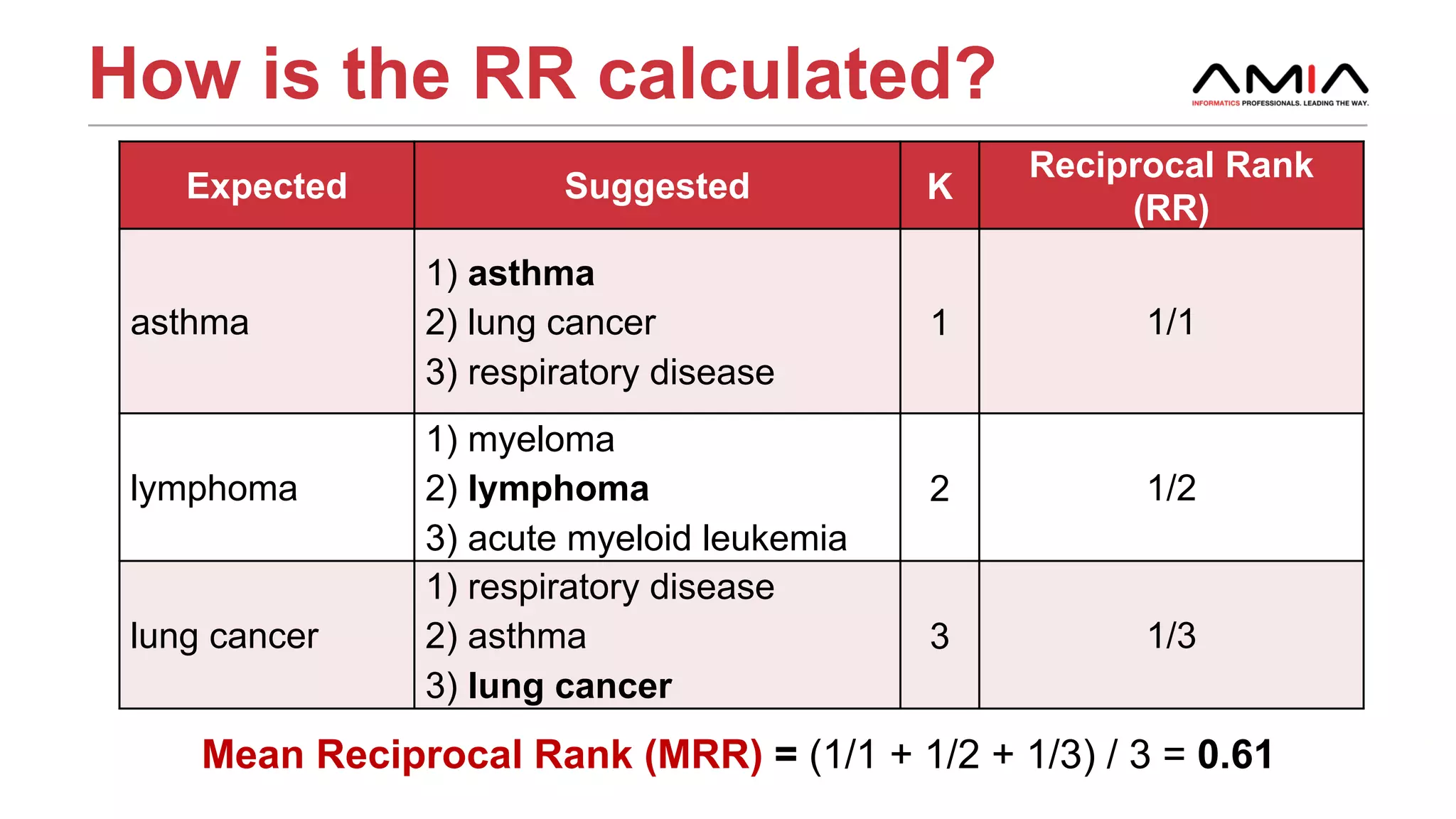

- 21. How is theRR calculated? 21AMIA 2017 | amia.org Expected Suggested K Reciprocal Rank (RR) asthma 1) asthma 2) lung cancer 3) respiratory disease 1 1/1 lymphoma 1) myeloma 2) lymphoma 3) acute myeloid leukemia 2 1/2 lung cancer 1) respiratory disease 2) asthma 3) lung cancer 3 1/3 Mean Reciprocal Rank (MRR) = (1/1 + 1/2 + 1/3) / 3 = 0.61

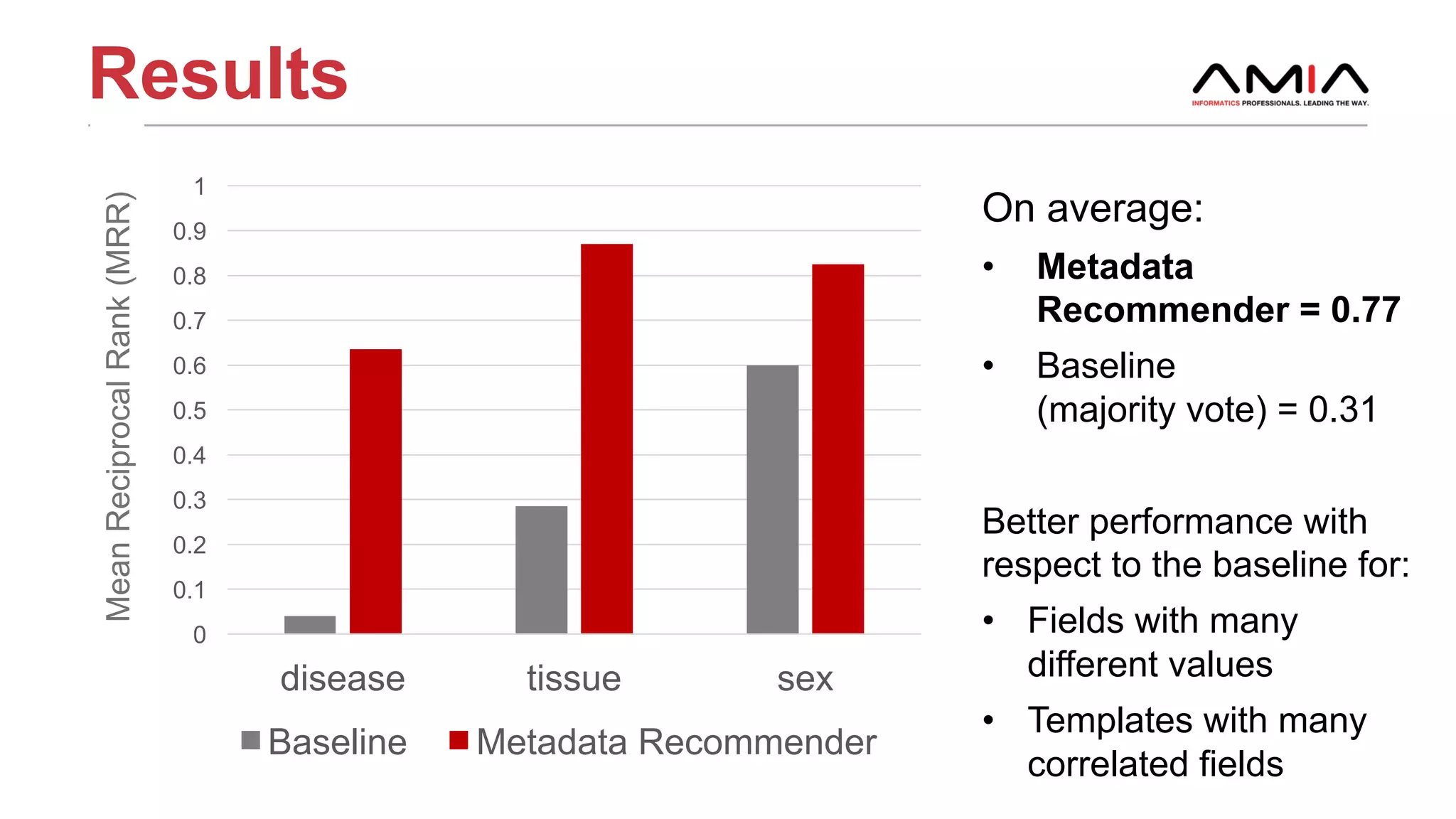

- 22. Results 22AMIA 2017 |amia.org 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 disease tissue sex Baseline Metadata Recommender MeanReciprocalRank(MRR) On average: • Metadata Recommender = 0.77 • Baseline (majority vote) = 0.31 Better performance with respect to the baseline for: • Fields with many different values • Templates with many correlated fields

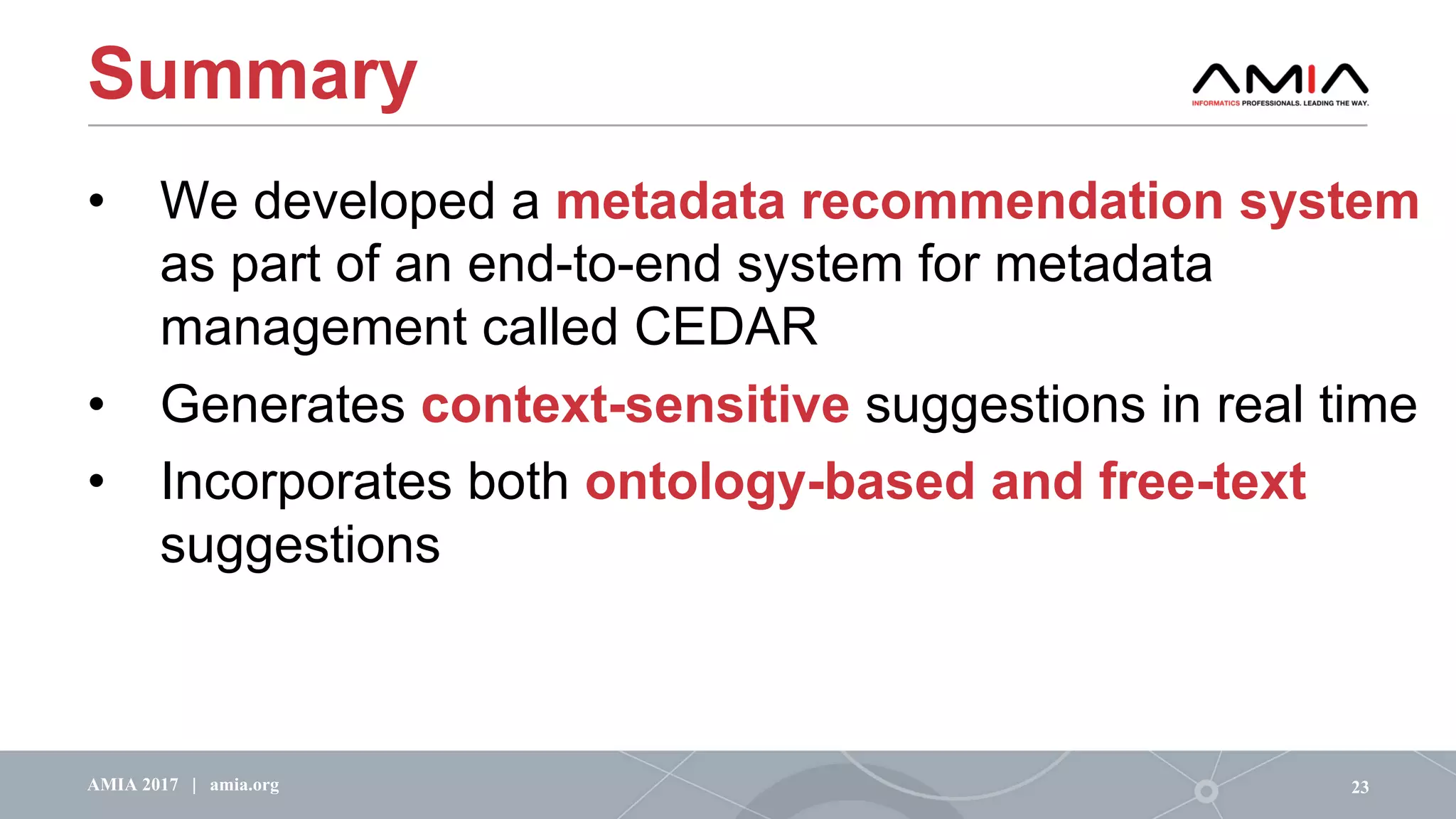

- 23. Summary • We developeda metadata recommendation system as part of an end-to-end system for metadata management called CEDAR • Generates context-sensitive suggestions in real time • Incorporates both ontology-based and free-text suggestions 23AMIA 2017 | amia.org
- 24. Summary Our approach makesit easier for scientists to generate high-quality metadata for experimental datasets • So that the datasets can be found, interpreted, and reused • Essential to ensure scientific reproducibility 24AMIA 2017 | amia.org
- 25. 25AMIA 2017 |amia.org facebook.com/metadatacenter @metadatacenter http://cedar.metadatacenter.org Channel: Metadata Center github.com/metadatacenter
