The document discusses the use of test doubles in software testing, including dummies, stubs, spies, fakes, and mocks, explaining their roles and providing examples. It emphasizes the importance of choosing the appropriate type of test double based on the testing context, such as testing state versus behavior. Additionally, it highlights common issues in testing design and the advantages and disadvantages of using test doubles.

1. © Asprotunity Ltd
Giovanni Asproni
email: gasproni@asprotunity.com
twitter: @gasproni
linkedin: http://www.linkedin.com/in/gasproni

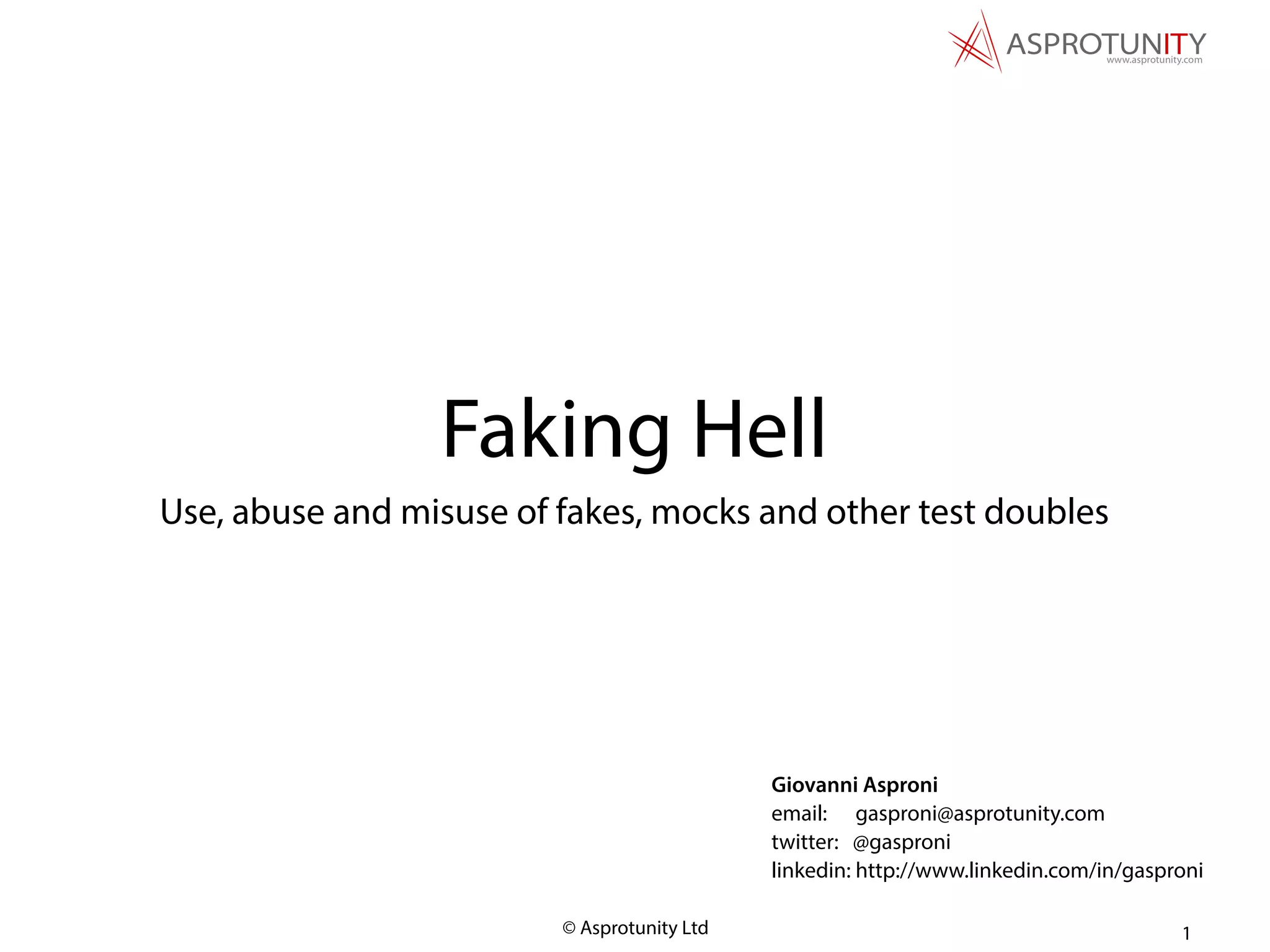

Faking Hell
Use, abuse and misuse of fakes, mocks and other test doubles
1

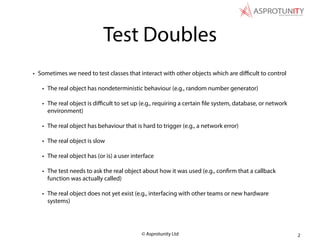

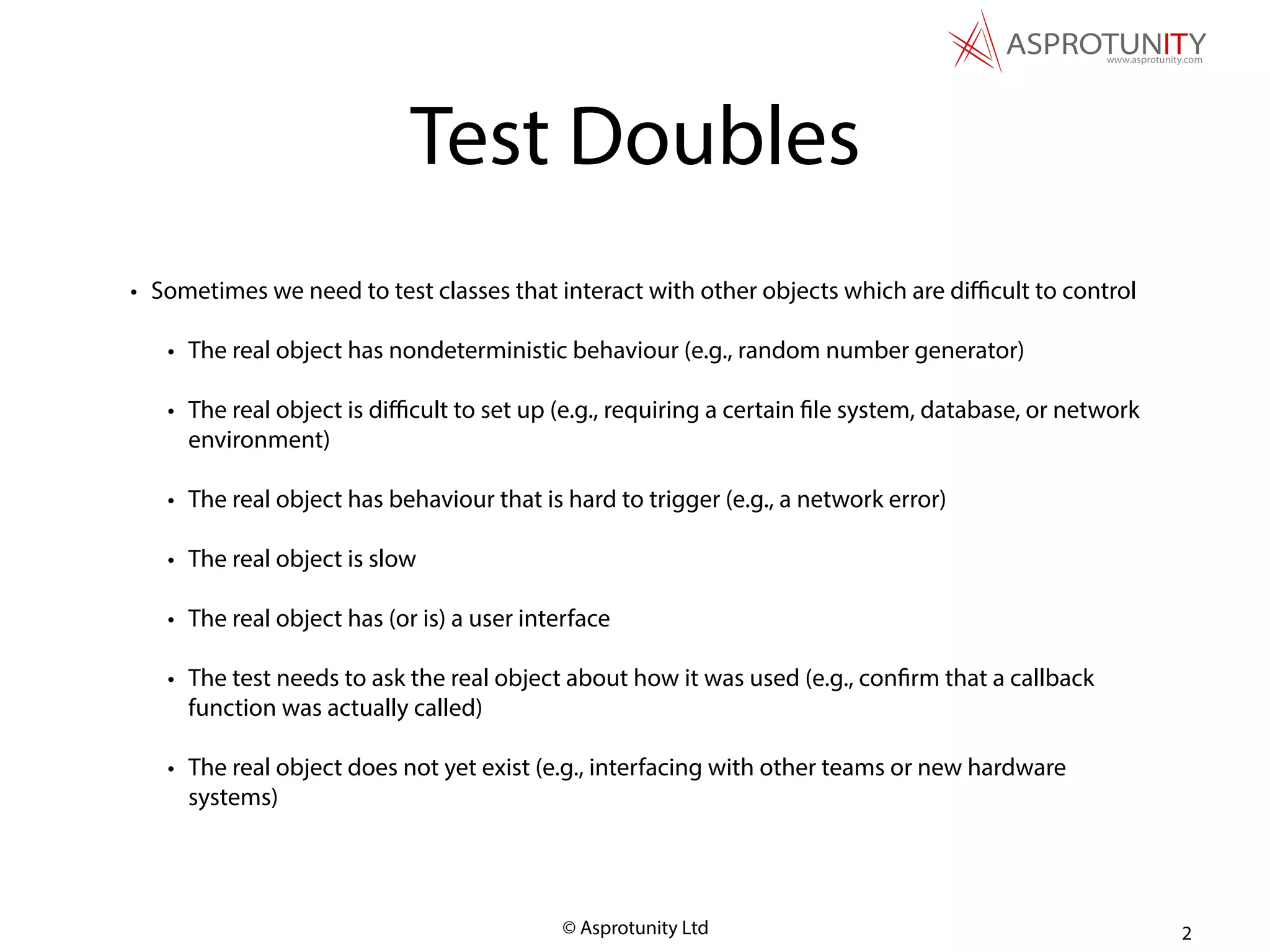

2. © Asprotunity Ltd
Test Doubles
• Sometimes we need to test classes that interact with other objects which are difficult to control
• The real object has nondeterministic behaviour (e.g., random number generator)
• The real object is difficult to set up (e.g., requiring a certain file system, database, or network
environment)
• The real object has behaviour that is hard to trigger (e.g., a network error)
• The real object is slow
• The real object has (or is) a user interface
• The test needs to ask the real object about how it was used (e.g., confirm that a callback
function was actually called)
• The real object does not yet exist (e.g., interfacing with other teams or new hardware
systems)
2

3. © Asprotunity Ltd
Test Doubles
• Dummies
• Stubs
• Spies
• Fakes
• Mocks
3

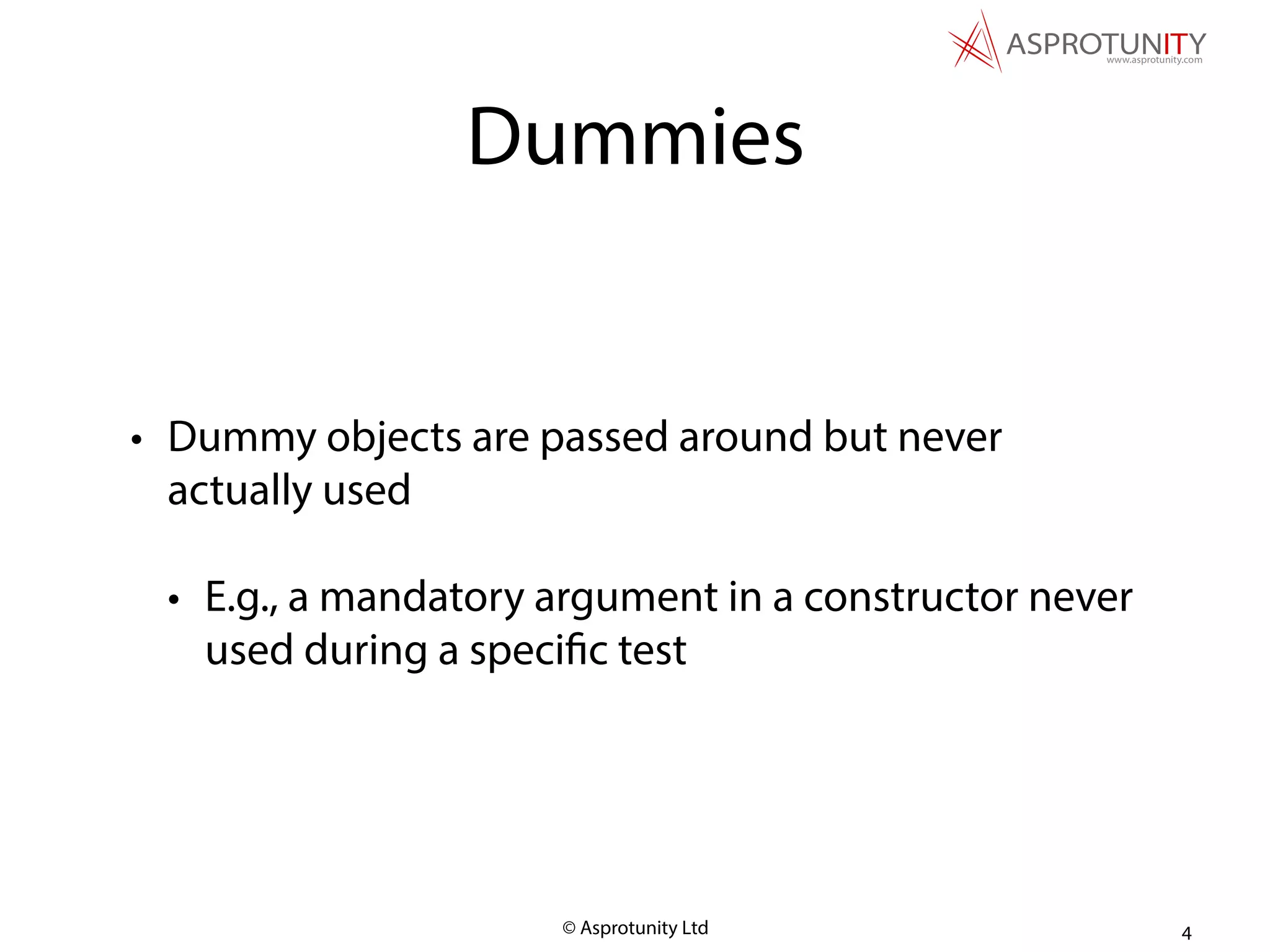

4. © Asprotunity Ltd
Dummies
• Dummy objects are passed around but never
actually used
• E.g., a mandatory argument in a constructor never
used during a specific test
4

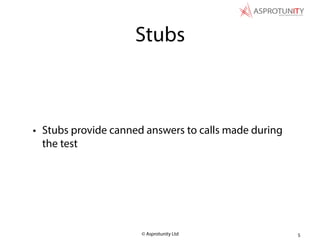

5. © Asprotunity Ltd

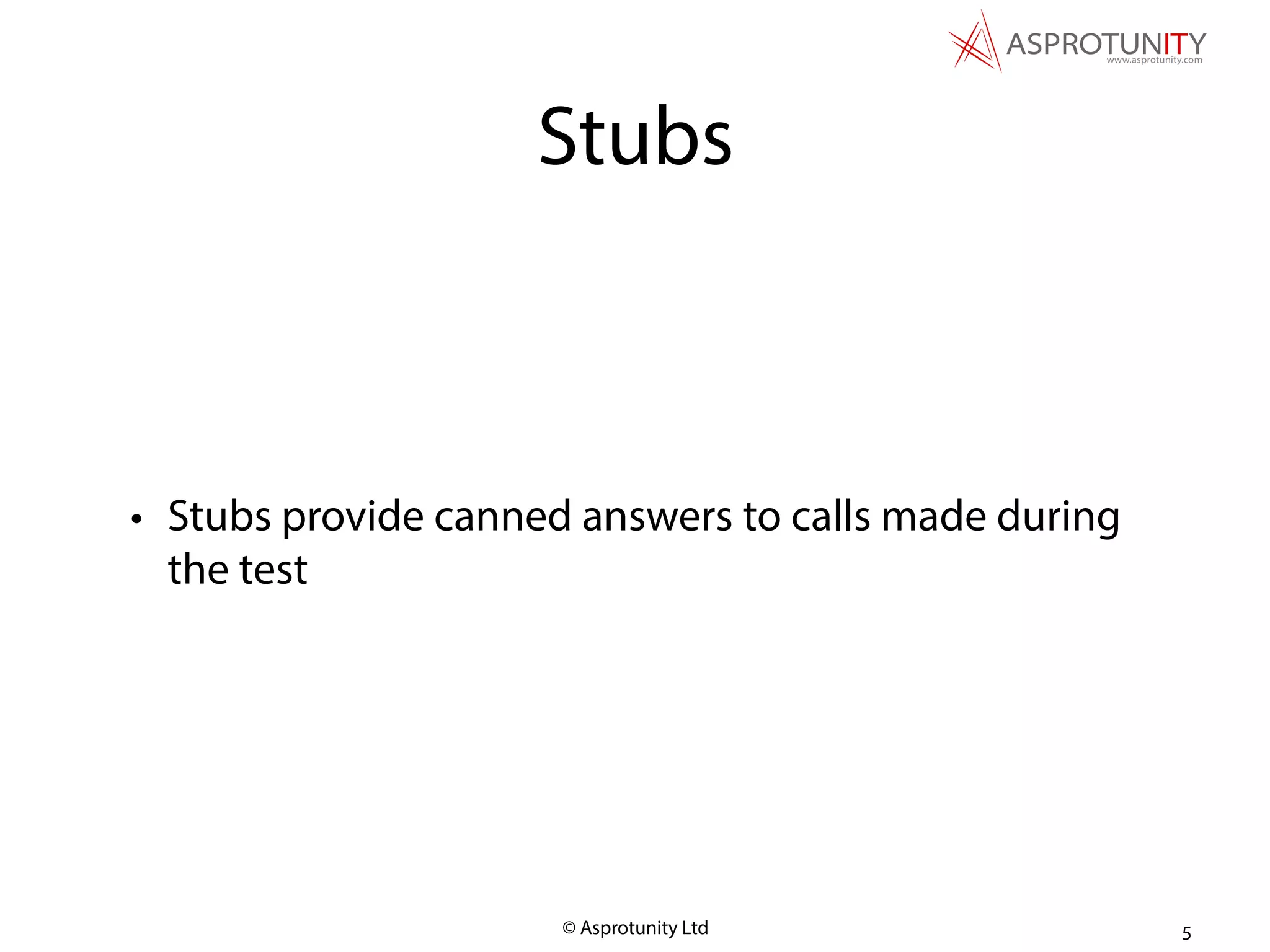

Stubs
• Stubs provide canned answers to calls made during
the test
5

6. © Asprotunity Ltd

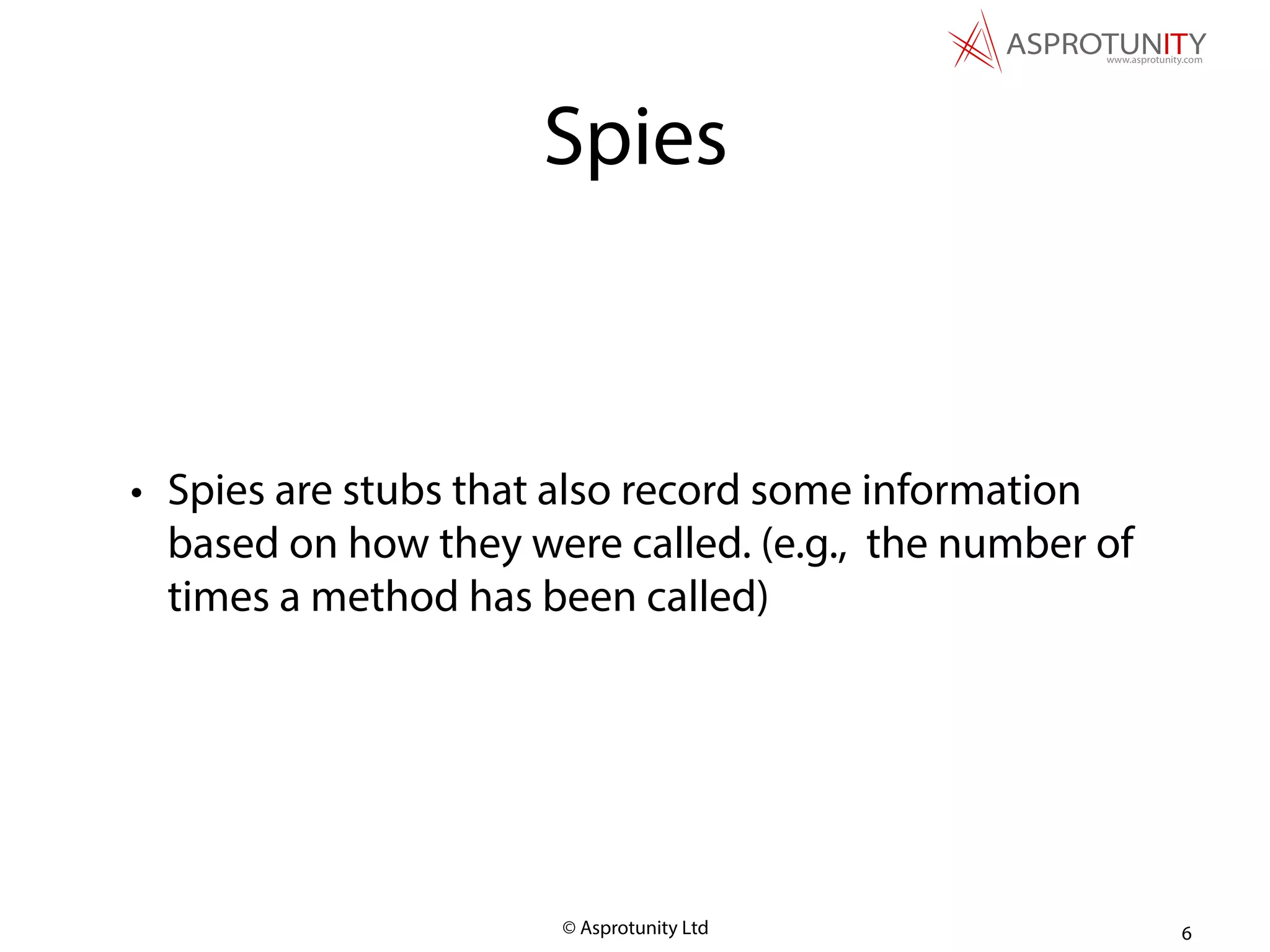

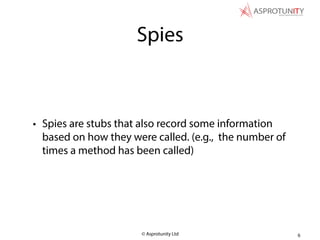

Spies
• Spies are stubs that also record some information
based on how they were called. (e.g., the number of
times a method has been called)
6

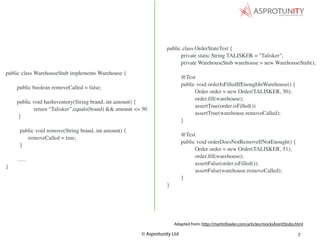

7. © Asprotunity Ltd 7
public class OrderStateTest {
private static String TALISKER = "Talisker";
private WarehouseStub warehouse = new WarehouseStub();
@Test
public void orderIsFilledIfEnoughInWarehouse() {
Order order = new Order(TALISKER, 50);
order.fill(warehouse);
assertTrue(order.isFilled())
assertTrue(warehouse.removeCalled);
}
@Test
public void orderDoesNotRemoveIfNotEnough() {
Order order = new Order(TALISKER, 51);
order.fill(warehouse);
assertFalse(order.isFilled());
assertFalse(warehouse.removeCalled);
}
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
public class WarehouseStub implements Warehouse {
public boolean removeCalled = false;
public void hasInventory(String brand, int amount) {
return “Talisker”.equals(brand) && amount <= 50
}
public void remove(String brand, int amount) {
removeCalled = true;
}
…..
}

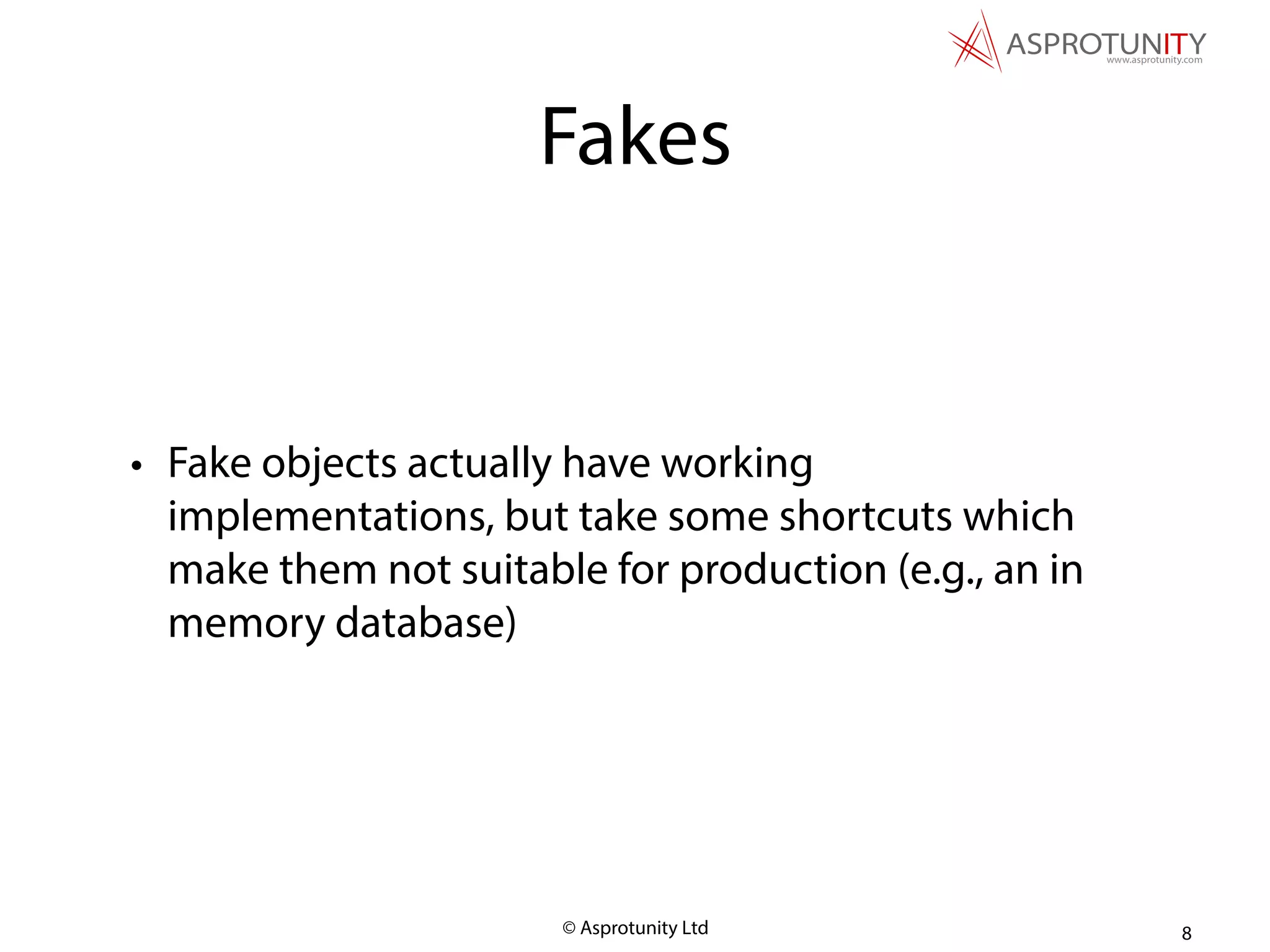

8. © Asprotunity Ltd
Fakes
• Fake objects actually have working
implementations, but take some shortcuts which
make them not suitable for production (e.g., an in
memory database)
8

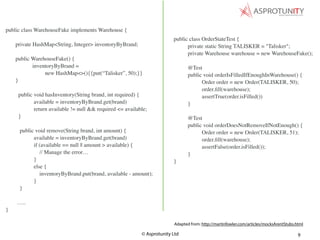

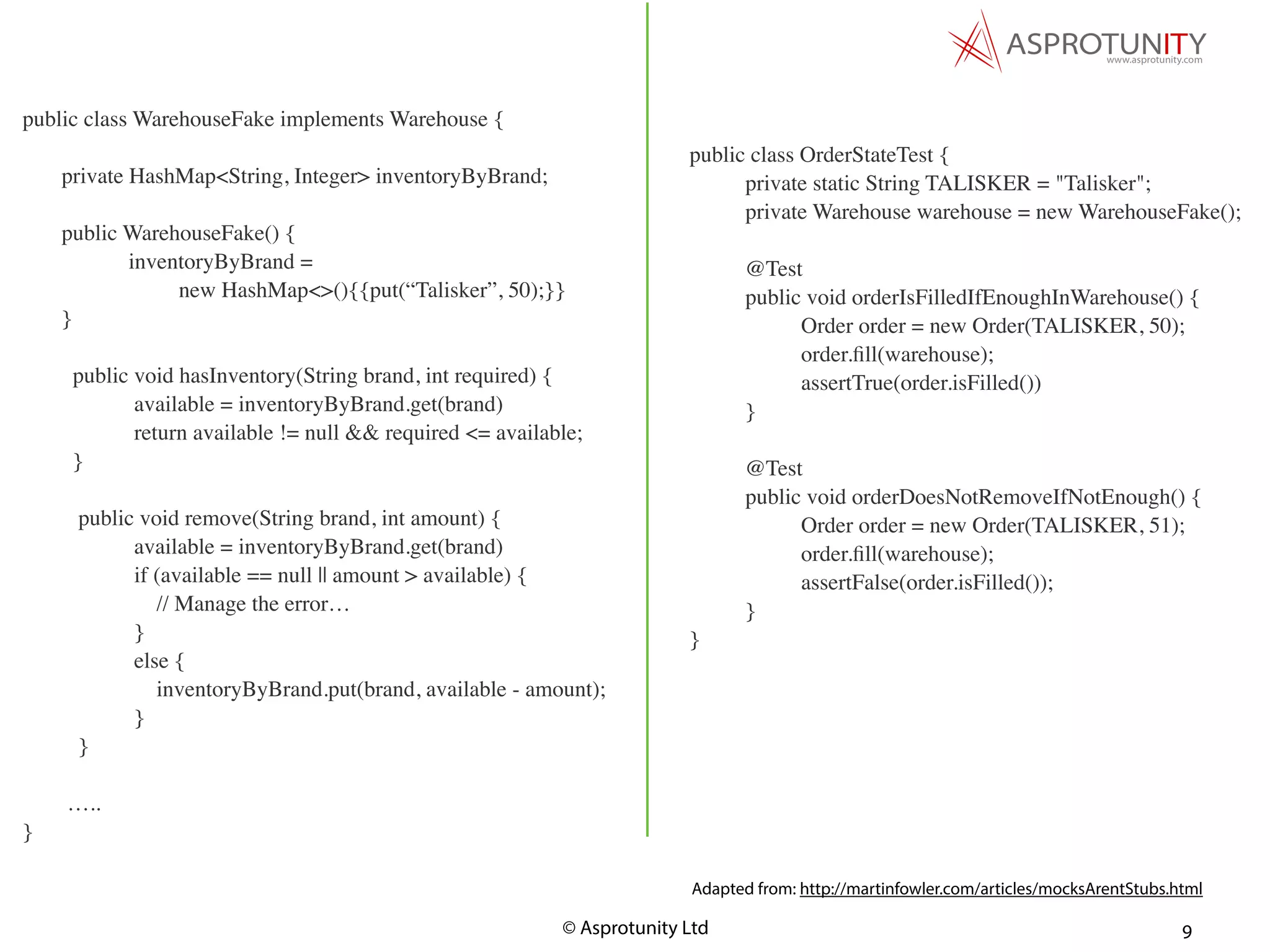

9. © Asprotunity Ltd 9
public class OrderStateTest {
private static String TALISKER = "Talisker";
private Warehouse warehouse = new WarehouseFake();
@Test
public void orderIsFilledIfEnoughInWarehouse() {
Order order = new Order(TALISKER, 50);
order.fill(warehouse);
assertTrue(order.isFilled())
}
@Test
public void orderDoesNotRemoveIfNotEnough() {
Order order = new Order(TALISKER, 51);
order.fill(warehouse);
assertFalse(order.isFilled());
}
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
public class WarehouseFake implements Warehouse {
private HashMap<String, Integer> inventoryByBrand;
public WarehouseFake() {
inventoryByBrand =
new HashMap<>(){{put(“Talisker”, 50);}}
}
public void hasInventory(String brand, int required) {
available = inventoryByBrand.get(brand)
return available != null && required <= available;
}
public void remove(String brand, int amount) {
available = inventoryByBrand.get(brand)
if (available == null || amount > available) {
// Manage the error…
}
else {
inventoryByBrand.put(brand, available - amount);
}
}
…..
}

10. © Asprotunity Ltd

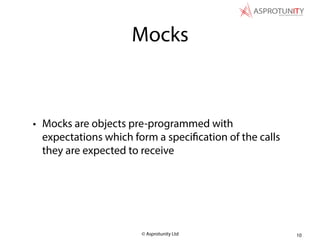

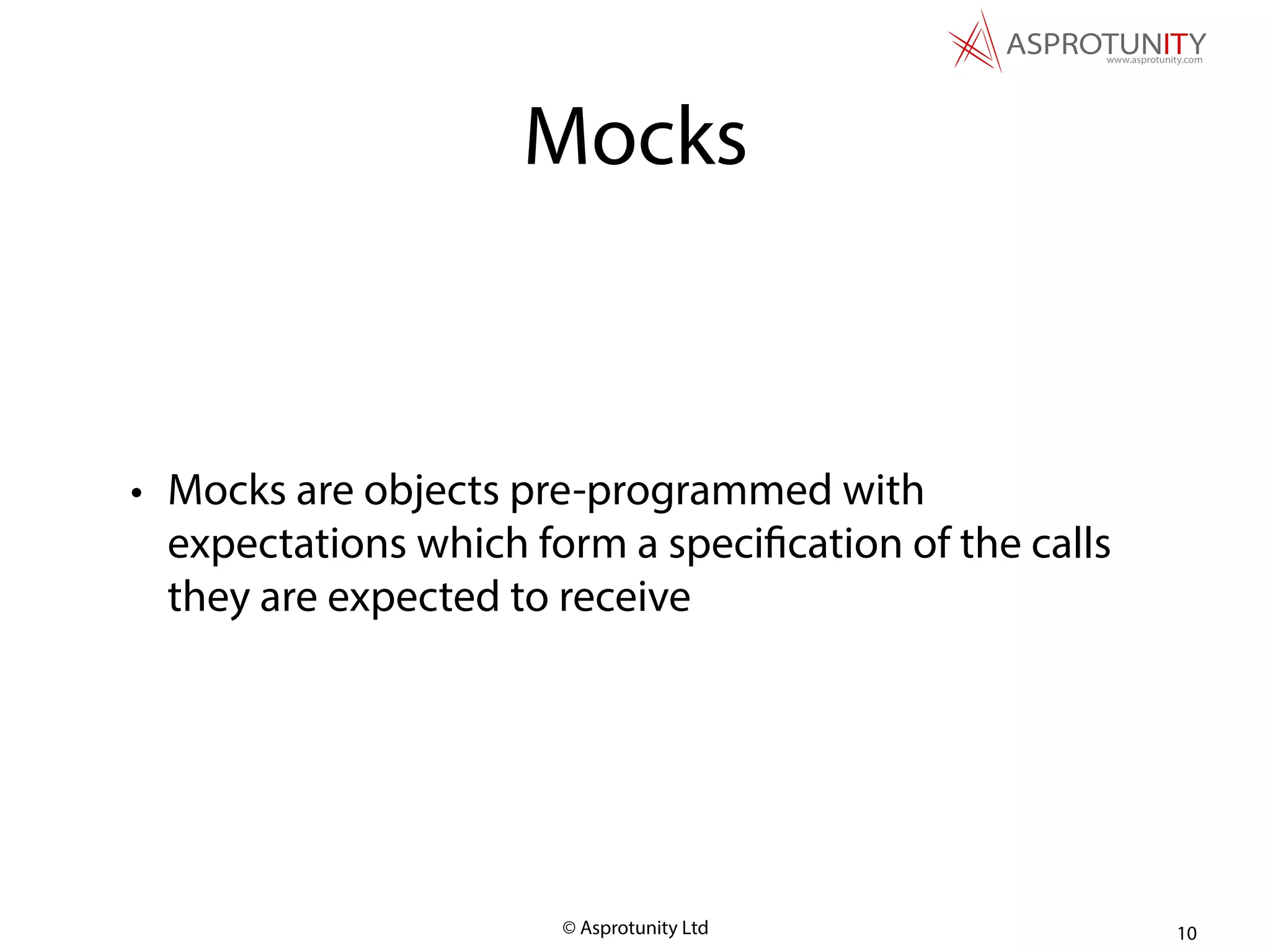

Mocks
• Mocks are objects pre-programmed with
expectations which form a specification of the calls
they are expected to receive
10

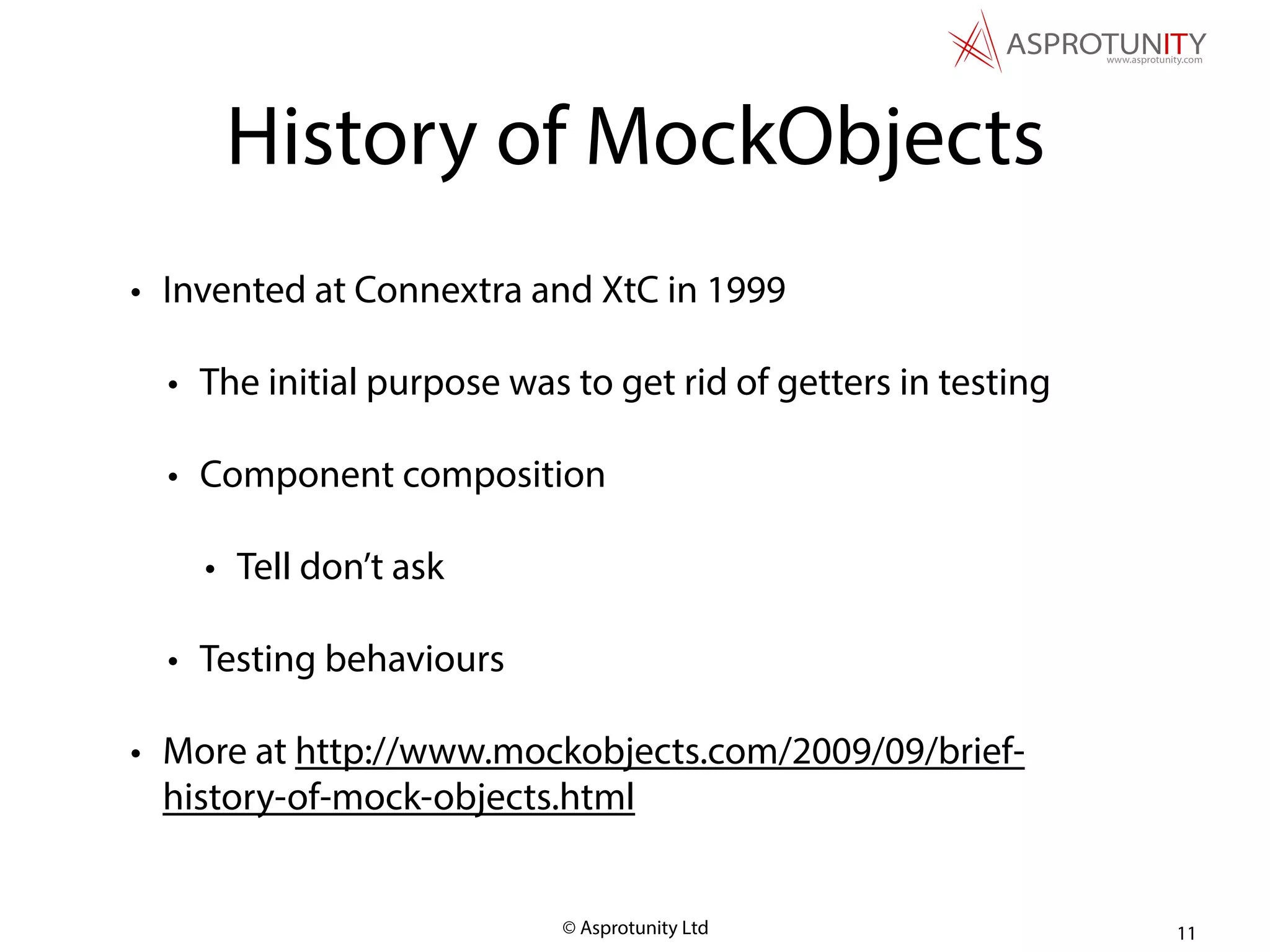

11. © Asprotunity Ltd
History of MockObjects
• Invented at Connextra and XtC in 1999
• The initial purpose was to get rid of getters in testing
• Component composition
• Tell don’t ask
• Testing behaviours
• More at http://www.mockobjects.com/2009/09/brief-
history-of-mock-objects.html
11

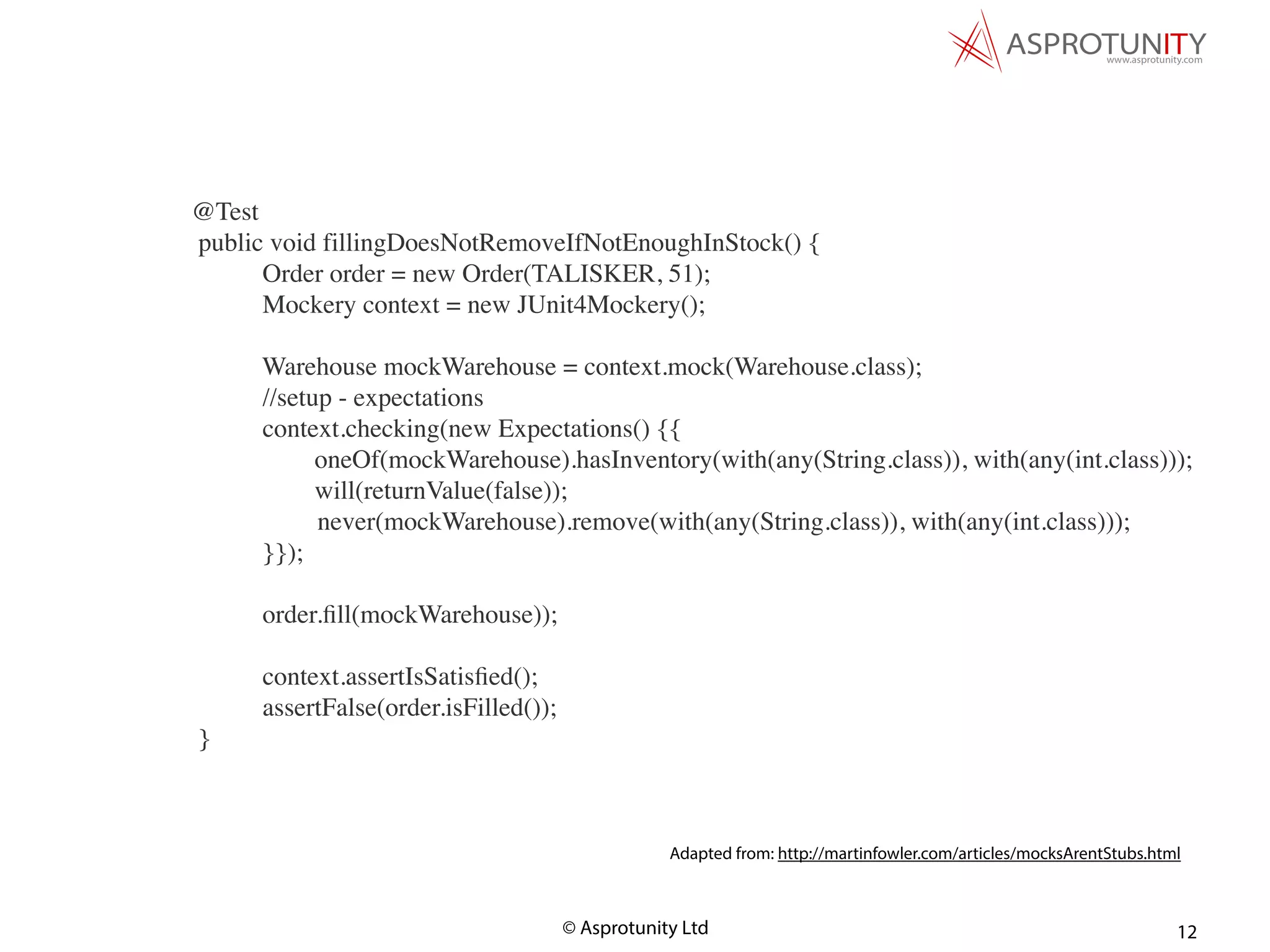

12. © Asprotunity Ltd 12
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
@Test
public void fillingDoesNotRemoveIfNotEnoughInStock() {
Order order = new Order(TALISKER, 51);
Mockery context = new JUnit4Mockery();
Warehouse mockWarehouse = context.mock(Warehouse.class);
//setup - expectations
context.checking(new Expectations() {{
oneOf(mockWarehouse).hasInventory(with(any(String.class)), with(any(int.class)));
will(returnValue(false));
never(mockWarehouse).remove(with(any(String.class)), with(any(int.class)));
}});
order.fill(mockWarehouse));
context.assertIsSatisfied();
assertFalse(order.isFilled());
}

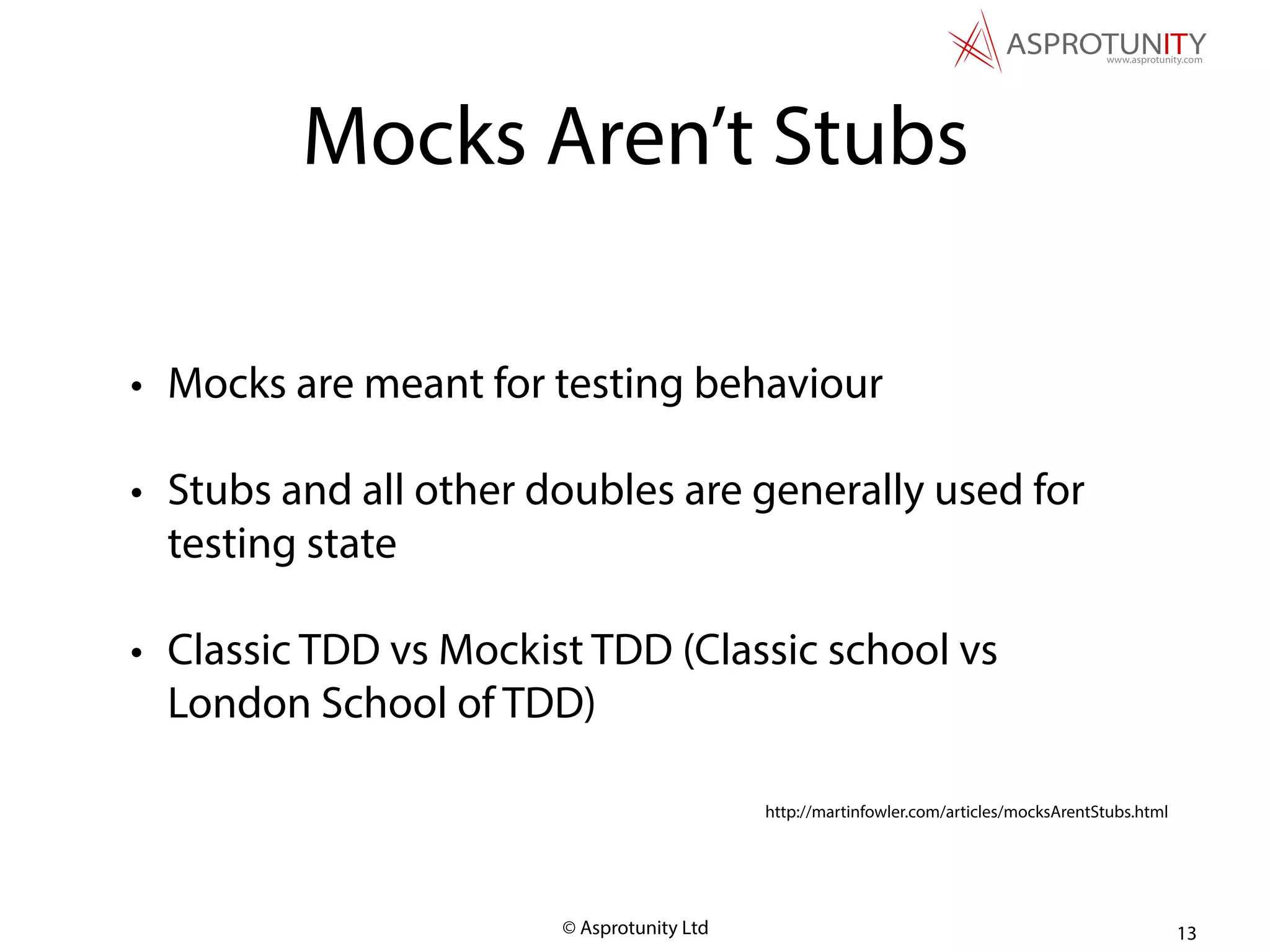

13. © Asprotunity Ltd
Mocks Aren’t Stubs
• Mocks are meant for testing behaviour
• Stubs and all other doubles are generally used for
testing state
• Classic TDD vs Mockist TDD (Classic school vs
London School of TDD)
13
http://martinfowler.com/articles/mocksArentStubs.html

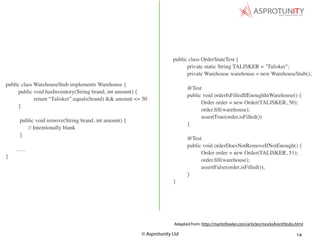

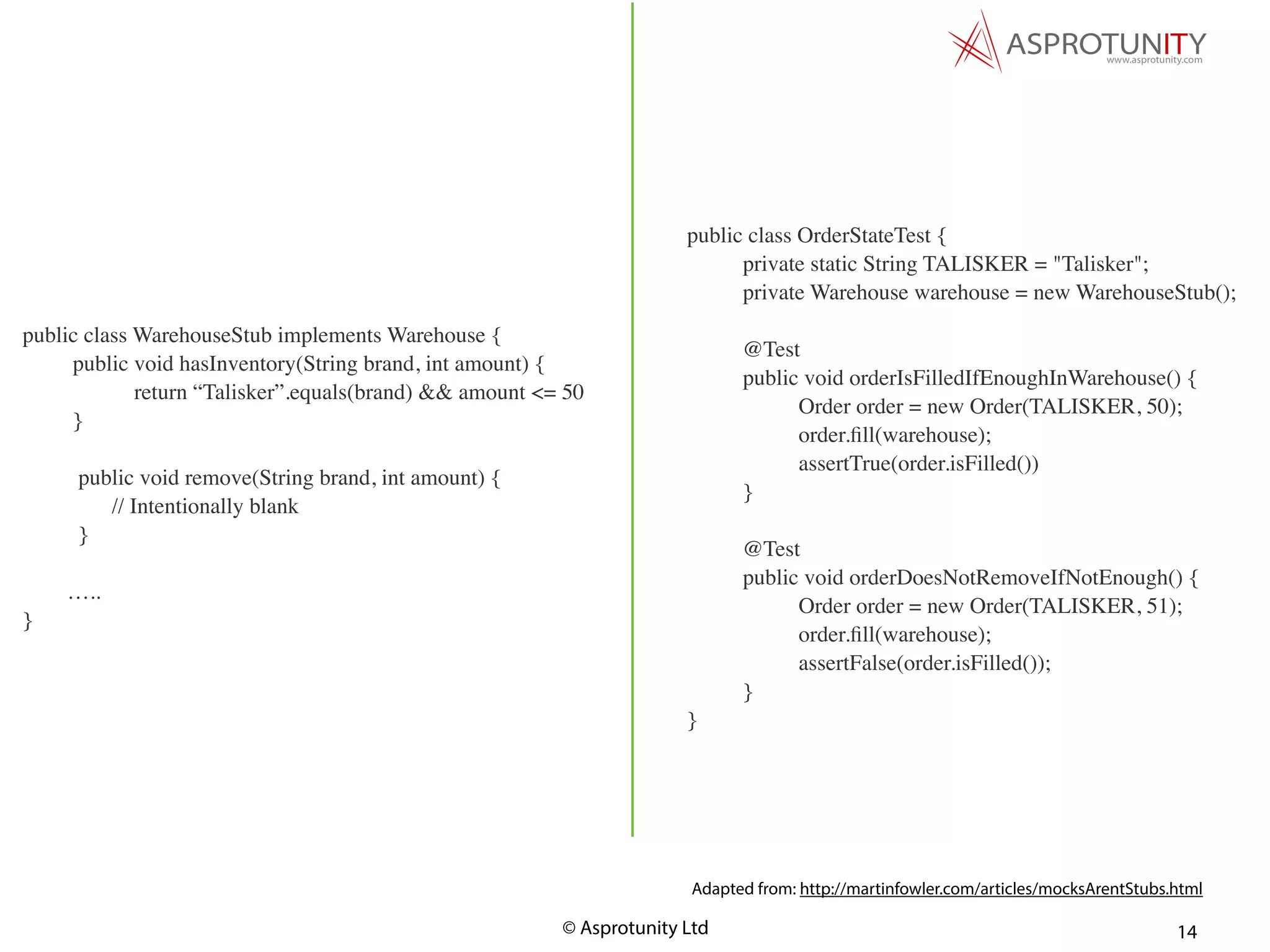

14. © Asprotunity Ltd 14
public class OrderStateTest {
private static String TALISKER = "Talisker";
private Warehouse warehouse = new WarehouseStub();
@Test
public void orderIsFilledIfEnoughInWarehouse() {
Order order = new Order(TALISKER, 50);
order.fill(warehouse);
assertTrue(order.isFilled())
}
@Test
public void orderDoesNotRemoveIfNotEnough() {
Order order = new Order(TALISKER, 51);
order.fill(warehouse);
assertFalse(order.isFilled());
}
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
public class WarehouseStub implements Warehouse {
public void hasInventory(String brand, int amount) {
return “Talisker”.equals(brand) && amount <= 50
}
public void remove(String brand, int amount) {
// Intentionally blank
}
…..
}

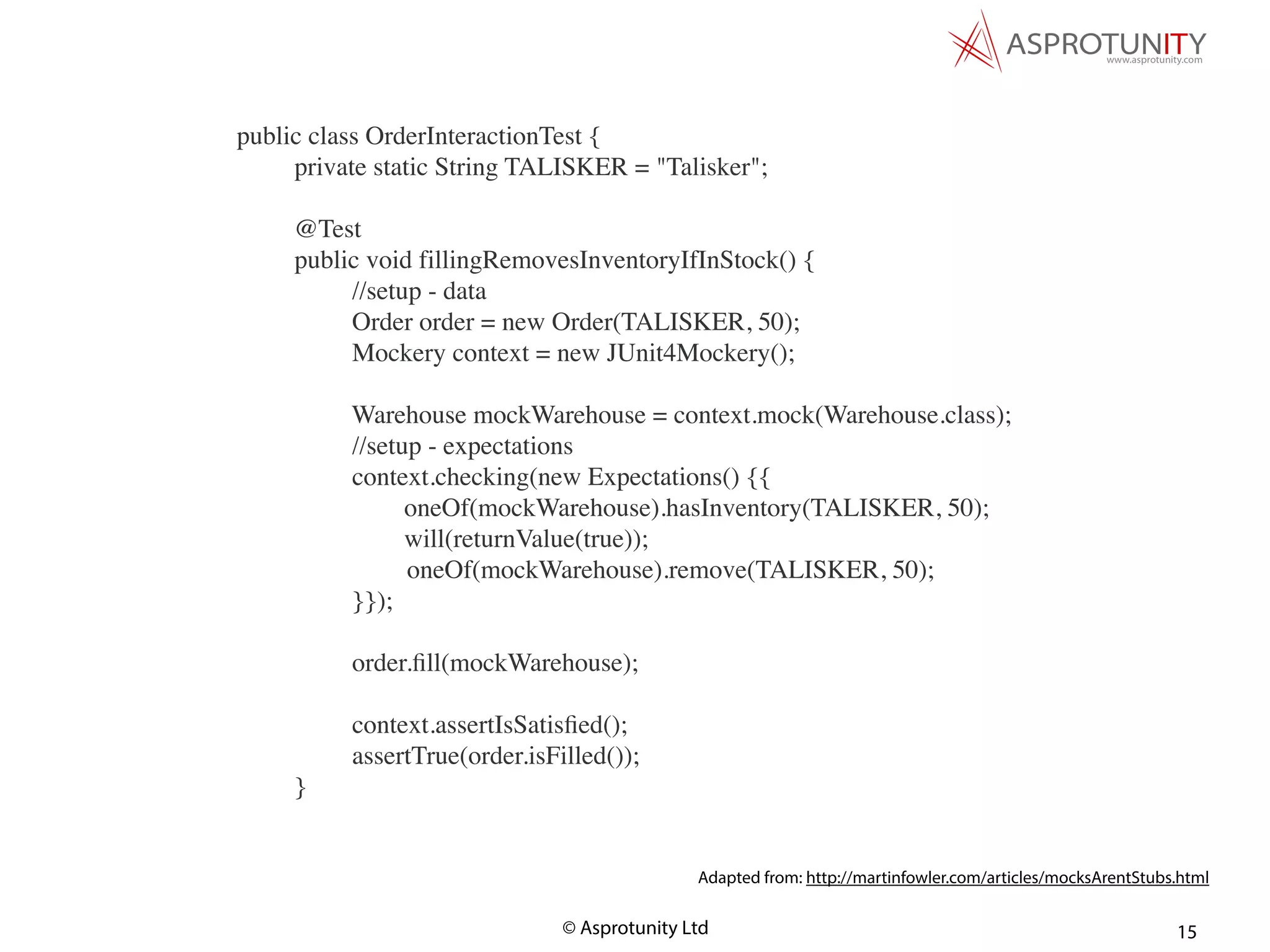

15. © Asprotunity Ltd 15
public class OrderInteractionTest {
private static String TALISKER = "Talisker";
@Test
public void fillingRemovesInventoryIfInStock() {
//setup - data
Order order = new Order(TALISKER, 50);
Mockery context = new JUnit4Mockery();
Warehouse mockWarehouse = context.mock(Warehouse.class);
//setup - expectations
context.checking(new Expectations() {{
oneOf(mockWarehouse).hasInventory(TALISKER, 50);
will(returnValue(true));
oneOf(mockWarehouse).remove(TALISKER, 50);
}});
order.fill(mockWarehouse);
context.assertIsSatisfied();
assertTrue(order.isFilled());
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html

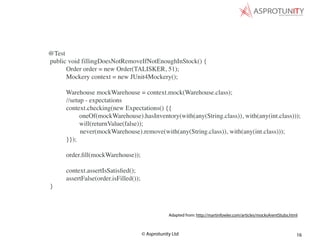

16. © Asprotunity Ltd 16
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
@Test
public void fillingDoesNotRemoveIfNotEnoughInStock() {
Order order = new Order(TALISKER, 51);
Mockery context = new JUnit4Mockery();
Warehouse mockWarehouse = context.mock(Warehouse.class);
//setup - expectations
context.checking(new Expectations() {{
oneOf(mockWarehouse).hasInventory(with(any(String.class)), with(any(int.class)));
will(returnValue(false));
never(mockWarehouse).remove(with(any(String.class)), with(any(int.class)));
}});
order.fill(mockWarehouse));
context.assertIsSatisfied();
assertFalse(order.isFilled());
}

17. © Asprotunity Ltd 17

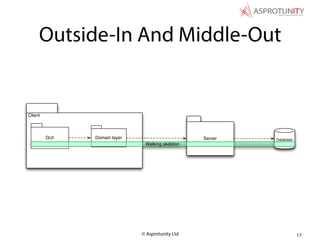

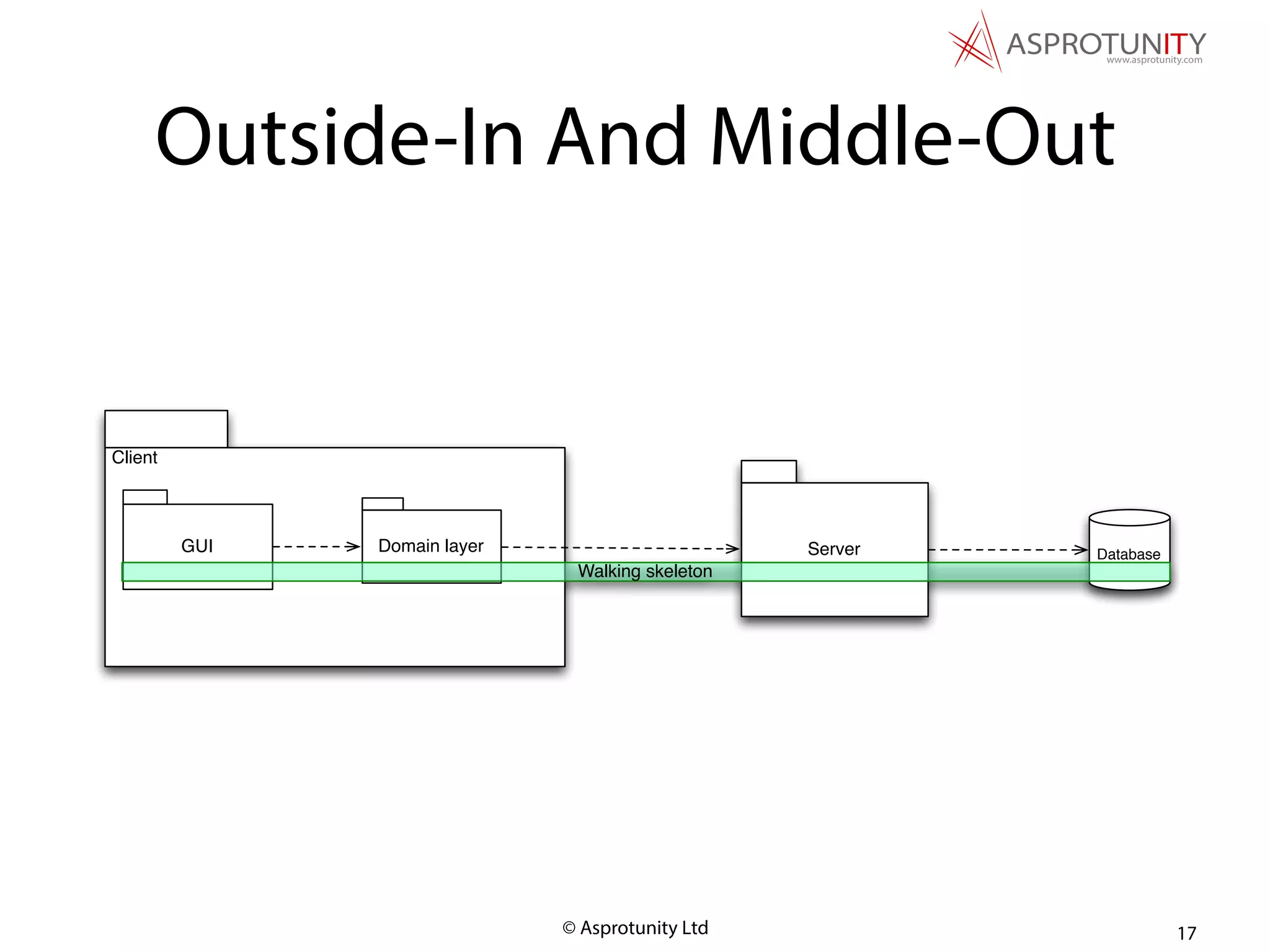

Outside-In And Middle-Out
Database
Client
GUI Domain layer Server
Walking skeleton

18. © Asprotunity Ltd

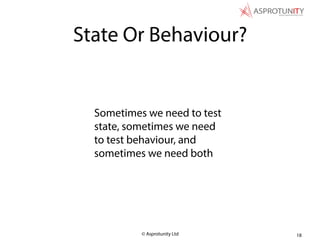

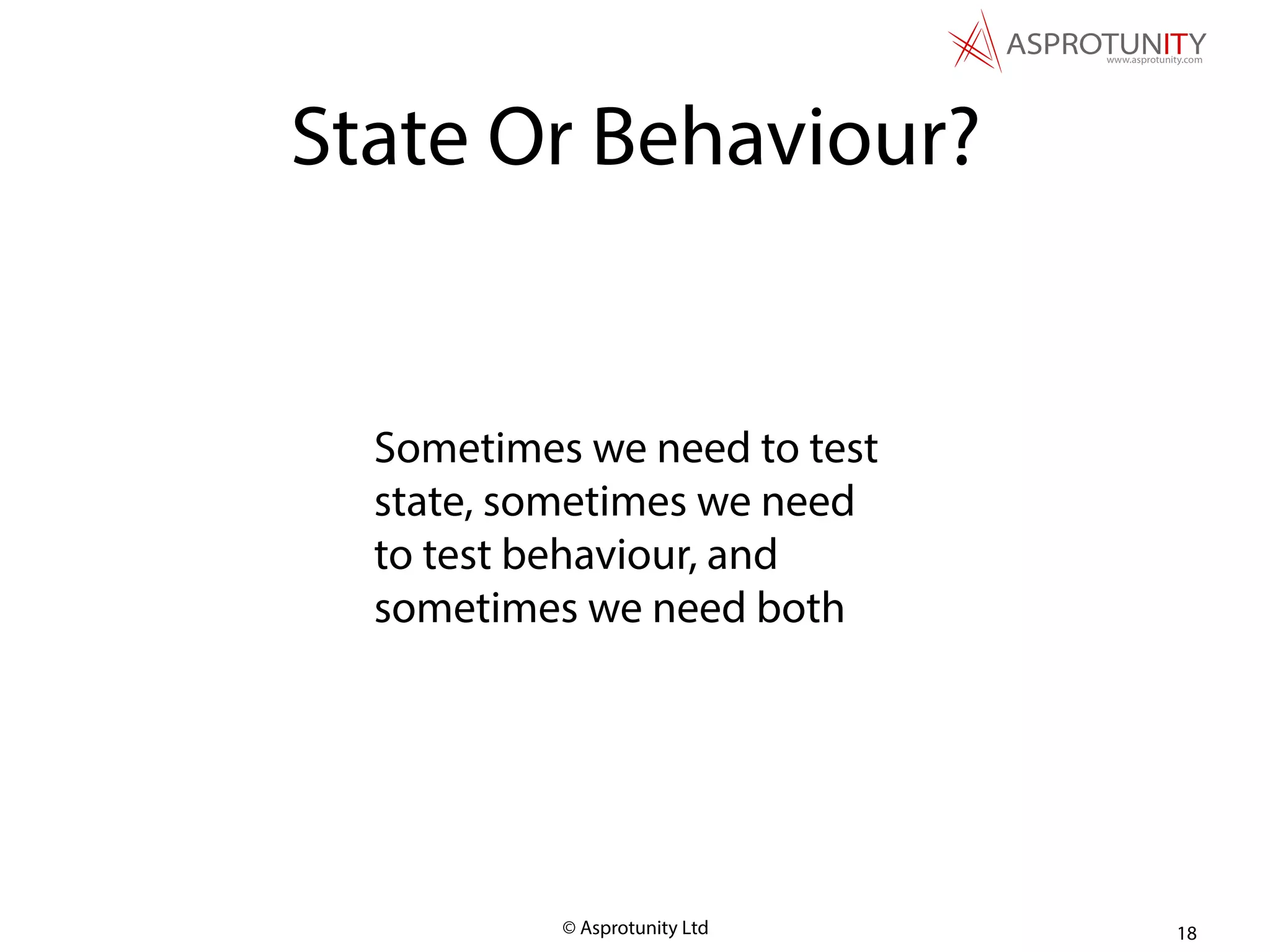

Sometimes we need to test
state, sometimes we need
to test behaviour, and
sometimes we need both
18
State Or Behaviour?

19. © Asprotunity Ltd

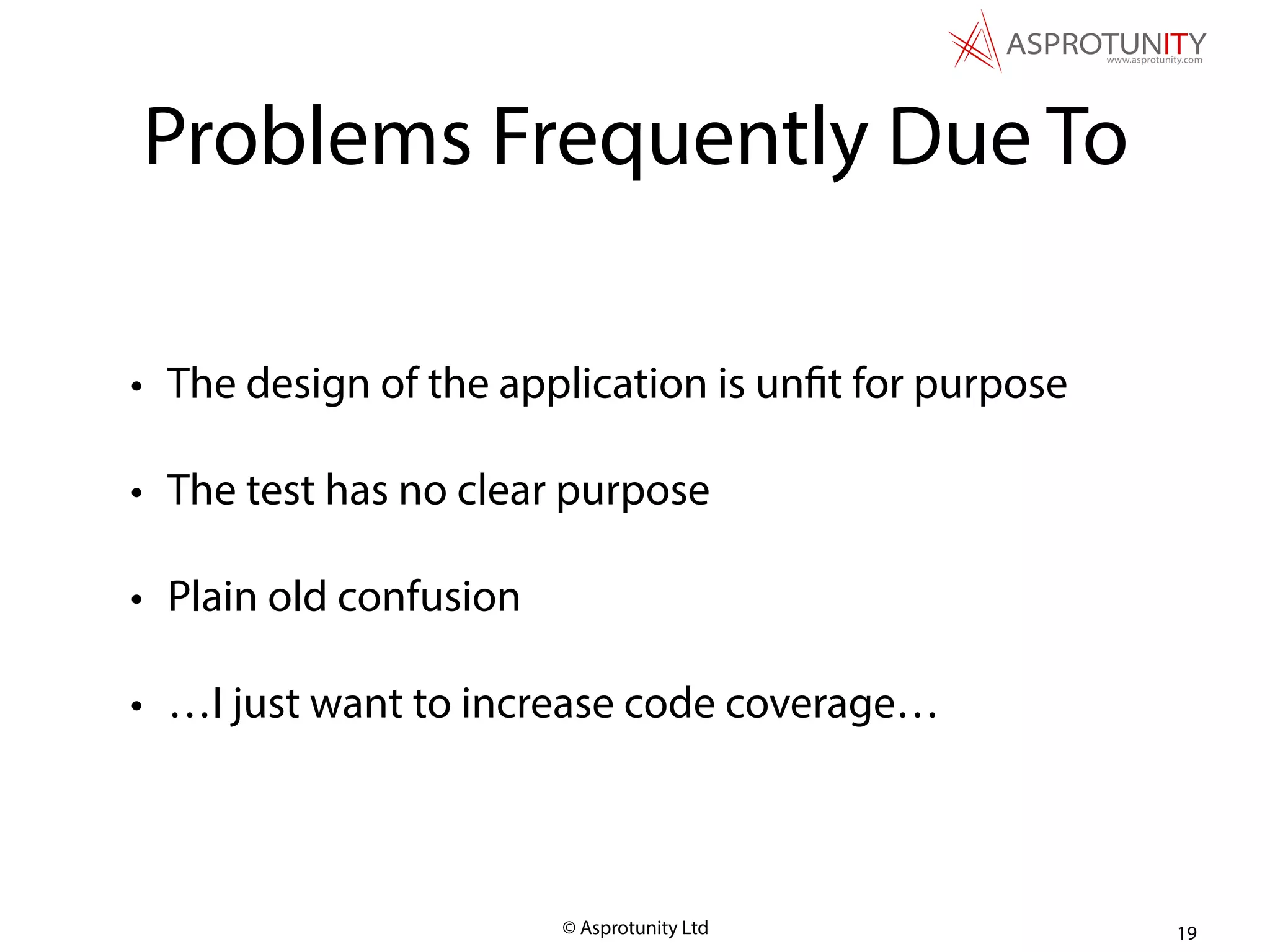

Problems Frequently Due To
• The design of the application is unfit for purpose
• The test has no clear purpose
• Plain old confusion
• …I just want to increase code coverage…
19

20. © Asprotunity Ltd

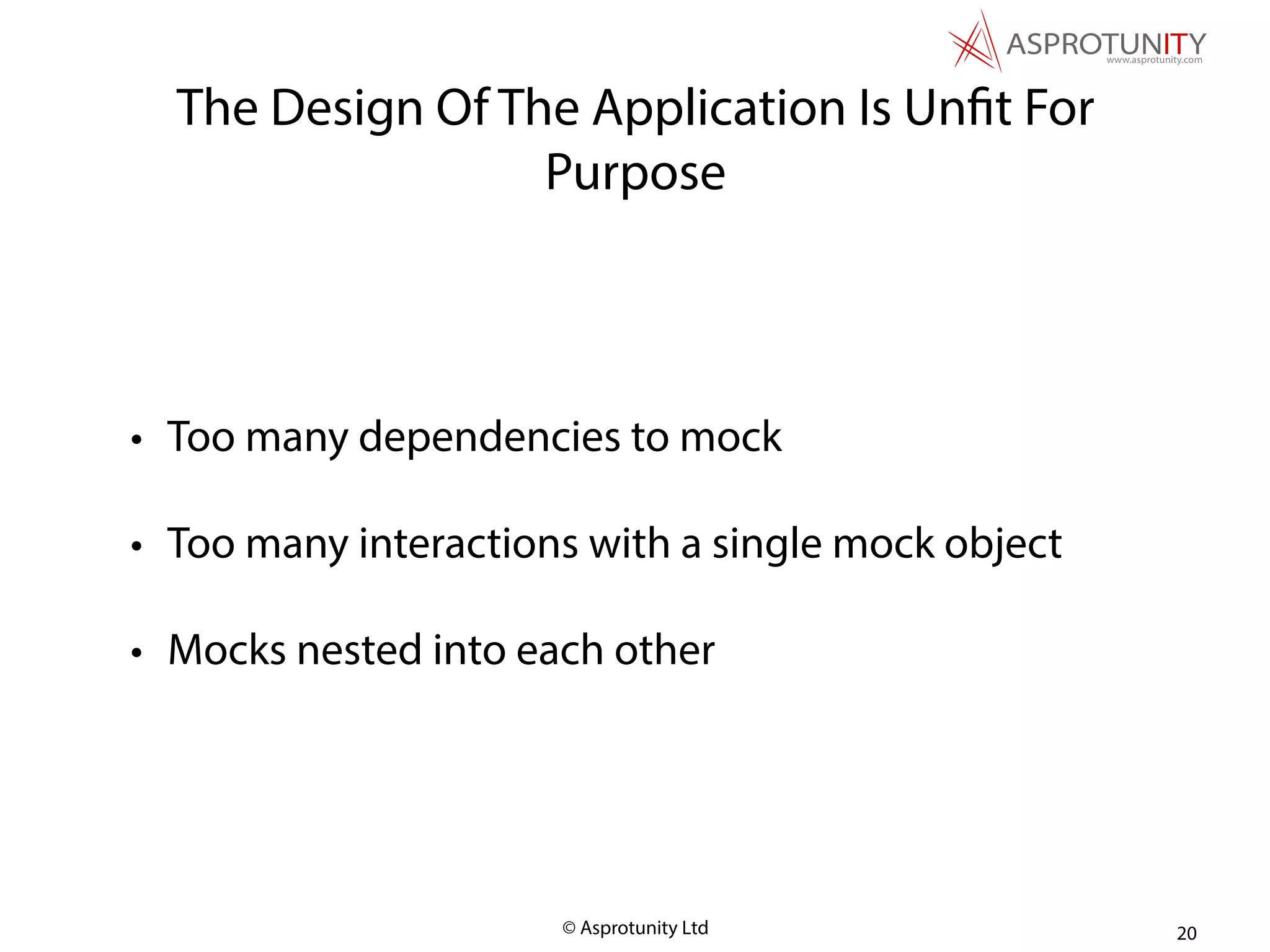

The Design Of The Application Is Unfit For
Purpose
• Too many dependencies to mock
• Too many interactions with a single mock object
• Mocks nested into each other
20

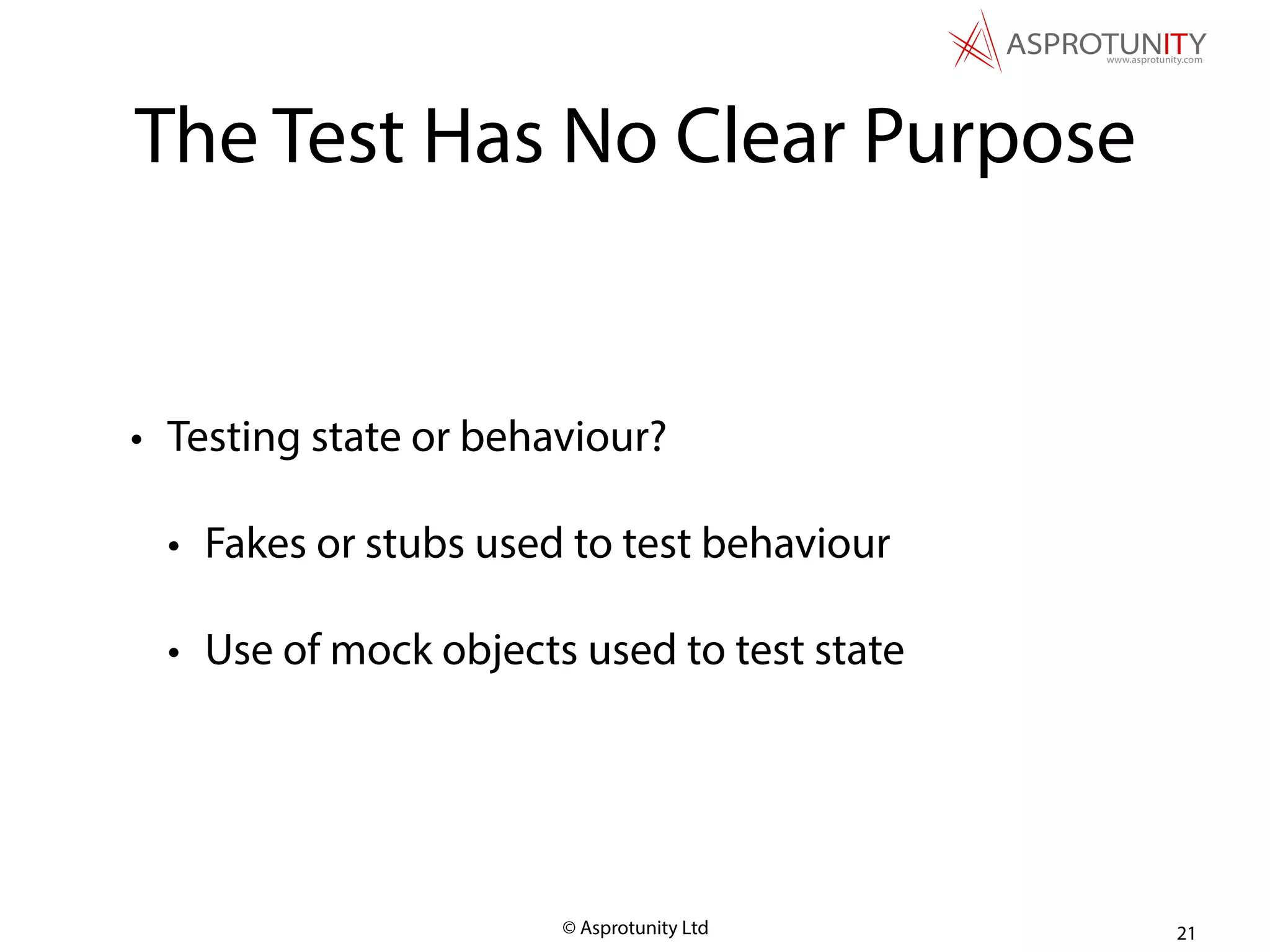

21. © Asprotunity Ltd
The Test Has No Clear Purpose
• Testing state or behaviour?
• Fakes or stubs used to test behaviour
• Use of mock objects used to test state
21

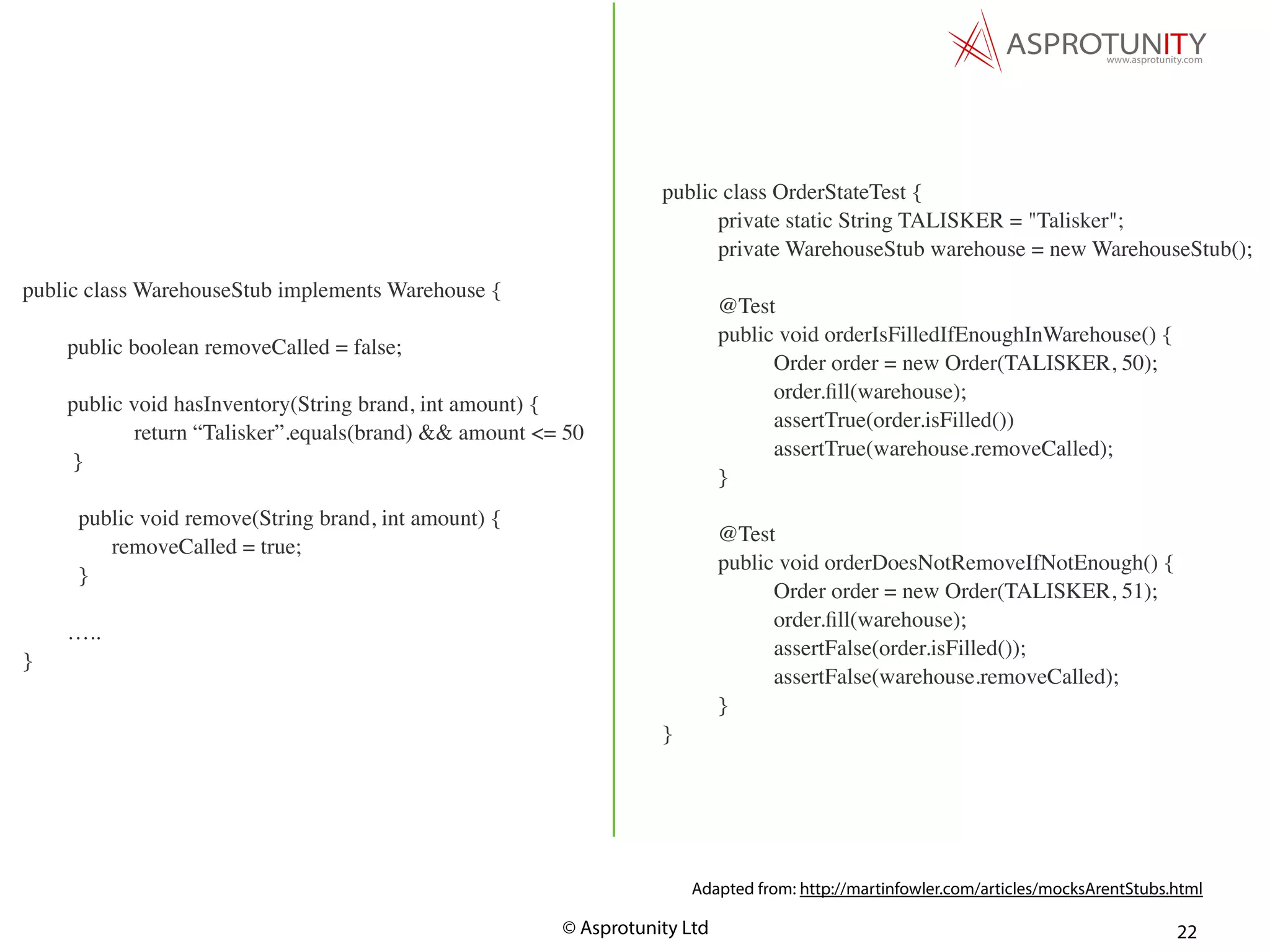

22. © Asprotunity Ltd 22
public class OrderStateTest {
private static String TALISKER = "Talisker";
private WarehouseStub warehouse = new WarehouseStub();
@Test
public void orderIsFilledIfEnoughInWarehouse() {
Order order = new Order(TALISKER, 50);
order.fill(warehouse);
assertTrue(order.isFilled())
assertTrue(warehouse.removeCalled);
}
@Test
public void orderDoesNotRemoveIfNotEnough() {
Order order = new Order(TALISKER, 51);
order.fill(warehouse);
assertFalse(order.isFilled());
assertFalse(warehouse.removeCalled);
}
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html
public class WarehouseStub implements Warehouse {
public boolean removeCalled = false;
public void hasInventory(String brand, int amount) {
return “Talisker”.equals(brand) && amount <= 50
}
public void remove(String brand, int amount) {
removeCalled = true;
}
…..
}

23. © Asprotunity Ltd 23

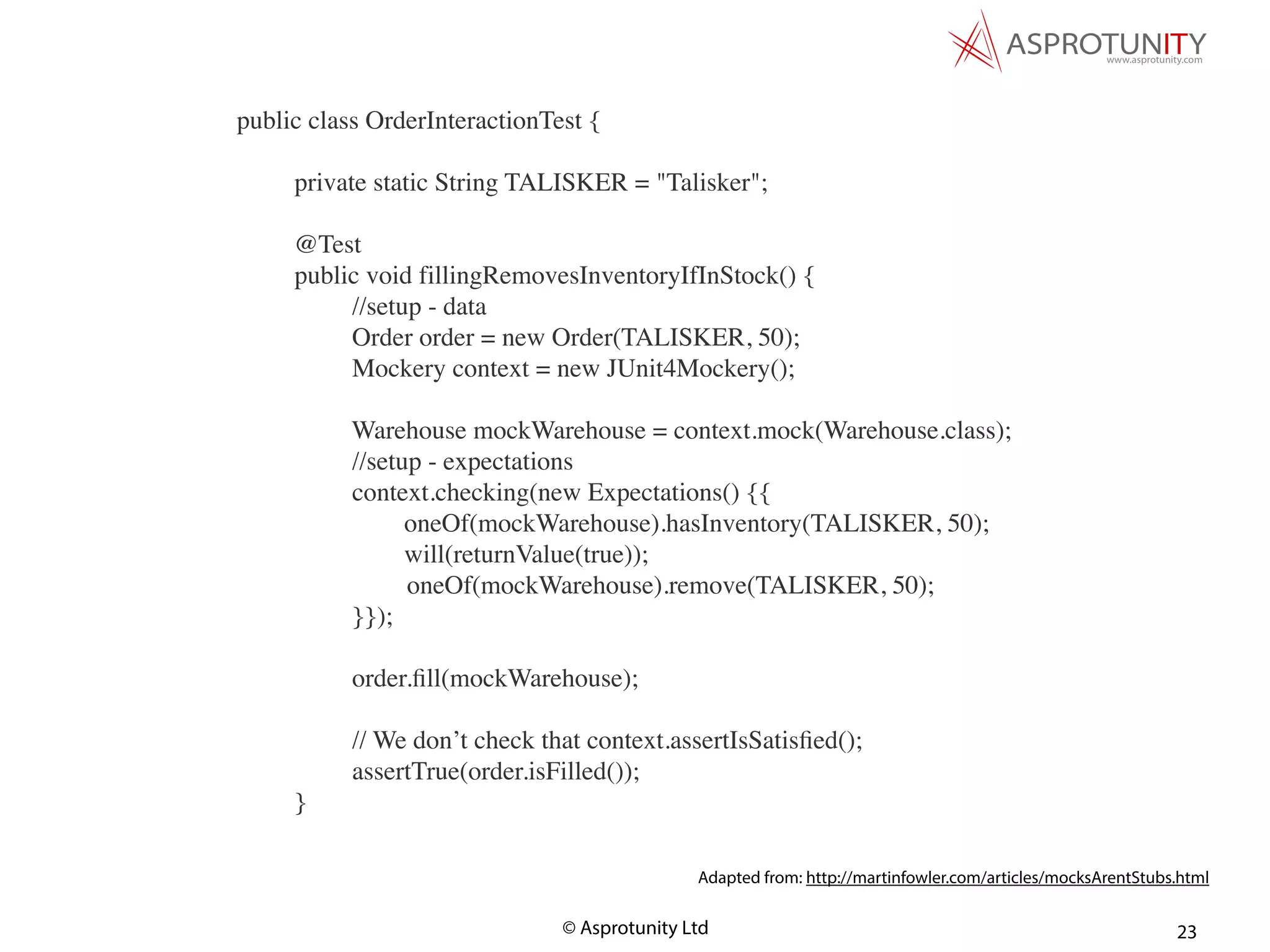

public class OrderInteractionTest {
private static String TALISKER = "Talisker";
@Test
public void fillingRemovesInventoryIfInStock() {
//setup - data
Order order = new Order(TALISKER, 50);
Mockery context = new JUnit4Mockery();
Warehouse mockWarehouse = context.mock(Warehouse.class);
//setup - expectations
context.checking(new Expectations() {{
oneOf(mockWarehouse).hasInventory(TALISKER, 50);
will(returnValue(true));
oneOf(mockWarehouse).remove(TALISKER, 50);
}});
order.fill(mockWarehouse);
// We don’t check that context.assertIsSatisfied();
assertTrue(order.isFilled());
}
Adapted from: http://martinfowler.com/articles/mocksArentStubs.html

24. © Asprotunity Ltd

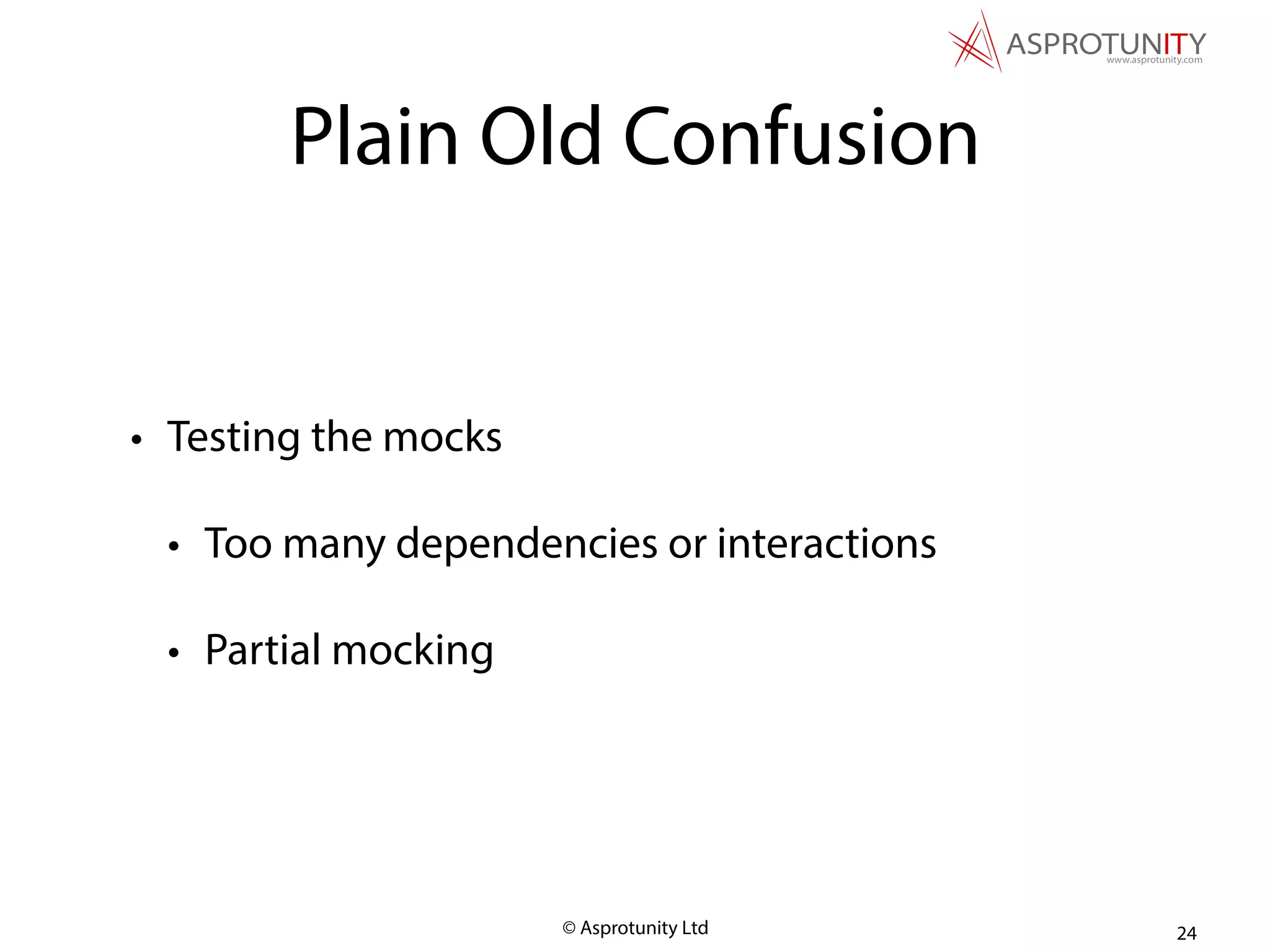

Plain Old Confusion
• Testing the mocks
• Too many dependencies or interactions
• Partial mocking
24

25. © Asprotunity Ltd 25

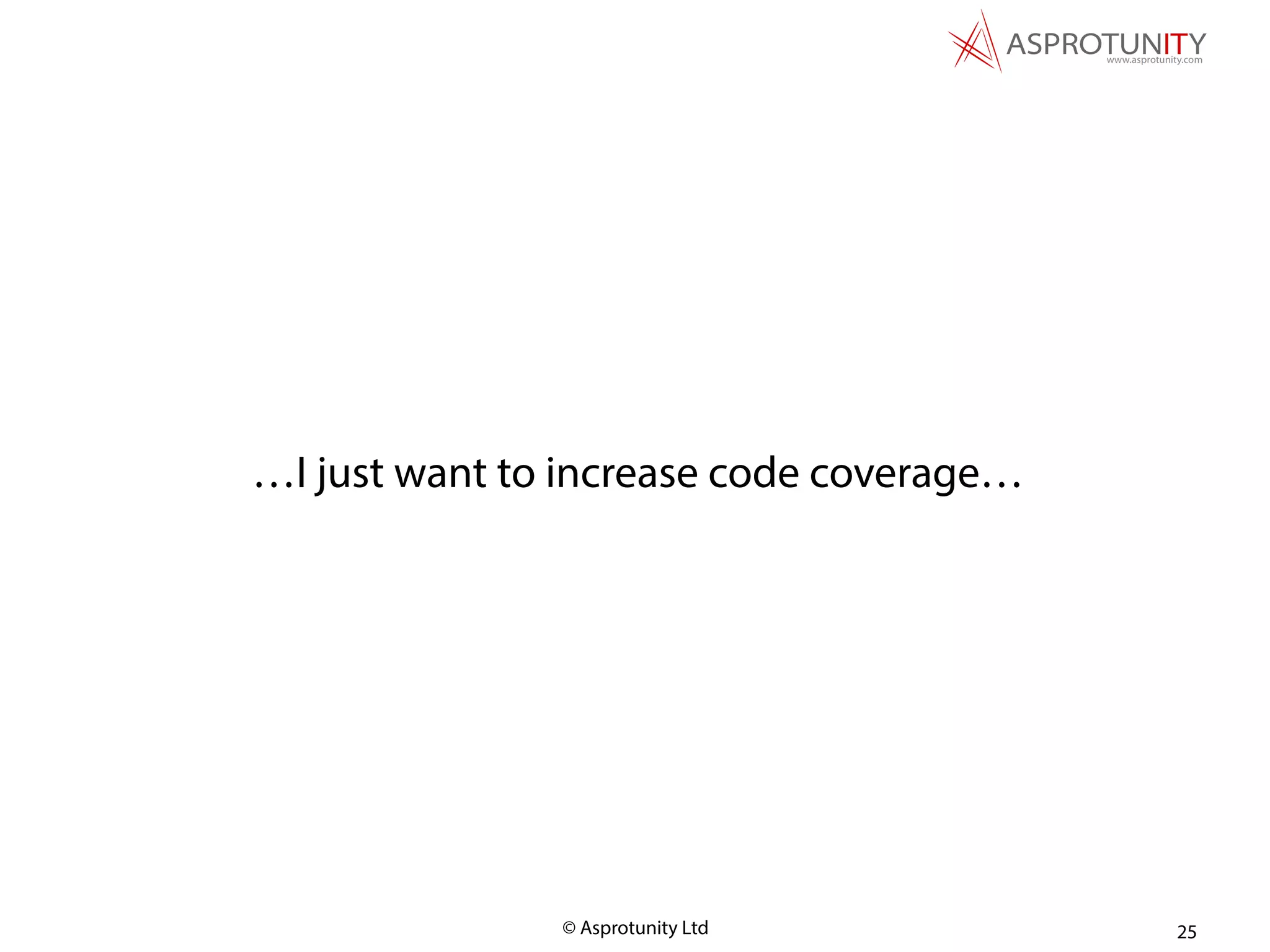

…I just want to increase code coverage…

26. © Asprotunity Ltd

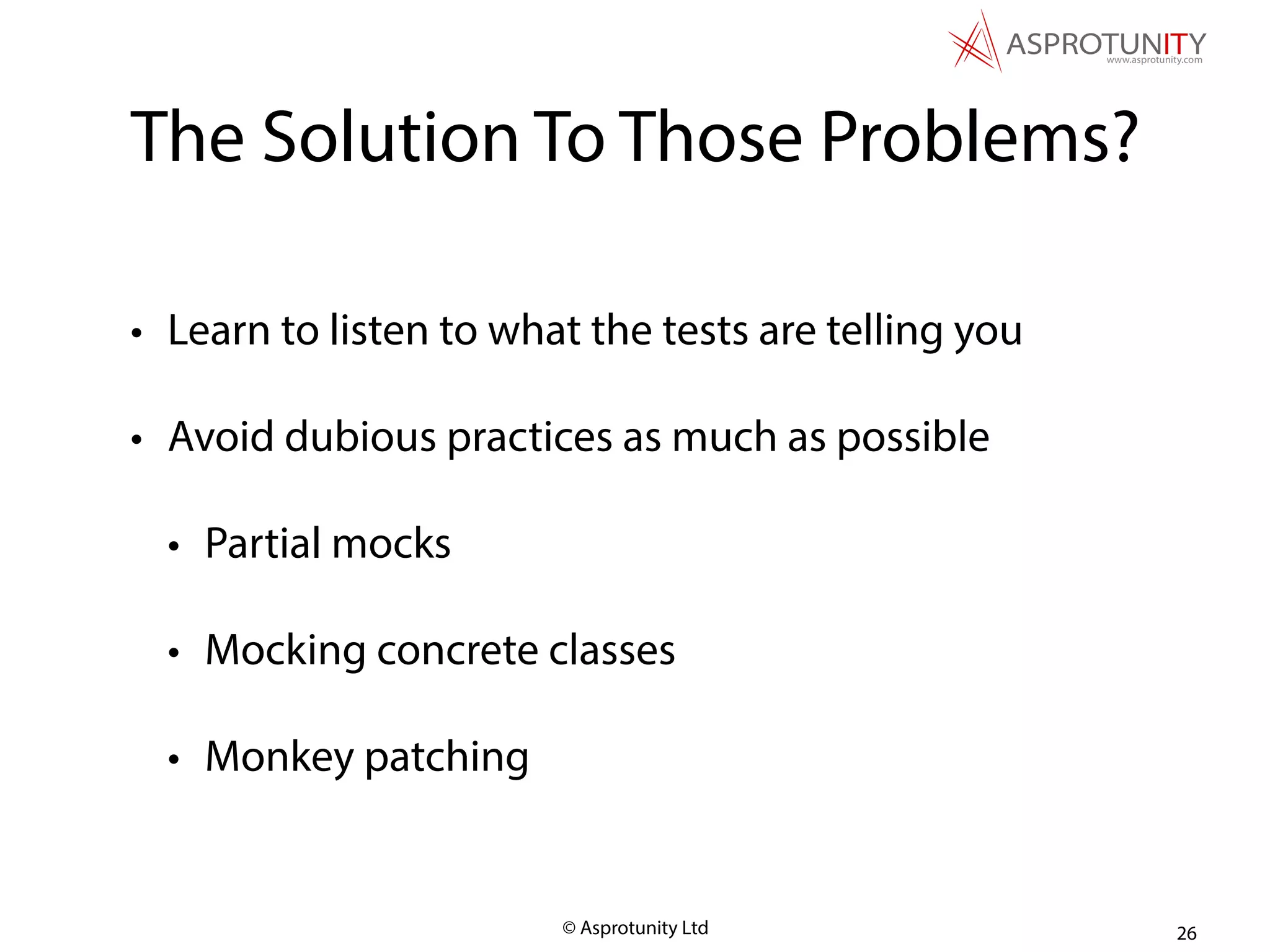

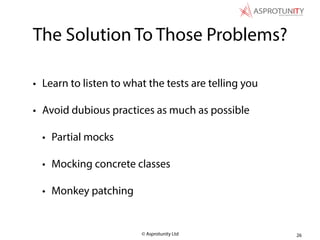

The Solution To Those Problems?
• Learn to listen to what the tests are telling you
• Avoid dubious practices as much as possible
• Partial mocks
• Mocking concrete classes
• Monkey patching
26

27. © Asprotunity Ltd 27
To Mock Or Not To Mock?

28. © Asprotunity Ltd

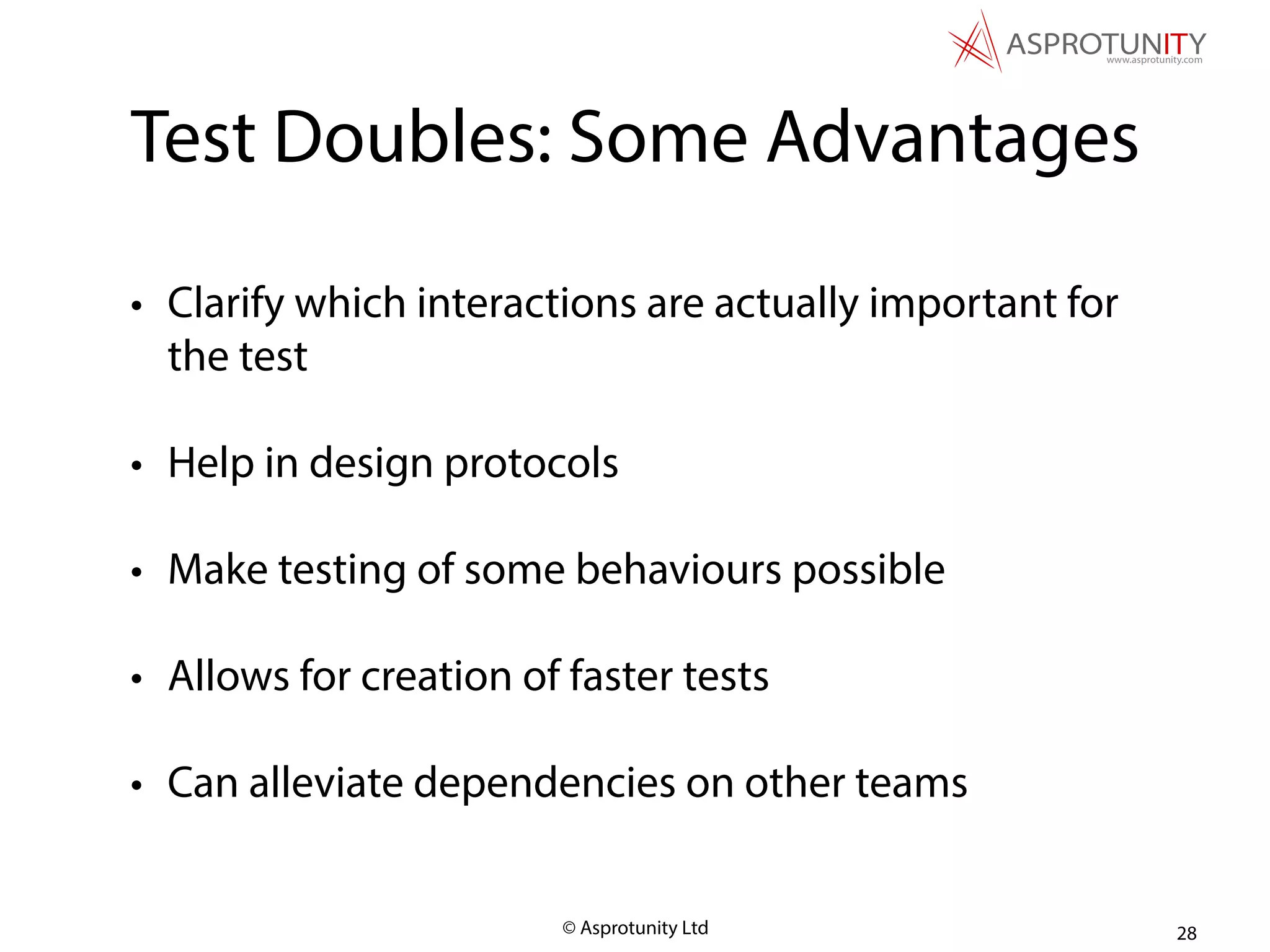

Test Doubles: Some Advantages
• Clarify which interactions are actually important for
the test
• Help in design protocols
• Make testing of some behaviours possible
• Allows for creation of faster tests
• Can alleviate dependencies on other teams
28

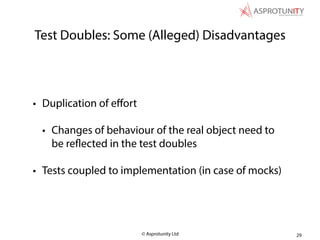

29. © Asprotunity Ltd

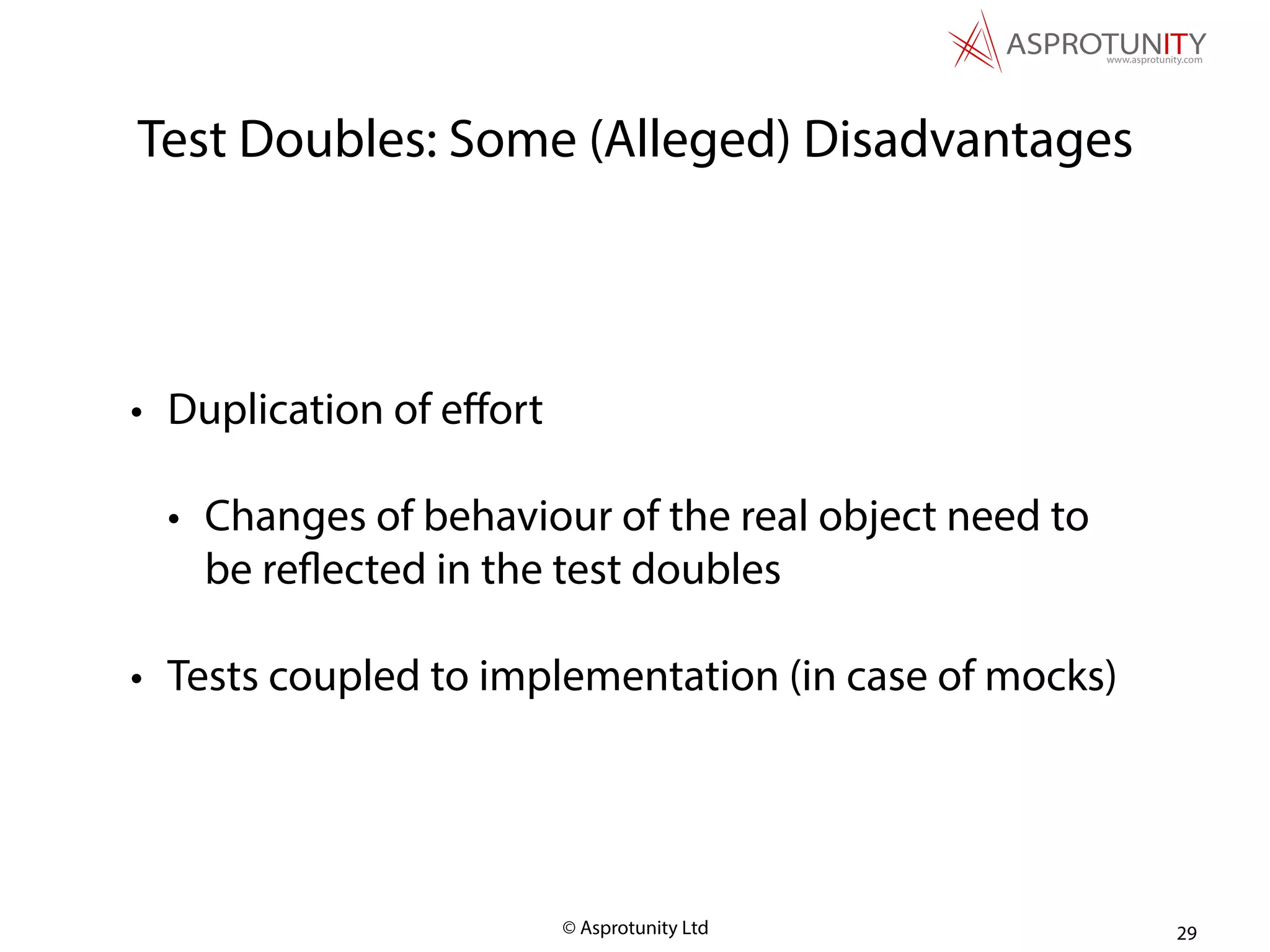

Test Doubles: Some (Alleged) Disadvantages
• Duplication of effort
• Changes of behaviour of the real object need to
be reflected in the test doubles
• Tests coupled to implementation (in case of mocks)
29

30. © Asprotunity Ltd

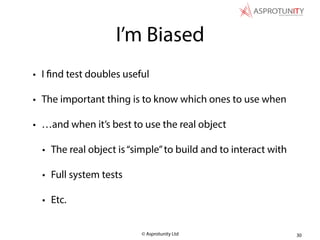

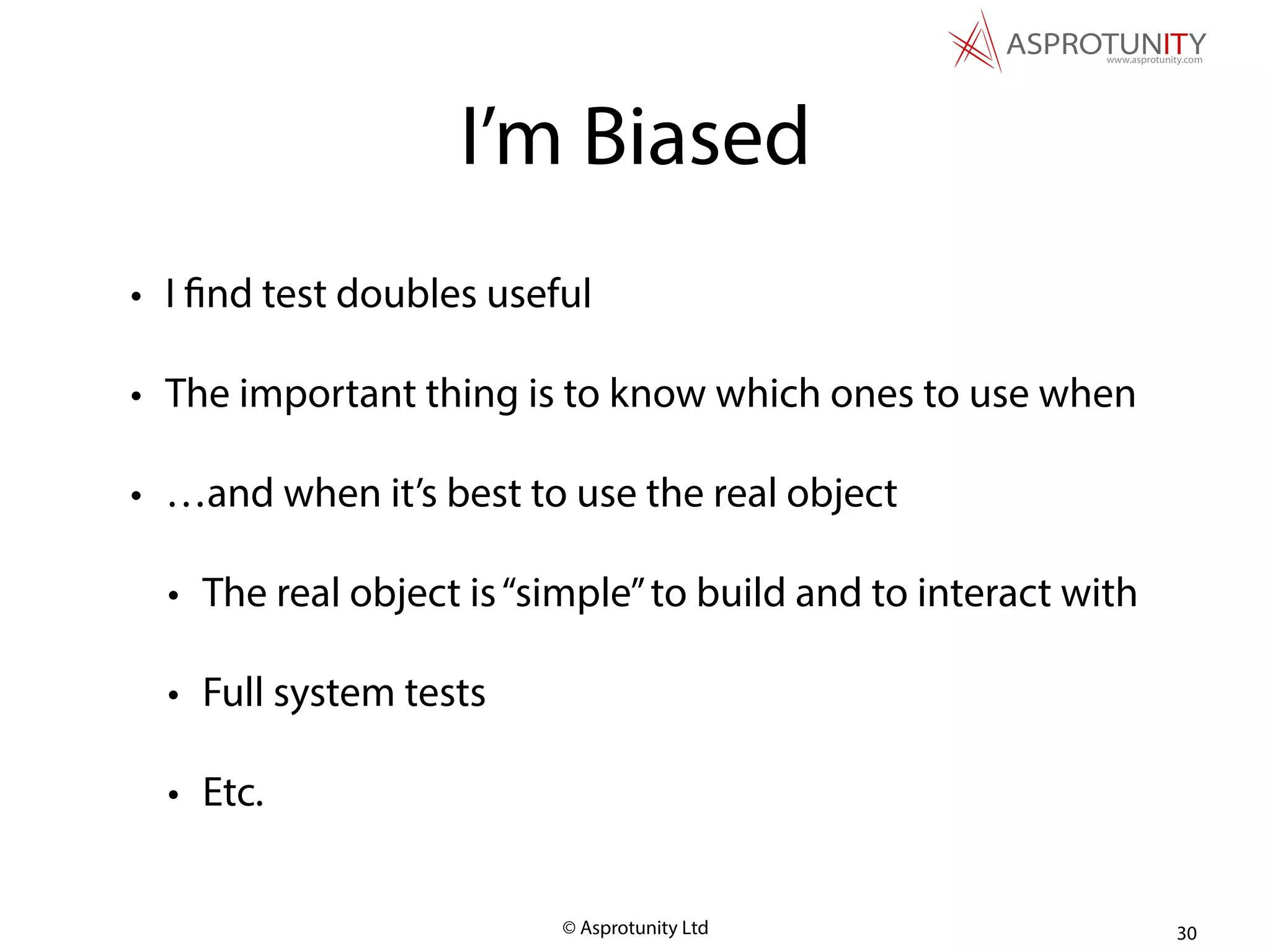

I’m Biased
• I find test doubles useful
• The important thing is to know which ones to use when
• …and when it’s best to use the real object
• The real object is“simple”to build and to interact with
• Full system tests
• Etc.
30

31. © Asprotunity Ltd 31
Questions?
