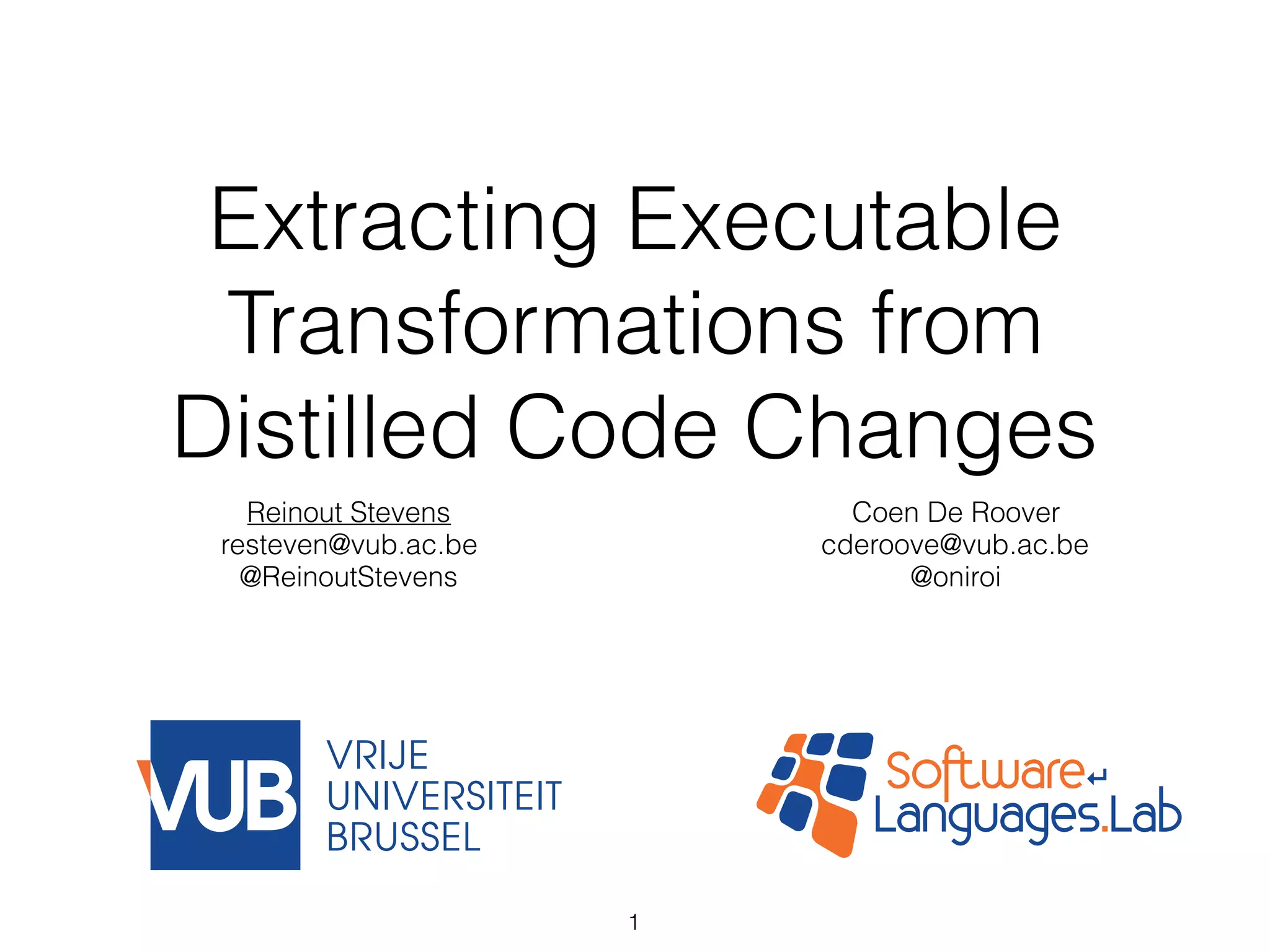

This document presents an approach to extract executable code transformations from distilled code changes by representing changes as a change dependency graph and evolution state graph. It addresses the problem that different change sequences may implement the same source code transformation, making it difficult to specify and retrieve transformations using logic queries over changes alone. The approach involves specifying the initial and sought-after states using AST logic and querying the evolution state graph to retrieve a minimal executable change subsequence between the states. An evaluation on refactorings shows the approach returns significantly shorter solutions than naively replaying original change sequences.

1. Extracting Executable
Transformations from
Distilled Code Changes
Reinout Stevens
resteven@vub.ac.be
@ReinoutStevens
Coen De Roover
cderoove@vub.ac.be
@oniroi
1

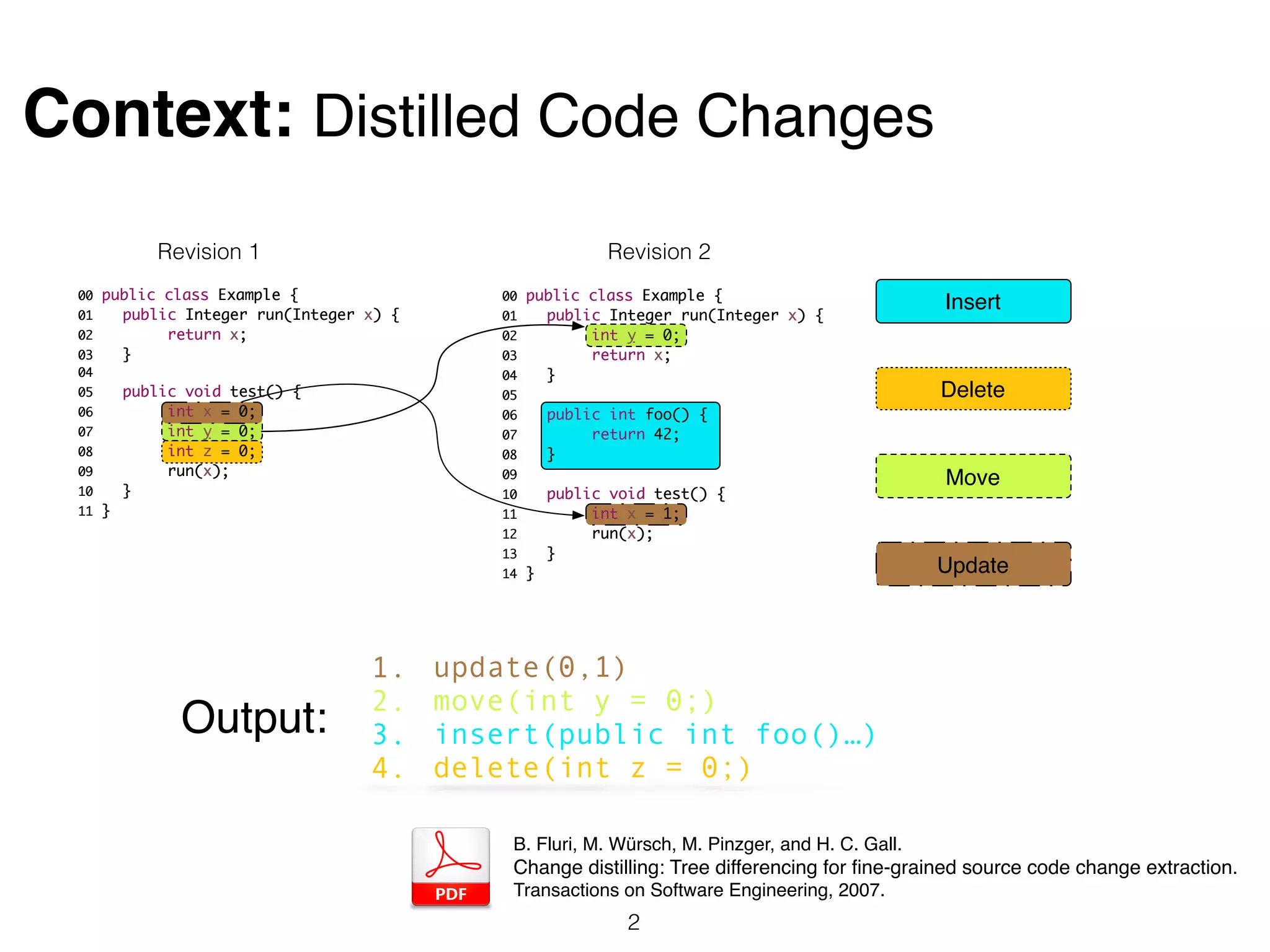

2. Context: Distilled Code Changes
B. Fluri, M. Würsch, M. Pinzger, and H. C. Gall.
Change distilling: Tree differencing for fine-grained source code change extraction.
Transactions on Software Engineering, 2007.
2
1. update(0,1)
2. move(int y = 0;)
3. insert(public int foo()…)
4. delete(int z = 0;)
Output:
00 public class Example {
01 public Integer run(Integer x) {
02 return x;
03 }
04
05 public void test() {
06 int x = 0;
07 int y = 0;
08 int z = 0;
09 run(x);
10 }
11 }
00 public class Example {
01 public Integer run(Integer x) {
02 int y = 0;
03 return x;
04 }
05
06 public int foo() {
07 return 42;
08 }
09
10 public void test() {
11 int x = 1;
12 run(x);
13 }
14 }
Insert
Delete
Move
Update
00 public class Example {
01 public Integer run(Integer x) {
02 return x;
03 }
04
05 public void test() {
06 int x = 0;
07 int y = 0;
08 int z = 0;
09 run(x);
10 }
11 }
00 public class Example {
01 public Integer run(Integer x) {
02 int y = 0;
03 return x;
04 }
05
06 public int foo() {
07 return 42;
08 }
09
10 public void test() {
11 int x = 1;
12 run(x);
13 }
14 }
Revision 1 Revision 2

3. Goal: Extracting Executable Transformations
3
Insert Insert Move Delete Update Insert Move Delete
Delete Insert Insert Move Insert Delete Update Delete
Update Move Insert Insert Update Update Move …

4. Naive Approach: Logic Queries over Changes
public class Example {
int x = 0;
}
public class Example {
int y = 0;
}
1. update(“x”, “y”)
1 (defn rename-field [changes]
2 (run* [?update]
3 (member ?update changes)
4 (change|update ?update)
5 (change|update-original ?update ?val|source)
6 (ast :SimpleName ?val|source)
7 (ast-parent ?val|source ?parent|source)
8 (ast :VariableDeclarationFragment ?parent|source)
9 (update-newval ?update ?val|target)
0 (ast :SimpleName ?val|target)
1 (name-name|different ?val|source ?val|target))
4
Revision 1 Revision 2
changes
look for an update
that modifies a field
its name

5. 1. delete(“int x = 0;”)
2. insert(“int aLongerName = 0;”)
1 (defn rename-field [changes]
2 (run* [?insert ?delete]
3 (fresh [?insert|source’ ?delete|original ?i-name ?d-name]
4 (member ?delete changes)
5 (member ?insert changes)
6 (== ?sequence (list ?insert ?delete))
7 (change|insert ?insert)
8 (change|delete ?delete)
9 (insert-node ?insert ?insert|source’)
0 (ast :VariableDeclarationFragment ?insert|source’)
1 (delete-node ?delete ?delete|original)
2 (ast :VariableDeclarationFragment ?delete|source)
3 (has :name ?insert|source’ ?i-name)
4 (has :name ?delete|source ?d-name)
5 (name-name|different ?i-name ?d-name))) 5
public class Example {
int x = 0;
}
public class Example {
int aLongerName = 0;
}
changes
Revision 1 Revision 2
look for a
delete and insert
that introduce a field
and remove a field with
a different name
Naive Approach: Logic Queries over Changes

6. Problem: Change Equivalence
1. update(“x”, “y”)
1. delete(“int x = 0;”)
2. insert(“int y = 0;”)
1. insert(“int y = 0;”)
2. delete(“int x = 0;”)
Possible
Changes Sequences
public class Example {
int x = 0;
}
Revision 1
public class Example {
int y = 0;
}
Revision 2
6
One change distiller may produce different change sequences for
the same source code transformation in different commits:
• different change types
• different length
• different subjects of changes

7. 7
Problem: Change Equivalence
or
or
…

8. Problem Summary
Multiple change sequences implement the same source
code transformation
It is not possible for a user to enumerate all the change
sequences that implement a transformation in a query
8

9. 9
initial state
sought-after state
1 (defn field-rename [esg]
2 (run* [?es]
3 (query-changes esg ?es [?orig-ast ?field]
4 (in-current-es [es ast]
5 (== ?orig-ast ast)
6 (ast-field ast ?field))
7 change->+
8 (in-current-es [es ast]
9 (fresh [?renamed ?new-name]
0 (ast-field ast ?renamed)
1 (ast-field|absent ast ?field)
2 (ast-field|absent ?orig-ast ?renamed)))))
public class Example {
int x = 0;
}
public class Example {
int y = 0;
}
Approach: Before&After AST Specification

10. 10
public class Example {
int x = 0;
int y = 1;
}
public class Example {
}
Source AST Target AST
1 3
2 4
Regular Dependency
List Dependency
Change Dependency Graph
1. insert(int x, Example, Example, nil, :BodyDeclarations, 0)
2. insert(int y, Example, Example, nil, :BodyDeclarations, 1)
3. insert(0, nil, int x, nil, :Initializer, nil)
4. insert(1, nil, int y, nil, :Initializer, nil)
Distilled Change Sequence
public class Example {
}
public class Example {
int x = 0;
int y = 1;
}
public class Example {
int x;
}
public class Example {
int x = 0;
}
public class Example {
int x = 0;
int y;
}
public class Example {
int x;
int y;
}
public class Example {
int x;
int y = 1;
}
public class Example {
int y;
}
public class Example {
int y = 1;
}
1
2
3
2
1
4
2
3 4
1
34
Evolution State Graph
Implementation Overview

11. 11
1 3
2 4
Regular Dependency
List Dependency
1. insert(int x, Example, Example, nil, :BodyDeclarations, 0)
2. insert(int y, Example, Example, nil, :BodyDeclarations, 1)
3. insert(0, nil, int x, nil, :Initializer, nil)
4. insert(1, nil, int y, nil, :Initializer, nil)
Solution: Change Dependency Graph
Insert Dependency List Dependency
Source SourceTarget Target
Move Dependency
Source Target
α

12. 12
Solution: Change Dependency Graph

13. 13
1. insert(int x, Example, Example, nil, :BodyDeclarations, 0)
2. insert(int y, Example, Example, nil, :BodyDeclarations, 1)
3. insert(0, nil, int x, nil, :Initializer, nil)
4. insert(1, nil, int y, nil, :Initializer, nil)
public class Example {
}
public class Example {
int x = 0;
int y = 1;
}
public class Example {
int x;
}
public class Example {
int x = 0;
}
public class Example {
int x = 0;
int y;
}
public class Example {
int x;
int y;
}
public class Example {
int x;
int y = 1;
}
public class Example {
int y;
}
public class Example {
int y = 1;
}
1
2
3
2
1
4
2
3 4
1
34
Solution: Evolution State Graph

14. • Detect instances of refactorings in open-source
projects using a single evolution query per
refactoring
• Ensure returned change sequences are minimal
and executable
• Compare our approach with the naive approach
K. Prete, N. Rachatasumrit, N. Sudan, and M. Kim,
“Template-based reconstruction of complex refactorings,”
in Proc. of the 2010 Int. Conf. on Software Maintenance (ICSM10)
E. Murphy-Hill, C. Parnin, and A. P. Black,
“How we refactor, and how we know it,”
Transactions on Software Engineering, vol. 38, pp. 5–18, 2012.
14
Evaluation: Outline

15. 15
ChangeNodes
Distiller
Known Refactorings
Magic
Constant
Field
Rename
Unused
Method
public class Example {
}
public class Example {
int x = 0;
int y = 1;
}
public class Example {
int x;
}
public class Example {
int x = 0;
}
public class Example {
int x = 0;
int y;
}
public class Example {
int x;
int y;
}
public class Example {
int x;
int y = 1;
}
public class Example {
int y;
}
public class Example {
int y = 1;
}
1
2
3
2
1
4
2
3 4
1
34
Evolution State Graph
Change Dependency Graph
1 3
2 4
Regular Dependency
List Dependency
Evolution Query
1 (query-changes esg ?es
2 [?absent ?method …]
3 (in-current-es [es ast]
4 (== ast ?absent)
5 (ast-method ast ?method)
6 (child+ ?method ?literal)
7 (literal-value ?literal ?value))
8 change->*
9 (in-current-es [es ast]
0 (ast-ast-field|introduced ?absent ast ?field)
1 (field-value|initialized ?field ?value)
2 (ast-method-method|corresponding …)
3 (child+ ?cmethod ?field-access)
4 (field-name|accessed ?field ?field-access)))
Minimal Executable Code Transformation
Insert Move Insert
Code Rev1
Code Rev2
Insert Move …
Evaluation: Outline

16. 16
1 1 public class Jar extends Zip {
2 2 private static final String INDEX_NAME="META-INF/INDEX.LIST";
3 + private static final String MANIFEST_NAME="META-INF/MANIFEST.MF";
3 4 private Manifest configuredManifest;
4 5 private Manifest savedConfiguredManifest;
5 6
6 7 protected void zipFile( ) throws IOException {
7 - if ("META-INF/MANIFEST.MF".equalsIgnoreCase(vPath)) {
8 + if (MANIFEST_NAME.equalsIgnoreCase(vPath)) {
8 9 if (!doubleFilePass || (doubleFilePass && skipWriting)) {
9 10 filesetManifest(fromArchive,is);
10 11 }
11 12 }
12 13 else {
13 14 super.zipFile(is,zOut,vPath,lastModified,fromArchive,mode);
14 15 }
15 16 }
16 17 }
Evaluation: Replace Magic Constant

17. 17
1 (query-changes esg ?es
2 [?absent ?method ?literal value ?cmethod ?field ?field-access]
3 (in-current-es [es ast]
4 (== ast ?absent)
5 (ast-method ast ?method)
6 (child+ ?method ?literal)
7 (literal-value ?literal ?value))
8 change->*
9 (in-current-es [es ast]
0 (ast-ast-field|introduced ?absent ast ?field)
1 (field-value|initialized ?field ?value)
2 (ast-method-method|corresponding ast ?method ?cmethod)
3 (child+ ?cmethod ?field-access)
4 (field-name|accessed ?field ?field-access)))
protected void zipFile(…) {
if (“META-INF/MANIFEST.MF”
.equalsIgnoreCase(vPath)) {
…
private String MANIFEST_NAME =
“META-INF/MANIFEST.MF";
…
protected void zipFile(…) {
if (MANIFEST_NAME
.equalsIgnoreCase(vPath)) {
…
Evaluation: Replace Magic Constant

18. 18
Legend
insert
delete
move
solution
dependency
update
• Total Changes: 74
• Solution Length Our Approach: 4
• Solution Length Replaying Sequence: 23
Evaluation: Inspecting the Solution

19. 19
Evaluation: Result Summary
NumberofChanges
0
50
100
150
200
250
300
350
Refactoring
Constant Constant Constant Constant Constant Constant Method Method Method Field Field Field Field
6
1513
3
39
12655
10
48
213
24
57
9
264
1214
118
199
1000
23
82
221
27
63
10
291
5
11
25
149
245
1244
74
202
Total Changes Solution Length Replaying Sequence Solution Length Our Approach

20. Conclusion
• The change equivalence problem renders specifying
a sought-after code transformation in terms of
changes difficult
• Our approach supports specifying code
transformations using before&after states in logic
queries
• Solutions to our queries are a minimal, executable
subsequence of changes that implements the sought-
after transformation
20

21. Discussion
Do ad-hoc solutions to the change equivalence
problem invalidate existing MSR studies?
21
