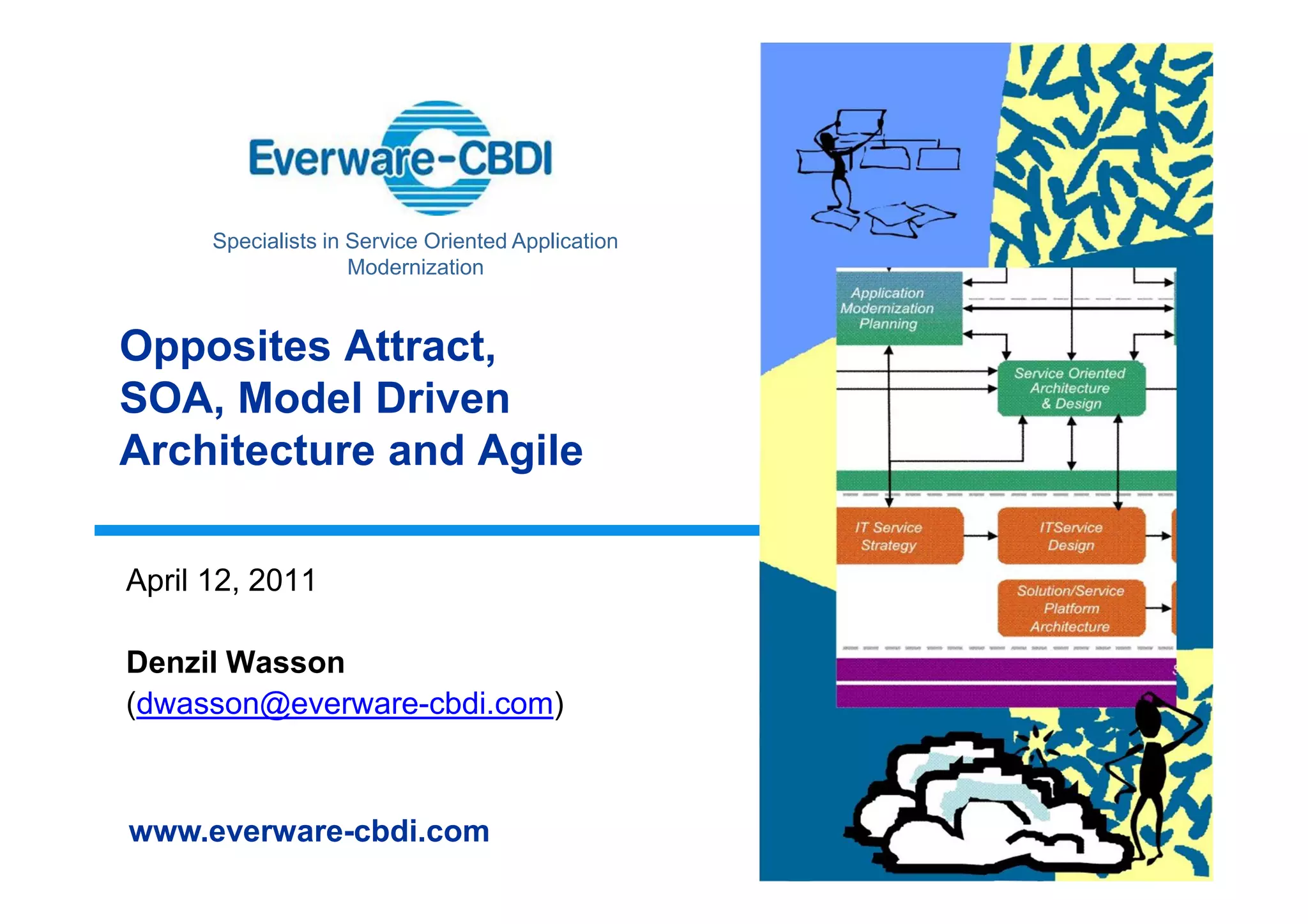

Everware cbdi opposites attract 04-12-11

Specialists in Service Oriented Application
Modernization

Opposites Attract,
SOA, Model Driven
Architecture and Agile

April 12, 2011

Denzil Wasson
(dwasson@everware-cbdi.com)

www.everware-cbdi.com

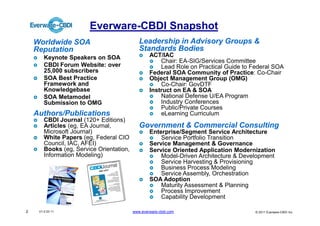

Everware-CBDI Snapshot
Worldwide SOA Leadership in Advisory Groups &
Reputation Standards Bodies
Keynote Speakers on SOA ACT/IAC
Chair: EA-SIG/Services Committee
CBDI Forum Website: over Lead Role on Practical Guide to Federal SOA
25,000 subscribers Federal SOA Community of Practice: Co-Chair
SOA Best Practice Object Management Group (OMG)
Framework and Co-Chair: GovDTF
Knowledgebase Instruct on EA & SOA
SOA Metamodel National Defense U/EA Program
Submission to OMG Industry Conferences
Public/Private Courses
Authors/Publications eLearning Curriculum
CBDI Journal (120+ Editions)
Articles (eg, EA Journal, Government & Commercial Consulting
Microsoft Journal) Enterprise/Segment Service Architecture
White Papers (eg, Federal CIO Service Portfolio Transition
Council, IAC, AFEI) Service Management & Governance
Books (eg, Service Orientation, Service Oriented Application Modernization
Information Modeling) Model-Driven Architecture & Development
Service Harvesting & Provisioning
Business Process Modeling
Service Assembly, Orchestration
SOA Adoption
Maturity Assessment & Planning
Process Improvement
Capability Development

2 V1.0 03 11 www.everware-cbdi.com © 2011 Everware-CBDI Inc

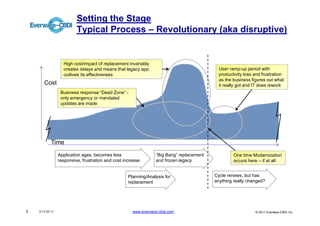

Setting the Stage
Typical Process – Revolutionary (aka disruptive)

High cost/impact of replacement invariably
creates delays and means that legacy app User ramp-up period with
outlives its effectiveness productivity loss and frustration
as the business figures out what
Cost it really got and IT does rework
Business response “Dead Zone” -
only emergency or mandated
updates are made

Time

Application ages, becomes less “Big Bang” replacement One time Modernization
responsive, frustration and cost increase and frozen legacy occurs here – if at all

Planning/Analysis for Cycle renews, but has
replacement anything really changed?

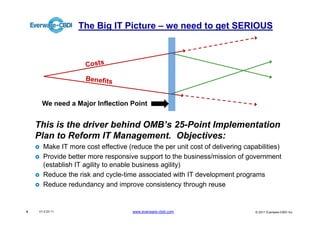

The Big IT Picture – we need to get SERIOUS

We need a Major Inflection Point

This is the driver behind OMB’s 25-Point Implementation
Plan to Reform IT Management. Objectives:
Make IT more cost effective (reduce the per unit cost of delivering capabilities)
Provide better more responsive support to the business/mission of government
(establish IT agility to enable business agility)
Reduce the risk and cycle-time associated with IT development programs
Reduce redundancy and improve consistency through reuse

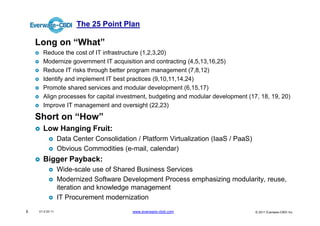

The 25 Point Plan

Long on “What”
Reduce the cost of IT infrastructure (1,2,3,20)
Modernize government IT acquisition and contracting (4,5,13,16,25)
Reduce IT risks through better program management (7,8,12)
Identify and implement IT best practices (9,10,11,14,24)
Promote shared services and modular development (6,15,17)
Align processes for capital investment, budgeting and modular development (17, 18, 19, 20)
Improve IT management and oversight (22,23)

Short on “How”
Low Hanging Fruit:
Data Center Consolidation / Platform Virtualization (IaaS / PaaS)
Obvious Commodities (e-mail, calendar)
Bigger Payback:
Wide-scale use of Shared Business Services
Modernized Software Development Process emphasizing modularity, reuse,
iteration and knowledge management
IT Procurement modernization

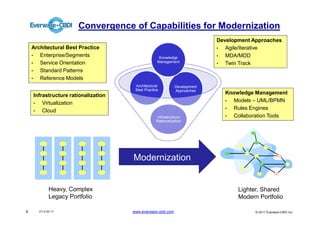

Convergence of Capabilities for Modernization
Development Approaches
Architectural Best Practice • Agile/Iterative
• Enterprise/Segments Knowledge • MDA/MDD
Service Orientation Management
• • Twin Track
• Standard Patterns
• Reference Models
Architectural Development
Best Practice Approaches
Infrastructure rationalization Knowledge Management
• Virtualization • Models – UML/BPMN
• Cloud • Rules Engines
Infrastructure • Collaboration Tools
Rationalization

Modernization

Heavy, Complex Lighter, Shared
Legacy Portfolio Modern Portfolio


Iterative Process – Evolutionary + Multipliers
Smooth cost curve is easier to budget and manage.
Smooth delivery curve reduces resource spikes and
User impact (retraining, disappointment, …)
Tightly scoped iterations reduce risk
Cost and provide early feedback O&M curve flattens as new features
are more easily implemented

Business gets working
software early

Time
Application is continually evolving facilitated by an iterative approach and agile architecture

Multipliers:
Service Oriented Architecture (modular, efficient)
Model Driven Development (knowledge, automation, portability)
Business, Integration and Implementation Patterns
Management (scope)
Virtualization (efficient resource usage)

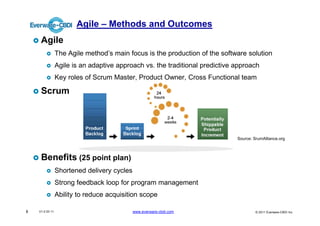

Agile – Methods and Outcomes
Agile
The Agile method’s main focus is the production of the software solution
Agile is an adaptive approach vs. the traditional predictive approach
Key roles of Scrum Master, Product Owner, Cross Functional team

Scrum

Source: SrumAlliance.org

Benefits (25 point plan)
Shortened delivery cycles
Strong feedback loop for program management
Ability to reduce acquisition scope

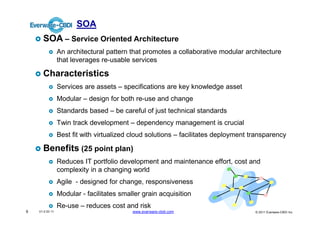

SOA
SOA – Service Oriented Architecture
An architectural pattern that promotes a collaborative modular architecture
that leverages re-usable services

Characteristics
Services are assets – specifications are key knowledge asset
Modular – design for both re-use and change
Standards based – be careful of just technical standards
Twin track development – dependency management is crucial
Best fit with virtualized cloud solutions – facilitates deployment transparency

Reduces IT portfolio development and maintenance effort, cost and
complexity in a changing world
Agile - designed for change, responsiveness
Modular - facilitates smaller grain acquisition
Re-use – reduces cost and risk

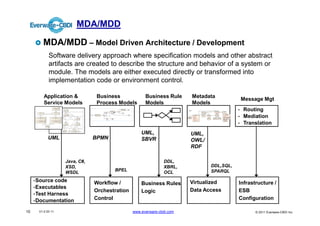

MDA/MDD

MDA/MDD – Model Driven Architecture / Development
Software delivery approach where specification models and other abstract
artifacts are created to describe the structure and behavior of a system or
module. The models are either executed directly or transformed into
implementation code or environment control.

Application & Business Business Rule Metadata
Message Mgt
Service Models Process Models Models Models
enli st wi th
M EP S?yes

no, waiver granted
yes
«BusinessP rocess»
2 enlistment

A ppl icant
yes

shipping
requested?
«BusinessProce.. .
3 shipping

no

enl ist ee
shi pper Parties and
Facilities

+
«B usin ess Typ e »
Pa rty

n a me
*

in cl u de s
re sid e s
at
+p la ceO fBi rth

1

*
+
+
+
+
+
« Bu sin e ss T yp e»
Loca ti on

stree t: st ri ng
city: st rin g
cou n ty: st rin g
zip Co d e: st rin g
na me

1
*
b el o ng s t o

1
«B u sin ess T yp e »
Re gion
• Routing
chooses not
1 i s lo ca te d
to enl ist

Mediation
p la ys * « e nu me ra ti on »
* at
Ra ci a lCa te gor y
«Busi nessP rocess» * « Bu sin e ss T yp e»

•
1 appl icant qualificati on « B usi ne ss Typ e» Fa c ili ty a me rica n In di an OrAla ska Nat ive
«B usin ess Typ e » « B usi n ess Typ e »
Pe rs on a sia n
Orga ni za tion h a ve
Role + na me : strin g
St artE vent 1 Meets standards f or quali fi ed not enlisted b la ckOrA frica nA me rica n
h a sL an g ua g e + g e n de r: G en d er 1 *
enlistment, appoi nt ment or n at ive Ha wa i ia nO rOth e rP aci ficI sla nd e r
+ d o b : da te
inducti on? 1 whi te
+ ssn: stri ng
d ecl in eT o Re sp on d
* + u n iq u eI de n tif ie r
+ p h o ne n u mbe rs
« Bu sin e ss T ype » + f irstNa me : strin g
Fore ignLangua geS k ill + m id dl eNam e: st rin g « en u merat io n » « en u me ra tio n »
« Bu sin e ss T yp e» « Bu sin e ss T ype » Ge nde r Ma ri ta lStatus
+ l a stNa me : strin g «B u sin e ss T ype »
no + la n gu a g e: st rin g Re c epti on/ T ai ni ng
r Duty S ta tion
+ m arita lS ta tu s: Ma rit a lSt at us Arme d S erv ic e
+ fi rst : bo o le an Ce nter ma le ma rrie d
+ p rio r mi lit ary se rvice
fe ma le si ng le
+ p rivile g e s
o th e r d ivo rce d
appl icant not + p ref eren ce s
appl icant not + ra ci al Ca te g ory: Ra cia lCat eg o ry
enl ist ed wi th
qual if ied f or + e t hn icCat eg o ry: E th ni cCa te g ory « en u me ra tio n »
ME PS
enlistment/ accession + d e p en d en ts: in t E thni cCa te gory
+ re lig io u sPref eren ce : strin g
d ecl in eT o Re sp on d

Translation
+ e d u ca t io n: E du ca tio n
h isp a ni cOrL a tin o
n on Hisp a ni cOrL a tin o

•

UML, UML,
UML BPMN SBVR OWL/
RDF

Java, C#, DDL,
XSD, XBRL, DDL,SQL,
BPEL SPARQL
WSDL OCL
• Source code Virtualized
Workflow / Business Rules Infrastructure /
• Executables
Orchestration Logic Data Access ESB
• Test Harness
• Documentation
Control Configuration

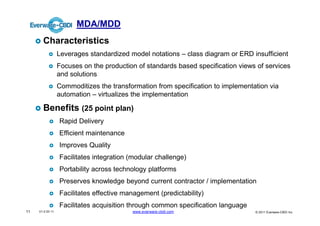

MDA/MDD
Characteristics
Leverages standardized model notations – class diagram or ERD insufficient
Focuses on the production of standards based specification views of services
and solutions
Commoditizes the transformation from specification to implementation via
automation – virtualizes the implementation

Rapid Delivery
Efficient maintenance
Improves Quality
Facilitates integration (modular challenge)
Portability across technology platforms
Preserves knowledge beyond current contractor / implementation
Facilitates effective management (predictability)
Facilitates acquisition through common specification language

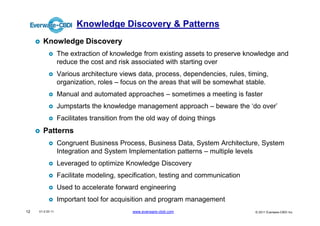

Knowledge Discovery & Patterns
Knowledge Discovery
The extraction of knowledge from existing assets to preserve knowledge and
reduce the cost and risk associated with starting over
Various architecture views data, process, dependencies, rules, timing,
organization, roles – focus on the areas that will be somewhat stable.
Manual and automated approaches – sometimes a meeting is faster
Jumpstarts the knowledge management approach – beware the ‘do over’
Facilitates transition from the old way of doing things
Patterns
Congruent Business Process, Business Data, System Architecture, System
Integration and System Implementation patterns – multiple levels
Leveraged to optimize Knowledge Discovery
Facilitate modeling, specification, testing and communication
Used to accelerate forward engineering
Important tool for acquisition and program management

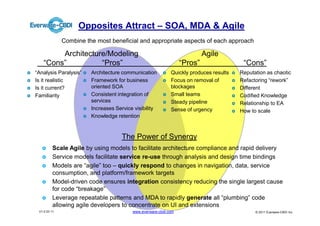

Opposites Attract – SOA, MDA & Agile
Combine the most beneficial and appropriate aspects of each approach

Architecture/Modeling Agile
“Cons” “Pros” “Pros” “Cons”
“Analysis Paralysis” Architecture communication Quickly produces results Reputation as chaotic
Is it realistic Framework for business Focus on removal of Refactoring “rework”
Is it current? oriented SOA blockages Different
Familiarity Consistent integration of Small teams Codified Knowledge
services Steady pipeline Relationship to EA
Increases Service visibility Sense of urgency How to scale
Knowledge retention

The Power of Synergy
Scale Agile by using models to facilitate architecture compliance and rapid delivery
Service models facilitate service re-use through analysis and design time bindings
Models are “agile” too – quickly respond to changes in navigation, data, service
consumption, and platform/framework targets
Model-driven code ensures integration consistency reducing the single largest cause
for code “breakage”
Leverage repeatable patterns and MDA to rapidly generate all “plumbing” code
allowing agile developers to concentrate on UI and extensions
V1.0 03 11 www.everware-cbdi.com © 2011 Everware-CBDI Inc

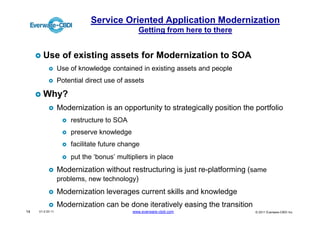

Service Oriented Application Modernization
Getting from here to there

Use of existing assets for Modernization to SOA
Use of knowledge contained in existing assets and people
Potential direct use of assets

Why?
Modernization is an opportunity to strategically position the portfolio
restructure to SOA
preserve knowledge
facilitate future change
put the ‘bonus’ multipliers in place
Modernization without restructuring is just re-platforming (same
problems, new technology)
Modernization leverages current skills and knowledge
Modernization can be done iteratively easing the transition

Application Modernization Strategy

Integrated portfolio management coordinating SOA with
replacement and refactoring
Twin track solutions and services
“Meet in the middle” service growth
Baseline and iteration vs big bang
Pattern based analysis, architecture, design and
transformation
Functional equivalence vs implementation equivalence
Functional redundancy / duplication vs functional congruency –
encapsulate similarities as reusable capabilities
Selective automation (reverse and forward engineering)
Model Driven forward engineering

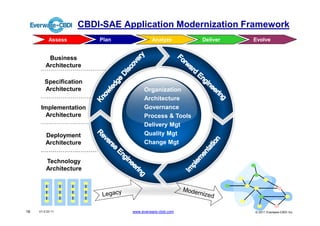

CBDI-SAE Application Modernization Framework
Assess Plan Analyze Deliver Evolve

Business
Architecture

Specification
Architecture Organization
Architecture
Implementation Governance
Architecture Process & Tools
Delivery Mgt
Deployment Quality Mgt
Architecture Change Mgt

Technology
Architecture

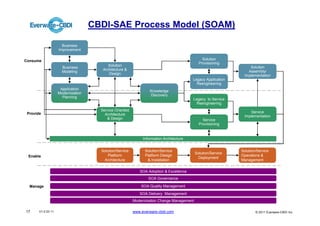

CBDI-SAE Process Model (SOAM)

Business
Improvement

Consume Solution
Provisioning
Solution Solution
Business
Architecture & Assembly/
Modeling
Design Implementation
Legacy Application
Reengineering
Application
Knowledge
Modernization
Discovery
Planning
Legacy to Service
Reengineering
Service Oriented Service
Provide Architecture Implementation
& Design Service
Provisioning

Information Architecture

Solution/Service Solution/Service Solution/Service
Solution/Service
Enable Platform Platform Design Operations &
Deployment
Architecture & Installation Management

SOA Adoption & Excellence
SOA Governance

Manage SOA Quality Management

SOA Delivery Management
Modernization Change Management

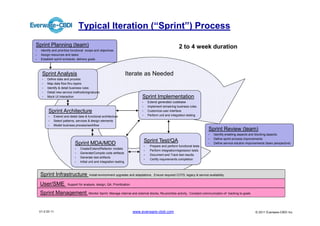

Typical Iteration (“Sprint”) Process
Sprint Planning (team) 2 to 4 week duration
• Identify and prioritize functional scope and objectives
• Assign resources and tasks
• Establish sprint schedule, delivery goals

Sprint Analysis Iterate as Needed
• Define data and process
• Map data flow thru layers
• Identify & detail business rules
• Detail new service methods/signatures
• Mock UI Interaction Sprint Implementation
• Extend generated codebase
• Implement remaining business rules
Sprint Architecture • Customize user interface
• Extend and detail data & functional architecture • Perform unit and integration testing
• Select patterns, services & design elements
• Model business process/workflow
Sprint Review (team)
• Identify enabling aspects and blocking aspects
• Define sprint process improvements
Sprint MDA/MDD Sprint Test/QA • Define service solution improvements (team perspective)
• Prepare and perform functional tests
• Create/Extend/Refactor models
• Perform integration/regression tests
• Generate/Compile code artifacts
• Document and Track test results
• Generate test artifacts
• Certify requirements completion
• Initial unit and integration testing

Sprint Infrastructure Install environment upgrades and adaptations, Ensure required COTS, legacy & service availability

User/SME Support for analysis, design, QA, Prioritization

Sprint Management Monitor Sprint, Manage internal and external blocks, Re-prioritize activity, Constant communication of tracking to goals

V1.0 03 11 www.everware-cbdi.com © 2011 Everware-CBDI Inc

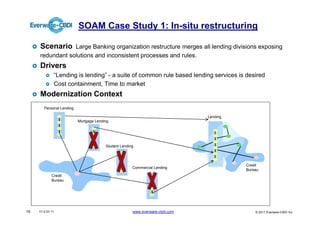

SOAM Case Study 1: In-situ restructuring

Scenario Large Banking organization restructure merges all lending divisions exposing
redundant solutions and inconsistent processes and rules.
Drivers
“Lending is lending” - a suite of common rule based lending services is desired
Cost containment, Time to market
Modernization Context
Personal Lending

Lending
Mortgage Lending

Student Lending

Credit
Commercial Lending
Bureau
Credit
Bureau

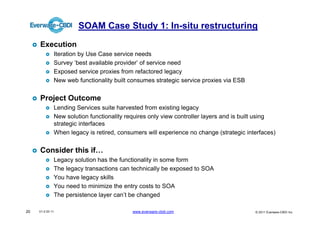

SOAM Case Study 1: In-situ restructuring
Execution
Iteration by Use Case service needs
Survey ‘best available provider’ of service need
Exposed service proxies from refactored legacy
New web functionality built consumes strategic service proxies via ESB

Project Outcome
Lending Services suite harvested from existing legacy
New solution functionality requires only view controller layers and is built using
strategic interfaces
When legacy is retired, consumers will experience no change (strategic interfaces)

Consider this if…
Legacy solution has the functionality in some form
The legacy transactions can technically be exposed to SOA
You have legacy skills
You need to minimize the entry costs to SOA
The persistence layer can’t be changed

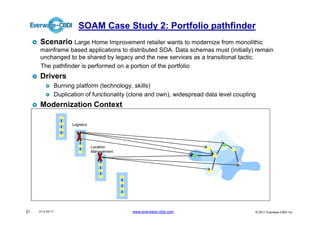

SOAM Case Study 2: Portfolio pathfinder
Scenario Large Home Improvement retailer wants to modernize from monolithic
mainframe based applications to distributed SOA. Data schemas must (initially) remain
unchanged to be shared by legacy and the new services as a transitional tactic.
The pathfinder is performed on a portion of the portfolio
Drivers
Burning platform (technology, skills)
Duplication of functionality (clone and own), widespread data level coupling

Logistics

Location
Management

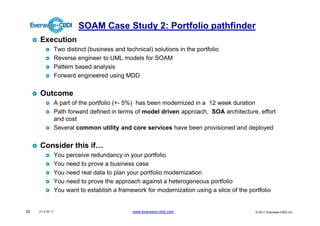

SOAM Case Study 2: Portfolio pathfinder
Execution
Two distinct (business and technical) solutions in the portfolio
Reverse engineer to UML models for SOAM
Pattern based analysis
Forward engineered using MDD

Outcome
A part of the portfolio (+- 5%) has been modernized in a 12 week duration
Path forward defined in terms of model driven approach, SOA architecture, effort
and cost
Several common utility and core services have been provisioned and deployed

Consider this if…
You perceive redundancy in your portfolio
You need to prove a business case
You need real data to plan your portfolio modernization
You need to prove the approach against a heterogeneous portfolio
You want to establish a framework for modernization using a slice of the portfolio

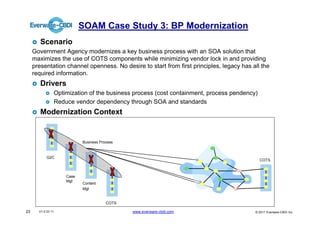

SOAM Case Study 3: BP Modernization
Scenario
Government Agency modernizes a key business process with an SOA solution that
maximizes the use of COTS components while minimizing vendor lock in and providing
presentation channel openness. No desire to start from first principles, legacy has all the
required information.
Drivers
Optimization of the business process (cost containment, process pendency)
Reduce vendor dependency through SOA and standards

Business Process

G2C
COTS

Case
Mgt
Content
Mgt

COTS

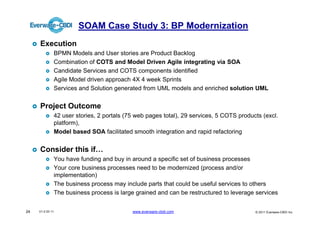

SOAM Case Study 3: BP Modernization
Execution
BPMN Models and User stories are Product Backlog
Combination of COTS and Model Driven Agile integrating via SOA
Candidate Services and COTS components identified
Agile Model driven approach 4X 4 week Sprints
Services and Solution generated from UML models and enriched solution UML

Project Outcome
42 user stories, 2 portals (75 web pages total), 29 services, 5 COTS products (excl.
platform),
Model based SOA facilitated smooth integration and rapid refactoring

Consider this if…
You have funding and buy in around a specific set of business processes
Your core business processes need to be modernized (process and/or
implementation)
The business process may include parts that could be useful services to others
The business process is large grained and can be restructured to leverage services

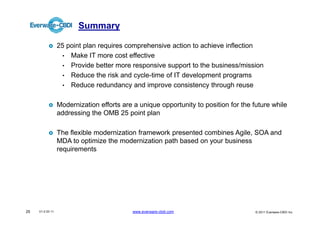

Summary

25 point plan requires comprehensive action to achieve inflection
• Make IT more cost effective
• Provide better more responsive support to the business/mission
• Reduce the risk and cycle-time of IT development programs
• Reduce redundancy and improve consistency through reuse

Modernization efforts are a unique opportunity to position for the future while
addressing the OMB 25 point plan

The flexible modernization framework presented combines Agile, SOA and
MDA to optimize the modernization path based on your business
requirements


Specialists in Service Oriented Application Modernization

Denzil Wasson
dwasson@everware-cbdi.com

www.everware-cbdi.com


Everware cbdi opposites attract 04-12-11

More Related Content

What's hot

Similar to Everware cbdi opposites attract 04-12-11

Recently uploaded

Everware cbdi opposites attract 04-12-11
