The document describes the NI EVS-1464RT embedded vision system, which combines industrial camera connectivity with a multicore PC design. It offers a fanless and ruggedized design for use in manufacturing environments. The system includes the NI Vision Development Module which provides image acquisition, processing, and analysis functions for common machine vision tasks like pattern matching, particle analysis, and measurement taking.

1. REAL TIME EMBEDDED VISION
SYSTEM
NI EVS-1464RT
BY
CH.SAI KRISHNA

2. ABSTRACT:
The Embedded Vision System is a
rugged controller
that combines industrial camera
connectivity
and open communication with the high
performance
and flexibility of a multicore PC.

3. DESCRIPTION:
The NI Embedded Vision System offers a
fanless design, extended temperature range,
real-time operating system, and solid-state
drive, making it ready for demanding
manufacturing conditions by reducing
maintenance requirements with no moving
parts and increasing reliability.

5. The NI Vision Development Module is an
image acquisition, processing,
and analysis library of hundreds of
functions for the following common
machine vision tasks:
• Pattern matching
• Particle analysis
• Gauging
• Taking measurements
• Grayscale, color, and binary image
display

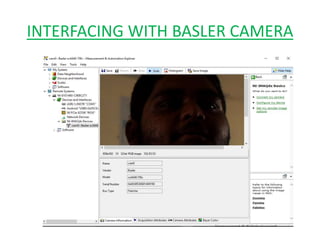

7. INTERFACING WITH BASLER CAMERA

8. INTERFACING WITH LAB VIEW

9. CODE DEVELOPMENT

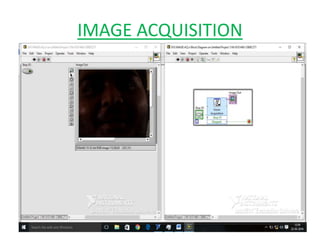

10. IMAGE ACQUISITION

11. FUTURE SCOPE
