This document describes a power collector that uses magnetic induction to wirelessly charge electric vehicles. It consists of a core that generates a high frequency magnetic field under a road, which induces a current in a receiving coil in the vehicle to charge the vehicle's batteries through a cable. The power is then distributed through an inverter, manholes, and segments to a power distribution line.

7. Power Collector

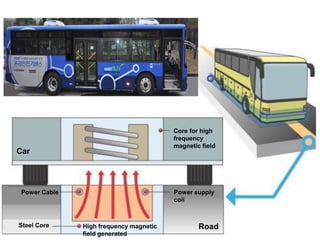

Core for high
frequency
magnetic field
Car
Power Cable Power supply
coil
Steel Core High frequency magnetic Road
field generated

11. 2
3
4
1

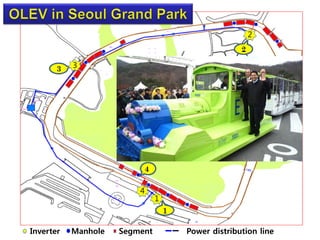

Inverter Manhole Segment Power distribution line
