Arnaud Bouchez - Synopse
Frameworks
Tuning

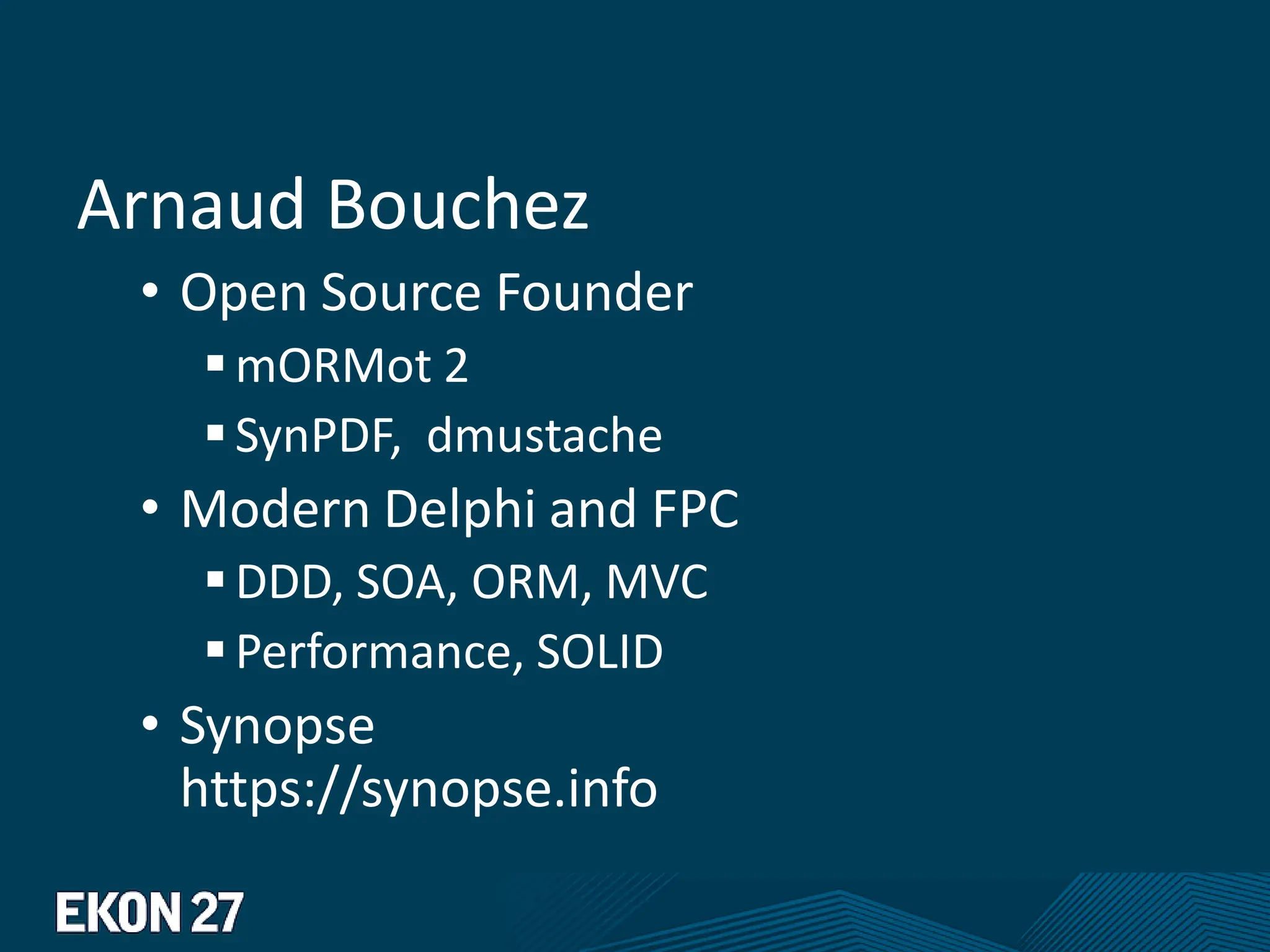

Arnaud Bouchez
• Open Source Founder
mORMot 2
SynPDF, dmustache
• Modern Delphi and FPC
DDD, SOA, ORM, MVC
Performance, SOLID
• Synopse
https://synopse.info

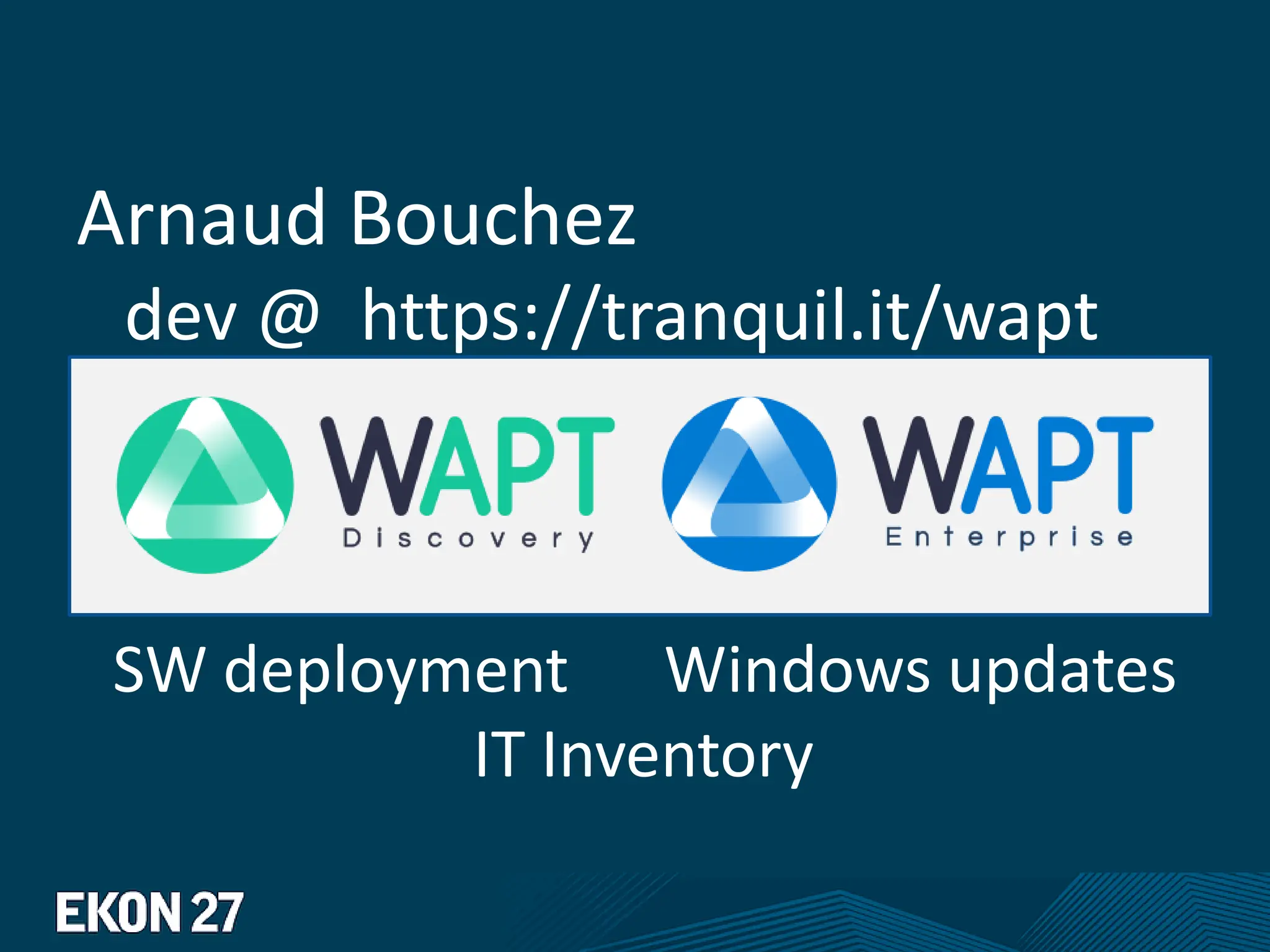

Arnaud Bouchez
dev @ https://tranquil.it/wapt
SW deployment Windows updates
IT Inventory

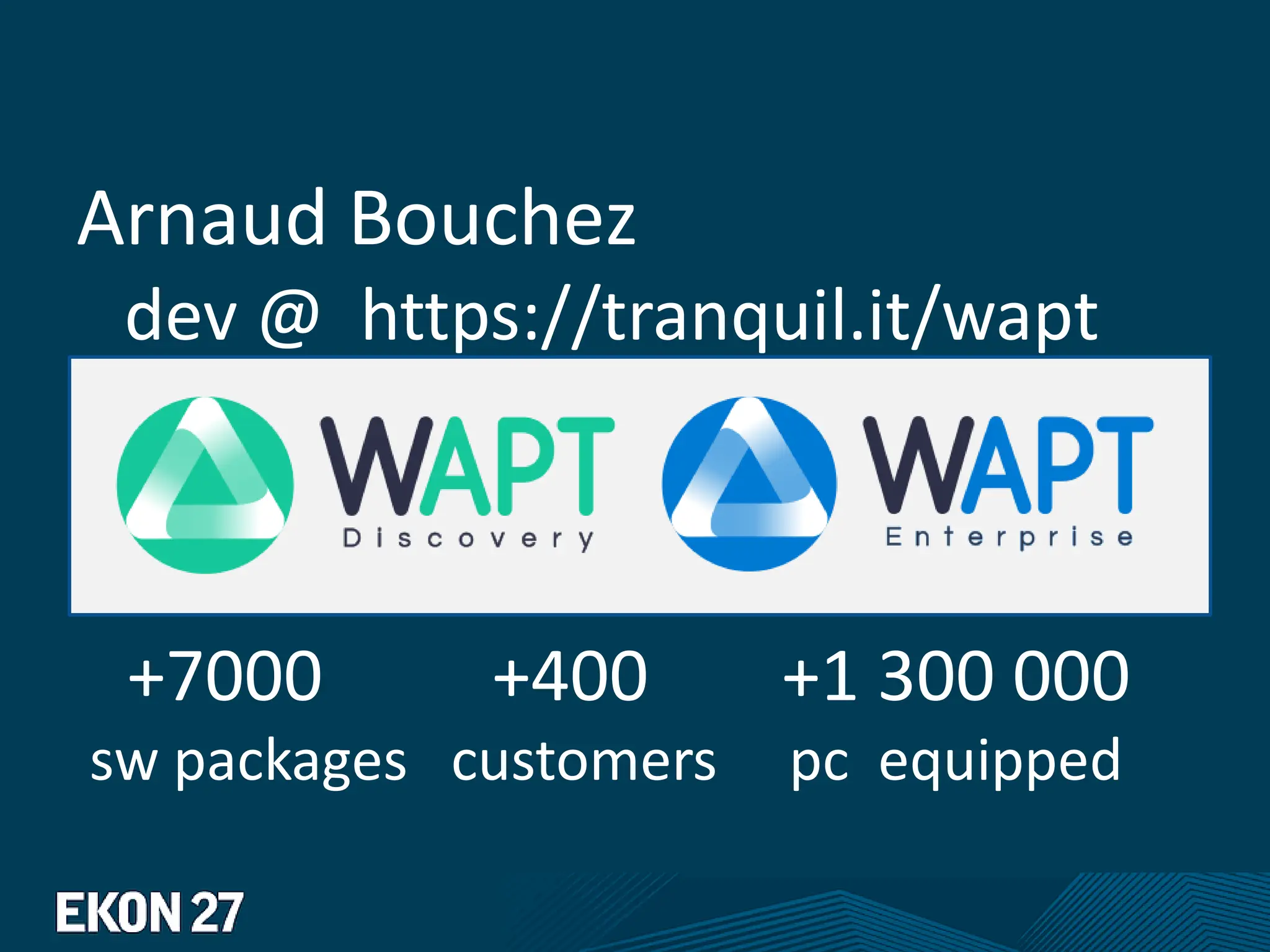

Arnaud Bouchez
dev @ https://tranquil.it/wapt
+7000 +400 +1 300 000
sw packages customers pc equipped

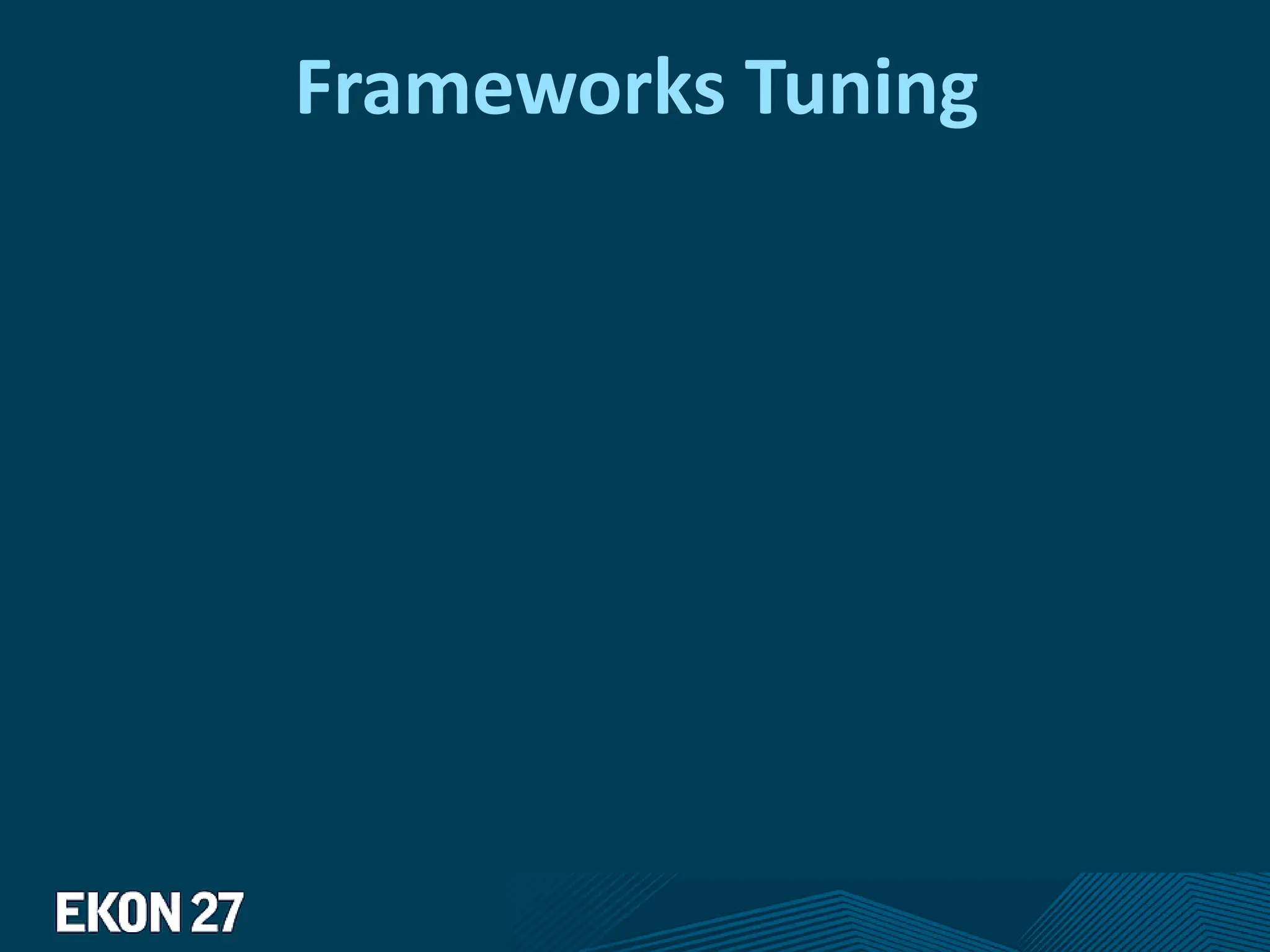

Frameworks Tuning

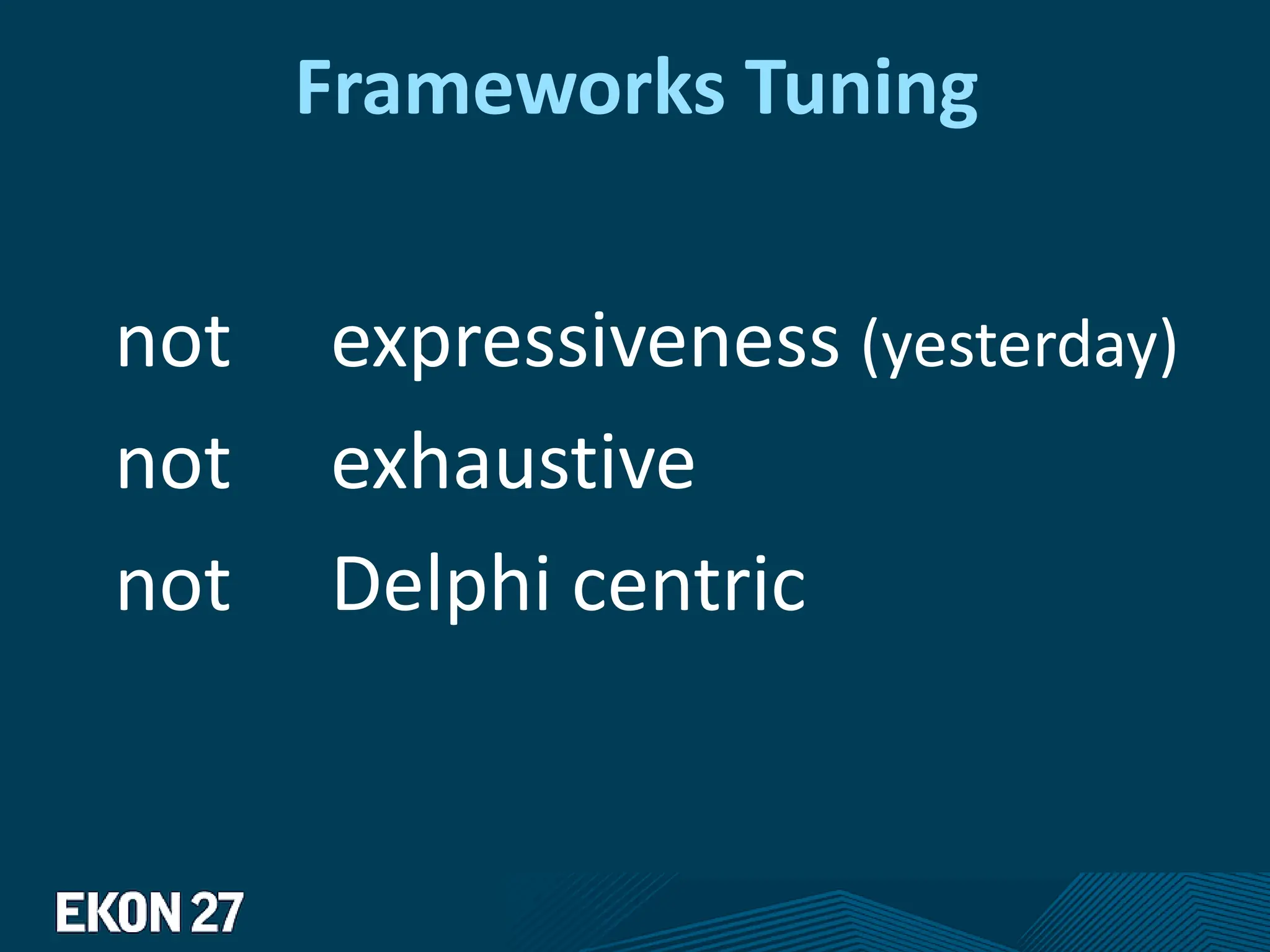

Frameworks Tuning
not expressiveness (yesterday)
not exhaustive
not Delphi centric

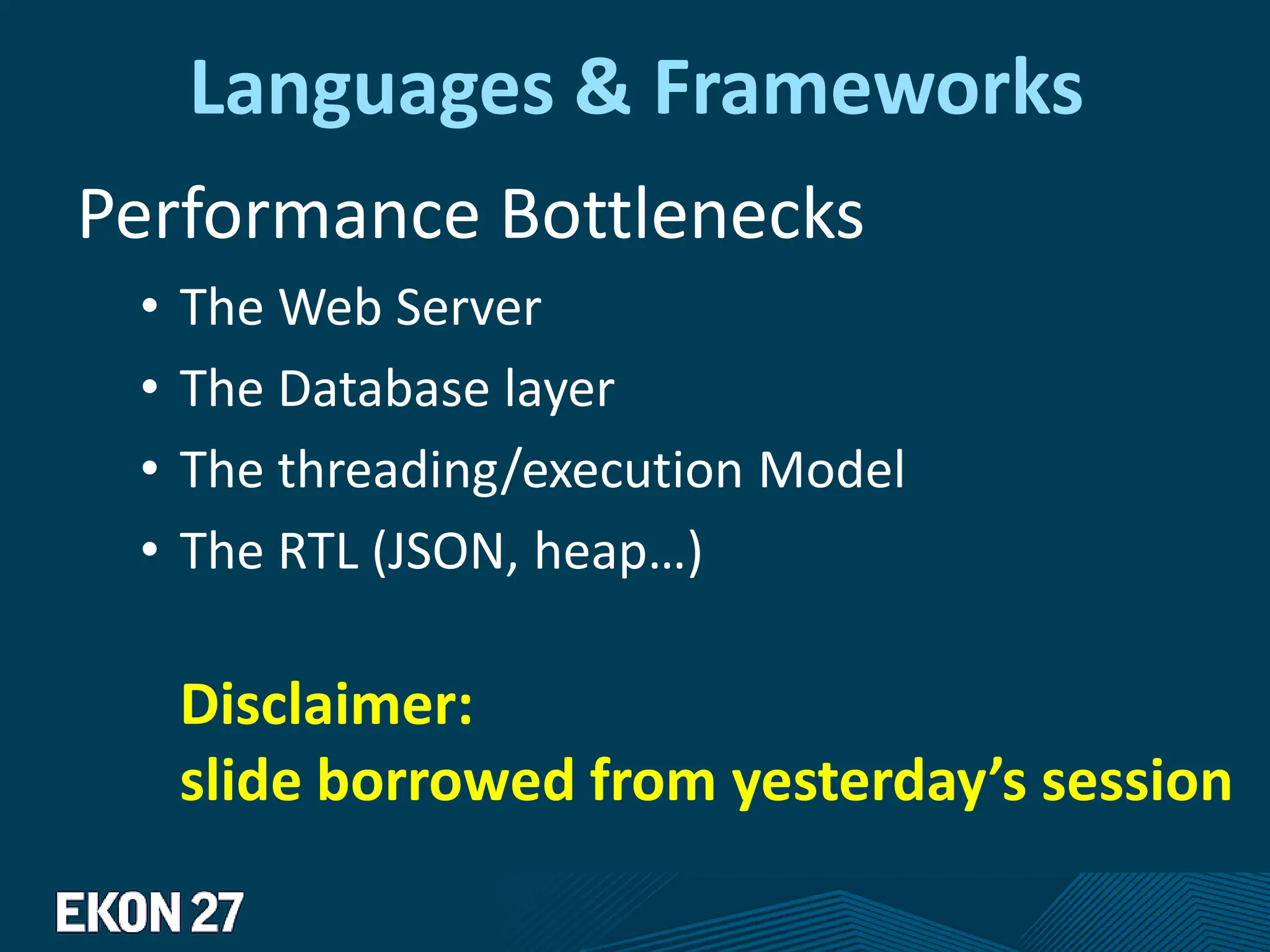

Languages & Frameworks
Performance Bottlenecks
• The Web Server
• The Database layer
• The threading/execution Model
• The RTL (JSON, heap…)
Disclaimer:
slide borrowed from yesterday’s session

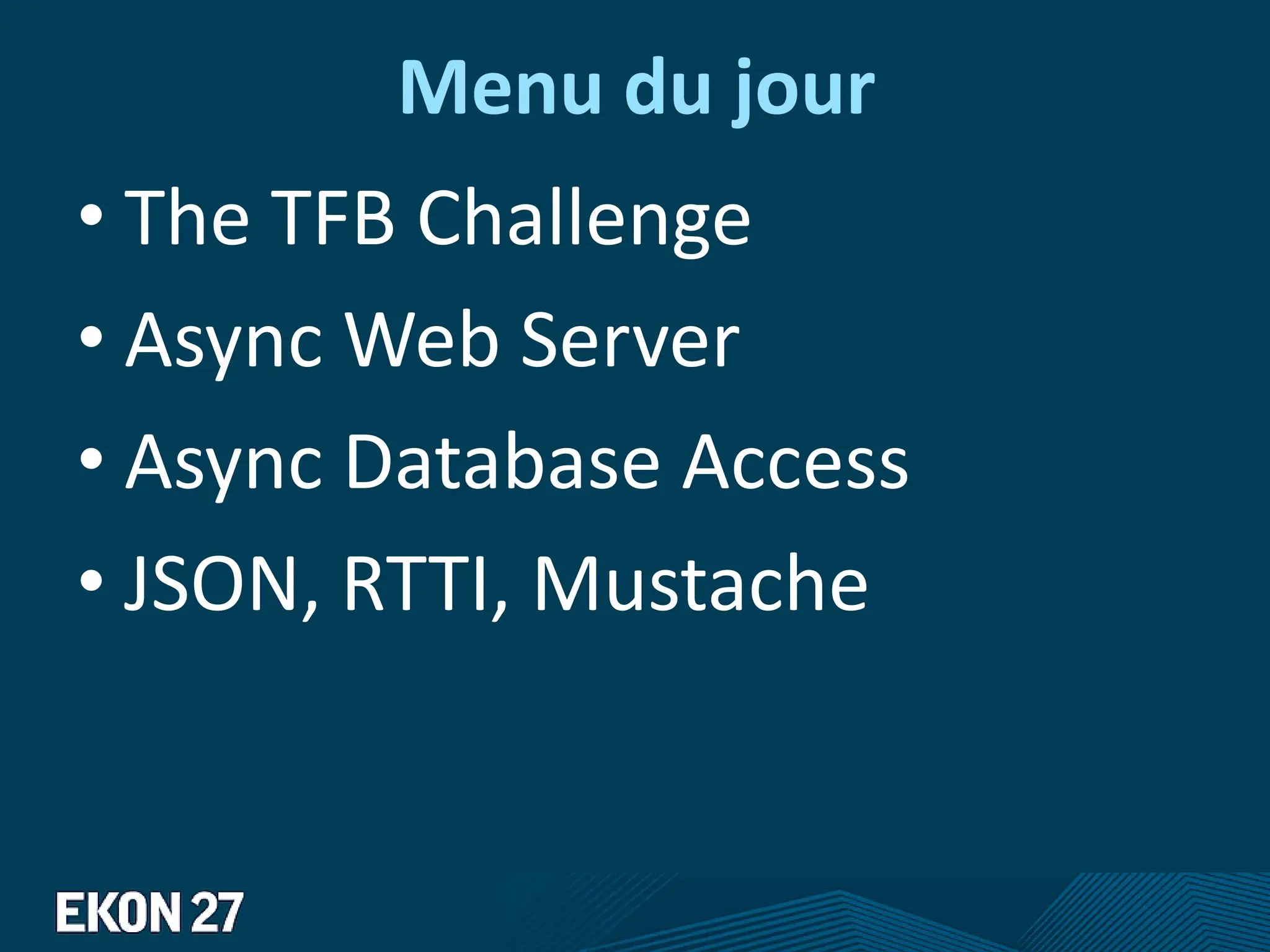

Menu du jour
• The TFB Challenge
• Async Web Server
• Async Database Access
• JSON, RTTI, Mustache

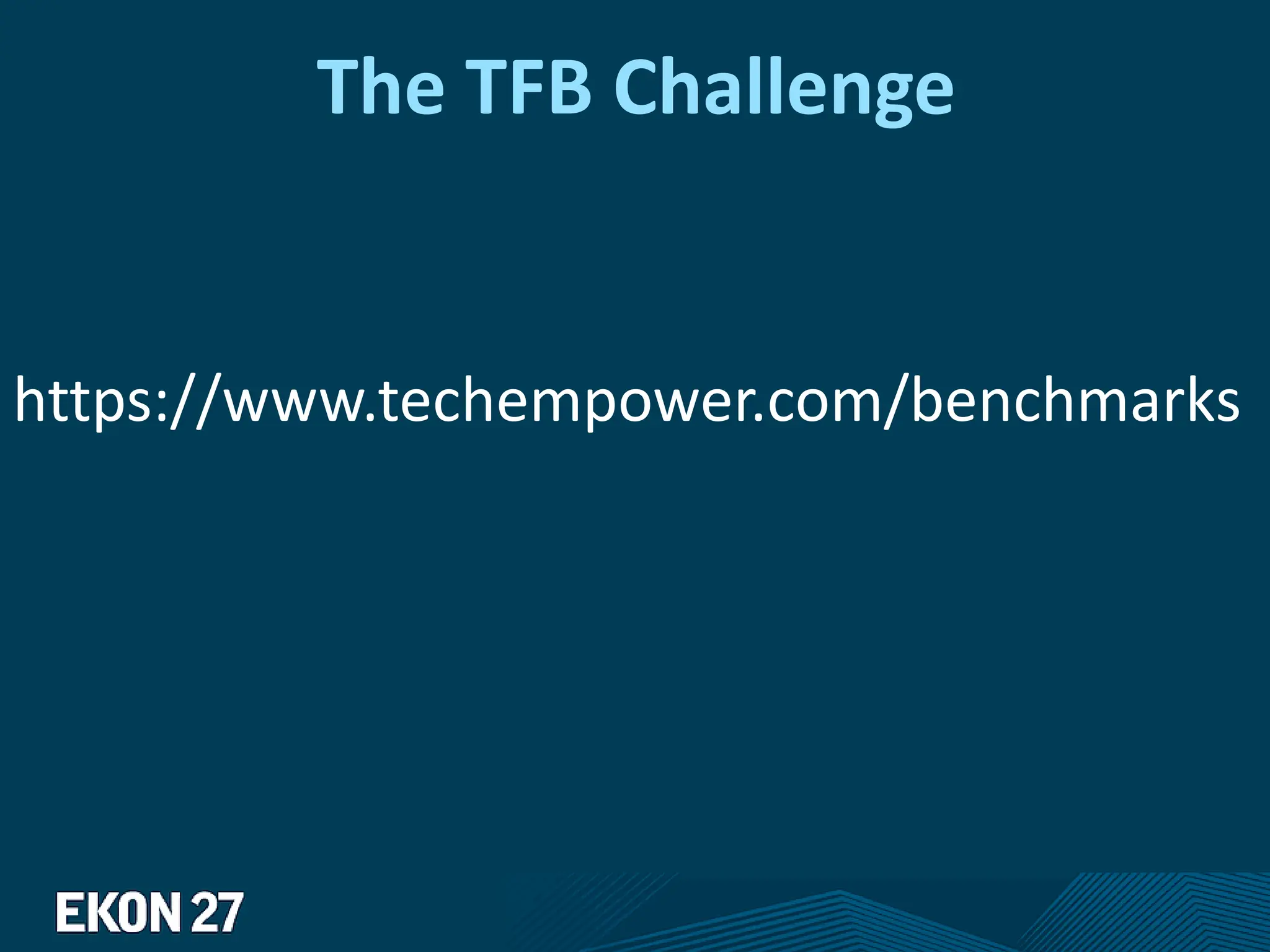

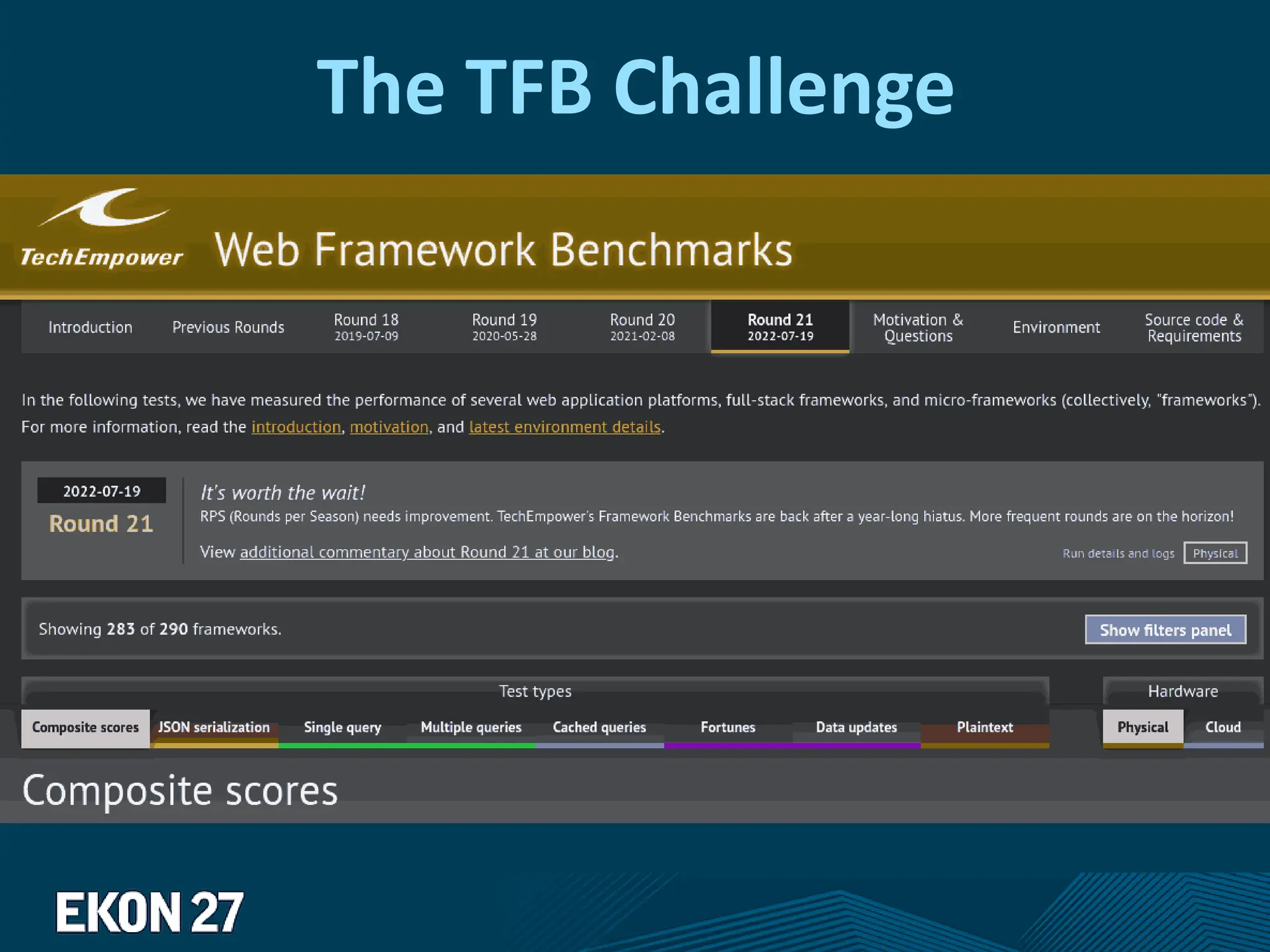

The TFB Challenge
https://www.techempower.com/benchmarks
The TFB Challenge

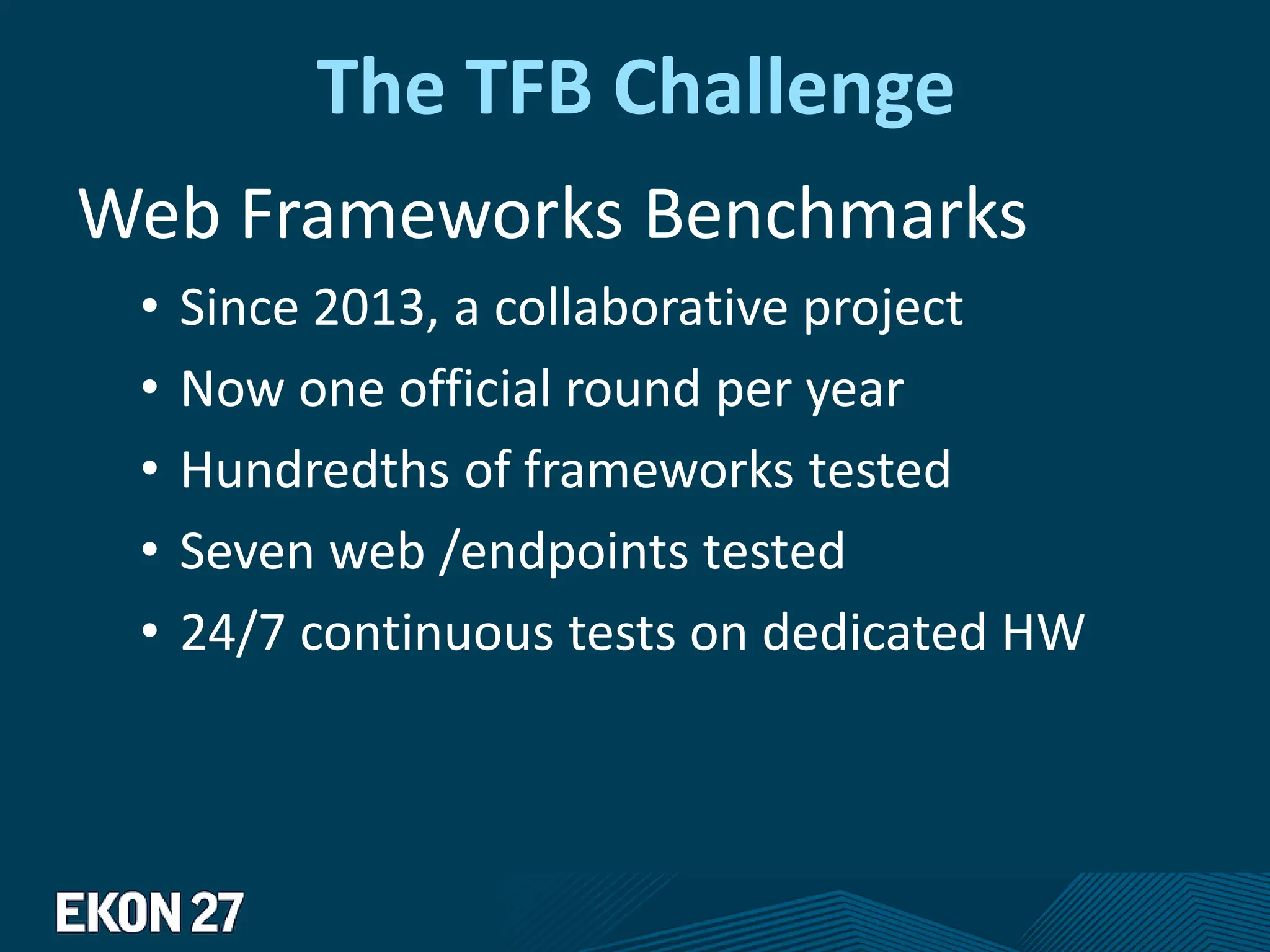

The TFB Challenge
Web Frameworks Benchmarks
• Since 2013, a collaborative project
• Now one official round per year
• Hundredths of frameworks tested
• Seven web /endpoints tested
• 24/7 continuous tests on dedicated HW

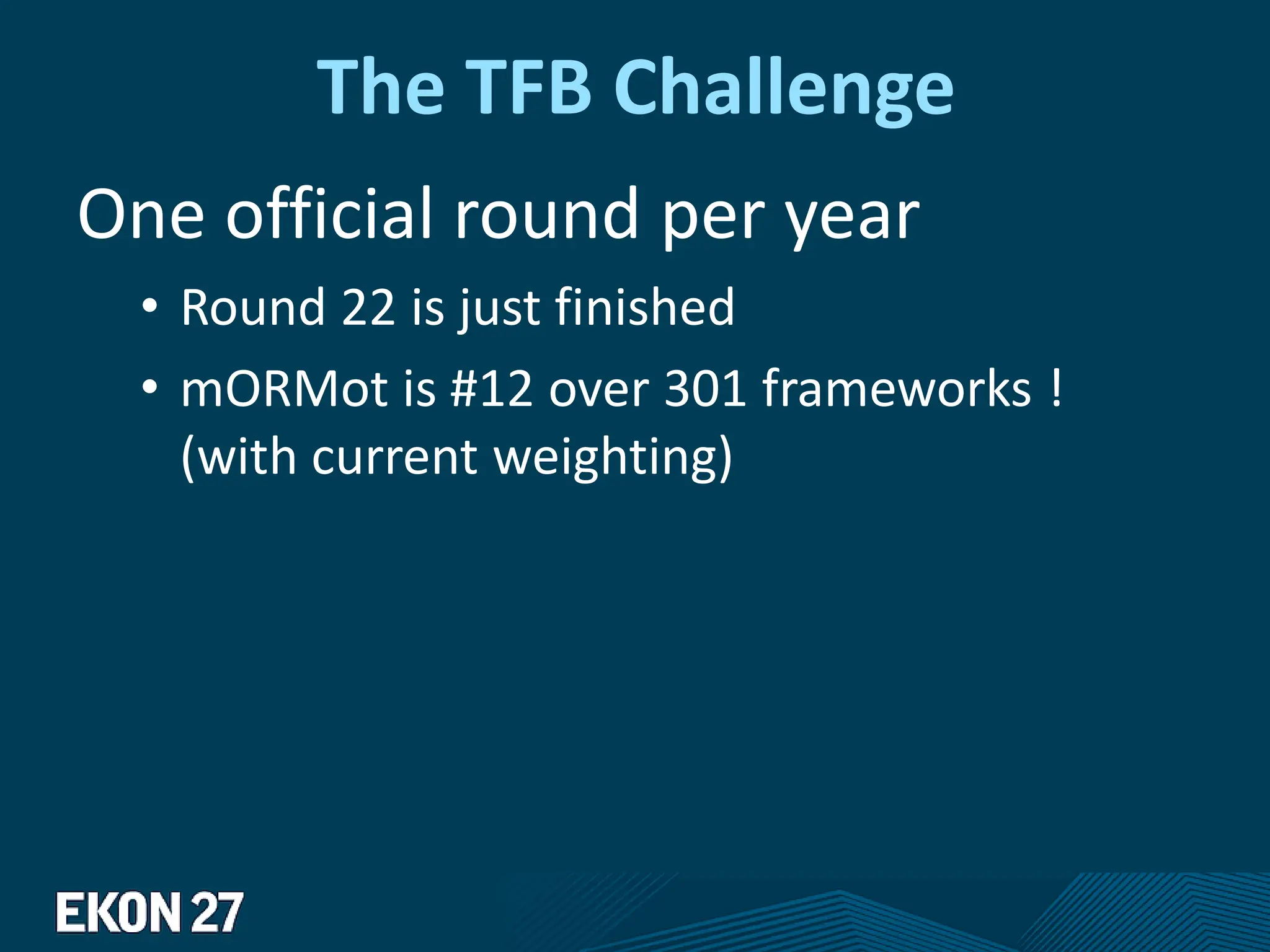

The TFB Challenge
One official round per year
• Round 22 is just finished
• mORMot is #12 over 301 frameworks !
(with current weighting)
The TFB Challenge
Hundredths of frameworks tested

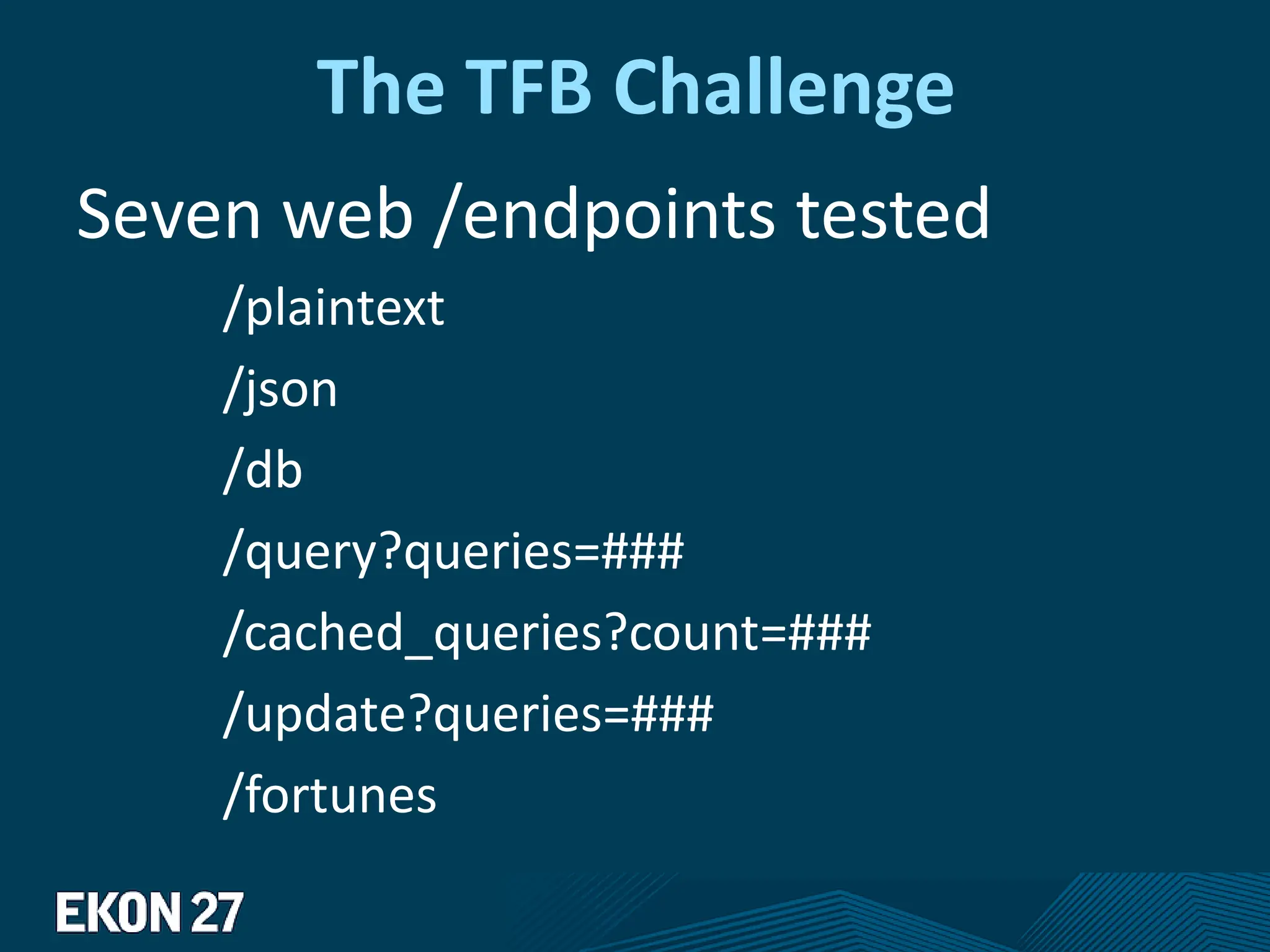

The TFB Challenge
Seven web /endpoints tested
/plaintext
/json
/db
/query?queries=###
/cached_queries?count=###
/update?queries=###
/fortunes

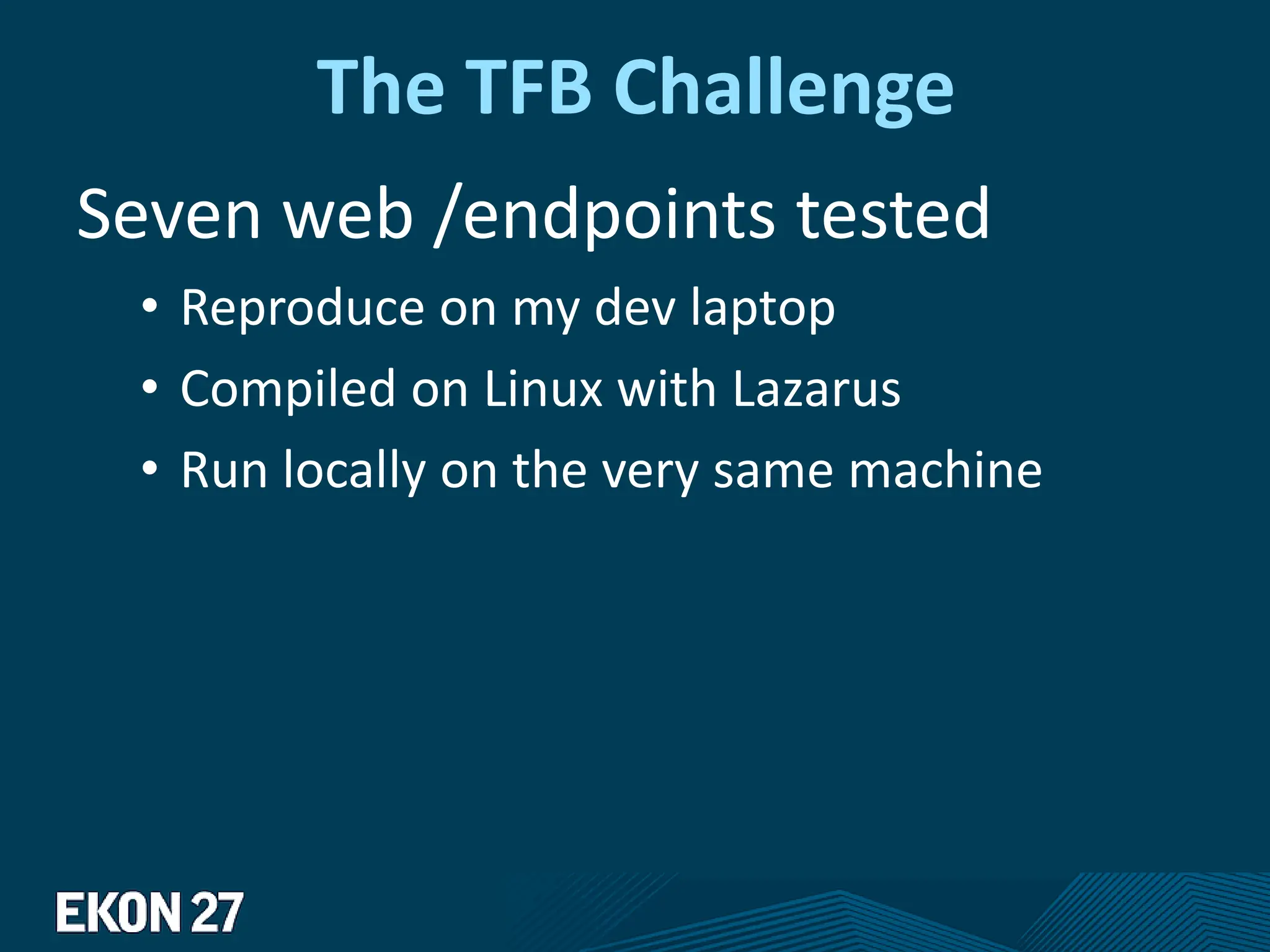

The TFB Challenge
Seven web /endpoints tested
• Reproduce on my dev laptop
• Compiled on Linux with Lazarus
• Run locally on the very same machine
The TFB Challenge

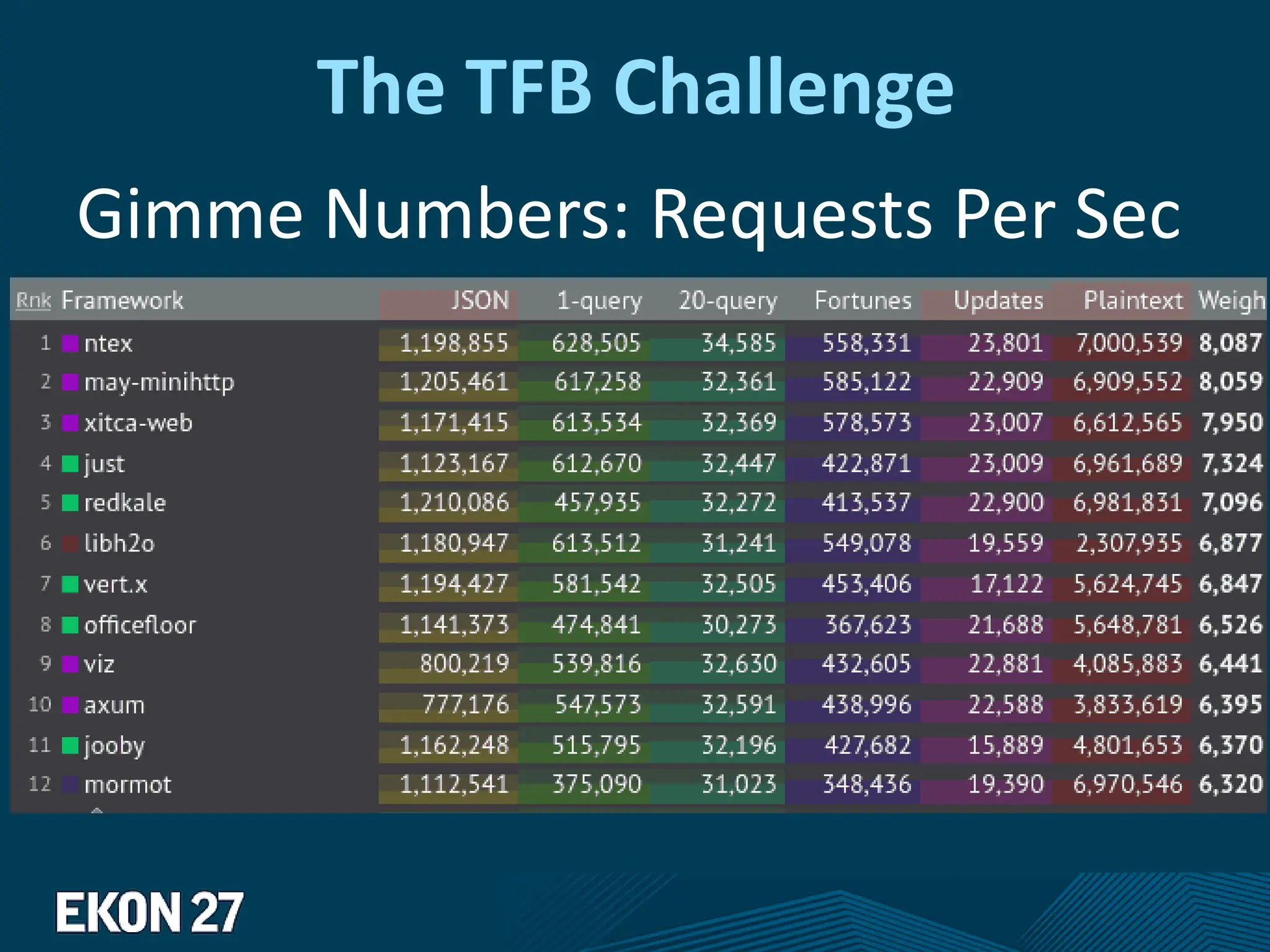

Gimme Numbers: Requests Per Sec

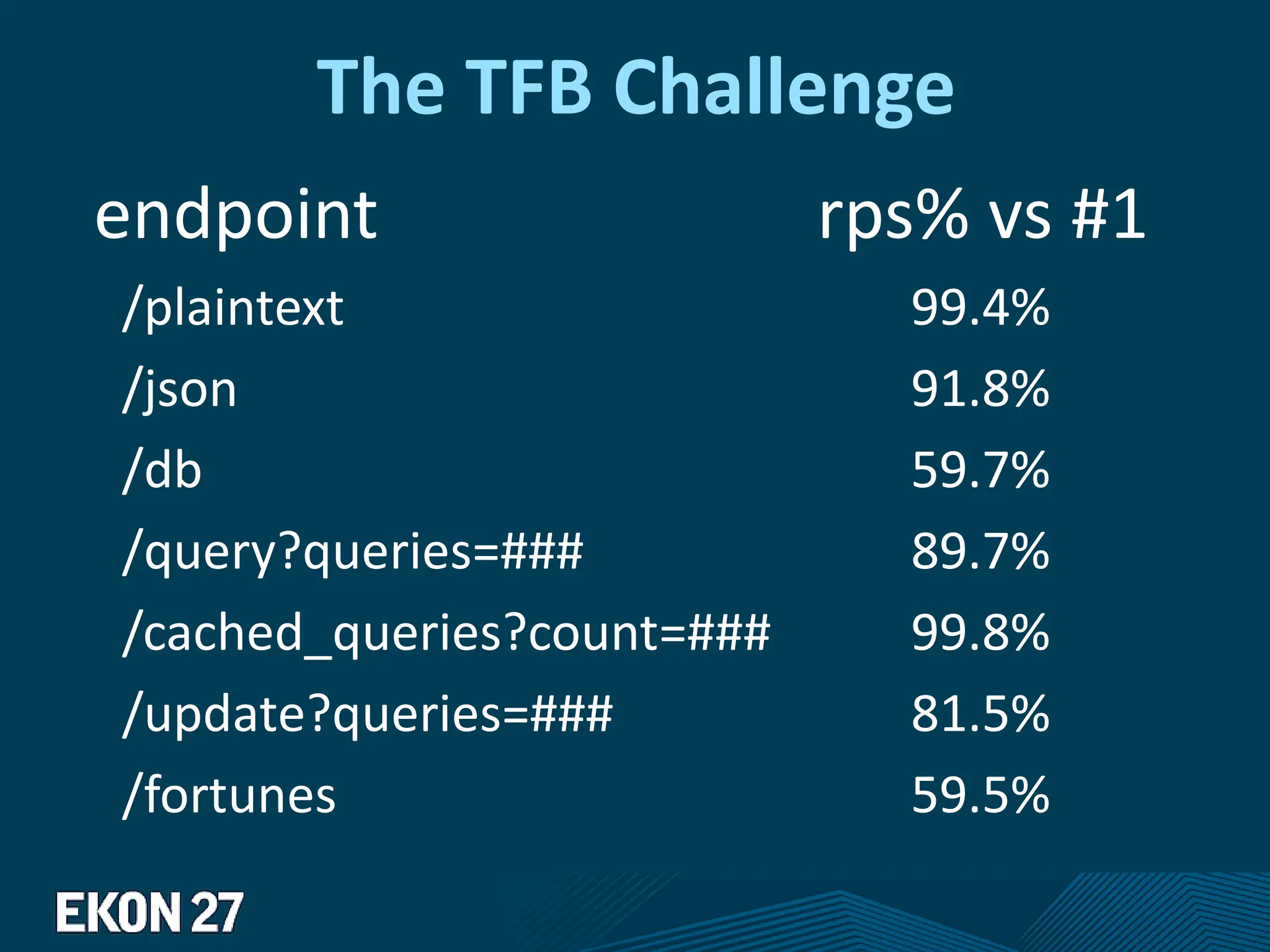

The TFB Challenge
endpoint rps% vs #1
/plaintext 99.4%
/json 91.8%
/db 59.7%
/query?queries=### 89.7%
/cached_queries?count=### 99.8%
/update?queries=### 81.5%
/fortunes 59.5%

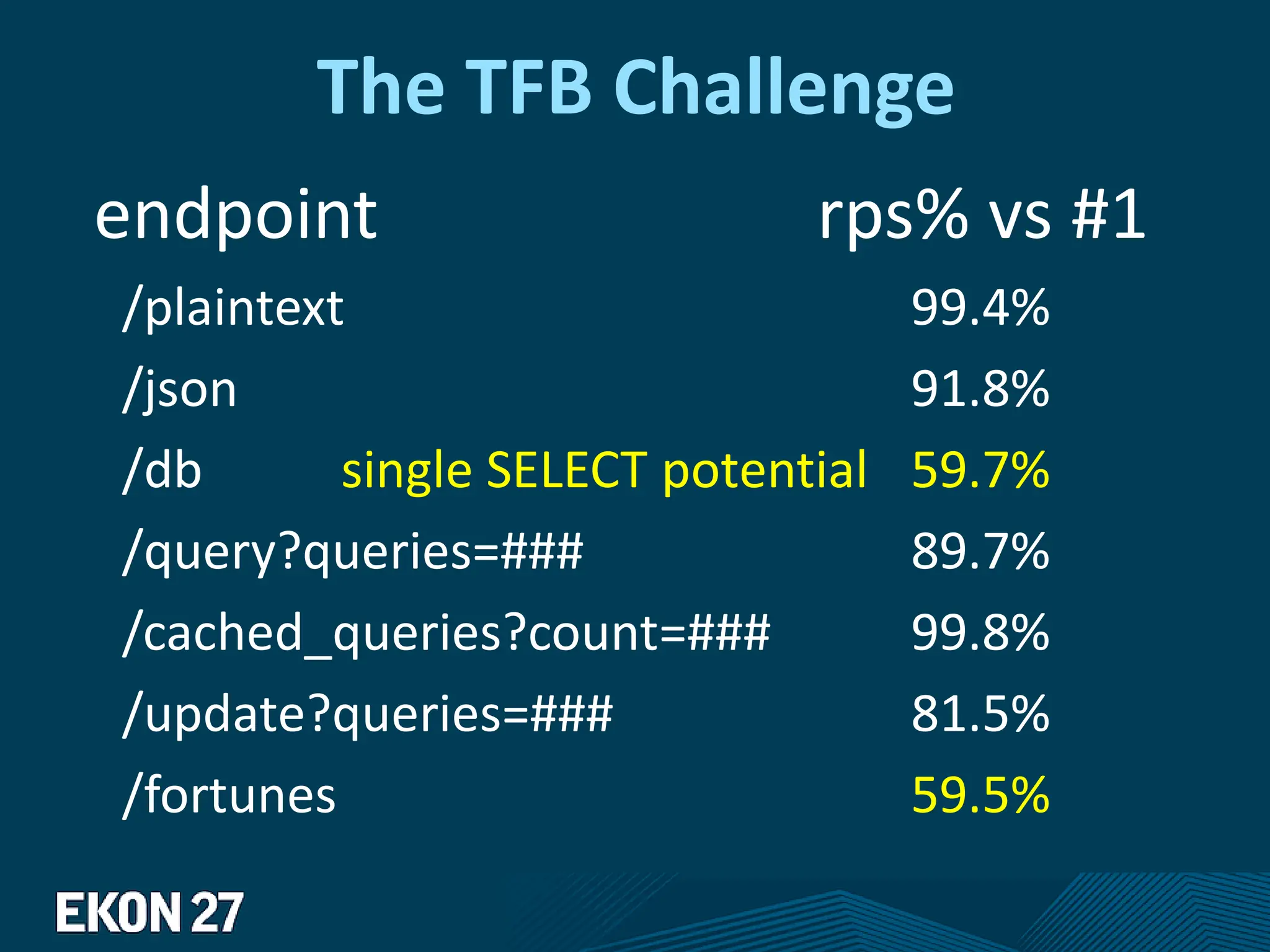

The TFB Challenge
endpoint rps% vs #1
/plaintext 99.4%
/json 91.8%
/db single SELECT potential 59.7%
/query?queries=### 89.7%
/cached_queries?count=### 99.8%
/update?queries=### 81.5%
/fortunes 59.5%

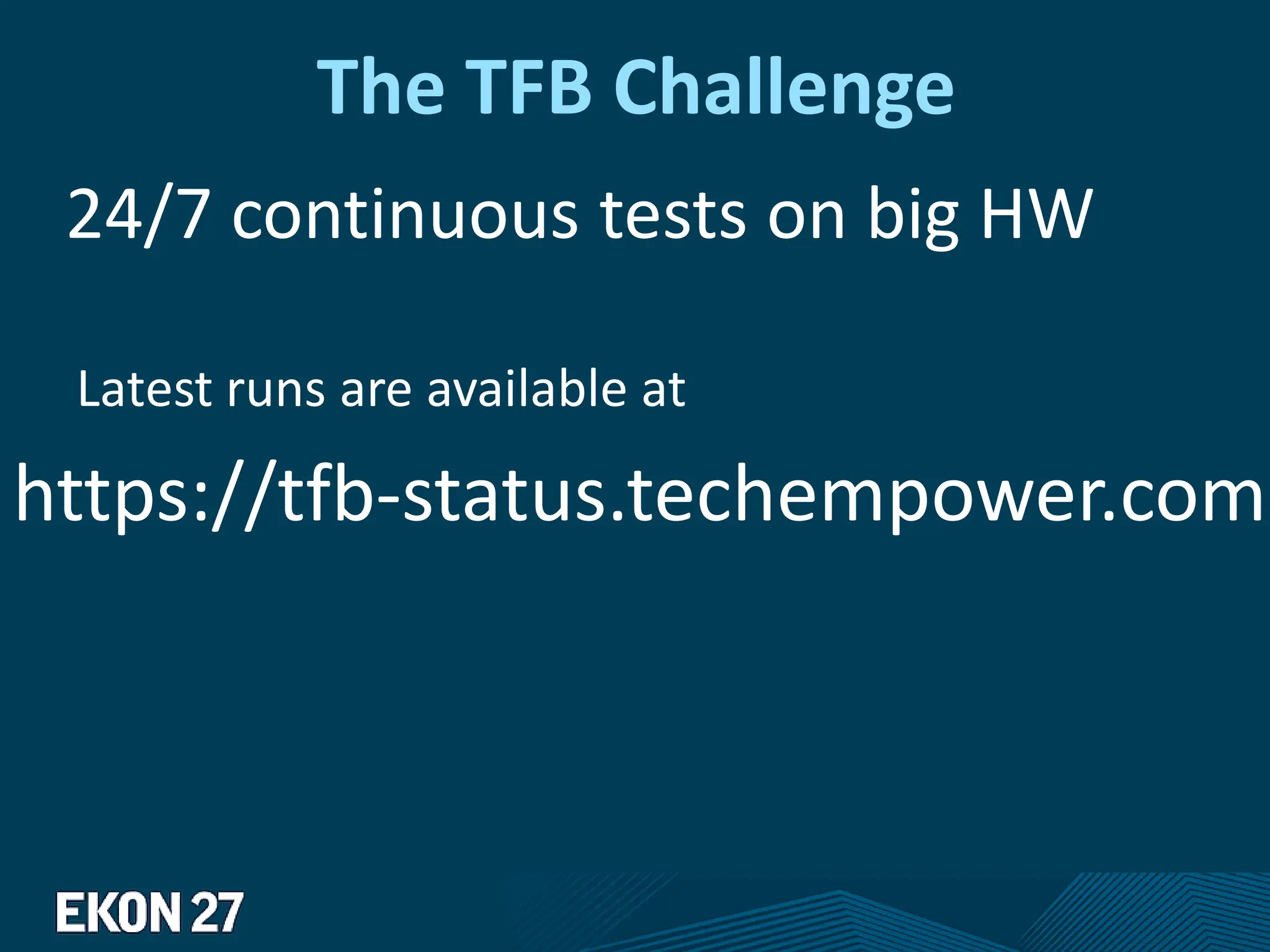

The TFB Challenge
24/7 continuous tests on big HW
Latest runs are available at
https://tfb-status.techempower.com

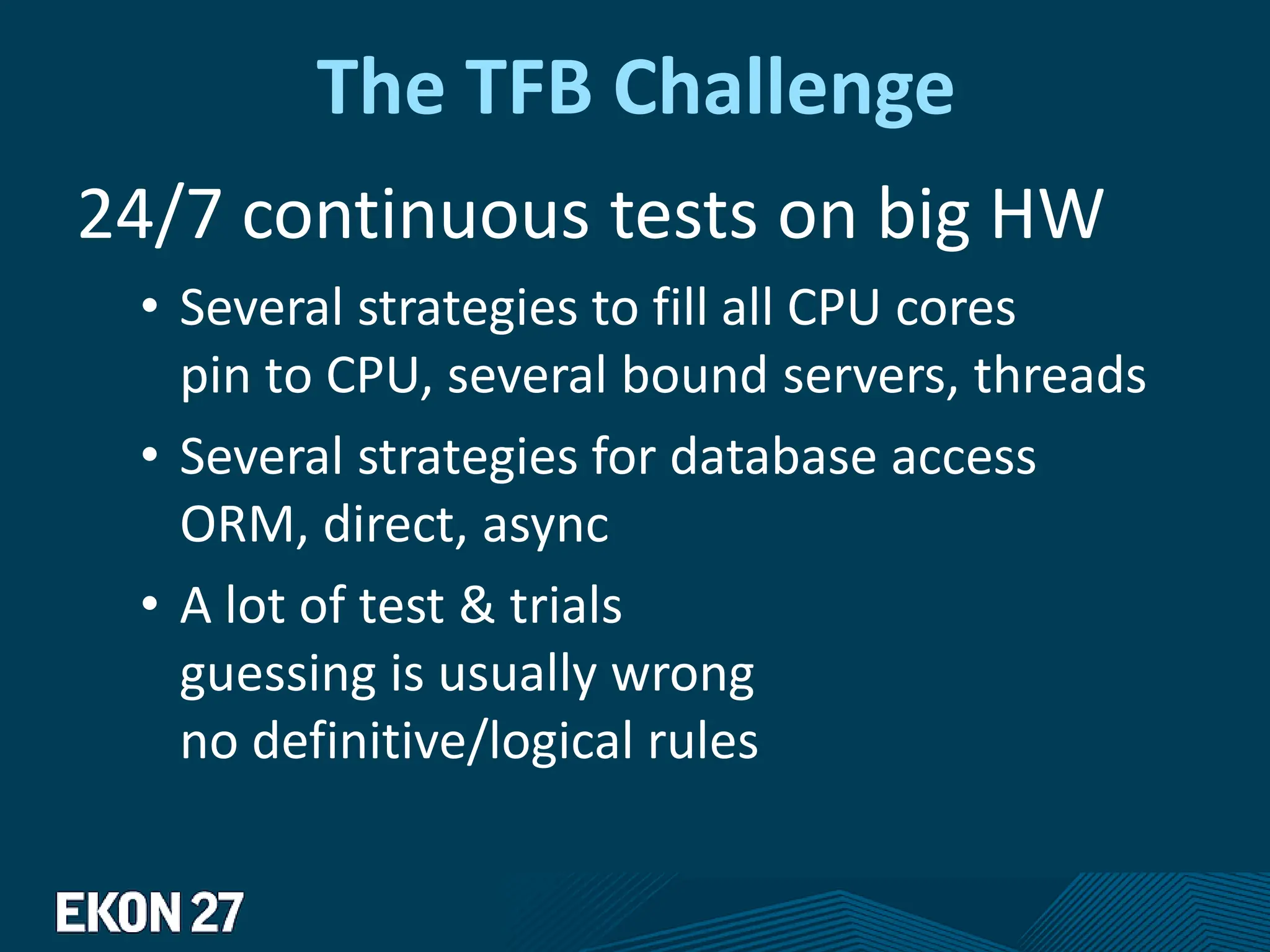

The TFB Challenge
24/7 continuous tests on big HW
• Several strategies to fill all CPU cores
pin to CPU, several bound servers, threads
• Several strategies for database access
ORM, direct, async
• A lot of test & trials
guessing is usually wrong
no definitive/logical rules

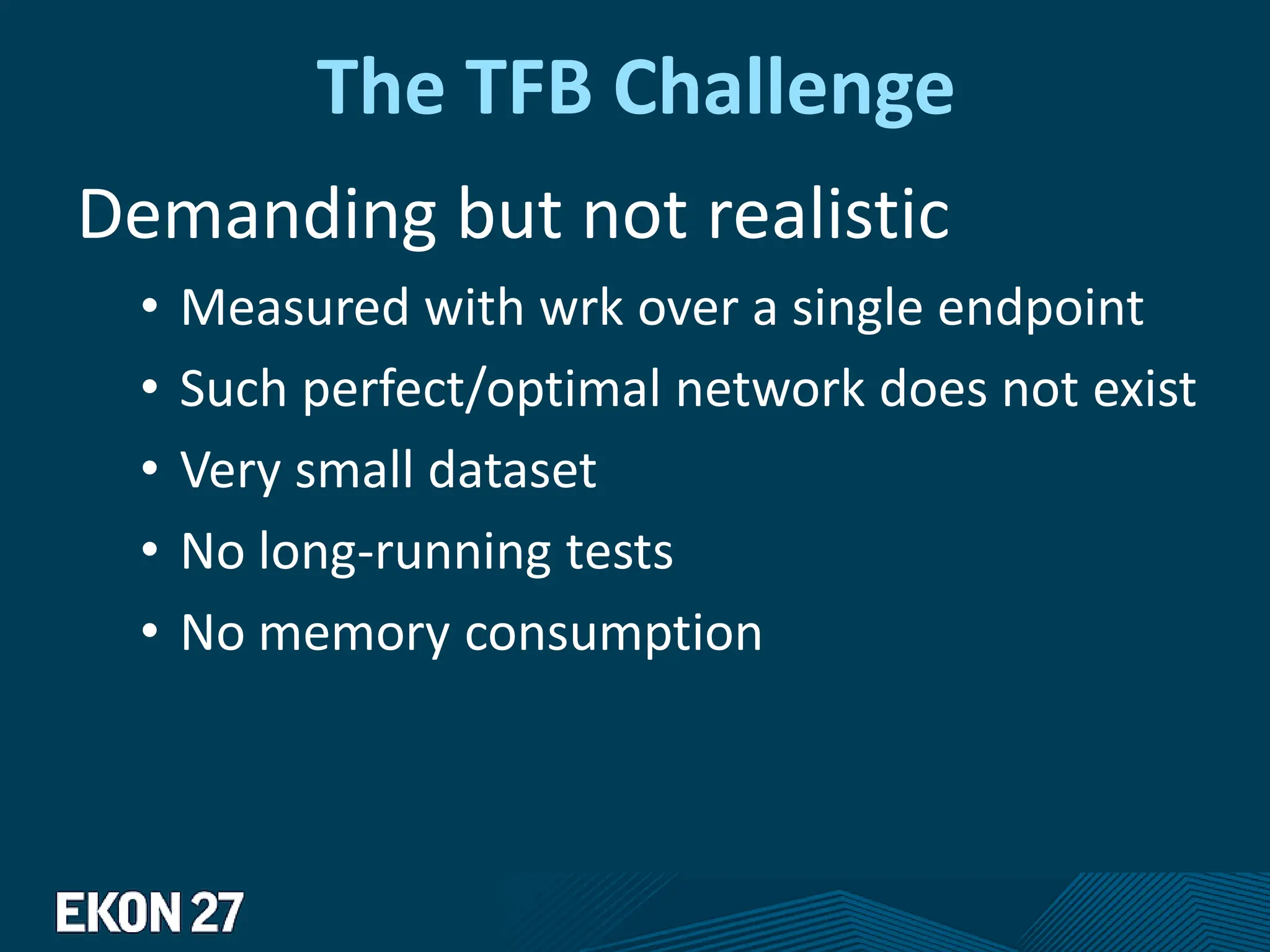

The TFB Challenge
Demanding but not realistic
• Measured with wrk over a single endpoint
• Such perfect/optimal network does not exist
• Very small dataset
• No long-running tests
• No memory consumption

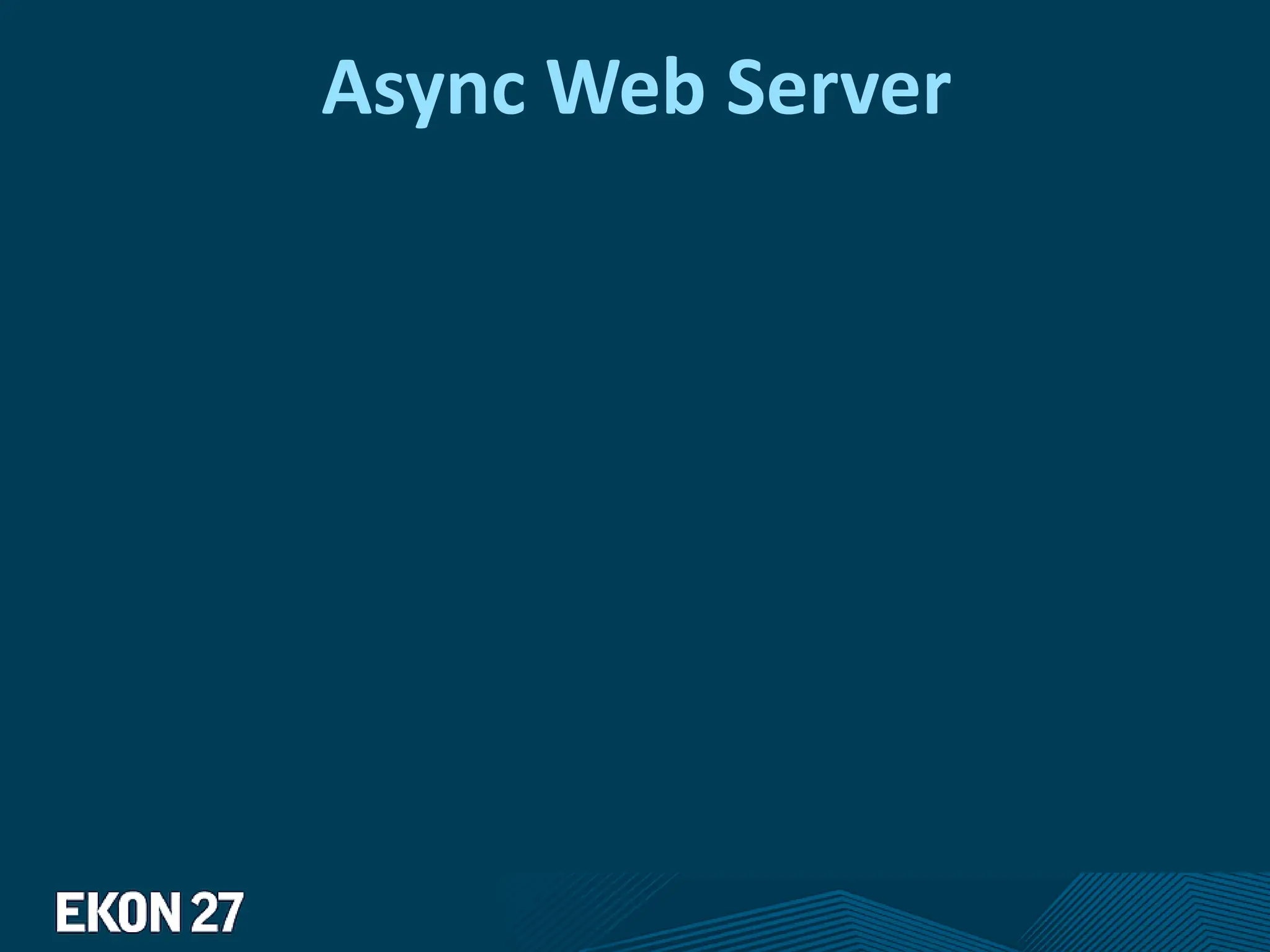

Async Web Server

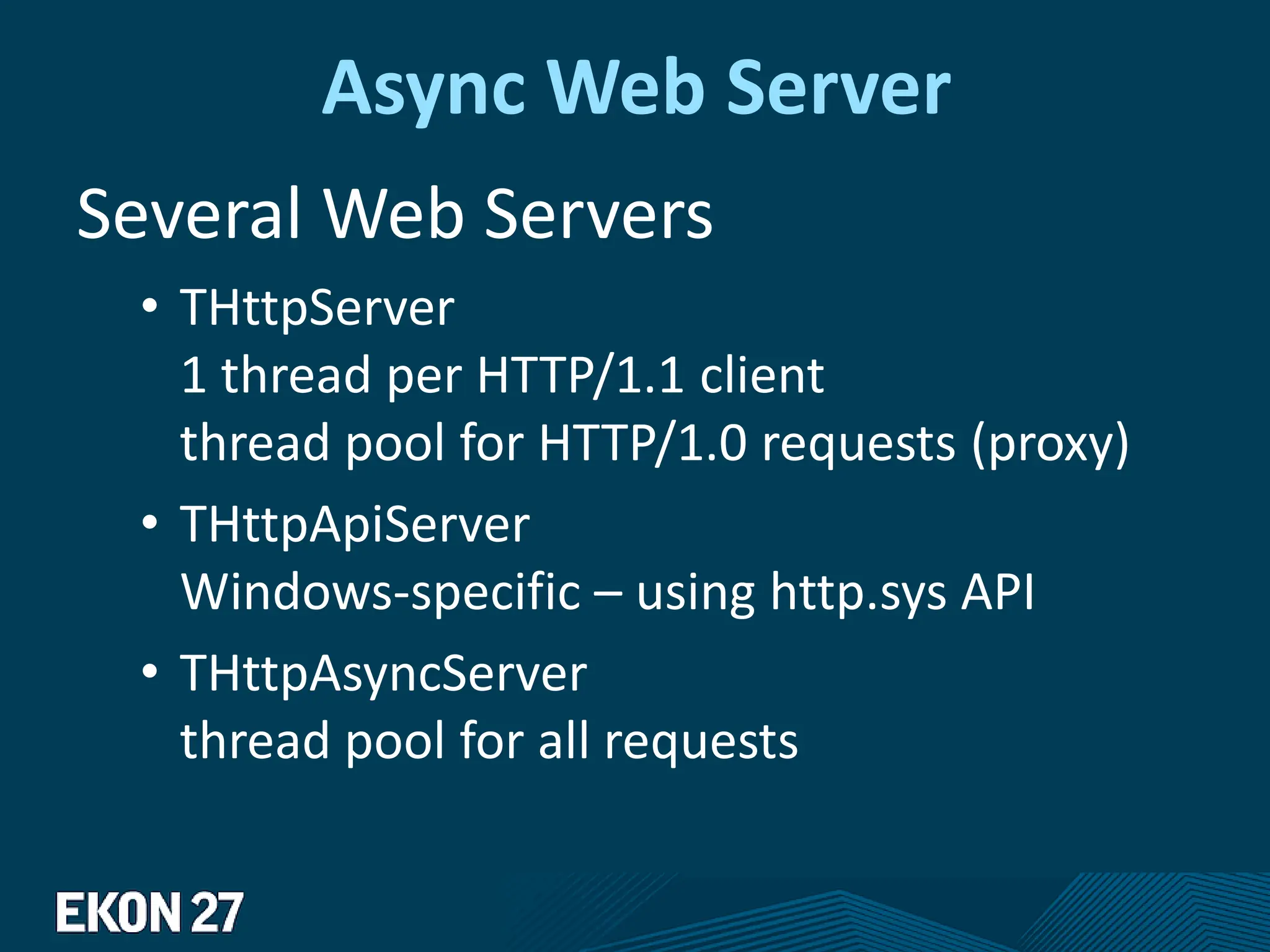

Async Web Server
Several Web Servers
• THttpServer
1 thread per HTTP/1.1 client
thread pool for HTTP/1.0 requests (proxy)
• THttpApiServer
Windows-specific – using http.sys API
• THttpAsyncServer
thread pool for all requests

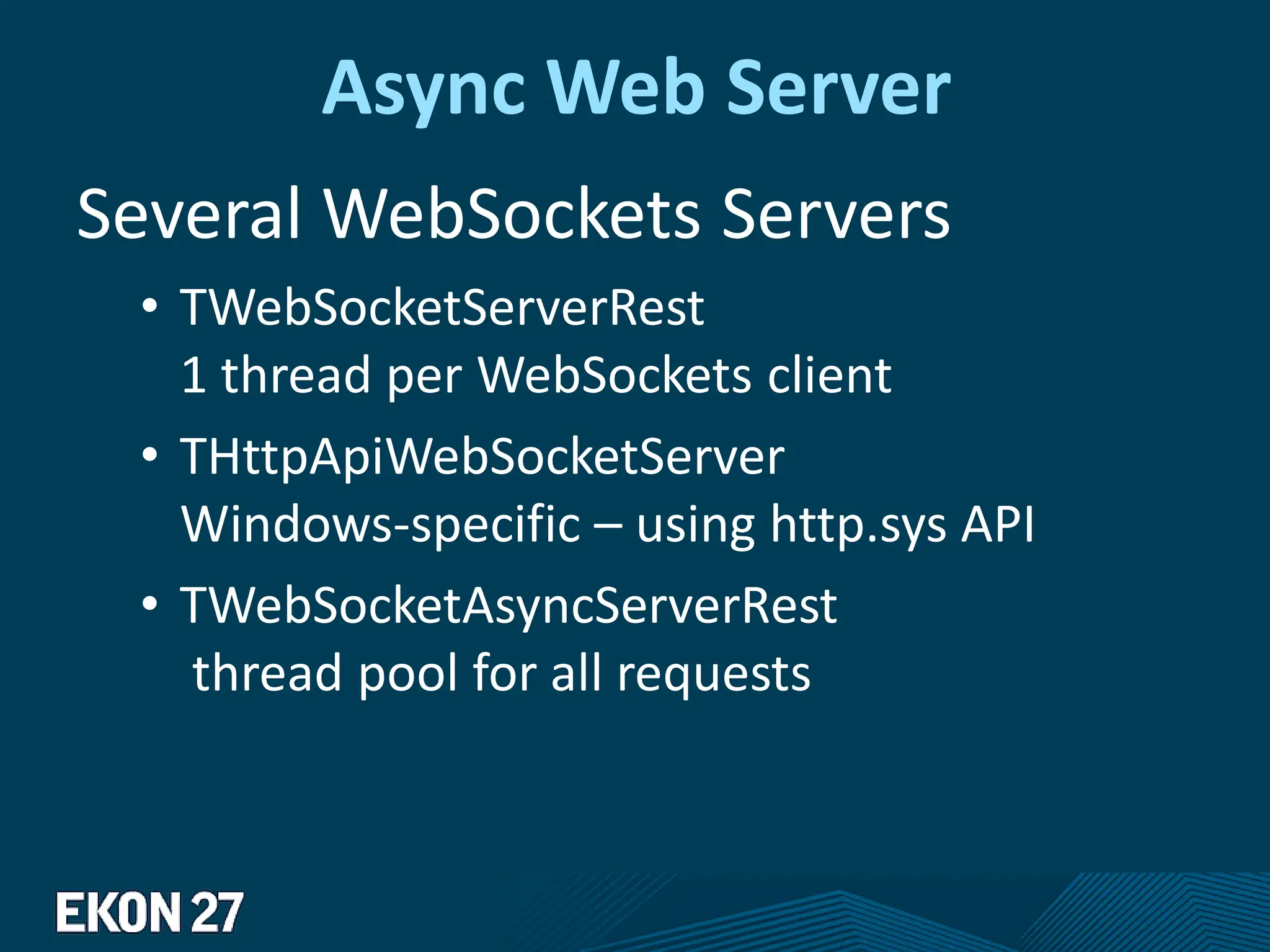

Async Web Server
Several WebSockets Servers
• TWebSocketServerRest
1 thread per WebSockets client
• THttpApiWebSocketServer
Windows-specific – using http.sys API
• TWebSocketAsyncServerRest
thread pool for all requests

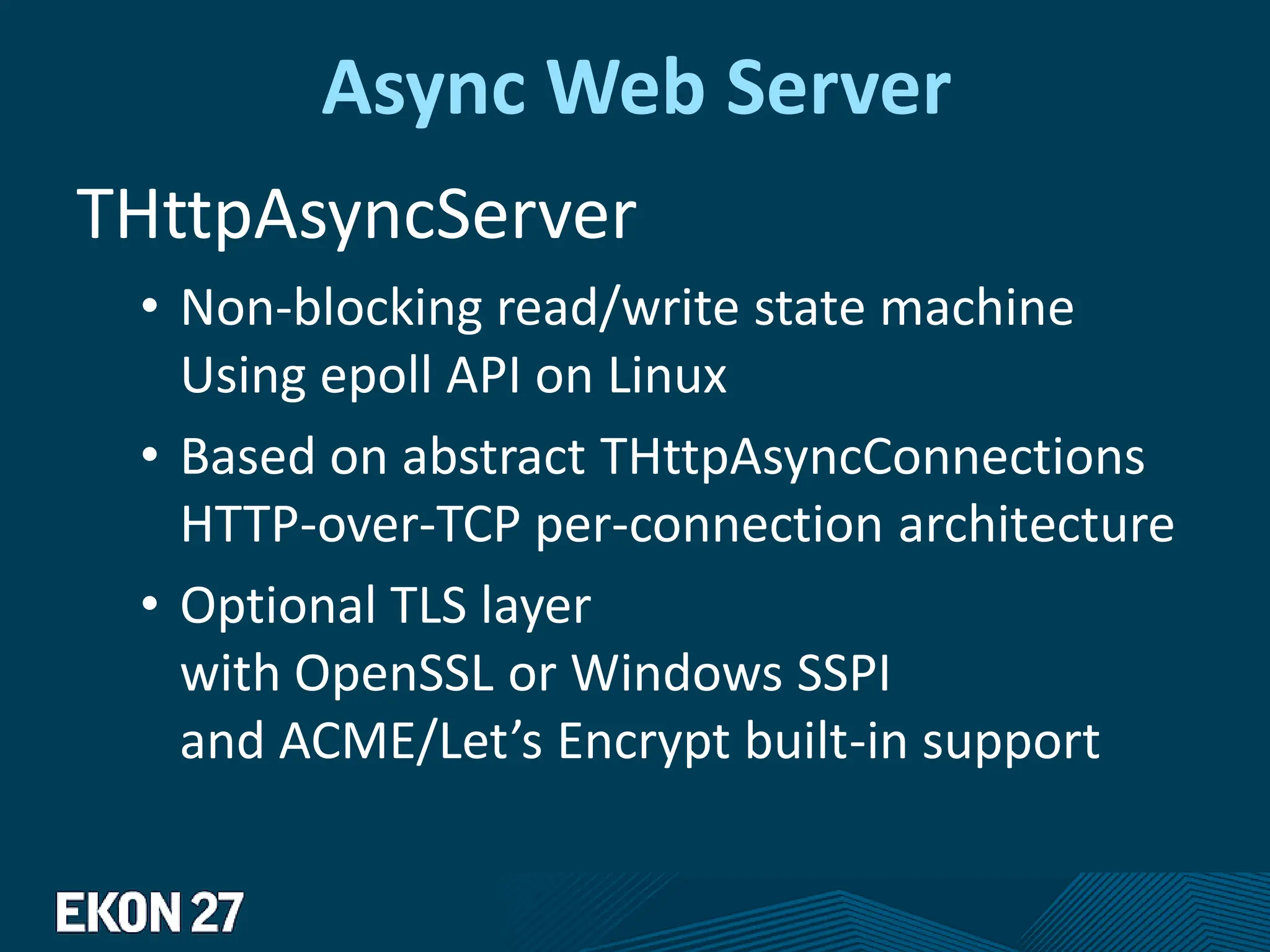

Async Web Server
THttpAsyncServer
• Non-blocking read/write state machine
Using epoll API on Linux
• Based on abstract THttpAsyncConnections
HTTP-over-TCP per-connection architecture
• Optional TLS layer
with OpenSSL or Windows SSPI
and ACME/Let’s Encrypt built-in support

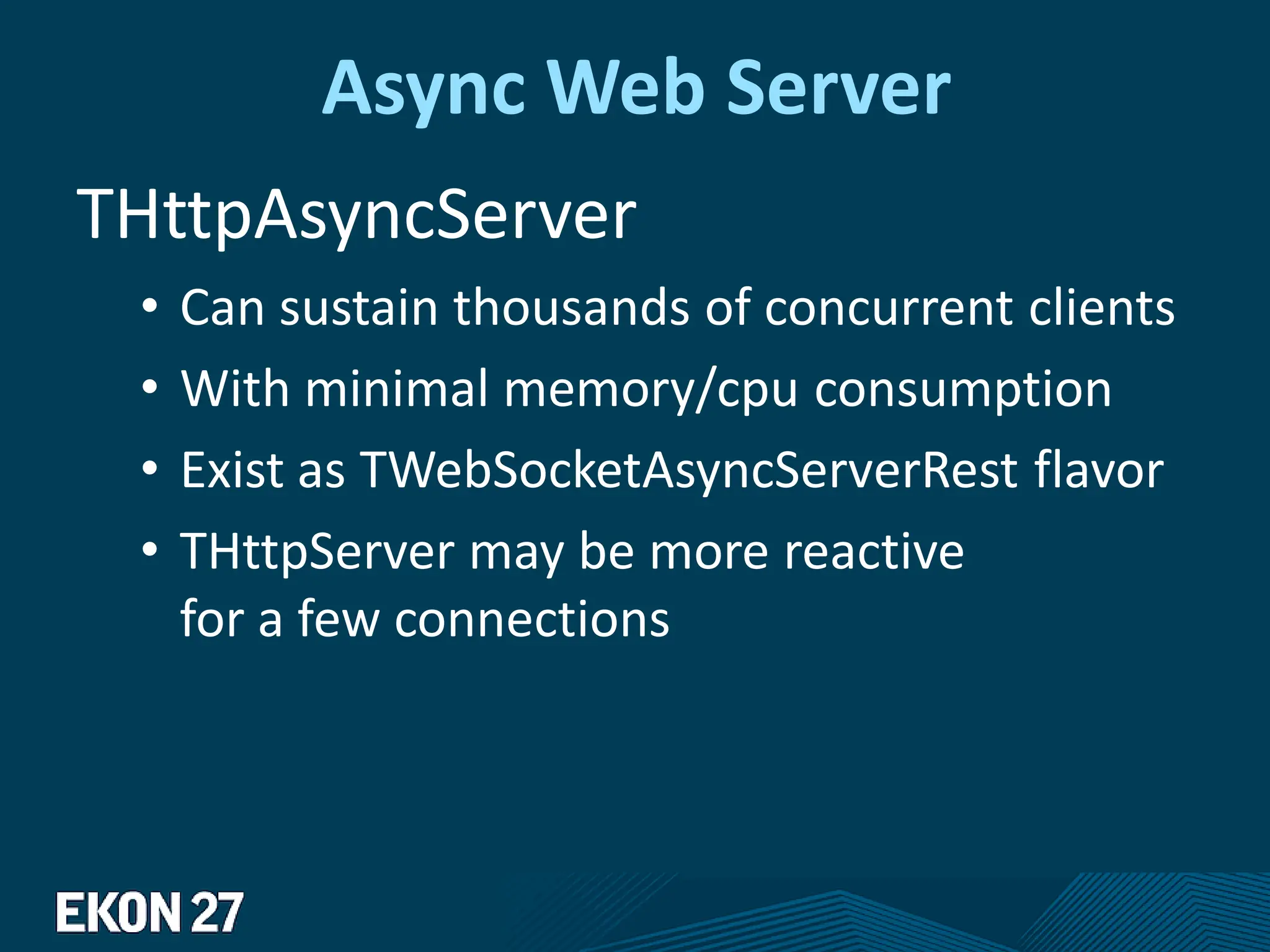

Async Web Server
THttpAsyncServer
• Can sustain thousands of concurrent clients
• With minimal memory/cpu consumption
• Exist as TWebSocketAsyncServerRest flavor
• THttpServer may be more reactive
for a few connections
Async Web Server
THttpAsyncServer
• Responses are computed in a thread pool
with regular blocking end-user code
• Optionally returned out-of-order
e.g. for asynchronous DB operations
• Only wake up threads if needed
to avoid syscalls on small queries

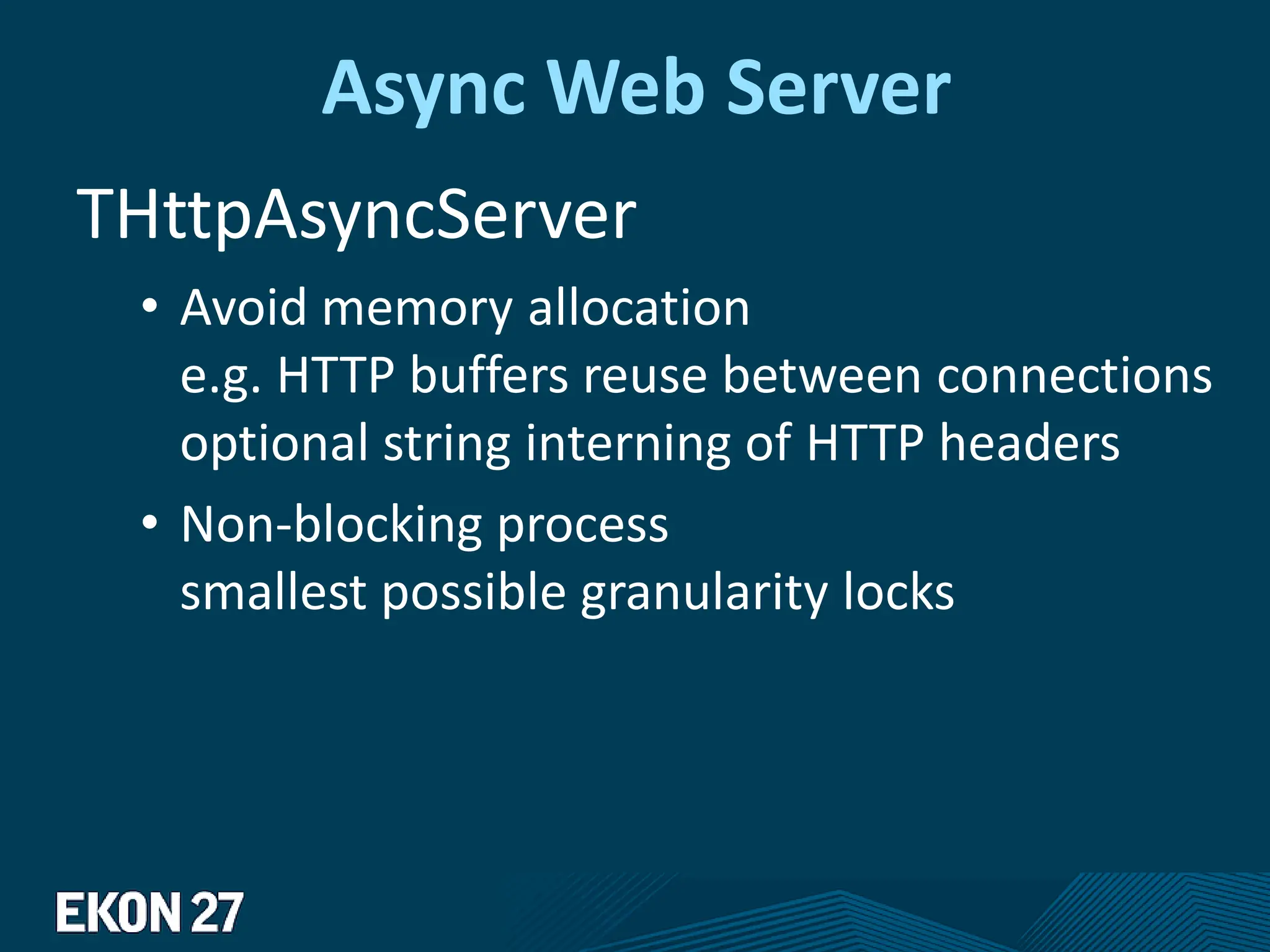

Async Web Server
THttpAsyncServer
• Avoid memory allocation
e.g. HTTP buffers reuse between connections
optional string interning of HTTP headers
• Non-blocking process
smallest possible granularity locks

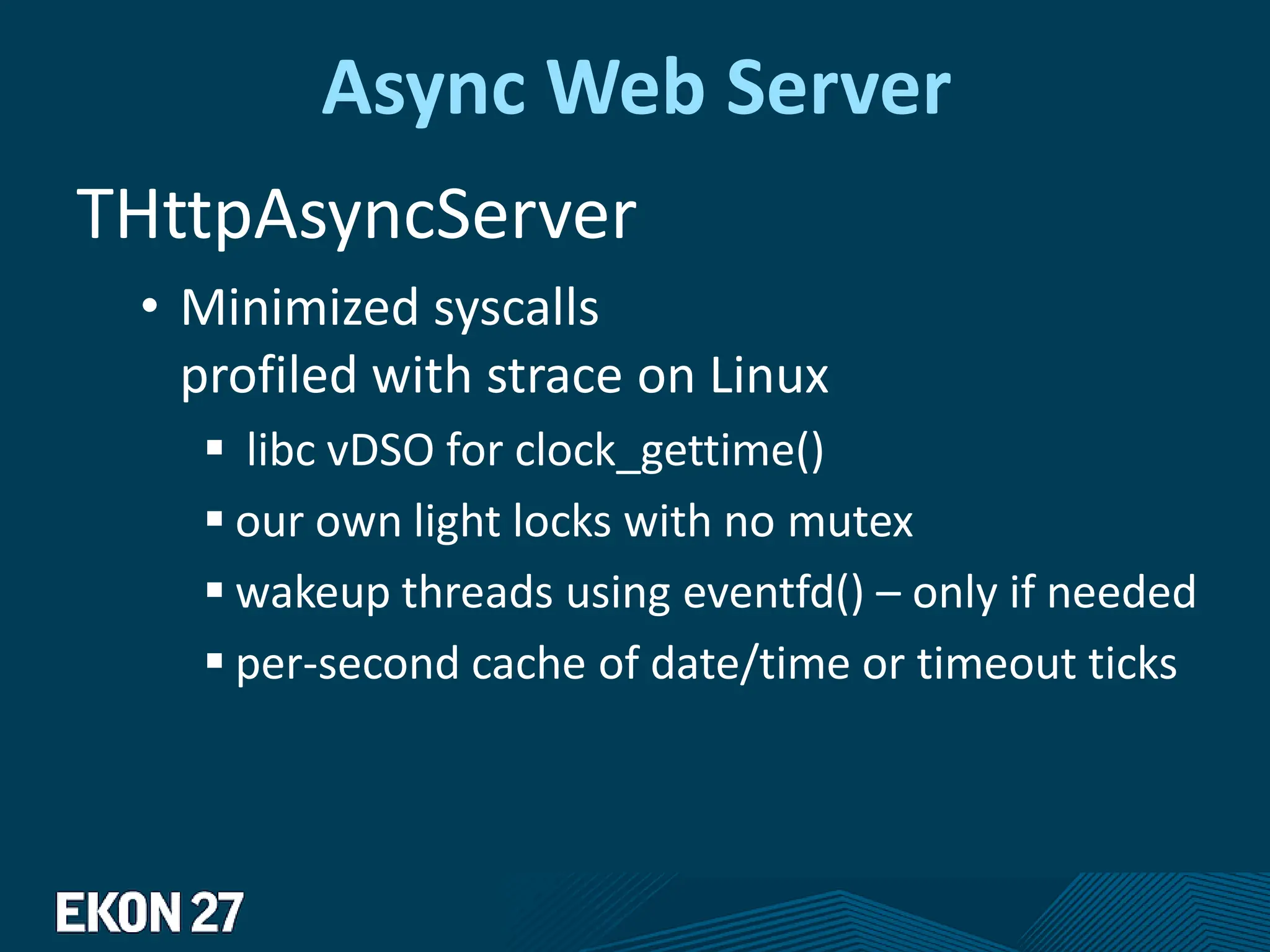

Async Web Server
THttpAsyncServer
• Minimized syscalls
profiled with strace on Linux
 libc vDSO for clock_gettime()
 our own light locks with no mutex
 wakeup threads using eventfd() – only if needed
 per-second cache of date/time or timeout ticks

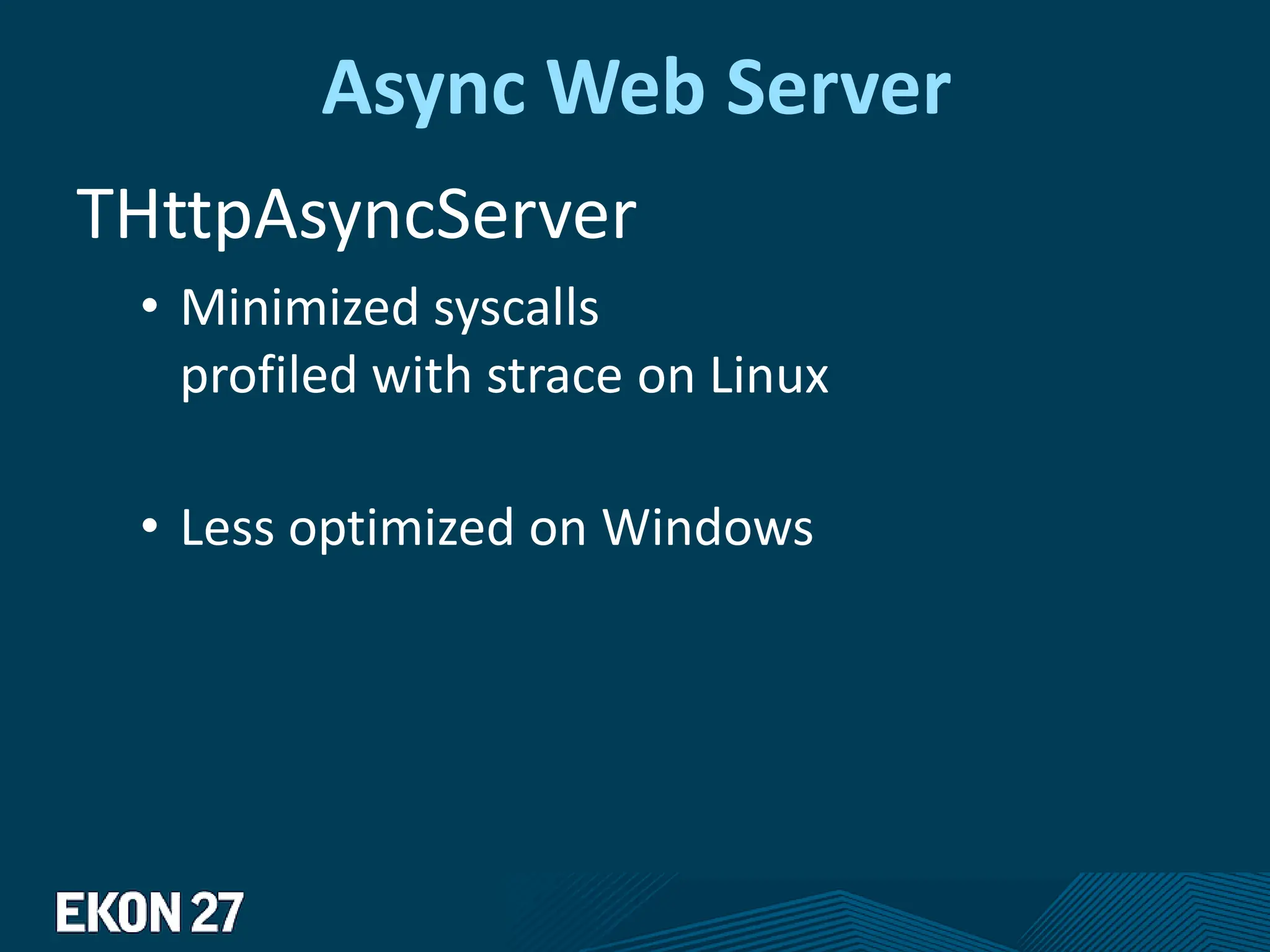

Async Web Server
THttpAsyncServer
• Minimized syscalls
profiled with strace on Linux
• Less optimized on Windows

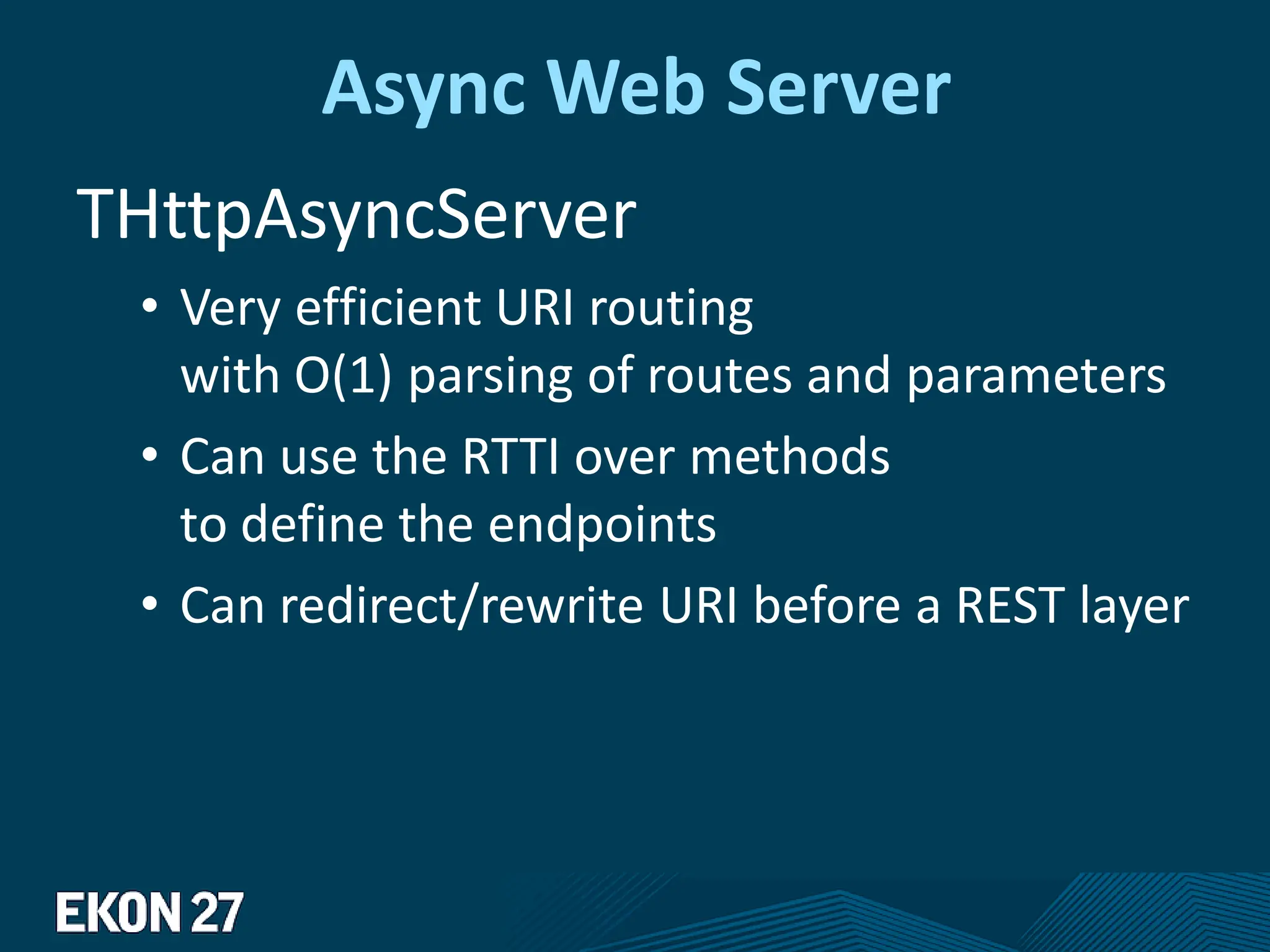

Async Web Server
THttpAsyncServer
• Very efficient URI routing
with O(1) parsing of routes and parameters
• Can use the RTTI over methods
to define the endpoints
• Can redirect/rewrite URI before a REST layer

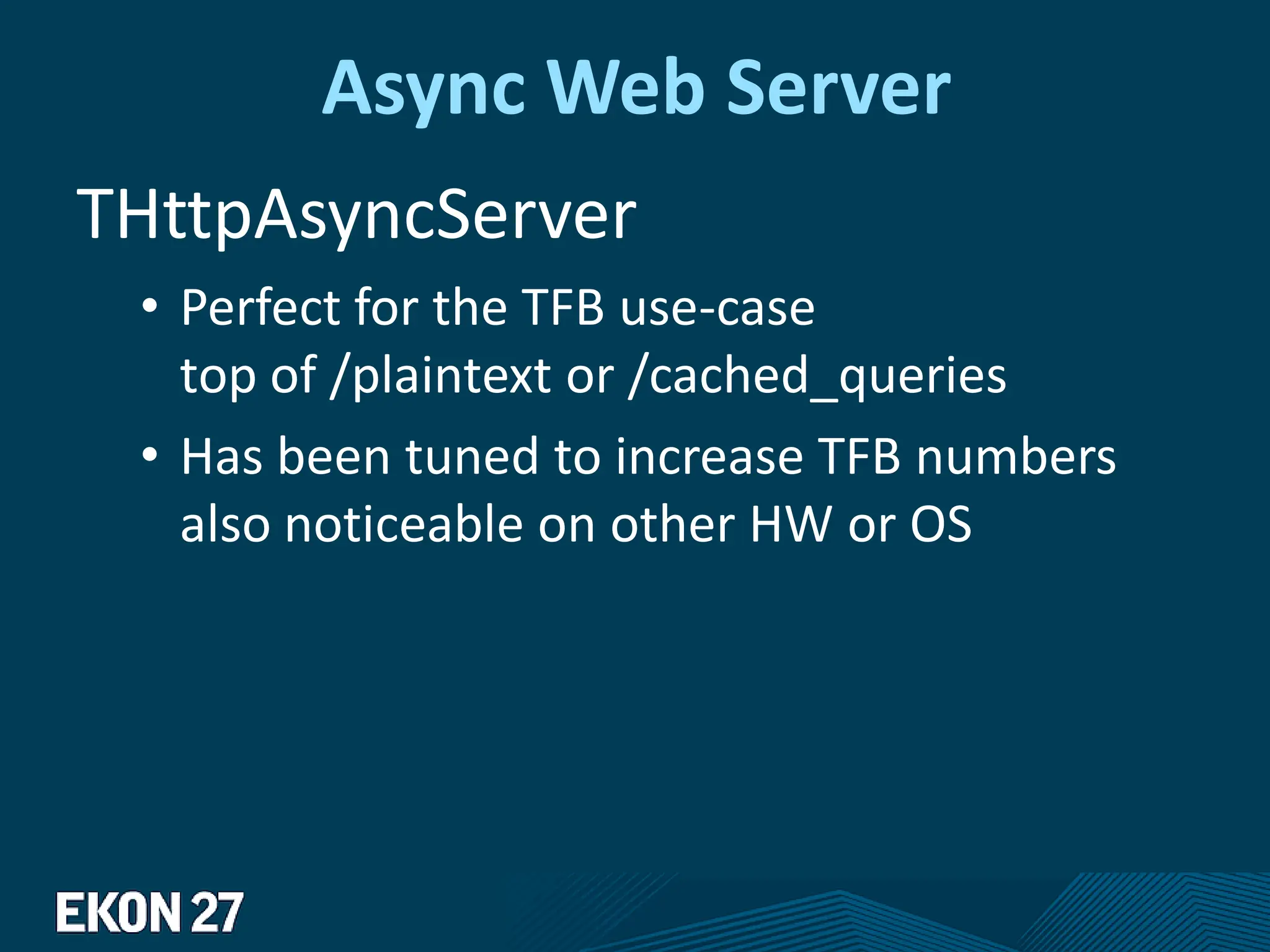

Async Web Server
THttpAsyncServer
• Perfect for the TFB use-case
top of /plaintext or /cached_queries
• Has been tuned to increase TFB numbers
also noticeable on other HW or OS

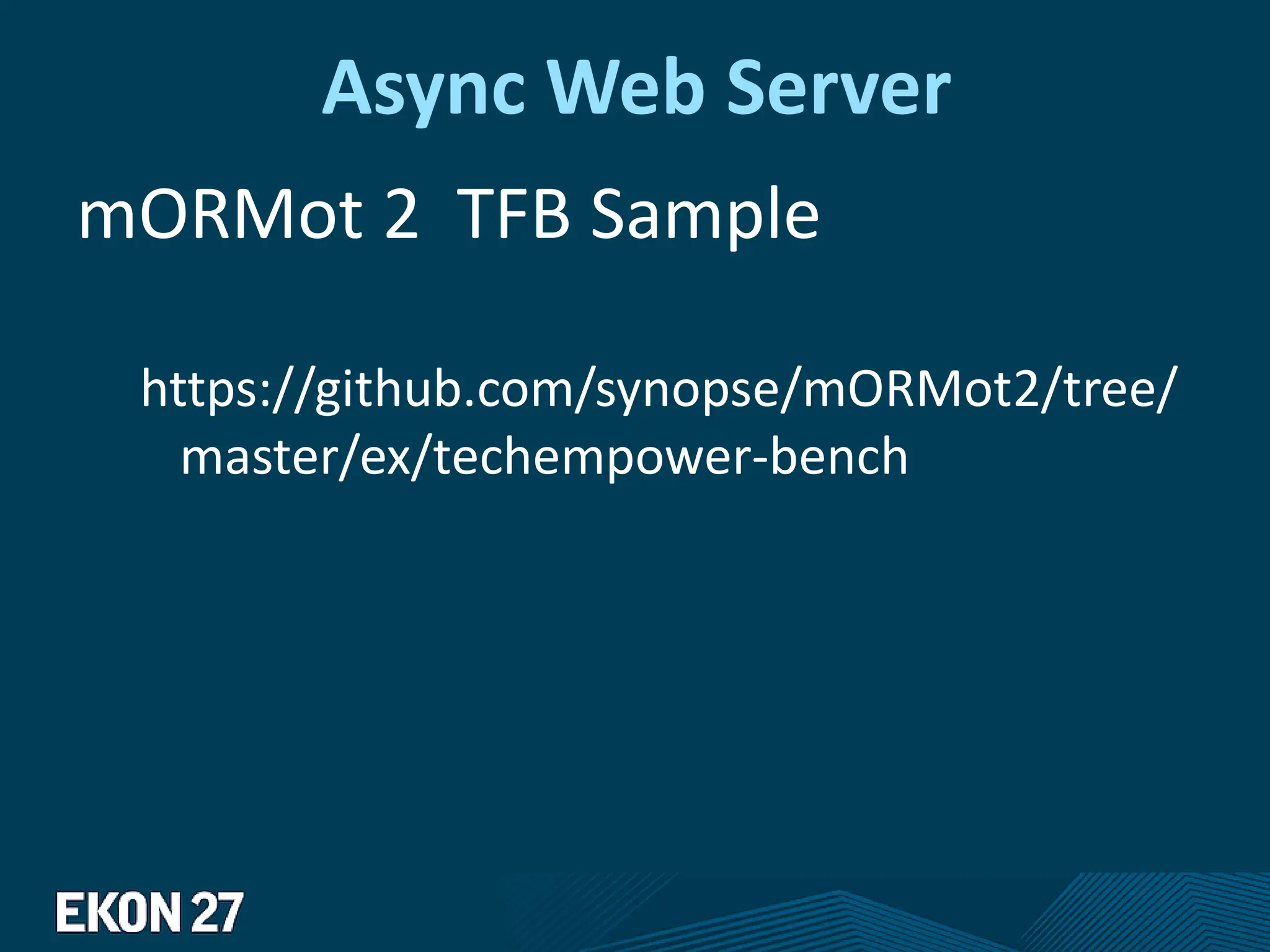

Async Web Server
mORMot 2 TFB Sample
https://github.com/synopse/mORMot2/tree/
master/ex/techempower-bench
Async Database Access

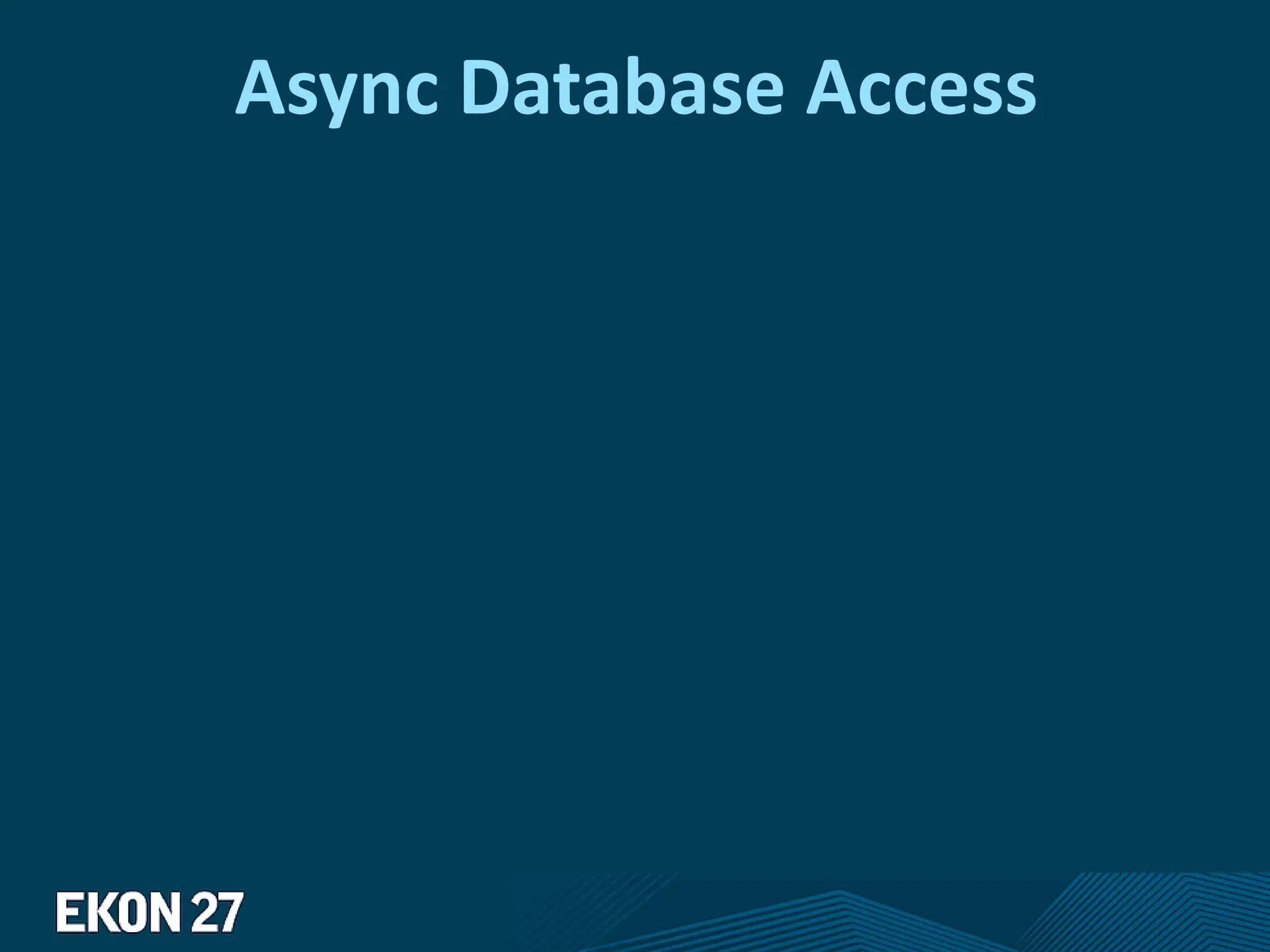

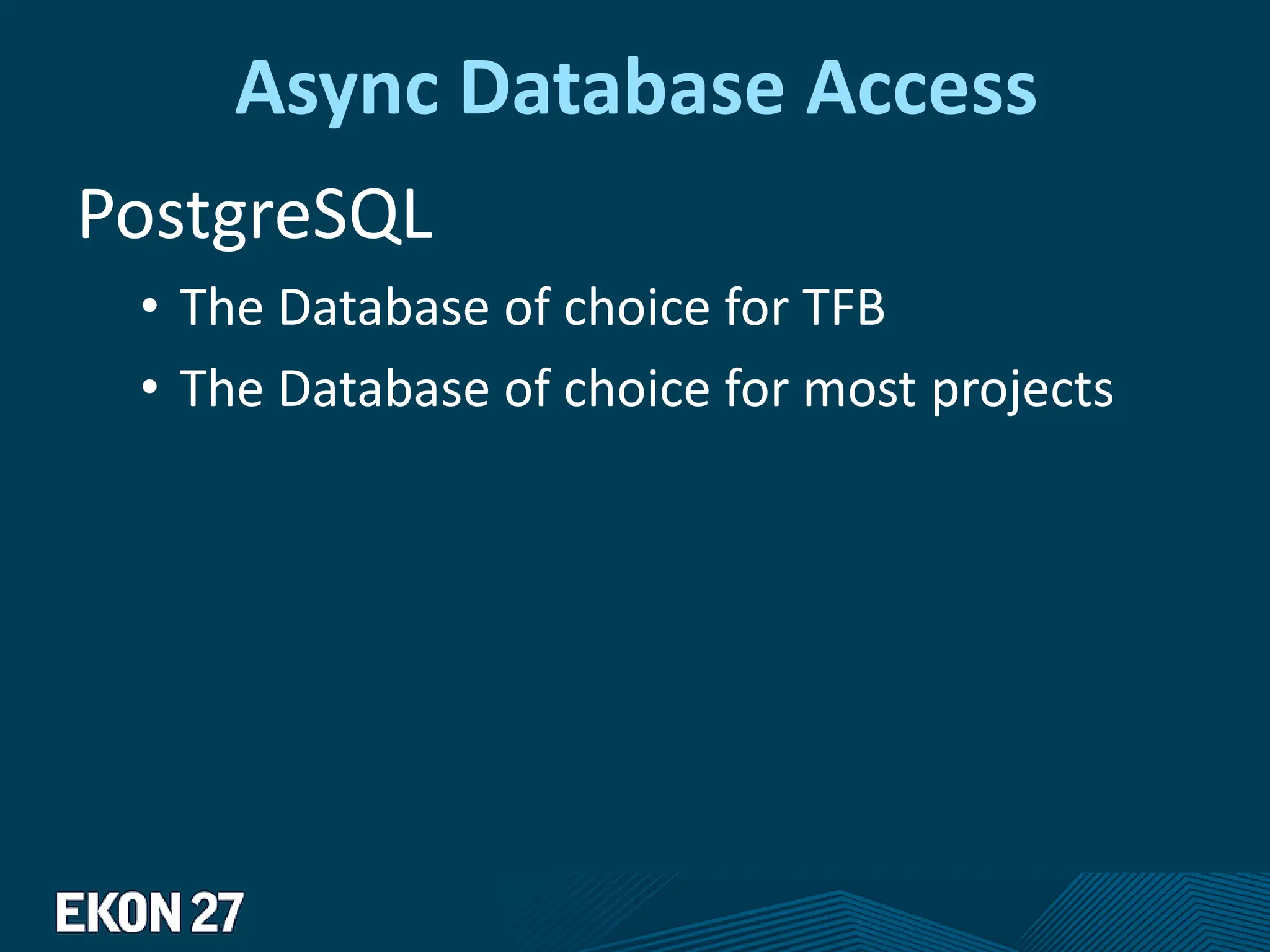

Async Database Access
PostgreSQL
• The Database of choice for TFB
• The Database of choice for most projects

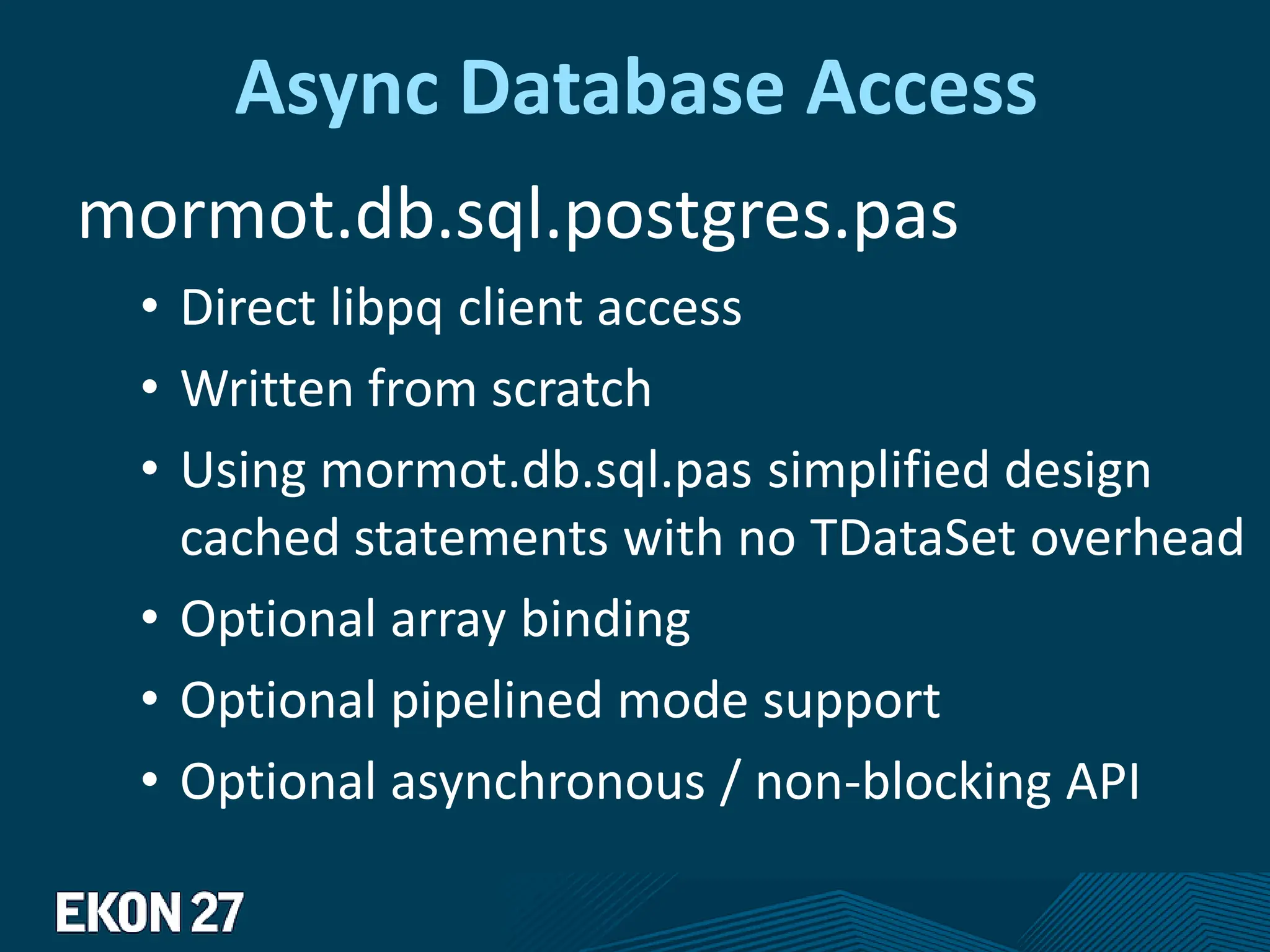

Async Database Access
mormot.db.sql.postgres.pas
• Direct libpq client access
• Written from scratch
• Using mormot.db.sql.pas simplified design
cached statements with no TDataSet overhead
• Optional array binding
• Optional pipelined mode support
• Optional asynchronous / non-blocking API

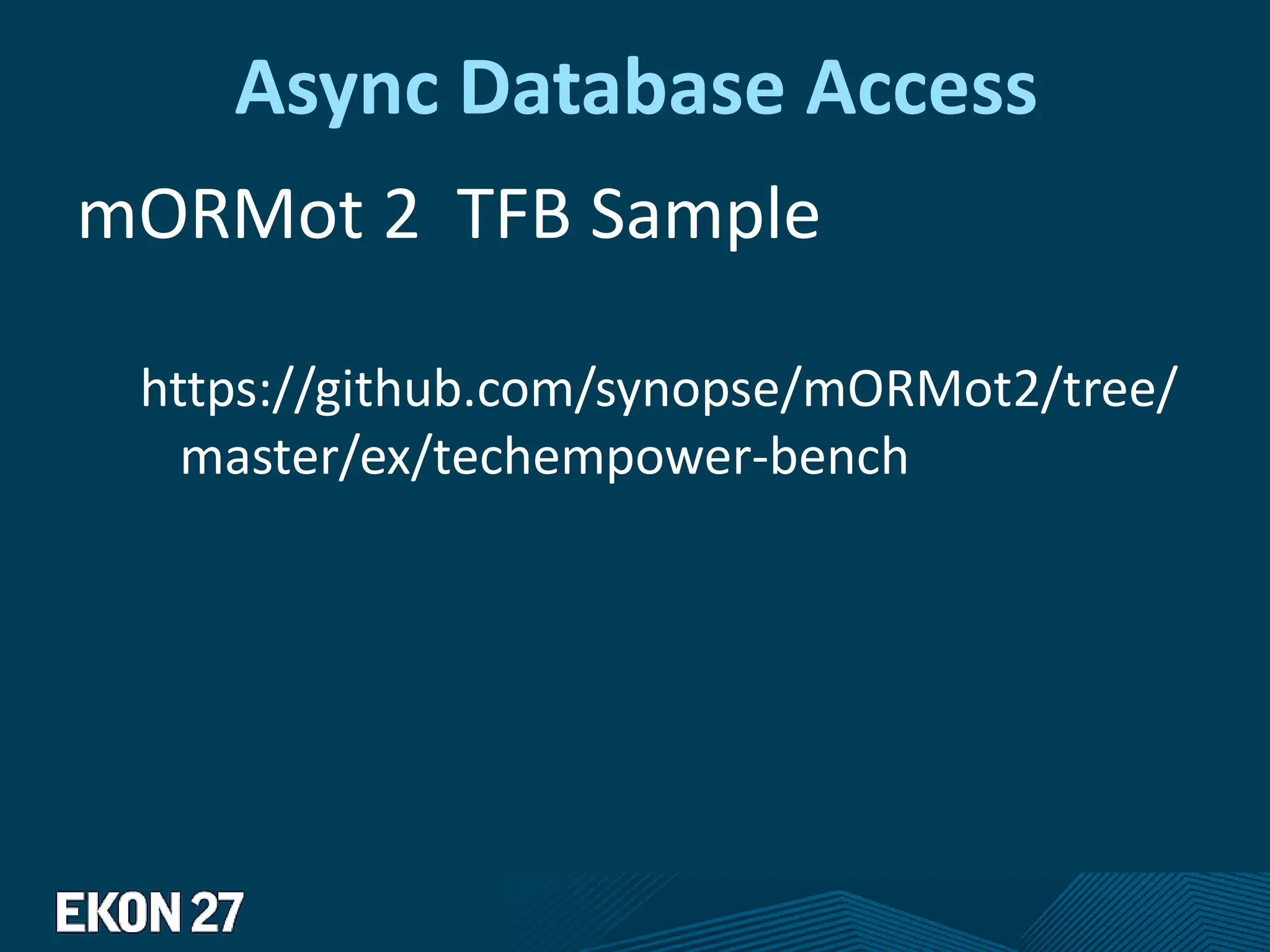

Async Database Access
mORMot 2 TFB Sample
https://github.com/synopse/mORMot2/tree/
master/ex/techempower-bench

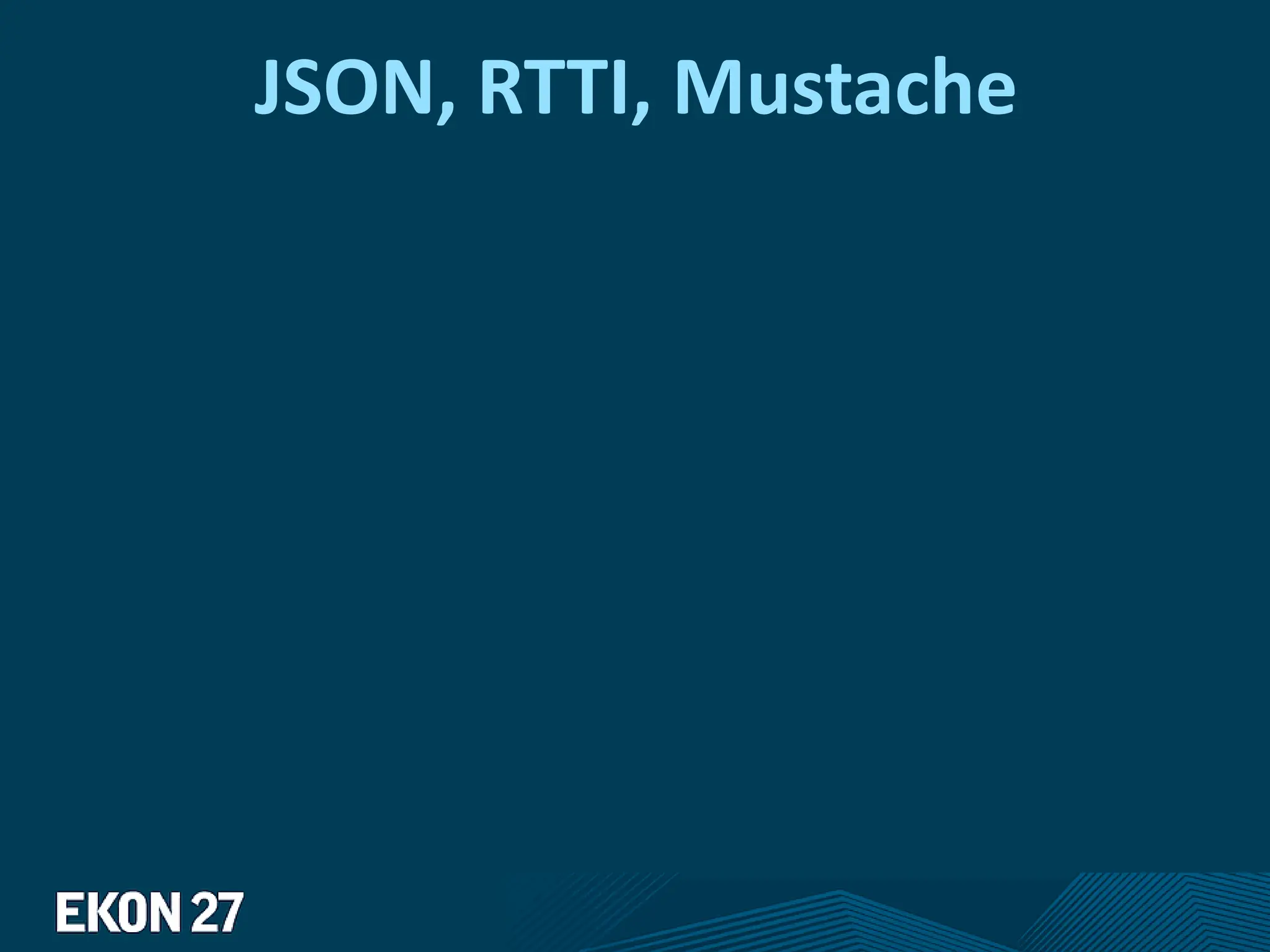

JSON, RTTI, Mustache

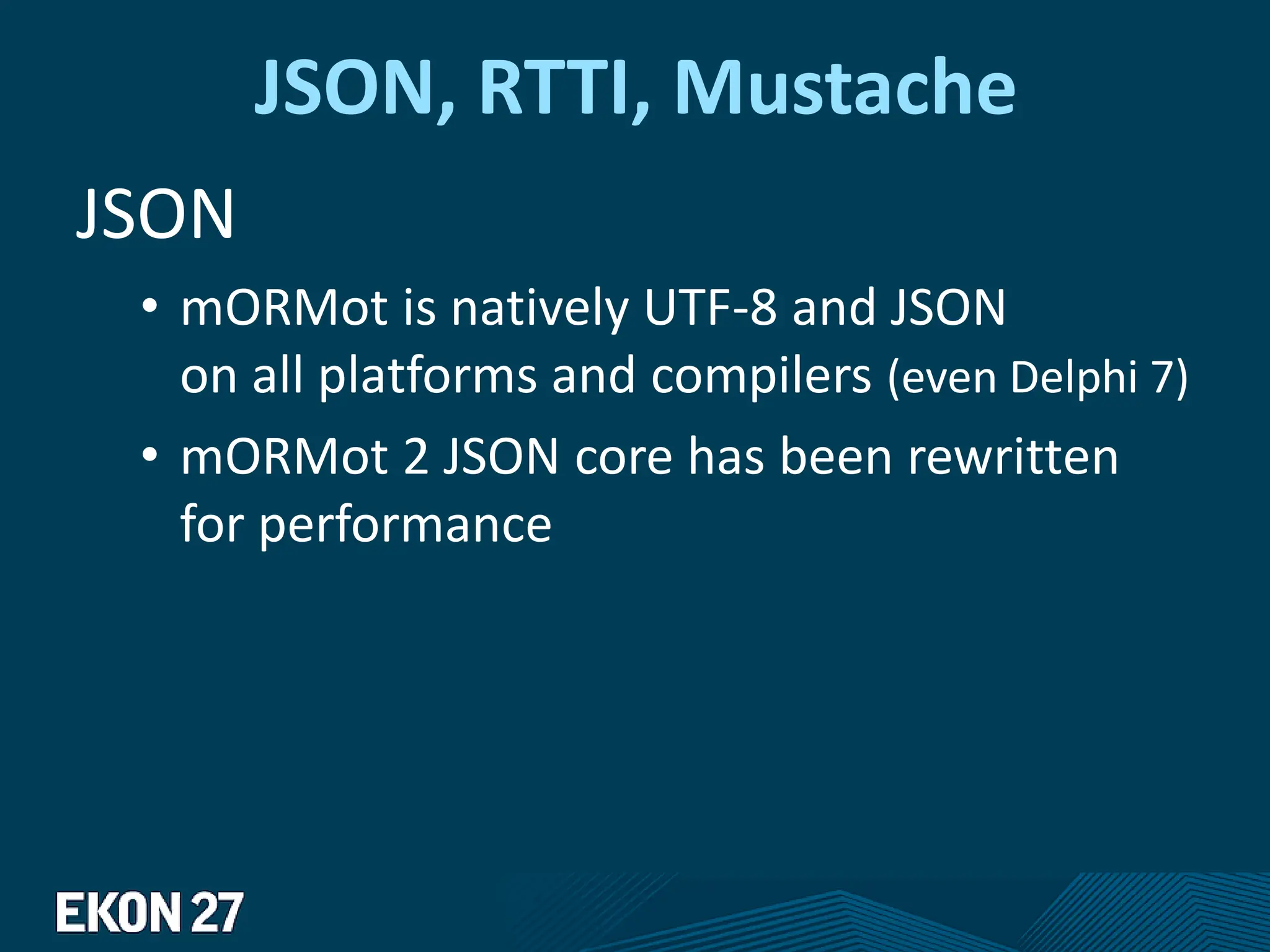

JSON, RTTI, Mustache
JSON
• mORMot is natively UTF-8 and JSON
on all platforms and compilers (even Delphi 7)
• mORMot 2 JSON core has been rewritten
for performance

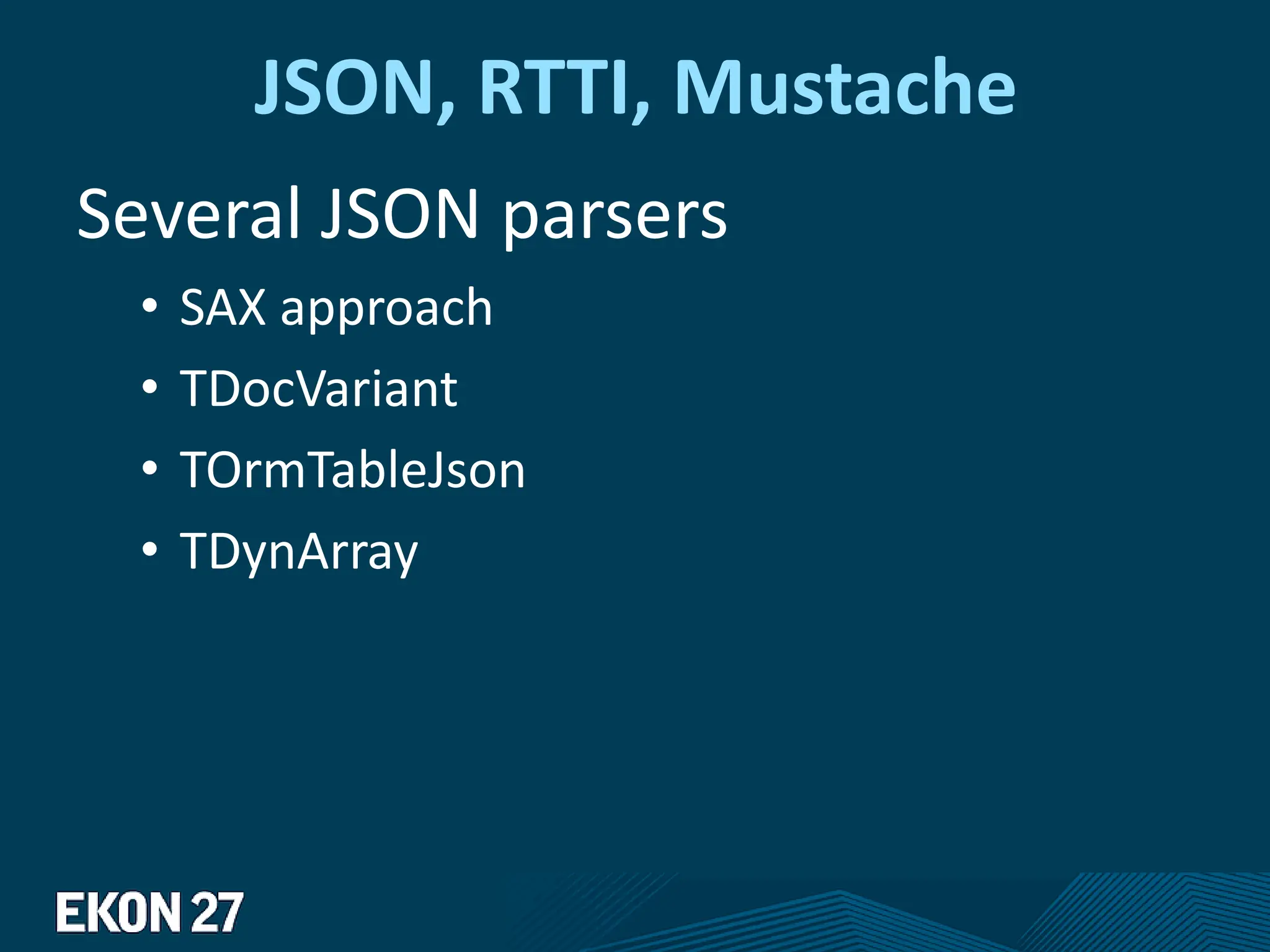

JSON, RTTI, Mustache
Several JSON parsers
• SAX approach
• TDocVariant
• TOrmTableJson
• TDynArray

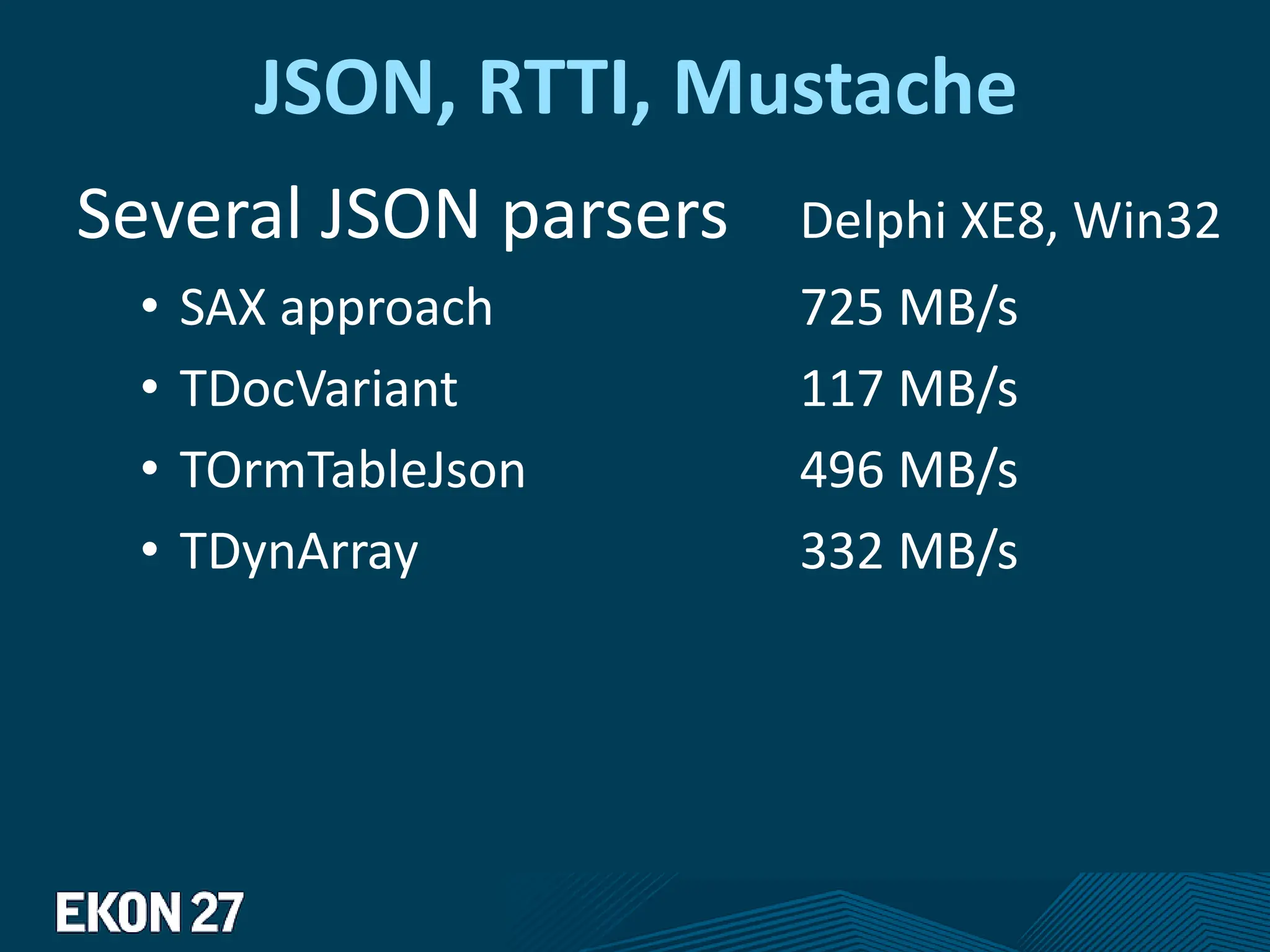

JSON, RTTI, Mustache
Several JSON parsers Delphi XE8, Win32
• SAX approach 725 MB/s
• TDocVariant 117 MB/s
• TOrmTableJson 496 MB/s
• TDynArray 332 MB/s

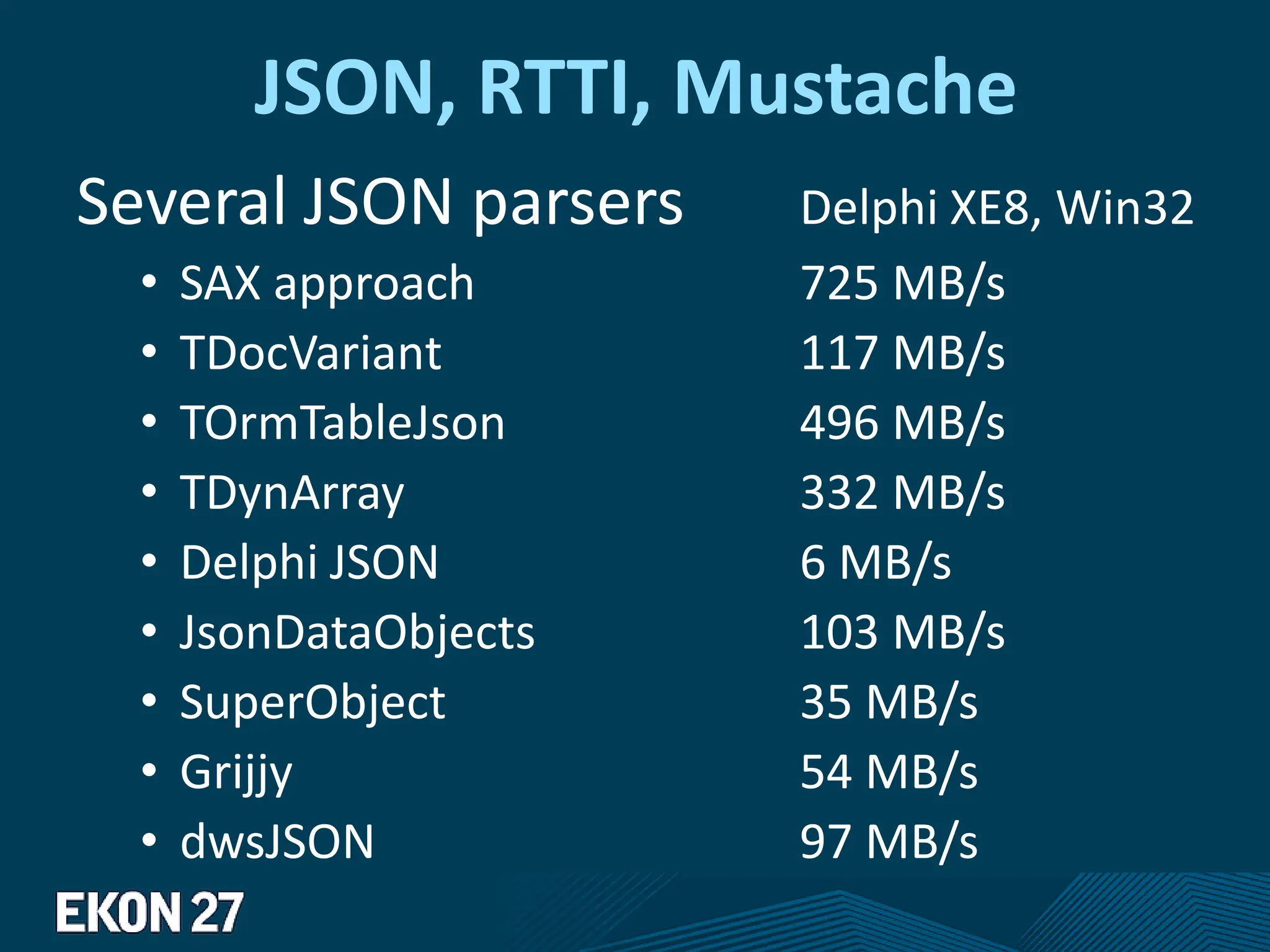

JSON, RTTI, Mustache
Several JSON parsers Delphi XE8, Win32
• SAX approach 725 MB/s
• TDocVariant 117 MB/s
• TOrmTableJson 496 MB/s
• TDynArray 332 MB/s
• Delphi JSON 6 MB/s
• JsonDataObjects 103 MB/s
• SuperObject 35 MB/s
• Grijjy 54 MB/s
• dwsJSON 97 MB/s

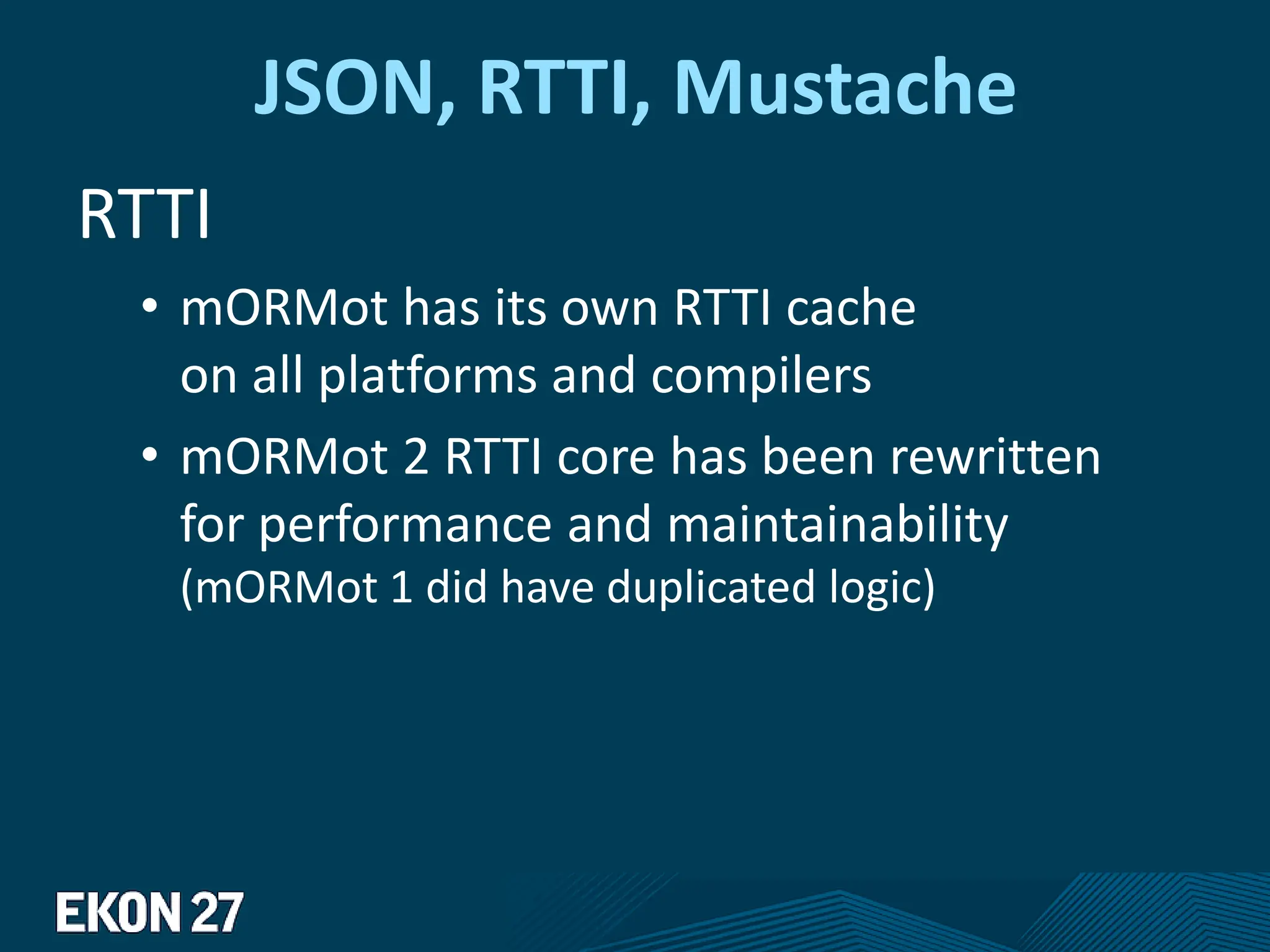

JSON, RTTI, Mustache
RTTI
• mORMot has its own RTTI cache
on all platforms and compilers
• mORMot 2 RTTI core has been rewritten
for performance and maintainability
(mORMot 1 did have duplicated logic)

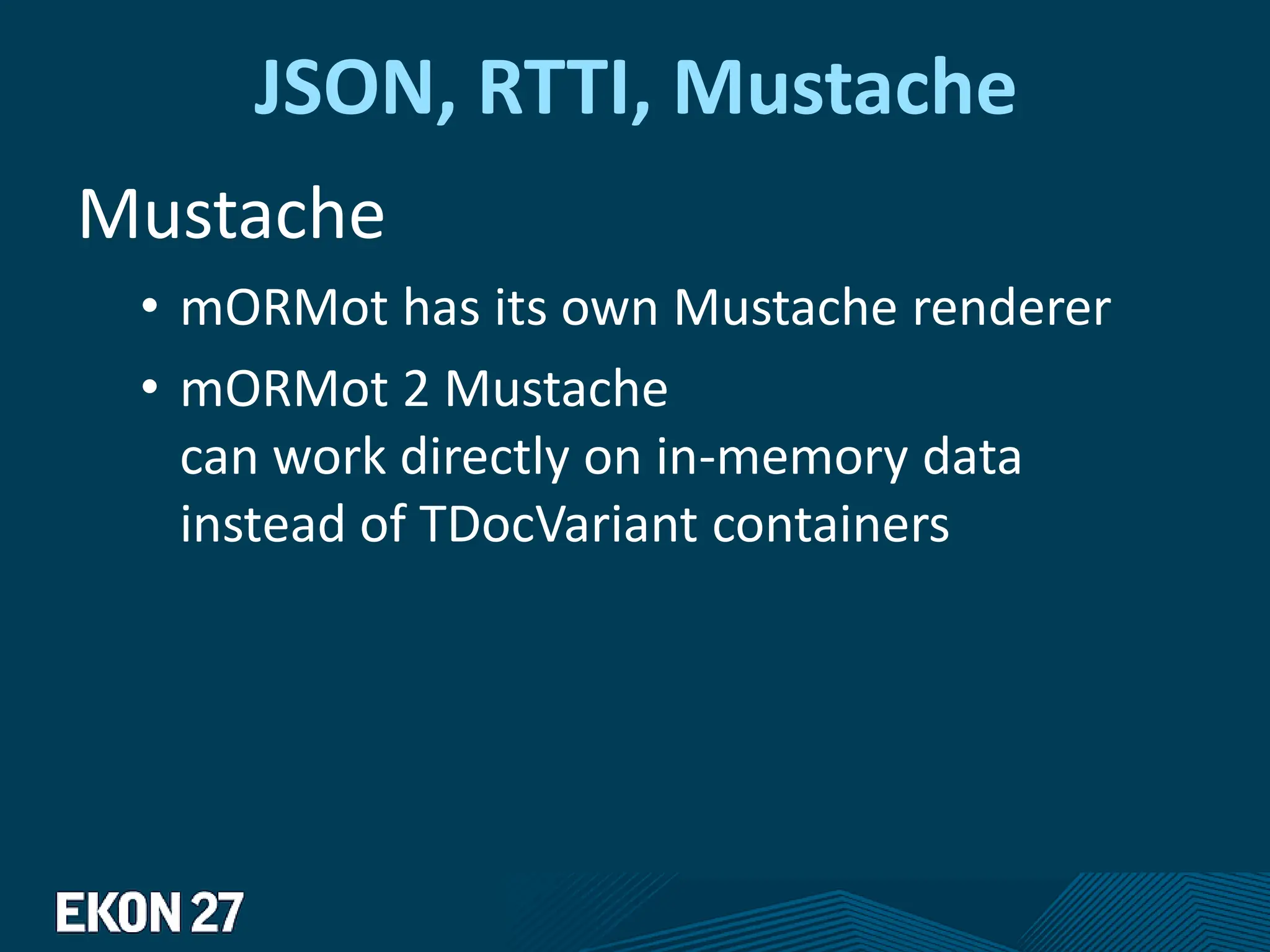

JSON, RTTI, Mustache
Mustache
• mORMot has its own Mustache renderer
• mORMot 2 Mustache
can work directly on in-memory data
instead of TDocVariant containers

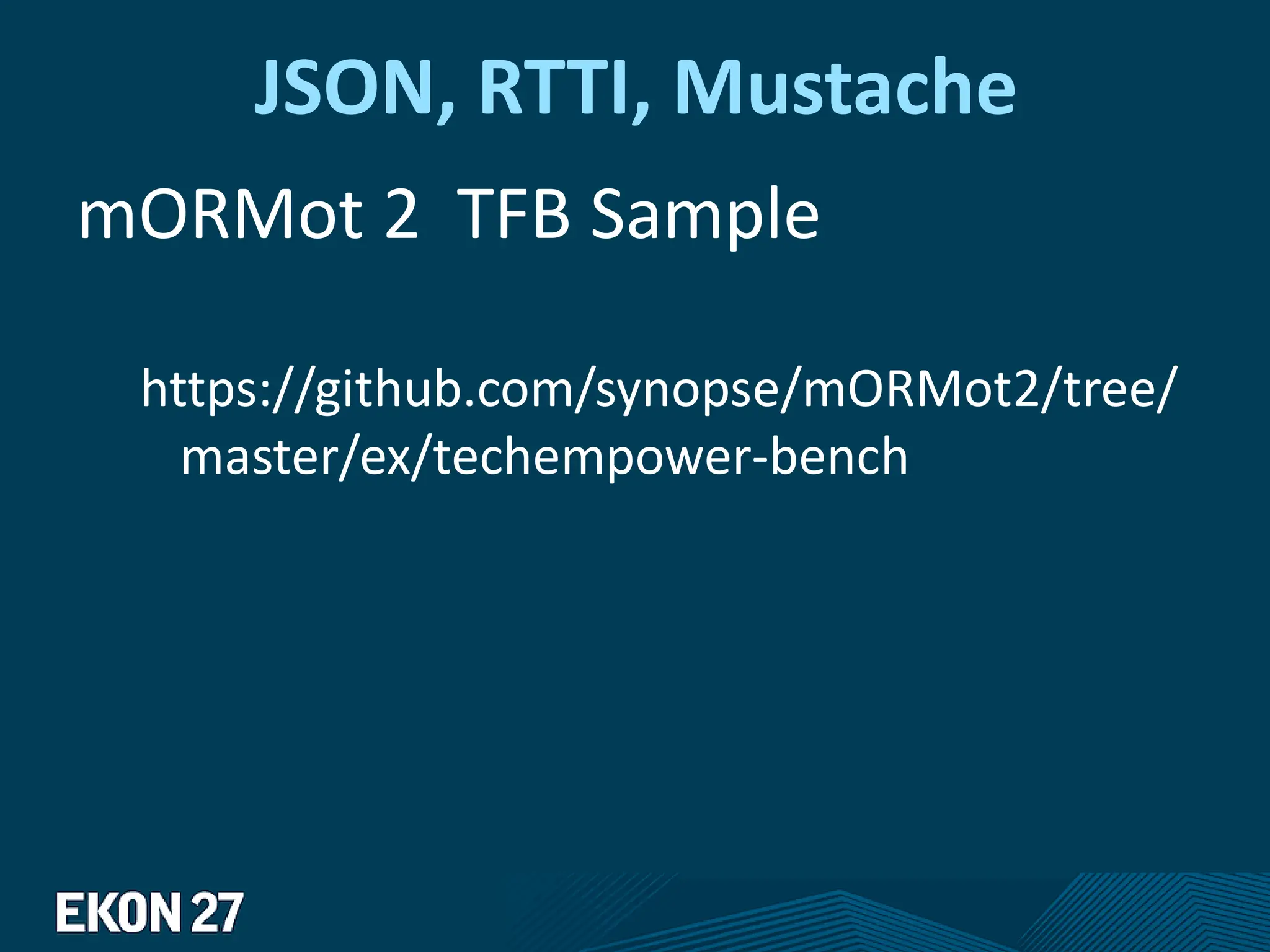

JSON, RTTI, Mustache
mORMot 2 TFB Sample
https://github.com/synopse/mORMot2/tree/
master/ex/techempower-bench
Frameworks Tuning
Questions? Wishes?
Opinions? Reactions?
No Marmots Were Harmed in the Making of This Session
