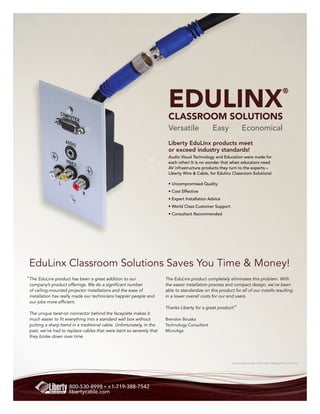

1. EDULINX
®
CLASSROOM SOLUTIONS
Versatile Easy Economical
Liberty EduLinx products meet
or exceed industry standards!
Audio Visual Technology and Education were made for
each other! It is no wonder that when educators need
AV infrastructure products they turn to the experts –
Liberty Wire & Cable, for Edulinx Classroom Solutions!
• Uncompromised Quality
• Cost Effective
• Expert Installation Advice
• World Class Customer Support
• Consultant Recommended
EduLinx Classroom Solutions Saves You Time & Money!
“ The EduLinx product has been a great addition to our The EduLinx product completely eliminates this problem. With
company’s product offerings. We do a significant number the easier installation process and compact design, we’ve been
of ceiling-mounted projector installations and the ease of able to standardize on this product for all of our installs resulting
installation has really made our technicians happier people and in a lower overall costs for our end users.
our jobs more efficient.
Thanks Liberty for a great product!”
The unique twist-on connector behind the faceplate makes it
much easier to fit everything into a standard wall box without Brendon Bouska
putting a sharp bend in a traditional cable. Unfortunately, in the Technology Consultant
past, we’ve had to replace cables that were bent so severely that MicroAge
they broke down over time.
© Liberty Wire & Cable, 2010 • Code 1001edupdf • rev. 01-18-10
800-530-8998 • +1-719-388-7542
libertycable.com

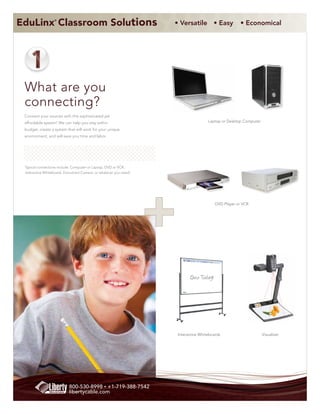

2. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
What are you
connecting?
Connect your sources with this sophisticated yet
affordable system! We can help you stay within Laptop or Desktop Computer
budget, create a system that will work for your unique
environment, and will save you time and labor.
Typical connections include: Computer or Laptop, DVD or VCR,
Interactive Whiteboard, Document Camera, or whatever you need!
DVD Player or VCR
Interactive Whiteboards Visualizer
800-530-8998 • +1-719-388-7542
libertycable.com

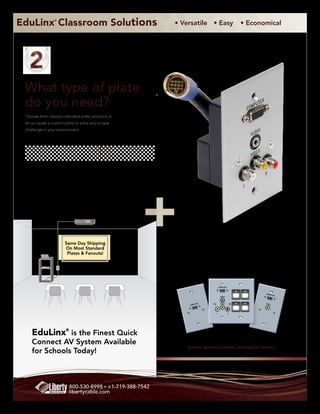

3. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
What type of plate
do you need?
Choose from Liberty’s standard plate solutions or
let us create a custom plate to solve any unique
challenge in your environment.
Same Day Shipping
On Most Standard
Plates & Fanouts!
COMPUTER
CO M PU
TE R
AUDIO
TE R VIDEO VI DE O
CO M PU
L R
EduLinx® is the Finest Quick
Connect AV System Available
Several options available, standard or custom!
for Schools Today!
800-530-8998 • +1-719-388-7542
libertycable.com

4. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
What cable
do you need?
Once you know the length you need, choose an integrated
cable and fanout, or order the cable and fanout separately!
EduLinx Cable With Integrated Fanout Saves Money
EduLinx Cable + Choose Your Fanout Allows Versatility
Plenum and PVC Options Available
Fanouts and cables are also available
separately for more versatility!
Plenum or PVC
Custom lengths and fanouts are available.
800-530-8998 • +1-719-388-7542
libertycable.com

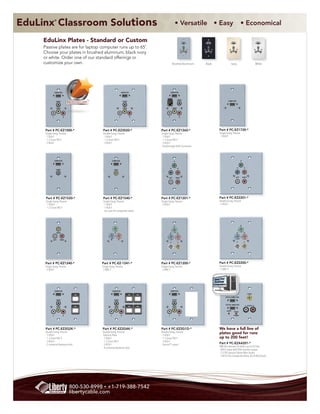

5. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
EduLinx Plates - Standard or Custom COMPUTER COMPUTER COMPUTER COMPUTER
Passive plates are for laptop computer runs up to 65’. AUDIO
VIDEO
AUDIO
VIDEO
AUDIO
VIDEO
AUDIO
VIDEO
Choose your plates in brushed aluminum, black ivory L R L R L R L R
or white. Order one of our standard offerings or
customize your own. Brushed Aluminum Black Ivory White
COMPUTER COMPUTER COMPUTER
AUDIO
AUDIO
BEST SELLER! AUDIO COMPUTER
VIDEO VIDEO VIDEO
L R L R L R
PC-EZ2020
Part # PC-EZ1000-* Part # PC-EZ2020-* Part # PC-EZ1260-* Part # PC-EZ1720-*
Single Gang, Passive Double Gang, Passive Single Gang, Passive Single Gang, Passive
- 1 VGA F - 1 VGA F - 1 VGA F - 1 VGA F
- 1 3.5mm TRS F - 1 3.5mm TRS F - 1 3.5mm TRS F
- 3 RCA F - 3 RCA F - 3 RCA F
- Passthrough RJ45 Connector
COMPUTER COMPUTER G G
B R B R
AUDIO VIDEO
LEFT RIGHT LEFT RIGHT
Part # PC-EZ1520-* Part # PC-EZ1540-* Part # PC-EZ1201-* Part # PC-EZ2201-*
Single Gang, Passive Single Gang, Passive Single Gang, Passive Double Gang, Passive
- 1 VGA F - 1 VGA F - 5 RCA F - 5 RCA F
- 1 3.5mm TRS F - 1 RCA F
(on coax for composite video)
G G
VIDEO G B R B R
LEFT RIGHT B R
H V H V
Part # PC-EZ1240-* Part # PC-EZ-1241-* Part # PC-EZ1200-* Part # PC-EZ2200-*
Single Gang, Passive Single Gang, Passive Single Gang, Passive Double Gang, Passive
- 3 RCA F - 3 BNC F - 5 BNC F - 5 BNC F
COMPUTER COMPUTER COMPUTER
VIDEO
INPUT (COMPUTER)
AUDIO AUDIO AUDIO
OUTPUT (MONITOR)
L - AUDIO - R
VIDEO VIDEO VIDEO
AUDIO VIDEO
L R L R L R POWER
Part # PC-EZ2G2K-* Part # PC-EZ2G4K-* Part # PC-EZ2G1D-* We have a full line of
Double Gang, Passive Double Gang, Passive Double Gang, Passive plates good for runs
- 1 VGA F EduLinx Plate - 1 VGA F
- 1 3.5mm TRS F - 1 VGA F - 1 3.5mm TRS F up to 200 feet!
- 3 RCA F - 1 3.5mm TRS F - 3 RCA F
- 2 universal keystone slots - 3 RCA F - DecoraTM cutout Part # PC-EZA4201-*
- 4 universal keystone slots PMI-A4 extender for Video up to 65 Feet.
- VGA F input with VGA monitor output
- 3.5 TRS passive Stereo Mini Audio
- 3 RCA F for Composite Video, & L/R RCA Audio.
800-530-8998 • +1-719-388-7542
libertycable.com

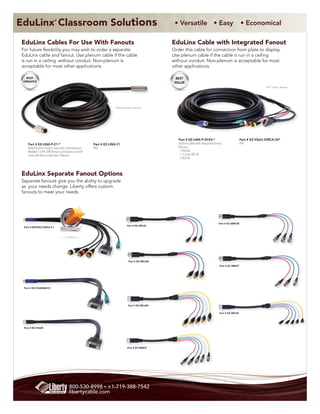

6. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
EduLinx Cables For Use With Fanouts EduLinx Cable with Integrated Fanout
For future flexibility you may wish to order a separate Order this cable for connection from plate to display.
EduLinx cable and fanout. Use plenum cable if the cable Use plenum cable if the cable is run in a ceiling
is run in a ceiling without conduit. Non-plenum is without conduit. Non-plenum is acceptable for most
acceptable for most other applications. other applications.
MOST BEST
VERSATILE VALUE
PVC Cable Shown
Plenum Cable Shown
Part # EZ-LINX-P-2V2A-* Part # EZ-VGA3.53RCA-35*
Part # EZ-LINX-P-C1-* Part # EZ-LINX-C1 EduLinx cable with integrated fanout. PVC
New EduLinx using 6 coax and 2 twisted pairs. PVC Plenum
Molded 13-Pin DIN female connectors on both - 1 VGA M
ends with Blue mold color. Plenum - 1 3.5mm TRS M
- 3 RCA M
EduLinx Separate Fanout Options
Separate fanouts give you the ability to upgrade
as your needs change. Liberty offers custom
fanouts to meet your needs.
Part # EZ-3BNCM
Part # EZ-3RCAF
Part # EZVGA3.53RCA-C1
BEST SELLER!
Part # EZ-3RCAM
Part # EZ-3BNCF
Part # EZ-VGAMAM-C1
Part # EZ-5RCAM
Part # EZ-5RCAF
Part # EZ-VGAM
Part # EZ-5BNCF
800-530-8998 • +1-719-388-7542
libertycable.com

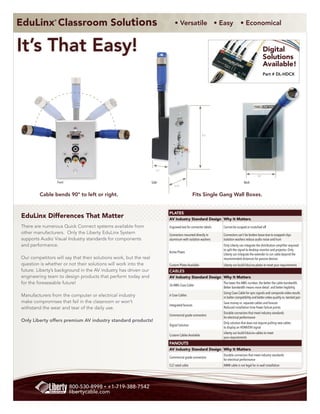

7. EduLinx Classroom Solutions
®
• Versatile • Easy • Economical
It’s That Easy! Digital
Solutions
Available!
Part # DL-HDCX
4.5”
1.5”
1.8”
Front Side Back
2.75”
Cable bends 90º to left or right. Fits Single Gang Wall Boxes.
PLATES
EduLinx Differences That Matter AV Industry Standard Design Why It Matters
There are numerous Quick Connect systems available from Engraved text for connector labels Cannot be scraped or scratched off
other manufacturers. Only the Liberty EduLinx System Connectors mounted directly in Connectors can’t be broken loose due to snapped clips
supports Audio Visual Industry standards for components aluminum with isolation washers Isolation washers reduce audio noise and hum
and performance. Only Liberty can integrate the distribution amplifier required
to split the signal to desktop monitor and projector. Only
Active Plates
Liberty can integrate the extender to run cable beyond the
Our competitors will say that their solutions work, but the real recommended distances for passive devices
question is whether or not their solutions will work into the Custom Plates Available Liberty can build EduLinx plates to meet your requirements
future. Liberty’s background in the AV industry has driven our CABLES
engineering team to design products that perform today and AV Industry Standard Design Why It Matters
for the foreseeable future! 26 AWG Coax Cable
The lower the AWG number, the better the cable bandwidth.
Better bandwidth means more detail and better legibility.
Using Coax Cable for sync signals and composite video results
Manufacturers from the computer or electrical industry 6 Coax Cables
in better compatibility and better video quality vs. twisted pair
make compromises that fail in the classroom or won’t Save money vs. separate cables and fanouts
Integrated fanouts
withstand the wear and tear of the daily use. Reduced installation time Fewer failure points
Durable connectors that meet industry standards
Commercial grade connectors
for electrical performance
Only Liberty offers premium AV industry standard products! Only solution that does not require pulling new cables
Digital Solution
to display an HDMI/DVI signal
Liberty can build EduLinx cables to meet
Custom Cables Available
your requirements
FANOuTS
AV Industry Standard Design Why It Matters
Durable connectors that meet industry standards
Commercial grade connectors
for electrical performance
CL2 rated cable AWM cable is not legal for in-wall installation
