This document describes an ECOSPRAY machine that nebulizes sanitizing products. It is a universal, wheeled machine that is easy to transport by vehicle. It has a 10m electrical cable, programmable timed stop, condensation tank drain valve, and dispenses sanitizing product at 0.04 l/min. Supplied accessories include an ECOSPRAY gun with 12m spiral hose, 11l tank, and 10m electrical cable. Technical features and dimensions of the machine are also provided.

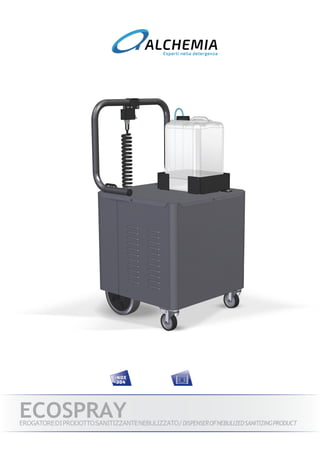

1. ECOSPRAYEROGATOREDIPRODOTTOSANITIZZANTENEBULIZZATO/DISPENSEROFNEBULIZEDSANITIZINGPRODUCT

2. ECOSPRAY
CARATTERISTICHE / FEATURES
MACCHINACARRELLATAUNIVERSALEPEREROGAZIONESANITIZZANTE
NEBULIZZATO
UNIVERSALWHEELEDMACHINEDISPENSING NEBULIZED SANITIZING
PRODUCT
FACILITA'DITRASPORTO:LEMACCHINEPOSSONOESSEREFACIL-
MENTE CARICATEE TRASPORTATESU AUTOVETTURE
EASY TRANSPORT: THE UNIT CAN BE LOADED AND TRANSPORTED
IN MOSTVEHICLES
CAVO ELETTRICO IN DOTAZIONE DI 10 m 10 m ELECTRICAL CABLE (SUPPLIED ACCESSORIES)
ARRESTO TEMPORIZZATO PROGRAMMABILE PROGRAMMABLE TIMED STOP
VALVOLA DI SCARICO PER CONDENSA SERBATOTIO DRAIN VALVE FOR CONDENSATION TANK
PRODOTTI CHIMICI NON FORNITI CHEMICAL PRODUCTS NOT INCLUDED

3. ECOSPRAY
CAVOELETTRICODIALIMENTAZIONE10m
ELECTRIC CABLE10m

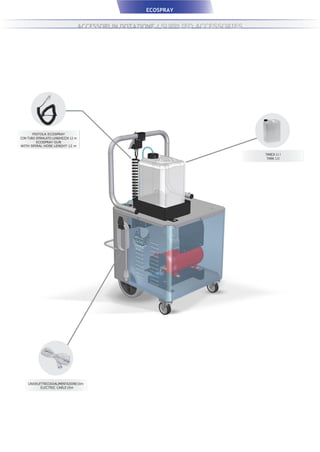

ACCESSORI IN DOTAZIONE / SUPPLIED ACCESSORIES
PISTOLA ECOSPRAY
CON TUBO SPIRALATO LUNGHEZZA 12 m
ECOSPRAY GUN
WITH SPIRAL HOSE LENGHT 12 m
TANICA 11 l
TANK 11l

4. ECOSPRAY
A B
Y
C
E
Alchemia Srl - Via della Musia, 101 - 25135 Brescia (BS) -
ITALY T.+390302357327-FAX+390302357532
info@alchemia.biz - www.alchemia.biz
ACCESSORI IN DOTAZIONE / SUPPLIEDACCESSORIES
Z
X
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
Codice
Part No.
Prodotto
Product
Erogazione Prodotto
Product Supply
Potenza
Power
Tensione
Voltage
Cap. Serbatoio
Tank Capacity
Tubo
spiralato
Hose
AK777
ECOSPRAY
ECOSPRAY 0,04 l/min 400W 230 V - 50 Hz 11 l 12 m
Codice
PartNo.
Descrizione
Description
AK777_A*
PISTOLA ECOSPRAY+TUBO SPIRALATO 12 m
ECOSPRAYGUN+ WIRE SPIRAL HOSE 12 m
AK777_B
TANICA 10 l
TANK 10 l
AK777_C
CAVOELETTRICODIALIMENTAZIONE10m
ELECTRIC CABLE 10 m
* A SECONDA DEL CODICE MACCHINA SCELTO
* DEPENDING ON THE SELECTED MACHINE CODE
DIMENSIONI
DIMENSIONS
IMBALLO(SCATOLACARTONE)
PACKAGING (CARTON BOX)
SCHEMA DI FISSAGGIO BASAMENTO
INSTALLATION SCHEME
A
(mm)
B
(mm)
C
(mm)
X
(mm)
Y
(mm)
Z
(mm)
D
(mm)
E
(mm)
550 550 1000 600 700 1150 xxx xxx
D
