This document describes a dock shelter system that provides a tight seal on all four sides of a trailer - the top, corners, sides, and bottom. It discusses the problems that gaps can cause by allowing energy loss and infiltration of unwanted elements. The system uses gravity-based seals that apply pressure across the full width of the trailer top and innovative seals at the corners and sides to completely block gaps. It also includes an under-leveler seal and lip corner seals to create a complete four-sided seal. The shelter system is designed to be durable with impact-resistant materials.

1. Tightest sealing dock
shelter available
A Complete Dock Sealing System:
All 4 Sides of the Trailer
 Top
 Corners
 Sides
 Bottom

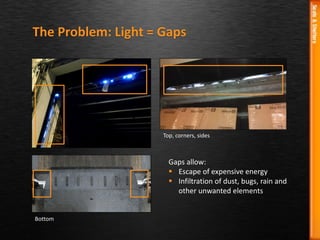

2. The Problem: Light = Gaps
Top, corners, sides
Bottom
Gaps allow:
 Escape of expensive energy
 Infiltration of dust, bugs, rain and
other unwanted elements

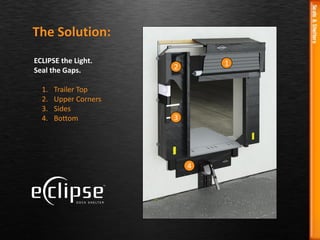

3. ECLIPSE the Light.
Seal the Gaps.
1. Trailer Top
2. Upper Corners
3. Sides
4. Bottom
The Solution:
12
3
4

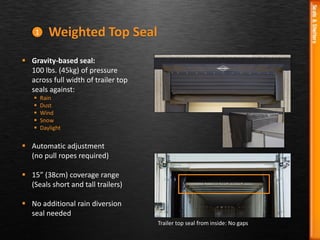

4.  Gravity-based seal:
100 lbs. (45kg) of pressure
across full width of trailer top
seals against:
 Rain
 Dust
 Wind
 Snow
 Daylight
 Automatic adjustment
(no pull ropes required)
 15” (38cm) coverage range
(Seals short and tall trailers)
 No additional rain diversion
seal needed
Weighted Top Seal
Trailer top seal from inside: No gaps
1

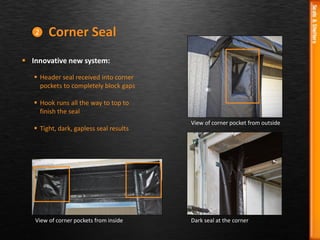

5.  Innovative new system:
 Header seal received into corner
pockets to completely block gaps
 Hook runs all the way to top to
finish the seal
 Tight, dark, gapless seal results
View of corner pocket from outside
View of corner pockets from inside
Corner Seal2
Dark seal at the corner

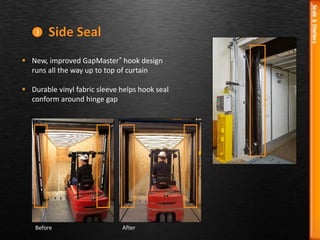

6.  New, improved GapMaster® hook design
runs all the way up to top of curtain
 Durable vinyl fabric sleeve helps hook seal
conform around hinge gap
Side Seal3
Before After

7.  Eclipse shelter comes standard with PitMaster™ Under-leveler Seal
and Lip Corner Seals
 Eclipse + PitMaster = Industry’s only complete, 4-sided seal
Lip corner seal
Bottom Seal4

8. Slim, HMWPE-wrapped foam
side frames for ultimate
impact protection
Removable side curtains for
maintenance flexibility
Tough HMWPE hooks
wrapped in durable
vinyl sleeve
Rugged HMWPE impact plates
Durathon™ friction-resistant
side curtains standard
3-year moneyback guarantee
(with Durathon fabric)
Eclipse Durability

9.  All units custom fit to your application
 No-risk trial units available
A Rite-Hite Original
