This document discusses the Model-View-Controller (MVC) pattern and its implementation in Eclipse. It describes MVC as an architecture that separates an application into three main components: the model, the view, and the controller. It then explains how Eclipse uses MVC through its Graphical Editing Framework, which defines layers for interaction, model-to-view mapping, workbench integration, rendering, layout, and scaling using SWT. Key aspects of the Eclipse MVC implementation include using EMF for the model, graphical viewers and edit parts for the view, and commands and edit policies for handling controller requests and events.

1. Model-View-Controller

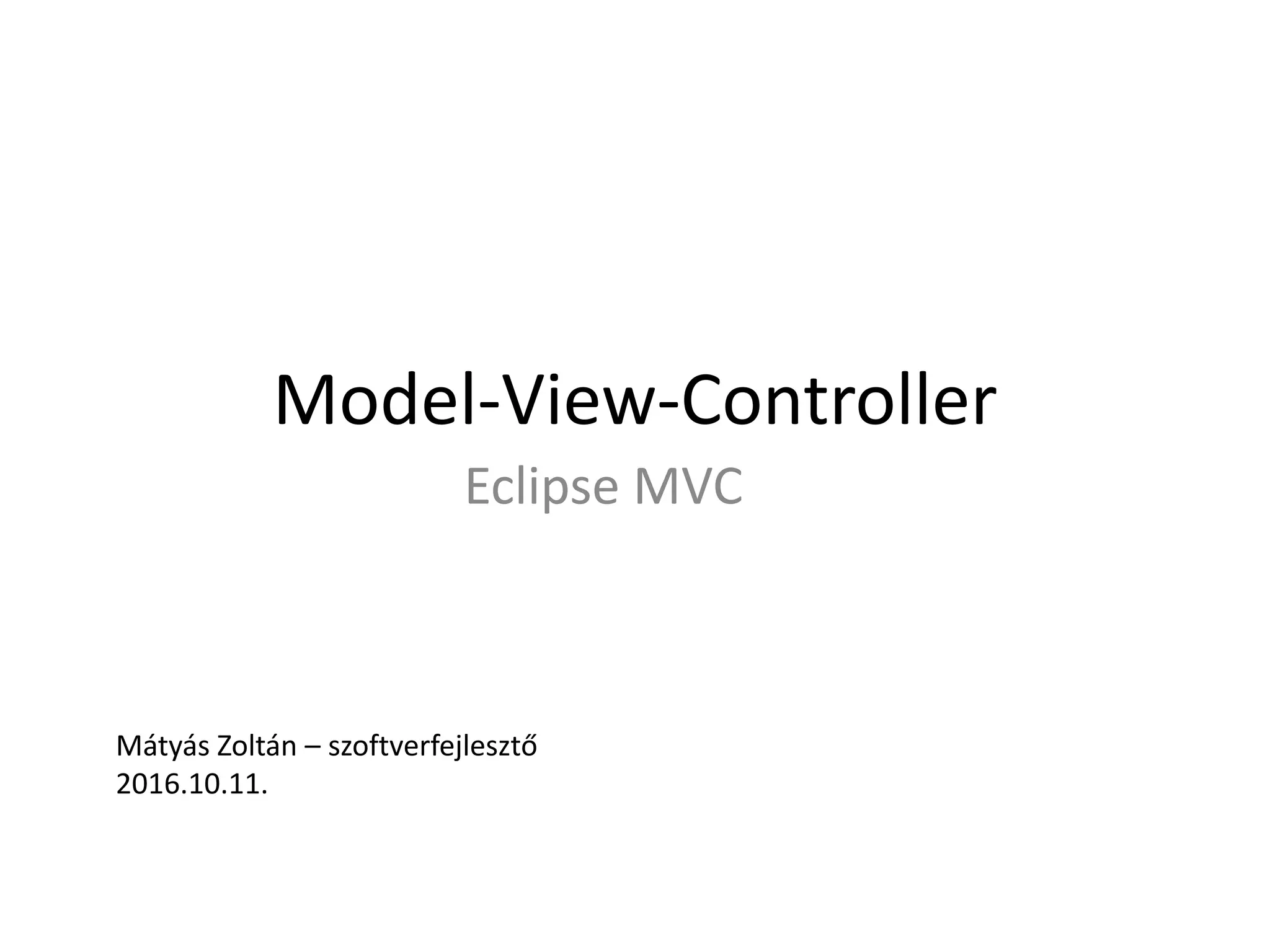

Eclipse MVC
Mátyás Zoltán – szoftverfejlesztő
2016.10.11.

2. Model-View-Controller
• Mi is pontosan az MVC?

3. Java MVC
• Swing
• Spring
• Struts
• Eclipse MVC

4. Eclipse MVC
• Graphical Editing Framework
 Interaction Layer
 Model-to-View mapping
 Workbench Integration
 Rendering
 Layout
 Scaling
 Native (SWT) Layer

5. Model

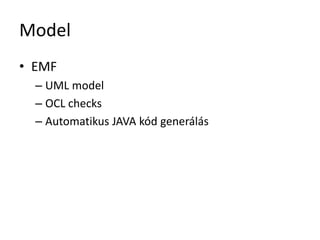

• EMF
– UML model
– OCL checks
– Automatikus JAVA kód generálás

6. View

7. Controller

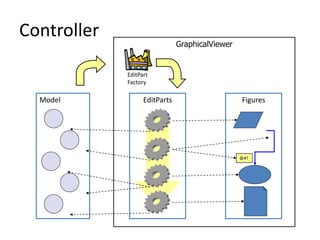

Model EditParts Figures
@#!
EditPart
Factory
GraphicalViewer

8. Eseménykezelés

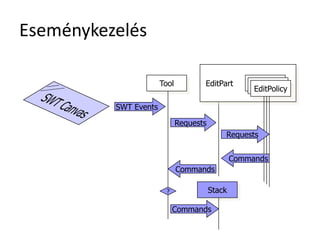

SWT Events
Tool
Requests
EditPart
Commands
EditPart EditPolicyEditPolicyEditPolicy
Requests
Commands
Stack
Commands
?

9. Editor készitése
Step 1:
Model
Step 2:
View
Step 3:
Controller
Step 4:
“Editor”
Edit Policies
Property
Sheet
Palette and
Tools
Add Editing
Behavior

10. Összefoglalás
Model
6. modifies
EditPartViewer
Palette
Tool1
Tool2
Tool3
Active
Tool
1. acts on
2. events
5. execute
3. request 4. command
CommandStack
Command
Command
Command
Command
EditPartViewer
EditPartViewer
EditDomain
