A short walk through all the productivity features included in EcoreTools with Eclipse Oxygen.

1. ©Copyright2017Obeo
A Guided Tour of Eclipse Modeling, Monday, October 23, 2017
Ecore Tools
Your utility belt for Ecore Modeling

2. ©Copyright2017Obeo
16

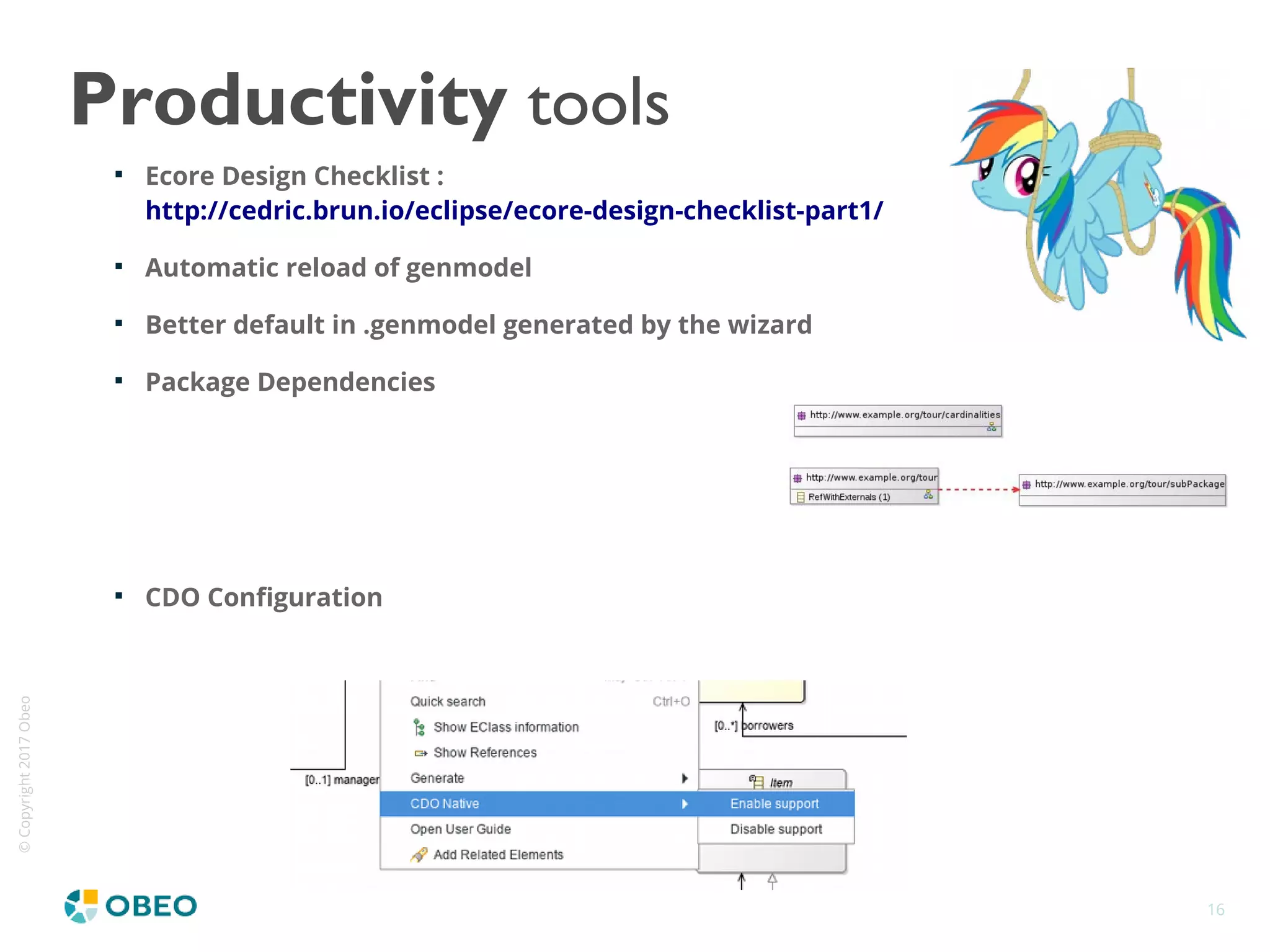

Productivity tools

Ecore Design Checklist :
http://cedric.brun.io/eclipse/ecore-design-checklist-part1/

Automatic reload of genmodel

Better default in .genmodel generated by the wizard

Package Dependencies

CDO Configuration

3. ©Copyright2017Obeo
16
Documentation annotations
Documentation Table
Documentation layer in Entities Diagram

4. ©Copyright2017Obeo
16
a few Shortcuts

Direct-Edit Syntax

« Something » => change name of feature

«:SomeType » => only change the eType

«1» => only set cardinality to 1..x

« * » => only set cardinality to x..*

« /Something » => make the feature derived

« = something » => set the default value literal

[...]

CTRL+H to Hide a shape

CTRL+O to navigate within the diagram

MAJ+DEL delete from diagram (vs DEL delete from model)

5. ©Copyright2017Obeo
16
Modeling
Generics
Parameters
EAnnotation

6. ©Copyright2017Obeo
16
Constraints
(*) would be nice to have tooled support for AQL constraints, it just did not happened yet

7. ©Copyright2017Obeo
16
Focused diagrams
Indirect GeneralizationWith Class Content
With inherited features
Add Related Elements in Diagram

8. ©Copyright2017Obeo
16
Generation settings & launch

9. ©Copyright2017Obeo
16
Navigate to Java

Navigate to Java

10. ©Copyright2017Obeo
16
Icons preview

11. ©Copyright2017Obeo
16
Eclipse Views
EClass Information to inspect types of selection
References to inspect type relationships

12. ©Copyright2017Obeo
16
Reworked Dialogs
Generated with Extended Editing Framework 1.x
Using Sirius 5.0+ property views support

13. ©Copyright2017Obeo
16
visualizing Xcore models

14. ©Copyright2017Obeo
16
powered by Eclipse Sirius

Sirius Best Practices

Inspectable

Extensible

15. ©Copyright2017Obeo
16
envisionned Roadmap
Ecore
Open Class

Versionning, deprecation annotations

ALE (Action Language for EMF)

Contribution in EcoreTools (INRIA)

Provides

Assignements

More control flow

Multi-inheritance

Runtime data

Type inference

16. ©Copyright2017Obeo
16
Download

the Eclipse Modeling Package, through the Marketplace

Packaged in Obeo Designer Community Edition (EPL)

https://www.obeodesigner.com/en/download
