The document discusses Acceleo Query Language (AQL), highlighting its motivation, syntax, and key features such as extensibility, strong typing, and integration with other Eclipse technologies. AQL is designed for efficiency during evaluation and offers a forgiving structure for users familiar with OCL. It has applications in Eclipse Sirius and M2Doc, among others, and is part of the Acceleo project since 2015.

1. ©Copyright2017Obeo
A Guided Tour of Eclipse Modeling, Monday, October 23, 2017
ACCELEO QUERY LANGUAGE
The small, fast & strong sidekick for your tooling

2. ©Copyright2017Obeo
18
our Motivation
Query language for Sirius

3. ©Copyright2017Obeo
18

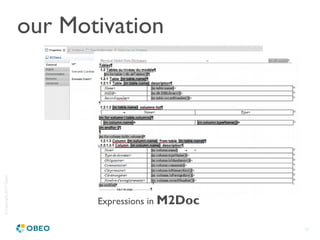

our Motivation
Expressions in M2Doc

4. ©Copyright2017Obeo
18
our Motivation
Expressions in Acceleo-MTL

5. ©Copyright2017Obeo
18
our Motivation

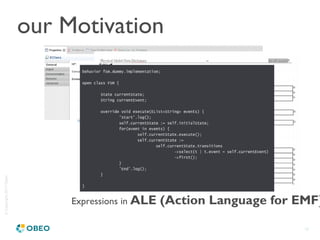

Expressions in ALE (Action Language for EMF)

6. ©Copyright2017Obeo
18

Syntax :

Familiar for any user of OCL

Easily extensible
Language = Syntax + Semantic + Tooling + Runtime

7. ©Copyright2017Obeo
18


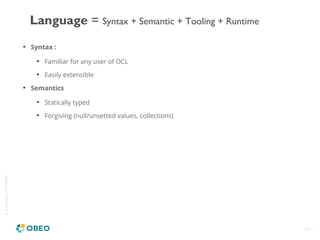

Syntax :

Familiar for any user of OCL

Easily extensible

Semantics

Statically typed

Forgiving (null/unsetted values, collections)
Language = Syntax + Semantic + Tooling + Runtime

8. ©Copyright2017Obeo
18

Syntax :

Familiar for any user of OCL

Easily extensible

Semantics

Statically typed

Forgiving (null/unsetted values, collections)

Tooling

Embeddable

Statically typed with rich type inference
Language = Syntax + Semantic + Tooling + Runtime

9. ©Copyright2017Obeo
18


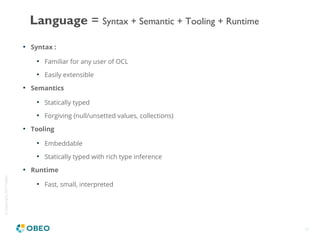

Syntax :

Familiar for any user of OCL

Easily extensible

Semantics

Statically typed

Forgiving (null/unsetted values, collections)

Tooling

Embeddable

Statically typed with rich type inference

Runtime

Fast, small, interpreted
Language = Syntax + Semantic + Tooling + Runtime

10. ©Copyright2017Obeo
18

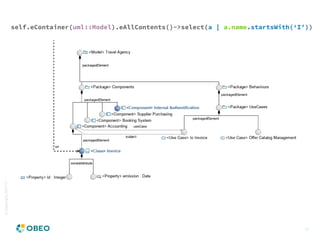

self.eContainer(uml::Model).eAllContents()->select(a | a.name.startsWith(‘I’))

11. ©Copyright2017Obeo
18

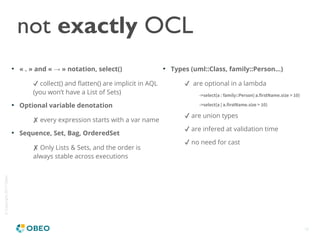

not exactly OCL

« . » and « » notation, select()→
✔ collect() and flatten() are implicit in AQL
(you won’t have a List of Sets)

Optional variable denotation
✘ every expression starts with a var name

Sequence, Set, Bag, OrderedSet
✘ Only Lists & Sets, and the order is
always stable across executions

Types (uml::Class, family::Person...)
✔ are optional in a lambda
->select(a : family::Person| a.firstName.size > 10)
->select(a | a.firstName.size > 10)
✔ are union types
✔ are infered at validation time
✔ no need for cast

12. ©Copyright2017Obeo
18

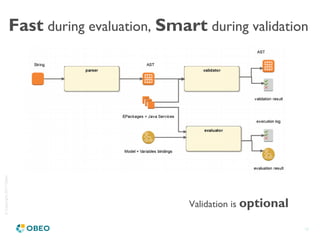

Fast during evaluation, Smart during validation
Validation is optional

13. ©Copyright2017Obeo
18

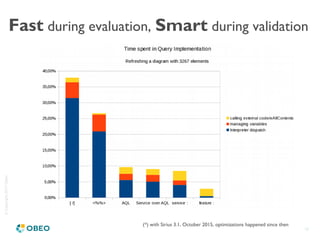

Fast during evaluation, Smart during validation
(*) with Sirius 3.1, October 2015, optimizations happened since then

14. ©Copyright2017Obeo
18

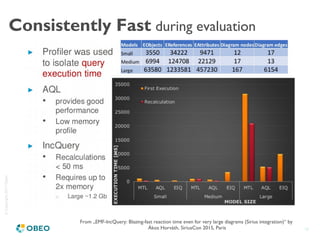

Consistently Fast during evaluation
From „EMF-IncQuery: Blazing-fast reaction time even for very large diagrams (Sirius integration)“ by
Ákos Horváth, SiriusCon 2015, Paris

15. ©Copyright2017Obeo
18

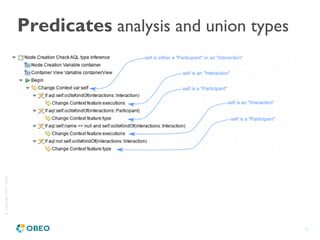

Predicates analysis and union types

16. ©Copyright2017Obeo
18

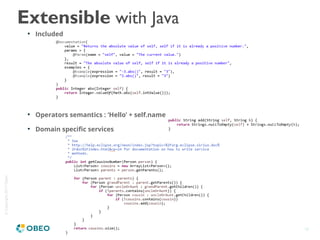

Extensible with Java

Included

Operators semantics : ‘Hello’ + self.name

Domain specific services

17. ©Copyright2017Obeo
18

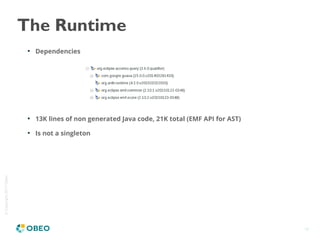

The Runtime

Dependencies

13K lines of non generated Java code, 21K total (EMF API for AST)

Is not a singleton

18. ©Copyright2017Obeo
18
How to get it ?

Shipped since 2015 as part of the Acceleo project

Documentation:
https://www.eclipse.org/acceleo/documentation/aql.html

Other technologies already using it

Eclipse Sirius

M2doc (to generate .docx files from a model)

ALE (Action Language for EMF)
