Ellab's E-Val Pro is a next generation thermal validation system that offers high accuracy temperature measurement, compact size, mobility, and compatibility with ValSuite Pro validation software. Key features include measuring up to 40 channels with +/-0.1°C accuracy, 8-hour battery operation, touchscreen display, and generation of FDA-compliant reports. E-Val Pro systems include interchangeable sensor arrays, smart plugs for traceable sensors, and can be integrated into a protective flightcase for transportation.

1. ellab.com E-Val Pro
E-Val Pro –Latest Technology
• Ellab is a market leader in thermal
validation solutions for more than 65
years.
• Next generation wired data
acquisition is E-Val Pro.
• Data and reports generated using E-
Val Pro and ValSuite Pro CFR21
Part 11 compliant software are
accepted world-wide by authorities
and FDA inspectors .

2. ellab.com E-Val Pro
E-Val Pro Highlights
• Small footprint of only 220 x 270
mm with up to 40 channels per
module.
• Compact Size and low weight of
only 3 kg allows for total mobility
& easy set-up.
• Smooth and rounded cabinet
design with 8” color touch display
allows for optimal cleaning in e.g.
cleanroom environments.
• Accurate to +/- 0.1°C and fast
sample rate speed of 1 sec / all
40 channels.

3. ellab.com E-Val Pro
E-Val Pro Highlights
• Expanded memory for storing up to 10
individual studies with a total of 11.5 million
samples
• Windows embedded Compact 7 OS
• Ellab modified / irrelevant codes and ports
disabled
• Stand-alone operation using Authentication
system (access login) - or PC connected
through LAN/USB
• Programmable autostart (time) - also in stand-
alone mode
• Internal rechargeable battery pack for 8 hours
operation
• Secure shutdown in case of power failure

4. ellab.com E-Val Pro
E-Val Pro–Highlights
• Measuring Range: -200°C to +1300°C
(ready for -270°C to +1820°C)
• Resolution: 0.01°C
• Operating Range: 5-50°C
• Accuracy of the E-Val Pro Module (Sensor
Array) is +/-0.05°C (type T) in an operating
environment of +20°C to +30°C
• Accuracy of a calibrated Ellab type T smart TC
is +/-0.05°C from -50°C to +150°C
• Total system accuracy with calibrated Ellab
type T smart TC is +/-0.10°C
• Whole 3 Modules / 120 channels in one
ValSuite Session/Study.

5. ellab.com E-Val Pro
E-Val Pro Design – Main Cabinet
• Aluminum (Anodized) Cabinet
• Protection Class IP40
• Size: 220 x 270 x 82 mm / 8.7” x 10.6”
x 3.2” (L x W x H)
• Weight: 3.0 kg. / 6.6 lbs.
(w/ 8 hour battery pack)
• 12V DC external power supply
connection
• LAN port
• 2 x USB2 ports - one for memory stick to
allow data transfer to PC during
operation - one for connection to PC.
• Power ON/OFF switch

6. ellab.com E-Val Pro
E-Val Pro Design – Main Cabinet
• 8” Touch Display
• 1 sec. to 24 hour sample rate (all 40
channels)
• 512 MB Flash Memory
• 10 sessions with 40 channels, 1 sec. sample
rate, 8 hours can be stored (approx. 11.5
million samples)
• Secure shutdown in case of power failure
• Slots for 1 high power (100 mA/5V) 4
channel sensor array and 3 low power (40
mA/5V) 12 channel sensor arrays
• Capacity of 4-40 channels

7. ellab.com E-Val Pro
E-Val Pro Design – Sensor Array
• Interchangeable Sensor Arrays
– Versatile configuration
• Designed for Thermocouples ,
Ellab pressure and RH sensors,
4-20 mA and 0-10V sensors as
well as digital Input/Output
connectors

8. ellab.com E-Val Pro
E-Val Pro Design – Sensor Array
• Sensor Arrays work as Precision
Voltmeter
• 4 channel multipurpose sensor array
• TC type T (ready for type K,J, B, E, N, R
and S)
• 4-20 mA
• 0-10V
• I/O relay
• 12 channel TC sensor array, type T
(ready for type K,J, B, E, N, R and S) as
well as other low power analog/digital
inputs

9. ellab.com E-Val Pro
E-Val Pro Design – Smart Plug
• Traceable and interchangeable
smart thermocouples
• The plug is molded and fully
sealed at the TC entry point in
order to prevent any capillary
water from the autoclave
entering the sensor array.
• Significantly reduced time for
pre- and post-calibration

10. ellab.com E-Val Pro
E-Val Pro Design – Smart Plug
• Unique & coded screw terminal
plugs available for:
• Thermocouples type T
• Thermocouples type N,J,K and R
• Ellab pressure and RH sensors
• 4-20 mA or 0-10 V sensors
• Digital in- and outputs
• Integrated PT1000 sensor for cold
junction compensation
• ID # for traceability
• Memory for calibration offsets
(factory and user)

11. ellab.com E-Val Pro
E-Val Pro Design – Thermocouples
• Type T ultra premium grade, 7 strand
thermocouple
• Welded Copper/Constantan tip combined with
FEP insulation provides well-defined
measuring point
• Vacuum proof FEP insulation and PTFE
protection cap provides extended cycle
lifetime
• STC thermocouples have drains approx. 3 ft.
from the plug in order to drain any capillary
water from the autoclave
• Ellab smart thermocouples are easy to
clean/disinfect due to round and smooth
design with no screw terminal connections /
open-ends

12. ellab.com E-Val Pro
E-Val Pro Design – Pressure Sensor
• Digital piezoresistive pressure sensor
• Range: 0-4 bar
• Accuracy: ±0,15% (full scale), ±6 mbar
• Easy connection to the E-Val Pro module
through any of the sensor array ports
• It is possible to use several pressure
sensors in the same process, making it
possible to monitor both internal pressure in
the container as well as inside the autoclave

13. ellab.com E-Val Pro
E-Val Pro Design – Sensor Interface
• Ideal for expanding the usage of E-Val Pro
with additional parameters e.g. CO2, RH
and Conductivity
• Compatible with all TSP sensors / easy
mounting using standard pin connector
• Optional thread adaptors for ½” and ¾”
connection
• Easy connection of Sensor Interface to EVP
sensor array 12 or 4-channel using USB
plug
• User calibration constants stored in USB
plug
• Requires ValSuite 5.1 or later

14. ellab.com E-Val Pro
E-Val Pro Design – Flightcase
• Trolley model with 2 wheels and pull out
handle for easy transportation of complete
EVP, TSP and ETS equipment – all in one,
safe and easy
• Extremely robust and can withstand the
toughest challenges and conditions
• The suitcase protective inserts can
accommodate a full set of:
• EVP module including sensor arrays,
power supply and various sensors/cables
in lower layer
• TSP 4-place reader station, up to 14
loggers/sensors and ETS in upper layer
• TSP Access Point and tool box for various
accessories in lid

15. ellab.com E-Val Pro

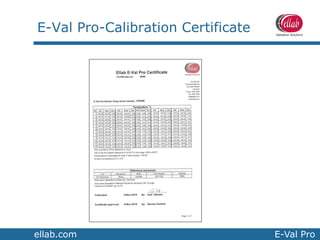

E-Val Pro-Calibration Certificate

16. ellab.com E-Val Pro
E-Val Pro–Feed Through System
• FT20 Feed Through System for STC sensors
• Maximum capacity of 20 pcs STC22 (ø2.2 mm)
• Maximum capacity of 20 pcs STC32 (ø3.2 mm)
• FT40 Feed Through System for STC sensors
• Maximum capacity of 40 pcs STC22 (ø2.2 mm)
• Maximum capacity of 30 pcs STC32 (ø3.2 mm)
• Various connectors and adaptors for e.g.
digital pressure sensor

17. ellab.com E-Val Pro
ValSuite Pro Validation Software
• Advanced ValSuite
validation software
with powerful
reporting tools
• Up to 3 Modules and
120 channels, 1 sec.
sample rate in one
study/session
• Same computer
software for
TrackSense loggers
and E-Val Pro wired
system

18. ellab.com E-Val Pro
ValSuite App
• iPhone/iPad App available in
Apple Store
• Transfer pictures to ValSuite
• See on-line sessions
• Store and review off-line
sessions incl. reports
