1. The latest version 3 of DVR Studio HD software now allows you to transfer TV recordings from digital receivers via UPnP. 2. Testing showed that recordings could be transferred much faster, up to 10 minutes faster, from a satellite receiver to a PC using the UPnP function in DVR Studio HD 3 compared to using the original receiver manufacturer's software. 3. DVR Studio HD 3 automatically detects all available UPnP servers and recordings on the network, allowing easy transfer of recordings not just from receivers but also external hard drives.

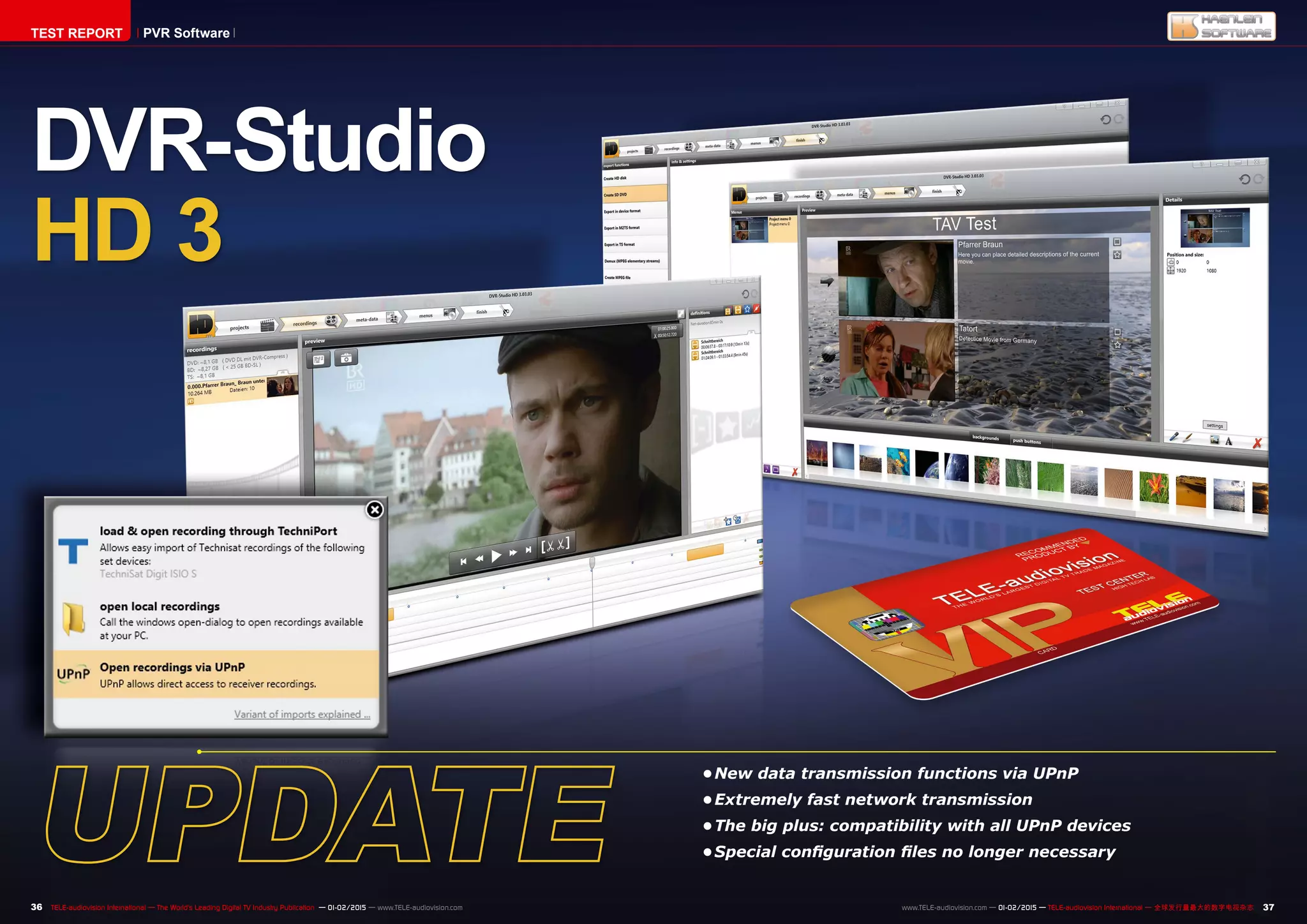

1. 36 37TELE-audiovision International — The World‘s Leading Digital TV Industry Publication — 01-02/2015 — www.TELE-audiovision.com www.TELE-audiovision.com — 01-02/2015 — TELE-audiovision International — 全球发行量最大的数字电视杂志
DVR-Studio
HD 3
• New data transmission functions via UPnP
• Extremely fast network transmission
• The big plus: compatibility with all UPnP devices
• Special configuration files no longer necessary
TEST REPORT PVR Software

2. 1
2
4
5
In TELE-audiovision 11-12/2014 we presented the
DVR-Studo HD 3 Software
http://www.tele-audiovision.com/
TELE-audiovision-1411/eng/dvr-studio.pdf
■
3
38 39TELE-audiovision International — The World‘s Leading Digital TV Industry Publication — 01-02/2015 — www.TELE-audiovision.com www.TELE-audiovision.com — 01-02/2015 — TELE-audiovision International — 全球发行量最大的数字电视杂志

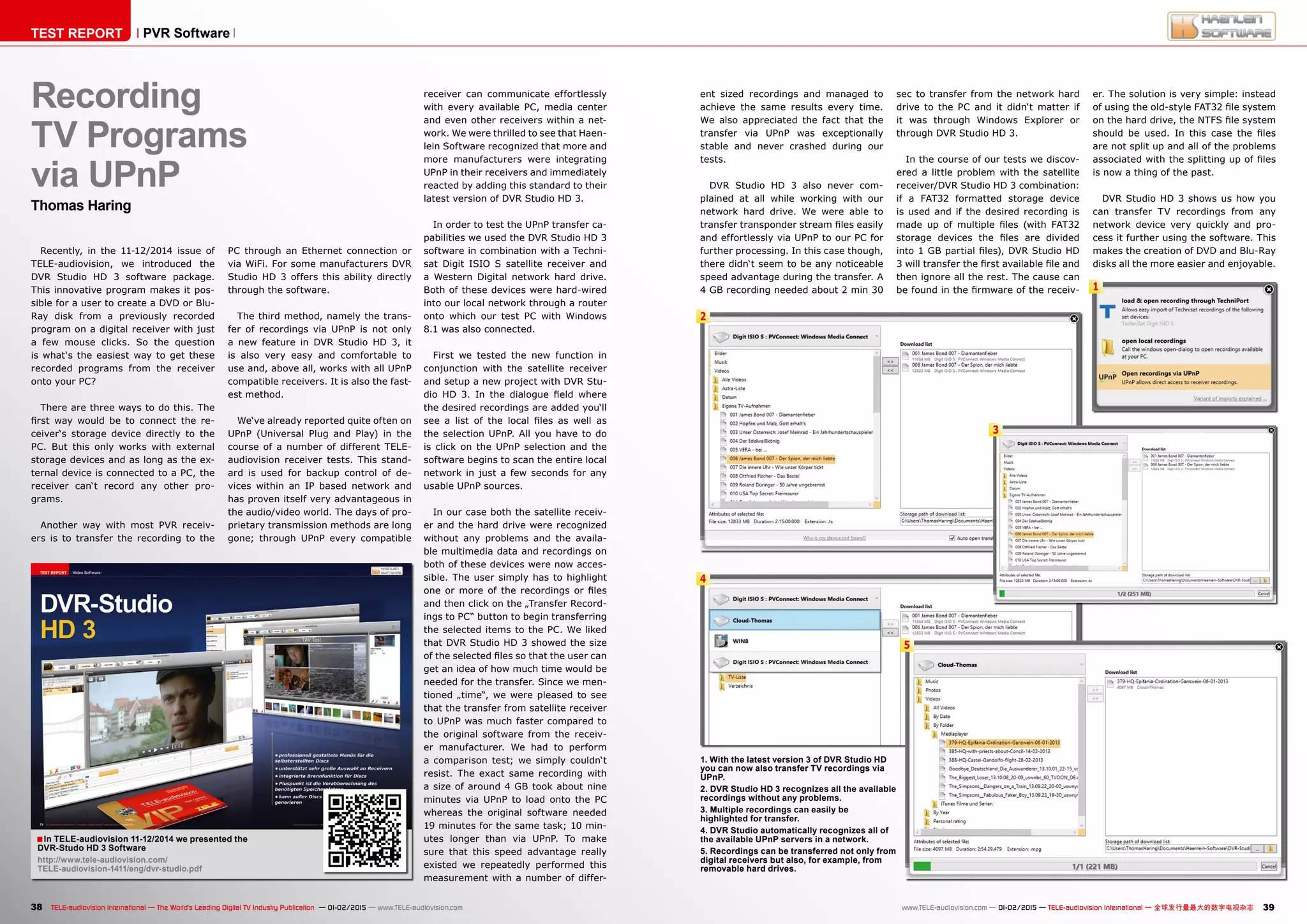

TEST REPORT PVR Software
Recording
TV Programs
via UPnP
Thomas Haring
Recently, in the 11-12/2014 issue of
TELE-audiovision, we introduced the
DVR Studio HD 3 software package.
This innovative program makes it pos-
sible for a user to create a DVD or Blu-
Ray disk from a previously recorded
program on a digital receiver with just
a few mouse clicks. So the question
is what‘s the easiest way to get these
recorded programs from the receiver
onto your PC?
There are three ways to do this. The
first way would be to connect the re-
ceiver‘s storage device directly to the
PC. But this only works with external
storage devices and as long as the ex-
ternal device is connected to a PC, the
receiver can‘t record any other pro-
grams.
Another way with most PVR receiv-
ers is to transfer the recording to the
PC through an Ethernet connection or
via WiFi. For some manufacturers DVR
Studio HD 3 offers this ability directly
through the software.
The third method, namely the trans-
fer of recordings via UPnP is not only
a new feature in DVR Studio HD 3, it
is also very easy and comfortable to
use and, above all, works with all UPnP
compatible receivers. It is also the fast-
est method.
We‘ve already reported quite often on
UPnP (Universal Plug and Play) in the
course of a number of different TELE-
audiovision receiver tests. This stand-
ard is used for backup control of de-
vices within an IP based network and
has proven itself very advantageous in
the audio/video world. The days of pro-
prietary transmission methods are long
gone; through UPnP every compatible
1. With the latest version 3 of DVR Studio HD
you can now also transfer TV recordings via
UPnP.
2. DVR Studio HD 3 recognizes all the available
recordings without any problems.
3. Multiple recordings can easily be
highlighted for transfer.
4. DVR Studio automatically recognizes all of
the available UPnP servers in a network.
5. Recordings can be transferred not only from
digital receivers but also, for example, from
removable hard drives.
ent sized recordings and managed to
achieve the same results every time.
We also appreciated the fact that the
transfer via UPnP was exceptionally
stable and never crashed during our
tests.
DVR Studio HD 3 also never com-
plained at all while working with our
network hard drive. We were able to
transfer transponder stream files easily
and effortlessly via UPnP to our PC for
further processing. In this case though,
there didn‘t seem to be any noticeable
speed advantage during the transfer. A
4 GB recording needed about 2 min 30
sec to transfer from the network hard
drive to the PC and it didn‘t matter if
it was through Windows Explorer or
through DVR Studio HD 3.
In the course of our tests we discov-
ered a little problem with the satellite
receiver/DVR Studio HD 3 combination:
if a FAT32 formatted storage device
is used and if the desired recording is
made up of multiple files (with FAT32
storage devices the files are divided
into 1 GB partial files), DVR Studio HD
3 will transfer the first available file and
then ignore all the rest. The cause can
be found in the firmware of the receiv-
er. The solution is very simple: instead
of using the old-style FAT32 file system
on the hard drive, the NTFS file system
should be used. In this case the files
are not split up and all of the problems
associated with the splitting up of files
is now a thing of the past.
DVR Studio HD 3 shows us how you
can transfer TV recordings from any
network device very quickly and pro-
cess it further using the software. This
makes the creation of DVD and Blu-Ray
disks all the more easier and enjoyable.
receiver can communicate effortlessly
with every available PC, media center
and even other receivers within a net-
work. We were thrilled to see that Haen-
lein Software recognized that more and
more manufacturers were integrating
UPnP in their receivers and immediately
reacted by adding this standard to their
latest version of DVR Studio HD 3.
In order to test the UPnP transfer ca-
pabilities we used the DVR Studio HD 3
software in combination with a Techni-
sat Digit ISIO S satellite receiver and
a Western Digital network hard drive.
Both of these devices were hard-wired
into our local network through a router
onto which our test PC with Windows
8.1 was also connected.
First we tested the new function in
conjunction with the satellite receiver
and setup a new project with DVR Stu-
dio HD 3. In the dialogue field where
the desired recordings are added you‘ll
see a list of the local files as well as
the selection UPnP. All you have to do
is click on the UPnP selection and the
software begins to scan the entire local
network in just a few seconds for any
usable UPnP sources.
In our case both the satellite receiv-
er and the hard drive were recognized
without any problems and the availa-
ble multimedia data and recordings on
both of these devices were now acces-
sible. The user simply has to highlight
one or more of the recordings or files
and then click on the „Transfer Record-
ings to PC“ button to begin transferring
the selected items to the PC. We liked
that DVR Studio HD 3 showed the size
of the selected files so that the user can
get an idea of how much time would be
needed for the transfer. Since we men-
tioned „time“, we were pleased to see
that the transfer from satellite receiver
to UPnP was much faster compared to
the original software from the receiv-
er manufacturer. We had to perform
a comparison test; we simply couldn‘t
resist. The exact same recording with
a size of around 4 GB took about nine
minutes via UPnP to load onto the PC
whereas the original software needed
19 minutes for the same task; 10 min-
utes longer than via UPnP. To make
sure that this speed advantage really
existed we repeatedly performed this
measurement with a number of differ-
