DynaScan Technology introduces its new High Bright Series of ultra-high brightness professional LCD displays. The displays utilize LED backlighting and local dimming to achieve brightness ratings as high as 5,000 nits, making them visible in direct sunlight. They also feature a unique fanless thermal management system. The displays are available in various sizes from 46 to 65 inches with open frame, narrow bezel, and integrated models. They are suitable for both indoor and outdoor applications such as retail stores, kiosks, and digital signage.

1. High Bright Series
Professional LCDS
Redefining
Daylight
Viewability

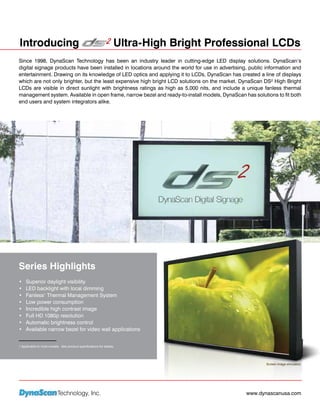

2. Introducing Ultra-High Bright Professional LCDs
Since 1998, DynaScan Technology has been an industry leader in cutting-edge LED display solutions. DynaScan’s
digital signage products have been installed in locations around the world for use in advertising, public information and
entertainment. Drawing on its knowledge of LED optics and applying it to LCDs, DynaScan has created a line of displays
which are not only brighter, but the least expensive high bright LCD solutions on the market. DynaScan DS² High Bright
LCDs are visible in direct sunlight with brightness ratings as high as 5,000 nits, and include a unique fanless thermal
management system. Available in open frame, narrow bezel and ready-to-install models, DynaScan has solutions to fit both
end users and system integrators alike.
Series Highlights
• Superior daylight visibility
• LED backlight with local dimming
• Fanless1 Thermal Management System
• Low power consumption
• Incredible high contrast image
• Full HD 1080p resolution
• Automatic brightness control
• Available narrow bezel for video wall applications
1 Applicable to most models. See product specifications for details.
Screen image simulated.
Technology, Inc. www.dynascanusa.com

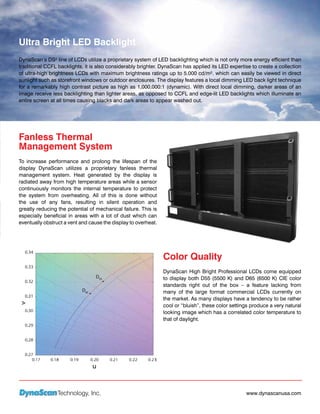

3. Ultra Bright LED Backlight
DynaScan’s DS² line of LCDs utilize a proprietary system of LED backlighting which is not only more energy efficient than
traditional CCFL backlights, it is also considerably brighter. DynaScan has applied its LED expertise to create a collection
of ultra-high brightness LCDs with maximum brightness ratings up to 5,000 cd/m². which can easily be viewed in direct
sunlight such as storefront windows or outdoor enclosures. The display features a local dimming LED back light technique
for a remarkably high contrast picture as high as 1,000,000:1 (dynamic). With direct local dimming, darker areas of an
image receive less backlighting than lighter areas, as opposed to CCFL and edge-lit LED backlights which illuminate an
entire screen at all times causing blacks and dark areas to appear washed out.
Fanless Thermal
Management System
To increase performance and prolong the lifespan of the
display DynaScan utilizes a proprietary fanless thermal
management system. Heat generated by the display is
radiated away from high temperature areas while a sensor
continuously monitors the internal temperature to protect
the system from overheating. All of this is done without
the use of any fans, resulting in silent operation and
greatly reducing the potential of mechanical failure. This is
especially beneficial in areas with a lot of dust which can
eventually obstruct a vent and cause the display to overheat.
Color Quality
DynaScan High Bright Professional LCDs come equipped
to display both D55 (5500 K) and D65 (6500 K) CIE color
standards right out of the box – a feature lacking from
many of the large format commercial LCDs currently on
the market. As many displays have a tendency to be rather
cool or “bluish”, these color settings produce a very natural
looking image which has a correlated color temperature to
that of daylight.
Technology, Inc. www.dynascanusa.com

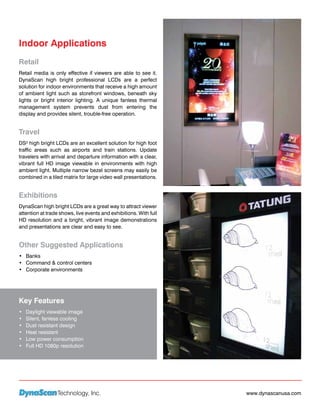

4. Indoor Applications
Retail
Retail media is only effective if viewers are able to see it.
DynaScan high bright professional LCDs are a perfect
solution for indoor environments that receive a high amount
of ambient light such as storefront windows, beneath sky
lights or bright interior lighting. A unique fanless thermal
management system prevents dust from entering the
display and provides silent, trouble-free operation.
Travel
DS² high bright LCDs are an excellent solution for high foot
traffic areas such as airports and train stations. Update
travelers with arrival and departure information with a clear,
vibrant full HD image viewable in environments with high
ambient light. Multiple narrow bezel screens may easily be
combined in a tiled matrix for large video wall presentations.
Exhibitions
DynaScan high bright LCDs are a great way to attract viewer
attention at trade shows, live events and exhibitions. With full
HD resolution and a bright, vibrant image demonstrations
and presentations are clear and easy to see.
Other Suggested Applications
• Banks
• Command & control centers
• Corporate environments
Key Features
• Daylight viewable image
• Silent, fanless cooling
• Dust resistant design
• Heat resistant
• Low power consumption
• Full HD 1080p resolution
Technology, Inc. www.dynascanusa.com

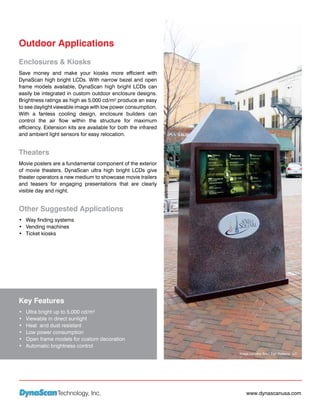

5. Outdoor Applications
Enclosures & Kiosks
Save money and make your kiosks more efficient with
DynaScan high bright LCDs. With narrow bezel and open
frame models available, DynaScan high bright LCDs can
easily be integrated in custom outdoor enclosure designs.
Brightness ratings as high as 5,000 cd/m² produce an easy
to see daylight viewable image with low power consumption.
With a fanless cooling design, enclosure builders can
control the air flow within the structure for maximum
efficiency. Extension kits are available for both the infrared
and ambient light sensors for easy relocation.
Theaters
Movie posters are a fundamental component of the exterior
of movie theaters. DynaScan ultra high bright LCDs give
theater operators a new medium to showcase movie trailers
and teasers for engaging presentations that are clearly
visible day and night.
Other Suggested Applications
• Way finding systems
• Vending machines
• Ticket kiosks
Key Features
• Ultra bright up to 5,000 cd/m²
• Viewable in direct sunlight
• Heat and dust resistant
• Low power consumption
• Open frame models for custom decoration
• Automatic brightness control
Image courtesy Boyd Sign Systems, LLC
Technology, Inc. www.dynascanusa.com

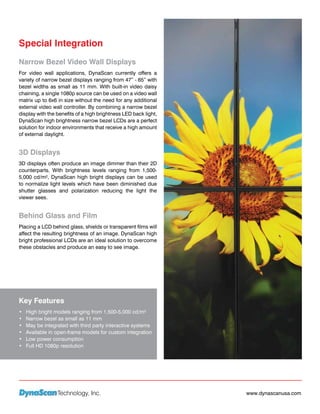

6. Special Integration
Narrow Bezel Video Wall Displays
For video wall applications, DynaScan currently offers a
variety of narrow bezel displays ranging from 47” - 65” with
bezel widths as small as 11 mm. With built-in video daisy
chaining, a single 1080p source can be used on a video wall
matrix up to 6x6 in size without the need for any additional
external video wall controller. By combining a narrow bezel
display with the benefits of a high brightness LED back light,
DynaScan high brightness narrow bezel LCDs are a perfect
solution for indoor environments that receive a high amount
of external daylight.
3D Displays
3D displays often produce an image dimmer than their 2D
counterparts. With brightness levels ranging from 1,500-
5,000 cd/m², DynaScan high bright displays can be used
to normalize light levels which have been diminished due
shutter glasses and polarization reducing the light the
viewer sees.
Behind Glass and Film
Placing a LCD behind glass, shields or transparent films will
affect the resulting brightness of an image. DynaScan high
bright professional LCDs are an ideal solution to overcome
these obstacles and produce an easy to see image.
Key Features
• High bright models ranging from 1,500-5,000 cd/m²
• Narrow bezel as small as 11 mm
• May be integrated with third party interactive systems
• Available in open-frame models for custom integration
• Low power consumption
• Full HD 1080p resolution
Technology, Inc. www.dynascanusa.com

7. MODEL DS46LO4 DS47LT3 DS47LT4 DS55LT4 DS55LT6 DS65LT4
LED Backlit Local Dimming Narrow Bezel
PANEL
LCD Panel Type 46 inches color TFT LCD 46.96 inches color TFT LCD 46.96 inches color TFT LCD 54.64 inches color TFT LCD 54.64 inches color TFT LCD 64.5 inches color TFT LCD
Native Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Backlight Direct LED Direct LED Direct LED Direct LED Direct LED Direct LED
Brightness 3000 nit (max), 2500 nit (typ) 1500 nit (typ) 2500 nit (max), 2200 nit (typ) 2500 nit (min) 5000 nit (max) 2500 nit (max)
Default Color Temperature D65 (6500 K) D65 (6500 K) D65 (6500 K) D65 (6500 K) D65 (6500 K) D65 (6500 K)
Contrast Ratio 10,000:1 (typ) 1,000,000:1 (dyn) 3,000:1 (static) 1,000,000:1 (dyn) 3,000:1 (static) 1,000,000:1 (dyn) 3,000:1 (static) 1,000,000:1 (dyn) 3,000:1 (static) 1,000,000:1 (dyn) 10,000:1 (typ) 1,000,000:1 (dyn)
Response Time 8 ms (typ) 9 ms (typ) 9 ms (typ) 10 ms (typ) 10 ms (typ) 8 ms (typ)
Viewing Angle 178° / 178° 178° / 178° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
Light Life Time 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.)
Panel Surface AG Haze 13%, 3H AG Haze 10%, 3H AG Haze 10%, 3H AG Haze 10%, 3H AG Haze 10%, 3H AG Haze 13%, 3H
POWER
Power Supply Internal Internal Internal Internal Internal Internal
Rated Voltage 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz
Power On Mode 250 W (typ), 300 W (max) 250 W (typ), 300 W (max) 250 W (typ), 300 W (max) 300 W (typ), 465 W (max) 600 W (typ), 920 W (max) 525 W (typ), 855 W (max)
Power Saving Mode <5W <5W <5W <5W <5W <5W
AC Out < 100 W < 100 W < 100 W < 100 W < 100 W < 100 W
MECHANICAL SPECS
Bezel Width (T/B/L/R) 24.2 / 24.2 / 29.0 / 29.0 mm 11 / 11 / 11 / 11 mm 11 / 11 / 11 / 11 mm 11.5 / 11.5 / 11.5 / 11.5 mm 11.5 / 11.5 / 11.5 / 11.5 mm 23.7 / 23.7 / 20.9 / 20.9 mm
Cabinet Color Black Black Black Black Black Black
Monitor Dimension (LxHxD, w/o stand) x 633 x 104 mm
1111 1068 x 613.6 x 122 mm 1068 x 613.6 x 122 mm 1241 x 711 x 121 mm 1241 x 711 x 121 mm 1482.4 x 862 x 126.7 mm
Monitor Weight (set/package) 38 kg / 43 kg 36 kg / 40 kg 36 kg / 40 kg 56 kg / 61 kg 62 kg / 67 kg 75 kg / 81 kg
VESA Mounting (dimension) 400 x 400 mm 400 x 400 mm 400 x 400 mm 400 x 400 mm, 600 x 400 mm 400 x 400 mm, 600 x 400 mm 400 x 400 mm, 800 x 400 mm
Fanless Design Yes Yes Yes Yes No Yes
AUDIO FEATURES
Max Audo Output N/A N/A N/A N/A N/A N/A
USER INTERFACE
Image Setting Yes Yes Yes Yes Yes Yes
Source/Volume Control Yes Yes Yes Yes Yes Yes
Language English English English English English English
Daisy Chain RS-232 Control RS-232 Control RS-232 Control RS-232 Control RS-232 Control RS-232 Control
Sharpness Enhancement Yes Yes Yes Yes Yes Yes
Proof of Image Retention Yes Yes Yes Yes Yes Yes
DDC/CI No No No No No No
Dimming Control (DCR) Yes Yes Yes Yes Yes Yes
Picture in Picture (PIP) Optional Optional Optional Optional Optional Optional
De-interlacing/Comb Filter Optional Optional Optional Optional Optional Optional
10 bit Color Processing No No No No No No
Built-in Video Wall Support Yes Yes Yes Yes Yes Yes
ID Setting for Daisy Chain Yes Yes Yes Yes Yes Yes
On/Off Scheduling Yes Yes Yes Yes Yes Yes
Ambient Light Sensor Yes Yes Yes Yes Yes Yes
Total Turn-on time Yes Yes Yes Yes Yes Yes
Diagnostic DC Voltage (12 V/5 V) No No No No No No
Internal Temperature Sensor Yes Yes Yes Yes Yes Yes
Portrait & Landscape Orientation Yes Yes Yes Yes Yes Yes
VIDEO INPUT
DVI-D 1 1 1 1 1 1
HDMI Optional Optional Optional Optional Optional Optional
VGA Optional Optional Optional Optional Optional Optional
Component Optional Optional Optional Optional Optional Optional
S-Video Optional Optional Optional Optional Optional Optional
Composite Optional Optional Optional Optional Optional Optional
ACCESSORIES
Remote Control Yes Yes Yes Yes Yes Yes
Users Guide / Driver CD-ROM Yes Yes Yes Yes Yes Yes
Video Cable DVI DVI DVI DVI DVI DVI
Power Cable Yes Yes Yes Yes Yes Yes
ENVIRONMENT
Operating Temperature 0° C ~ 40° C 0° C ~ 40° C 0° C ~ 40° C 0° C ~ 40° C 0° C ~ 40° C 0° C ~ 40° C
Storage Temperature -20° C ~ 60° C -20° C ~ 60° C -20° C ~ 60° C -20° C ~ 60° C -20° C ~ 60° C -20° C ~ 60° C
Humidity 10% ~ 80% RH Non-condensing 10% ~ 80% RH Non-condensing 10% ~ 80% RH Non-condensing 10% ~ 80% RH Non-condensing 10% ~ 80% RH Non-condensing 10% ~ 80% RH Non-condensing
Specifications subject to change without notice.
Technology, Inc. www.dynascanusa.com

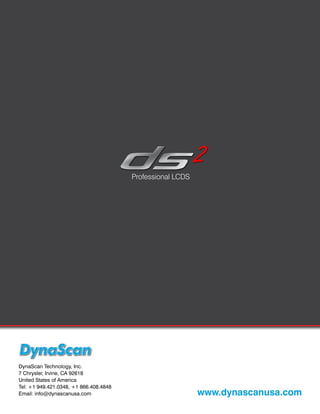

8. Professional LCDS
