CS Instruments offers reliable chart recorders that come with advanced features and innovative solutions. The DS 400 chart recorder helps you achieve accurate measurement and seamless operation. Our chart recorders make it easy to analyse and evaluate the data, which helps to optimise processes and maintain quality standards. They also facilitate reporting and traceability, which is required for audits and compliance and ideal for many industries. Get the DS 400 Chart Recorder today! Visit: https://www.cs-instruments.com/za/ds-400-chart-recorder/

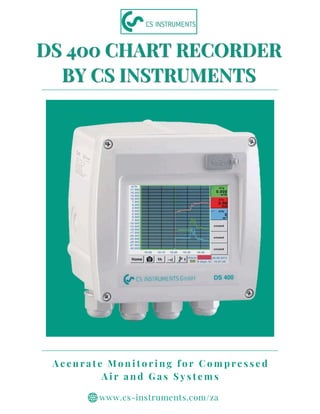

1. A c c u r a t e M o n i t o r i n g f o r C o m p r e s s e d
A i r a n d G a s S y s t e m s
DS 400 CHART RECORDER
BY CS INSTRUMENTS
DS 400 CHART RECORDER
BY CS INSTRUMENTS
www.cs-instruments.com/za

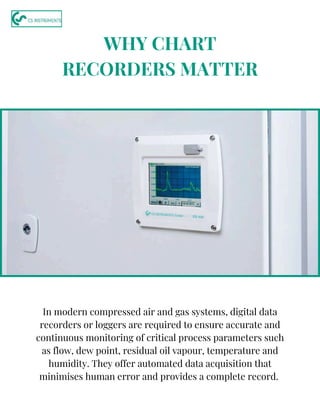

2. In modern compressed air and gas systems, digital data
recorders or loggers are required to ensure accurate and
continuous monitoring of critical process parameters such
as flow, dew point, residual oil vapour, temperature and
humidity. They offer automated data acquisition that
minimises human error and provides a complete record.
WHY CHART
RECORDERS MATTER

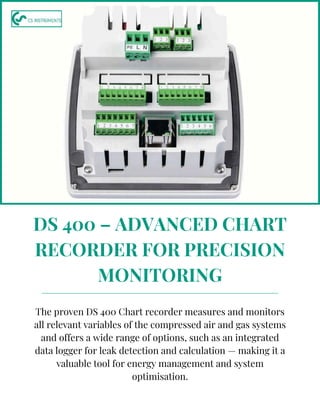

3. DS 400 – ADVANCED CHART
RECORDER FOR PRECISION
MONITORING
The proven DS 400 Chart recorder measures and monitors
all relevant variables of the compressed air and gas systems
and offers a wide range of options, such as an integrated
data logger for leak detection and calculation — making it a
valuable tool for energy management and system
optimisation.

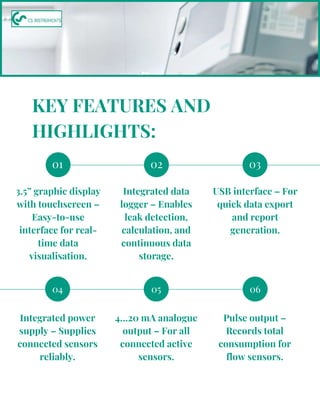

4. 04 05 06
01
3.5” graphic display
with touchscreen –
Easy-to-use
interface for real-
time data
visualisation.
02 03
Integrated data
logger – Enables
leak detection,
calculation, and
continuous data
storage.
USB interface – For
quick data export
and report
generation.
KEY FEATURES AND
HIGHLIGHTS:
Integrated power
supply – Supplies
connected sensors
reliably.
4…20 mA analogue
output – For all
connected active
sensors.
Pulse output –
Records total
consumption for
flow sensors.

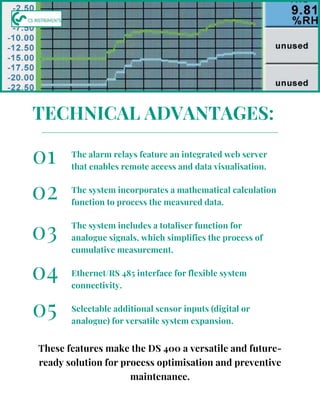

5. The alarm relays feature an integrated web server
that enables remote access and data visualisation.
The system incorporates a mathematical calculation
function to process the measured data.
The system includes a totaliser function for
analogue signals, which simplifies the process of
cumulative measurement.
01
02
03
TECHNICAL ADVANTAGES:
These features make the DS 400 a versatile and future-
ready solution for process optimisation and preventive
maintenance.
Ethernet/RS 485 interface for flexible system
connectivity.
Selectable additional sensor inputs (digital or
analogue) for versatile system expansion.
04
05

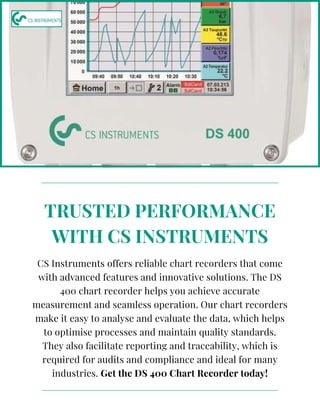

6. CS Instruments offers reliable chart recorders that come
with advanced features and innovative solutions. The DS
400 chart recorder helps you achieve accurate
measurement and seamless operation. Our chart recorders
make it easy to analyse and evaluate the data, which helps
to optimise processes and maintain quality standards.
They also facilitate reporting and traceability, which is
required for audits and compliance and ideal for many
industries. Get the DS 400 Chart Recorder today!
TRUSTED PERFORMANCE
WITH CS INSTRUMENTS

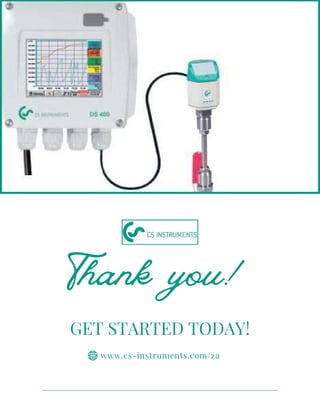

7. Thank you!
GET STARTED TODAY!
www.cs-instruments.com/za
