Driving Risks Out of Embedded Automotive Software

Parasoft Copyright © 2016 1
September 30, 2016
Driving Risks out of
Embedded Automotive Software

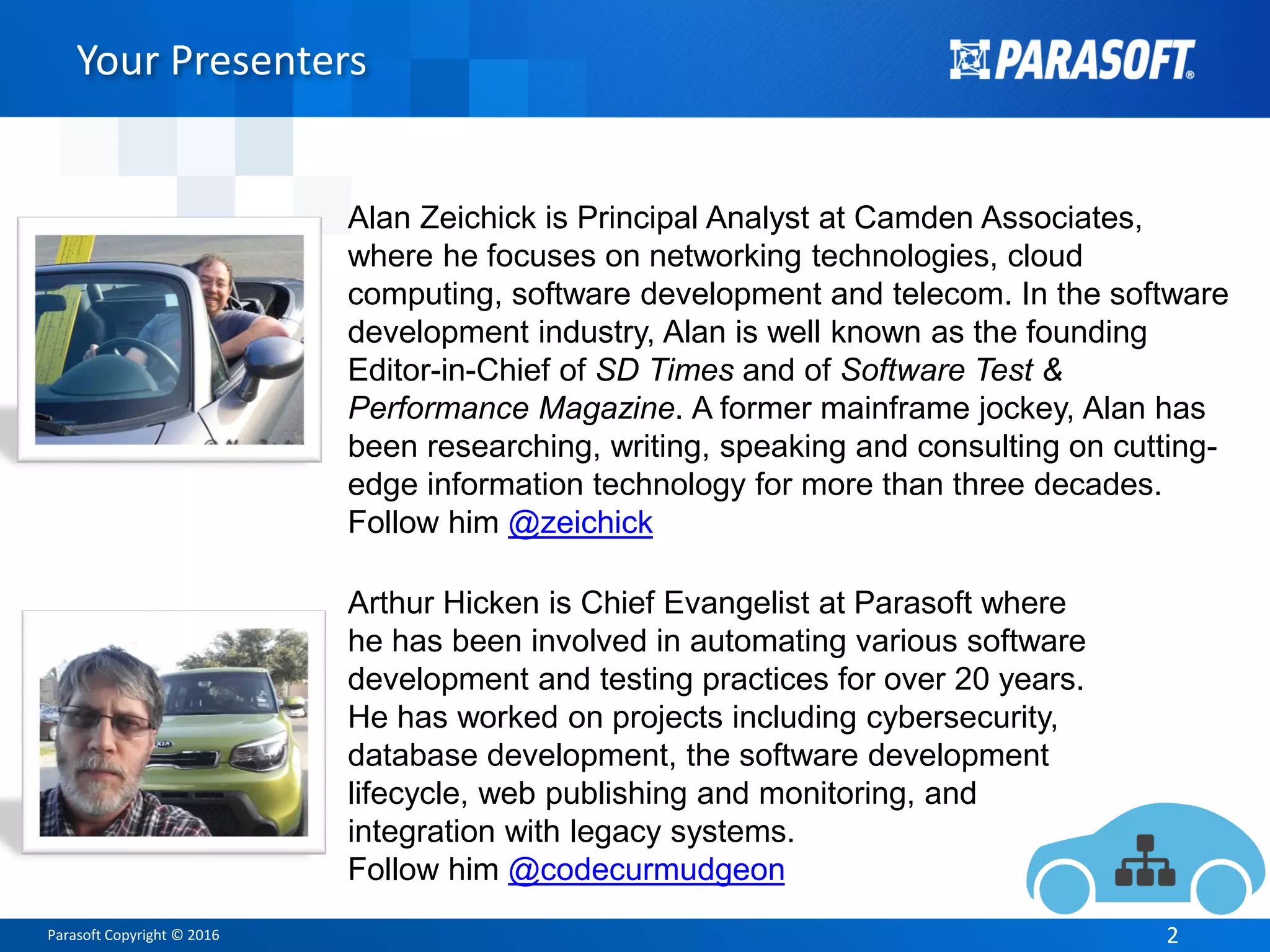

Your Presenters
Arthur Hicken is Chief Evangelist at Parasoft where
he has been involved in automating various software
development and testing practices for over 20 years.
He has worked on projects including cybersecurity,
database development, the software development
lifecycle, web publishing and monitoring, and
integration with legacy systems.
Follow him @codecurmudgeon
Alan Zeichick is Principal Analyst at Camden Associates,
where he focuses on networking technologies, cloud
computing, software development and telecom. In the software
development industry, Alan is well known as the founding
Editor-in-Chief of SD Times and of Software Test &
Performance Magazine. A former mainframe jockey, Alan has
been researching, writing, speaking and consulting on cutting-
edge information technology for more than three decades.
Follow him @zeichick

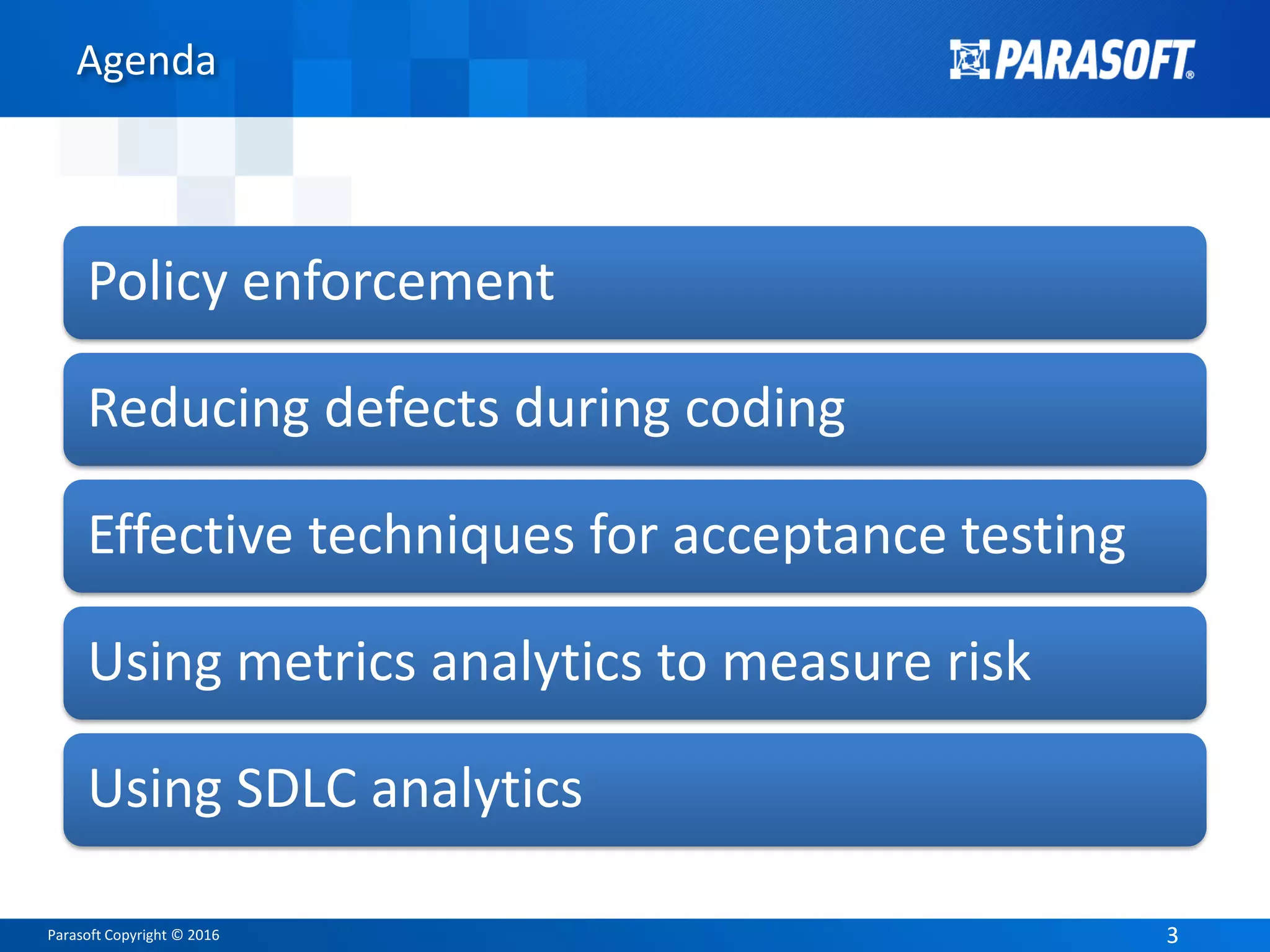

Agenda
Policy enforcement
Reducing defects during coding
Effective techniques for acceptance testing
Using metrics analytics to measure risk
Using SDLC analytics

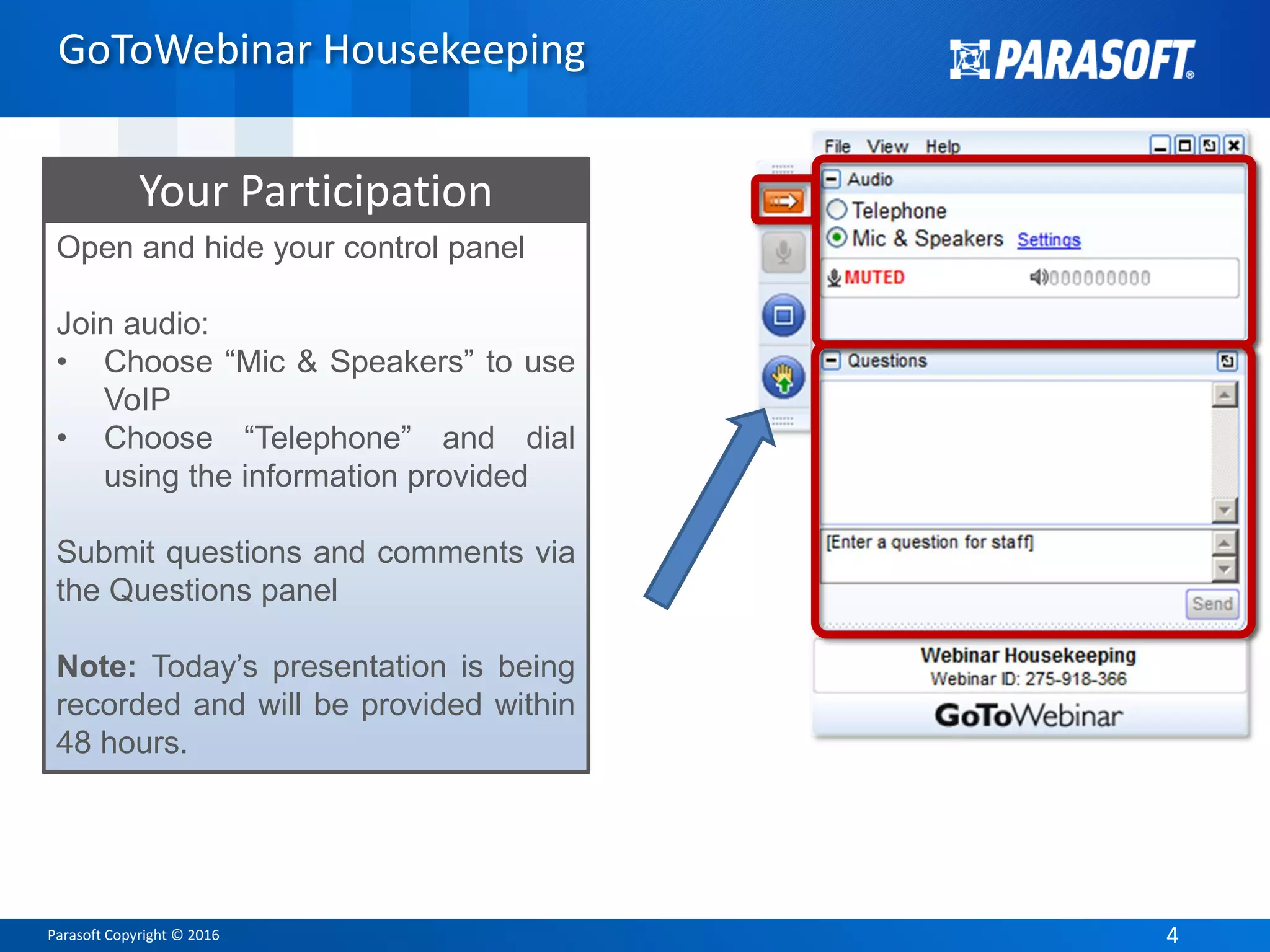

Open and hide your control panel
Join audio:
• Choose “Mic & Speakers” to use
VoIP
• Choose “Telephone” and dial
using the information provided
Submit questions and comments via
the Questions panel
Note: Today’s presentation is being
recorded and will be provided within
48 hours.
Your Participation
GoToWebinar Housekeeping

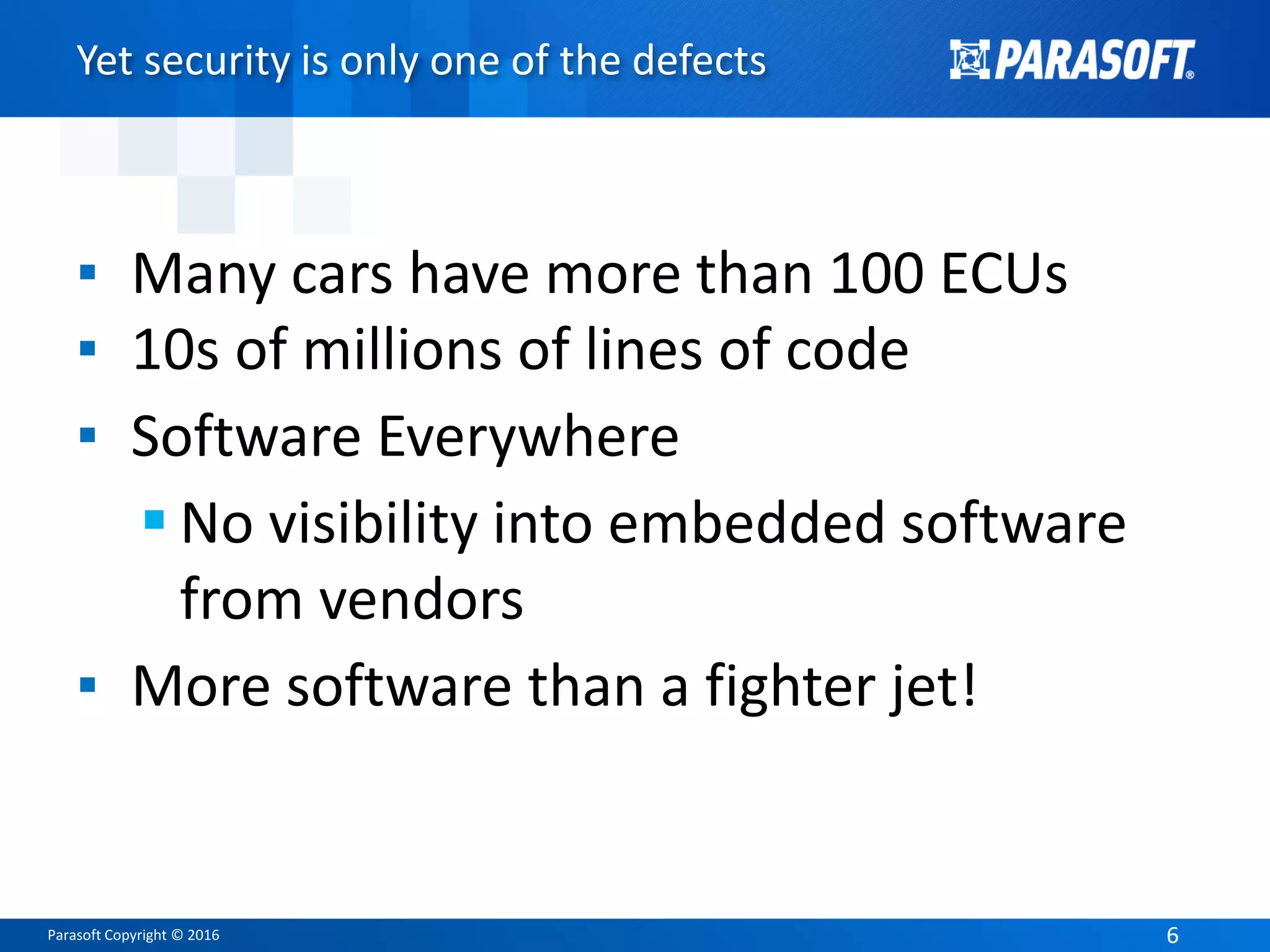

Much attention has been paid to hacking

Yet security is only one of the defects
▪ Many cars have more than 100 ECUs
▪ 10s of millions of lines of code
▪ Software Everywhere
 No visibility into embedded software
from vendors
▪ More software than a fighter jet!

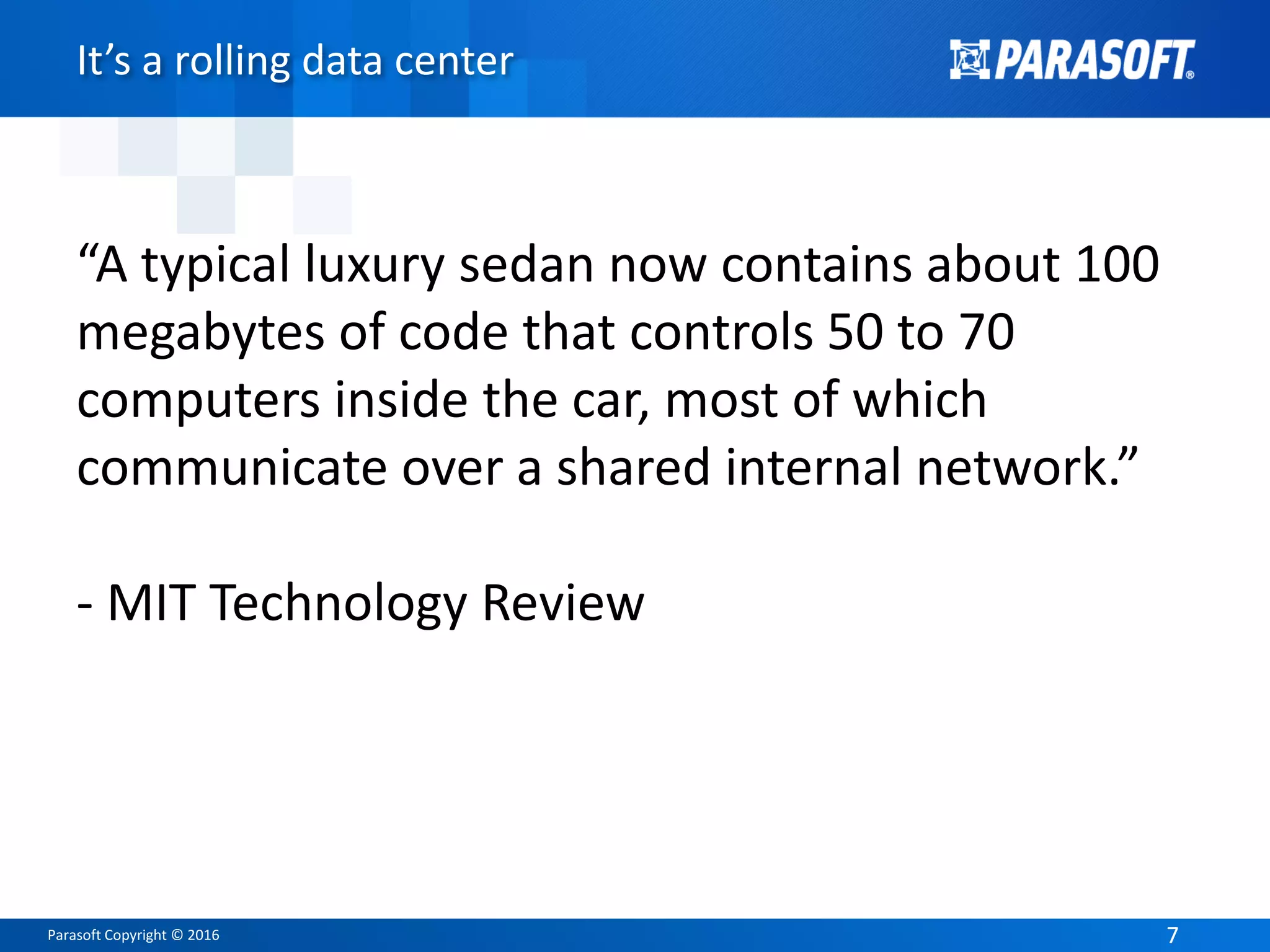

It’s a rolling data center
“A typical luxury sedan now contains about 100
megabytes of code that controls 50 to 70
computers inside the car, most of which
communicate over a shared internal network.”
- MIT Technology Review

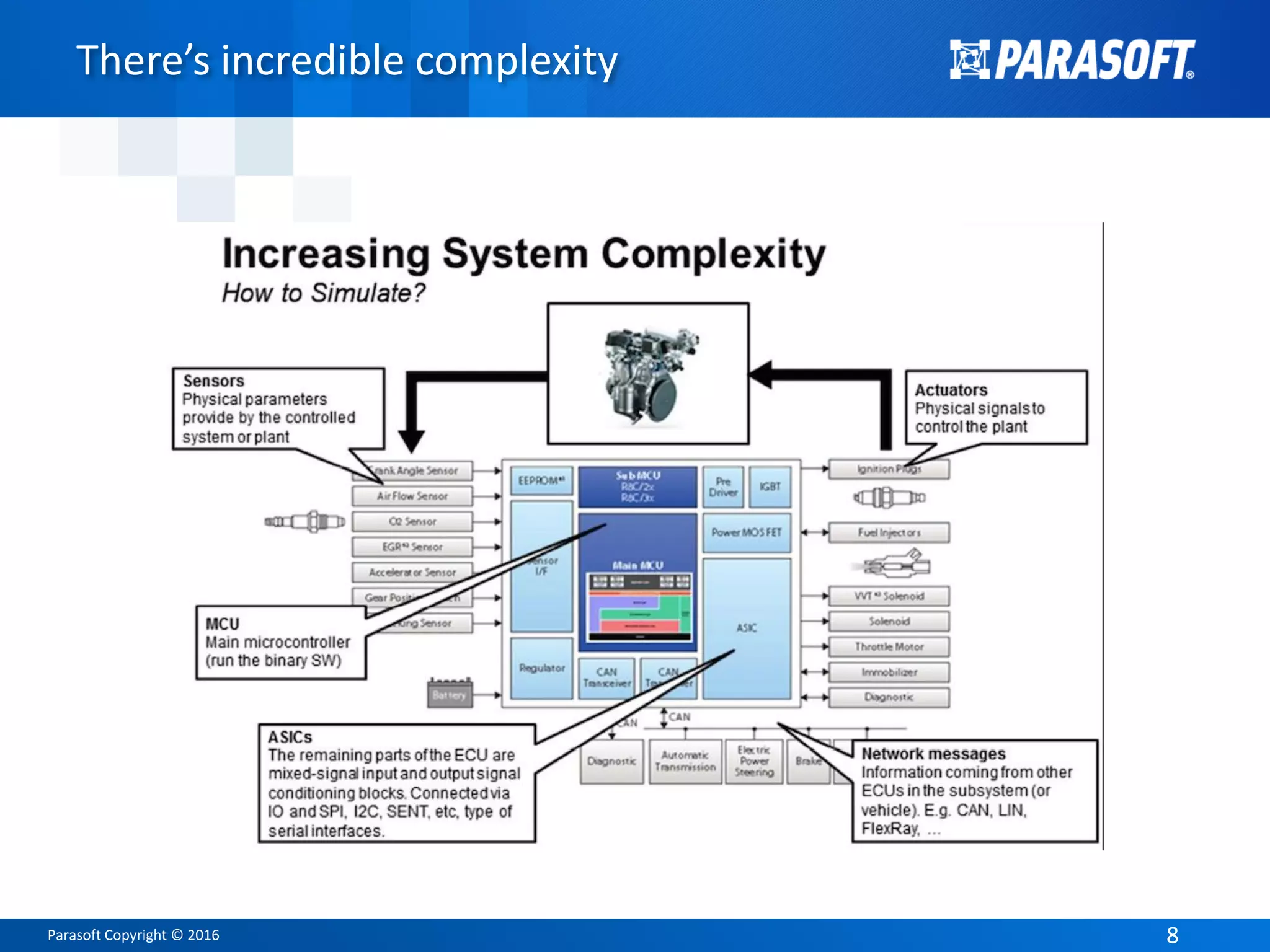

There’s incredible complexity

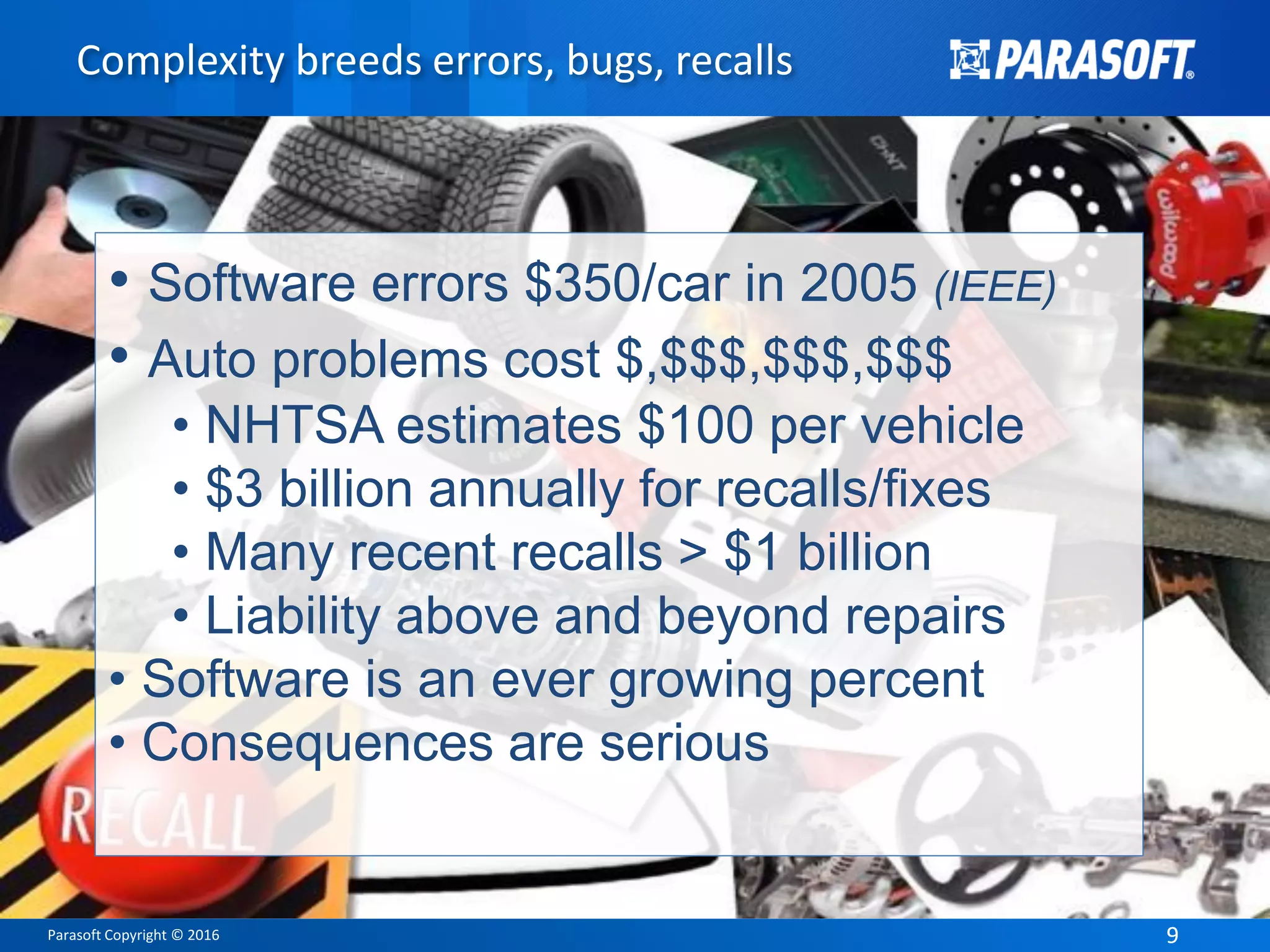

Complexity breeds errors, bugs, recalls
• Software errors $350/car in 2005 (IEEE)
• Auto problems cost $,$$$,$$$,$$$
• NHTSA estimates $100 per vehicle
• $3 billion annually for recalls/fixes
• Many recent recalls > $1 billion
• Liability above and beyond repairs
• Software is an ever growing percent
• Consequences are serious

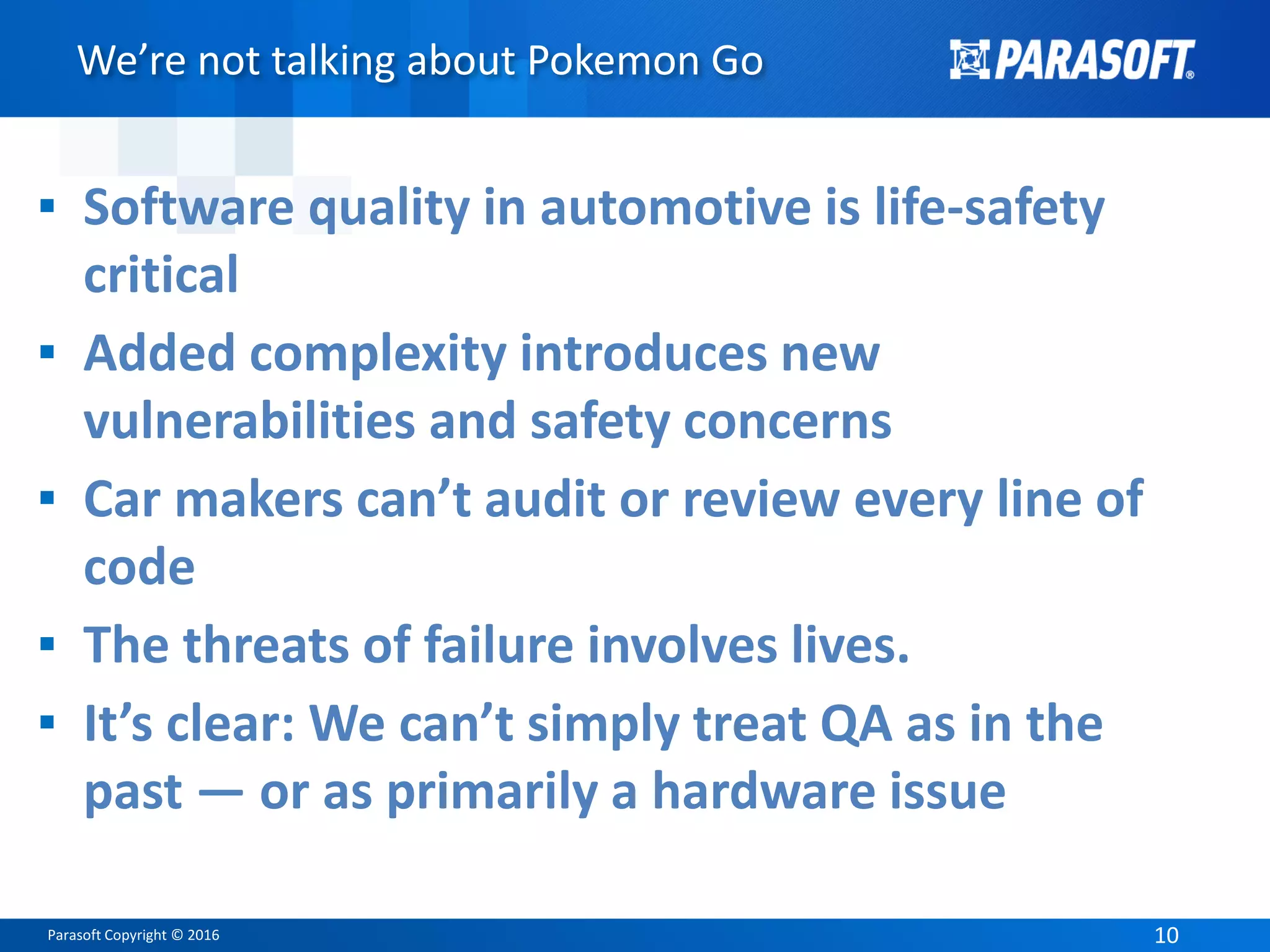

We’re not talking about Pokemon Go
▪ Software quality in automotive is life-safety
critical
▪ Added complexity introduces new
vulnerabilities and safety concerns
▪ Car makers can’t audit or review every line of
code
▪ The threats of failure involves lives.
▪ It’s clear: We can’t simply treat QA as in the
past — or as primarily a hardware issue

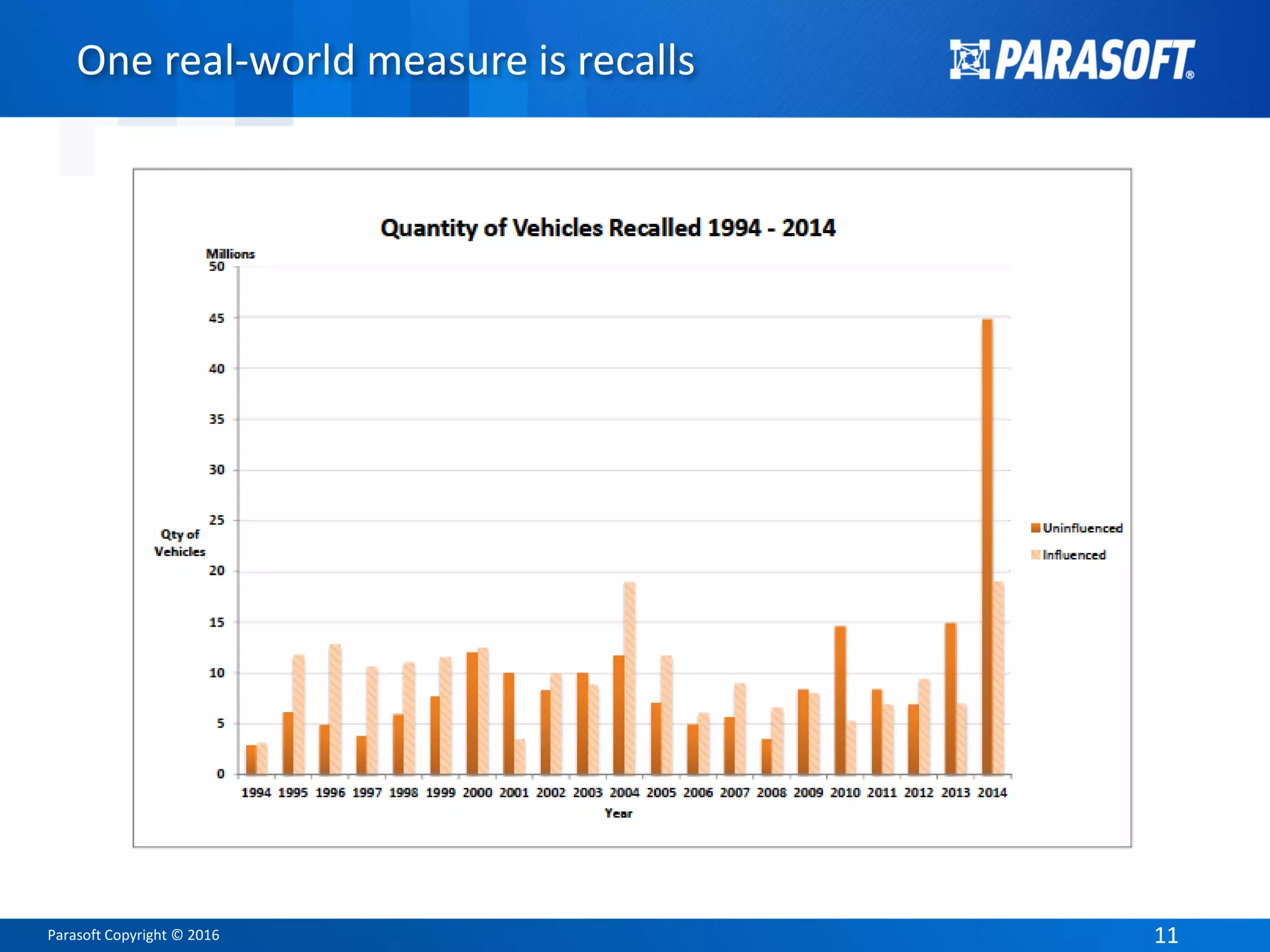

One real-world measure is recalls

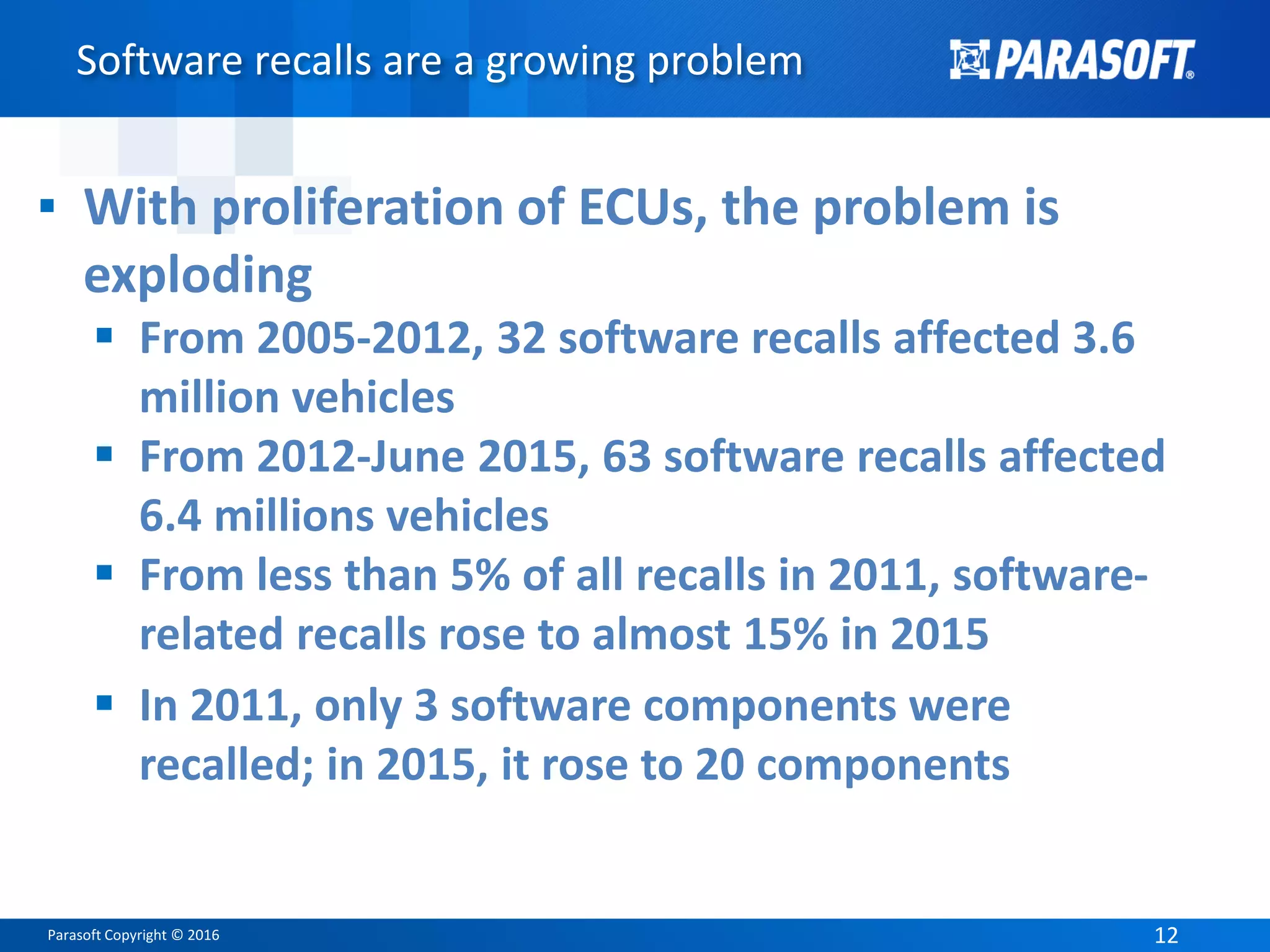

Software recalls are a growing problem
▪ With proliferation of ECUs, the problem is
exploding
 From 2005-2012, 32 software recalls affected 3.6
million vehicles
 From 2012-June 2015, 63 software recalls affected
6.4 millions vehicles
 From less than 5% of all recalls in 2011, software-
related recalls rose to almost 15% in 2015
 In 2011, only 3 software components were
recalled; in 2015, it rose to 20 components

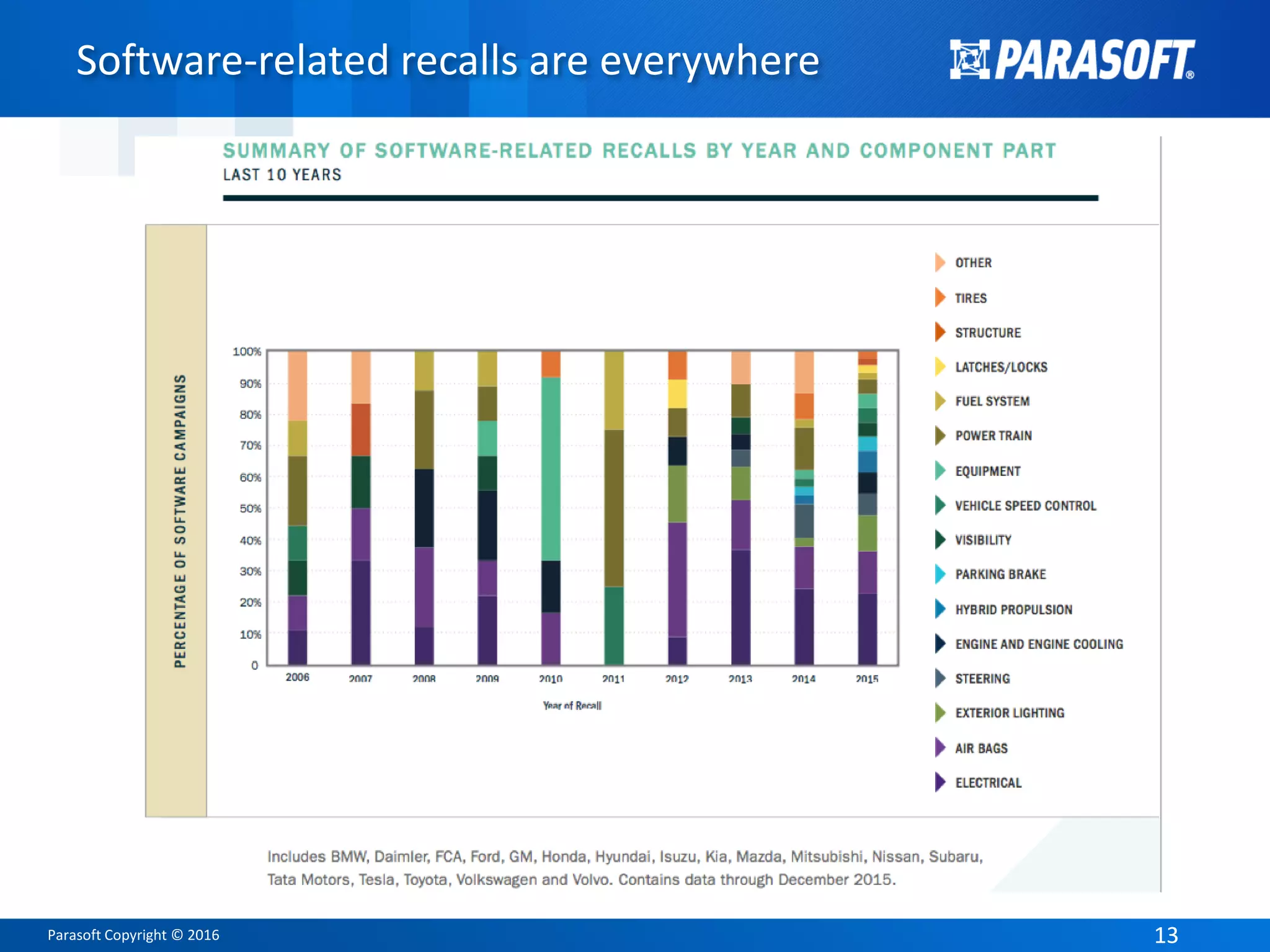

Software-related recalls are everywhere

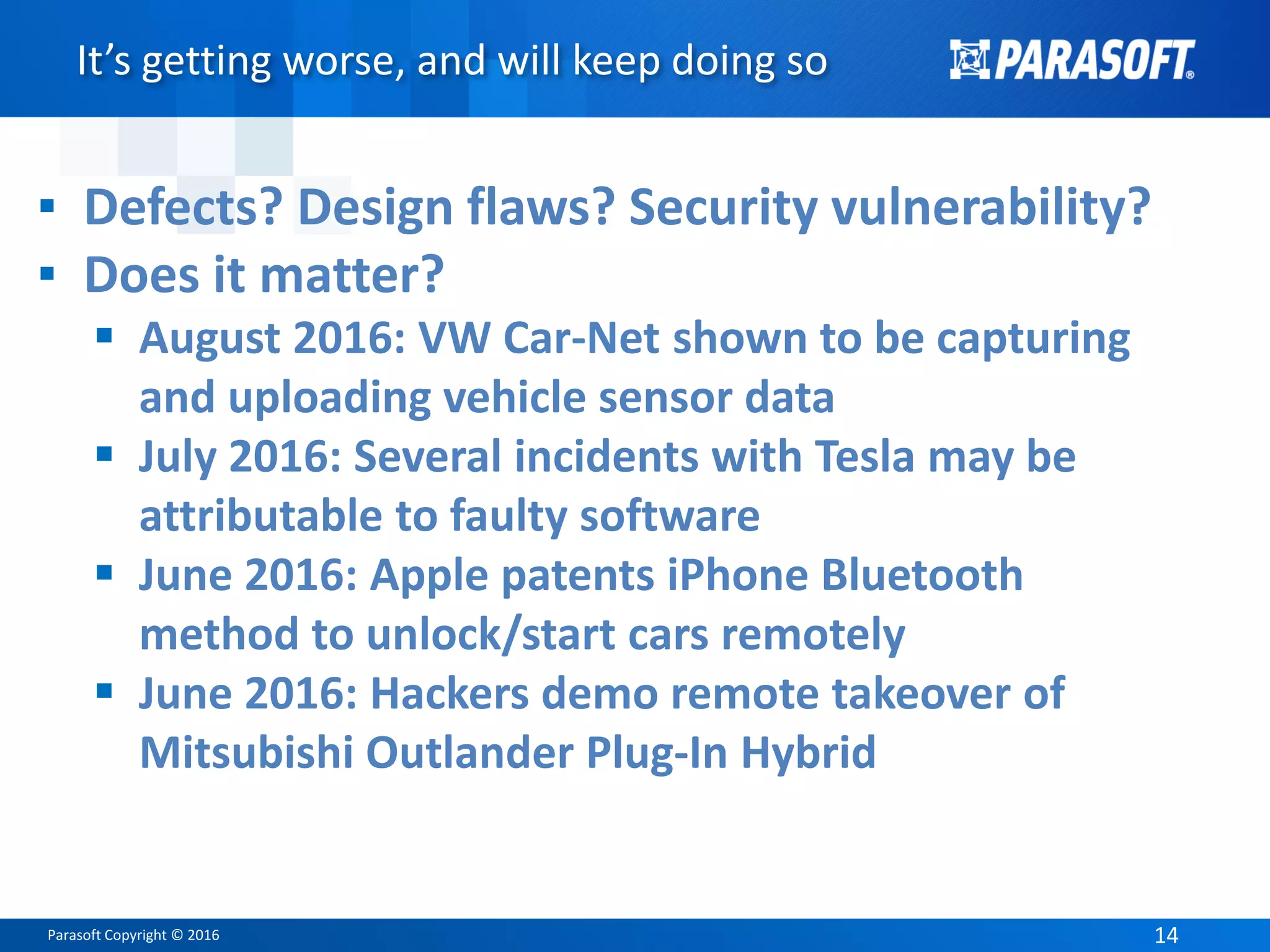

It’s getting worse, and will keep doing so
▪ Defects? Design flaws? Security vulnerability?
▪ Does it matter?
 August 2016: VW Car-Net shown to be capturing
and uploading vehicle sensor data
 July 2016: Several incidents with Tesla may be
attributable to faulty software
 June 2016: Apple patents iPhone Bluetooth
method to unlock/start cars remotely
 June 2016: Hackers demo remote takeover of
Mitsubishi Outlander Plug-In Hybrid

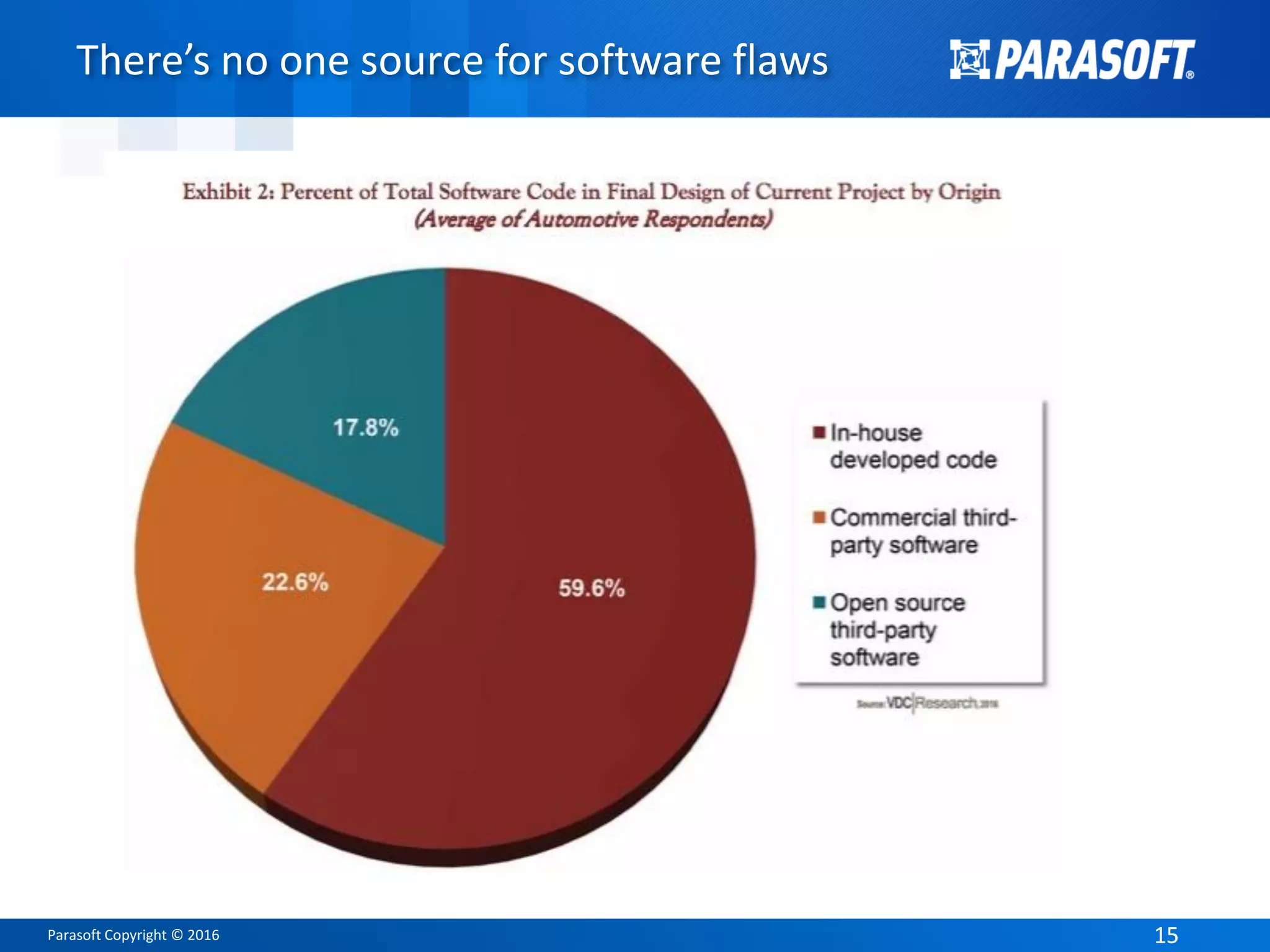

There’s no one source for software flaws

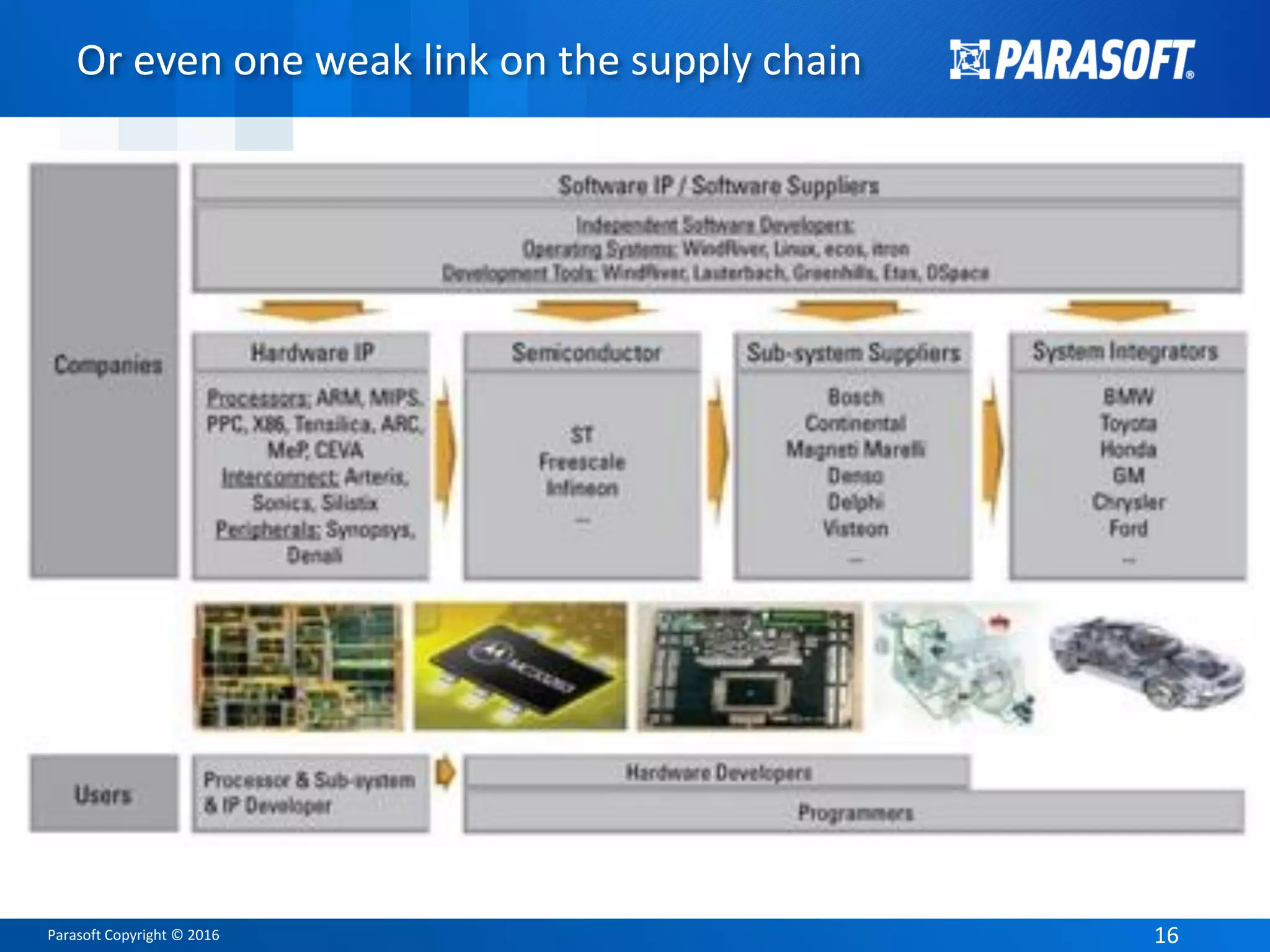

Or even one weak link on the supply chain

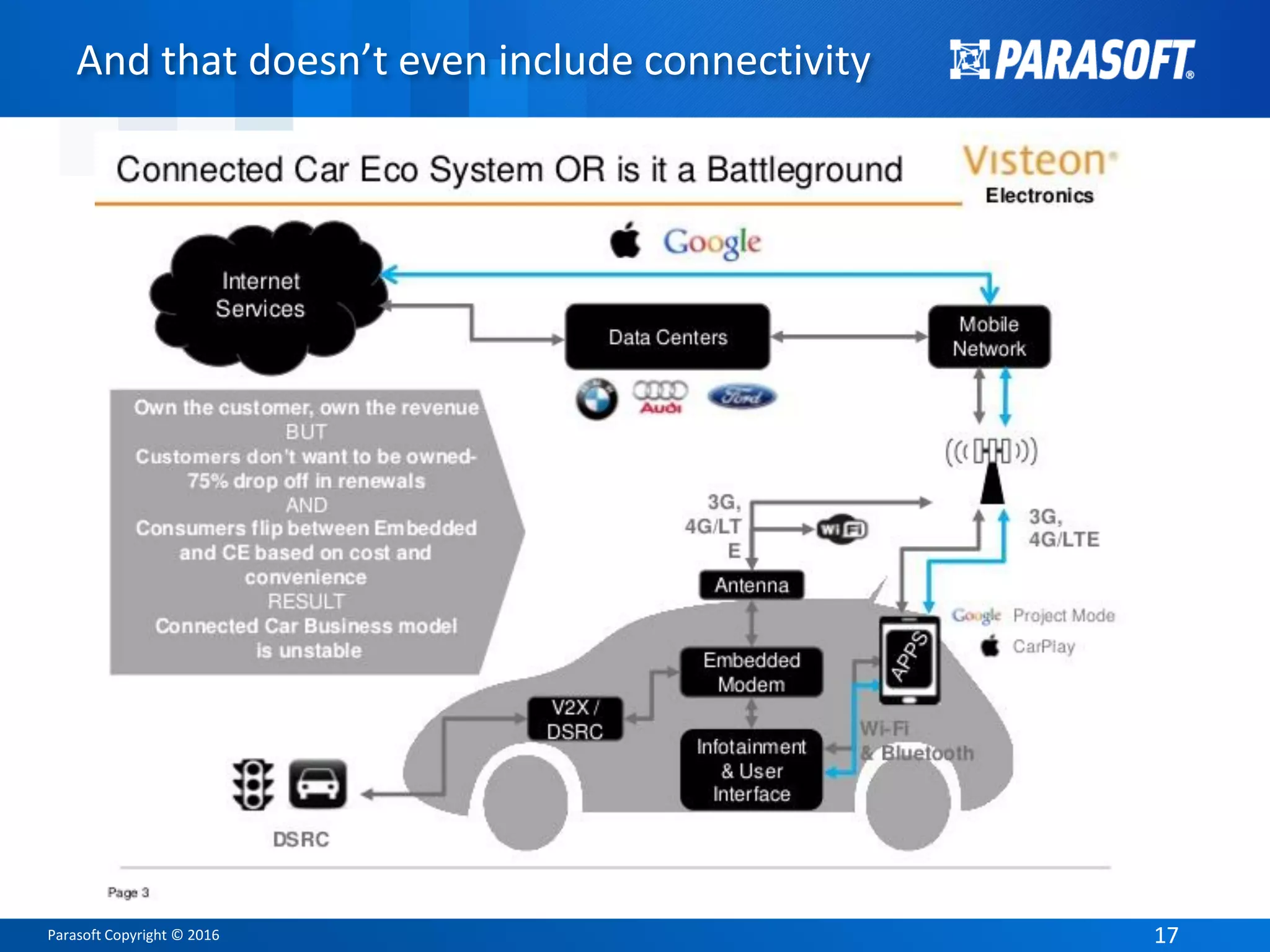

And that doesn’t even include connectivity

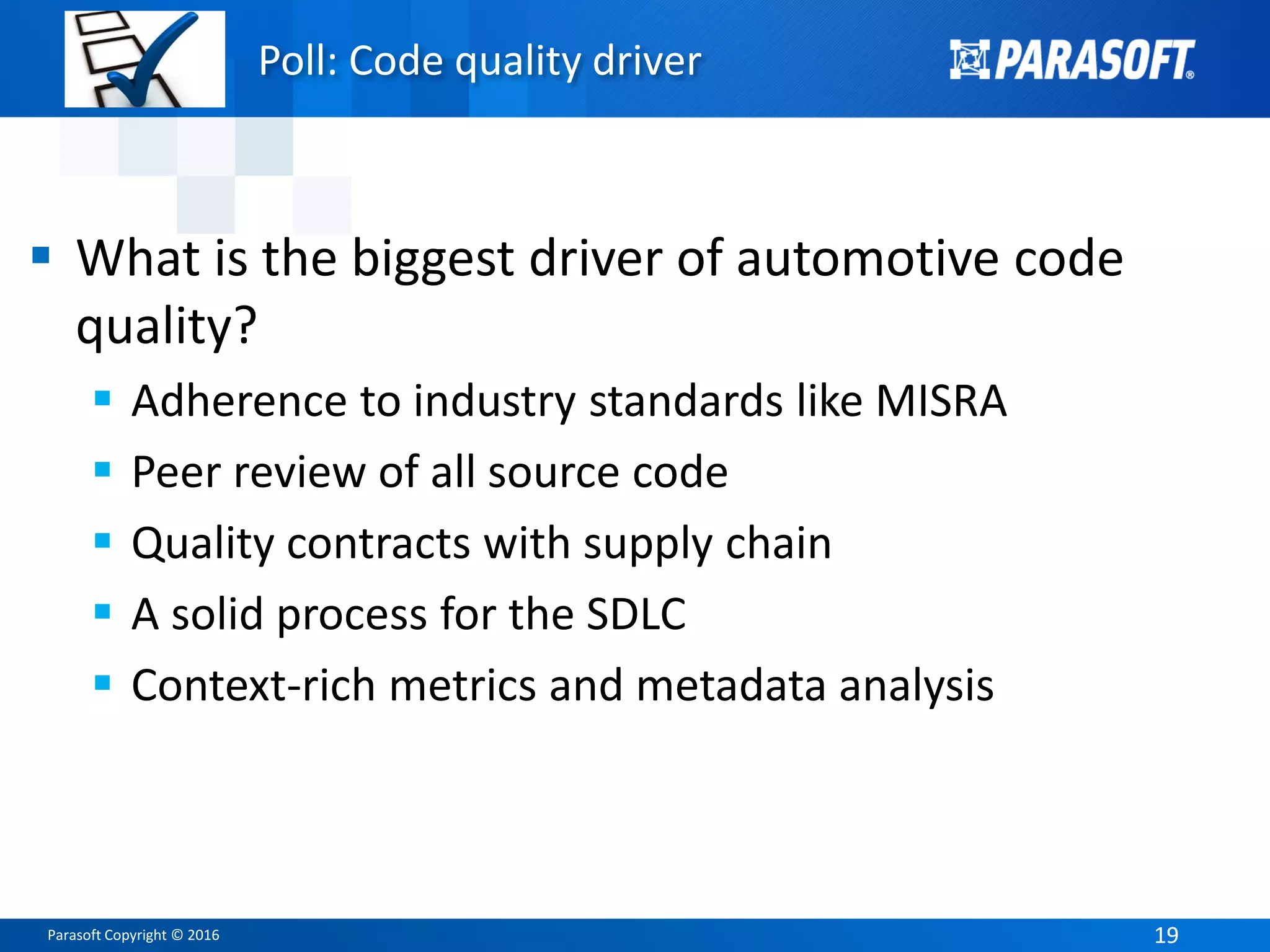

Poll: Code quality driver
 What is the biggest driver of automotive code
quality?
 Adherence to industry standards like MISRA
 Peer review of all source code
 Quality contracts with supply chain
 A solid process for the SDLC
 Context-rich metrics and metadata analysis

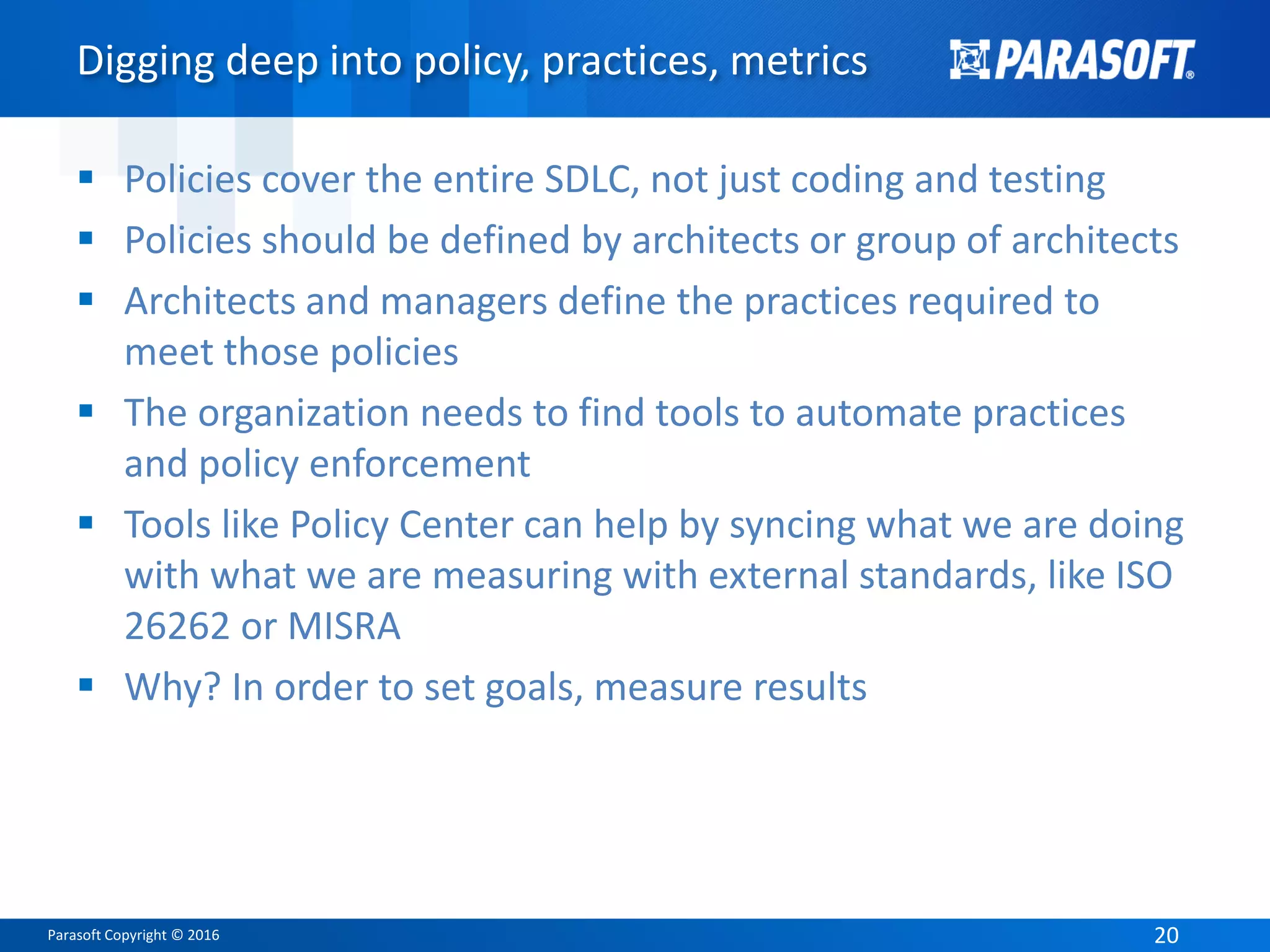

Digging deep into policy, practices, metrics
 Policies cover the entire SDLC, not just coding and testing
 Policies should be defined by architects or group of architects
 Architects and managers define the practices required to
meet those policies
 The organization needs to find tools to automate practices
and policy enforcement
 Tools like Policy Center can help by syncing what we are doing
with what we are measuring with external standards, like ISO
26262 or MISRA
 Why? In order to set goals, measure results

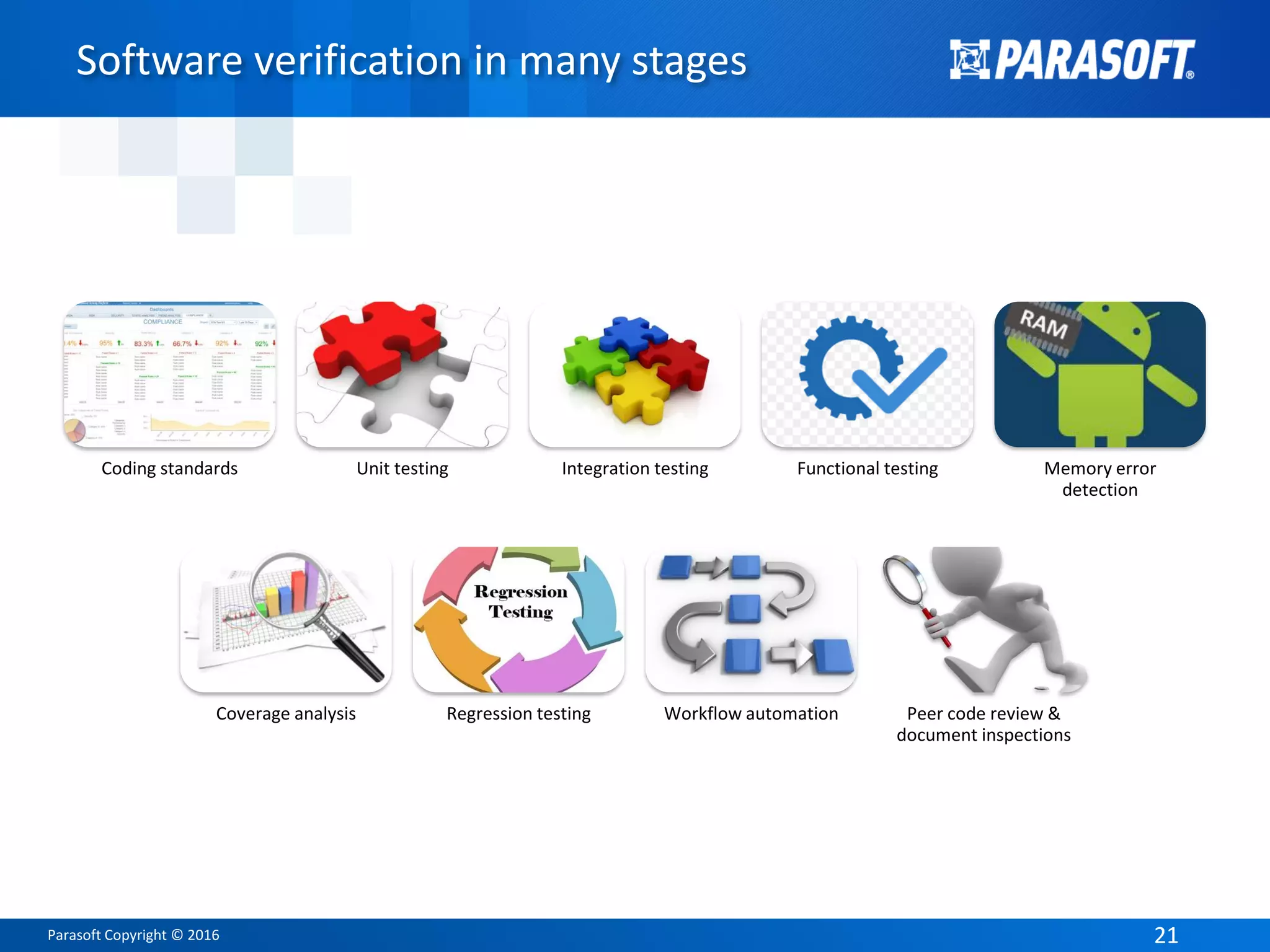

Software verification in many stages
Coding standards Unit testing Integration testing Functional testing Memory error
detection
Coverage analysis Regression testing Workflow automation Peer code review &
document inspections

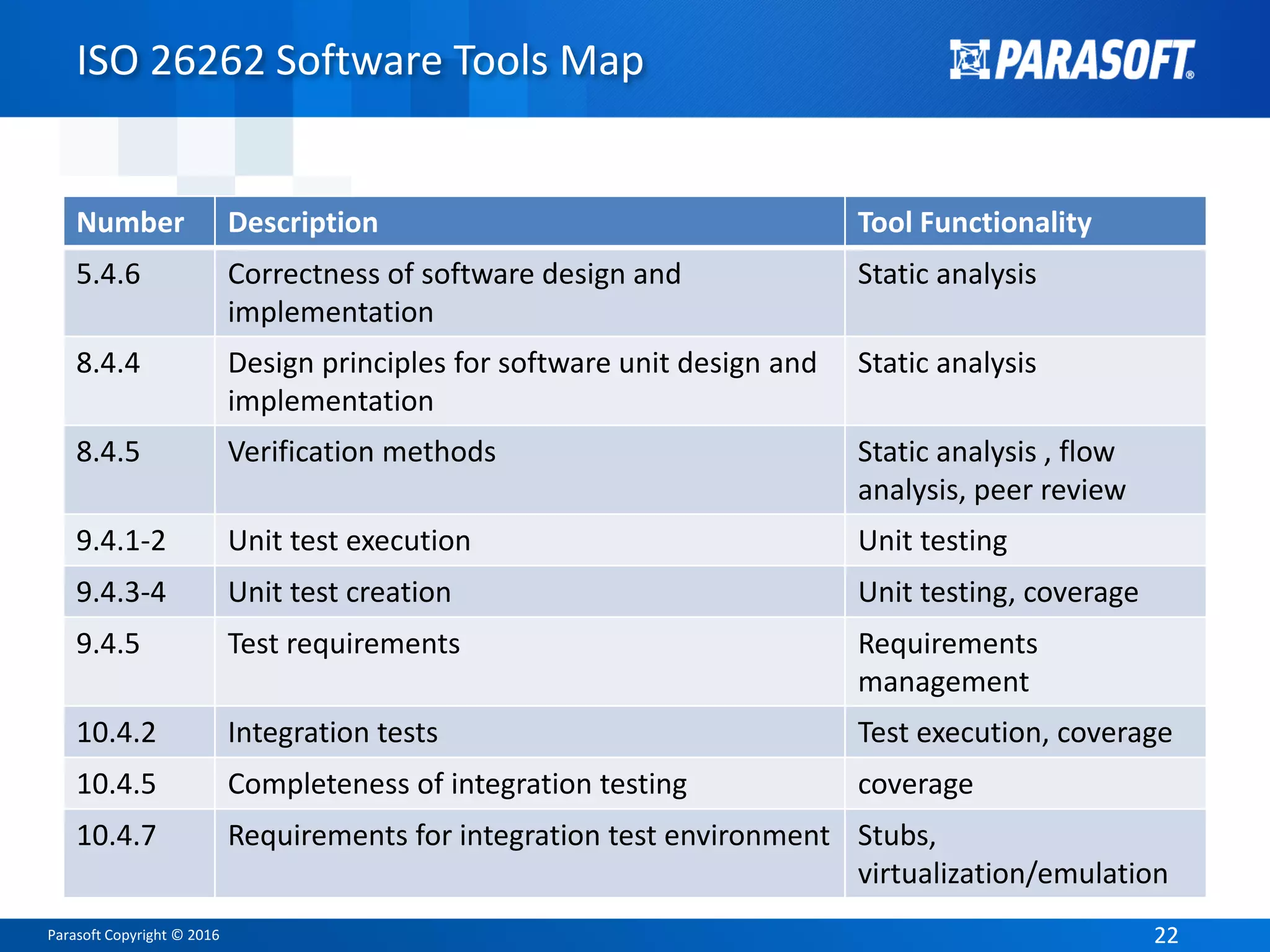

ISO 26262 Software Tools Map
Number Description Tool Functionality
5.4.6 Correctness of software design and
implementation
Static analysis
8.4.4 Design principles for software unit design and
implementation
Static analysis
8.4.5 Verification methods Static analysis , flow
analysis, peer review
9.4.1-2 Unit test execution Unit testing
9.4.3-4 Unit test creation Unit testing, coverage
9.4.5 Test requirements Requirements
management
10.4.2 Integration tests Test execution, coverage
10.4.5 Completeness of integration testing coverage
10.4.7 Requirements for integration test environment Stubs,
virtualization/emulation

Where to start
1. Measure software test coverage
2. Improve test coverage
3. Static analysis is an essential tactic
4. Implement preventative coding standards
5. Use runtime memory detection in the test lab
6. Link requirements to code and tests and results
7. Get results data back from supply chain vendors
8. Analyze data collected during development

Poll: When to catch defects
 When is the best time to catch a safety-critical
software defect?
 During the design/architecture phase
 While writing the code
 When code is checked-in to the repository
 During peer review
 During testing

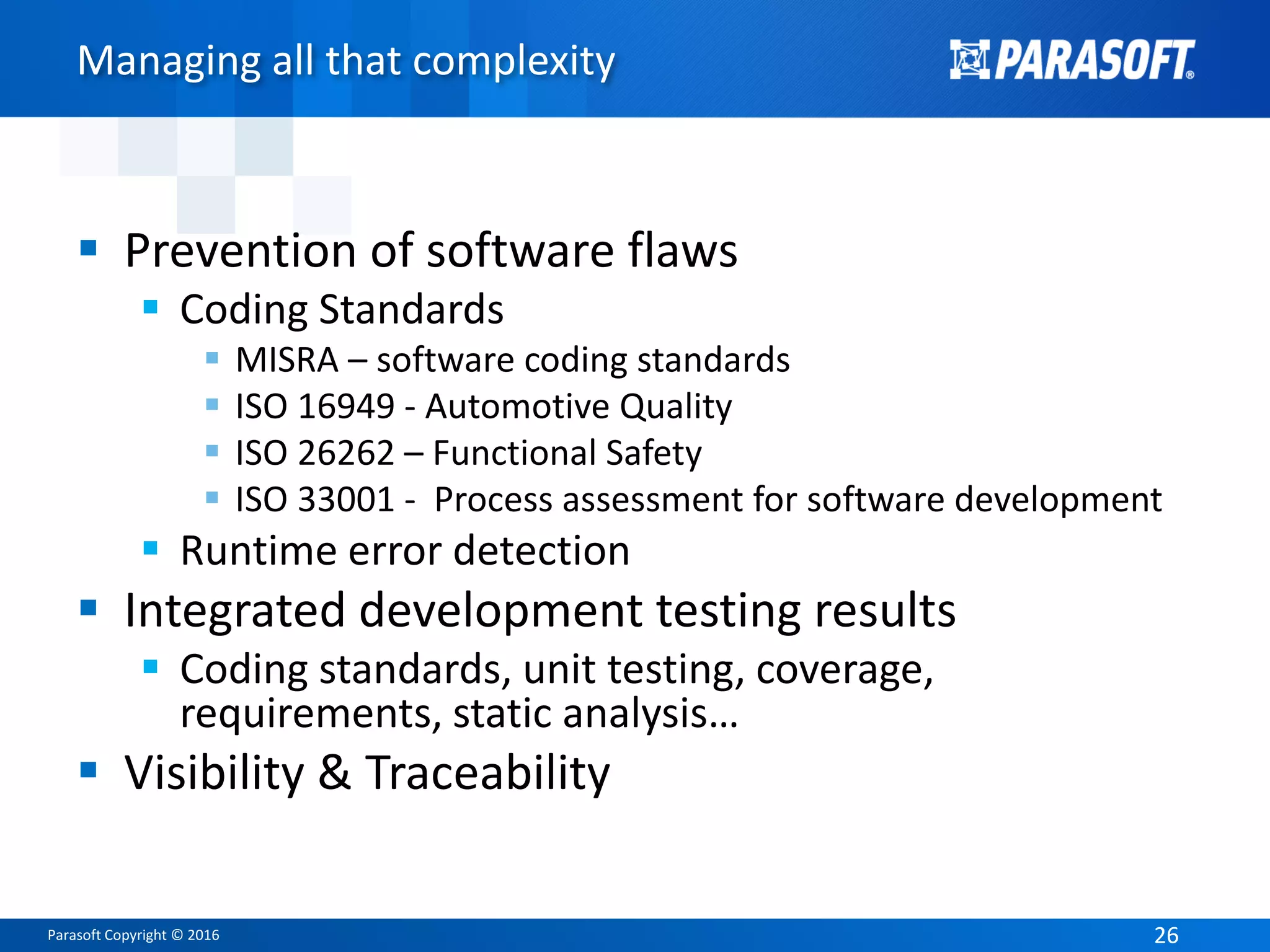

Managing all that complexity
 Prevention of software flaws
 Coding Standards
 MISRA – software coding standards
 ISO 16949 - Automotive Quality
 ISO 26262 – Functional Safety
 ISO 33001 - Process assessment for software development
 Runtime error detection
 Integrated development testing results
 Coding standards, unit testing, coverage,
requirements, static analysis…
 Visibility & Traceability

Value of coding standards
The MISRA Guidelines were written
specifically for use in systems that
contain a safety aspect to them. The
guidelines address potentially unsafe
C language features, and provide
programming rules to avoid those
pitfalls.

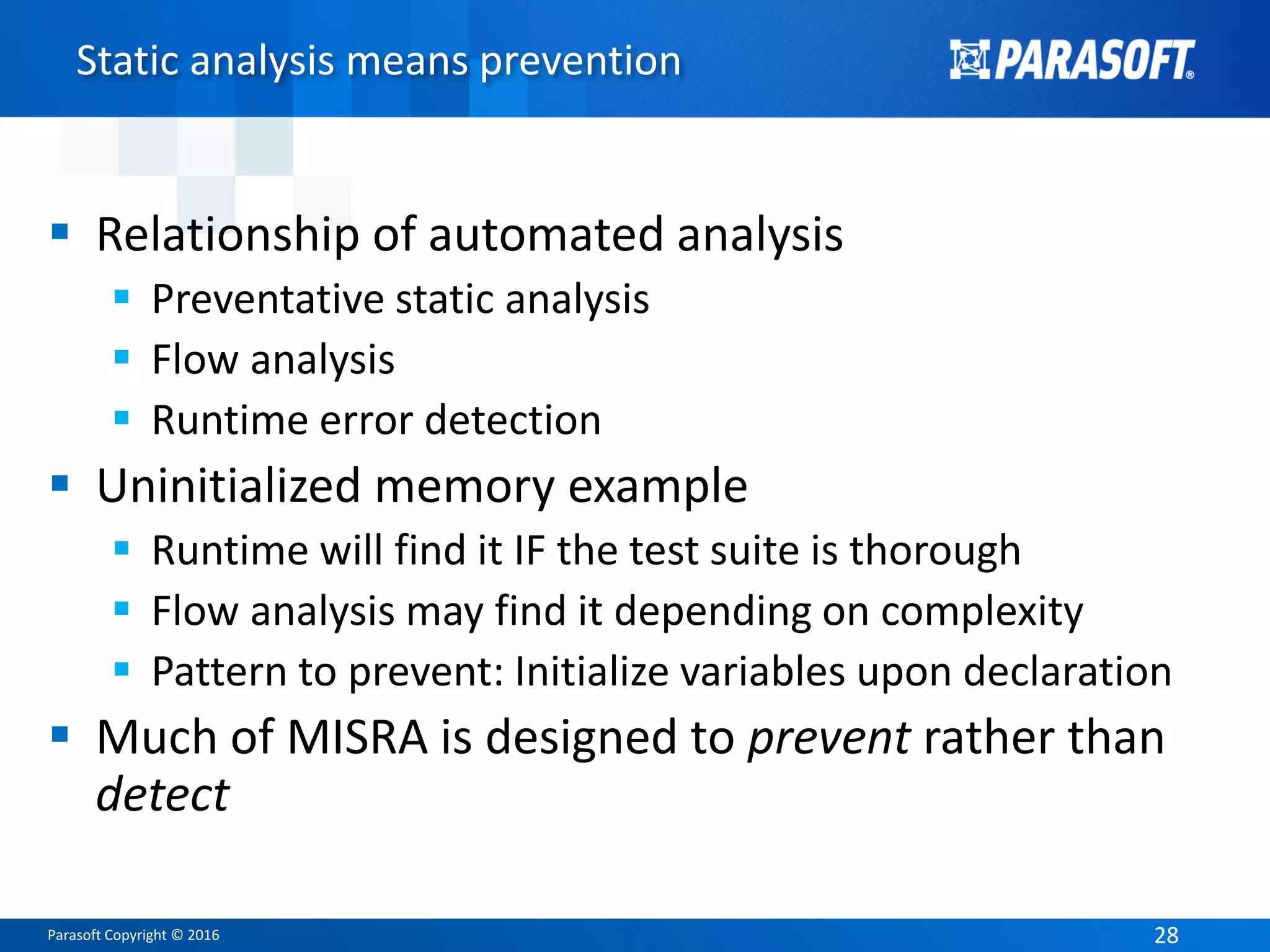

Static analysis means prevention
 Relationship of automated analysis
 Preventative static analysis
 Flow analysis
 Runtime error detection
 Uninitialized memory example
 Runtime will find it IF the test suite is thorough
 Flow analysis may find it depending on complexity
 Pattern to prevent: Initialize variables upon declaration
 Much of MISRA is designed to prevent rather than
detect

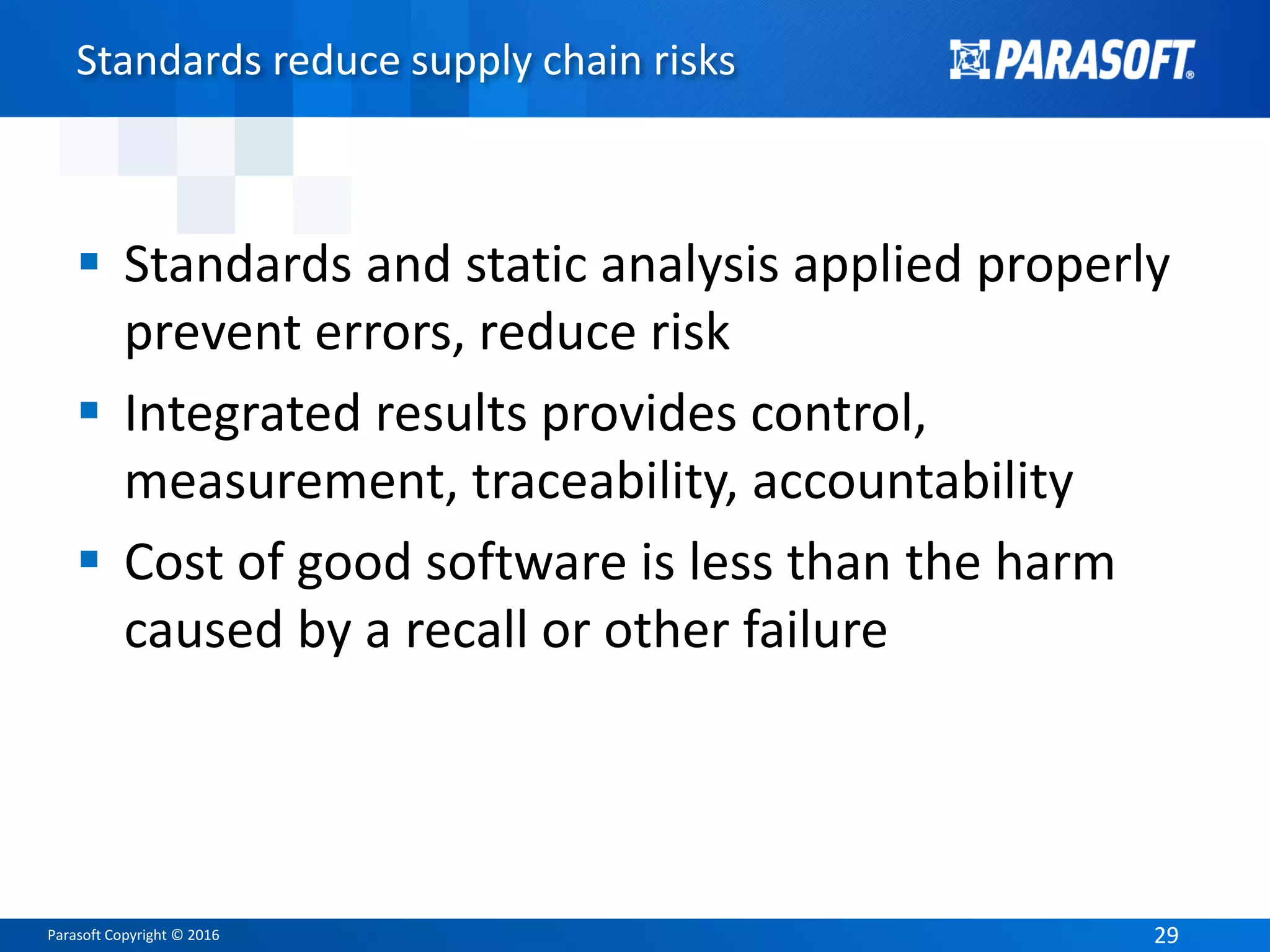

Standards reduce supply chain risks
 Standards and static analysis applied properly
prevent errors, reduce risk
 Integrated results provides control,
measurement, traceability, accountability
 Cost of good software is less than the harm
caused by a recall or other failure

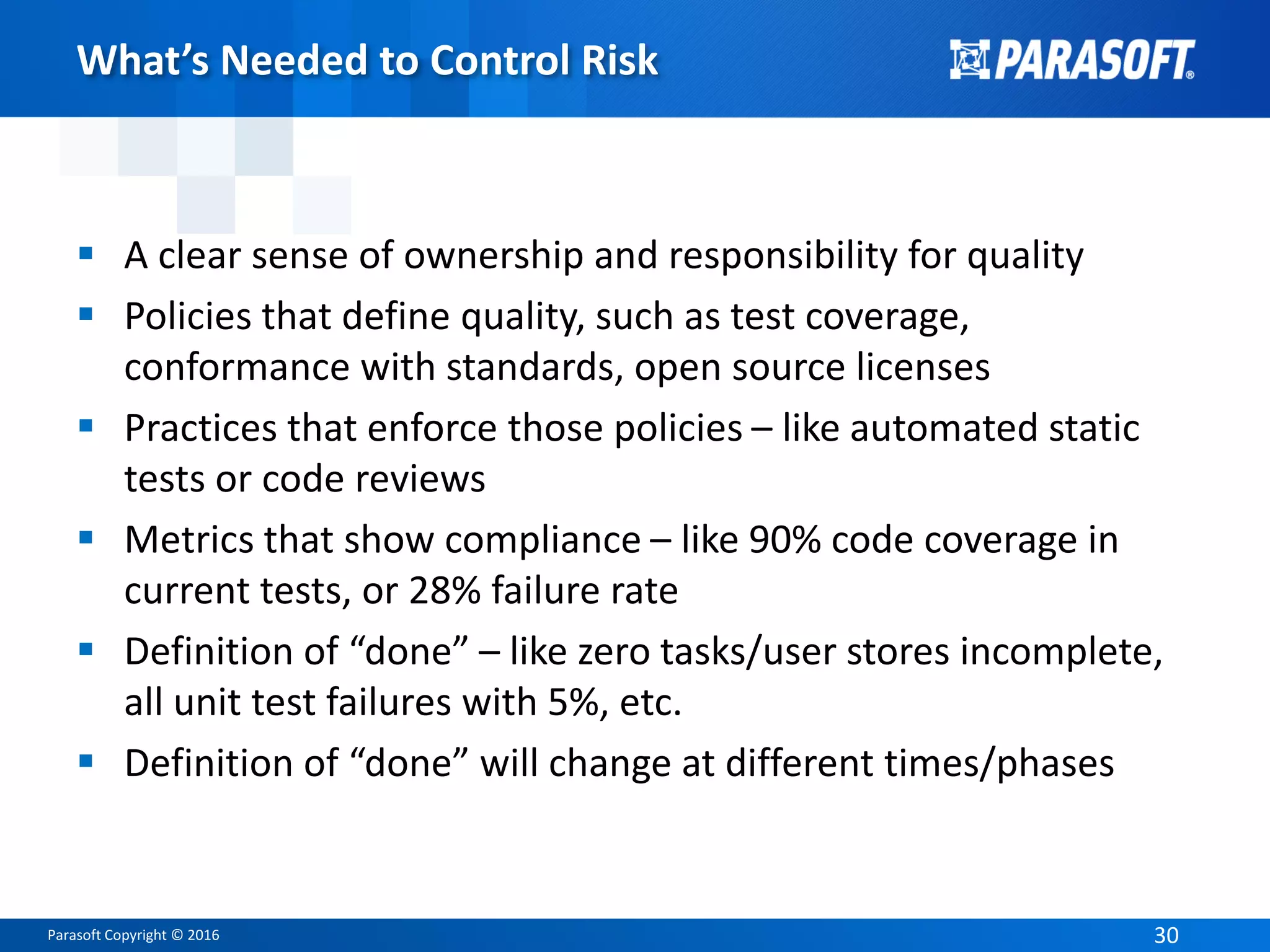

What’s Needed to Control Risk
 A clear sense of ownership and responsibility for quality
 Policies that define quality, such as test coverage,
conformance with standards, open source licenses
 Practices that enforce those policies – like automated static
tests or code reviews
 Metrics that show compliance – like 90% code coverage in
current tests, or 28% failure rate
 Definition of “done” – like zero tasks/user stores incomplete,
all unit test failures with 5%, etc.
 Definition of “done” will change at different times/phases

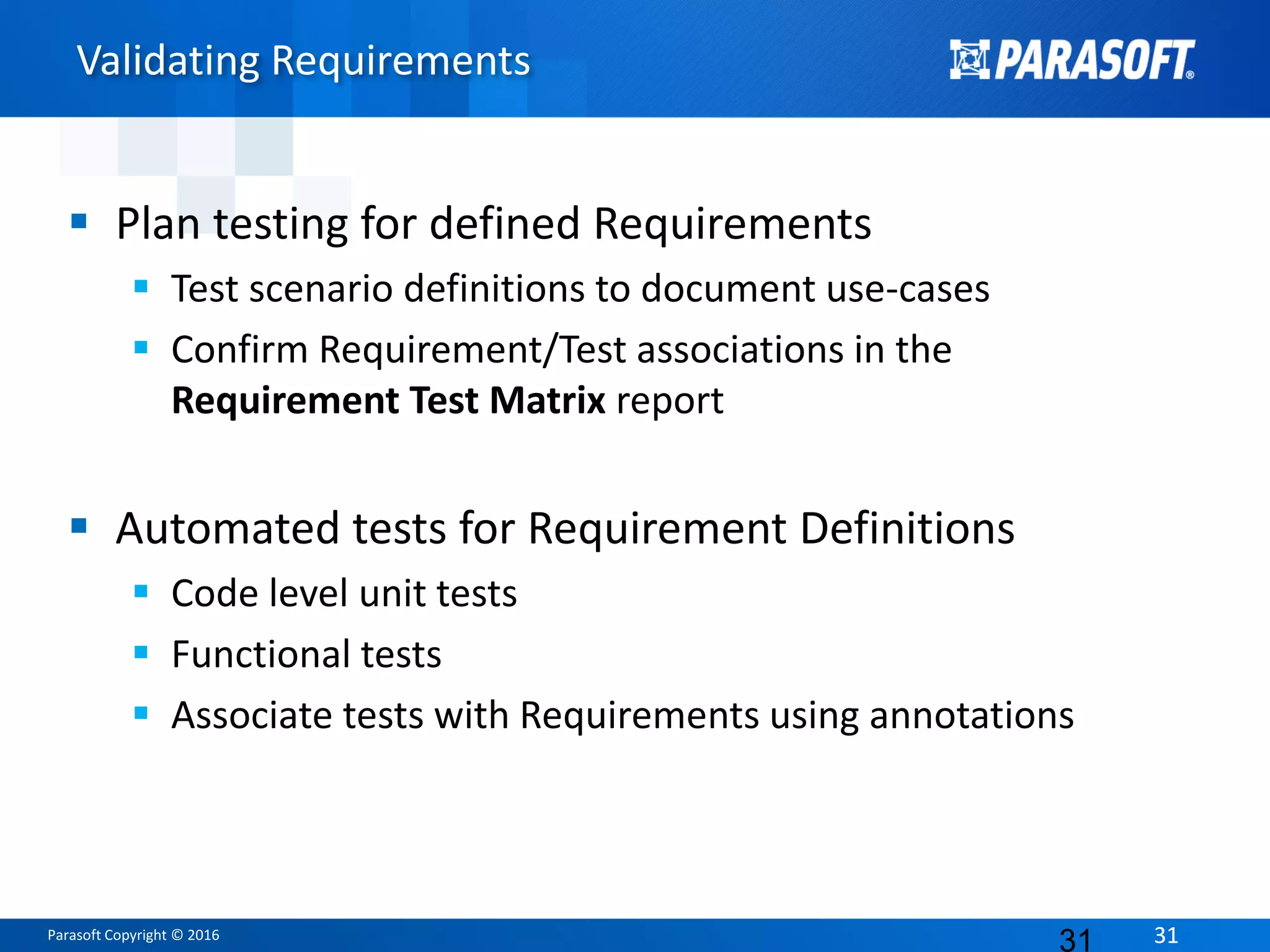

Validating Requirements
 Plan testing for defined Requirements
 Test scenario definitions to document use-cases
 Confirm Requirement/Test associations in the
Requirement Test Matrix report
 Automated tests for Requirement Definitions
 Code level unit tests
 Functional tests
 Associate tests with Requirements using annotations
31

Non Functional Requirements for Software

Acceptance Testing
 Verify that software development policy is
working
 Verify that requirements are met
 Check for possible failures / flaws
 Tests from the outside in
 Variety of real-world scenarios
 Include security ”penetration” testing

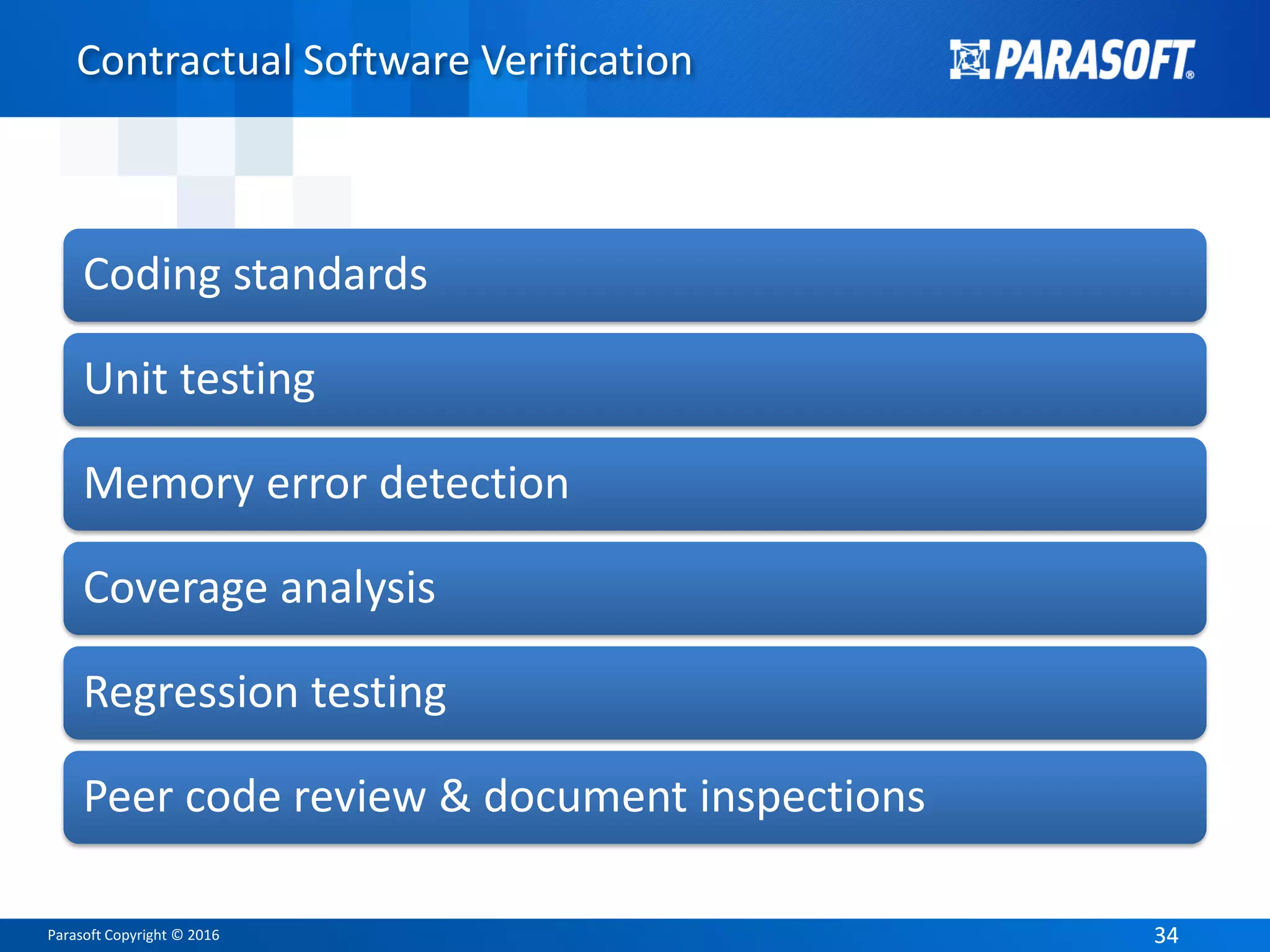

Contractual Software Verification
Coding standards
Unit testing
Memory error detection
Coverage analysis
Regression testing
Peer code review & document inspections

The Problem

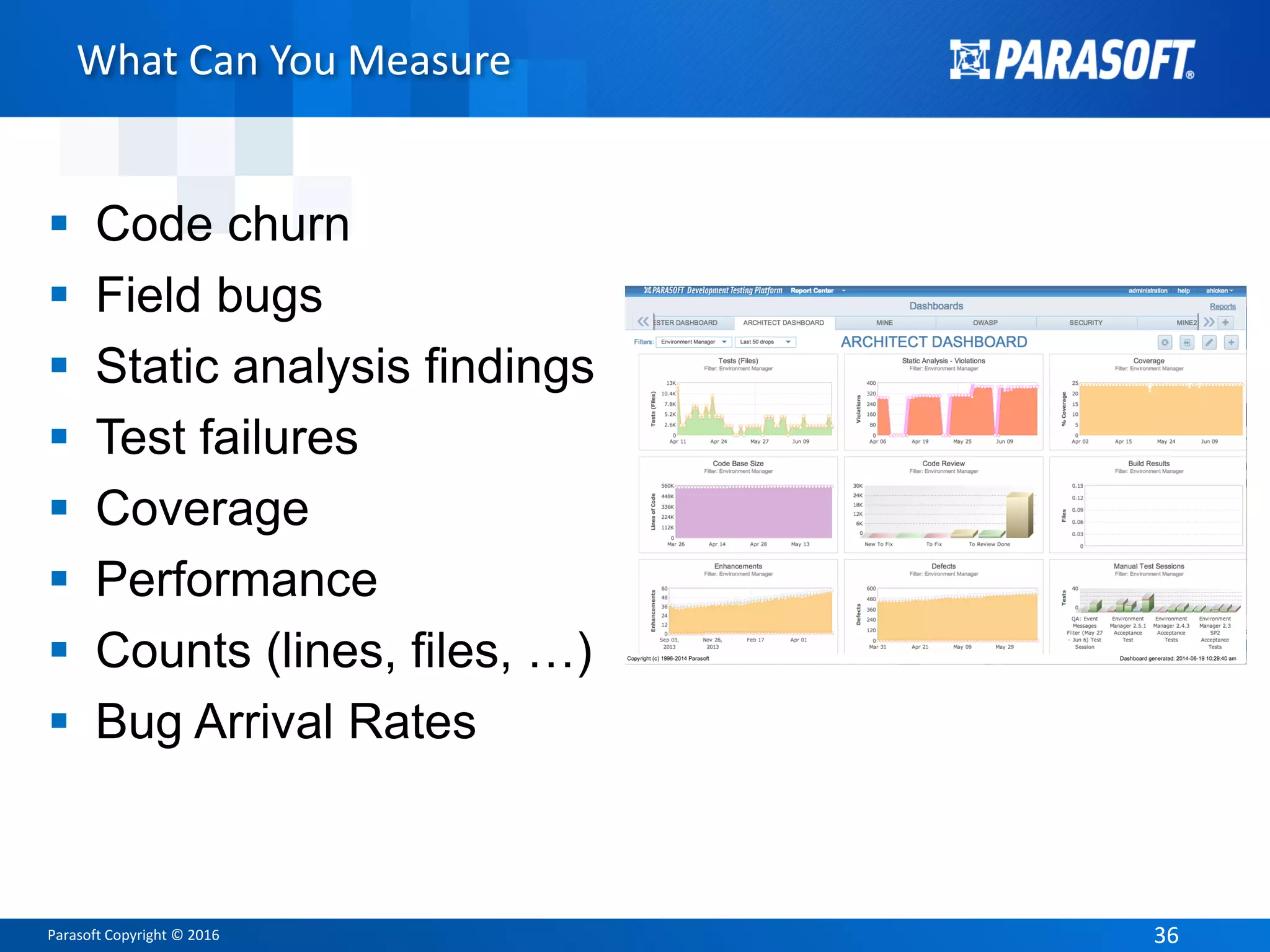

What Can You Measure
 Code churn
 Field bugs
 Static analysis findings
 Test failures
 Coverage
 Performance
 Counts (lines, files, …)
 Bug Arrival Rates

Example: Code Metrics
 Do problems indicate simple coder error, or
something more?
 Prioritize by understanding impacts of policy
violations
 Understand where complexity means poor design,
hard to validate performance or cover with
static/dynamic tests
 Identify areas with good (or bad) ROI for refactoring
 After all, refactoring is not only costly (time and
money) but also introduces new risk

Metrics with a Capital M
Some metrics have taken on a life of their
own
 Complexity
 Cohesion
 Coupling
 Maintainability
 KLOC
There are no silver bullets, no single metric
that defines “good” vs. “bad” software

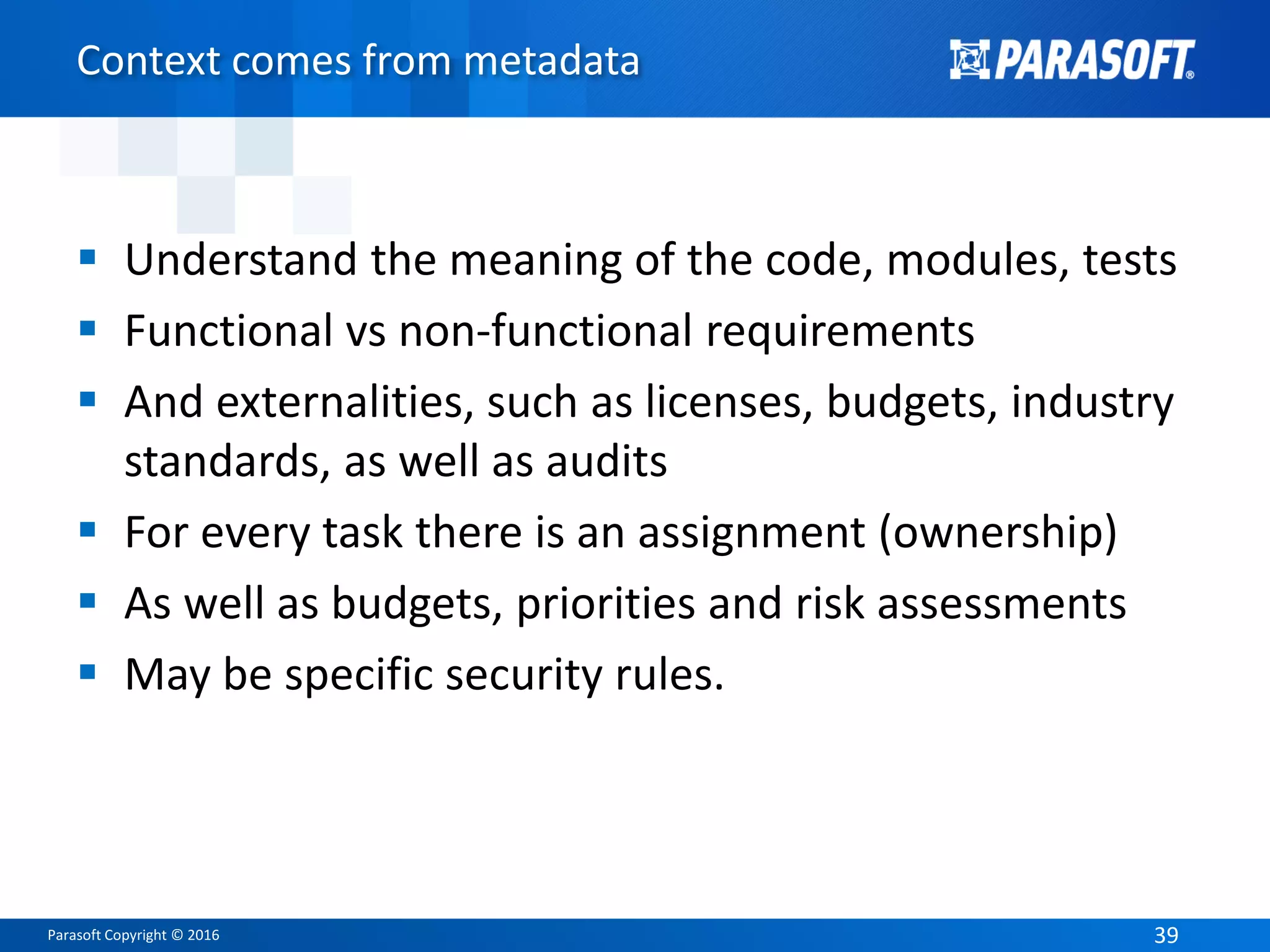

Context comes from metadata
 Understand the meaning of the code, modules, tests
 Functional vs non-functional requirements
 And externalities, such as licenses, budgets, industry
standards, as well as audits
 For every task there is an assignment (ownership)
 As well as budgets, priorities and risk assessments
 May be specific security rules.

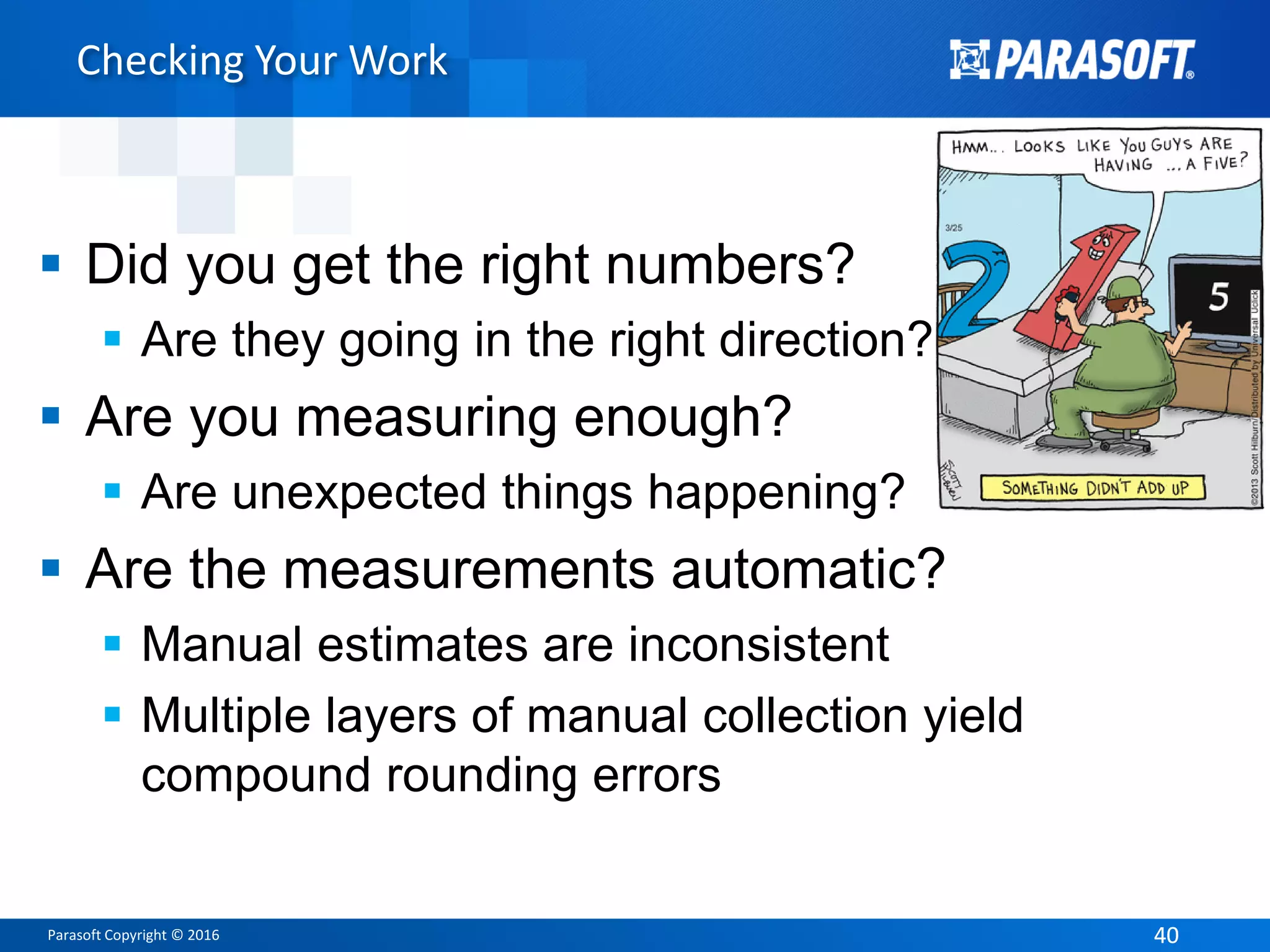

Checking Your Work
 Did you get the right numbers?
 Are they going in the right direction?
 Are you measuring enough?
 Are unexpected things happening?
 Are the measurements automatic?
 Manual estimates are inconsistent
 Multiple layers of manual collection yield
compound rounding errors

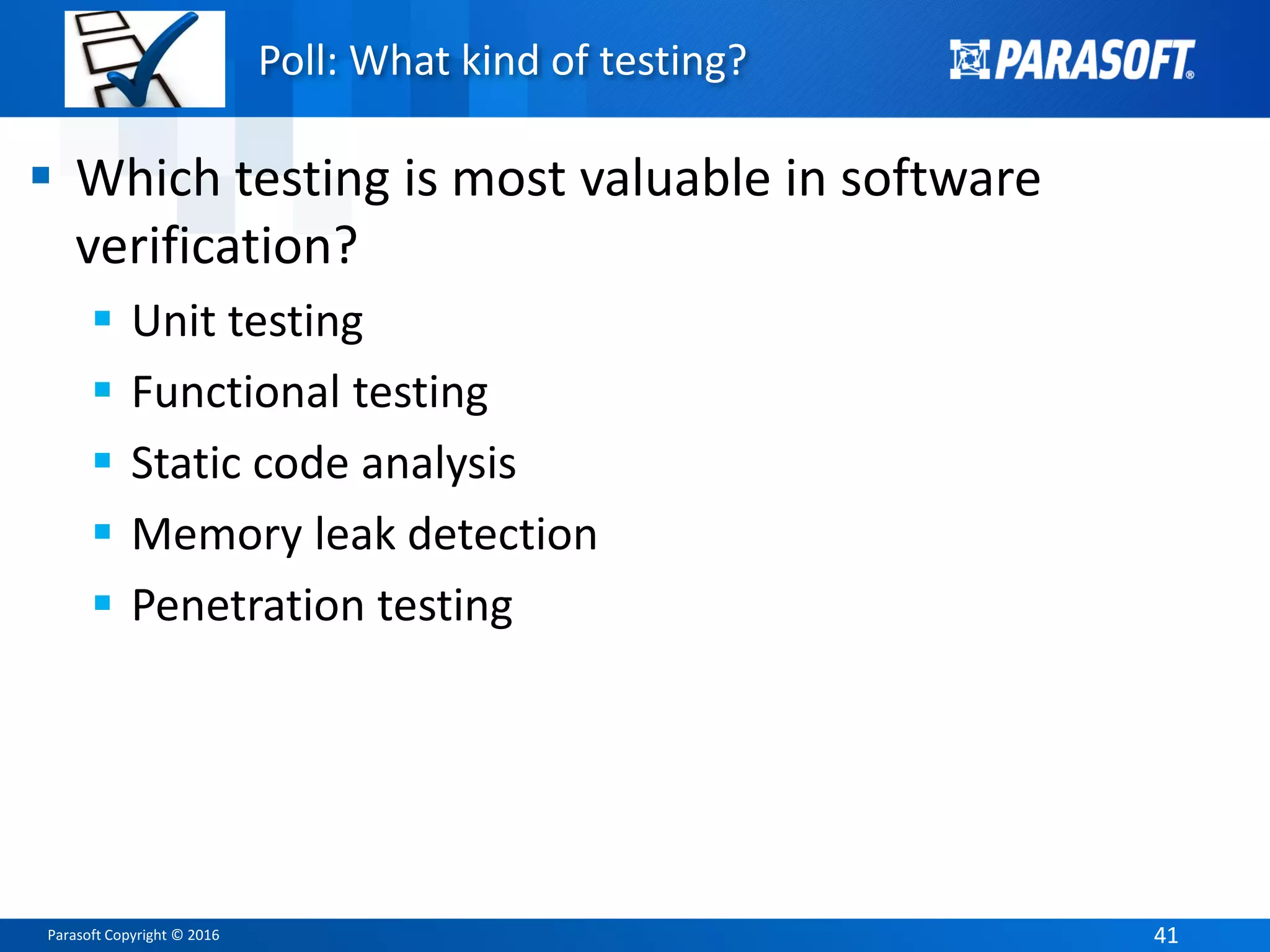

Poll: What kind of testing?
 Which testing is most valuable in software
verification?
 Unit testing
 Functional testing
 Static code analysis
 Memory leak detection
 Penetration testing

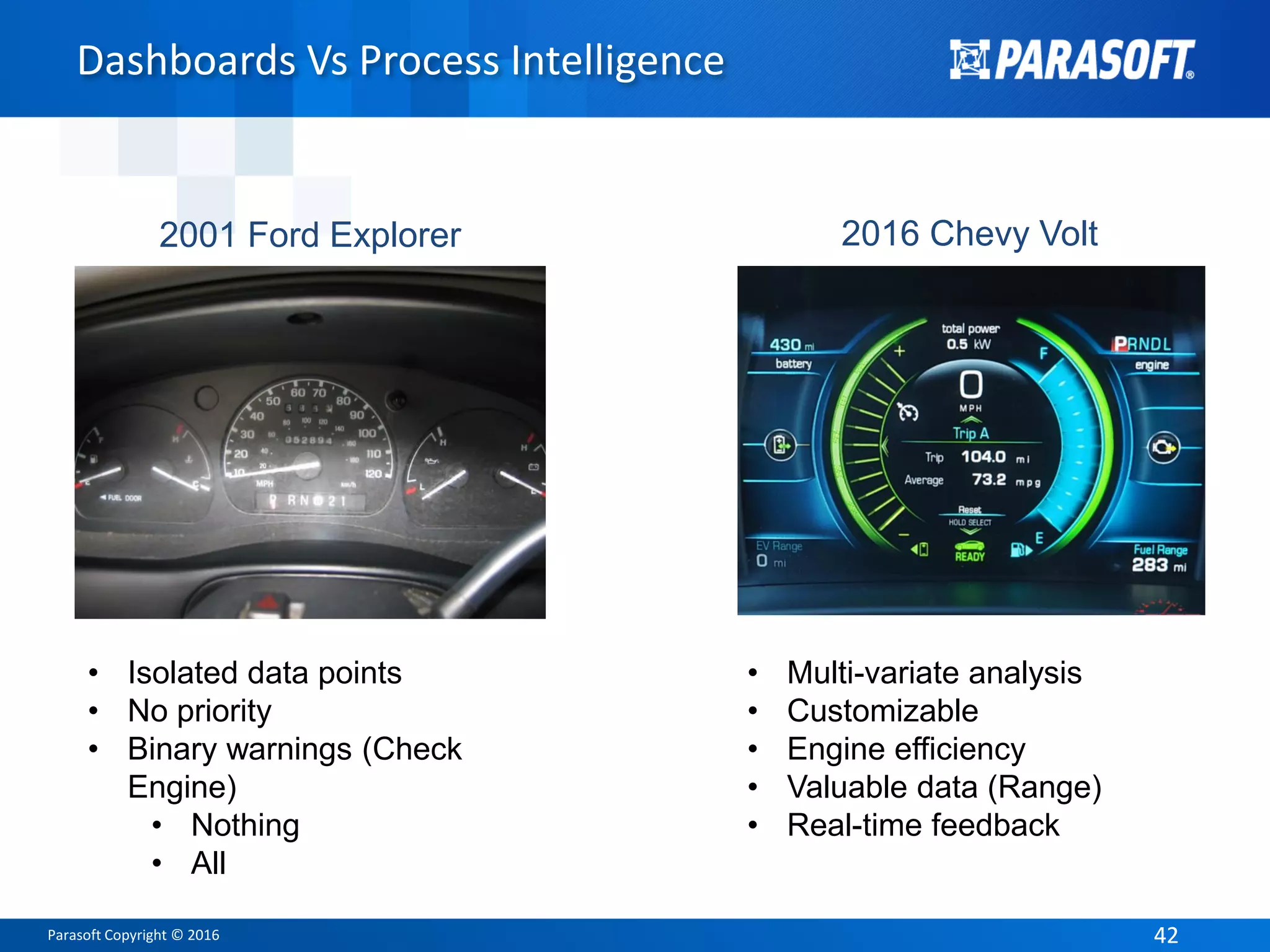

Dashboards Vs Process Intelligence
2001 Ford Explorer
• Isolated data points
• No priority
• Binary warnings (Check
Engine)
• Nothing
• All
2016 Chevy Volt
• Multi-variate analysis
• Customizable
• Engine efficiency
• Valuable data (Range)
• Real-time feedback

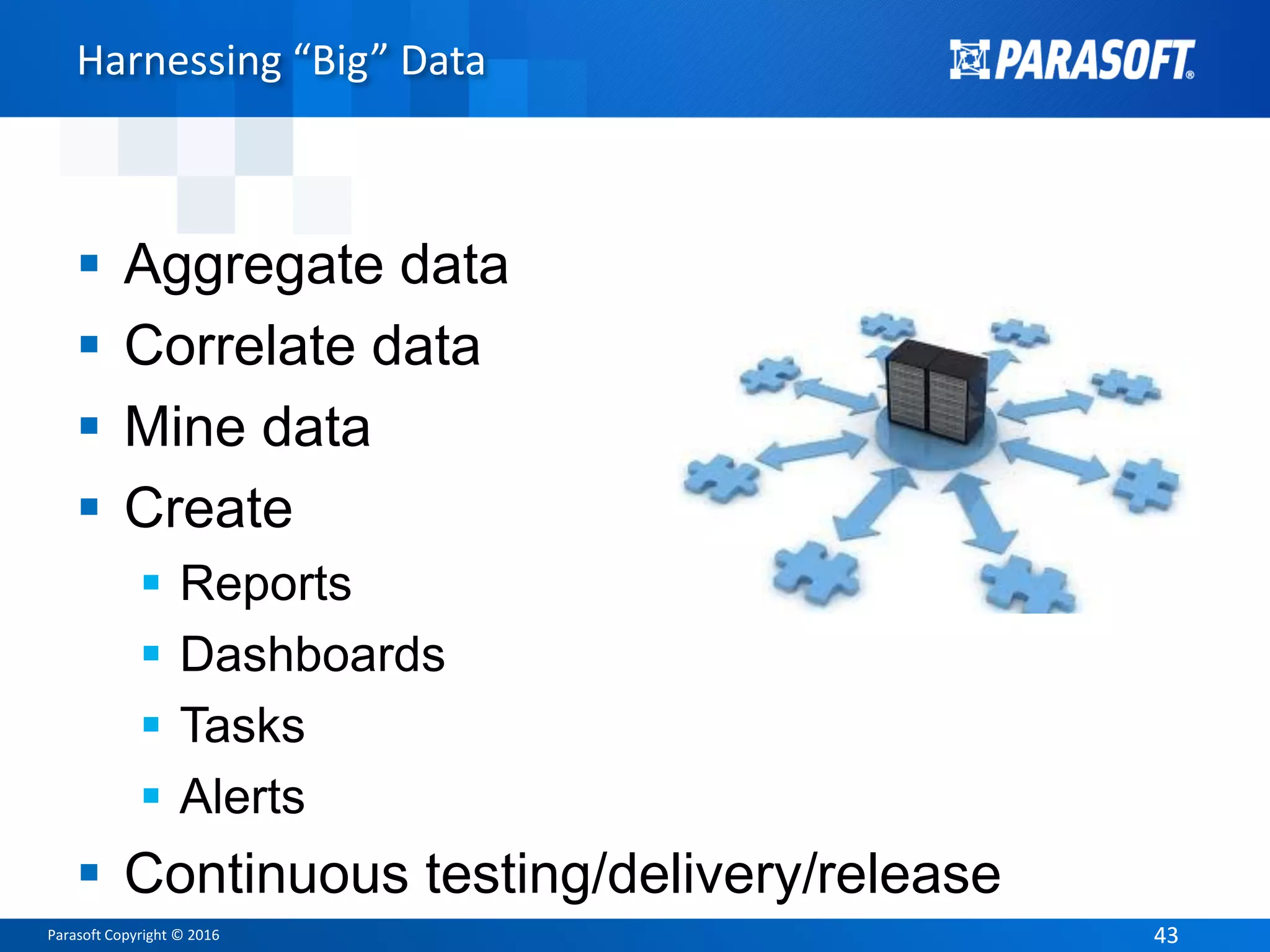

Harnessing “Big” Data
 Aggregate data
 Correlate data
 Mine data
 Create
 Reports
 Dashboards
 Tasks
 Alerts
 Continuous testing/delivery/release

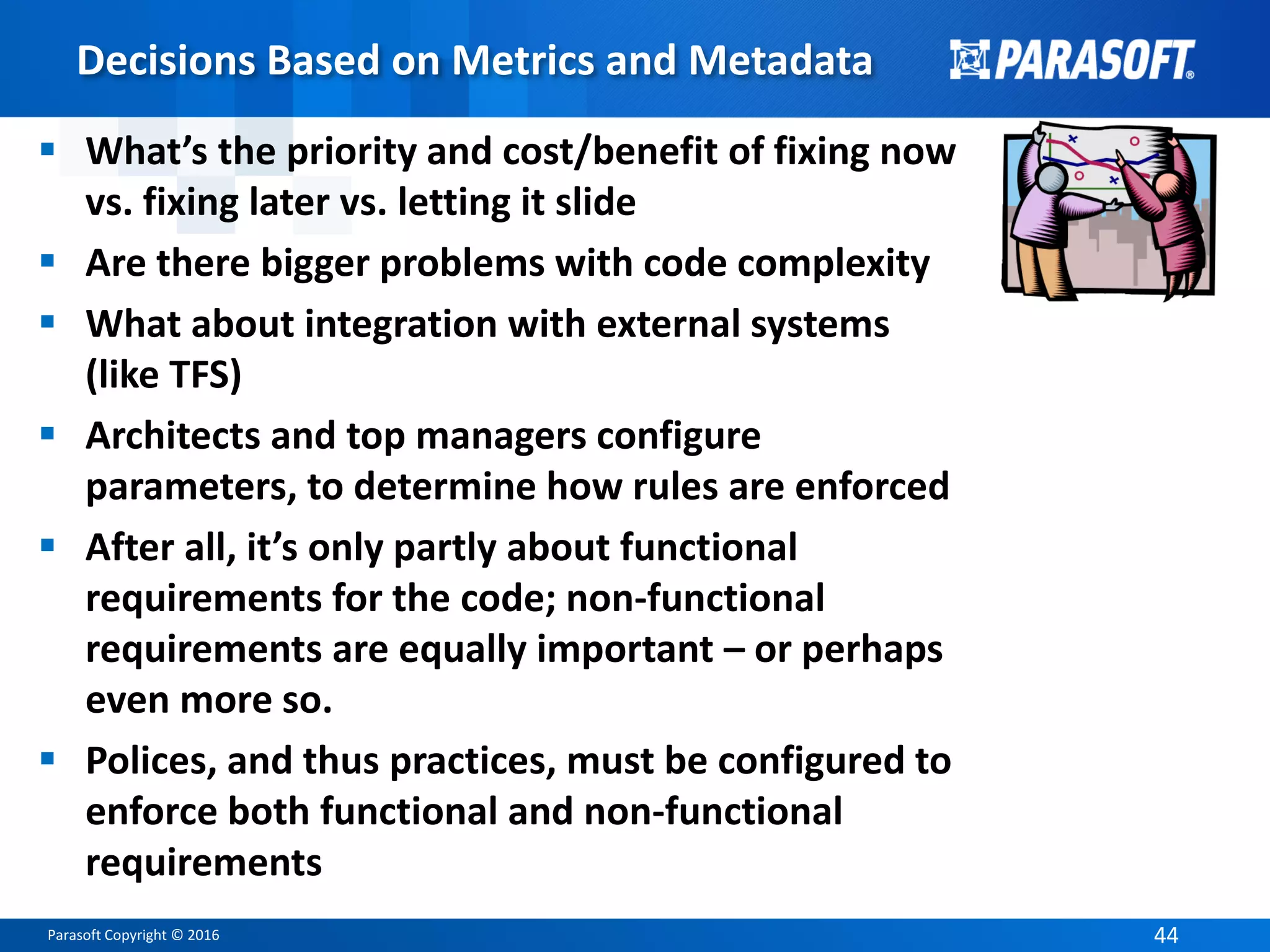

Decisions Based on Metrics and Metadata
 What’s the priority and cost/benefit of fixing now
vs. fixing later vs. letting it slide
 Are there bigger problems with code complexity
 What about integration with external systems
(like TFS)
 Architects and top managers configure
parameters, to determine how rules are enforced
 After all, it’s only partly about functional
requirements for the code; non-functional
requirements are equally important – or perhaps
even more so.
 Polices, and thus practices, must be configured to
enforce both functional and non-functional
requirements

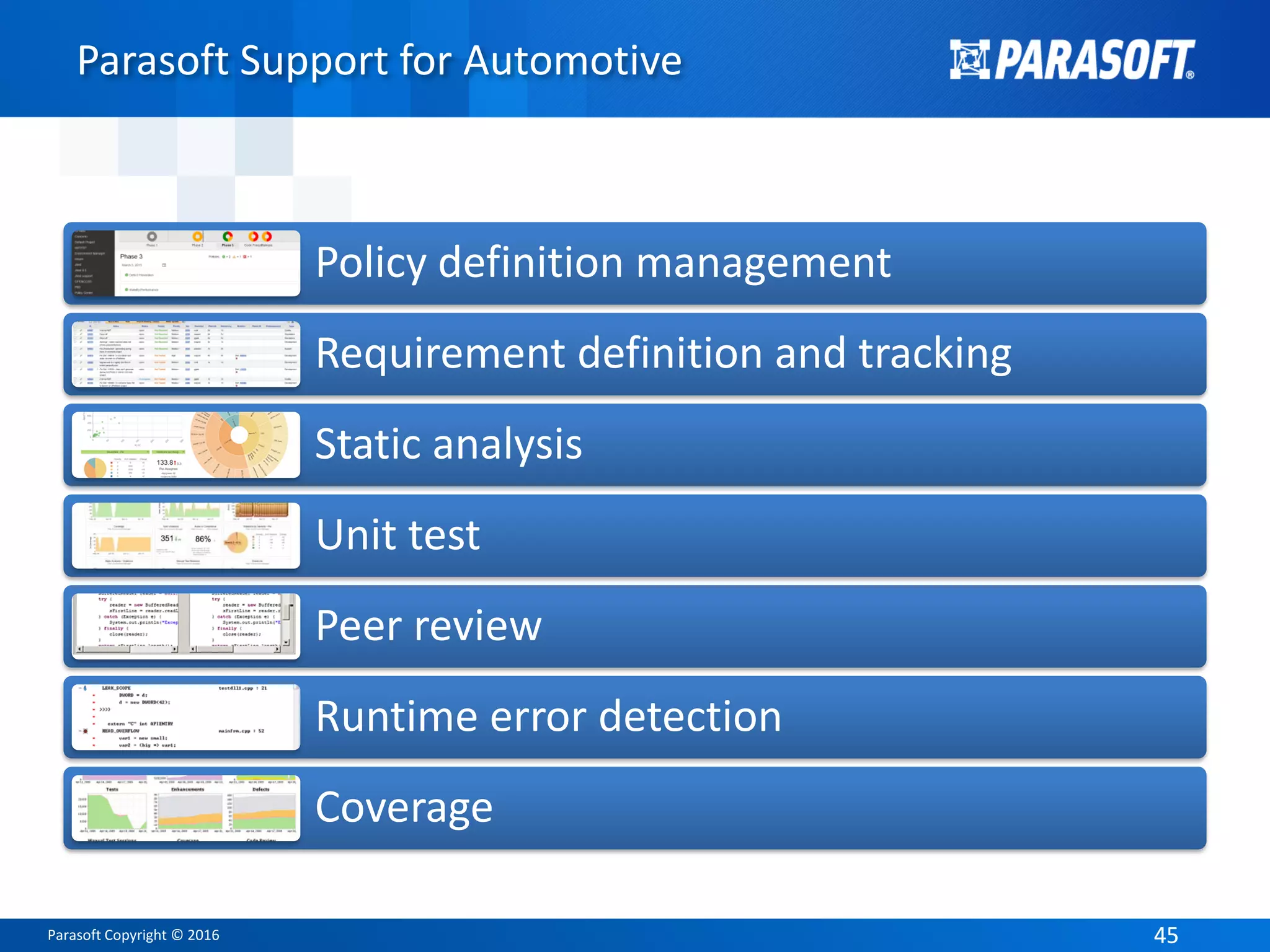

Parasoft Support for Automotive
Policy definition management
Requirement definition and tracking
Static analysis
Unit test
Peer review
Runtime error detection
Coverage

Conclusions
Safety-critical automotive software issues are going to get worse
• Due to ever-increasing requirements, faster processors, and greater connectivity
This affects software from in-house and the vast supply chain
• The right tests can help make informed decisions faster
Coding standards and practices can drive policies
• And lead to definitions of “done”
Code metrics can help manage risk…
• If they have the right metadata context
• And if integrated across SDLC practices and systems
The result: transparency, feedback, supervision — and managed quality

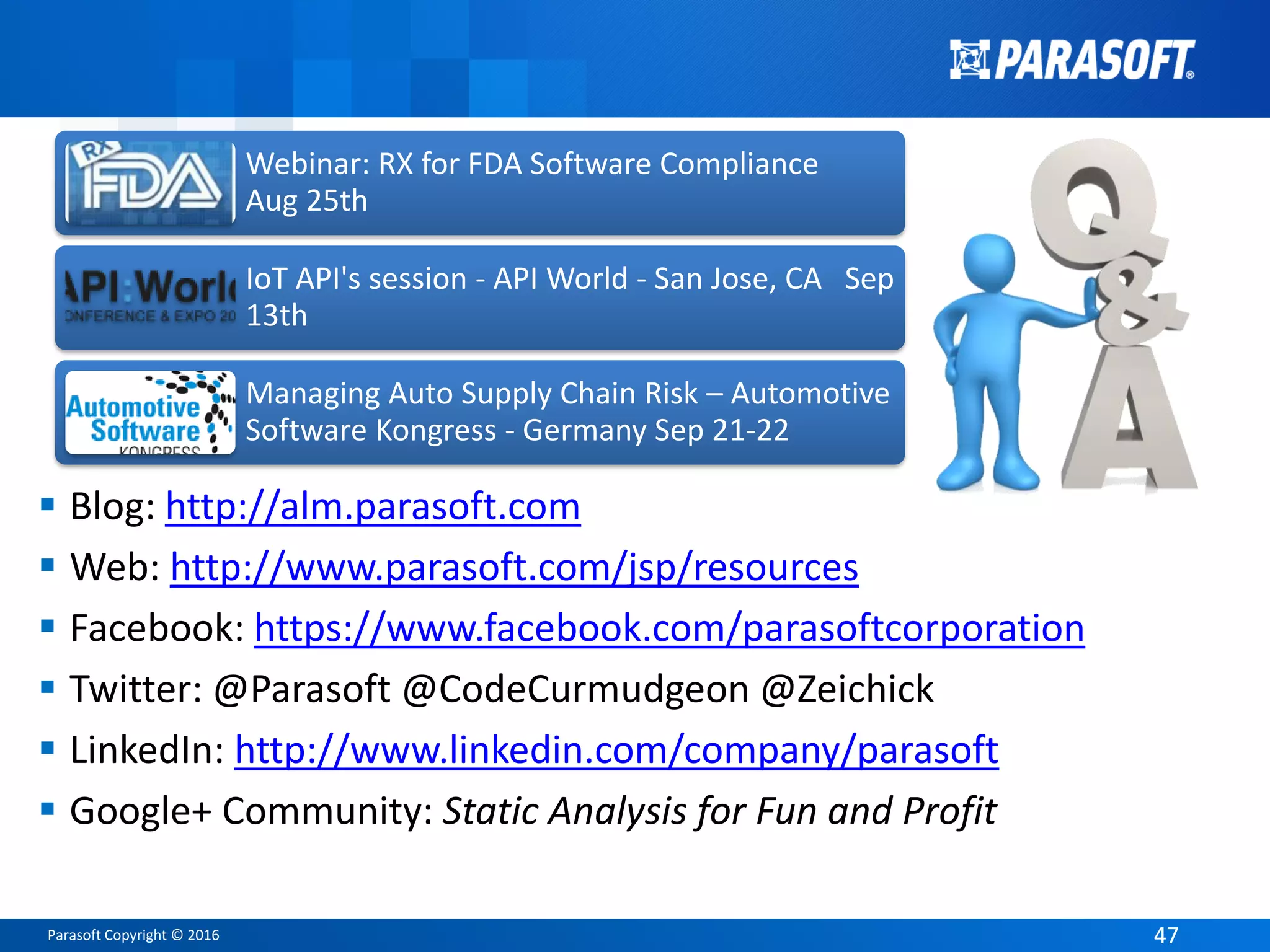

 Blog: http://alm.parasoft.com
 Web: http://www.parasoft.com/jsp/resources
 Facebook: https://www.facebook.com/parasoftcorporation
 Twitter: @Parasoft @CodeCurmudgeon @Zeichick
 LinkedIn: http://www.linkedin.com/company/parasoft
 Google+ Community: Static Analysis for Fun and Profit
Webinar: RX for FDA Software Compliance
Aug 25th
IoT API's session - API World - San Jose, CA Sep
13th
Managing Auto Supply Chain Risk – Automotive
Software Kongress - Germany Sep 21-22

Driving Risks Out of Embedded Automotive Software

More Related Content

What's hot

Viewers also liked

Similar to Driving Risks Out of Embedded Automotive Software

More from Parasoft

Recently uploaded

Driving Risks Out of Embedded Automotive Software
