The Martel DPC-30 and DPC-100 digital calibrators are specialized for testing pneumatic field instrumentation and are particularly effective for 3 to 15 psi systems. They feature dual precision regulators, a dual digital display, gauge and differential modes, and a rugged design for factory environments, with an accuracy of ±0.035% fs. The devices operate within a temperature range of -10 °C to +55 °C and are powered by a rechargeable battery or AC adapter.

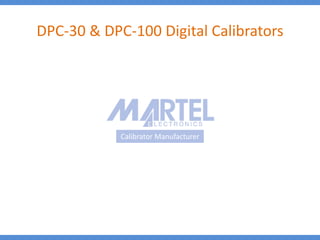

1. Calibrator Manufacturer
DPC-30 & DPC-100 Digital Calibrators

2. DPC-30 & DPC-100 Digital Calibrators
The Martel DPC-30 & DPC-100 digital calibrators are designed to test pneumatic field
instrumentation, including valve actuators, P/I transmitters, controllers, gauges, switches,
and recorders. It is especially suitable for checking 3 to 15 psi systems. Its dual precision
regulators enable output of set and variable pressure to control devices, while the switching
manifold allows fast selection among the pressure ports.

3. DPC-30 & DPC-100 Digital Calibrators
 Works with compressed plant air
 0.001 psi resolution, 0.035% accuracy
 Dual digital display – psi & mA or voltage
 Gauge, differential, and vacuum modes
 Selectable engineering units
 Pressure switch test
 Rugged case to withstand factory floor environment
Features

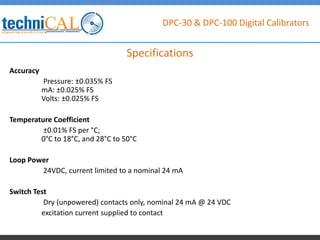

4. DPC-30 & DPC-100 Digital Calibrators
Accuracy
Pressure: ±0.035% FS
mA: ±0.025% FS
Volts: ±0.025% FS
Temperature Coefficient
±0.01% FS per °C;
0°C to 18°C, and 28°C to 50°C
Loop Power
24VDC, current limited to a nominal 24 mA
Switch Test
Dry (unpowered) contacts only, nominal 24 mA @ 24 VDC
excitation current supplied to contact
Specifications

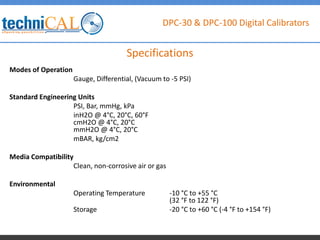

5. DPC-30 & DPC-100 Digital Calibrators
Modes of Operation
Gauge, Differential, (Vacuum to -5 PSI)
Standard Engineering Units
PSI, Bar, mmHg, kPa
inH2O @ 4°C, 20°C, 60°F
cmH2O @ 4°C, 20°C
mmH2O @ 4°C, 20°C
mBAR, kg/cm2
Media Compatibility
Clean, non-corrosive air or gas
Environmental
Operating Temperature -10 °C to +55 °C
(32 °F to 122 °F)
Storage -20 °C to +60 °C (-4 °F to +154 °F)
Specifications

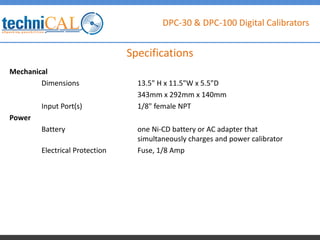

6. DPC-30 & DPC-100 Digital Calibrators
Mechanical
Dimensions 13.5" H x 11.5"W x 5.5"D
343mm x 292mm x 140mm
Input Port(s) 1/8" female NPT
Power
Battery one Ni-CD battery or AC adapter that
simultaneously charges and power calibrator
Electrical Protection Fuse, 1/8 Amp
Specifications

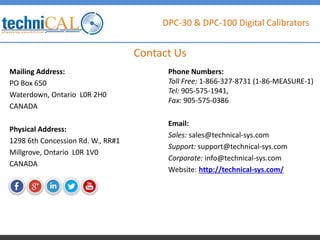

7. DPC-30 & DPC-100 Digital Calibrators
