Fluentd is a data collector for unified logging that allows for structured logging, reliable forwarding, and a pluggable architecture. It is written in Ruby and uses JSON to stream data between containers. Fluentd can aggregate logs from containers in different patterns, such as a single-level or two-level aggregation. A new Docker logging driver called "fluentd" may allow containers to send logs directly to Fluentd.

1. Docker and Fluentd
2015/06/04
Golang & Docker users meetup
Satoshi Tagomori (@tagomoris)

2. @tagomoris
Treasure Data, Inc.
Fluentd, Norikra, Hadoop, ...

4. Which more cute than another?

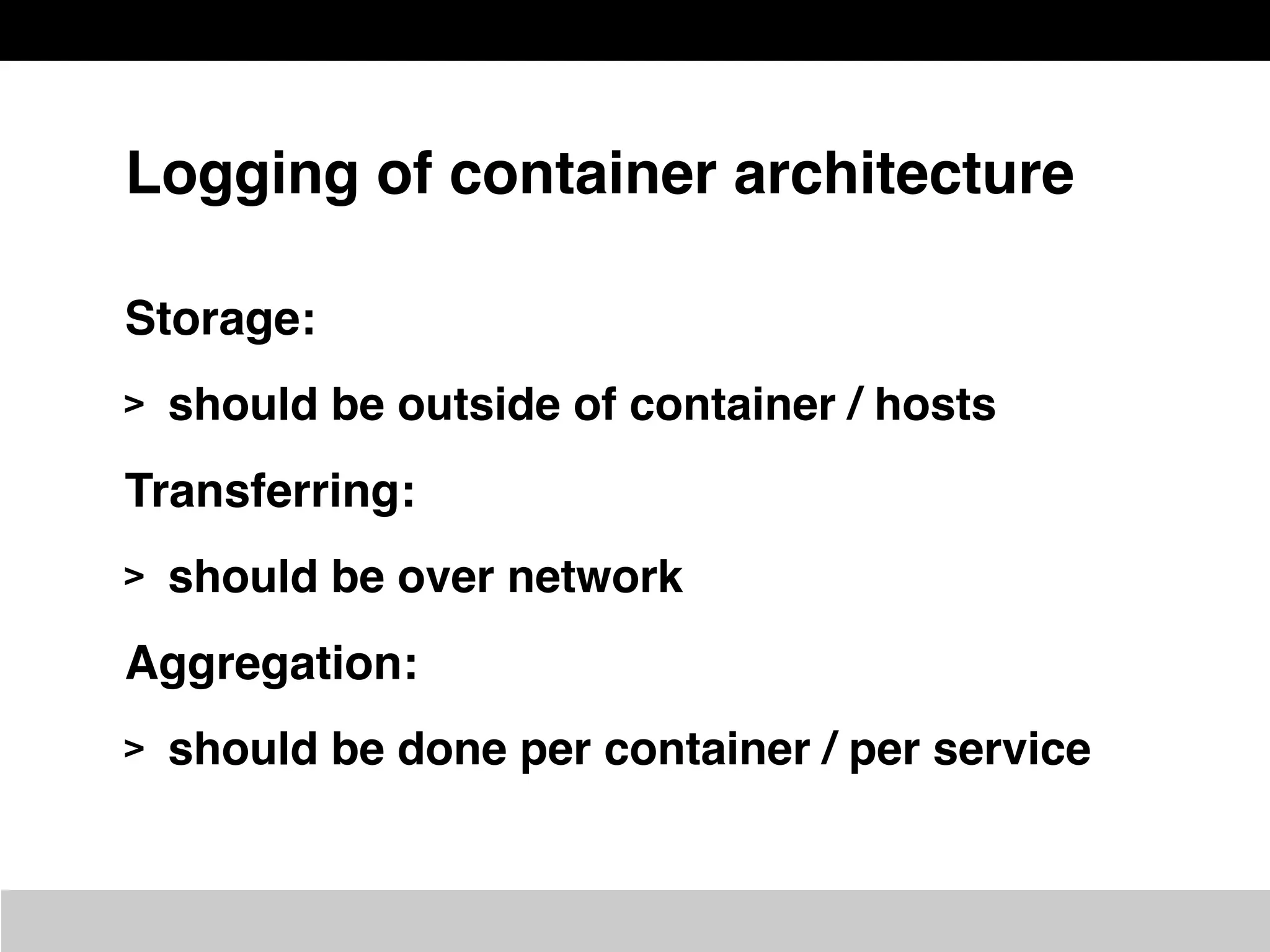

5. Logging of container architecture
Storage:
> should be outside of container / hosts
Transferring:
> should be over network
Aggregation:
> should be done per container / per service

6. Container-based world
needs unified logging layer!

7. Structured logging
Reliable forwarding
Pluggable architecture
http://fluentd.org/

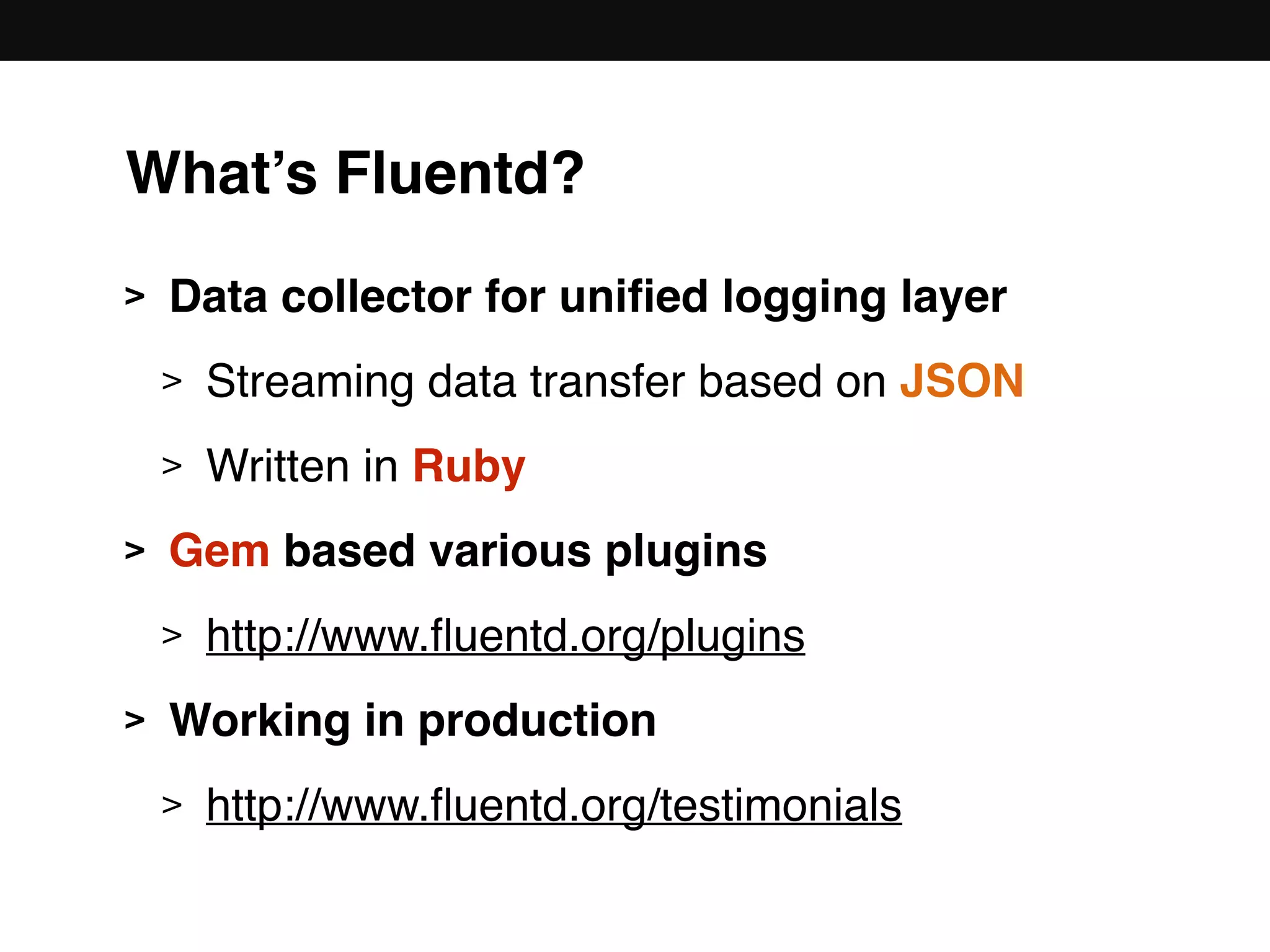

9. What’s Fluentd?
> Data collector for unified logging layer
> Streaming data transfer based on JSON
> Written in Ruby
> Gem based various plugins
> http://www.fluentd.org/plugins
> Working in production
> http://www.fluentd.org/testimonials

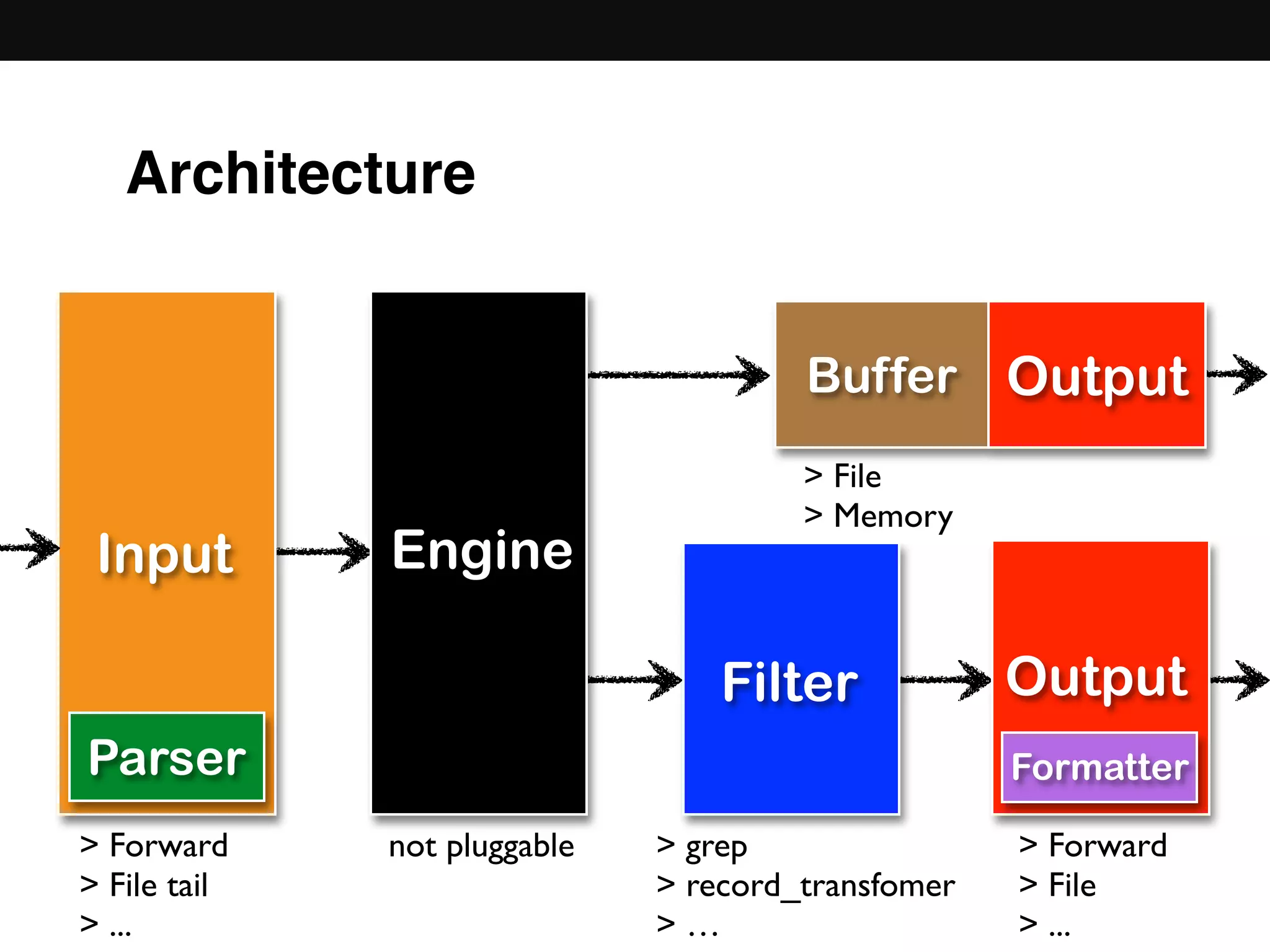

10. Architecture
EngineInput
Filter Output
Buffer
> grep
> record_transfomer
> …
> Forward
> File tail
> ...
> Forward
> File
> ...
Output
> File
> Memory
not pluggable
FormatterParser

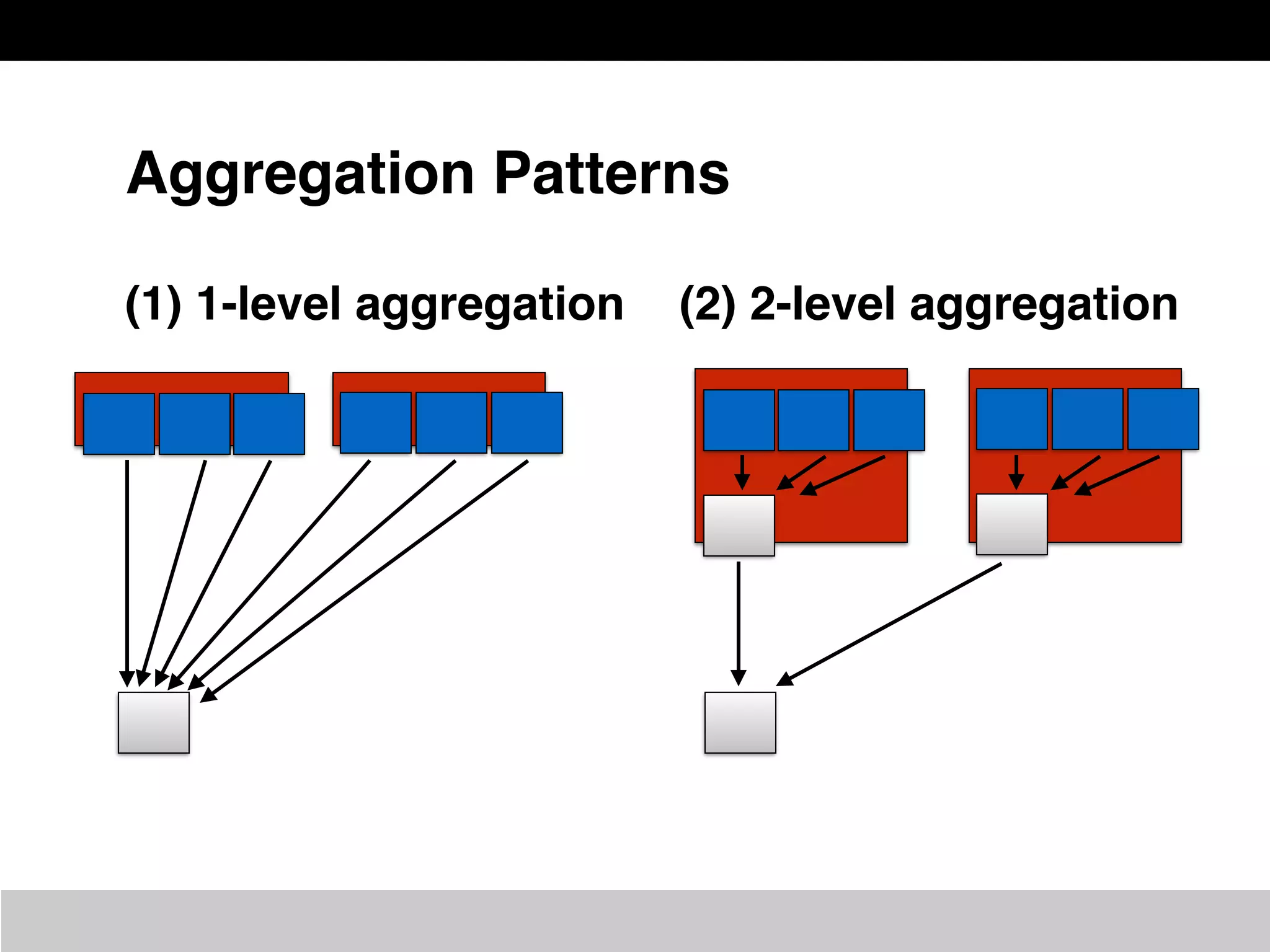

11. Aggregation Patterns
(1) 1-level aggregation (2) 2-level aggregation

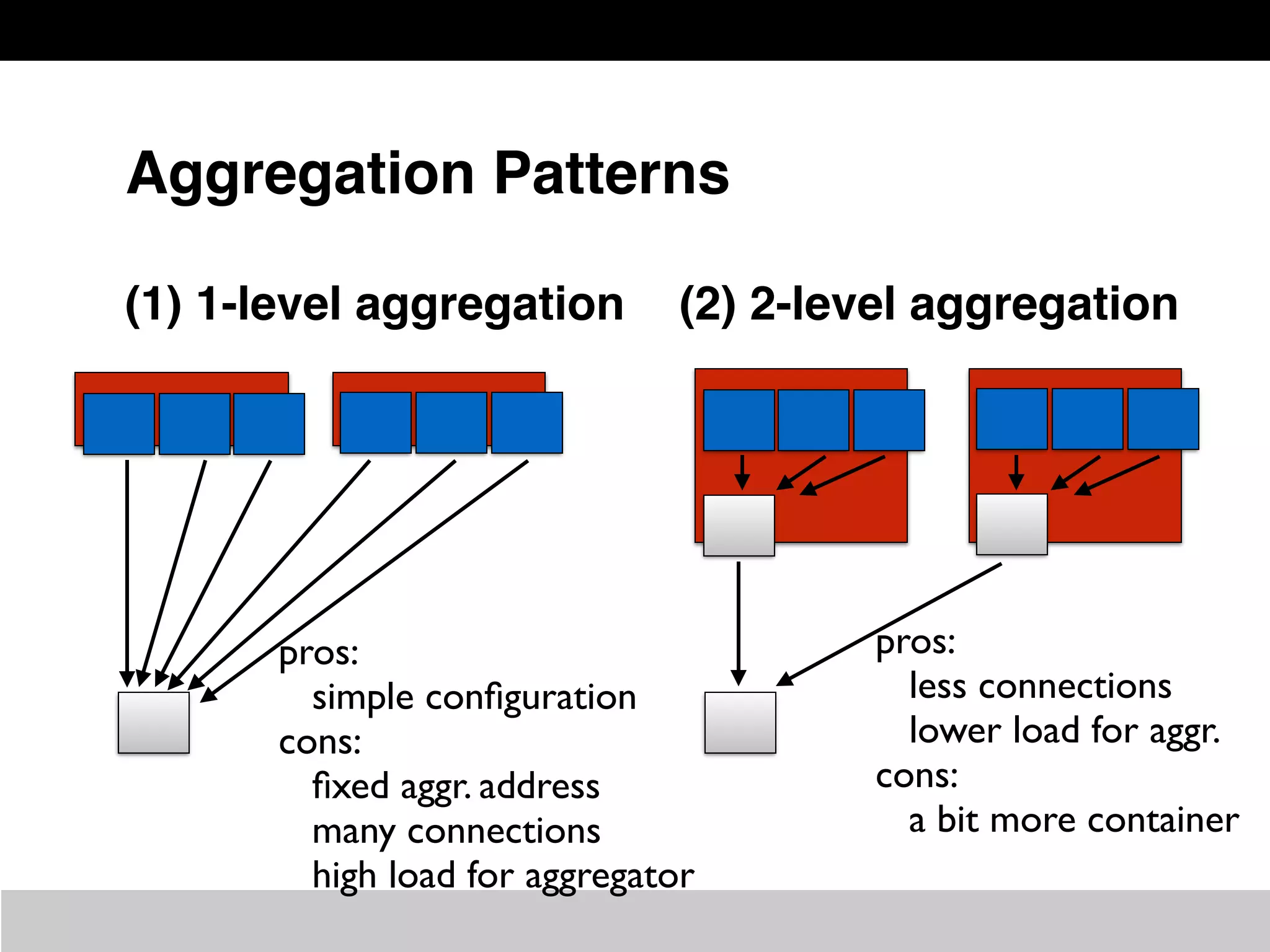

12. Aggregation Patterns
(1) 1-level aggregation (2) 2-level aggregation
pros:
simple configuration
cons:
fixed aggr. address
many connections
high load for aggregator
pros:
less connections
lower load for aggr.
cons:
a bit more container

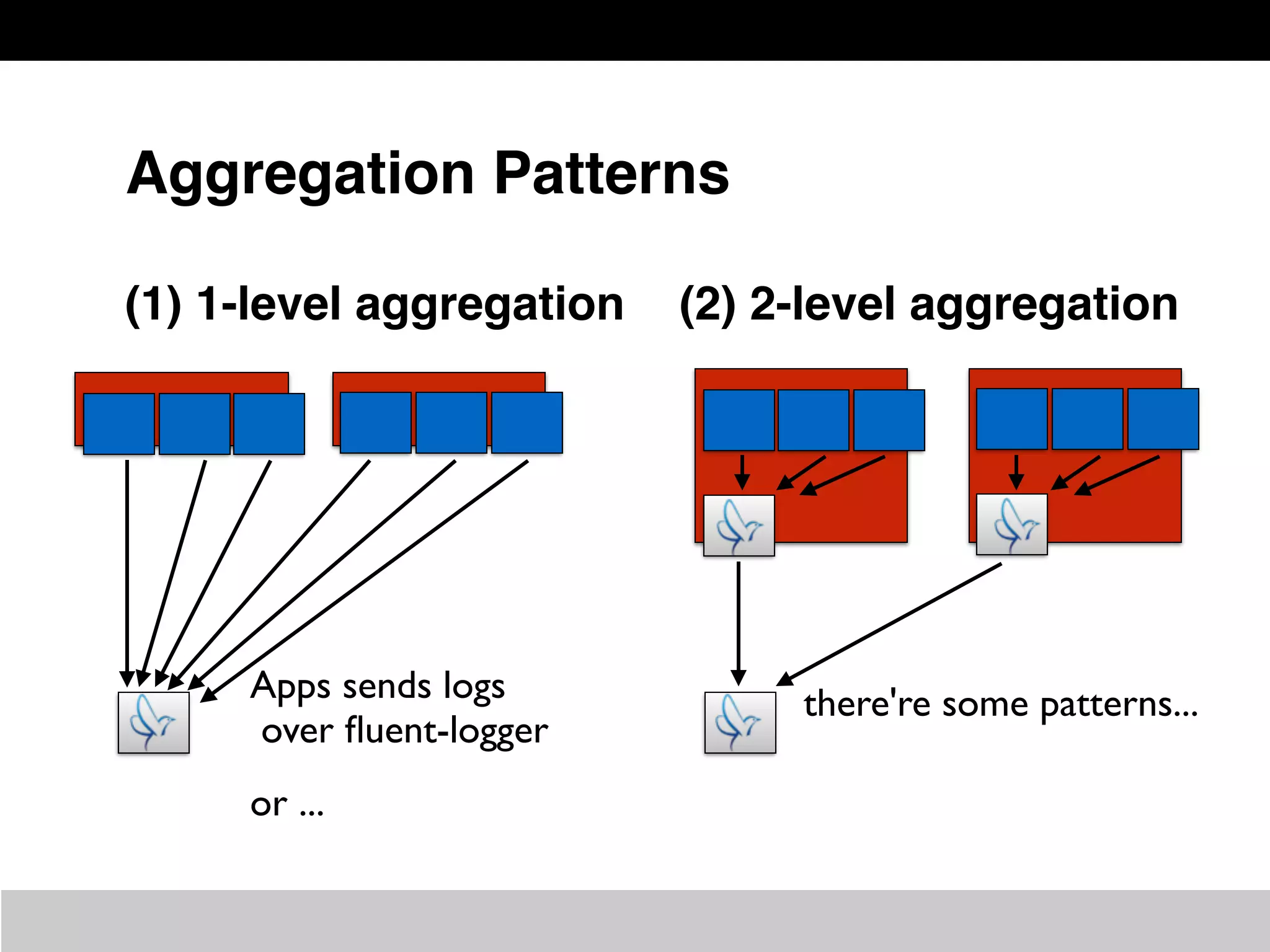

13. Aggregation Patterns
(1) 1-level aggregation (2) 2-level aggregation
Apps sends logs
over fluent-logger
there're some patterns...
or ...

14. Pattern of 2-level aggr. w/ Fluentd
1. Network transferring
2. Container log & tail

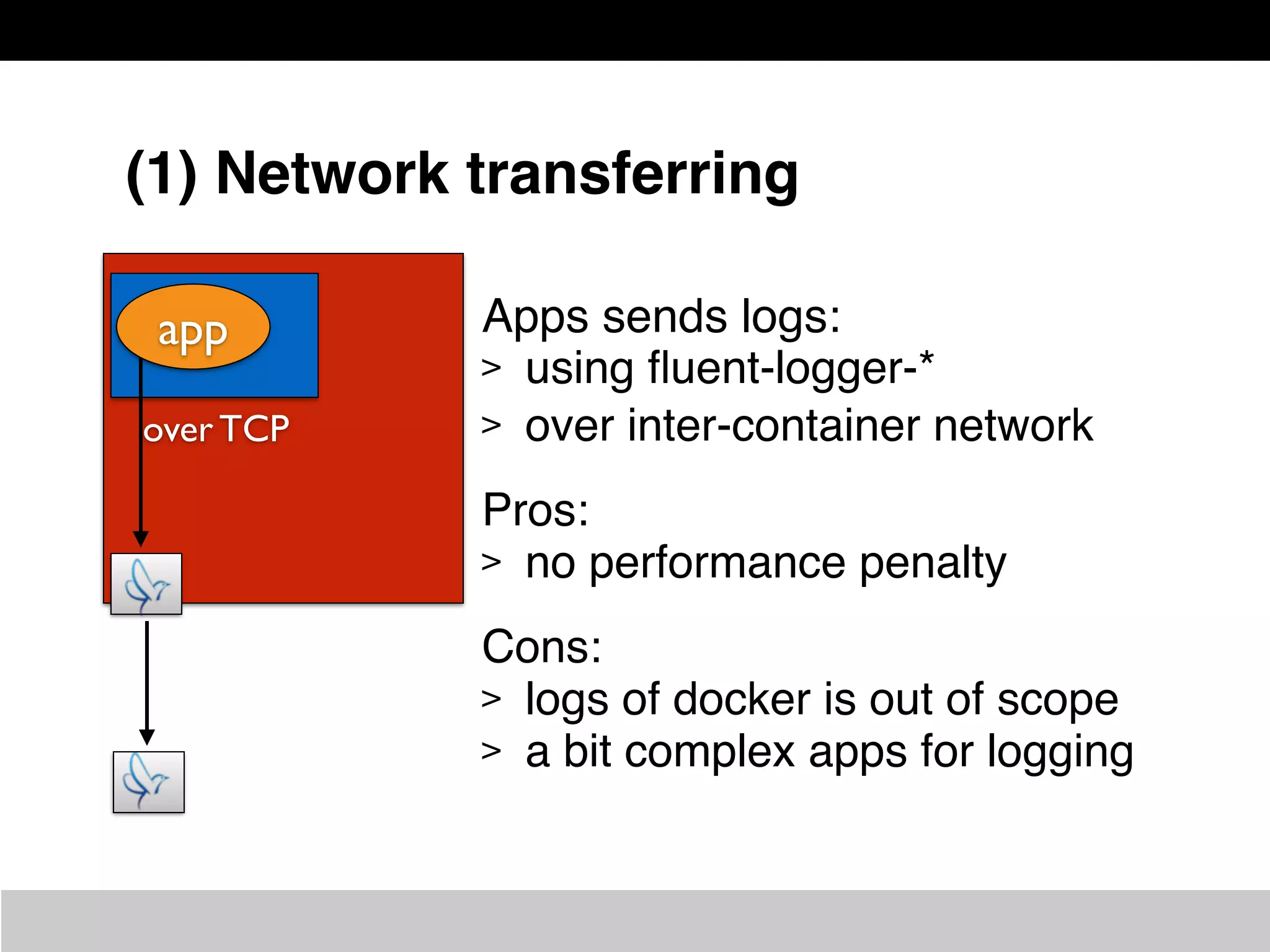

15. (1) Network transferring
Apps sends logs:
> using fluent-logger-*
> over inter-container network
Pros:
> no performance penalty
Cons:
> logs of docker is out of scope
> a bit complex apps for logging
over TCP
app

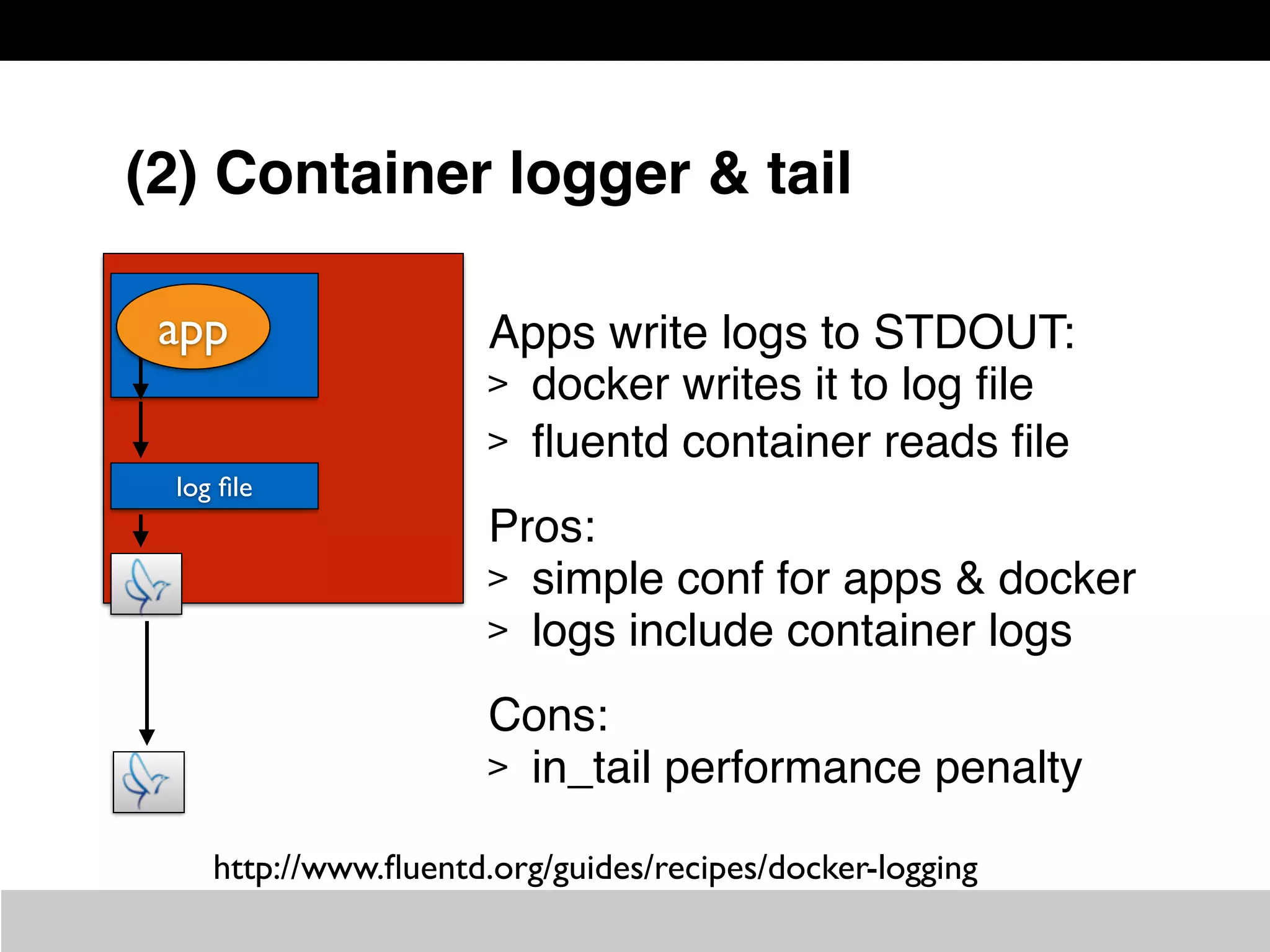

16. (2) Container logger & tail
Apps write logs to STDOUT:
> docker writes it to log file
> fluentd container reads file
Pros:
> simple conf for apps & docker
> logs include container logs
Cons:
> in_tail performance penalty
log file
app
http://www.fluentd.org/guides/recipes/docker-logging

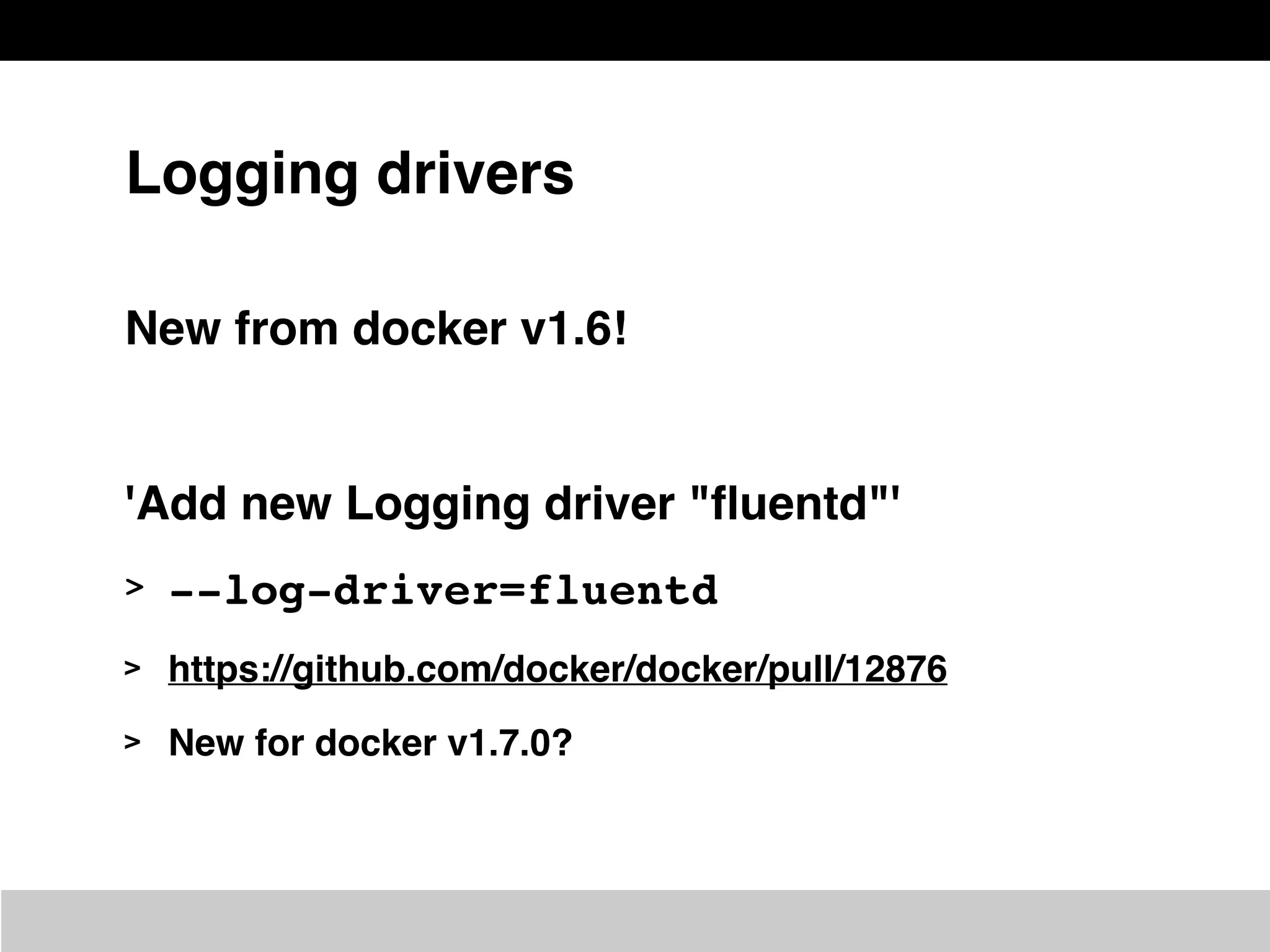

18. Logging drivers
New from docker v1.6!
'Add new Logging driver "fluentd"'
> --log-driver=fluentd
> https://github.com/docker/docker/pull/12876
> New for docker v1.7.0?

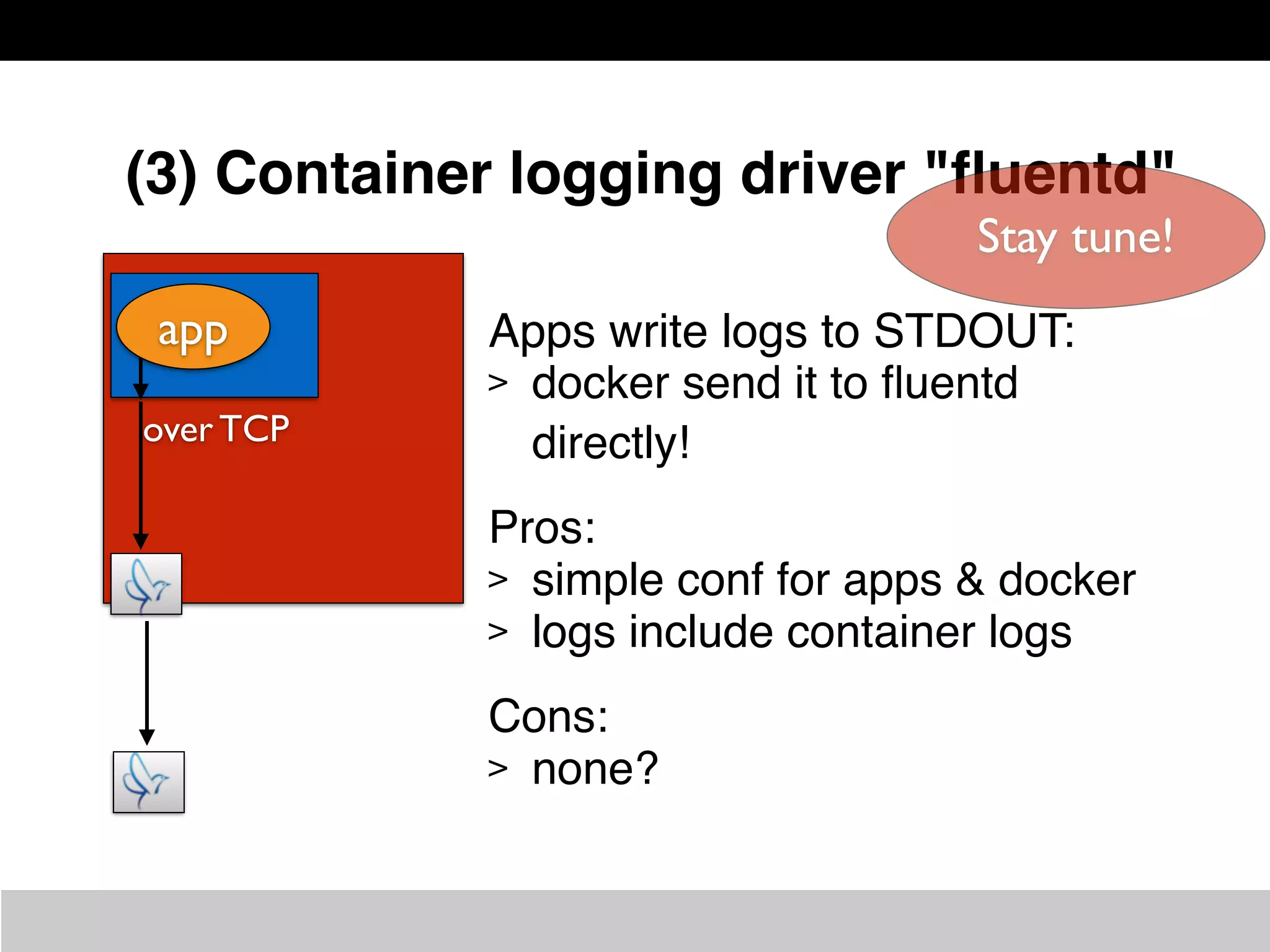

19. over TCP
(3) Container logging driver "fluentd"
Apps write logs to STDOUT:
> docker send it to fluentd
directly!
Pros:
> simple conf for apps & docker
> logs include container logs
Cons:
> none?
app
Stay tune!

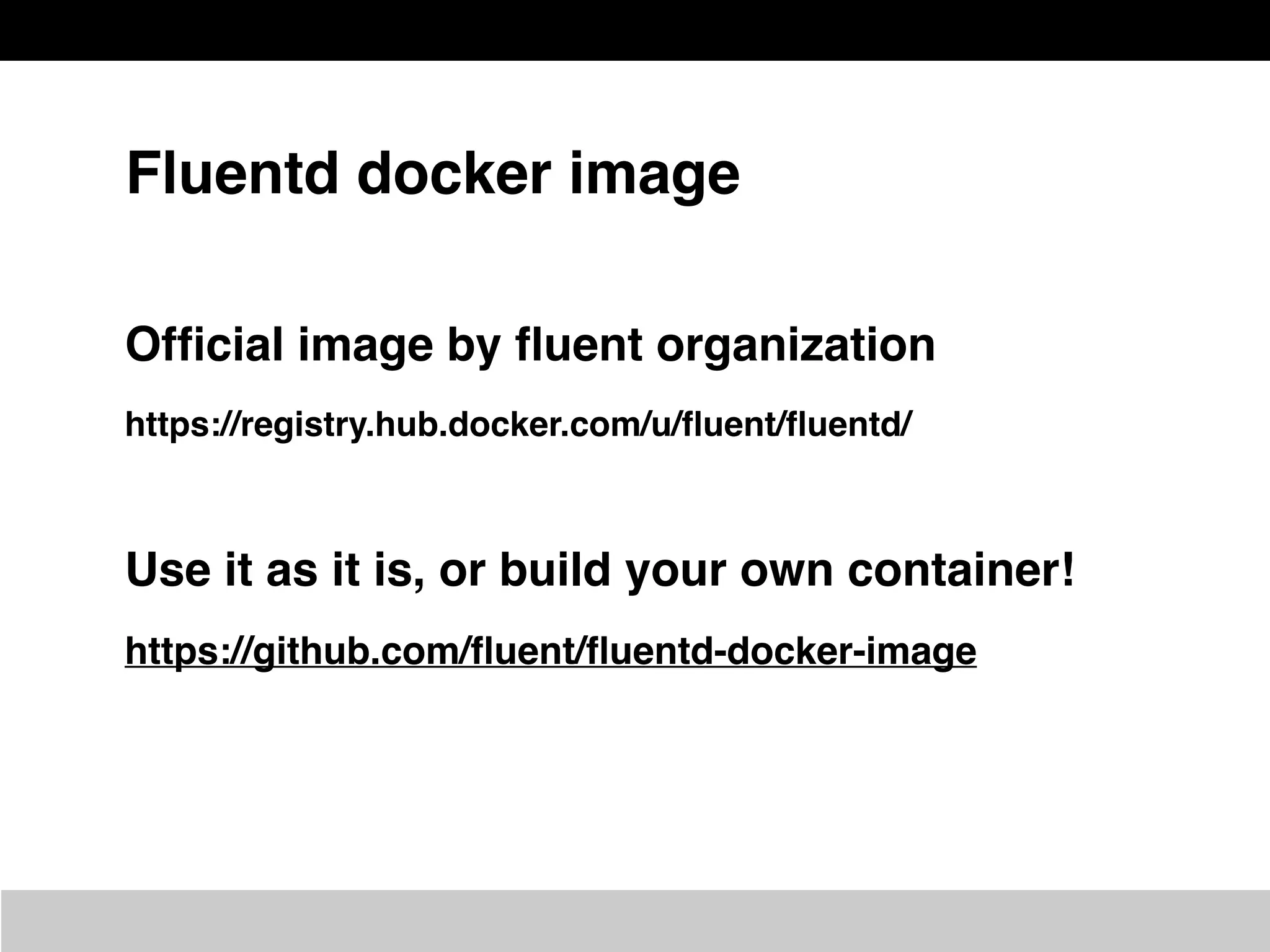

20. Fluentd docker image
Official image by fluent organization
https://registry.hub.docker.com/u/fluent/fluentd/
Use it as it is, or build your own container!
https://github.com/fluent/fluentd-docker-image

21. ❤
