This document provides an introduction and overview of the django CMS system. It discusses the key components including pages, plugins, menus, frontedit permissions, publisher, and internationalization. It also describes how to integrate django CMS into an existing project using menus, app hooks, menu modifiers, placeholders, and custom plugins. The future directions of django CMS are mentioned, including upcoming releases that will focus on modularity and new features like page extenders.

1. an introduction

2. about myself
•Name: Patrick Lauber
•Place: Zürich, Switzerland
•Age: 29
•Profession: CTO of tigermedia.ch
•Nick: digi604

3. history
• .ch
•django-cms 1.0 (django 0.96) menu,
performance
•django-page-cms (django 1.0, mptt,
placeholders)
•django-cms 2.0 (plugins)
•django-cms 2.1 (menus, placeholder 2.0,
frontedit)

4. the parts
• pages
• plugins
• menu
• frontedit
• permissions
• publisher
• i18n-urls

5. pages
•title
•drag&drop
•mptt
•published?
•in menu?
•meta info
•template

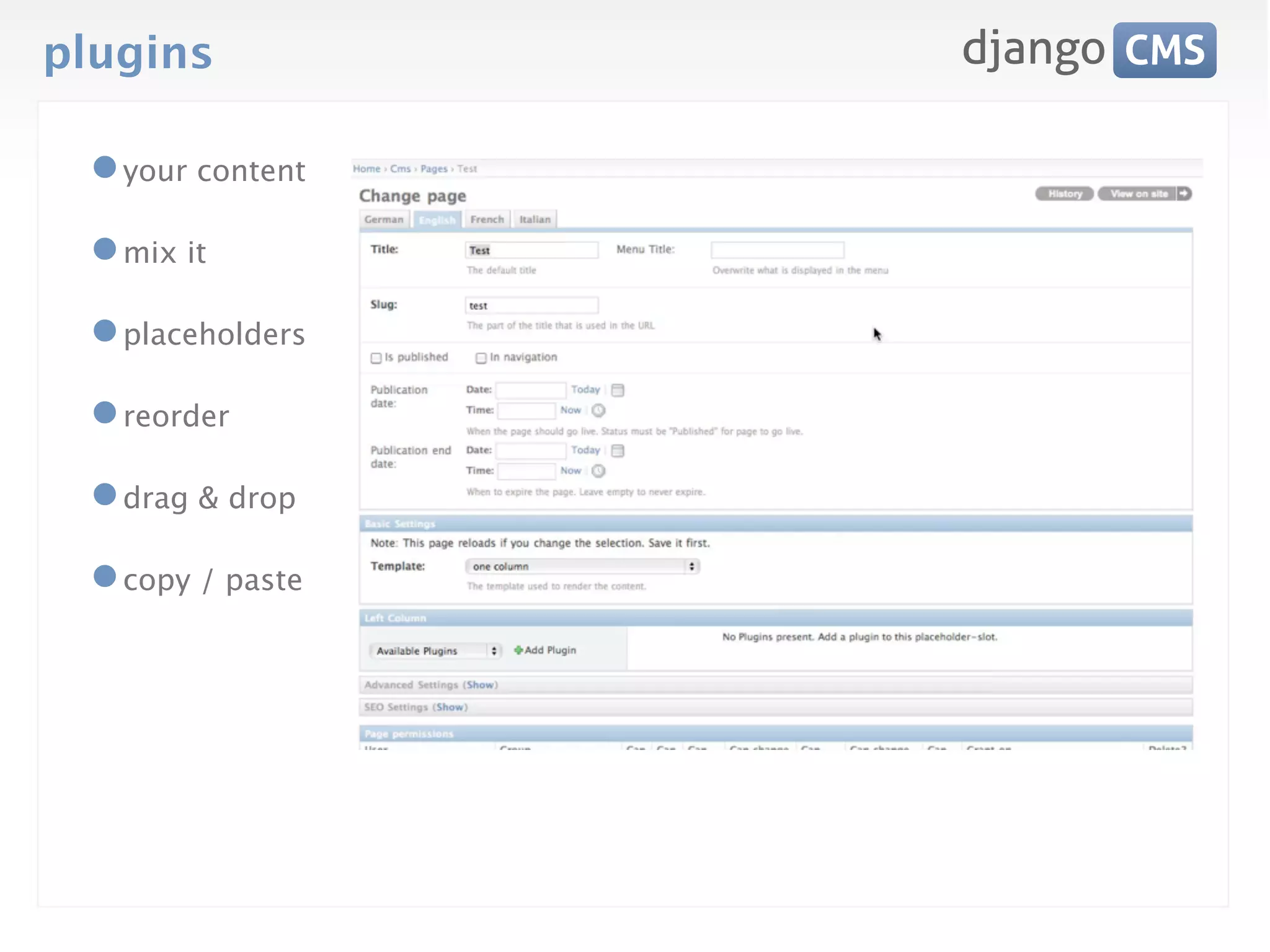

6. plugins
•your content
•mix it
•placeholders
•reorder
•drag & drop
•copy / paste

7. plugins
{% load cms_tags %}
{% placeholder header %}
{% placeholder leftcolumn %}
{% placeholder content %}
{% placeholder footer %}

8. plugins
already built in:
text, picture,
link, file,
flash, googlemap,
inherit,
snippet, teaser
twitter, video

9. plugins
get more at:
www.django-cms.org/extensions

10. menu
•Construct any menu the
design requires with two
template tags
•breadcrumbs
•menus package

11. menu
{% load menu_tags %}
{% show_menu 0 100 0 100 %}
• From Level
• To Level
• Inactive Levels
• Active Levels

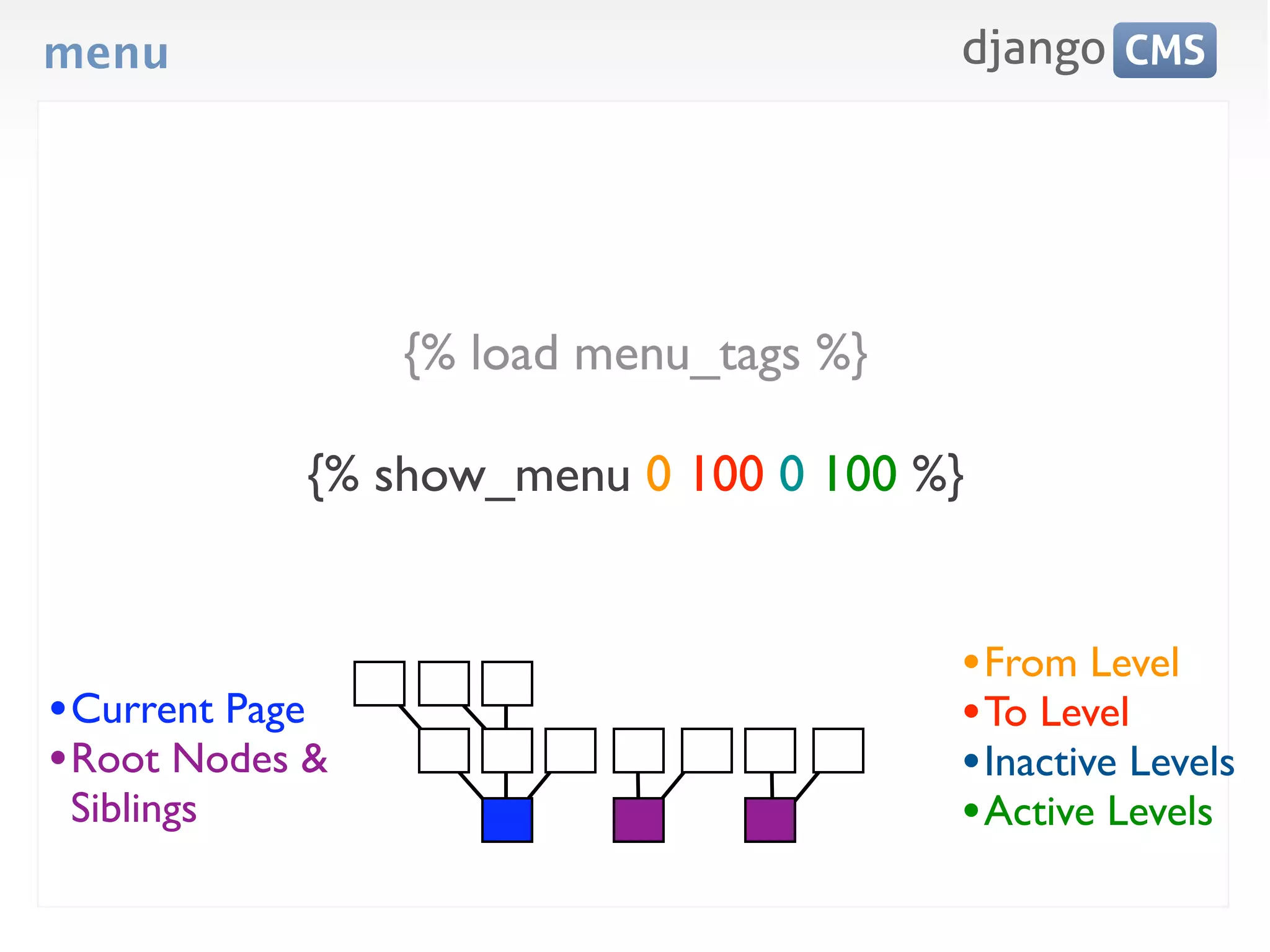

12. menu
{% load menu_tags %}
{% show_menu 0 100 0 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

13. menu
{% load menu_tags %}
{% show_menu 0 100 0 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

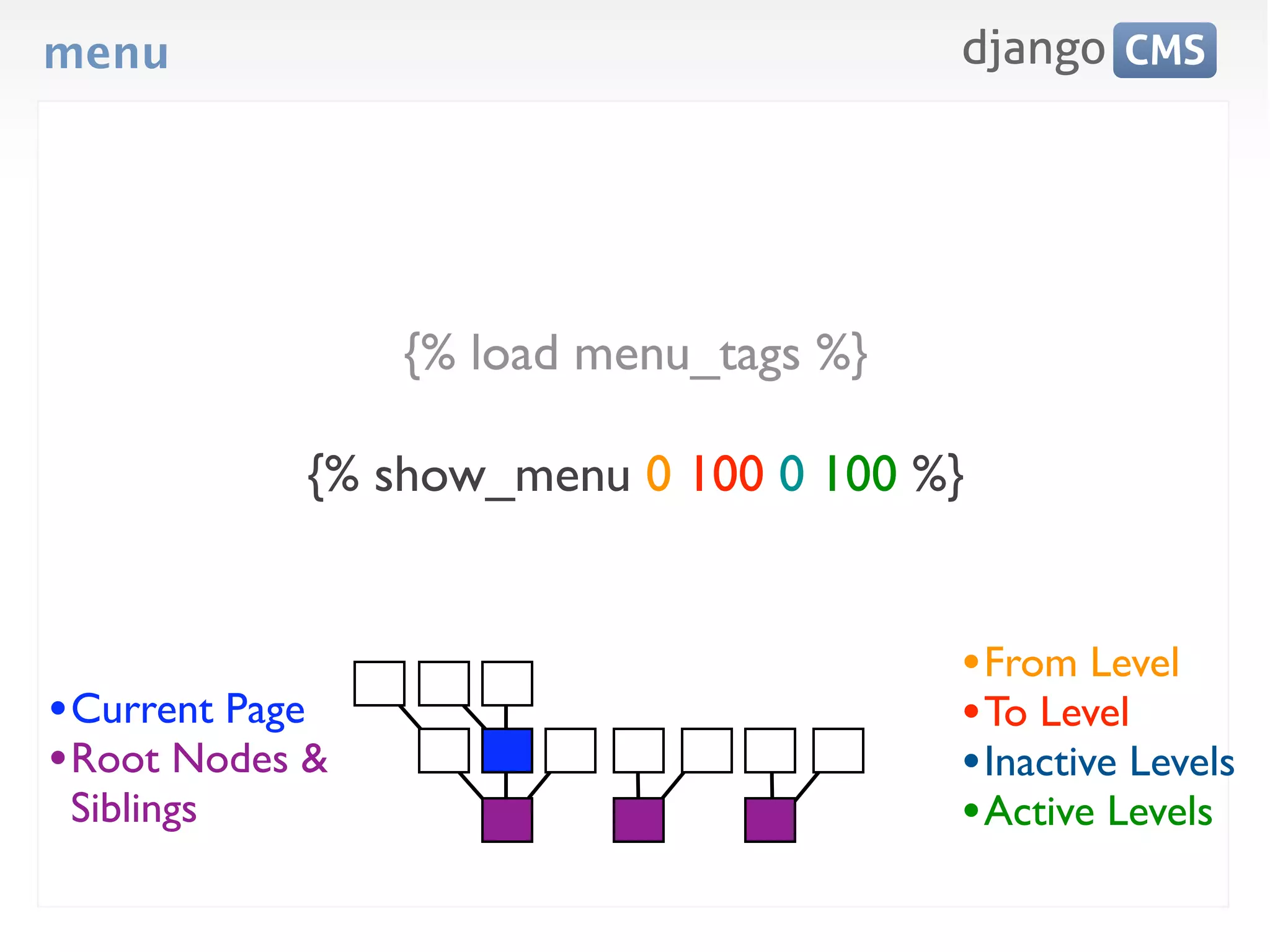

14. menu
{% load menu_tags %}
{% show_menu 0 100 0 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

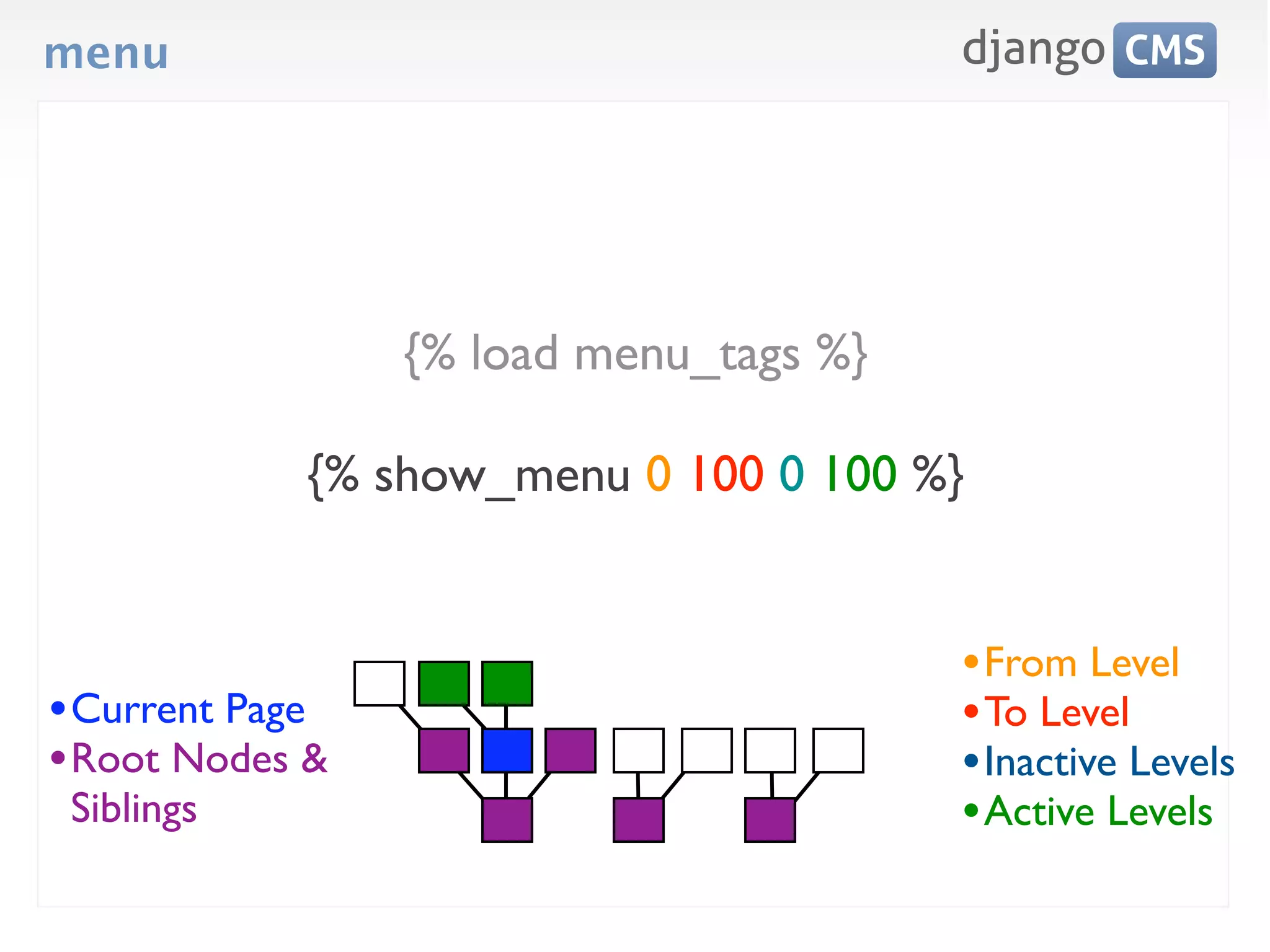

15. menu
{% load menu_tags %}
{% show_menu 0 100 0 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

16. menu
{% load menu_tags %}
{% show_menu 0 100 1 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

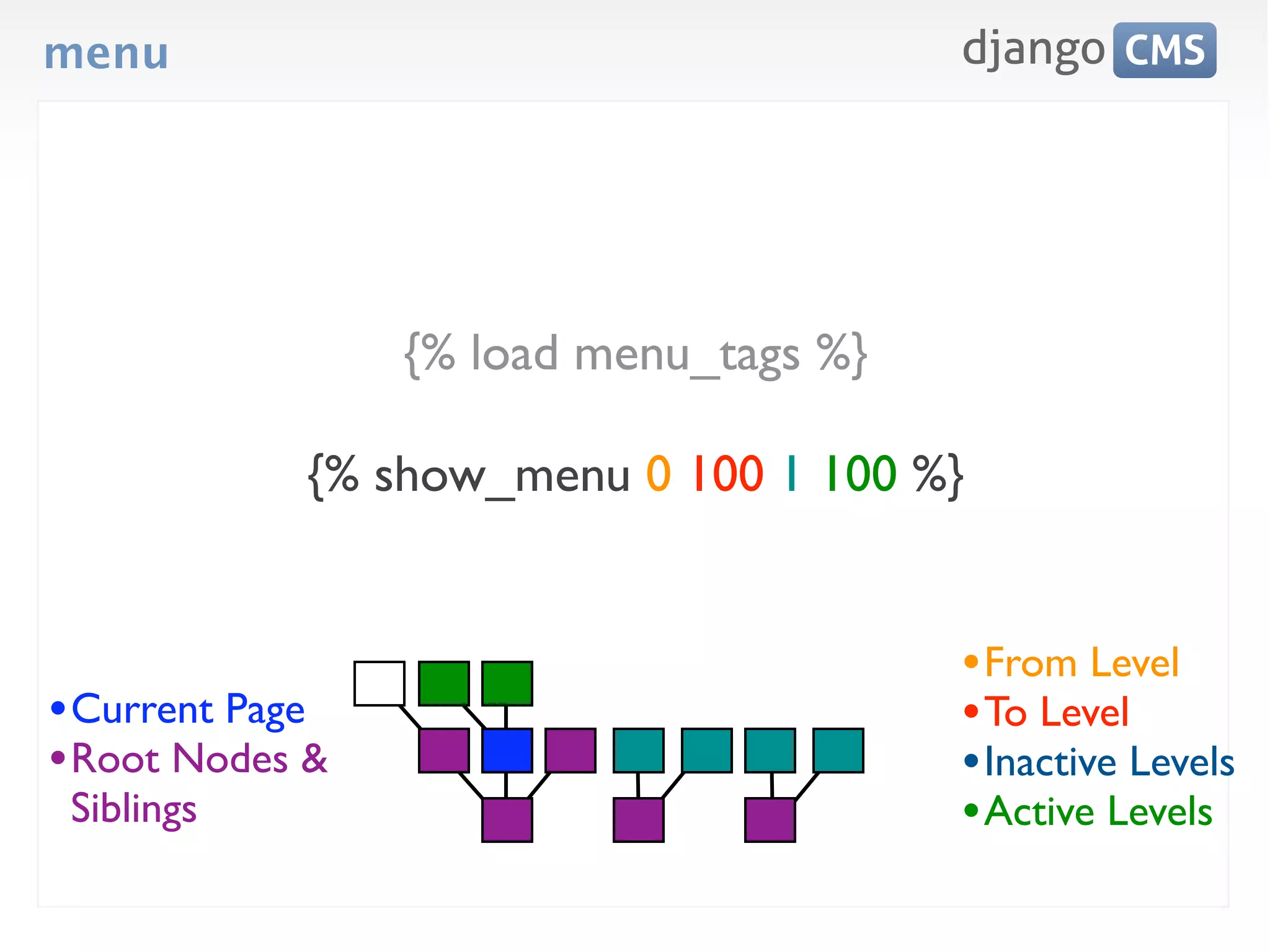

17. menu
{% load menu_tags %}
{% show_menu 0 100 1 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

18. menu
{% load menu_tags %}
{% show_menu 1 100 1 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

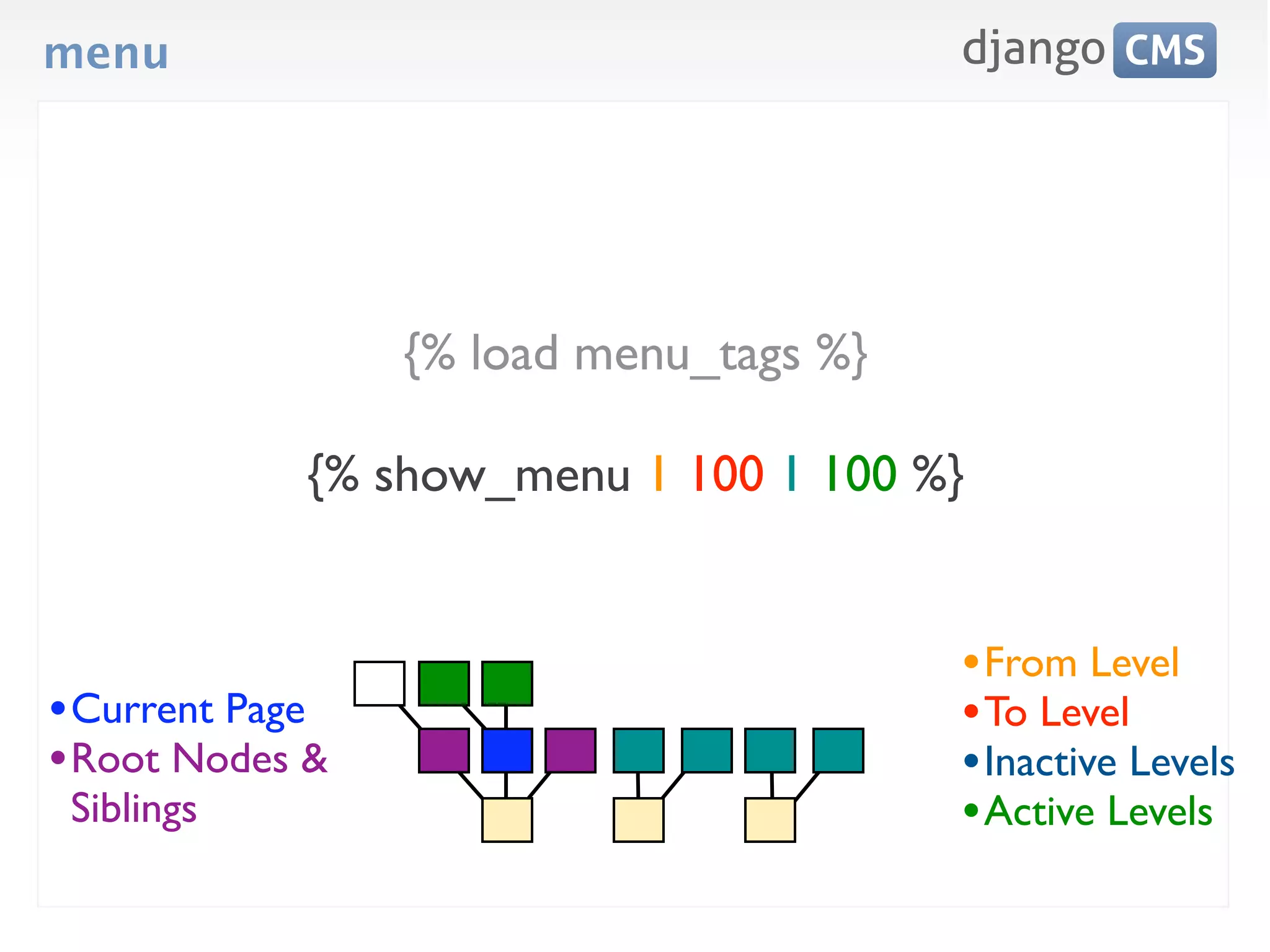

19. menu
{% load menu_tags %}
{% show_menu 1 100 1 100 %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

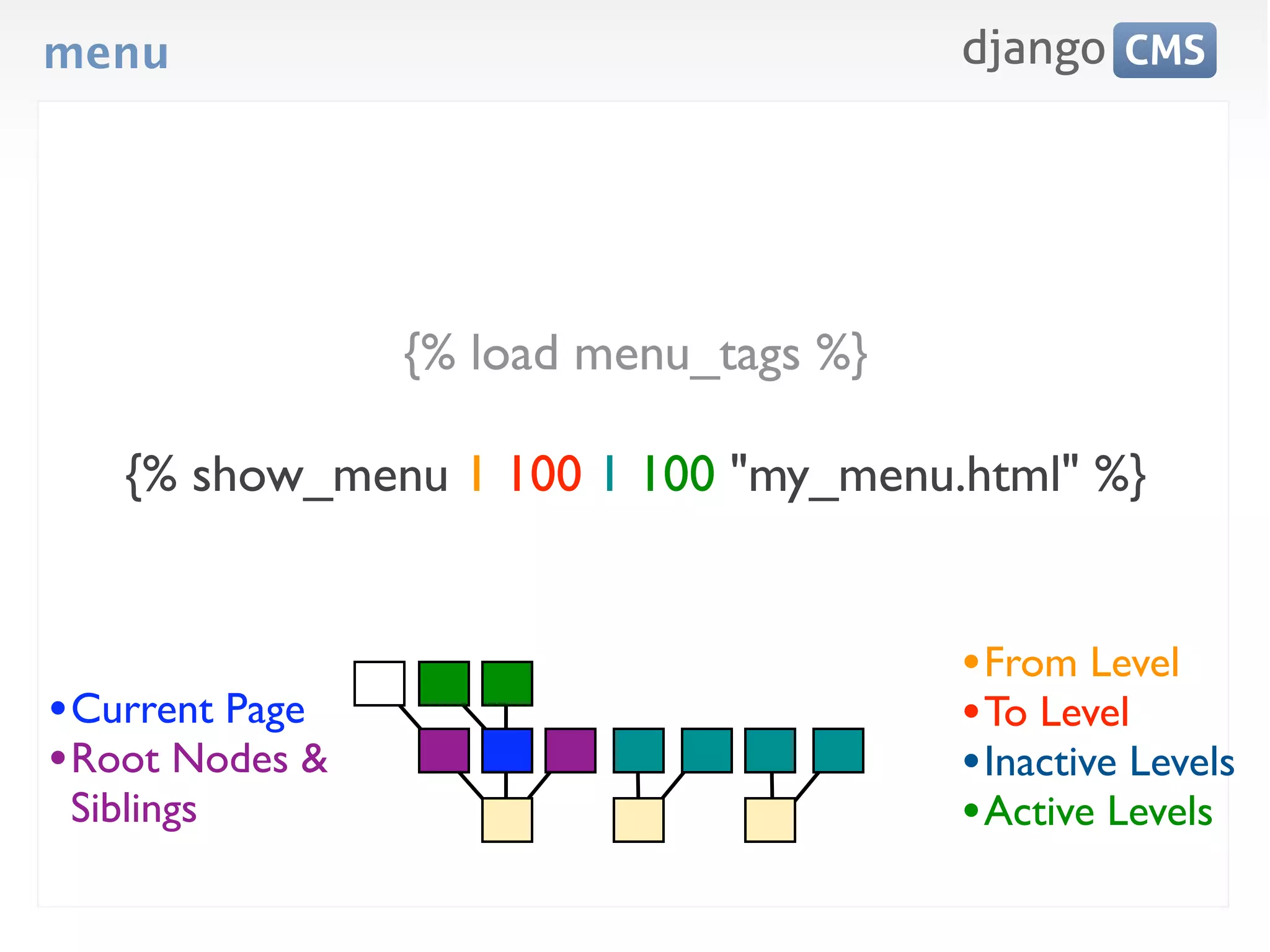

20. menu
{% load menu_tags %}
{% show_menu 1 100 1 100 "my_menu.html" %}
• From Level
• Current Page • To Level
• Root Nodes & • Inactive Levels
Siblings • Active Levels

21. menu
{% load menu_tags %}
{% show_sub_menu 100 "my_menu.html" %}

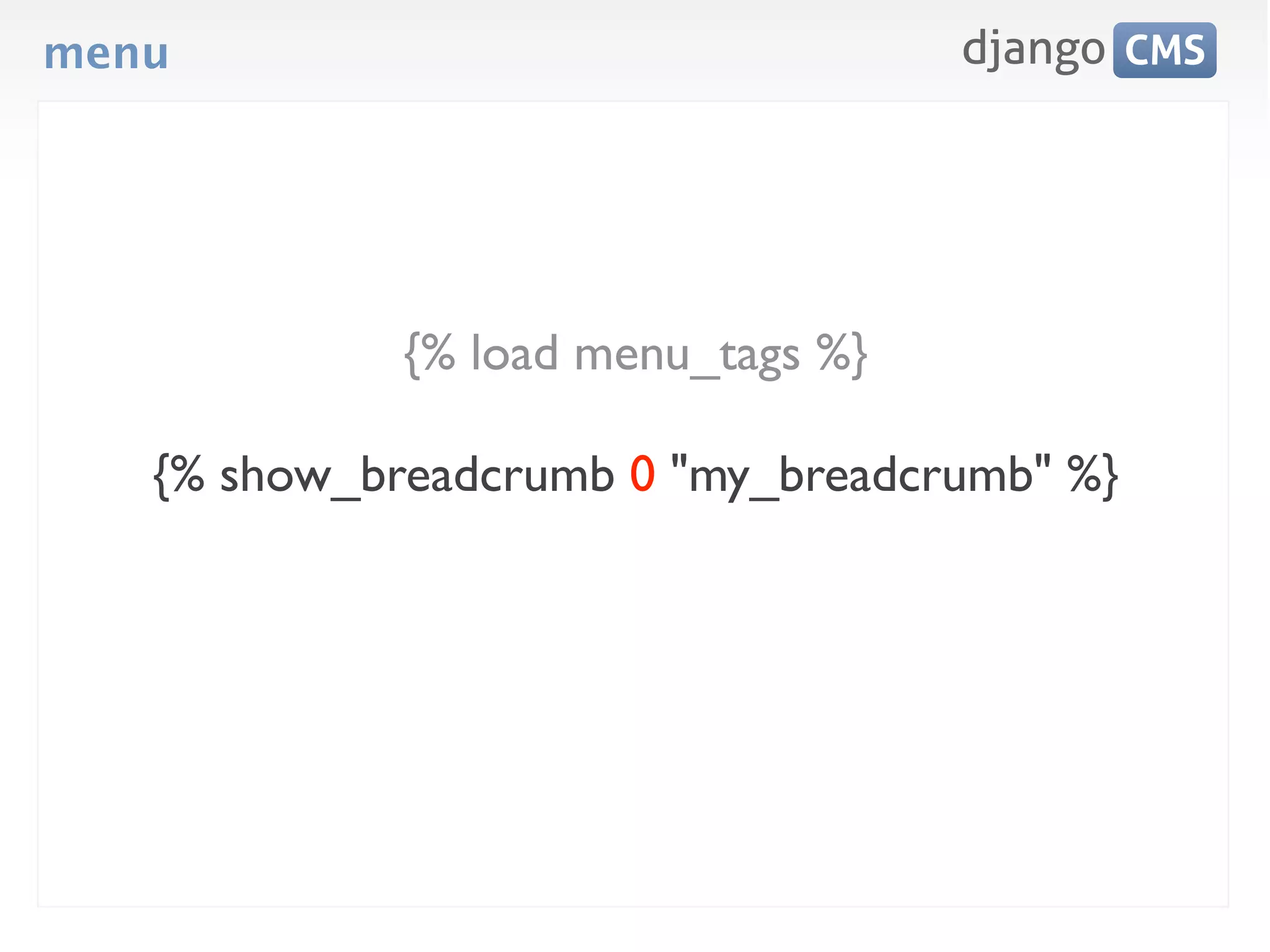

22. menu
{% load menu_tags %}
{% show_breadcrumb 0 "my_breadcrumb" %}

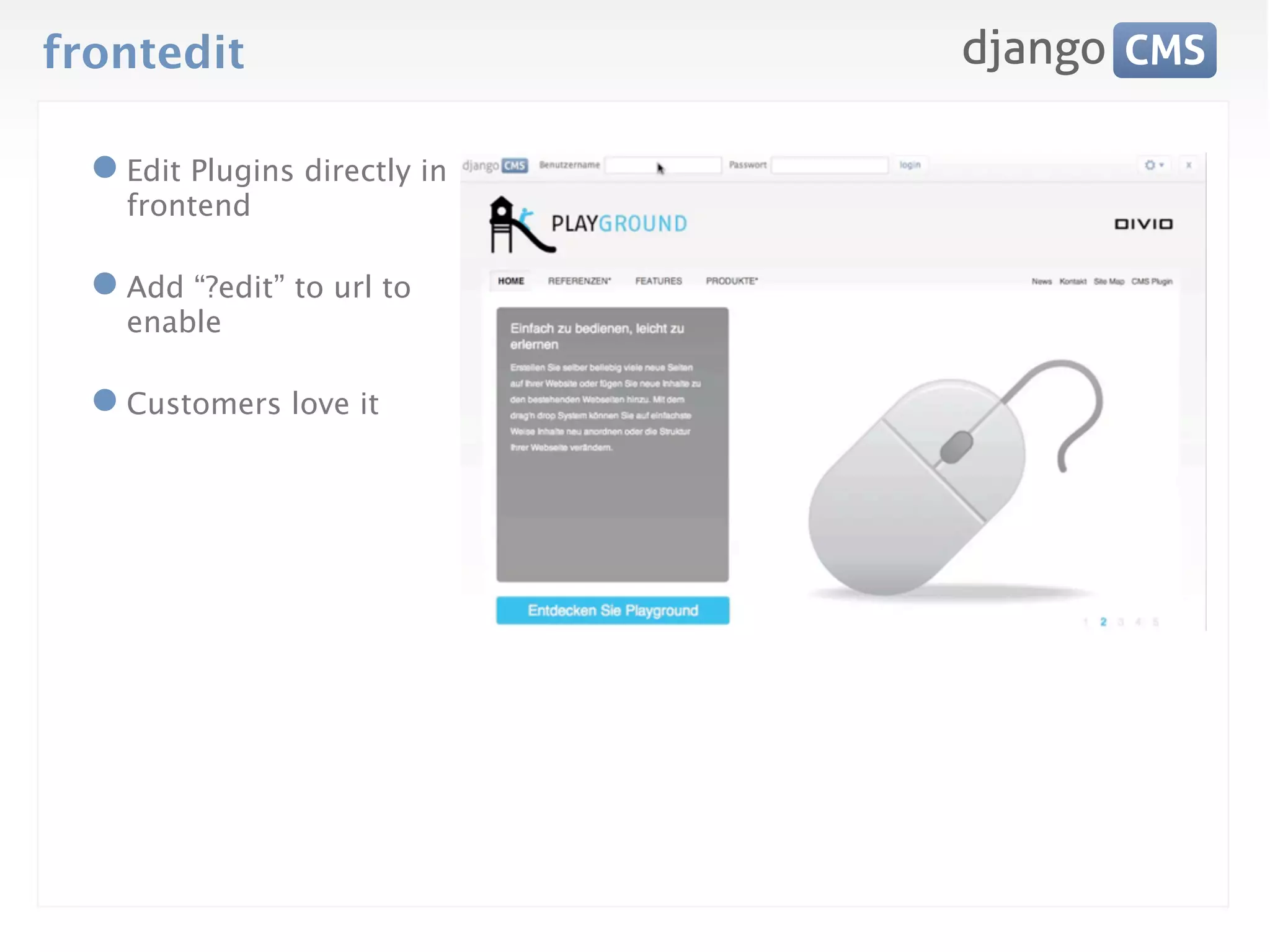

23. frontedit
• Edit Plugins directly in
frontend
• Add “?edit” to url to
enable
• Customers love it

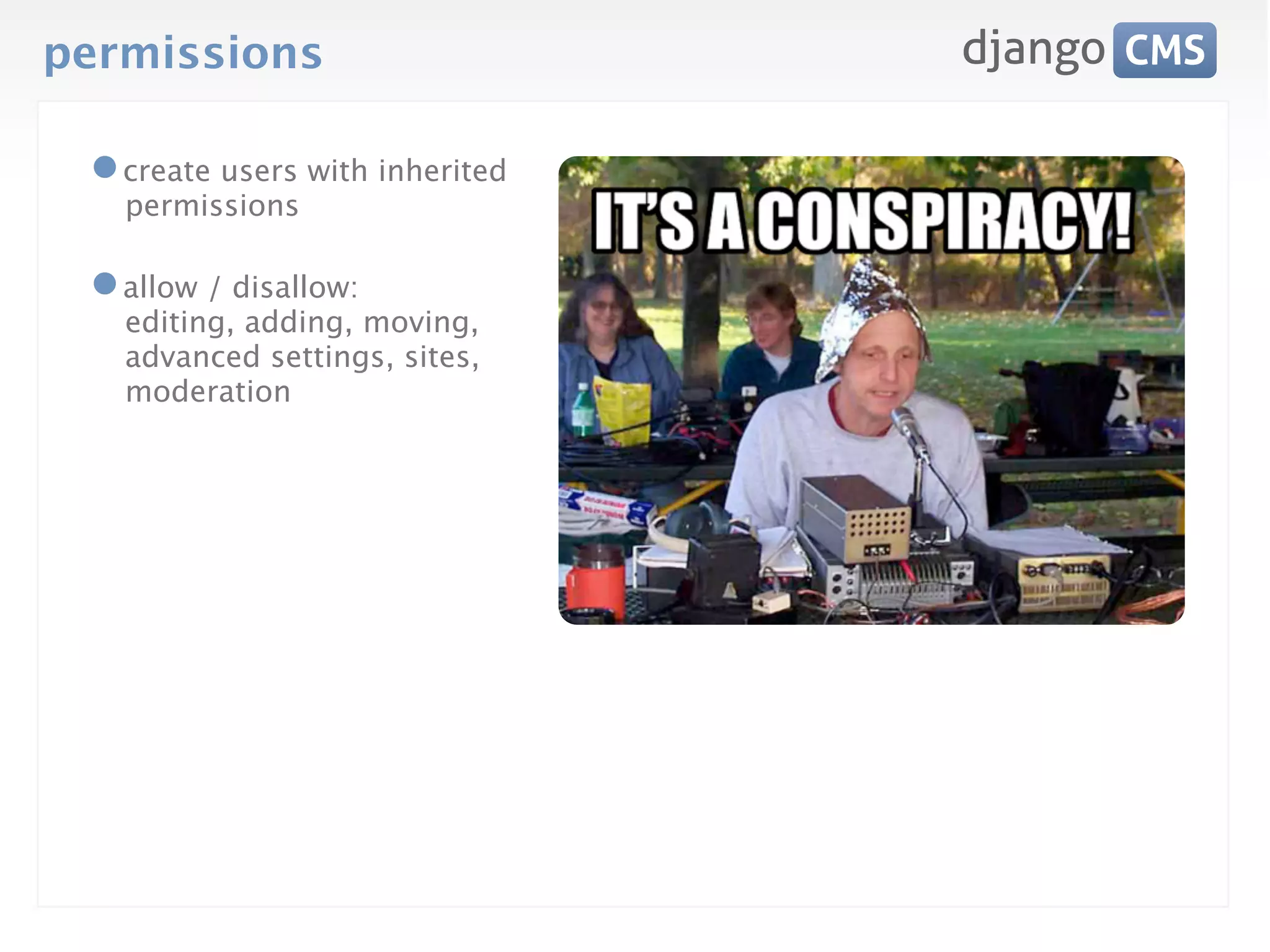

24. permissions
•create users with inherited
permissions
•allow / disallow: moving,
editing, adding,
advanced settings, sites,
moderation

25. publisher
•Moderate content changes
•get notified
• content onlydeleted if
published /
gets
approved

26. i18n-urls
• Language prefix
/de/your_url/
• middleware based
• no changesurls, apps your
templates,
needed to

27. integrating it
• How your own project.
into
to integrate the cms
• It’s just an app.
1. Menus
2. Attach Menus
3. Navigation Modifiers
4. App-hooks
5. Custom Plugins
6. Placeholders

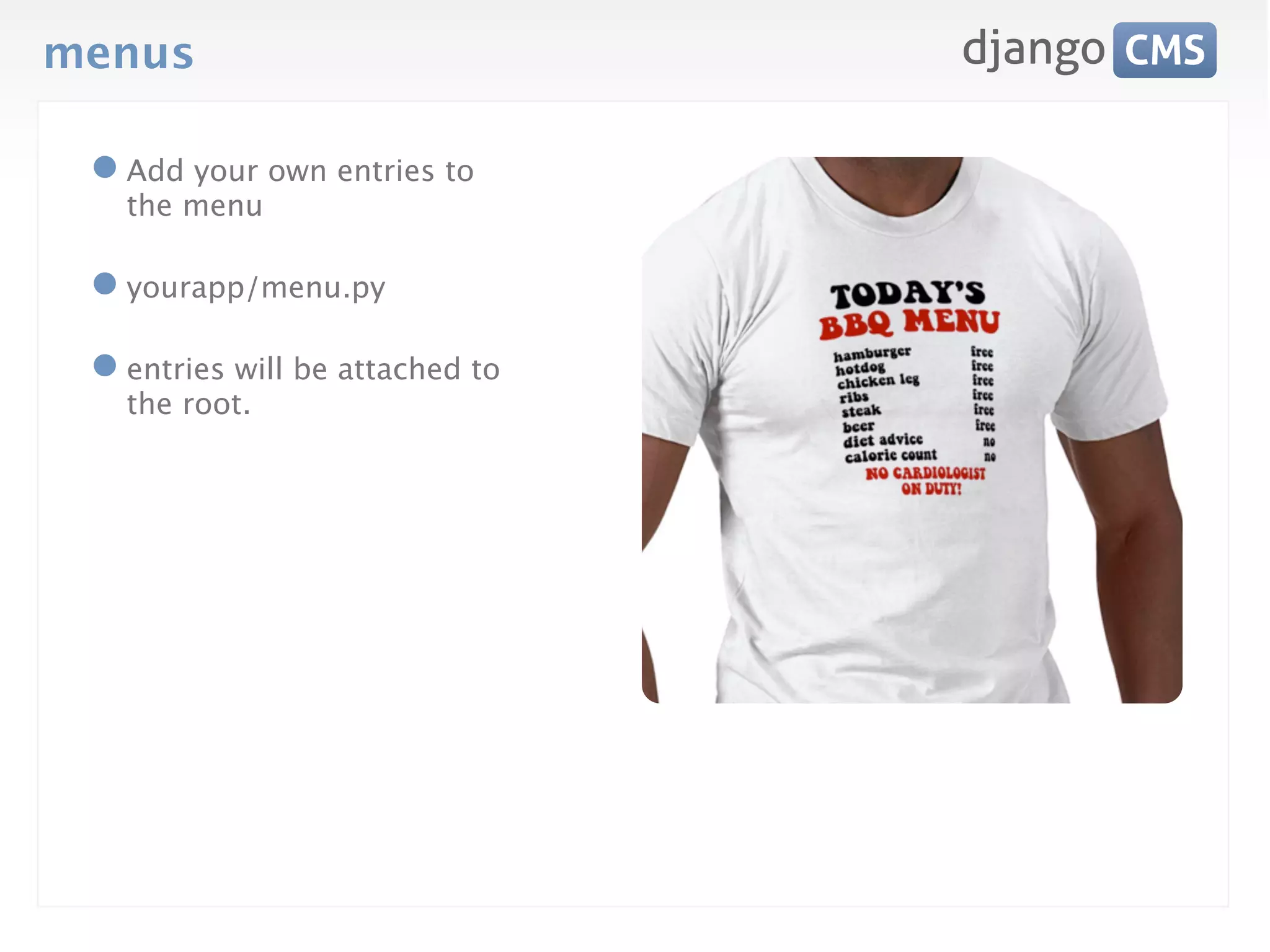

28. menus
• Addmenu own entries to
the
your
• yourapp/menu.py
• entries will be attached to
the root.

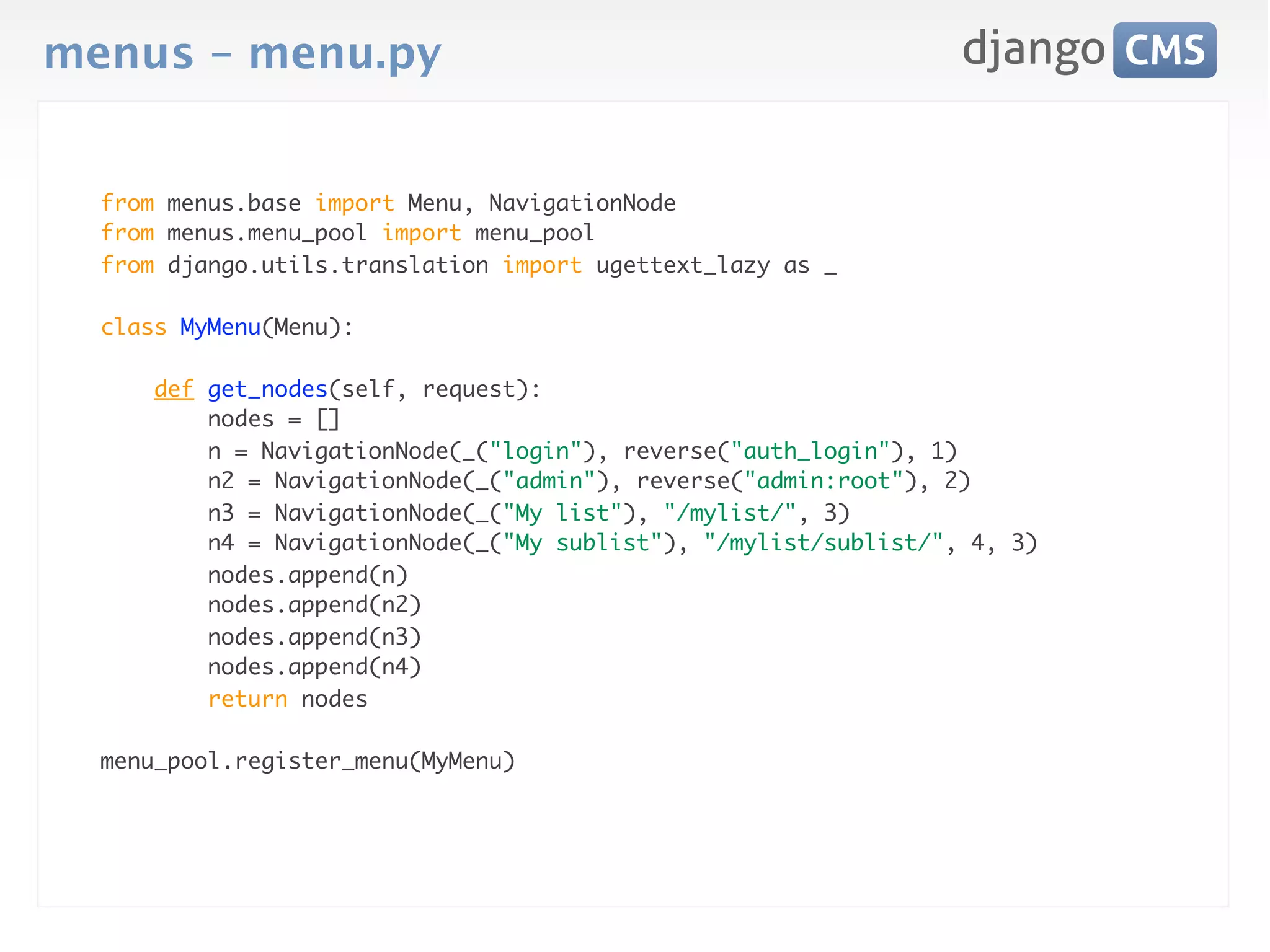

29. menus – menu.py
from menus.base import Menu, NavigationNode
from menus.menu_pool import menu_pool
from django.utils.translation import ugettext_lazy as _
class MyMenu(Menu):
def get_nodes(self, request):
nodes = []
n = NavigationNode(_("login"), reverse("auth_login"), 1)
n2 = NavigationNode(_("admin"), reverse("admin:root"), 2)
n3 = NavigationNode(_("My list"), "/mylist/", 3)
n4 = NavigationNode(_("My sublist"), "/mylist/sublist/", 4, 3)
nodes.append(n)
nodes.append(n2)
nodes.append(n3)
nodes.append(n4)
return nodes
menu_pool.register_menu(MyMenu)

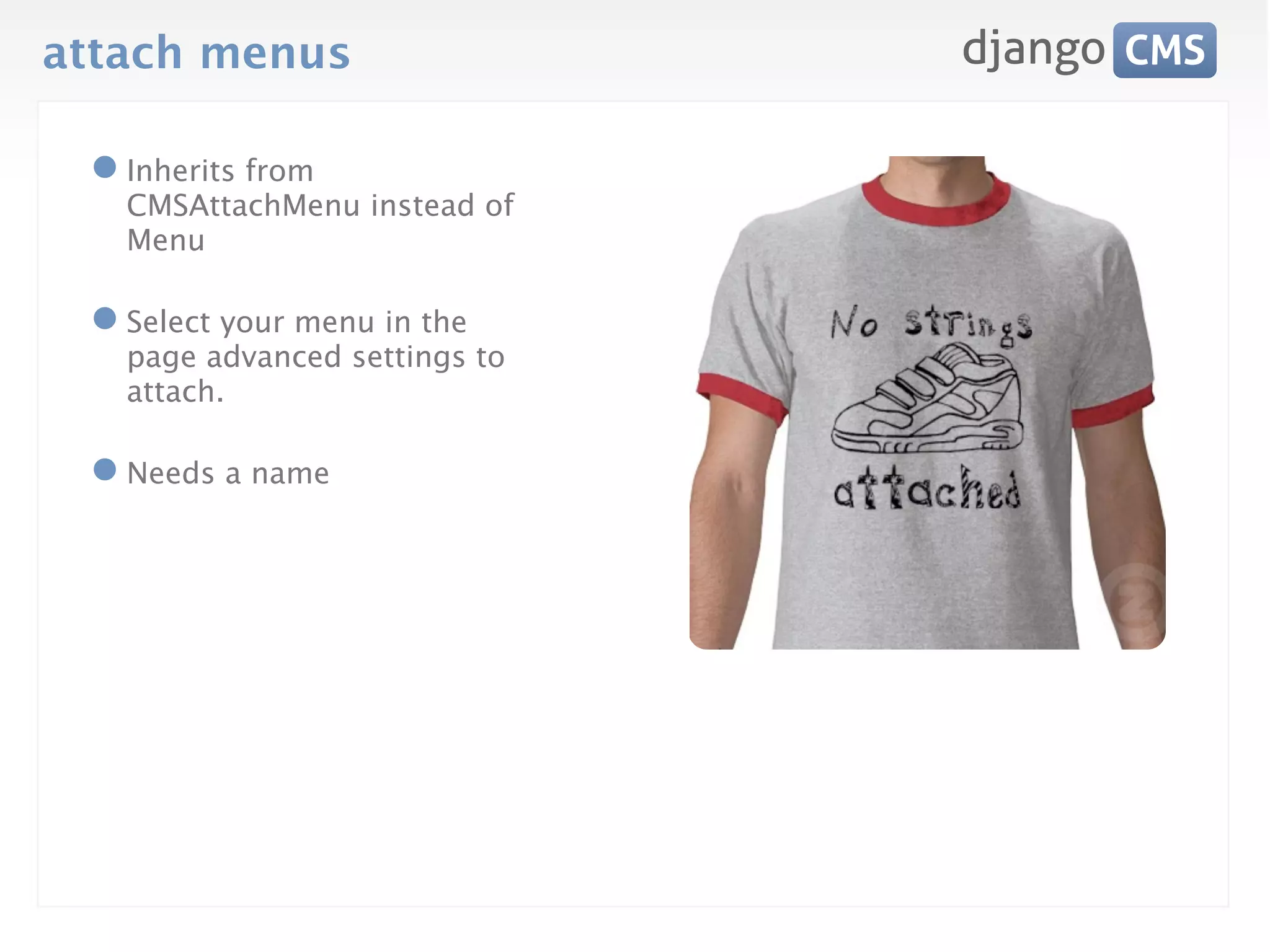

30. attach menus
• Inherits from instead of
CMSAttachMenu
Menu
• Selectadvanced settings to
page
your menu in the
attach.
• Needs a name

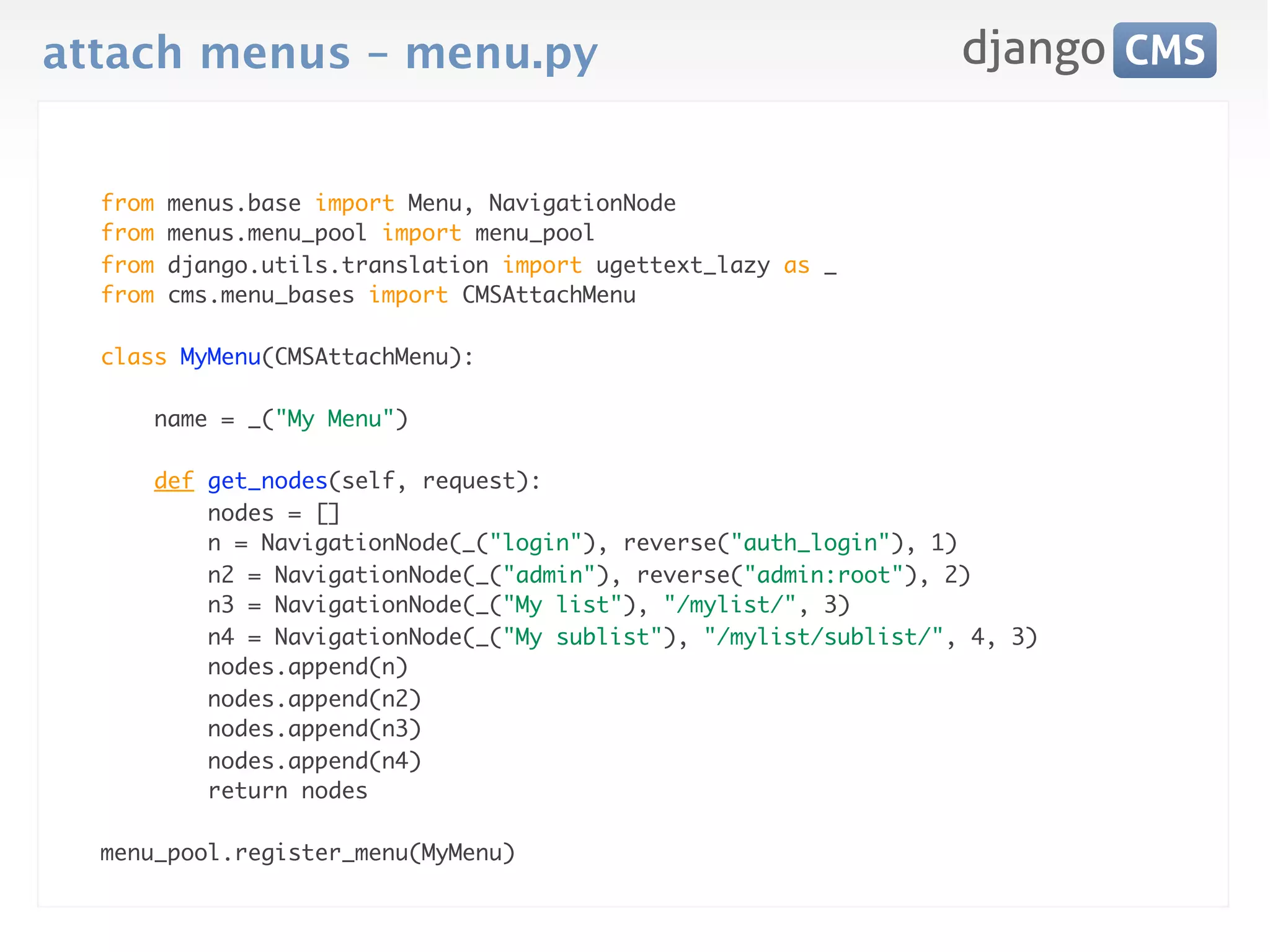

31. attach menus – menu.py
from menus.base import Menu, NavigationNode
from menus.menu_pool import menu_pool
from django.utils.translation import ugettext_lazy as _
from cms.menu_bases import CMSAttachMenu
class MyMenu(CMSAttachMenu):
name = _("My Menu")
def get_nodes(self, request):
nodes = []
n = NavigationNode(_("login"), reverse("auth_login"), 1)
n2 = NavigationNode(_("admin"), reverse("admin:root"), 2)
n3 = NavigationNode(_("My list"), "/mylist/", 3)
n4 = NavigationNode(_("My sublist"), "/mylist/sublist/", 4, 3)
nodes.append(n)
nodes.append(n2)
nodes.append(n3)
nodes.append(n4)
return nodes
menu_pool.register_menu(MyMenu)

32. menu modifiers
• modify the whole menu
tree
• add or change properties
of NavigationNodes
• rearrange trees
• applied in 3 situations:
• pre cut
• post cut
• breadcrumb

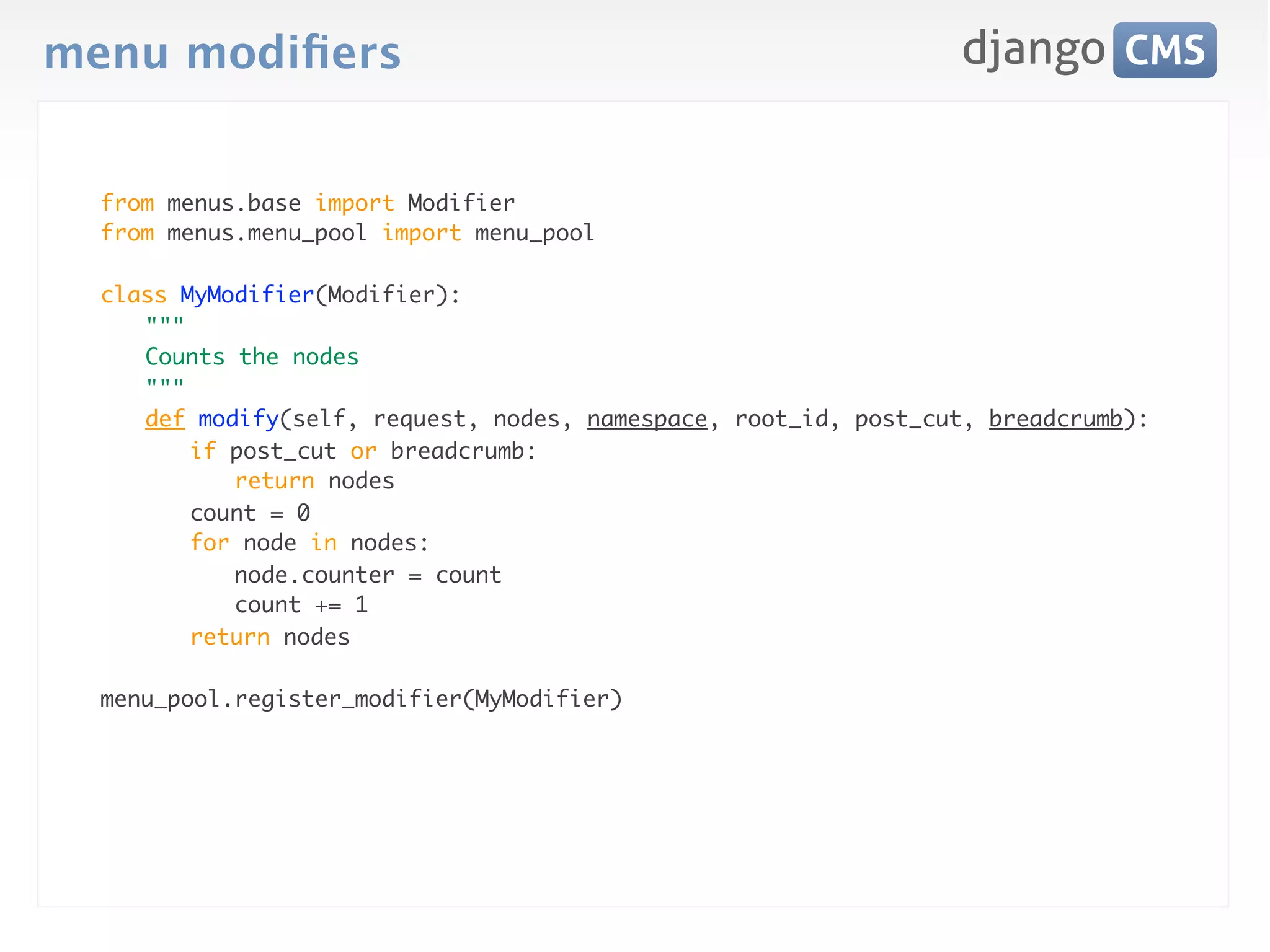

33. menu modifiers
from menus.base import Modifier
from menus.menu_pool import menu_pool
class MyModifier(Modifier):
"""
Counts the nodes
"""
def modify(self, request, nodes, namespace, root_id, post_cut, breadcrumb):
if post_cut or breadcrumb:
return nodes
count = 0
for node in nodes:
node.counter = count
count += 1
return nodes
menu_pool.register_modifier(MyModifier)

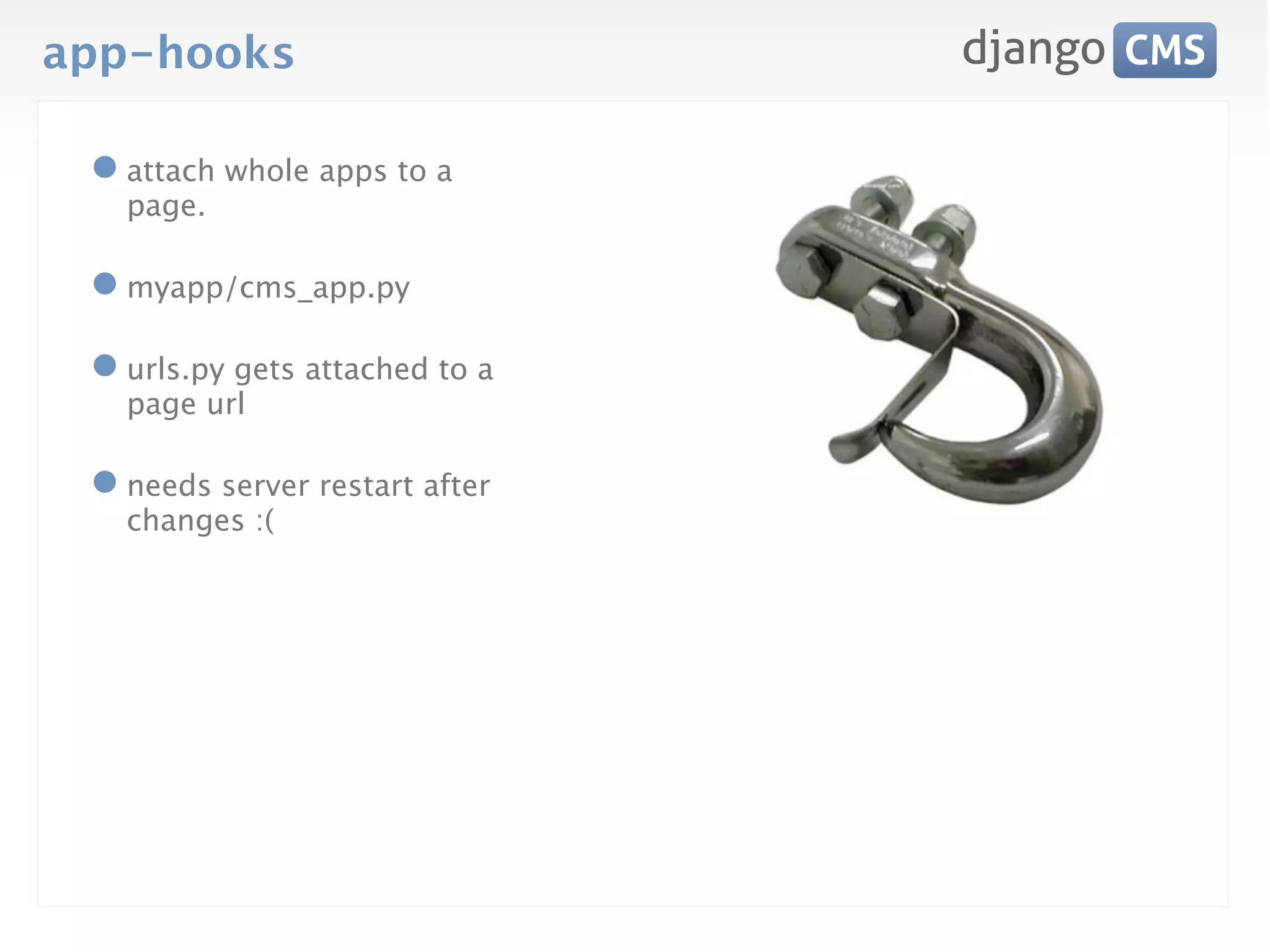

34. app-hooks
• attach whole apps to a
page.
• myapp/cms_app.py
• urls.py gets attached to a
page url
• needs server restart after
changes :(

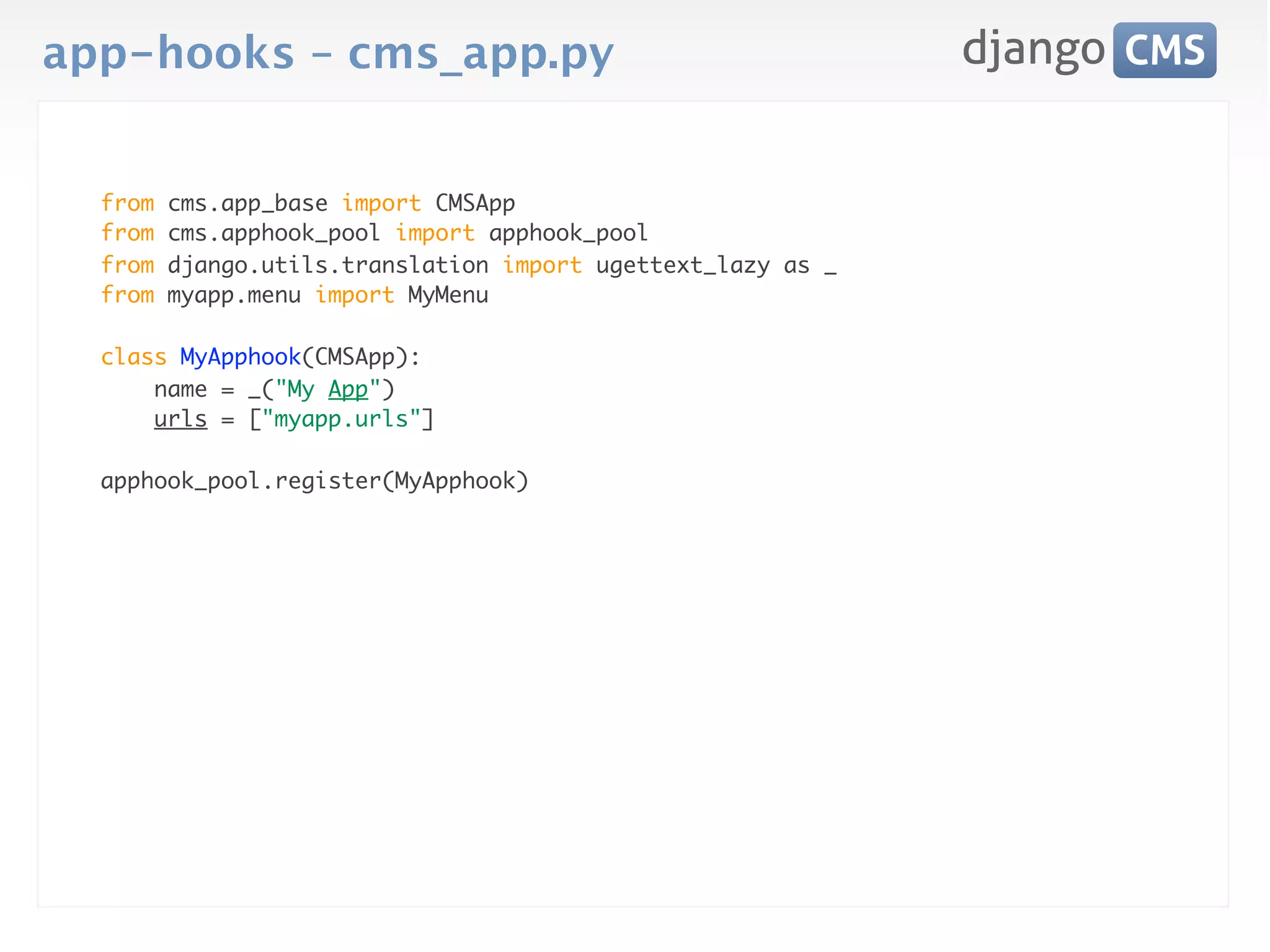

35. app-hooks – cms_app.py
from cms.app_base import CMSApp
from cms.apphook_pool import apphook_pool
from django.utils.translation import ugettext_lazy as _
from myapp.menu import MyMenu
class MyApphook(CMSApp):
name = _("My App")
urls = ["myapp.urls"]
apphook_pool.register(MyApphook)

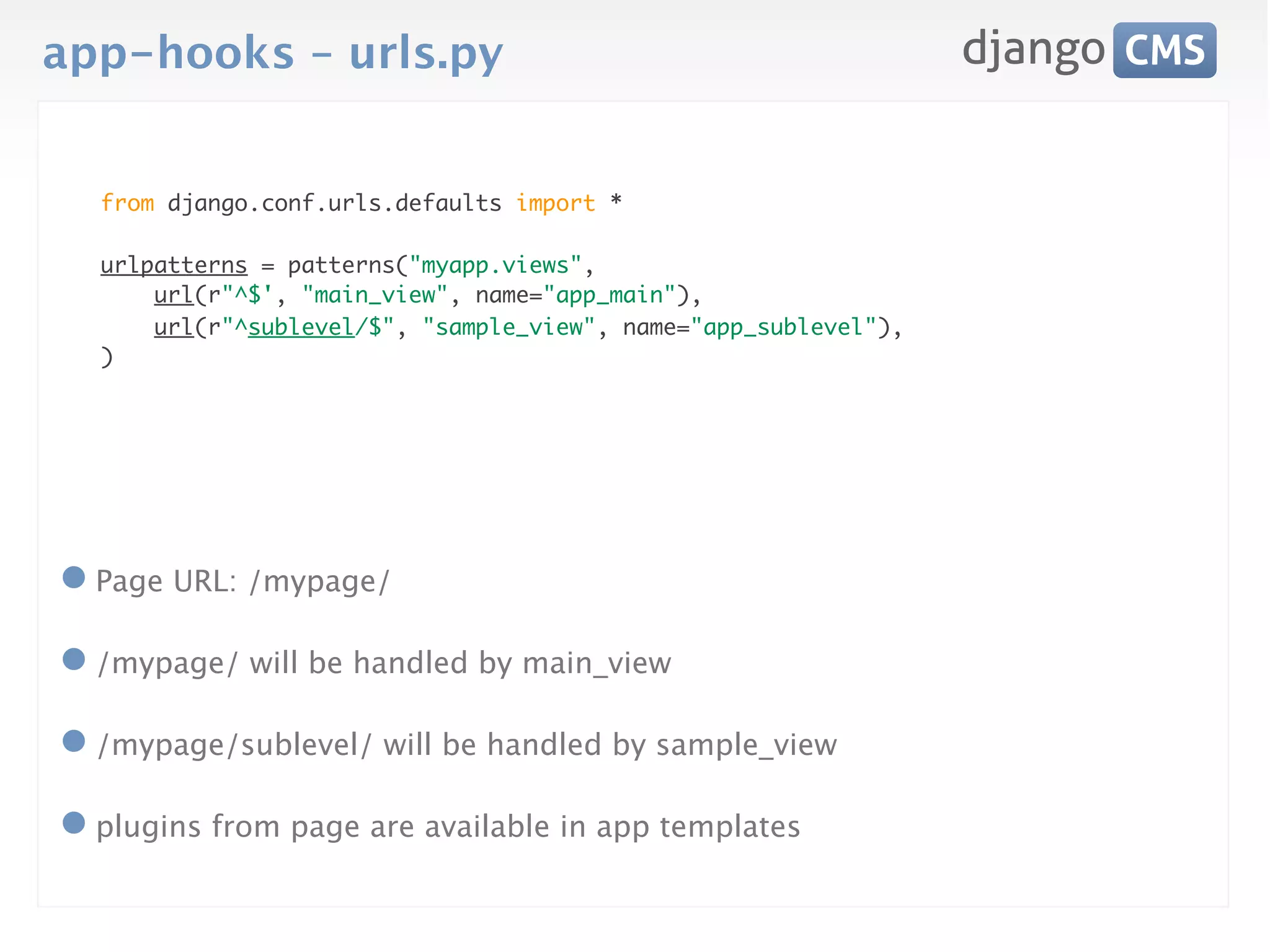

36. app-hooks – urls.py
from django.conf.urls.defaults import *
urlpatterns = patterns("myapp.views",
url(r"^$', "main_view", name="app_main"),
url(r"^sublevel/$", "sample_view", name="app_sublevel"),
)
• Page URL: /mypage/
• /mypage/ will be handled by main_view
• /mypage/sublevel/ will be handled by sample_view
• plugins from page are available in app templates

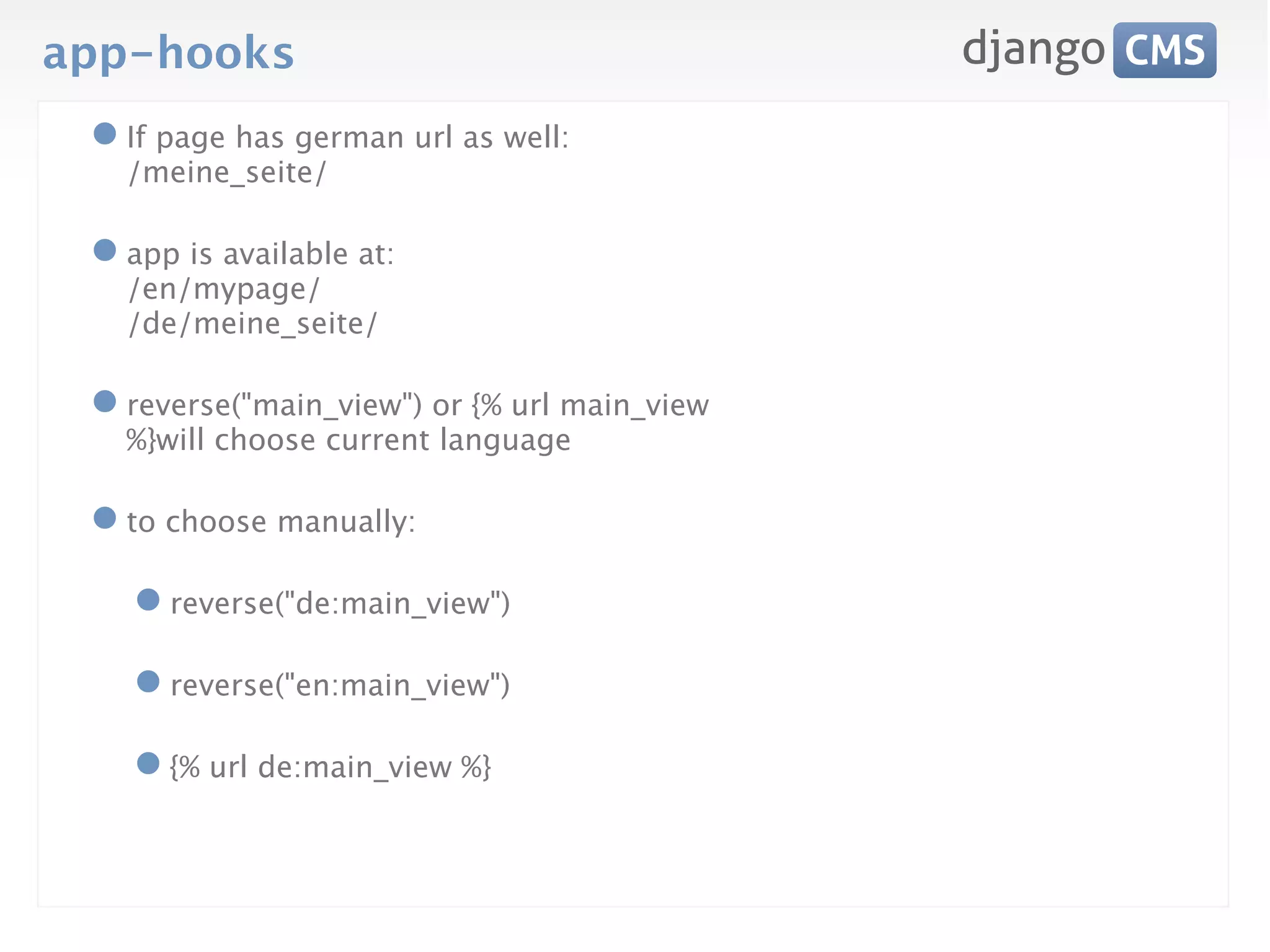

37. app-hooks
• If page has german url as well:
/meine_seite/
• app is available at:
/en/mypage/
/de/meine_seite/
• reverse("main_view") or {% url main_view
%}will choose current language
• to choose manually:
• reverse("de:main_view")
• reverse("en:main_view")
• {% url de:main_view %}

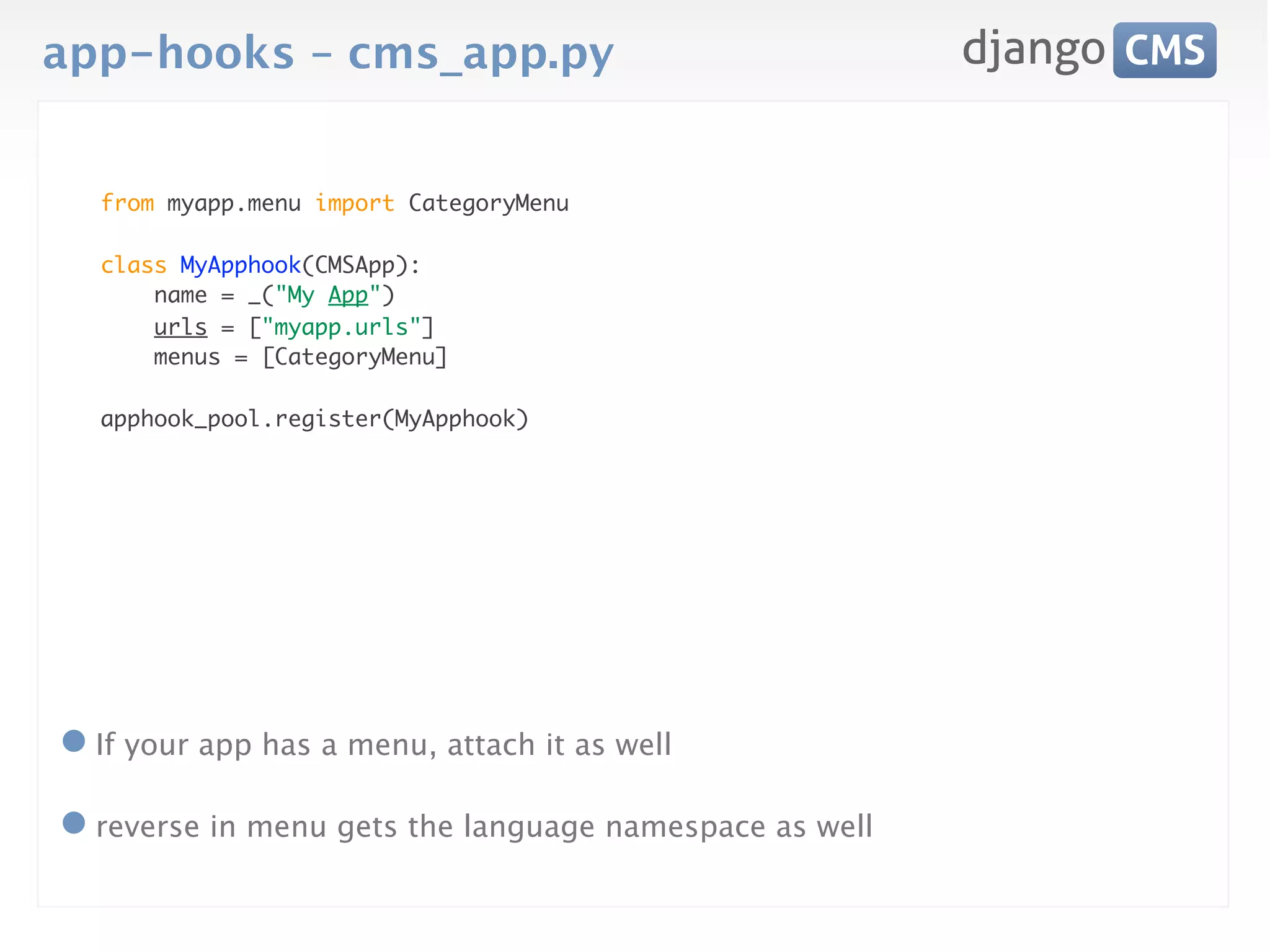

38. app-hooks – cms_app.py
from myapp.menu import CategoryMenu
class MyApphook(CMSApp):
name = _("My App")
urls = ["myapp.urls"]
menus = [CategoryMenu]
apphook_pool.register(MyApphook)
• If your app has a menu, attach it as well
• reverse in menu gets the language namespace as well

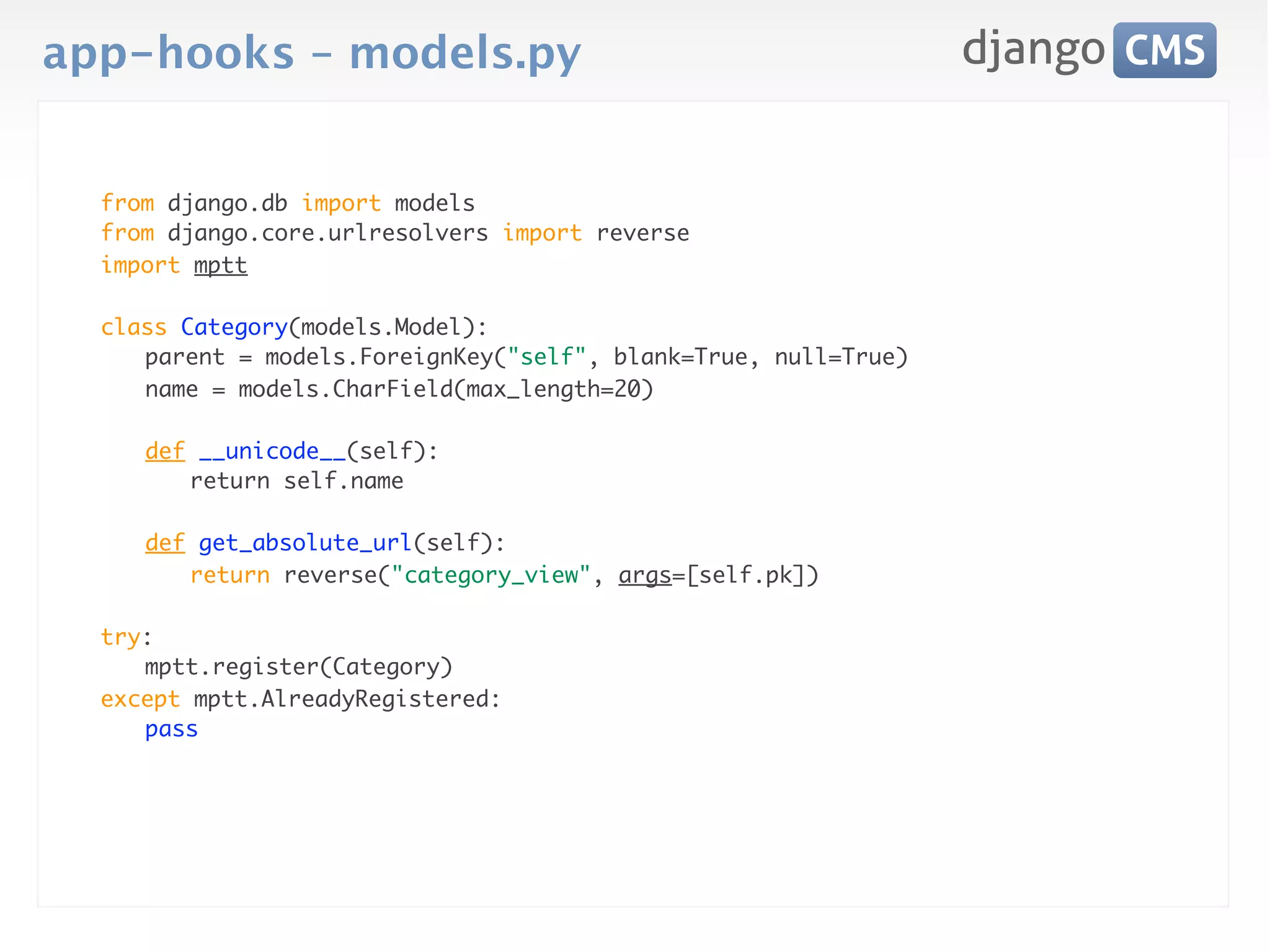

39. app-hooks – models.py
from django.db import models
from django.core.urlresolvers import reverse
import mptt
class Category(models.Model):
parent = models.ForeignKey("self", blank=True, null=True)
name = models.CharField(max_length=20)
def __unicode__(self):
return self.name
def get_absolute_url(self):
return reverse("category_view", args=[self.pk])
try:
mptt.register(Category)
except mptt.AlreadyRegistered:
pass

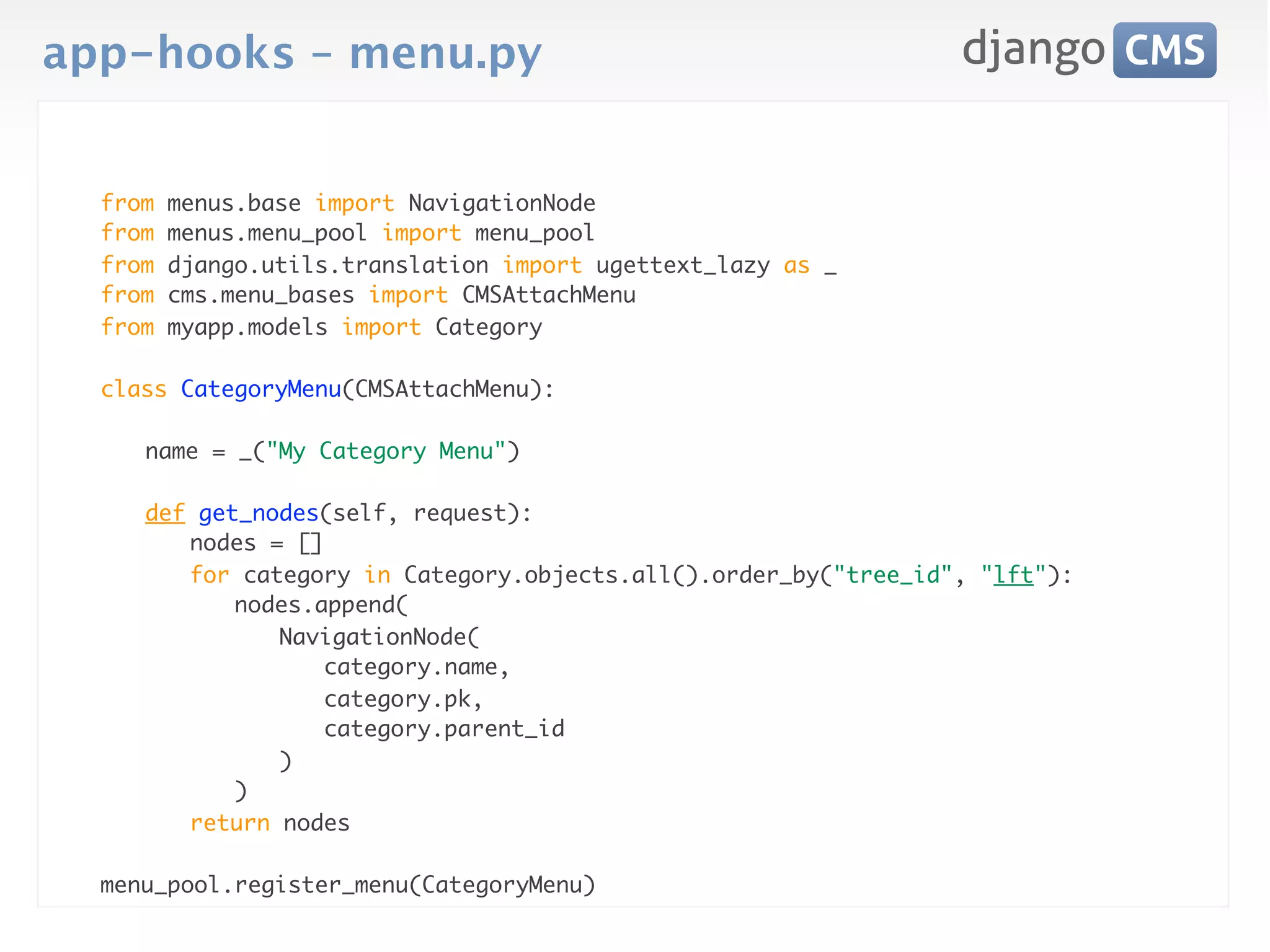

40. app-hooks – menu.py
from menus.base import NavigationNode
from menus.menu_pool import menu_pool
from django.utils.translation import ugettext_lazy as _
from cms.menu_bases import CMSAttachMenu
from myapp.models import Category
class CategoryMenu(CMSAttachMenu):
name = _("My Category Menu")
def get_nodes(self, request):
nodes = []
for category in Category.objects.all().order_by("tree_id", "lft"):
nodes.append(
NavigationNode(
category.name,
category.pk,
category.parent_id
)
)
return nodes
menu_pool.register_menu(CategoryMenu)

41. custom plugins
•your data as a plugin
•teasers for your app data
•yourapp/cms_plugins.py
• model inherits from
CMSPlugin

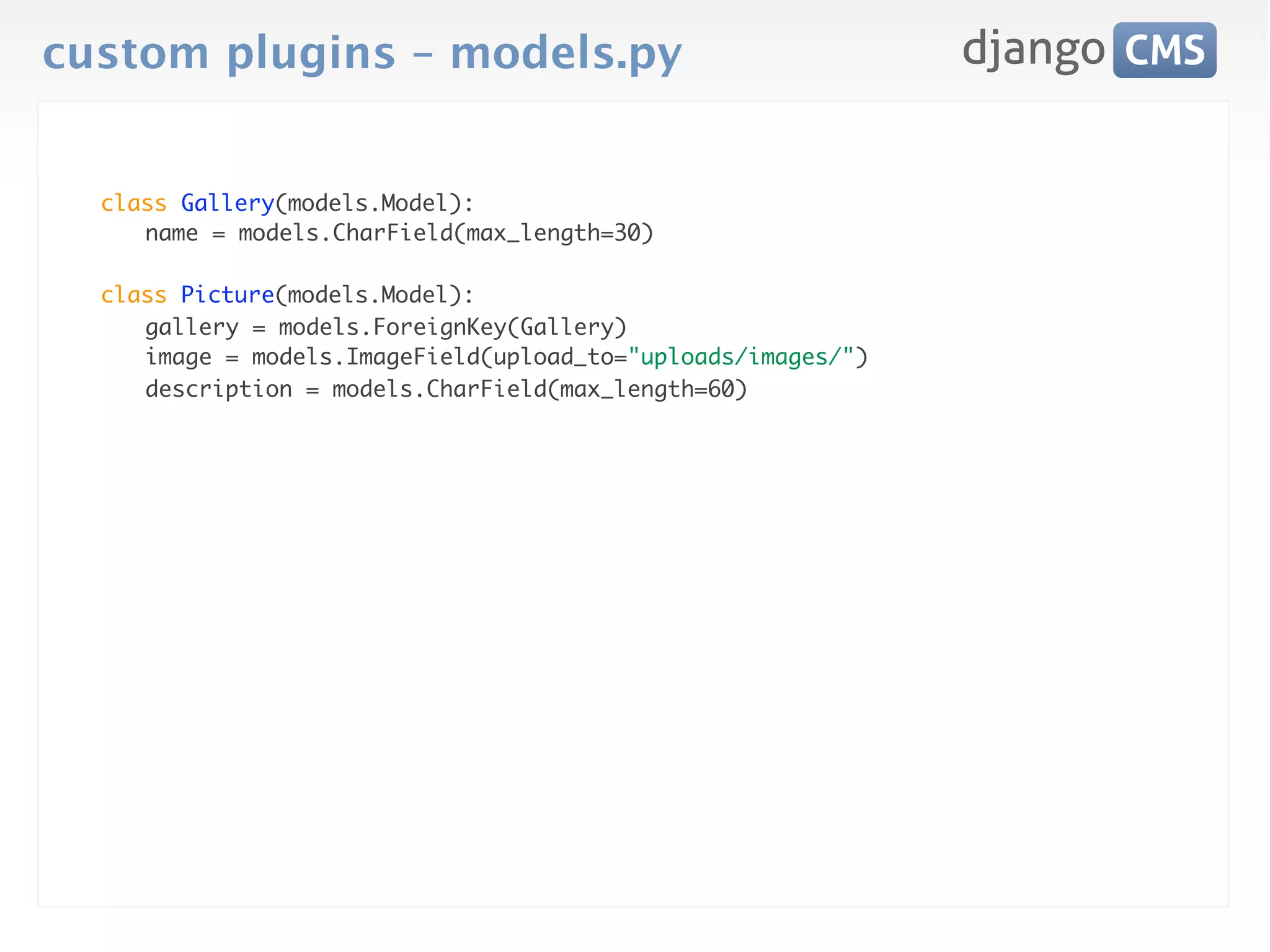

42. custom plugins – models.py
class Gallery(models.Model):
name = models.CharField(max_length=30)
class Picture(models.Model):
gallery = models.ForeignKey(Gallery)
image = models.ImageField(upload_to="uploads/images/")
description = models.CharField(max_length=60)

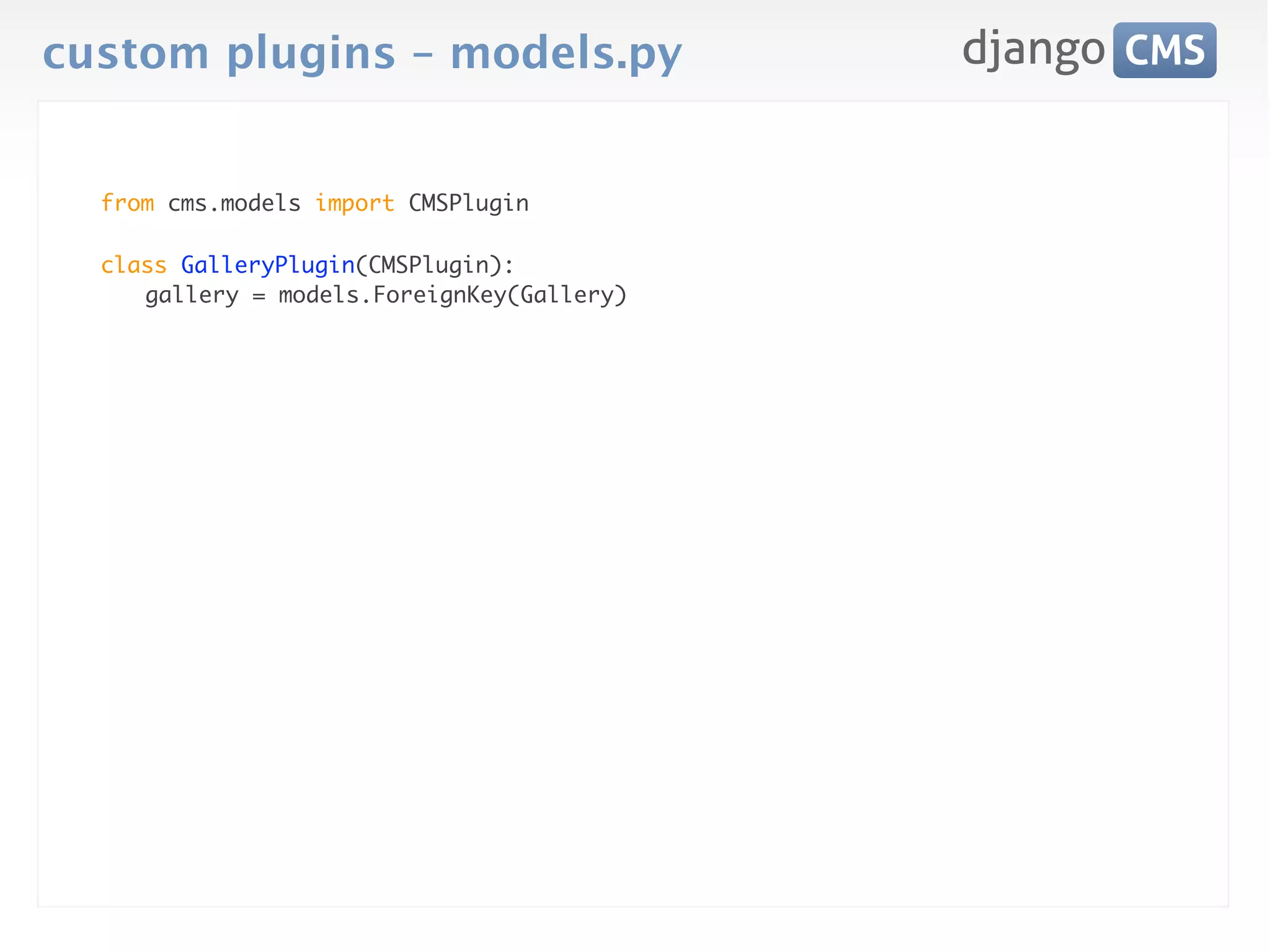

43. custom plugins – models.py
from cms.models import CMSPlugin
class GalleryPlugin(CMSPlugin):
gallery = models.ForeignKey(Gallery)

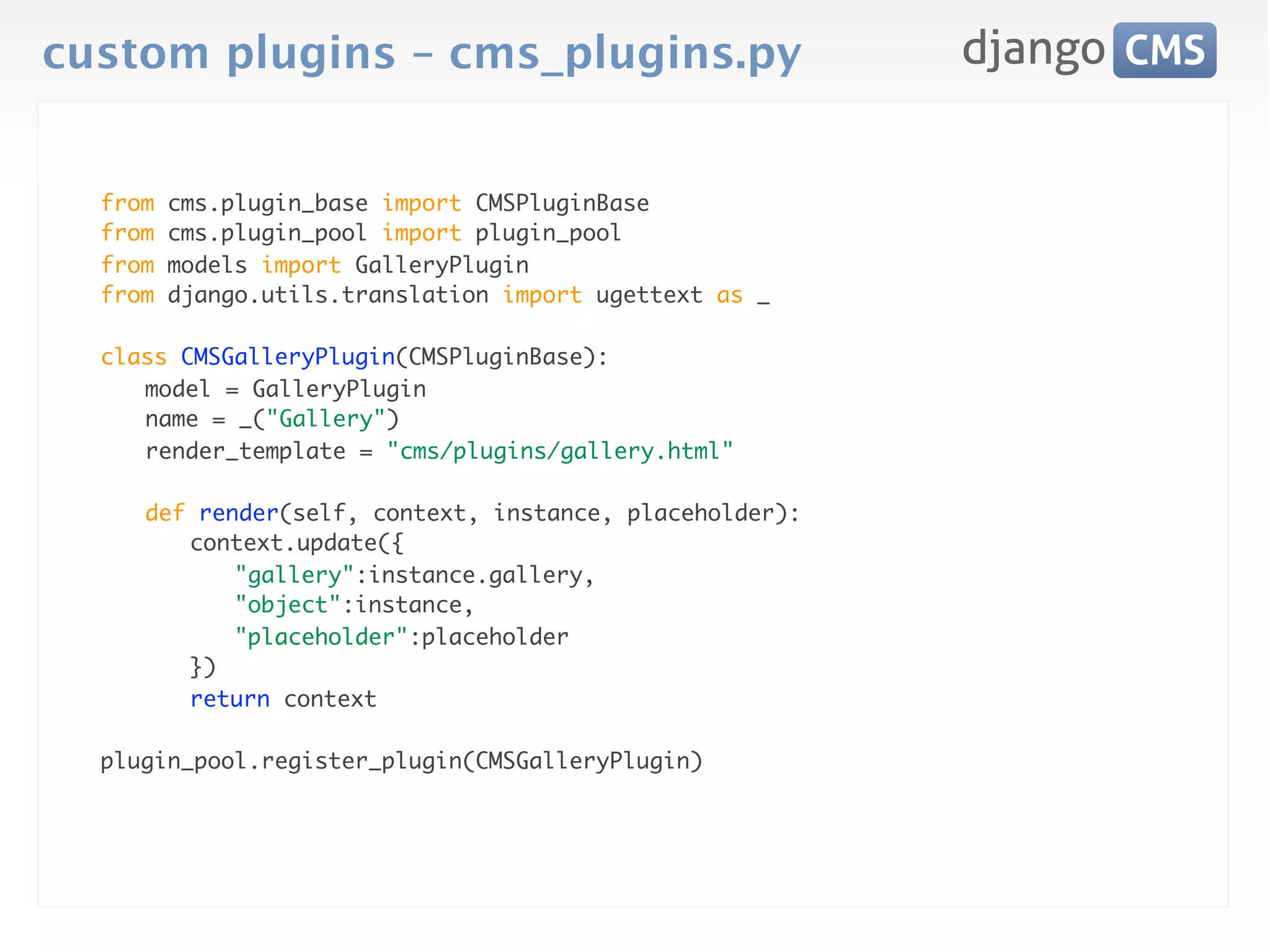

44. custom plugins – cms_plugins.py
from cms.plugin_base import CMSPluginBase
from cms.plugin_pool import plugin_pool
from models import GalleryPlugin
from django.utils.translation import ugettext as _
class CMSGalleryPlugin(CMSPluginBase):
model = GalleryPlugin
name = _("Gallery")
render_template = "cms/plugins/gallery.html"
def render(self, context, instance, placeholder):
context.update({
"gallery":instance.gallery,
"object":instance,
"placeholder":placeholder
})
return context
plugin_pool.register_plugin(CMSGalleryPlugin)

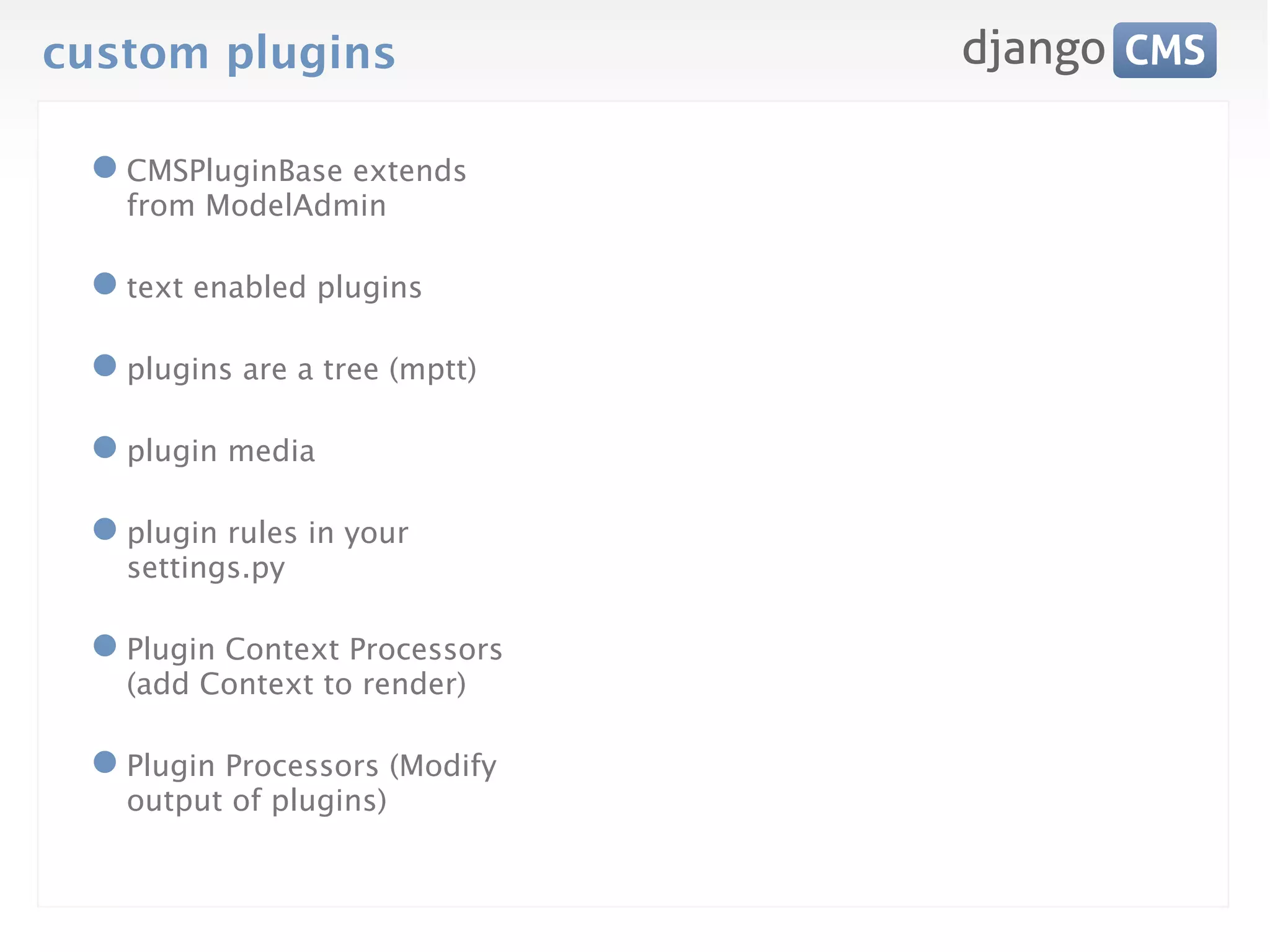

45. custom plugins
• CMSPluginBase extends
from ModelAdmin
• text enabled plugins
• plugins are a tree (mptt)
• plugin media
• plugin rules in your
settings.py
• Plugin Context Processors
(add Context to render)
• Plugin Processors (Modify
output of plugins)

46. placeholders
• use the plugin system in
your own apps.
• works with frontedit :)

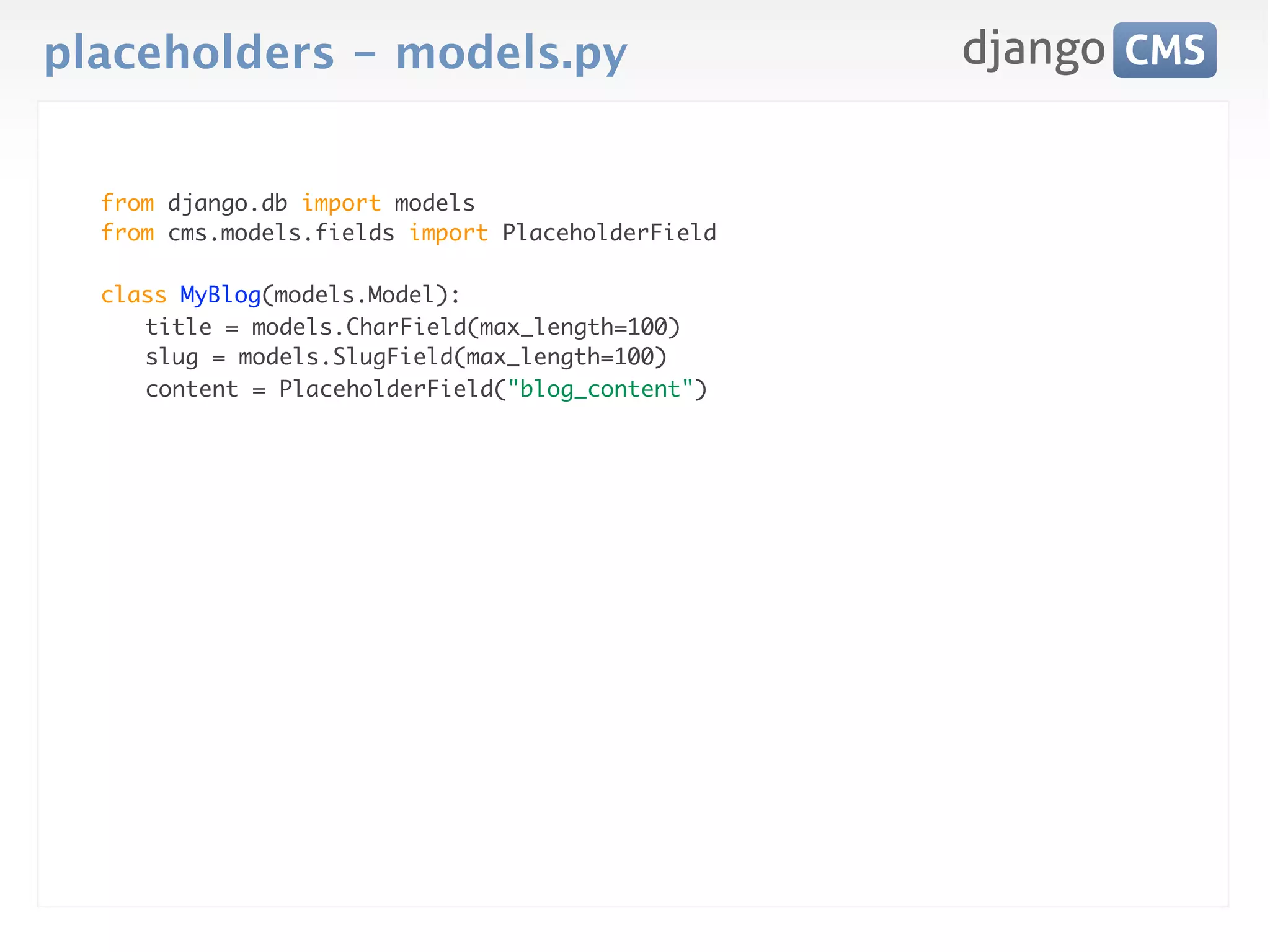

47. placeholders - models.py
from django.db import models
from cms.models.fields import PlaceholderField
class MyBlog(models.Model):
title = models.CharField(max_length=100)
slug = models.SlugField(max_length=100)
content = PlaceholderField("blog_content")

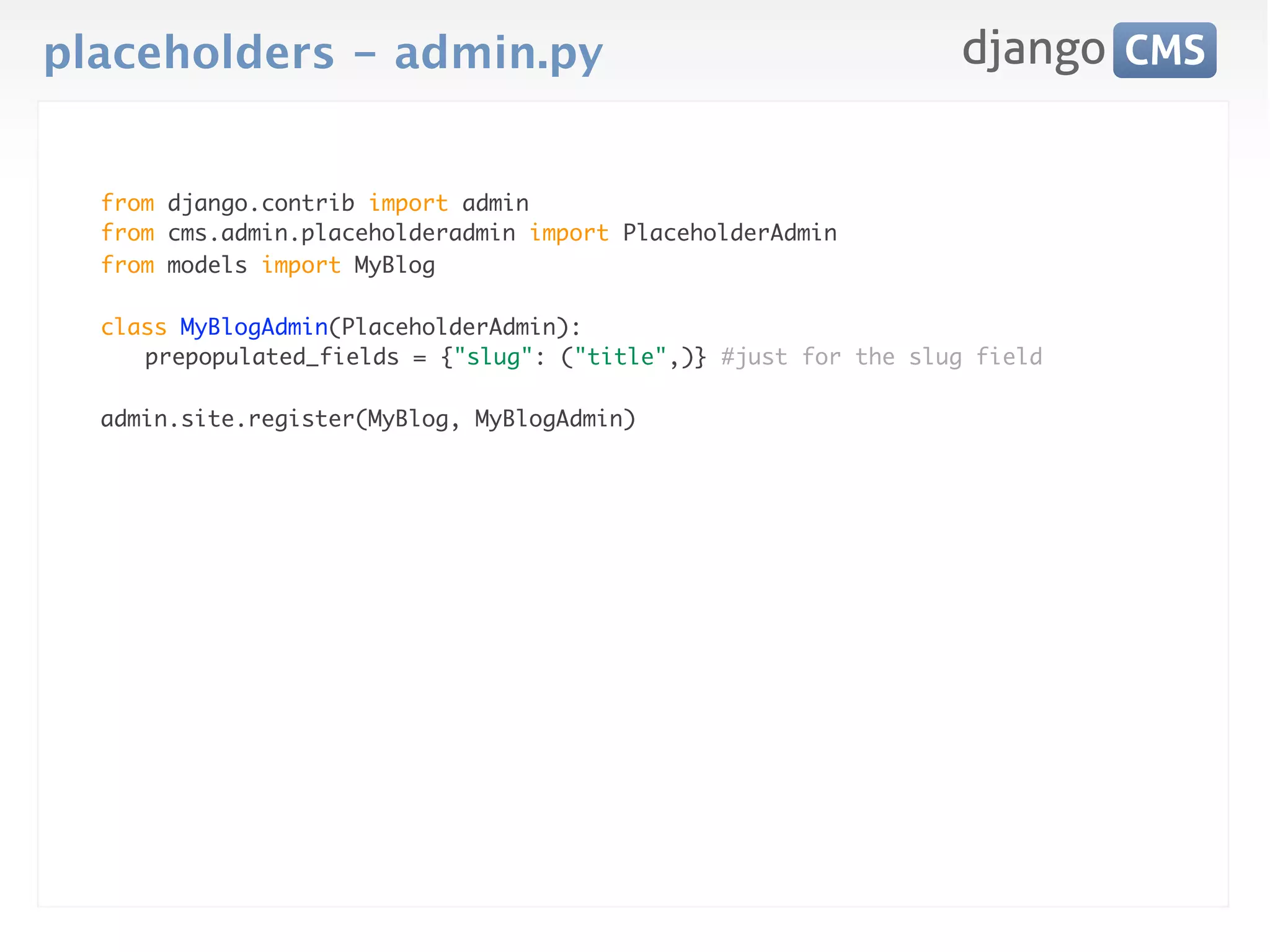

48. placeholders - admin.py
from django.contrib import admin
from cms.admin.placeholderadmin import PlaceholderAdmin
from models import MyBlog
class MyBlogAdmin(PlaceholderAdmin):
prepopulated_fields = {"slug": ("title",)} #just for the slug field
admin.site.register(MyBlog, MyBlogAdmin)

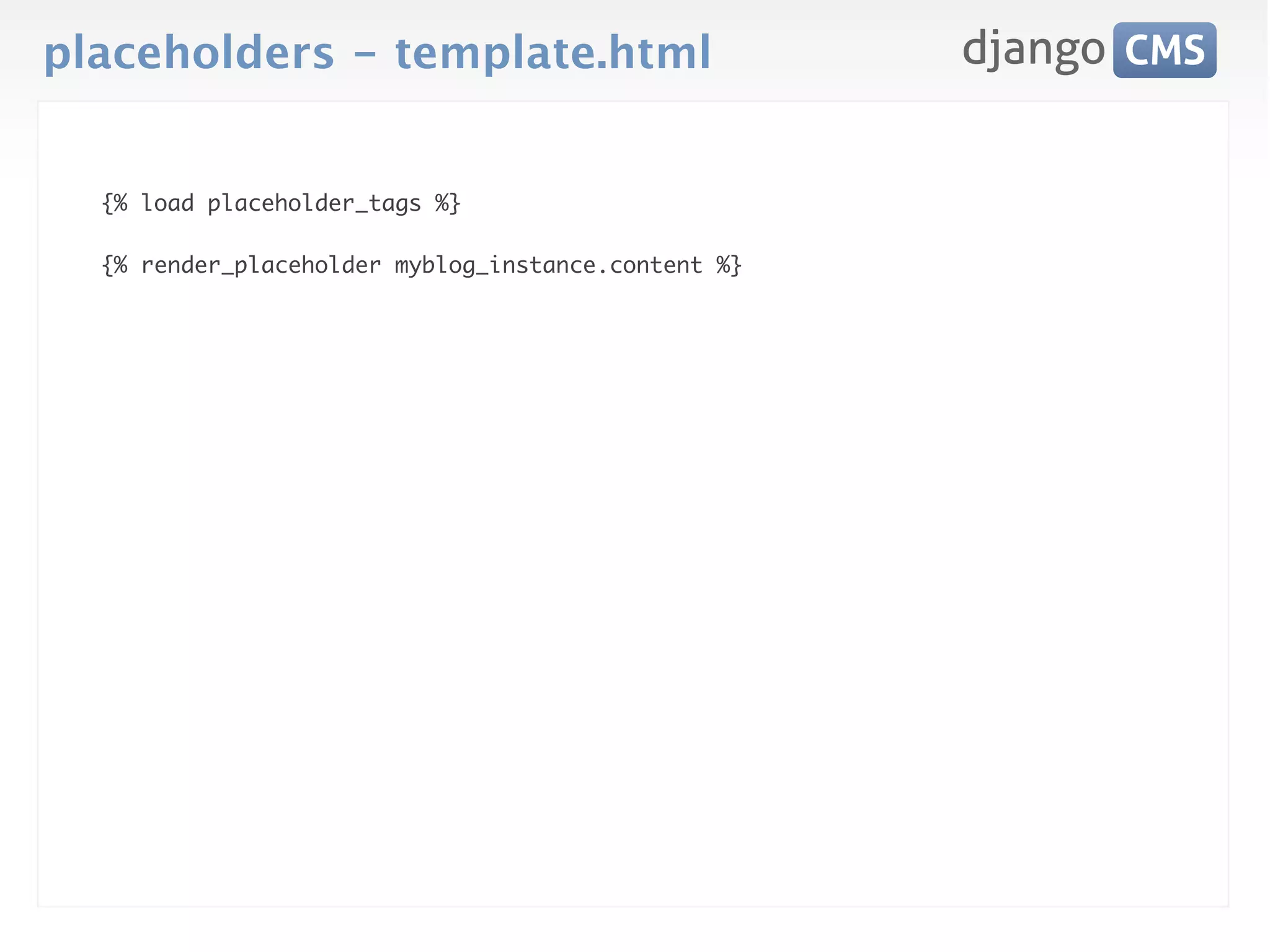

49. placeholders - template.html
{% load placeholder_tags %}
{% render_placeholder myblog_instance.content %}

50. the future
• 2.1 release
• sprints → RC1?
• 2.2
• page extenders
• more modularization
• tree
• permissions
• publisher
• frontedit

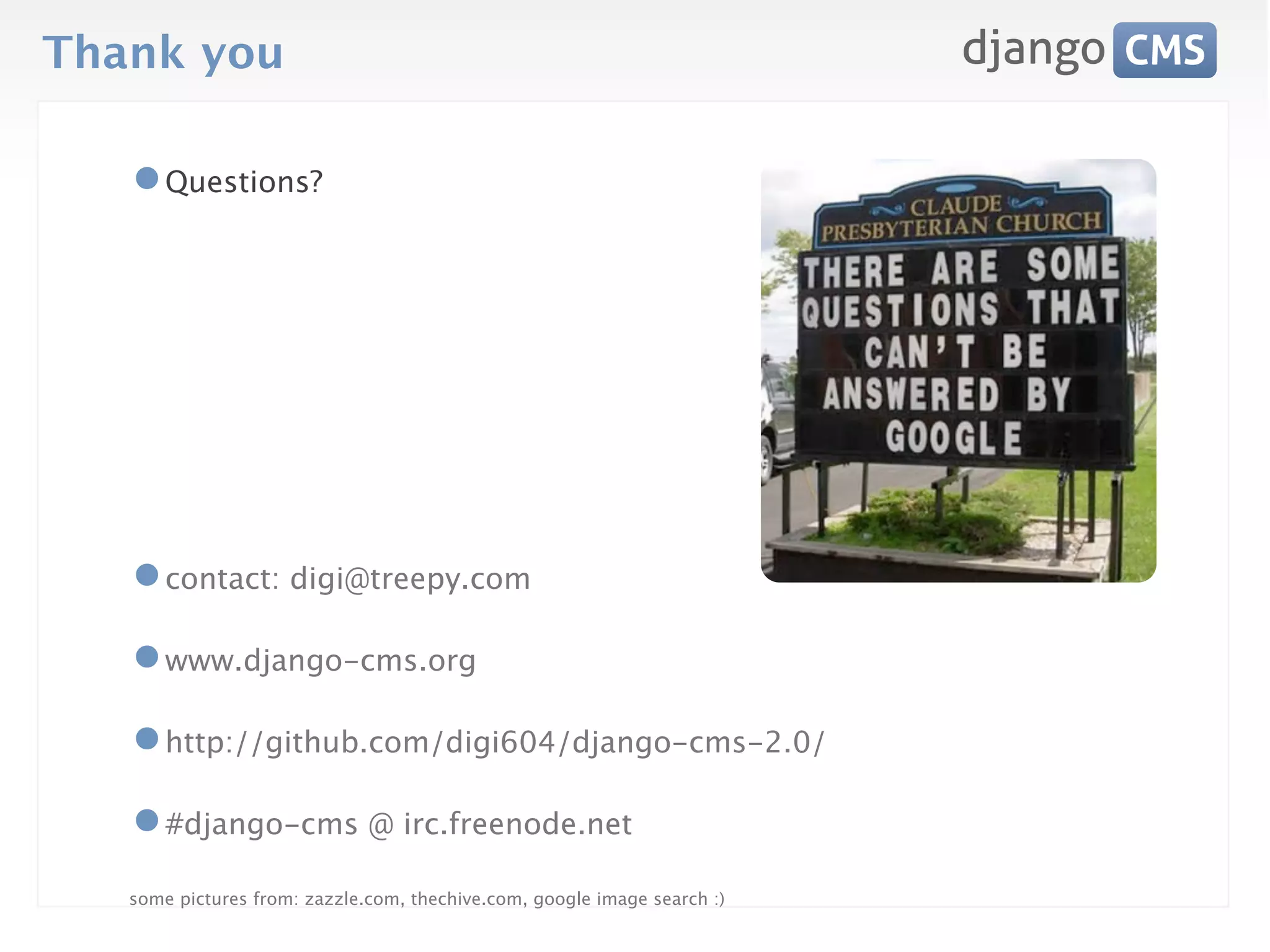

51. Thank you
•Questions?
•contact: digi@treepy.com
•www.django-cms.org
•http://github.com/digi604/django-cms-2.0/
•#django-cms @ irc.freenode.net
some pictures from: zazzle.com, thechive.com, google image search :)
