Distributed Kafka Architecture Taboola Scale
- 1. Building Our Software to Scale Tal Sliwowicz, Director R&D - Infrastructure Engineering Lior Chaga - Senior Software Engineer, Data Platform Distributed Kafka Architecture, Taboola Scale

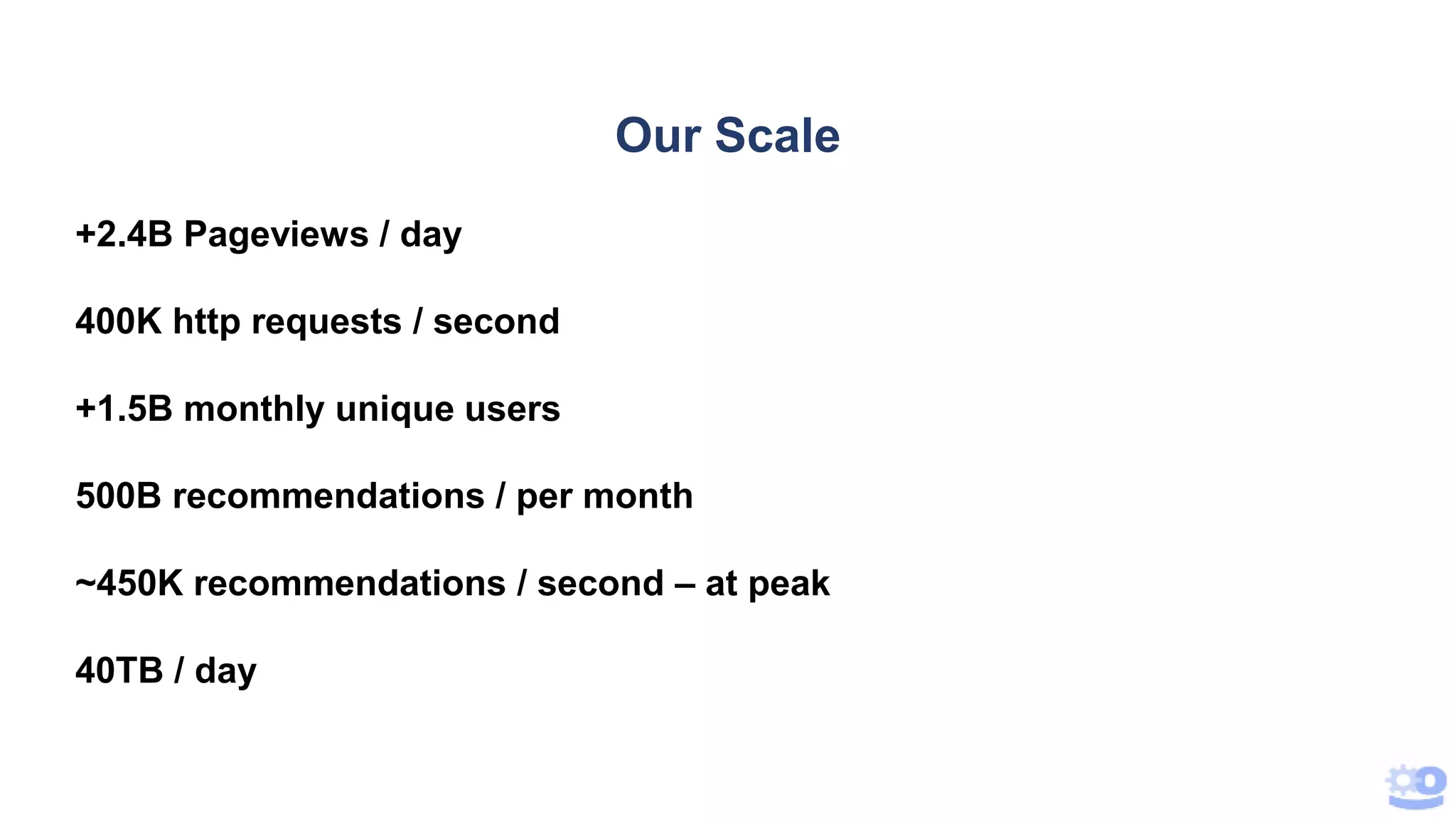

- 4. Our Scale +2.4B Pageviews / day 400K http requests / second +1.5B monthly unique users 500B recommendations / per month ~450K recommendations / second – at peak 40TB / day

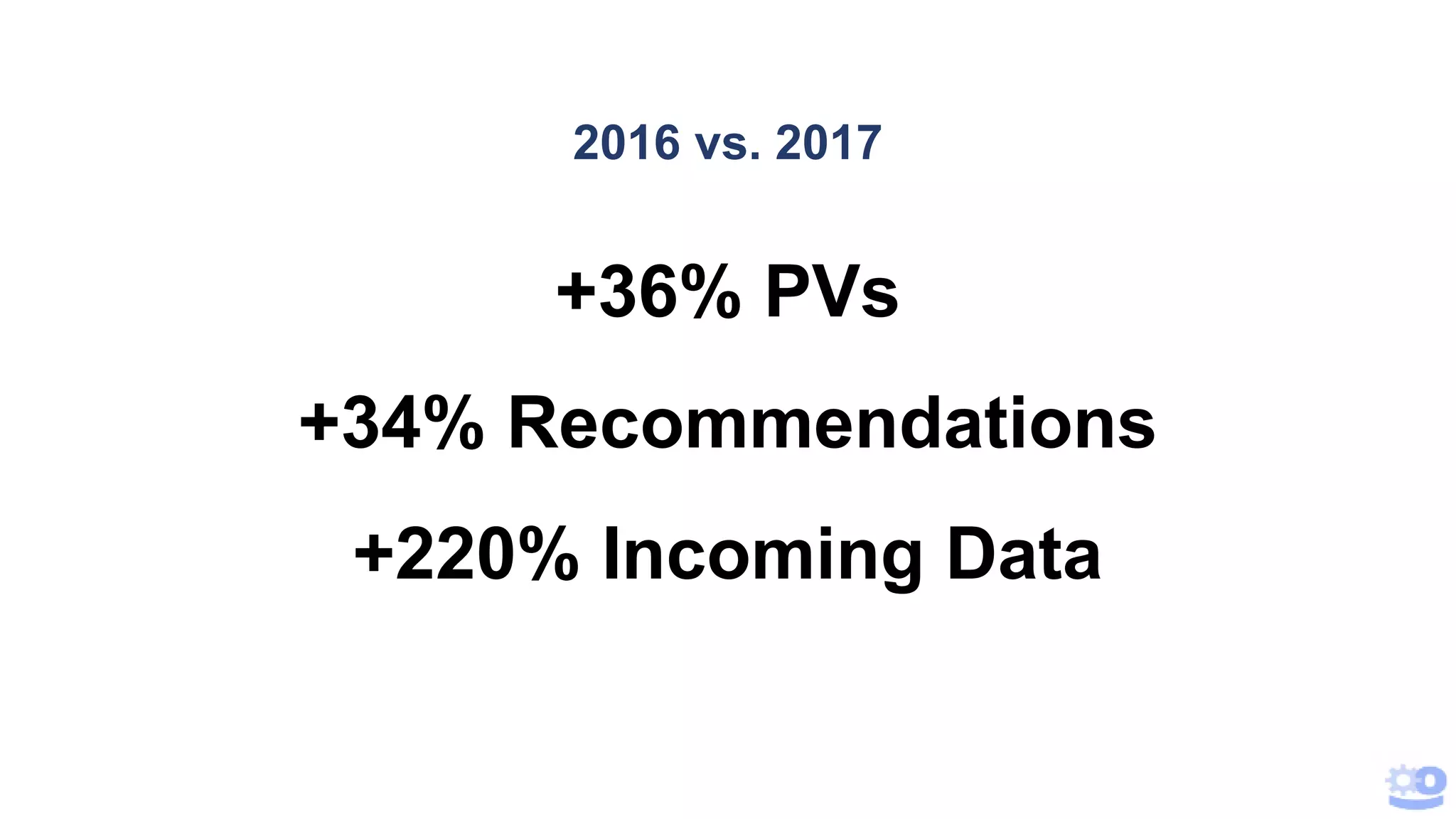

- 5. 2016 vs. 2017 +36% PVs +34% Recommendations +220% Incoming Data

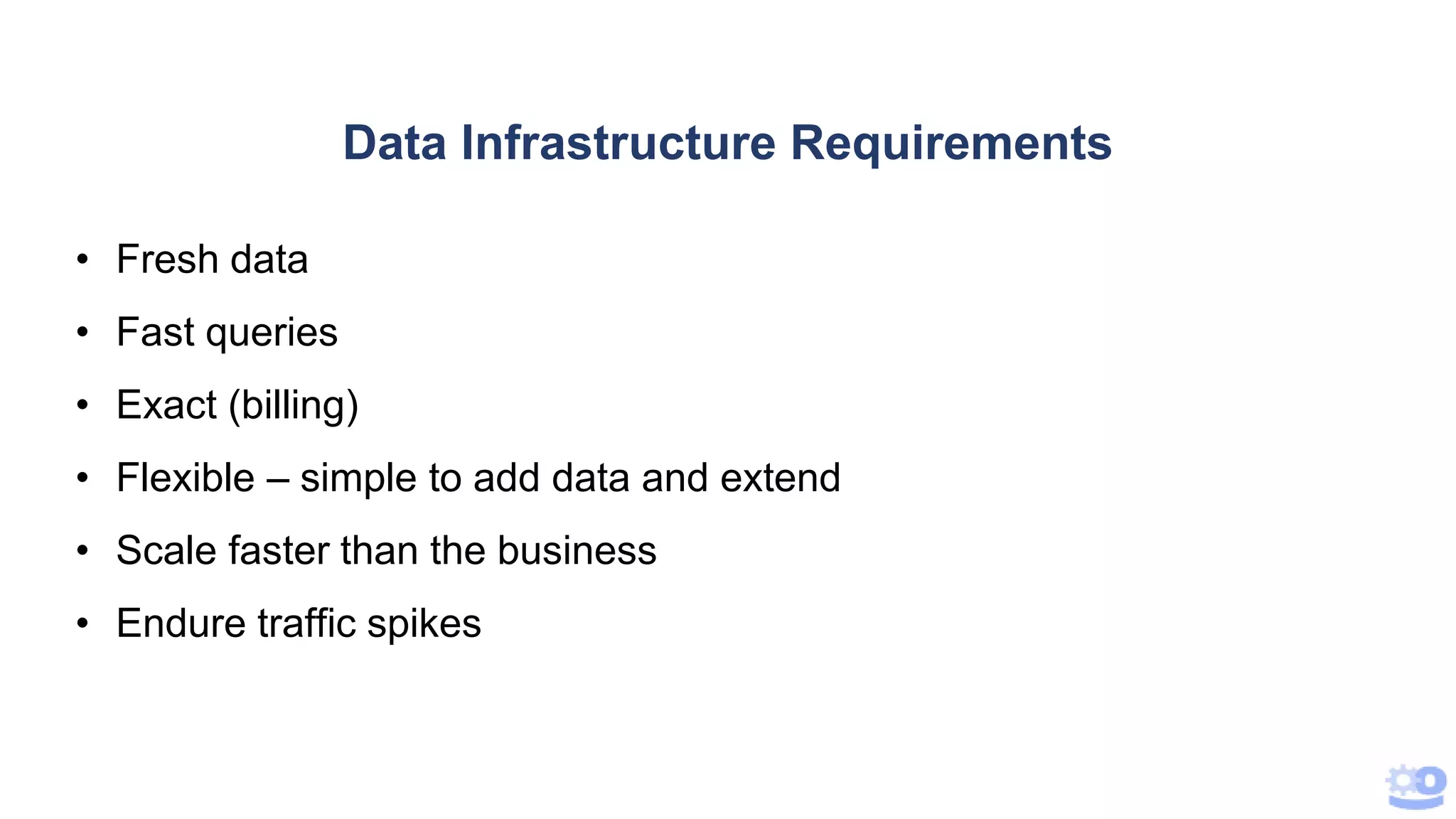

- 6. Data Infrastructure Requirements • Fresh data • Fast queries • Exact (billing) • Flexible – simple to add data and extend • Scale faster than the business • Endure traffic spikes

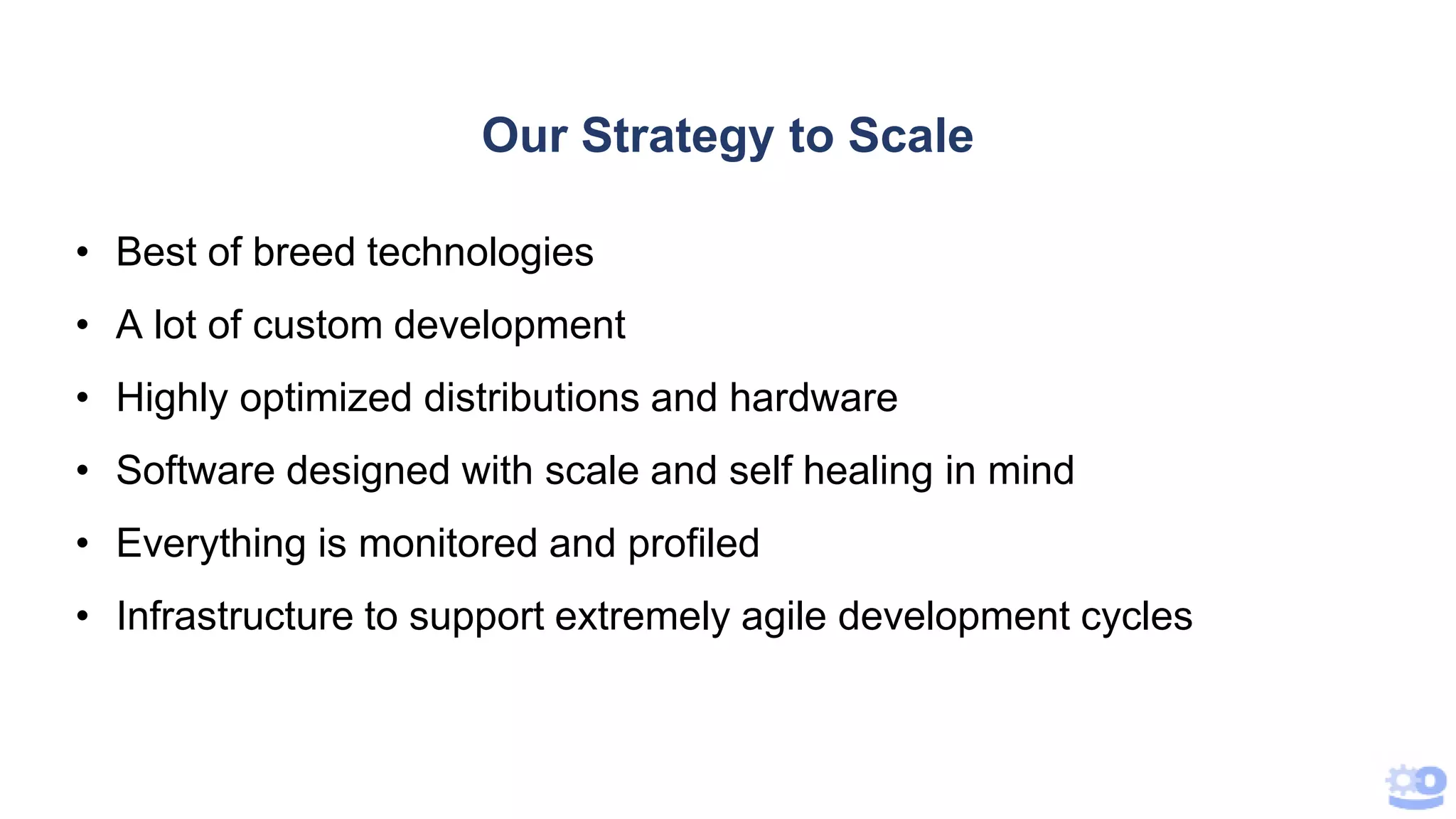

- 7. Our Strategy to Scale • Best of breed technologies • A lot of custom development • Highly optimized distributions and hardware • Software designed with scale and self healing in mind • Everything is monitored and profiled • Infrastructure to support extremely agile development cycles

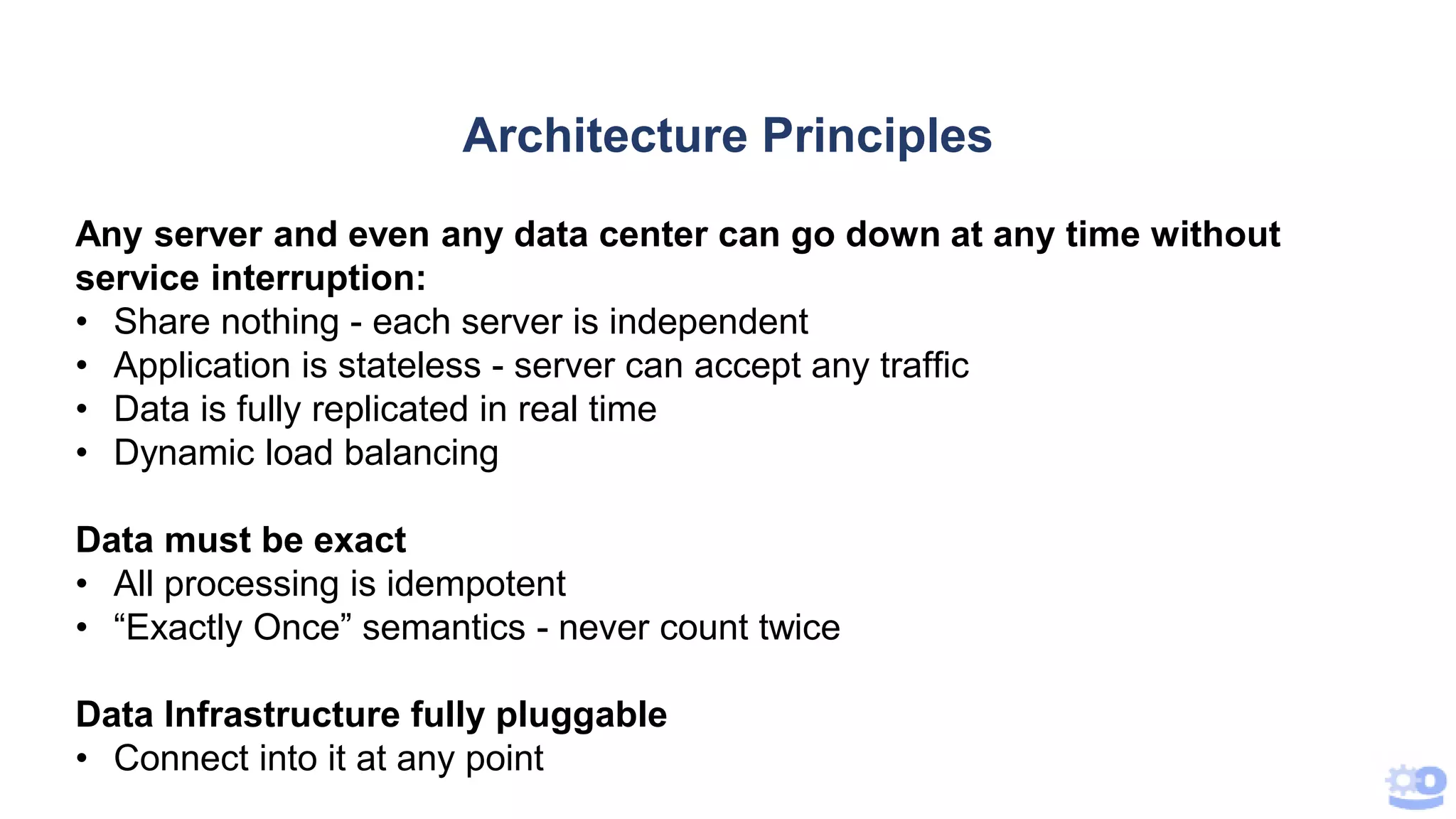

- 8. Any server and even any data center can go down at any time without service interruption: • Share nothing - each server is independent • Application is stateless - server can accept any traffic • Data is fully replicated in real time • Dynamic load balancing Data must be exact • All processing is idempotent • “Exactly Once” semantics - never count twice Data Infrastructure fully pluggable • Connect into it at any point Architecture Principles

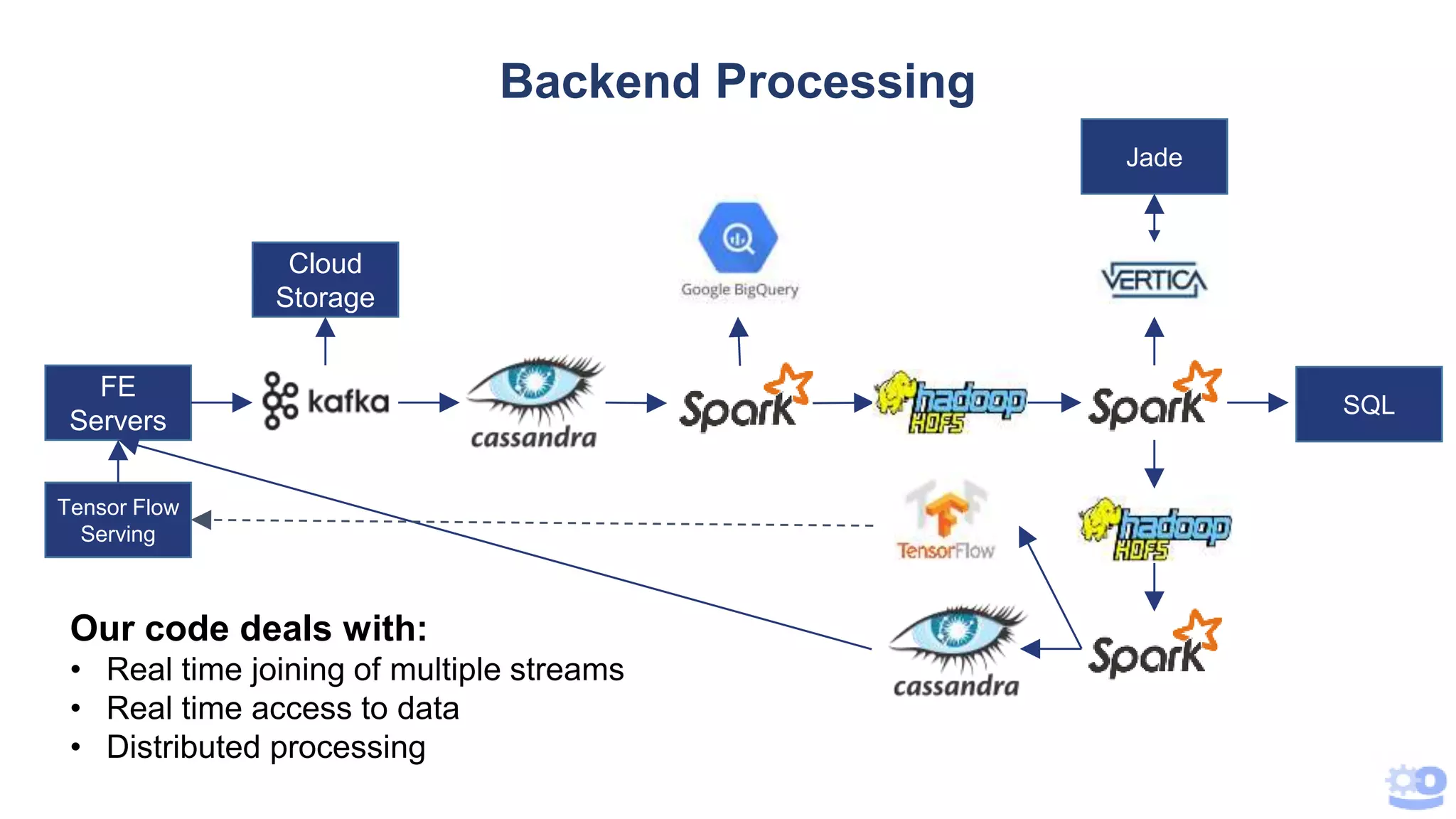

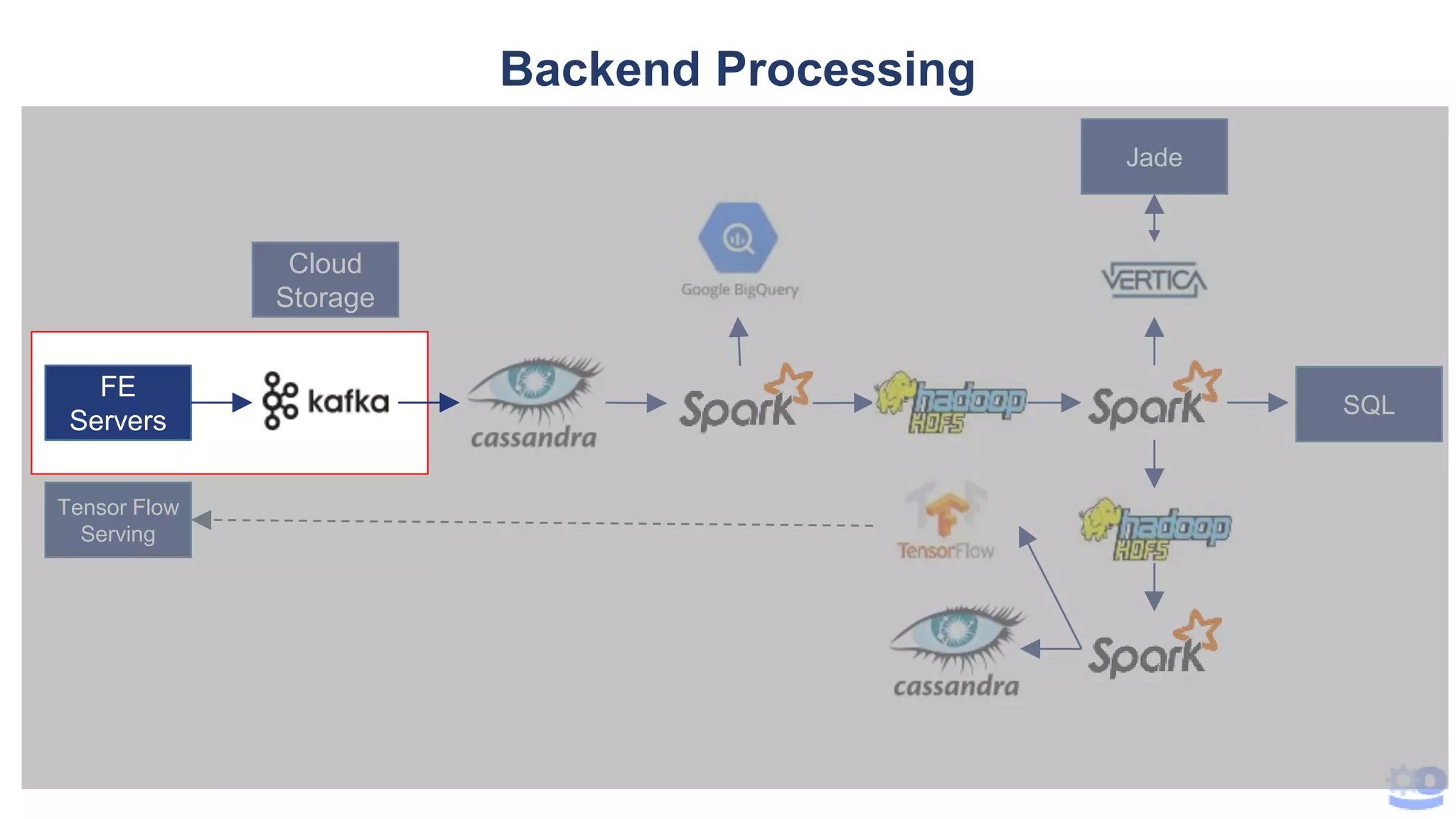

- 9. Backend Processing Our code deals with: • Real time joining of multiple streams • Real time access to data • Distributed processing FE Servers Jade Cloud Storage Tensor Flow Serving SQL

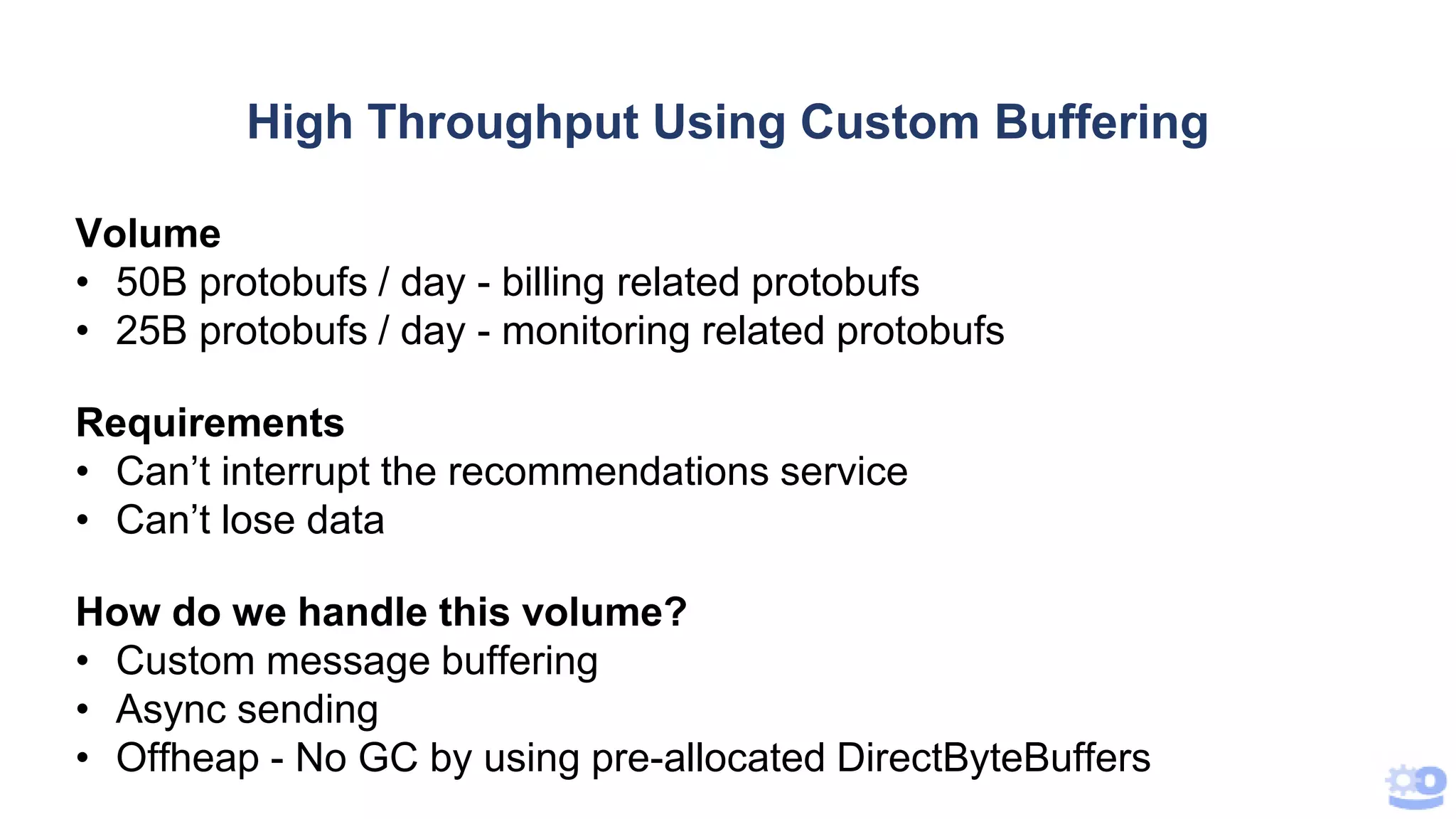

- 11. High Throughput Using Custom Buffering Volume • 50B protobufs / day - billing related protobufs • 25B protobufs / day - monitoring related protobufs Requirements • Can’t interrupt the recommendations service • Can’t lose data How do we handle this volume? • Custom message buffering • Async sending • Offheap - No GC by using pre-allocated DirectByteBuffers

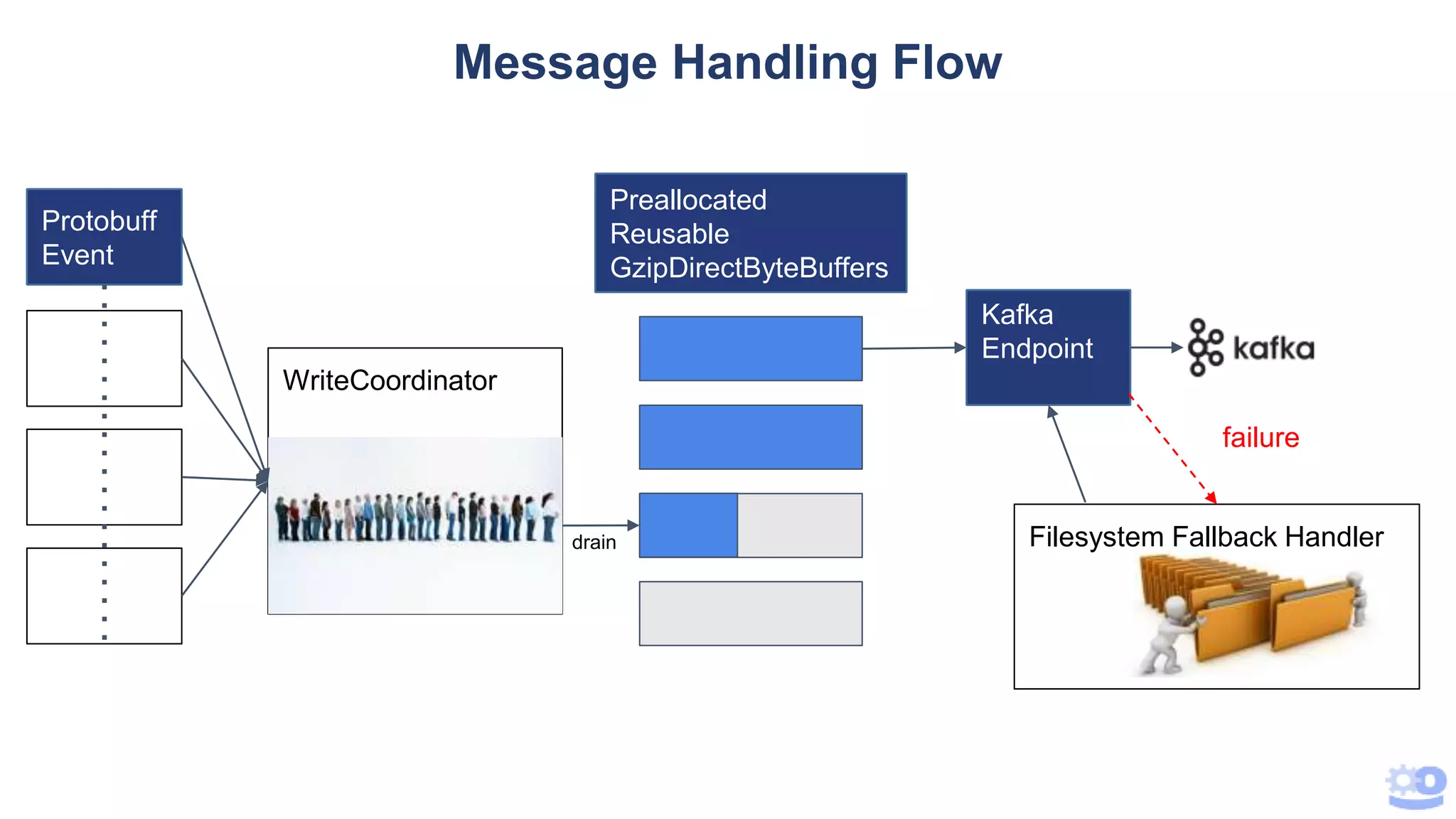

- 12. WriteCoordinator Protobuff Event Preallocated Reusable GzipDirectByteBuffers Kafka Endpoint Filesystem Fallback Handler failure Message Handling Flow drain

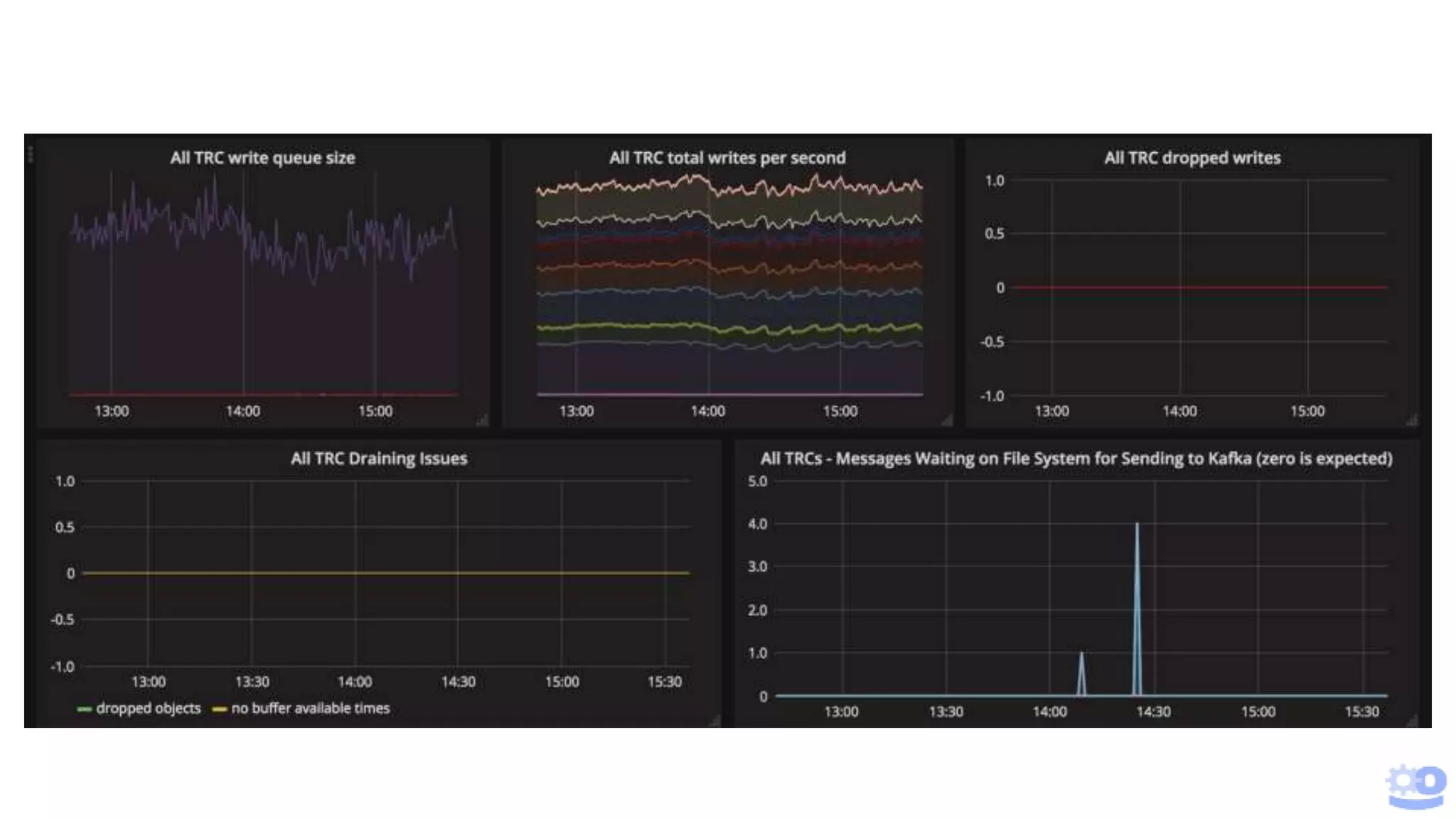

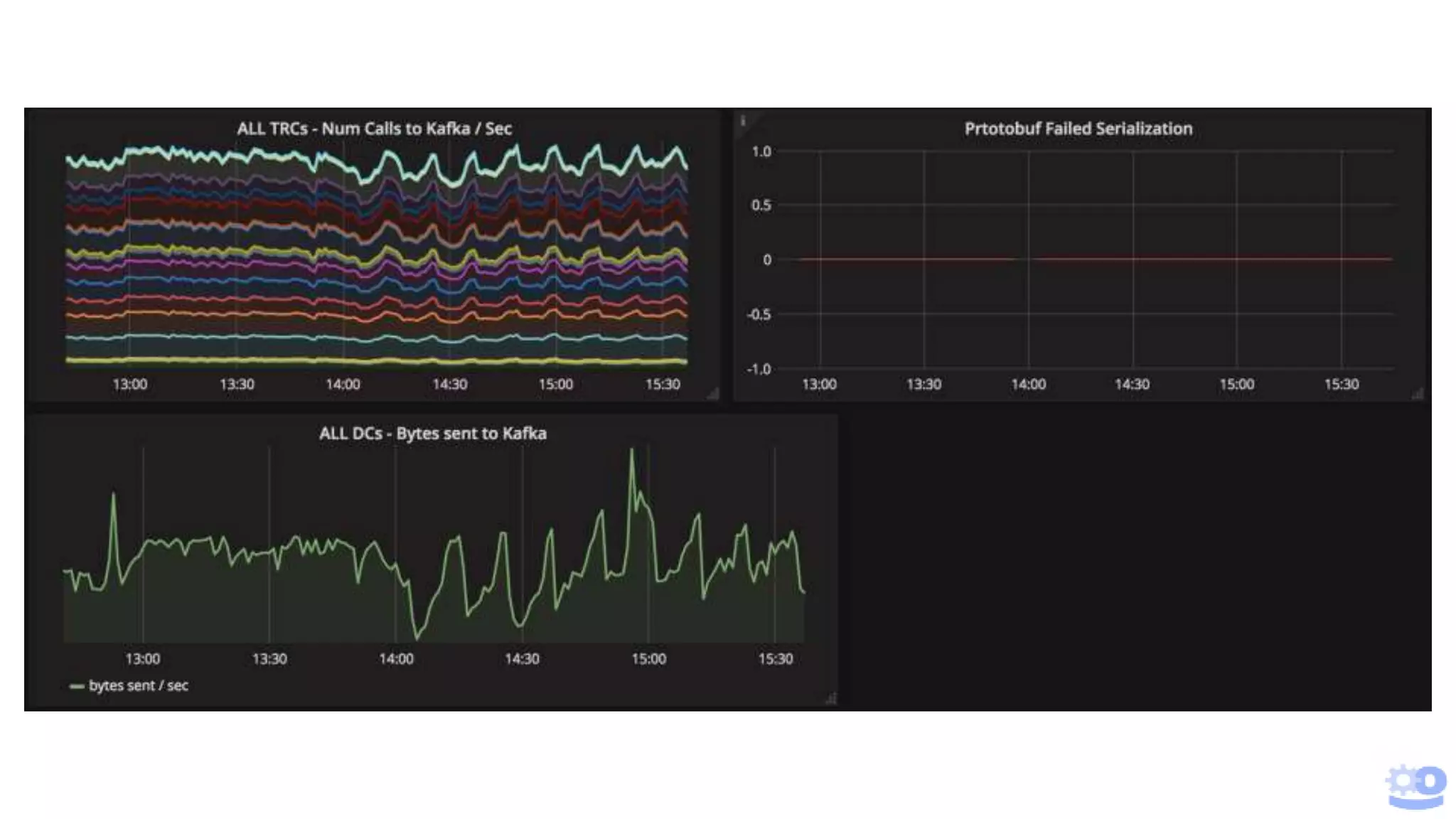

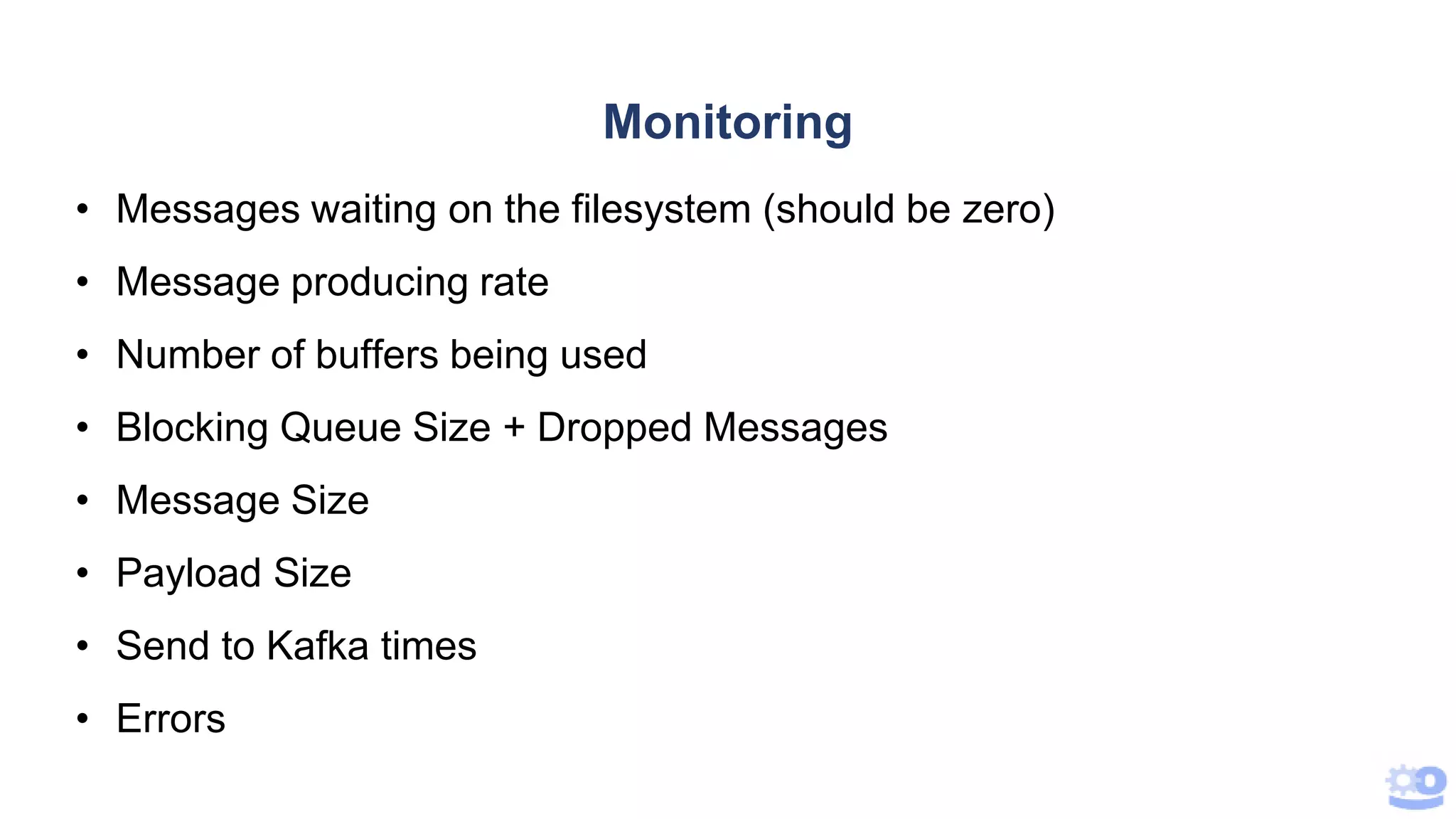

- 13. Monitoring • Messages waiting on the filesystem (should be zero) • Message producing rate • Number of buffers being used • Blocking Queue Size + Dropped Messages • Message Size • Payload Size • Send to Kafka times • Errors

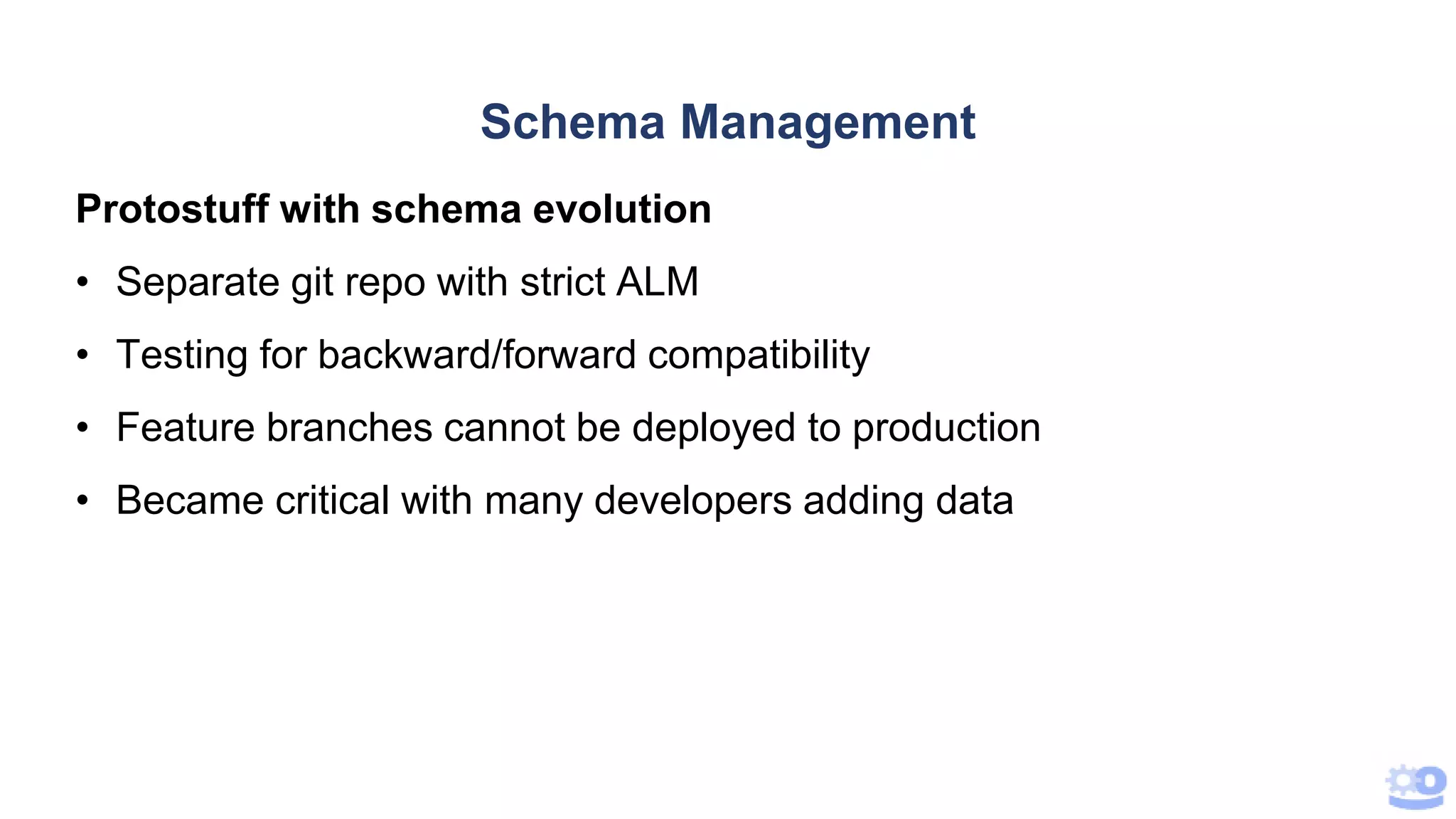

- 16. Schema Management Protostuff with schema evolution • Separate git repo with strict ALM • Testing for backward/forward compatibility • Feature branches cannot be deployed to production • Became critical with many developers adding data

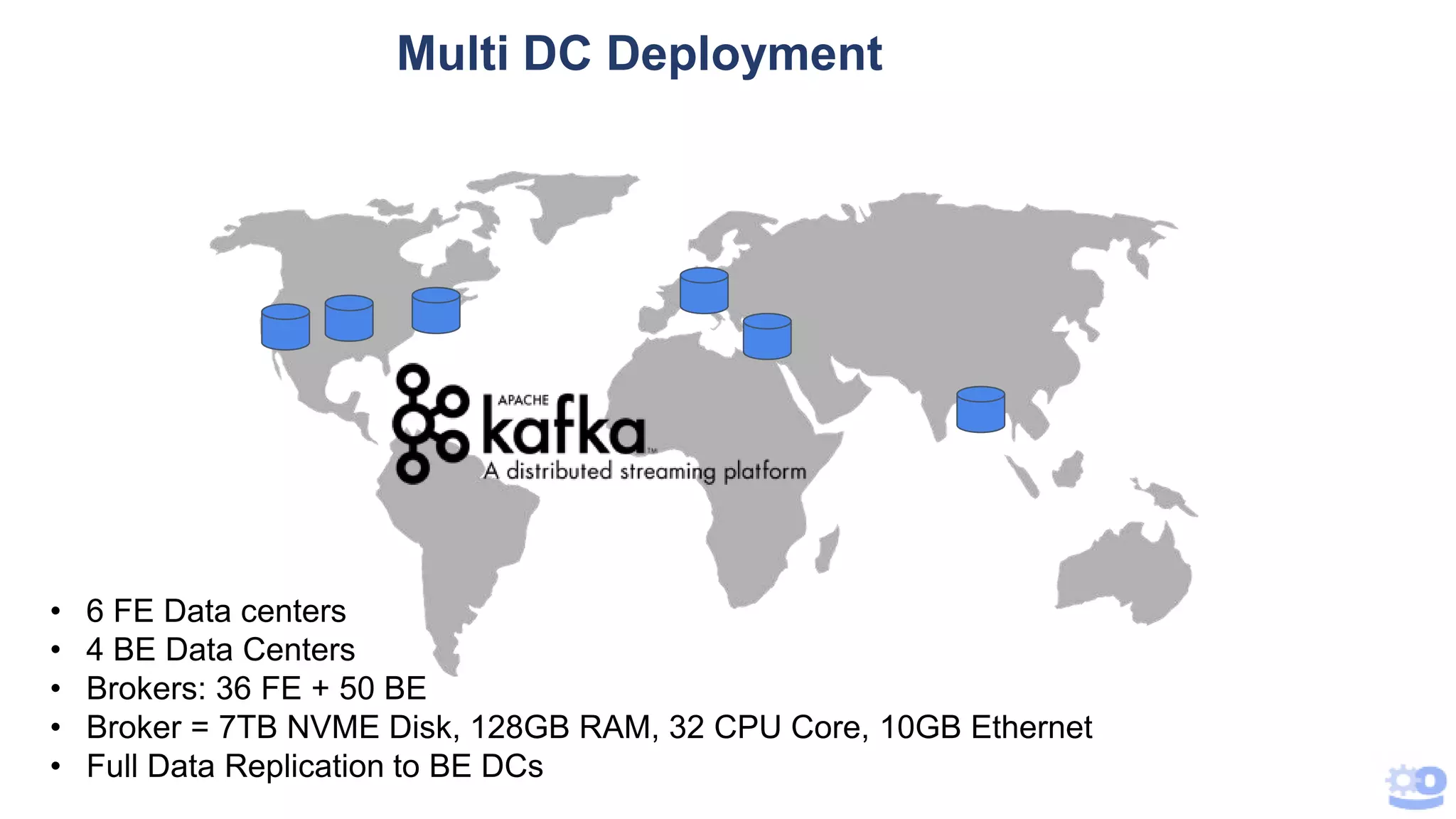

- 18. Multi DC Deployment • 6 FE Data centers • 4 BE Data Centers • Brokers: 36 FE + 50 BE • Broker = 7TB NVME Disk, 128GB RAM, 32 CPU Core, 10GB Ethernet • Full Data Replication to BE DCs
- 19. Mirroring With Kafka Mirror Maker Topic 1 . . . . . . . . Topic N Partition 1 . . . Partition K FE Kafka Topic 1 . . . . . . . Topic N BE Kafka Kafka Mirror Maker C1 C2 Cm P P P Message size varies: O(10KB) - O(MB)
- 20. Mirroring With Kafka Mirror Maker Topic 1 . . . . . . . . Topic N Partition 1 . . . Partition K FE Kafka Topic 1 . . . . . . . Topic N BE Kafka Kafka Mirror Maker C1 C2 Ck Partition 1 . . . Partition K P P P

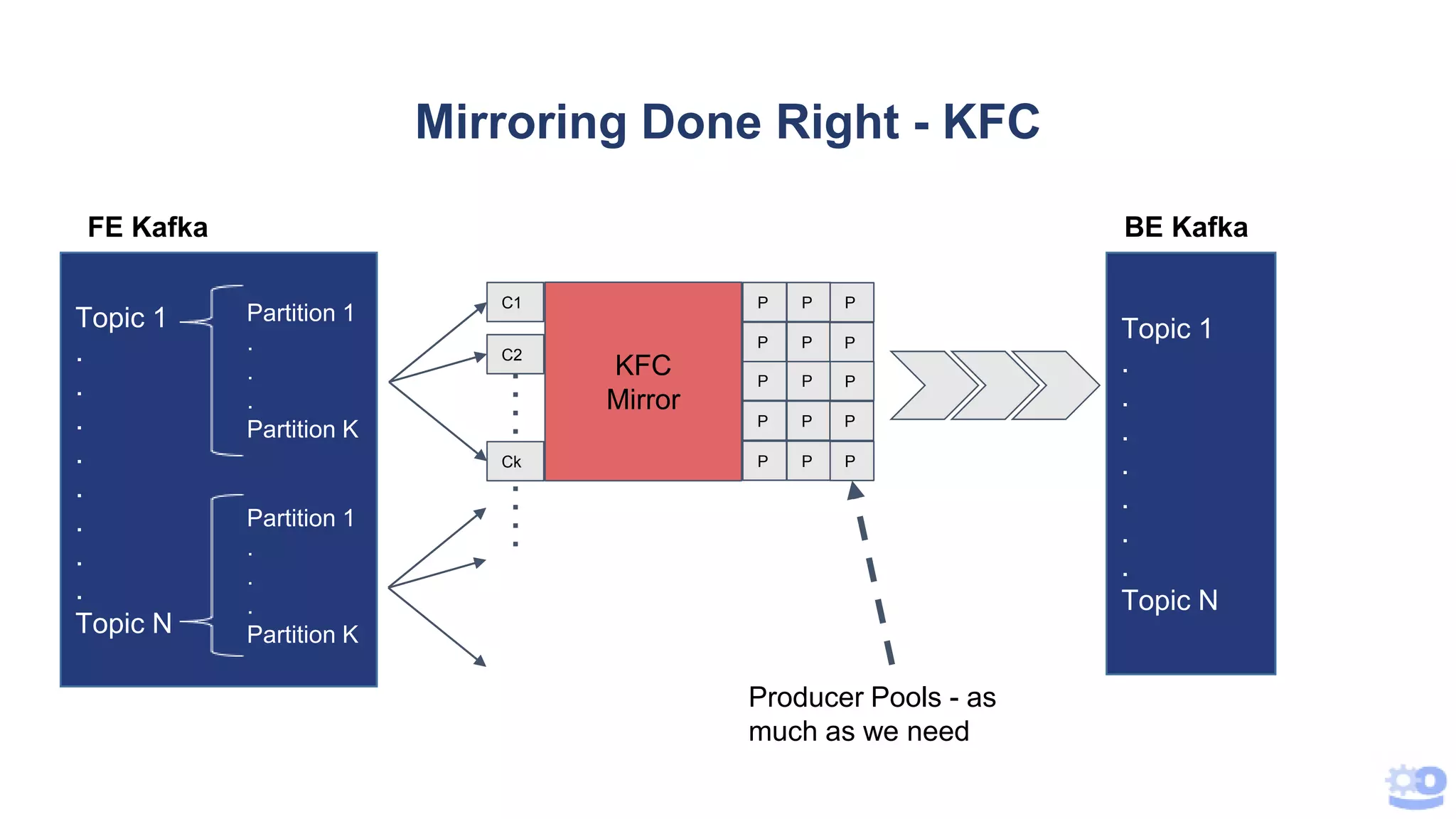

- 21. Topic 1 . . . . . . . . Topic N Mirroring Done Right - KFC Topic 1 . . . . . . . Topic N BE Kafka KFC Mirror C1 C2 Ck P P P P P P P P P P P P P P P Producer Pools - as much as we need Partition 1 . . . Partition K FE Kafka Partition 1 . . . Partition K

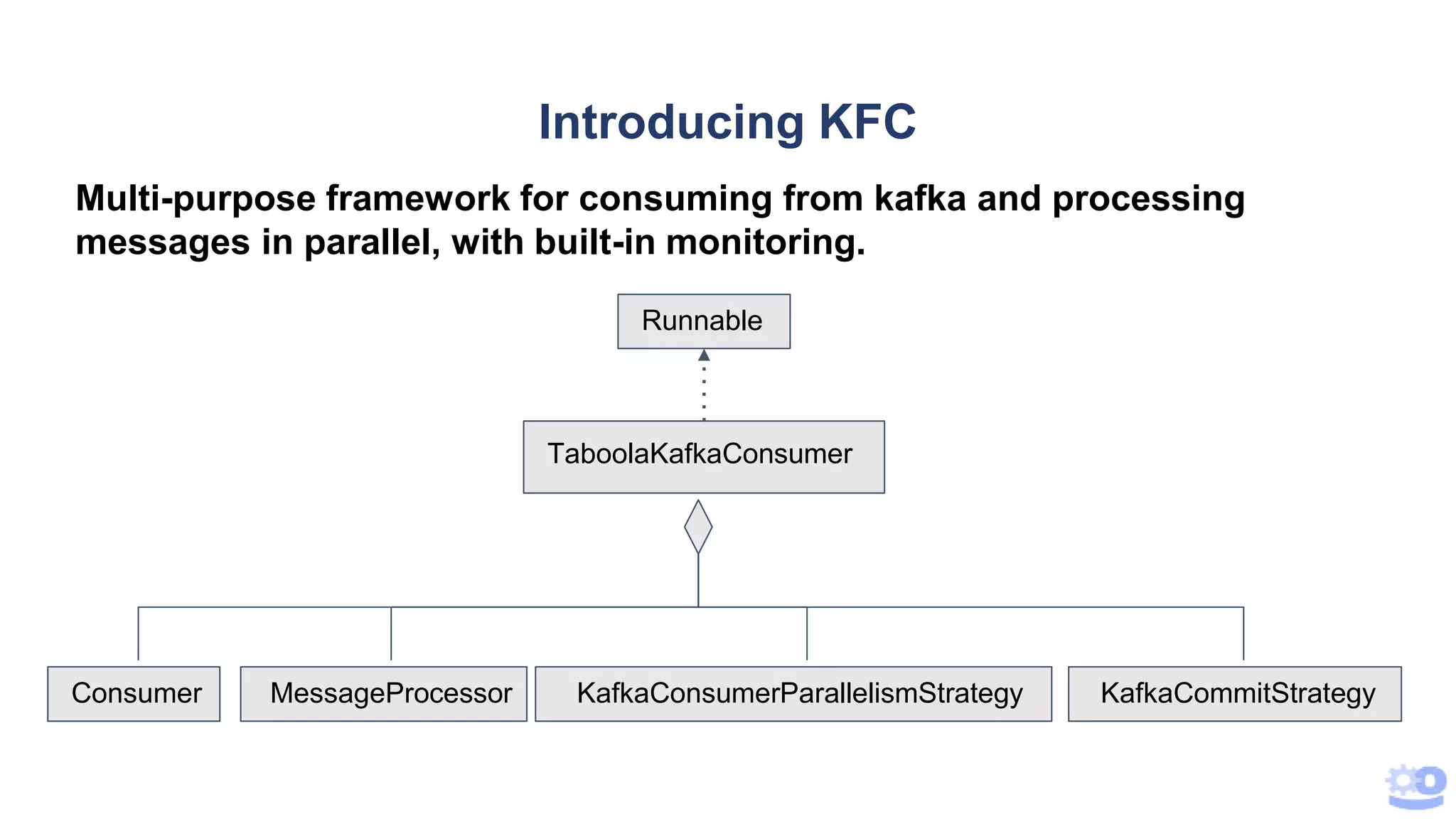

- 22. Introducing KFC Multi-purpose framework for consuming from kafka and processing messages in parallel, with built-in monitoring. TaboolaKafkaConsumer Consumer Runnable MessageProcessor KafkaConsumerParallelismStrategy KafkaCommitStrategy

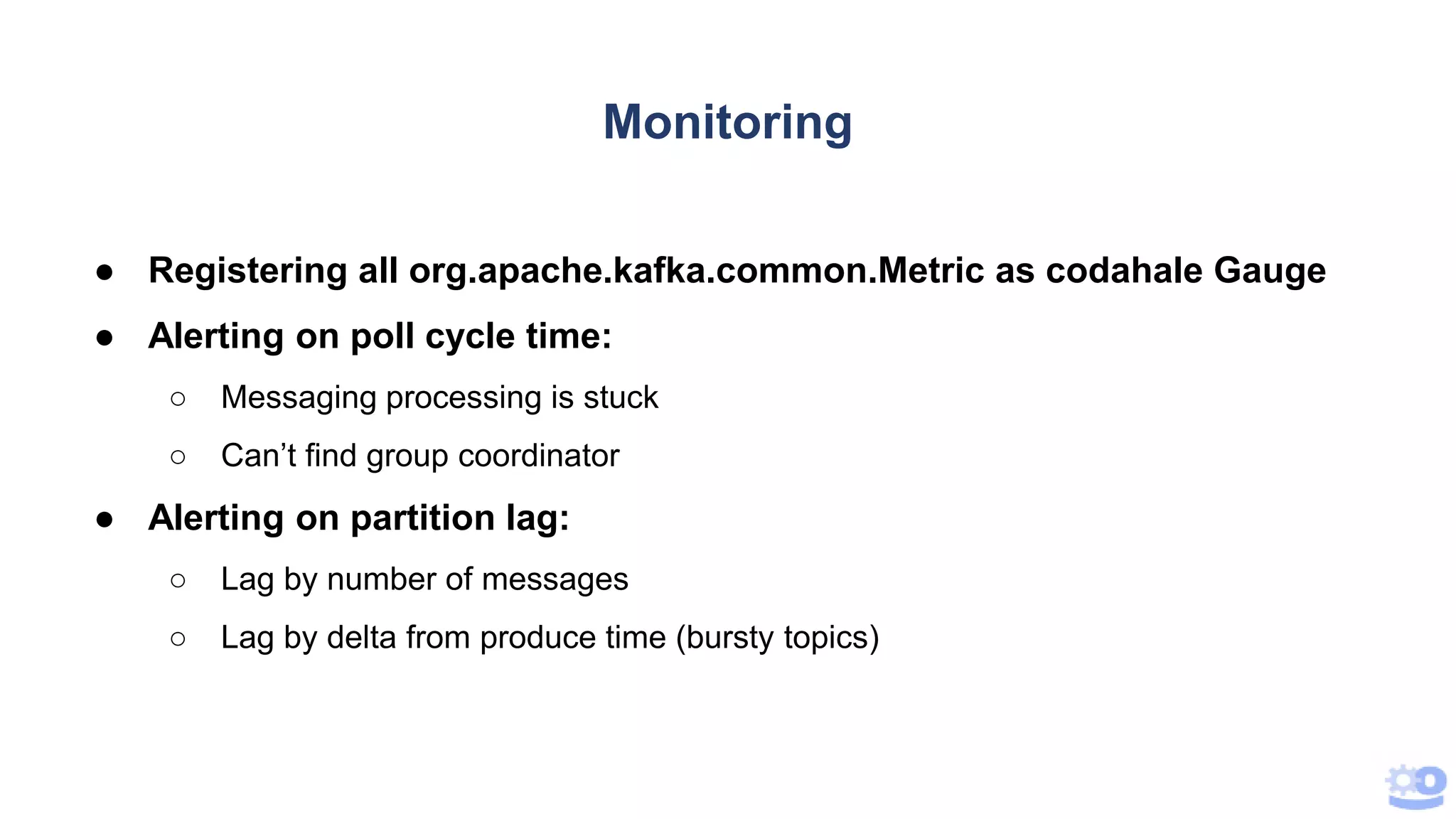

- 25. Monitoring ● Registering all org.apache.kafka.common.Metric as codahale Gauge ● Alerting on poll cycle time: ○ Messaging processing is stuck ○ Can’t find group coordinator ● Alerting on partition lag: ○ Lag by number of messages ○ Lag by delta from produce time (bursty topics)

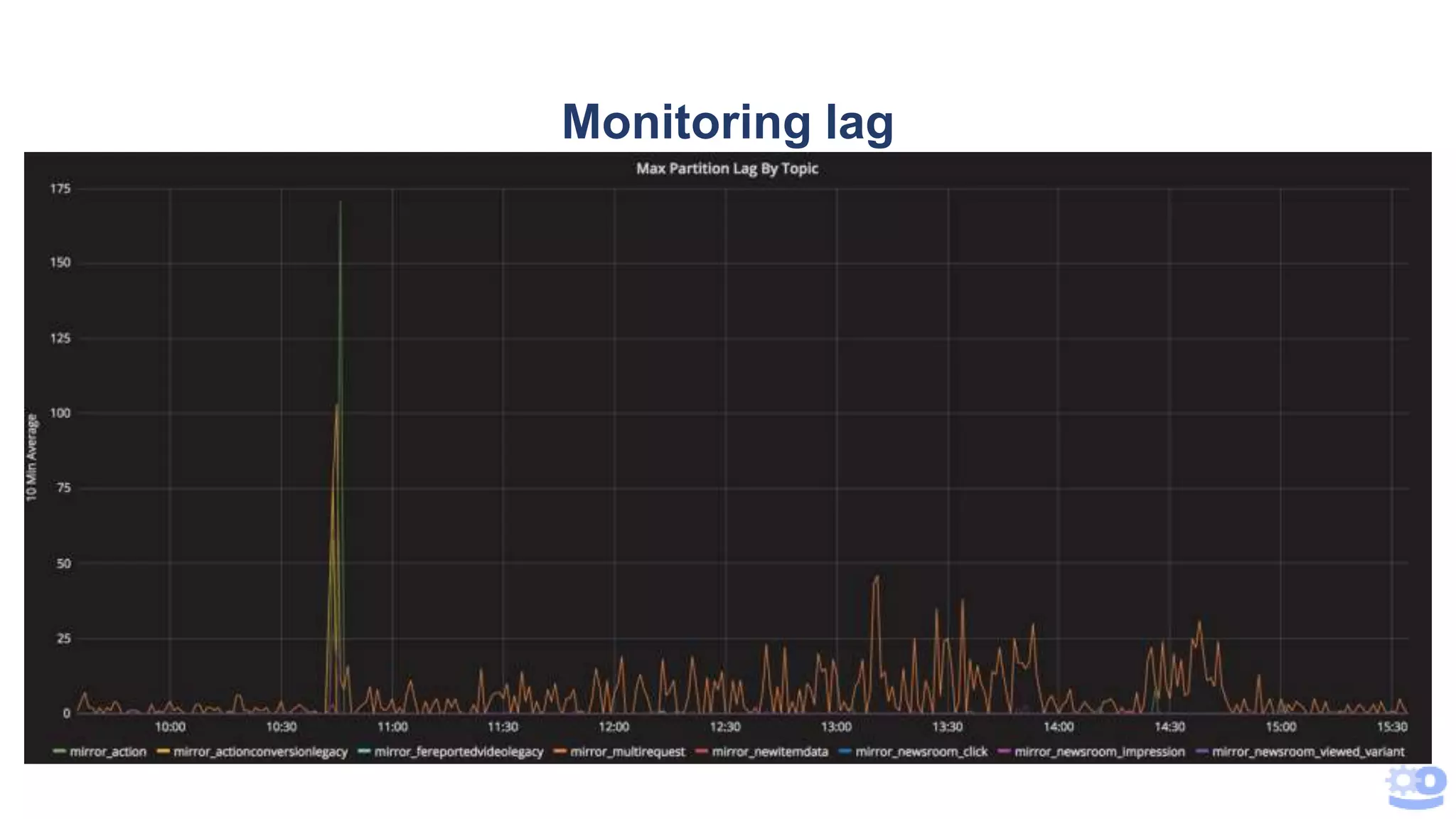

- 27. Monitoring lag

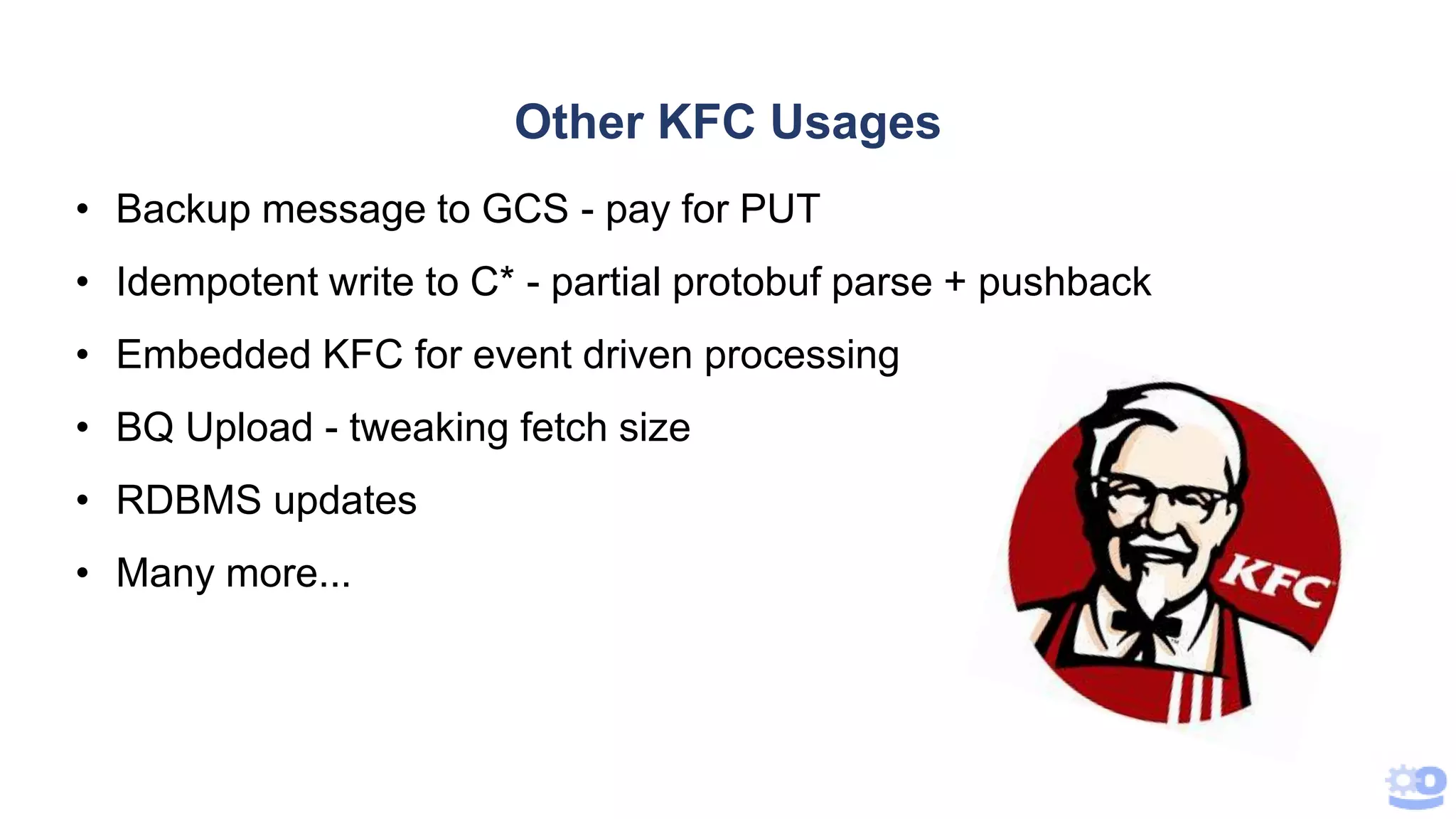

- 28. Other KFC Usages • Backup message to GCS - pay for PUT • Idempotent write to C* - partial protobuf parse + pushback • Embedded KFC for event driven processing • BQ Upload - tweaking fetch size • RDBMS updates • Many more...
- 29. Thank You

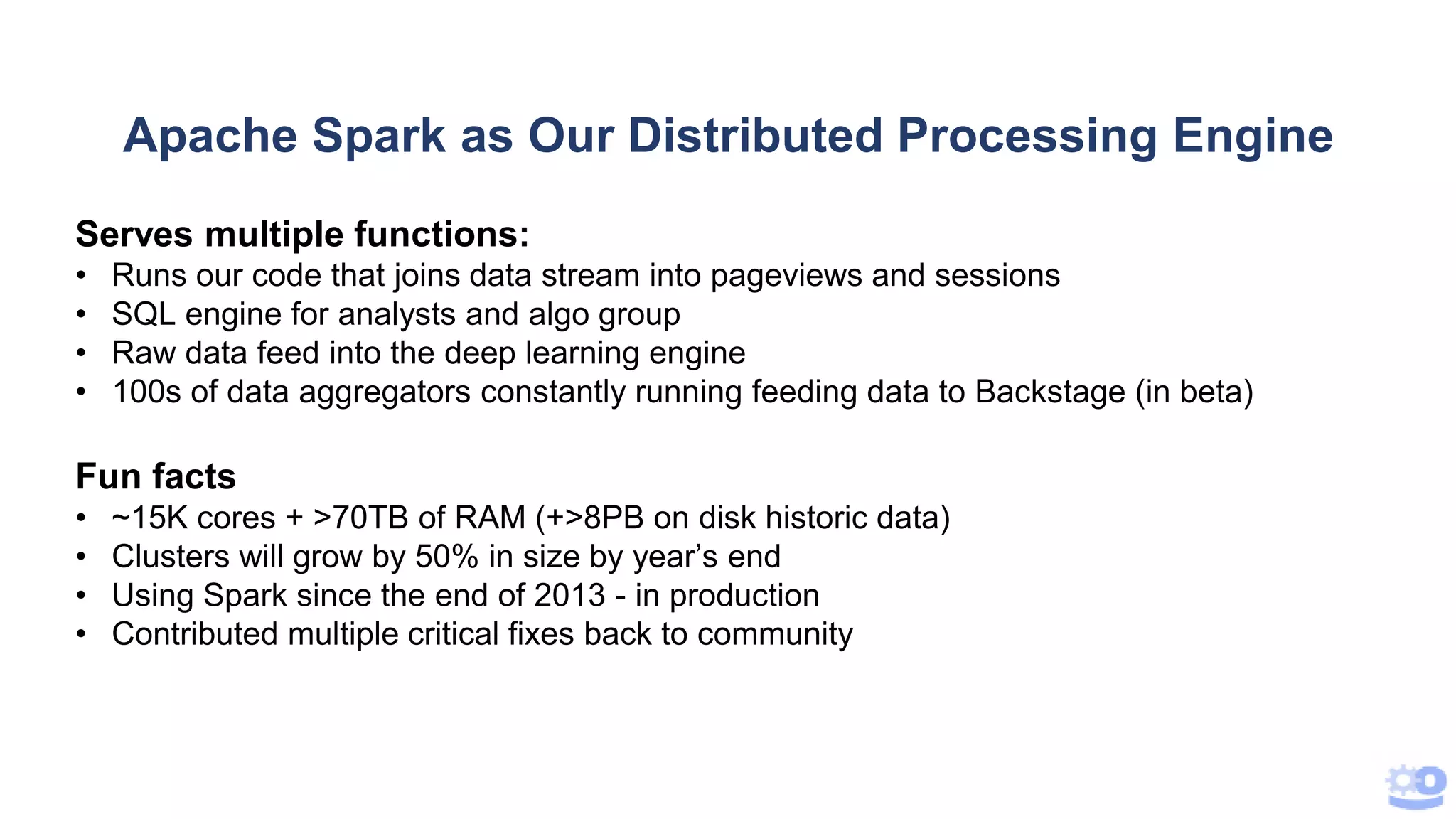

- 30. Apache Spark as Our Distributed Processing Engine Serves multiple functions: • Runs our code that joins data stream into pageviews and sessions • SQL engine for analysts and algo group • Raw data feed into the deep learning engine • 100s of data aggregators constantly running feeding data to Backstage (in beta) Fun facts • ~15K cores + >70TB of RAM (+>8PB on disk historic data) • Clusters will grow by 50% in size by year’s end • Using Spark since the end of 2013 - in production • Contributed multiple critical fixes back to community
