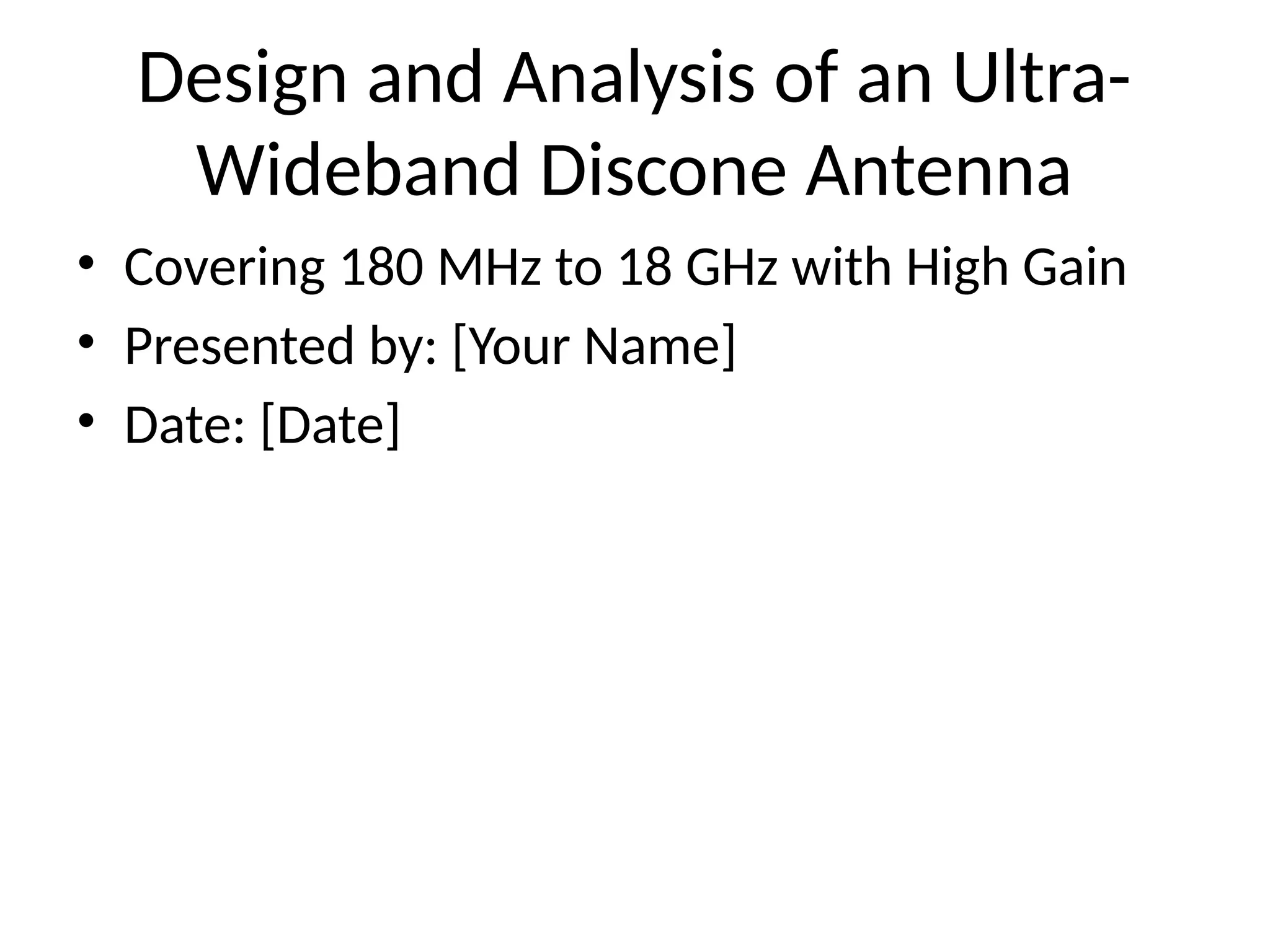

Design and Analysis of an Ultra-
Wideband Discone Antenna
• Covering 180 MHz to 18 GHz with High Gain
• Presented by: [Your Name]
• Date: [Date]
Introduction
• • What are antennas?
• • Why are ultra-wideband antennas
important?
• • Overview of Discone Antennas

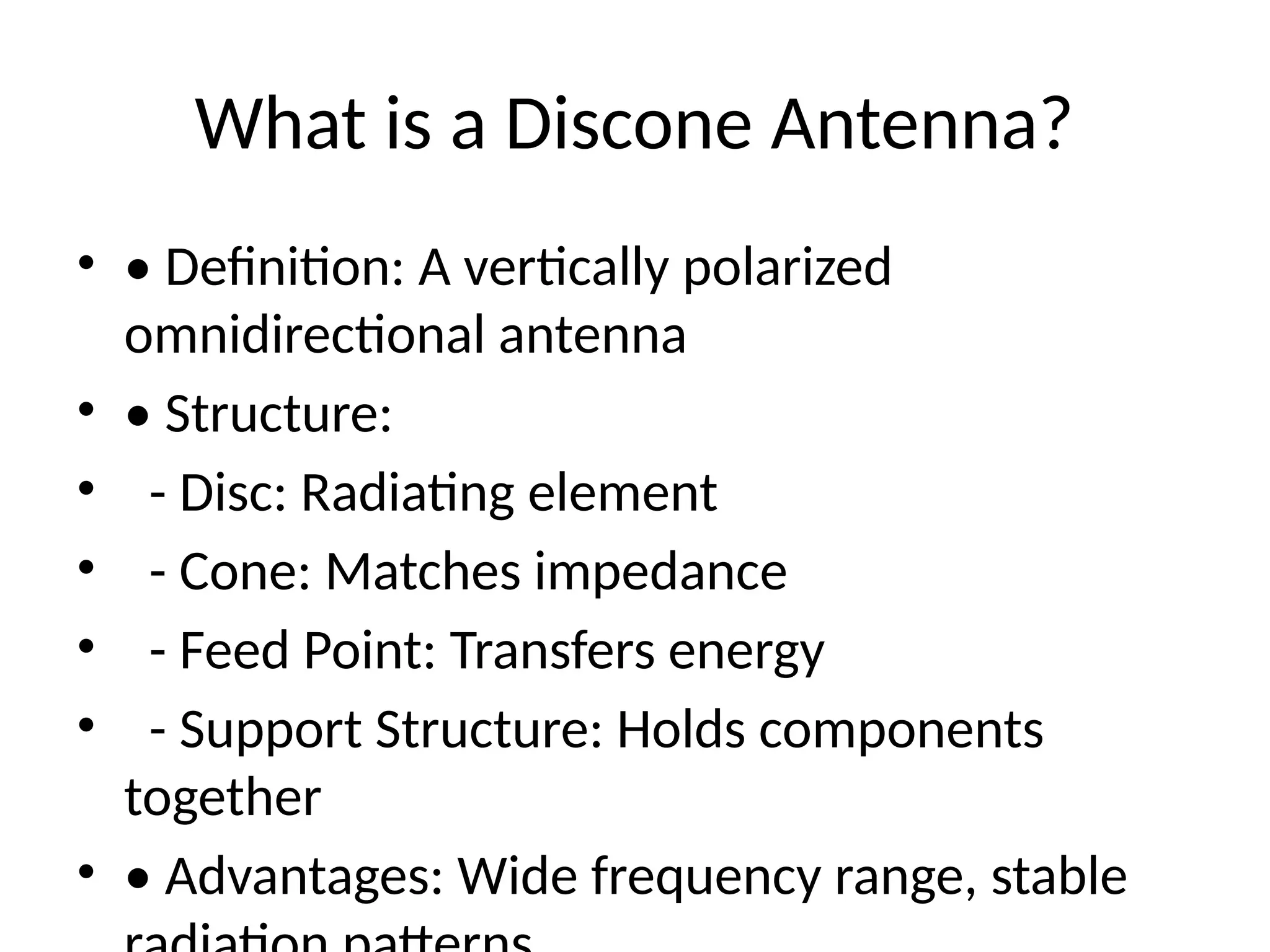

What is a Discone Antenna?
• • Definition: A vertically polarized
omnidirectional antenna
• • Structure:
• - Disc: Radiating element
• - Cone: Matches impedance
• - Feed Point: Transfers energy
• - Support Structure: Holds components
together
• • Advantages: Wide frequency range, stable

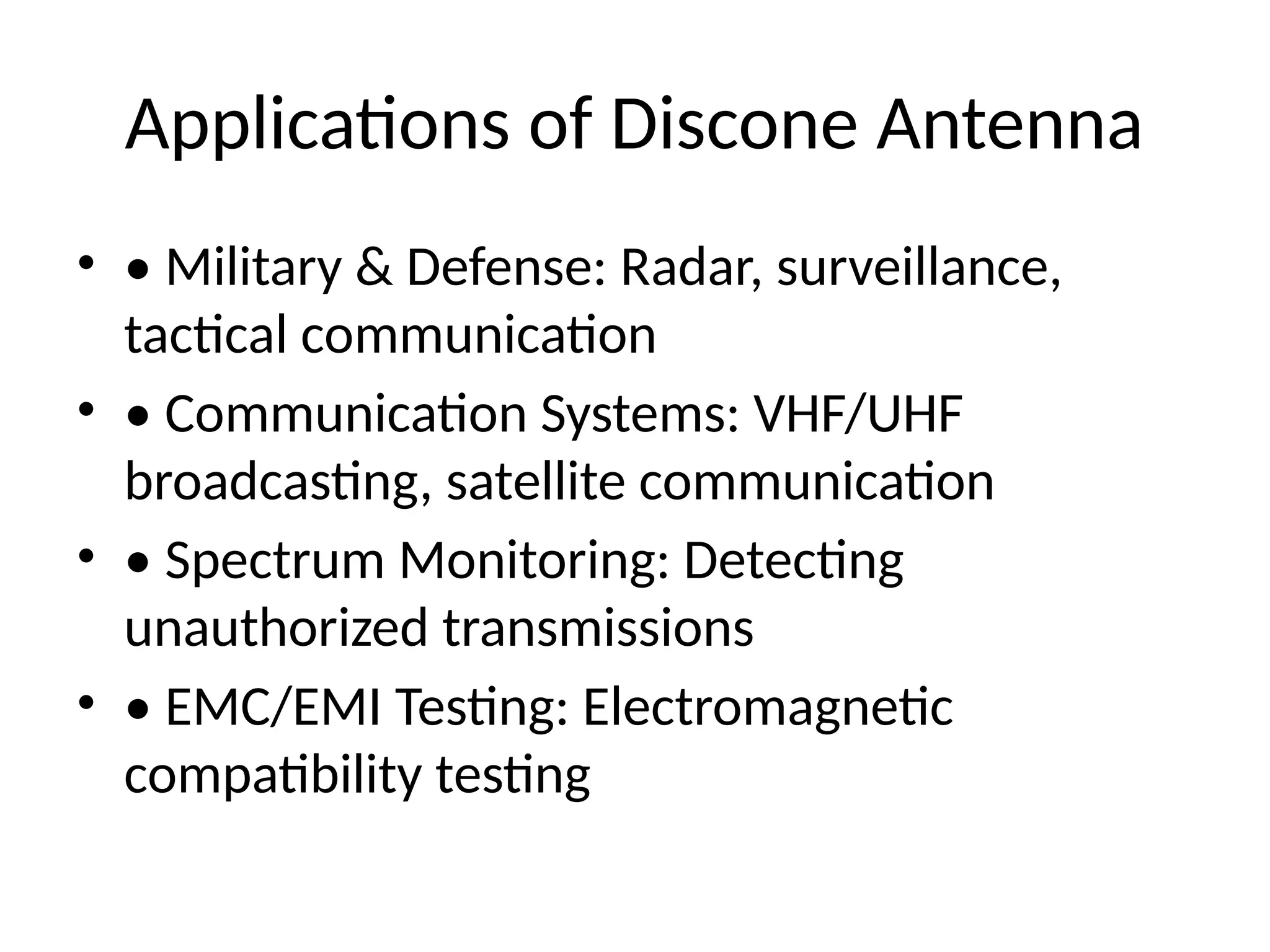

Applications of Discone Antenna
• • Military & Defense: Radar, surveillance,
tactical communication
• • Communication Systems: VHF/UHF
broadcasting, satellite communication
• • Spectrum Monitoring: Detecting
unauthorized transmissions
• • EMC/EMI Testing: Electromagnetic
compatibility testing

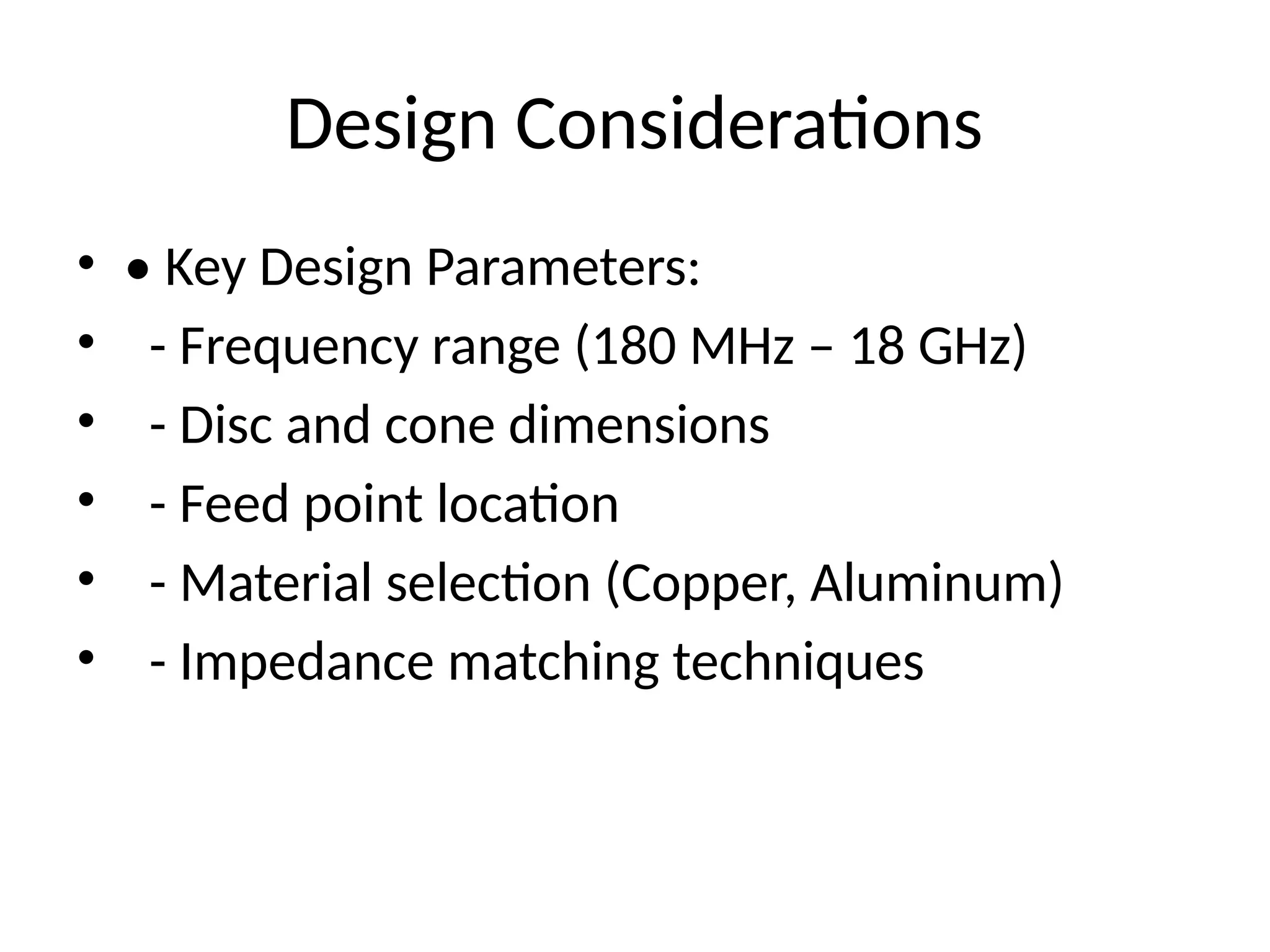

Design Considerations
• • Key Design Parameters:
• - Frequency range (180 MHz – 18 GHz)
• - Disc and cone dimensions
• - Feed point location
• - Material selection (Copper, Aluminum)
• - Impedance matching techniques

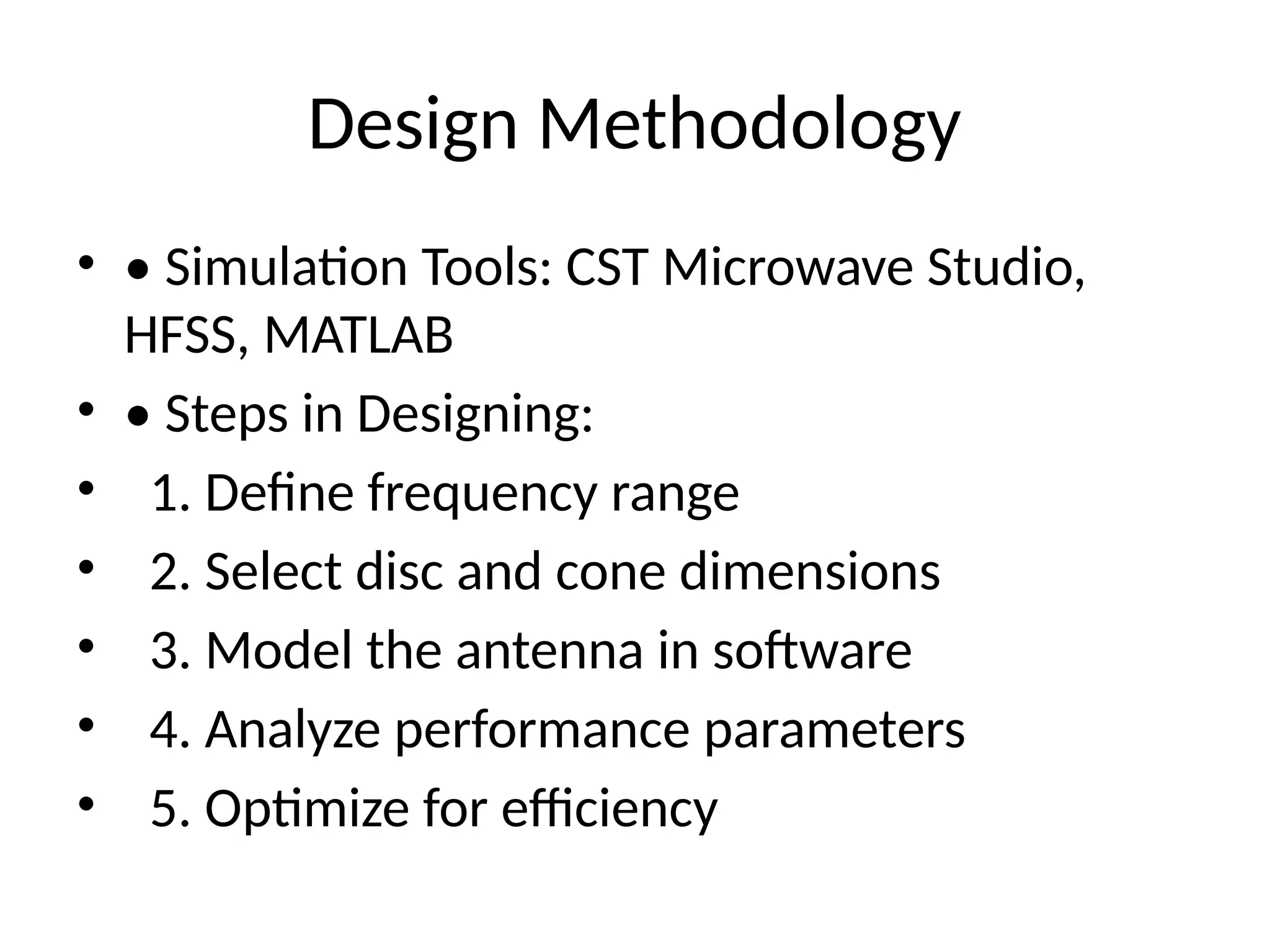

Design Methodology
• • Simulation Tools: CST Microwave Studio,
HFSS, MATLAB
• • Steps in Designing:
• 1. Define frequency range
• 2. Select disc and cone dimensions
• 3. Model the antenna in software
• 4. Analyze performance parameters
• 5. Optimize for efficiency

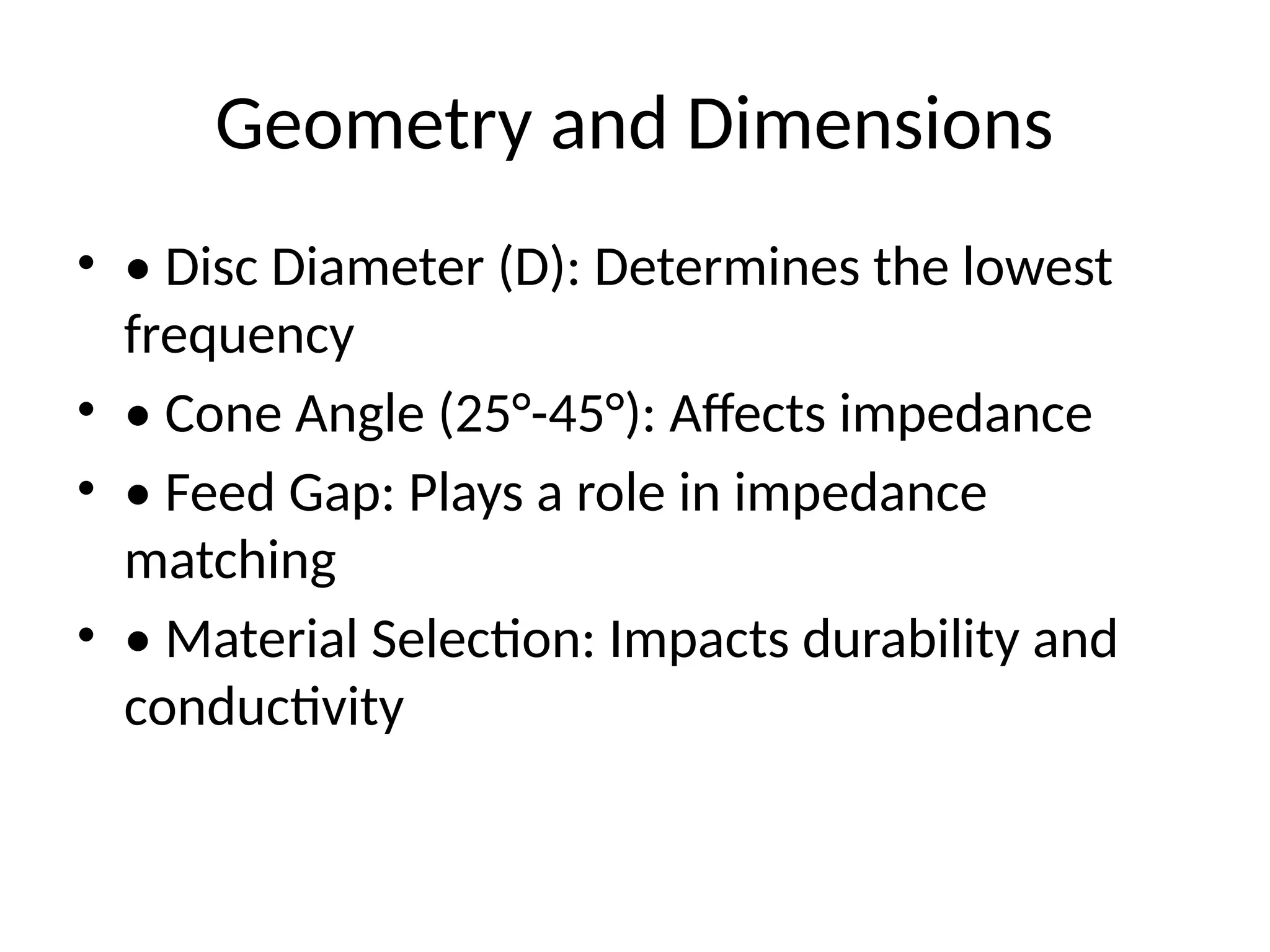

Geometry and Dimensions
• • Disc Diameter (D): Determines the lowest
frequency
• • Cone Angle (25°-45°): Affects impedance
• • Feed Gap: Plays a role in impedance
matching
• • Material Selection: Impacts durability and
conductivity

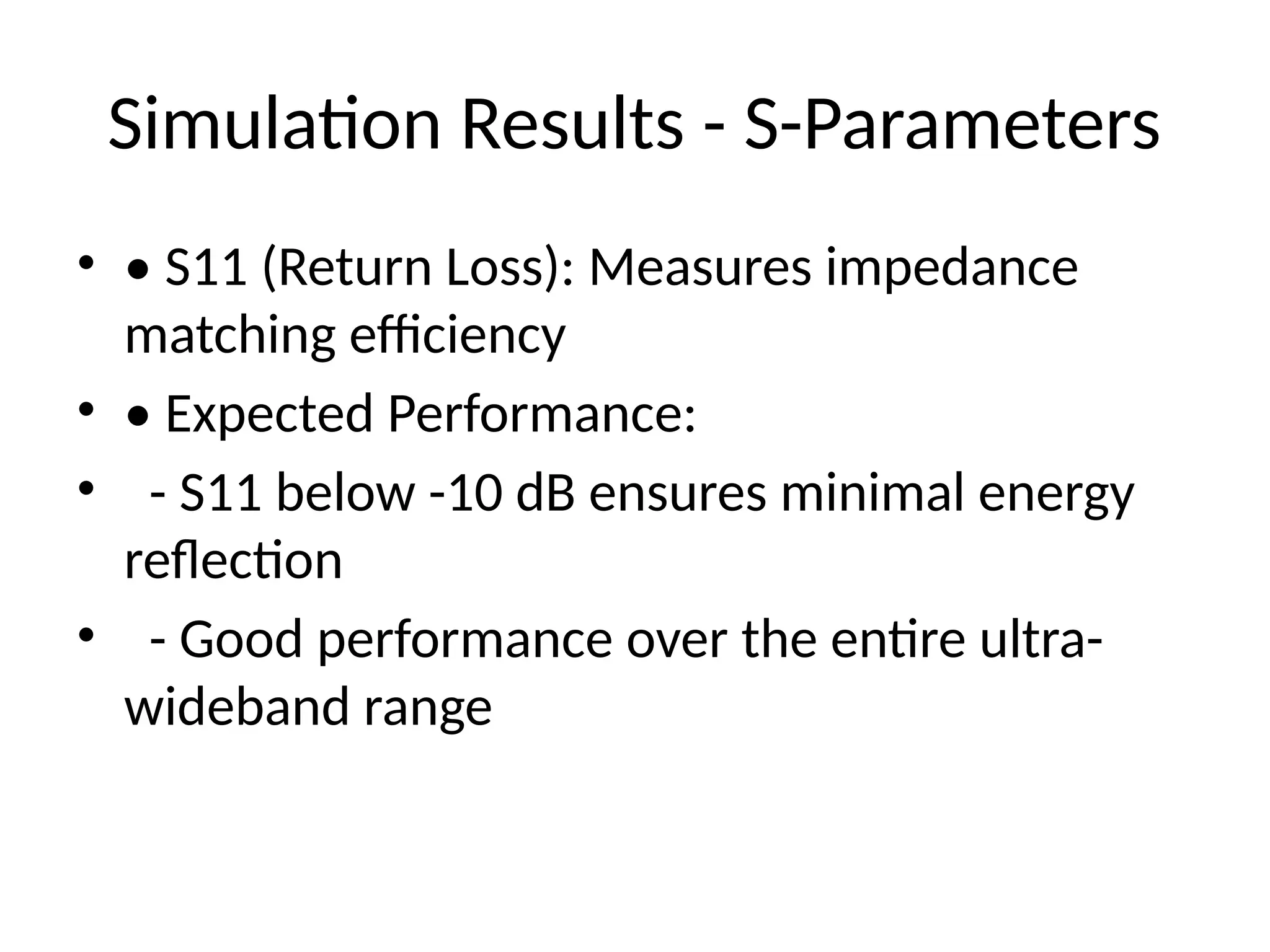

Simulation Results - S-Parameters
• • S11 (Return Loss): Measures impedance
matching efficiency
• • Expected Performance:
• - S11 below -10 dB ensures minimal energy
reflection
• - Good performance over the entire ultra-
wideband range

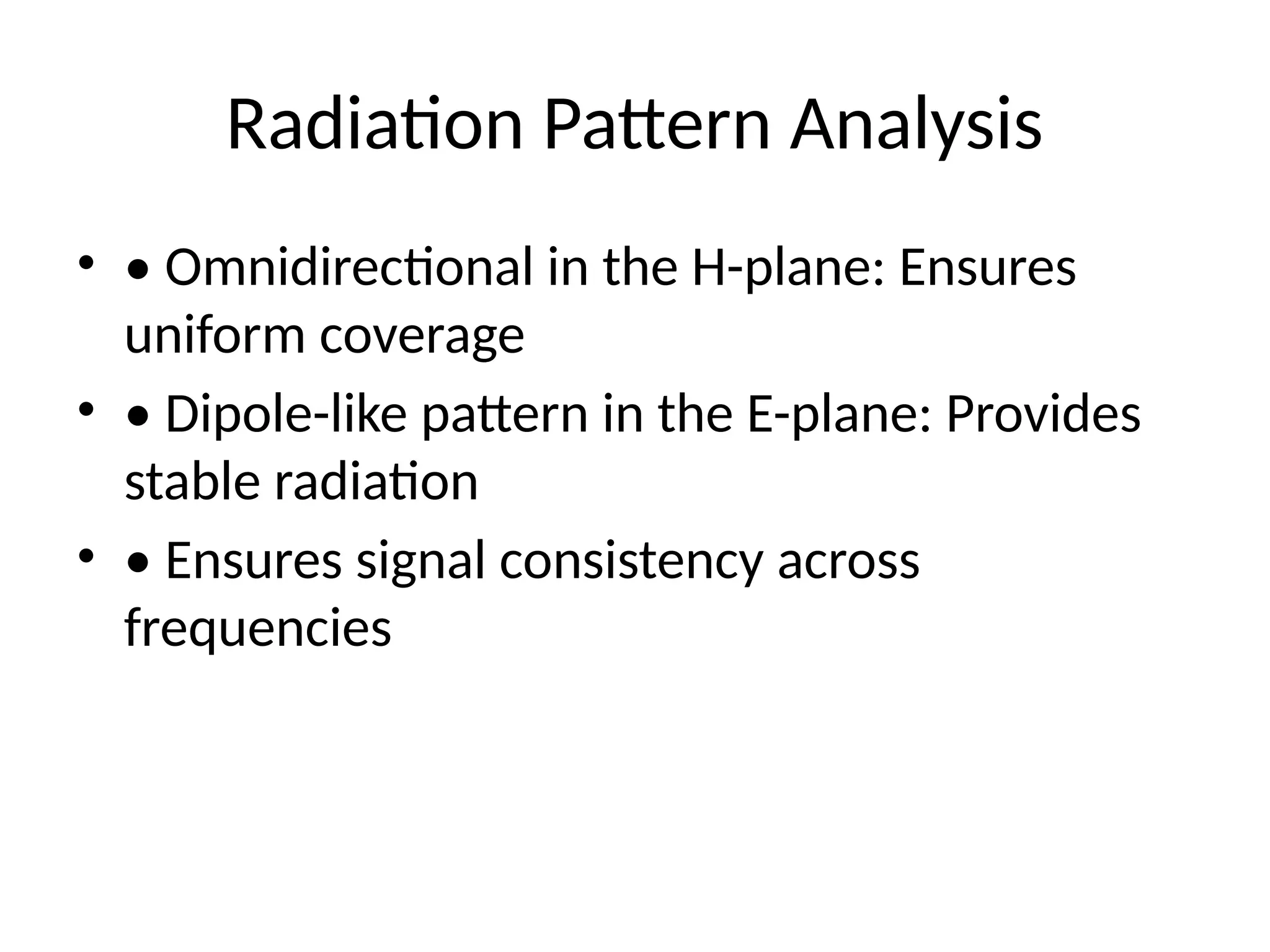

Radiation Pattern Analysis
• • Omnidirectional in the H-plane: Ensures
uniform coverage
• • Dipole-like pattern in the E-plane: Provides
stable radiation
• • Ensures signal consistency across
frequencies

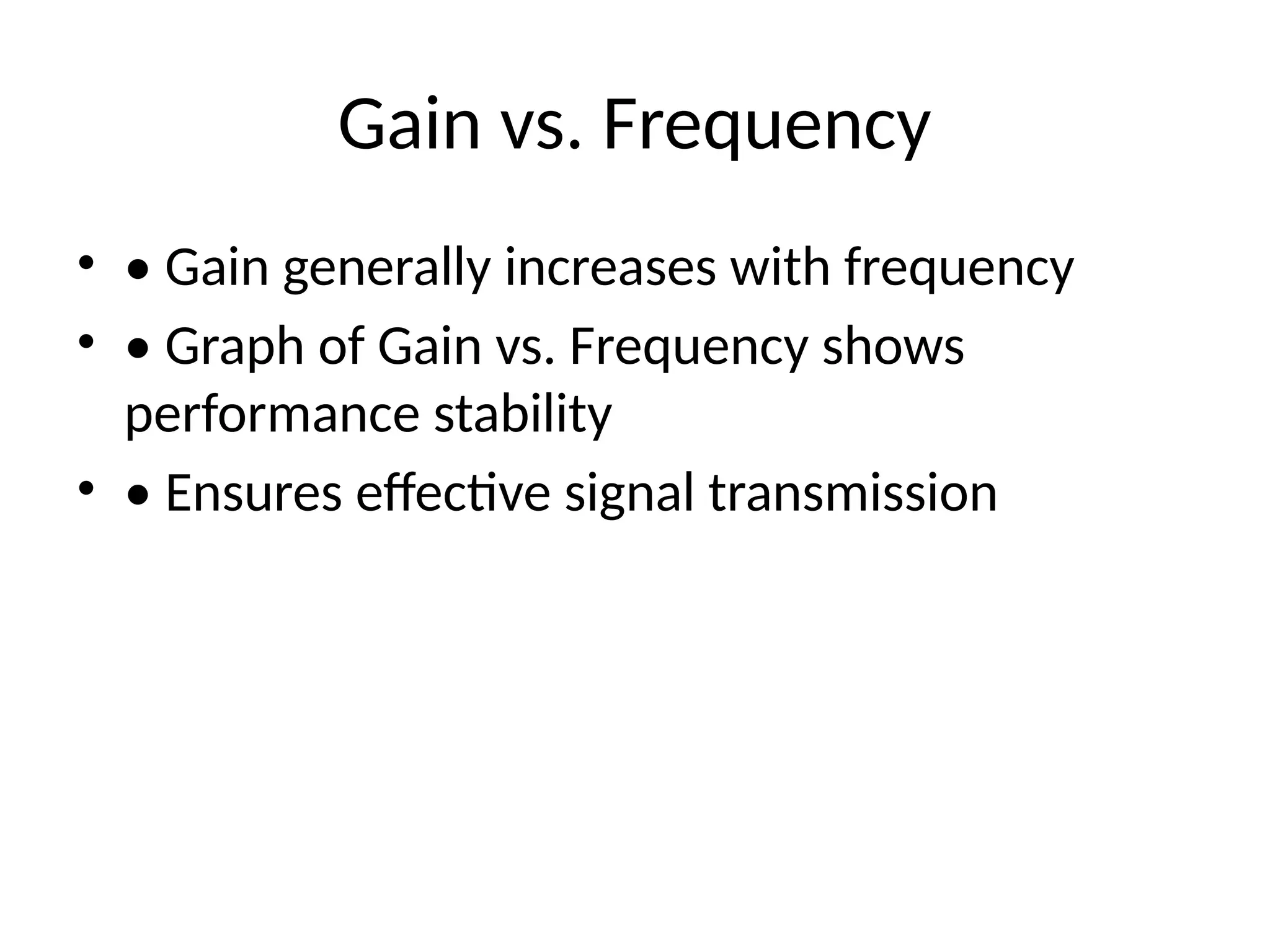

Gain vs. Frequency
• • Gain generally increases with frequency
• • Graph of Gain vs. Frequency shows
performance stability
• • Ensures effective signal transmission

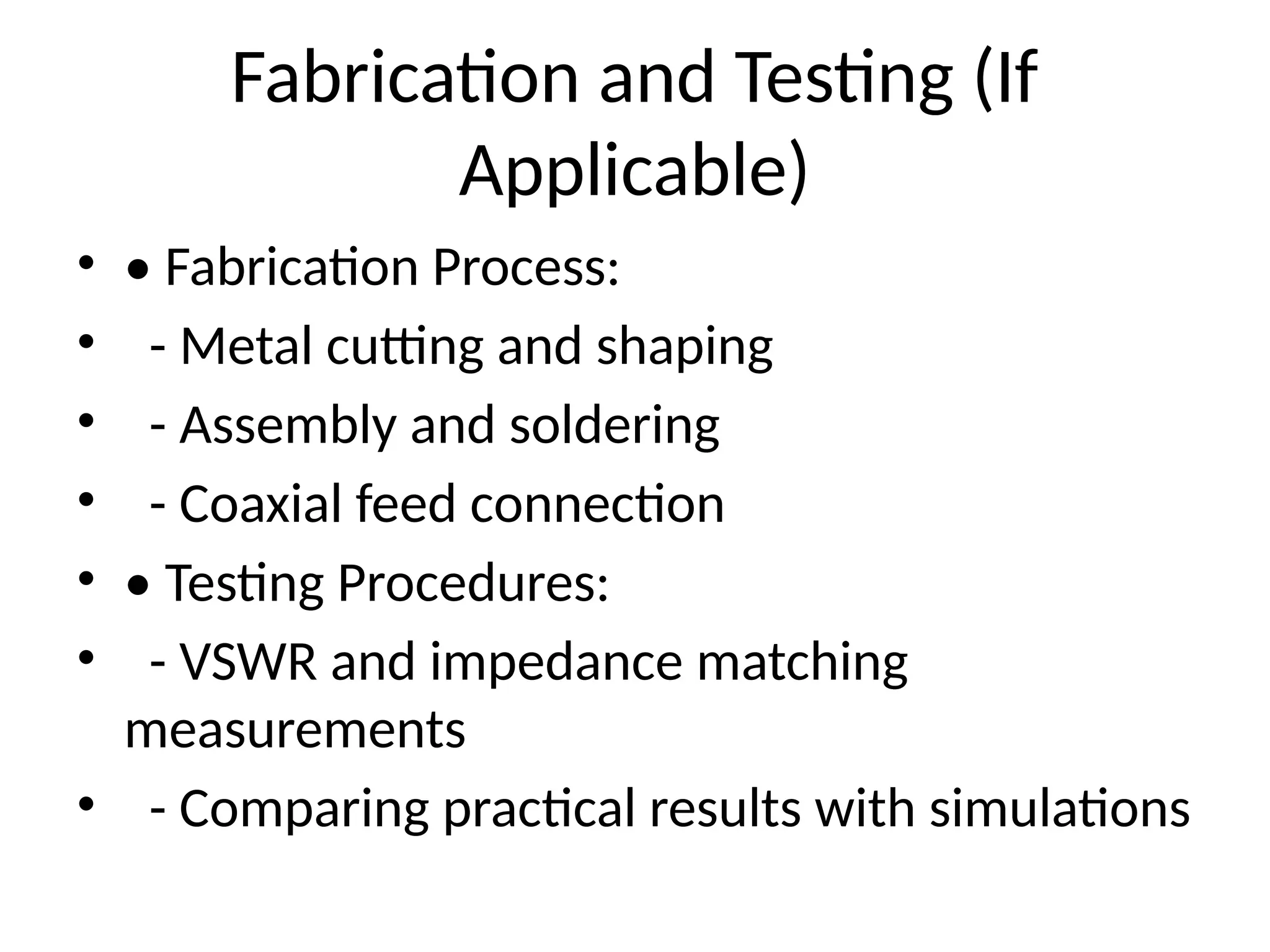

Fabrication and Testing (If
Applicable)
• • Fabrication Process:
• - Metal cutting and shaping
• - Assembly and soldering
• - Coaxial feed connection
• • Testing Procedures:
• - VSWR and impedance matching
measurements
• - Comparing practical results with simulations

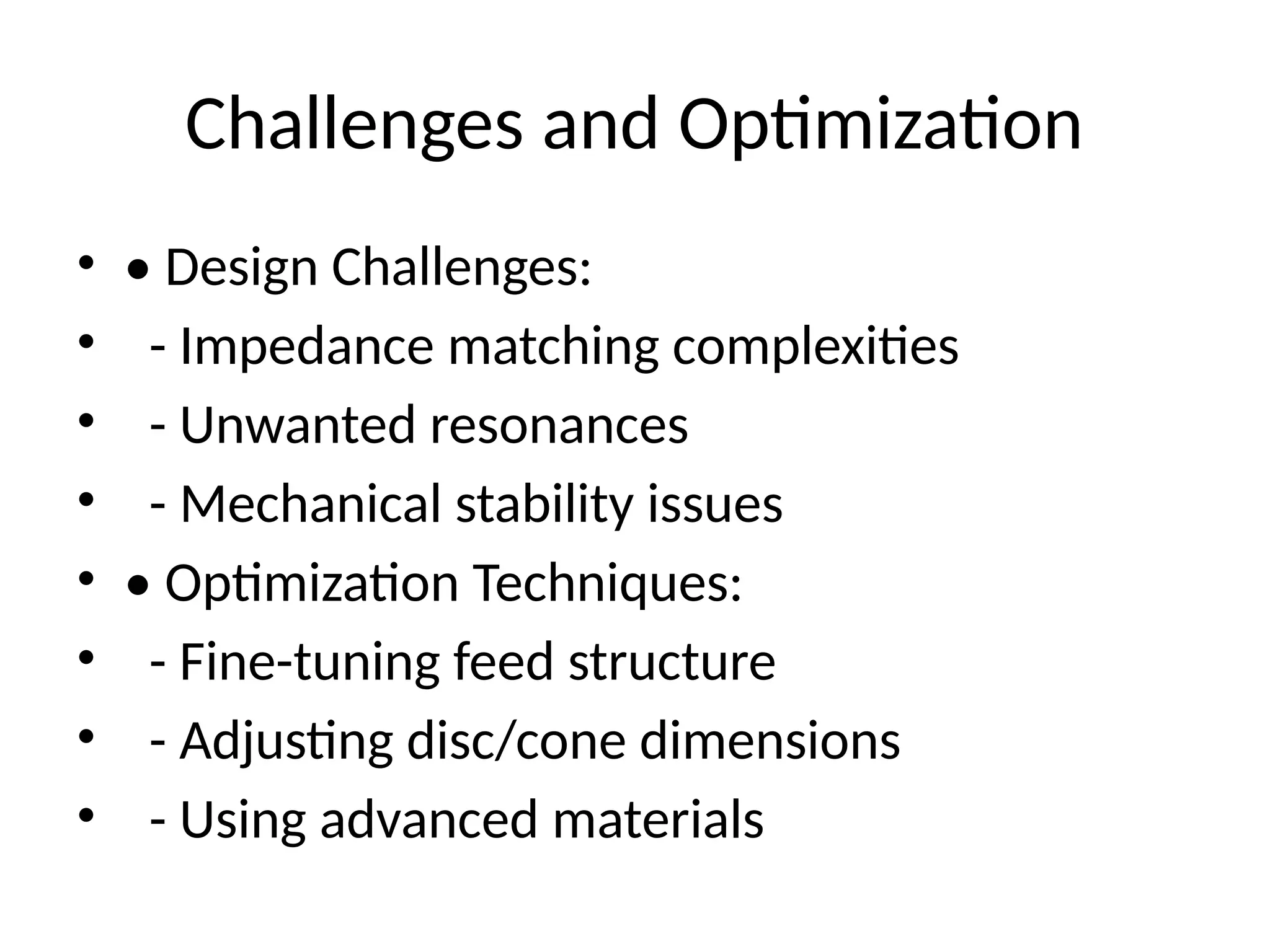

Challenges and Optimization
• • Design Challenges:
• - Impedance matching complexities
• - Unwanted resonances
• - Mechanical stability issues
• • Optimization Techniques:
• - Fine-tuning feed structure
• - Adjusting disc/cone dimensions
• - Using advanced materials

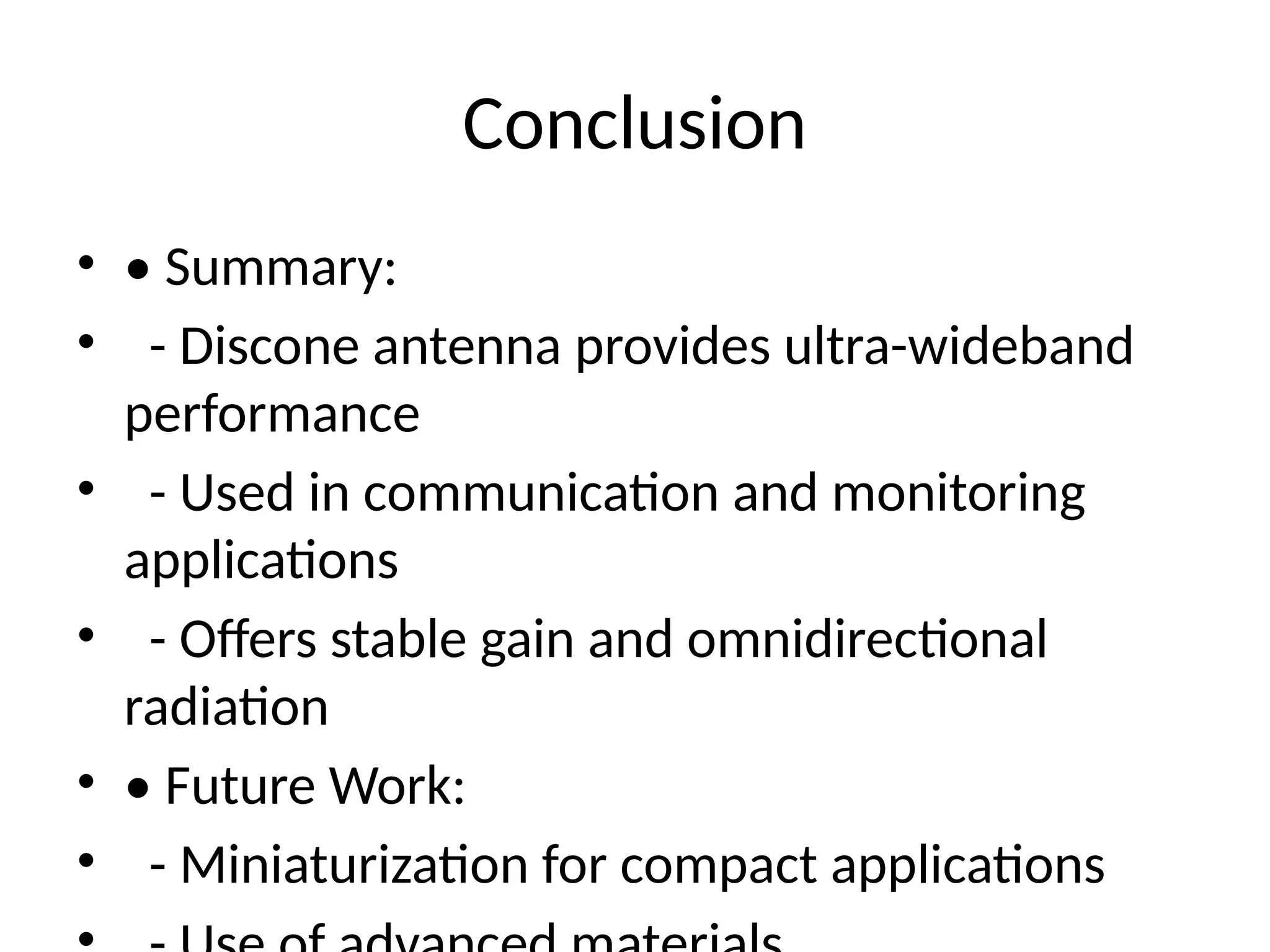

Conclusion
• • Summary:
• - Discone antenna provides ultra-wideband
performance
• - Used in communication and monitoring
applications
• - Offers stable gain and omnidirectional
radiation
• • Future Work:
• - Miniaturization for compact applications

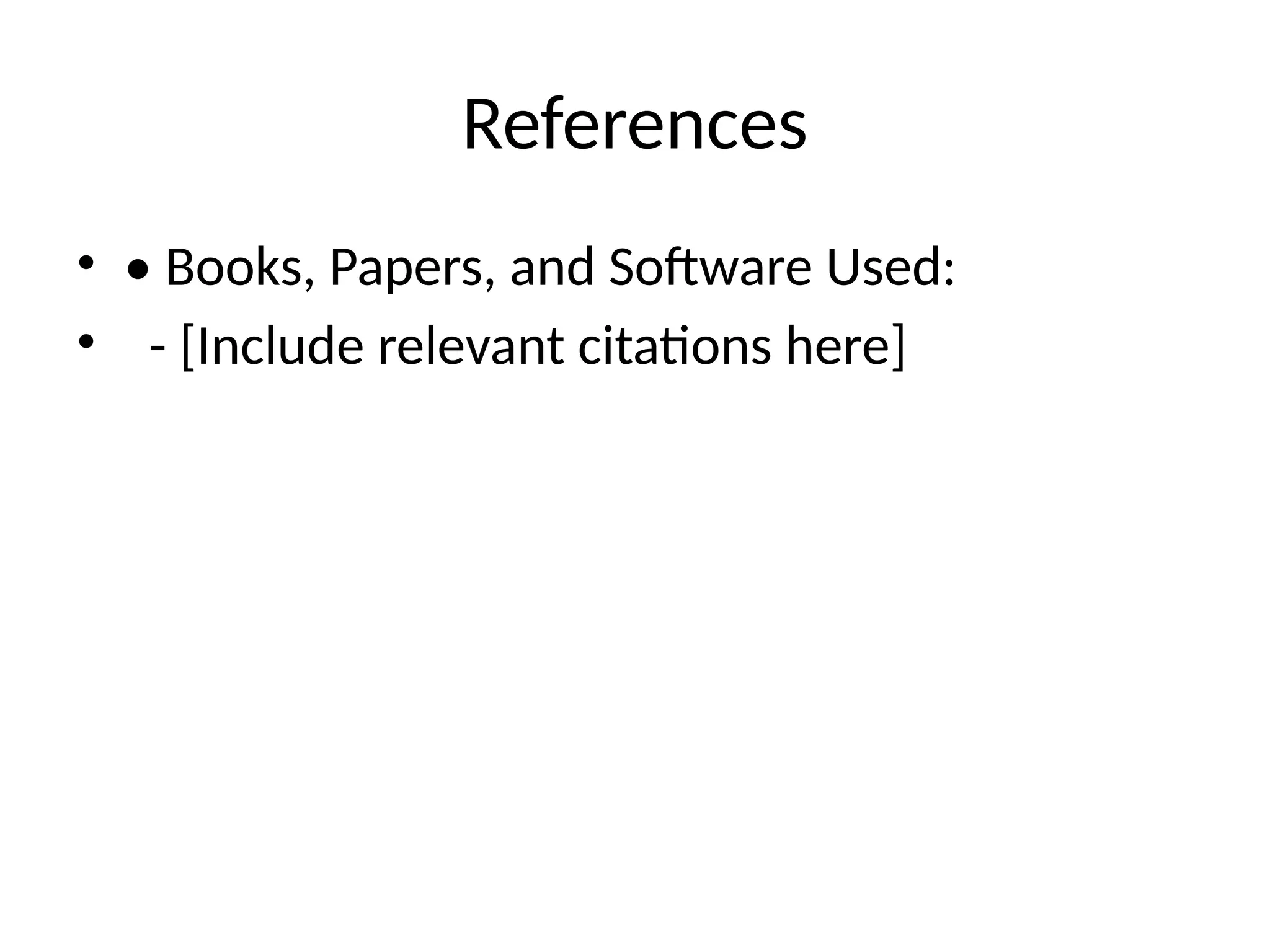

References
• • Books, Papers, and Software Used:
• - [Include relevant citations here]

Discone Antenna for achieving higher bandwidth

  • 1.
    Design and Analysisof an Ultra- Wideband Discone Antenna • Covering 180 MHz to 18 GHz with High Gain • Presented by: [Your Name] • Date: [Date]
  • 2.
    Introduction • • Whatare antennas? • • Why are ultra-wideband antennas important? • • Overview of Discone Antennas
  • 3.
    What is aDiscone Antenna? • • Definition: A vertically polarized omnidirectional antenna • • Structure: • - Disc: Radiating element • - Cone: Matches impedance • - Feed Point: Transfers energy • - Support Structure: Holds components together • • Advantages: Wide frequency range, stable
  • 4.
    Applications of DisconeAntenna • • Military & Defense: Radar, surveillance, tactical communication • • Communication Systems: VHF/UHF broadcasting, satellite communication • • Spectrum Monitoring: Detecting unauthorized transmissions • • EMC/EMI Testing: Electromagnetic compatibility testing
  • 5.
    Design Considerations • •Key Design Parameters: • - Frequency range (180 MHz – 18 GHz) • - Disc and cone dimensions • - Feed point location • - Material selection (Copper, Aluminum) • - Impedance matching techniques
  • 6.
    Design Methodology • •Simulation Tools: CST Microwave Studio, HFSS, MATLAB • • Steps in Designing: • 1. Define frequency range • 2. Select disc and cone dimensions • 3. Model the antenna in software • 4. Analyze performance parameters • 5. Optimize for efficiency
  • 7.
    Geometry and Dimensions •• Disc Diameter (D): Determines the lowest frequency • • Cone Angle (25°-45°): Affects impedance • • Feed Gap: Plays a role in impedance matching • • Material Selection: Impacts durability and conductivity
  • 8.
    Simulation Results -S-Parameters • • S11 (Return Loss): Measures impedance matching efficiency • • Expected Performance: • - S11 below -10 dB ensures minimal energy reflection • - Good performance over the entire ultra- wideband range
  • 9.
    Radiation Pattern Analysis •• Omnidirectional in the H-plane: Ensures uniform coverage • • Dipole-like pattern in the E-plane: Provides stable radiation • • Ensures signal consistency across frequencies
  • 10.
    Gain vs. Frequency •• Gain generally increases with frequency • • Graph of Gain vs. Frequency shows performance stability • • Ensures effective signal transmission
  • 11.
    Fabrication and Testing(If Applicable) • • Fabrication Process: • - Metal cutting and shaping • - Assembly and soldering • - Coaxial feed connection • • Testing Procedures: • - VSWR and impedance matching measurements • - Comparing practical results with simulations
  • 12.
    Challenges and Optimization •• Design Challenges: • - Impedance matching complexities • - Unwanted resonances • - Mechanical stability issues • • Optimization Techniques: • - Fine-tuning feed structure • - Adjusting disc/cone dimensions • - Using advanced materials
  • 13.
    Conclusion • • Summary: •- Discone antenna provides ultra-wideband performance • - Used in communication and monitoring applications • - Offers stable gain and omnidirectional radiation • • Future Work: • - Miniaturization for compact applications
  • 14.
    References • • Books,Papers, and Software Used: • - [Include relevant citations here]
