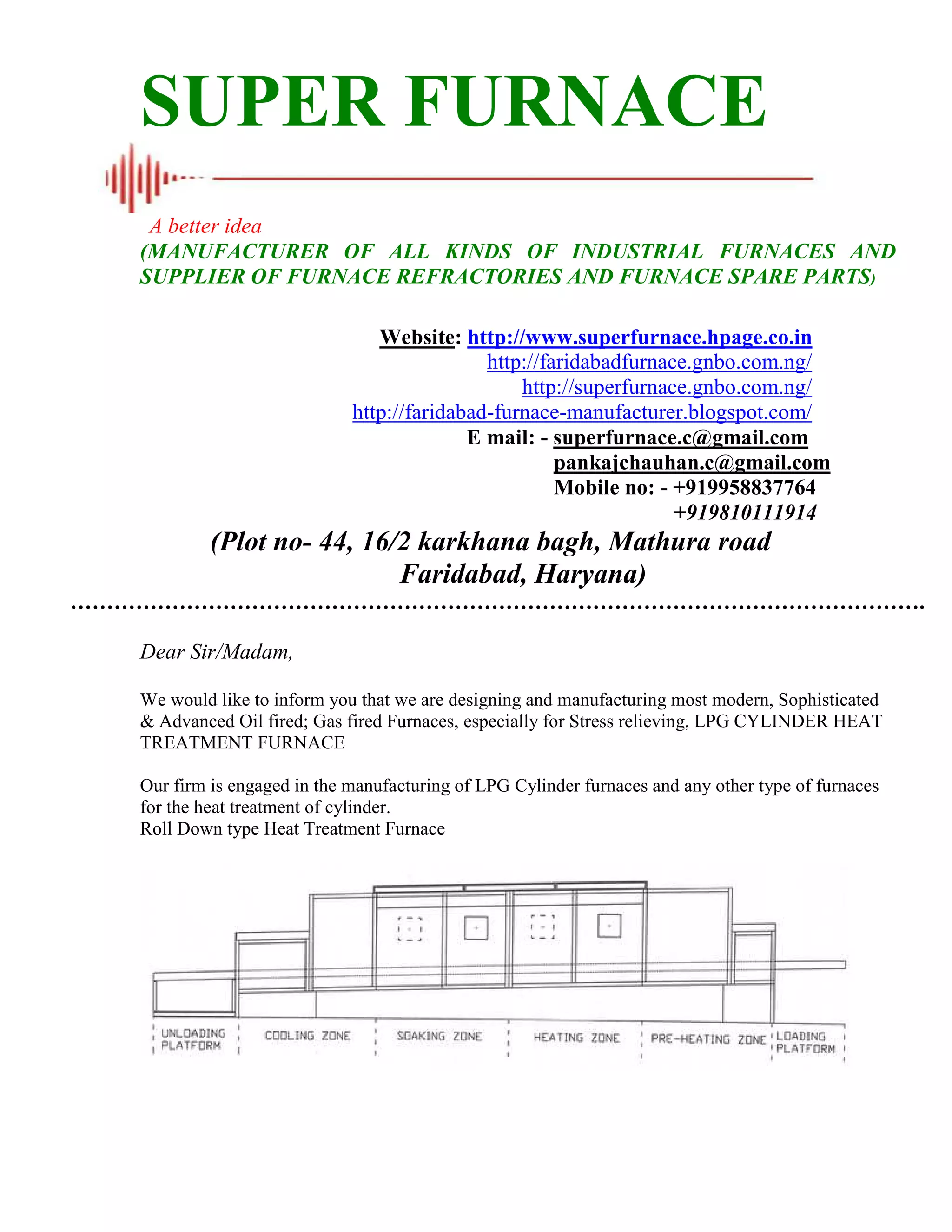

1. SUPER FURNACE
A better idea
(MANUFACTURER OF ALL KINDS OF INDUSTRIAL FURNACES AND
SUPPLIER OF FURNACE REFRACTORIES AND FURNACE SPARE PARTS)
Website: http://www.superfurnace.hpage.co.in
http://faridabadfurnace.gnbo.com.ng/
http://superfurnace.gnbo.com.ng/
http://faridabad-furnace-manufacturer.blogspot.com/
E mail: - superfurnace.c@gmail.com
pankajchauhan.c@gmail.com
Mobile no: - +919958837764
+919810111914
(Plot no- 44, 16/2 karkhana bagh, Mathura road
Faridabad, Haryana)
……………………………………………………………………………………………………….
Dear Sir/Madam,
We would like to inform you that we are designing and manufacturing most modern, Sophisticated
& Advanced Oil fired; Gas fired Furnaces, especially for Stress relieving, LPG CYLINDER HEAT
TREATMENT FURNACE
Our firm is engaged in the manufacturing of LPG Cylinder furnaces and any other type of furnaces
for the heat treatment of cylinder.
Roll Down type Heat Treatment Furnace

3. Process Capabilities:
Stress Relieving
Tempering
Pre-heating
We manufacture fuel heated & fuel efficient roll down type furnace for stress relieving of cylindrical
shaped components. The furnace maintains high temperature uniformity through sophisticated
temperature control system. The furnace is manufactured in different capacities as per the
requirement.

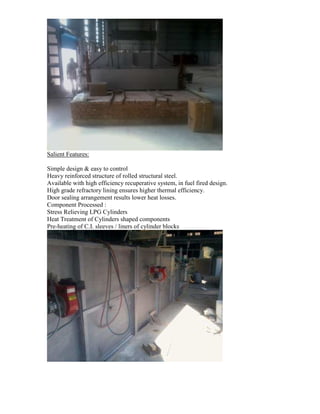

4. Salient Features:
Simple design & easy to control
Heavy reinforced structure of rolled structural steel.
Available with high efficiency recuperative system, in fuel fired design.
High grade refractory lining ensures higher thermal efficiency.
Door sealing arrangement results lower heat losses.
Component Processed :
Stress Relieving LPG Cylinders
Heat Treatment of Cylinders shaped components
Pre-heating of C.I. sleeves / liners of cylinder blocks

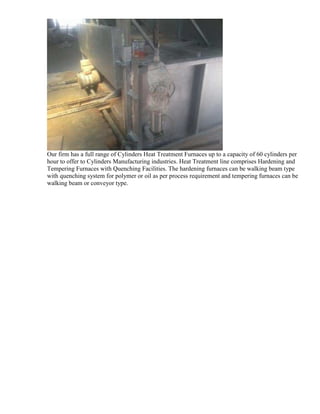

5. Our firm has a full range of Cylinders Heat Treatment Furnaces up to a capacity of 60 cylinders per
hour to offer to Cylinders Manufacturing industries. Heat Treatment line comprises Hardening and
Tempering Furnaces with Quenching Facilities. The hardening furnaces can be walking beam type
with quenching system for polymer or oil as per process requirement and tempering furnaces can be
walking beam or conveyor type.

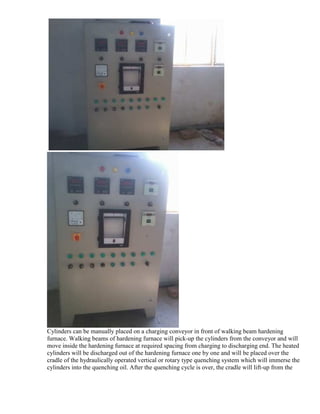

6. Cylinders can be manually placed on a charging conveyor in front of walking beam hardening
furnace. Walking beams of hardening furnace will pick-up the cylinders from the conveyor and will
move inside the hardening furnace at required spacing from charging to discharging end. The heated
cylinders will be discharged out of the hardening furnace one by one and will be placed over the
cradle of the hydraulically operated vertical or rotary type quenching system which will immerse the
cylinders into the quenching oil. After the quenching cycle is over, the cradle will lift-up from the

7. quenching tank and the cylinders will be moved forward to charge side of the tempering furnace by
means of electro-mechanical discharge conveyor.
Heat Treatment Furnaces
Heat Treatment Salts for Hardening, Tempering &
Ovens & etc.
non-Ferrous Melting Furnaces.
Hot Air for blowing in pipe galvanizing.
Melting & holding Furnaces for Aluminium, Zinc,
Copper, Brass, Silver, Tin and gold etc.
Latest Zinc Oxide Plants.
Control panels.
Profile
To fulfill the varied requirements of various industrial applications, we, Super furnace,
have come up with a wide range of industrial equipment that has been appreciated for their
smooth functionality, durability and reliability. The company is a growing manufacturer,
exporter and supplier of hi-tech machines and equipment meant for effective non
ferrous Smelting, Heating, Holding, Melting and Re-Cycling process, which are
encouraged and undertaken at almost every industrial house. We offer Al. Recycling
Plant, Lead Smelting Plant, Zinc & Copper Melting Plant, Electrical melting cum
holding Furnace, Billet Re-Heating Furnace and Air pollution control system. At our
company, the best of engineering and designing skill are materialized to fabricate a series
of world class furnaces and allied equipment.
The entire range of aforesaid industrial products is manufactured using latest technology
with qualitative range of raw materials and components that makes our products
distinguished from other similar products. We have always followed standard
manufacturing practices that have helped us in maintaining optimum quality standards. We

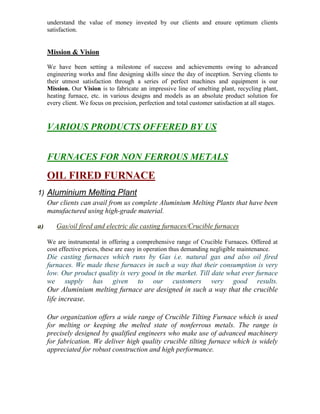

8. understand the value of money invested by our clients and ensure optimum clients
satisfaction.
Mission & Vision
We have been setting a milestone of success and achievements owing to advanced
engineering works and fine designing skills since the day of inception. Serving clients to
their utmost satisfaction through a series of perfect machines and equipment is our
Mission. Our Vision is to fabricate an impressive line of smelting plant, recycling plant,
heating furnace, etc. in various designs and models as an absolute product solution for
every client. We focus on precision, perfection and total customer satisfaction at all stages.
VARIOUS PRODUCTS OFFERED BY US
FURNACES FOR NON FERROUS METALS
OIL FIRED FURNACE
1) Aluminium Melting Plant
Our clients can avail from us complete Aluminium Melting Plants that have been
manufactured using high-grade material.
a)
Gas/oil fired and electric die casting furnaces/Crucible furnaces
We are instrumental in offering a comprehensive range of Crucible Furnaces. Offered at
cost effective prices, these are easy in operation thus demanding negligible maintenance.
Die casting furnaces which runs by Gas i.e. natural gas and also oil fired
furnaces. We made these furnaces in such a way that their consumption is very
low. Our product quality is very good in the market. Till date what ever furnace
we supply has given to our customers very good results.
Our Aluminium melting furnace are designed in such a way that the crucible
life increase.
Our organization offers a wide range of Crucible Tilting Furnace which is used
for melting or keeping the melted state of nonferrous metals. The range is
precisely designed by qualified engineers who make use of advanced machinery
for fabrication. We deliver high quality crucible tilting furnace which is widely
appreciated for robust construction and high performance.

9. Our range of Crucible Type Aluminum Melting Furnace is fabricated by using
quality components and is quality tested on different parameters to ascertain that
it is flawless and efficient. These products are basically energy saving aluminum
melting furnaces which are primarily used for various melting purposes.
b)
Skelner Furnace Hydraulic Tilting Manually Door Skelner/ Hydraulic Door
Skelner/ Sliding Door Operated Manually
i) Hydraulic Tilting Skelner Furnace with Hydraulic Doors
We also offer Hydraulic Tilting Skelner Furnace with Hydraulic Door operated for our
clients. Our clients can avail from us a wide range of Skelner furnaces that has been
manufactured using high-grade material for enhanced effectiveness. These furnaces have a
melting chamber that is equipped with burners & recuperator. A hydraulic is used to tilt the
melting chamber in order to discharge the molten metal.
ii) Hydraulic Tilting Dross Melting Furnace
Our company is also known for providing Hydraulic Tilting Hydraulic Dross Melting
Furnace at the best competitive prices. These dross melting furnaces are high power system
designed to deliver optimum melt rate and energy efficient performance. We offer our
range at industry leading prices.
iii) Skelner Furnace Sliding Door Operated Manually
We also undertake design, engineering & fabrication of these furnaces on turnkey basis to

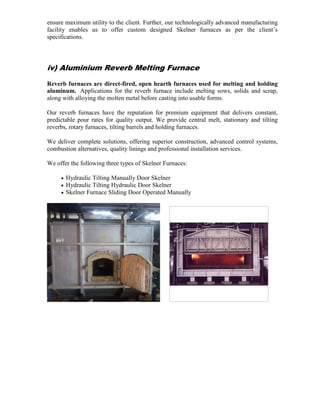

10. ensure maximum utility to the client. Further, our technologically advanced manufacturing
facility enables us to offer custom designed Skelner furnaces as per the client’s
specifications.
iv) Aluminium Reverb Melting Furnace
Reverb furnaces are direct-fired, open hearth furnaces used for melting and holding
aluminum. Applications for the reverb furnace include melting sows, solids and scrap,
along with alloying the molten metal before casting into usable forms.
Our reverb furnaces have the reputation for premium equipment that delivers constant,
predictable pour rates for quality output. We provide central melt, stationary and tilting
reverbs, rotary furnaces, tilting barrels and holding furnaces.
We deliver complete solutions, offering superior construction, advanced control systems,
combustion alternatives, quality linings and professional installation services.
We offer the following three types of Skelner Furnaces:
•
•
•
Hydraulic Tilting Manually Door Skelner
Hydraulic Tilting Hydraulic Door Skelner
Skelner Furnace Sliding Door Operated Manually

11. c)

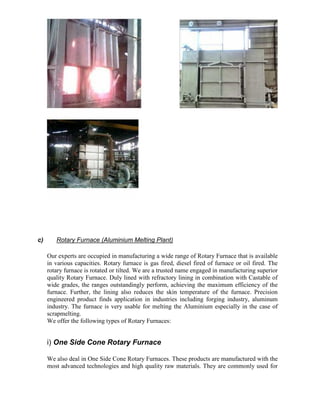

Rotary Furnace (Aluminium Melting Plant)
Our experts are occupied in manufacturing a wide range of Rotary Furnace that is available
in various capacities. Rotary furnace is gas fired, diesel fired of furnace or oil fired. The
rotary furnace is rotated or tilted. We are a trusted name engaged in manufacturing superior
quality Rotary Furnace. Duly lined with refractory lining in combination with Castable of
wide grades, the ranges outstandingly perform, achieving the maximum efficiency of the
furnace. Further, the lining also reduces the skin temperature of the furnace. Precision
engineered product finds application in industries including forging industry, aluminum
industry. The furnace is very usable for melting the Aluminium especially in the case of
scrapmelting.
We offer the following types of Rotary Furnaces:
i) One Side Cone Rotary Furnace
We also deal in One Side Cone Rotary Furnaces. These products are manufactured with the
most advanced technologies and high quality raw materials. They are commonly used for

12. precise heating of various types of materials. Our team of experienced professionals
conducts extensive research to provide a flawless product, which is with accordance to the
international standard.
ii) Hydraulic Tilting Rotary (TRF)
Our range of rotary furnace is offered with separate control panel & hydraulic / mechanical
tilting arrangement. Appreciated for excellent quality, these are used in Aluminium scrap
melting. We also offer customized form design according to the clients' details.

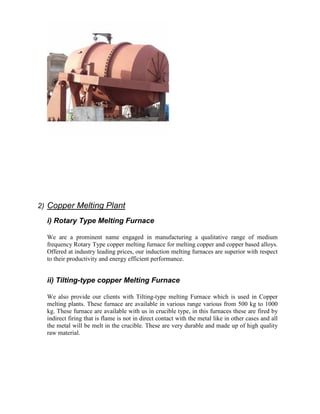

13. 2) Copper Melting Plant
i) Rotary Type Melting Furnace
We are a prominent name engaged in manufacturing a qualitative range of medium
frequency Rotary Type copper melting furnace for melting copper and copper based alloys.
Offered at industry leading prices, our induction melting furnaces are superior with respect
to their productivity and energy efficient performance.
ii) Tilting-type copper Melting Furnace
We also provide our clients with Tilting-type melting Furnace which is used in Copper
melting plants. These furnace are available in various range various from 500 kg to 1000
kg. These furnace are available with us in crucible type, in this furnaces these are fired by
indirect firing that is flame is not in direct contact with the metal like in other cases and all
the metal will be melt in the crucible. These are very durable and made up of high quality
raw material.

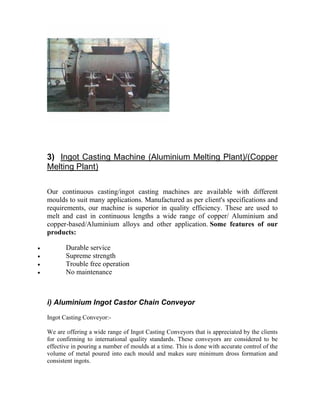

14. 3) Ingot Casting Machine (Aluminium Melting Plant)/(Copper
Melting Plant)
Our continuous casting/ingot casting machines are available with different
moulds to suit many applications. Manufactured as per client's specifications and
requirements, our machine is superior in quality efficiency. These are used to
melt and cast in continuous lengths a wide range of copper/ Aluminium and
copper-based/Aluminium alloys and other application. Some features of our
products:
•
•
•
•
Durable service
Supreme strength
Trouble free operation
No maintenance
i) Aluminium Ingot Castor Chain Conveyor
Ingot Casting Conveyor:We are offering a wide range of Ingot Casting Conveyors that is appreciated by the clients
for confirming to international quality standards. These conveyors are considered to be
effective in pouring a number of moulds at a time. This is done with accurate control of the
volume of metal poured into each mould and makes sure minimum dross formation and
consistent ingots.

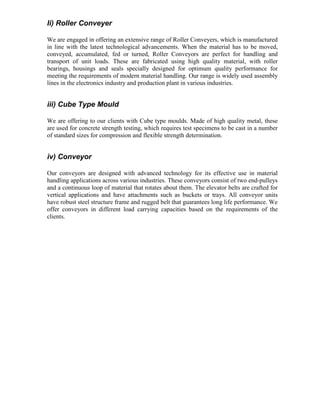

15. Ii) Roller Conveyer
We are engaged in offering an extensive range of Roller Conveyers, which is manufactured
in line with the latest technological advancements. When the material has to be moved,
conveyed, accumulated, fed or turned, Roller Conveyors are perfect for handling and
transport of unit loads. These are fabricated using high quality material, with roller
bearings, housings and seals specially designed for optimum quality performance for
meeting the requirements of modern material handling. Our range is widely used assembly
lines in the electronics industry and production plant in various industries.
iii) Cube Type Mould
We are offering to our clients with Cube type moulds. Made of high quality metal, these
are used for concrete strength testing, which requires test specimens to be cast in a number
of standard sizes for compression and flexible strength determination.
iv) Conveyor
Our conveyors are designed with advanced technology for its effective use in material
handling applications across various industries. These conveyors consist of two end-pulleys
and a continuous loop of material that rotates about them. The elevator belts are crafted for
vertical applications and have attachments such as buckets or trays. All conveyor units
have robust steel structure frame and rugged belt that guarantees long life performance. We
offer conveyors in different load carrying capacities based on the requirements of the
clients.

16. 4) Crucible Furnace for Lead Plant
We also manufacture high quality Crucible Furnace for Lead Plant. These types of furnaces
are fabricated using premium quality raw material, which are procured from reliable
vendors of the industry. Our range is available in various dimensions, and can be
customized as per the client’s specifications.

17. 5) Pollution Control & Monitoring Equipment
We are a prominent name engaged in manufacturing Pollution Control & Monitoring
Equipment.
a) Settling Chambers
Dust Settling Chambers are required to discharge dust free gas. We manufactures dust
settling chambers for sponge iron plants. Dust settling chambers are also installed in all our
turnkey sponge iron plants.
b) Cooling Tower
We offer Round Bottle Shaped Cooling Towers. These are compact, heavy duty and
efficient cooling tower with a long services life & aesthetic design. Owing to these
features, these cater to various industries and HVAC applications. Due to the self rotating
sprinkler, the water is properly distributed over the PVC Fills. The shape facilitates in
desired airflow. Being round in structure, the air flow of the tower is properly distributed.
c) Centrifugal Air Blowers
OUR firm offers an extensive range of high, medium and low pressure industrial fans
and blowers for combustion air, atomizing air, dilution air, recirculation, ventilation,
exhaust and high-temperature applications. Standard blowers are available in eight
discharge positions with options for direct, v-belt or coupling drive units. Optional
accessories include v-belts, pulleys, belt guards, motor slide rails, inlet air dampers,
outlet air dampers, anti-vibration pads, inlet air filters, access doors and transition
pieces. We also designs special fans to customer specifications from 50 to 3000
mmwg pressure and up to 335 horsepower, as well as stainless steel construction fans
for use at high temperatures up to 800°C.

18. c) I. D. Fan
Our ID Fans are high quality boiler spares that are widely used in various industry
applications. These are available varied dimensions and specifications to suit the demands
of customers. Based on advanced technology, our range can be availed at market leading
price.
d) Air Pollution Control System
Cleaning the environment and ensuring lesser air pollution is our prime motto. For this, we
offer cost effective and efficient Ventilation Systems, which are used for cleaning
contaminated air. The air around an industrial area is mainly polluted by harmful gases,
dust and other pollutant in particle or granule forms. Our ventilation systems are precision
engineered to meet the rigorous pollution control standards of various industries. We also
customize these systems as per the requirements and demands of our clients.
e) Chimney
Industrial chimney that is immensely used in various industries to expel out the poisonous
gases from the industry and keep the working environment safe. We are well renowned as
one of the distinguished chimney system manufacturers. We are engaged in manufacturing
a wide range chimney.
f) Wet Scrubber
We are offering a wide range of Wet Scrubber, which is designed to control and curb the
toxic fumes from the various processes. These scrubbers are fabricated using premium
grade raw material and are strictly in conformation with the international quality standards.
High performing and energy efficient, our range of scrubbers are also available in
customized options to the clients. The efficiency is as high as 95% for particle size up to 5
micron
g) Cyclone
We manufacture a quality range of Cyclone Dust Collectors, which is used in collection of
coarse dust particles. The procedure involves introduction of dusty air in the cyclone
separator from the top through the inlet pipe. The pipe is tangential to the cylindrical

19. portion of the cyclone. Our range is useful in vacuuming any type of dust or powder from
the powder coating plants. Customization and affordable prices are the factors behind our
highly demanded range.

20. 6) Combustion Equipment
a) Heating & Pumping Equipment
We provides filtered and at preset pressures the light fuel oil like LDO, HSD etc to the
furnaces, kilns, ovens, dryers, boilers etc. Presized and completely assembled on a skid,
we are ready for connection to on-site fuel supply and electrical power. Depending upon
process application, simplex and duplex units are available.
b) Conductivity Type Heat Recovery System
We also offer our clients with Conductivity Type Heat Recovery System used to recover
the waste heat energy. We offer our clients a wide variety of super efficient Waste Heat
Recovery System that harnesses all types of heat, originating from various fuels, and from
different industry sources. These systems work on the basic principle of utilizing the heat
energy from exhaust gases that are produced from diesel engines, gas engines, gas turbines,
furnaces, or industrial process plants. The gases that are to be discharged into the
atmosphere are cooled down by this system, and converted into electricity, steam or hot
water.
c) Single Stage Blower
Our company offers a complete range of standard Single Stage Blower for flow rates from
25 cu. mt. /hr through 10,000 cu. mt. /hr in single stage and up to any capacity in parallel
configuration for working pressure range up to 1kg/sq. cm. These are available as total
package units, ready to install or as bare blower units for replacement.
e) Double Stage Blower
We bring forth an extensive range of Industrial blowers which provides free motion and
constant air flow. Our designed industrial blower completely meets the industry standards
for high efficiency and trouble free operation. Our industrial air blowers are available in
single and double stage. Our manufactured blowers are fabricated from quality raw
material like mild sheets and consist of dynamically balanced impellers.

21. f) Radiant Type Heat Recovery System
We are instrumental in designing and manufacturing a wide range of radiant tubes and
retort type that is used for indirect heating in various gas fired and control atmosphere
furnaces.
g) Recuperator
We are also one of the few names to offer premium Recuperator system at competitive
prices. This system is a heat recovery system which can be installed on exhaust path.
Designed in accordance to air/fuel ratio, it consists of a recuperator that is selected
according to air/fuel ratio the shell and tube type. It is to be noted that the recuperator can
pre-heat the combustion air to the tune of 250 C to 300 C and preheated combustion gases
are used along with the fuel as combustion fuel mixer. Its chimney is designed up to 1
meter level from the furnace top and atmosphere temperature can be felt by the operator or
shop level from the furnace top. In addition to this the carbon content is very much less and
is within the population control board norms.

22. 7) Furnace Oil Handling System
a) Oil Tank
A well established name; we are engaged in providing oil tank. These are known for large
storage capacity (upto 25 KL), compact design and sturdy construction. Our furnace tanks
are made as per the industrial quality standards.
b) Oil Filter With Out Flow Heater
Our ranges of Furnace Oil Filters are designed according to international standards.
Designed in compliance with various industrial standards our array is provided with
convenient spin on design that helps to lessen the wear and tear of engine.
c) Out Flow Heaters
Out flow heaters are used to reduce the viscosity of the furnace oil and thereby enabling an
easy flow through pipelines and exerting fewer loads on transfer pumps. They consist of
one or more renewable cartridge type heating elements , thermostat , indicating bulb, dial
thermometer , air break contactor and matching flange in outflow heater, only that quantity
of oil is heated upto about 50 degree c, which is flowing out of the tank
d) Oil Pumping System
Oil Pumping System allows supply of oil to burners at specified pressures & temperatures.
Furnace oil heating pumping filtering unit is used for oil preparation-a vital phenomena for
the efficient operation of low air pressure and pressure jet oil burner. It's available as a
factory finished unit in duplex versions. They comprise of oil heater fitted with renewable
cartridge type heating element, gear oil pump with motor, oil filters, ball valves, pressure
regulating valves & instrumentation

23. FURNACES FOR FERROUS METALS
8) Billet Re-heating Furnace
Pusher Type Billet Reheating Furnace upto 50 Tonnes/hr. capacity.
These furnaces are mostly used in Steel Rolling Mills.
Our firm is actively engaged in consultancy, manufacturing
and supply of complete rolling mill plant, combustion
equipment and billet re-heating in India and abroad for the
last several years. Our clients are in all over India, Middle
East Countries of Asia and Eastern Countries of Africa. We are
capable of manufacturing billet reheating furnace. These are qualitative in
terms of their technical accuracy and design efficiency. The salient features
are:
•
•
•
•
•
•
•
•
Capacity: 5 to 50 Metric ton / hr.
Temperature: 1300°C
Design: Pusher Type Double Zone Pusher Type Triple Zone. Pusher Type Triple
Bottom fired.
Low fuel consumption of 0.3 x 106 K.Cal/tonne.
Burning losses are minimum (less than 1%).
These furnaces are either oil fired or gas fired.
Continuous availability of stock at the rated capacity.
Capable of heating billets/ingots upto 200 mm sq. for top firing and
upto 300 mm sq. for top and bottom firing furnaces.

25. 9) Metal Handling Equipment
In a typical heating application of ladles in steel plants our film burners can save as much
as 50-60% of fuel. The ladle heating time has been reduced substantially and a specific fuel
consumption of about 3-3.5 liters per tonnes of ladle capacity has been achieved.
a) Horizontal Ladle Preheating Systems
We are engaged in offering a superior quality Horizontal Ladle Preheating Systems that can
be run by various fuels like HFO, Coke Oven Gas and Oxy Fuel. It is designed and
produced in compliance with highest quality standard using finest material at vendor's end.

26. Preheating system we offer comprise ceramic fiber lining, frame of SAIL steel, standard
electrical/ fuel motor and standard bearings.
b) Molten Metal Transfer Ladle
Molten Metal Transfer Ladle is a refractory product, which is basically used for molten
metal transfer. Ladles enable molten Aluminium to be held at temperature for extended
periods, keeping metal clean.
10) Conveyorized Furnace for Spring Tempering
Our conveyorized furnaces are used for continuous heat treatment of smaller
components such as motor laminations, automotive springs or other critical items in
normal or special atmospheres. We have a large reference base of users for our
conveyorized tempering furnace designs.
Thanks &
Regards
Super furnace
Pankaj
chauhan
09958837764

27. Plot no 44, 16/2 Karkhana bagh, Mathura road
Faridabad(Haryana) 121003
