A slide for SiriusCon 2021

1. Developing Modeling Tool for RM-ODP with
Eclipse Sirius
view5 LLC
AkiraTanaka
SiriusCon 2021

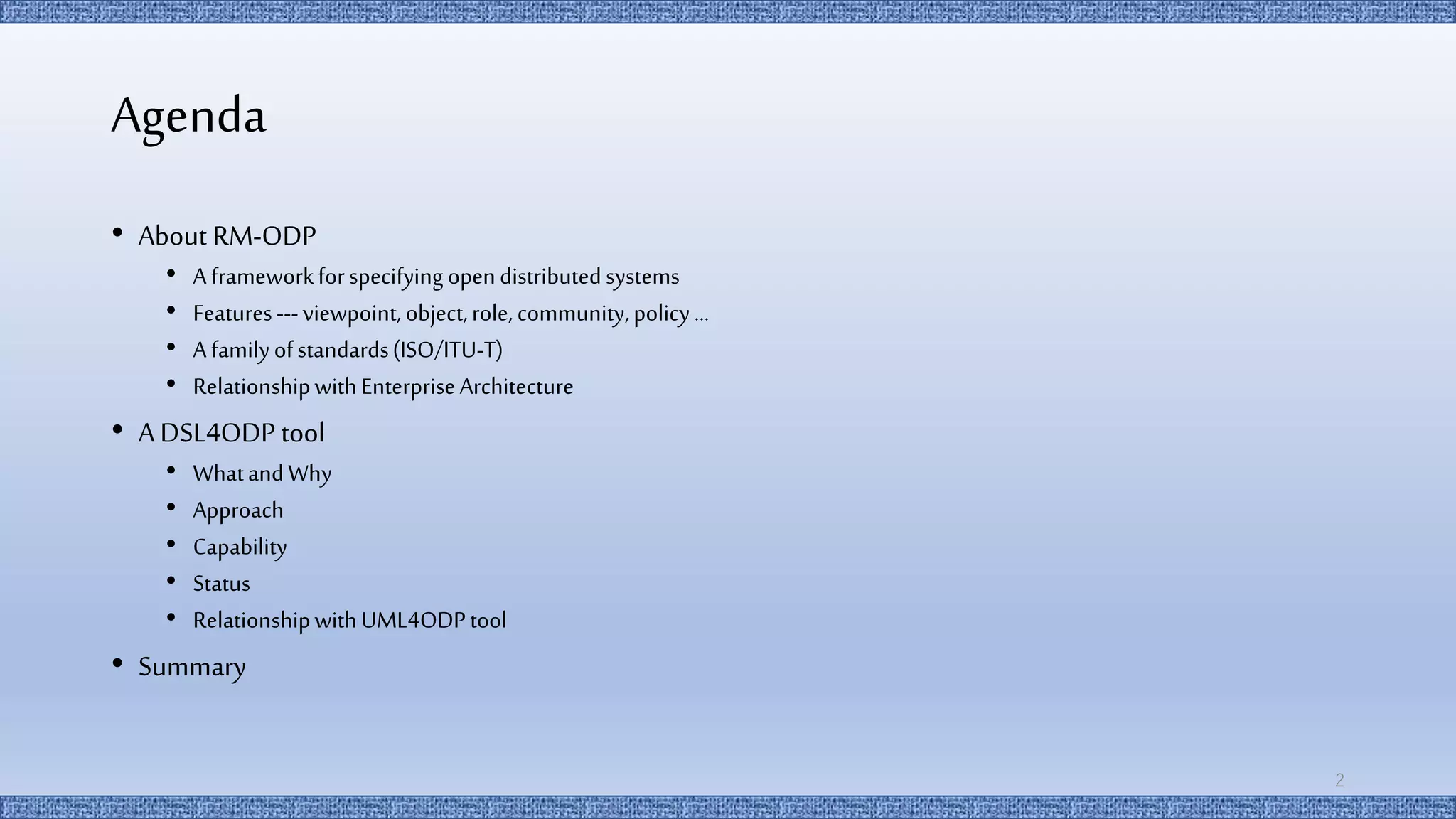

2. Agenda
• About RM-ODP
• A frameworkforspecifying opendistributedsystems
• Features---viewpoint, object,role,community,policy…
• A familyofstandards(ISO/ITU-T)
• RelationshipwithEnterpriseArchitecture
• A DSL4ODP tool
• WhatandWhy
• Approach
• Capability
• Status
• RelationshipwithUML4ODPtool
• Summary
2

3. About RM-ODP
• Reference Model of Open Distributed Processing
• A family of Standards (ISOand ITU-T)
• Foundation–ISO/IEC10746-2/ITU-TRec.X.902
• Framework– ISO/IEC10746-3/ITU-TRec.X.903
• EnterpriseLanguage– ISO/IEC15414:2002/ITU-TRec.911
• UseofUML forODPsystemspecifications–ISO 19793/ITU-TRec.X.906 …
• What is RM-ODP?
• A standard framework for specifying open distributed systems
• X.902:Basic concepts (e.g.Object,Abstraction, Action, Role, … )
• X.903:Framework with Viewpoints (Viewpoint, Viewpoint Specification, Viewpoint language)
3

4. About RM-ODP
• RM-ODPcanbeusedfor:
• Specifying system architectures for open/interoperable distributed systems
• Characteristics
• Method independent
• Notation independent
• UML Profile was standardizedatlaterstage
• Resources
• RM-ODP site: http://www.rm-odp.net
• RM-ODP Book: Building Enterprise Systems with ODP
• Standards: http://www.itu.int/itu-t/recommendations/index.aspx?ser=X
(X.900series)
4

5. 5

6. Modeling Concepts:Categories & examples
6
Basic Interpretation Concepts
Foundational Concepts
Basic Linguistic Concepts
Basic Modeling Concepts
Specification Concepts
Structuring Concepts
Conformance Concepts
OrganizationalConcepts
Properties of systems andobjects
Naming Concepts
Concepts forBehaviour
Management Concepts
entity, abstraction, system, architecture …
action, object, environment, interface, location …
composition/decomposition, type , template, role …
configuration , domain…
tern, sentence, model, specification …
transparency, policy …
name, identifier …
chain of actions, thread, …
application management, …
programmatic/perceptual/interworking reference point …

7. Viewpoints
• Different abstractions of the same system
• reflect different concerns
• expressed in terms of specific viewpoint concepts
• Mechanism for dealing with the complexity of distributed systems
7

8. Viewpoints
• Standard viewpoints and correspondences
• Enterprise viewpoint
• Information viewpoint
• Computational viewpoint
• Engineering viewpoint
• Technology viewpoint
• Correspondence between viewpoints
8

9. 9
Enterprise
Technology
Information
Computational
Engineering
System
• Enterprise object
• Community, Role
• Policy, accountability …
• Business process
• Business interactions
• Information object
• Static schema
• Invariantschema
• Dynamic schema
• Technology object
• Implementation
• Conformance points
• Computational object
• Computational bindings
• Computational interfaces
• Operations, Streams, Signals
• Engineering object
• Node, capsule, cluster
• Channels including interceptor

10. Enterprise Architecture
• Enterprise Architecture Definition (Wikipedia)
• “Enterprise architecture (EA)is concernedwith the structures and behaviors of a business, especially
business roles and processes that create anduse business data.
• It has been defined as "a well-defined practice for conducting enterprise analysis, design, planning, and
implementation, using a comprehensiveapproach at all times, for the successful development and
execution of strategy.
• Enterprise architecture applies architecture principles and practices to guide organizations through the
business, information, process,and technology changesnecessarytoexecute theirstrategies.
• These practices utilize the various aspects of an enterprise to identify, motivate, and achievethese
changes."[1]”
10

11. Enterprise Architecture
• Enterprise Architecture (EA) and EA Framework examples
• Zachman Framework (commercial)
• 6 Perspectivesand5W1H
• Federal Enterprise Architecture (FEA)of the US government
• DoD Architecture Framework
• Unified Profile forDoDAF andMODAF (OMG specification)
• TheOpen GroupArchitecture Framework (TOGAF)
• ArchiMate(language forADM)
• Archi (graphicaltoolimplementing ArchiMate)
• Obeo’sSmartEAproduct(ArchiMatesupport)etc.
11

12. RM-ODP and TOGAF
12
RM-ODP ISO, ITU-T
A framework forspecifyingopen
distributedsystems
EnterpriseViewpoint,
InformationViewpoint,
ComputationalViewpoint,
EngineeringViewpoint,
TechnologyViewpoint
RM-ODP ViewpointLanguages
- Enterpriseviewpointlanguage,
- Informationviewpointlanguage,
- Computationalviewpointlanguage,
- Engineeringviewpointlanguage,
- Technologyviewpointlanguage
notation
independent
(exception:
UML4ODP)
methodindependentMagicDraw etc.
TOGAF TheOpen Group
A framework forEnterpriseArchitectureor
A standardapproachforassistingin the
acceptance,production,useand
maintenanceof EnterpriseArchitecture
BusinessArchitecture
DataArchitecture
ApplicationArchitecture
TechnologyArchitecture
ArchiMatelanguagecovering
- BusinessArchitecture
- DataArchitecture
- ApplicationArchitecture
- TechnologyArchitecture
ArchiMate's
GraphicalNotation
TOGAF/
ADM
(Architecture
Development
Method)
Archi,
SmartEA,
Modelio,
MagicDraw,
EnterpriseArchitect,
VisualParadigmfor
UML etc.
Standard Scope Viewpoint Language Notation Method Tools
Maintechnical differences: 1) scope, 2) choice ofviewpoint andits languages, and3) methodology

13. Enterprise Architecture tools
• Various tools – search “enterprise architecture tools” on the web
• Examples
• Whiteboard/Notebook/Spread sheet/Drawing tools, for capturing and organizing enterprise
architecture elements
• Archi is a tool from TOG, implementing ArchiMate models of TOGAF
• Obeo’s SmartEA:https://www.obeosmartea.com/
• Various UMLTools in the market provide TOGAF(plugin) and/or OMG’s “Unified Profile for
DoDAF/MODAF” implementation
13

14. Toward UML Profile
• RM-ODP is notation independent.
• ODP specifications are mostly in text form possibly with supporting materials (e.g.documents,
diagrams, tables, spreadsheets, … )
• You havea variety of methods/notations to write ODP specifications.
• However, communication may becomean issue.
• A UML Profile standard was introduced.
14

15. Use of UML for ODP system specifications (UML4ODP)
• UMLbased notation for the expression of ODP specifications for easier communications between ODP
stakeholders
• UML wasalreadyan internationalstandard. It wasnaturaltomakeuseof UML Profile mechanism forRM-ODP.
• It provides:
• The expressionofasystem specificationin termsofRM-ODPviewpoint specificationsusing definedUML concepts and
extensions
• Aset ofUML2.0 profiles (one for each viewpoint)
• Away of using these profiles (structuring rules)
• relationshipsbetween the resultantRM-ODPviewpoint specifications;
• Away of modelling ODP correspondences
• Aprofile forcorrespondences
• A wayformodelling conformanceofimplementationstospecifications;
• Aprofile forconformance (reference points, conformance statements, etc.)
15

16. Use of UML for ODP system specifications (UML4ODP)
• Howit was developed
I. Createmeta-modelor conceptualmodel ofRM-ODP
II. Define UML Profile,basedon themeta-model
 Issue: Thecreated UMLProfile was semantically richerthan the original meta-model.
• UML4ODP allows
• UML userstocreate RM-ODPbasedspecification,and
• RM-ODPuserstouseUML (tools)to createRM-ODPbasedspecificationwithUML.
• TheUML Profile was implemented against several UMLtools. Forinstance, an implementation for
MagicDraw was the tool used in writing ourODP book.
16

17. UML Profile
• Mechanism to extend standard
UML
• Stereotype
• Tag value
• Constraint
17

18. UML4ODP diagramexample(top-level)
18

19. UML4ODP diagramexample
-- Role, Object,Process, Policy --
19

20. UML4ODP diagramexample
-- Invariant/Static Schema --
20

21. UML4ODP diagramexample
-- Computational, Engineering, Technology --
21

22. Developmentof DSL4ODP tool
22

23. DSL4ODP tool: what and why
• Alternative to UML tool with ODP plugin
• Sirius-basedgraphicalDSLtooltoedit ODPmodels
• Shouldbecapableof editing similar diagramsin UML4ODPstandard
• Why do we want “alternative”?
• MagicDraw(UML tool) productwithODPplugin was(still is,if youhavea license) thebest choicetoedit ODPmodels.
• The toolvendorwasacquiredandthe licensing feeforMagicDrawproductwentup significantly.
• Therearepeoplewhoneed anaffordableODPtooltodotheir standardizationworkon avoluntarybasis.
• The needforalternativeODPtoolemerged.
• Options:1) AnotherUML4ODPimplementationforopen UML modeler likePapyrus,or2) Sirius-basedDSLmodeler
<consideration:dependencies andextendability>
23

24. DSL4ODP tool: Approach
• Idea
• Sirius-basedDSLtoolcan becreated,if wehaveRM-ODPecoremodel.
• Fact
• UML4ODPstandardcontainsa setof meta-modelsorconceptual-modelstospecifyUML Profile.
• First step
• Basedon themeta-models,anecorefile wascreatedwithEcoreDiagramEditor.
• Issues:
• The numberofStereotypeswerelarger thanthe numberofmeta-modelelements in UML4ODP. I.e.aboveecore file need to
beextended.
• Equivalentsofseveral basic UML elements andstructures,suchas UML Package,Statemachine,andProcessflow,werenot
foundin RM-ODP.
24

25. DSL4ODP tool: Approach
• Foreach model diagram in UML4ODP
• Createa newdiagramin theecorefile toincludeadditionaleClass(es) torepresent allthe necessaryelements, ifany.
• Addadditionalreference(s) toeClassesneeded torepresent allthe relationshipsin abovediagram,if any.
• Savetheecorefile.
• Editconfigurationfile (.odesign) toreflect aboveandeditadditionaltool(palette) elements.
• Trycreateequivalent diagram(if adiagramcould notbedescribed,go backtothe firststep).
25

26. DSL4ODP tool: Approach
• [Temporarily] Defined a ODP instance model structure to allow navigations within the model.
• Newdiagram creation
• Originallyusedcontextmenu of model elements in model explorer
• Switchedtodouble-clickablediagramelements ,in caseit waspossible
• Typical Tycho/Maven build
26

27. DSL4ODP: Status
• DSL4ODP is a work-in-progress project.
• Thefollowing parts of UML4ODP werecovered as Sirius-based DSL modeleras of today.
• EnterpriseViewpoint
• InformationViewpoint
• CorrespondencebetweenEnterpriseandInformation
• Openfor review(the latest version)
• https://www.dropbox.com/sh/pymiyxn07rcau77/AADCxITJRJQ7ym-Iqp-8NcWia?dl=0
• Currentlyversion 0.2 rev1
• Newrelease(s) will bepostedonaboveURL
27

28. About DSL4ODP tool
• Contents of open for review’s ULR
• Documents folder
• docsEcontaining”AboutDSL4ODPtool.docx”and“Using DSL4ODPtool.docx”
• docsJ
• video containing“Installation.mp4”and“SampleProject.mp4”
• ReleaseNote folder
• README(E).txtandREADME(J).txt
• SampleProject folder
• SampleProject.zip
• WorkingProduct folder
• DSL4ODPDesignerforLinux,Mac,andWindowsarchivefile
• README.txt
28

29. Demo
29

30. DSL4ODP andUML4ODP
30
Functionality Availability Extendibility Dependencies Openness
DSL4ODP [work-in-progress]
Enterprise Viewpoint
Information Viewpoint
E-ICorrespondence
Stand-alone app and
freely downloadable
Various possibilities (e.g. Model
transformation, Codegeneration,
Textual model, on the web etc.)
Eclipse Sirius andEMF
(Acceleo, Xtext etc.)
Will be open
sourced in future
UML4ODP
- MagicDraw+ODPplugin
Full
Needs MagicDraw
license
ODP Plugin
UMLspec andthe tool's
implementation including
APIs
?

31. DSL4ODP: Future Plan
• Future work candidates
• Adding remaining viewpoints (next: Computational viewpoint)
• Adding codegenerations (e.g.from invariant schema to java)
• Adding model validations
• Adding model transformations (e.g.Engineering to Technology)
• Adding textual DSL support with Sirius-Xtext Integration
• Integration with otherDSLs (e.g.BMM, BPMN, … )
31

32. Summary
• Do not forget it’s an on-going/work-in-progress project.
• Covered first twoviewpoints so far.
• Thetool allowscreatingmost UML4ODP diagrams of Enterprise andInformation Viewpoints in DSL4ODP style.
• Therearevarious possibilities to extend.
• Confirmed that Eclipse Sirius is a very suitable tool for DSL4ODP project:
• Withanecore, you candefine a configurationfile to generateyour model editor.
• From my experience in doing this project:
• If you startwithmeta-model of anyUMLProfile, you might need toaddPackage, Association,common structuresto meta-model,
andrelax Multiplicities.
• Execute theloop untilyou aredone: [Update the ecore model, re-generatecode,] edit the configurationfile, andtest themodeler.
• Sirius documentationand validationfunctionon the configurationfile, aswellas searchingSirius forum and github.com, wasvery
helpful.
32

33. Check against“Requirements for ODP
EnterpriseArchitecture Tools”
33
# Functional requirements Check
1 Model editors areneeded foreach ODPviewpoint
Each editor should implement the corresponding viewpoint language providing a concrete syntax
OK
2 Each viewpoint editor should enforce the structuring rules OK
3 Modeling the correspondences between viewpoints OK
4 Checking the consistency between different specifications Future
work
5 Checking formodeling defects (structural defects, undefined behaviour, ODP-specific inconsistences, etc.) Future
work
6 Change andevolution management -
7 Take advantage of MDDtechniques: model transformations Future
work
8 Handling model repositories -

34. Check against“Requirements for ODP
EnterpriseArchitecture Tools”
34
# Functional requirements Check
9 Take advantange ofMDDtechniques: model transformations
- Generation ofpartial implementations tocommon platforms using the different viewpoint specifications (IV, CV…)
- Translation between different notations
- Codegeneration
Future
work
10 Automatic addition of transparencies tothe ODP specification -
11 Provision of a librarywith the most common ODP functions -
12 Possibility of adding new features andfunctionalities according tofurther ODP standards -
13 Consideration ofsoftware metrics -
14 Inference ofuseful information (models, design elements orrelationships, assets, metainformation, etc.) fromthe repository -
15 Ensuring the correctness oftransactions andthe provision of the proper communication andcoordination mechanisms -
16 RM-ODP is methodology independent BUT … -
