1. Developing Apps for Nokia
Windows Phone
Level: Intermediate
Raj Lal
Senior Engineer, Nokia

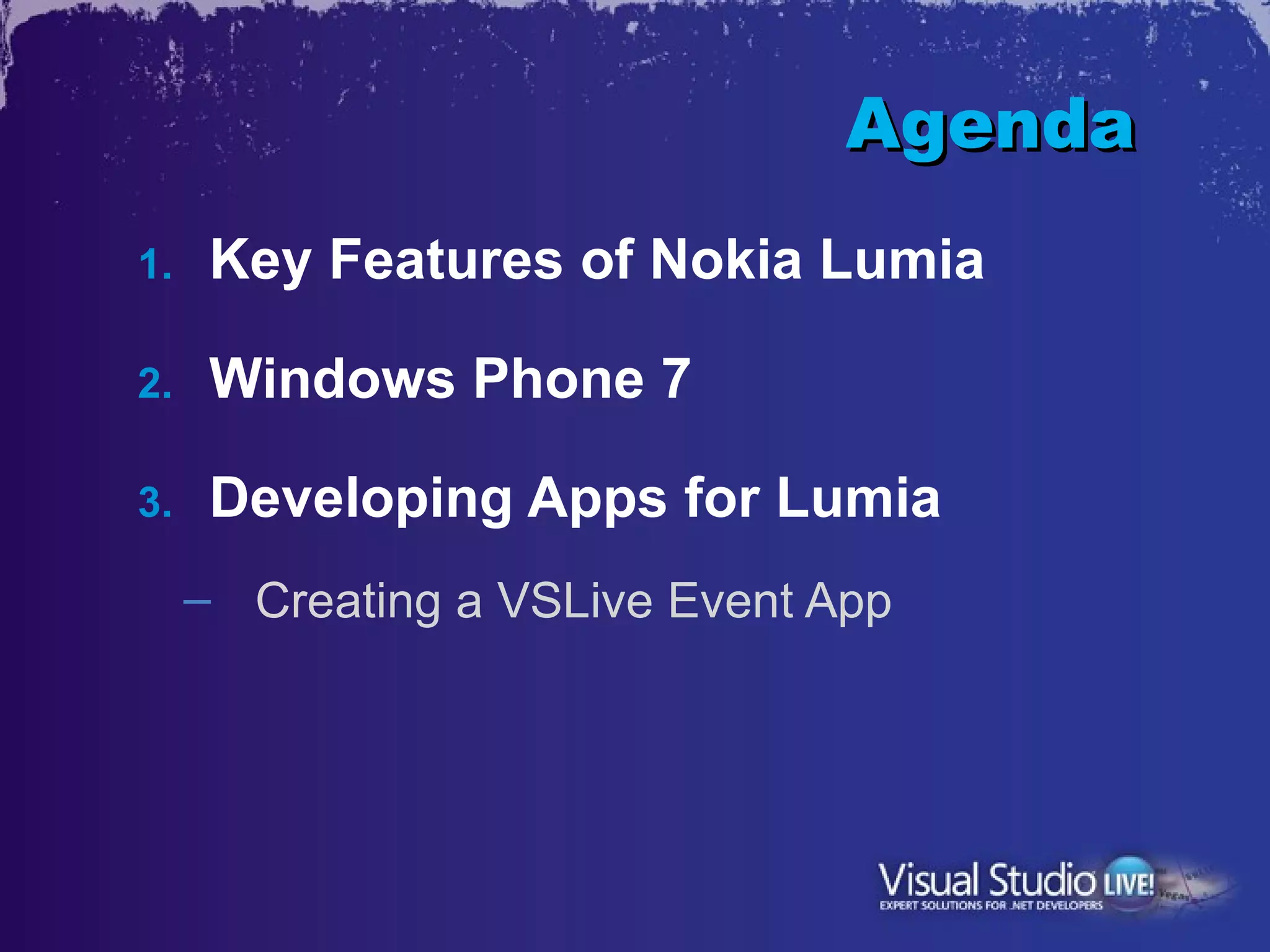

2. Agenda
1. Key Features of Nokia Lumia
2. Windows Phone 7
3. Developing Apps for Lumia
– Creating a VSLive Event App

3. Key Features of
Nokia Lumia

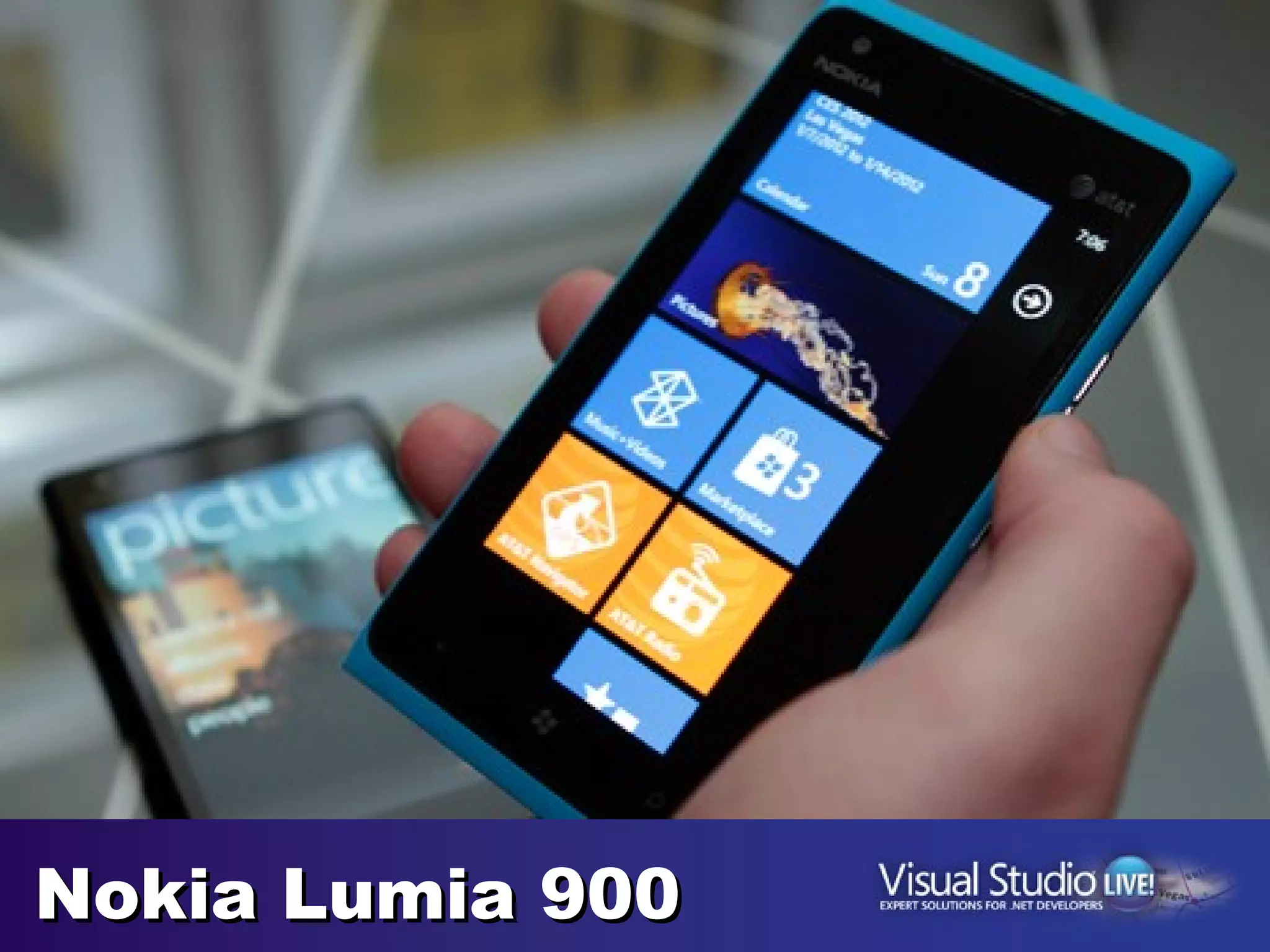

4. Nokia Lumia 900

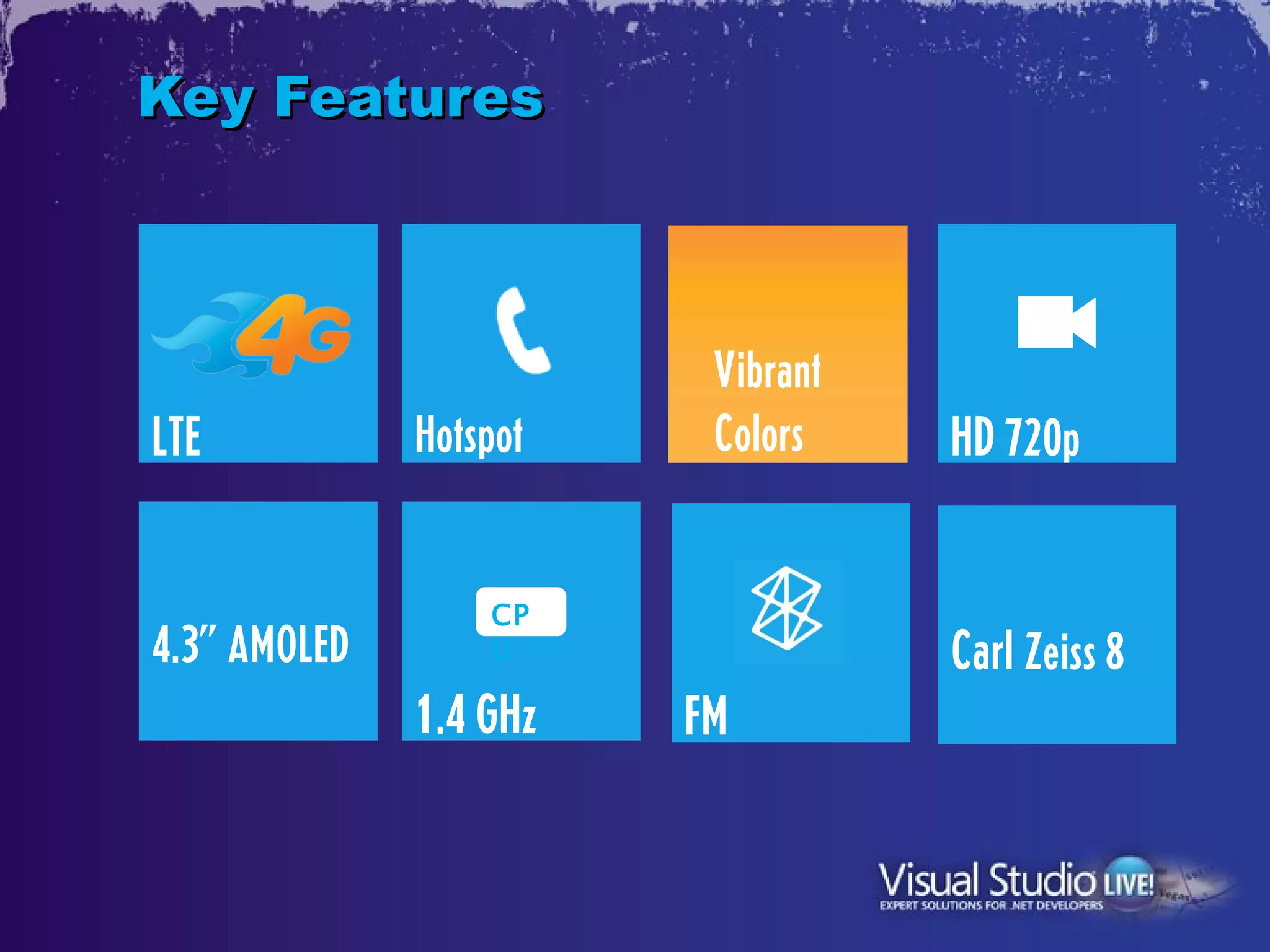

5. Key Features
Vibrant
LTE Hotspot Colors HD 720p
CP
4.3” AMOLED U Carl Zeiss 8
1.4 GHz FM

6. Windows Phone
on Lumia

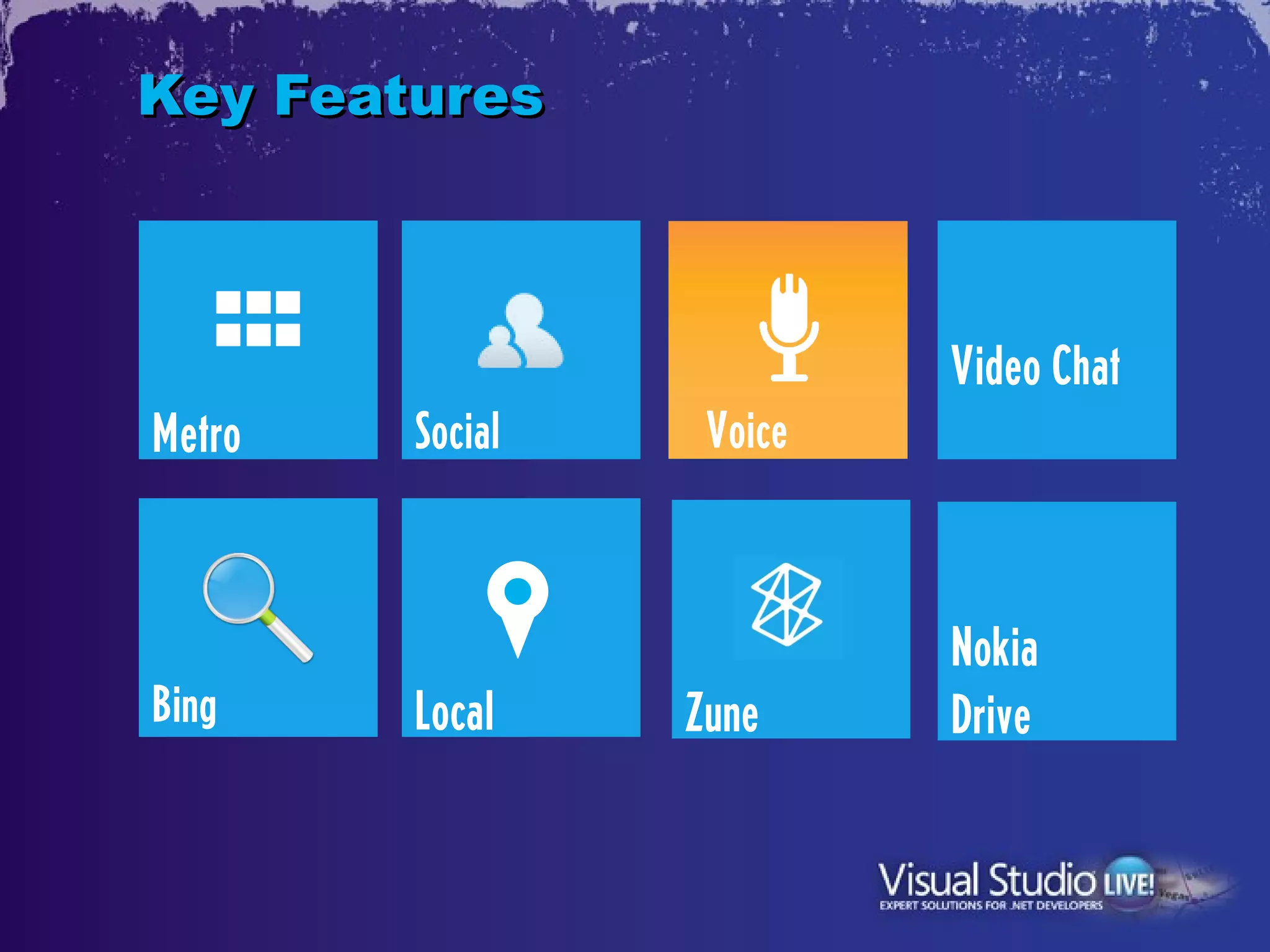

8. Key Features
Video Chat
Metro Social Voice
Nokia
Bing Local Zune Drive

9. Developing Apps
for Lumia

10. Two Choices *
* You can have both in a single App

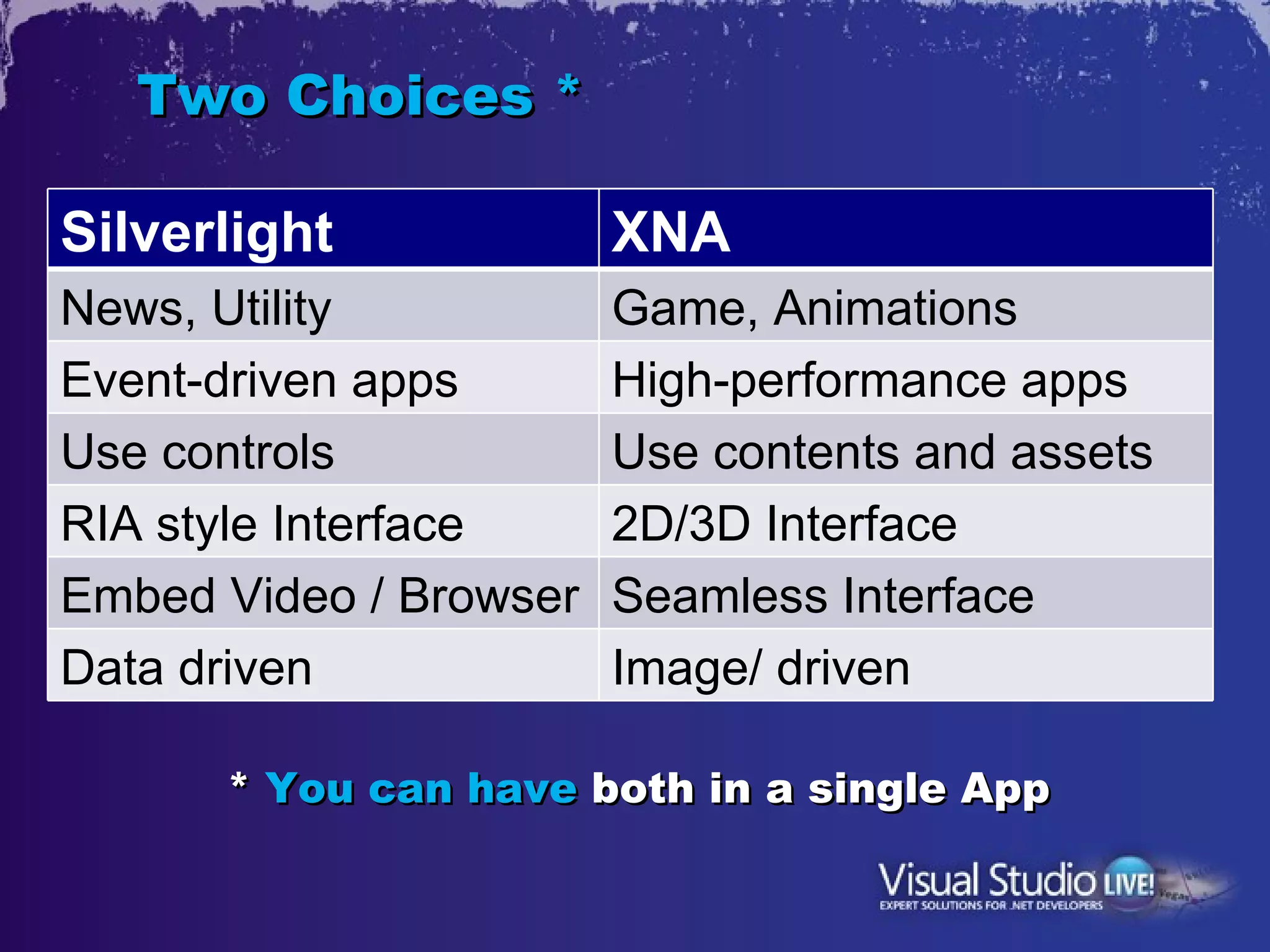

11. Two Choices *
Silverlight XNA
News, Utility Game, Animations
Event-driven apps High-performance apps
Use controls Use contents and assets
RIA style Interface 2D/3D Interface
Embed Video / Browser Seamless Interface
Data driven Image/ driven
* You can have both in a single App

12. Silverlight App

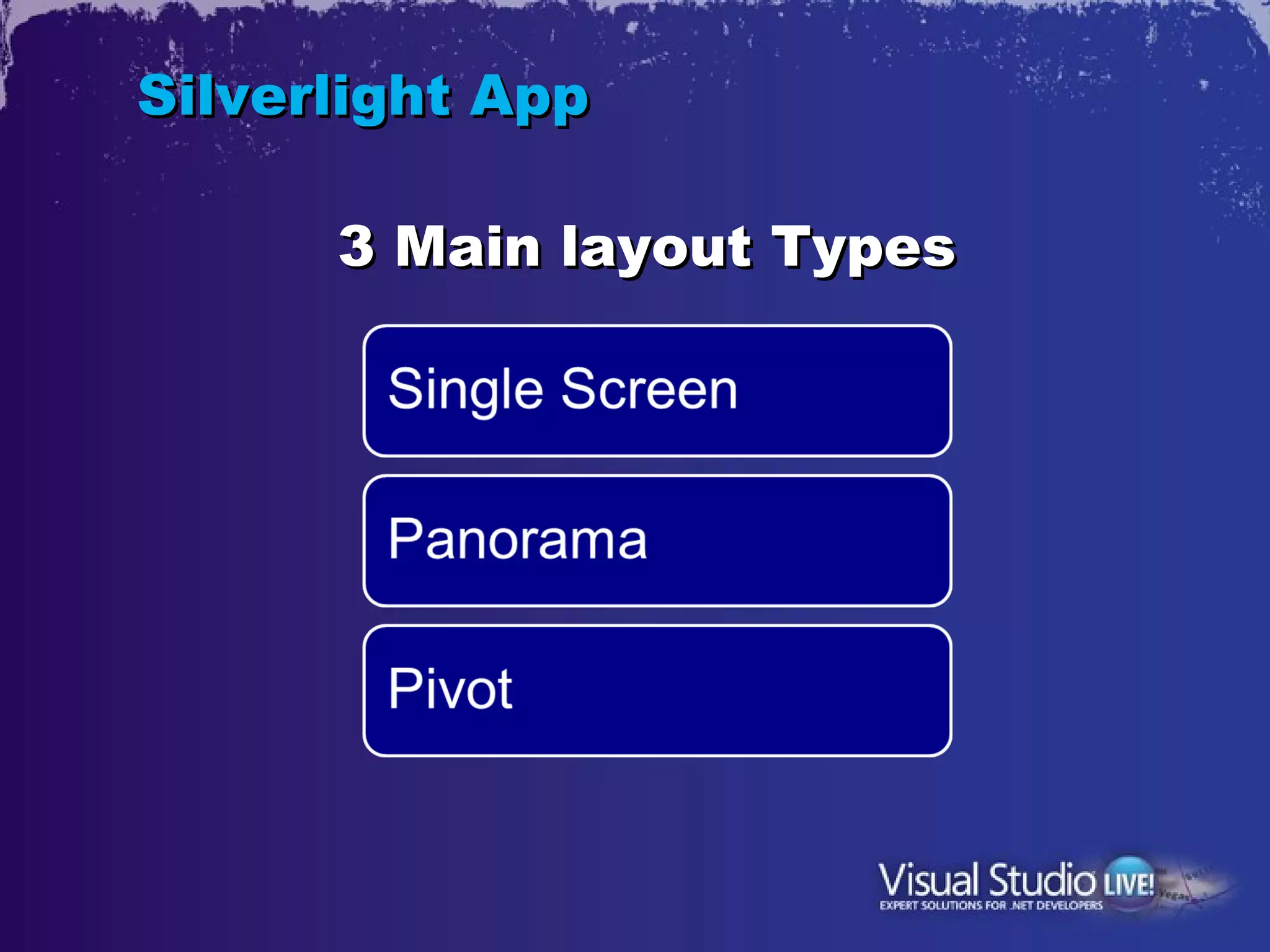

13. Silverlight App
3 Main layout Types

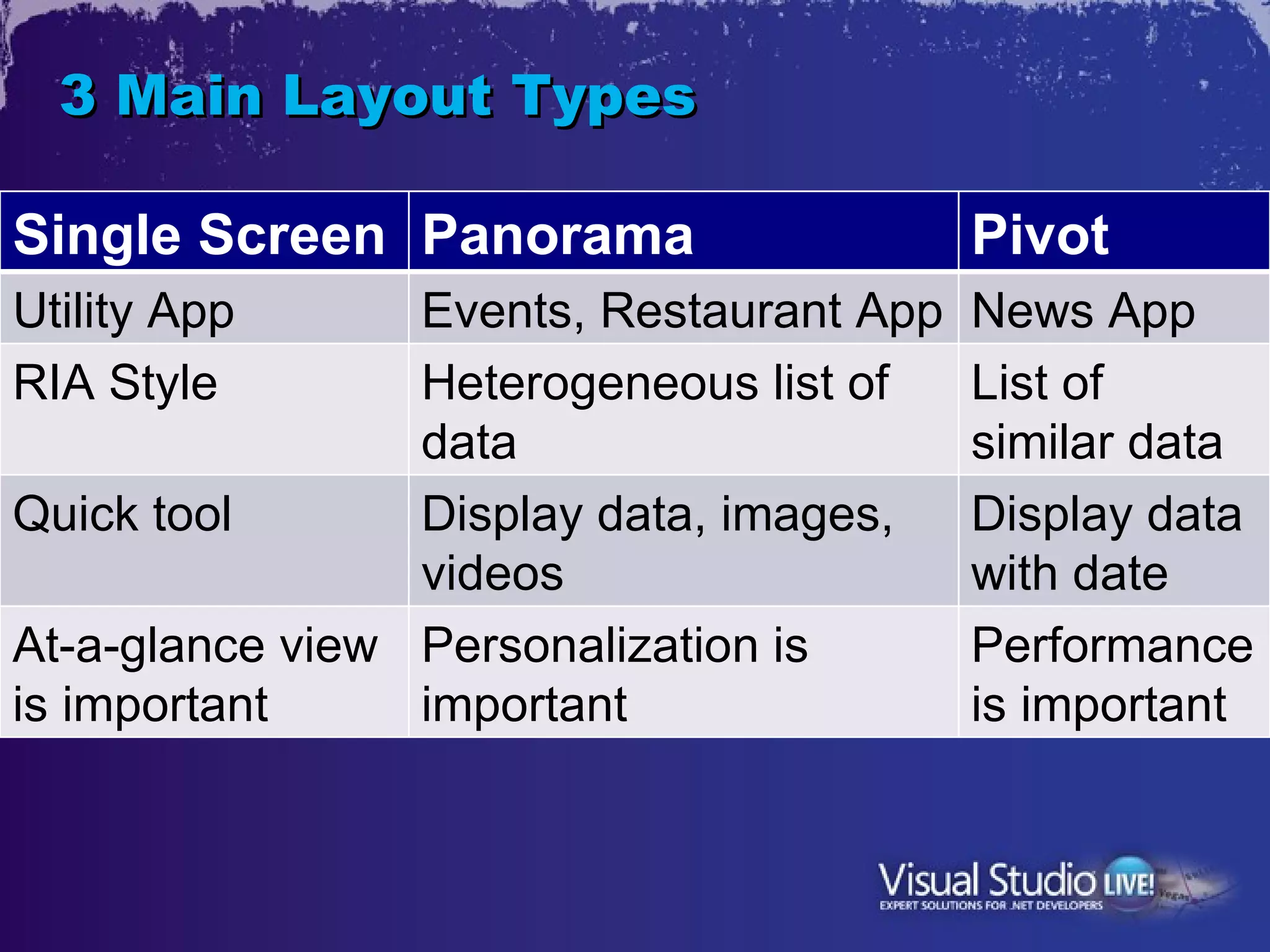

14. 3 Main Layout Types
Single Screen Panorama Pivot
Utility App Events, Restaurant App News App
RIA Style Heterogeneous list of List of
data similar data
Quick tool Display data, images, Display data
videos with date
At-a-glance view Personalization is Performance
is important important is important

15. Developing a
VSLive Event App

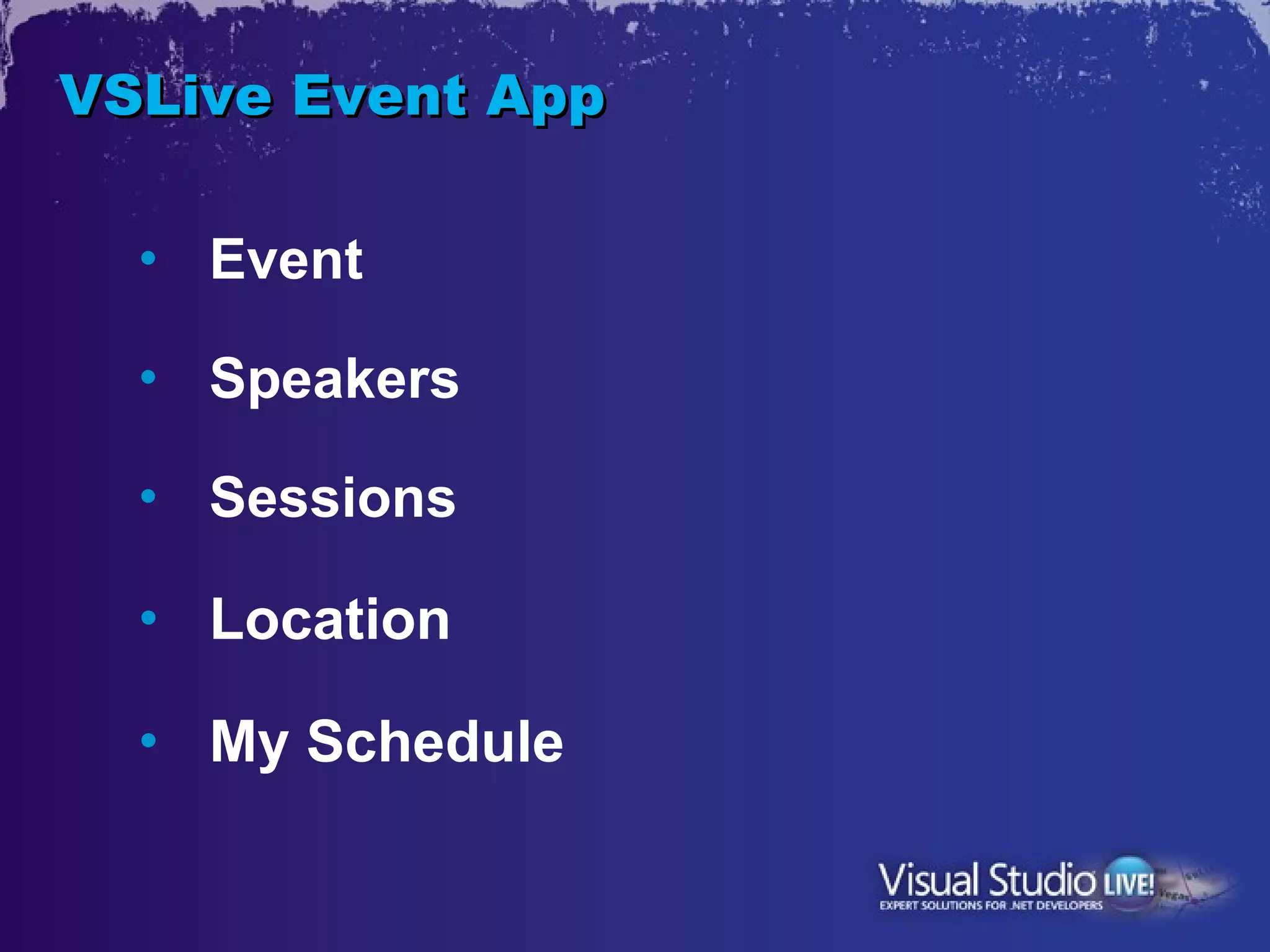

16. VSLive Event App
• Event
• Speakers
• Sessions
• Location
• My Schedule

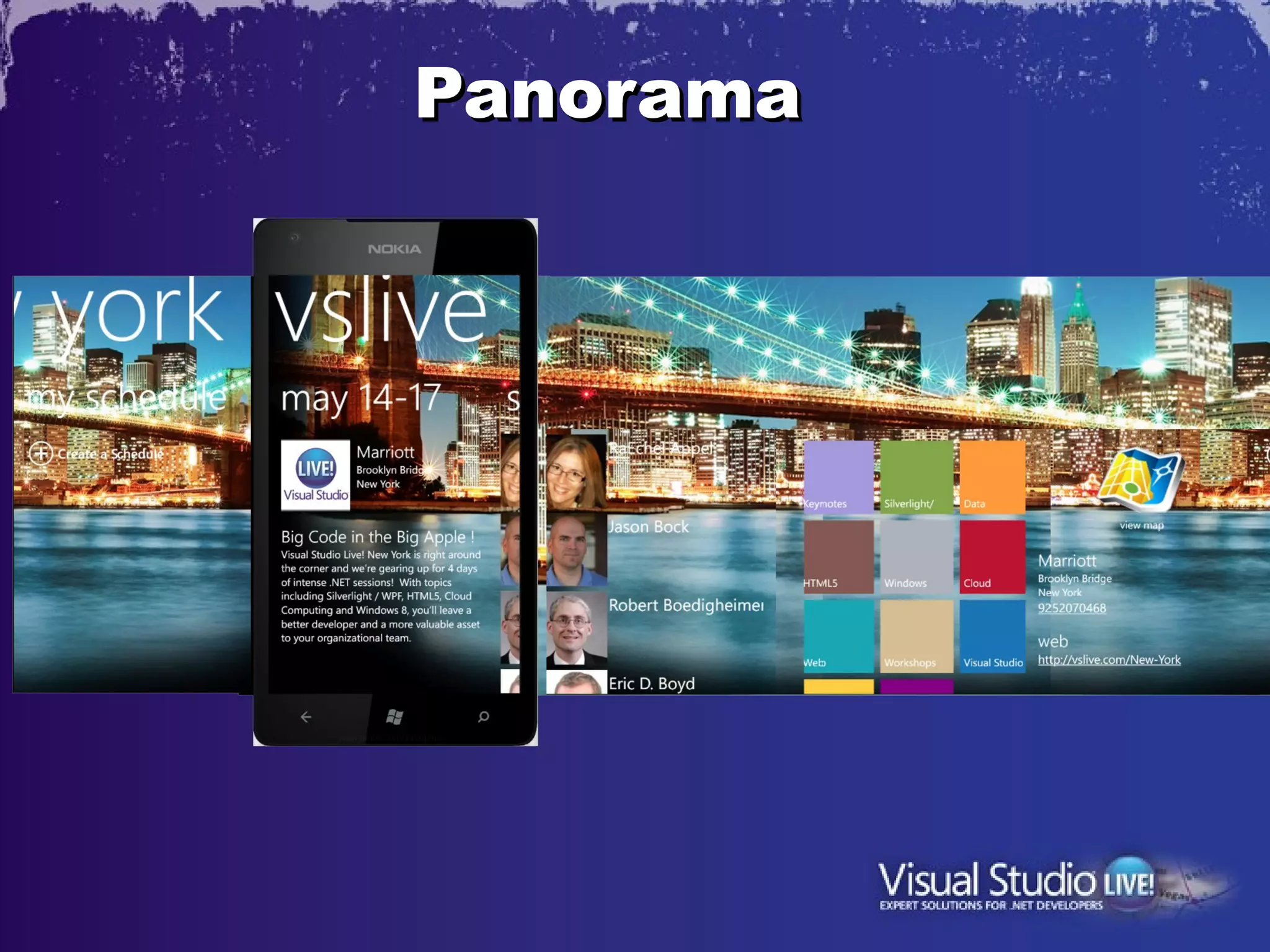

17. Panorama

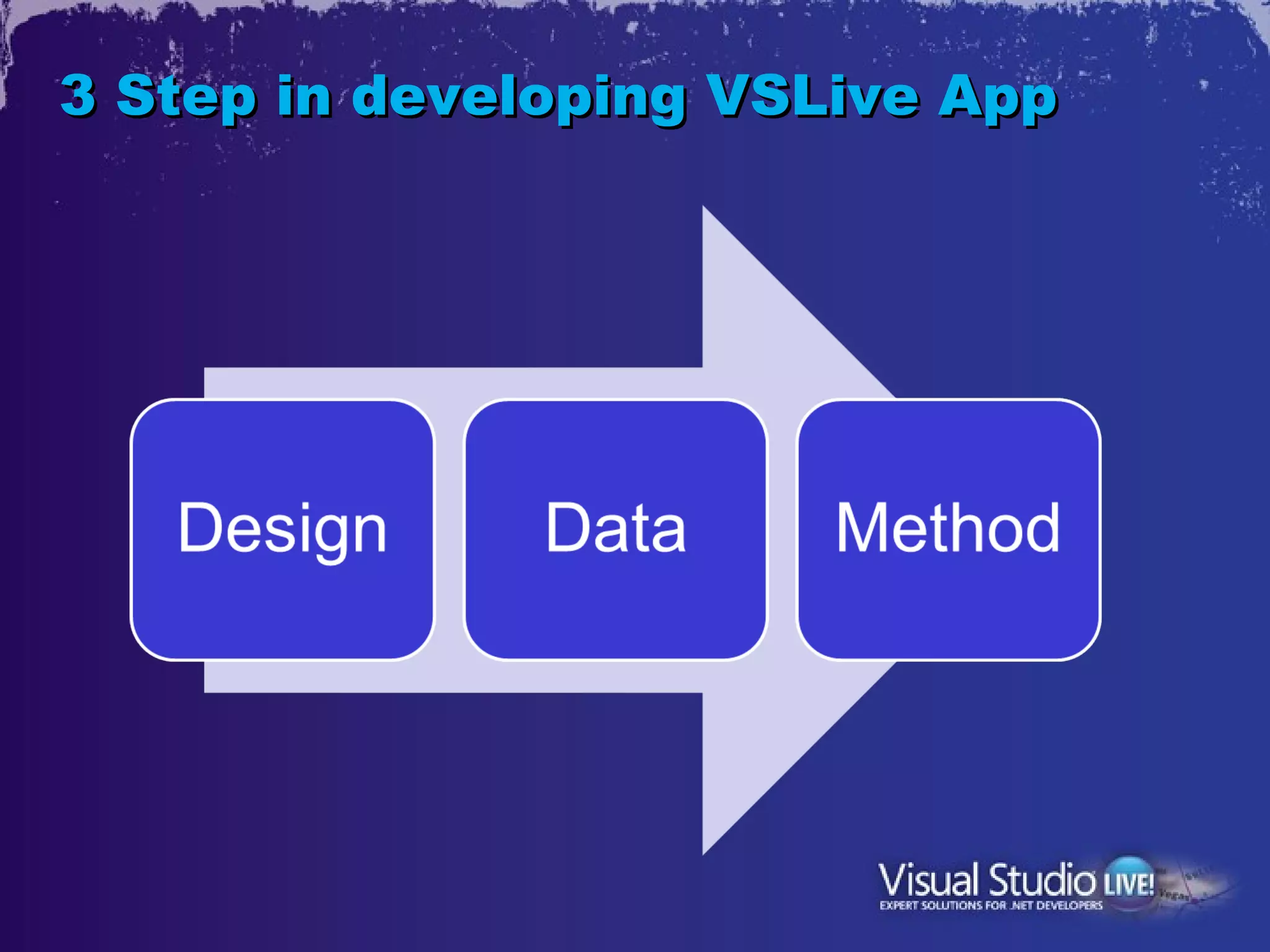

18. 3 Step in developing VSLive App

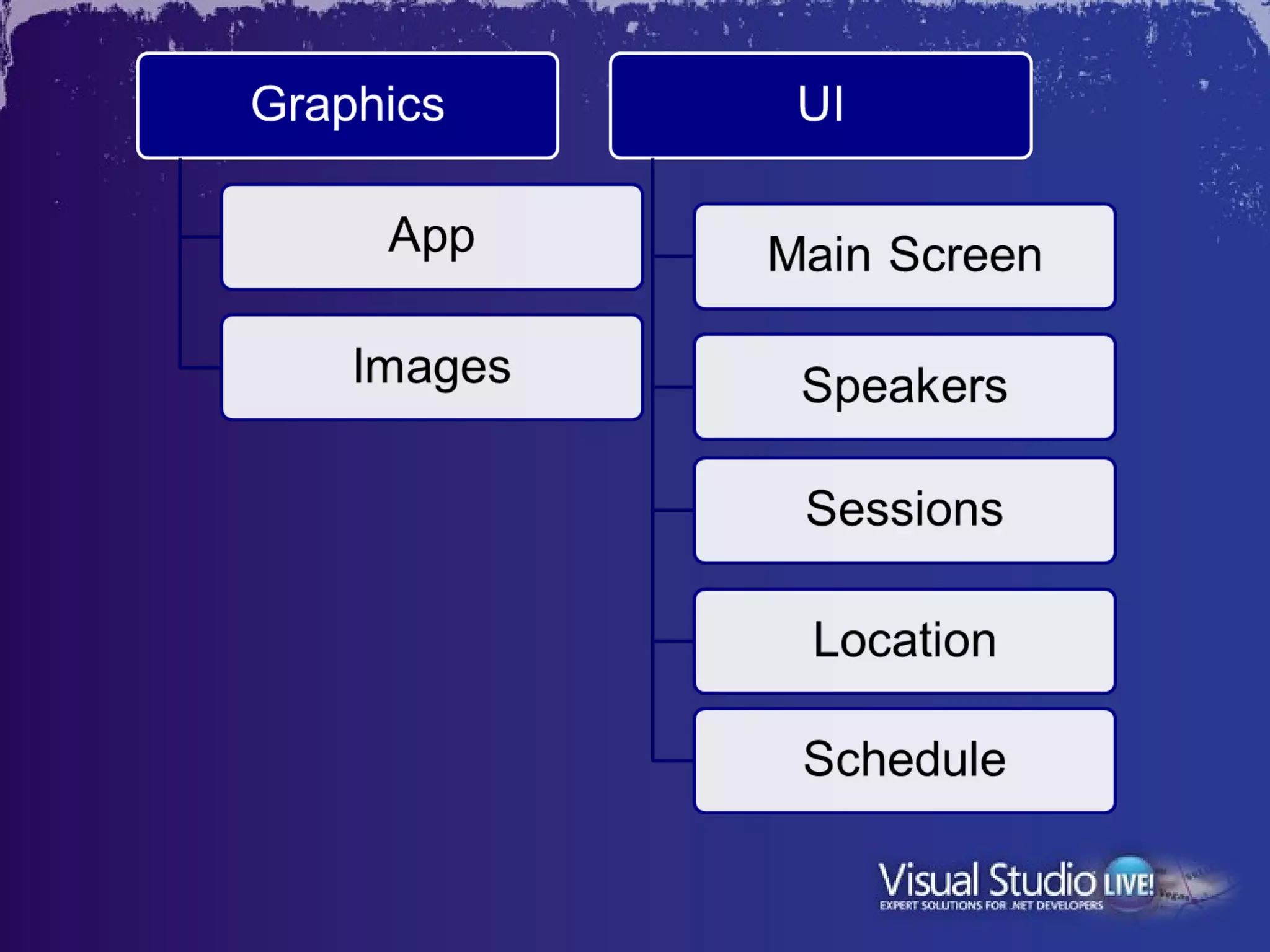

19. 1. Design

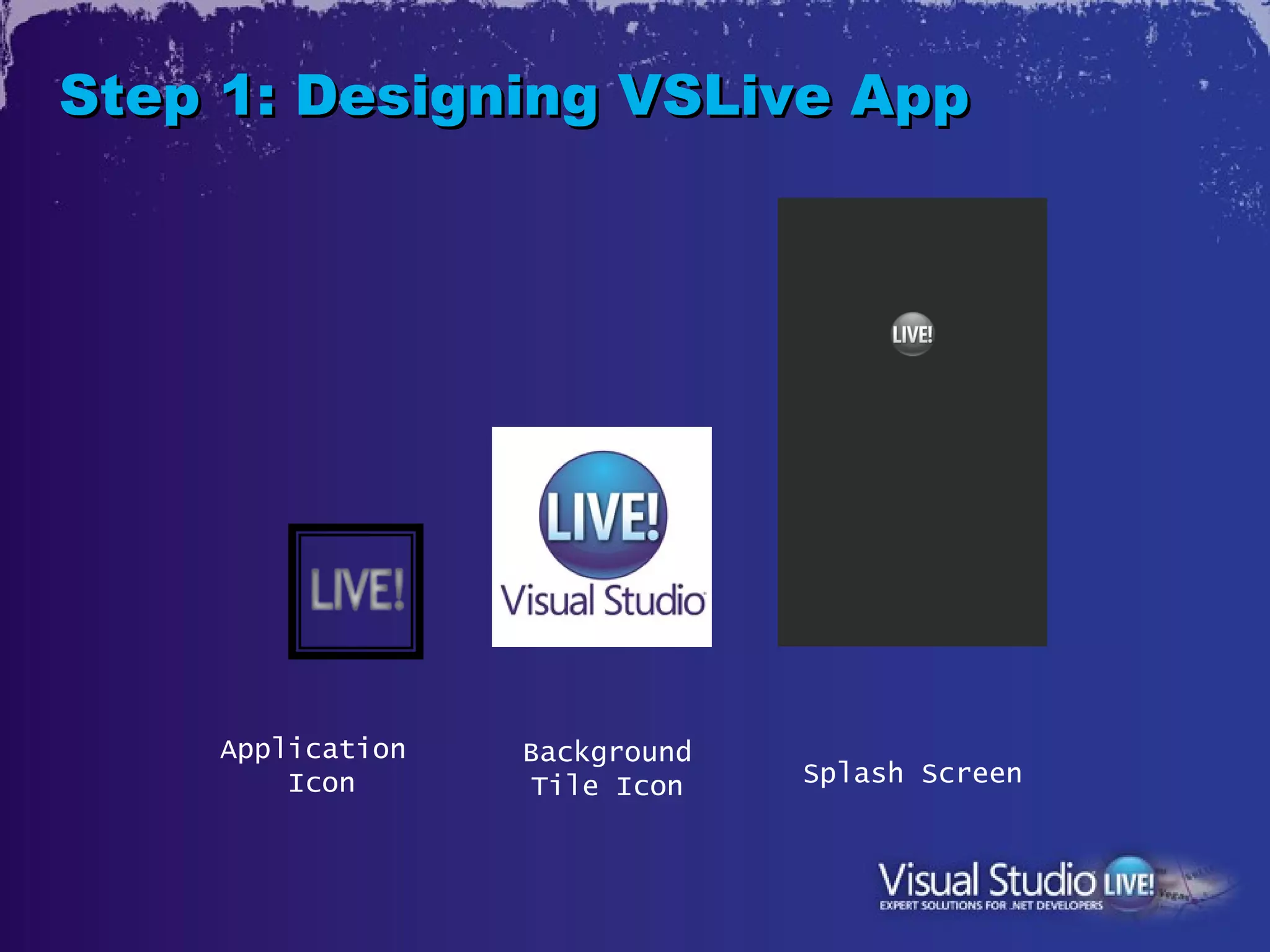

21. Step 1: Designing VSLive App
Application Background
Icon Tile Icon Splash Screen

22. Step 1: Designing VSLive App
Add / Create a
Cancel Schedule Map Icon

23. Step 1: Designing VSLive App
Panorama Background

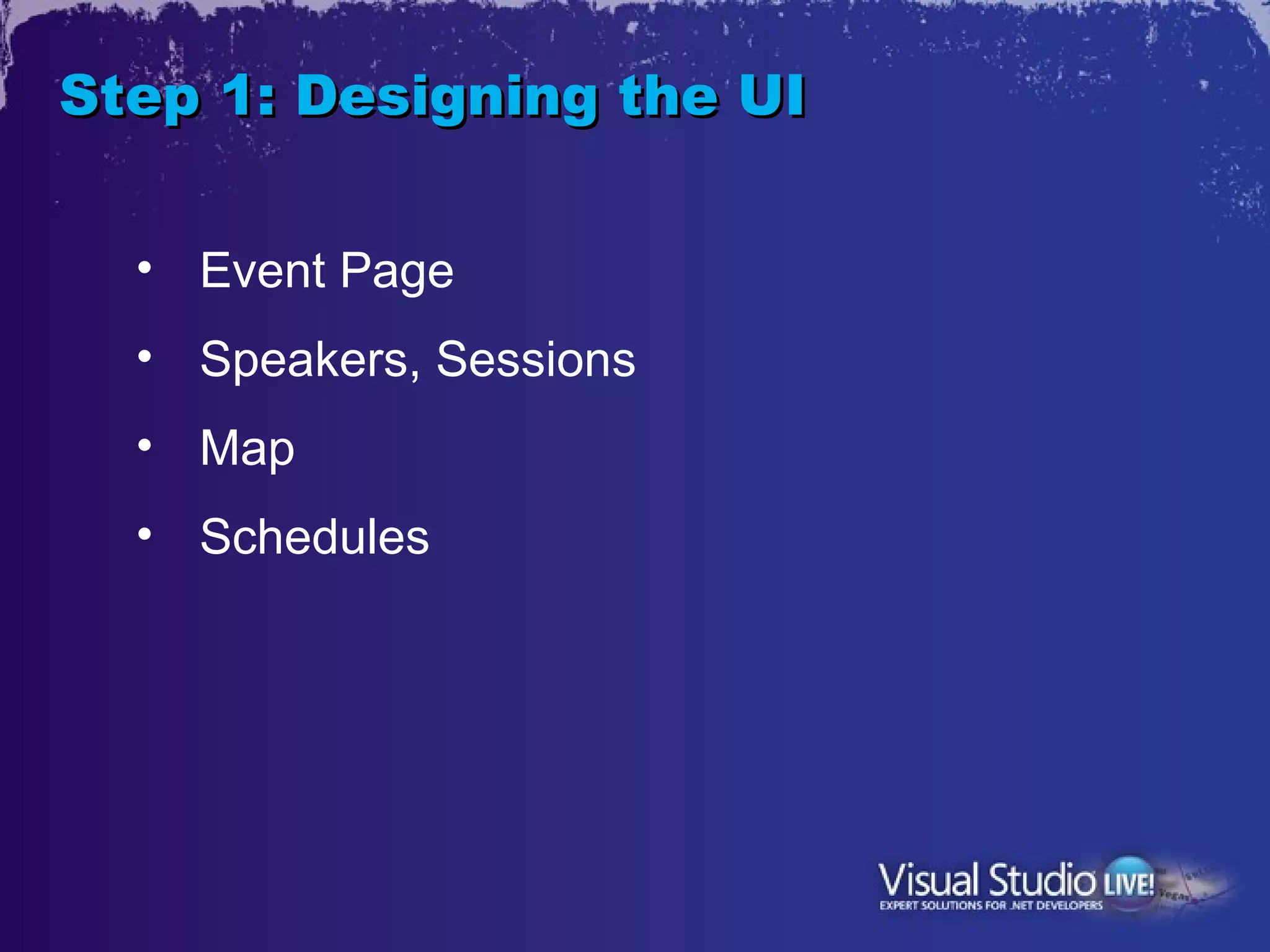

24. Step 1: Designing the UI
• Event Page
• Speakers, Sessions
• Map
• Schedules

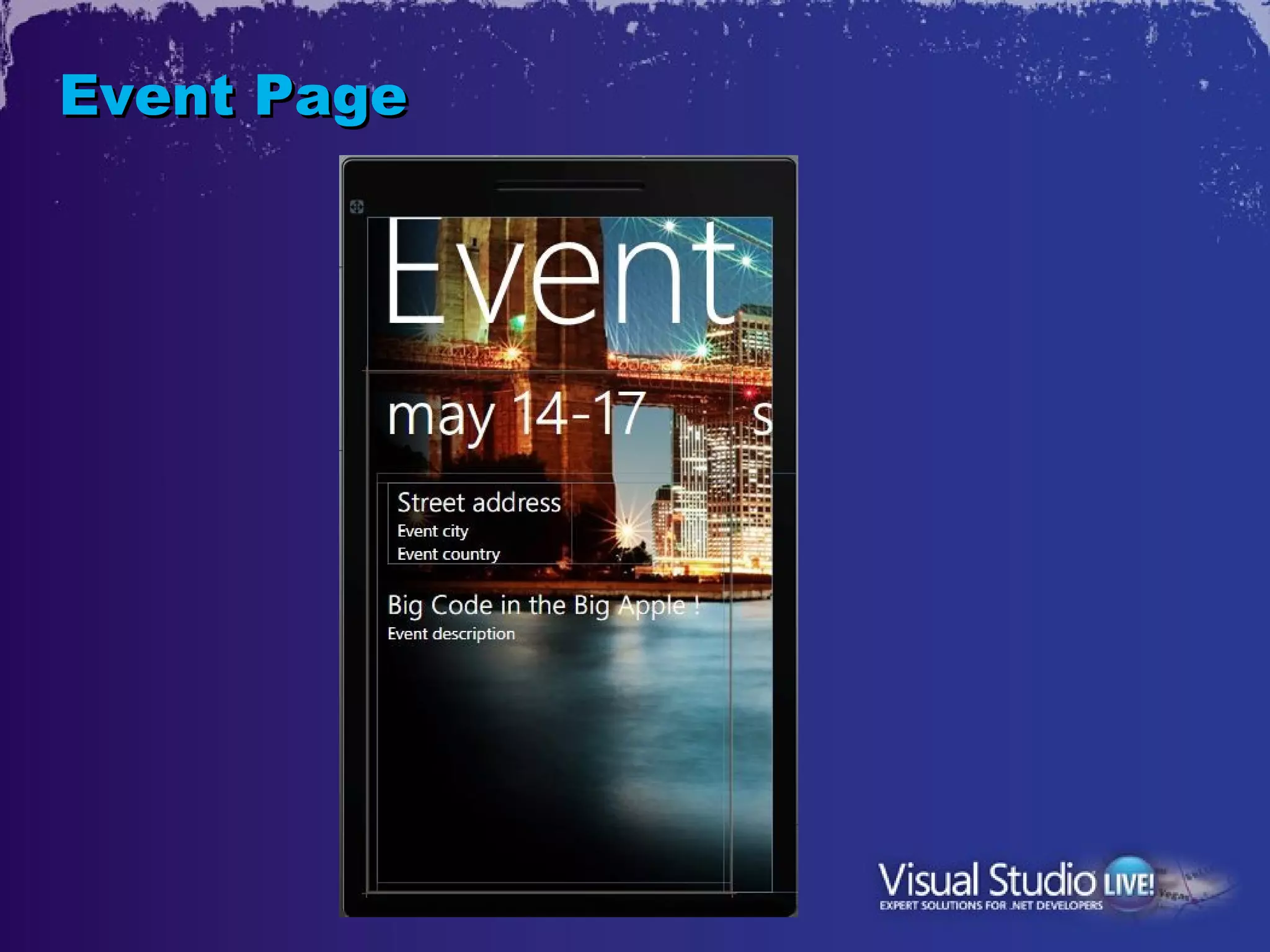

25. Event Page

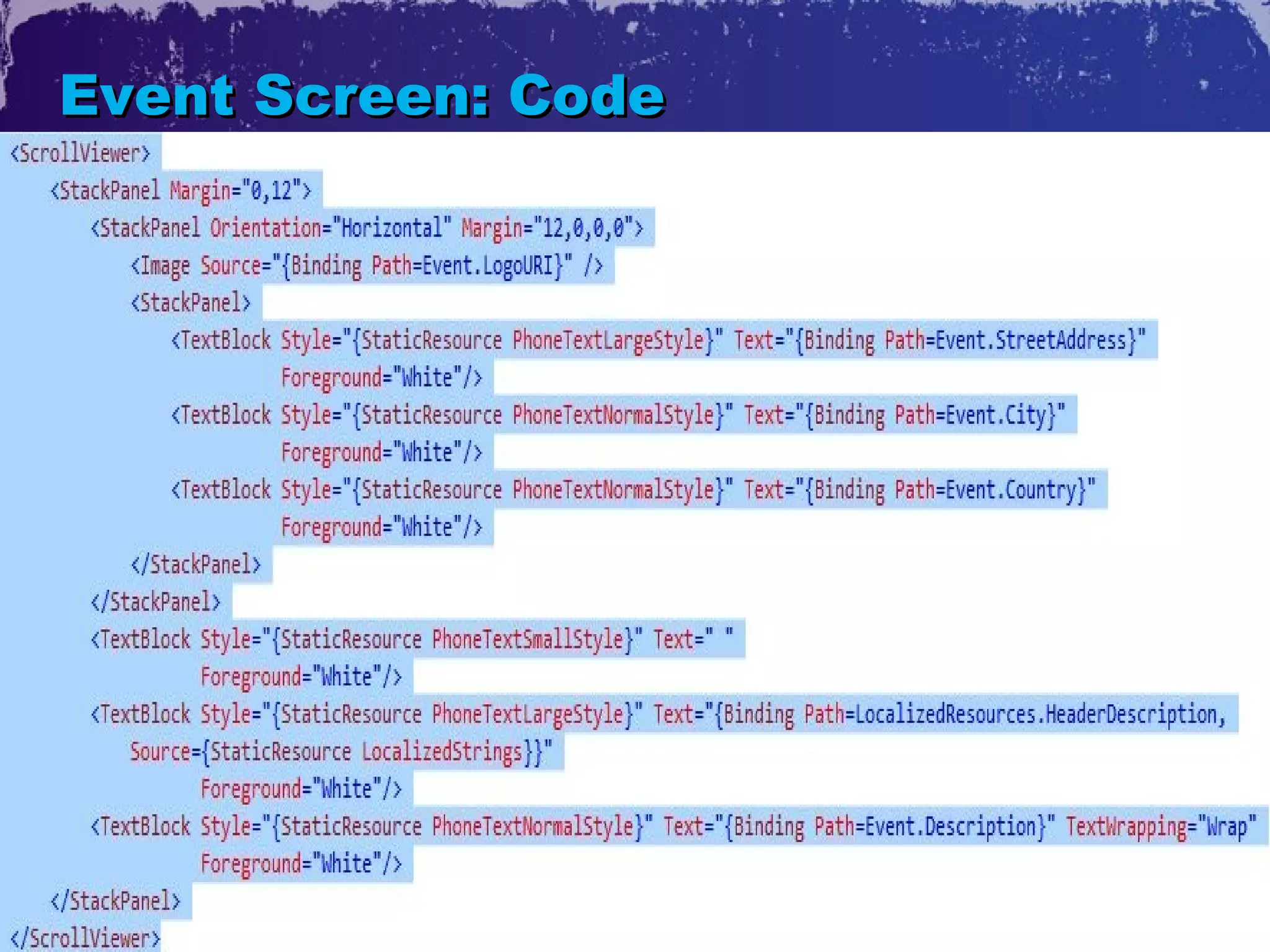

26. Event Screen: Code

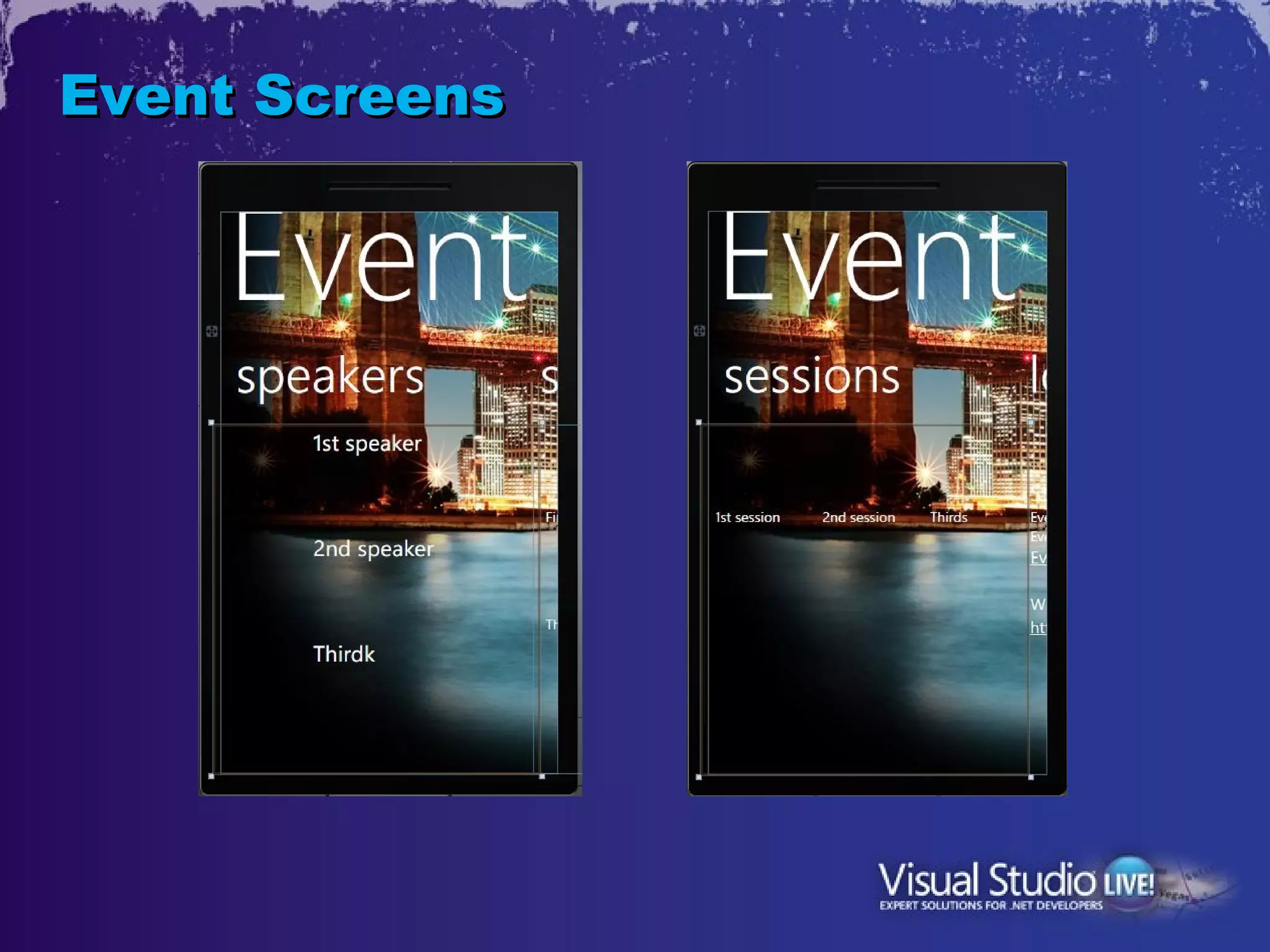

27. Event Screens

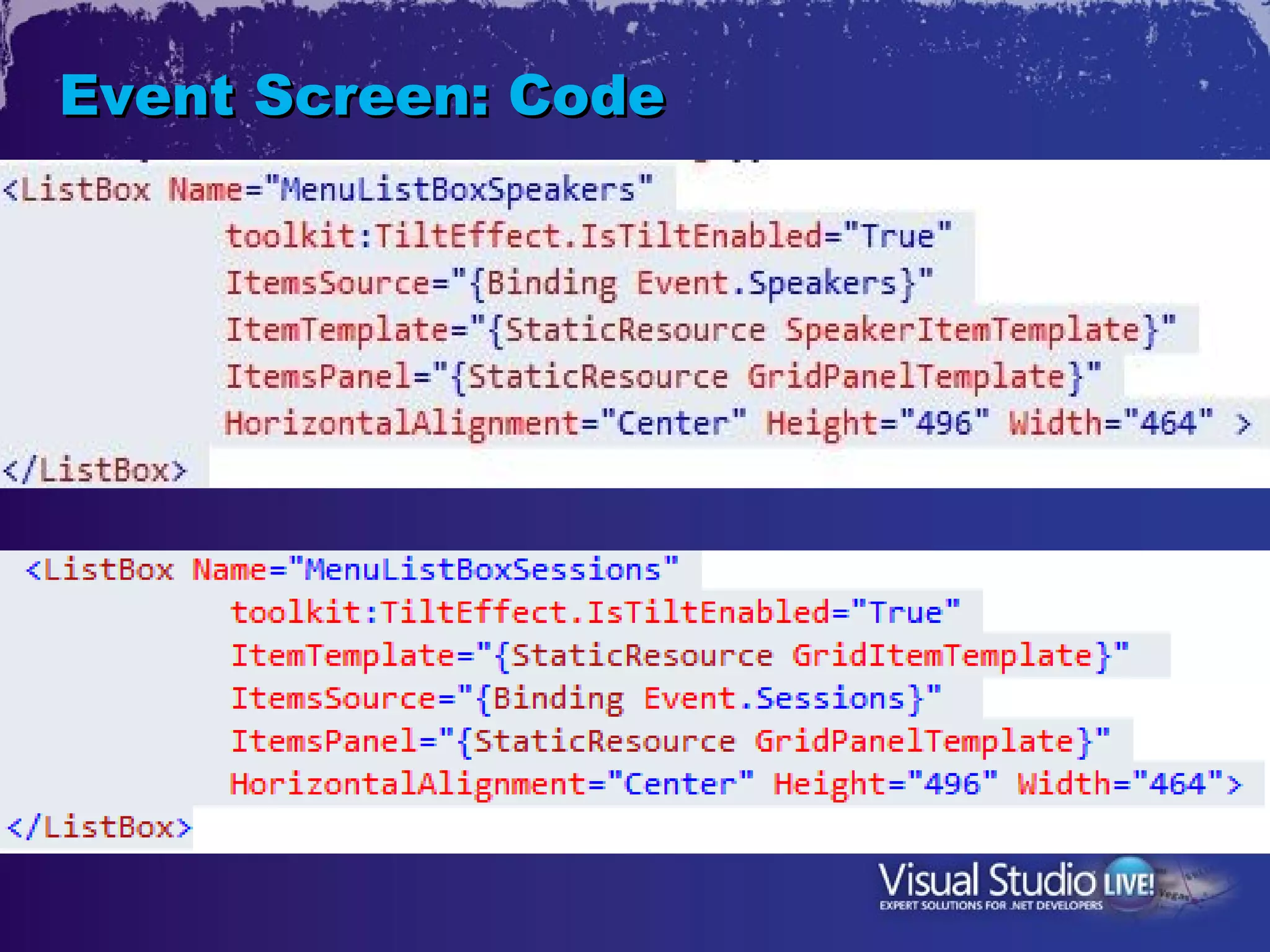

28. Event Screen: Code

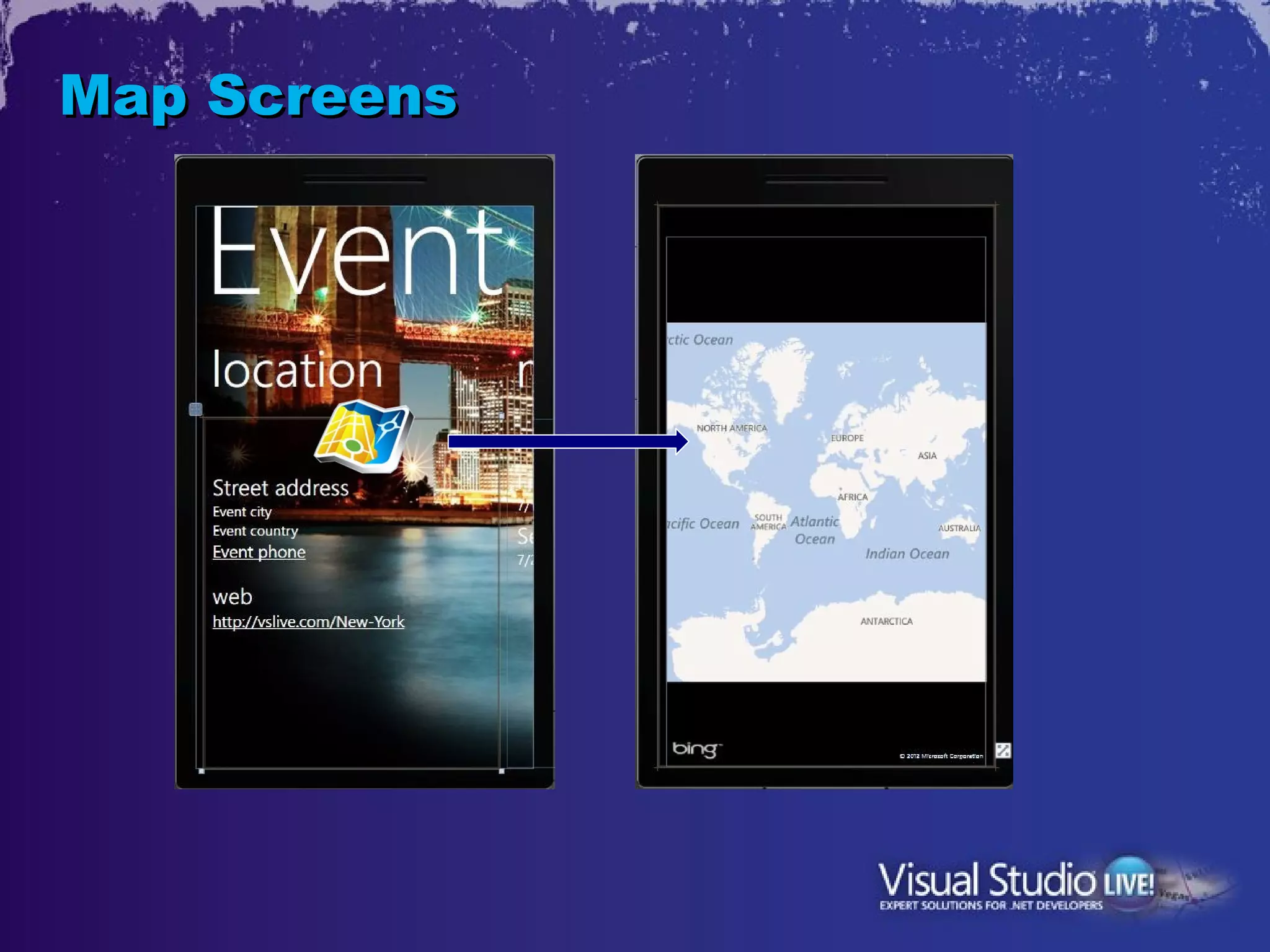

29. Map Screens

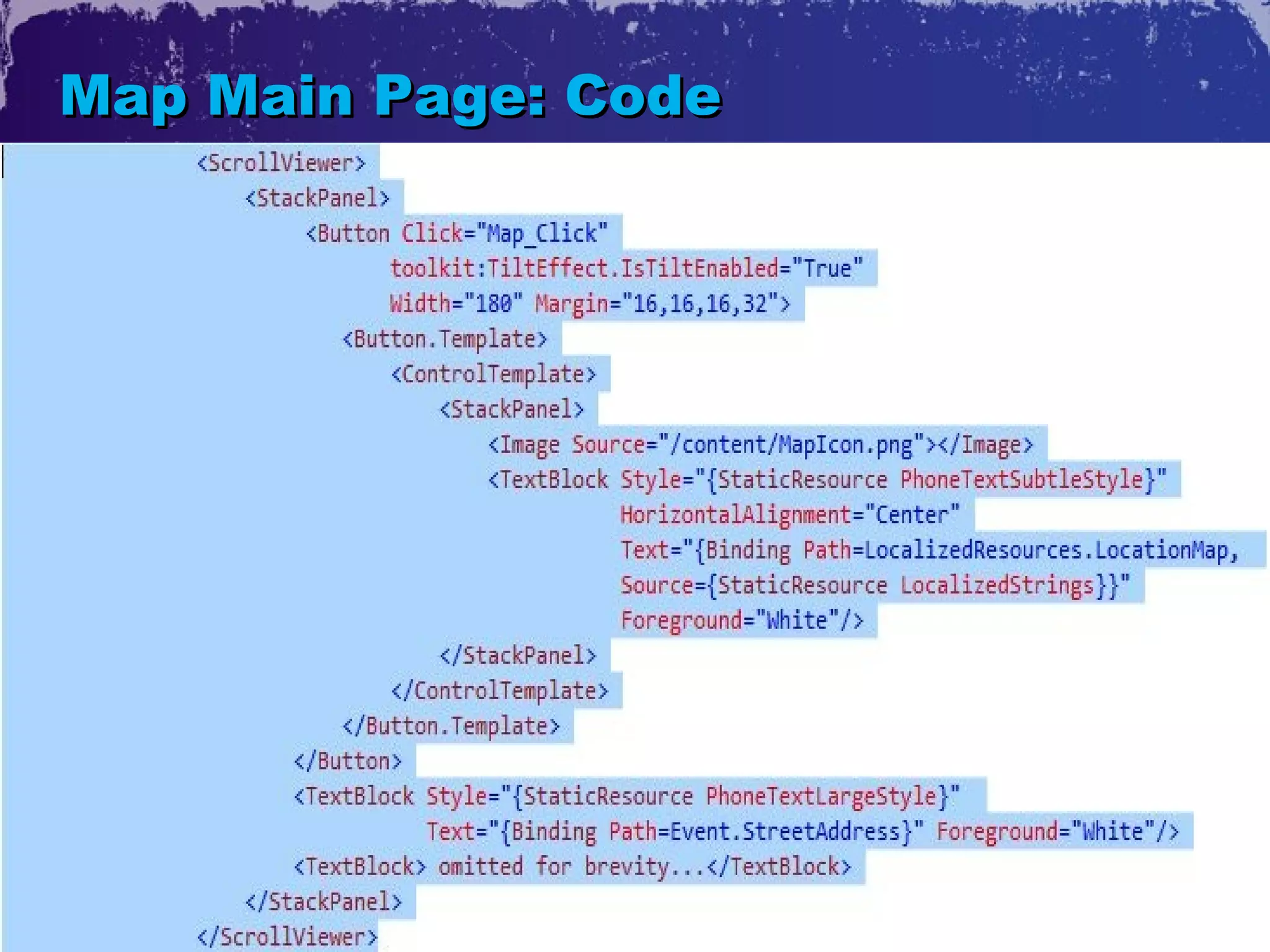

30. Map Main Page: Code

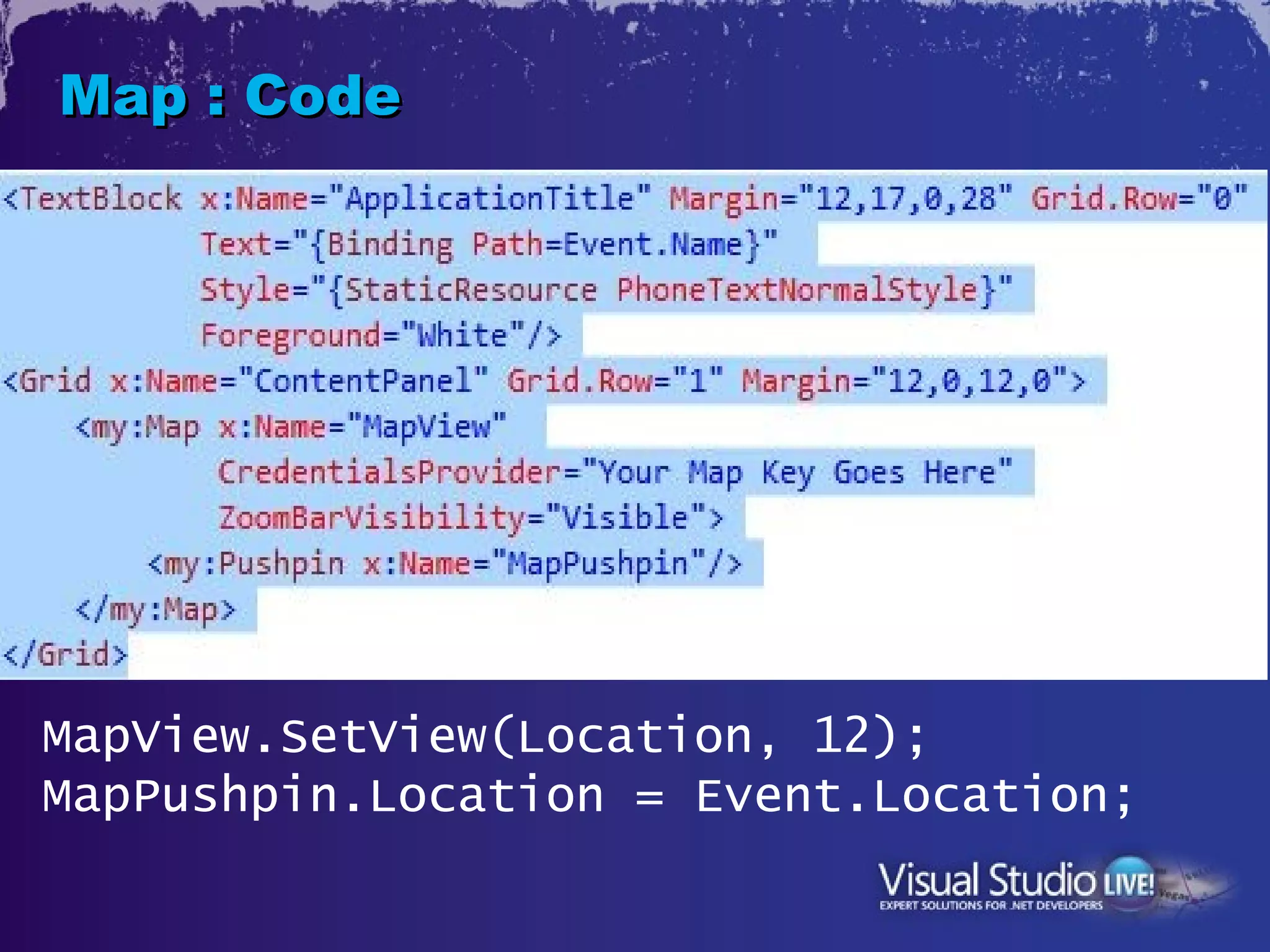

31. Map : Code
MapView.SetView(Location, 12);
MapPushpin.Location = Event.Location;

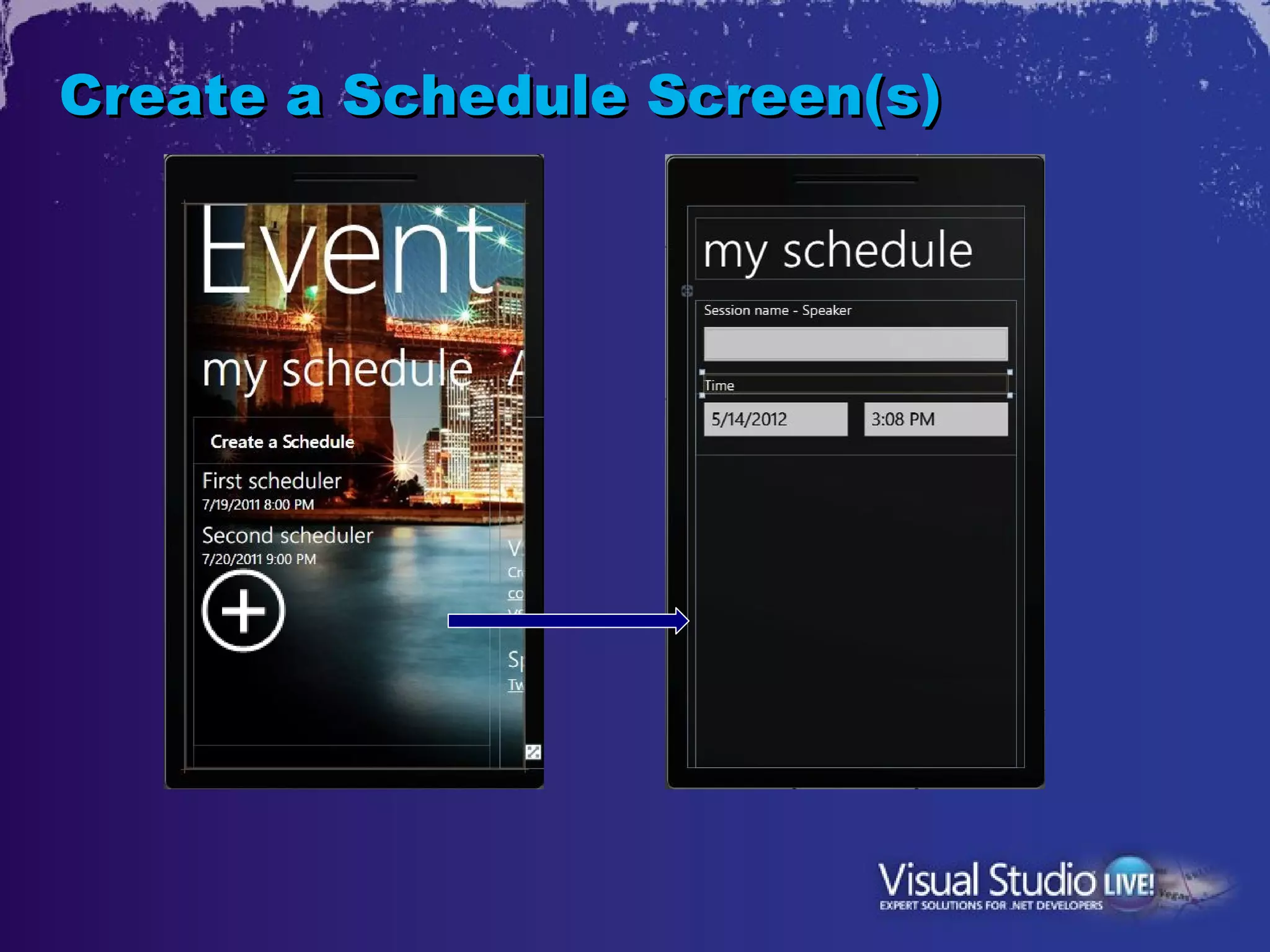

32. Create a Schedule Screen(s)

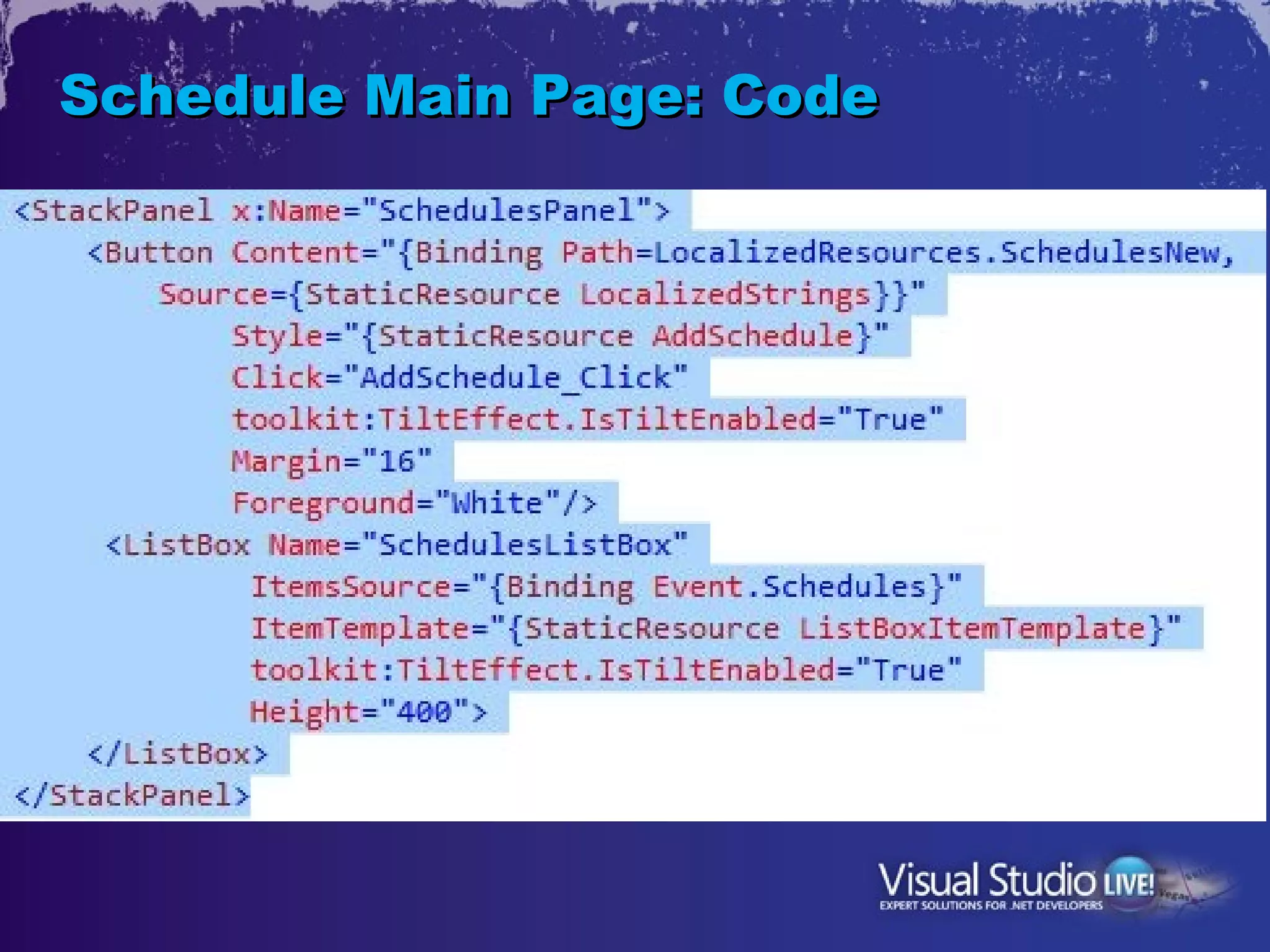

33. Schedule Main Page: Code

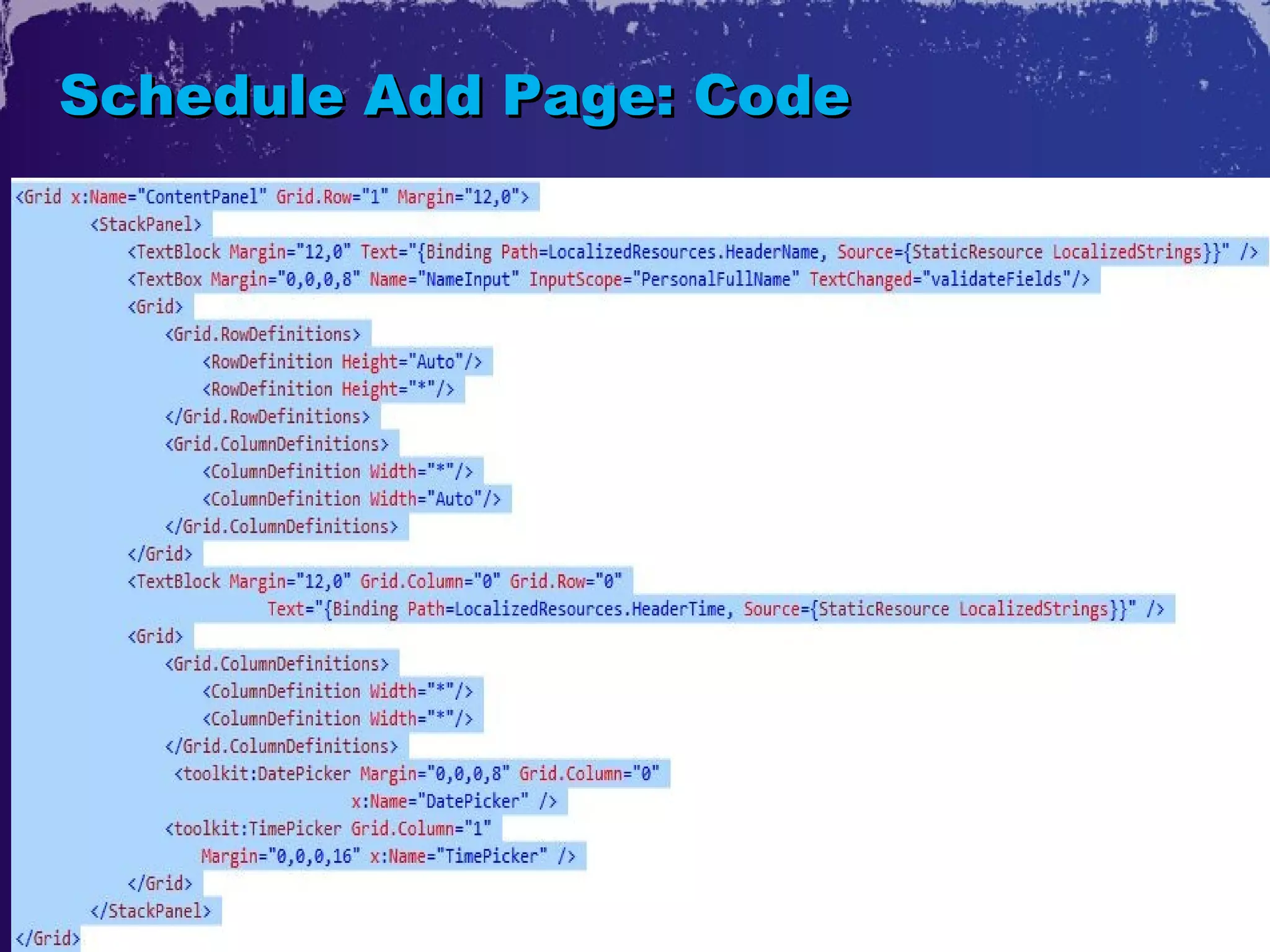

34. Schedule Add Page: Code

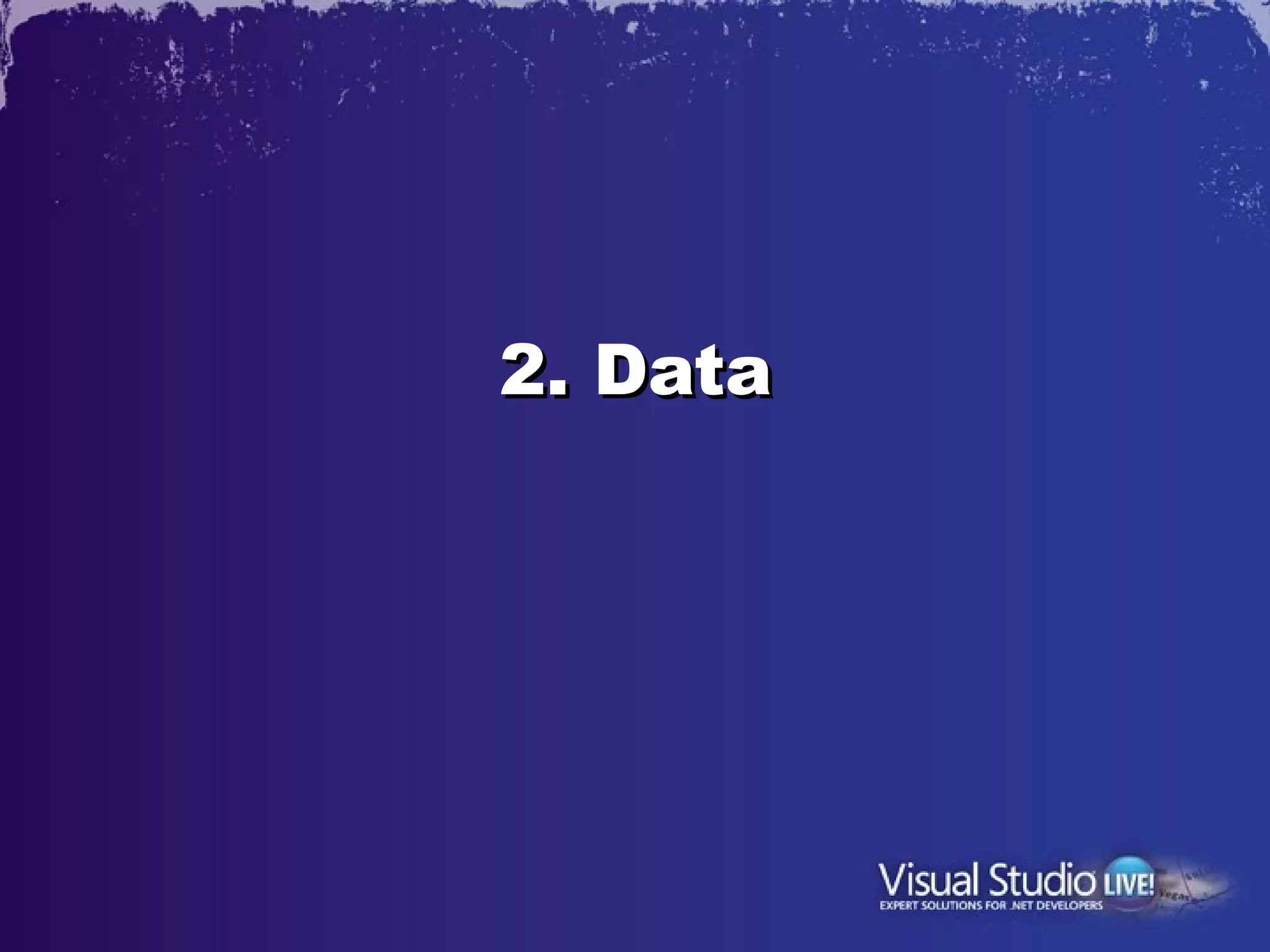

35. 2. Data

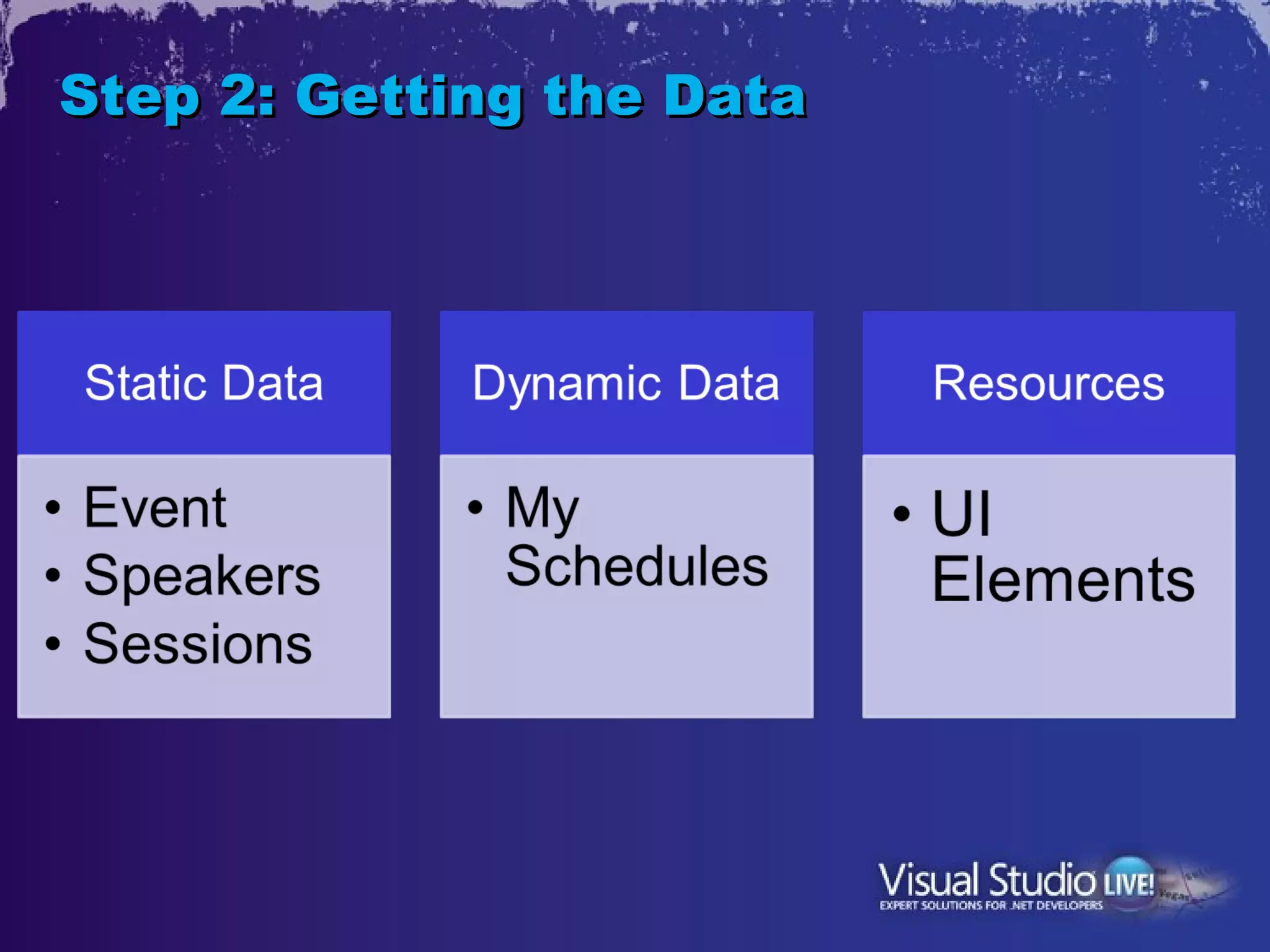

36. Step 2: Getting the Data

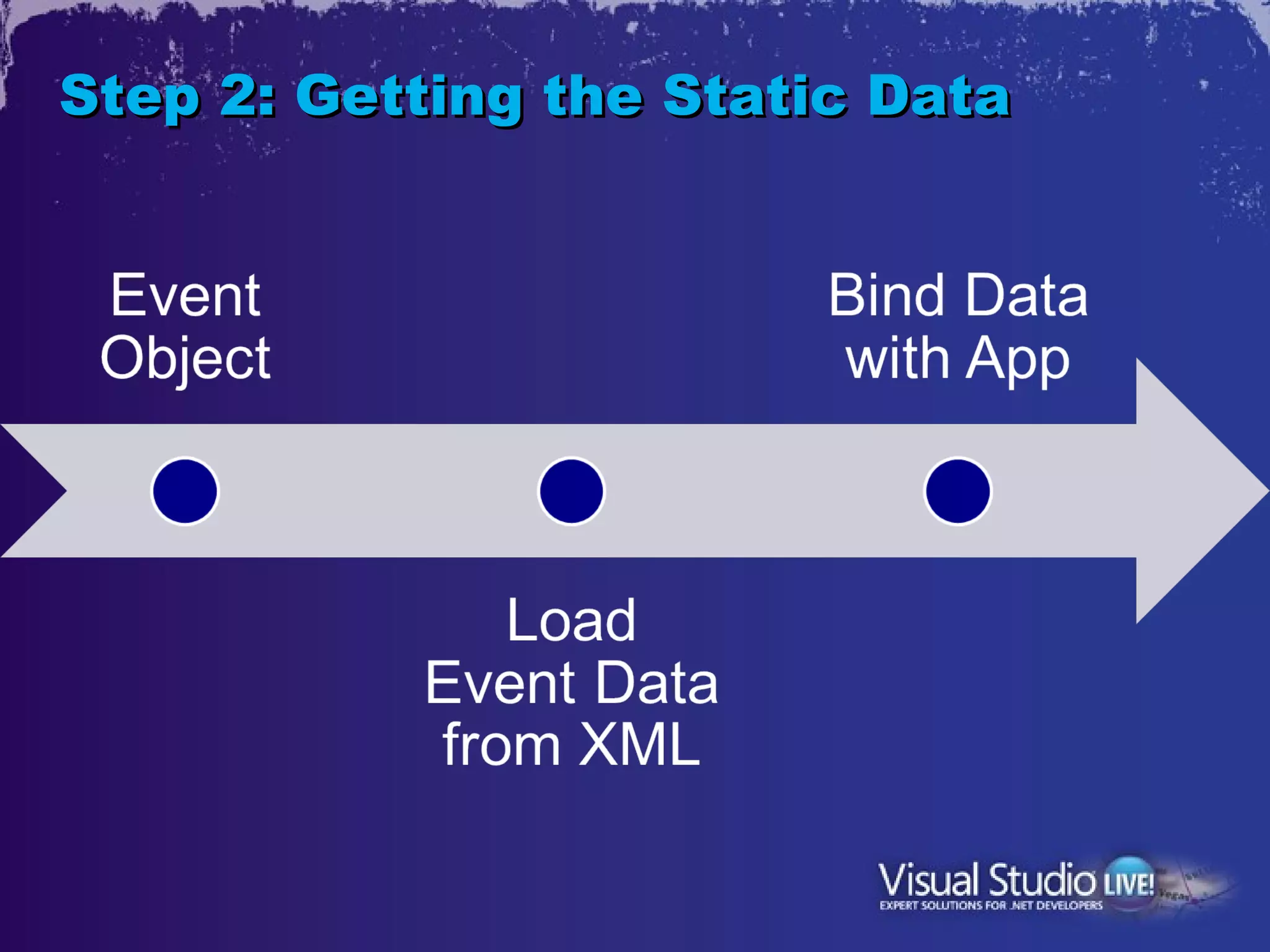

37. Step 2: Getting the Static Data

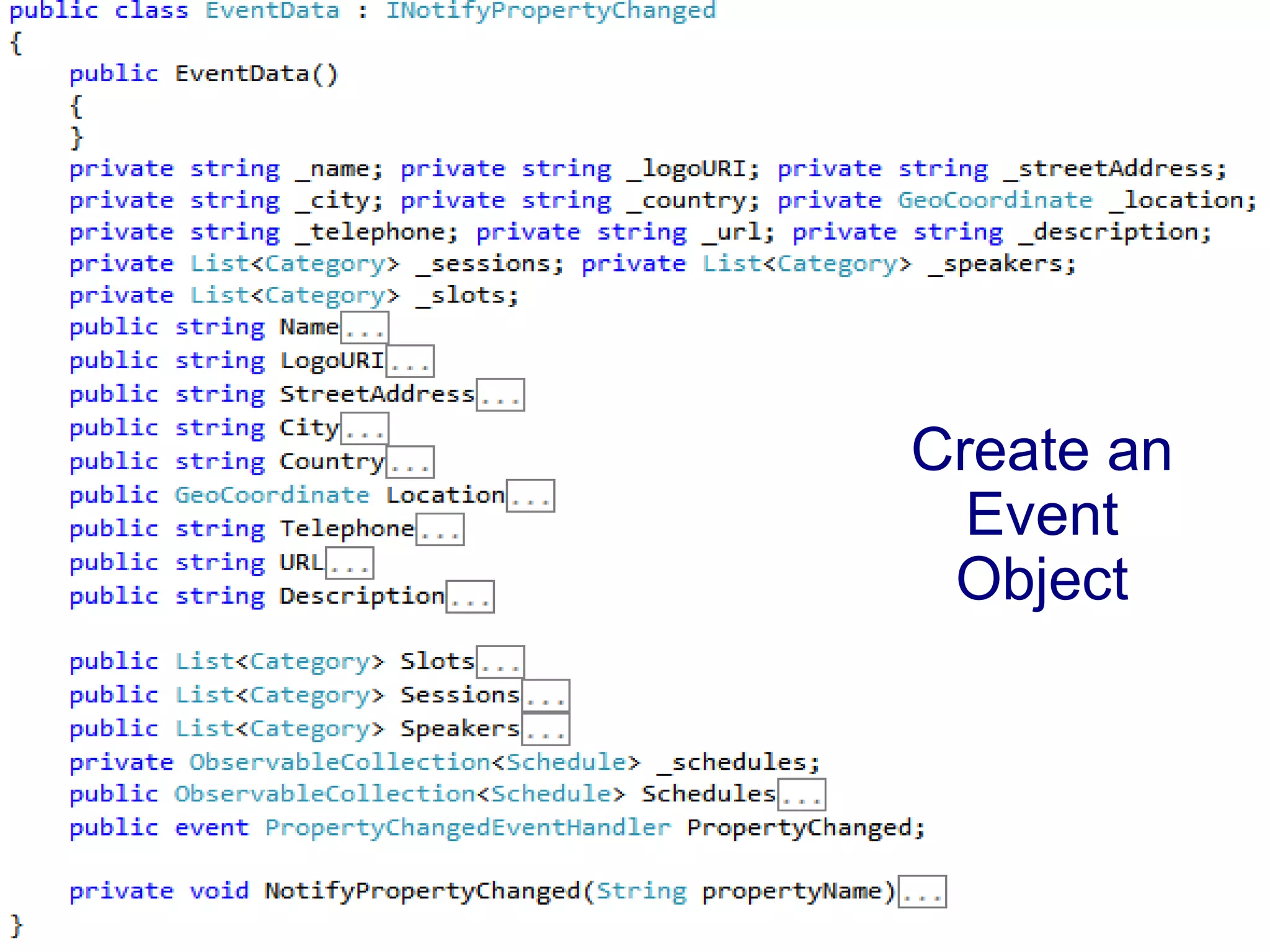

38. Create an
Event
Object

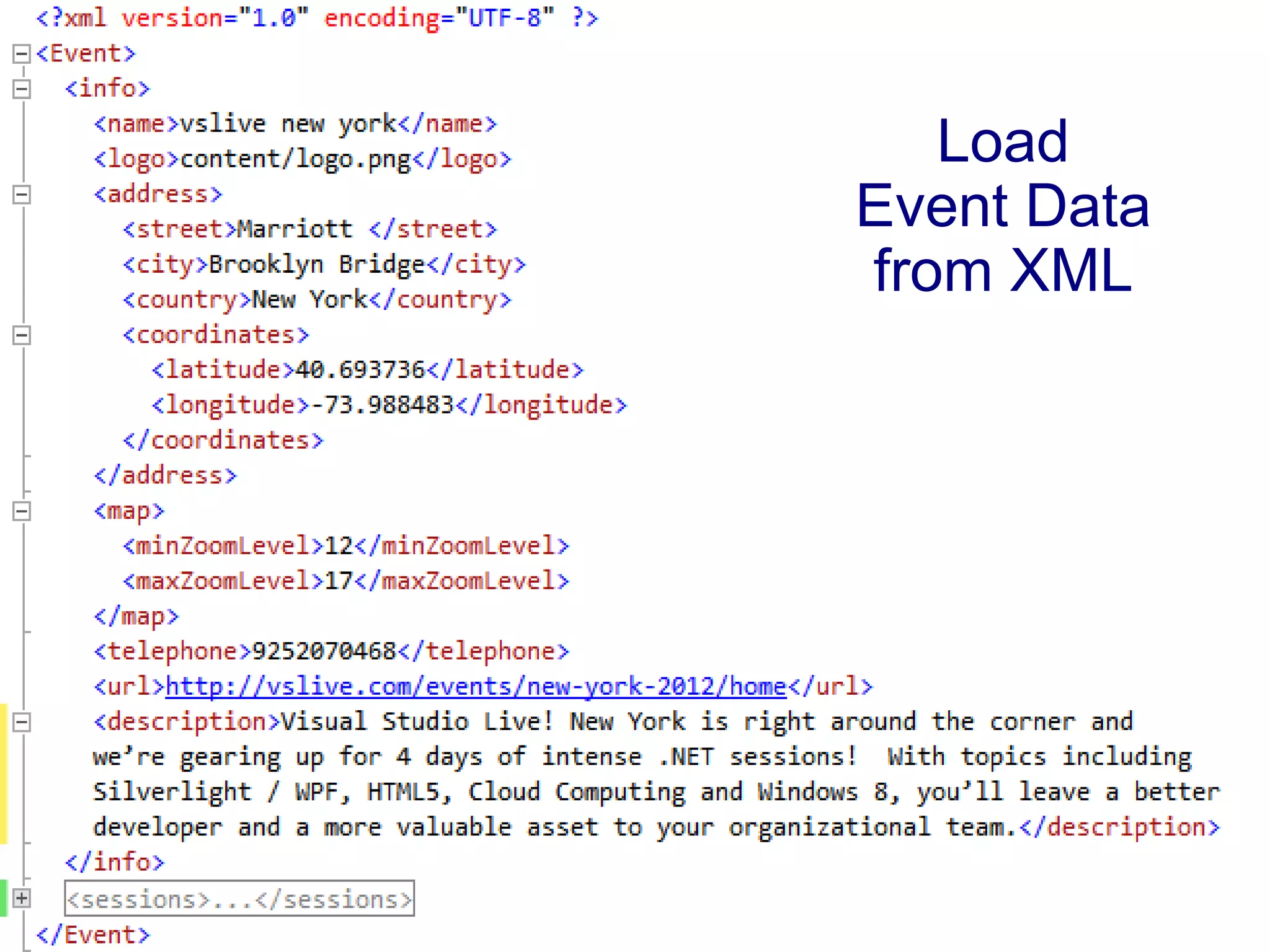

39. Load
Event Data
from XML

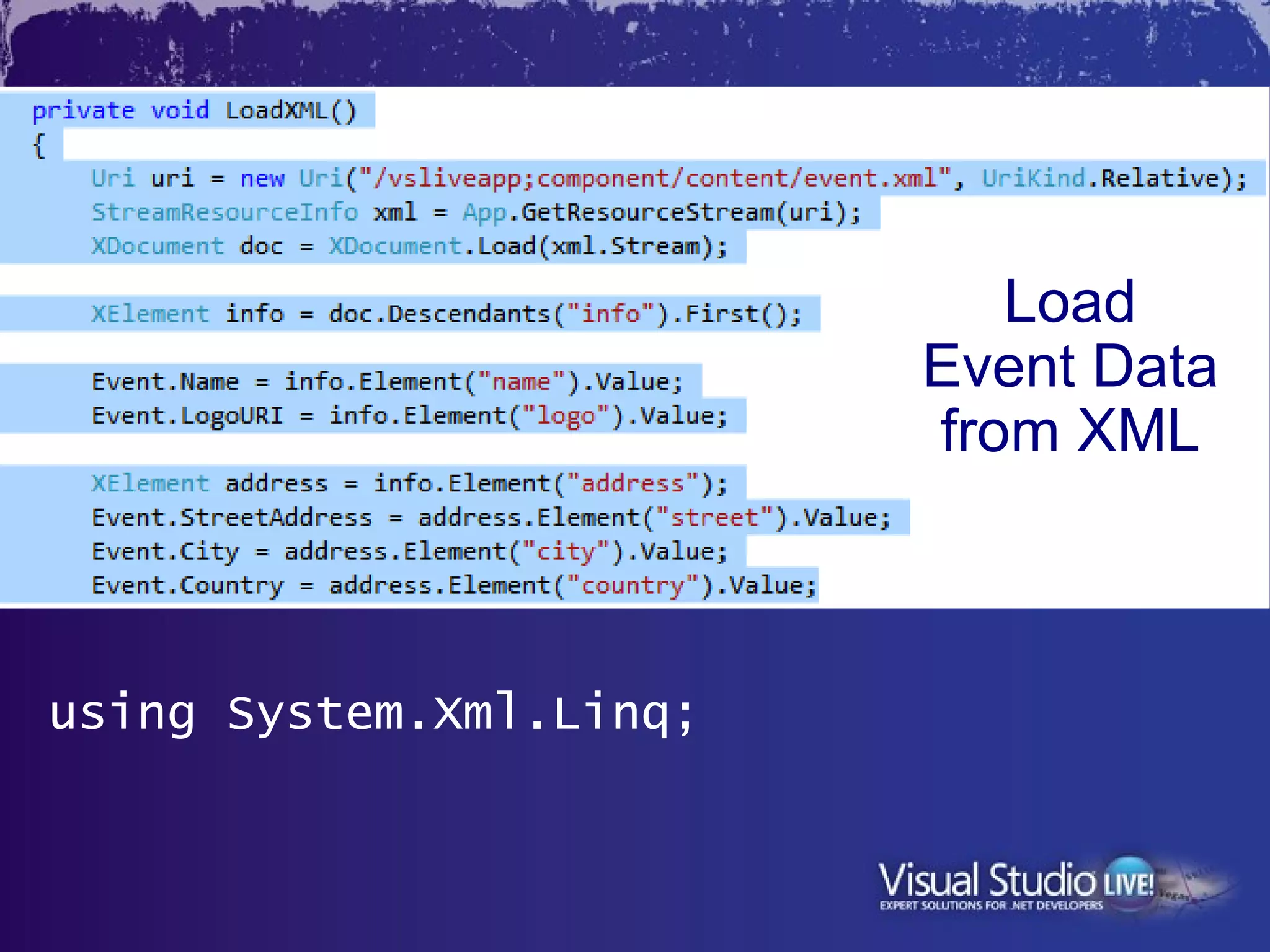

40. Load
Event Data
from XML
using System.Xml.Linq;

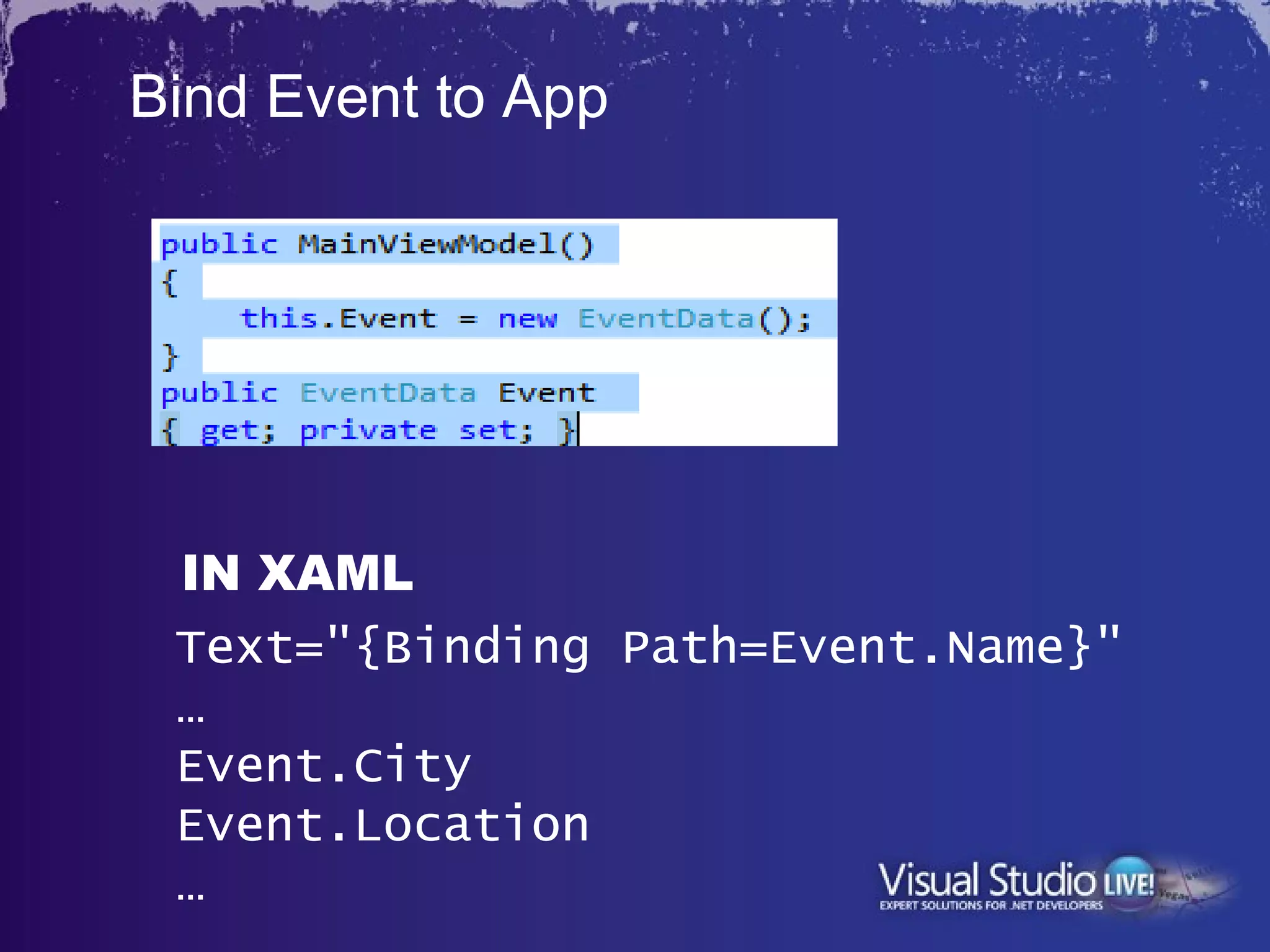

41. Bind Event to App
IN XAML
Text="{Binding Path=Event.Name}"
…
Event.City
Event.Location
…

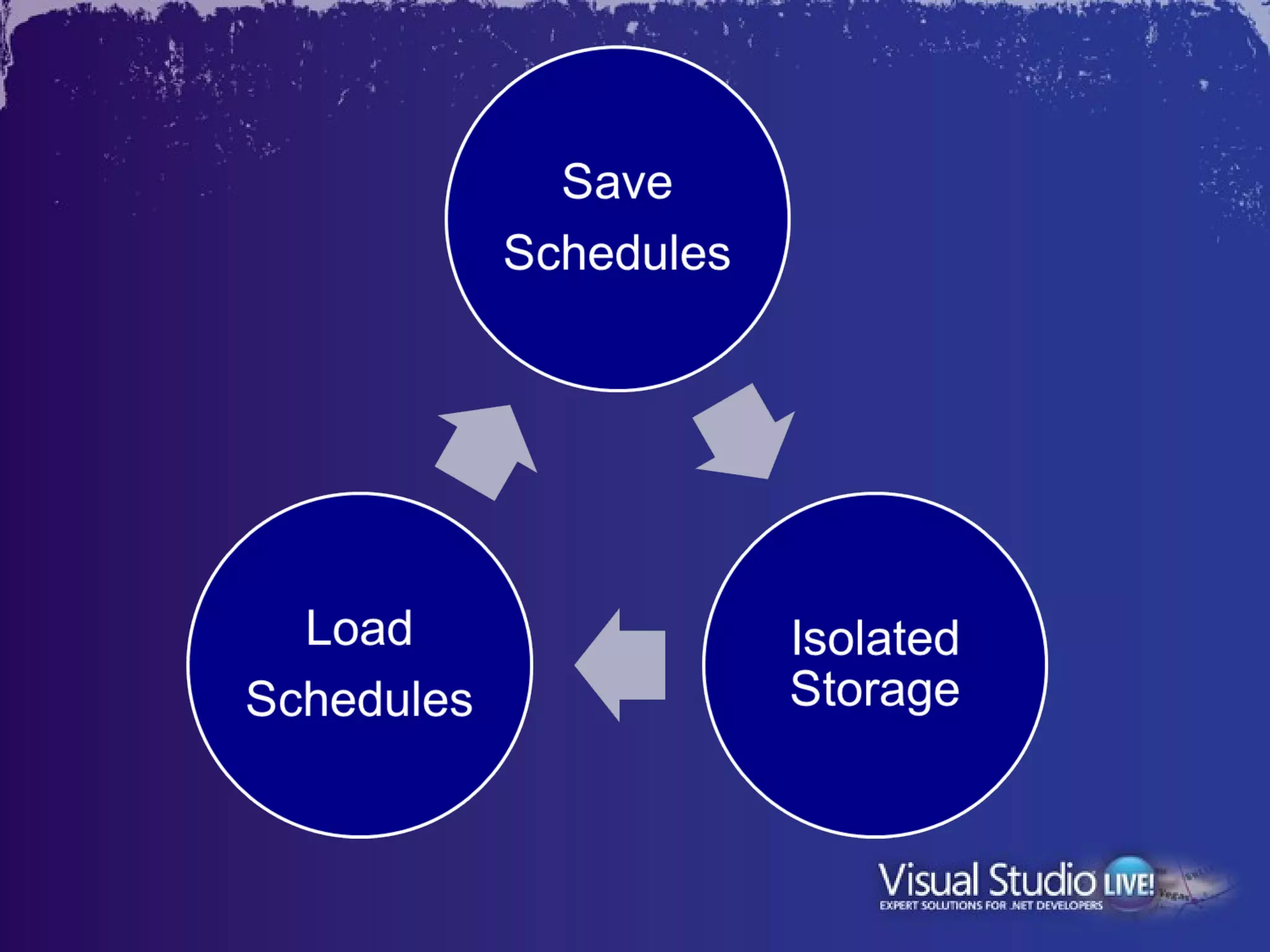

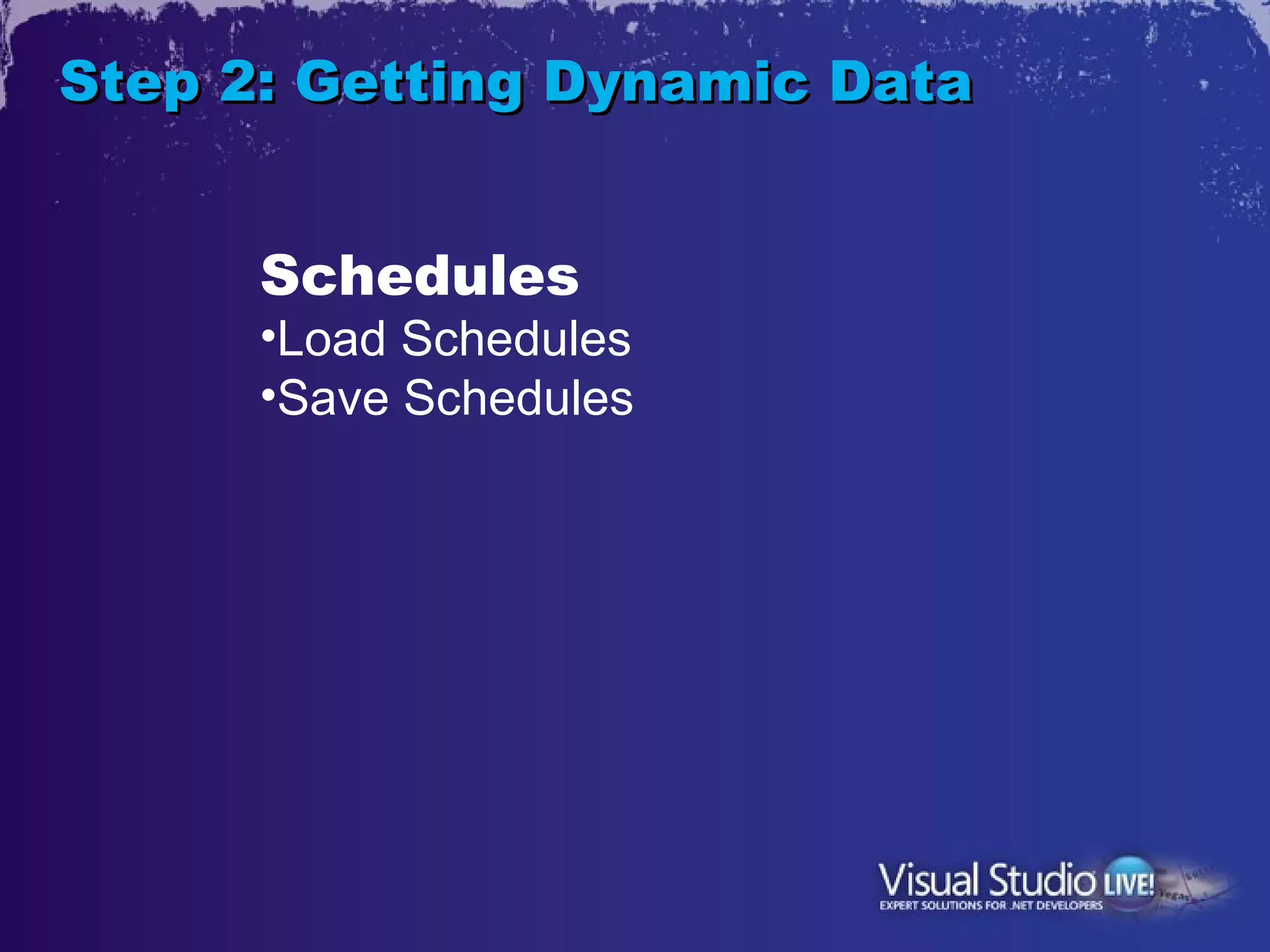

42. Step 2: Getting Dynamic Data
Schedules
•Load Schedules
•Save Schedules

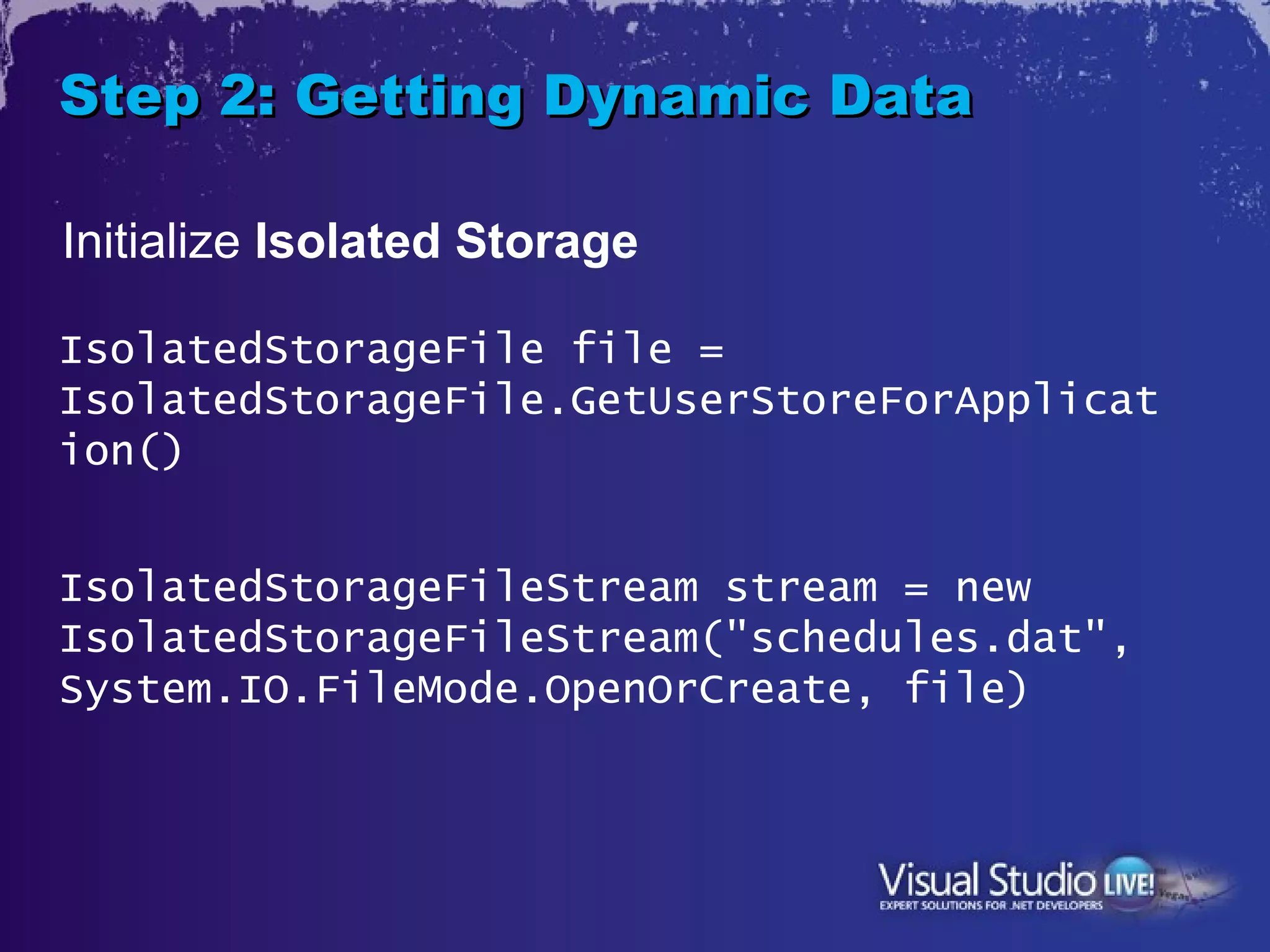

44. Step 2: Getting Dynamic Data
Initialize Isolated Storage
IsolatedStorageFile file =
IsolatedStorageFile.GetUserStoreForApplicat
ion()
IsolatedStorageFileStream stream = new
IsolatedStorageFileStream("schedules.dat",
System.IO.FileMode.OpenOrCreate, file)

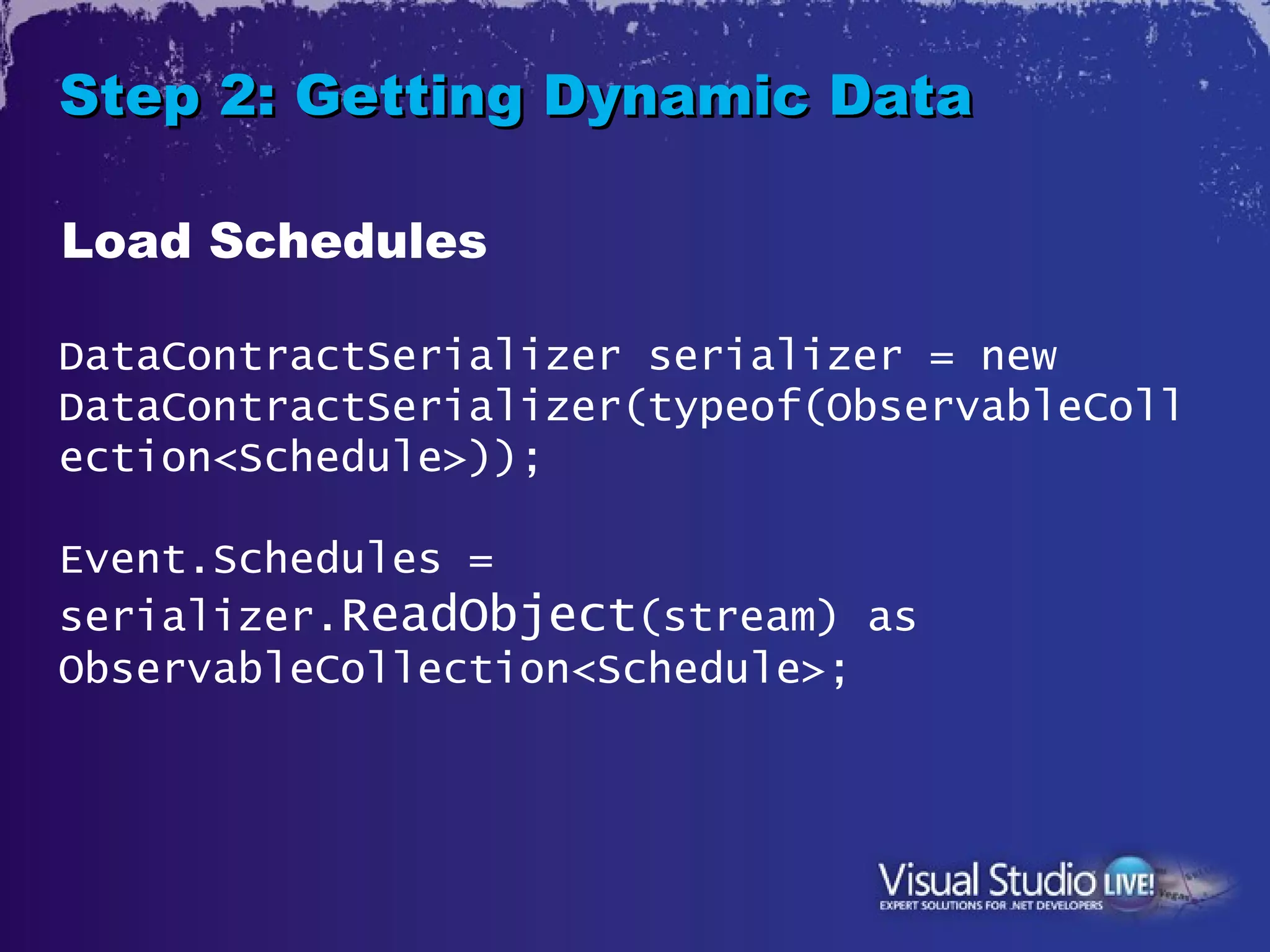

45. Step 2: Getting Dynamic Data
Load Schedules
DataContractSerializer serializer = new
DataContractSerializer(typeof(ObservableColl
ection<Schedule>));
Event.Schedules =
serializer.ReadObject(stream) as
ObservableCollection<Schedule>;

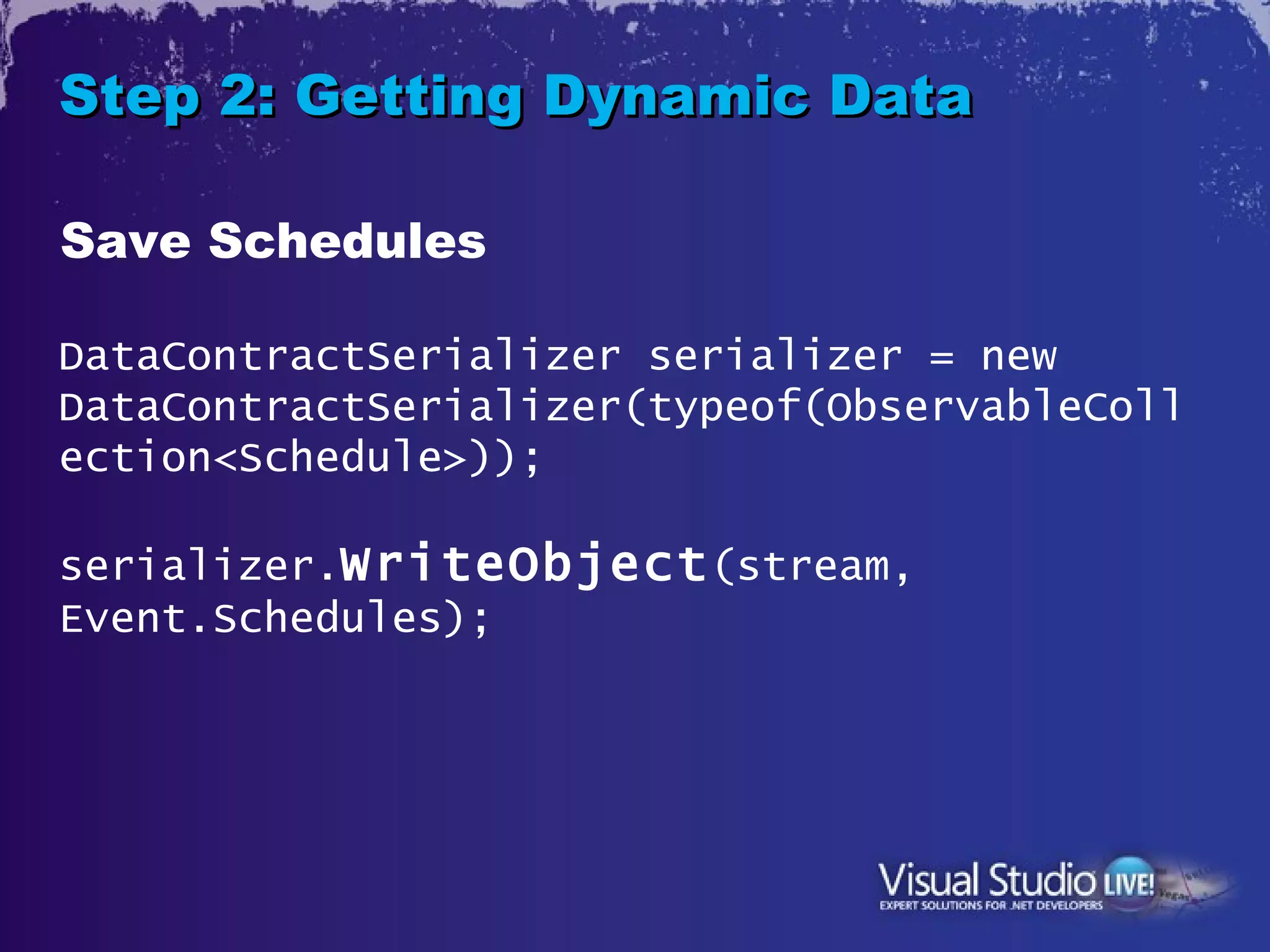

46. Step 2: Getting Dynamic Data
Save Schedules
DataContractSerializer serializer = new
DataContractSerializer(typeof(ObservableColl
ection<Schedule>));
serializer.WriteObject (stream,
Event.Schedules);

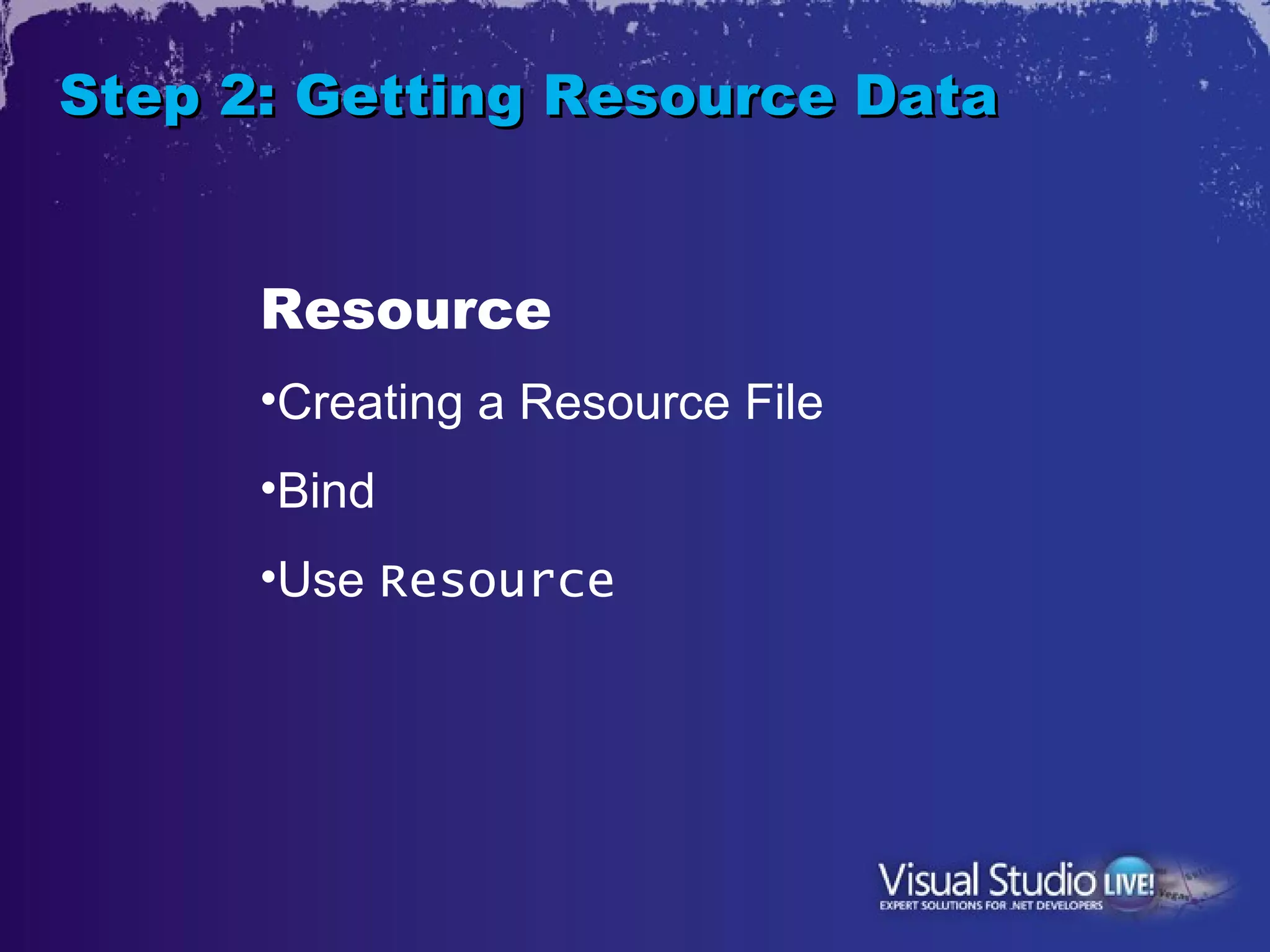

47. Step 2: Getting Resource Data
Resource
•Creating a Resource File
•Bind
•Use Resource

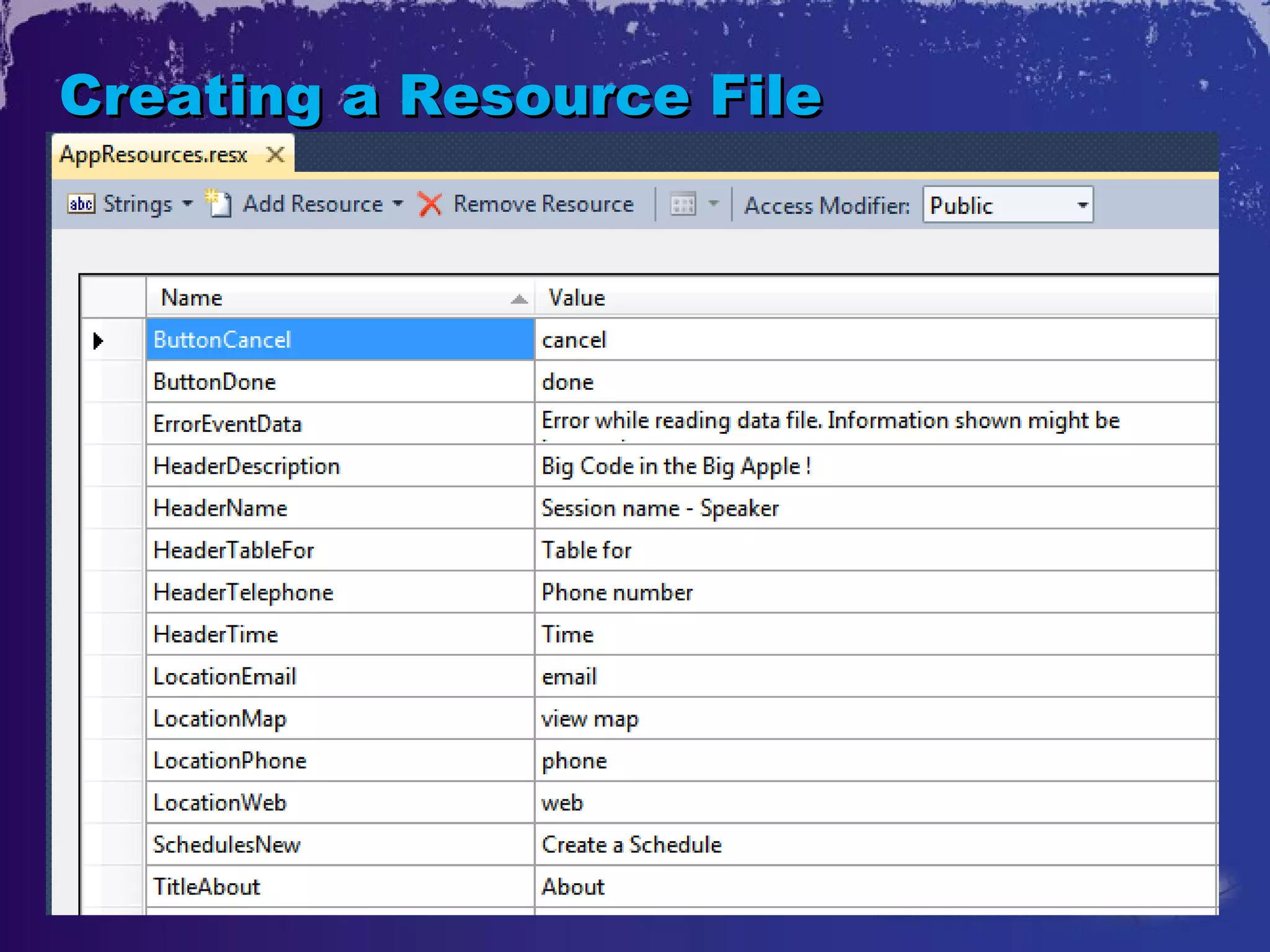

48. Creating a Resource File

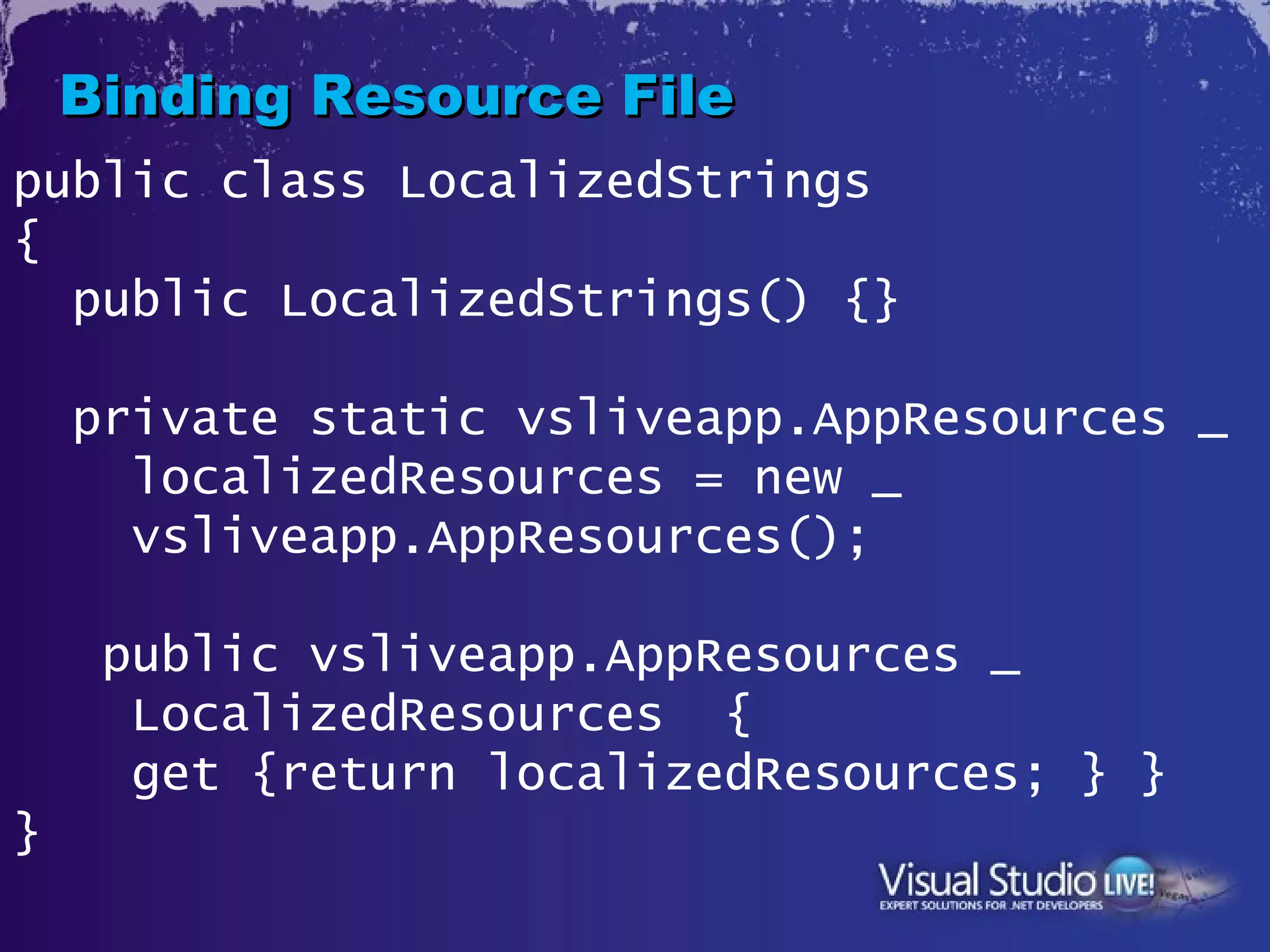

49. Binding Resource File
public class LocalizedStrings
{
public LocalizedStrings() {}
private static vsliveapp.AppResources _
localizedResources = new _
vsliveapp.AppResources();
public vsliveapp.AppResources _
LocalizedResources {
get {return localizedResources; } }
}

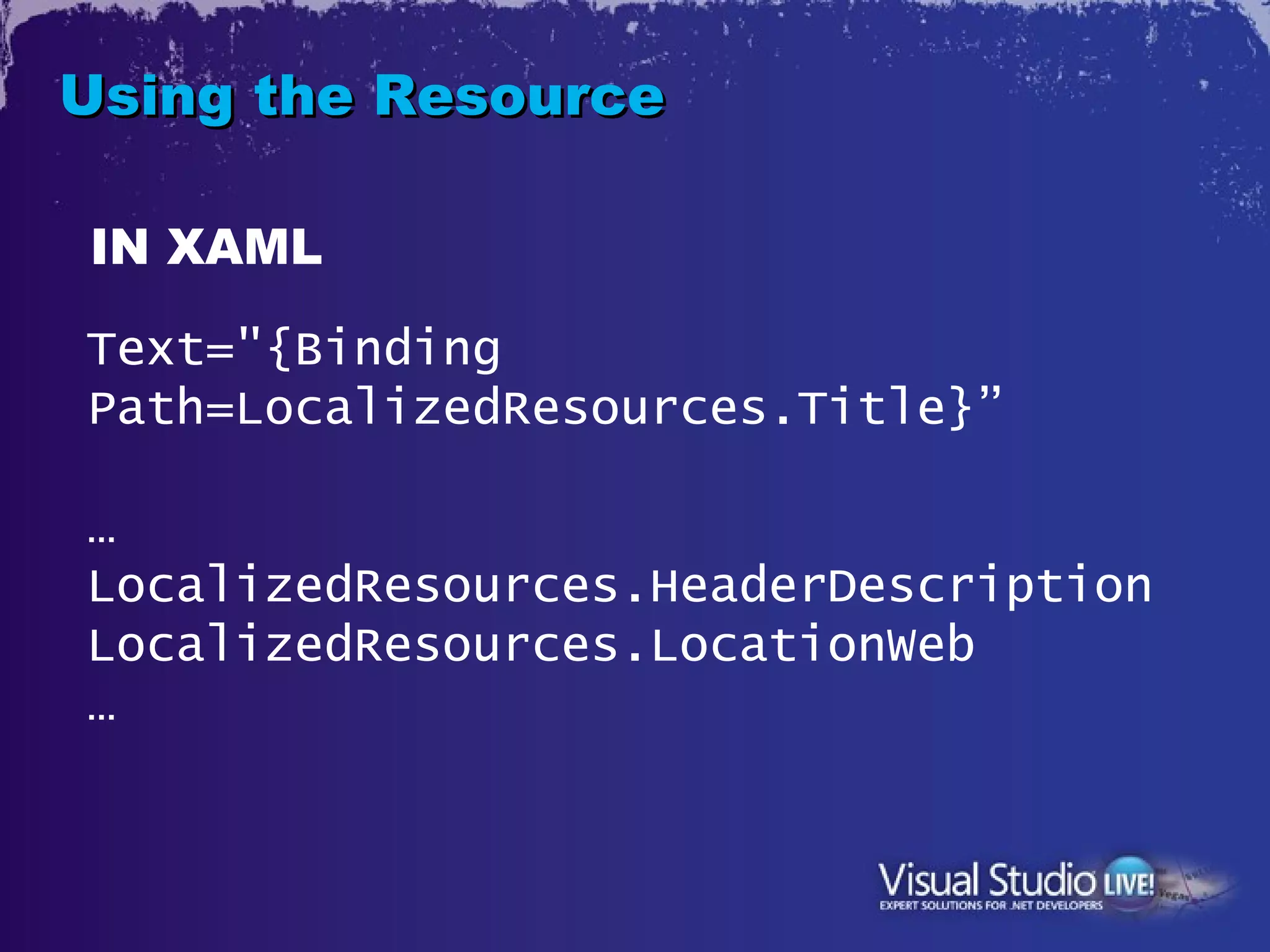

50. Using the Resource
IN XAML
Text="{Binding
Path=LocalizedResources.Title}”
…
LocalizedResources.HeaderDescription
LocalizedResources.LocationWeb
…

51. 3. Method

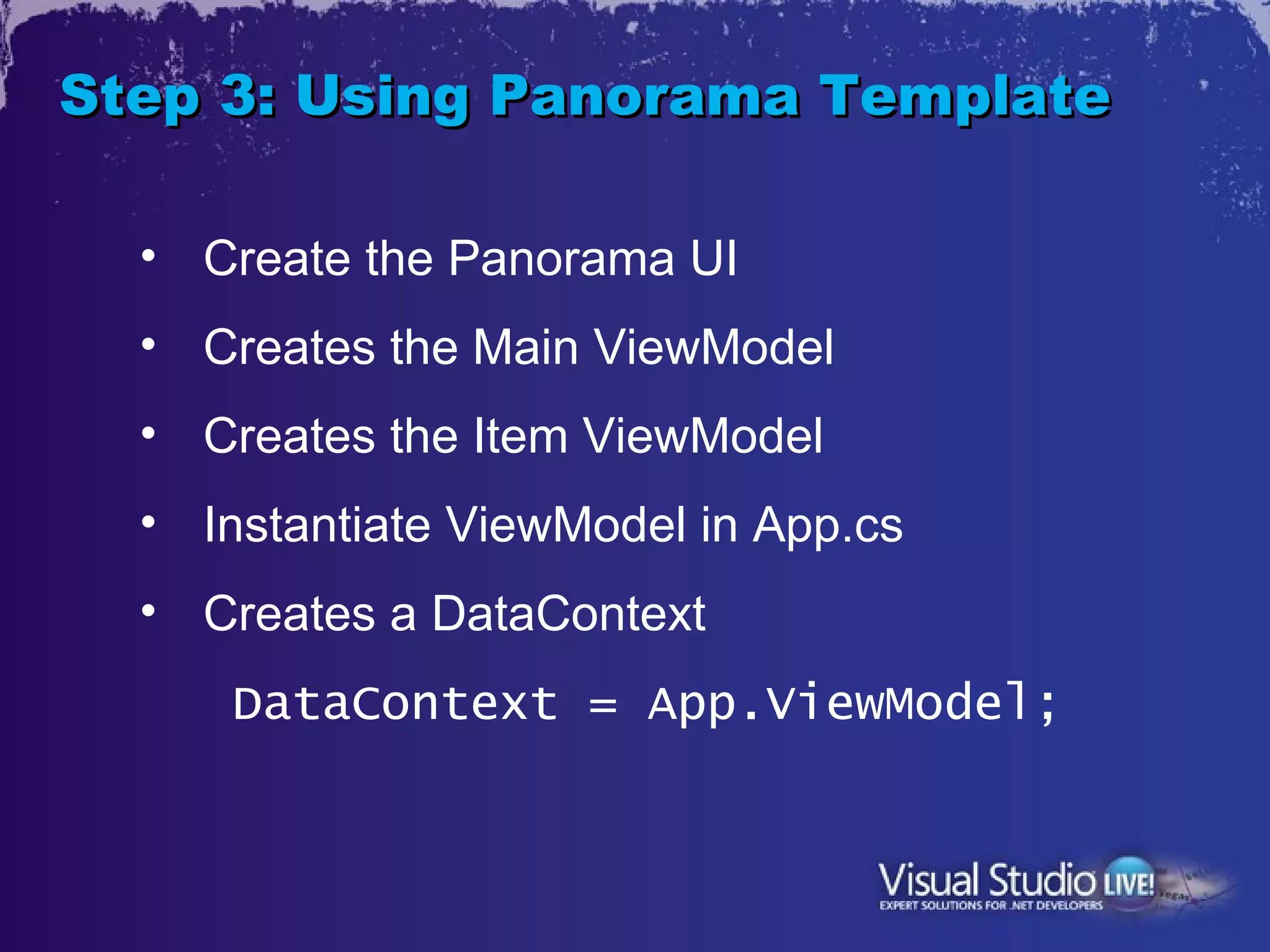

52. Step 3: Using Panorama Template
• Create the Panorama UI
• Creates the Main ViewModel
• Creates the Item ViewModel
• Instantiate ViewModel in App.cs
• Creates a DataContext
DataContext = App.ViewModel;

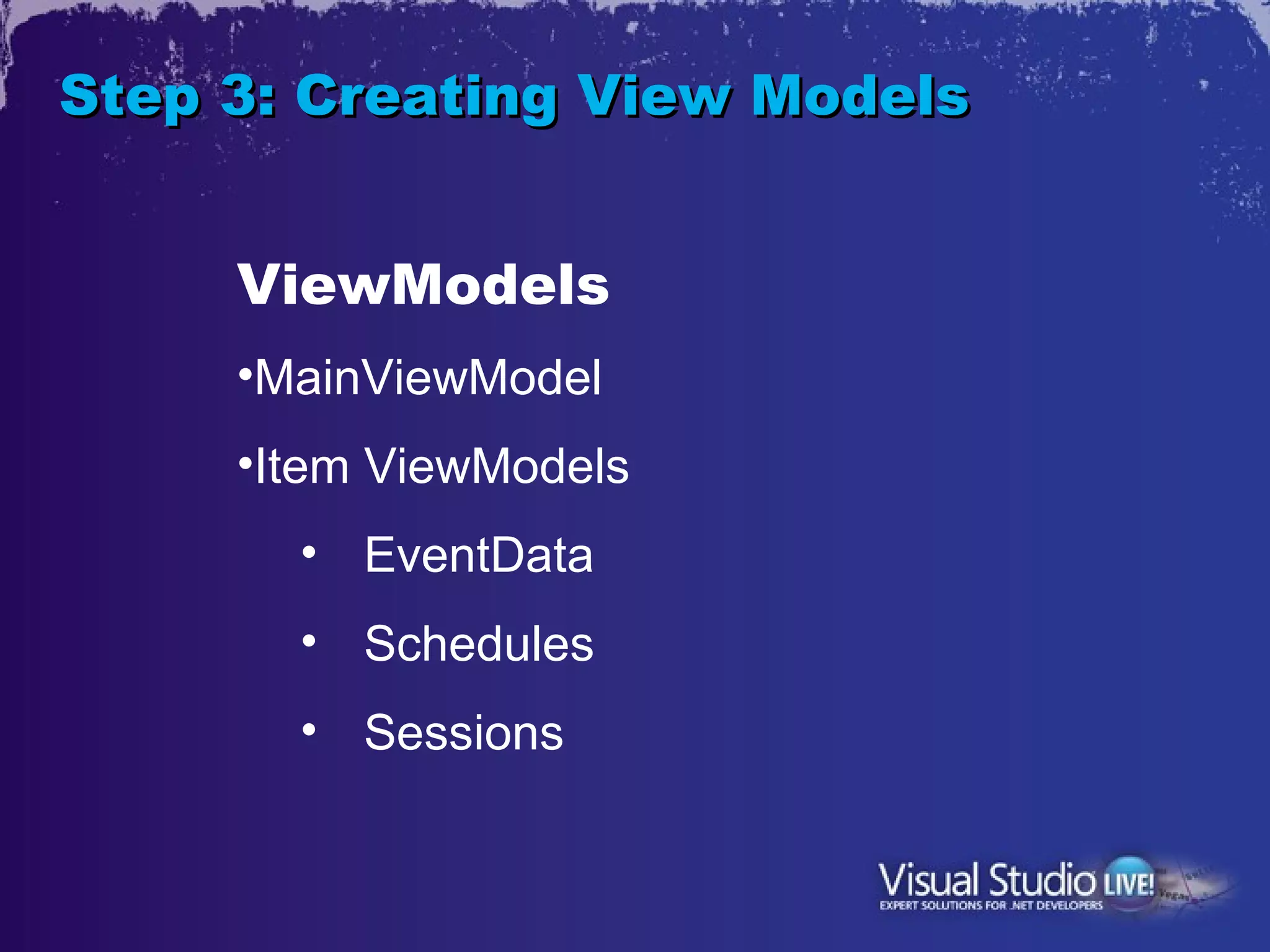

54. Step 3: Creating View Models
ViewModels
•MainViewModel
•Item ViewModels
• EventData
• Schedules
• Sessions

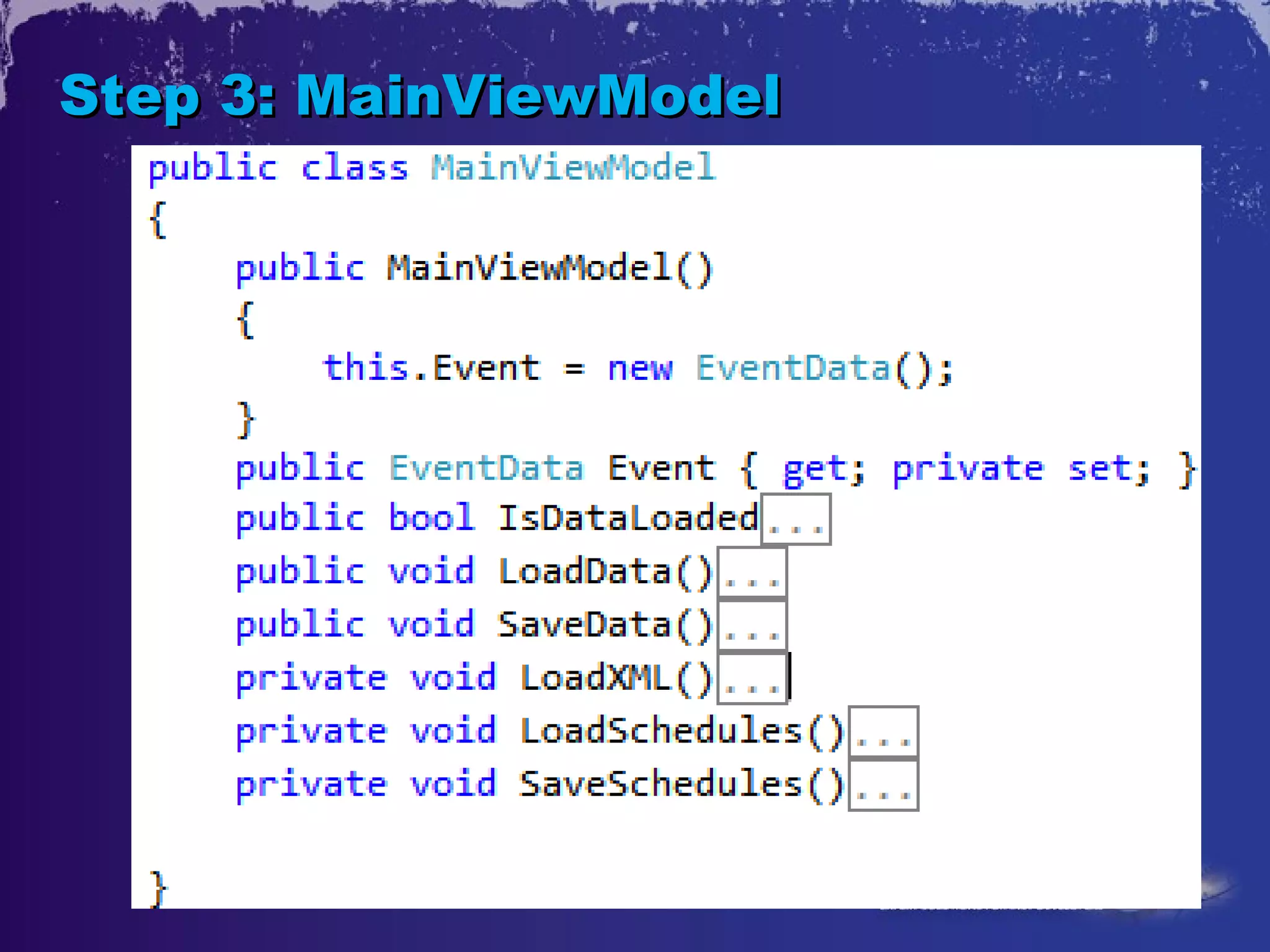

55. Step 3: MainViewModel

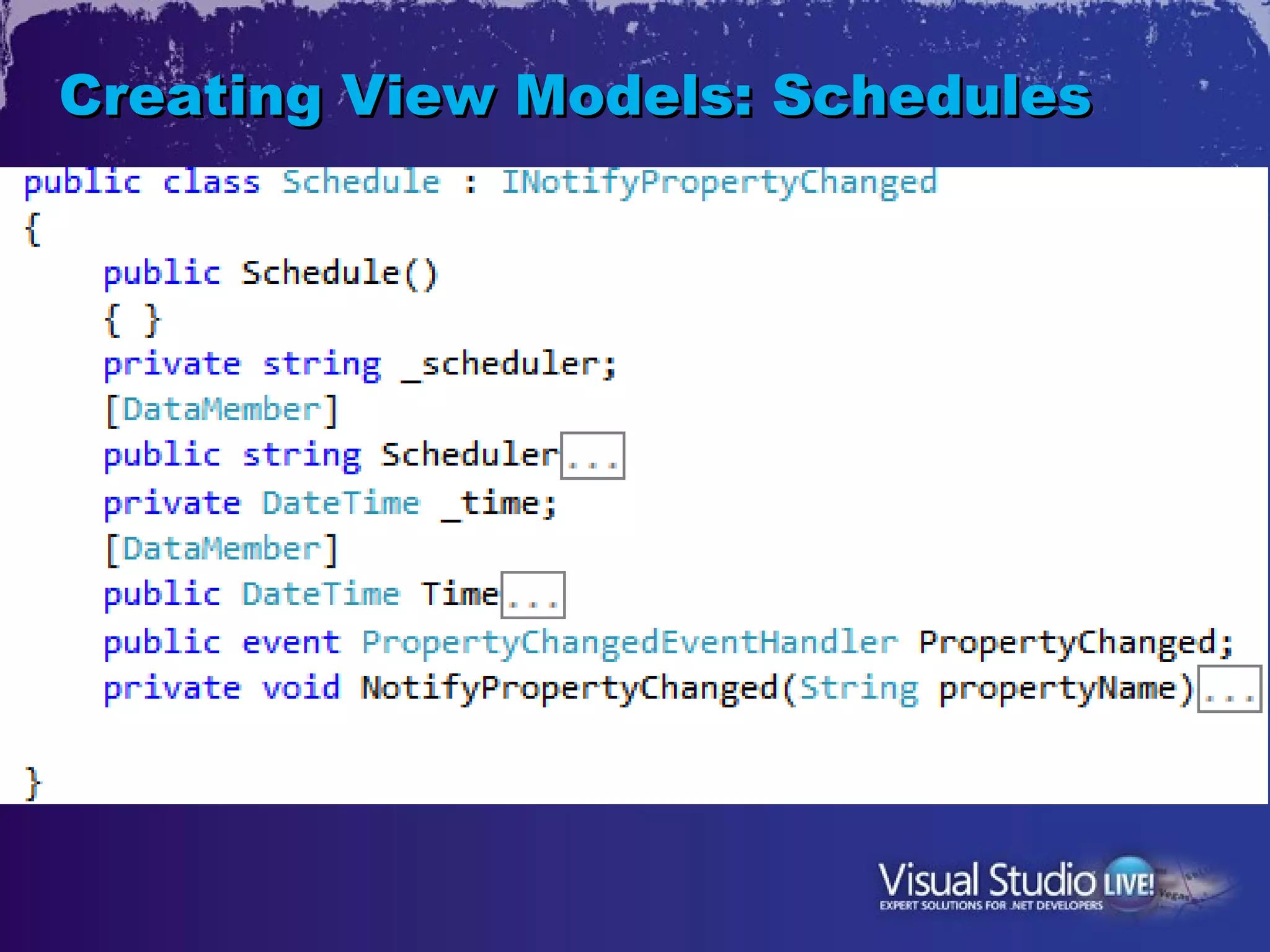

56. Creating View Models: Schedules

57. Demo on Lumia 900

58. XNA App
Advanced XNA Games for Windows Phone - Brian Peek
05/16/12 1:30pm - 2:45pm

59. Thank You
Raj Lal
Twitter @ iRajLal
