Design Web Service API by HungerStation
The document discusses the design and implementation of web service APIs, detailing various protocols such as SOAP and REST, their advantages, and the significance of API usability. It includes examples of HTTP requests and responses, illustrating the use of different HTTP verbs and status codes, and emphasizes best practices for API development. Additionally, it warns against common mistakes and highlights the importance of clear documentation and error messaging.
More Related Content
Similar to Design Web Service API by HungerStation
Design Web Service API by HungerStation
- 1. Design Web ServiceAPI Arabnet 2014 Riyadh
- 2.
- 4. What Application ProgrammingInterface

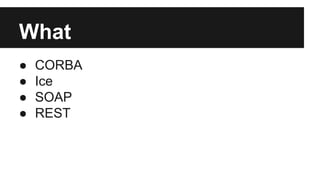

- 5. What ● CORBA ● Ice ● SOAP ● REST

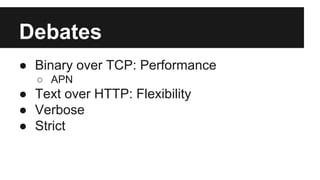

- 6. Debates ● Binaryover TCP: Performance ○ APN ● Text over HTTP: Flexibility ● Verbose ● Strict
- 7. Programmer Interface They’lljudge you by your API

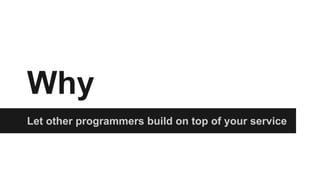

- 8. Why Let otherprogrammers build on top of your service

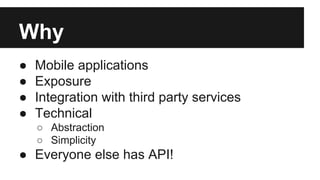

- 9. Why ● Mobileapplications ● Exposure ● Integration with third party services ● Technical ○ Abstraction ○ Simplicity ● Everyone else has API!
- 10.
- 11. SOAP Simple ObjectAccess protocol

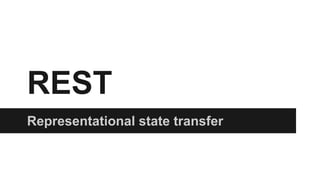

- 12. REST Representational statetransfer
- 13.
- 14.
- 15.
- 16.
- 17. HTTP Request GET/books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive

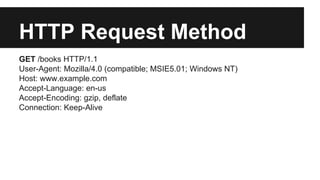

- 18. HTTP Request Method GET /books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive

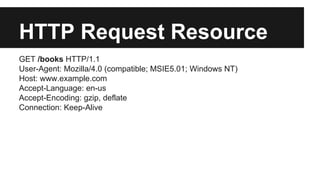

- 19. HTTP Request Resource GET /books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive

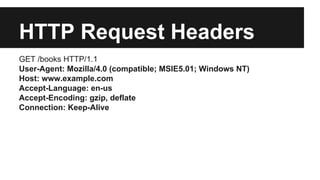

- 20. HTTP Request Headers GET /books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive

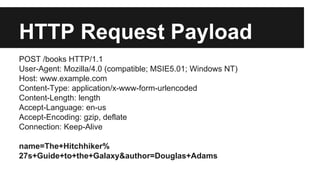

- 21. HTTP Request Payload POST /books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Content-Type: application/x-www-form-urlencoded Content-Length: length Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive name=The+Hitchhiker% 27s+Guide+to+the+Galaxy&author=Douglas+Adams

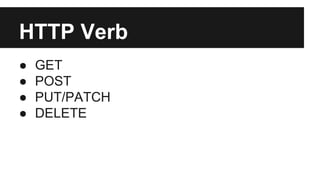

- 22. HTTP Verb ●GET ● POST ● PUT/PATCH ● DELETE
- 23. Resource ● Model ● Date element ● URL ● /books ● /books/1

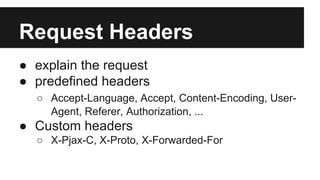

- 24. Request Headers ●explain the request ● predefined headers ○ Accept-Language, Accept, Content-Encoding, User- Agent, Referer, Authorization, ... ● Custom headers ○ X-Pjax-C, X-Proto, X-Forwarded-For

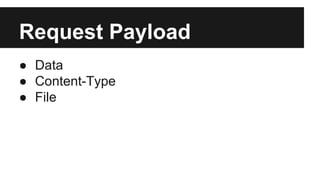

- 25. Request Payload ●Data ● Content-Type ● File

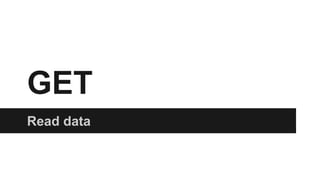

- 26.

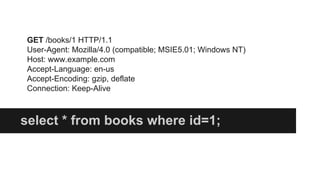

- 27. GET /books/1 HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive select * from books where id=1;
- 28. POST Create anew model

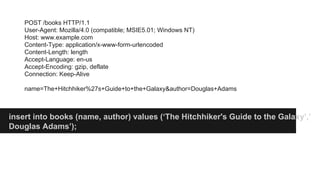

- 29. POST /books HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Content-Type: application/x-www-form-urlencoded Content-Length: length Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive name=The+Hitchhiker%27s+Guide+to+the+Galaxy&author=Douglas+Adams insert into books (name, author) values (‘The Hitchhiker's Guide to the Galaxy’,’ Douglas Adams’);

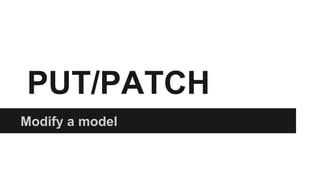

- 30. PUT/PATCH Modify amodel

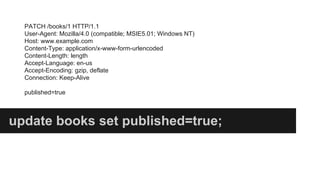

- 31. PATCH /books/1 HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Content-Type: application/x-www-form-urlencoded Content-Length: length Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive published=true update books set published=true;
- 32. DELETE Remove aresource

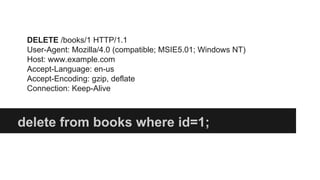

- 33. DELETE /books/1 HTTP/1.1 User-Agent: Mozilla/4.0 (compatible; MSIE5.01; Windows NT) Host: www.example.com Accept-Language: en-us Accept-Encoding: gzip, deflate Connection: Keep-Alive delete from books where id=1;
- 34.
- 35. Objective C (iOS) //create a reusable session NSURLSessionConfiguration* sessionConfiguration; NSURLSession *session; sessionConfiguration=[NSURLSessionConfiguration defaultSessionConfiguration]; [sessionConfiguration setHTTPAdditionalHeaders: @{@"Accept":@"application/json"}]; session=[NSURLSession sessionWithConfiguration:sessionConfiguration]; //execute the request NSURL* url=[NSURL URLWithString:@"https://secure-escarpment-9317.herokuapp.com/books.json"]; NSURLSessionDataTask* task=[session dataTaskWithURL:url completionHandler:^(NSData *data, NSURLResponse *response, NSError *error) { ا// handling response }]; [task resume];

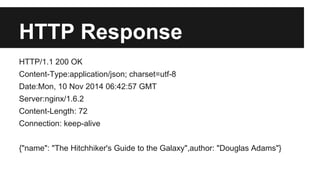

- 36. HTTP Response HTTP/1.1200 OK Content-Type:application/json; charset=utf-8 Date:Mon, 10 Nov 2014 06:42:57 GMT Server:nginx/1.6.2 Content-Length: 72 Connection: keep-alive {"name": "The Hitchhiker's Guide to the Galaxy",author: "Douglas Adams"}
- 37. Status HTTP/1.1 200OK Content-Type:application/json; charset=utf-8 Date:Mon, 10 Nov 2014 06:42:57 GMT Server:nginx/1.6.2 Content-Length: 72 Connection: keep-alive {"name": "The Hitchhiker's Guide to the Galaxy",author: "Douglas Adams"}
- 38. Headers HTTP/1.1 200OK Content-Type:application/json; charset=utf-8 Date:Mon, 10 Nov 2014 06:42:57 GMT Server:nginx/1.6.2 Content-Length: 72 Connection: keep-alive {"name": "The Hitchhiker's Guide to the Galaxy",author: "Douglas Adams"}

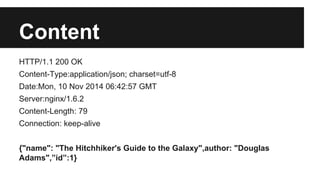

- 39. Content HTTP/1.1 200OK Content-Type:application/json; charset=utf-8 Date:Mon, 10 Nov 2014 06:42:57 GMT Server:nginx/1.6.2 Content-Length: 79 Connection: keep-alive {"name": "The Hitchhiker's Guide to the Galaxy",author: "Douglas Adams",”id”:1}
- 40. Status Codes 2XXOK 3XX Redirection 4XX Client Error 5XX Server Error

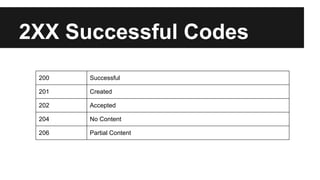

- 41. 2XX Successful Codes 200 Successful 201 Created 202 Accepted 204 No Content 206 Partial Content

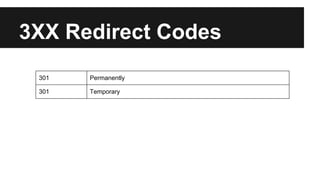

- 42. 3XX Redirect Codes 301 Permanently 301 Temporary

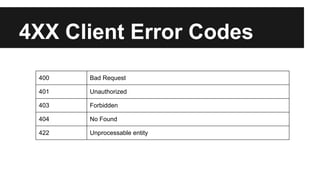

- 43. 4XX Client ErrorCodes 400 Bad Request 401 Unauthorized 403 Forbidden 404 No Found 422 Unprocessable entity
- 44. 5XX Server ErrorCodes 500 Internal Server Error 501 Service Unavailable

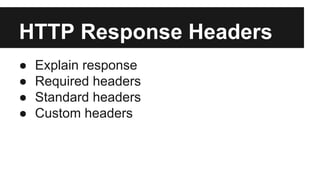

- 45. HTTP Response Headers ● Explain response ● Required headers ● Standard headers ● Custom headers

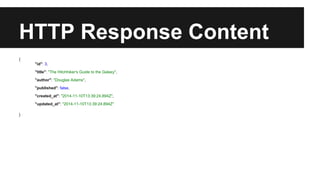

- 46. HTTP Response Content { "id": 3, "title": "The Hitchhiker's Guide to the Galaxy", "author": "Douglas Adams", "published": false, "created_at": "2014-11-10T13:39:24.894Z", "updated_at": "2014-11-10T13:39:24.894Z" }

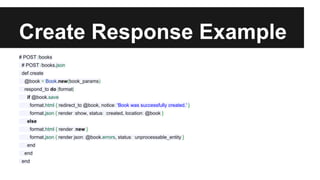

- 47. Create Response Example # POST /books # POST /books.json def create @book = Book.new(book_params) respond_to do |format| if @book.save format.html { redirect_to @book, notice: 'Book was successfully created.' } format.json { render :show, status: :created, location: @book } else format.html { render :new } format.json { render json: @book.errors, status: :unprocessable_entity } end end end
- 48. Create Response Example public function create() { $book = new Book; $book->title = Request::get('title'); $book->author = Request::get('author'); $book->save(); return Response::json(array( 'error' => false, 'urls' => $urls->toArray()), 201 ); }
- 49.

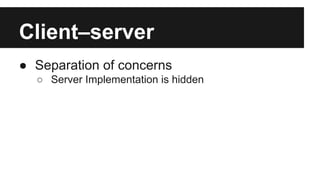

- 50. Client–server ● Separationof concerns ○ Server Implementation is hidden

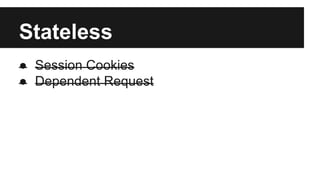

- 51. Stateless ● SessionCookies ● Dependent Request
- 52. Cacheable ● HTTPHeaders ● Explicitly ● Scale ● Performance

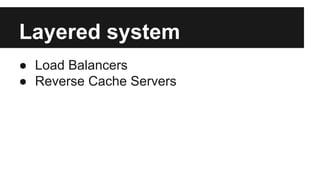

- 53. Layered system ●Load Balancers ● Reverse Cache Servers
- 54. Uniform interface ●Identification of resources ○ independent of presentation ● Manipulation of resources through these representations ○ All data required to modify are present in single request ● Self-descriptive messages ○ response is self descriptive via response headers ● Hypermedia as the engine of application state

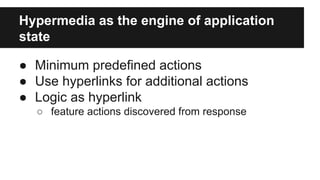

- 55. Hypermedia as theengine of application state ● Minimum predefined actions ● Use hyperlinks for additional actions ● Logic as hyperlink ○ feature actions discovered from response

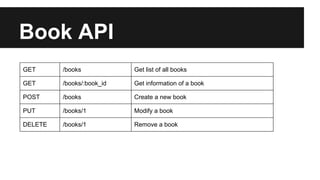

- 56. Book API GET/books Get list of all books GET /books/:book_id Get information of a book POST /books Create a new book PUT /books/1 Modify a book DELETE /books/1 Remove a book

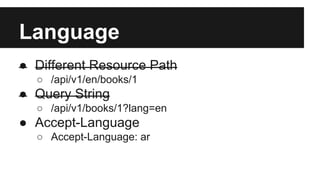

- 57. Language ● DifferentResource Path ○ /api/v1/en/books/1 ● Query String ○ /api/v1/books/1?lang=en ● Accept-Language ○ Accept-Language: ar

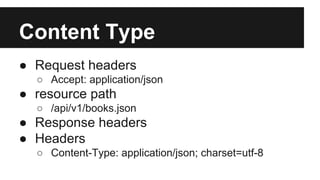

- 58. Content Type ●Request headers ○ Accept: application/json ● resource path ○ /api/v1/books.json ● Response headers ● Headers ○ Content-Type: application/json; charset=utf-8

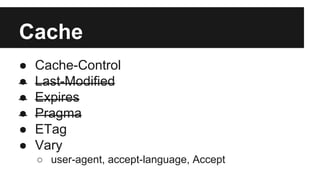

- 59. Cache ● Cache-Control ● Last-Modified ● Expires ● Pragma ● ETag ● Vary ○ user-agent, accept-language, Accept
- 60. Paging ● ViaHeader ○ 206 Partial Content ○ Content-Range: 0-9/42 ○ Range: 10-19 ● Query Parameter ○ ?offset=10&limit=20 ● Providing next page hyperlink in response.
- 61. User Agent ●Device information ● Application Version ● BookStore/12.4 (iOS/7.1; iPhone)

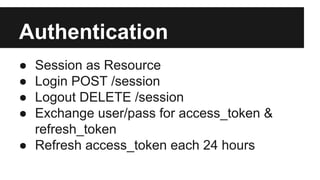

- 62. Authentication ● Sessionas Resource ● Login POST /session ● Logout DELETE /session ● Exchange user/pass for access_token & refresh_token ● Refresh access_token each 24 hours
- 63. Authorization ● Authorizationheader ● Cookies

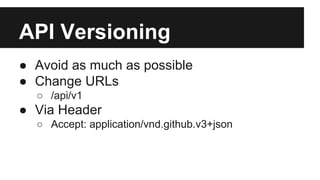

- 64. API Versioning ●Avoid as much as possible ● Change URLs ○ /api/v1 ● Via Header ○ Accept: application/vnd.github.v3+json

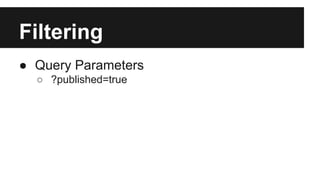

- 65. Filtering ● QueryParameters ○ ?published=true
- 66. Sorting ● ViaQuery Parameter ● sort ascending and descending ● ?sort=+name,-author
- 67.

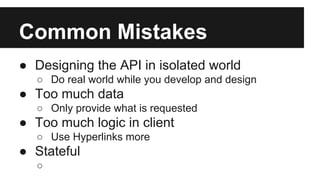

- 68. Common Mistakes ●Designing the API in isolated world ○ Do real world while you develop and design ● Too much data ○ Only provide what is requested ● Too much logic in client ○ Use Hyperlinks more ● Stateful ○

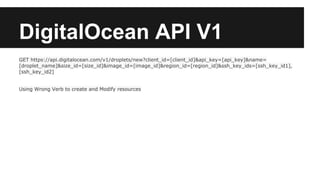

- 69. DigitalOcean API V1 GET https://api.digitalocean.com/v1/droplets/new?client_id=[client_id]&api_key=[api_key]&name= [droplet_name]&size_id=[size_id]&image_id=[image_id]®ion_id=[region_id]&ssh_key_ids=[ssh_key_id1], [ssh_key_id2] Using Wrong Verb to create and Modify resources

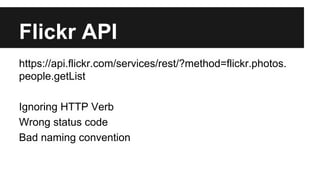

- 70. Flickr API https://api.flickr.com/services/rest/?method=flickr.photos. people.getList Ignoring HTTP Verb Wrong status code Bad naming convention

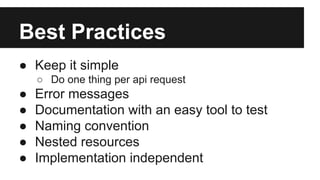

- 71. Best Practices ●Keep it simple ○ Do one thing per api request ● Error messages ● Documentation with an easy tool to test ● Naming convention ● Nested resources ● Implementation independent

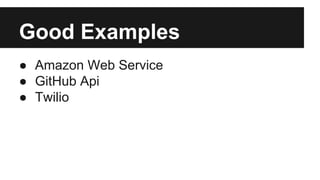

- 72. Good Examples ●Amazon Web Service ● GitHub Api ● Twilio

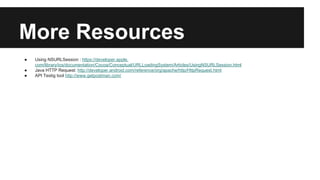

- 73. More Resources ●Using NSURLSession : https://developer.apple. com/library/ios/documentation/Cocoa/Conceptual/URLLoadingSystem/Articles/UsingNSURLSession.html ● Java HTTP Request: http://developer.android.com/reference/org/apache/http/HttpRequest.html ● API Testig tool http://www.getpostman.com/
- 74.

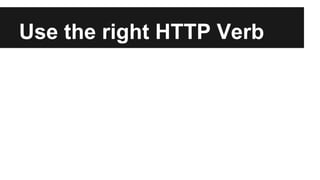

- 76. Use the rightHTTP Verb

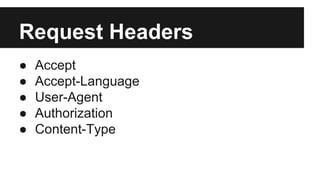

- 77. Request Headers ●Accept ● Accept-Language ● User-Agent ● Authorization ● Content-Type

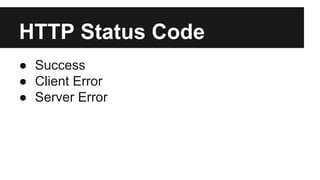

- 78. HTTP Status Code ● Success ● Client Error ● Server Error

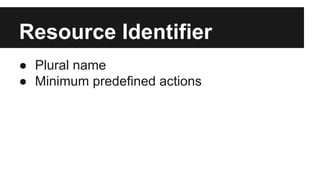

- 79. Resource Identifier ●Plural name ● Minimum predefined actions

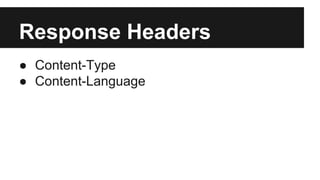

- 80. Response Headers ●Content-Type ● Content-Language

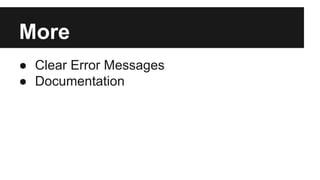

- 81. More ● ClearError Messages ● Documentation
