1. Design Patterns
ECE 417/617:
Elements of Software Engineering
Stan Birchfield
Clemson University

2. What is a Design Pattern?
• A design pattern
– abstracts a recurring design structure
– comprises class and/or object
• dependencies,
• structures,
• interactions, or
• conventions
– distills design experience

3. Re-use
• Code re-use
– Don’t reinvent the wheel
– Requires clean, elegant, understandable, general,
stable code
– leverage previous work
• Design re-use
– Don’t reinvent the wheel
– Requires a precise understanding of common,
recurring designs
– leverage previous work

4. Some design patterns
• Abstract factory
• Adapter
• Bridge
• Command
• Composite
• Façade
• Subject / Observer
• Proxy
• Strategy

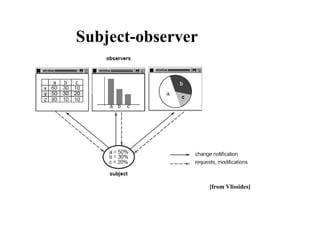

5. Subject-observer
[from Vlissides]

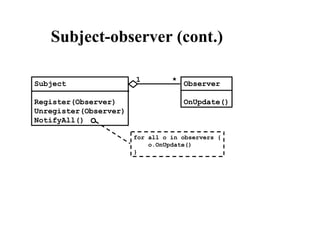

6. Subject-observer (cont.)
Subject
Register(Observer)
Unregister(Observer)
NotifyAll()
Observer
OnUpdate()
1 *
for all o in observers {
o.OnUpdate()
}

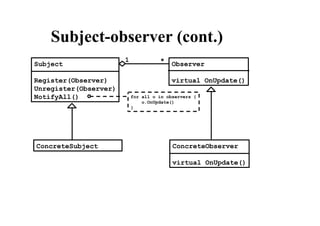

7. Subject-observer (cont.)
Subject
Register(Observer)
Unregister(Observer)
NotifyAll()
Observer
virtual OnUpdate()
1 *
for all o in observers {
o.OnUpdate()
}
ConcreteSubject ConcreteObserver
virtual OnUpdate()

8. Model / view / controller (MVC)
Controller
Model
View (displays data)
(mediates)
(holds data)
{
Model m;
Controller c(&m);
View v(&c);
} calls Register()
Main
View
Controller
Model
Create()
Create()
Create()
Register()

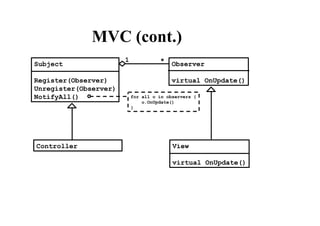

9. MVC (cont.)
Subject
Register(Observer)
Unregister(Observer)
NotifyAll()
Observer
virtual OnUpdate()
1 *
for all o in observers {
o.OnUpdate()
}
Controller View
virtual OnUpdate()

10. MVC (cont.)
class Observer
{
protected:
virtual void OnUpdate(MsgId message_id) = 0;
};
class Subject
{
public:
enum MsgId {};
void RegisterObserver(Observer* obs);
virtual void NotifyAllObservers(MsgId message_id) {
for (int i=0 ; i<m_observers.size() ; i++) {
m_observers[i]->OnUpdate(message_id);
}
}
private:
std::vector<Observer*> m_observers;
};

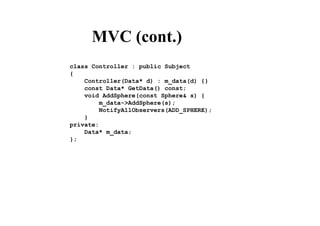

11. MVC (cont.)
class Controller : public Subject
{
Controller(Data* d) : m_data(d) {}
const Data* GetData() const;
void AddSphere(const Sphere& s) {
m_data->AddSphere(s);
NotifyAllObservers(ADD_SPHERE);
}
private:
Data* m_data;
};

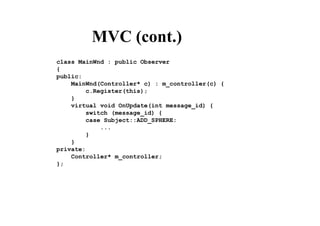

12. MVC (cont.)
class MainWnd : public Observer
{
public:
MainWnd(Controller* c) : m_controller(c) {
c.Register(this);
}
virtual void OnUpdate(int message_id) {
switch (message_id) {
case Subject::ADD_SPHERE:
...
}
}
private:
Controller* m_controller;
};

13. Adapter
• You have
– legacy code
– current client
• Adapter changes interface of legacy code so
client can use it
• Adapter fills the gap b/w two interfaces
• No changes needed for either
– legacy code, or
– client

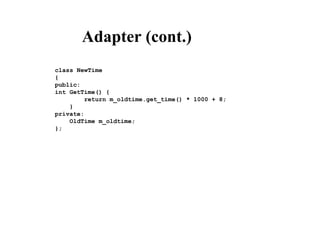

14. Adapter (cont.)
class NewTime
{
public:
int GetTime() {
return m_oldtime.get_time() * 1000 + 8;
}
private:
OldTime m_oldtime;
};

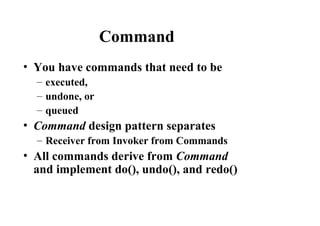

15. Command
• You have commands that need to be
– executed,
– undone, or
– queued
• Command design pattern separates
– Receiver from Invoker from Commands
• All commands derive from Command
and implement do(), undo(), and redo()

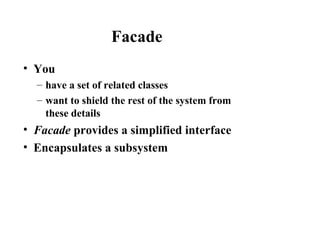

16. Facade
• You
– have a set of related classes
– want to shield the rest of the system from
these details
• Facade provides a simplified interface
• Encapsulates a subsystem

17. Composite
• You want uniformly to treat
– items (atomic elements), and
– groups (containing items or other groups)
• Composite interface specifies operations
that are shared between items and
groups
• Examples: hierarchy of files and
directories, groups of drawable elements

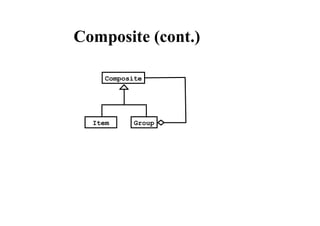

18. Composite (cont.)
Group
Item
Composite

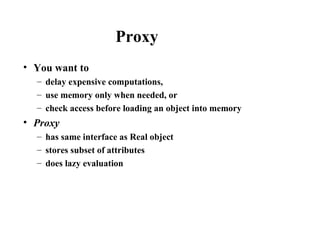

19. Proxy
• You want to
– delay expensive computations,
– use memory only when needed, or
– check access before loading an object into memory
• Proxy
– has same interface as Real object
– stores subset of attributes
– does lazy evaluation

20. Strategy
• You want to
– use different algorithms depending upon the context
– avoid having to change the context or client
• Strategy
– decouples interface from implementation
– shields client from implementations
– Context is not aware which strategy is being used;
Client configures the Context
– strategies can be substituted at runtime
– example: interface to wired and wireless networks

21. Strategy (cont.)
Client
Strategy
Concrete
StrategyA
Concrete
StrategyB
Context
Policy

22. Bridge
• You
– have several different implementations
– need to choose one, possibly at run time
• Bridge
– decouples interface from implementation
– shields client from implementations
– Abstraction creates and initializes the
ConcreteImplementations
– Example: stub code, slow code, optimized code

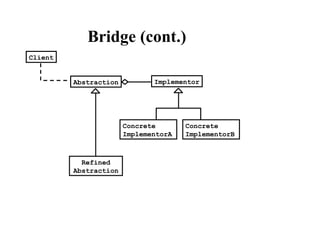

23. Bridge (cont.)
Client
Implementor
Refined
Abstraction
Concrete
ImplementorA
Concrete
ImplementorB
Abstraction

24. Design pattern space
[from Vlissides]
