Defects in rolled sheets-A paper review

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 248
Defects in rolled sheets-A paper review
Anjali Muley1, Ashish Mundlik2, Sunil Nairale3
123Student of second year B- Tech, Department of mechanical Engineering, Deogiri Institute of Engineering and
Management Studies.
-------------------------------------------------------------------***------------------------------------------------------------------
Abstract - Rolling is one among the method within which a metal stock passes through roller to cut back and unify
thickness by maintaining the gap between rollers. Metal rolling has come an extended way, from the standard hand
process to the ultramodern industrial methods, it’s an avid and complicated affair the require high levels of precision.
Irrespective of the method used, there are usual rolling defects that get up from every so often.
Keywords: Rolling process, Hot rolling, Cold rolling, Defects in rolling
1. Introduction:
The rolling is process of compressing the metal by passing two revolving rollers to desired thickness is obtained by
maintaining the gap between rollers.in this process length will increase and thickness will reduce. There two styles of
rolling hot rolling and cold rolling
Hot rolling occurs when performed at temperature above the recrystallization temperature. And cold rolling occurs
when performed at temperature below the recrystallization temperature.
Many causes of defects are following:
At the time of rolling process defects occurs due to poor or wrong die design, due to excessive mechanical working,
elevated temperature, careless work, unskilled work, because of inferiority material used, due to low temperature used for
heating the workpiece. Some defects within the rolling process occurs due to bends of rolls.
2. Literature review:
Xinglong Feng+, Xianwen Goa* and Ling Luo+ [1] found the dataset, named XSteel surface defect dataset contains seven
kinds of 1360 defects images from the hot steel strip rolling site
Rohit Yadav [1] he found on cold rolling solutions which currently in use and founded number of defects like defects
originating from the preceding tactics-metallurgical method, defects deriving from the implantation of the rolling, defects
which can be a by product of a chilly plastic forming system, he concludes that evidently control the roll deflection is the
best and best way to enhance the nice of cold rolled merchandise.
O.M. Ikumapayi, E.T. Akinlabi, P. Onu, O.P. Abolusoro [2] they found general and operational defects that occur in rolling,
journal defects are mainly because of imperfections in the starting and end products of rolling and operation defects
presents due to deformations or deflection of the rolls during rolling.
Jingren Lia, Dongsheng Xiea, Hansong Yua, Ruolin Liua, Yangzi Shenb, xingshuo Zhanga, Changlin Yangc, Lifena Mad, Hucheng
Pana, Gaowu Qind, [3]they found the effect of multi-pass low- strain rolling on the microstructure and mechanical
properties of as- extruded AZM630 alloy sheet is remarkably refined and the microstructure becomes more uniform after
high reduction deformation.
P.P. Sarkar, S.K. Dhua, S.K. Thakur, S. Rath [4] they founded that the defective sample exhibited both short and long
unidirectional transverse cracks in the edge defect, microstructural examination of the defect regions revealed partial
decarburization and internal oxidation along the length of the top surface.
Syed Sadat Ali, Prof. Sunil Mangshetty [5] they found rolling is simulation is carried out for different configurations using
finite element analysis, the result show when stress increase from defect free model to defect models, plastic strain
increment from of regular component to defect component.

A. Pesin D. Pustovoytov [6] he founded temperature gradient between the top and the bottom surface of the plays a
significant role in movement of the cracks from the plat edges. amount of metal moving to the bottom surface increases
while the amount of the metal moving to the top surface decreases. The main reason of longitudinal edges cracks
appearance is high tensile stress generated at the front end of the slab during the rolling process when the metal moves
from the front end surface of the plate.
S. Ghanei, B. Abeyrathna, B Rolfe and M. Weiss [7] they founded an accurate FEA model capable of predicting forming stain
and wrinkling in FRF has been developed, the forming behaviour in the conventional FRF is similar to that observed in
DFFF.
3. Defects:
There are mainly two forms of rolling defects:
1. Surface rolling defects.
2. Internal structural rolling defects.
3.1Surface defect:
Surface defects are occurring because of impurities and inclusion within the fabric surface, roll marks, dirt, rust, and other
causes associated with previously treatment and dealing of metal.
3.2. Structural Defect:
Structural defects are more important rolling defects:
1. Edge defect
2. Alligator cracks
3. Wavy edges
4. Zipper cracks
5. Canter buckling
6. Fold
7. Laminations

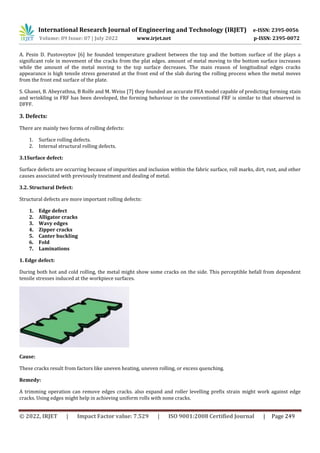

1. Edge defect:
During both hot and cold rolling, the metal might show some cracks on the side. This perceptible befall from dependent
tensile stresses induced at the workpiece surfaces.
Cause:
These cracks result from factors like uneven heating, uneven rolling, or excess quenching.
Remedy:
A trimming operation can remove edges cracks. also expand and roller levelling prefix strain might work against edge
cracks. Using edges might help in achieving uniform rolls with none cracks.

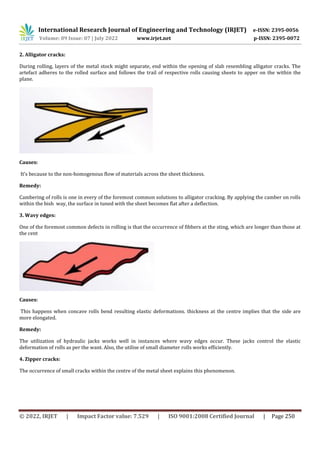

2. Alligator cracks:
During rolling, layers of the metal stock might separate, end within the opening of slab resembling alligator cracks. The
artefact adheres to the rolled surface and follows the trail of respective rolls causing sheets to apper on the within the
plane.
Causes:
It’s because to the non-homogenous flow of materials across the sheet thickness.
Remedy:
Cambering of rolls is one in every of the foremost common solutions to alligator cracking. By applying the camber on rolls
within the bish way, the surface in tuned with the sheet becomes flat after a deflection.
3. Wavy edges:
One of the foremost common defects in rolling is that the occurrence of fibbers at the sting, which are longer than those at
the cent
Causes:
This happens when concave rolls bend resulting elastic deformations. thickness at the centre implies that the side are
more elongated.
Remedy:
The utilization of hydraulic jacks works well in instances where wavy edges occur. These jacks control the elastic
deformation of rolls as per the want. Also, the utilise of small diameter rolls works efficiently.
4. Zipper cracks:
The occurrence of small cracks within the centre of the metal sheet explains this phenomenon.

Causes:
Mostly, zipper cracks occur because the bending of rolls under the high rolling pressure. it causes compressive stress
within the perimeter and tensile stress within the border. It’s these tensile stresses induced at the workpiece by
homogeneous deformation that end in formation of zipper cracks.
Remedy:
Cambering of rolls has proven effective when it involves to preventing zipper cracks. Camber provides a rather larger
diameter at the centre than on the border.
5. Centre buckling:
This defect occurs exact to the self-equilibrating residual stresses that result from the rolling process. During centre
buckling, fibre at the centre of the metal piece is longer than those at the side. In an happening where hot or cold mills
have an excessive amount of crown, mills roll out at the centre. Sideways deflection of a support perfectly explains centre
buckling.
Remedy:
use crowned rolls could even be solution to centre to buckling. The roll’s parabolic curvature is sufficient the matter of
fabric, temperature, and deformation.
6. Fold:
This defect is encountered when the reduction per pass is extremely low.
7.Liminations:
Laminations mean layers. If the ingot isn’t sound and contain a piping or blow holes and through rolling they’re doing not
get completely welded, it’ll cause a defect called laminations. Fairly often within the ingot, there are non-metals inclusions;
during rolling they’ll get lengthened onward with sound material. This prospect also cause laminations.
Remedy:
Discarding the part of the ingot where piping and another fault are present and selecting only good metal part for rolling.
References:
[1] Xinglong Feng+, Xianwen Goa* and Ling Luo+, review on a new benchmark for hot rolled steel strip surface defects
detection, collage of information science and engineering, North-eastern university, Shenyang, china, published on 17 April
2021.
[2] Rohit Yadav, review on effect of rolling process in formability of material, international journal of engineering in
current trends, volume-3, issue-4, July 2021.
[3] O.M. Ikumapayi, E.T. Akinlabi, P. Onu, O.P. Abolusoro, review on Rolling operation in metal forming: process and
principle – A brief study, scientific committee of the10th international conference of materials processing and
characterization. Issue-14, February 2020.

[4] Jingren Lia, Dongsheng Xiea, Hansong Yua, Ruolin Liua, Yangzi Shenb, xingshuo Zhanga, Changlin Yangc, Lifena Mad,
Hucheng Pana, Gaowu Qind, review on microstructure and mechanical property of multi- pass low –strain rolled Mg-Al-Zn-
Mn alloy sheet, key laboratory for anisotropy and texture of materials, school of materials science and engineering,
northeaster university, Shenyang china, b state key laboratory of rolling and Automation, northeaster university, Shenyang
china, c state key laboratory of solidification processing, north-western polytechnic university, Xi’an, Shaanxi china, d
Shanxi provincial key laboratory of metallurgical equipment design and technology, Taiyuan university of science and
technology, Taiyuan, chain, issue 15, April 2020
[5] P.P. Sarkar, S.K. Dhua, S.K. Thakur, S. Rath, review on analysis of the surface defects in a hot rolled low -carbon C-Mn
steel plate, R $ D centre for Iron and steel, steel Authority of India Limited, Ranchi, Jharkhand, published on 18 may 2017.
[6] Syed Sadat Ali, Prof. Sunil Mangshetty, review on Finite Element Analysis of Evolution of Defects During Rolling,
International Journal of Engineering Research $ technology, volume 2, issue 10, October-2013.
[7] A. Pesin D. Pustovoytov, review on edge formation in plate rolling by finite element method, department of metal
forming, Nosov Magnitogorsk state technical university, Magnitogorsk, issue 10, October 2014.
[8] S. Ghanei, B. Abeyrathna, B Rolfe and M. Weiss, review on Analysis of material behaviour and shape defect
compensation in the flexible roll forming of advanced high strength steel, international deep drawing research group 38th
annual conference, IOP publishing.
Conclusion:
In this present works results that many different defects present on the time of rolling process. These are defects are likely
to experience in rolling processes. Since metalworking isn’t a perfect affair, to embrace some of these problems and
provide the most probable remedies. Above mentioned rolling defects will helps us in producing more fine finished
products from the rolling process.
Biography:
Anjali Muley, pursuing the Bachelor of technology Degree [Mechanical] from Deogiri Institute of
Engineering and management studies Aurangabad, Maharashtra, India.
Ashish Mundlik, pursuing the Bachelor of technology Degree [Mechanical] from Deogiri Institute of
Sunil Nairale, pursuing the Bachelor of technology Degree [Mechanical] from Deogiri Institute of
