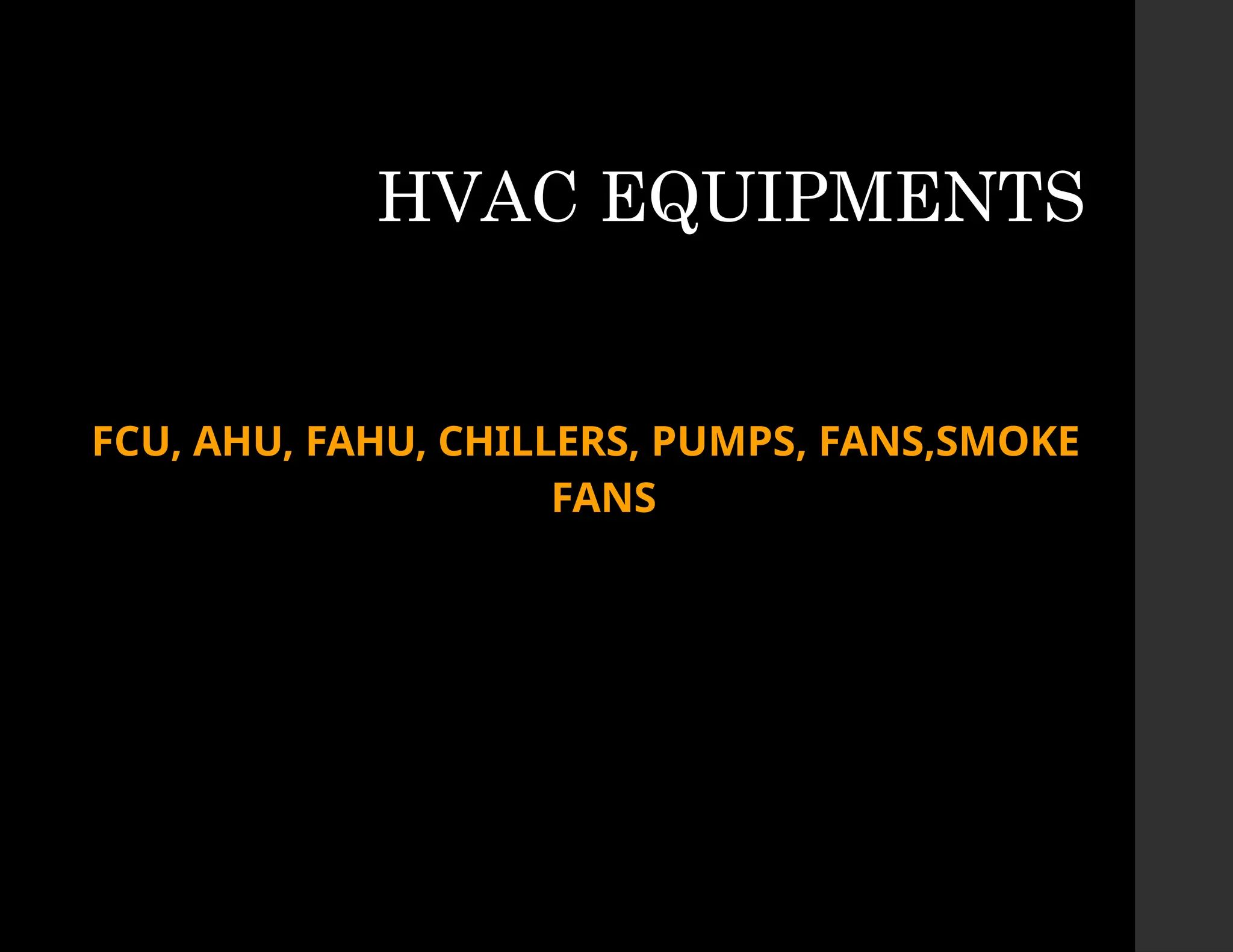

1. HVAC EQUIPMENTS
FCU, AHU, FAHU, CHILLERS, PUMPS, FANS,SMOKE
FANS

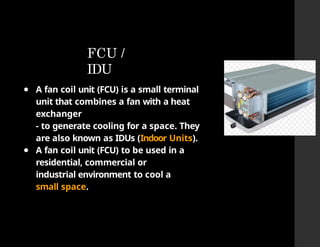

2. FCU /
IDU
● A fan coil unit (FCU) is a small terminal
unit that combines a fan with a heat
exchanger
- to generate cooling for a space. They
are also known as IDUs (Indoor Units).
● A fan coil unit (FCU) to be used in a
residential, commercial or
industrial environment to cool a
small space.

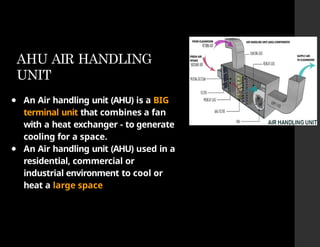

4. AHU AIR HANDLING
UNIT
● An Air handling unit (AHU) is a BIG
terminal unit that combines a fan
with a heat exchanger - to generate
cooling for a space.
● An Air handling unit (AHU) used in a
residential, commercial or
industrial environment to cool or
heat a large space

5. AHU ROOF TOP

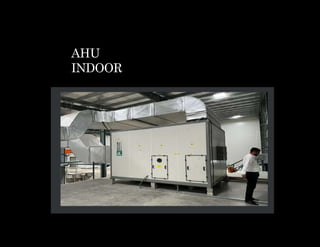

6. AHU
INDOOR

7. FAHU/ TFU
UNITS
● Fresh Air Handling Unit (FAHU) is an
excellent solution for regulating and
circulating fresh air as part of an
HVAC system and it ensures a
constant flow of fresh clean air and
a very well- conditioned
environment.

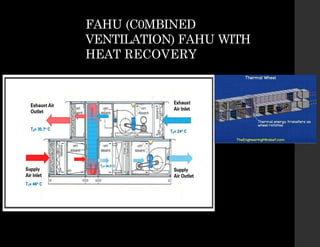

8. FAHU (C0MBINED
VENTILATION) FAHU WITH
HEAT RECOVERY

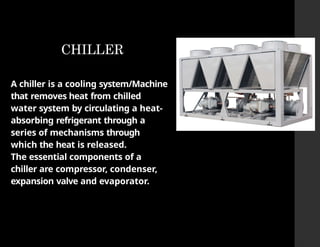

9. CHILLER
A chiller is a cooling system/Machine
that removes heat from chilled
water system by circulating a heat-
absorbing refrigerant through a
series of mechanisms through
which the heat is released.
The essential components of a
chiller are compressor, condenser,
expansion valve and evaporator.

10. Cooled
Chiller
MbxhRm

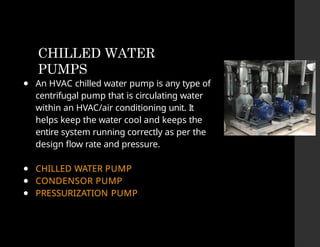

11. CHILLED WATER
PUMPS
● An HVAC chilled water pump is any type of
centrifugal pump that is circulating water
within an HVAC/air conditioning unit. It
helps keep the water cool and keeps the
entire system running correctly as per the
design flow rate and pressure.
● CHILLED WATER PUMP
● CONDENSOR PUMP
● PRESSURIZATION PUMP

12. FANS,EXHAUST
FANS
● EXHAUST FANS
● FRESH AIR FANS
● MAKE UP AIR FANS
● KITCHEN EXHAUST FANS
● SMOKE MANAGEMENT FANS

13. THANK YOU
