![Copyright © 2015, Oracle and/or its affiliates. All rights reserved. |
CloneDB (3)
Oracle Netherland
• $ORACLE_HOME/rdbms/install/clonedb.pl
• Three environment variables
– MASTER_COPY_DIR= “/rman_backup”
– CLONE_FILE_CREATE_DEST= “/nfs_mount”
– CLONEDB_NAME= “clone”
• sqlplus / as sysdba @create_clone.sql [@crtdb.sql ; @dbren.sql]
– Started up in nomount with generated pfile
– Parameter clonedb=TRUE
– Create controlfile command that points to the datafiles in “/rman_backup”
– dbms_dnfs.clonedb_renamefile(‘/rman_backup/file.dbf’,’/nfs_mount/file.dbf’
– Alter database open resetlogs;](https://image.slidesharecdn.com/planboard-dbaas-clone-170102163411/75/dbaas-clone-16-2048.jpg)
![Copyright © 2015, Oracle and/or its affiliates. All rights reserved. |
Create ZFS Clones with ZFSSAADM Oracle 12c
Oracle Netherland
• $OH/rdbms/utl/zfssa/bin/zfssaadm
– Usage:
• zfssaadm version
zfssaadm [-v] [-l login] [-P password] [-p port] clone [-n newmountpoint] server:mountpoint
zfssaadm [-v] [-l login] [-P password] [-p port] destroy [-F] server:mountpoint
• $OH/rdbms/utl/zfssa/bin/zfssaadm –l <username> “clone” –n <voltag>
<server_vol>
• Mount the <voltag>
• Create DB with the files of the clone file system <voltag>
– Spfile
– Controlfile](https://image.slidesharecdn.com/planboard-dbaas-clone-170102163411/75/dbaas-clone-20-2048.jpg)
dbaas-clone
This document discusses database cloning using copy-on-write technologies like thin cloning to minimize storage usage. It describes how traditional cloning requires fully copying database files versus thin cloning which only writes modified blocks. Methods covered include CloneDB, Snap Manager Utility, ZFSSAADM, and cloning pluggable databases using ZFS and ACFS snapshots. Direct NFS is highlighted as an optimal network storage solution for database cloning.
dbaas-clone

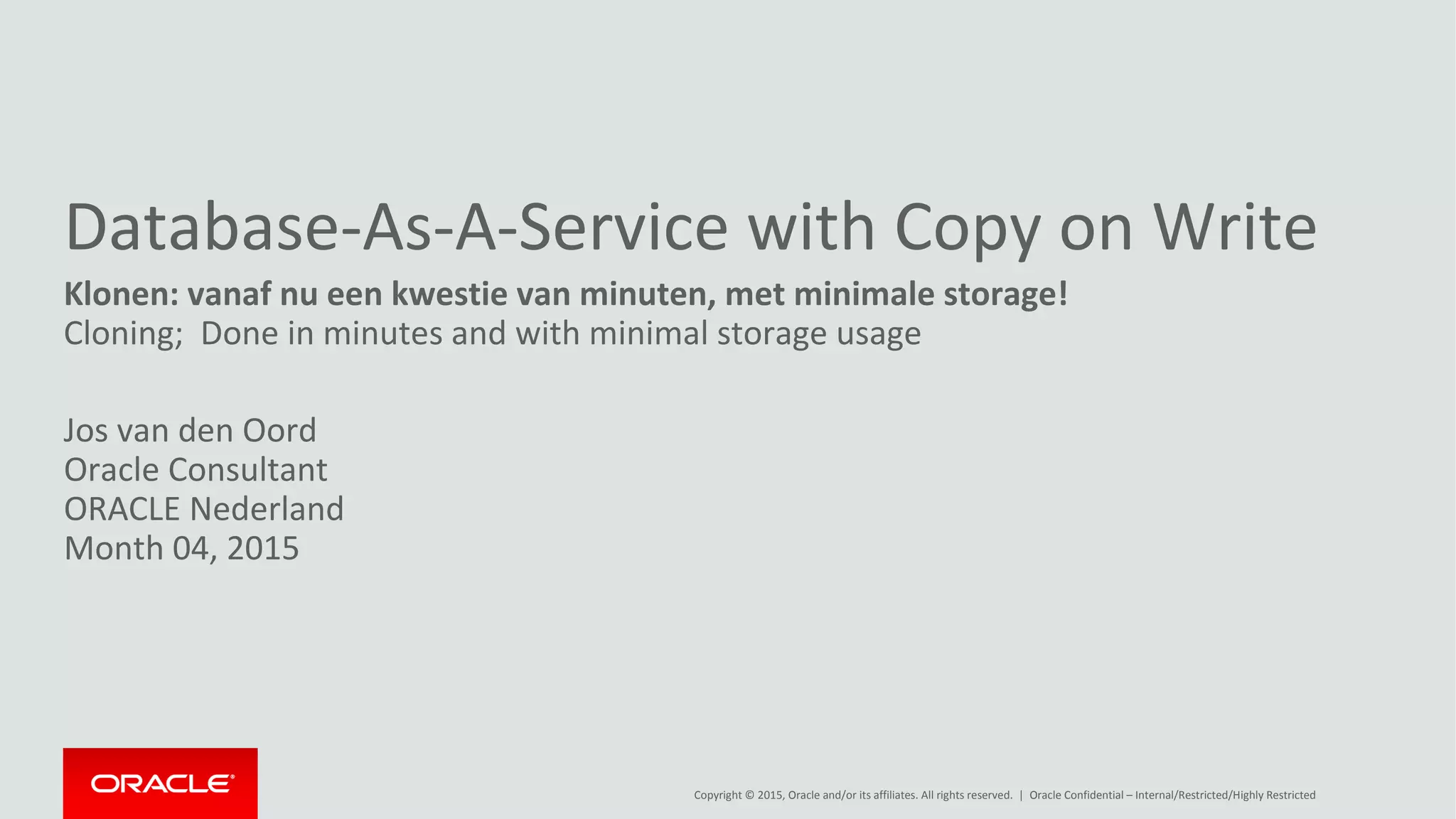

- 2. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Database-As-A-Service with Copy on Write Cloning: Just minutes with minimal storage usages Jos van den Oord Oracle Consultant ORACLE Nederland Month 04, 2015 Oracle Netherland
- 3. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle. Oracle Netherland

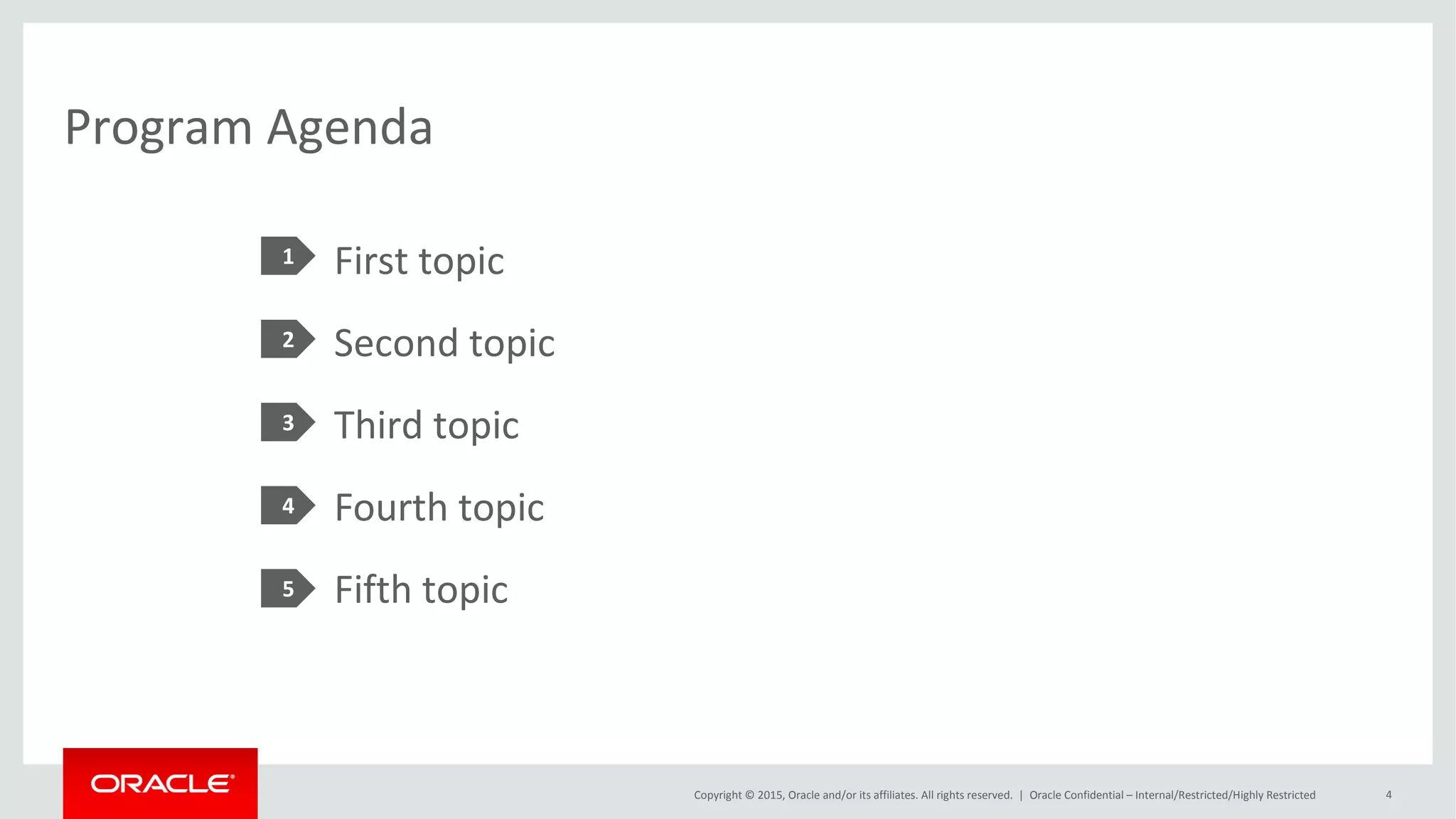

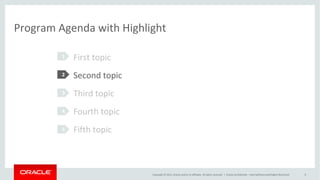

- 4. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Program Agenda Why Clone Databases? How do we Clone Databases? Database Thin Cloning with Copy-On-Write Direct NFS and Databases DBaaS – Copy-On-Write 1 2 3 4 5 Oracle Netherland

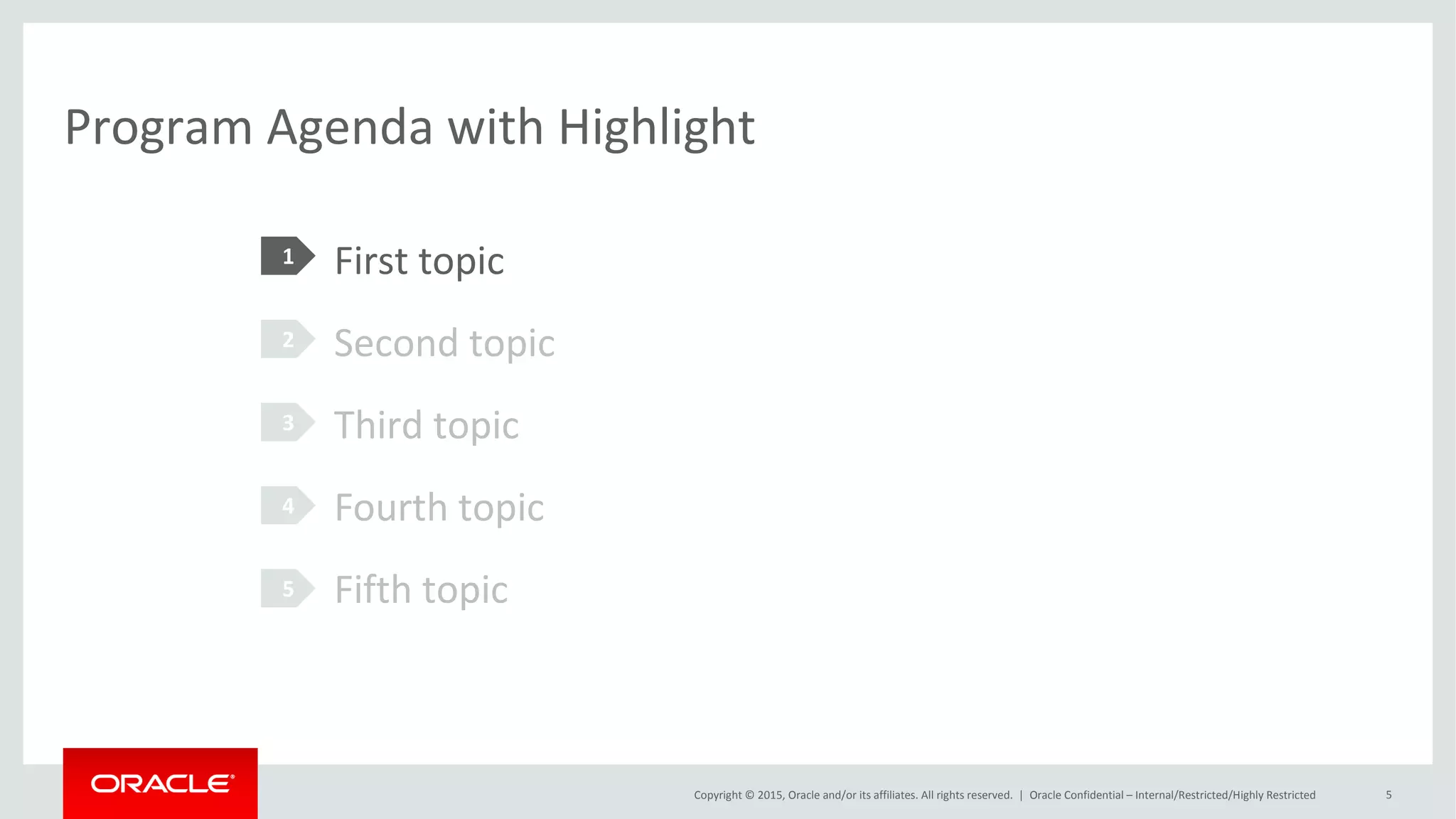

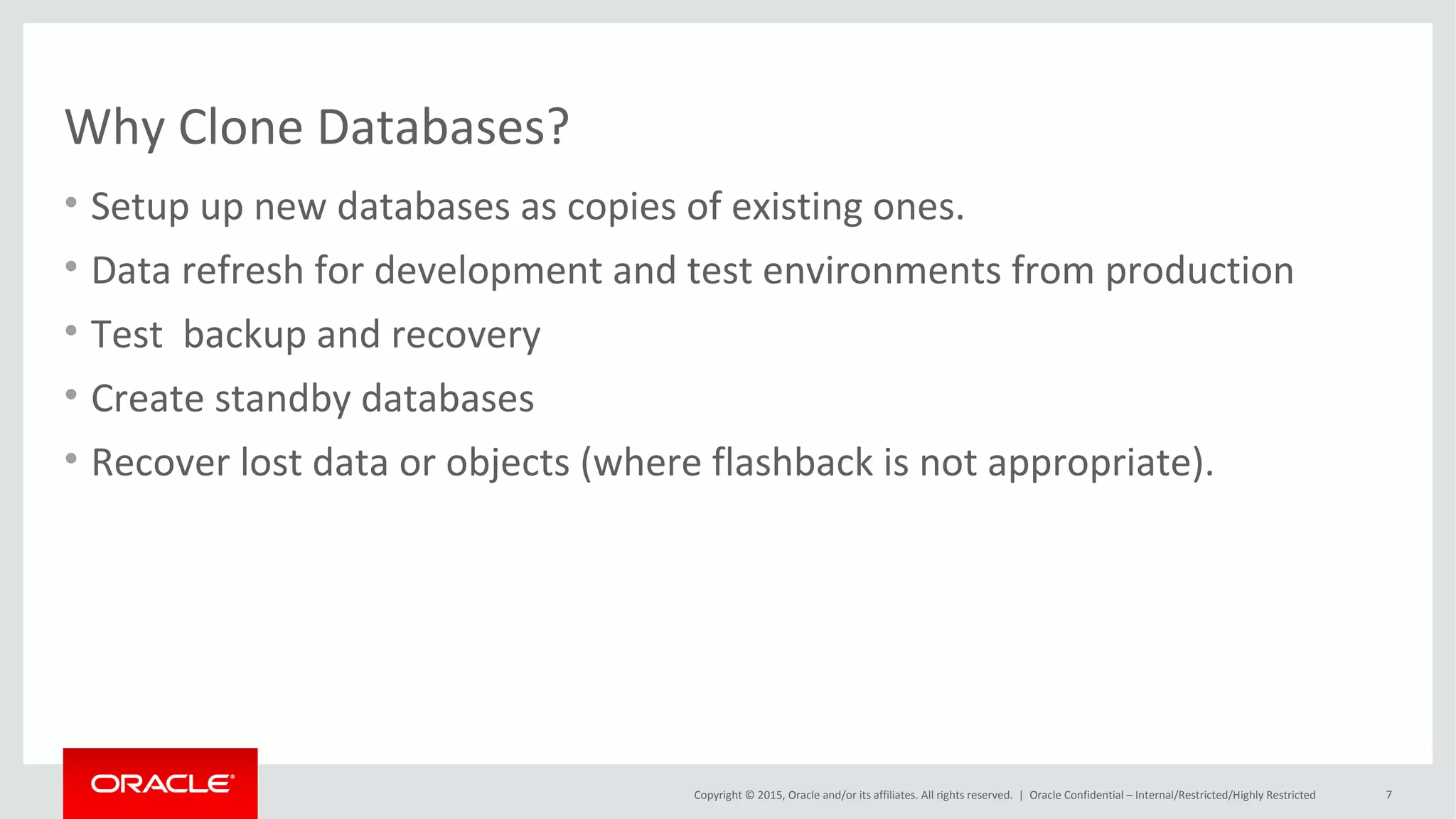

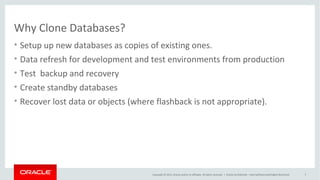

- 5. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Why Clone Databases? • Setup new databases as copies of existing ones • Data refresh for development and test environments from production • Test backup and recovery • Create standby databases • Recover lost data or objects Oracle Netherland

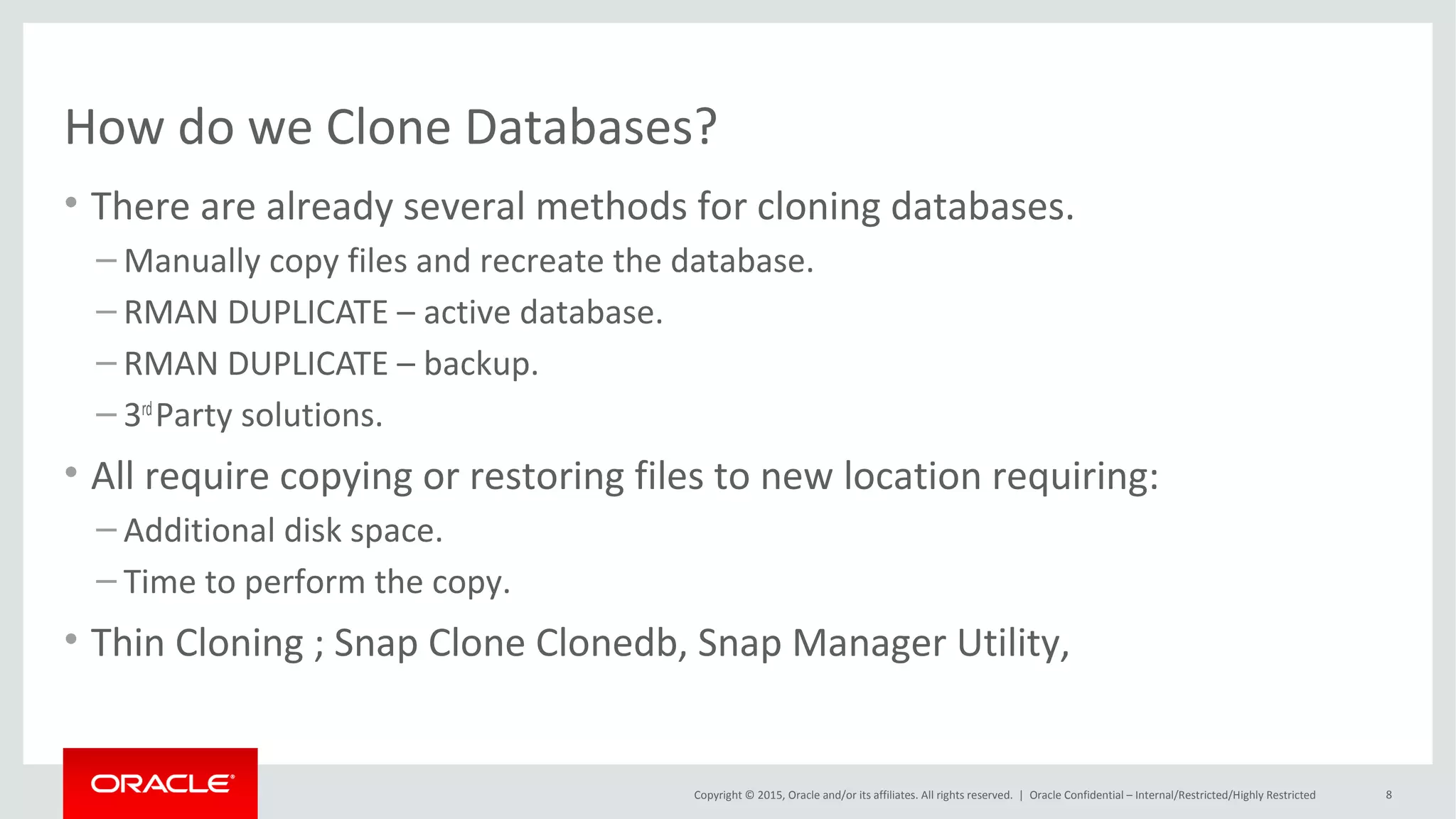

- 6. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | How do we Clone Databases? • There are several methods for cloning databases – Manually copy files and recreate the database – RMAN duplicate – from active database – RMAN duplicate – from backup – 3rd Party Solutions • All methods require copying or restoring files to new location – Additional disk space – Time to perform the copy action Oracle Netherland

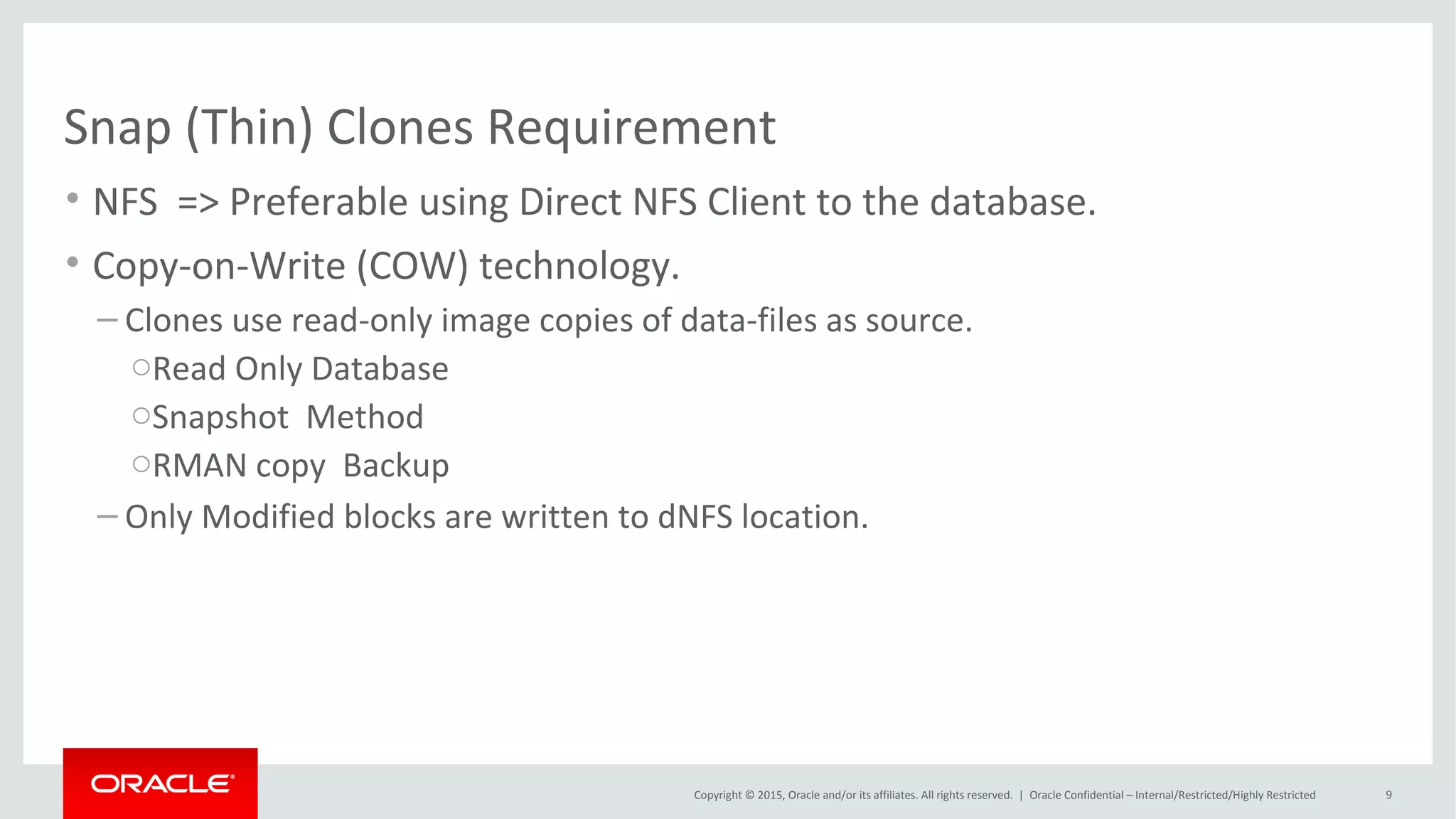

- 7. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Database Thin Cloning with Copy-On-Write • Based on Network File System (NFS) – Preferable using Direct NFS (dNFS) clients to the database • Copy-on-Write (COW) Technology – Clones use read-only image copies of data-files as source • Read Only Databases • Snapshot method • RMAN copy Backup – Only modified blocks are written to dNFS location • CloneDB, snapshot copy, Snap Clone • Snap Manager Utility, Enterprise Manager Oracle Netherland

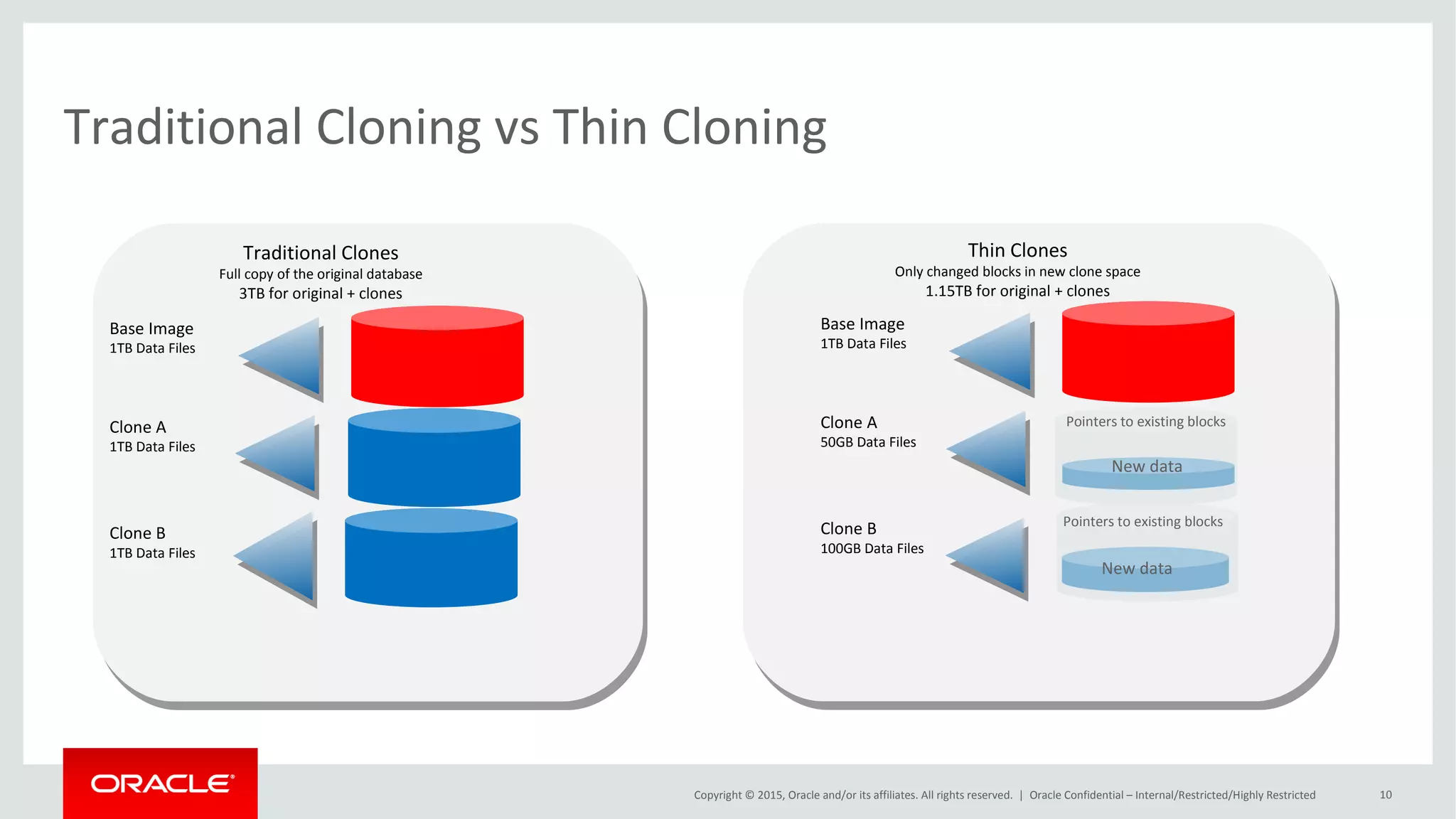

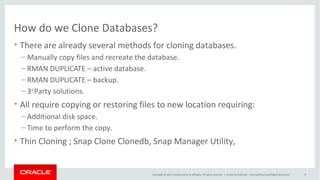

- 8. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Traditional Cloning vs Thin Cloning Oracle Netherland Base Image 1TB Data Files Clone A 1TB Data Files Clone B 1TB Data Files Traditional Clones Full copy of the original database 3TB for original + clones Thin Clones Only changed blocks in new clone space 1.15TB for original + clones Base Image 1TB Data Files Clone A 50GB Data Files Clone B 100GB Data Files Pointers to existing blocks Pointers to existing blocks New data New data
- 9. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Supported Cloning Options Oracle Netherland Snap (Thin) Clones Software Solution Snap (Thin) Clones Hardware Solution ASM - ACFS Full Clones Database Native RMAN Restore RMAN Duplicate Data Pump
- 10. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Direct NFS and Databases Oracle Netherland • Standard NFS Clients software – Not optimized for Oracle Database file I/O access patterns • Oracle Database 11g • Direct NFS Client is capable of performing concurrent direct I/O, which bypasses any operating system level cache • Eliminates any operating system write-ordering locks • Asynchronous I/O • Improve performance, high availability, and scalability of NFS storage

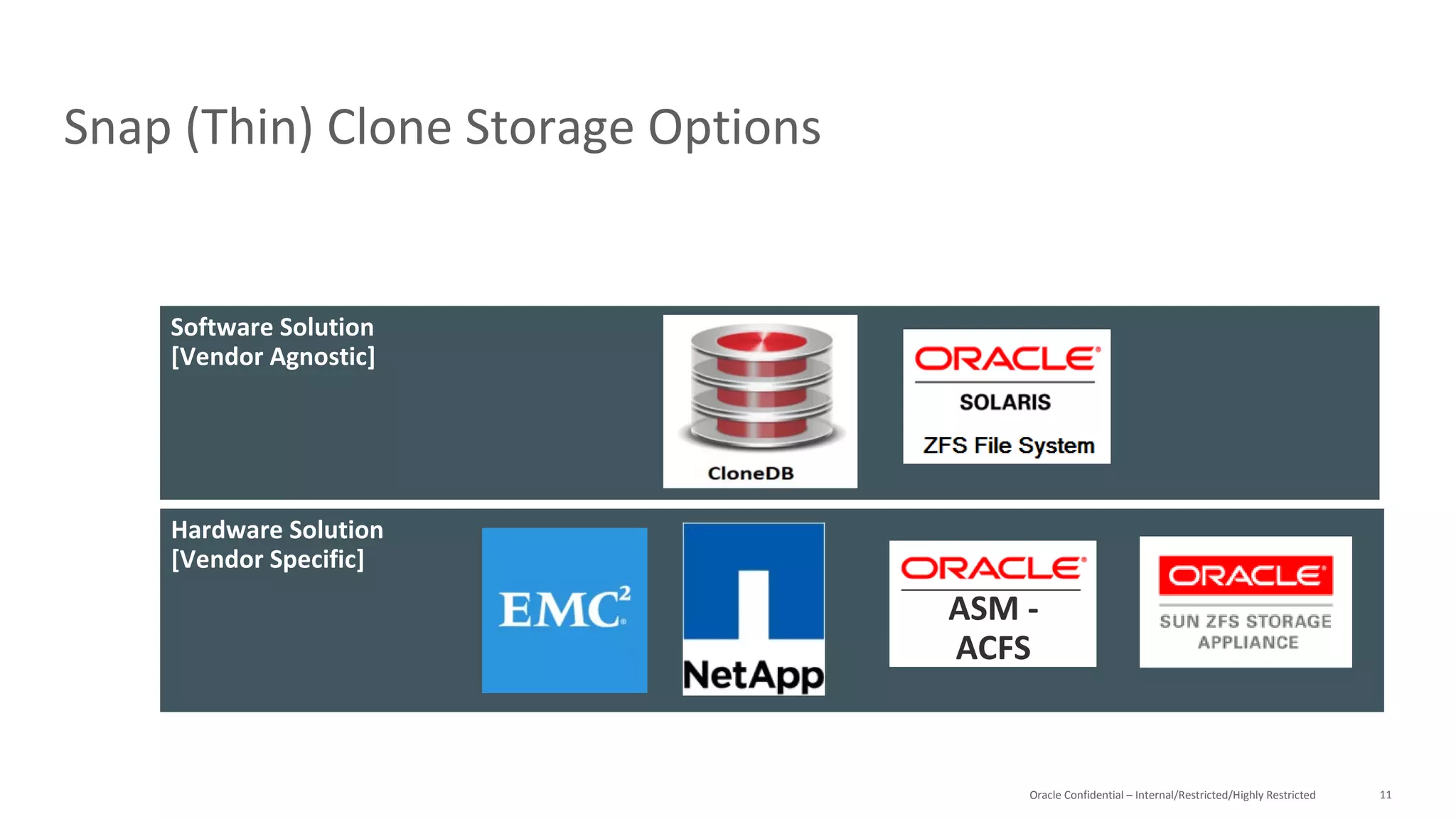

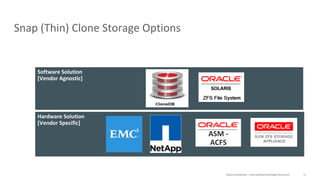

- 11. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Direct NFS Client Configuration Oracle Netherland • Mount NFS volumes • Mount options are not relevant • $ORACLE_HOME/rdbms/lib • Make –f ins_rdbms.mk dnfs_on • Set filesystemio_options at least to directIO • Configure oranfstab file - Multipathing, scalability • dNFS Client use oranfstab or /etc/mtab info to determine mount point settings for NFS storage devices

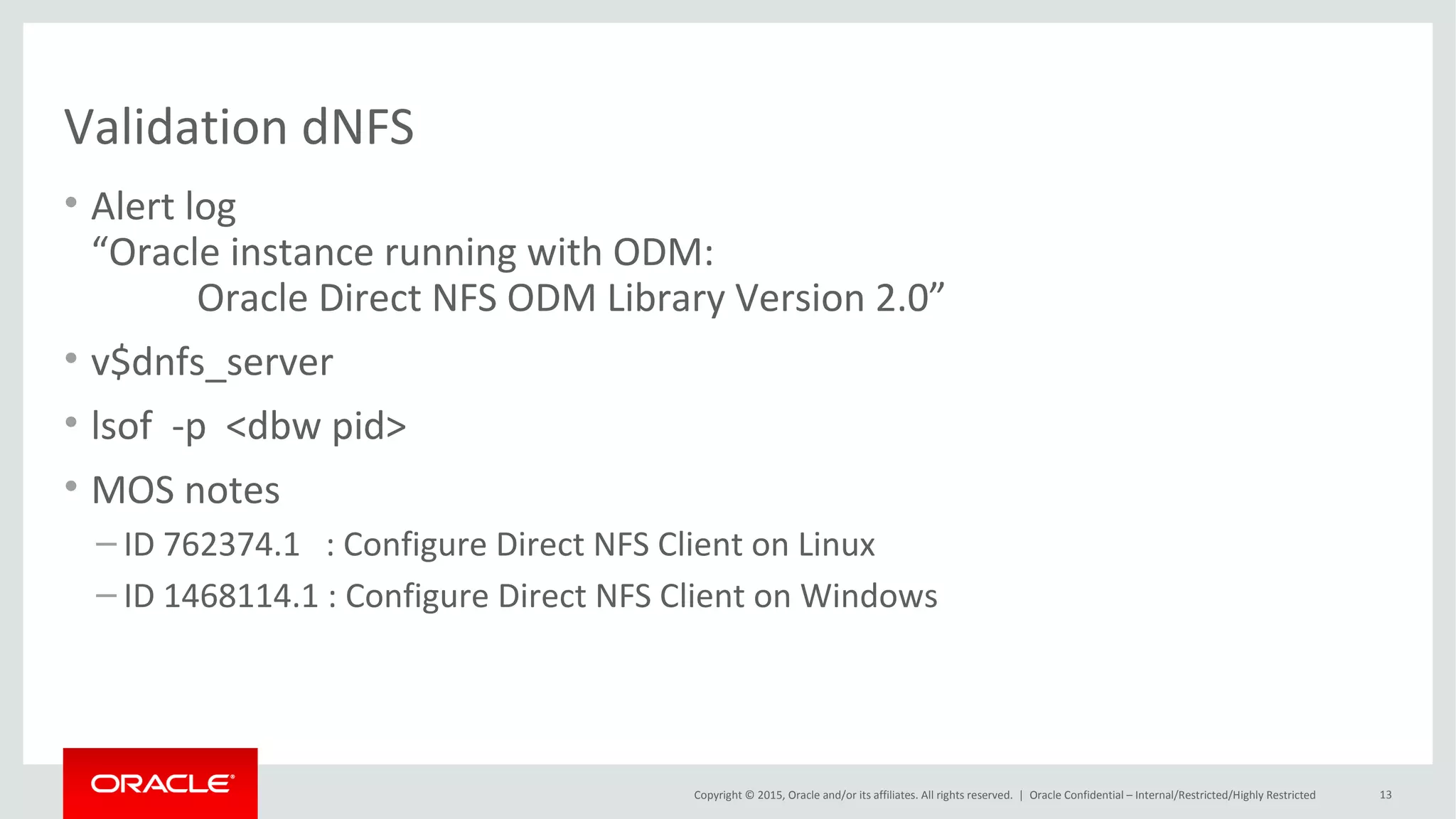

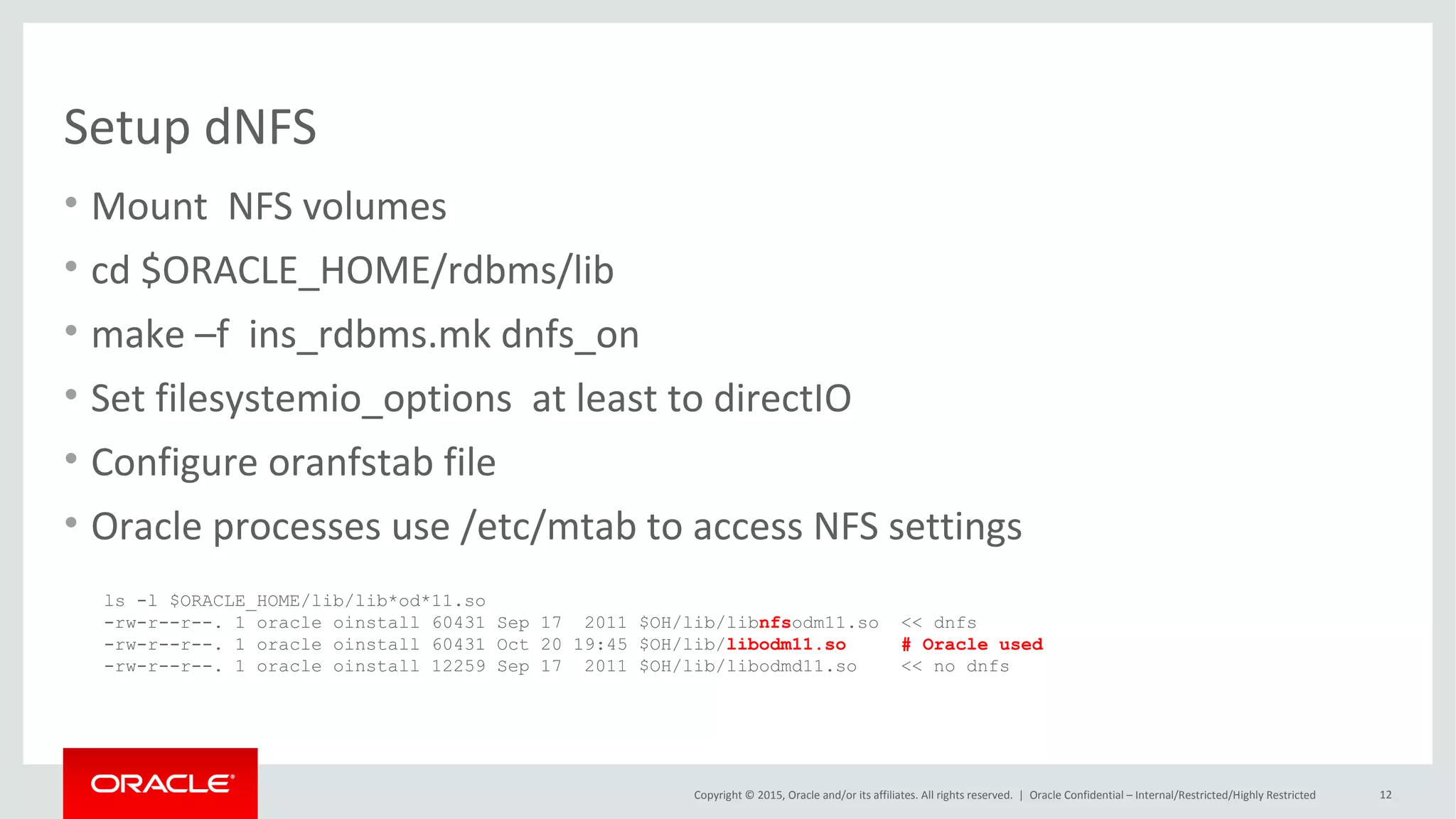

- 12. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Direct NFS validation Oracle Netherland • Alertlog “ Oracle instance running with ODM: Oracle Direct NFS ODM Library Version 3.0” • V$DNFS_* views (V$DNFS_SERVER, V$DNFS_STATS) • lsof -p <dbw pid> “ joordshost:65543->zfssa:nfs (ESTABLISHED)”

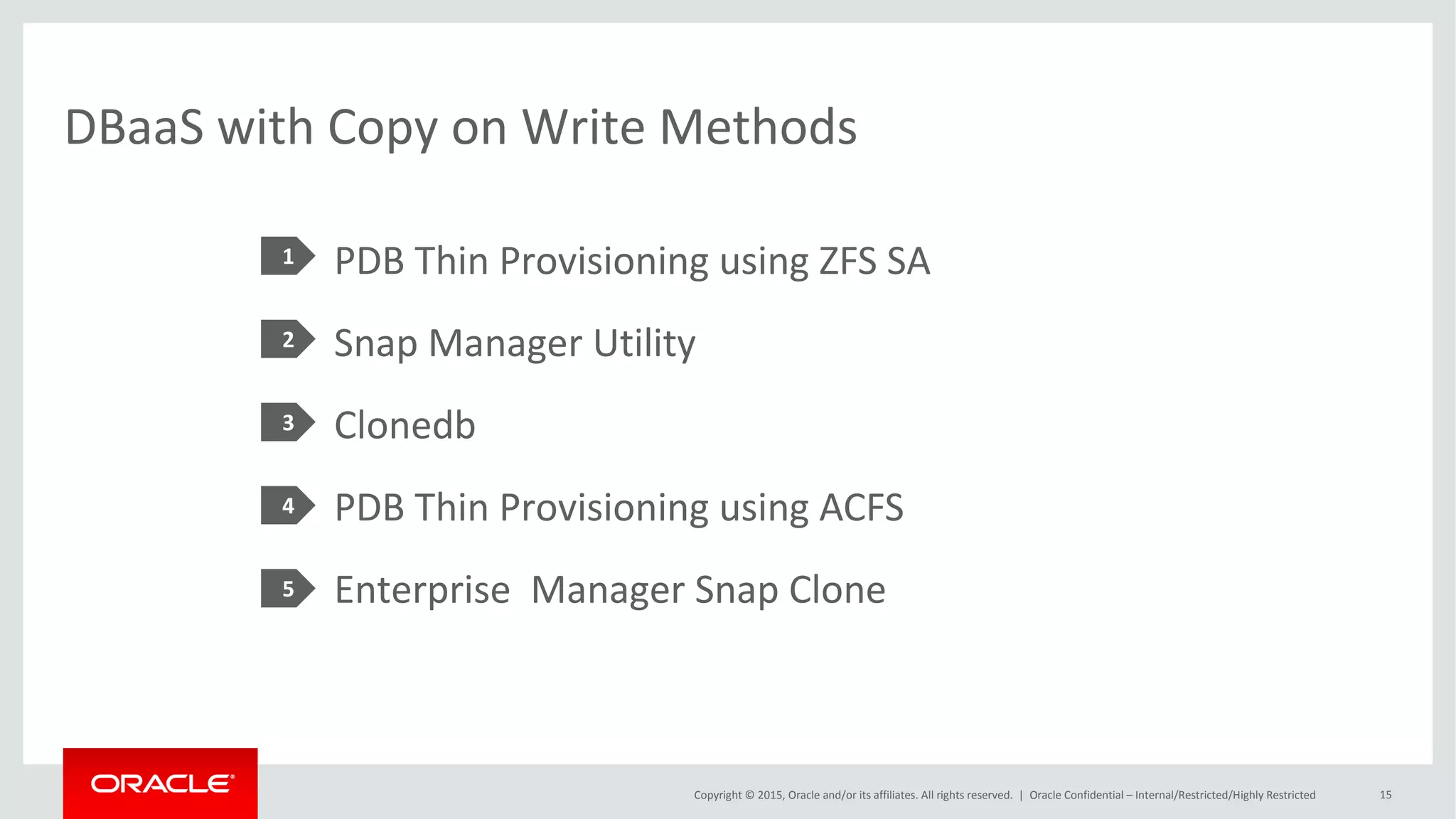

- 13. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Program Agenda CloneDB Snap Manager Utility ZFSSAADM PDB Thin Provisioning using ZFS SA PDB Thin Provisioning using ACFS Enterprise Manager Snap Clone 1 2 3 4 5 Oracle Netherland 6

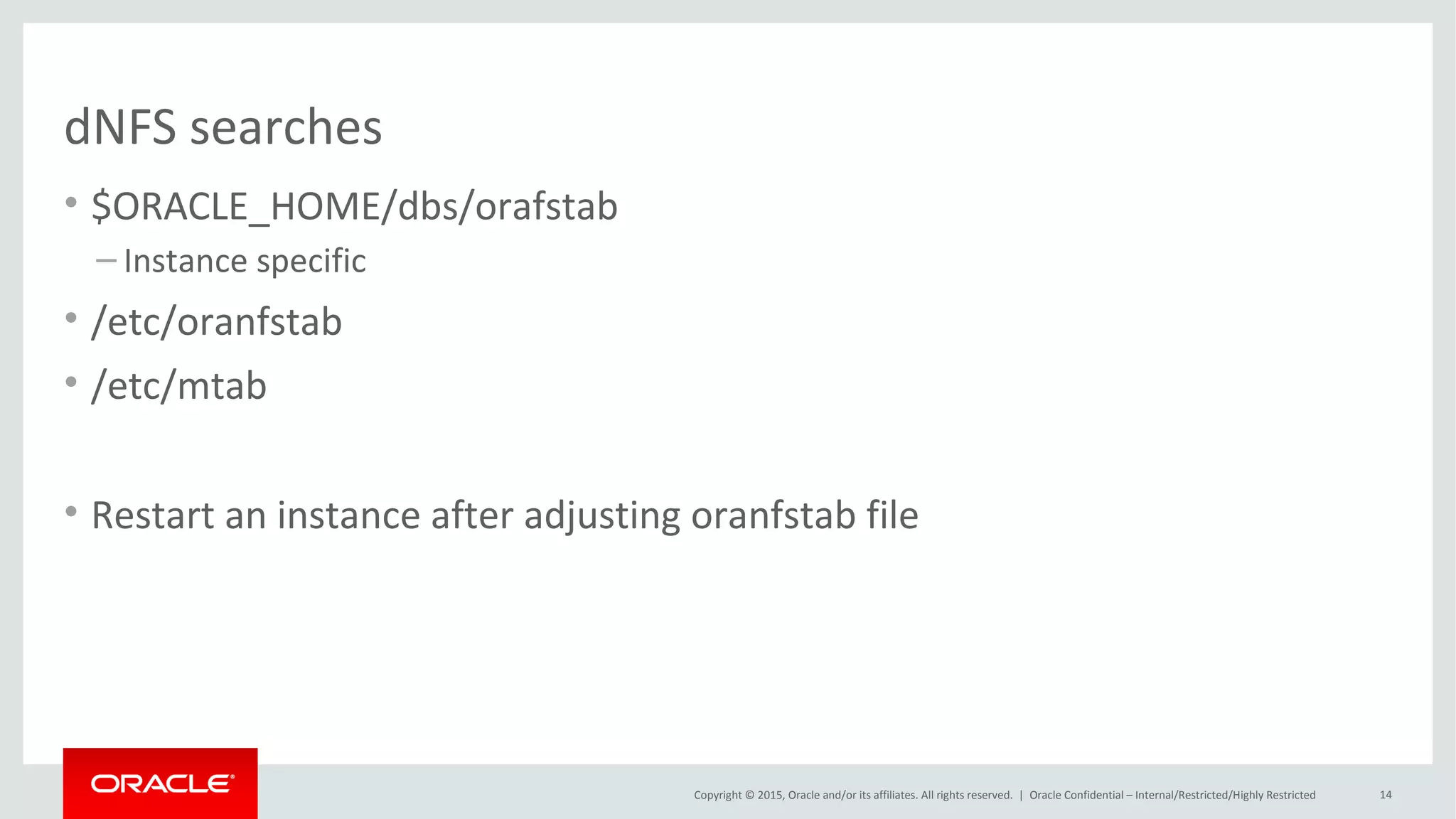

- 14. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | CloneDB (1) Oracle Netherland • Static read only image backup files source database • Use NFS v3 client embedded in database • Supported Versions: 11.2.0.3+, 12.1 • No Special storage software needed • Works on all platforms • Uses dNFS to improve performance, high availability, and scalability of NFS storage

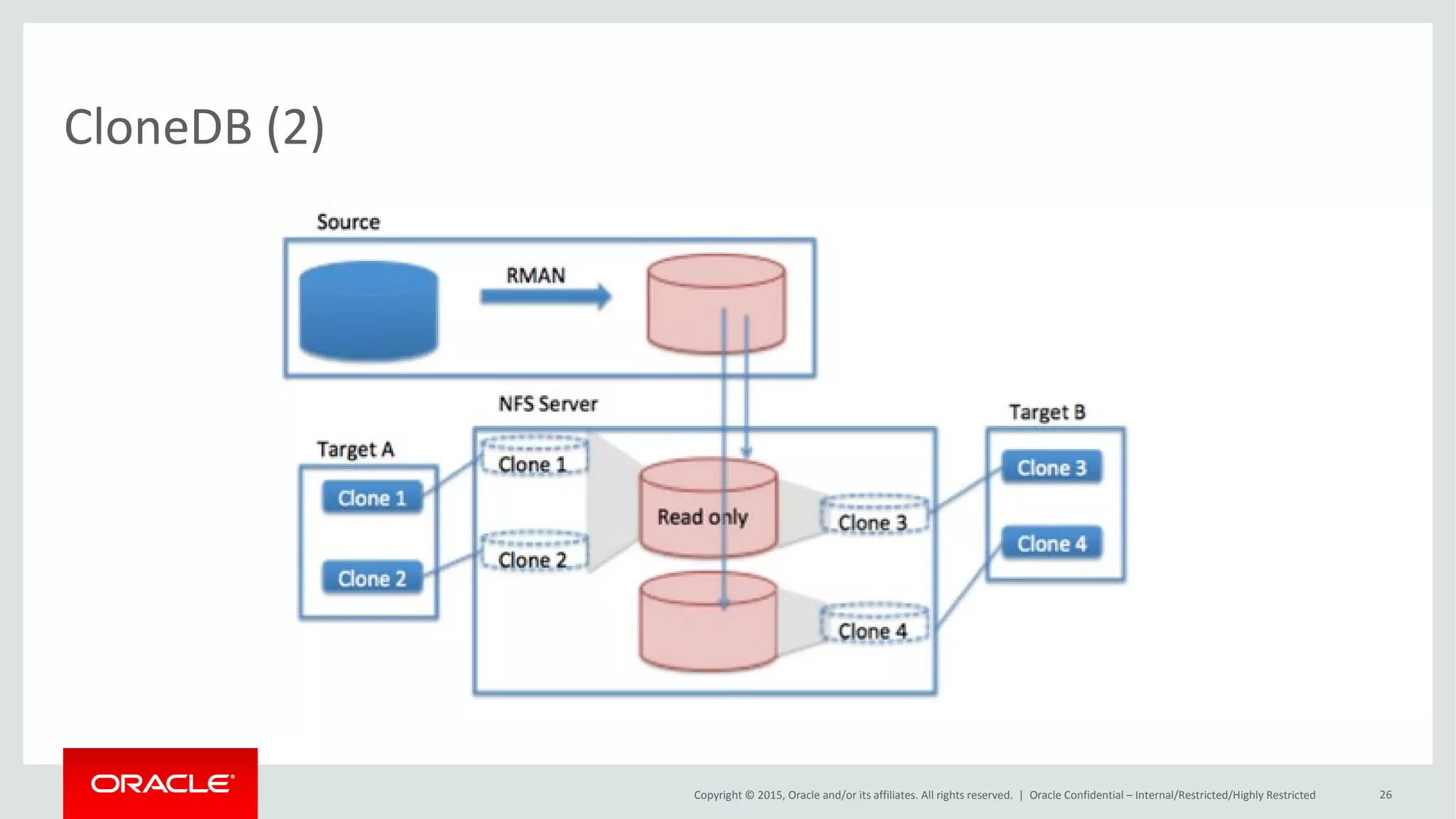

- 15. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | CloneDB (2) Oracle Netherland
- 16. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | CloneDB (3) Oracle Netherland • $ORACLE_HOME/rdbms/install/clonedb.pl • Three environment variables – MASTER_COPY_DIR= “/rman_backup” – CLONE_FILE_CREATE_DEST= “/nfs_mount” – CLONEDB_NAME= “clone” • sqlplus / as sysdba @create_clone.sql [@crtdb.sql ; @dbren.sql] – Started up in nomount with generated pfile – Parameter clonedb=TRUE – Create controlfile command that points to the datafiles in “/rman_backup” – dbms_dnfs.clonedb_renamefile(‘/rman_backup/file.dbf’,’/nfs_mount/file.dbf’ – Alter database open resetlogs;
- 17. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Oracle Snap Management Utility (1) Oracle Netherland • Standalone Management Tool with Oracle ZFS Storage Appliance • Quick and Easy Snapshots and Clones for Oracle Databases • Supported Versions: 10g, 11g,12c • Uses dNFS to improve performance, high availability, and scalability of NFS storage

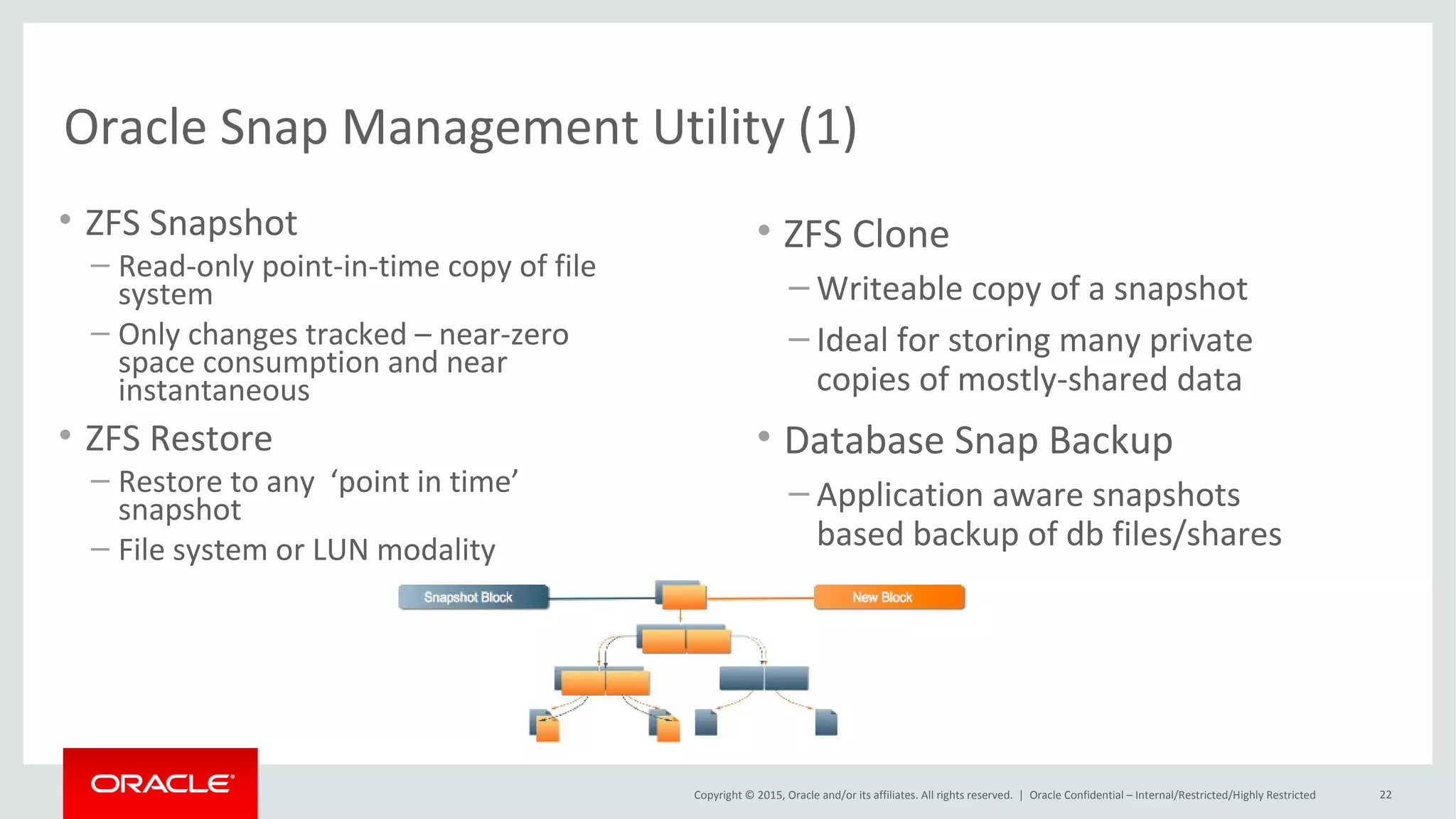

- 18. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Oracle Netherland Oracle Snap Management Utility (2) • ZFS Snapshot – Read-only point-in-time copy of file system – Only changes tracked – near-zero space consumption and near instantaneous • ZFS Restore – Restore to any ‘point in time’ snapshot – File system or LUN modality • ZFS Clone – Writeable copy of a snapshot – Ideal for storing many private copies of mostly-shared data • Database Snap Backup – Application aware snapshots based backup of db files/shares

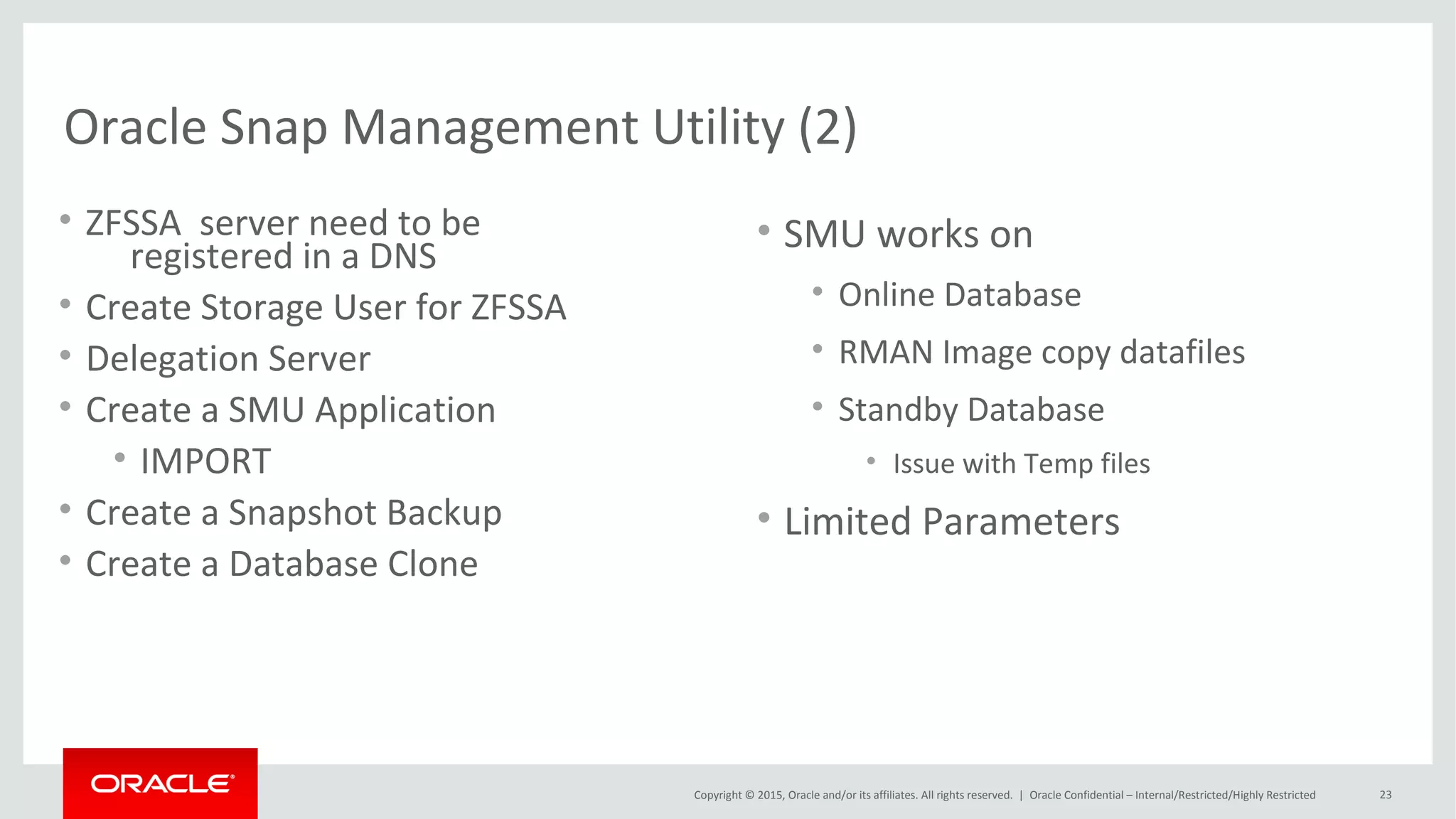

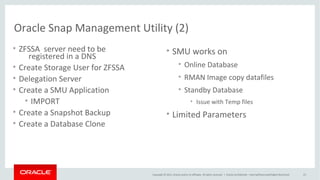

- 19. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Oracle Netherland Oracle Snap Management Utility (3) • ZFSSA server needs to be registered in DNS • Create Storage user for ZFSSA • Create user server for DB server • Create SMU Application • Create Snapshot Backup • Create Database Clone • SMU works with: – Online databases – Image backup files – Standby databases – Issue with Temp files

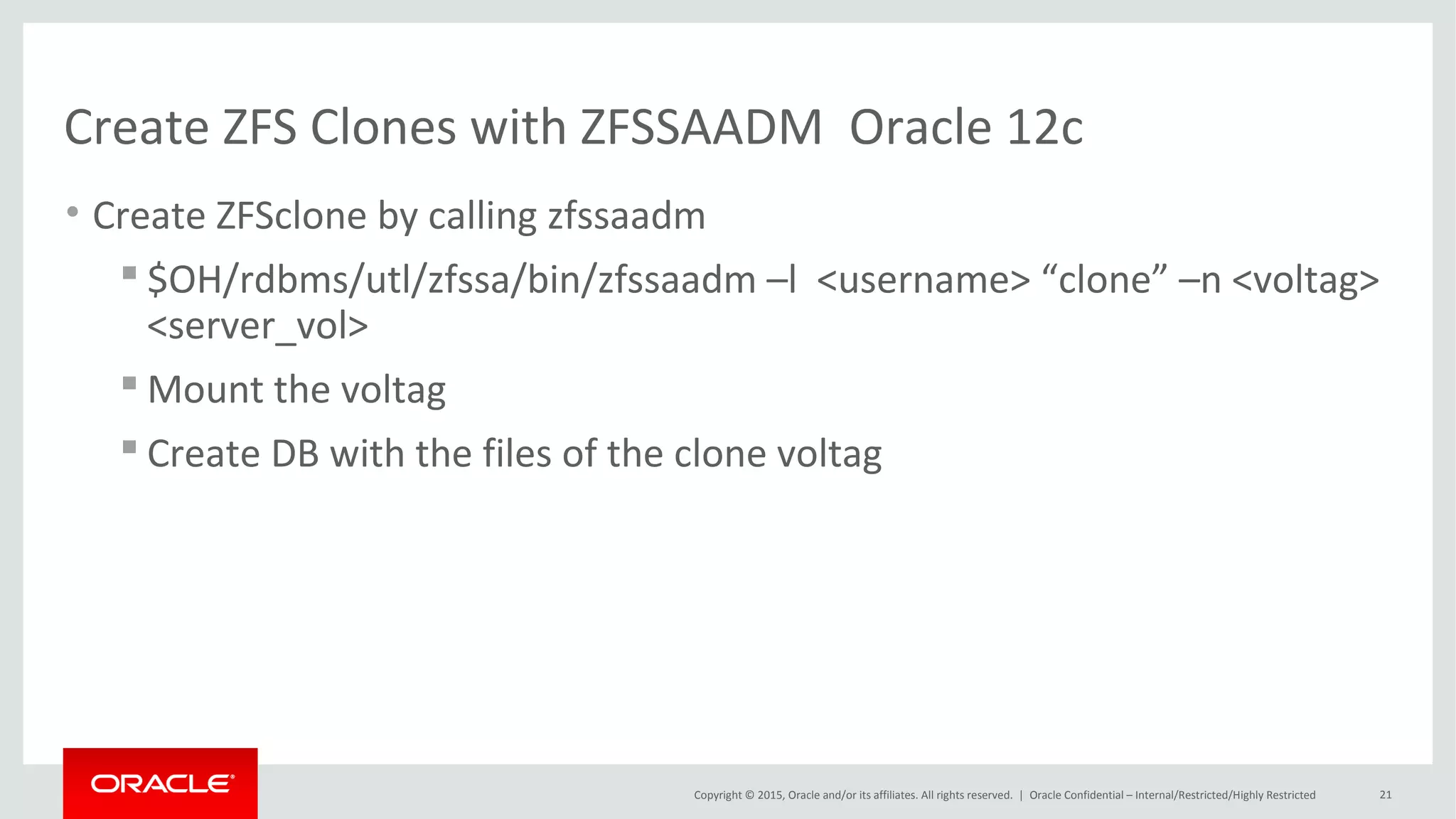

- 20. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Create ZFS Clones with ZFSSAADM Oracle 12c Oracle Netherland • $OH/rdbms/utl/zfssa/bin/zfssaadm – Usage: • zfssaadm version zfssaadm [-v] [-l login] [-P password] [-p port] clone [-n newmountpoint] server:mountpoint zfssaadm [-v] [-l login] [-P password] [-p port] destroy [-F] server:mountpoint • $OH/rdbms/utl/zfssa/bin/zfssaadm –l <username> “clone” –n <voltag> <server_vol> • Mount the <voltag> • Create DB with the files of the clone file system <voltag> – Spfile – Controlfile

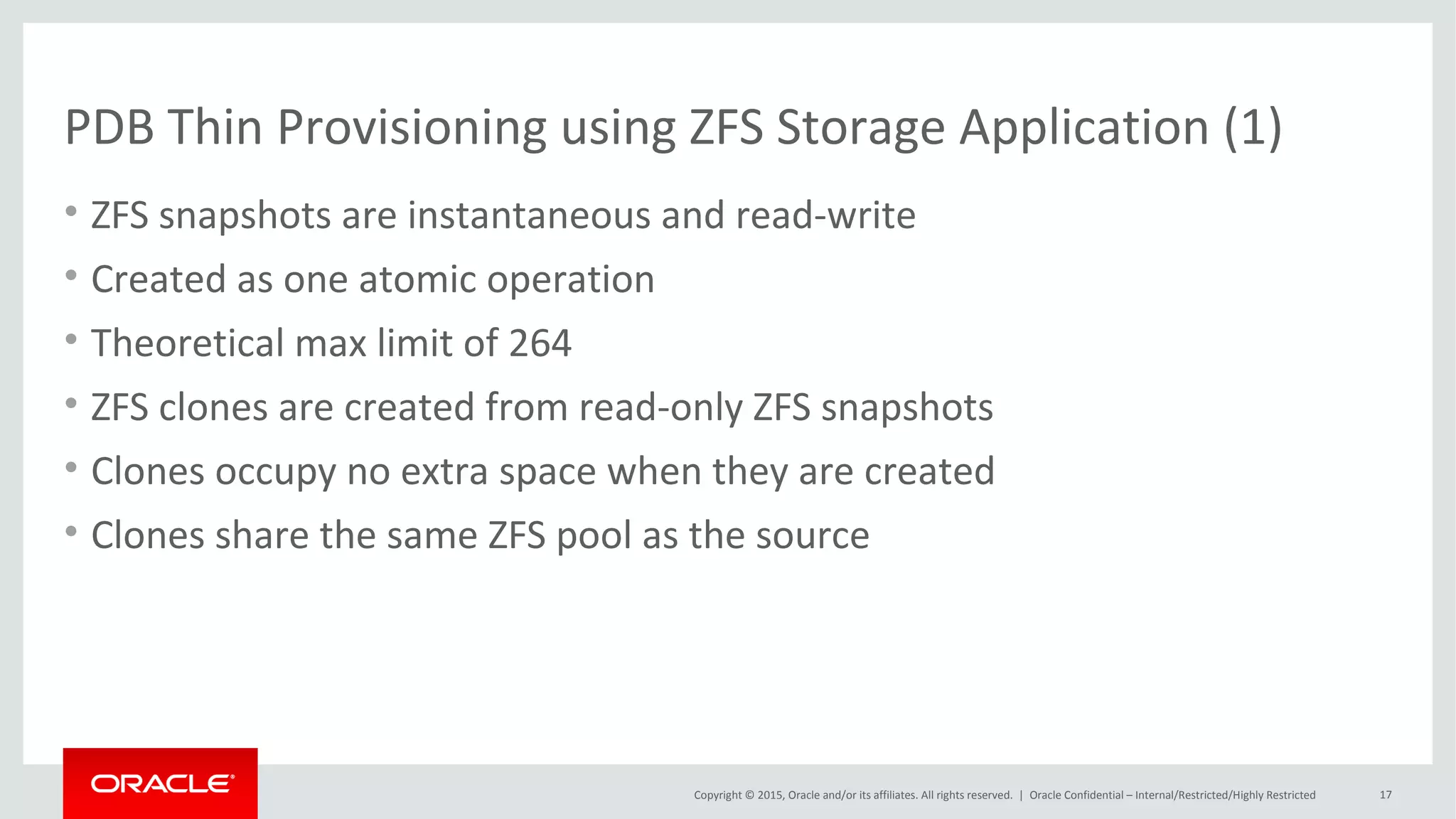

- 21. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | PDB Thin Provisioning using ZFS Storage (1) • ZFS snapshots are instantaneous and read-write • Created as one atomic operation • Theoretical max limit of 264 • ZFS clones are created from read-only ZFS snapshots • Clones occupy no extra space when they are created • Clones share the same ZFS pool as the source Oracle Netherland

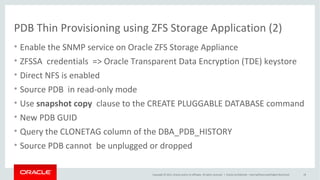

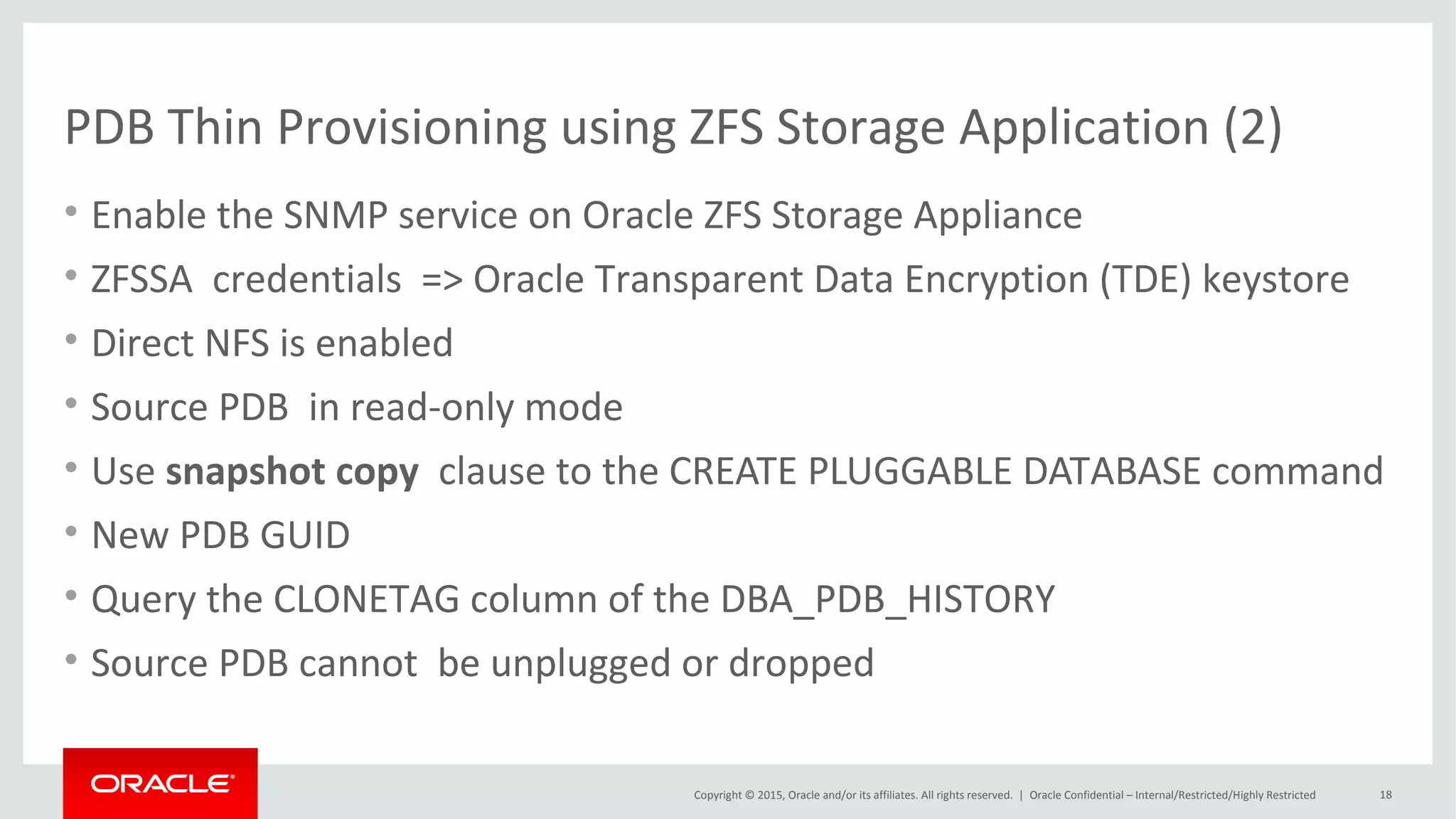

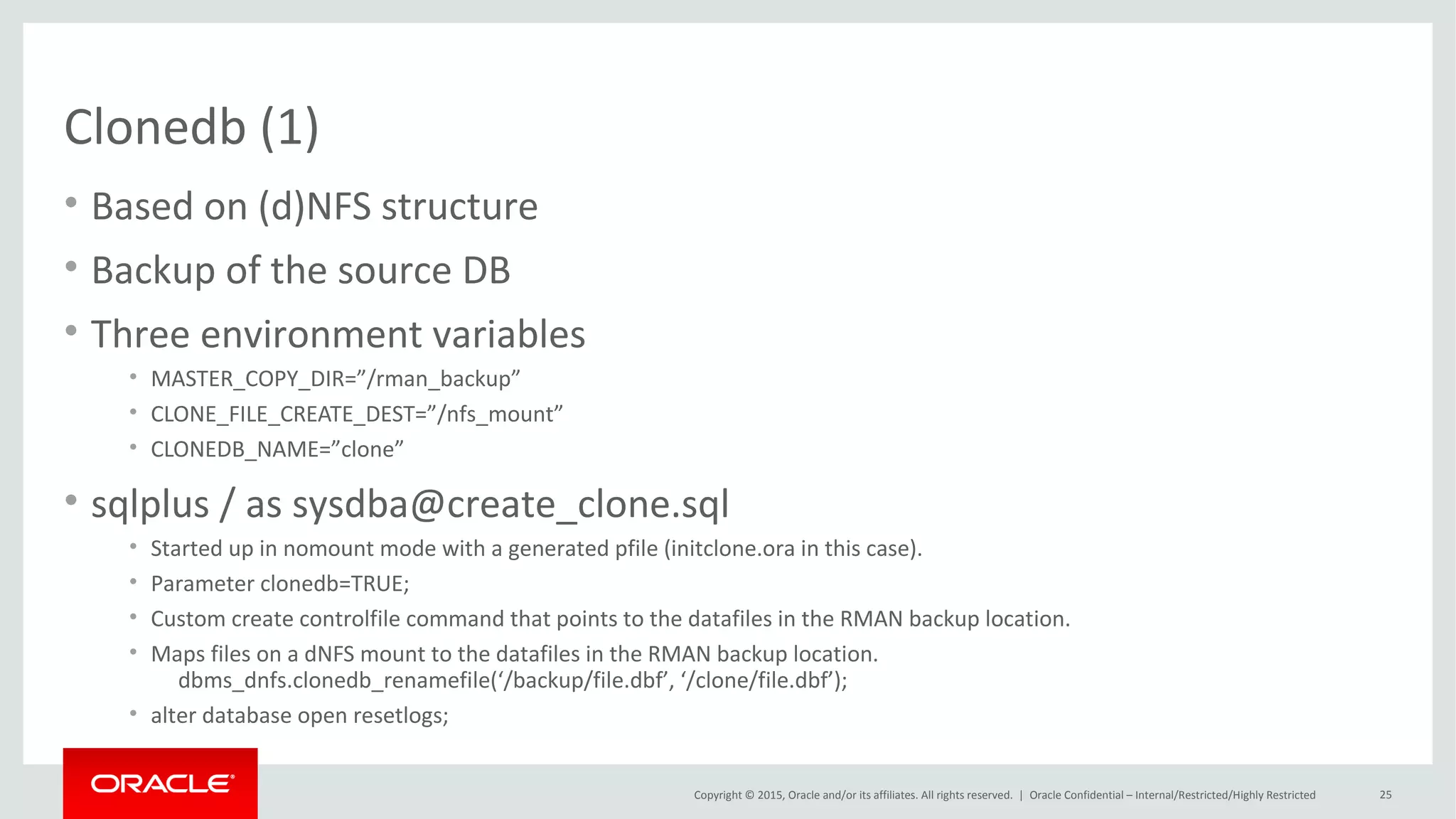

- 22. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | PDB Thin Provisioning using ZFS (2) • Enable the SNMP service on Oracle ZFS Storage • Oracle Transparent Data Encryption (TDE) keystore for ZFSSA credentials – Not needed when using parameter clonedb=true • Source PDB in read-only mode • Use snapshot copy clause to the CREATE PLUGGABLE DATABASE command • New PDB GUID • Query the CLONETAG column of the DBA_PDB_HISTORY • V$DBA_PDB_STORAGE_CLONE • Source PDB cannot be unplugged or dropped Oracle Netherland
- 23. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Snapshot Copy Oracle Netherland • Not Supported ORA-17517: Database cloning using storage snapshot failed
- 24. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | PDB Thin Provisioning using ACFS (1) Oracle Netherland

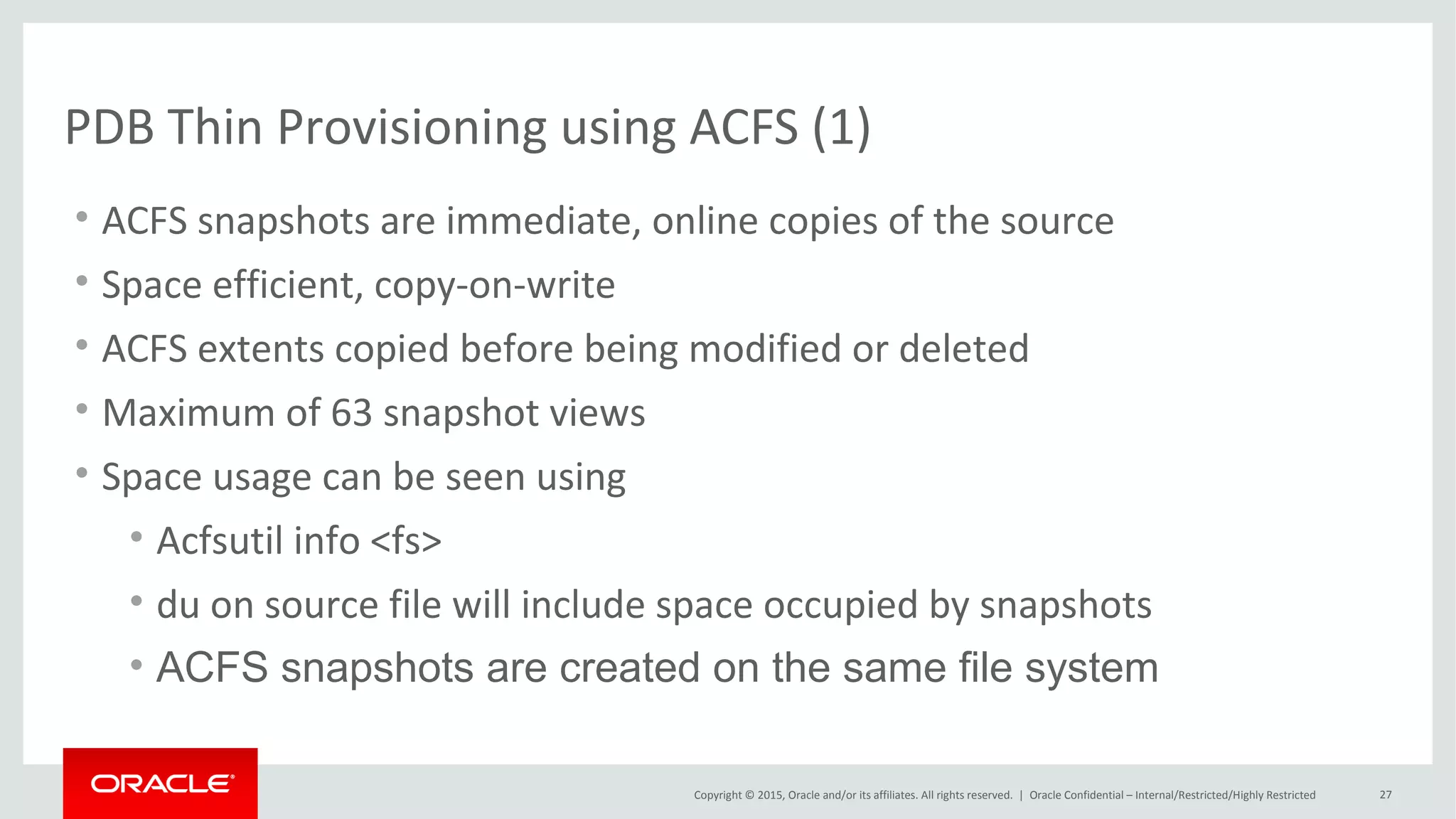

- 25. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | PDB Thin Provisioning using ACFS (2) Oracle Netherland • ACFS snapshots are immediate, online copies of the source • Space efficient, copy-on-write • ACFS extents copied before being modified or deleted • Maximum of 63 snapshot views • Space usage can be seen using • acfsutil info <fs> • du command on source file will include space occupied by snapshots • ACFS snapshots are created on the same file system

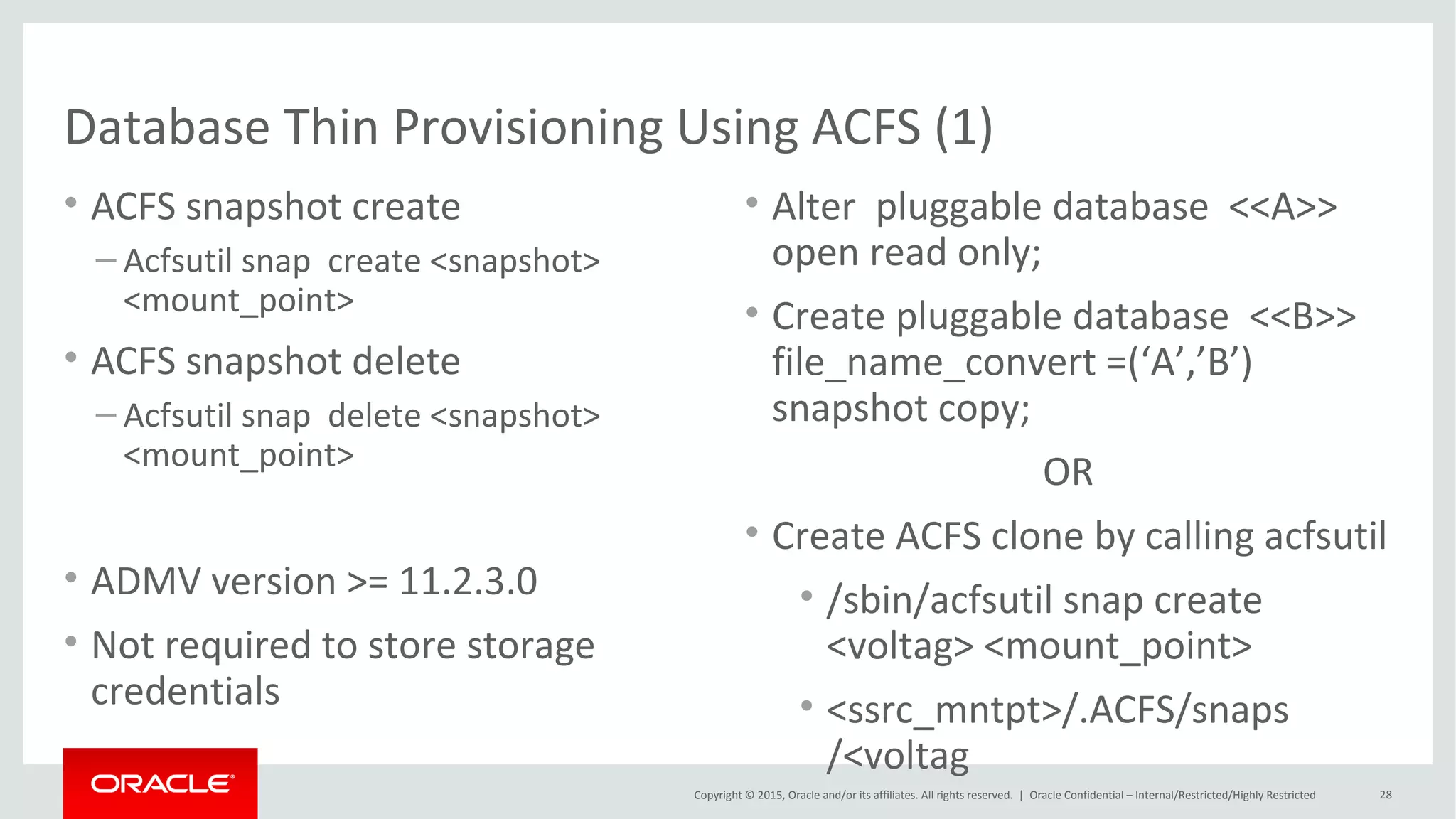

- 26. Copyright © 2015,Oracle and/or its affiliates. All rights reserved. | Database Thin Provisioning Using ACFS (3) • ACFS snapshot create – acfsutil snap create <snapshot> <mount_point> • ACFS snapshot delete – acfsutil snap delete <snapshot> <mount_point> • ADMV version >= 11.2.3.0 • Not required to store storage credentials Oracle Netherland • Alter pluggable database srcPDB open read only; • Create pluggable database trgPDB file_name_convert =(‘srcPDB,’trgPDB’) snapshot copy; • Create ACFS clone by calling acfsutil • /sbin/acfsutil snap create <voltag> <mount_point> • <ssrc_mntpt>/.ACFS/snaps /<voltag
