Tuesday, April 15, 2014
DataStage Scenario Problem ­­> DataStage Scenario ­ Problem4

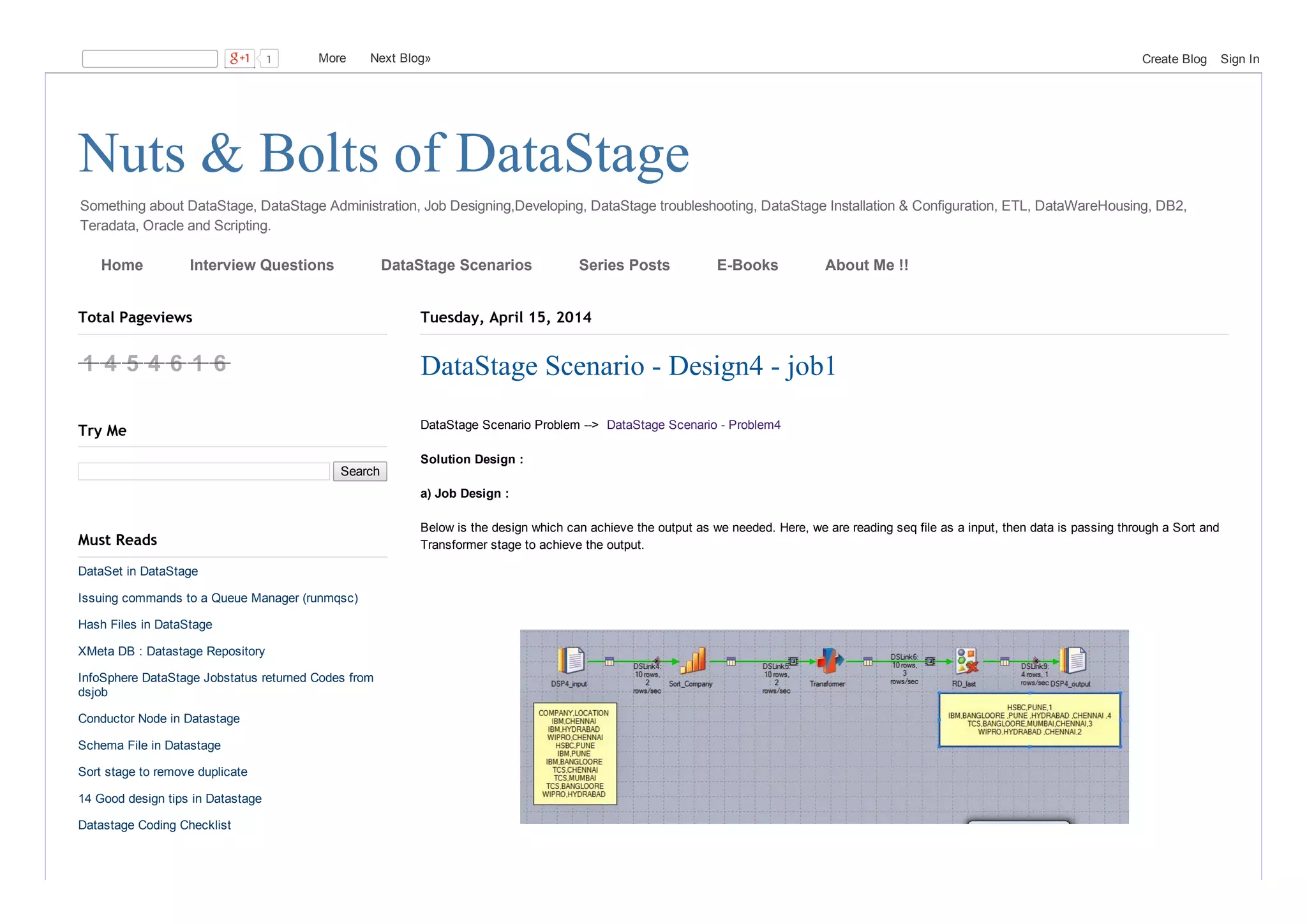

Solution Design :
a) Job Design :
Below is the design which can achieve the output as we needed. Here, we are reading seq file as a input, then data is passing through a Sort and
Transformer stage to achieve the output.
DataStage Scenario ­ Design4 ­ job1
Total Pageviews
1 4 5 4 6 1 6
Search
Try Me
DataSet in DataStage
Issuing commands to a Queue Manager (runmqsc)
Hash Files in DataStage
XMeta DB : Datastage Repository
InfoSphere DataStage Jobstatus returned Codes from
dsjob
Conductor Node in Datastage
Schema File in Datastage
Sort stage to remove duplicate
14 Good design tips in Datastage
Datastage Coding Checklist
Must Reads
1 More Next Blog» Create Blog Sign In

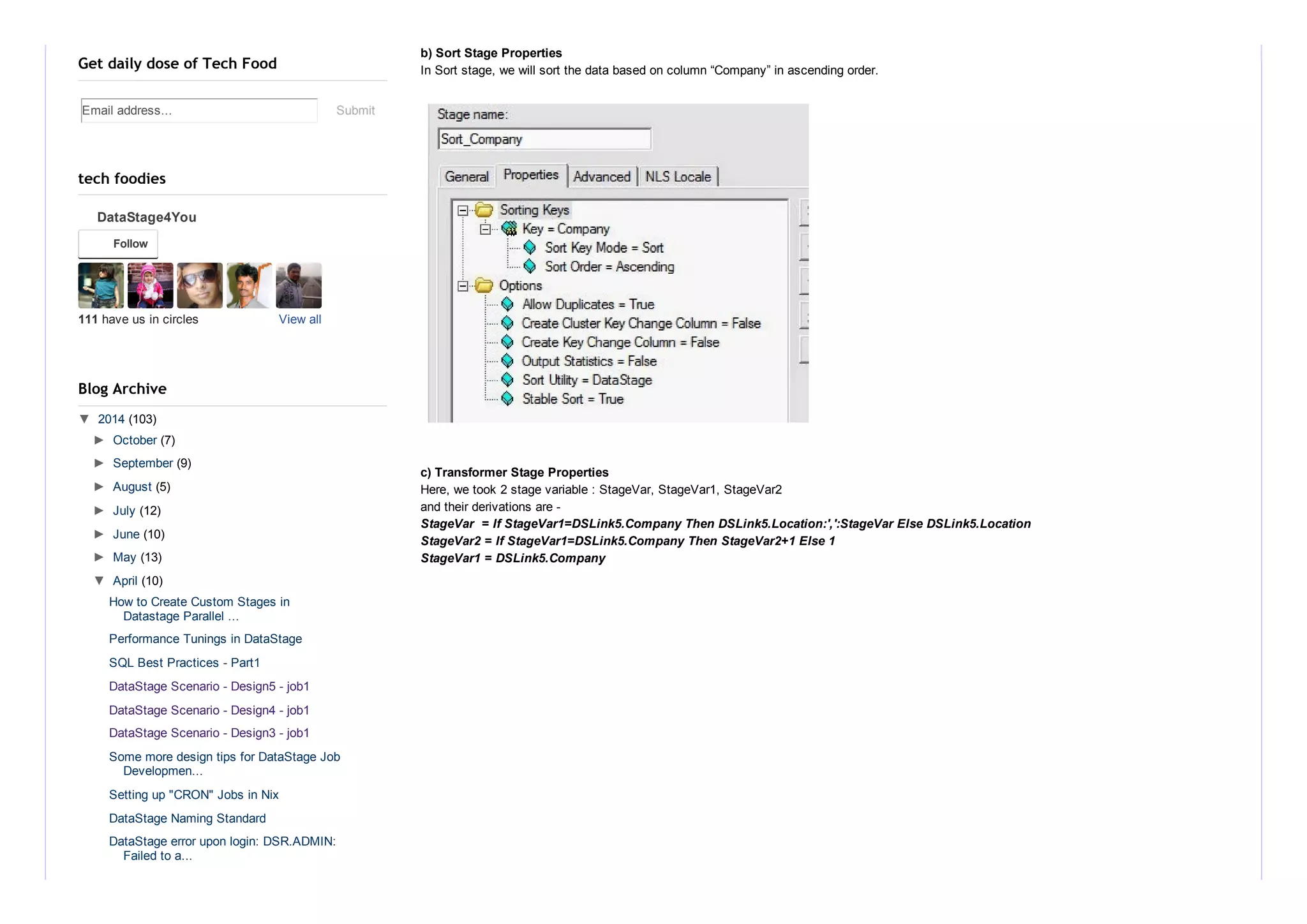

2. b) Sort Stage Properties
In Sort stage, we will sort the data based on column “Company” in ascending order.
c) Transformer Stage Properties
Here, we took 2 stage variable : StageVar, StageVar1, StageVar2
and their derivations are ­
StageVar = If StageVar1=DSLink5.Company Then DSLink5.Location:',':StageVar Else DSLink5.Location
StageVar2 = If StageVar1=DSLink5.Company Then StageVar2+1 Else 1
StageVar1 = DSLink5.Company
Get daily dose of Tech Food
Email address... Submit
DataStage4You
111 have us in circles View all
Follow
tech foodies
▼ 2014 (103)
► October (7)
► September (9)
► August (5)
► July (12)
► June (10)
► May (13)
▼ April (10)
How to Create Custom Stages in
Datastage Parallel ...
Performance Tunings in DataStage
SQL Best Practices ­ Part1
DataStage Scenario ­ Design5 ­ job1
DataStage Scenario ­ Design4 ­ job1
DataStage Scenario ­ Design3 ­ job1
Some more design tips for DataStage Job
Developmen...
Setting up "CRON" Jobs in Nix
DataStage Naming Standard
DataStage error upon login: DSR.ADMIN:
Failed to a...
Blog Archive

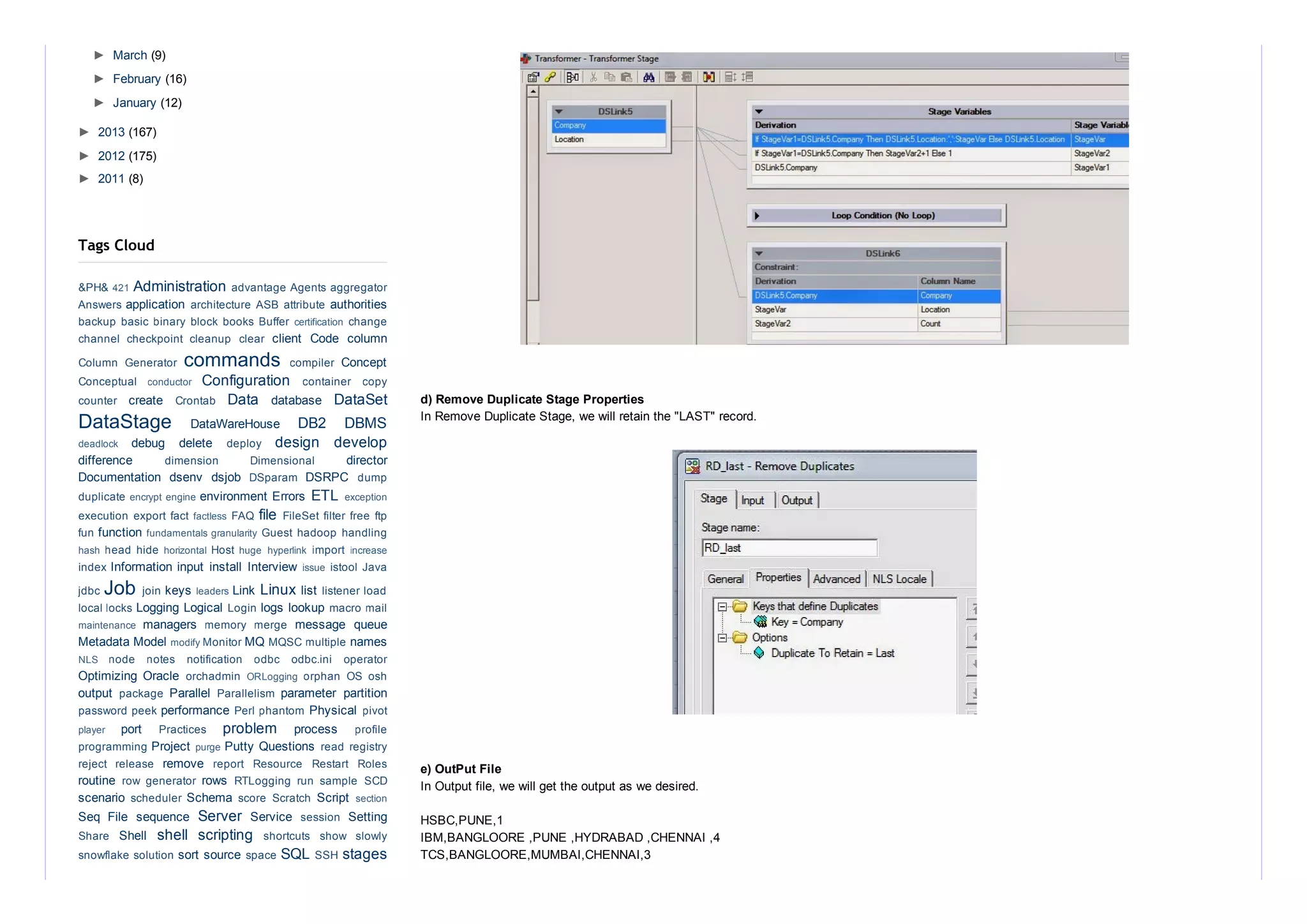

3. d) Remove Duplicate Stage Properties
In Remove Duplicate Stage, we will retain the "LAST" record.
e) OutPut File
In Output file, we will get the output as we desired.
HSBC,PUNE,1
IBM,BANGLOORE ,PUNE ,HYDRABAD ,CHENNAI ,4
TCS,BANGLOORE,MUMBAI,CHENNAI,3
