The document explains the distinction between data and information, describes data warehousing as an organized method for storing and retrieving data for analytical purposes, and outlines the architecture and key processes involved in data warehousing. It highlights the importance of data warehousing in facilitating data mining by providing clean, historical, and organized data, as well as discusses various types of data and patterns discovered through data mining techniques. Additionally, the document covers the technologies and applications used in data mining across different industries.

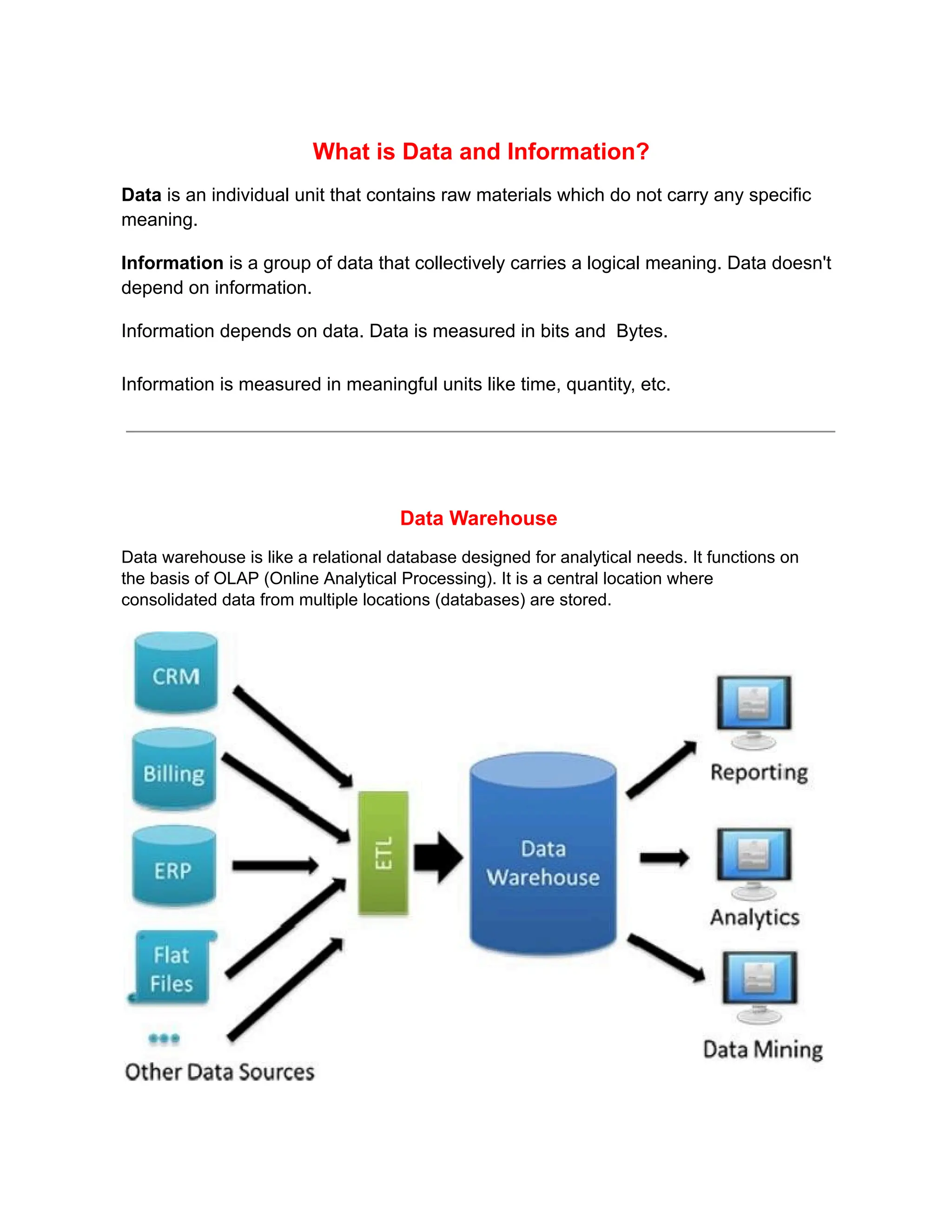

1. What is Data and Information?
Data is an individual unit that contains raw materials which do not carry any specific
meaning.
Information is a group of data that collectively carries a logical meaning. Data doesn't
depend on information.
Information depends on data. Data is measured in bits and Bytes.
Information is measured in meaningful units like time, quantity, etc.
Data Warehouse
Data warehouse is like a relational database designed for analytical needs. It functions on
the basis of OLAP (Online Analytical Processing). It is a central location where
consolidated data from multiple locations (databases) are stored.

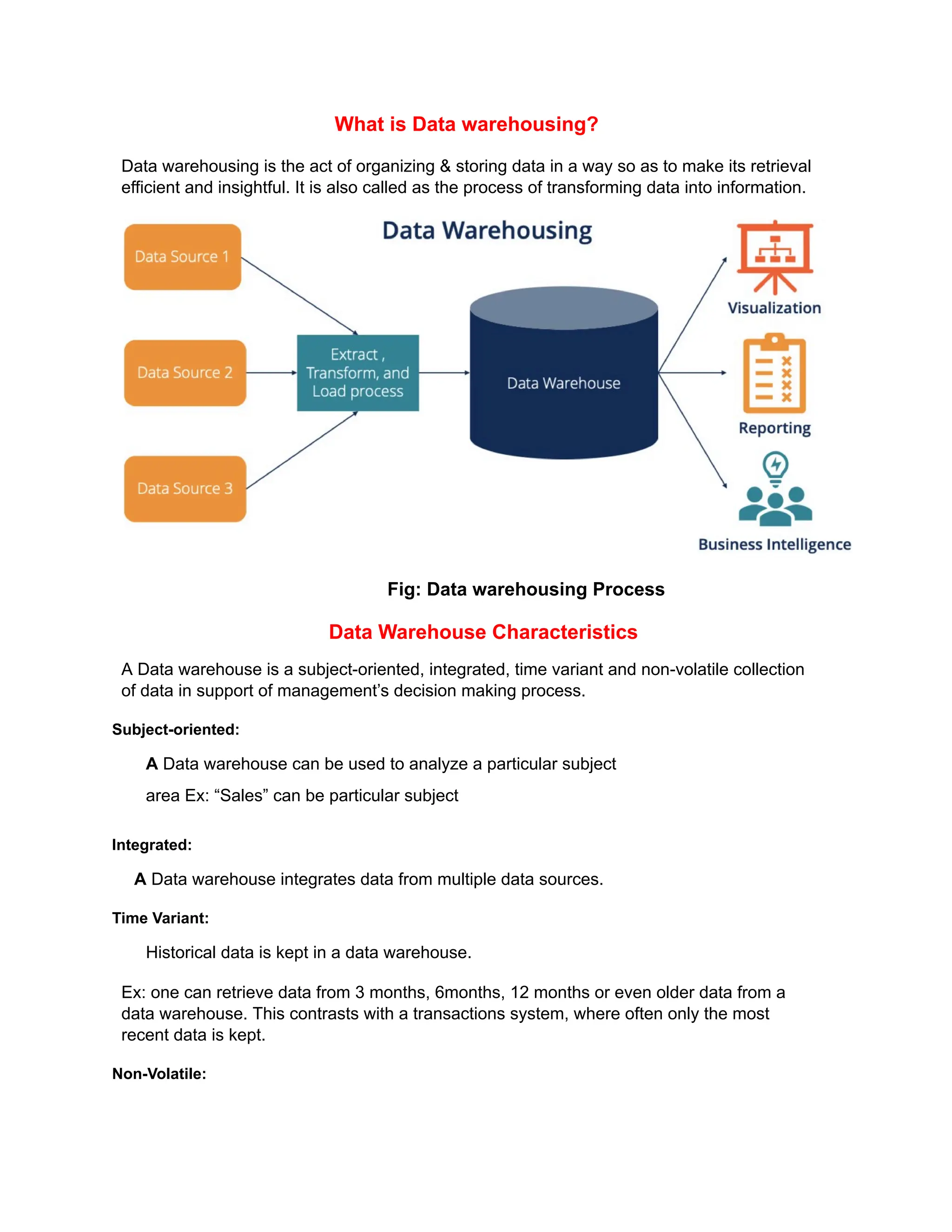

2. What is Data warehousing?
Data warehousing is the act of organizing & storing data in a way so as to make its retrieval
efficient and insightful. It is also called as the process of transforming data into information.
Fig: Data warehousing Process
Data Warehouse Characteristics
A Data warehouse is a subject-oriented, integrated, time variant and non-volatile collection
of data in support of management’s decision making process.
Subject-oriented:
A Data warehouse can be used to analyze a particular subject
area Ex: “Sales” can be particular subject
Integrated:
A Data warehouse integrates data from multiple data sources.
Time Variant:
Historical data is kept in a data warehouse.
Ex: one can retrieve data from 3 months, 6months, 12 months or even older data from a
data warehouse. This contrasts with a transactions system, where often only the most
recent data is kept.
Non-Volatile:

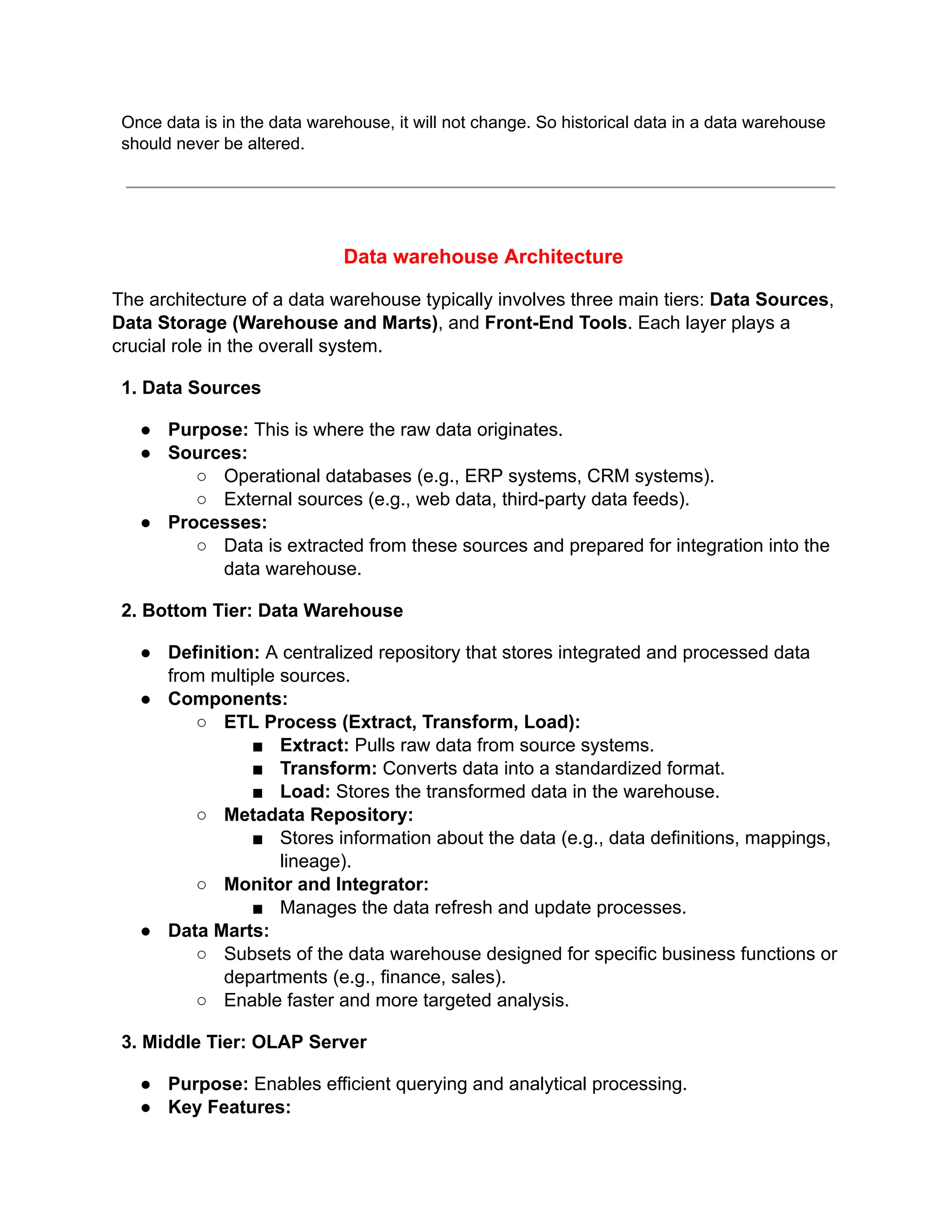

3. Once data is in the data warehouse, it will not change. So historical data in a data warehouse
should never be altered.
Data warehouse Architecture
The architecture of a data warehouse typically involves three main tiers: Data Sources,
Data Storage (Warehouse and Marts), and Front-End Tools. Each layer plays a
crucial role in the overall system.
1. Data Sources
● Purpose: This is where the raw data originates.
● Sources:
○ Operational databases (e.g., ERP systems, CRM systems).
○ External sources (e.g., web data, third-party data feeds).
● Processes:
○ Data is extracted from these sources and prepared for integration into the
data warehouse.
2. Bottom Tier: Data Warehouse
● Definition: A centralized repository that stores integrated and processed data
from multiple sources.
● Components:
○ ETL Process (Extract, Transform, Load):
■ Extract: Pulls raw data from source systems.
■ Transform: Converts data into a standardized format.
■ Load: Stores the transformed data in the warehouse.
○ Metadata Repository:
■ Stores information about the data (e.g., data definitions, mappings,
lineage).
○ Monitor and Integrator:
■ Manages the data refresh and update processes.
● Data Marts:
○ Subsets of the data warehouse designed for specific business functions or
departments (e.g., finance, sales).
○ Enable faster and more targeted analysis.
3. Middle Tier: OLAP Server
● Purpose: Enables efficient querying and analytical processing.
● Key Features:

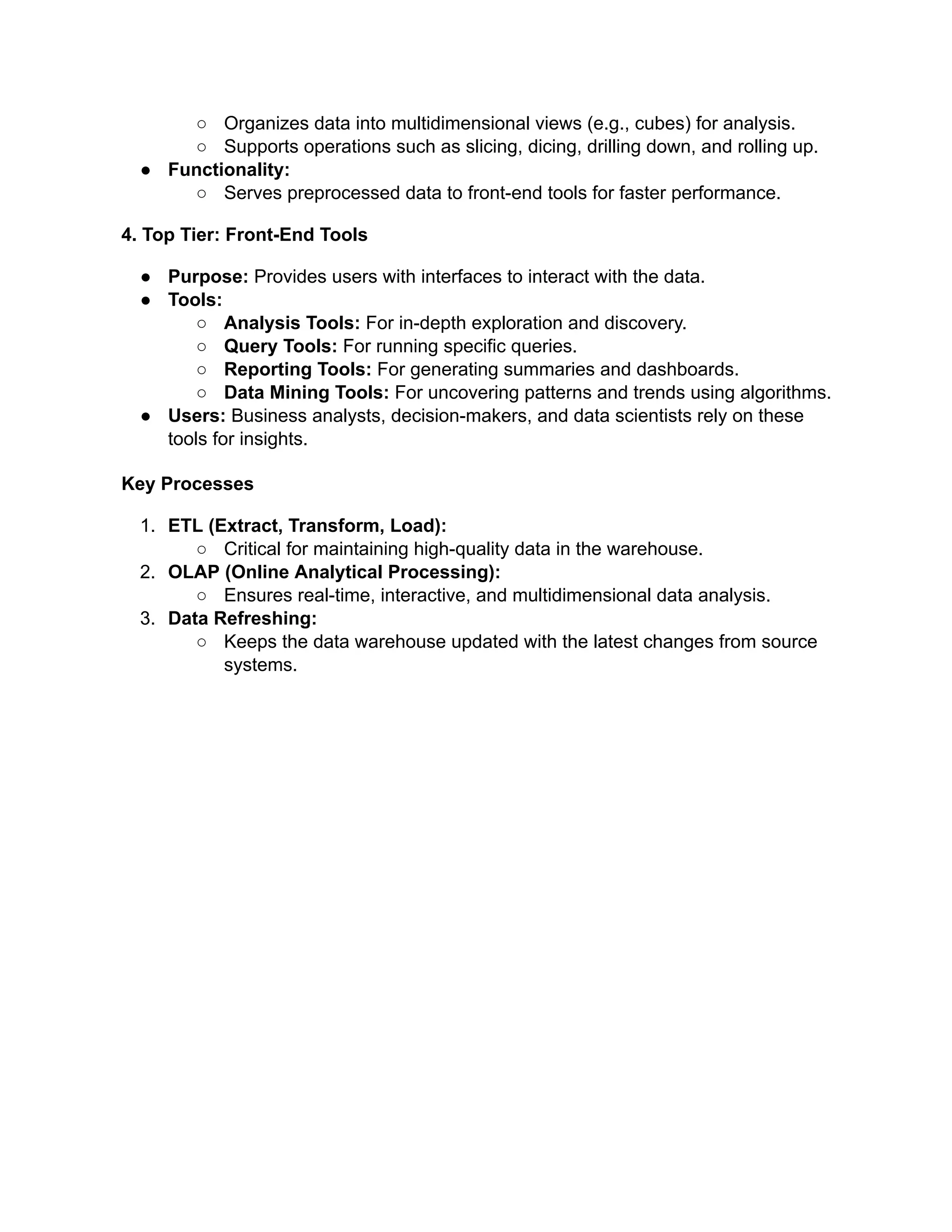

4. ○ Organizes data into multidimensional views (e.g., cubes) for analysis.
○ Supports operations such as slicing, dicing, drilling down, and rolling up.
● Functionality:
○ Serves preprocessed data to front-end tools for faster performance.
4. Top Tier: Front-End Tools
● Purpose: Provides users with interfaces to interact with the data.
● Tools:
○ Analysis Tools: For in-depth exploration and discovery.
○ Query Tools: For running specific queries.
○ Reporting Tools: For generating summaries and dashboards.
○ Data Mining Tools: For uncovering patterns and trends using algorithms.
● Users: Business analysts, decision-makers, and data scientists rely on these
tools for insights.
Key Processes
1. ETL (Extract, Transform, Load):
○ Critical for maintaining high-quality data in the warehouse.
2. OLAP (Online Analytical Processing):
○ Ensures real-time, interactive, and multidimensional data analysis.
3. Data Refreshing:
○ Keeps the data warehouse updated with the latest changes from source
systems.

5. Data warehousing importance for the process of data mining
Data warehousing plays a critical role in the process of data mining by
providing a well-organized and efficient environment for analyzing large
amounts of data. Here’s why it is essential:
1. Centralized Data Repository
● A data warehouse integrates data from multiple sources (e.g.,
operational databases, external feeds) into a single location.
● This ensures consistency and provides a unified dataset for mining
patterns, trends, and insights.
2. Data Quality and Cleanliness

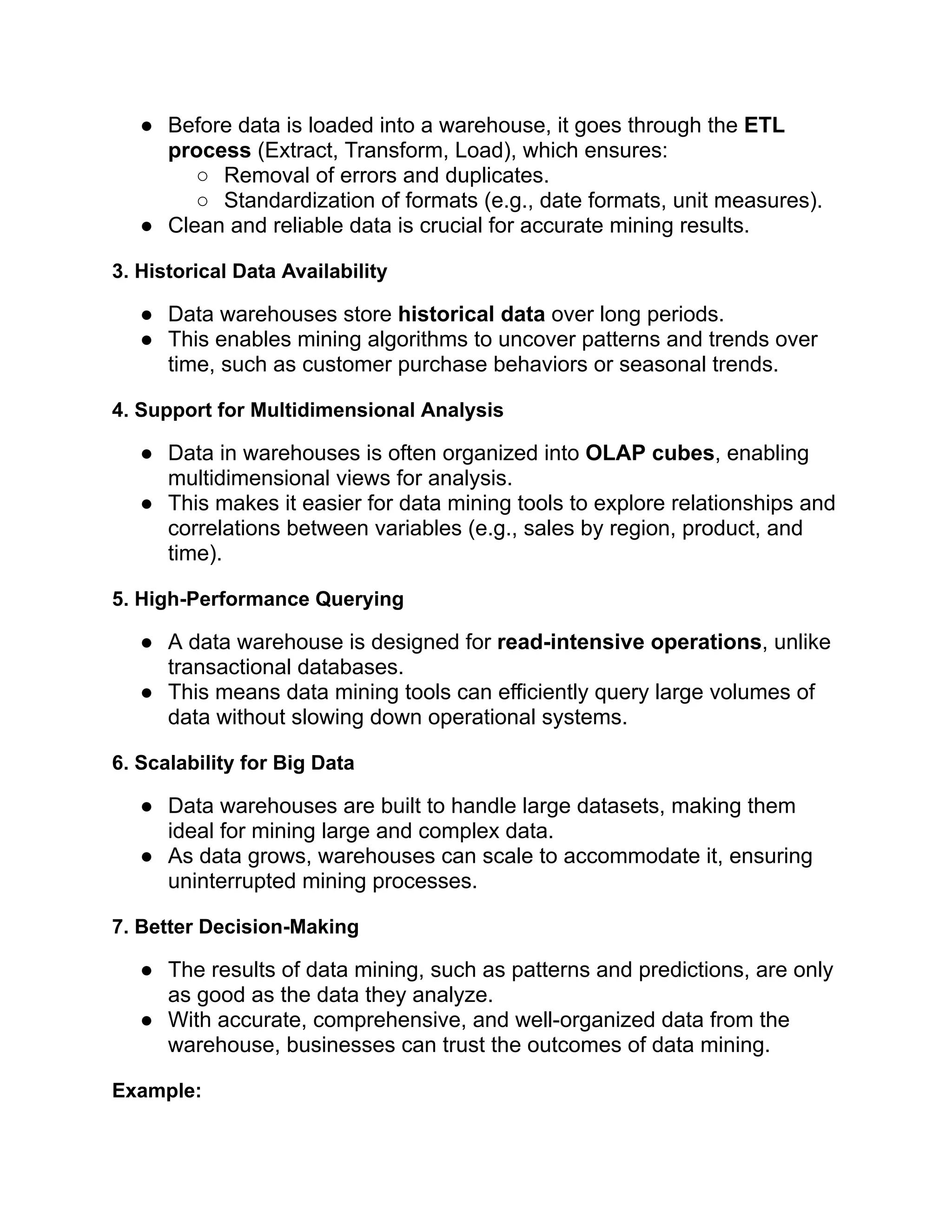

6. ● Before data is loaded into a warehouse, it goes through the ETL
process (Extract, Transform, Load), which ensures:
○ Removal of errors and duplicates.
○ Standardization of formats (e.g., date formats, unit measures).
● Clean and reliable data is crucial for accurate mining results.
3. Historical Data Availability
● Data warehouses store historical data over long periods.
● This enables mining algorithms to uncover patterns and trends over
time, such as customer purchase behaviors or seasonal trends.
4. Support for Multidimensional Analysis
● Data in warehouses is often organized into OLAP cubes, enabling
multidimensional views for analysis.
● This makes it easier for data mining tools to explore relationships and
correlations between variables (e.g., sales by region, product, and
time).
5. High-Performance Querying
● A data warehouse is designed for read-intensive operations, unlike
transactional databases.
● This means data mining tools can efficiently query large volumes of
data without slowing down operational systems.
6. Scalability for Big Data
● Data warehouses are built to handle large datasets, making them
ideal for mining large and complex data.
● As data grows, warehouses can scale to accommodate it, ensuring
uninterrupted mining processes.
7. Better Decision-Making
● The results of data mining, such as patterns and predictions, are only
as good as the data they analyze.
● With accurate, comprehensive, and well-organized data from the
warehouse, businesses can trust the outcomes of data mining.
Example:

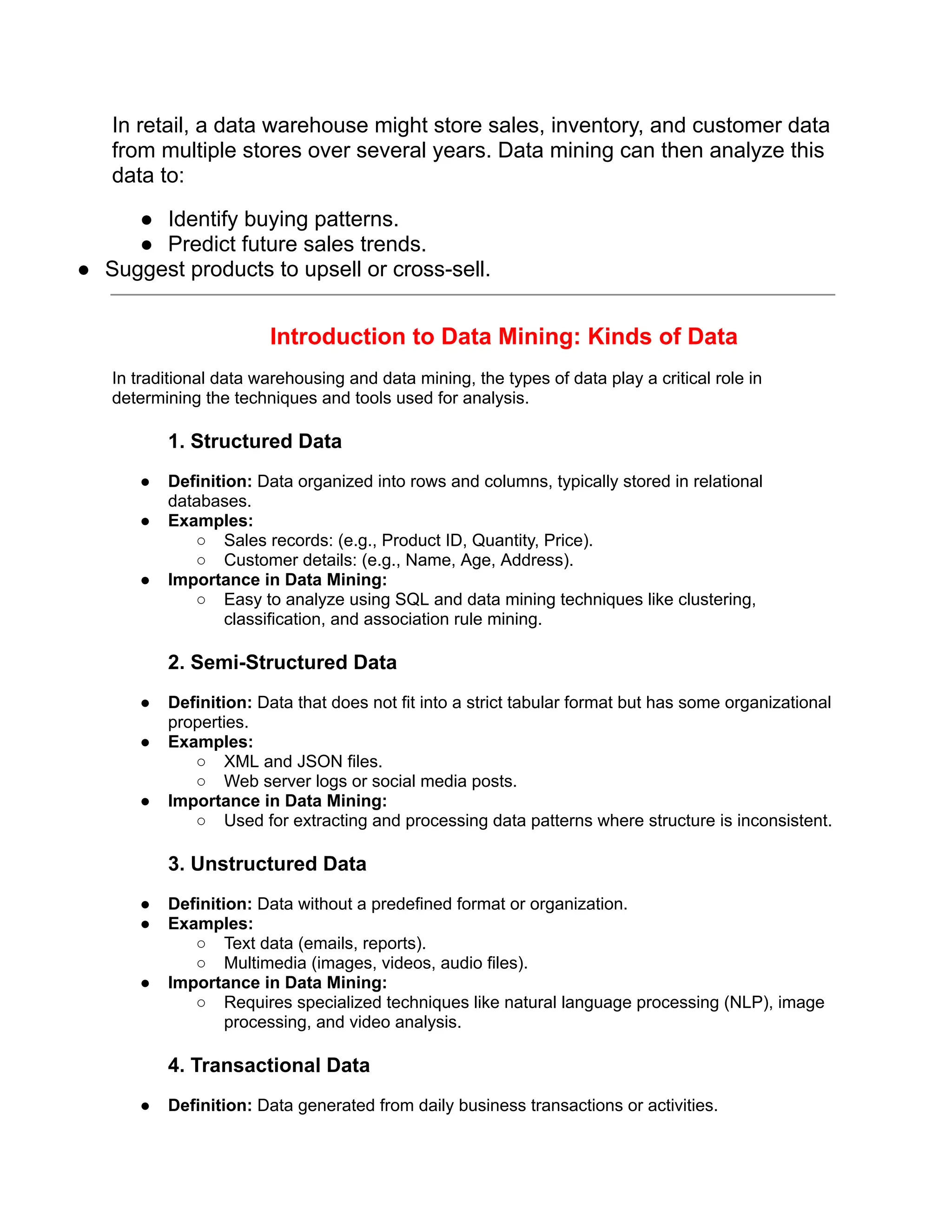

7. In retail, a data warehouse might store sales, inventory, and customer data
from multiple stores over several years. Data mining can then analyze this
data to:
● Identify buying patterns.
● Predict future sales trends.
● Suggest products to upsell or cross-sell.
Introduction to Data Mining: Kinds of Data
In traditional data warehousing and data mining, the types of data play a critical role in
determining the techniques and tools used for analysis.
1. Structured Data
● Definition: Data organized into rows and columns, typically stored in relational
databases.
● Examples:
○ Sales records: (e.g., Product ID, Quantity, Price).
○ Customer details: (e.g., Name, Age, Address).
● Importance in Data Mining:
○ Easy to analyze using SQL and data mining techniques like clustering,
classification, and association rule mining.
2. Semi-Structured Data
● Definition: Data that does not fit into a strict tabular format but has some organizational
properties.
● Examples:
○ XML and JSON files.
○ Web server logs or social media posts.
● Importance in Data Mining:
○ Used for extracting and processing data patterns where structure is inconsistent.
3. Unstructured Data
● Definition: Data without a predefined format or organization.
● Examples:
○ Text data (emails, reports).
○ Multimedia (images, videos, audio files).
● Importance in Data Mining:
○ Requires specialized techniques like natural language processing (NLP), image
processing, and video analysis.
4. Transactional Data
● Definition: Data generated from daily business transactions or activities.

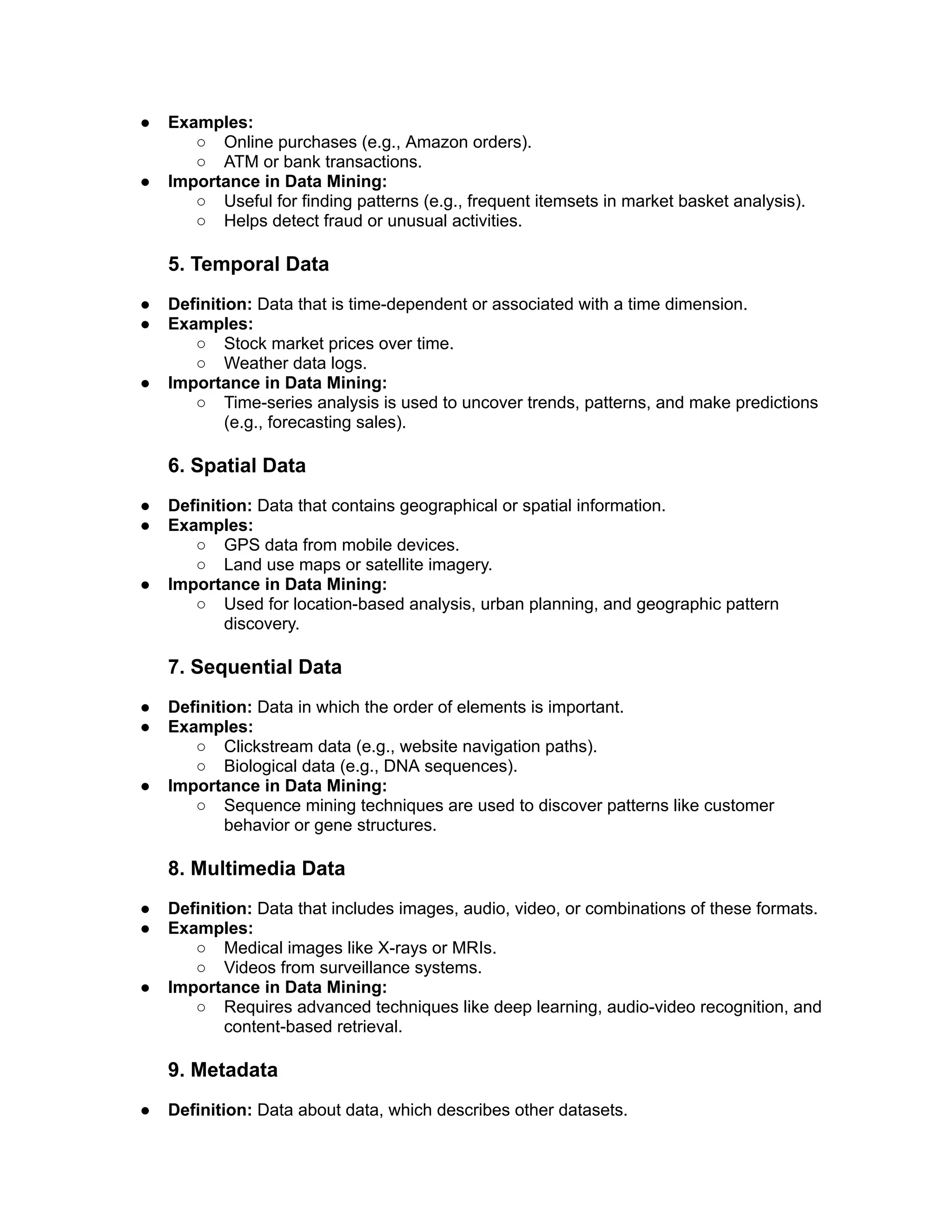

8. ● Examples:
○ Online purchases (e.g., Amazon orders).
○ ATM or bank transactions.
● Importance in Data Mining:
○ Useful for finding patterns (e.g., frequent itemsets in market basket analysis).
○ Helps detect fraud or unusual activities.
5. Temporal Data
● Definition: Data that is time-dependent or associated with a time dimension.
● Examples:
○ Stock market prices over time.
○ Weather data logs.
● Importance in Data Mining:
○ Time-series analysis is used to uncover trends, patterns, and make predictions
(e.g., forecasting sales).
6. Spatial Data
● Definition: Data that contains geographical or spatial information.
● Examples:
○ GPS data from mobile devices.
○ Land use maps or satellite imagery.
● Importance in Data Mining:
○ Used for location-based analysis, urban planning, and geographic pattern
discovery.
7. Sequential Data
● Definition: Data in which the order of elements is important.
● Examples:
○ Clickstream data (e.g., website navigation paths).
○ Biological data (e.g., DNA sequences).
● Importance in Data Mining:
○ Sequence mining techniques are used to discover patterns like customer
behavior or gene structures.
8. Multimedia Data
● Definition: Data that includes images, audio, video, or combinations of these formats.
● Examples:
○ Medical images like X-rays or MRIs.
○ Videos from surveillance systems.
● Importance in Data Mining:
○ Requires advanced techniques like deep learning, audio-video recognition, and
content-based retrieval.
9. Metadata
● Definition: Data about data, which describes other datasets.

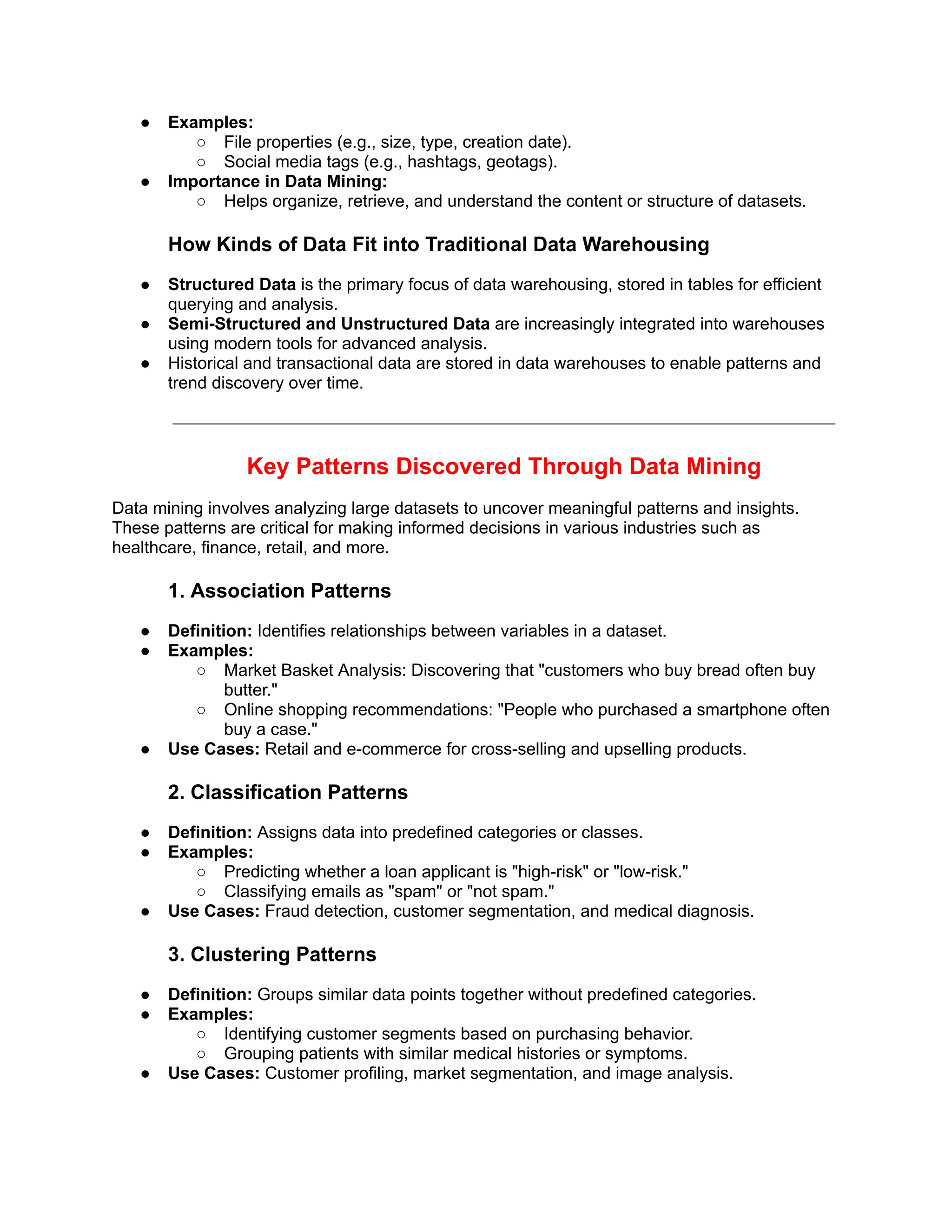

9. ● Examples:
○ File properties (e.g., size, type, creation date).
○ Social media tags (e.g., hashtags, geotags).
● Importance in Data Mining:
○ Helps organize, retrieve, and understand the content or structure of datasets.
How Kinds of Data Fit into Traditional Data Warehousing
● Structured Data is the primary focus of data warehousing, stored in tables for efficient
querying and analysis.
● Semi-Structured and Unstructured Data are increasingly integrated into warehouses
using modern tools for advanced analysis.
● Historical and transactional data are stored in data warehouses to enable patterns and
trend discovery over time.
Key Patterns Discovered Through Data Mining
Data mining involves analyzing large datasets to uncover meaningful patterns and insights.
These patterns are critical for making informed decisions in various industries such as
healthcare, finance, retail, and more.
1. Association Patterns
● Definition: Identifies relationships between variables in a dataset.
● Examples:
○ Market Basket Analysis: Discovering that "customers who buy bread often buy
butter."
○ Online shopping recommendations: "People who purchased a smartphone often
buy a case."
● Use Cases: Retail and e-commerce for cross-selling and upselling products.
2. Classification Patterns
● Definition: Assigns data into predefined categories or classes.
● Examples:
○ Predicting whether a loan applicant is "high-risk" or "low-risk."
○ Classifying emails as "spam" or "not spam."
● Use Cases: Fraud detection, customer segmentation, and medical diagnosis.
3. Clustering Patterns
● Definition: Groups similar data points together without predefined categories.
● Examples:
○ Identifying customer segments based on purchasing behavior.
○ Grouping patients with similar medical histories or symptoms.
● Use Cases: Customer profiling, market segmentation, and image analysis.

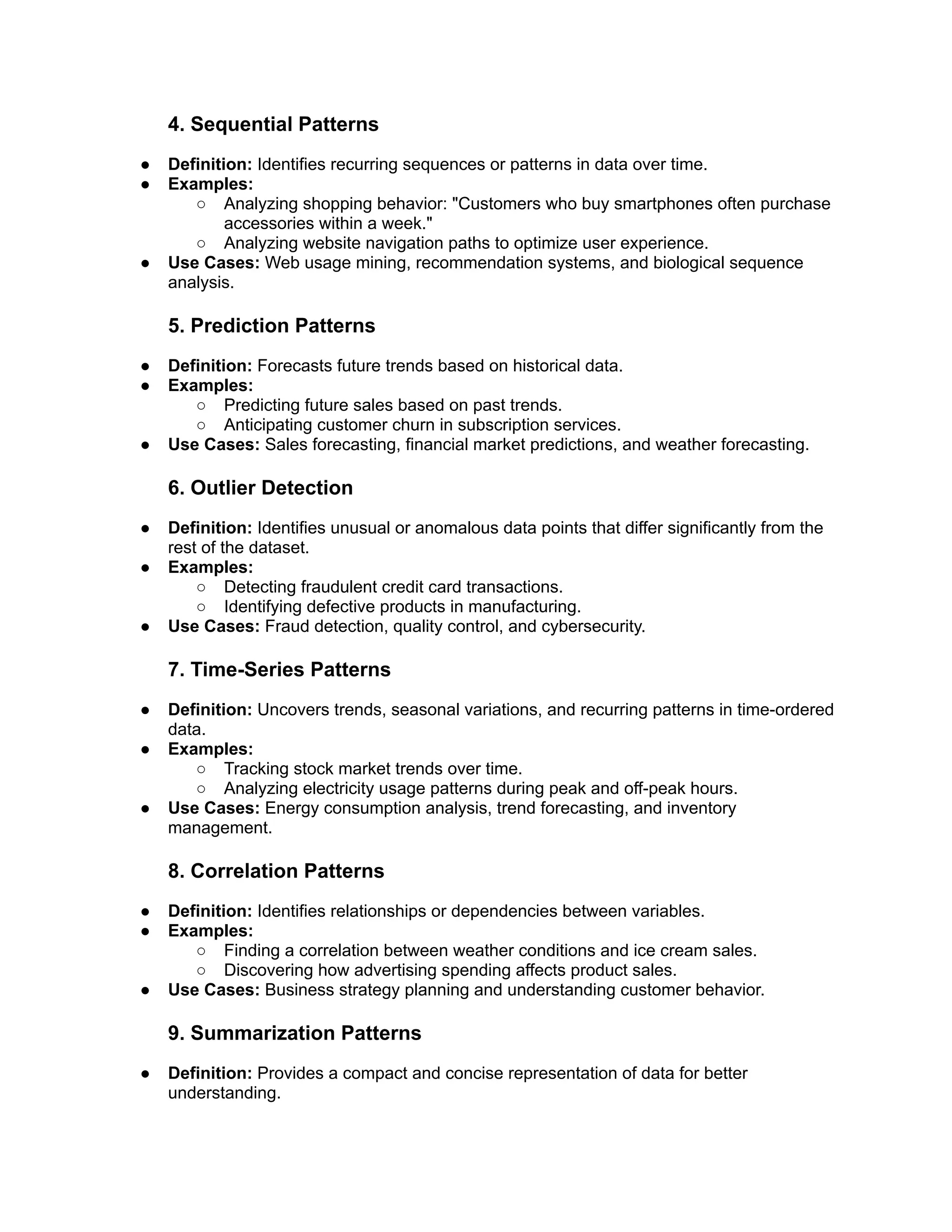

10. 4. Sequential Patterns
● Definition: Identifies recurring sequences or patterns in data over time.
● Examples:
○ Analyzing shopping behavior: "Customers who buy smartphones often purchase
accessories within a week."
○ Analyzing website navigation paths to optimize user experience.
● Use Cases: Web usage mining, recommendation systems, and biological sequence
analysis.
5. Prediction Patterns
● Definition: Forecasts future trends based on historical data.
● Examples:
○ Predicting future sales based on past trends.
○ Anticipating customer churn in subscription services.
● Use Cases: Sales forecasting, financial market predictions, and weather forecasting.
6. Outlier Detection
● Definition: Identifies unusual or anomalous data points that differ significantly from the
rest of the dataset.
● Examples:
○ Detecting fraudulent credit card transactions.
○ Identifying defective products in manufacturing.
● Use Cases: Fraud detection, quality control, and cybersecurity.
7. Time-Series Patterns
● Definition: Uncovers trends, seasonal variations, and recurring patterns in time-ordered
data.
● Examples:
○ Tracking stock market trends over time.
○ Analyzing electricity usage patterns during peak and off-peak hours.
● Use Cases: Energy consumption analysis, trend forecasting, and inventory
management.
8. Correlation Patterns
● Definition: Identifies relationships or dependencies between variables.
● Examples:
○ Finding a correlation between weather conditions and ice cream sales.
○ Discovering how advertising spending affects product sales.
● Use Cases: Business strategy planning and understanding customer behavior.
9. Summarization Patterns
● Definition: Provides a compact and concise representation of data for better
understanding.

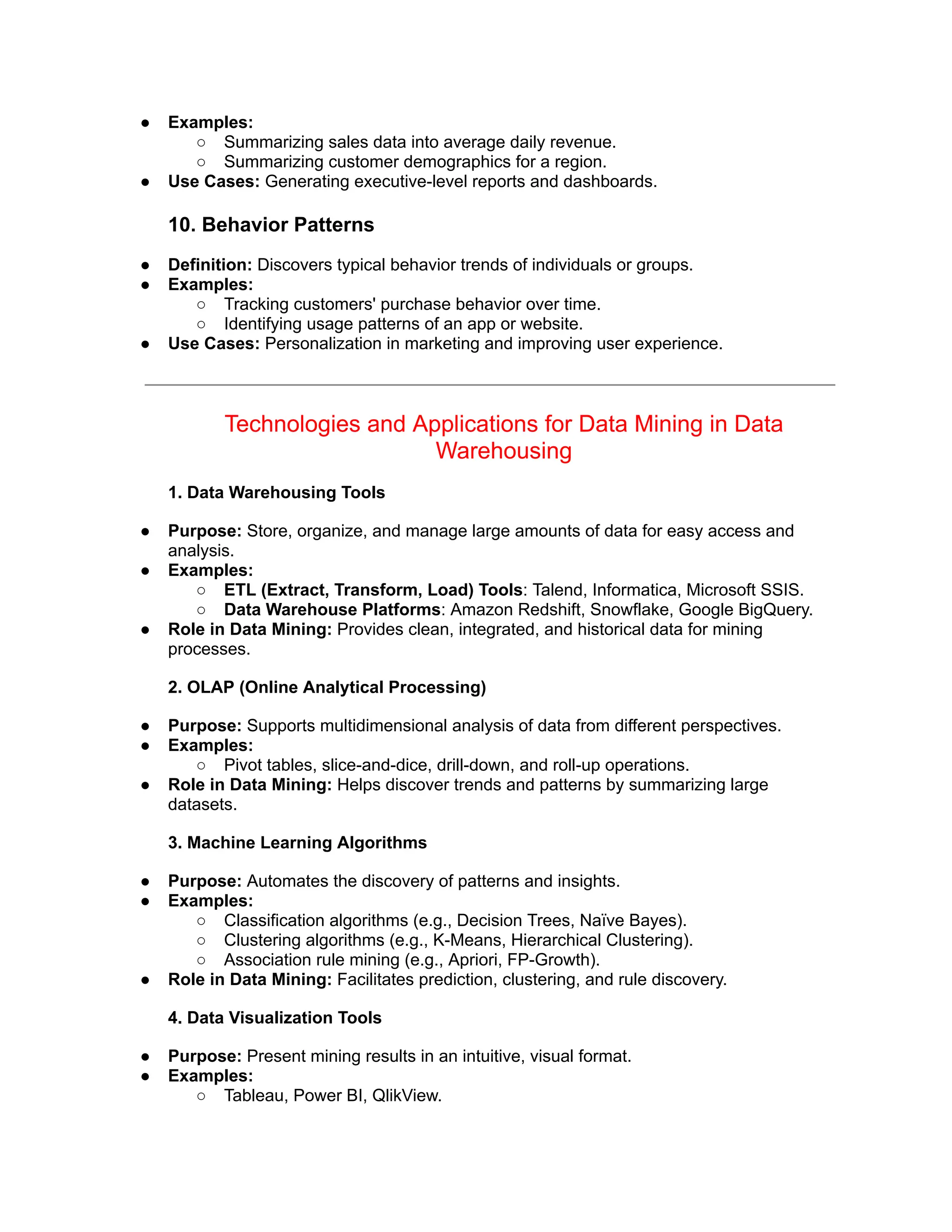

11. ● Examples:
○ Summarizing sales data into average daily revenue.
○ Summarizing customer demographics for a region.
● Use Cases: Generating executive-level reports and dashboards.
10. Behavior Patterns
● Definition: Discovers typical behavior trends of individuals or groups.
● Examples:
○ Tracking customers' purchase behavior over time.
○ Identifying usage patterns of an app or website.
● Use Cases: Personalization in marketing and improving user experience.
Technologies and Applications for Data Mining in Data
Warehousing
1. Data Warehousing Tools
● Purpose: Store, organize, and manage large amounts of data for easy access and
analysis.
● Examples:
○ ETL (Extract, Transform, Load) Tools: Talend, Informatica, Microsoft SSIS.
○ Data Warehouse Platforms: Amazon Redshift, Snowflake, Google BigQuery.
● Role in Data Mining: Provides clean, integrated, and historical data for mining
processes.
2. OLAP (Online Analytical Processing)
● Purpose: Supports multidimensional analysis of data from different perspectives.
● Examples:
○ Pivot tables, slice-and-dice, drill-down, and roll-up operations.
● Role in Data Mining: Helps discover trends and patterns by summarizing large
datasets.
3. Machine Learning Algorithms
● Purpose: Automates the discovery of patterns and insights.
● Examples:
○ Classification algorithms (e.g., Decision Trees, Naïve Bayes).
○ Clustering algorithms (e.g., K-Means, Hierarchical Clustering).
○ Association rule mining (e.g., Apriori, FP-Growth).
● Role in Data Mining: Facilitates prediction, clustering, and rule discovery.
4. Data Visualization Tools
● Purpose: Present mining results in an intuitive, visual format.
● Examples:
○ Tableau, Power BI, QlikView.

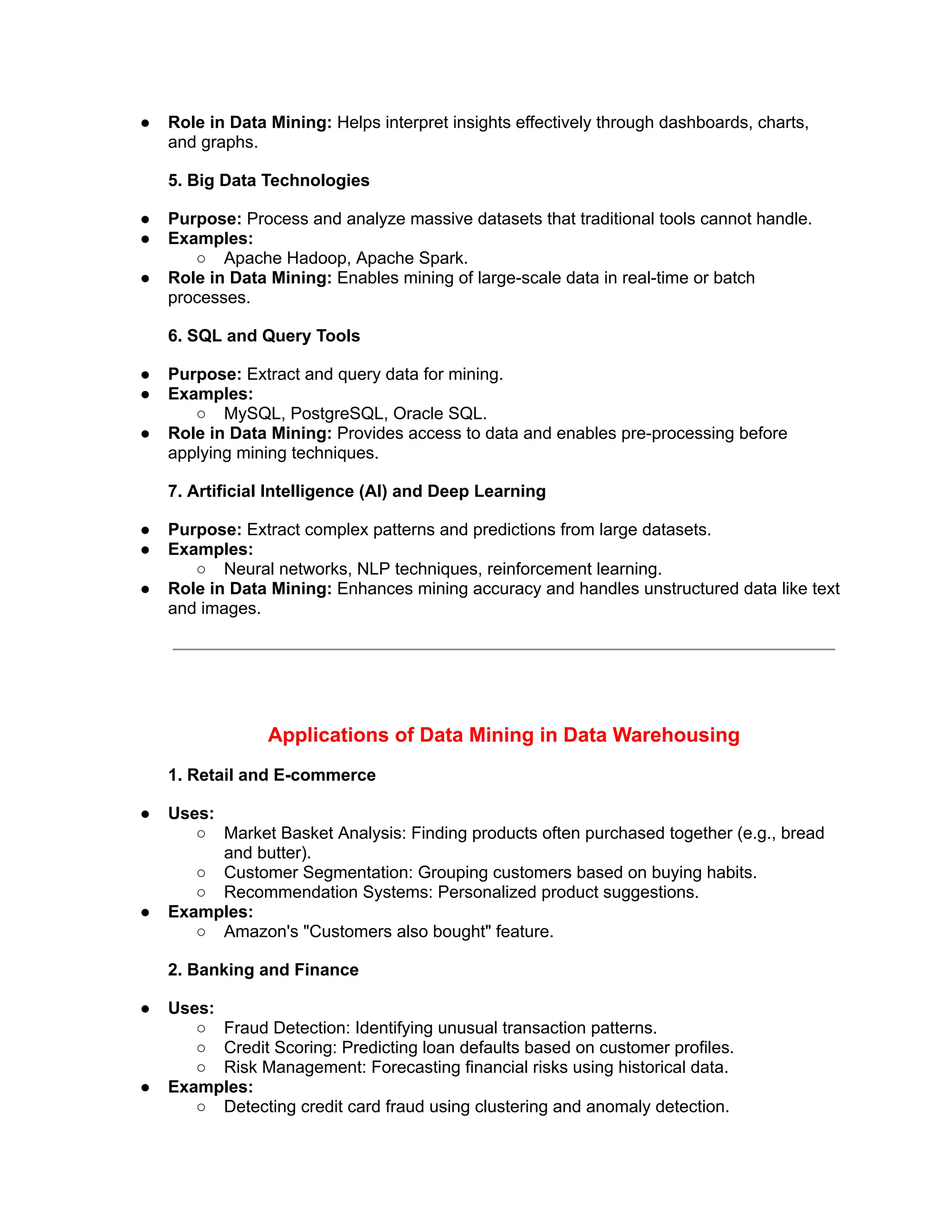

12. ● Role in Data Mining: Helps interpret insights effectively through dashboards, charts,
and graphs.
5. Big Data Technologies
● Purpose: Process and analyze massive datasets that traditional tools cannot handle.
● Examples:
○ Apache Hadoop, Apache Spark.
● Role in Data Mining: Enables mining of large-scale data in real-time or batch
processes.
6. SQL and Query Tools
● Purpose: Extract and query data for mining.
● Examples:
○ MySQL, PostgreSQL, Oracle SQL.
● Role in Data Mining: Provides access to data and enables pre-processing before
applying mining techniques.
7. Artificial Intelligence (AI) and Deep Learning
● Purpose: Extract complex patterns and predictions from large datasets.
● Examples:
○ Neural networks, NLP techniques, reinforcement learning.
● Role in Data Mining: Enhances mining accuracy and handles unstructured data like text
and images.
Applications of Data Mining in Data Warehousing
1. Retail and E-commerce
● Uses:
○ Market Basket Analysis: Finding products often purchased together (e.g., bread
and butter).
○ Customer Segmentation: Grouping customers based on buying habits.
○ Recommendation Systems: Personalized product suggestions.
● Examples:
○ Amazon's "Customers also bought" feature.
2. Banking and Finance
● Uses:
○ Fraud Detection: Identifying unusual transaction patterns.
○ Credit Scoring: Predicting loan defaults based on customer profiles.
○ Risk Management: Forecasting financial risks using historical data.
● Examples:
○ Detecting credit card fraud using clustering and anomaly detection.

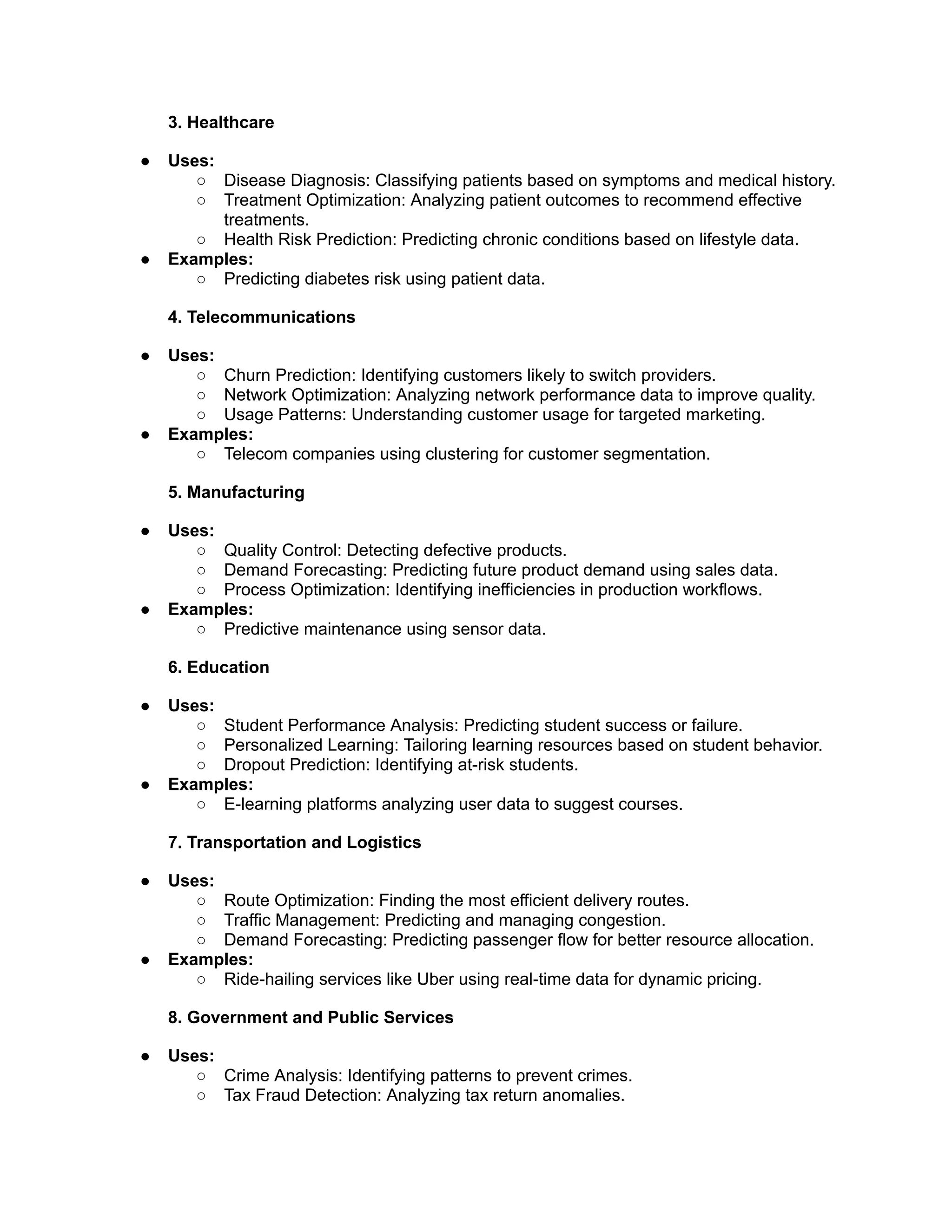

13. 3. Healthcare
● Uses:
○ Disease Diagnosis: Classifying patients based on symptoms and medical history.
○ Treatment Optimization: Analyzing patient outcomes to recommend effective
treatments.
○ Health Risk Prediction: Predicting chronic conditions based on lifestyle data.
● Examples:
○ Predicting diabetes risk using patient data.
4. Telecommunications
● Uses:
○ Churn Prediction: Identifying customers likely to switch providers.
○ Network Optimization: Analyzing network performance data to improve quality.
○ Usage Patterns: Understanding customer usage for targeted marketing.
● Examples:
○ Telecom companies using clustering for customer segmentation.
5. Manufacturing
● Uses:
○ Quality Control: Detecting defective products.
○ Demand Forecasting: Predicting future product demand using sales data.
○ Process Optimization: Identifying inefficiencies in production workflows.
● Examples:
○ Predictive maintenance using sensor data.
6. Education
● Uses:
○ Student Performance Analysis: Predicting student success or failure.
○ Personalized Learning: Tailoring learning resources based on student behavior.
○ Dropout Prediction: Identifying at-risk students.
● Examples:
○ E-learning platforms analyzing user data to suggest courses.
7. Transportation and Logistics
● Uses:
○ Route Optimization: Finding the most efficient delivery routes.
○ Traffic Management: Predicting and managing congestion.
○ Demand Forecasting: Predicting passenger flow for better resource allocation.
● Examples:
○ Ride-hailing services like Uber using real-time data for dynamic pricing.
8. Government and Public Services
● Uses:
○ Crime Analysis: Identifying patterns to prevent crimes.
○ Tax Fraud Detection: Analyzing tax return anomalies.

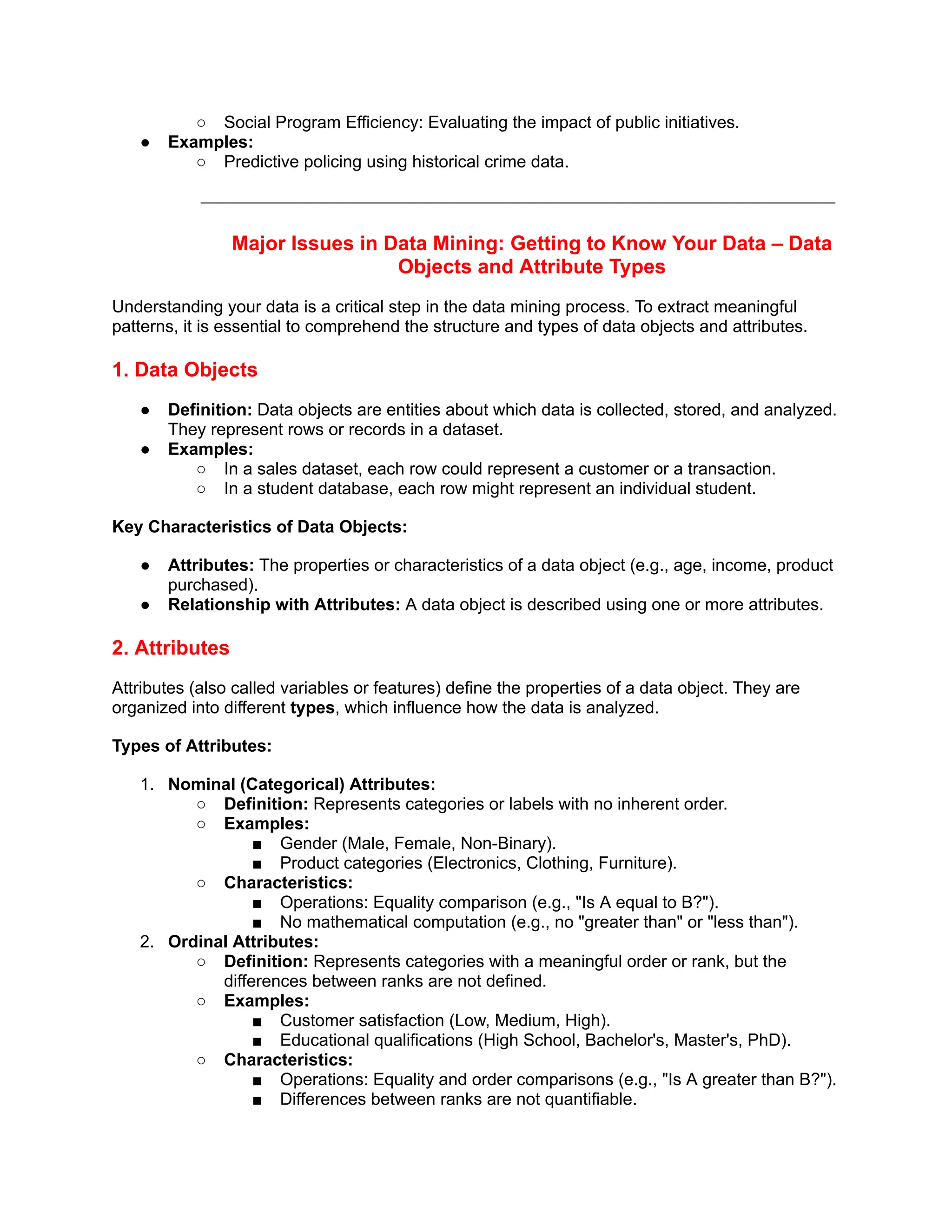

14. ○ Social Program Efficiency: Evaluating the impact of public initiatives.
● Examples:
○ Predictive policing using historical crime data.
Major Issues in Data Mining: Getting to Know Your Data – Data
Objects and Attribute Types
Understanding your data is a critical step in the data mining process. To extract meaningful
patterns, it is essential to comprehend the structure and types of data objects and attributes.
1. Data Objects
● Definition: Data objects are entities about which data is collected, stored, and analyzed.
They represent rows or records in a dataset.
● Examples:
○ In a sales dataset, each row could represent a customer or a transaction.
○ In a student database, each row might represent an individual student.
Key Characteristics of Data Objects:
● Attributes: The properties or characteristics of a data object (e.g., age, income, product
purchased).
● Relationship with Attributes: A data object is described using one or more attributes.
2. Attributes
Attributes (also called variables or features) define the properties of a data object. They are
organized into different types, which influence how the data is analyzed.
Types of Attributes:
1. Nominal (Categorical) Attributes:
○ Definition: Represents categories or labels with no inherent order.
○ Examples:
■ Gender (Male, Female, Non-Binary).
■ Product categories (Electronics, Clothing, Furniture).
○ Characteristics:
■ Operations: Equality comparison (e.g., "Is A equal to B?").
■ No mathematical computation (e.g., no "greater than" or "less than").
2. Ordinal Attributes:
○ Definition: Represents categories with a meaningful order or rank, but the
differences between ranks are not defined.
○ Examples:
■ Customer satisfaction (Low, Medium, High).
■ Educational qualifications (High School, Bachelor's, Master's, PhD).
○ Characteristics:
■ Operations: Equality and order comparisons (e.g., "Is A greater than B?").
■ Differences between ranks are not quantifiable.

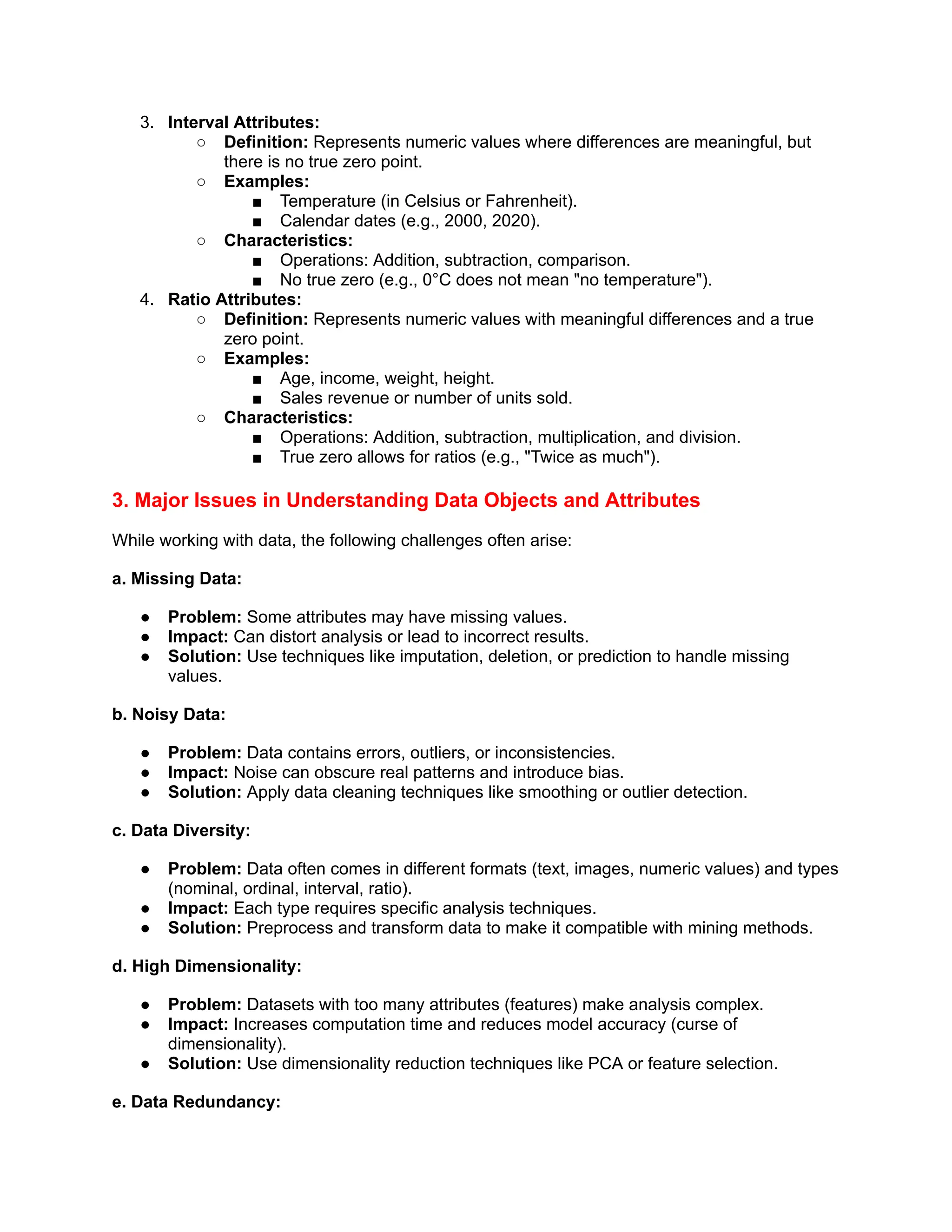

15. 3. Interval Attributes:
○ Definition: Represents numeric values where differences are meaningful, but
there is no true zero point.
○ Examples:
■ Temperature (in Celsius or Fahrenheit).
■ Calendar dates (e.g., 2000, 2020).
○ Characteristics:
■ Operations: Addition, subtraction, comparison.
■ No true zero (e.g., 0°C does not mean "no temperature").
4. Ratio Attributes:
○ Definition: Represents numeric values with meaningful differences and a true
zero point.
○ Examples:
■ Age, income, weight, height.
■ Sales revenue or number of units sold.
○ Characteristics:
■ Operations: Addition, subtraction, multiplication, and division.
■ True zero allows for ratios (e.g., "Twice as much").
3. Major Issues in Understanding Data Objects and Attributes
While working with data, the following challenges often arise:
a. Missing Data:
● Problem: Some attributes may have missing values.
● Impact: Can distort analysis or lead to incorrect results.
● Solution: Use techniques like imputation, deletion, or prediction to handle missing
values.
b. Noisy Data:
● Problem: Data contains errors, outliers, or inconsistencies.
● Impact: Noise can obscure real patterns and introduce bias.
● Solution: Apply data cleaning techniques like smoothing or outlier detection.
c. Data Diversity:
● Problem: Data often comes in different formats (text, images, numeric values) and types
(nominal, ordinal, interval, ratio).
● Impact: Each type requires specific analysis techniques.
● Solution: Preprocess and transform data to make it compatible with mining methods.
d. High Dimensionality:
● Problem: Datasets with too many attributes (features) make analysis complex.
● Impact: Increases computation time and reduces model accuracy (curse of
dimensionality).
● Solution: Use dimensionality reduction techniques like PCA or feature selection.
e. Data Redundancy:

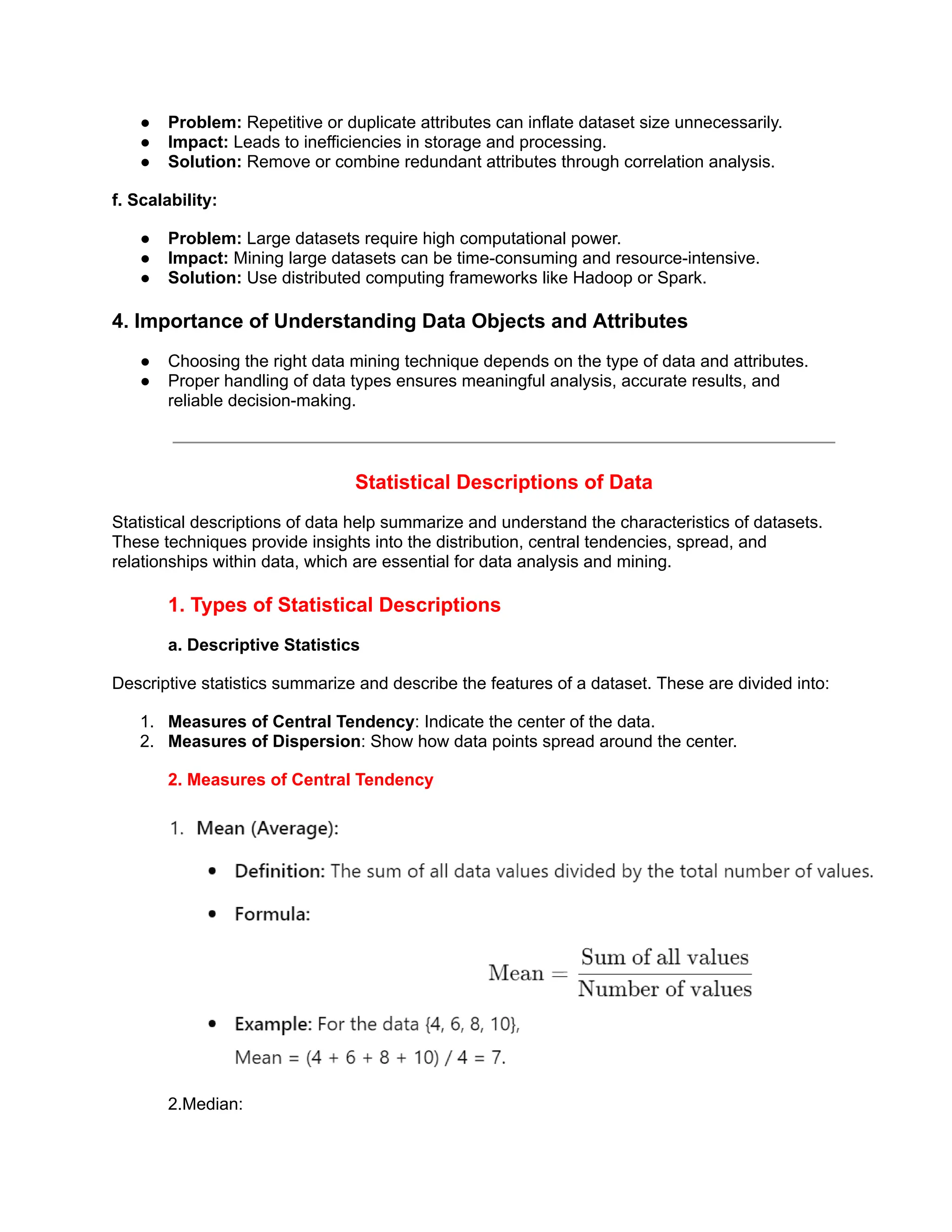

16. ● Problem: Repetitive or duplicate attributes can inflate dataset size unnecessarily.
● Impact: Leads to inefficiencies in storage and processing.
● Solution: Remove or combine redundant attributes through correlation analysis.
f. Scalability:
● Problem: Large datasets require high computational power.
● Impact: Mining large datasets can be time-consuming and resource-intensive.
● Solution: Use distributed computing frameworks like Hadoop or Spark.
4. Importance of Understanding Data Objects and Attributes
● Choosing the right data mining technique depends on the type of data and attributes.
● Proper handling of data types ensures meaningful analysis, accurate results, and
reliable decision-making.
Statistical Descriptions of Data
Statistical descriptions of data help summarize and understand the characteristics of datasets.
These techniques provide insights into the distribution, central tendencies, spread, and
relationships within data, which are essential for data analysis and mining.
1. Types of Statistical Descriptions
a. Descriptive Statistics
Descriptive statistics summarize and describe the features of a dataset. These are divided into:
1. Measures of Central Tendency: Indicate the center of the data.
2. Measures of Dispersion: Show how data points spread around the center.
2. Measures of Central Tendency
2.Median:

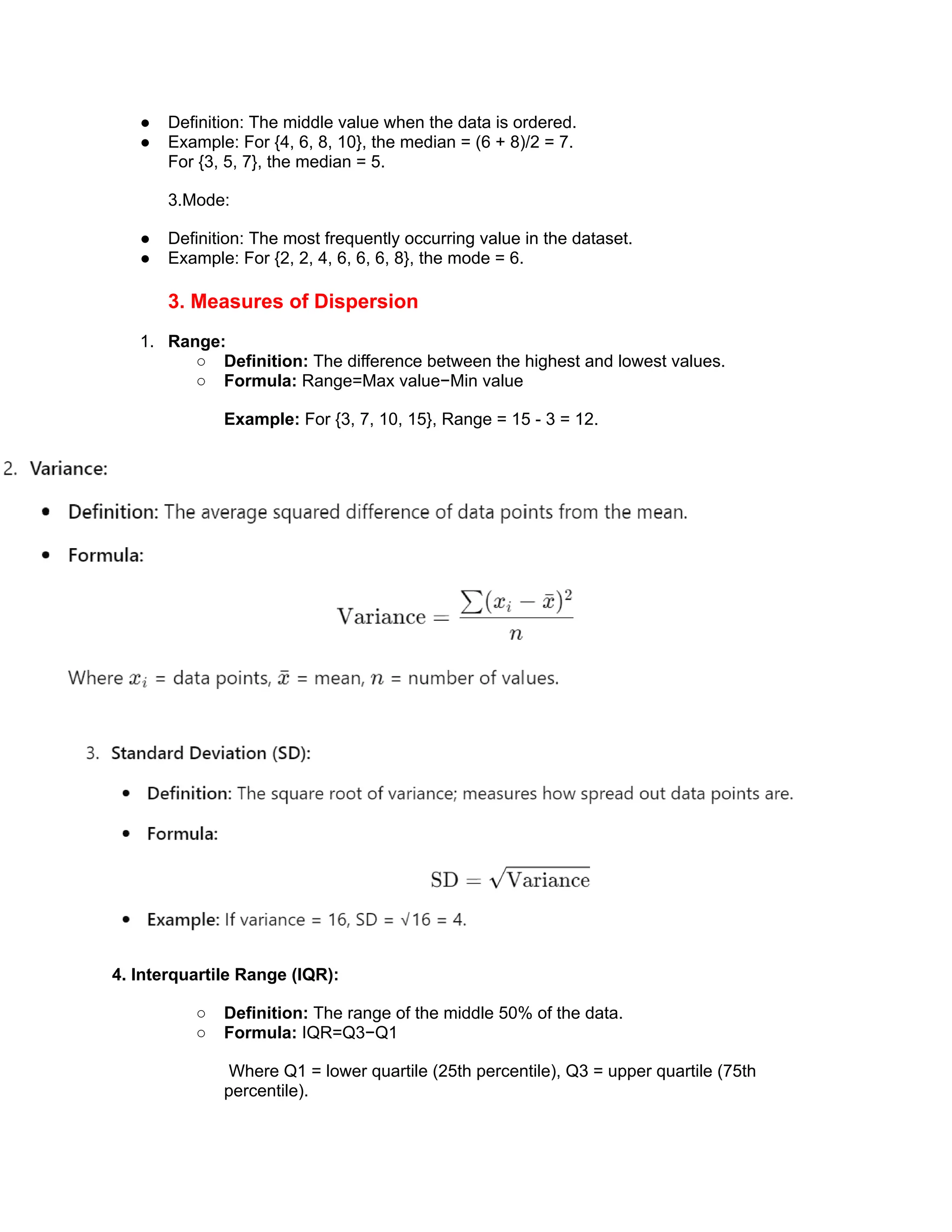

17. ● Definition: The middle value when the data is ordered.
● Example: For {4, 6, 8, 10}, the median = (6 + 8)/2 = 7.
For {3, 5, 7}, the median = 5.
3.Mode:
● Definition: The most frequently occurring value in the dataset.
● Example: For {2, 2, 4, 6, 6, 6, 8}, the mode = 6.
3. Measures of Dispersion
1. Range:
○ Definition: The difference between the highest and lowest values.
○ Formula: Range=Max value−Min value
Example: For {3, 7, 10, 15}, Range = 15 - 3 = 12.
4. Interquartile Range (IQR):
○ Definition: The range of the middle 50% of the data.
○ Formula: IQR=Q3−Q1
Where Q1 = lower quartile (25th percentile), Q3 = upper quartile (75th
percentile).

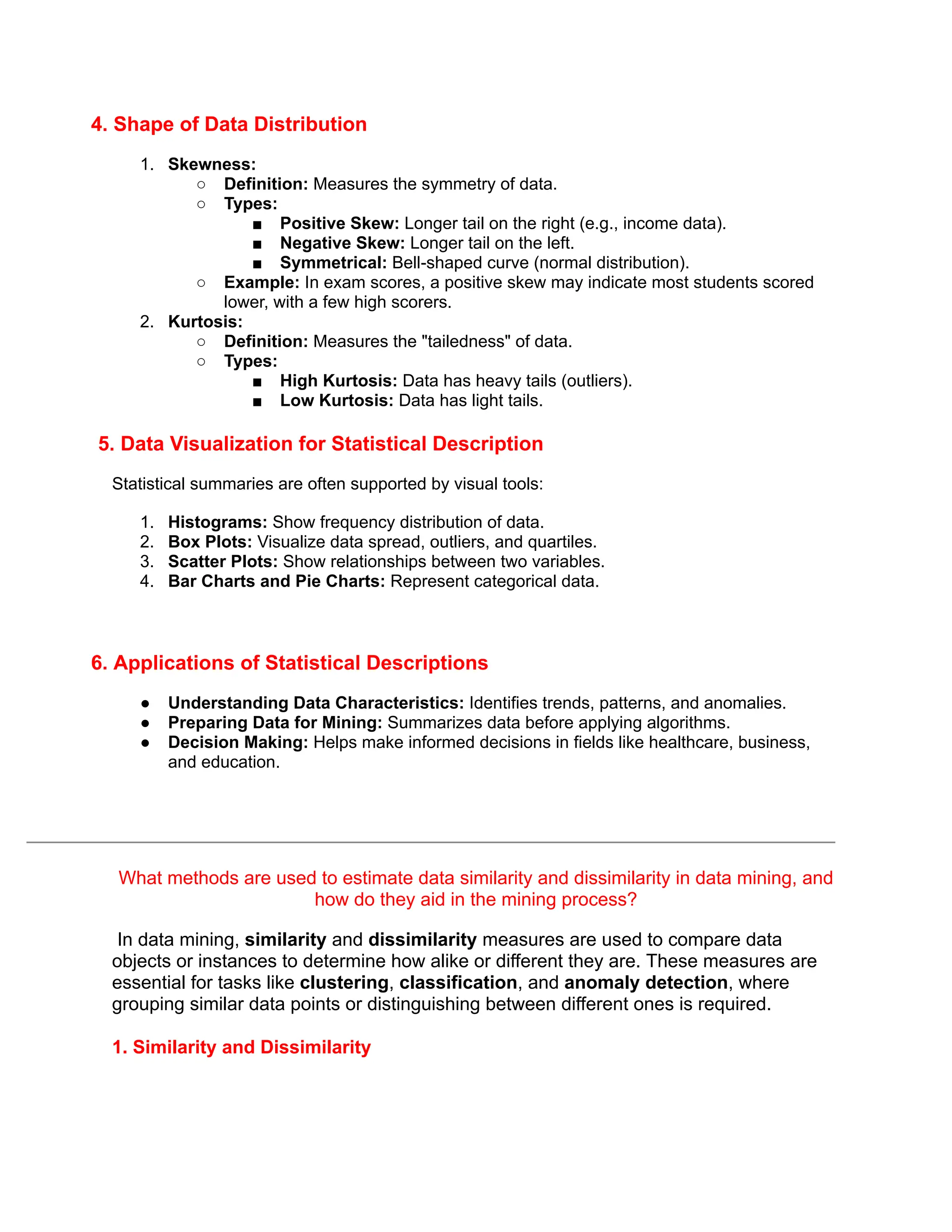

18. 4. Shape of Data Distribution
1. Skewness:
○ Definition: Measures the symmetry of data.
○ Types:
■ Positive Skew: Longer tail on the right (e.g., income data).
■ Negative Skew: Longer tail on the left.
■ Symmetrical: Bell-shaped curve (normal distribution).
○ Example: In exam scores, a positive skew may indicate most students scored
lower, with a few high scorers.
2. Kurtosis:
○ Definition: Measures the "tailedness" of data.
○ Types:
■ High Kurtosis: Data has heavy tails (outliers).
■ Low Kurtosis: Data has light tails.
5. Data Visualization for Statistical Description
Statistical summaries are often supported by visual tools:
1. Histograms: Show frequency distribution of data.
2. Box Plots: Visualize data spread, outliers, and quartiles.
3. Scatter Plots: Show relationships between two variables.
4. Bar Charts and Pie Charts: Represent categorical data.
6. Applications of Statistical Descriptions
● Understanding Data Characteristics: Identifies trends, patterns, and anomalies.
● Preparing Data for Mining: Summarizes data before applying algorithms.
● Decision Making: Helps make informed decisions in fields like healthcare, business,
and education.
What methods are used to estimate data similarity and dissimilarity in data mining, and
how do they aid in the mining process?
In data mining, similarity and dissimilarity measures are used to compare data
objects or instances to determine how alike or different they are. These measures are
essential for tasks like clustering, classification, and anomaly detection, where
grouping similar data points or distinguishing between different ones is required.
1. Similarity and Dissimilarity

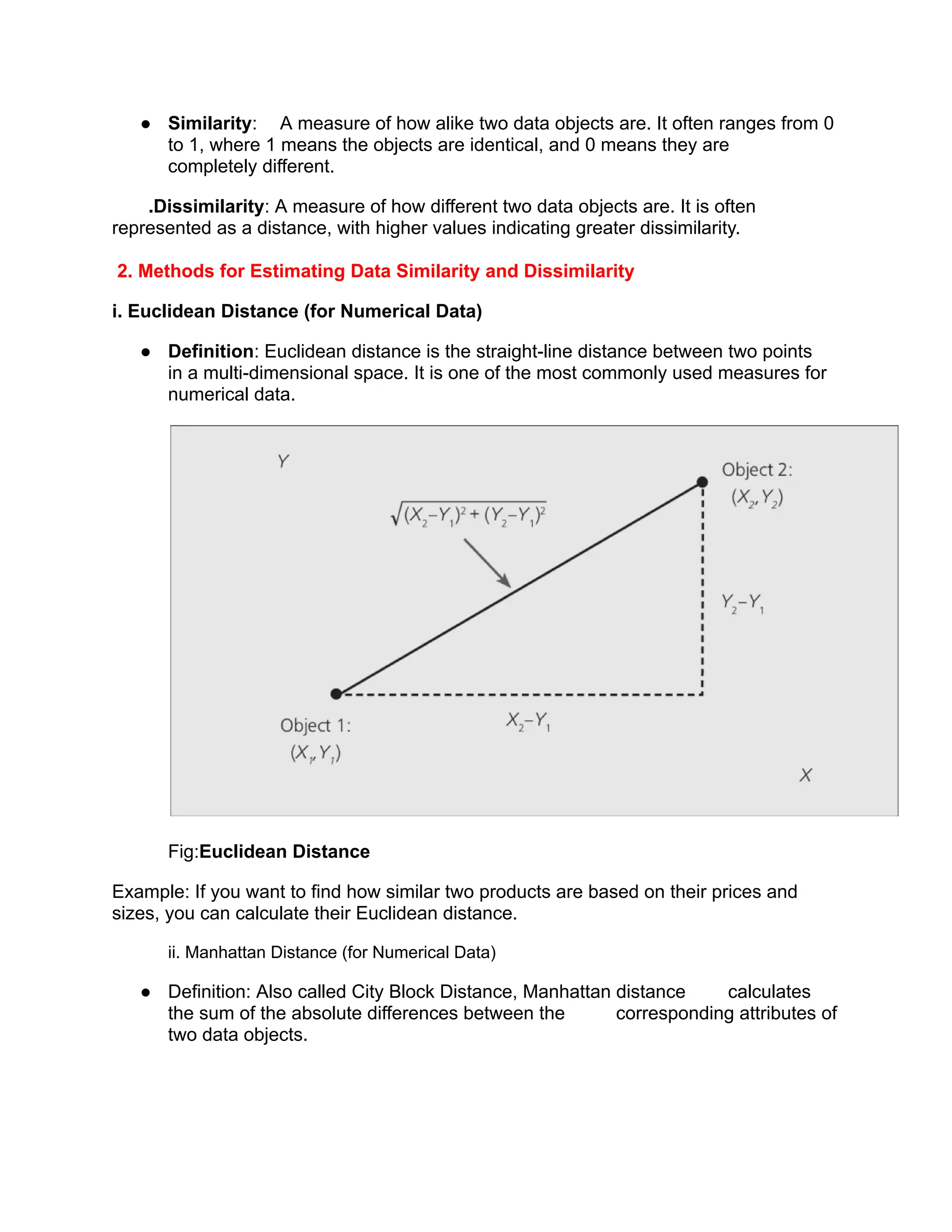

19. ● Similarity: A measure of how alike two data objects are. It often ranges from 0
to 1, where 1 means the objects are identical, and 0 means they are
completely different.
.Dissimilarity: A measure of how different two data objects are. It is often
represented as a distance, with higher values indicating greater dissimilarity.
2. Methods for Estimating Data Similarity and Dissimilarity
i. Euclidean Distance (for Numerical Data)
● Definition: Euclidean distance is the straight-line distance between two points
in a multi-dimensional space. It is one of the most commonly used measures for
numerical data.
Fig:Euclidean Distance
Example: If you want to find how similar two products are based on their prices and
sizes, you can calculate their Euclidean distance.
ii. Manhattan Distance (for Numerical Data)
● Definition: Also called City Block Distance, Manhattan distance calculates
the sum of the absolute differences between the corresponding attributes of
two data objects.

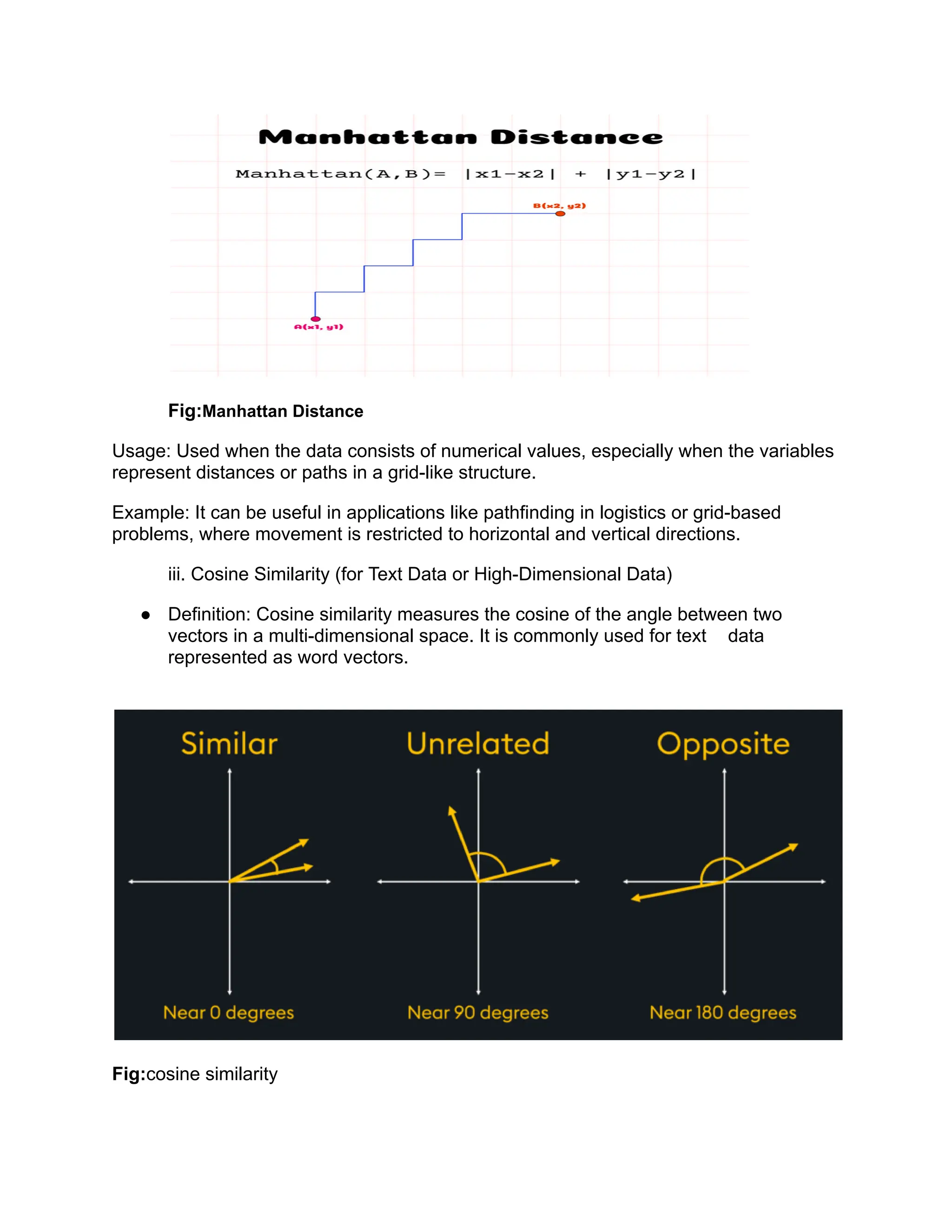

20. Fig:Manhattan Distance
Usage: Used when the data consists of numerical values, especially when the variables
represent distances or paths in a grid-like structure.
Example: It can be useful in applications like pathfinding in logistics or grid-based
problems, where movement is restricted to horizontal and vertical directions.
iii. Cosine Similarity (for Text Data or High-Dimensional Data)
● Definition: Cosine similarity measures the cosine of the angle between two
vectors in a multi-dimensional space. It is commonly used for text data
represented as word vectors.
Fig:cosine similarity

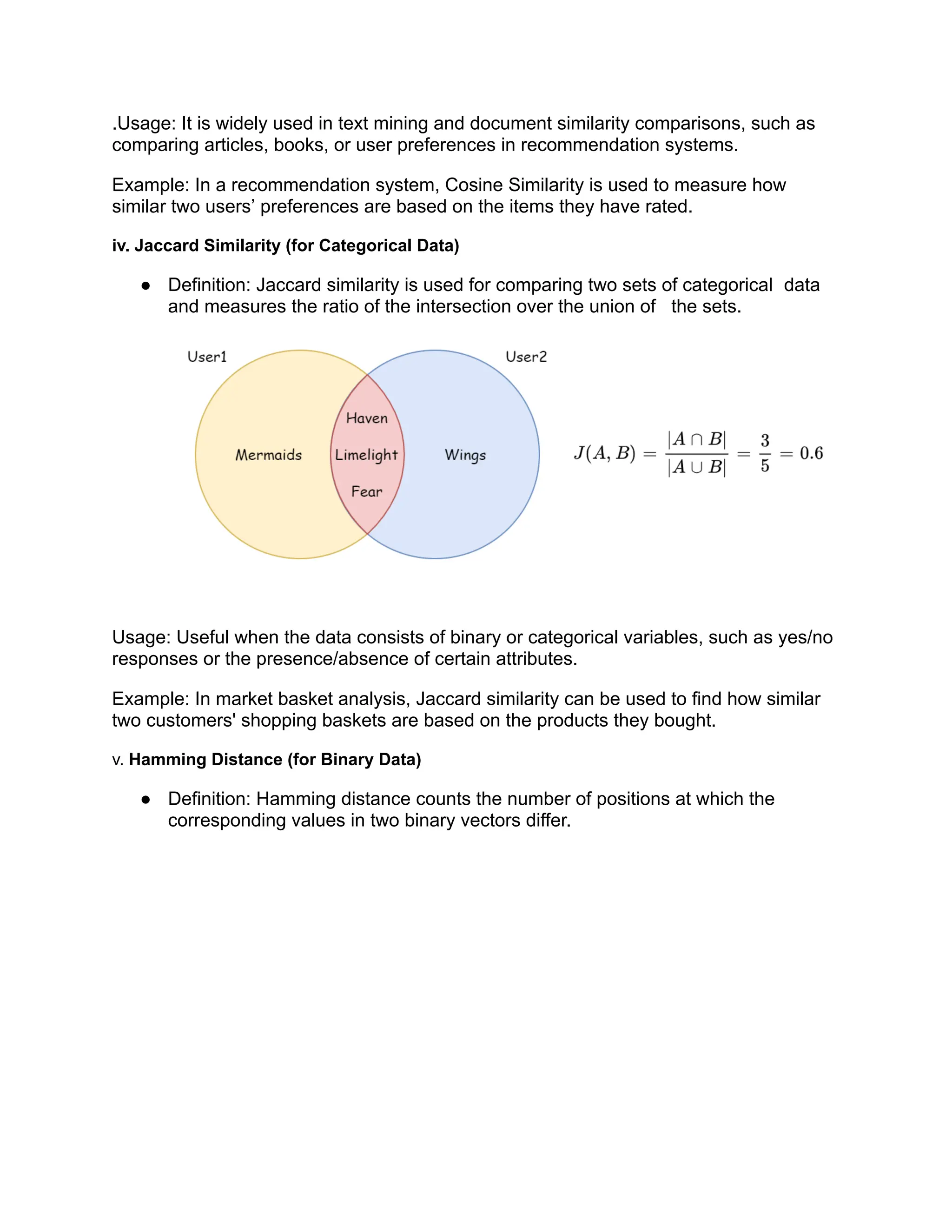

21. .Usage: It is widely used in text mining and document similarity comparisons, such as
comparing articles, books, or user preferences in recommendation systems.
Example: In a recommendation system, Cosine Similarity is used to measure how
similar two users’ preferences are based on the items they have rated.
iv. Jaccard Similarity (for Categorical Data)
● Definition: Jaccard similarity is used for comparing two sets of categorical data
and measures the ratio of the intersection over the union of the sets.
Usage: Useful when the data consists of binary or categorical variables, such as yes/no
responses or the presence/absence of certain attributes.
Example: In market basket analysis, Jaccard similarity can be used to find how similar
two customers' shopping baskets are based on the products they bought.

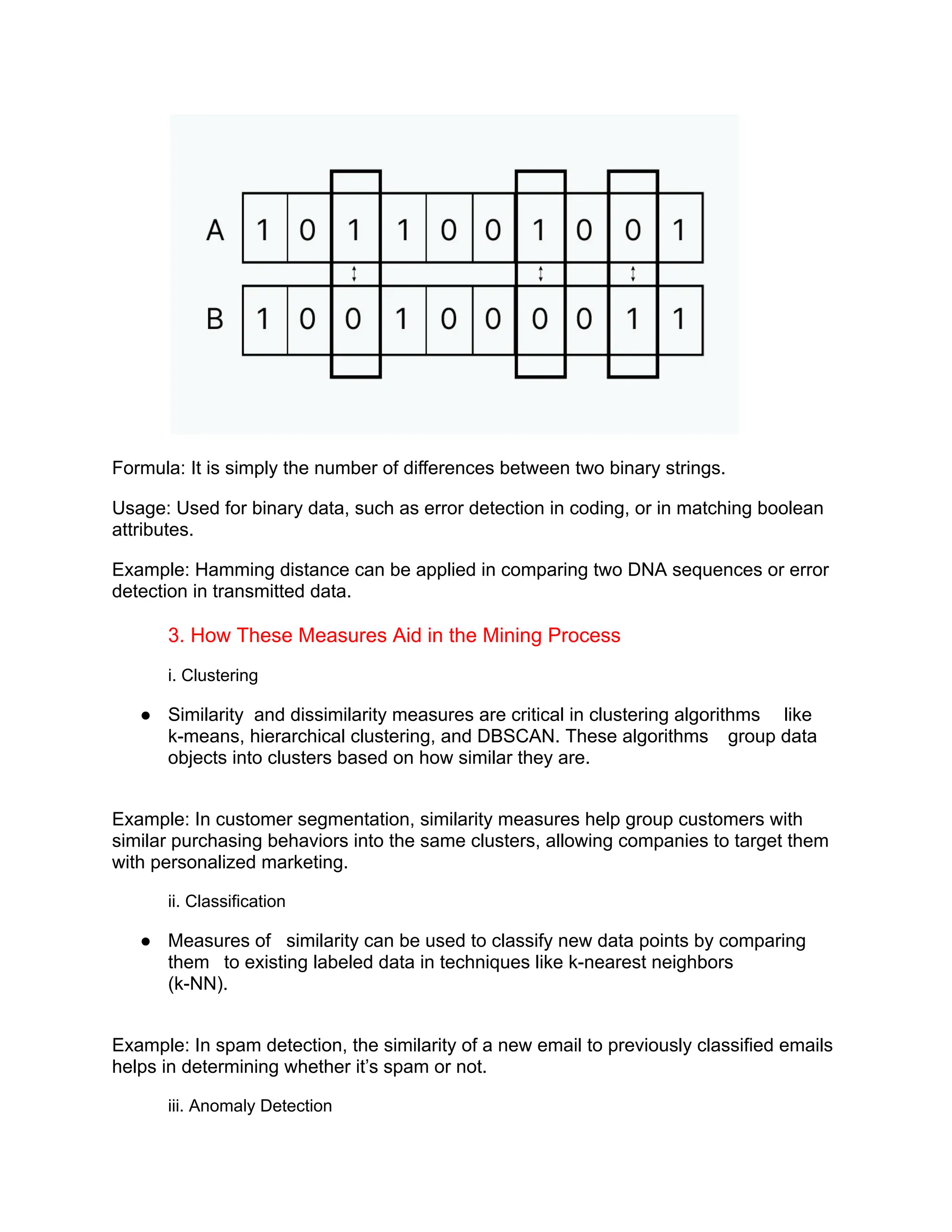

v. Hamming Distance (for Binary Data)
● Definition: Hamming distance counts the number of positions at which the
corresponding values in two binary vectors differ.

22. Formula: It is simply the number of differences between two binary strings.
Usage: Used for binary data, such as error detection in coding, or in matching boolean
attributes.
Example: Hamming distance can be applied in comparing two DNA sequences or error
detection in transmitted data.
3. How These Measures Aid in the Mining Process
i. Clustering
● Similarity and dissimilarity measures are critical in clustering algorithms like
k-means, hierarchical clustering, and DBSCAN. These algorithms group data
objects into clusters based on how similar they are.
Example: In customer segmentation, similarity measures help group customers with
similar purchasing behaviors into the same clusters, allowing companies to target them
with personalized marketing.
ii. Classification
● Measures of similarity can be used to classify new data points by comparing
them to existing labeled data in techniques like k-nearest neighbors
(k-NN).
Example: In spam detection, the similarity of a new email to previously classified emails
helps in determining whether it’s spam or not.
iii. Anomaly Detection

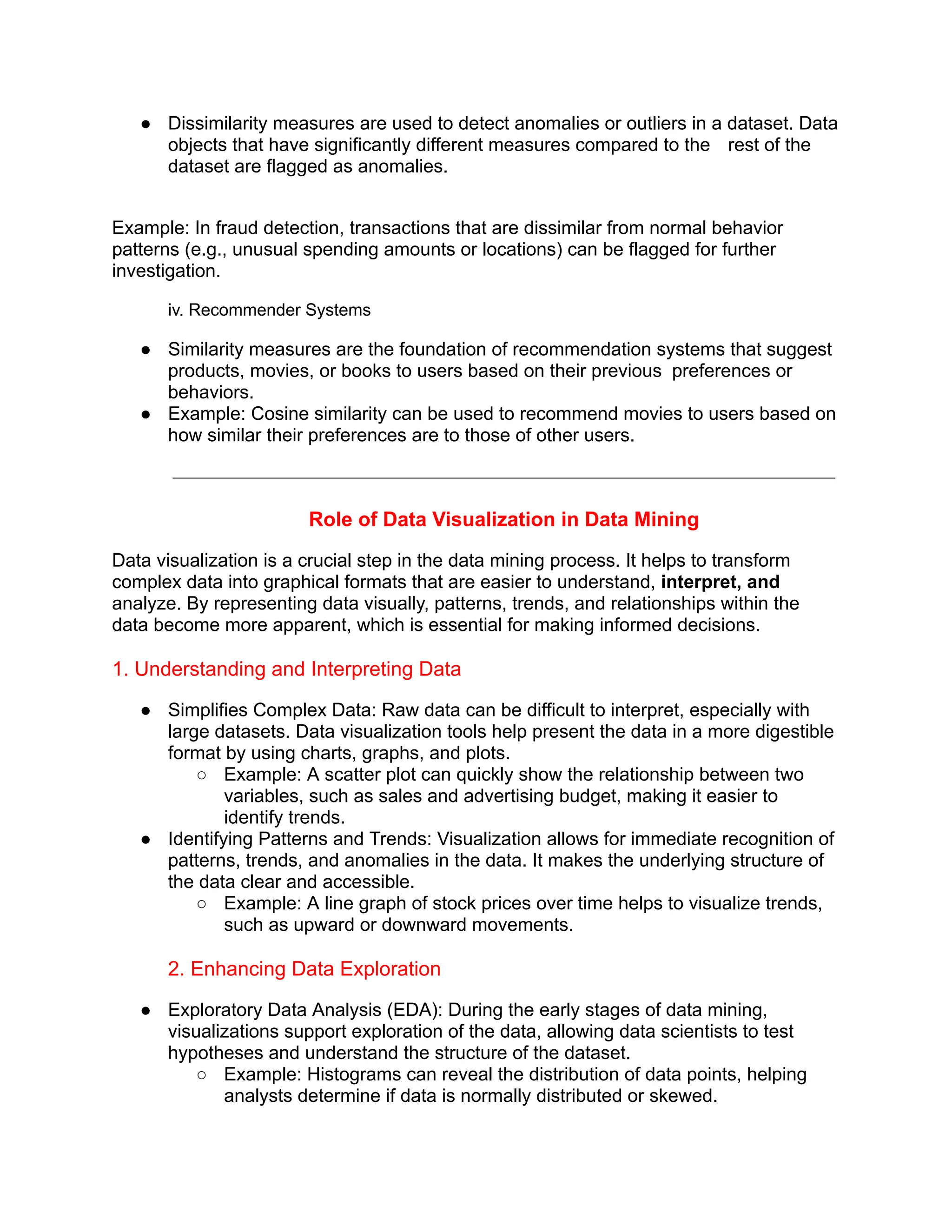

23. ● Dissimilarity measures are used to detect anomalies or outliers in a dataset. Data
objects that have significantly different measures compared to the rest of the
dataset are flagged as anomalies.
Example: In fraud detection, transactions that are dissimilar from normal behavior
patterns (e.g., unusual spending amounts or locations) can be flagged for further
investigation.
iv. Recommender Systems
● Similarity measures are the foundation of recommendation systems that suggest
products, movies, or books to users based on their previous preferences or
behaviors.
● Example: Cosine similarity can be used to recommend movies to users based on
how similar their preferences are to those of other users.
Role of Data Visualization in Data Mining
Data visualization is a crucial step in the data mining process. It helps to transform
complex data into graphical formats that are easier to understand, interpret, and
analyze. By representing data visually, patterns, trends, and relationships within the
data become more apparent, which is essential for making informed decisions.
1. Understanding and Interpreting Data
● Simplifies Complex Data: Raw data can be difficult to interpret, especially with
large datasets. Data visualization tools help present the data in a more digestible
format by using charts, graphs, and plots.
○ Example: A scatter plot can quickly show the relationship between two
variables, such as sales and advertising budget, making it easier to
identify trends.
● Identifying Patterns and Trends: Visualization allows for immediate recognition of
patterns, trends, and anomalies in the data. It makes the underlying structure of
the data clear and accessible.
○ Example: A line graph of stock prices over time helps to visualize trends,
such as upward or downward movements.
2. Enhancing Data Exploration
● Exploratory Data Analysis (EDA): During the early stages of data mining,
visualizations support exploration of the data, allowing data scientists to test
hypotheses and understand the structure of the dataset.
○ Example: Histograms can reveal the distribution of data points, helping
analysts determine if data is normally distributed or skewed.

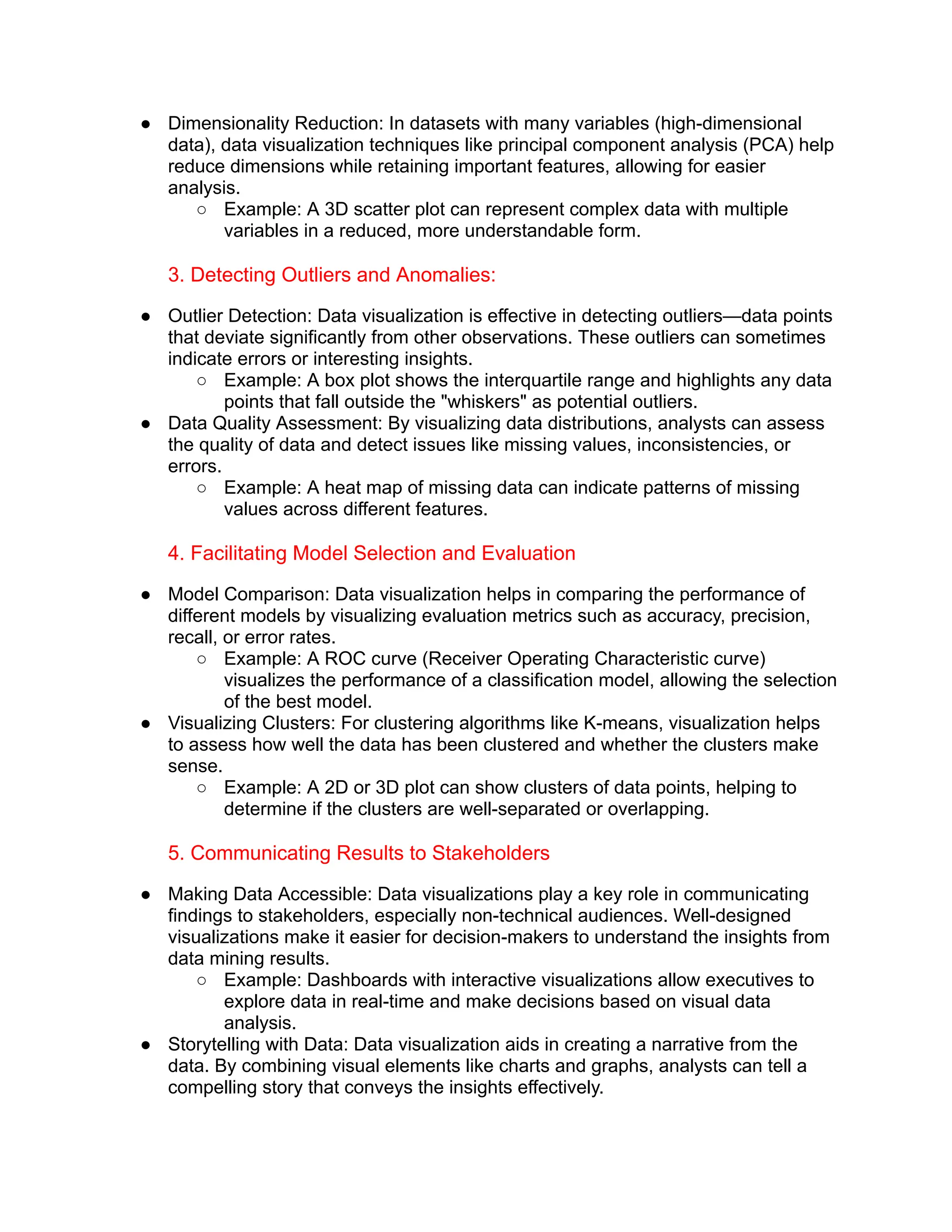

24. ● Dimensionality Reduction: In datasets with many variables (high-dimensional
data), data visualization techniques like principal component analysis (PCA) help
reduce dimensions while retaining important features, allowing for easier
analysis.
○ Example: A 3D scatter plot can represent complex data with multiple
variables in a reduced, more understandable form.
3. Detecting Outliers and Anomalies:
● Outlier Detection: Data visualization is effective in detecting outliers—data points
that deviate significantly from other observations. These outliers can sometimes
indicate errors or interesting insights.
○ Example: A box plot shows the interquartile range and highlights any data
points that fall outside the "whiskers" as potential outliers.
● Data Quality Assessment: By visualizing data distributions, analysts can assess
the quality of data and detect issues like missing values, inconsistencies, or
errors.
○ Example: A heat map of missing data can indicate patterns of missing
values across different features.
4. Facilitating Model Selection and Evaluation
● Model Comparison: Data visualization helps in comparing the performance of
different models by visualizing evaluation metrics such as accuracy, precision,
recall, or error rates.
○ Example: A ROC curve (Receiver Operating Characteristic curve)
visualizes the performance of a classification model, allowing the selection
of the best model.
● Visualizing Clusters: For clustering algorithms like K-means, visualization helps
to assess how well the data has been clustered and whether the clusters make
sense.
○ Example: A 2D or 3D plot can show clusters of data points, helping to
determine if the clusters are well-separated or overlapping.
5. Communicating Results to Stakeholders
● Making Data Accessible: Data visualizations play a key role in communicating
findings to stakeholders, especially non-technical audiences. Well-designed
visualizations make it easier for decision-makers to understand the insights from
data mining results.
○ Example: Dashboards with interactive visualizations allow executives to
explore data in real-time and make decisions based on visual data
analysis.
● Storytelling with Data: Data visualization aids in creating a narrative from the
data. By combining visual elements like charts and graphs, analysts can tell a
compelling story that conveys the insights effectively.

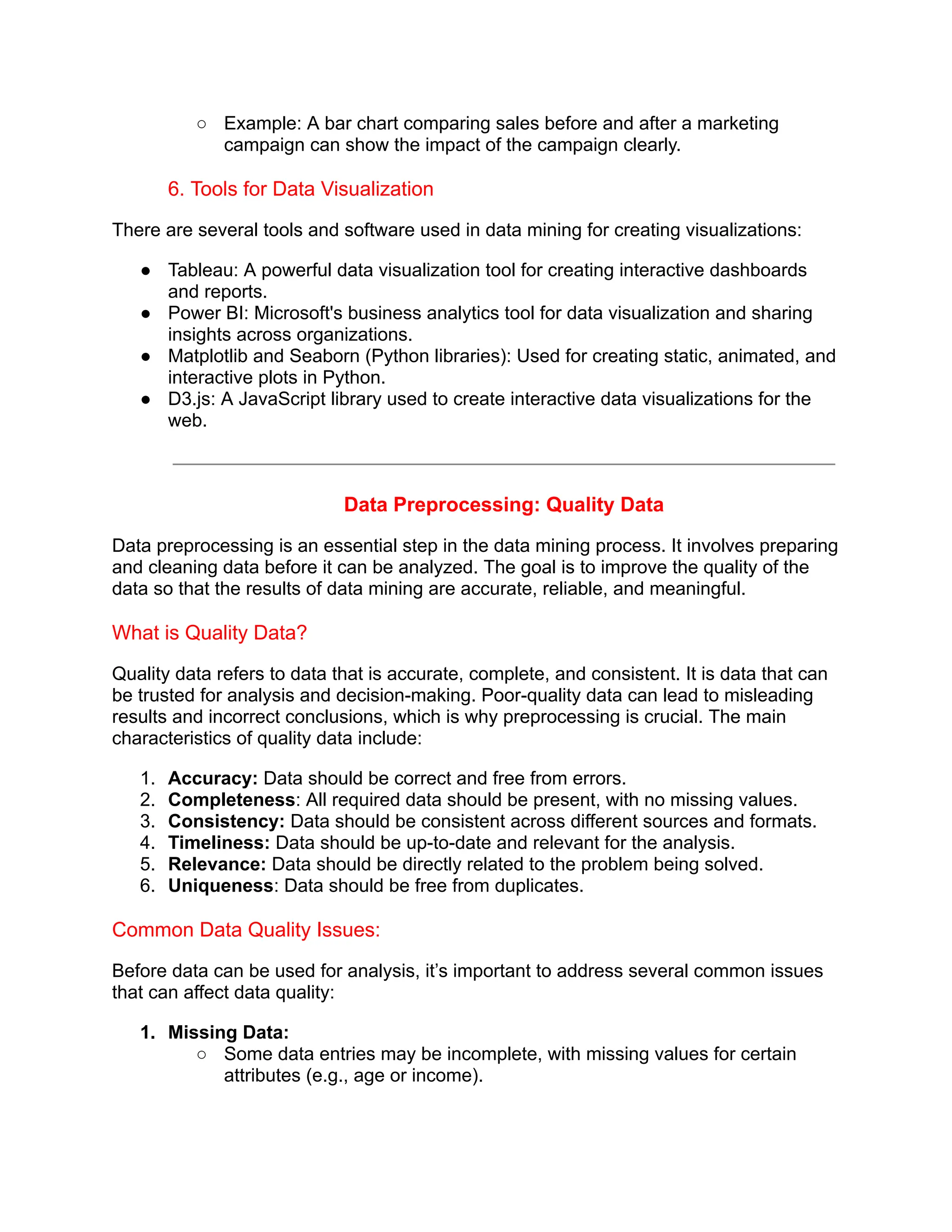

25. ○ Example: A bar chart comparing sales before and after a marketing
campaign can show the impact of the campaign clearly.
6. Tools for Data Visualization
There are several tools and software used in data mining for creating visualizations:
● Tableau: A powerful data visualization tool for creating interactive dashboards
and reports.
● Power BI: Microsoft's business analytics tool for data visualization and sharing
insights across organizations.
● Matplotlib and Seaborn (Python libraries): Used for creating static, animated, and
interactive plots in Python.
● D3.js: A JavaScript library used to create interactive data visualizations for the
web.
Data Preprocessing: Quality Data
Data preprocessing is an essential step in the data mining process. It involves preparing
and cleaning data before it can be analyzed. The goal is to improve the quality of the
data so that the results of data mining are accurate, reliable, and meaningful.
What is Quality Data?
Quality data refers to data that is accurate, complete, and consistent. It is data that can
be trusted for analysis and decision-making. Poor-quality data can lead to misleading
results and incorrect conclusions, which is why preprocessing is crucial. The main
characteristics of quality data include:
1. Accuracy: Data should be correct and free from errors.
2. Completeness: All required data should be present, with no missing values.
3. Consistency: Data should be consistent across different sources and formats.
4. Timeliness: Data should be up-to-date and relevant for the analysis.
5. Relevance: Data should be directly related to the problem being solved.
6. Uniqueness: Data should be free from duplicates.
Common Data Quality Issues:
Before data can be used for analysis, it’s important to address several common issues
that can affect data quality:
1. Missing Data:
○ Some data entries may be incomplete, with missing values for certain
attributes (e.g., age or income).

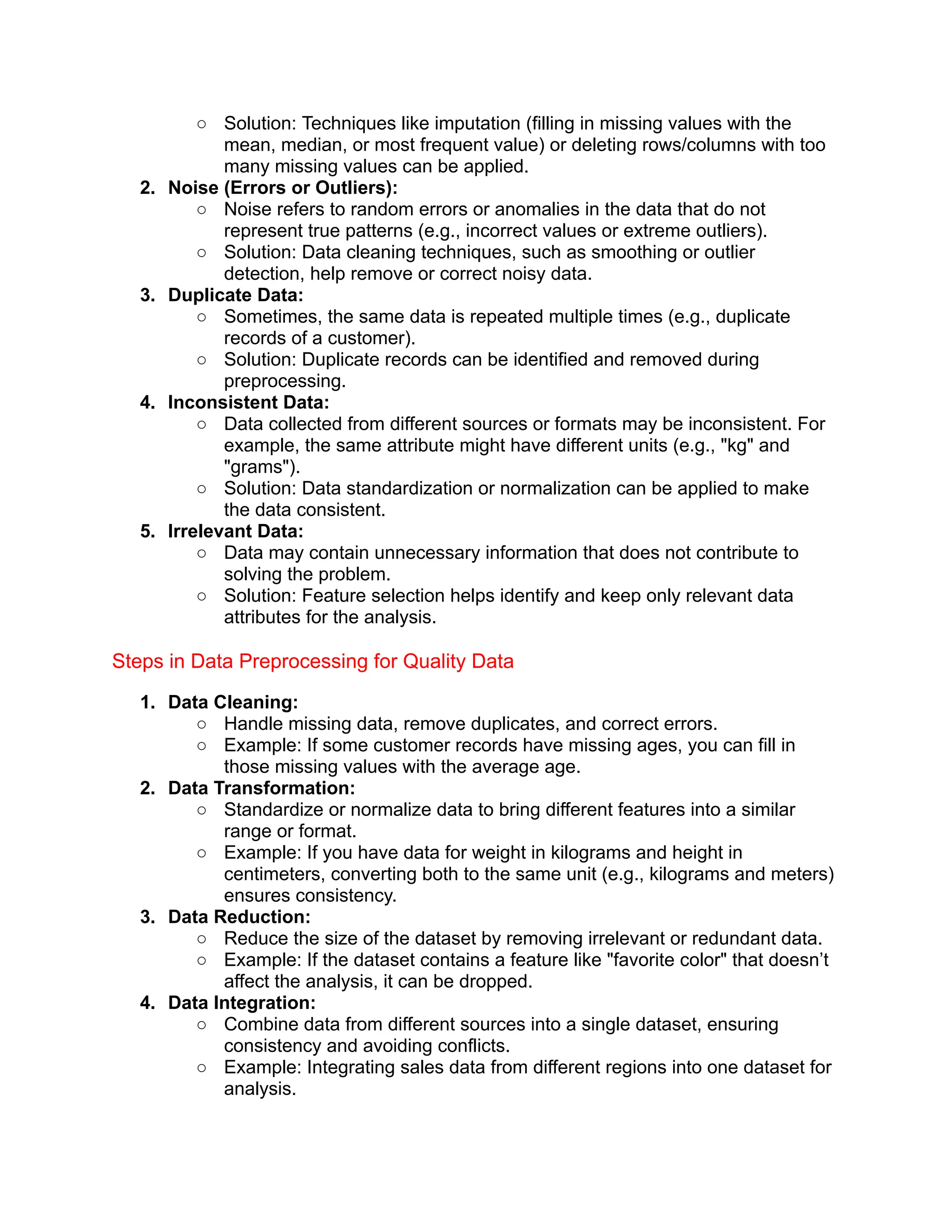

26. ○ Solution: Techniques like imputation (filling in missing values with the
mean, median, or most frequent value) or deleting rows/columns with too
many missing values can be applied.
2. Noise (Errors or Outliers):
○ Noise refers to random errors or anomalies in the data that do not
represent true patterns (e.g., incorrect values or extreme outliers).
○ Solution: Data cleaning techniques, such as smoothing or outlier
detection, help remove or correct noisy data.
3. Duplicate Data:
○ Sometimes, the same data is repeated multiple times (e.g., duplicate
records of a customer).
○ Solution: Duplicate records can be identified and removed during
preprocessing.
4. Inconsistent Data:
○ Data collected from different sources or formats may be inconsistent. For
example, the same attribute might have different units (e.g., "kg" and
"grams").
○ Solution: Data standardization or normalization can be applied to make
the data consistent.
5. Irrelevant Data:
○ Data may contain unnecessary information that does not contribute to
solving the problem.
○ Solution: Feature selection helps identify and keep only relevant data
attributes for the analysis.
Steps in Data Preprocessing for Quality Data
1. Data Cleaning:
○ Handle missing data, remove duplicates, and correct errors.
○ Example: If some customer records have missing ages, you can fill in
those missing values with the average age.
2. Data Transformation:
○ Standardize or normalize data to bring different features into a similar
range or format.
○ Example: If you have data for weight in kilograms and height in
centimeters, converting both to the same unit (e.g., kilograms and meters)
ensures consistency.
3. Data Reduction:
○ Reduce the size of the dataset by removing irrelevant or redundant data.
○ Example: If the dataset contains a feature like "favorite color" that doesn’t
affect the analysis, it can be dropped.
4. Data Integration:
○ Combine data from different sources into a single dataset, ensuring
consistency and avoiding conflicts.
○ Example: Integrating sales data from different regions into one dataset for
analysis.

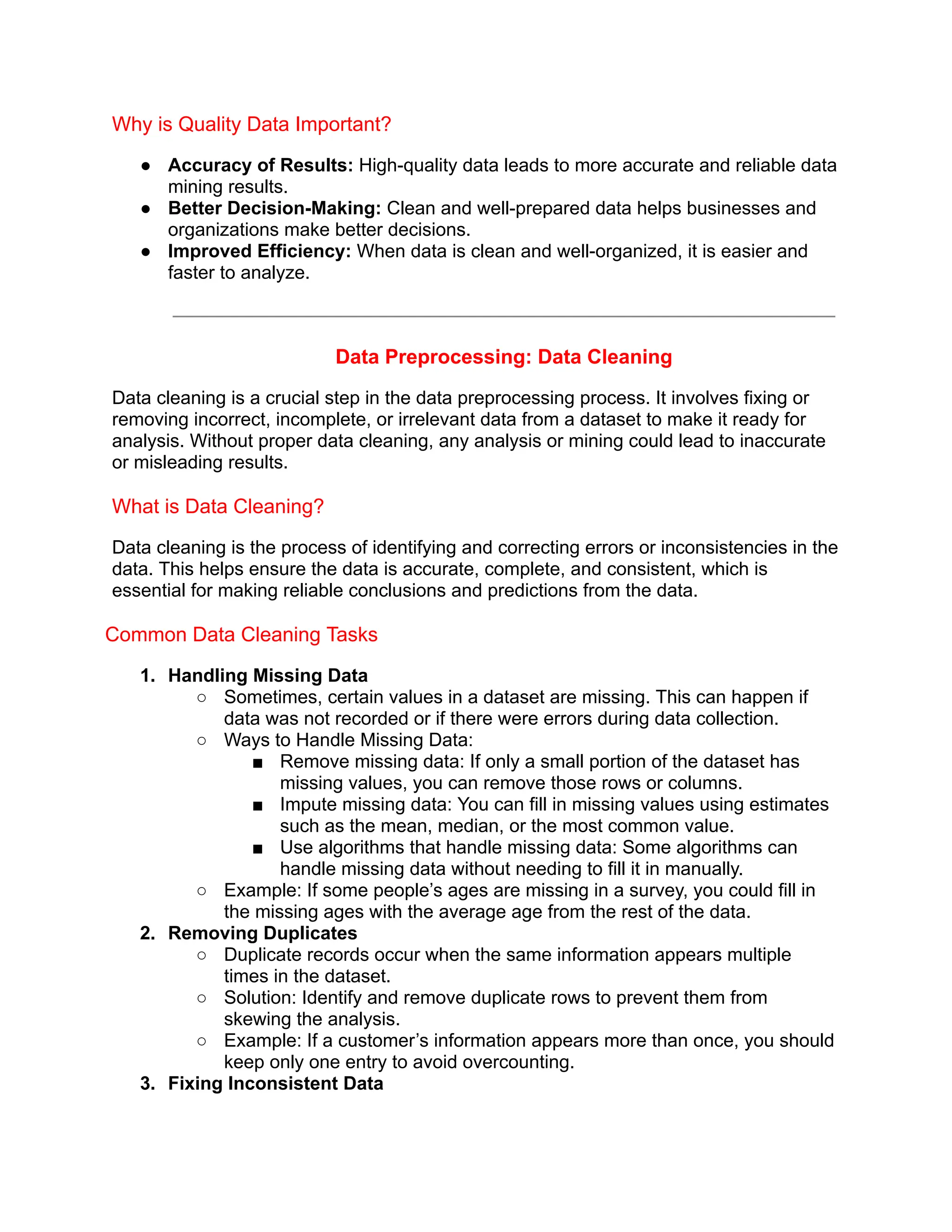

27. Why is Quality Data Important?
● Accuracy of Results: High-quality data leads to more accurate and reliable data
mining results.
● Better Decision-Making: Clean and well-prepared data helps businesses and
organizations make better decisions.
● Improved Efficiency: When data is clean and well-organized, it is easier and
faster to analyze.
Data Preprocessing: Data Cleaning
Data cleaning is a crucial step in the data preprocessing process. It involves fixing or
removing incorrect, incomplete, or irrelevant data from a dataset to make it ready for
analysis. Without proper data cleaning, any analysis or mining could lead to inaccurate
or misleading results.
What is Data Cleaning?
Data cleaning is the process of identifying and correcting errors or inconsistencies in the
data. This helps ensure the data is accurate, complete, and consistent, which is
essential for making reliable conclusions and predictions from the data.
Common Data Cleaning Tasks
1. Handling Missing Data
○ Sometimes, certain values in a dataset are missing. This can happen if
data was not recorded or if there were errors during data collection.
○ Ways to Handle Missing Data:
■ Remove missing data: If only a small portion of the dataset has
missing values, you can remove those rows or columns.
■ Impute missing data: You can fill in missing values using estimates
such as the mean, median, or the most common value.
■ Use algorithms that handle missing data: Some algorithms can
handle missing data without needing to fill it in manually.
○ Example: If some people’s ages are missing in a survey, you could fill in
the missing ages with the average age from the rest of the data.
2. Removing Duplicates
○ Duplicate records occur when the same information appears multiple
times in the dataset.
○ Solution: Identify and remove duplicate rows to prevent them from
skewing the analysis.
○ Example: If a customer’s information appears more than once, you should
keep only one entry to avoid overcounting.
3. Fixing Inconsistent Data

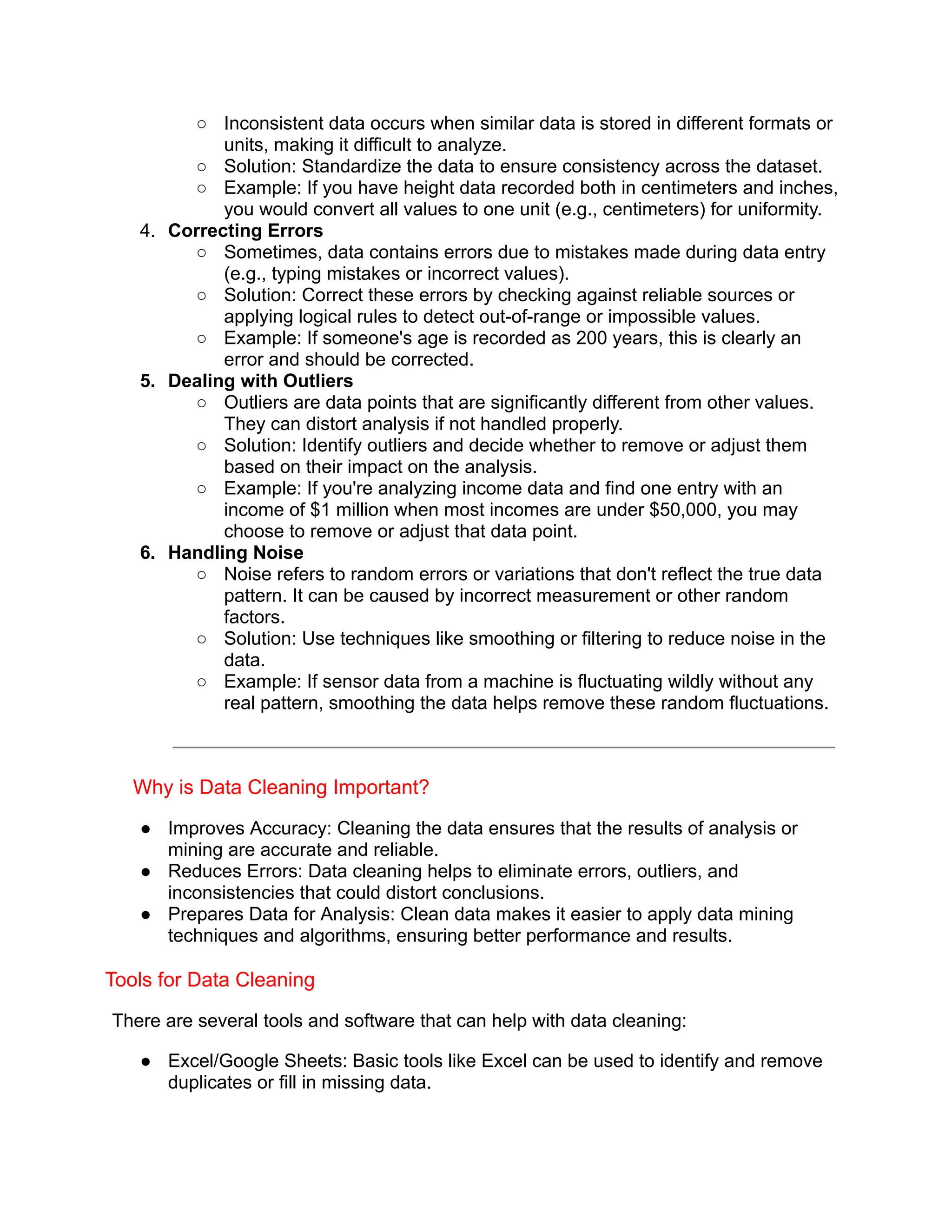

28. ○ Inconsistent data occurs when similar data is stored in different formats or
units, making it difficult to analyze.
○ Solution: Standardize the data to ensure consistency across the dataset.
○ Example: If you have height data recorded both in centimeters and inches,
you would convert all values to one unit (e.g., centimeters) for uniformity.
4. Correcting Errors
○ Sometimes, data contains errors due to mistakes made during data entry
(e.g., typing mistakes or incorrect values).
○ Solution: Correct these errors by checking against reliable sources or
applying logical rules to detect out-of-range or impossible values.
○ Example: If someone's age is recorded as 200 years, this is clearly an
error and should be corrected.
5. Dealing with Outliers
○ Outliers are data points that are significantly different from other values.
They can distort analysis if not handled properly.
○ Solution: Identify outliers and decide whether to remove or adjust them
based on their impact on the analysis.
○ Example: If you're analyzing income data and find one entry with an
income of $1 million when most incomes are under $50,000, you may
choose to remove or adjust that data point.
6. Handling Noise
○ Noise refers to random errors or variations that don't reflect the true data
pattern. It can be caused by incorrect measurement or other random
factors.
○ Solution: Use techniques like smoothing or filtering to reduce noise in the
data.
○ Example: If sensor data from a machine is fluctuating wildly without any
real pattern, smoothing the data helps remove these random fluctuations.
Why is Data Cleaning Important?
● Improves Accuracy: Cleaning the data ensures that the results of analysis or
mining are accurate and reliable.
● Reduces Errors: Data cleaning helps to eliminate errors, outliers, and
inconsistencies that could distort conclusions.
● Prepares Data for Analysis: Clean data makes it easier to apply data mining
techniques and algorithms, ensuring better performance and results.
Tools for Data Cleaning
There are several tools and software that can help with data cleaning:
● Excel/Google Sheets: Basic tools like Excel can be used to identify and remove
duplicates or fill in missing data.

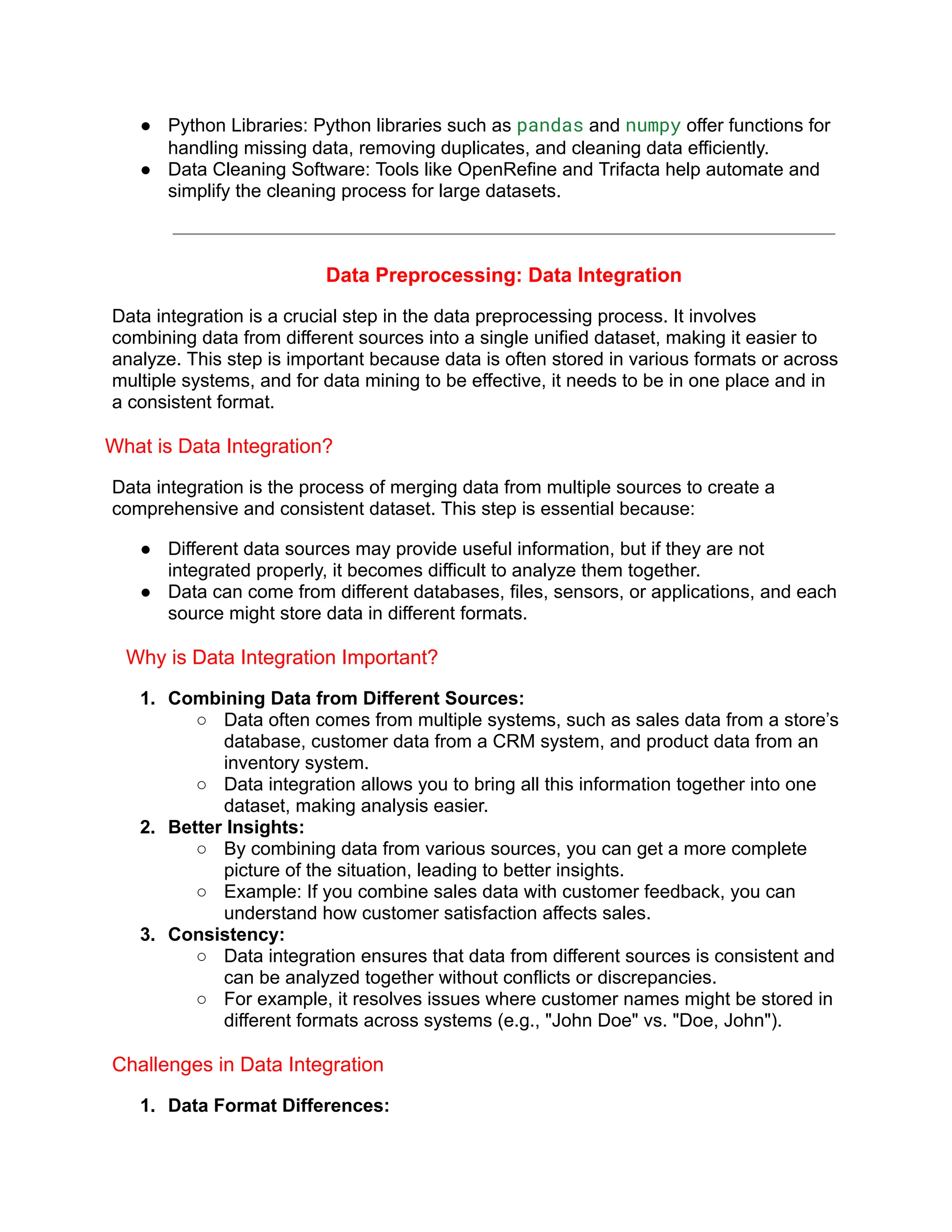

29. ● Python Libraries: Python libraries such as pandas and numpy offer functions for
handling missing data, removing duplicates, and cleaning data efficiently.
● Data Cleaning Software: Tools like OpenRefine and Trifacta help automate and
simplify the cleaning process for large datasets.
Data Preprocessing: Data Integration
Data integration is a crucial step in the data preprocessing process. It involves
combining data from different sources into a single unified dataset, making it easier to
analyze. This step is important because data is often stored in various formats or across
multiple systems, and for data mining to be effective, it needs to be in one place and in
a consistent format.
What is Data Integration?
Data integration is the process of merging data from multiple sources to create a
comprehensive and consistent dataset. This step is essential because:
● Different data sources may provide useful information, but if they are not
integrated properly, it becomes difficult to analyze them together.
● Data can come from different databases, files, sensors, or applications, and each
source might store data in different formats.
Why is Data Integration Important?
1. Combining Data from Different Sources:
○ Data often comes from multiple systems, such as sales data from a store’s
database, customer data from a CRM system, and product data from an
inventory system.
○ Data integration allows you to bring all this information together into one
dataset, making analysis easier.
2. Better Insights:
○ By combining data from various sources, you can get a more complete
picture of the situation, leading to better insights.
○ Example: If you combine sales data with customer feedback, you can
understand how customer satisfaction affects sales.
3. Consistency:
○ Data integration ensures that data from different sources is consistent and
can be analyzed together without conflicts or discrepancies.
○ For example, it resolves issues where customer names might be stored in
different formats across systems (e.g., "John Doe" vs. "Doe, John").
Challenges in Data Integration
1. Data Format Differences:

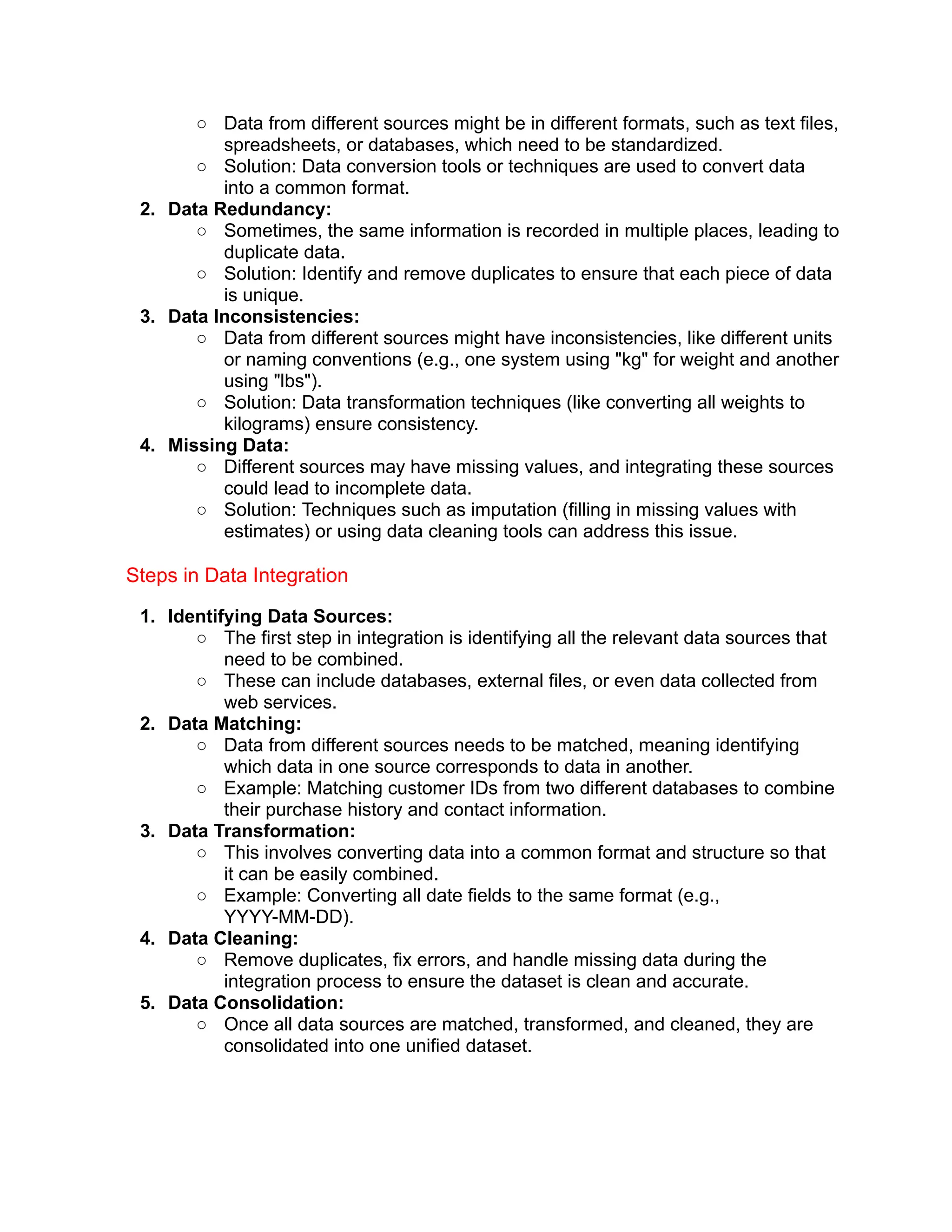

30. ○ Data from different sources might be in different formats, such as text files,
spreadsheets, or databases, which need to be standardized.
○ Solution: Data conversion tools or techniques are used to convert data
into a common format.
2. Data Redundancy:
○ Sometimes, the same information is recorded in multiple places, leading to
duplicate data.
○ Solution: Identify and remove duplicates to ensure that each piece of data
is unique.
3. Data Inconsistencies:
○ Data from different sources might have inconsistencies, like different units
or naming conventions (e.g., one system using "kg" for weight and another
using "lbs").
○ Solution: Data transformation techniques (like converting all weights to
kilograms) ensure consistency.
4. Missing Data:
○ Different sources may have missing values, and integrating these sources
could lead to incomplete data.
○ Solution: Techniques such as imputation (filling in missing values with
estimates) or using data cleaning tools can address this issue.
Steps in Data Integration
1. Identifying Data Sources:
○ The first step in integration is identifying all the relevant data sources that
need to be combined.
○ These can include databases, external files, or even data collected from
web services.
2. Data Matching:
○ Data from different sources needs to be matched, meaning identifying
which data in one source corresponds to data in another.
○ Example: Matching customer IDs from two different databases to combine
their purchase history and contact information.
3. Data Transformation:
○ This involves converting data into a common format and structure so that
it can be easily combined.
○ Example: Converting all date fields to the same format (e.g.,
YYYY-MM-DD).
4. Data Cleaning:
○ Remove duplicates, fix errors, and handle missing data during the
integration process to ensure the dataset is clean and accurate.
5. Data Consolidation:
○ Once all data sources are matched, transformed, and cleaned, they are
consolidated into one unified dataset.

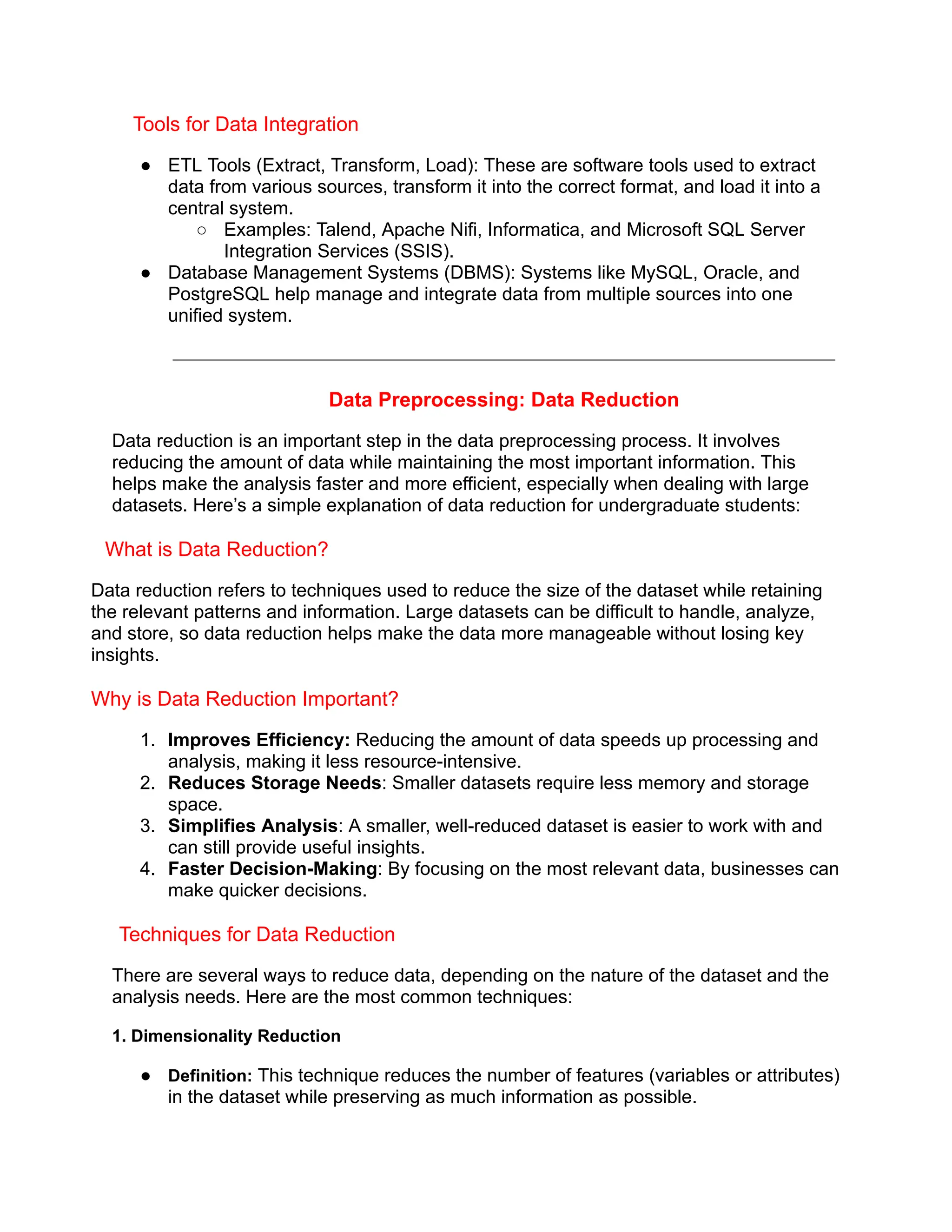

31. Tools for Data Integration
● ETL Tools (Extract, Transform, Load): These are software tools used to extract
data from various sources, transform it into the correct format, and load it into a
central system.
○ Examples: Talend, Apache Nifi, Informatica, and Microsoft SQL Server
Integration Services (SSIS).
● Database Management Systems (DBMS): Systems like MySQL, Oracle, and
PostgreSQL help manage and integrate data from multiple sources into one
unified system.
Data Preprocessing: Data Reduction
Data reduction is an important step in the data preprocessing process. It involves
reducing the amount of data while maintaining the most important information. This
helps make the analysis faster and more efficient, especially when dealing with large
datasets. Here’s a simple explanation of data reduction for undergraduate students:
What is Data Reduction?
Data reduction refers to techniques used to reduce the size of the dataset while retaining
the relevant patterns and information. Large datasets can be difficult to handle, analyze,
and store, so data reduction helps make the data more manageable without losing key
insights.
Why is Data Reduction Important?
1. Improves Efficiency: Reducing the amount of data speeds up processing and
analysis, making it less resource-intensive.
2. Reduces Storage Needs: Smaller datasets require less memory and storage
space.
3. Simplifies Analysis: A smaller, well-reduced dataset is easier to work with and
can still provide useful insights.
4. Faster Decision-Making: By focusing on the most relevant data, businesses can
make quicker decisions.
Techniques for Data Reduction
There are several ways to reduce data, depending on the nature of the dataset and the
analysis needs. Here are the most common techniques:
1. Dimensionality Reduction
● Definition: This technique reduces the number of features (variables or attributes)
in the dataset while preserving as much information as possible.

32. ● How It Works:
○ For example, in a dataset with many variables (like height, weight, age,
income, etc.), dimensionality reduction tries to find a smaller set of
important variables that still capture the main patterns in the data.
● Popular Methods:
○ Principal Component Analysis (PCA): A technique that transforms the
original features into a smaller set of uncorrelated components.
○ Linear Discriminant Analysis (LDA): A method used to find a linear
combination of features that best separates the data into different classes.
● Example: A dataset of customer details may have features like "age," "location,"
"purchase history," and more. PCA can reduce these features into a smaller set
of components that capture most of the information.
2. Data Aggregation
● Definition: Data aggregation involves combining multiple rows of data into a
single row by averaging or summing the values.
● How It Works: This reduces the number of data points while preserving the
overall patterns.
● Example: If you have sales data for each day of the month, you can aggregate
this data to show only the total sales for each week or month, reducing the
number of records.
3. Sampling
● Definition: Sampling involves selecting a smaller, representative subset of the
original dataset.
● How It Works: Instead of using the entire dataset, you use a smaller sample that
reflects the characteristics of the full dataset. Sampling is especially useful when
dealing with huge datasets.
● Types of Sampling:
○ Random Sampling: Randomly selecting a subset of the data.
○ Stratified Sampling: Ensuring the sample contains proportionate amounts
of different classes or categories.
● Example: If a company has data for millions of customers, a sample of 1,000
customers might be enough to get an idea of customer behavior.
4. Data Compression
● Definition: Data compression reduces the size of the data by encoding it more
efficiently, without losing important information.
● How It Works: Compression algorithms remove redundant or unnecessary parts
of the data.
● Example: Text or image data can be compressed to save storage space, making
it easier to handle.
5. Feature Selection

33. ● Definition: Feature selection involves identifying and keeping only the most
important features (variables) in the dataset, and removing irrelevant or
redundant ones.
● How It Works: This reduces the number of features, making the analysis simpler
and faster without losing key information.
● Example: If you have a dataset with 10 features, but only 4 are important for the
analysis, feature selection will remove the irrelevant ones.
Benefits of Data Reduction
● Faster Analysis: Less data means faster processing time for data mining
algorithms.
● Better Performance: Reduced data can improve the performance of machine
learning models, making them easier to train and less prone to overfitting.
● Cost-Effective: Less storage and memory are needed to store the reduced
dataset, making it cheaper to manage.
Data Preprocessing: Data Transformation
Data transformation is an important step in the data preprocessing process. It involves
changing the format, structure, or values of data to make it suitable for analysis. The
goal of data transformation is to prepare data in a way that improves its quality,
consistency, and usability, especially for data mining tasks.
What is Data Transformation?
Data transformation refers to the process of converting data from its raw form into a
format that can be easily analyzed. This can include several actions, such as changing
the data's scale, converting data types, or combining multiple datasets. Transformation
helps make the data more consistent, comparable, and ready for further analysis.
Why is Data Transformation Important?
1. Improves Consistency: Different data sources might use different formats,
scales, or units. Transformation makes sure everything is in a common format.
2. Enhances Data Quality: Transformation can help deal with missing values,
incorrect data, or outliers.
3. Prepares Data for Modeling: Machine learning algorithms and data mining
models often require data to be transformed into specific formats or ranges.

34. Types of Data Transformation
1. Normalization (Scaling Data):
○ Definition: Changing the scale of data to ensure that it falls within a
specific range, usually 0 to 1.
○ When to Use: When features (columns) have different units or scales,
such as height in meters and weight in kilograms.
○ Example: If you have data on people's heights (150 cm to 200 cm) and
weights (50 kg to 100 kg), you might normalize the data so that all values
are scaled between 0 and 1.
2. Standardization:
○ Definition: Transforming data to have a mean of 0 and a standard
deviation of 1.
○ When to Use: When data is not in a normal distribution or when machine
learning models require this form of data (e.g., algorithms like k-means or
support vector machines).
○ Formula: Z=(X−μ)/σ
​Where X is the original value, μmuμ is the mean, and σ is the standard
deviation.
○ Example: If exam scores are between 40 and 90, standardization would
convert those values into a scale where most data points are close to 0.
3. Discretization:
○ Definition: Converting continuous data into discrete categories or bins.
○ When to Use: When dealing with continuous variables (e.g., age, income)
and you want to simplify or categorize the data.
○ Example: If you have ages ranging from 1 to 100, you might discretize this
into categories like "Child," "Teenager," "Adult," and "Senior."
4. Encoding Categorical Data:
○ Definition: Converting categorical data (such as "Yes" or "No") into
numeric values that machine learning algorithms can understand.
○ Types of Encoding:
■ Label Encoding: Assigning each category a unique integer (e.g.,
"Male" = 0, "Female" = 1).
■ One-Hot Encoding: Creating binary columns for each category
(e.g., for a color feature with values "Red," "Blue," and "Green," you
create three columns with binary values indicating the presence of
each color).
○ Example: If you have a column for "City" with values like "New York,"
"London," and "Tokyo," you can encode these into numbers or binary
columns for easier analysis.
5. Aggregation:
○ Definition: Combining data from multiple rows or columns into a single
value.
○ When to Use: When you need to summarize data, such as calculating the
average or total for groups.

35. ○ Example: If you have sales data for each day, you might aggregate it by
month to get total sales per month.
6. Feature Construction:
○ Definition: Creating new features by combining or transforming existing
ones.
○ When to Use: To derive additional useful information from the data.
○ Example: If you have columns for "height" and "weight," you might create
a new feature for "BMI" (Body Mass Index) to better represent a person's
physical condition.
Data Preprocessing: Discretization and Concept Hierarchy
Generation
In data preprocessing, discretization and concept hierarchy generation are techniques
used to prepare continuous or complex data into simpler forms that are easier to
analyze, especially for data mining tasks. Here’s a simple explanation of these concepts
for undergraduate students:
1. Discretization
Discretization is the process of converting continuous data (numeric values) into
discrete categories or intervals. For example, instead of representing age as a specific
number like 23, you might categorize it as "20-30 years."
Why Do We Need Discretization?
● Some data mining algorithms work better with categorical data (e.g., decision
trees).
● Converting continuous data into categories makes it easier to analyze and find
patterns.
How Does Discretization Work?
There are different ways to discretize data:
1. Equal Width Binning:
○ The range of values is divided into equal-sized intervals.
○ Example: If the data ranges from 0 to 100 and you want 5 intervals, each
bin will have a width of 20 (0-20, 21-40, 41-60, etc.).
2. Equal Frequency Binning:
○ The data is divided into bins so that each bin has the same number of
data points.
○ Example: If you have 100 data points, each bin will contain 20 data points.
3. Clustering-based Discretization:

36. ○ The data is grouped into clusters, and each cluster is treated as a
category.
○ Example: Grouping age data into categories like "young," "middle-aged,"
and "old" based on similar characteristics.
Example of Discretization:
If we have the following data about student grades:
● 95, 82, 63, 45, 72
After discretizing using equal-width binning with 3 intervals, we might get:
● 95 → "A" (90-100)
● 82 → "B" (70-89)
● 63 → "C" (50-69)
● 45 → "D" (0-49)
● 72 → "B" (70-89)
2. Concept Hierarchy Generation
Concept hierarchy generation is the process of organizing data attributes (or features)
into hierarchical levels, ranging from more general to more specific. This is typically
used for categorical data to allow for a higher-level view of the data.
Why is Concept Hierarchy Important?
● It helps in generalizing or simplifying the data by grouping similar concepts.
● It allows data to be viewed at different levels of abstraction, which is helpful in
tasks like decision making and pattern discovery.
How Does Concept Hierarchy Work?
1. Hierarchical Structure:
○ At the top, you have more general categories (e.g., "Animals").
○ As you move down, the categories become more specific (e.g.,
"Mammals", "Reptiles").
2. Generating a Hierarchy:
○ You can generate a concept hierarchy manually based on knowledge or
use automatic algorithms to group similar items.
○ Example: If you have a dataset with the "Location" attribute, a concept
hierarchy might look like:
■ Top Level: Country → State → City
■ Lower Level: USA → California → San Francisco
3. Conceptualization:
○ Concept hierarchies help you move from specific data points to broader
categories, allowing for more abstract analysis.

37. ○ Example: Instead of looking at individual product categories like
"Shampoo," "Toothpaste," and "Soap," you might group them under a
higher-level category like "Personal Care Products."
Example of Concept Hierarchy:
For a dataset of "Products Sold," a concept hierarchy might look like:
● Level 1 (General): Products
● Level 2 (More Specific): Electronics, Clothing, Groceries
● Level 3 (Specific Products): TV, Laptop, T-shirt, Jeans, Apple, Banana
Why Are These Techniques Important in Data Preprocessing?
● Simplify Data: Discretization and concept hierarchy generation help simplify
complex data, making it easier to analyze and understand.
● Improved Analysis: By grouping data into categories or hierarchies, it is easier to
detect patterns, relationships, and trends in the data.
● Enhance Modeling: Many data mining algorithms work more effectively with
categorical or hierarchical data, helping improve model performance.
Data Warehouse and OLAP Technology
Data Modeling Using Cubes and OLAP
Data modeling is an important part of data analysis and data mining. It helps organize and
structure data to make it easier to analyze and gain insights. One popular method for modeling
data is through Cubes and OLAP (Online Analytical Processing)
1. What is Data Modeling?
Data modeling is the process of designing how data is stored, organized, and accessed. In the
context of data mining and analysis, we want to organize the data in a way that makes it easy to
explore and analyze from different perspectives.
2. What is OLAP (Online Analytical Processing)?
OLAP is a technology used for analyzing large amounts of data quickly. It allows users to
interactively explore and analyze data from multiple dimensions. OLAP systems are designed to
help in decision-making by summarizing data in an easy-to-understand format.
Key Features of OLAP:

38. ● Multidimensional Data: OLAP organizes data in a multi-dimensional view (like a cube)
where each dimension represents different perspectives of the data.
● Interactive Analysis: Users can “slice,” “dice,” and “pivot” the data to view it from different
angles.
● Fast Querying: OLAP systems are optimized for querying large datasets quickly.
3. What are Data Cubes?
A data cube is a multi-dimensional array used in OLAP to represent data. Imagine a cube where
each side represents a different attribute (or dimension) of the data. Each cell in the cube
contains a value, usually the result of aggregating or summarizing data across multiple
dimensions.
Example of a Data Cube:
Imagine you have a sales dataset that includes three dimensions:
● Product: Different products being sold (e.g., TV, Laptop, Phone)
● Time: Sales data over different periods (e.g., months, years)
● Region: Different geographic locations (e.g., North, South, East, West)
In this case, the data cube could have:
● Rows for products (e.g., TV, Laptop, Phone)
● Columns for time (e.g., January, February, March)
● Depth for regions (e.g., North, South, East, West)
The data cube would allow you to easily find information like total sales for each product in each
region for a specific month.
4. Operations in OLAP
In OLAP, there are several important operations that help you explore and analyze the data in
the cube:

39. 1. Slice: This operation allows you to select a single level from one dimension of the cube
and view a 2D slice of the data.
○ Example: You might slice the data to view sales for January across all products
and regions.
2. Dice: This operation allows you to select two or more dimensions and view a subset of
the data in the form of a smaller cube.
○ Example: You might dice the cube to view sales for Laptops in the North region
during January and February.
3. Pivot (Rotate): This operation allows you to rotate the cube to view the data from a
different perspective.
○ Example: You might pivot the cube to swap the time dimension with the region
dimension to see how sales vary by region across different months.
4. Drill Down / Drill Up: These operations allow you to view the data in more detail (drill
down) or at a higher level of aggregation (drill up).
○ Example: You can drill down from yearly sales to monthly sales or drill up from
monthly sales to quarterly sales.
5. Benefits of Using Cubes and OLAP
● Efficiency: OLAP cubes provide fast query performance by pre-aggregating data, which
makes analysis faster even with large datasets.
● Multidimensional View: With OLAP, you can view data from multiple perspectives
(dimensions), helping you identify trends and patterns that wouldn’t be obvious in a flat
table.
● User-Friendly: OLAP allows users to interactively explore data without needing to write
complex queries, making it easy for non-technical users to analyze the data.
6. Example of OLAP in Action

40. Let's say you are analyzing sales data for a retail company. You can use OLAP to:
● Slice the data to view the sales of specific products in a certain time period.
● Dice the data to look at sales of laptops in the East region for January and February.
● Pivot the data to see sales by region rather than by time period.
● Drill down into the monthly sales data to understand which specific months had the
highest sales.
This flexibility in viewing and analyzing the data is one of the main strengths of OLAP.
Data Warehousing (DWH) Design and Usage
What is Data Warehouse Design?
Data warehouse design refers to the process of creating the architecture and structure
of the data warehouse to store and organize data in an efficient way.
The goal is to ensure that data can be accessed and analyzed easily and quickly.
Key components of data warehouse design include:
a. Data Source:
● Data comes from different sources such as operational databases, external
systems, or flat files.
● Example: Data from sales transactions, customer databases, and inventory
management systems.
b. Data Staging:
● Before data enters the data warehouse, it goes through a staging area where it’s
cleaned and transformed. This is to ensure that the data is accurate and in the
right format.
● Example: Removing duplicates, fixing errors, or converting data types (e.g.,
converting dates into a standard format).
c. Data Modeling:
● This involves organizing data in the warehouse so that it’s easy to retrieve and
analyze. Two common types of data models are:
1. Star Schema: In this model, there is a central fact table (contains main
data like sales) connected to multiple dimension tables (contains related
data like customer, time, and product).
2. Snowflake Schema: A more normalized version of the star schema,
where the dimension tables are further broken down into additional
sub-tables.

41. ● Example: In a sales data warehouse, the fact table could store total sales
figures, while dimension tables store information about customers, products, and
time.
d. Data Storage:
● Data is stored in a way that makes it easy to retrieve for analysis. This involves
choosing the right storage technology like relational databases, columnar
databases, or cloud-based solutions.
● Example: Storing data in tables that allow for fast querying.
2. Usage of Data Warehouse (DWH)
A data warehouse is used for a variety of purposes, primarily to support
decision-making, reporting, and analysis. Here’s how it’s used:
a. Decision Support:
● Organizations use data warehouses to support decision-making by providing
easy access to historical and current data in one place. This allows business
leaders to analyze trends and make informed decisions.
● Example: A retailer might use a data warehouse to analyze sales trends over the
last few years to decide on future inventory purchases.
b. Reporting and Business Intelligence (BI):
● Data warehouses are used to create reports and dashboards that help
businesses track their performance and key metrics. Tools like Power BI,
Tableau, or Excel can be used to generate insights from the data stored in the
warehouse.
● Example: A finance department might generate monthly profit and loss reports
from the data warehouse to evaluate the company’s financial health.
c. Data Analysis:
● Data mining, which involves extracting patterns and knowledge from large data
sets, is often done using a data warehouse. Analysts use the data warehouse to
find insights that may not be immediately apparent.
● Example: A marketing team could analyze customer purchasing patterns to
identify which products are popular among different age groups or locations.
d. Historical Data:
● A data warehouse stores large amounts of historical data, which is important for
analyzing long-term trends, forecasting, and decision-making.
● Example: A company may store several years of sales data in the warehouse to
analyze long-term performance, compare yearly growth, or predict future sales.

42. 3. Benefits of Data Warehousing
● Centralized Data Storage: All data is stored in one place, making it easier to
manage and access.
● Improved Reporting: Users can generate reports and insights quickly and
accurately.
● Data Consistency: The data is cleaned, transformed, and integrated, ensuring it
is consistent across different departments and systems.
● Faster Decision-Making: By having all historical and current data in one place,
decision-makers can access the information they need in real-time to make
quicker, more informed decisions.
4. Challenges of Data Warehousing
● Data Integration: Combining data from different sources can be complex,
especially if the data formats and structures are different.
● Data Quality: Ensuring the data is accurate, complete, and up-to-date can be
time-consuming.
● Cost and Maintenance: Building and maintaining a data warehouse can be
expensive, requiring both hardware and software resources.
Primary differences between star, snowflake, and fact
constellation schemas in Data Warehousing
In Data Warehousing, schemas define the structure of data and how it is stored. The
three main types of schemas are Star Schema, Snowflake Schema, and Fact
Constellation Schema. Here's a simple breakdown for undergraduate students:
1. Star Schema:
- Structure: The star schema is the simplest and most common.
It has a central fact table connected directly to several dimension tables, creating a
star-like shape.
- Fact Table: The fact table contains numeric data (like sales, quantities) and **foreign
keys that link to dimension tables.
- Dimension Tables: These store descriptive information (e.g., product details, dates,
customers) that add context to the data in the fact table.
-

43. Advantage:
Easy to understand and query.
- Disadvantage: Can lead to data redundancy because dimension tables are not
normalized.
Fig:Star Design
2. Snowflake Schema:
- Structure: The snowflake schema is a more normalized version of the star schema.
The dimension tables are broken down into smaller tables, resembling a snowflake
shape.
- Fact Table: Similar to the star schema, but dimension tables are divided into
sub-tables to remove redundancy.
- Dimension Tables: Dimension tables are normalized (split into multiple related tables)
to reduce duplication.
- Advantage: Reduces data redundancy and storage space.
- Disadvantage: Queries are more complex and take longer to execute compared to a
star schema.

44. Fig:Snowflake schema
3. Fact Constellation Schema:
- Structure: This schema is also called a galaxy schema. It consists of multiple fact
tables that share dimension tables. This is useful for handling complex data and multiple
subject areas.
- Fact Tables: There are multiple fact tables, each representing different business
processes (e.g., sales, inventory) that share dimensions like time, location, or product.
- Dimension Tables: Shared dimension tables provide flexibility and help analyze data
across different fact tables.
- Advantage: Supports multiple data marts and complex queries across various
processes.
- Disadvantage: More complex to design and
maintain than the other schemas.
Fig:Fact Constellation Schema

45. How is a Data Warehouse designed for effective OLAP
implementation and usage?
Designing a Data Warehouse for effective OLAP (Online Analytical Processing)
implementation and usage involves several important steps to ensure that the system is
optimized for fast and complex queries, as well as,multidimensional data analysis.
1. Identify Business Requirements:
- Objective: The first step is to understand the business goals and data needs . What
kind of reports and analyses do the users need? These requirements help define the
structure of the data warehouse.
- Example: A retail company might need to analyze sales trends by region, product,
and time period.
2. Choose an OLAP Model:
- There are two main types of OLAP systems: ROLAP (Relational OLAP) and
MOLAP (Multidimensional OLAP).
- ROLAP uses relational databases to store data in tables and can handle large
amounts of data.
- MOLAP stores data in multidimensional cubes, providing faster query performance but
requiring more storage.
- Choosing the right OLAP model depends on the data volume andperformance needs.
3. Design the Data Warehouse Schema:
- Choose a schema that suits the business requirements:
- Star Schema: Simplifies queries by having a central fact table surrounded by
dimension tables.
- Snowflake Schema: Normalizes the dimensions into multiple related tables, reducing
data redundancy.
- Fact Constellation Schema: Supports multiple fact tables, enabling complex
analyses across different business areas.
- This schema defines how data will be organized and stored in the data warehouse.
4. Data Extraction, Transformation, and Loading (ETL):

46. - ETL Process: Data is extracted from various sources, cleaned and transformed to
match the schema, and then loaded into the data warehouse.
- Ensure that data is accurate,consistent, and clean before it enters the warehouse. This
process ensures the data is ready for OLAP operations.
5. Multidimensional Data Modeling:
- Dimensions and Measures: Data is organized into dimensions (e.g., time, location,
product) and measures (e.g., sales, profit) to support analysis.
- OLAP Cubes: Data is arranged into OLAP cubes, which allow users to slice and dice
the data (view it from different angles) and drill down (view more detailed data) or roll up
(view aggregated data).
- Example: A sales OLAP cube might have dimensions like time, product, region, and
measures like total sales or profit.
6. Indexing and Aggregation:
- Precompute Aggregations: Precalculate and store aggregated data (e.g., total sales
per region per year). This helps speed up queries by avoiding real-time calculations.
- Indexing: Use appropriate indexes on the fact and dimension tables to improve query
performance. Indexes allow faster data retrieval by quickly locating the needed rows.
7. Ensure Scalability and Performance:
- Design the data warehouse to handle growing data volumes and increased user
queries. Ensure that it can scale up by adding more storage or processing power as
needed.
- Use techniques like partitioning large tables into smaller chunks or optimizing the
schema to ensure faster query responses.
8. Security and Access Control:
- Implement proper security measures to ensure that only authorized users can access
specific data. This may involve setting up user roles, permissions, and data encryption.
- OLAP systems should allow controlled access to sensitive information while still
enabling analysis.

47. 9. Regular Maintenance and Optimization:
- Continuously monitor the system and perform maintenance tasks like updating
indexes, reprocessing OLAP cubes, and ensuring data accuracy.
- Optimization: Periodically review and optimize the schema, indexes, and ETL
processes to keep the data warehouse running efficiently.
This structured approach ensures that the data warehouse is well-prepared for OLAP,
allowing businesses to make informed, data-driven decisions.
The process of data generalization using AOI
(Attribute-Oriented Induction) in a Data Warehouse.
Data Generalization using AOI (Attribute-Oriented Induction) is a process used in Data
Warehousing to summarize large datasets into higher-level concepts for easier analysis.
It helps reduce the complexity of data by transforming detailed information into more
abstract representations, which is useful for identifying patterns and trends.
Data Generalization:
- Data Generalization involves taking low-level data (detailed, raw data) and
summarizing it into higher-level concepts (generalized data) to make it easier to analyze
and understand.
- The goal is to convert large amounts of data into a more manageable, summarized
form while preserving important patterns and trends.
What is AOI (Attribute-Oriented Induction)?
- Attribute-Oriented Induction (AOI) is a technique used to perform data generalization.
It systematically replaces specific values in a dataset with general concepts by looking
at the attributes (columns) of the data.
- This is especially helpful for OLAP operations and data mining when you want to
explore the data at different levels of abstraction.
Steps in the Data Generalization Process Using AOI:
1. Select the Relevant Data:
- First, choose the subset of data you want to generalize based on specific criteria (e.g.,
select sales data for a particular region or time period).

48. - Example: If you're analyzing sales data, you might focus on attributes like product,
region, and sales amount.
2. Set the Generalization Threshold:
- Define the threshold level for generalization. This threshold determines how much the
data will be generalized, i.e., how many levels of abstraction will be applied.
- Example: You may want to generalize dates from individual days to months or years,
and products from specific items to broader categories.
3. Attribute Generalization:
- AOI focuses on generalizing the attributes in the dataset. For each attribute (column),
replace detailed values with higher-level concepts.
- Example:
- Replace specific product names ("Laptop Model A") with a general category
("Electronics").
- Replace specific cities ("New York, Los Angeles") with a general region ("USA").
4. Generalization Operators:
- AOI uses different operators to generalize the data:
- Concept Hierarchies: Replace values with higher-level concepts using predefined
hierarchies. For instance, the hierarchy for dates could be: Day → Month → Year.
- Attribute Removal: If an attribute becomes too generalized or irrelevant, it may be
removed.
- Example:
- Replace individual transaction dates (e.g., "March 12, 2023") with the month ("March
2023") or the year ("2023").
5. Summarization and Aggregation:
- Once generalization is applied to the attributes, summarize the data by aggregating
values, such as summing sales or averaging profits.
- Example: If you generalized from daily sales to monthly sales, sum all the sales for
each month.
6. Generate a Generalized Table:

49. - After the generalization process, the result is a generalized table with fewer rows and
columns, representing a summary of the original data.
- This table provides insights at a higher level of abstraction, which is useful for
decision-making.
- Example: Instead of analyzing sales for each product sold each day, you now have
summarized sales data by product category and month.
7. Perform OLAP or Data Mining:
- The generalized data can now be used for OLAP operations (e.g., roll-up, drill-down)
or further data mining to identify patterns and trends at a more abstract level.
- Example: You can use this generalized data to analyze trends in sales across different
regions or time periods.
What are the benefits of using OLAP for business decision-making,
and how does it enhance data insights?
Benefits of Using OLAP for Business Decision-Making:
1. Multidimensional Data Analysis:
- OLAP allows businesses to analyze data in multiple dimensions, such as time,
product, location, and customer. This means they can view the same data from different
angles and get deeper insights.
- Example: A retail company can analyze sales by product category, region, and time
period to identify the best-selling products in specific regions over different months.
2. Fast Query Performance:
- OLAP is optimized for fast and complex queries on large datasets. Unlike traditional
databases that might take a long time to process complex queries, OLAP systems are
designed to provide instant results for aggregated data.
- Example: Managers can quickly generate reports on total sales for the last quarter
across all stores without waiting for long processing times.

50. 3. Data Summarization and Aggregation:
- OLAP allows businesses to summarize and aggregate data, making it easier to work
with large volumes of information. This is helpful for quickly identifying trends and
patterns.
- Example: Instead of viewing individual sales transactions, businesses can view **total
sales by region or average profit by product category.
4. Supports "Slice and Dice" Operations:
- OLAP allows users to perform "slice and dice" operations, where they can break down
data into smaller parts or view specific sections of the data.
- Example: A business can "slice" data to look at sales for one specific region* or "dice"
data to compare sales across different product categories and time periods
simultaneously.
5. Drill-Down and Roll-Up Functionality:
- OLAP supports drill-down and roll-up operations, which allow users to view data at
different levels of detail.
- Drill-Down: Zooming in to view more detailed data.
- Roll-Up: Zooming out to view summarized data.
- Example: A user can drill down from yearly sales data to view monthly or daily sales.
Similarly, they can roll up to see quarterly or yearly totals.
6. Historical Data Analysis:
- OLAP systems store historical data, allowing businesses to perform trend analysis
over time. This helps them identify patterns, predict future performance, and make
informed decisions.
- Example: A company can compare sales trends over the past five years to forecast
future demand and plan inventory accordingly.
7. Improved Decision-Making:
- By providing access to accurate, up-to-date, and well-organized data, OLAP helps
decision-makers make better, more informed decisions. It allows them to base their
decisions on facts rather than assumptions.

51. - Example: A manager can analyze customer data to understand buying behavior and
make decisions about product pricing or promotions based on actual data insights.
8. Interactive and User-Friendly Interface:
- OLAP tools often come with easy-to-use interfaces that allow non-technical users to
explore and analyze data without needing to write complex queries. This democratizes
access to data and makes it easier for decision-makers across the business to use.
- Example: A marketing manager can create a report on customer segmentation by age
and income level using drag-and-drop features, without needing help from the IT
department.
9. Real-Time Analysis:
- Some OLAP systems support real-time data analysis, meaning businesses can make
decisions based on the most current data available. This is particularly important in
fast-moving industries where up-to-date information is crucial.
- Example: In an e-commerce business, decision-makers can monitor live sales data
during a promotion and adjust strategies on the go if necessary.
How OLAP Enhances Data Insights:
- Consolidates Data: OLAP integrates data from various sources (sales, marketing,
finance, etc.) into a single platform, providing a comprehensive view of the business.
- Identifies Hidden Patterns: By analyzing data from different perspectives and at
various levels of detail, OLAP helps uncover hidden trends and patterns that might not
be visible in raw data.
- Supports Predictive Analysis: Historical data stored in OLAP systems can be used
for forecasting and predicting future trends, helping businesses to anticipate market
changes.
- Customization of Reports: OLAP allows users to create custom reports and
dashboards tailored to specific business needs, ensuring that the insights are relevant
to the questions being asked.
