1. Using TDI with IBM Connections
Morten Christensen, IBM Collaboration Solutions
Twitter: @mortench
©2010 IBM Corporation

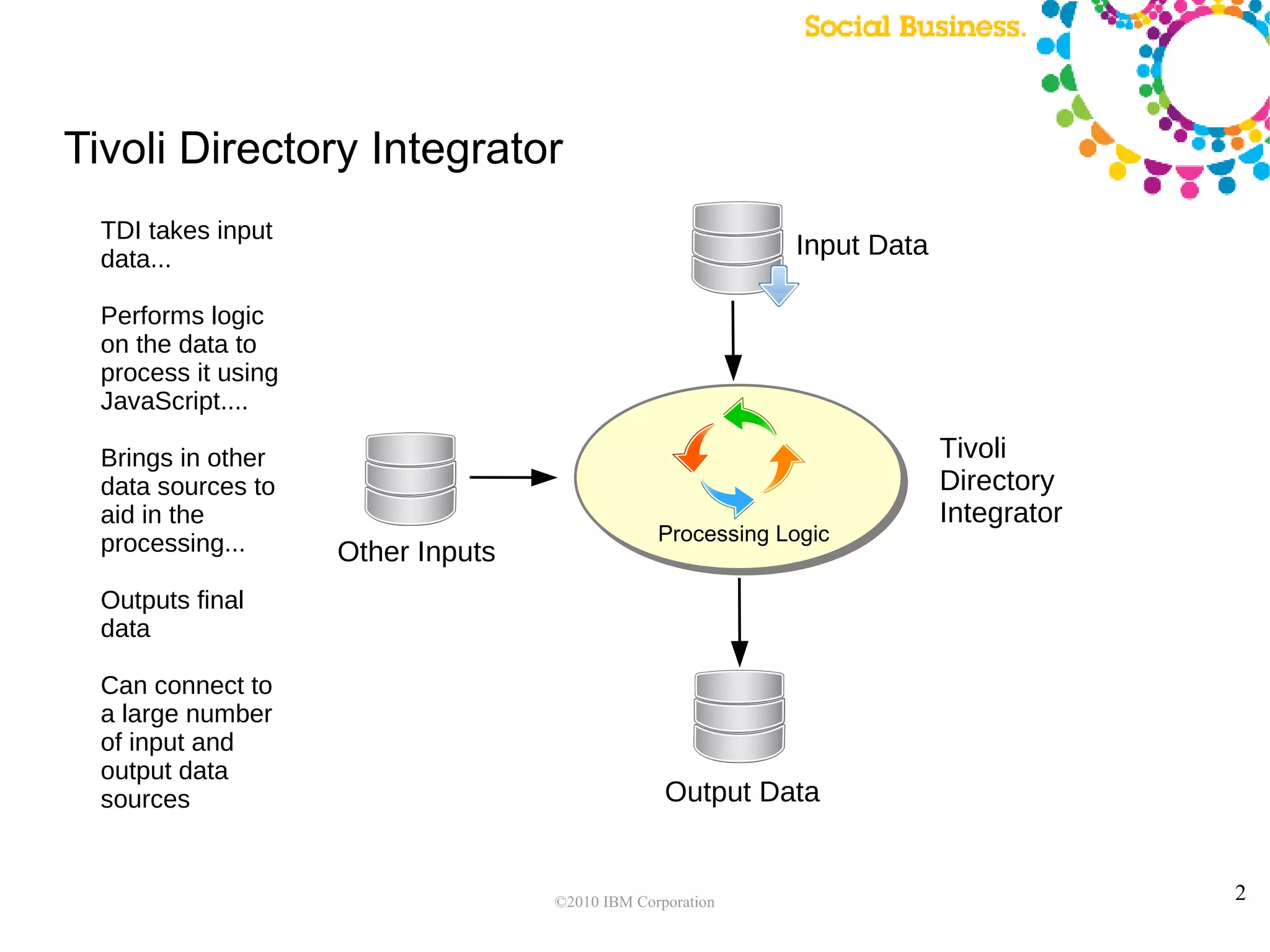

2. Tivoli Directory Integrator
TDI takes input
data... Input Data
Performs logic
on the data to
process it using
JavaScript....
Brings in other Tivoli
data sources to Directory
aid in the Integrator
processing... Processing Logic
Other Inputs
Outputs final
data
Can connect to
a large number
of input and
output data
sources Output Data
©2010 IBM Corporation 2

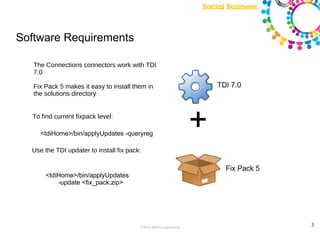

3. Software Requirements
The Connections connectors work with TDI
7.0
Fix Pack 5 makes it easy to install them in TDI 7.0
the solutions directory
To find current fixpack level:
<tdiHome>/bin/applyUpdates -queryreg
+
Use the TDI updater to install fix pack:
Fix Pack 5
<tdiHome>/bin/applyUpdates
-update <fix_pack.zip>
©2010 IBM Corporation 3

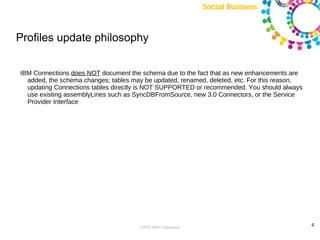

4. Profiles update philosophy
IBM Connections does NOT document the schema due to the fact that as new enhancements are
added, the schema changes; tables may be updated, renamed, deleted, etc. For this reason,
updating Connections tables directly is NOT SUPPORTED or recommended. You should always
use existing assemblyLines such as SyncDBFromSource, new 3.0 Connectors, or the Service
Provider Interface
©2010 IBM Corporation 4

5. Applying TDI to the Problem....
LDAP
Profiles DB
2
1 2
Read user details Match against
from LDAP Processing Logic Profiles DB to get
unique User ID
Update Profiles database
3
If the UID can be retrieved from
the LDAP then step 2 isn't
required!
Profiles DB
©2010 IBM Corporation 5

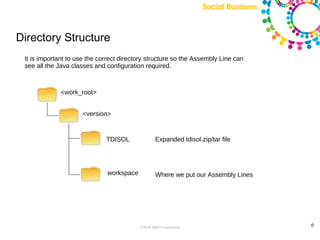

6. Directory Structure
It is important to use the correct directory structure so the Assembly Line can
see all the Java classes and configuration required.
<work_root>
<version>
TDISOL Expanded tdisol.zip/tar file
workspace Where we put our Assembly Lines
©2010 IBM Corporation 6

7. Starting TDI
When TDI is started we need to tell it about the Profiles Solution directory we created.
This is done using the -s argument
<tdi_location>/ibmditk -s <container>/<version>/TDISOL/TDI
When asked to choose the workspace, select the workspace created in the previous
slide.
The components we create in the Assembly Lines will now be able to see the Jars
contained in the Profiles Solution directory
©2010 IBM Corporation 7

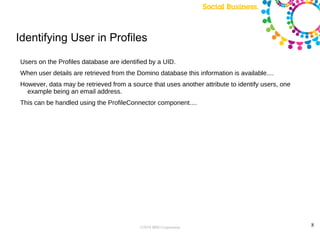

8. Identifying User in Profiles
Users on the Profiles database are identified by a UID.
When user details are retrieved from the Domino database this information is available....
However, data may be retrieved from a source that uses another attribute to identify users, one
example being an email address.
This can be handled using the ProfileConnector component....
©2010 IBM Corporation 8

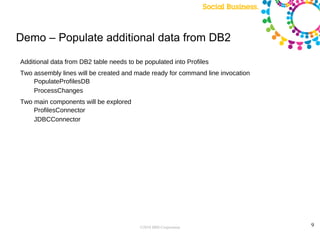

9. Demo – Populate additional data from DB2
Additional data from DB2 table needs to be populated into Profiles
Two assembly lines will be created and made ready for command line invocation
PopulateProfilesDB
ProcessChanges
Two main components will be explored
ProfilesConnector
JDBCConnector
©2010 IBM Corporation 9
