Led by Brad Wood Your runtime. Your way. Endless possibilities! In this session we’ll teach you how to customize your runtime, contribute built-in-functions and tags/components to your BoxLang runtime. Intimidated by Java? Don’t be! We will show you how to create your very first BoxLang runtime module without a single line of Java code!

1. WELCOME
Into the Box 2025: The Future is Dynamic!

2. www.intothebox.org
GET STARTED
Creating your first BoxLang Module
Customize your Runtime

3. Brad Wood
• Lead developer of CommandBox CLI
• BoxLang Framework Architect
• I’ve made 9,722 commits on GitHub since 2011
Senior Software Architect
brad@bradwood.com @bdw429s

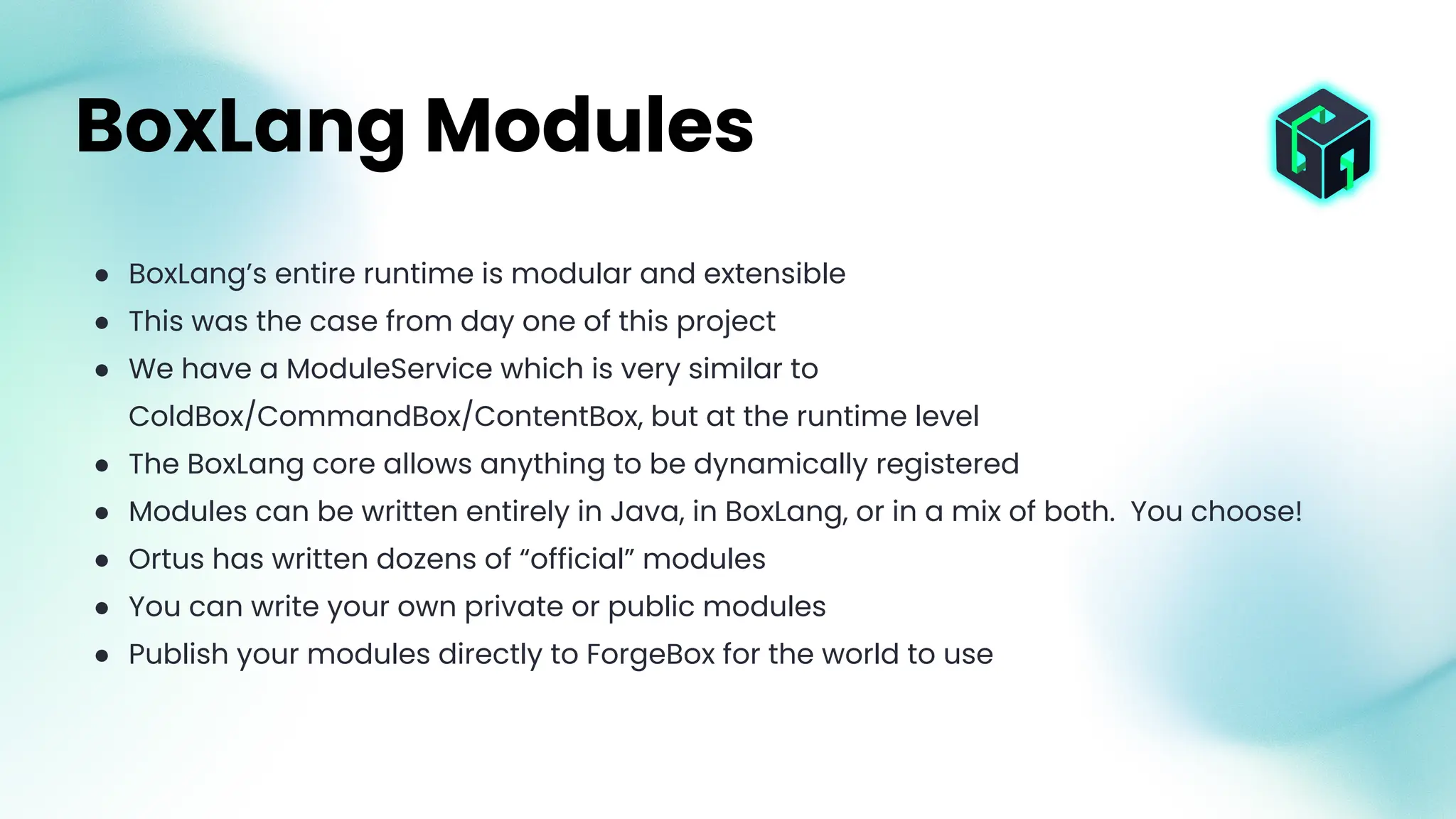

4. ● BoxLang’s entire runtime is modular and extensible
● This was the case from day one of this project
● We have a ModuleService which is very similar to
ColdBox/CommandBox/ContentBox, but at the runtime level
● The BoxLang core allows anything to be dynamically registered
● Modules can be written entirely in Java, in BoxLang, or in a mix of both. You choose!
● Ortus has written dozens of “official” modules
● You can write your own private or public modules
● Publish your modules directly to ForgeBox for the world to use
BoxLang Modules

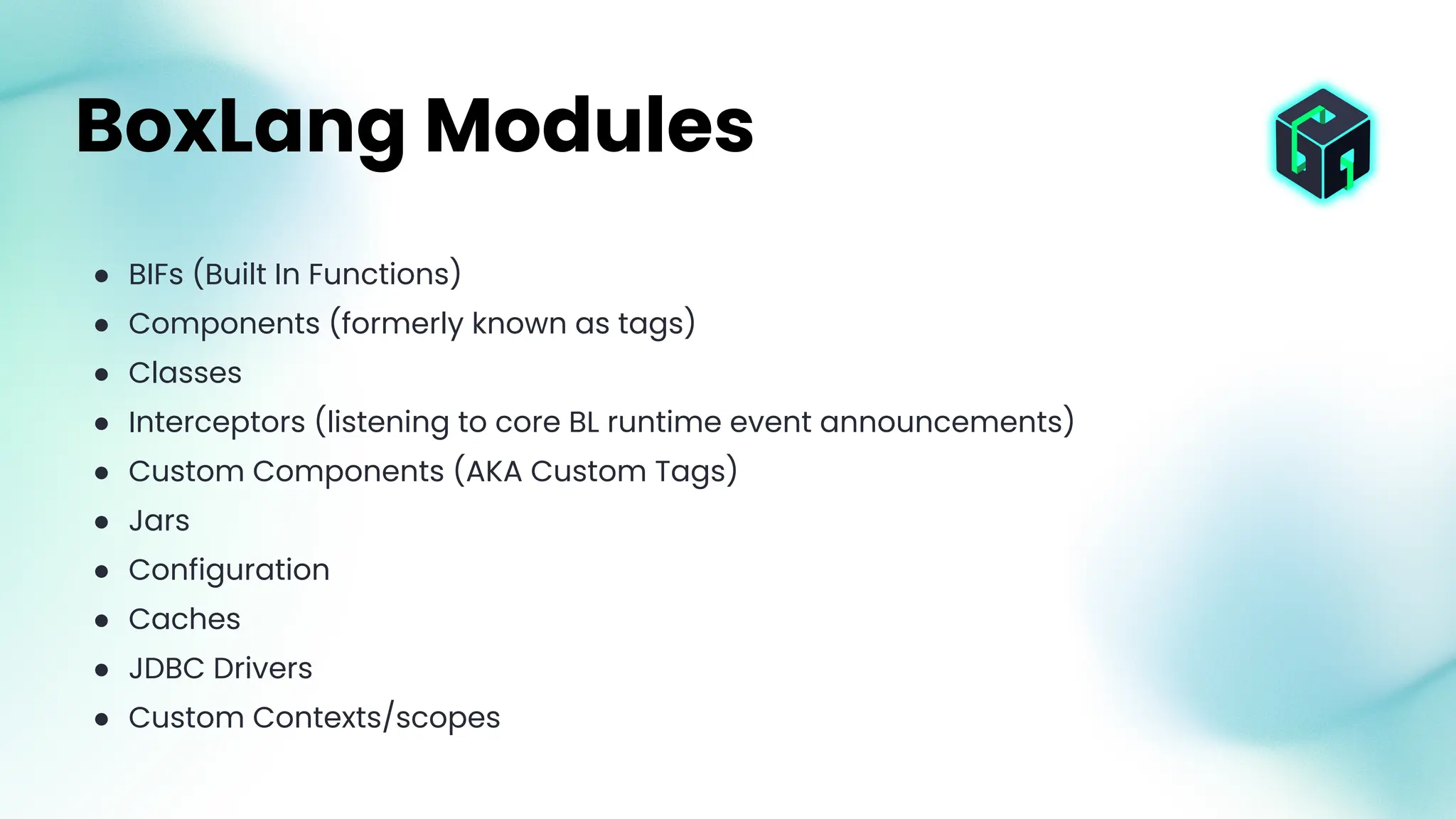

5. ● BIFs (Built In Functions)
● Components (formerly known as tags)
● Classes
● Interceptors (listening to core BL runtime event announcements)
● Custom Components (AKA Custom Tags)
● Jars
● Configuration
● Caches
● JDBC Drivers
● Custom Contexts/scopes
BoxLang Modules

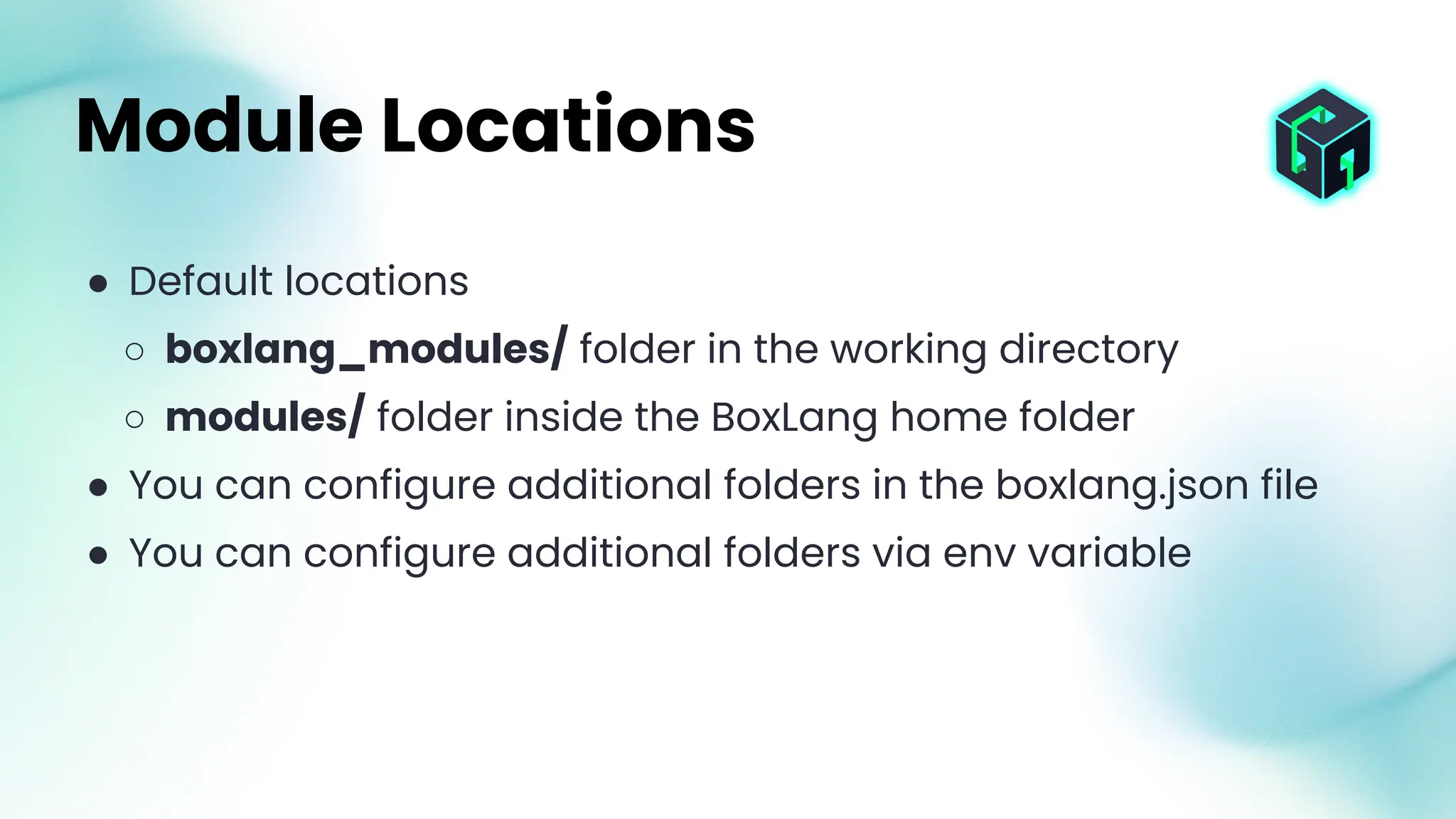

6. ● Default locations
○ boxlang_modules/ folder in the working directory
○ modules/ folder inside the BoxLang home folder
● You can configure additional folders in the boxlang.json file
● You can configure additional folders via env variable
Module Locations

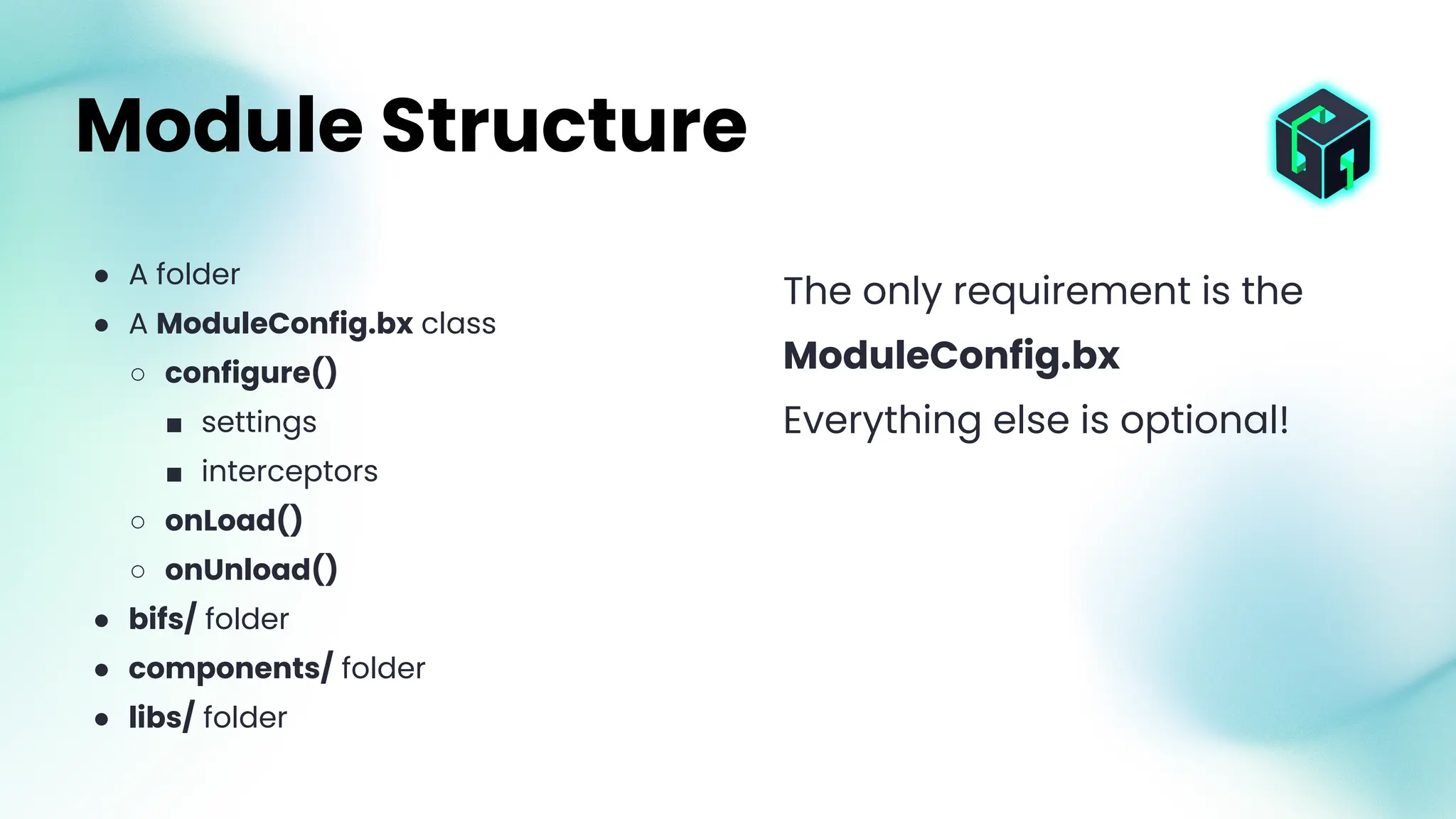

7. ● A folder
● A ModuleConfig.bx class
○ configure()
■ settings
■ interceptors
○ onLoad()
○ onUnload()
● bifs/ folder
● components/ folder
● libs/ folder
Module Structure
The only requirement is the
ModuleConfig.bx
Everything else is optional!

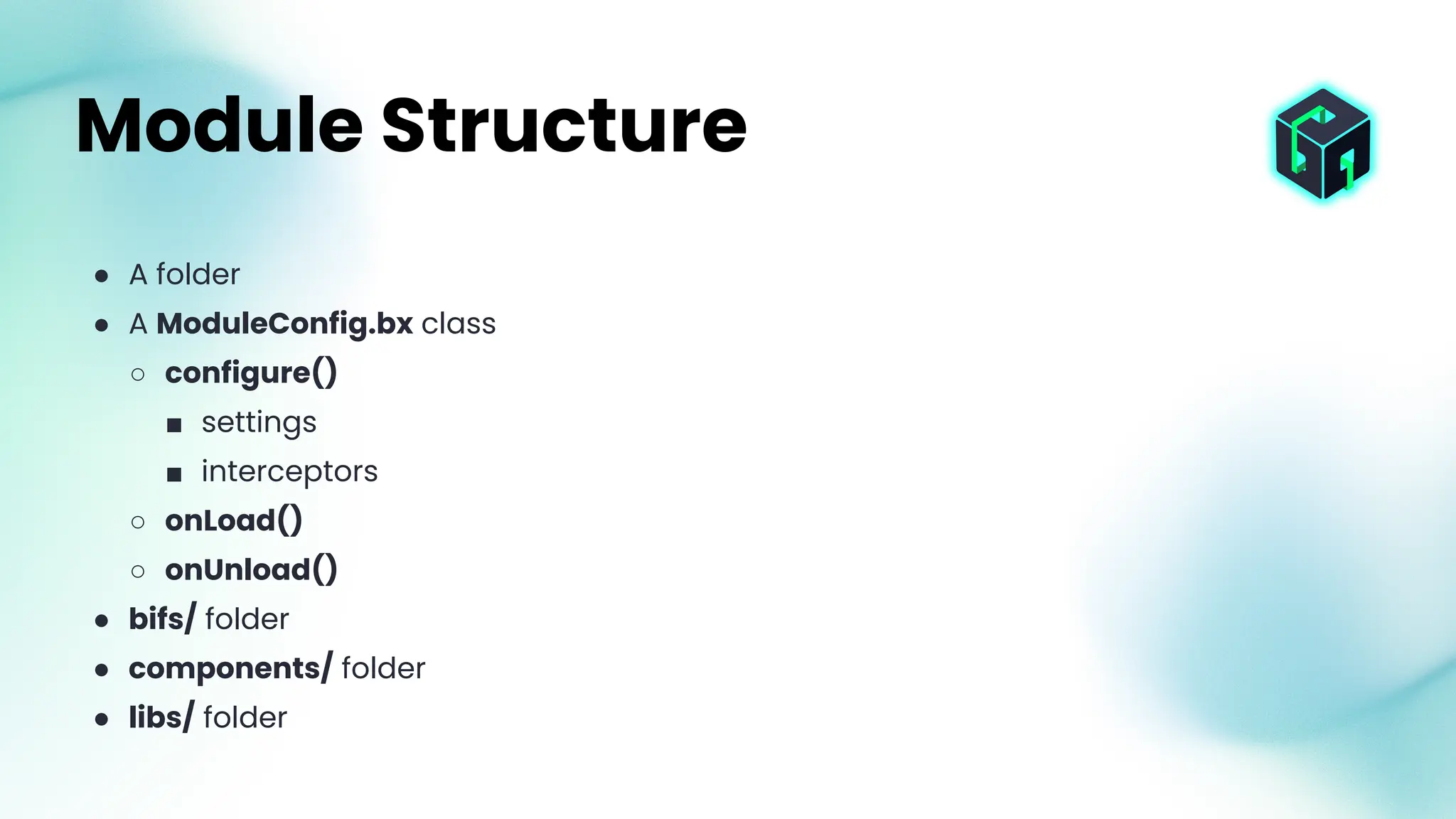

8. ● A folder
● A ModuleConfig.bx class
○ configure()
■ settings
■ interceptors
○ onLoad()
○ onUnload()
● bifs/ folder
● components/ folder
● libs/ folder
Module Structure

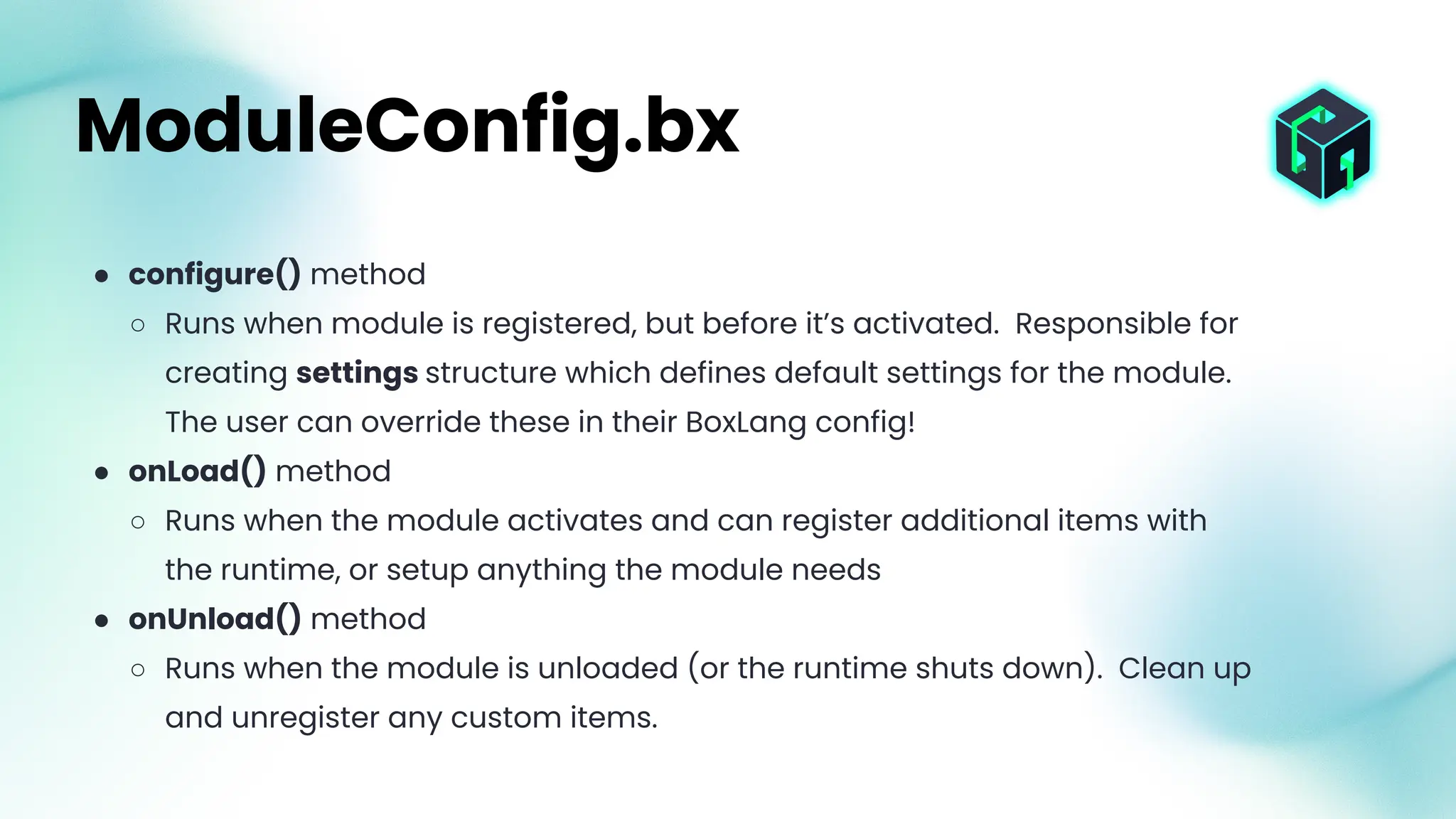

9. ● configure() method
○ Runs when module is registered, but before it’s activated. Responsible for
creating settings structure which defines default settings for the module.
The user can override these in their BoxLang config!
● onLoad() method
○ Runs when the module activates and can register additional items with
the runtime, or setup anything the module needs
● onUnload() method
○ Runs when the module is unloaded (or the runtime shuts down). Clean up
and unregister any custom items.
ModuleConfig.bx

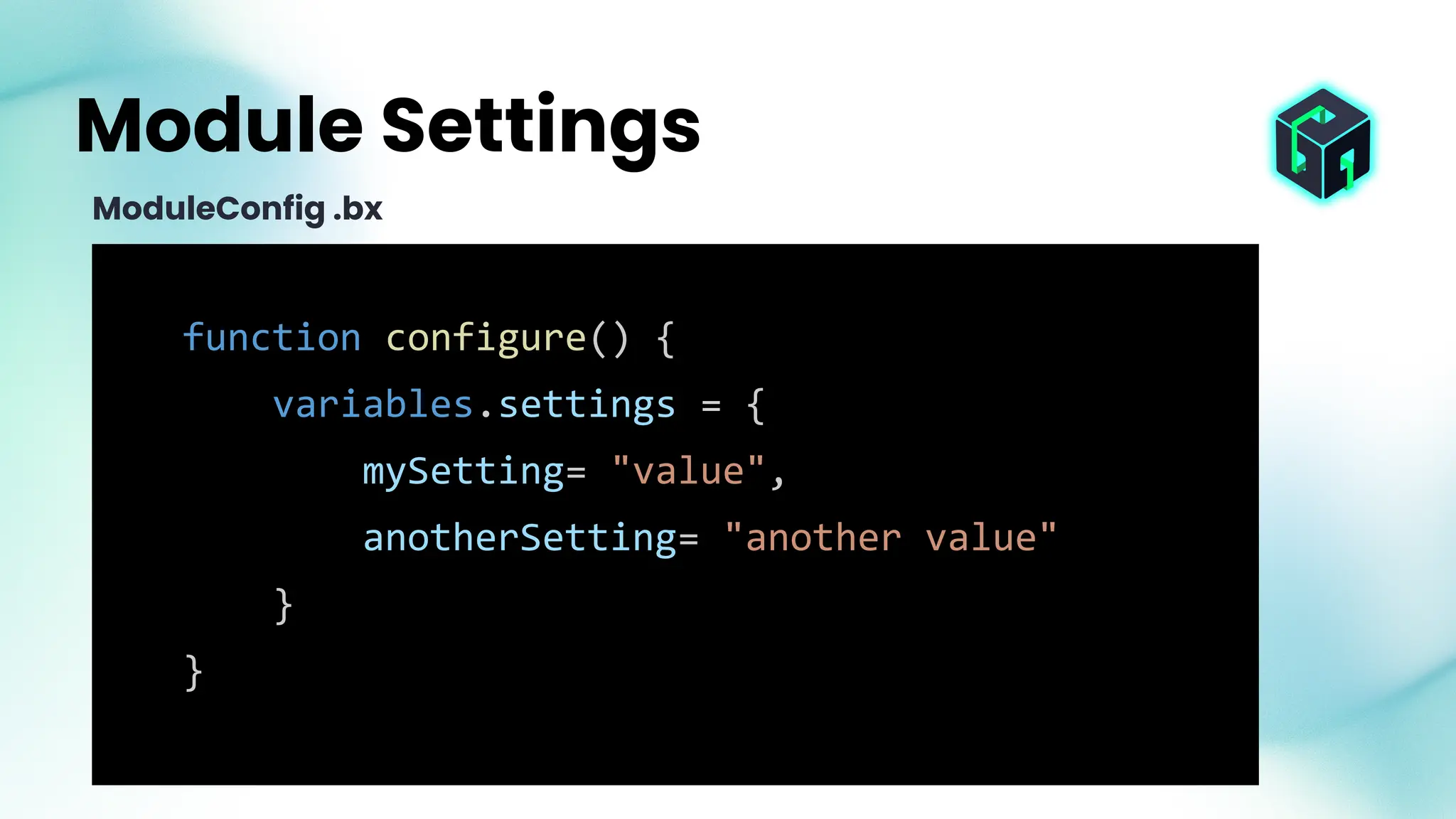

10. function configure() {
variables.settings = {
mySetting= "value",
anotherSetting= "another value"
}
}
Module Settings
ModuleConfig .bx

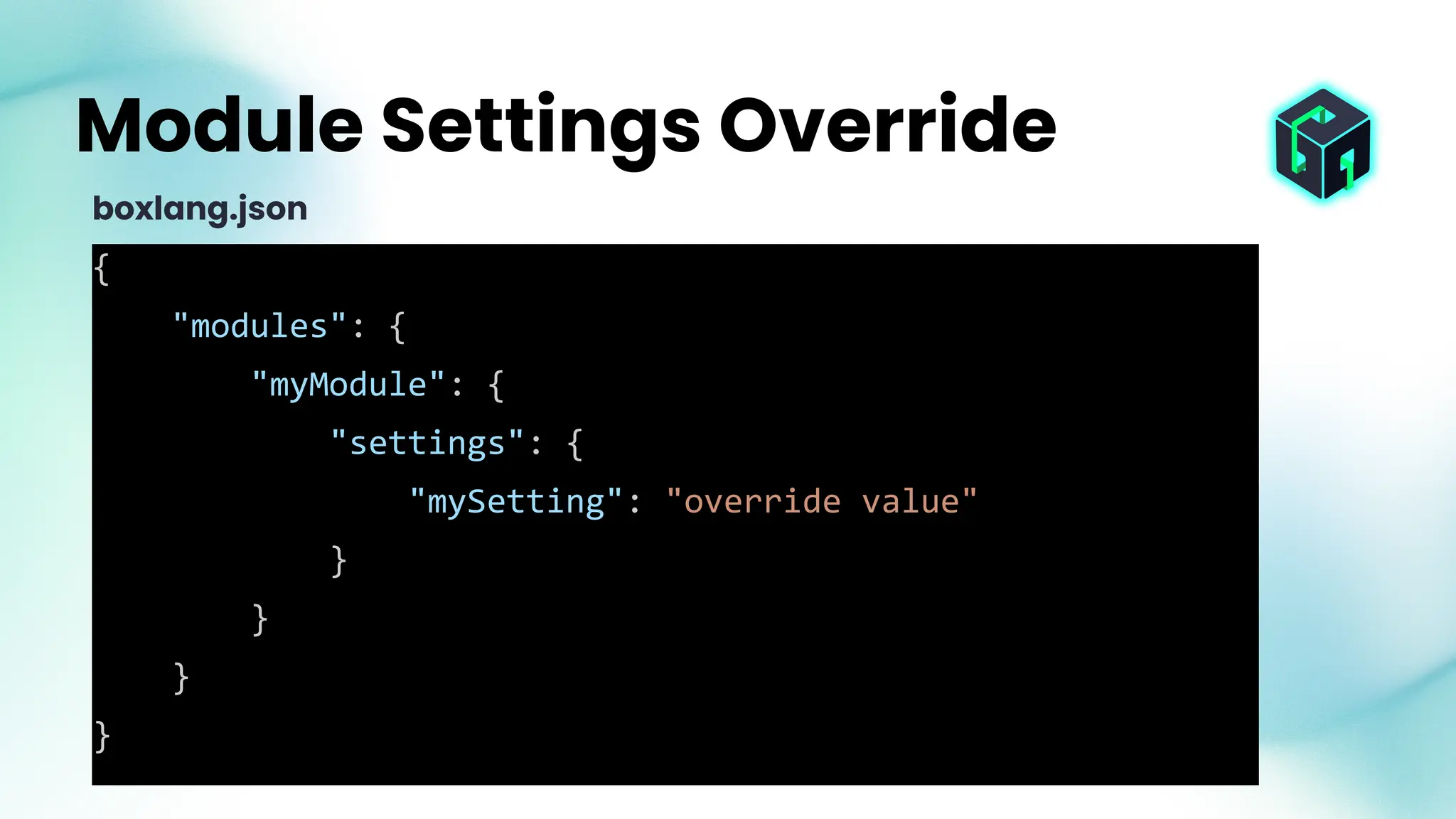

11. {
"modules": {
"myModule": {
"settings": {
"mySetting": "override value"
}
}
}
}
Module Settings Override
boxlang.json

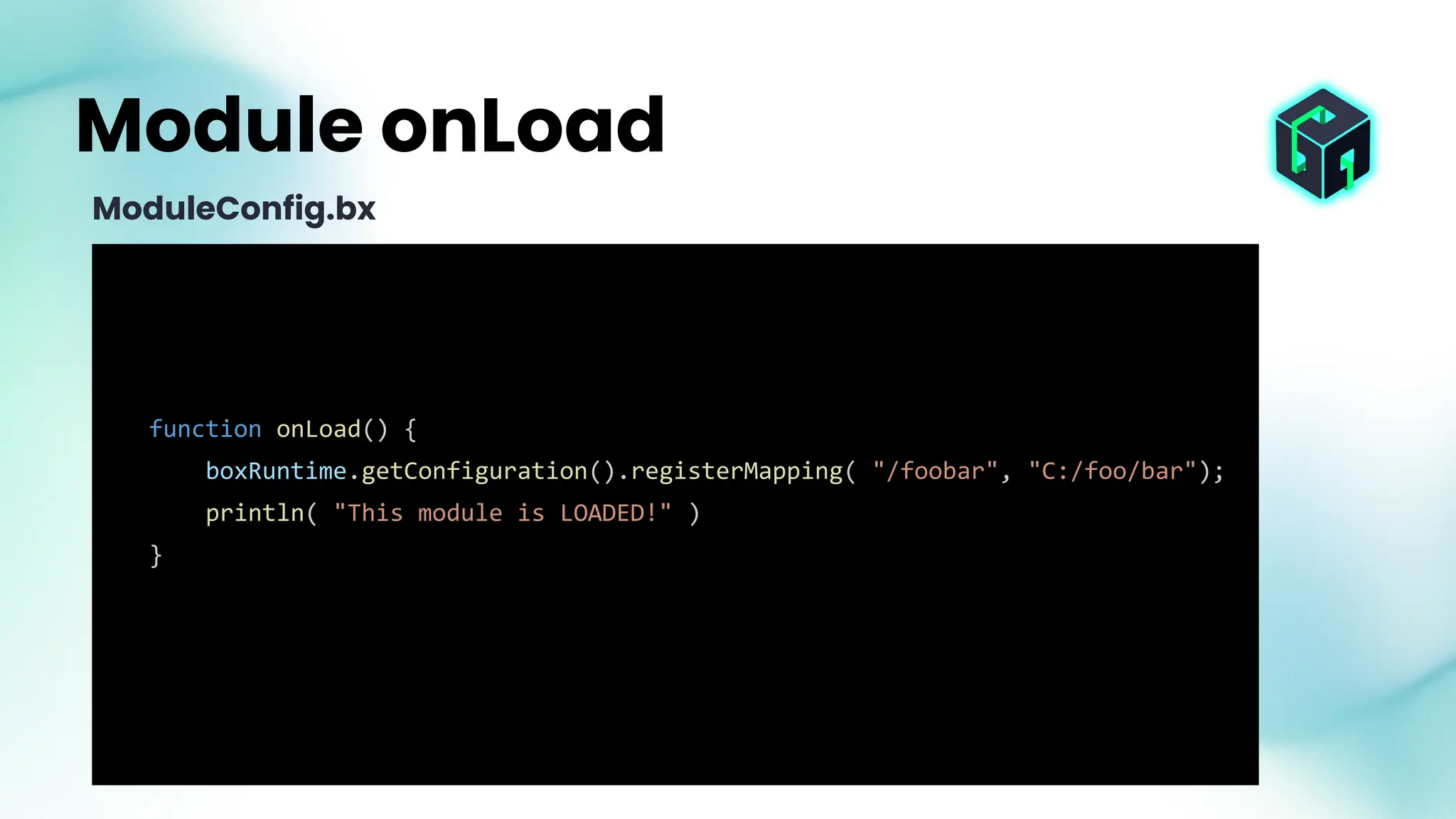

12. function onLoad() {
boxRuntime.getConfiguration().registerMapping( "/foobar", "C:/foo/bar");
println( "This module is LOADED!" )
}
Module onLoad
ModuleConfig.bx

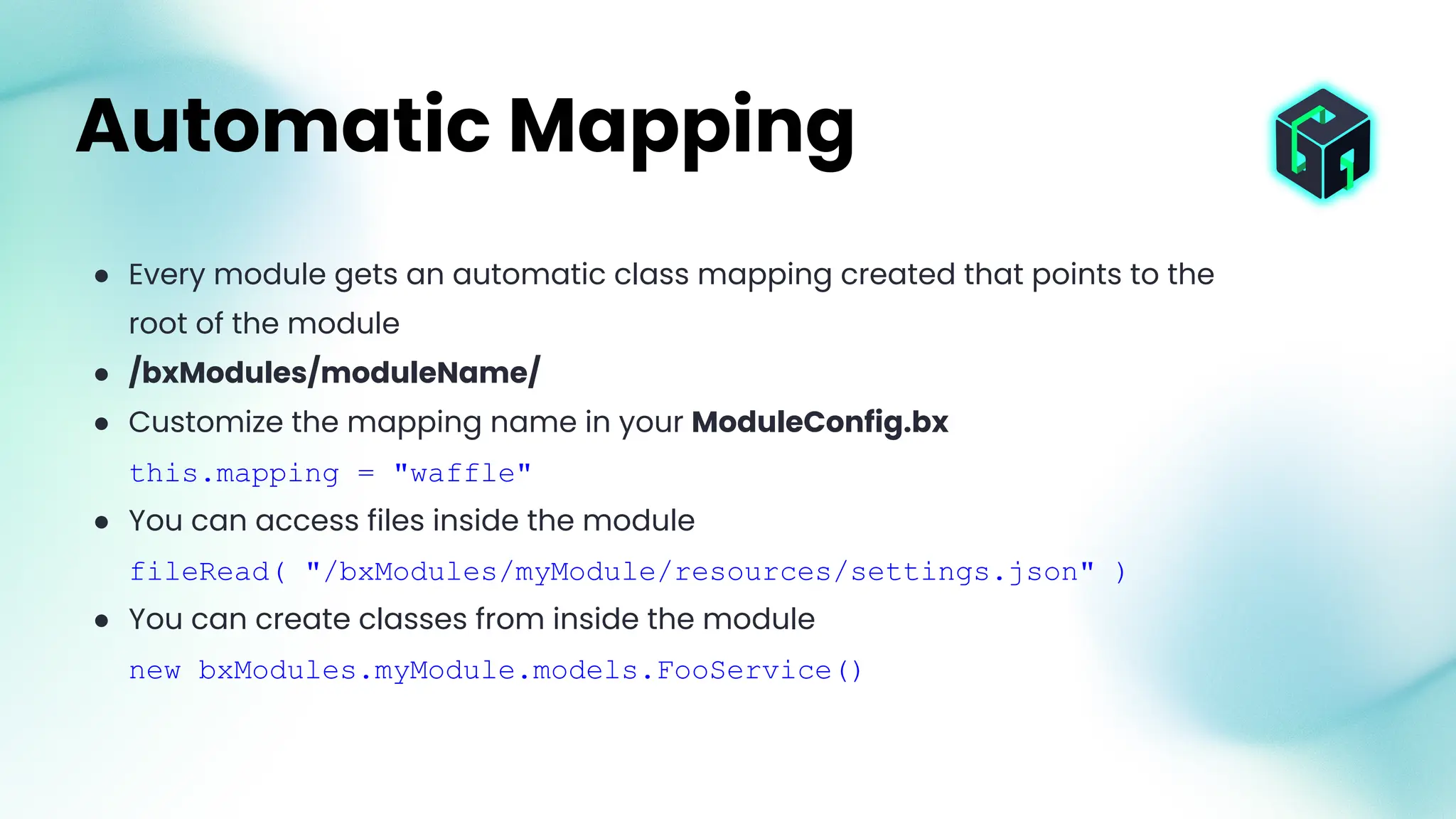

13. ● Every module gets an automatic class mapping created that points to the
root of the module
● /bxModules/moduleName/
● Customize the mapping name in your ModuleConfig.bx
this.mapping = "waffle"
● You can access files inside the module
fileRead( "/bxModules/myModule/resources/settings.json" )
● You can create classes from inside the module
new bxModules.myModule.models.FooService()
Automatic Mapping

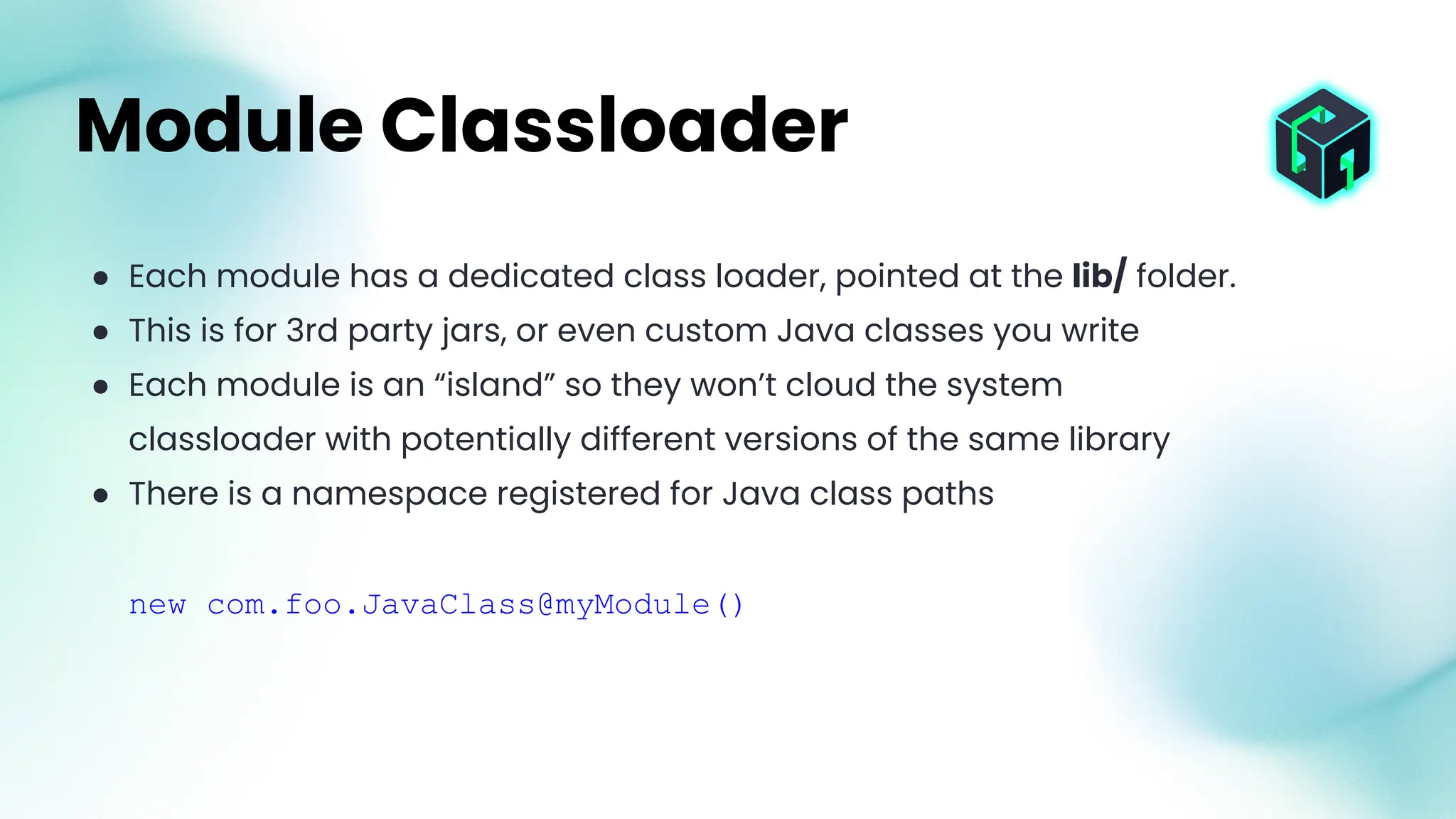

14. ● Each module has a dedicated class loader, pointed at the lib/ folder.
● This is for 3rd party jars, or even custom Java classes you write
● Each module is an “island” so they won’t cloud the system
classloader with potentially different versions of the same library
● There is a namespace registered for Java class paths
new com.foo.JavaClass@myModule()
Module Classloader

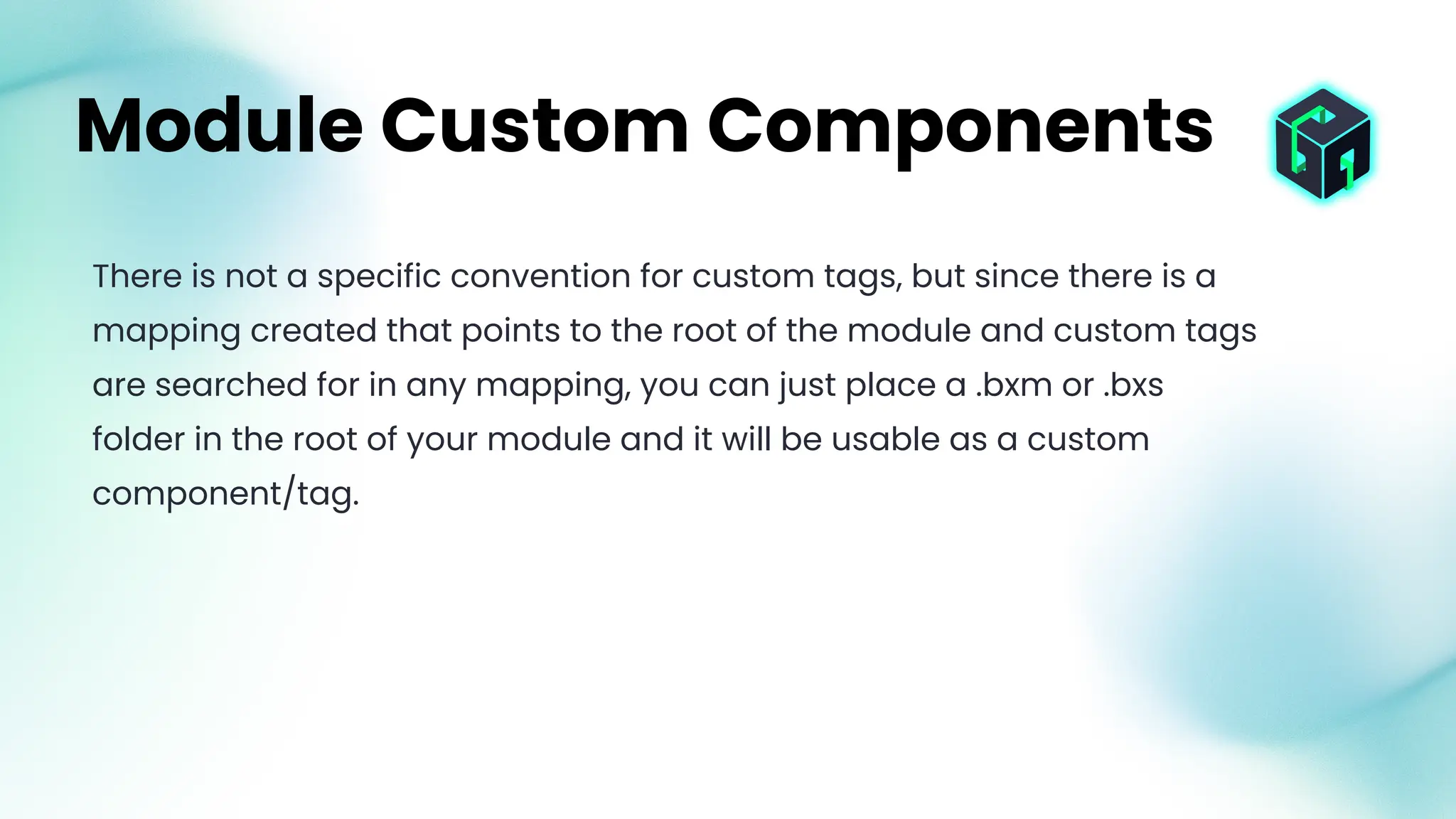

15. There is not a specific convention for custom tags, but since there is a
mapping created that points to the root of the module and custom tags
are searched for in any mapping, you can just place a .bxm or .bxs
folder in the root of your module and it will be usable as a custom
component/tag.
Module Custom Components

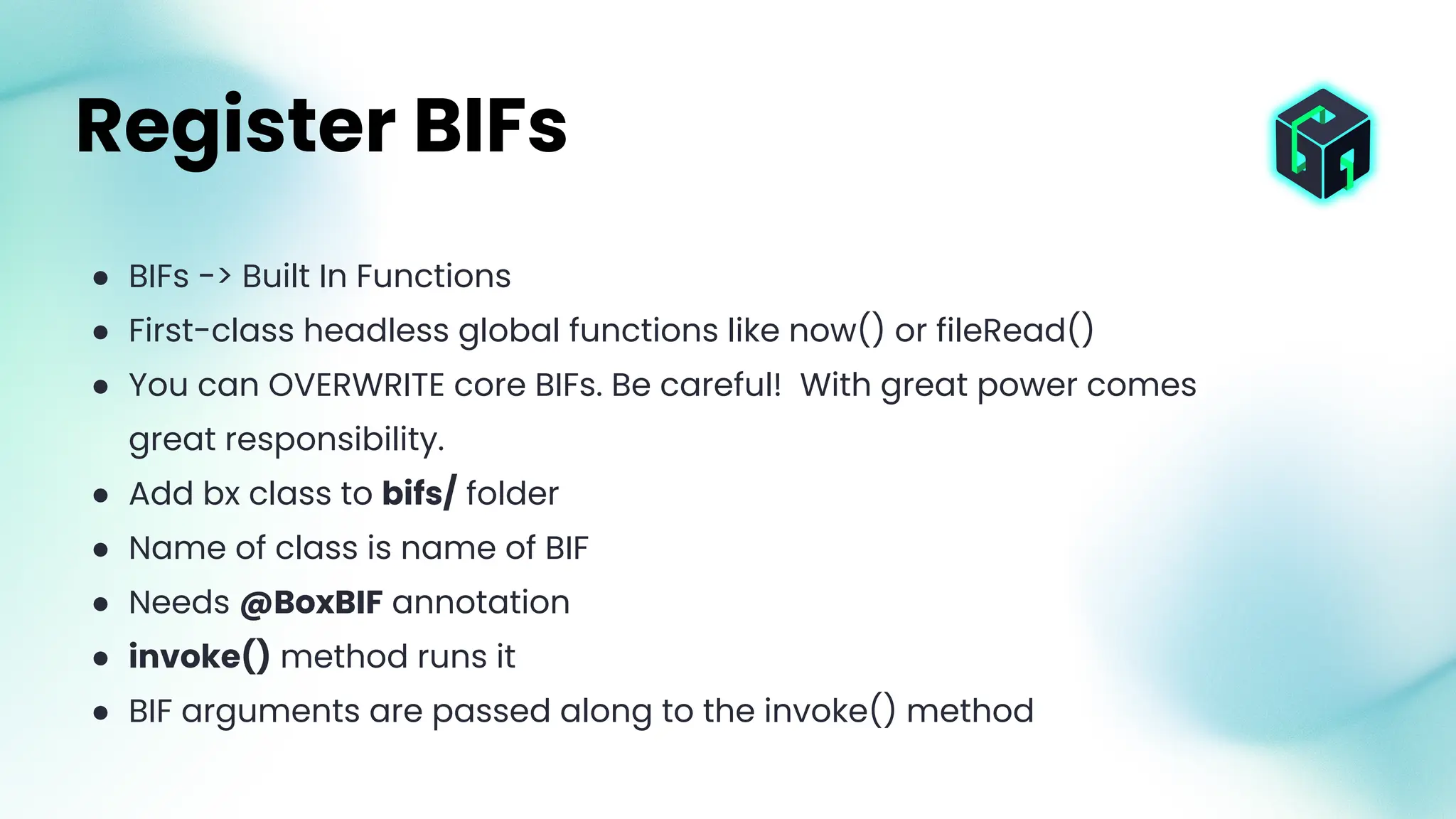

16. ● BIFs -> Built In Functions
● First-class headless global functions like now() or fileRead()
● You can OVERWRITE core BIFs. Be careful! With great power comes
great responsibility.
● Add bx class to bifs/ folder
● Name of class is name of BIF
● Needs @BoxBIF annotation
● invoke() method runs it
● BIF arguments are passed along to the invoke() method
Register BIFs

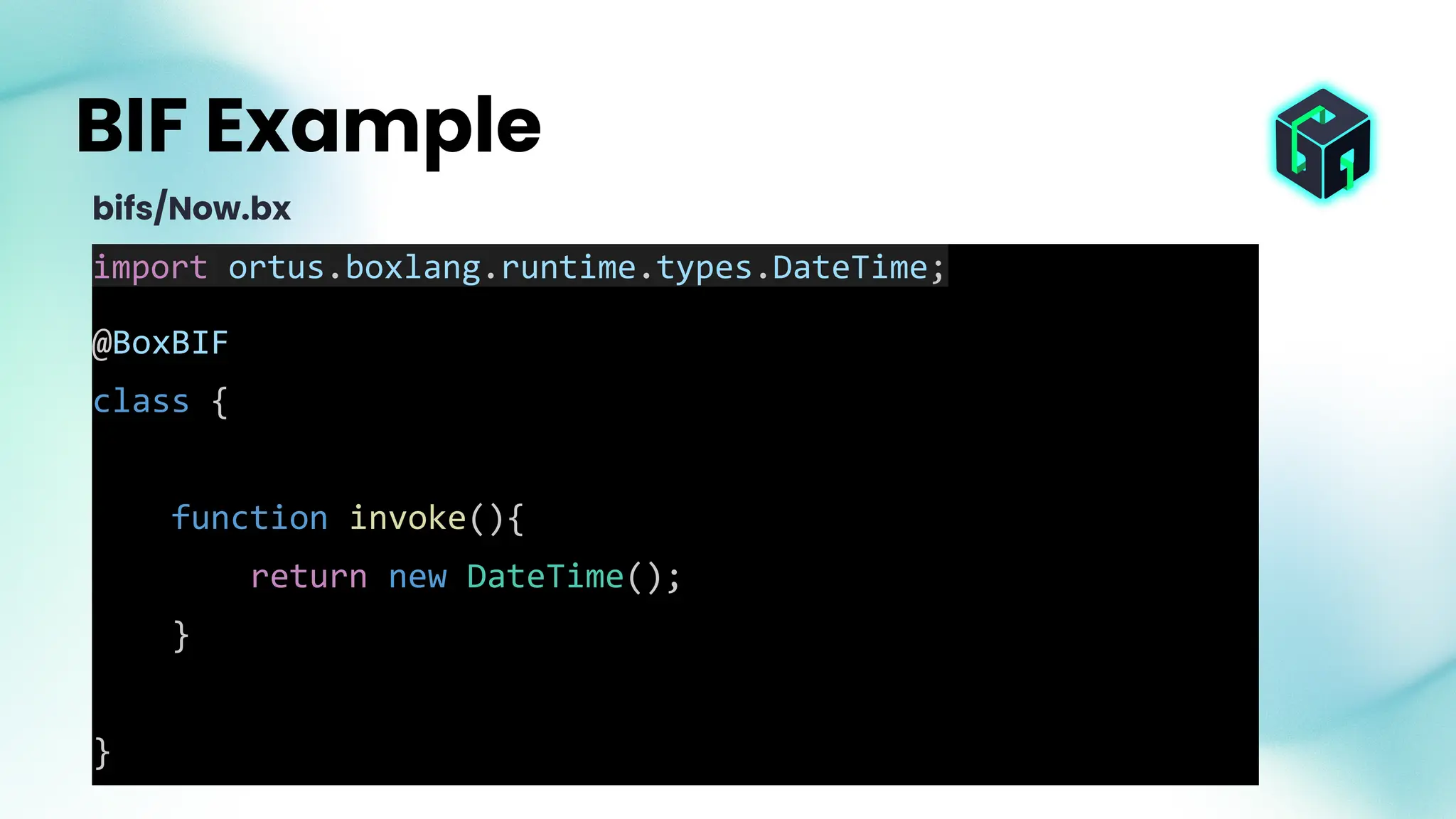

17. import ortus.boxlang.runtime.types.DateTime;
@BoxBIF
class {
function invoke(){
return new DateTime();
}
}
BIF Example
bifs/Now.bx

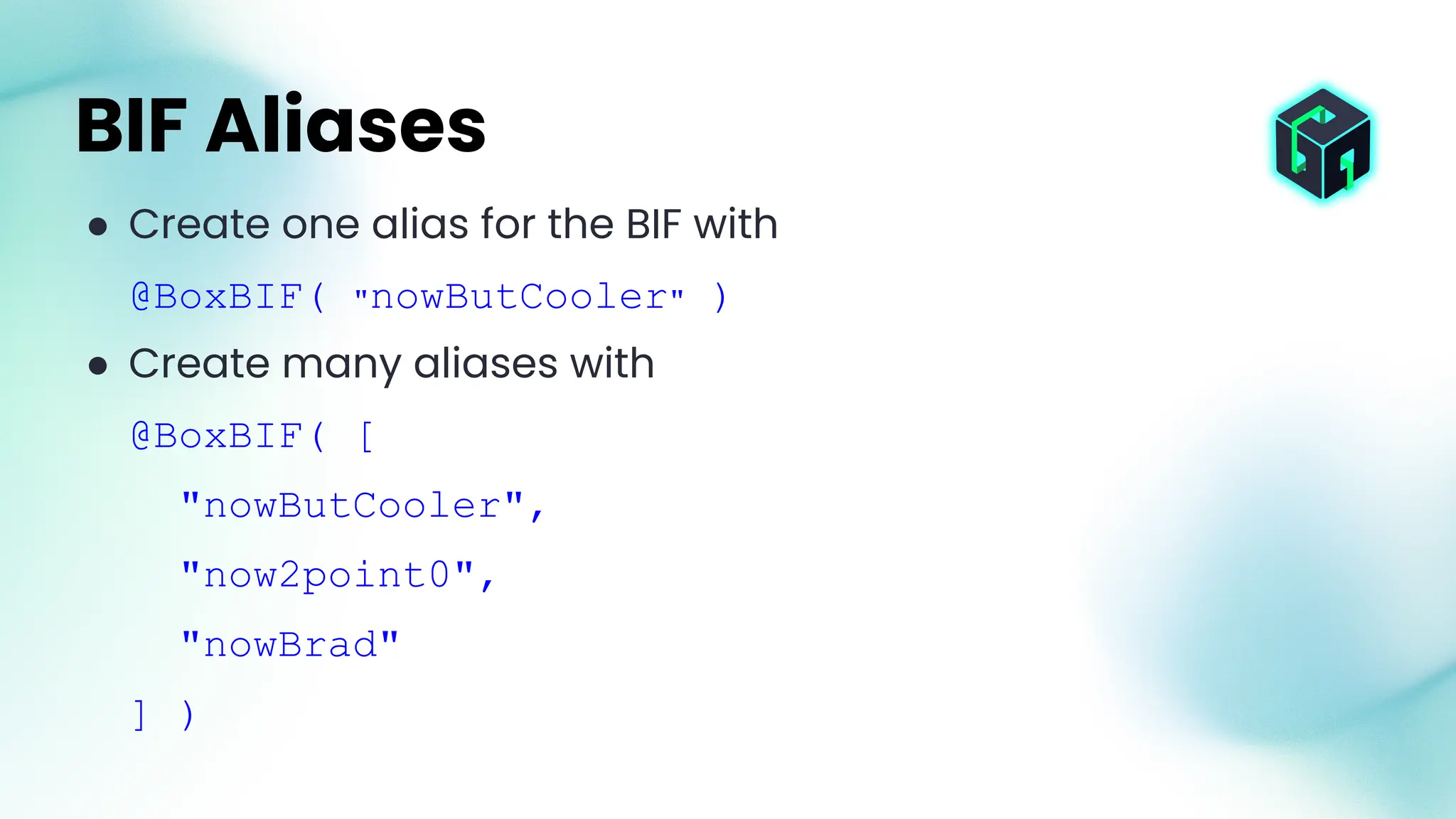

18. ● Create one alias for the BIF with
@BoxBIF( "nowButCooler" )
● Create many aliases with
@BoxBIF( [
"nowButCooler",
"now2point0",
"nowBrad"
] )
BIF Aliases

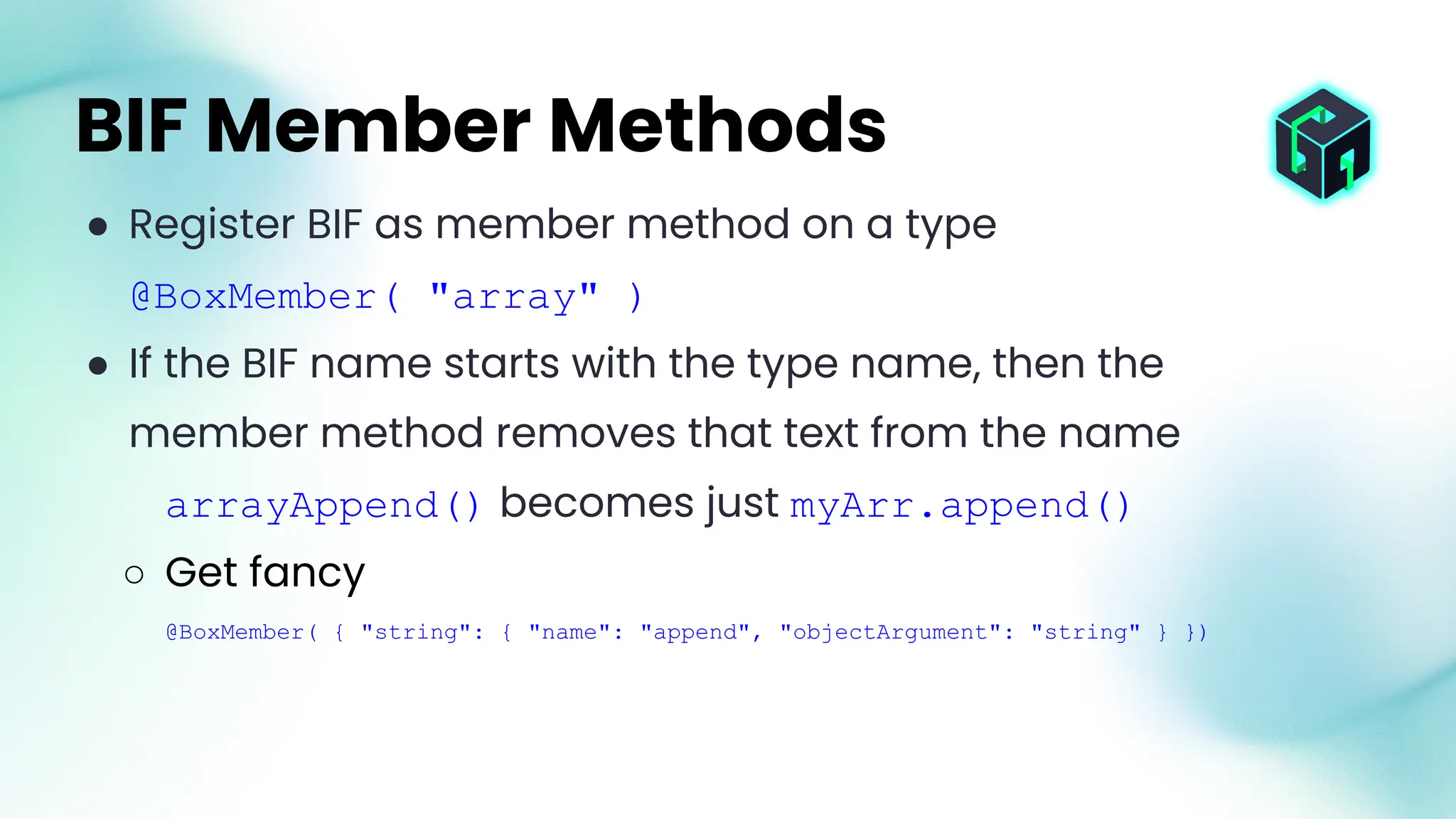

19. ● Register BIF as member method on a type
@BoxMember( "array" )
● If the BIF name starts with the type name, then the
member method removes that text from the name
arrayAppend() becomes just myArr.append()
○ Get fancy
@BoxMember( { "string": { "name": "append", "objectArgument": "string" } })
BIF Member Methods

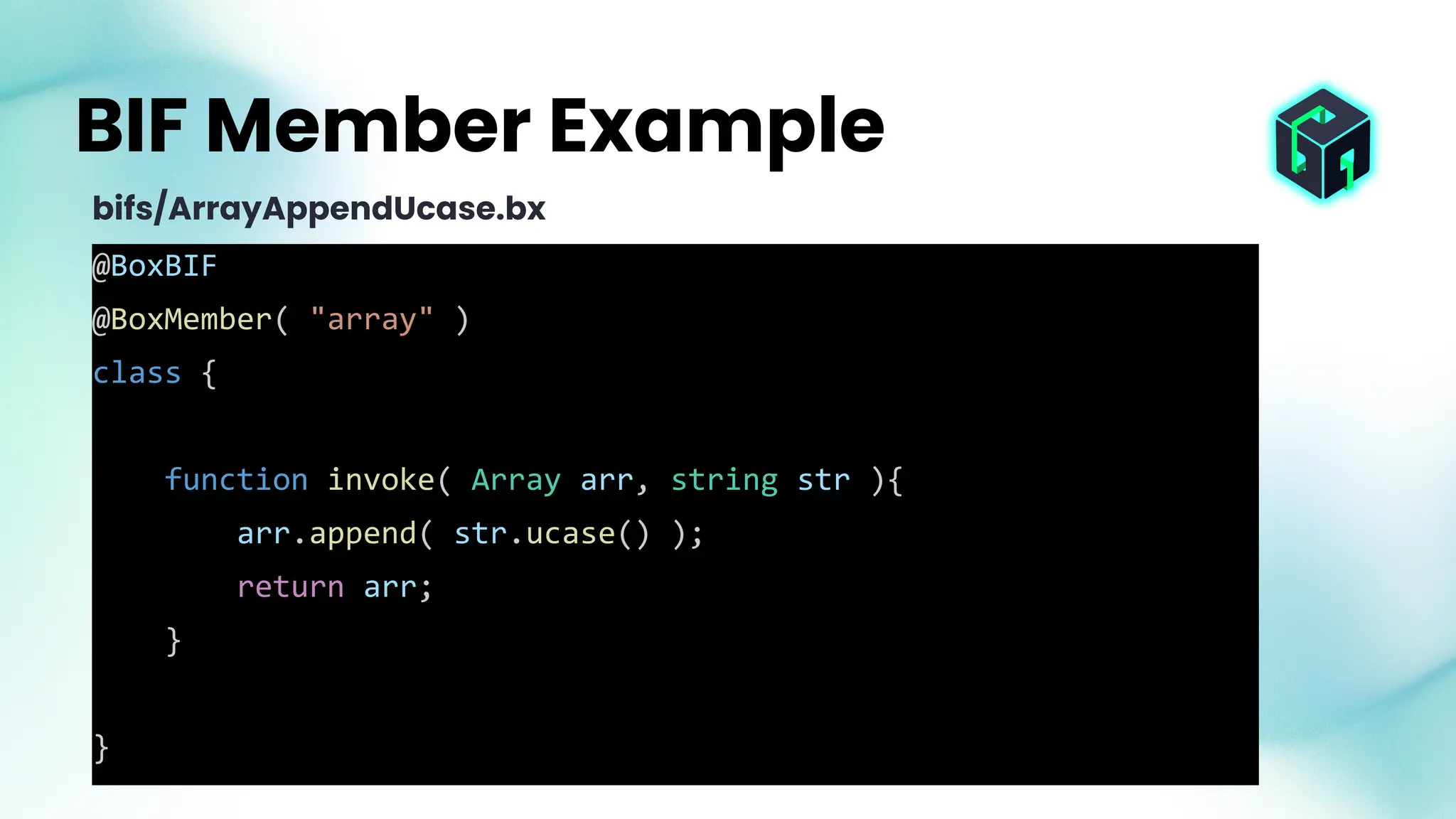

20. @BoxBIF
@BoxMember( "array" )
class {
function invoke( Array arr, string str ){
arr.append( str.ucase() );
return arr;
}
}
BIF Member Example
bifs/ArrayAppendUcase.bx

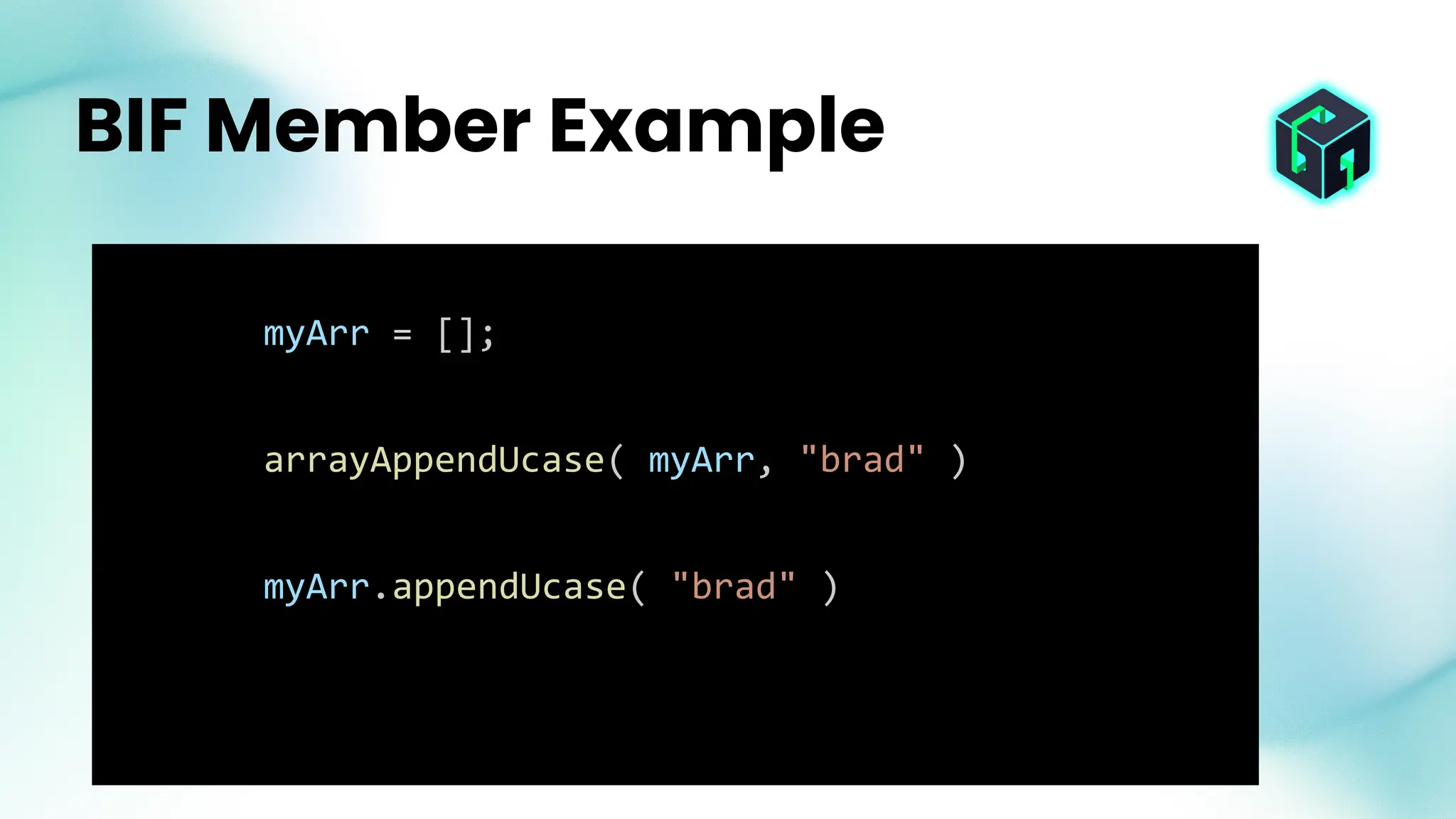

21. myArr = [];
arrayAppendUcase( myArr, "brad" )
myArr.appendUcase( "brad" )
BIF Member Example

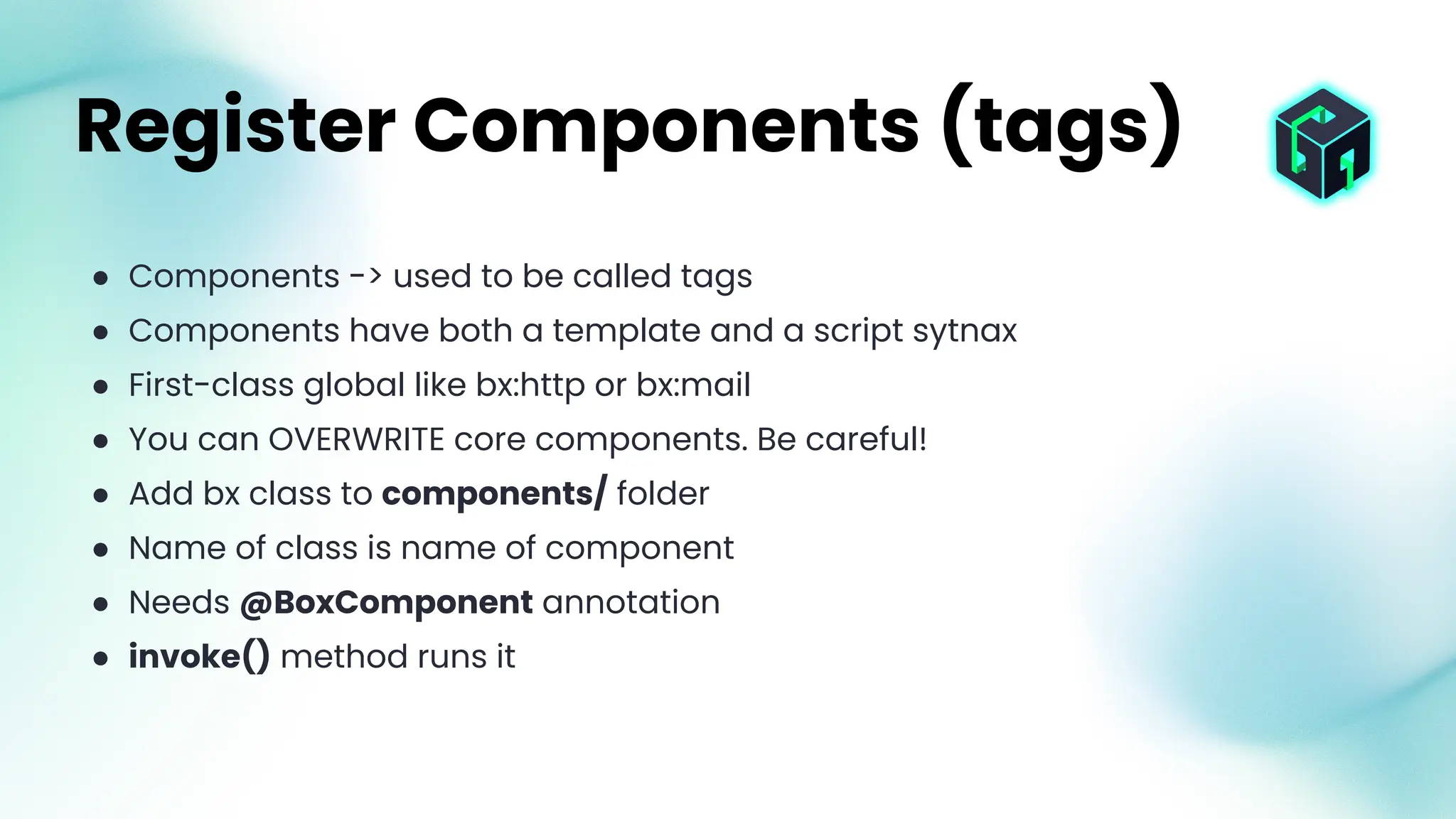

22. ● Components -> used to be called tags
● Components have both a template and a script sytnax
● First-class global like bx:http or bx:mail
● You can OVERWRITE core components. Be careful!
● Add bx class to components/ folder
● Name of class is name of component
● Needs @BoxComponent annotation
● invoke() method runs it
Register Components (tags)

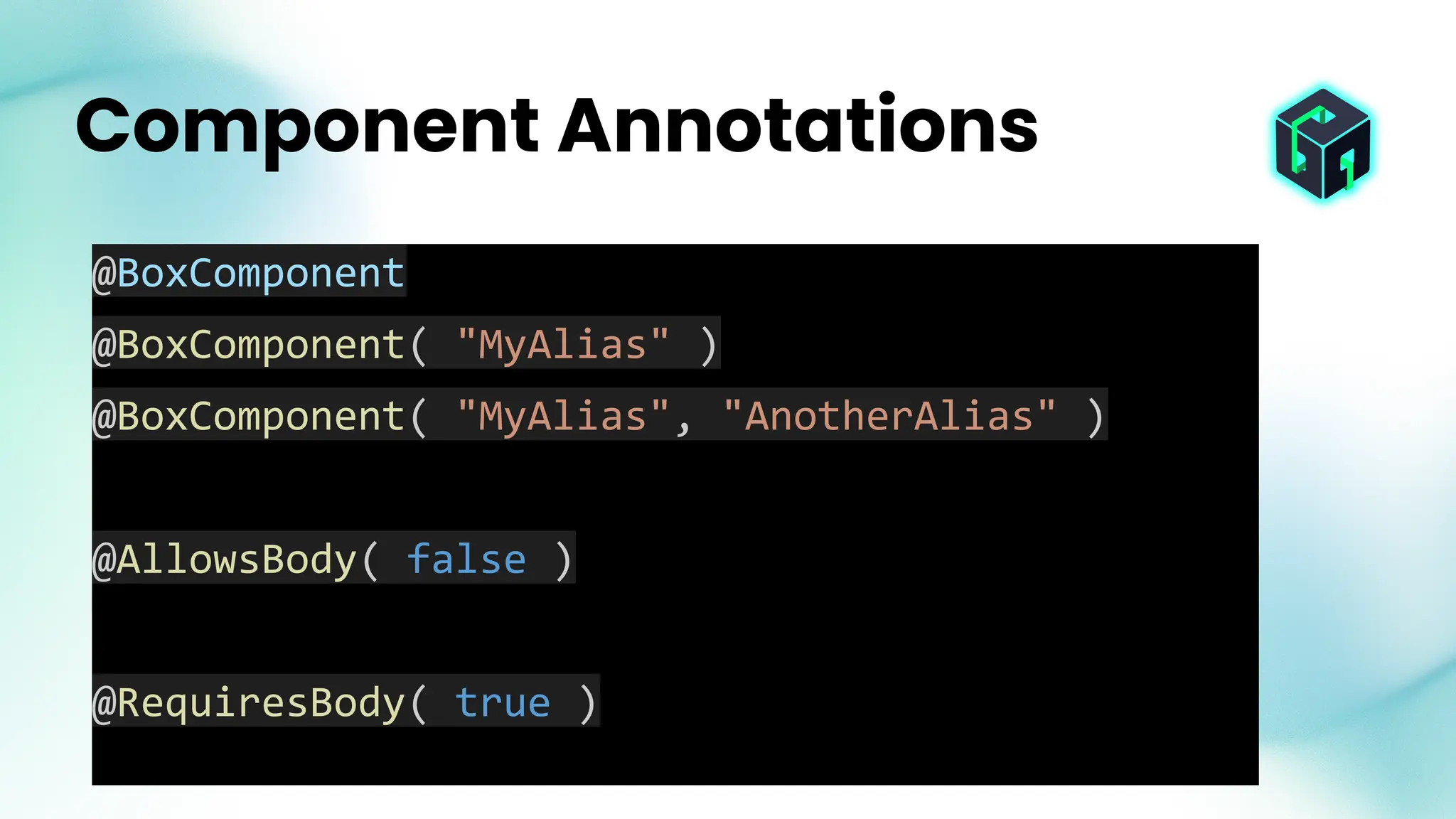

23. Component Annotations
@BoxComponent
@BoxComponent( "MyAlias" )
@BoxComponent( "MyAlias", "AnotherAlias" )
@AllowsBody( false )
@RequiresBody( true )

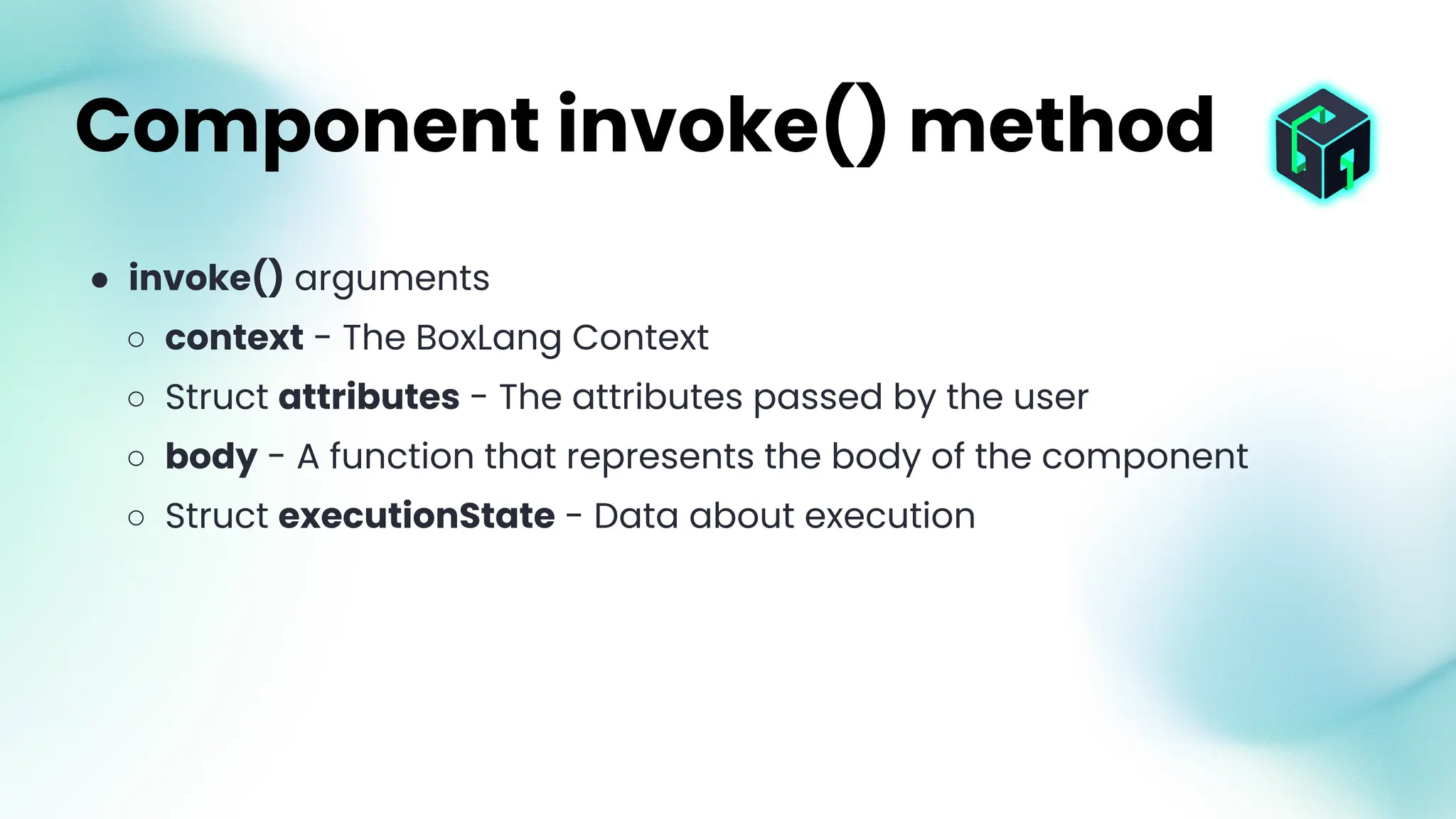

24. ● invoke() arguments
○ context - The BoxLang Context
○ Struct attributes - The attributes passed by the user
○ body - A function that represents the body of the component
○ Struct executionState - Data about execution
Component invoke() method

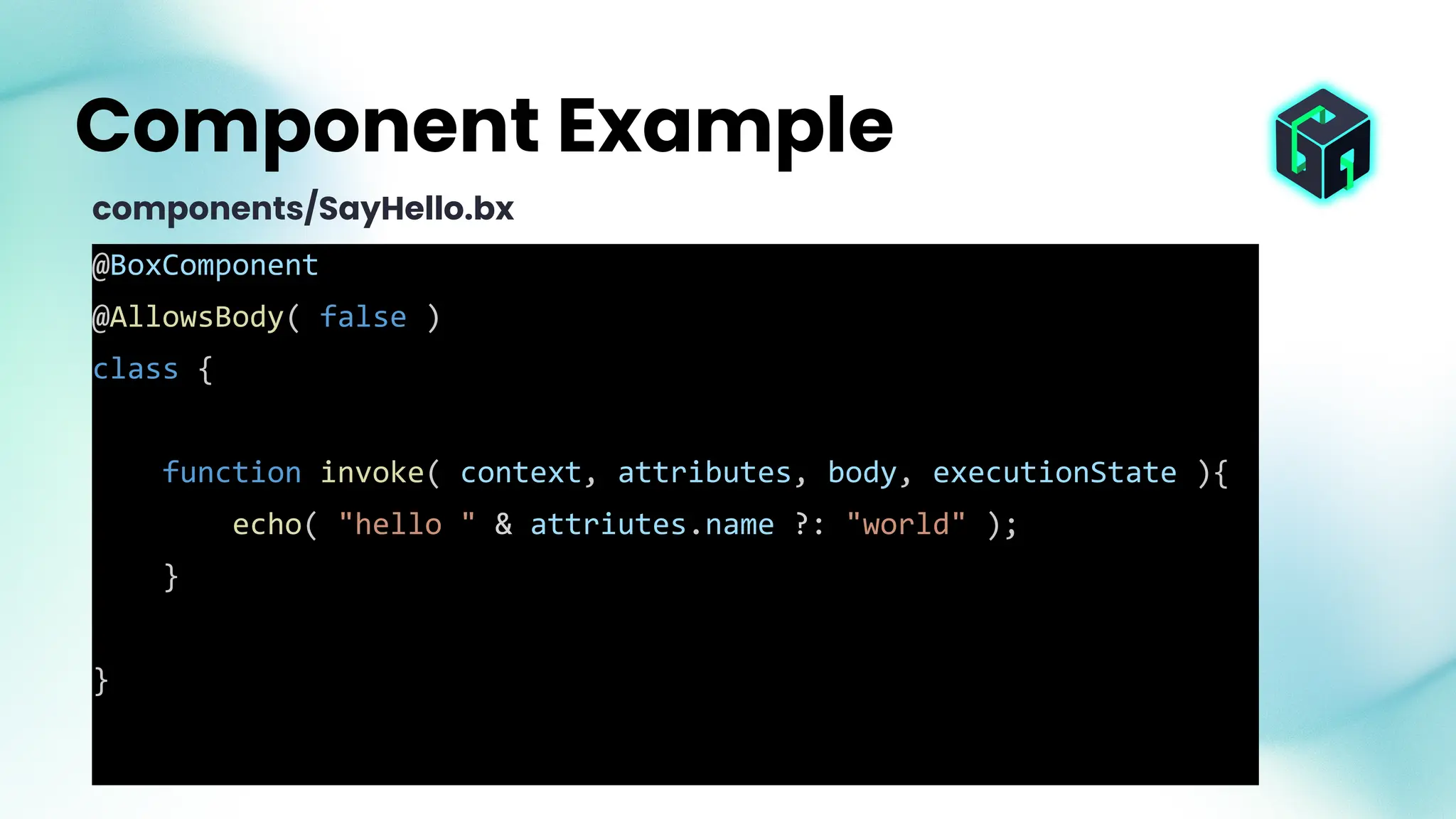

25. @BoxComponent
@AllowsBody( false )
class {
function invoke( context, attributes, body, executionState ){
echo( "hello " & attriutes.name ?: "world" );
}
}
Component Example
components/SayHello.bx

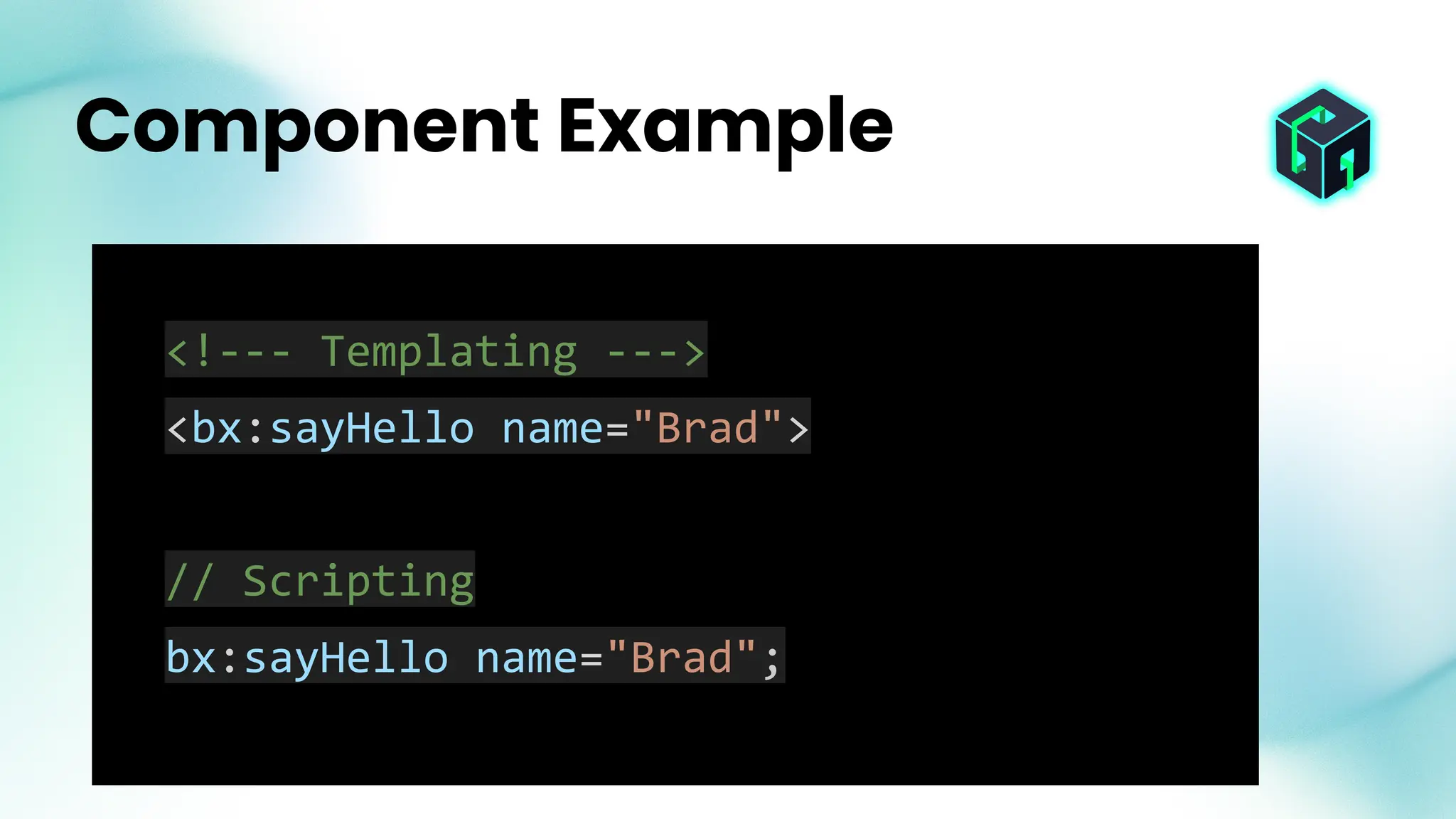

26. <!--- Templating --->
<bx:sayHello name="Brad">
// Scripting
bx:sayHello name="Brad";
Component Example

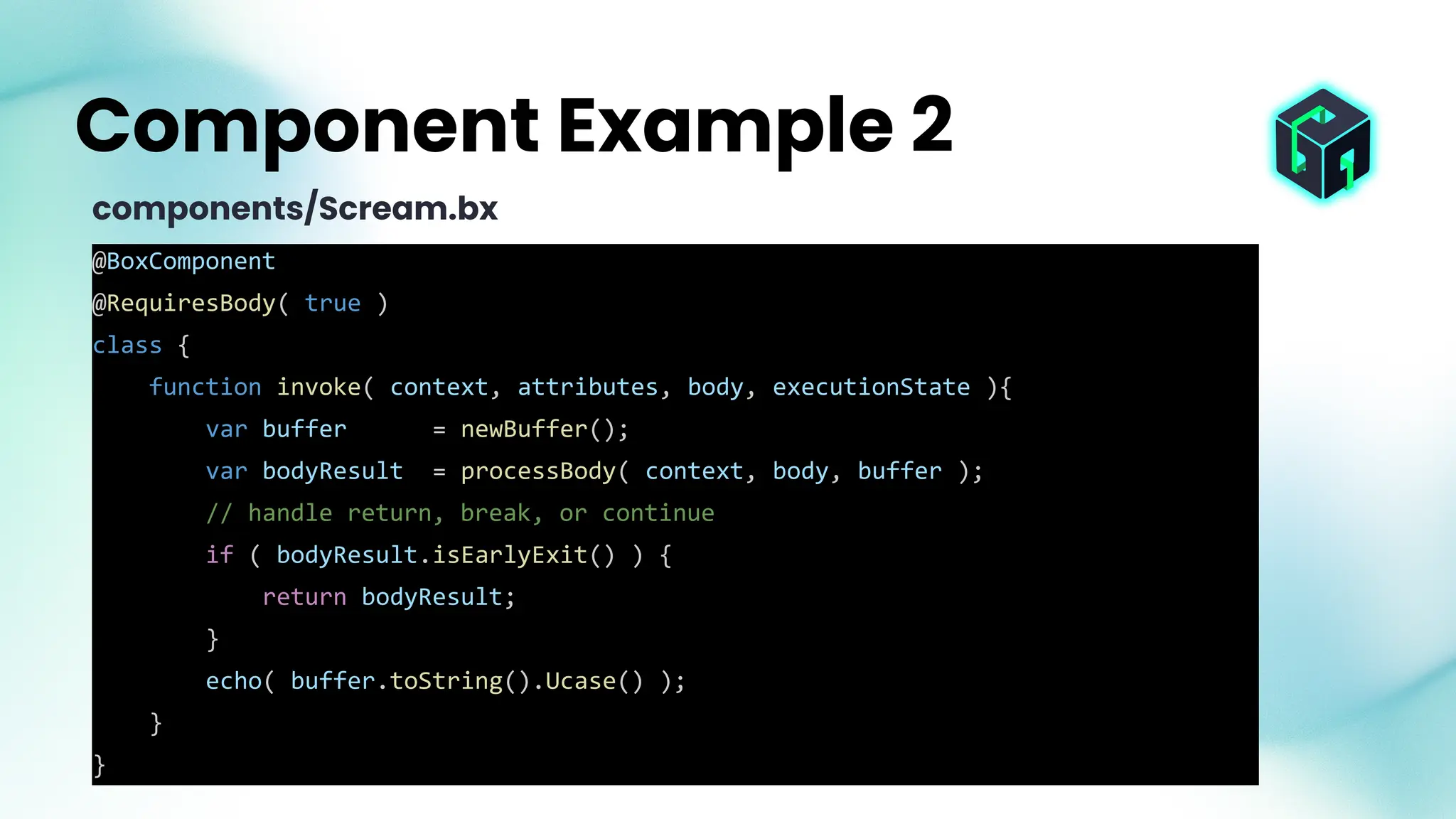

27. @BoxComponent
@RequiresBody( true )
class {
function invoke( context, attributes, body, executionState ){
var buffer = newBuffer();
var bodyResult = processBody( context, body, buffer );
// handle return, break, or continue
if ( bodyResult.isEarlyExit() ) {
return bodyResult;
}
echo( buffer.toString().Ucase() );
}
}
Component Example 2
components/Scream.bx

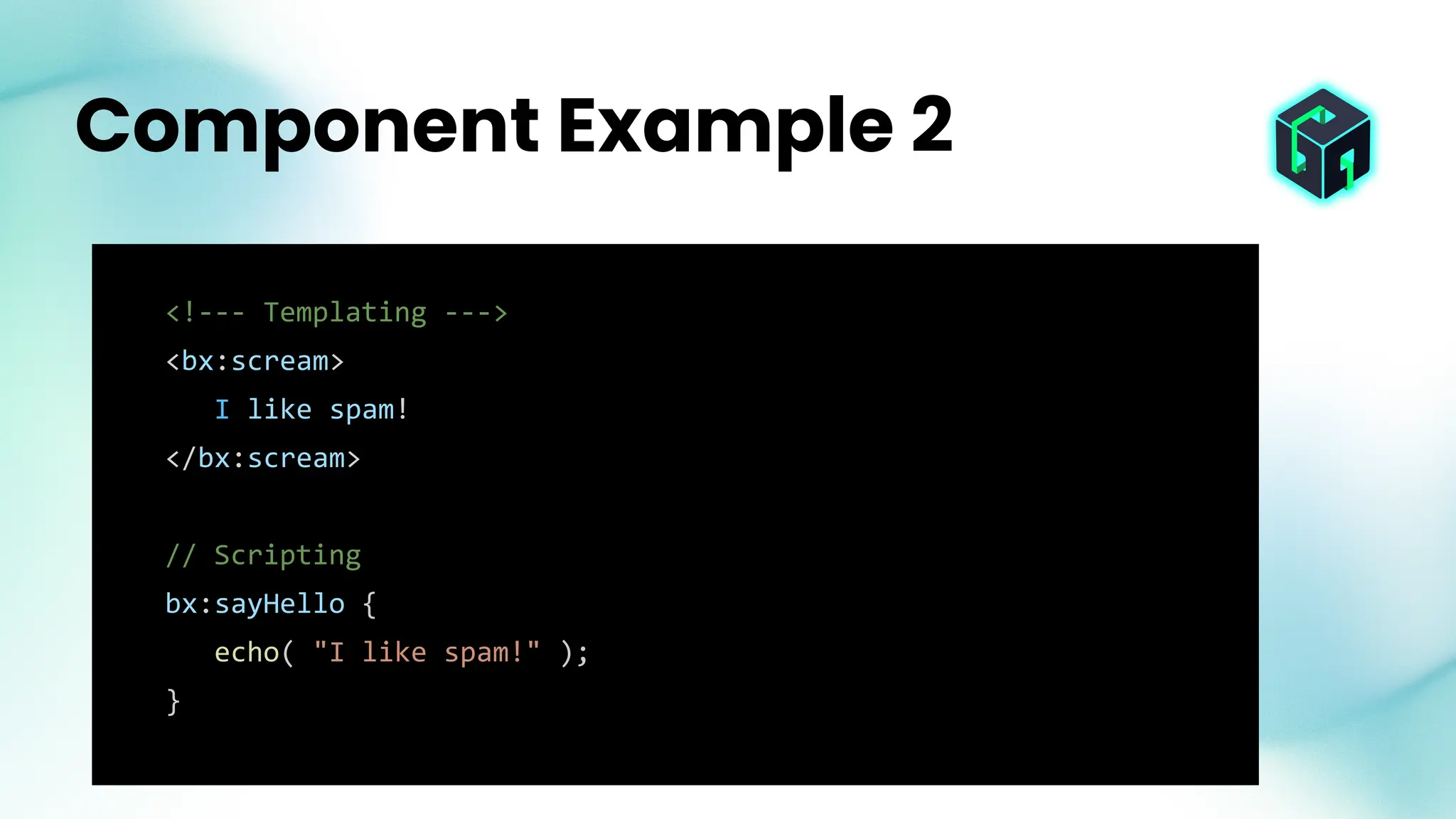

28. <!--- Templating --->
<bx:scream>
I like spam!
</bx:scream>
// Scripting
bx:sayHello {
echo( "I like spam!" );
}
Component Example 2

29. Thank You!
The Future of Modern Development Starts Here, with you! 🚀
