On the Relevance of Code Anomalies for Identifying Architecture Degradation Symptoms
The document analyzes the relationship between code anomalies and architecture degradation in software systems. It studies this relationship across multiple systems and revisions to answer three questions: 1) Are anomalous code elements related to architecture problems? 2) Which characteristics of code anomalies are relevant for architecture? 3) Did refactorings address architecturally-relevant code anomalies? The study collected data on code anomalies, architecture problems, and refactorings. Statistical tests found that code anomalies were related to architecture problems in 77.5% of versions analyzed. Further analysis identified which specific anomalies and characteristics caused architecture problems.
On the Relevance of Code Anomalies for Identifying Architecture Degradation Symptoms
- 1. On the Relevanceof Code Anomalies for Identifying Architecture Degradation Symptoms Isela Macía1, Roberta Arcoverde1, Alessandro Garcia1, Christina Chavez2, Arndt von Staa1 1Pontifical Catholic University of Rio de Janeiro – PUC-Rio, Brazil 2Federal University of Bahia – UFBA, Brazil LES | DI |PUC-Rio - Brazil OPUS Group

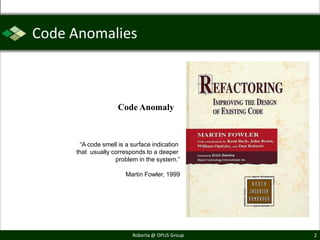

- 2. Code Anomalies Code Anomaly “A code smell is a surface indication that usually corresponds to a deeper problem in the system.” Martin Fowler, 1999 Roberta @ OPUS Group 2
- 3. Architectural Anomalies ModuleA <<subsystem>> Concern A1 Concern A2 Concern C1 ModuleC <<subsystem>> ModuleB ConcernC <<subsystem>> Concern B1 ConcernB2 ConcernC2 Scattered Functionality Roberta @ OPUS Group 3
- 4. Relevance of CodeAnomalies GUI public class HWFacade{ <<subsystem>> public void updateComplaint(..){..} <<subsystem>> public Complaint searchComplaint(..){..} public void insertComplaint(..){..} public void insertEmployee(..){..} Employee public Employee searchEmployee(..){..} Symptom public void updateEmployee(..){..} Complaint public void insertSymptom(..){..} HWFacade Business public Symptom searchSymptom(..){..} public void updateSymptom(..){..} ... <<subsystem>> } Roberta @ OPUS Group 4

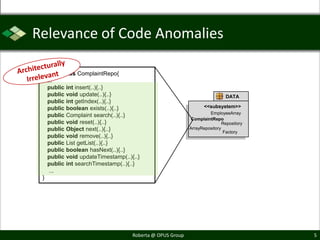

- 5. Relevance of CodeAnomalies public class ComplaintRepo{ ... public int insert(..){..} public void update(..){..} DATA public int getIndex(..){..} <<subsystem>> <<subsystem>> public boolean exists(..){..} EmployeeArray public Complaint search(..){..} ComplaintRepo public void reset(..){..} Repository public Object next(..){..} ArrayRepository Factory public void remove(..){..} public List getList(..){..} public boolean hasNext(..){..} public void updateTimestamp(..){..} public int searchTimestamp(..){..} ... } Roberta @ OPUS Group 5
- 6. Previous Research onCode Anomaly Impact Khomh et al. WCRE „09 Anomalous code elements tend to be changed more frequently than free-anomalous elements Roberta @ OPUS Group 6
- 7. Previous Research onCode Anomaly Impact D‟Ambros et al. QSIC „10 There are no code anomalies that can be considered more harmful with respect to software defects Roberta @ OPUS Group 7

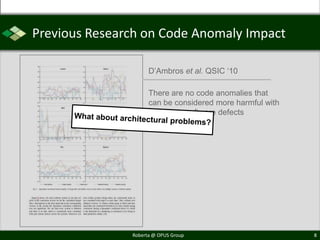

- 8. Previous Research onCode Anomaly Impact D‟Ambros et al. QSIC „10 There are no code anomalies that can be considered more harmful with respect to software defects Roberta @ OPUS Group 8
- 9. Architecture Degradation Major software engineering problem Might unable systems evolution Early identification could help avoiding it But can it be identified from code anomalies? Roberta @ OPUS Group 9

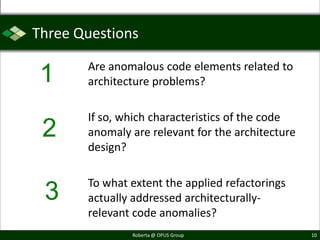

- 10. Three Questions Are anomalous code elements related to 1 architecture problems? If so, which characteristics of the code 2 anomaly are relevant for the architecture design? To what extent the applied refactorings 3 actually addressed architecturally- relevant code anomalies? Roberta @ OPUS Group 10

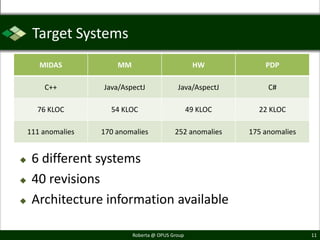

- 11. Target Systems MIDAS MM HW PDP C++ Java/AspectJ Java/AspectJ C# 76 KLOC 54 KLOC 49 KLOC 22 KLOC 111 anomalies 170 anomalies 252 anomalies 175 anomalies 6 different systems 40 revisions Architecture information available Roberta @ OPUS Group 11

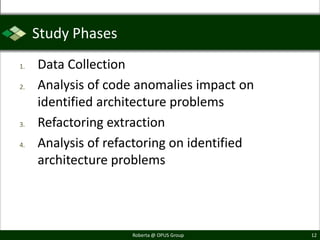

- 12. Study Phases 1. Data Collection 2. Analysis of code anomalies impact on identified architecture problems 3. Refactoring extraction 4. Analysis of refactoring on identified architecture problems Roberta @ OPUS Group 12

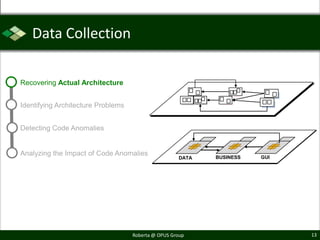

- 13. Data Collection Recovering ActualArchitecture Identifying Architecture Problems Detecting Code Anomalies Analyzing the Impact of Code Anomalies DATA BUSINESS GUI DATA Roberta @ OPUS Group 13

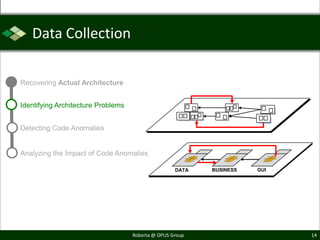

- 14. Data Collection Recovering ActualArchitecture Identifying Architecture Problems Detecting Code Anomalies Analyzing the Impact of Code Anomalies DATA BUSINESS GUI Roberta @ OPUS Group 14
- 15. Data Collection Recovering ActualArchitecture Identifying Architecture Problems Detecting Code Anomalies Analyzing the Impact of Code Anomalies DATA DATA BUSINESS GUI Roberta @ OPUS Group 15
- 16. Analysis Recovering Actual Architecture IdentifyingArchitecture Problems Detecting Code Anomalies Analyzing the Impact of Code Anomalies DATA DATA BUSINESS GUI Roberta @ OPUS Group 16

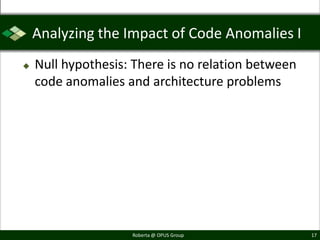

- 17. Analyzing the Impactof Code Anomalies I Null hypothesis: There is no relation between code anomalies and architecture problems Roberta @ OPUS Group 17
- 18. Analyzing the Impactof Code Anomalies I Null hypothesis: There is no relation between code anomalies and architecture problems Fisher’s exact test Roberta @ OPUS Group 18

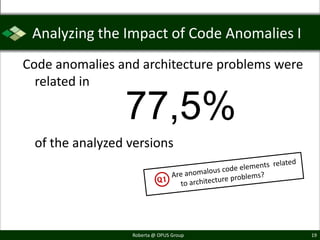

- 19. Analyzing the Impactof Code Anomalies I Code anomalies and architecture problems were related in 77,5% of the analyzed versions Roberta @ OPUS Group 19
- 20. Analyzing the Impactof Code Anomalies II Downstream Analysis Which architecture problems were caused by code anomalies DATA DATA BUSINESS GUI Roberta @ OPUS Group 20

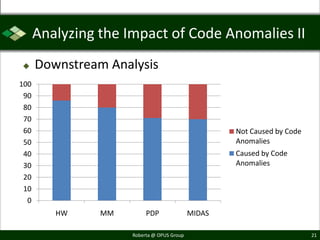

- 21. Analyzing the Impactof Code Anomalies II Downstream Analysis 100 90 80 70 60 Not Caused by Code 50 Anomalies 40 Caused by Code 30 Anomalies 20 10 0 HW MM PDP MIDAS Roberta @ OPUS Group 21
- 22. Analyzing the Impactof Code Anomalies II Upstream Analysis Which code anomalies caused architecture problems DATA DATA BUSINESS GUI Roberta @ OPUS Group 22

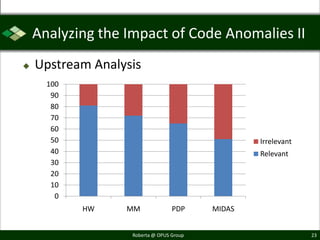

- 23. Analyzing the Impactof Code Anomalies II Upstream Analysis 100 90 80 70 60 50 Irrelevant 40 Relevant 30 20 10 0 HW MM PDP MIDAS Roberta @ OPUS Group 23
- 24. Analyzing the Impactof Code Anomalies II Upstream Analysis 100 90 80 70 60 50 Irrelevant 40 Relevant 30 20 10 0 HW MM PDP MIDAS Roberta @ OPUS Group 24
- 25. Identifying Relevant CodeAnomalies Code anomalies were divided by Type of code anomaly Earliness of anomaly Roberta @ OPUS Group 25

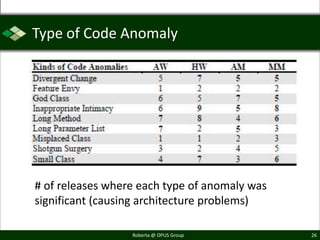

- 26. Type of CodeAnomaly # of releases where each type of anomaly was significant (causing architecture problems) Roberta @ OPUS Group 26

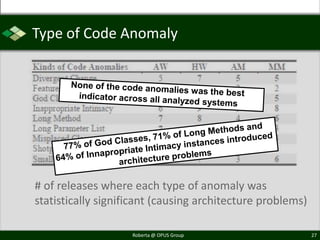

- 27. Type of CodeAnomaly # of releases where each type of anomaly was statistically significant (causing architecture problems) Roberta @ OPUS Group 27
- 28. Earliness of Anomaly Early anomaly: appears in the 1st version of each system 18% Of all architecturally-relevant code anomalies were identified as early anomalies Roberta @ OPUS Group 28
- 29. Earliness of Anomaly Early anomaly: appears in the 1st version of each system and were related to more than 18% 37% Of all architecturally-relevant code anomalies were identified of all architecture problems as early anomalies Roberta @ OPUS Group 29
- 30. Refactoring of RelevantAnomalies We wanted to analyze whether architecturally- relevant anomalies were often refactored Detecting refactorings from source code history Commit messages Source code diffs (manually inspected) Checking whether the refactored anomaly was architecturally-relevant Roberta @ OPUS Group 30
- 31. Refactoring of RelevantAnomalies 658 refactorings 33% high-level Move member (16%) Extract class or superclass (12%) 67% low-level Rename (32%) Extract local variable (16%) 37% of all architecture-relevant anomalies were refactored Isolated versions concentrated most of the refactoring efforts Roberta @ OPUS Group 31

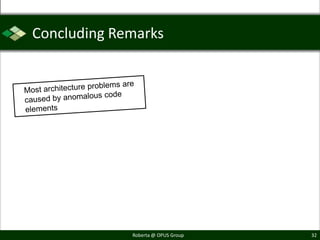

- 32. Concluding Remarks Roberta @ OPUS Group 32
- 33. Concluding Remarks Roberta @ OPUS Group 33
- 34. Concluding Remarks Architecturally-relevant anomalies arenot frequently refactored Roberta @ OPUS Group 34
- 35. Concluding Remarks Architecturally-relevant anomalies arenot frequently refactored Roberta @ OPUS Group 35
- 36. Thank you ? Roberta @ OPUS Group 36
- 37. Cause-Effect Criteria 1 Recurrently inferred in all systems versions 2 Observed in different modules of the same system 3 Modules involved the contribution of different developers Isela Macia et al – AOSD 2011: An Exploratory Study of Code Smells in Aspect-Oriented Systems. Isela Macia et al – AOSD 2012: Are Automatically-detected Code Anomalies relevant to Architectural Modularity? Roberta @ OPUS Group 37
Editor's Notes
- #2 PresentationStructure:(FollowingthePaper)1- Definitions (codeanomalies, architecturalanomalies, architecturedegradation)2- Problem/Motivation3- Methodology4- Study Cases5- Results6- ConclusionRemarks
- #3 The methapor of Code anomaly or bad smell was coined by Fowler and Beck as a program structure that usually indicates a deeper problem in the system
- #4 However, code anomalies are particularly severe when they introduce architecture problems. Examples of these problems are architectural anomalies*Architectural anomalies are compositions of architecture elements that hinder system maintainability.There are several examples of architectural anomalies documented in the literature-
- #5 We’d also like to define architecturally-relevant code anomalies. We call architecturally-relevant all those code anomalies that cause or are related to architecture problems. This God Class, for example.We took this example from a real world application that we analyzed in our study
- #7 - *Manystudieshavebeendedicated to analyzingcodeanomalyimpactKhomh et al [17] also investigate the impact of code anomalies on system changes. They found that anomalous code elements tend to change more frequently than free-anomalous elements.
- #8 Other works investigate the impact of automatically-detected code anomalies on software defects (i.e. the need for corrective maintenance). For instance, D‟Ambros et al found that, while some code anomalies are more frequent, none of them can be considered more harmful with respect to software defects
- #14 This phase was based on a semi-automatic process. We have used Sonar [43] and Understand [47] to support the recovery of the actual architecture from the source code. These tools support architecture and code analyses in order to help developers to analyze and measure the modularity of the system‟s architecture and implementation
- #15 Developers and architects collaborated to provide explicit mappings between the actual, extracted architecture (EA) and the intended architecture (IA). These mappings will be used by the Reflexion Model-based tools to measure the conformance in terms of convergence (a component or relationship that is in both EA and IE), divergence (a component or relationship that is in EA but not in IA), and absence (a component or relationship that is in IA but not EA). For instance, all absence classifications were considered as violations Architectural anomalies were detected by architects based mainly on: (i) a visual inspection of the EA, and (ii) acareful analysis of the code-level elements mapped to architectural-level elements, due to the lack of tools. Wealso asked the original architects to indicate other anomalies observed in the architecture design beyond those presentedin Table 2. This helped us to better judge whether and which code anomalies are good indicators of architecturalmodularity problems.
- #16 For detectingthecodeanomalies, weuseddifferenttools, basedondetectionstrategies. For example, for the Java projects, TogetherandUnderstandwereused for identifyingcodeanomalies; PDP ontheotherhand, is a C# project, soweusedNdepend to analyze it. In thisillustration, theredcrossesmarksdetectedcodeanomalies
- #17 -Finally, weanalyzedtherelationsbetweendetectedcodeanomaliesandtheidentifiedarchitectureproblems.
- #35 Furthermore, our study provided some findings that can help developers to build more effective tools for identifying more severe code smells. For instance, some architecturally-relevant code smell occurrences cannot be detected and prioritized if architectural decisions are not somehow traced and mapped to the source code, and used by code-level smell detection tools.
- #36 Finally, ourresultssuggestthatmechanisms for detectingarchitecturally-relevantcodeanomaliesshouldalsoanalyzetherelationshipbetweencodeanomaliesandtheirimpactonthearchitecture design, that is theyshouldlook for patternsofcodeanomaliesratherthansolelyrelyon individual codeanomalies.Finally, weobservedthat certain recurring patterns of co-occurring code anomalies and the propagation of code anomalies from parents to children in the inheritance trees tend to be stronger indicators of architecture problems than individual anomalyoccurrences
